2108MM HEAVY-DUTY MODULAR FULL
HEIGHT FLOOR CABINET
MODEL NO: APMS21
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
I
MP
PO
R
RTA
TA
NT:
PLEA
S
E READ THE
S
E IN
S
TRU
C
TI
O
N
S
C
AREFULLY. N
O
TE THE
S
AFE
O
PERATI
O
NAL RE
Q
UIREMENT
S
, WARNIN
GS
&
C
AUTI
O
N
S
. U
S
E
TH
HE
P
PR
O
ODU
C
T
CO
RRE
C
TLY AND WITH
C
ARE F
O
R THE P
U
RP
OS
E F
O
R WHI
C
H IT I
S
INTENDED. FAIL
U
RE T
O
D
O
SO
MAY
C
A
US
E DAMA
G
E AND
/O
R
PE
ER
S
SON
N
AL IN
JU
RY AND WILL INVALIDATE THE WARRANTY. KEEP TH
ESE
IN
STR
UCT
ION
S S
AFE
FO
R F
U
T
U
RE
USE
.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
storage system.
Locate in a suitable work area.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use storage on level and solid ground, preferably concrete.
Keep the storage system clean and tidy in accordance with good workshop practice.
Keep children and unauthorised persons away from the work area.
Be aware when assembling of sharp edges. Wear gloves.
During assembly of the cabinet you may require the assistance of another person.
DO NOT use the storage system for any purpose other than that for which it is designed.
DO NOT use the storage system outdoors.
DO NOT place the storage system in a damp or wet location or an area where there is condensation.
DO NOT clean the storage system with any solvents which may damage the surfaces or the protective coating.
DO NOT move the storage system when there are items placed inside.
DO NOT step on the shelves.
DO NOT overload the storage system.
2. INTRODUCTION
Use as part of a complete professional garage storage system or as an individual storage unit. All steel construction with a graphite powder
coat fi nish. Heavy-duty full height single door cabinet. Three adjustable shelves. Four level-adjusting feet. Added security provided by
cylinder lock, supplied with two keys. Requires some self-assembly. Supplied fl at-packed for ease of transportation.
3. SPECIFICATION
Model No: ................................................................ APMS21
Overall Size (W x D x H): ......................610 x 610 x 2108mm
4. CONTENTS
APMS21 Issue 1 30/07/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves

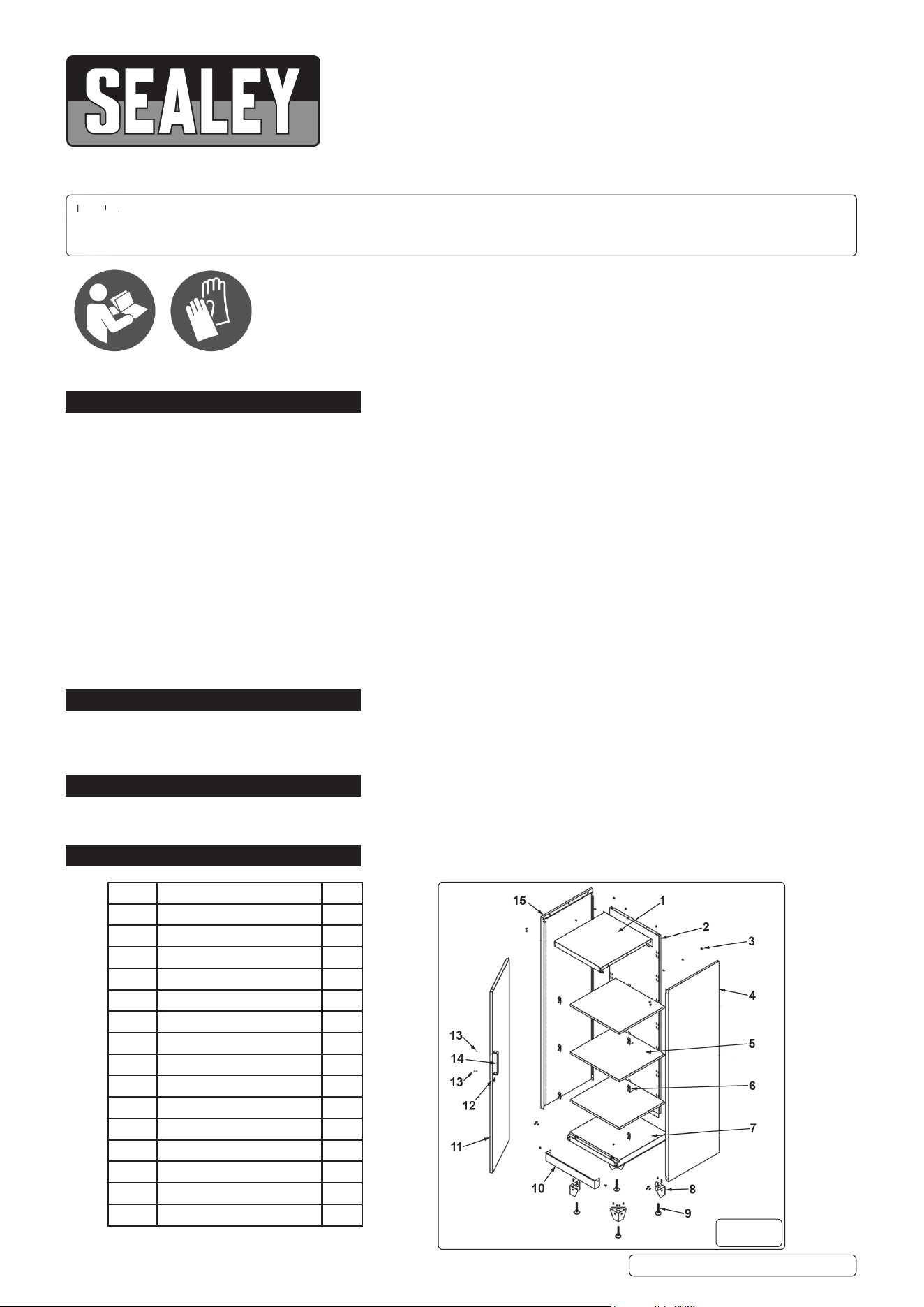

ITEM DESCRIPTION QTY
1 Top panel 1
2 Back panel 1
3 M6 x 12 Cross head screw 40
4 Right side panel 1
5 Shelf 3
6 Shelf support 12
7 Bottom panel 1
8 Metal foot 4
9 Adjustable foot 4
10 Skirting board 1
11 Door 1
12 Lock 1
13 M4 x 8 Cross head screw 2
14 Door handle 1
15 Left side panel 1
fi g.1
5. ASSEMBLY
5.1. BOTTOM PANEL ASSEMBLY
5.1.1. Secure the metal feet (fi g 2 - 8) to the bottom panel (fi g 2 - 7) with M6 x 12 cross head screws (fi g 2 - 3).
5.1.2. Locate and thread the adjustable feet (fi g 2 - 9) into the bottom panel.
5.2. PANEL ASSEMBLY
5.2.1. Prior to panel assembly lay a soft mat or similar on the fl oor to protect the paint fi nish
5.2.2. Attach right side panel (fi g 3 - 4) to back panel (fi g 3 - 2) by sliding it’s edge into the groove on the side edge of the back panel.
5.2.3. Repeat for left side panel (fi g 3 - 15).
5.3. BOTTOM PANEL AND SIDES ASSEMBLY
5.3.1. Locate and align bottom panel assembly fi xing holes with the fi xing holes in the side and bottom panel assembly (fi g 4).
5.3.2. Secure with M6 x 12 cross head screws (fi g 4 - 3).
5.4. TOP PANEL TO SIDES ASSEMBLY
5.4.1. Locate and align top panel (fi g 5 - 1) with fi xing holes in the side panels and secure with M6 x 12 cross head screws (fi g 5 - 3).
5.4.2. Secure top panel (fi g 5 - 1) to front fi xing holes on side panels with M6 x 12 cross head screws (fi g 5 - 3).
5.5. FINAL PANEL FIXINGS
5.5.1. With the assistance of another person rotate the cabinet assembly onto it’s side (fi g 6).
5.5.2. Secure the remaining fi xings of the bottom panel assembly and top panel with M6 x 12 cross head screws (fi g 6 - 3).
5.6. ATTACHING THE SHELVES
5.6.1. With the assistance of another person stand the cabinet upright (fi g 7).
5.6.2. Insert the shelf supports (fi g 7 - 6) into the slots on the back panel and
inner face of the front panel, at the desired heights.
5.6.3. Fit the shelf (fi g 7 - 5) onto the appropriate set of shelf supports.
5.6.4.
Press the shelf fi rmly until locked onto the shelf supports.
5.6.5. The shelves can be adjusted by removing them off the supports and
repositioning the supports at the new desired height.
5.7. ATTACHING THE DOOR
NOTE: The door (fig 8 - 11) has a pin fitted at the bottom and a spring bolt fitted at the top.
5.7.1. Locate the bottom pin into the hole at the front of the base unit assembly (fi g 8).
5.7.2. Pull the top spring pin down and align with the hole in the top panel rail (fi g 8).
5.7.3. Release the top spring to allow the bolt to locate into the hole.
5.8. ATTACHING THE DOOR HANDLE
5.8.1. Locate the door handle (fi g 9 - 14) to it’s corresponding fi xing holes, on the door, and secure with M4 x 8 cross head screws
(fi g 9 - 13).
APMS21 Issue 1 30/07/21
Original Language Version
© Jack Sealey Limited

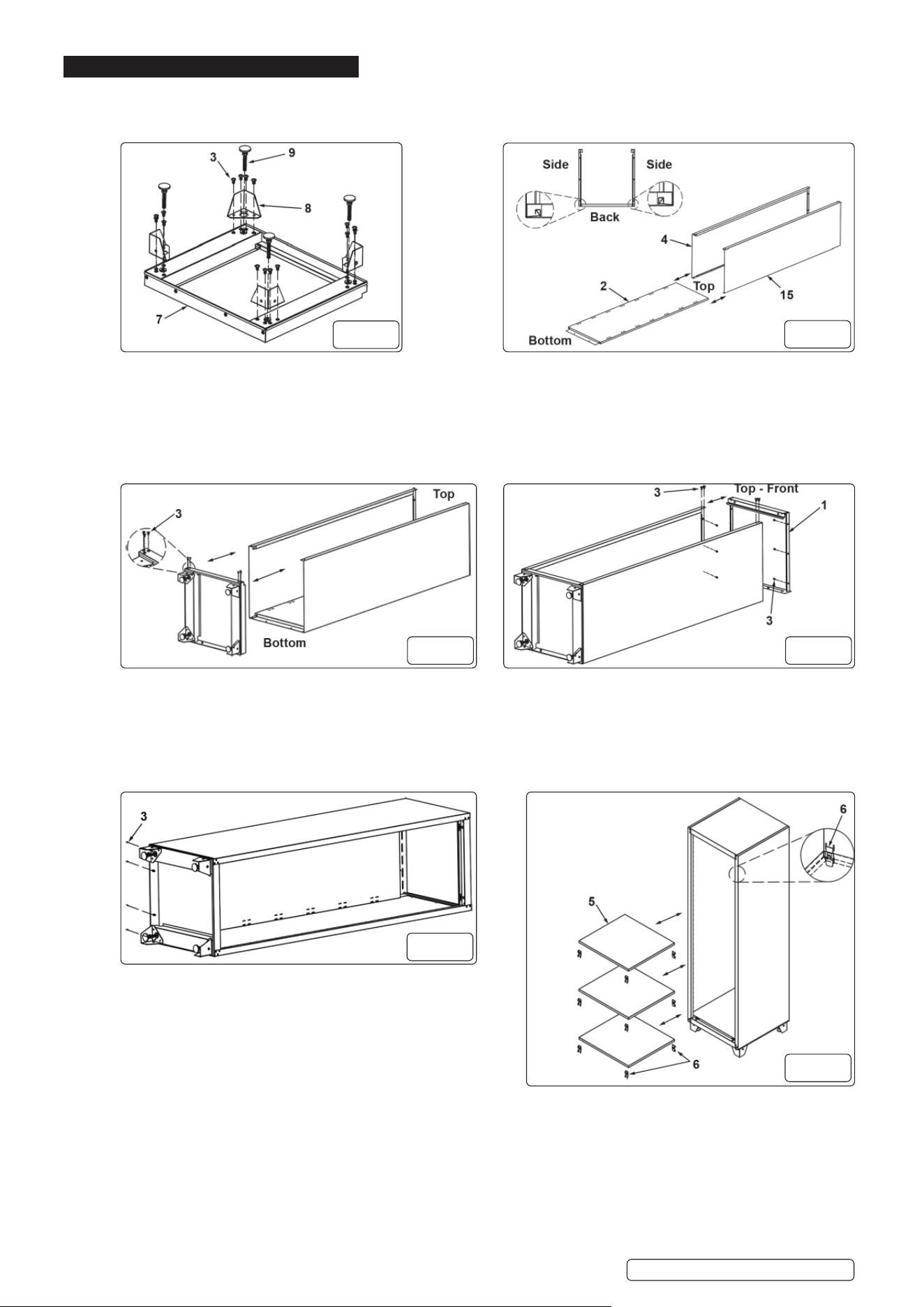

fi g.2
fi g.3
fi g.4 fi g.5
fi g.6
fi g.7
5.9. ATTACHING THE SKIRTING BOARD
5.9.1. Prior to attaching the skirting board level the cabinet by rotating the adjusting feet (fi g 2 - 9) to suit.
5.9.2. Attach the skirting board (fi g 9 - 10) into position and secure with M6 x 12 cross head screws (fi g 9 - 3).
APMS21 Issue 1 30/07/21
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
