MV7X
Podcast Microphone
Online user guide for MV7X.
Version: 1.2 (2021-J)
Shure Incorporated
3/7
•
MV7X
Podcast Microphone
General Description
The Shure MV7X is a professional-quality dynamic microphone, ideal for close mic applications that require vocal intelligibility
withabalancedtone.Theattractiveanddurableall-metaldesignfeaturesanadjustableyokethatcanbemountedontoavari-
ety of microphone stands for flexible placement options.
Features
Voice Isolation Technology
Highly directional cardioid pattern isolates your voice and removes unwanted background noise
Durable, Versatile Design
Rugged, all-metal construction and excellent cartridge protection for outstanding reliability
The MV7X Microphone
The MV7X features a dynamic capsule with a cardioid pattern, which uses Voice Isolation Technology to pick up sound directly
in front of the microphone.

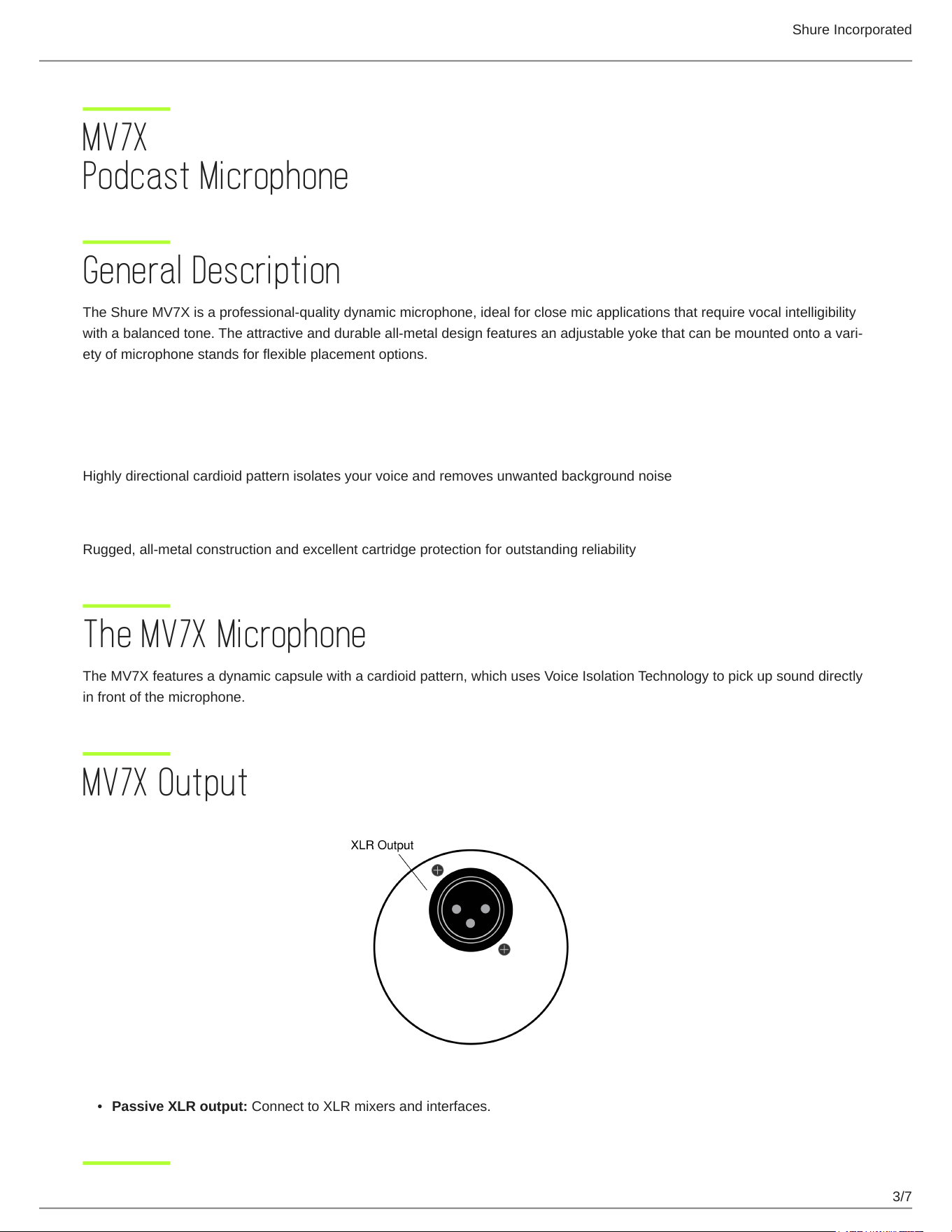

MV7X Output
Passive XLR output: Connect to XLR mixers and interfaces.
Shure Incorporated
4/7

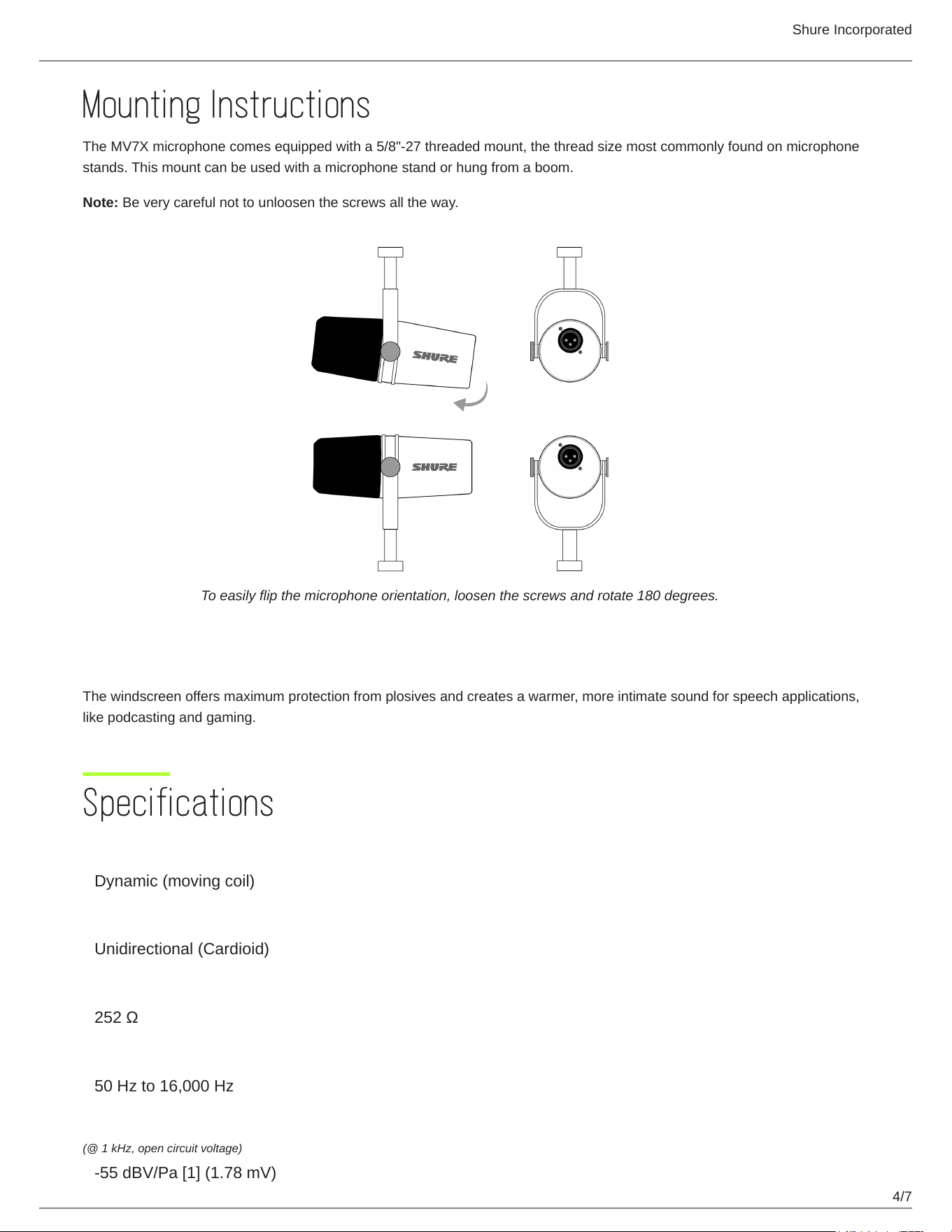

Mounting Instructions
The MV7X microphone comes equipped with a 5/8"-27 threaded mount, the thread size most commonly found on microphone
stands. This mount can be used with a microphone stand or hung from a boom.
Note: Be very careful not to unloosen the screws all the way.
To easily flip the microphone orientation, loosen the screws and rotate 180 degrees.
Windscreen
The windscreen offers maximum protection from plosives and creates a warmer, more intimate sound for speech applications,
like podcasting and gaming.
Specifications
Transducer Type
Dynamic (moving coil)
Polar Pattern
Unidirectional (Cardioid)
Output Impedance
252Ω
Frequency Response
50Hzto16,000Hz
Sensitivity
(@ 1 kHz, open circuit voltage)
-55dBV/Pa[1](1.78mV)
Shure Incorporated
5/7
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Housing
All metal construction
Mounting Type
5/8-27 thread mount
Net Weight
0.55kg(1.21lbs)
[1]1Pa=94dBSPL

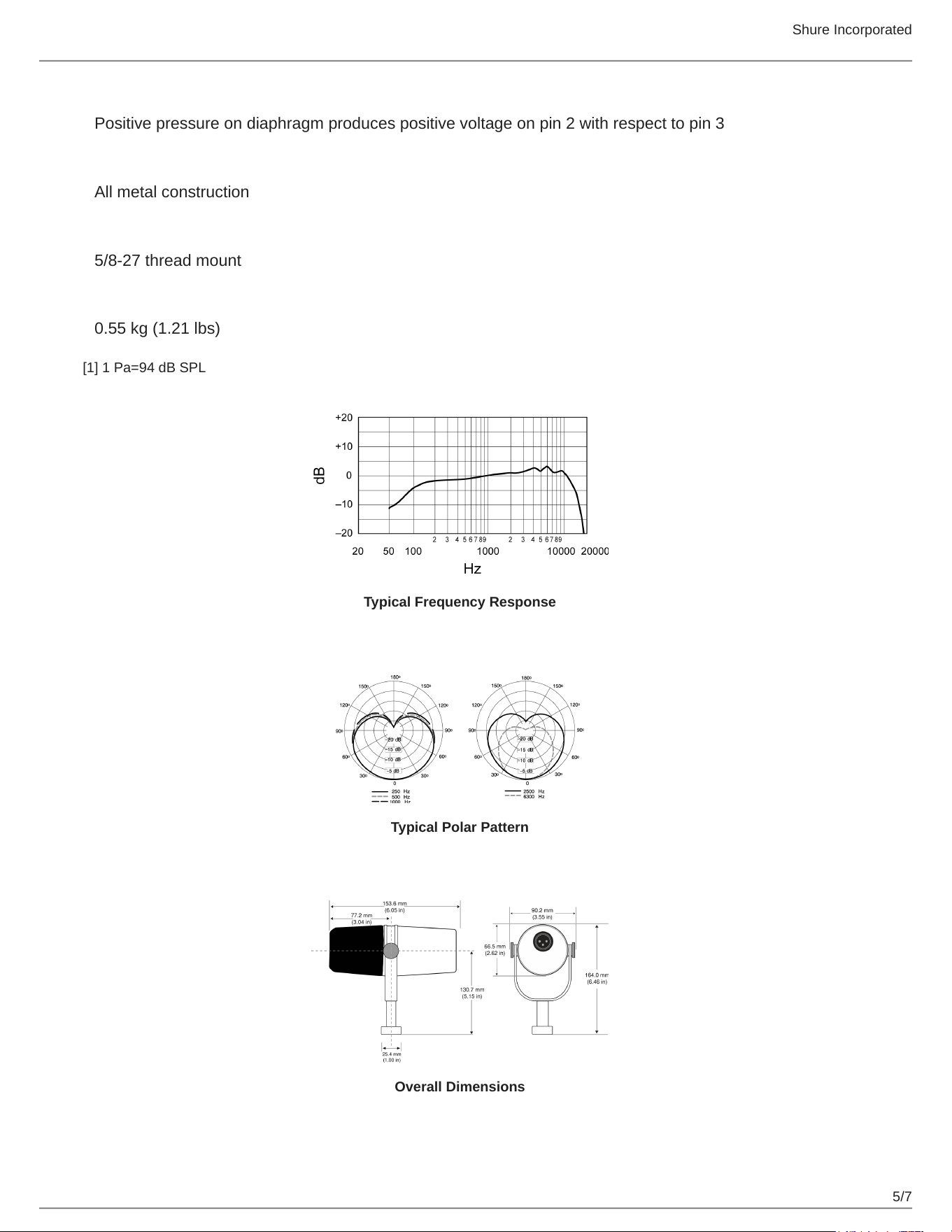

Typical Frequency Response
Typical Polar Pattern
Overall Dimensions
Shure Incorporated
6/7
1.
2.
◦
◦
◦
◦
3.
4.
5.
6.
7.

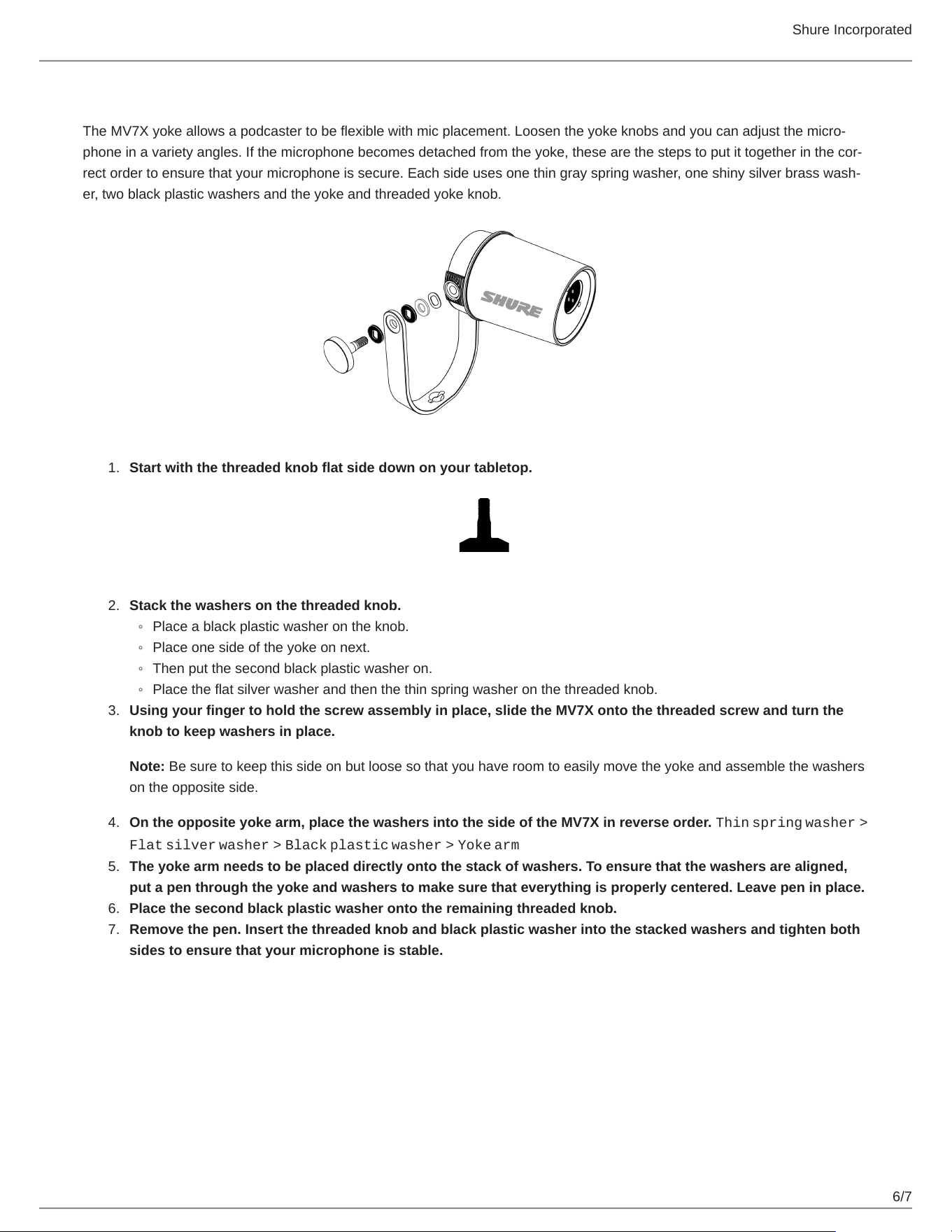

MV7X Yoke Assembly
TheMV7Xyokeallowsapodcastertobeflexiblewithmicplacement.Loosentheyokeknobsandyoucanadjustthemicro-
phoneinavarietyangles.Ifthemicrophonebecomesdetachedfromtheyoke,thesearethestepstoputittogetherinthecor-
rectordertoensurethatyourmicrophoneissecure.Eachsideusesonethingrayspringwasher,oneshinysilverbrasswash-
er, two black plastic washers and the yoke and threaded yoke knob.
Start with the threaded knob flat side down on your tabletop.
Stack the washers on the threaded knob.
Place a black plastic washer on the knob.
Place one side of the yoke on next.
Then put the second black plastic washer on.
Place the flat silver washer and then the thin spring washer on the threaded knob.
Using your finger to hold the screw assembly in place, slide the MV7X onto the threaded screw and turn the
knob to keep washers in place.
Note: Be sure to keep this side on but loose so that you have room to easily move the yoke and assemble the washers
on the opposite side.
On the opposite yoke arm, place the washers into the side of the MV7X in reverse order. Thin spring washer >
Flat silver washer > Black plastic washer > Yoke arm
The yoke arm needs to be placed directly onto the stack of washers. To ensure that the washers are aligned,
put a pen through the yoke and washers to make sure that everything is properly centered. Leave pen in place.
Place the second black plastic washer onto the remaining threaded knob.
Remove the pen. Insert the threaded knob and black plastic washer into the stacked washers and tighten both
sides to ensure that your microphone is stable.
Shure Incorporated
7/7

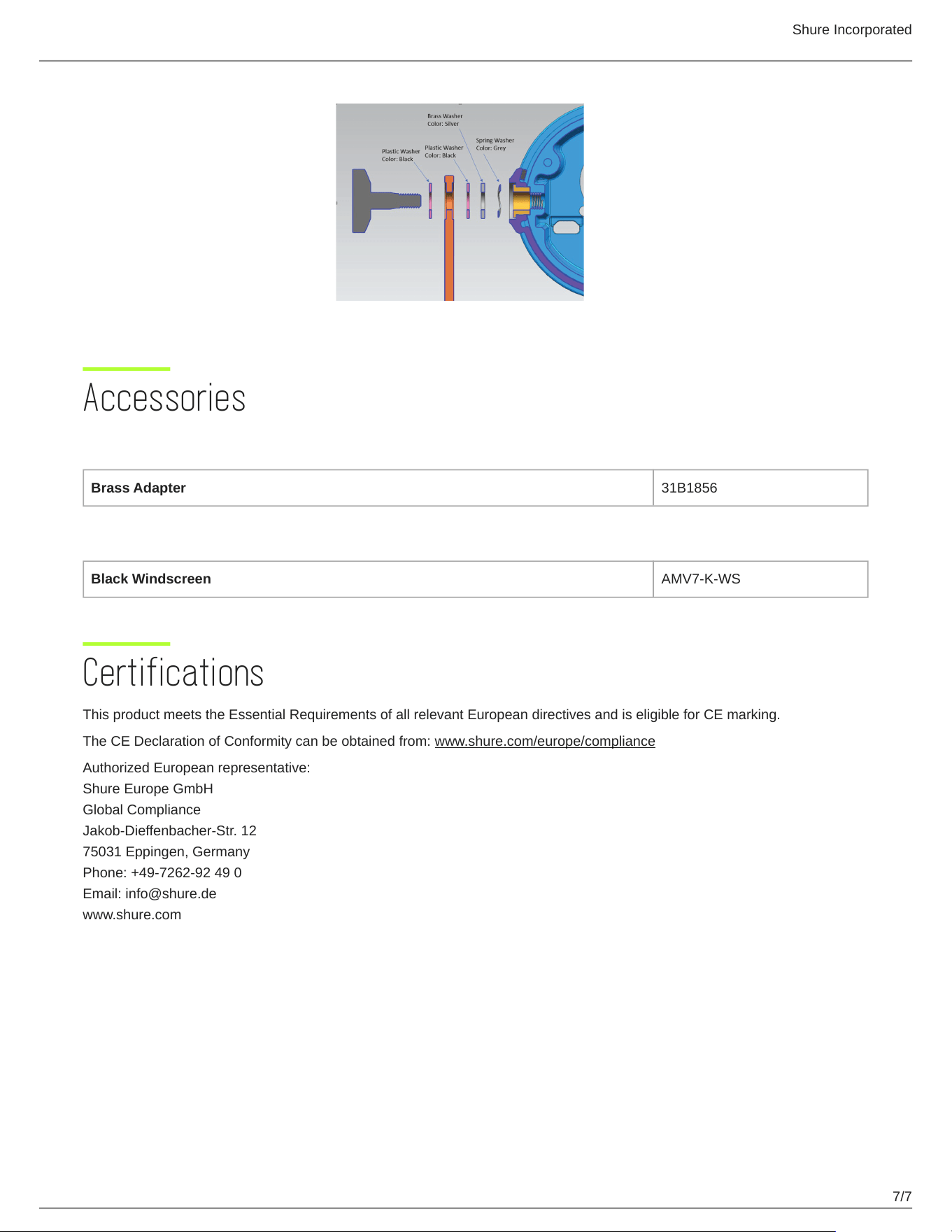

Accessories
Furnished Accessories
Brass Adapter 31B1856
Replacement Parts
Black Windscreen AMV7-K-WS
Certifications
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Global Compliance
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Email: [email protected]
www.shure.com
