INSTALLATION GUIDE
for the
SB-GM-CTRIP/10TW3
SKU# 94602 OR 94603
2010 & Up Chevrolet Camaro Coupe
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Empty the trunk of the vehicle.
Continued on Next Page
STEP 2
Empty the rear seat area, and fold down the rear seat back.
STEP 3

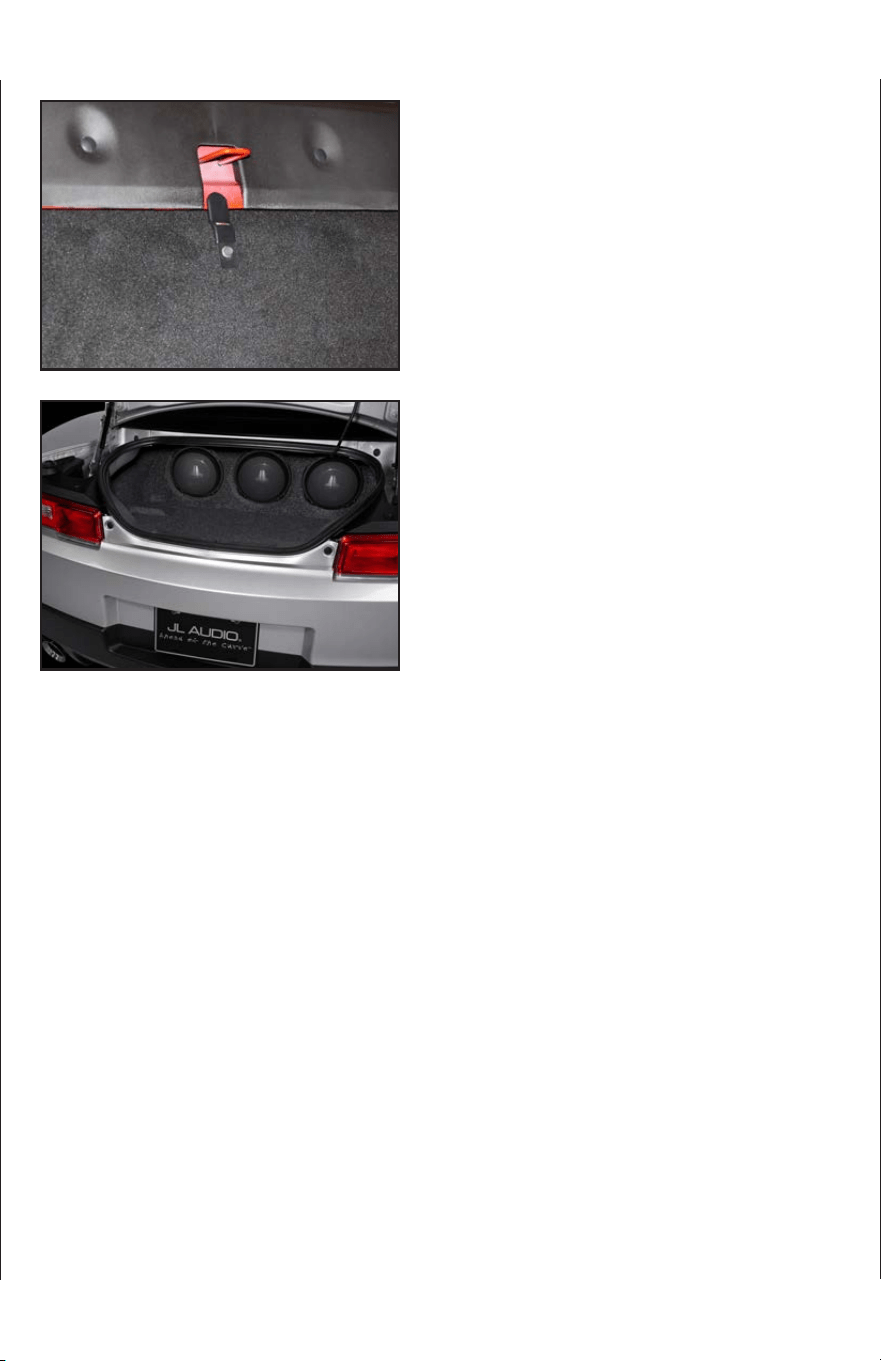

Connect speaker cable to the terminal cup on the
Stealthbox®, and carefully place the enclosure face down in
the trunk as shown.
SB-GM-CTRIP/10TW3 INSTR_SKU# 011381
INSTALLATION
DIFFICULTY:
1
5
OUT
OF
ESTIMATED TIME:
1/2 HOUR
