BOYO VTC500DIY - Vehicle Backup Camera System

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
VTC500DIY photo

Installation and Owner's manual

This is the main product document for model VTC500DIY.

The file format is pdf, 24 pages, you can download this manual here .

background
Model: VTC500DIY
Rear View Camera System
5” Monitor and
Bracket Mount Camera
background
1 888 941 3060
background
1 888 941 3060
This kit is designed for Cars (Sedans), Vans, Pickups, Small Buses and Trucks.
1 888 941 3060
background
1 888 941 3060

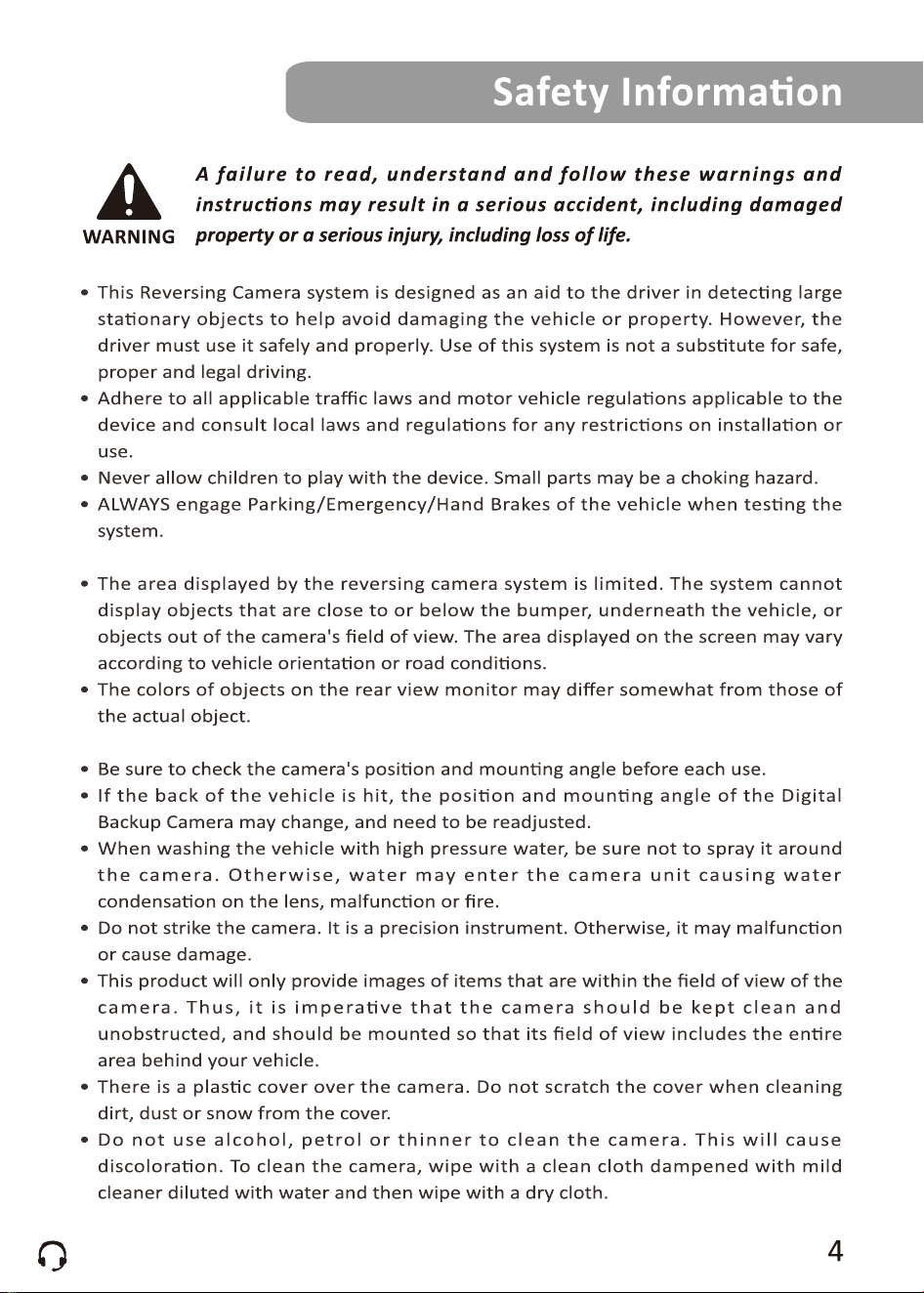

background
1 888 941 3060

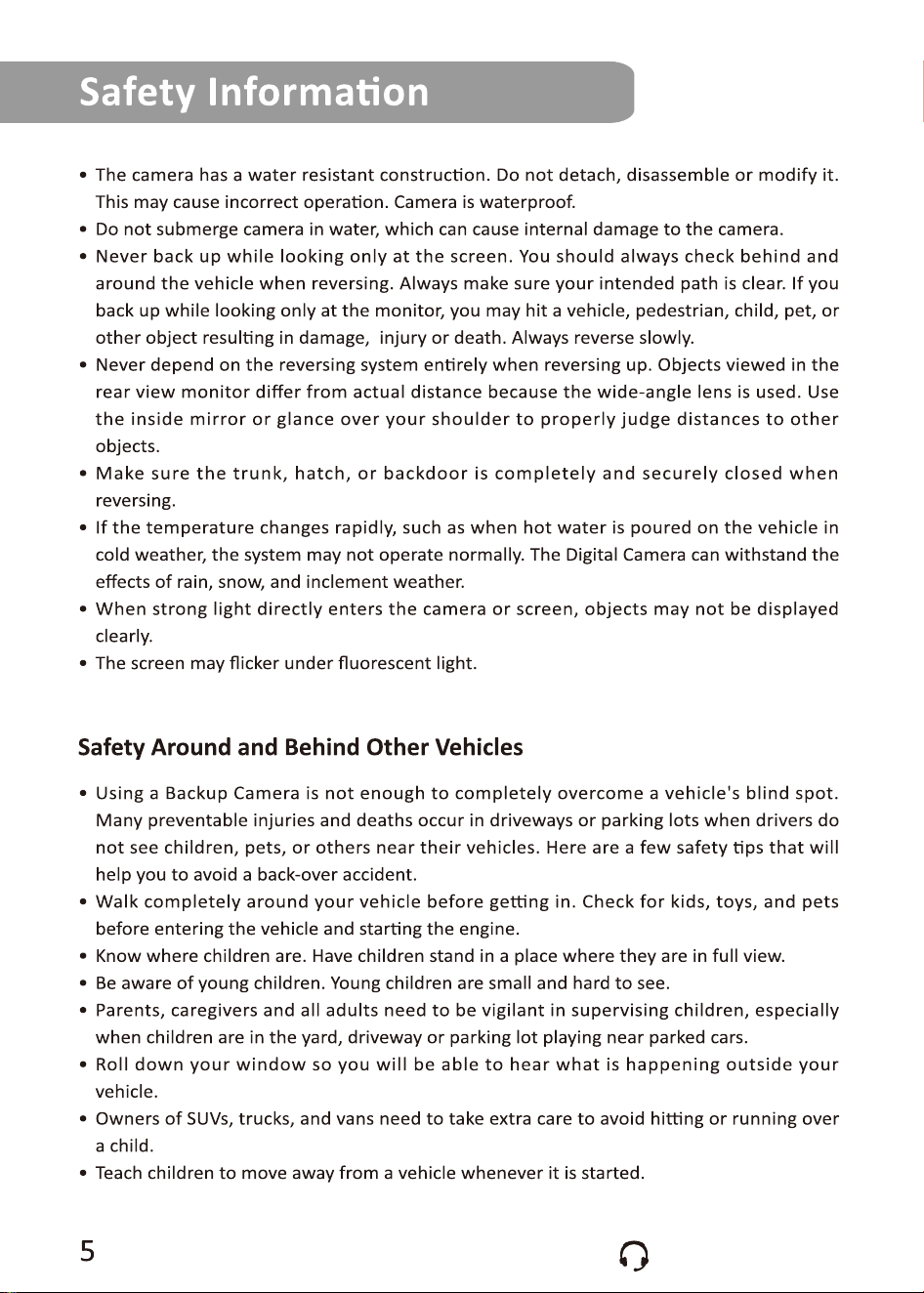

background
1 888 941 3060
background

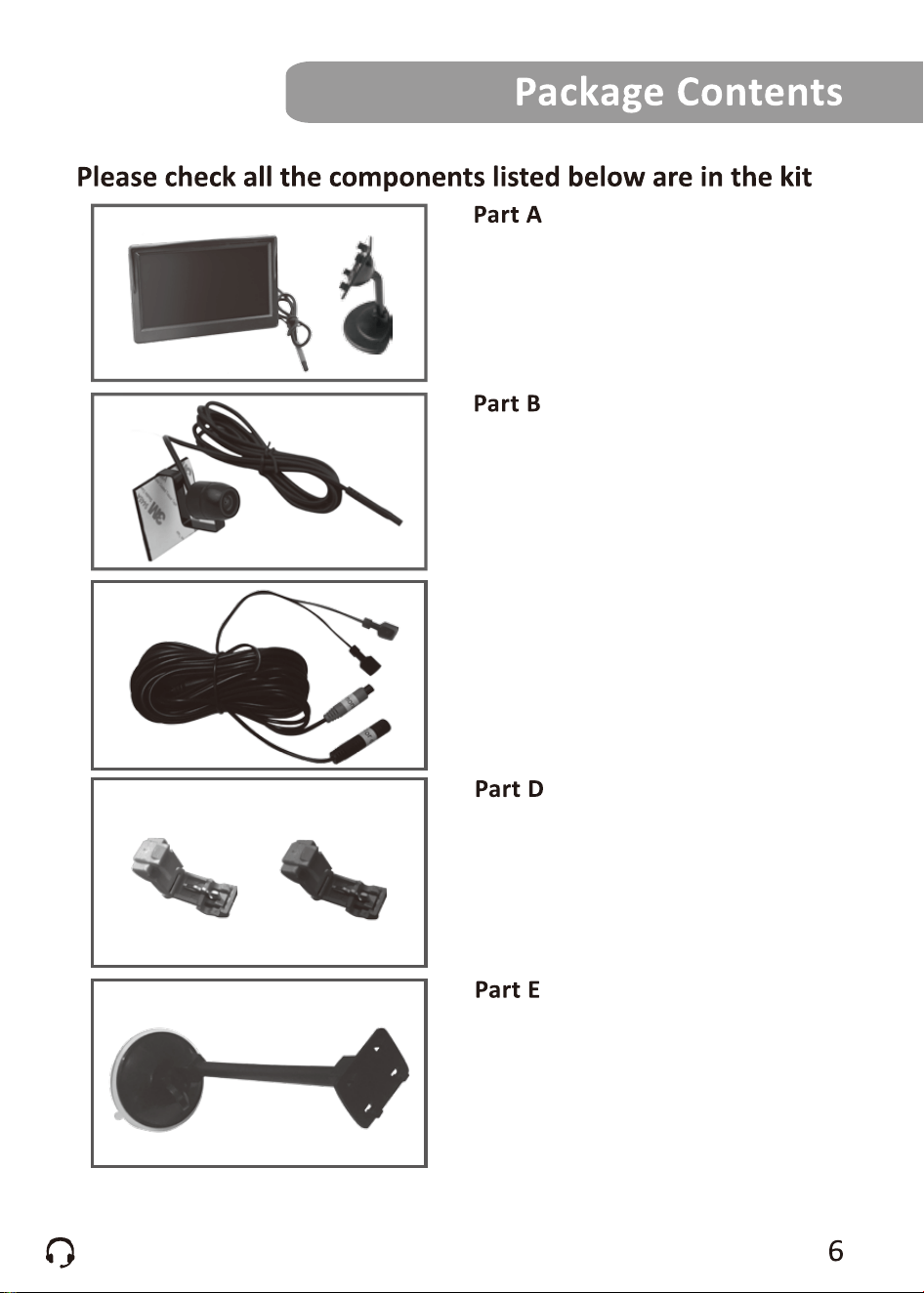

1 x 26 feet main cable
with quick connectors
Part C
1 x pair of quick
connectors
1 x 5" monitor with dash mount
1 x camera with mounting
bracket and 3m (9.84 feet)
cable
1 x suction cup mount
1 888 941 3060

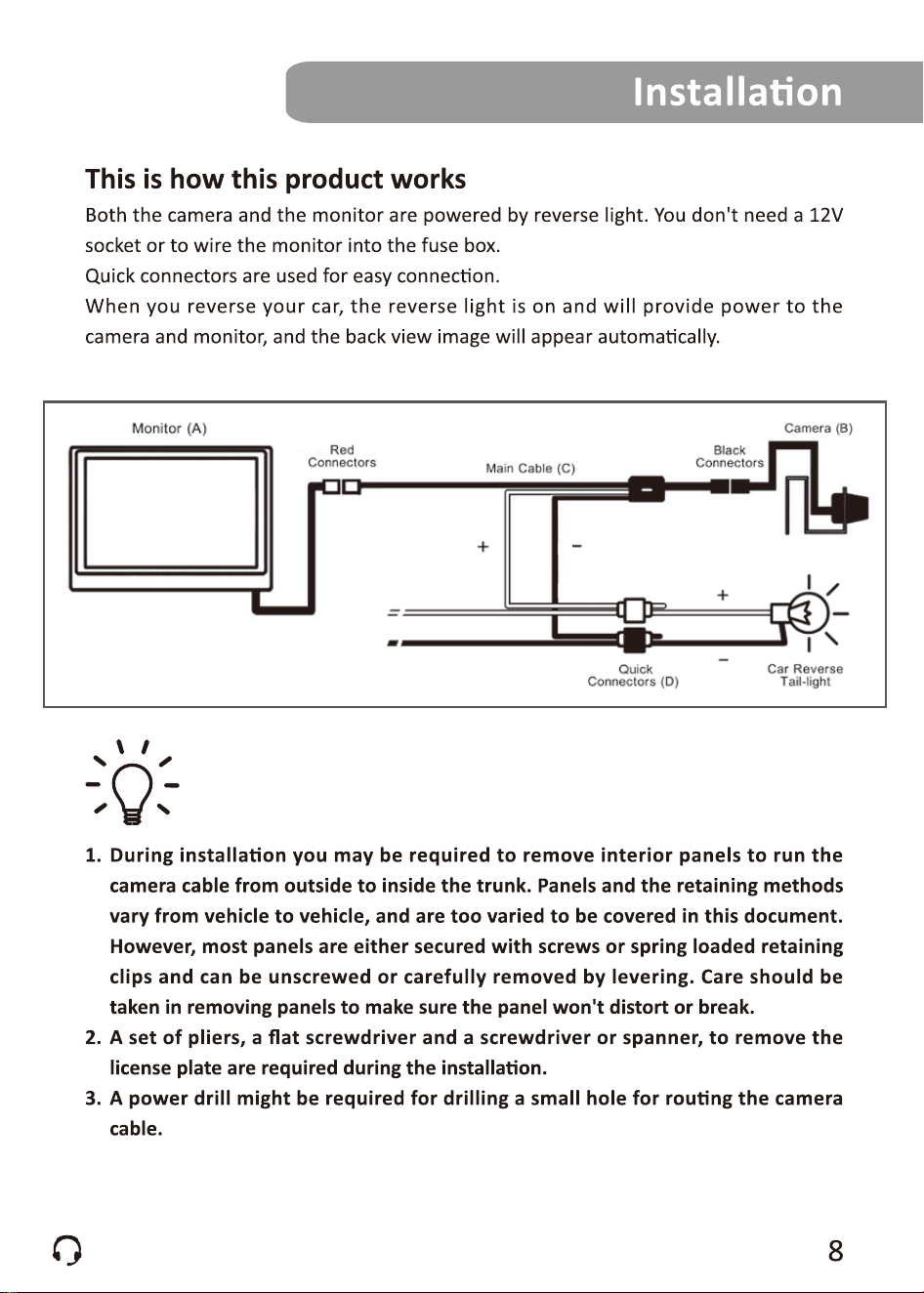

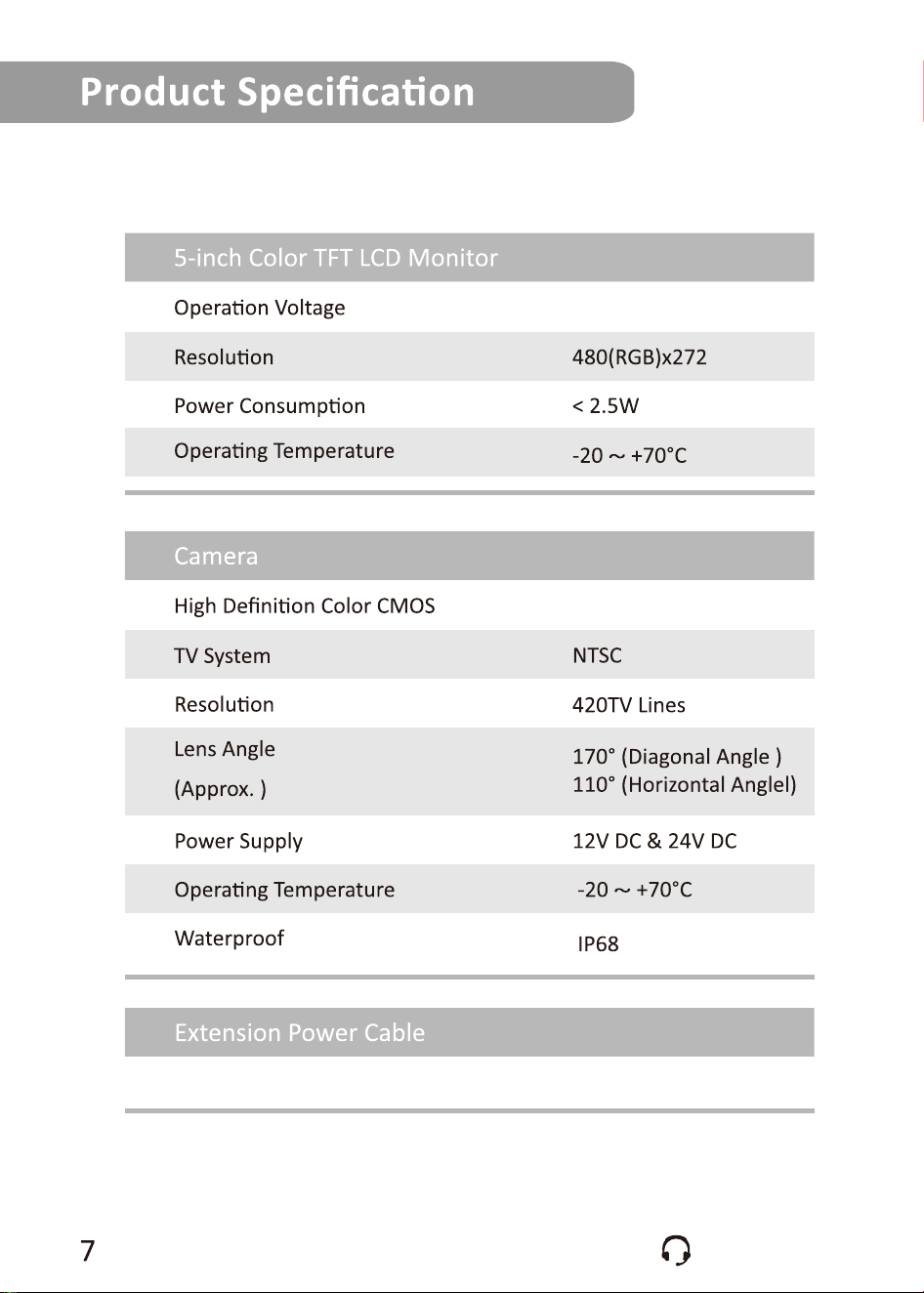

background

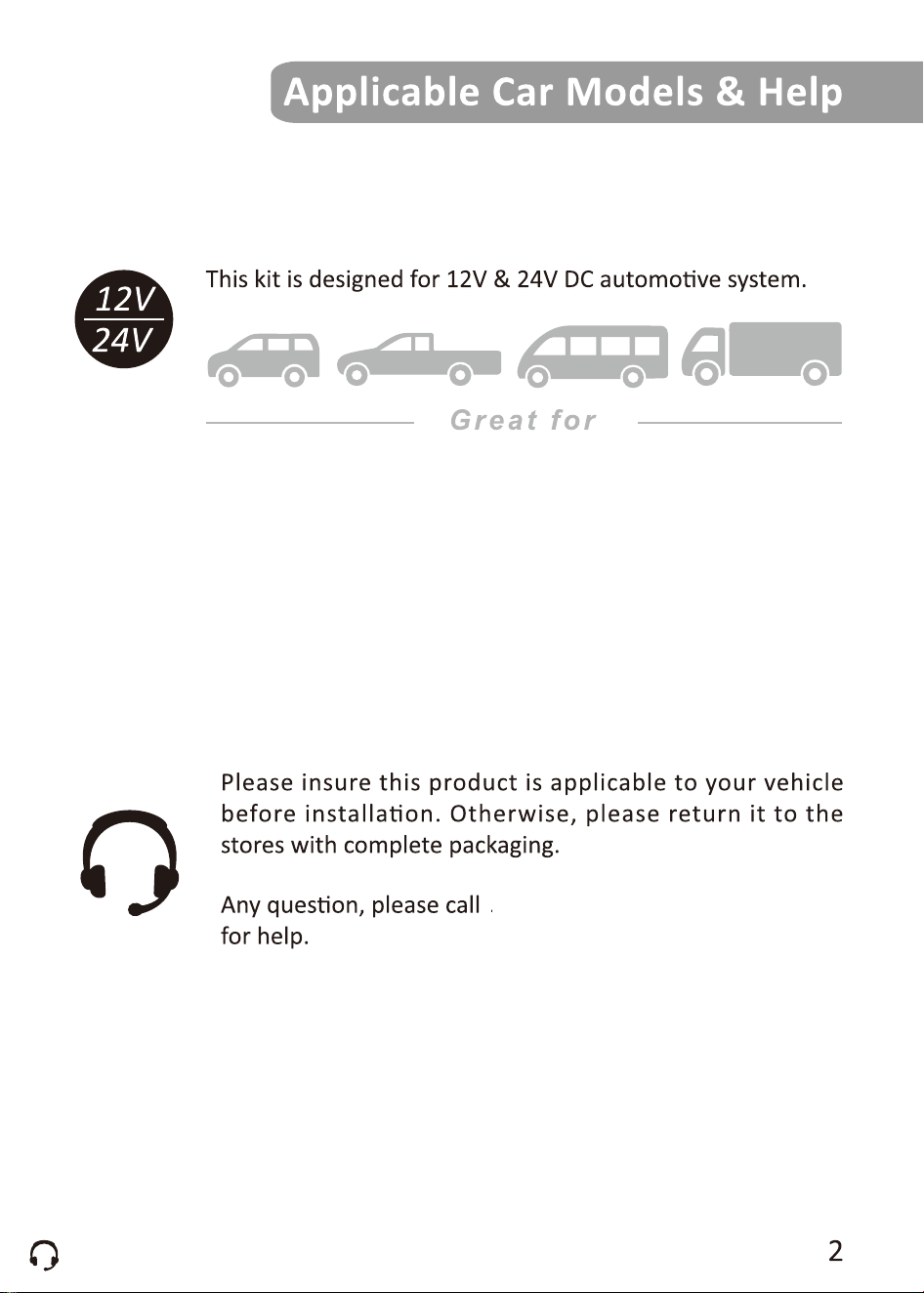

12V DC & 24V DC
Total 26 feet reach
1 888 941 3060
background
1 888 941 3060

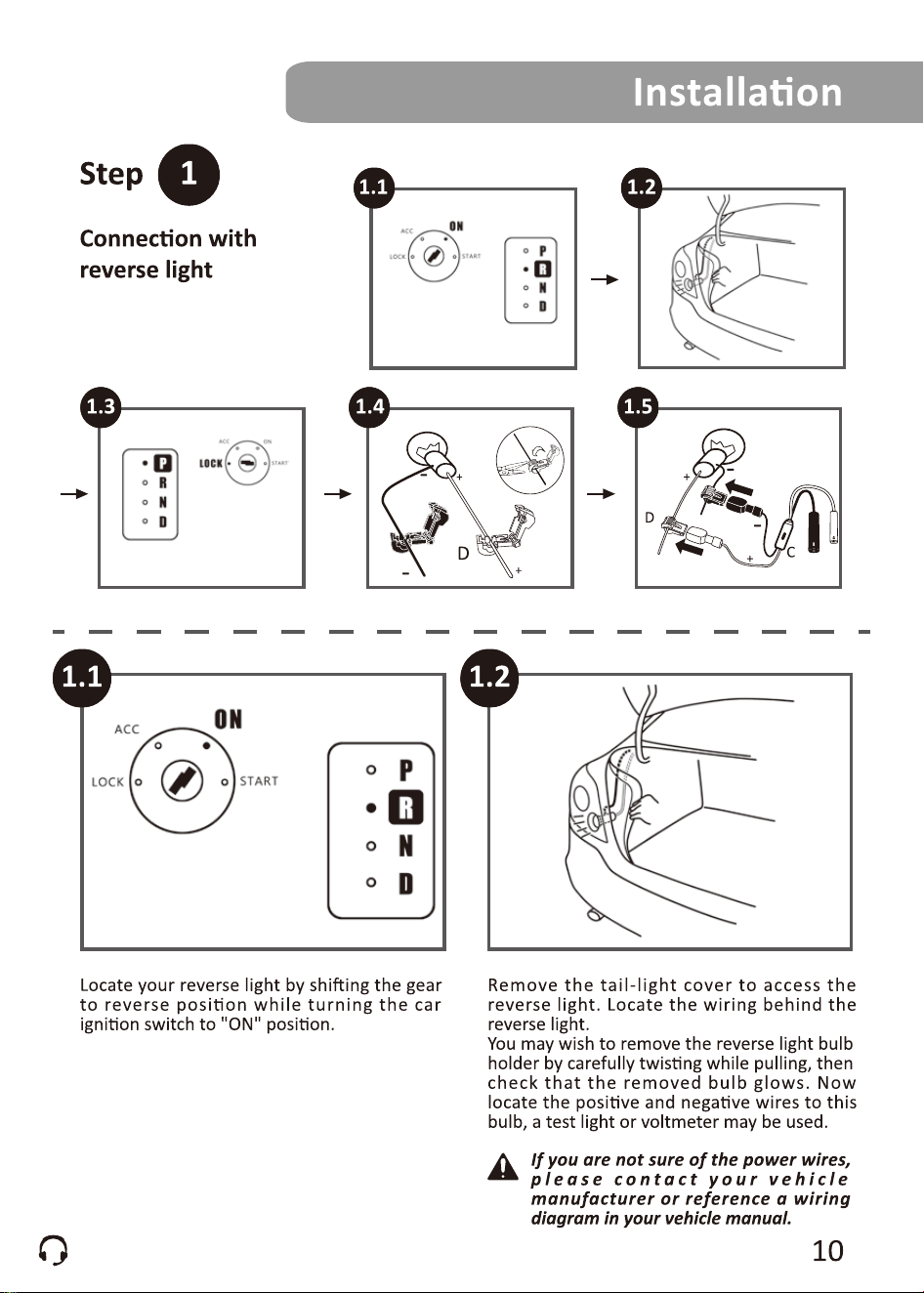

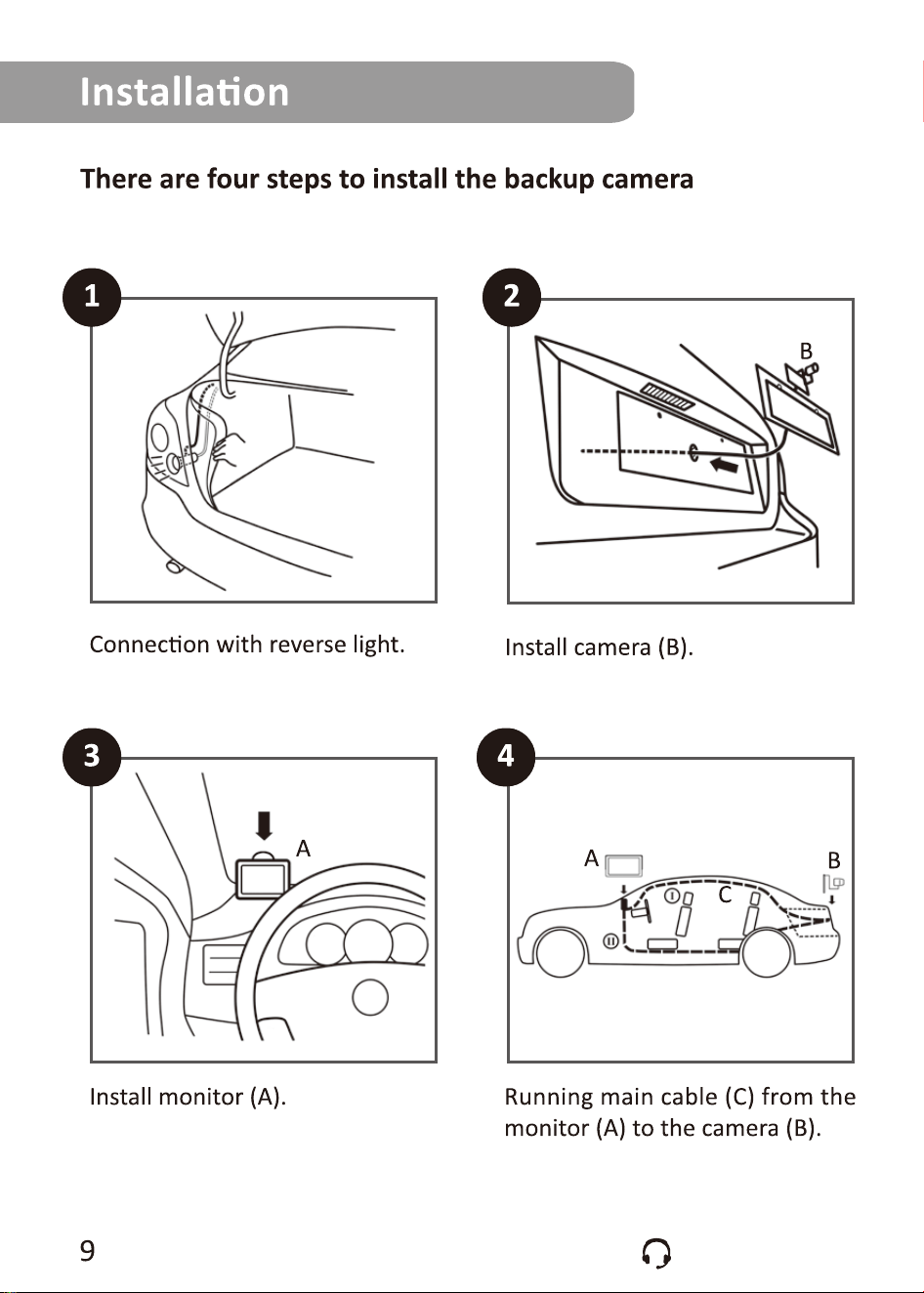

background
1 888 941 3060

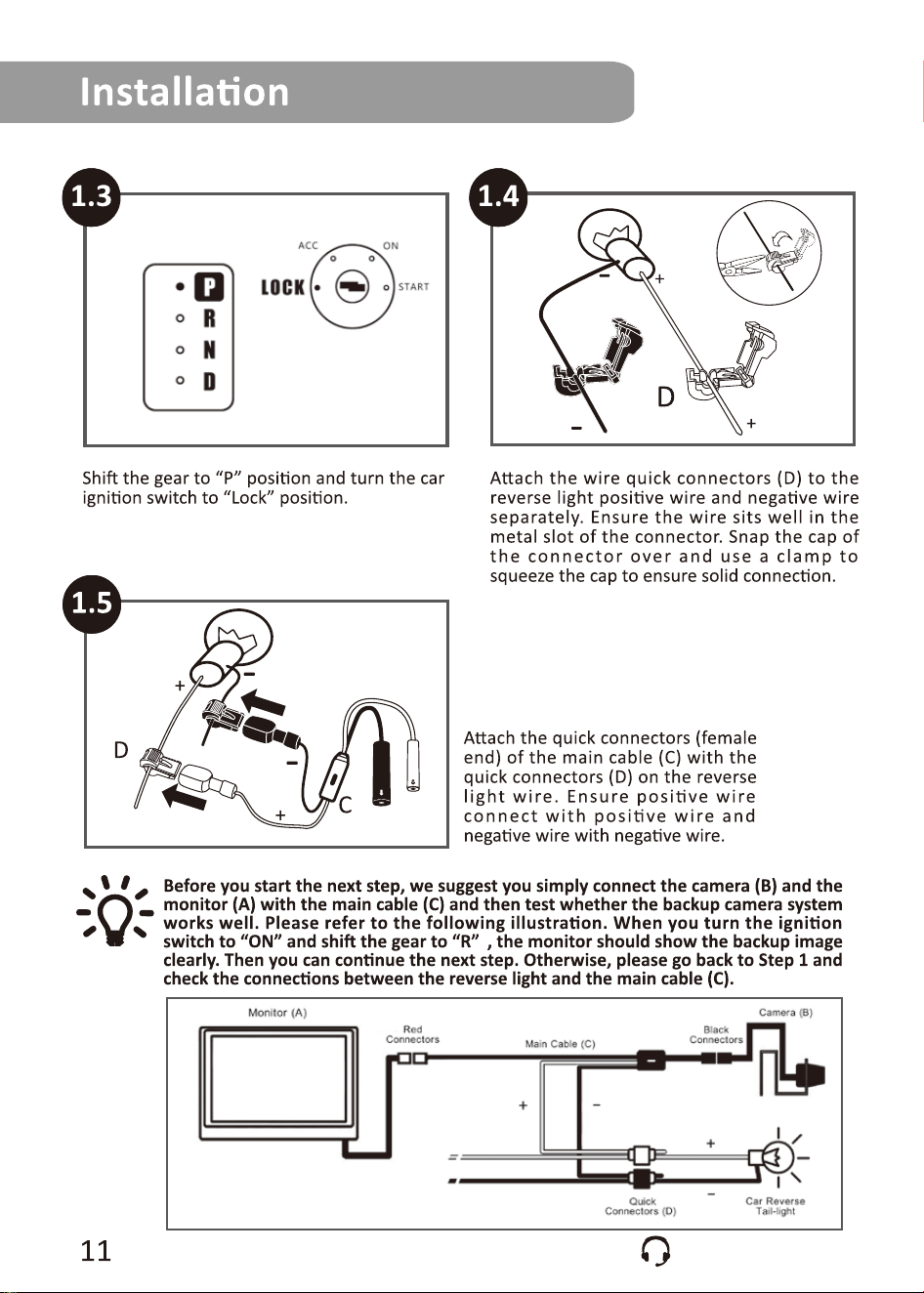

background
1 888 941 3060

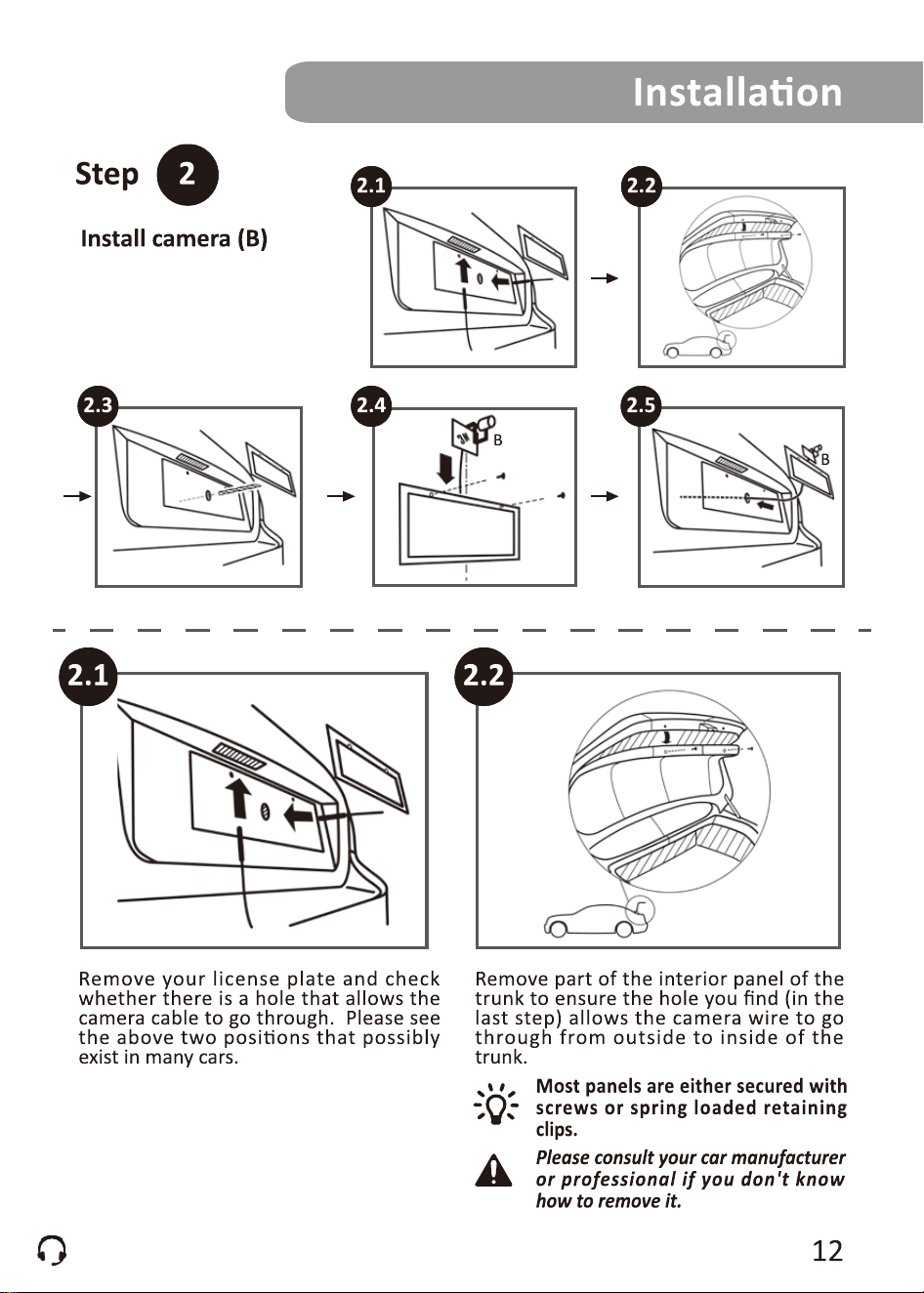

background
1 888 941 3060
background
1 888 941 3060

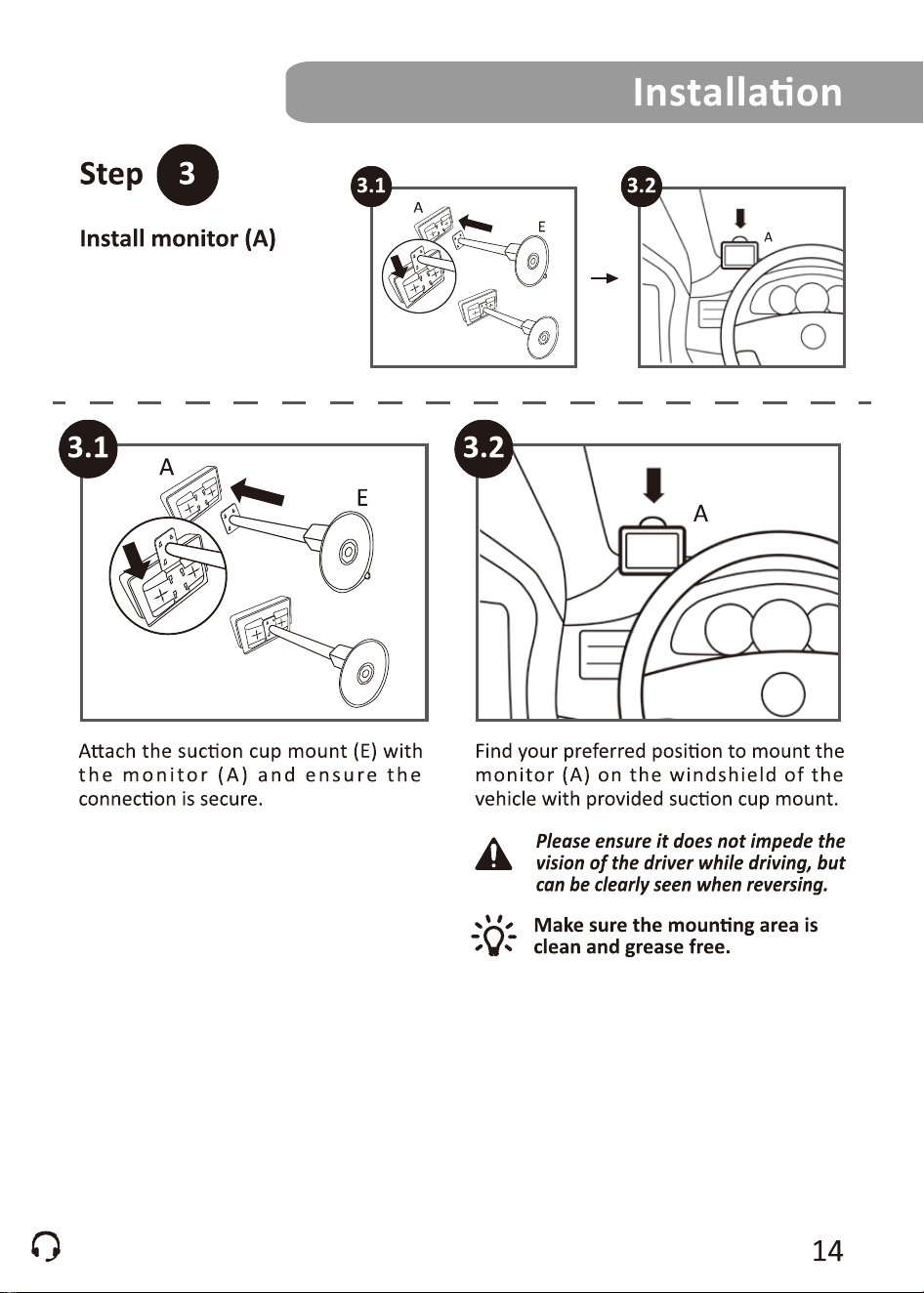

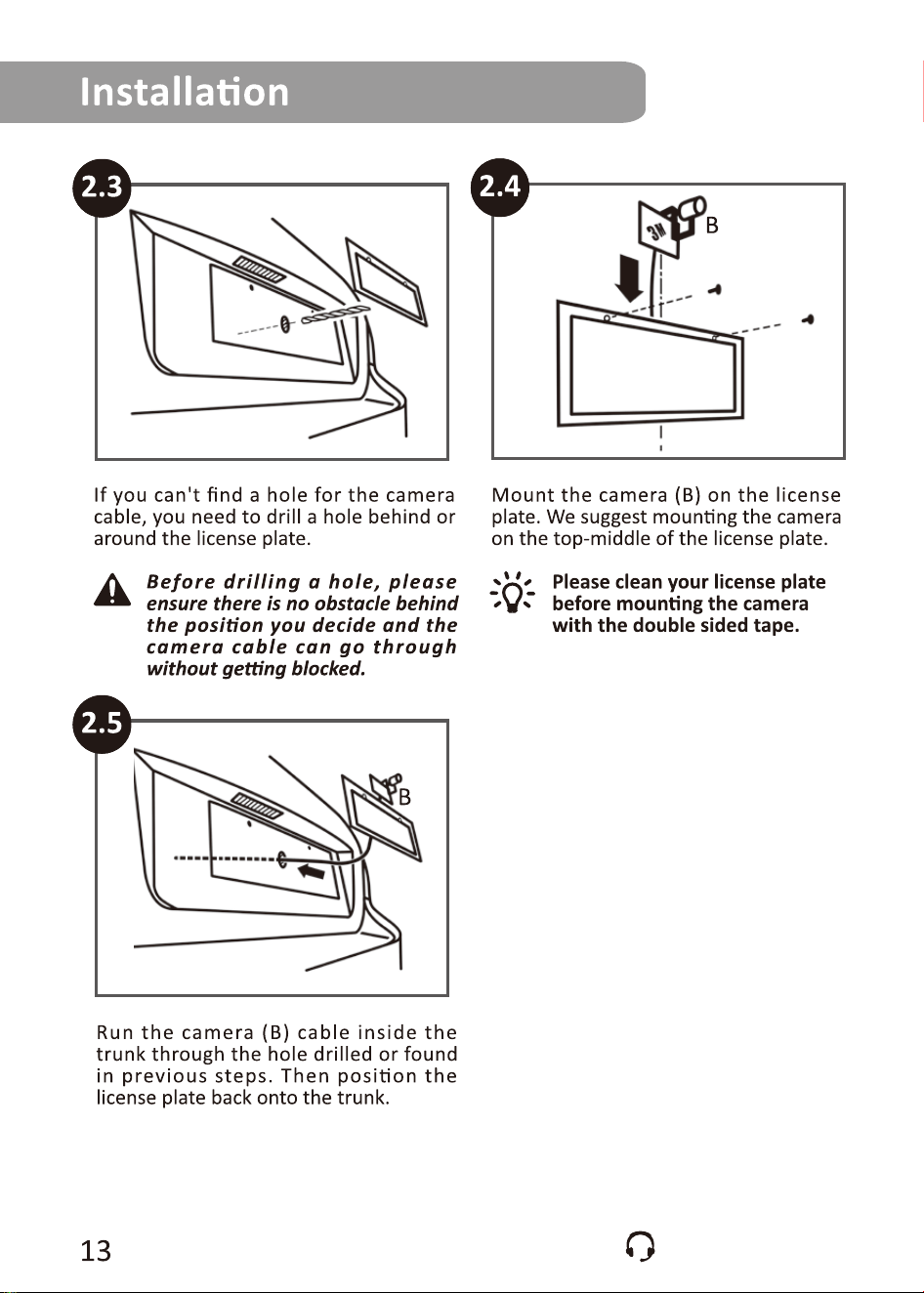

background
1 888 941 3060
background
1 888 941 3060

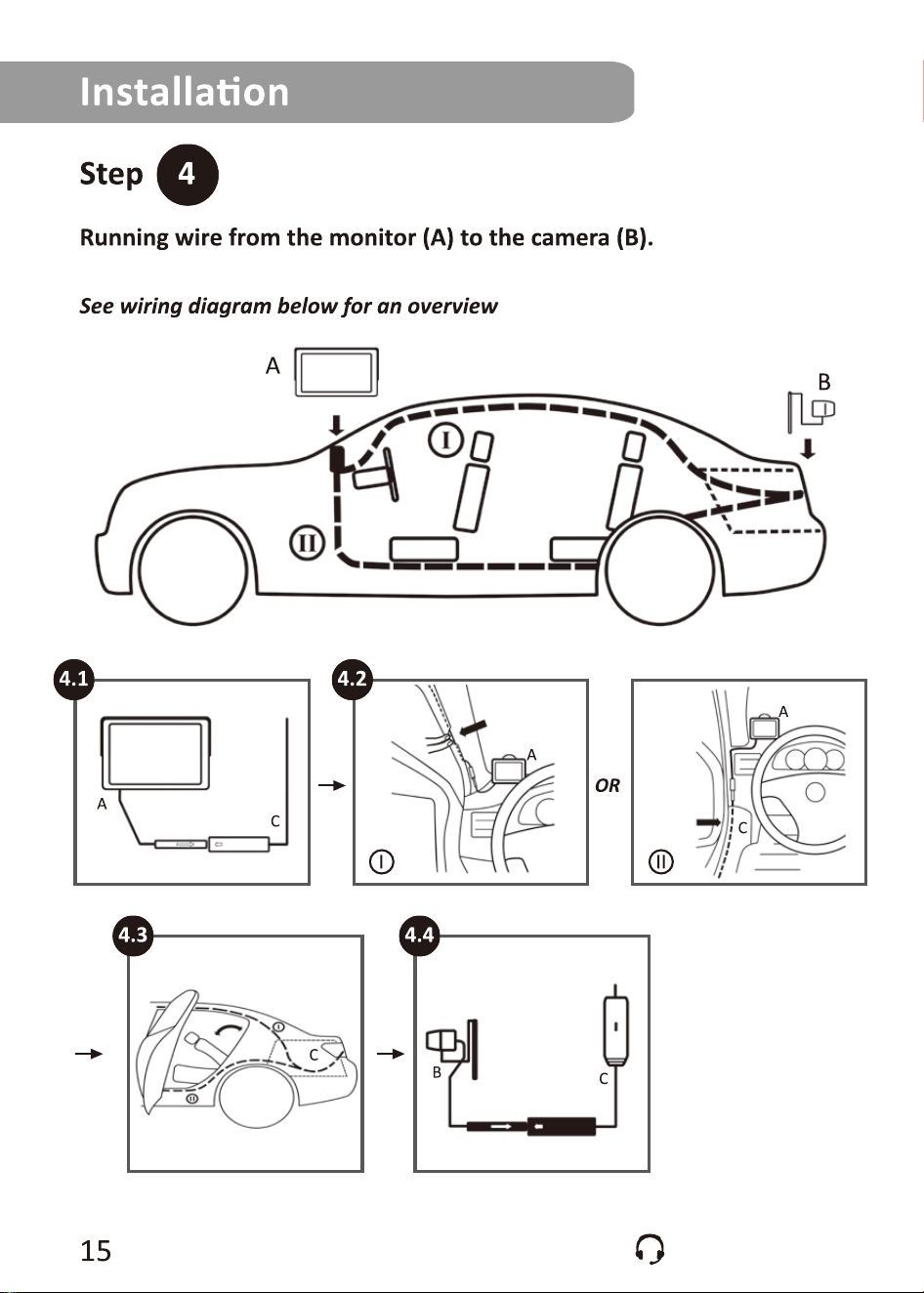

background
1 888 941 3060
background
1 888 941 3060

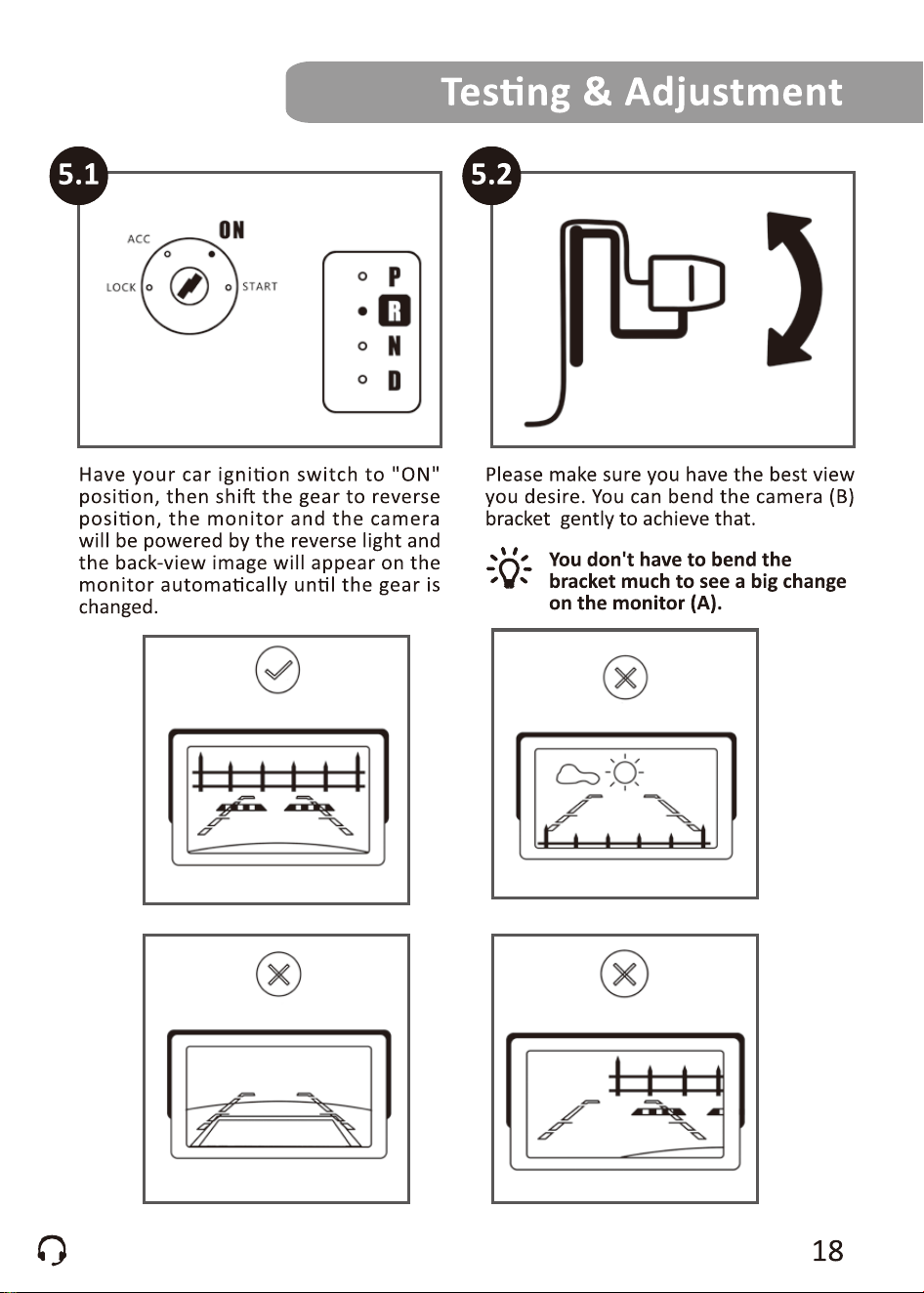

background
1 888 941 3060

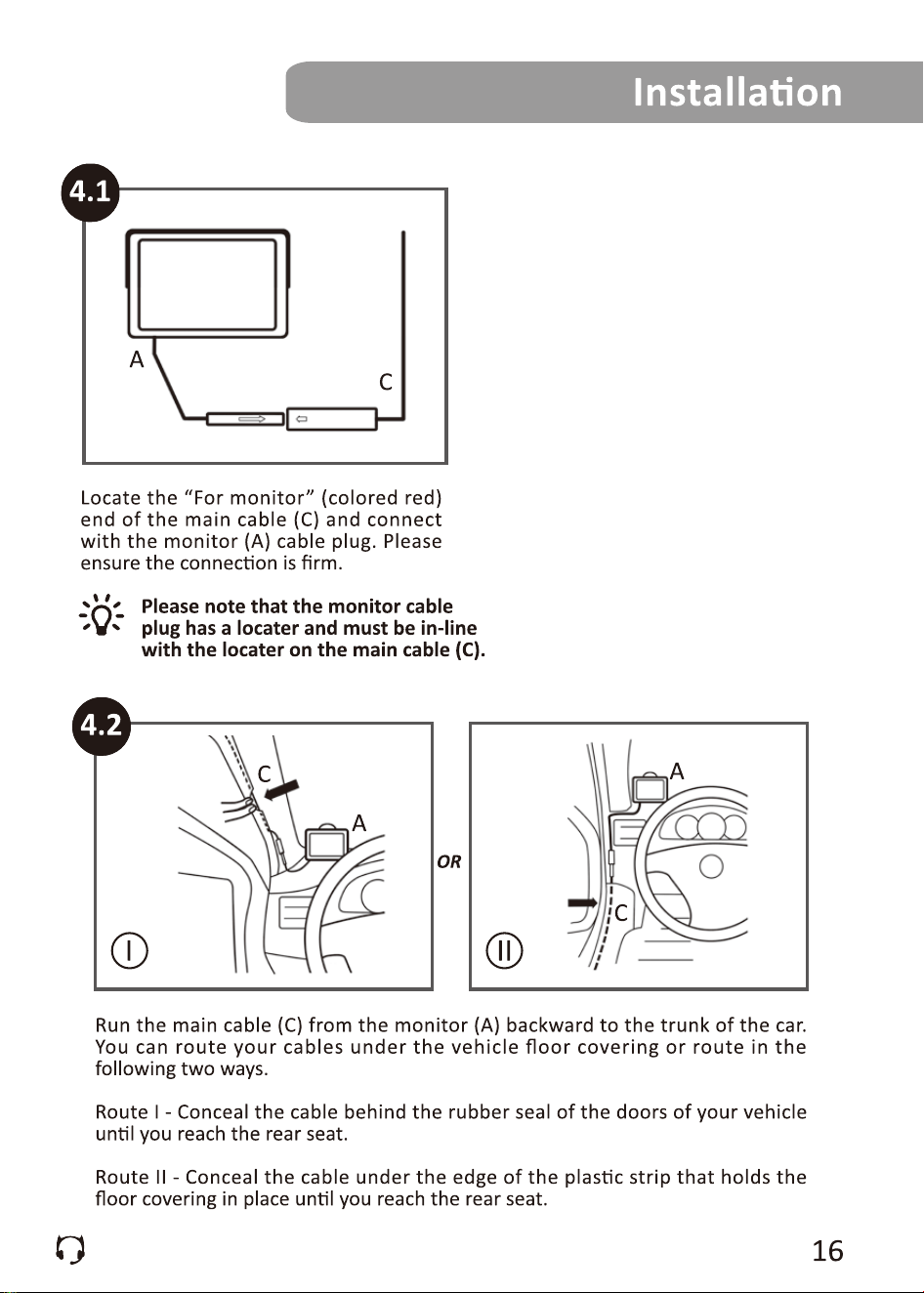

background
1 888 941 3060

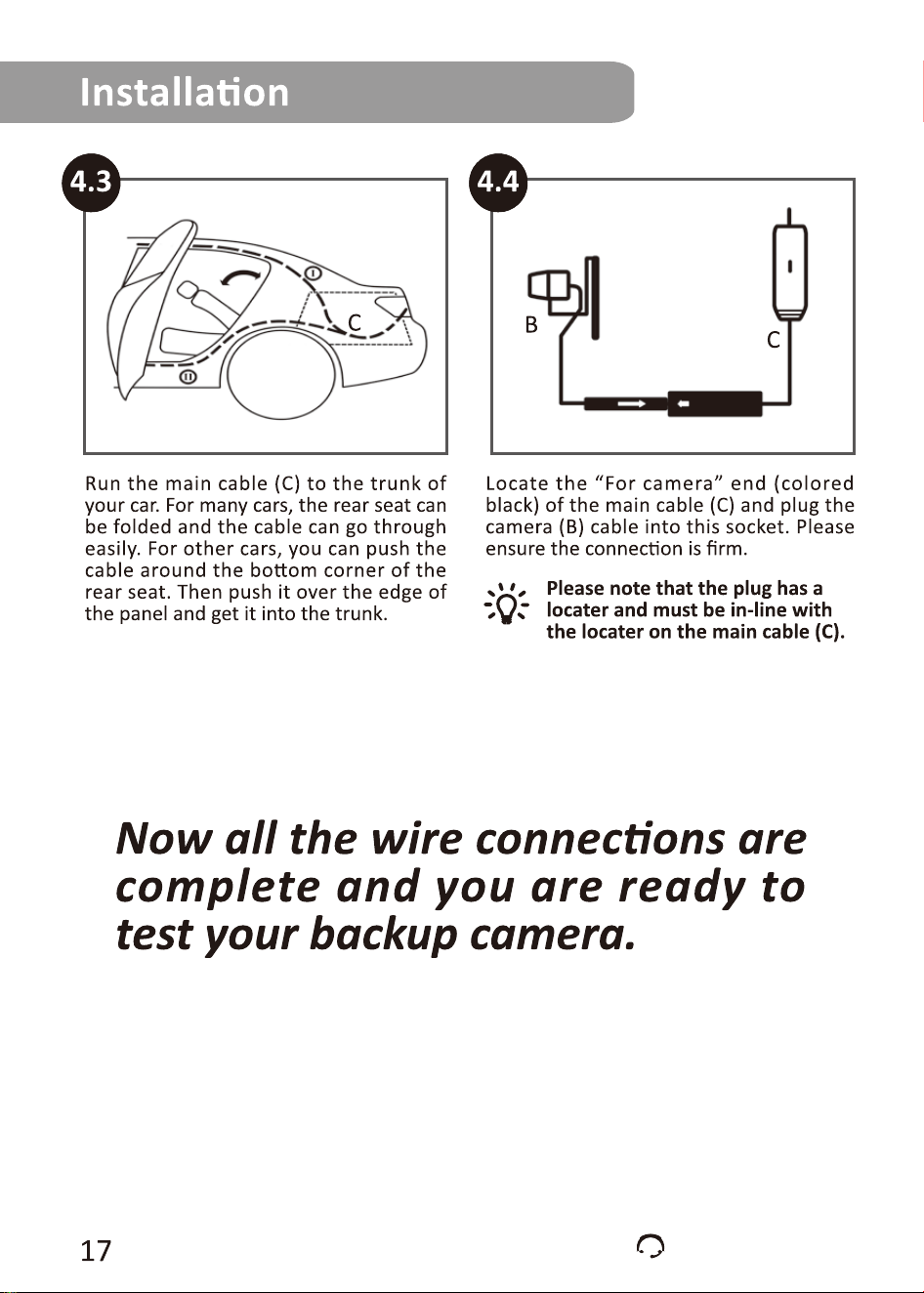

background
1 888 941 3060

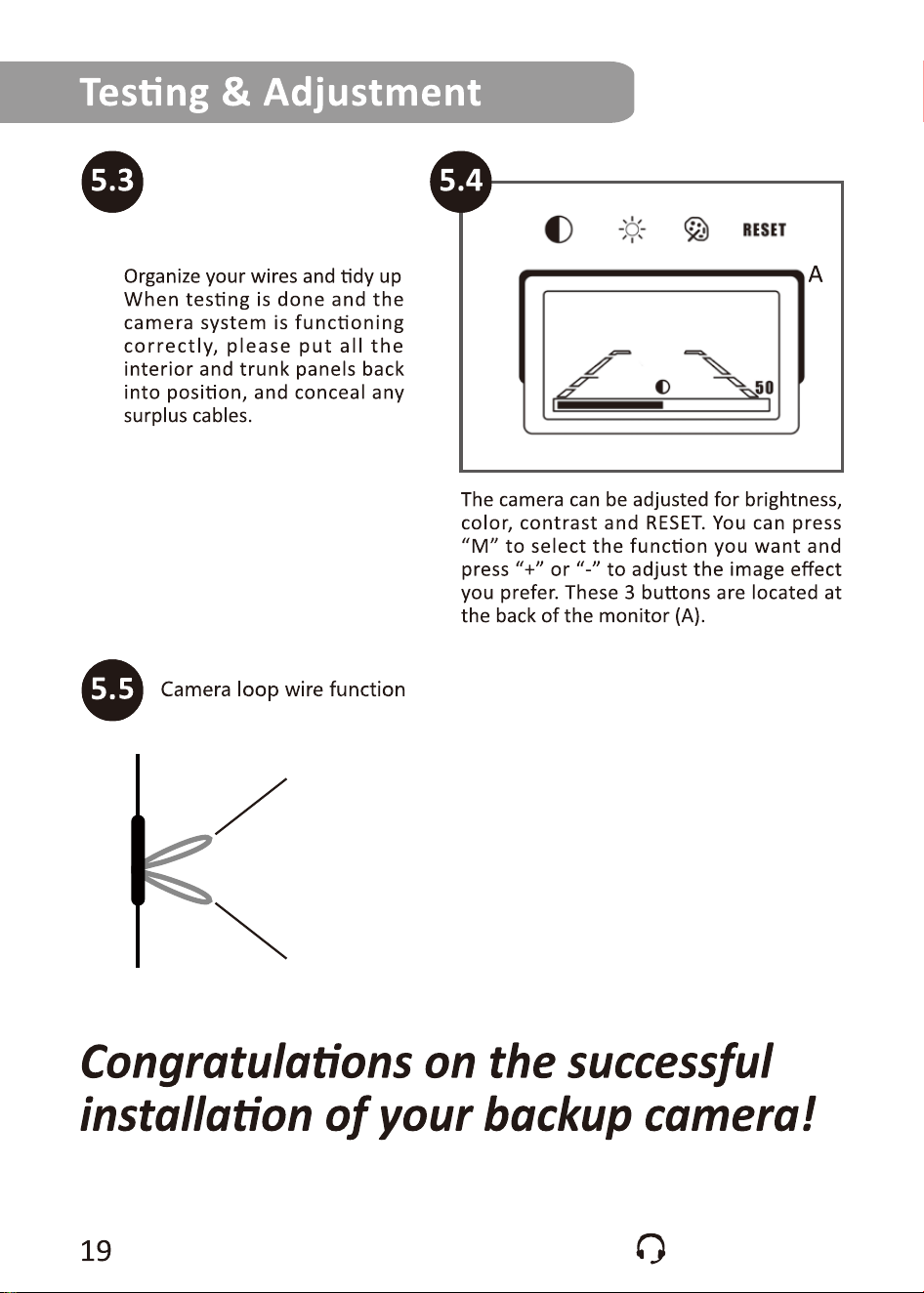

A. White wire – Cut loop to use as front camera or
observation camera
B. Green wire – Cut loop to de-activate parking
