USER MANUAL
VTC175M
5” MONITOR AND LICENSE PLATE CAMERA

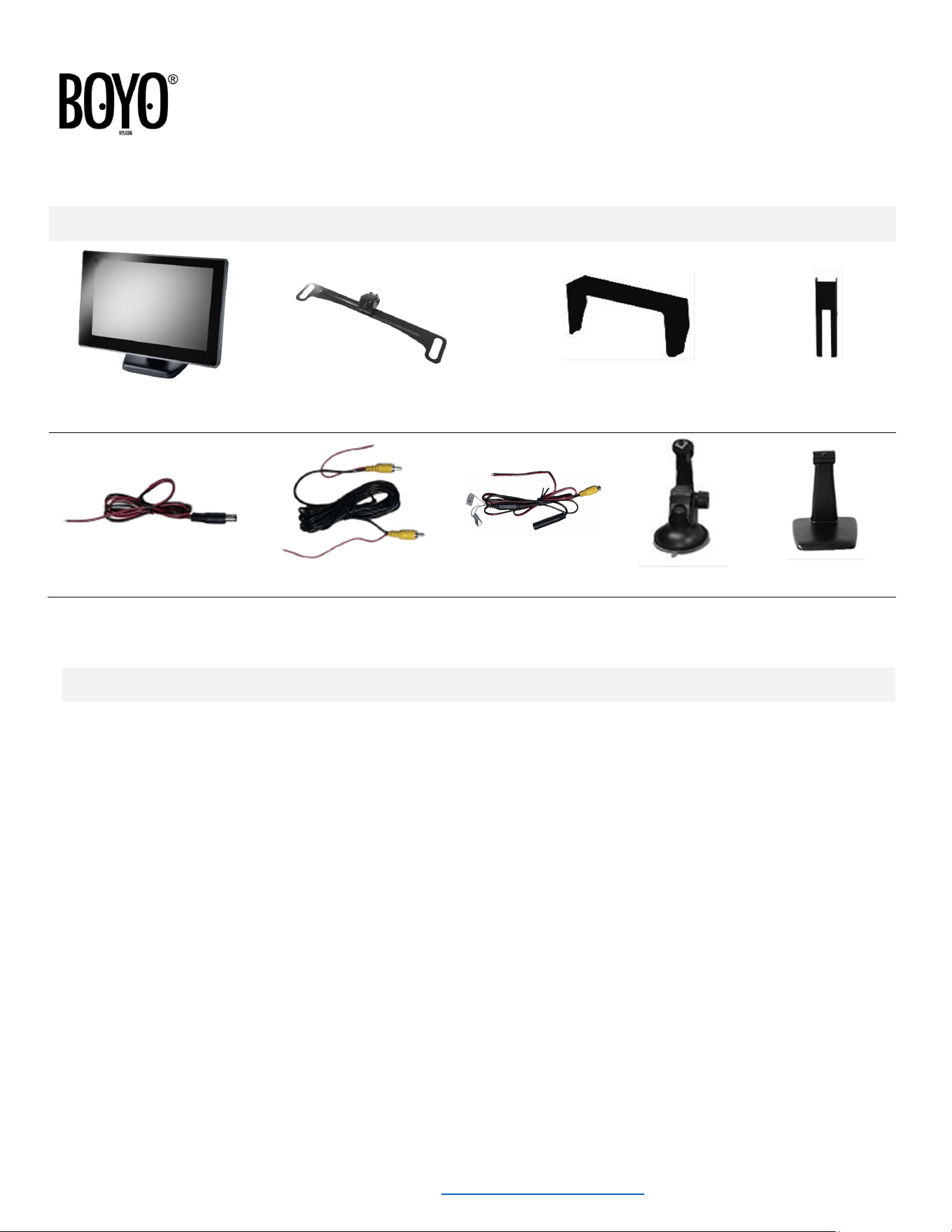

1. BILL OF MATERIAL
Monitor Camera Sunshade
Mounting
Bracket
Power Wire Video / Trigger Ext Cable Power Harness Windshield Mount Dash Mount
2. Features & Specification
Monitor
5” Digital TFT LCD Display Monitor with
Slim and Sleek Design
Resolution: 800x400
Display Format: 16:9
Contrast: 350:1
2 Video Inputs
NTSC / PAL Auto Switch
Power Consumption: 3W+
Operating Voltage: 12VDC
Dimension: 4.125” x 3.5” x 0.5”
Camera
Concealed License Plate Backup Camera with Parking
Lines
High Sensitivity ¼” HD Color CMOS Sensor (1099)
Super Low Lux Performance
Reverse / Non-Reverse Image Selectable
Parking Guidelines On/Off Switch
IP68 Waterproof Rating
Operating Voltage: 12VDC
For technical support, call (888) 942-3060 or email [email protected]om www.VisionTechAmerica.com

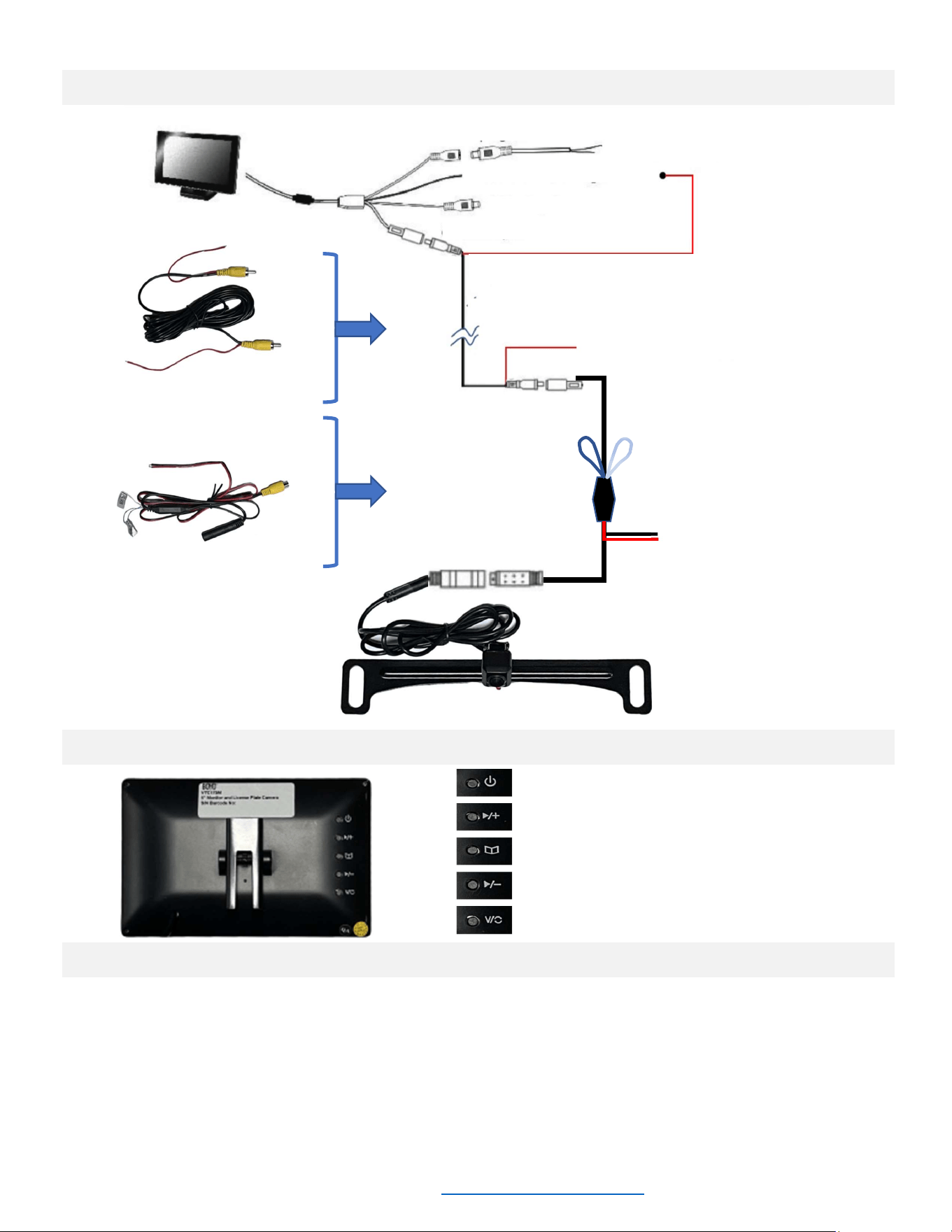

3. Wiring
4. Buttons / Operation
On/Off
Increase value / Next
Menu (Settings) / Next Menu Item
Decrease value / Previous
Switch Input – Camera/Video
5. Menu Items / Press menu button to select settings.
Brightness: Use + or - button to increase or decrease the display brightness.
Contrast: Use + or - button to increase or decrease the display contrast.
Color: Use + or - button to increase or decrease the display color.
Hue: Use + or - button to increase or decrease the display hue.
Lang: Use + or - button to change language.
Reset: Use + or - button to reset to factory default setting.
** Press Menu button after modifying the value to save the changes.
Video / Trigger Extension
Power Harness
Camera Power
RED: to backup light (+)
BLACK: to ground (chassis)
Loop Switches
WHITE:
Uncut: Reverse image
Cut: Non-reverse image
Blue:
Uncut: Parking guidelines on
Cut: Parking guidelines off
RED: to backup light (+)
RED: to BLUE trigger wire
RED wire: 12VDC (ACC+)
BLACK: Ground / Chassis
RED 12V Connector
Camera Input
BLUE Trigger wire: Reverse Light +
Video Input
