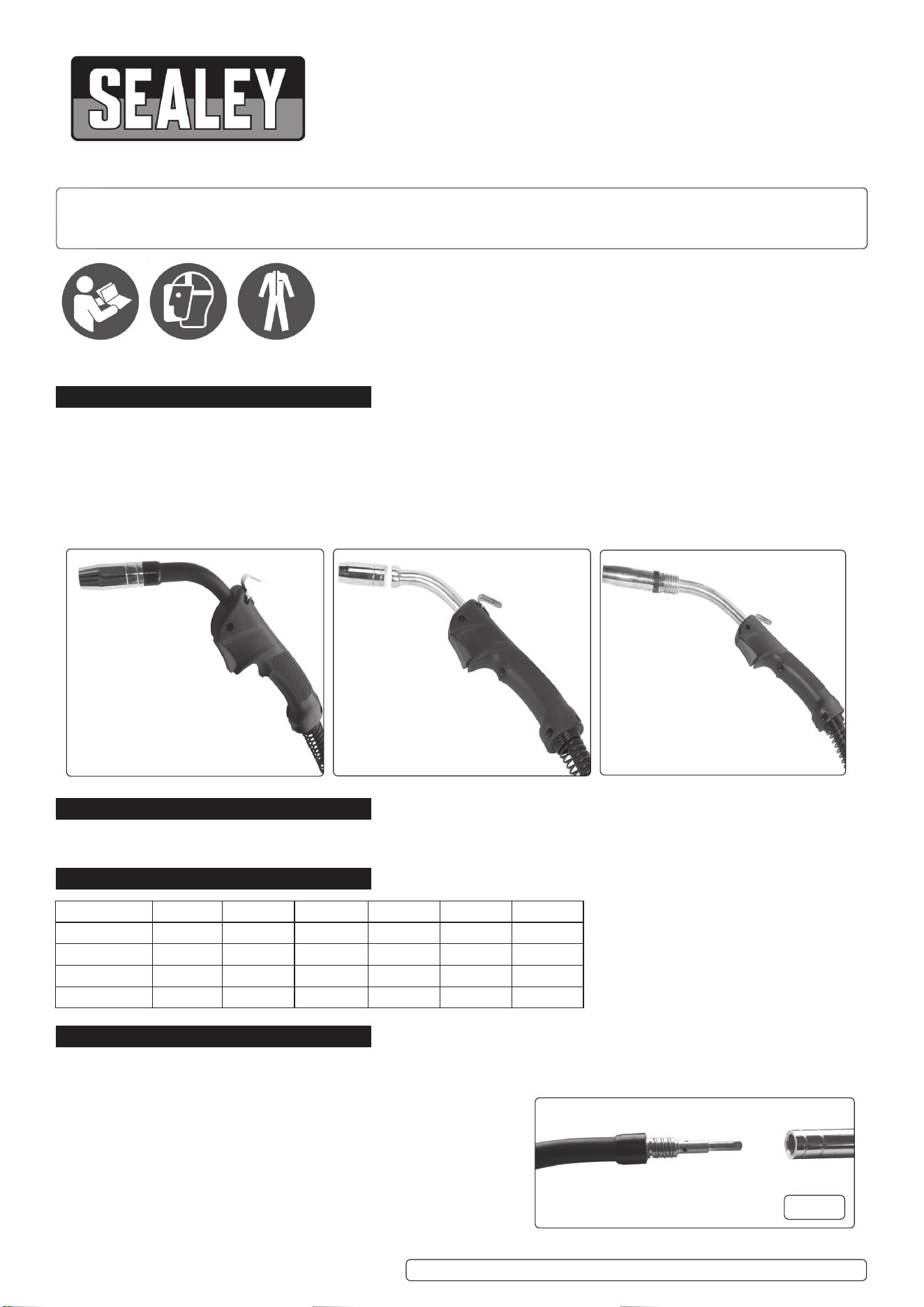

MIG TORCH 3m EURO CONNECTION
MODEL NO: MIG/N315, MIG/N325, MIG/N336, MIG/N415,
MIG/N425, MIG/N436
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
BEFORE USE, ALWAYS ENSURE THAT YOU ARE FAMILIAR WITH THE SAFETY WARNINGS AND INSTRUCTIONS FOR
THE WELDER TO WHICH THIS TORCH IS TO BE FITTED.
8 DO NOT exceed the rated current of the torch.
8 DO NOT use if any part of the torch, cable or connector is damaged in any way. Use only genuine Sealey replacement parts to eect
repairs.
8 DO NOT allow the cable to come into contact with any sharp or hot items.
9 Always use the correct personal protective equipment as specied in the welder instructions.
2. INTRODUCTION
Professional MIG welding torches with contoured grip, hanging hook and heat-proof cable. Fitted with Euro connection enabling a quick
and simple plug connection to welder. No wiring means torch can be disconnected and stored safely.
3. SPECIFICATION
4. TIP & SHROUD REMOVAL
ENSURE THAT THE TORCH IS COOL AND THAT THE WELDER IS DISCONNECTED FROM THE POWER SUPPLY.
4.1. MIG/N315, MIG/N415, MIG/N325, MIG/N425 (g.1)
4.1.1. To remove the shroud: turn the shroud clockwise and pull away.
4.1.2. To remove the tip: unscrew the tip in an anticlockwise direction.
4.1.3. To replace the tip: screw back in and tighten.
4.1.4. To replace the shroud: simply push the shroud back over the spring.
Refer to
instruction
manual
Wear a face
shield
Wear protective
clothing
MIG/N315,MIG/N325,MIG/N336, MIG/N415,MIG/N425,MIG/N436
Issue:3 (H,F) 17/10/23
Original Language Version
© Jack Sealey Limited
MIG/N315, MIG/N415 MIG/N336, MIG/N436MIG/N325, MIG/N425
g.1
Model No: MIG/N315 MIG/N325 MIG/N336 MIG/N415 MIG/N425 MIG/N436
Rated Current: 180A 230A 250A 290A 340A 350A
Wire Diameter: 0.6-1mm 0.8-1.2mm 0.8-1.2mm 0.8-1.2mm 0.8-1.6mm 1-2.4mm
Length: 3mtr 3mtr 3mtr 4mtr 4mtr 4mtr
Torch Type: MB15 MB25 MB36 MB15 MB25 MB36

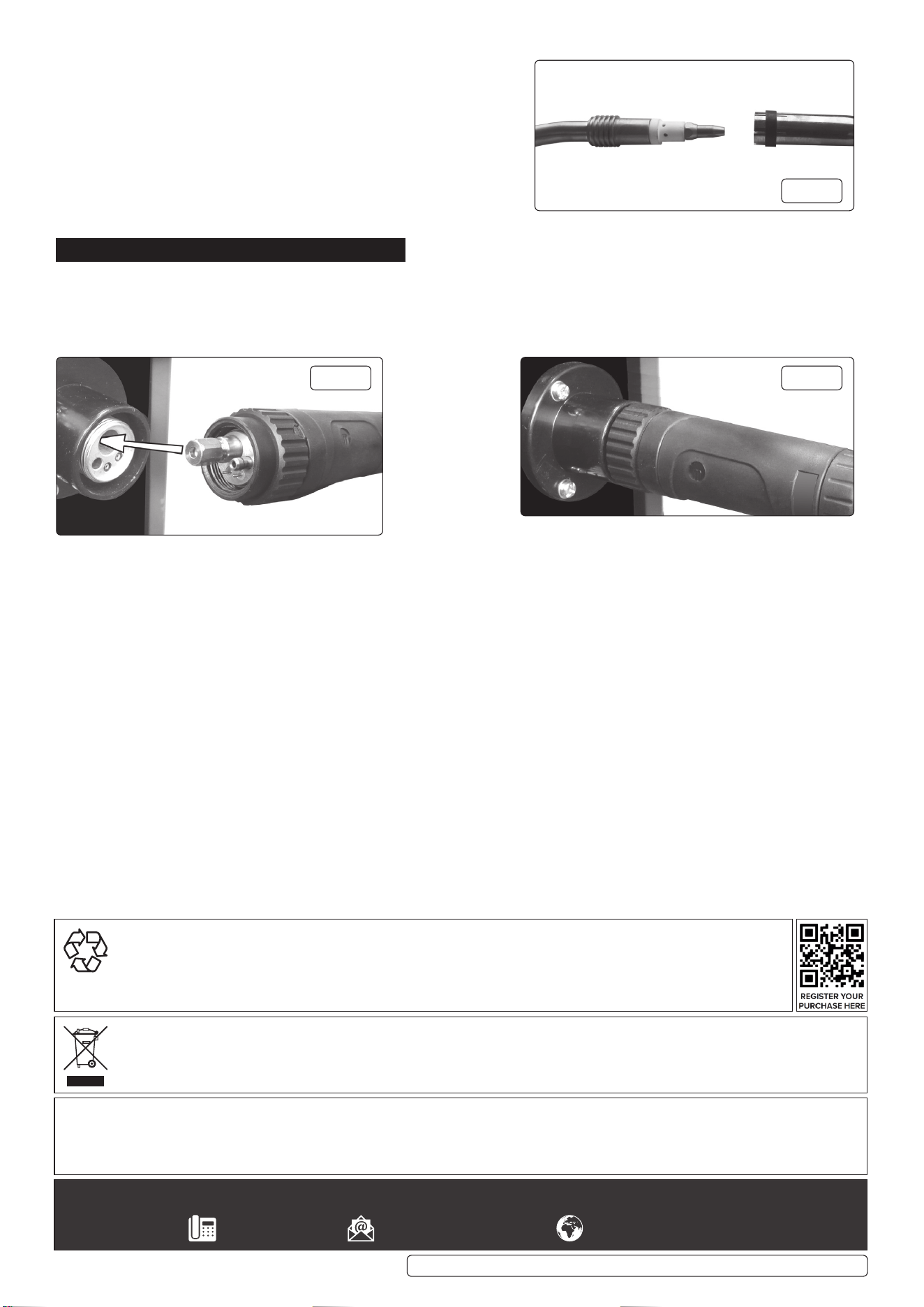

4.2. MIG/N336, MIG436 (g.2)
4.2.1. To remove the shroud: pull the shroud forward to release.
4.2.2. To remove the tip: unscrew the tip in an anticlockwise direction.
4.2.3. To replace the tip: screw back in and tighten.
5. COUPLING THE EURO CONNECTOR
Ensure that the welder is disconnected from the power supply before connecting the torch.
5.1. Line the male and female connector up carefully and insert the torch connections. (g.3).
5.2. Screw the outer collar around the torch onto the welder torch connector to x in place. (g.4).
5.3. See the welder instructions for wire feed details.
g.2
g.3
g.4
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic
Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact
your local solid waste authority for recycling information.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
