1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts – Main Unit
8 Description of Parts – Control Panel
8 Description of Parts – The Vent Kit
9 Fitting the Flexible Exhaust Hose
10 Using Your Air Conditioner
Cooling Mode
Dehumidifying Mode
Fan Only Mode
Oscillation Mode
11 Using the Timer
Time ON Setting
Time OFF Setting
11 Using the Remote Control
Inserting the Batteries
Battery Safety
12 Description of Parts – Remote Control
12 The Internal Water Tank and Draining
13 Cleaning the Air Filter
13 Safety Shut Off
13 Cleaning and Maintenance
14 Using the Wi-Fi Mode
14 Connecting Your Smart Device
16 Resetting the Unit
18 Notes About Using Your Smart Device
19 Wi-Fi Troubleshooting Guide
19 Technical Specification
20 Troubleshooting Guide
20 Plug Wiring Information
21 Recycling Information

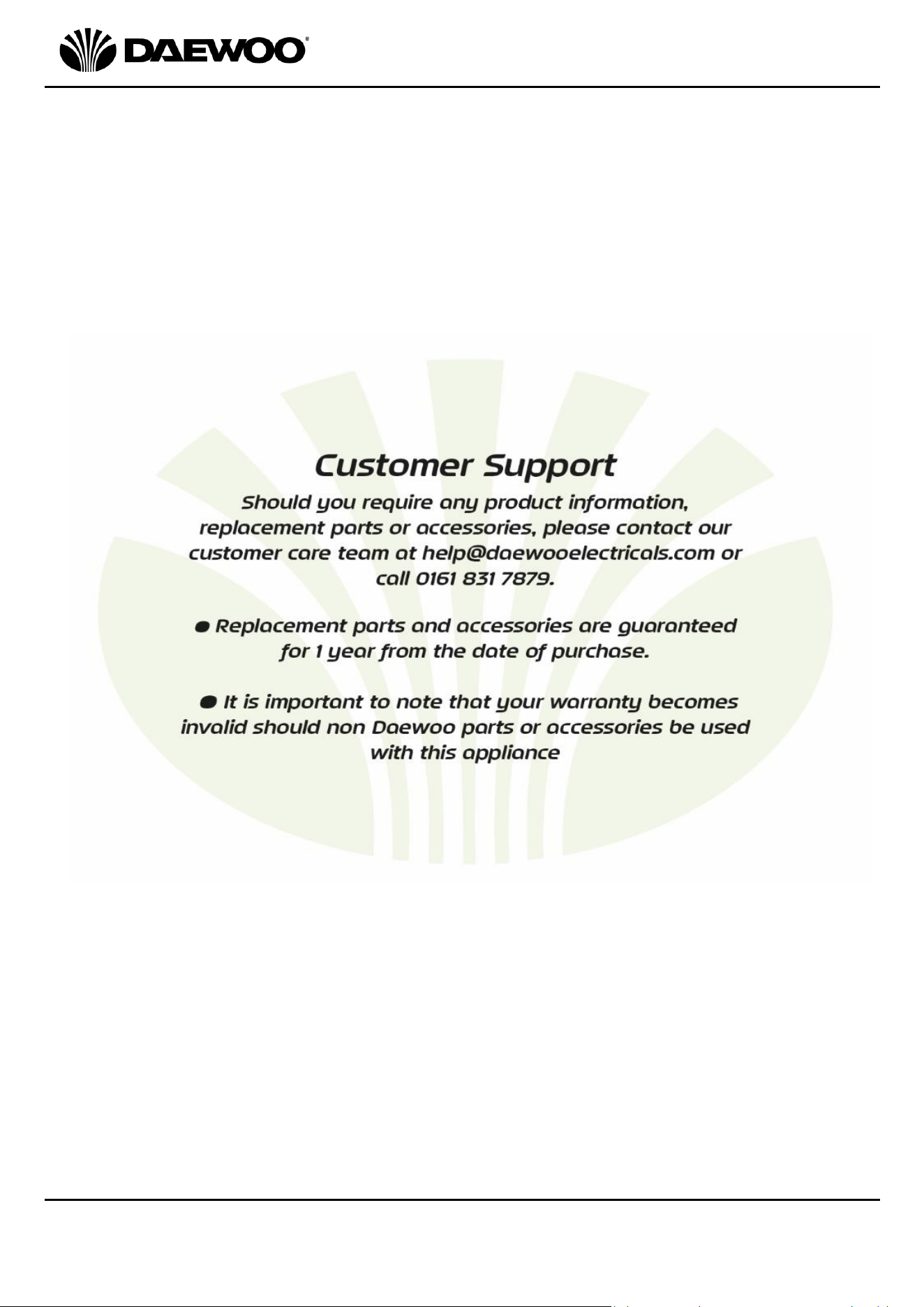

22 Customer Support
23 Notes
Back Page Warranty Information
3
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this
manual carefully paying particular attention to the safety
instructions. Failure to do so may result in personal injury
or damage to the product.
Carefully save this instruction manual for future reference.
Ensure the user manual is included when passing the product on
to any third parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions
should always be followed.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to property
or persons.
The manufacturer or vendor cannot be held liable for damages or
injury incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Air Conditioner.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Disconnect the power plug from the socket before
dismantling, assembling or cleaning.
• Avoid touching any moving parts within the appliance.
• DO NOT insert fingers, pencils or any other objects
through the guard.
• This appliance can be used by children from 8 years and
above and persons with reduced physical, sensory or
mental capabilities or lack of experience or knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understands the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
not be made by children without supervision.
• DO NOT leave children unsupervised with this appliance.
• DO NOT clean the unit by spraying it or immersing it in
water.
• DO NOT connect the appliance to an electrical outlet
using an extension lead. If an outlet is not available, one
should be installed by a qualified electrician.
• DO NOT operate this appliance if the cord or plug are
damaged. Ensure the power cord is not stretched or
exposed to sharp objects or edges.
• A damaged supply cord should be replaced by qualified
personnel in order to avoid a hazard.
• Any service other than regular cleaning or filter
replacement should be performed by an authorised
service representative.
• DO NOT use this appliance for any other purpose than it’s
intended use.
• The air conditioner must always be stored and
transported upright, otherwise irreparable damage may
be caused to the compressor; if in doubt, wait at least
24 hours before restarting the unit.
• Avoid restarting the air conditioner unless 3 minutes have
passed since being turned off. This prevents damage to
the compressor.
• DO NOT use the mains plug or external timer as a means
of switching the air conditioner on or off. Use the
ON/OFF button located on the control panel.
• Always place the unit on a dry and stable surface.
• The appliance should not be placed in a laundry or wet
room.
• The appliance must be placed in a room without sources
of ignition (for example: open flames, an operating gas
appliance or an operating electric heater)
• The appliance must be installed and used in a room with
a floor area larger than 4m
2
5
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
• This appliance contains R290 refrigerant gas. For quantity
see the rating label on the rear of the unit.
• R290 refrigerant gas complies with EU environmental
directives.
• Refrigerant gas may be odourless, if the appliance is used
or stored in an unventilated room, the room must be
such as to prevent stagnation of possible leaks of
refrigerant gas as there could be a danger of fire or
explosion hazard should the refrigerant come into
contact with electric heaters, stoves or other sources of
ignition.
• The refrigerant system should not be perforated.
• The appliance must be stored in such a way as to prevent
mechanical failure.
• Individuals who operate or work on the refrigerant circuit
must have the appropriate certification issued by an
accredited organisation that ensures competence in
handling refrigerants according to a specific evaluation
recognized by associations in the industry.
• Repairs must be performed based on the
recommendation from the manufacturing company.
Maintenance and repairs that require the assistance of
other qualified persons must be performed under the
supervision of an individual specified in the use of
flammable refrigerants.
• The air conditioner will defrost on occasions, do not use
any tools or heaters to speed up this process as this may
cause damage to the appliance.
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
This symbol means batteries and rechargeable batteries may not
be disposed of with household waste!
As the end user you are required by law to bring all batteries and
rechargeable batteries to a collection point run by the Local
Authority or visit www.recycle-more.co.uk, so that they can be
disposed of in an environmentally friendly manner.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
7
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Description of Parts – Main Unit
1
6
2
3
4
1. Air Inlet
2. Castors (x4)
3. Control Panel
4. Air Outlet
5. Tank Drain
6. Exhaust
7. Handle
8. Filter Handle
9. Remote Control
5
9
8
7
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Description of Parts – Control Panel
Description of Parts – The Vent Kit
12
14
15
18. Power ON/OFF Button
19. Temperature/Time + Button
20. Temperature/Time – Button
21. Remote Signal Receiver
22. Mode Button
23. Fan Speed Button
24. Timer Button
10. Wi-Fi Indicator
11. Water Full Indicator (W.F)
12. Fan Speed Indicators
13. Timer Indicator
14. LED Display
15. Cool Indicator
16. Dehumidify Indicator
17. Fan Indicator
25
26
25. Flexible Hose
26. Hose Connector
27. Hose Outlet Ring
27
18
19
20
21
22
23
24
11
13
16
17
10
9
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Fitting the Flexible Exhaust Hose – this must be fitted before use:
1. First fit the Hose Connector (26) to one end of the Flexible Hose (25) as follows:
2. Next attached the Hose Outlet Ring (27) to the other end of the hose as follows:
3. Finally, attach the Hose Connector (23) to the rear outlet of the unit as follows:
4. Place the outlet end of the Flexible Hose (25) through a suitable outlet such as an
open window, door, etc.
e. Hook the flat
lip of the
Hose
Connector
(26) into the
slot on the
rear of the
unit as shown
left.
a. Extend one end
of the Flexible
Hose (25) by
about 10cm.
b. Screw the Hose
Connector (26)
onto the end of
the hose in a
clockwise
direction.
f. Slide the
Hose
Connector
(26) left
until it clicks
home.
c. Extend the other
end of the Flexible
Hose (25) by
about 10cm
d. Screw the Hose Outlet
Ring (27) onto the
other end of the hose
in a clockwise
direction.
a.
b.
c.
d.
e.
f.
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
The unit must be positioned a minimum of 1 Metre away from any wall or
obstruction on all sides.
• Before use, check the Flexible Hose (25) is properly fitted.
• Ensure the unit is on a solid, level, dry surface.
• Ensure the unit is plugged directly into the mains socket and does not share
sockets with other appliances via a mains adaptor or an extension lead.
Using Your Air Conditioner
Cooling Mode
1. Power the unit up by pressing the POWER ON/OFF Button (18).
2. Press the Mode Button (22) until the ‘COOL’ Indicator (15) illuminates.
3. Press the Temperature/Time + (19) and Temperature/Time – (20) Buttons to
select the desired room temperature (16˚C - 31˚C) on the LED Display (14).
4. Press the Fan Speed Button (23) to choose either low or high fan speeds, the
selected speed will be shown by the Fan Speed Indicators (12).
Dehumidifying Mode
1. Power the unit up by pressing the POWER ON/OFF Button (18).
2. Press the Mode Button (22) until the ‘DEHUM’ Indicator (16) illuminates.
The unit will automatically set the temperature to 2˚C below the room
temperature and the fan speed to low and begin dehumidifying.
Fan Only Mode
1. Power the unit up by pressing the POWER ON/OFF Button (18).
2. Press the Mode Button (22) until the ‘FAN’ Indicator (17) illuminates.
3. Press the Fan Speed Button (23) to choose either low or high fan speeds, the
selected speed will be shown by the Fan Speed Indicators (12).
Oscillation Mode
OSC – Press the OSC button on the Remote Control (9) to select Oscillation Mode,
this will enable the Air Outlet (4) to continually disperse air from side to side.
Press the ‘OSC’ button on the Remote Control (9) again to cancel Oscillate Mode.
NOTE Oscillation Mode is not available on the Control Panel (3).
11
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Using the Timer – Time ON Setting
1. With the unit OFF i.e., not powered up but plugged into the mains, press the
Timer Button (24), the ‘TIMER’ Indicator (13) will illuminate to show the unit is
in TIMER mode.
2. Next select how many hours you need until the unit switches ON using the
Temperature/Time + (19) and Temperature/Time – (20) Buttons.
3. The ON time is displayed on the LED Display (14) as a number of hours until the
unit switches on up to a maximum of 24Hrs.
4. The LED Display (14) will flash whilst the time is being set. Once set, leave the
unit alone until the LED Display (14) stops flashing and goes dim.
5. The timer will count down until the unit switches on.
Using the Timer – Time OFF Setting
1. Power the unit up by pressing the POWER ON/OFF Button (18).
2. Press the Timer Button (24), the ‘TIMER’ Indicator (13) will illuminate to show
the unit is in TIMER mode.
3. Next select how many hours you need until the unit switches OFF using the
Temperature/Time + (19) and Temperature/Time – (20) Buttons.
4. The OFF time is displayed on the LED Display (14) as a number of hours until the
unit switches off up to a maximum of 24Hrs.
5. The LED Display (14) will flash whilst the time is being set. Once set, leave the
unit alone until the LED Display (14) stops flashing and goes dim.
6. The timer will count down until the unit switches off.
Using the Remote Control
Inserting the Batteries
• Slide the battery compartment cover on the rear of the remote back in the
direction of the arrow and remove.
• Insert 2 x 1.5V AAA batteries (not supplied) into the battery compartment
observing the polarity markings on the inside.
• Slide the battery cover back on until it clicks back in place.
Battery Safety
• CAUTION: There is a danger of explosion if the batteries are incorrectly fitted.
• Ensure that the batteries are installed with the correct polarity.
• It is recommended that batteries are removed if the remote if it is not to be used
for a long period of time or if the remote is to be disposed of.
• Replace only with the same or equivalent battery type.
• Store batteries in a cool dry place.
• Do not expose the battery to sunshine, fire, heat or similar, never dispose of
batteries in a fire.
• Do not charge non-rechargeable batteries.
• Do not short-circuit batteries.
• Exhausted batteries are to be removed from the product and safely disposed of.
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
WARNING!
• DO NOT ingest the battery, Chemical Burn Hazard.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and
keep away from children.
• If you think batteries may have been swallowed or placed inside any part of the
body, seek immediate medical attention.
Description of Parts – Remote Control (9)
The remote control allows full functional use of the Air Conditioner plus one other
feature* as follows:
The Internal Water Tank and Draining
During normal use, most of the moisture collected will be
evaporated internally by the unit and expelled through the
Exhaust (6) via the Flexible Hose (25).
However, over a period of time the internal water tank will
eventually fill to its maximum capacity and the Water Full
(WF) Indicator (11) will illuminate on the Control Panel (3)
to show the tank is full.
To empty the water tank, take the unit outside, remove the plug from the Tank
Drain (5 – arrowed right) at the bottom rear left of the unit and allow the tank to
empty.
Alternatively connect a hose to the drain and lead it outside to the drain the tank
continuously. Ensure that the hose is not raised above the level of the outlet and is
not kinked or bent so that the tank can drain properly.
Ensure the plug is replaced into the Tank Drain (5) before using the unit again.
SPEED – Press the SPEED button
to select Low or High Fan Speeds.
OSC – Press the OSC button to
select Oscillation Mode, this will
enable the Air Outlet (4) to
continually disperse air from side
to side. *NOTE Oscillate Mode is
not available on the Control Panel
(3).
TEMP +/- Press the TEMP+/-
buttons to select the room
temperature during ‘COOL’ mode.
MODE – Press the MODE button to
select between COOL, DEHUMIFIER
or FAN modes.
TIMER – Press the TIMER button to
enter timer mode.
POWER – Press the POWER button
to switch the unit on and off.
13
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
The amount of water collected by the tank and the frequency of draining is
caused by the relative humidity levels which will vary and will depend on several
factors:
1. Avoid placing the Air Conditioner near kitchens or bathrooms (though not in the
bathroom!).
2. Drying washing in the same room as the Air Conditioner will increase tank fill.
3. Damp weather or high humidity will affect the amount of water collected
especially when it is raining.
Cleaning the Air Filter
The air filter is located behind the Air Inlet (1) grill and will
need occasional cleaning. To clean the air filter, remove the
filter by pulling the Filter Handle (8), the filter can be
cleaned in lukewarm (40˚C) water with mild detergent. See
image left.
After washing allow the filter to dry naturally, lay it flat to
avoid stretching.
Ensure that the filter has thoroughly dried before
refitting it to the unit.
DO NOT use the unit without the filter fitted.
Safety Shut-Off
The unit is fitted with an automatic high temperature shut off device, if the air
inlet or exhaust are blocked the unit will shut down safely.
After clearing the blockage, allow 5 minutes before restarting the unit.
Cleaning and Maintenance
Clean the surface of the unit with a damp cloth and mild detergent.
Excess dust etc. can be removed from grilles and exhaust using the nozzle
attachment of a vacuum cleaner.
Above: The Air Filter located
on the top left hand side of
the unit (shown partially
removed). To remove, slide
the filter out in the direction
of the arrow.
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Using the Wi-Fi Mode
Initial Set Up
Upon installation of your Air Conditioner, you will have to set up the
communication channel between the devices. In order to do this, make sure you
have the Smart Life app installed on your mobile device, your Wi-Fi router is
switched on and your mobile device connected to your home Wi-Fi network.
Connecting Your Smart Device
1. Use your mobile phone to scan the QR code right
to download the “Smart Life” app.
2. Alternatively, search for the “Smart Life” in
the APP store or Google Play store to install
the app.
3. Open the “Smart Life”
app, select “Sign Up”.
Using your mobile
phone number or
email to register an
account. Make up a
suitable password for
the account.
4. You will be sent a
verification code via
your email or phone
depending on which
you gave logged on
with. Enter the
verification code to
enter the App.
15
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
NOTE: An account must be set up in order to access all the Air Conditioner control
application features.
5. Once logged into your account, press the “+ Add
Device” option found in the top right corner of
the control application home screen to add your
device to the App.
6. Ensure the Air Conditioner is plugged in and
turned on at the power outlet. The Air
Conditioner does not need to be turned ON at the
Control Panel (3) at this time. The Air Conditioner
should be left in standby mode (plugged in at the
power outlet with the power outlet switch turned
on) whilst performing the pairing exercise.
7. Choose “Add Manually.”
8. Scroll down to select “Large Home Appliances” and choose “Portable Air
Conditioner (Wi-Fi)” and select “Portable Air Conditioner (Wi-Fi) as below:
16
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
9. You will then be asked to select your Wi-Fi
network and to enter your password (the
same network that your phone is
connected to) then press NEXT as shown
right:
10. Ensure that the Wi-Fi Indicator (10) light
is flashing on the Control Panel (3) (you
will be prompted to check this – see
below).
Resetting the Unit
11. IMPORTANT: If the Wi-Fi Indicator (10) is
NOT flashing at all in standby mode and
staying constantly lit, the Air Conditioner
needs to be reset.
This could be because the Air Conditioner
has been paired previously to another
device, or that the Wi-Fi module on the
Air Conditioner just needs to be
refreshed. To do this, follow the below
steps:
a) Turn the Air Conditioner off at the power
outlet and then turn it back on, 5 seconds
later.
b) Without pressing the POWER ON/OFF Button
(18) on the Air Conditioner, press and hold
the Fan Speed Button (23) on the control
panel of the Air Conditioner for 5 seconds and
let go after you hear a beep. The Wi-Fi
Indicator (10) will now start flashing rapidly.
c) After a few seconds, the Wi-Fi indicator (10)
will stop flashing and stay lit, indicating the
Air Conditioner is now pairing with your
current device and the APP ready for use.
12. IMPORTANT: Please note, that if the Wi-Fi
indicator light is flashing slowly, it will not
pair with your device. Press and hold the
Fan Speed Button (23) for another 5
seconds until you hear a beep to reset the
Air Conditioner. After this, the light will
start flashing rapidly and will pair with
your device.
17
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
NOTE: You cannot use the SPEED button
on the Remote Control (9) to reset the
Wi-Fi mode. Only the Fan Speed Button
(23) on the Control Panel (3) can be used.
13. Press NEXT and your smart device will
begin to detect the Air Conditioner as
shown right:
14. Once your Air Conditioner has been
detected click on the device name (shown
right) which will take you to the device’s
main control page and you will be able to
control your Air Conditioner from your
smart device (below right).
18
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
15. You can control and select functions such
as Speed, Timer, Temperature and Mode
via your smart device.
The smart device functions are similar to
how you would use the functions via the
Control Panel (4) and Remote Control
(7).
Tap the icon to access settings,
third party control, etc.
Notes About Using Your Smart Device
• The Air Conditioner will only operate via a smart device when they are both
connected to Wi-Fi.
• Only one smart device can be connected at a time to the Air Conditioner.
• Only one smart device can control the Air Conditioner at one time.
19
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Wi-Fi Trouble Shooting Guide
Problem
Possible Cause and Solution
During the set-up, the Air
Conditioner will not connect to
the Wi-Fi network.
Check that you have the internet reception and your
smart device and the Air Conditioner are connected to
the same Wi-Fi network.
Check that your Wi-Fi password is correct.
Check that no firewalls or other restrictions are set.
Check that the router is working with other products
e.g. TV, computer, etc.
Ensure that the Air Conditioner, the router and smart
device are all on the same Wi-Fi network and within
the signal range.
Reset the Wi-Fi module by following the instructions
found on page 16.
I cannot control the Air
Conditioner with my smart
device.
The Air Conditioner has been reset and/or the smart
device has lost control permission. Reconnect your
smart device to the Air Conditioner using the set-up
instructions above.
If after these steps you still cannot control the Air
Conditioner with your smart device, delete the Air
Conditioner from your device list and reconnect.
Reset the Wi-Fi module by following the
instructions found on page 16.
The Wi-Fi indicator light is NOT
blinking at all or is blinking slowly.
Reset the Wi-Fi module by following the instructions
found on page 16.
I need to pair a new smart device
with the Air Conditioner
Only one smart device can be paired at any one time
to the Air Conditioner.
Technical Specification
Model Number
COL1574
Supply Voltage
220-240V~ 50Hz
Rated Power
1000W
Rated Current
4.5A
Protection Class
I (This Appliance Must Be Earthed)
Unpacked Weight
19 Kgs (approx.)
Cooling Capacity
9000BTU/h (2600W)
Refrigerant
R290 (160g)
Operating Pressure
Discharge 2.6MPa
Suction 1.0MPa
Maximum Pressure
Discharge 3.2MPa
Suction 1.2MPa
IP Rating
IP20
Sound Power Level
65dB (A)
This product conforms to Radio Equipment Directive 2014/53/EU
20
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Troubleshooting Guide
Problem
Possible Cause
Possible Solution
The unit does not
power up
No power supply
Power on and turn on the unit
Water tank is full
Drain the water tank
Timer function is active
Cancel timer function
Room temperature is too low
Reset temperature on unit
Unit not performing
well
Unit is in direct sunlight
Shade the unit with
curtains/blinds
Filter is dirty
Remove and clean the filter
Air inlet or outlet is blocked
Remove any blockage or debris
from the inlet/outlet
Compressor not
working
Overheat protection device
has operated
Check venting then allow the
unit to cool for 5 minutes
before restarting
Remote control not
working
Operating distance is too far
Move closer to the unit
Batteries are flat
Replace batteries
Unit is noisy
The unit is located on an
uneven surface
Position the unit on a flat level
surface
E2 Code displayed
Water tank full
Drain the water tank
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug -DISCONNECT FROM THE MAINS- and then cut it
off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
21
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products at
the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to a
suitable facility for disposal. Check with your Local Authority or retailer
for recycling advice or visit www.recycle-more.co.uk enter your
postcode to find out your nearest recycling site.
This symbol means batteries and rechargeable batteries may not be
disposed of with household waste!
As the end user you are required by law to bring all batteries and
rechargeable batteries to a collection point run by the Local Authority
or visit www.recycle-more.co.uk, so that they can be disposed of in an
environmentally friendly manner.
22
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
23
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
Notes
24
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
3 in 1 Portable Air Conditioner with Wi-Fi
Model No. COL1574
User Manual
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo® is a registered trademark.
Produced and imported under license by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
