Before plugging your unit into the mains, visually check that the unit is
intact and has not suffered any transit damage.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed. These instructions should be saved for future
reference:
Read and familiarise yourself with all operating instructions before using
this Convector Heater.
Before plugging your unit into the mains, visually check that the unit is
intact and has not suffered any transit damage.
WARNING: In order to avoid overheating, do not cover the
heater.
Do not install the appliance directly below an electrical socket.
Do not use this heater with a programmer, timer, separate remote-control
system or any other device that switches the heater on automatically, since
a fire risk exists if the heater is covered or positioned incorrectly.
Do not use this heater with an extension cable.
Check that the voltage indicated on the data plate corresponds with that of
the local network before connecting the appliance to the mains power
supply.
Close supervision is required when using this appliance near children.
Never leave this appliance within reach of children.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform user
maintenance.
CAUTION — some parts of this product can become very hot
and cause burns. Particular attention has to be given where children
and vulnerable people are present.
Do not use this heater in the immediate surroundings of a bath, a shower
or a swimming pool.
Do not immerse the appliance or its cord in water or any other liquids.
Do not leave the appliance unattended during use.
Do not leave the appliance unattended whilst connected to the mains
supply.
Always use this appliance on a solid, level, non-flammable surface.
Do not use this appliance outdoors.
It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
Repairs to electrical appliances should only be performed by a qualified
electrician. Improper repairs may place user at serious risk.
Do not operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
Regular, periodic checks should be carried out on the mains cable to
ensure no damage is evident. Should there be any signs of damage the
appliance should not be used.
If the power cable is damaged, it should only be replaced by the
manufacturer or a suitable qualified after-sales-service in order to avoid a
hazard
Do not allow the mains cable to hang over sharp edges or come in contact
with hot surfaces.
Do not run the mains cable under carpets, rugs, etc.
Allow the unit to cool before storage.
Before cleaning, disconnect the appliance from the mains supply and allow
to cool.
Never place the appliance near to flammable material or high pressure
containers. (e.g., Paper, wood, petrol, solvents, spray canisters etc.)
This appliance is intended for household use only and should not be used
for industrial purposes.
Do not use any accessories or attachments with this appliance other than
those supplied or recommended by supplier.
Do not use this appliance for anything other than its intended use.
Do not push objects into any openings as damage to the appliance and/or
electric shock may occur.
Ensure appliance is situated in an open area, do not allow it to come in
contact with Cupboards, Curtains, wall coverings, clothing or other
flammable materials.
The appliance should not be installed in areas which have a fire-risk, such
as garages, stables or wooden sheds; this is applicable also for rooms in
which highly inflammable gasses or dust can develop. Danger of fire!!
Unplug after each use. Grasp the plug, not the cord.
Before the first time you use your Convector Heater
Please read these operating instructions thoroughly and keep them in a
safe place for future reference.
Remove all packing materials and discard responsibly.
Assembling your Convector Heater

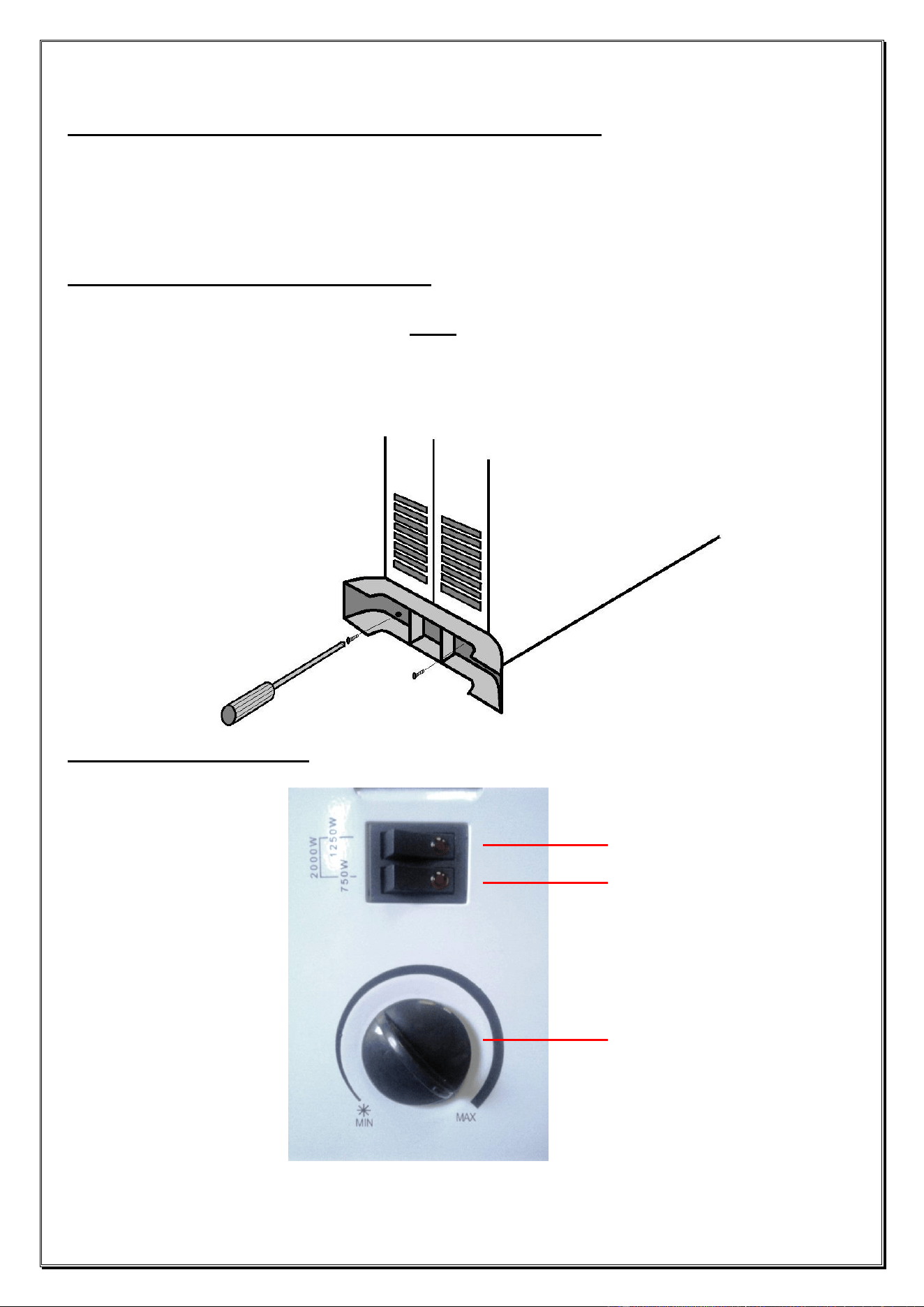

Before using this heater, the feet must be fitted to the unit. These are
attached to the base of the heater using the four self-tapping screws
provided, take care to ensure that they are located correctly in the holes at
either end of the base of the appliance:
Description of Controls
Switch 2
Switch 1
NB Both
Switches are
shown in the
off position
Thermostat
Operating Instructions
Place the heater on a solid, level non-flammable surface.
Ensure that both heat Switches (1 & 2) are in the off position.
Insert the mains plug into the mains socket.
For the low heat setting (750w), press just Switch 1.
For the medium heat setting (1250w), press just Switch (2).
For the high heat setting (2000w), press both switches.
Rotate the thermostat control clockwise to increase the room temperature
and anticlockwise to decrease the room temperature as desired.
NB the Indicators in the switches will illuminate on and off to indicate that
the set temperature is being maintained.
Return both the heat setting switches (1 & 2) to the off position to switch off
the heater.
Hint on setting the correct temperature
Set the heater to the desired heat setting as above.
Rotate the Thermostat to the maximum position and allow the room to
warm up. Once the desired room temperature has been reached turn the
Thermostat anticlockwise until the heater just clicks off then turn it back up
clockwise very slightly. The Thermostat will now maintain the room
temperature, if necessary, further increasing or decreasing the thermostat
control may be required to ‘fine tune’ the ideal room temperature.
Return both the heat setting switches (1 & 2) to the off position (as below)
to switch off the heater.
Care and Use of your Convector Heater
Always disconnect the convector heater from the mains power supply and
allow to cool before cleaning.
Clean outside of the convector heater with a clean damp cloth. Never clean
with harsh or abrasive cleaners.
Do not submerge any part of convector heater in water or any other liquids.
Technical Data
Voltage : 220-240V ~ 50Hz
Rated power : 2000 W (750w + 1250W)
Dimensions : 390mm (H) x 533mm (W) x 200mm (D)
Weight : 2.1kg
Model Number : HEA1146
Electrical Connections
This appliance is fitted with a fused three-pin plug to BS 1363. If the plug
has to be removed, it should be cut off and carefully disposed of
immediately. To avoid a possible shock hazard, do not insert the discarded
plug into a mains socket.
Fitting a new plug

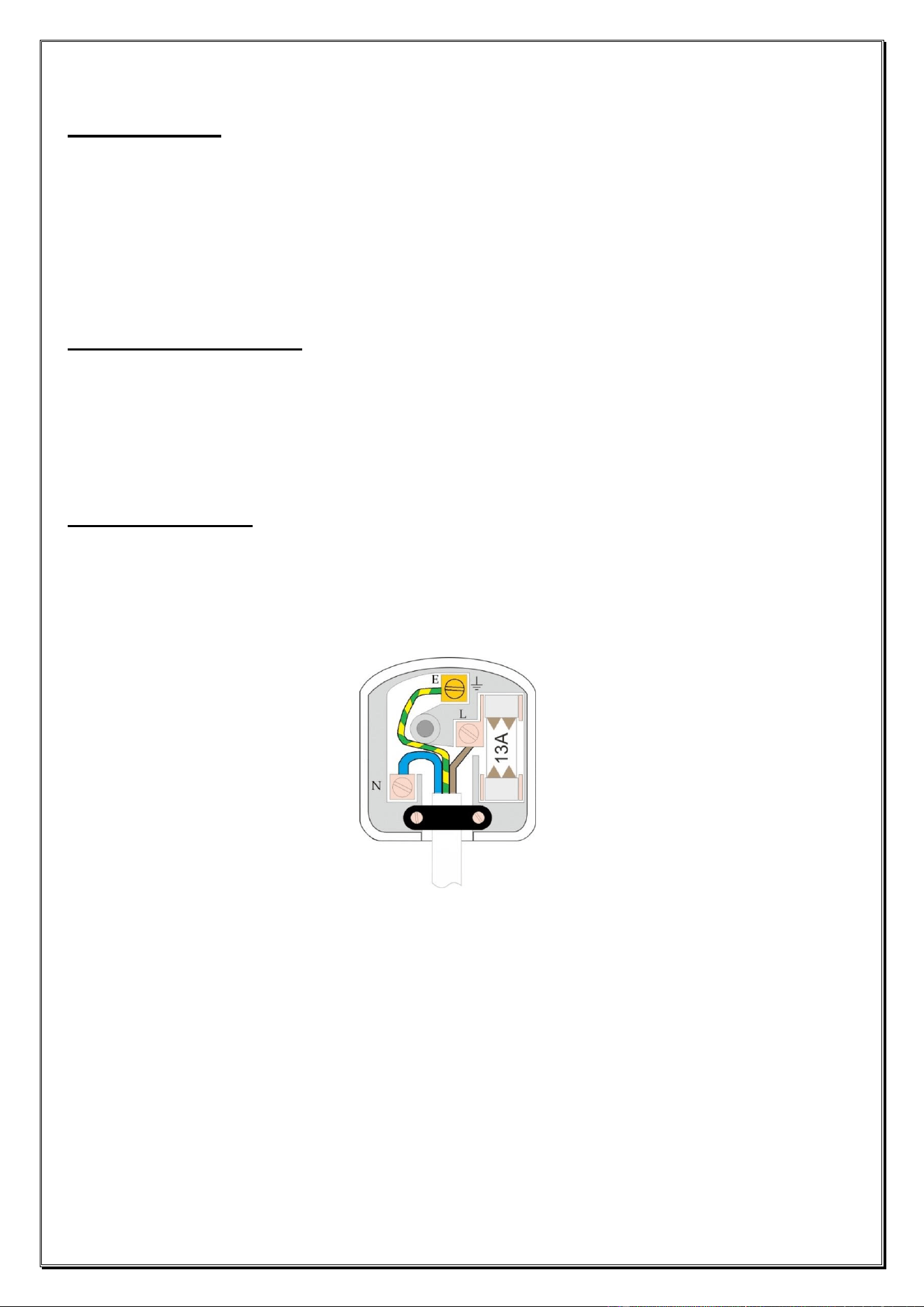

The mains lead must be connected as shown below. The wires are coloured
with the following code - Brown wire = Live (L), Blue wire = Neutral (N), Green &
Yellow = Earth (E).
The Blue wire must be connected to the terminal marked N or coloured Black.
The Brown wire must be connected to the terminal marked L or coloured Red.
The Green and Yellow wire must be connected to the terminal marked E or
coloured Green.
Check that there are no cut or stray strands of wire inside the plug.
Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
If you are in any way unsure which plug or fuse to use, always refer to a
qualified electrician.
Connect
Blue to
Neutral
(N)
Ensure the outer sheath of the mains
lead is securely held by the cable clamp
Connect
Brown to
Live (L)
Connect
Green &
Yellow to
Earth (E)
