ELECTRIC DIRT BIKE
FITZ16
USER MANUAL
Contents
Congratulations on your purchase! ........................................... 01
Don't Ride Until You Read This .................................................. 02
Warning Message ........................................................................ 03
Unpacking .................................................................................... 05
Get To Know Your Electric Dirt Bike .......................................... 06
Assemble Your Electric Dirt Bike ............................................... 07
Charge Your Electric Dirt Bike .................................................... 10
Electric Dirt Bike Console Functions ........................................... 11
Error Code .................................................................................... 13
Riding Tips .................................................................................... 14
Maintenance & Repair ............................................................... 15
Battery Information .................................................................... 17
Warranty ..................................................................................... 18
This user manual will help you assemble and
operate your new Electric Dirt Bike. Be sure
to read ALL OF THE INFORMATION in this
manual before riding.
NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE:
It’s very important that you get parental
permission before riding your Electric Dirt Bike.
This electric dirt bike is suitable for kids aged 6-12.
01
Don’t ride until you read this
ALWAYS wear a helmet when riding your Electric Dirt Bike.
Make sure your Electric Dirt Bike has a full battery before taking it out
to ride.
Always be aware of local road laws, and follow them.
Do not ride the Electric Dirt Bike under the influence of drugs or alcohol.
Always respect pedestrians.
Do not ride under wet conditions. The Electric Dirt Bike may slide
from under your feet, causing injury. Wet conditions may damage the
electronics and void the warranty.
02
Warning Message
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Avoid water - The Electric Dirt Bike is not waterproof. The electronics
may be damaged due to water, and water damage is not covered by our
warranty. Riding in wet conditions is also very dangerous and may result
in injury.
Abuse - We do not cover physical damage due to negligent care and
extreme riding.
Whenever you ride the GOTRAX Electric Dirt Bike, you risk severe injury
or even death from loss of control, collisions, and falls. Use caution and ride
at your own risk.
Keep hands and all body parts away from moving parts while operating
the Electric Dirt Bike.
Before riding - be sure to check the Electric Dirt Bike over and ensure that
it is operating correctly before each use.
Before riding - be sure that any and all axle guards, chain guards, or other
covers or guards supplied by the manufacturer are in place and in
serviceable condition.
Before riding - be sure to check that the tires are in good condition, inflated
properly, and have sufficient tread remaining.
Never exceed the 220lbs (100kg) maximum load rating.
Before riding - be sure to check that the braking system is functioning
properly. Also, be sure to check that all safety labels are in place and that
you understand the safety warnings.
Do not modify the product from the manufacturer’s original design.
03
11.
12.
This Electric Dirt Bike is suitable for children aged 6 to 12.
Maximum Speed - Your Electric Dirt Bike reaches a maximum speed of
15.5 mph (25 km/h).
04

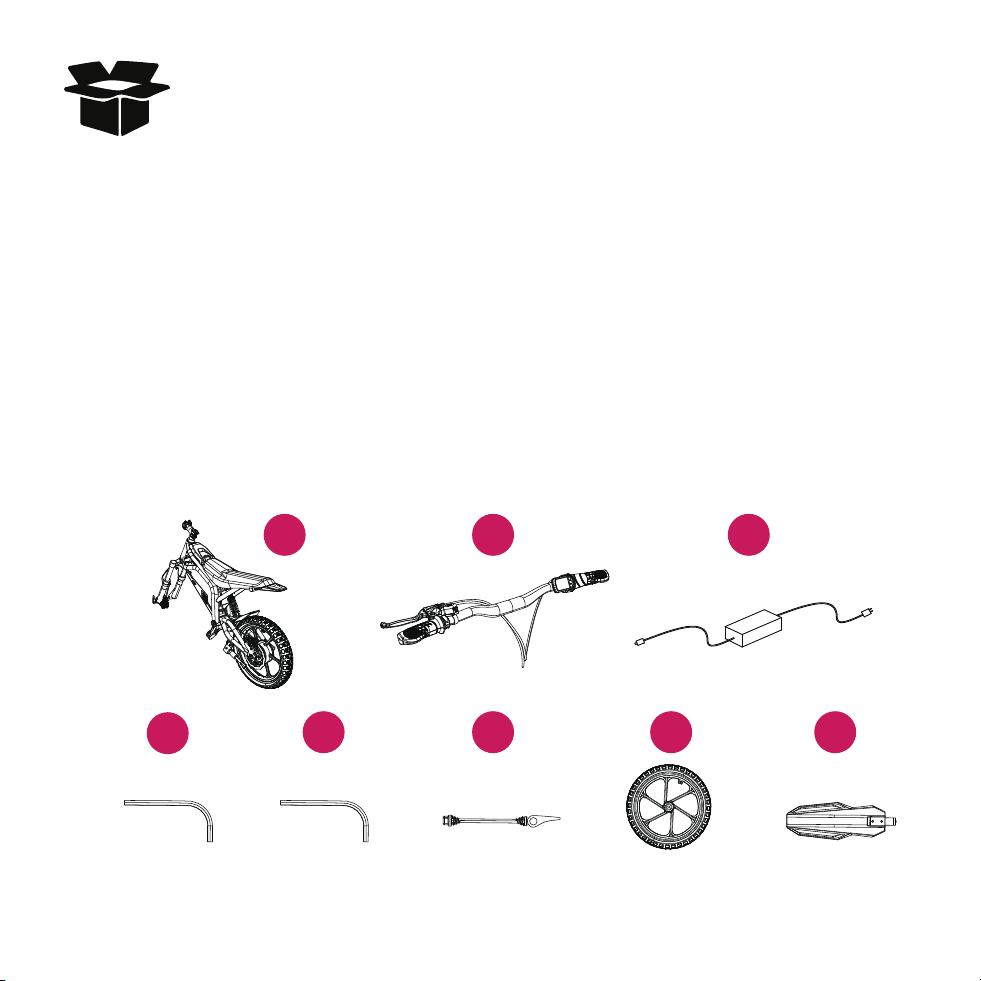

You should find each of these items in your box:
1.
2.
3.
4.
5.
6.
7.
8.
Electric Dirt Bike
Console & Handlebars
Approved Power Adapter / Charging Unit
4mm Allen wrench
5mm Allen wrench
Front wheel quick-release locking bolt
Front wheel
Front fender
7 86
4
5
21 3
Unpacking
Remove all packaging material, then inspect each item for any
accidental damage that may have occurred during shipping.
05

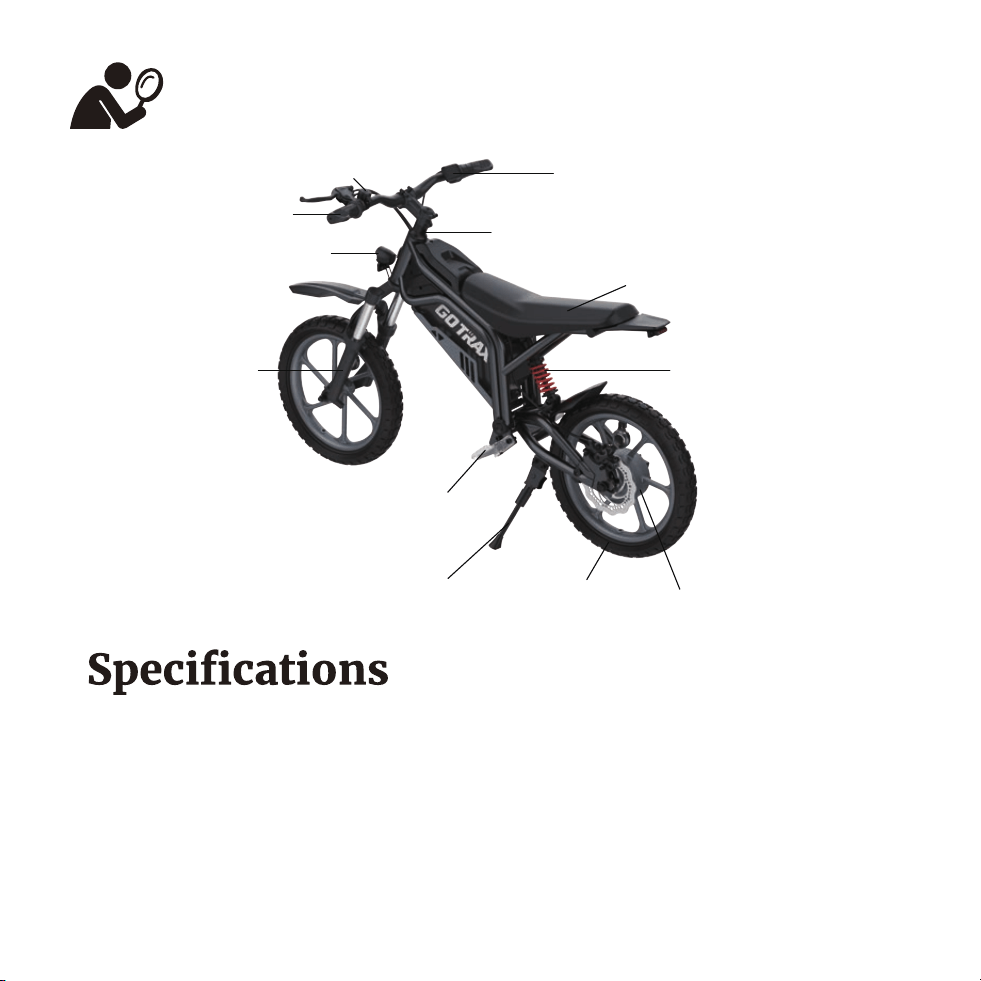

Get To Know Your Electric Dirt Bike
Top Speed:
Max Load Weight:
Battery Type:
Battery Input:
Charge Time:
Motor Rated Power:
Power Requirements:
15.5mph
220lbs
36Vdc
42Vdc 1.5A
5.2 hours
350W
AC 100-240V-50/60Hz 1.8A
The Electric Dirt Bike comes partially assembled.
Stem
LCD Display
Bell
Saddle
Rear shock absorber
Motor
Tire
Kickstand
Pedal
Suspension Fork
Handle bar
Headlight
06

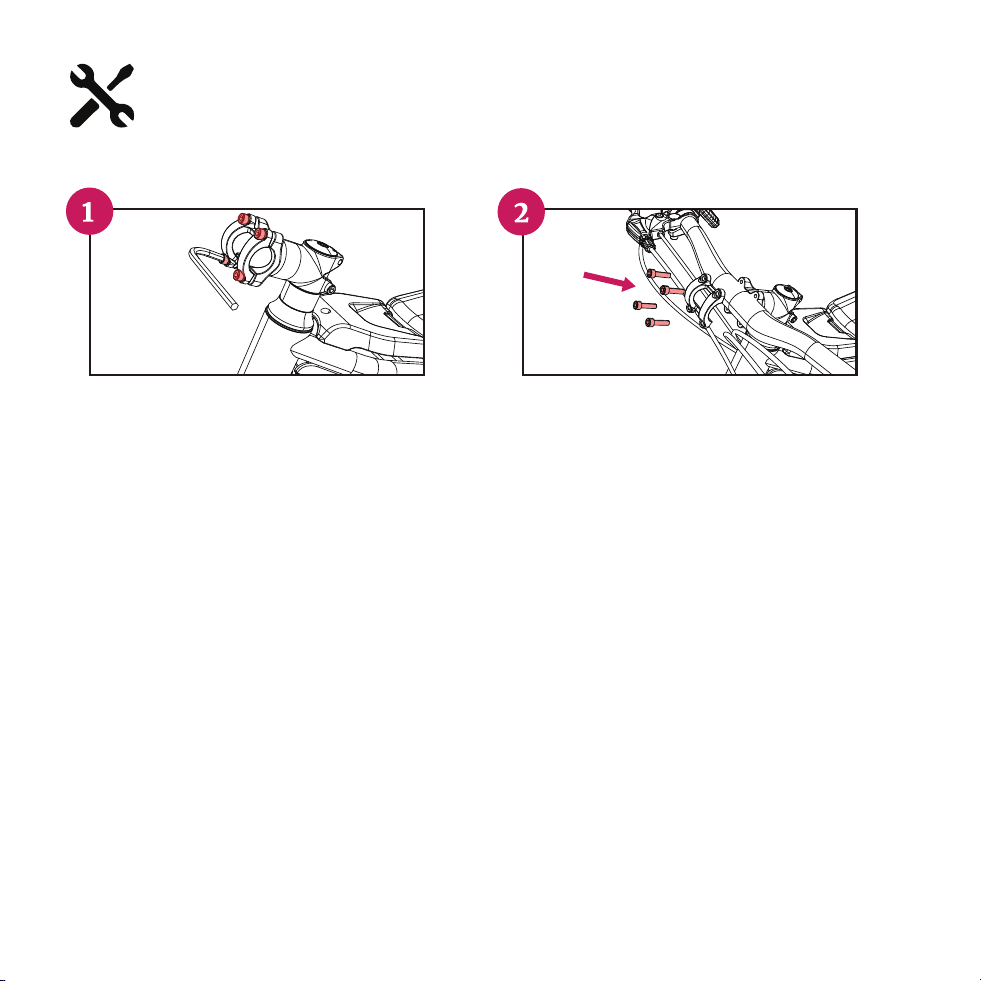

Turn the front of the dirt bike straight. Then, using a 4 mm wrench, loosen the
handlebar attachment clamp. Load the handlebar into the stem in a centered
position, then use the wrench to lock the attachment clamp and secure the
handlebars.
Assemble Your Electric Dirt Bike
1. Installing the Handlebar
07

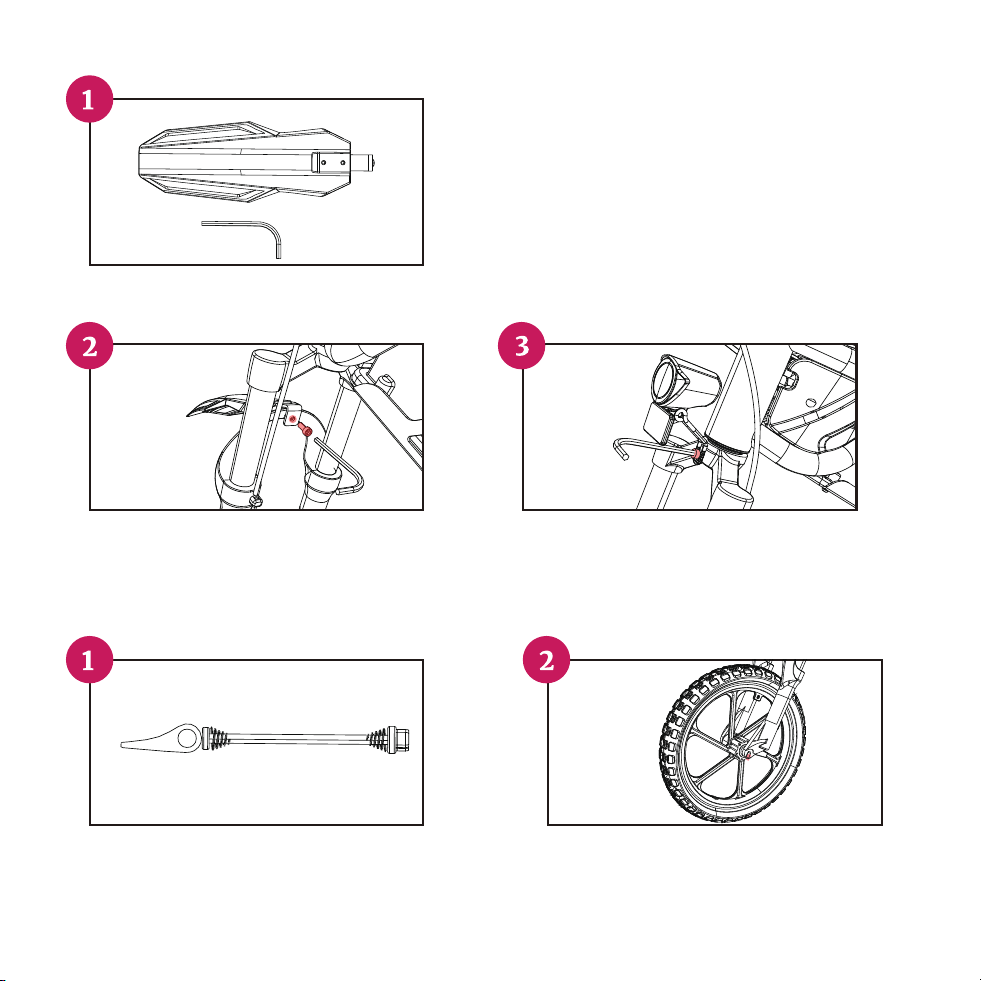

2. Install the front fender/headlight
3. Installing the front wheel
Prepare the front mudguard and a 5 mm hex wrench.
Attach the front fender and headlight to the frame. The screws come installed
on the frame, so you will first need to remove the screws to install the fender
and headlight.
Find the front wheel quick-release
locking bolt from the toolkit.
Align the axle of the front wheel
with the brake groove, and then
slowly install the wheel into the
front fork.
08
Then, pull the quick-release screw
inward to secure it. Confirm that
the wheel is working properly.
09
Insert the quick-release screw
into the front wheel axle. Note
that the screw is equipped with
two springs. Install one spring on
each side of the wheel axle and
tighten the screws.

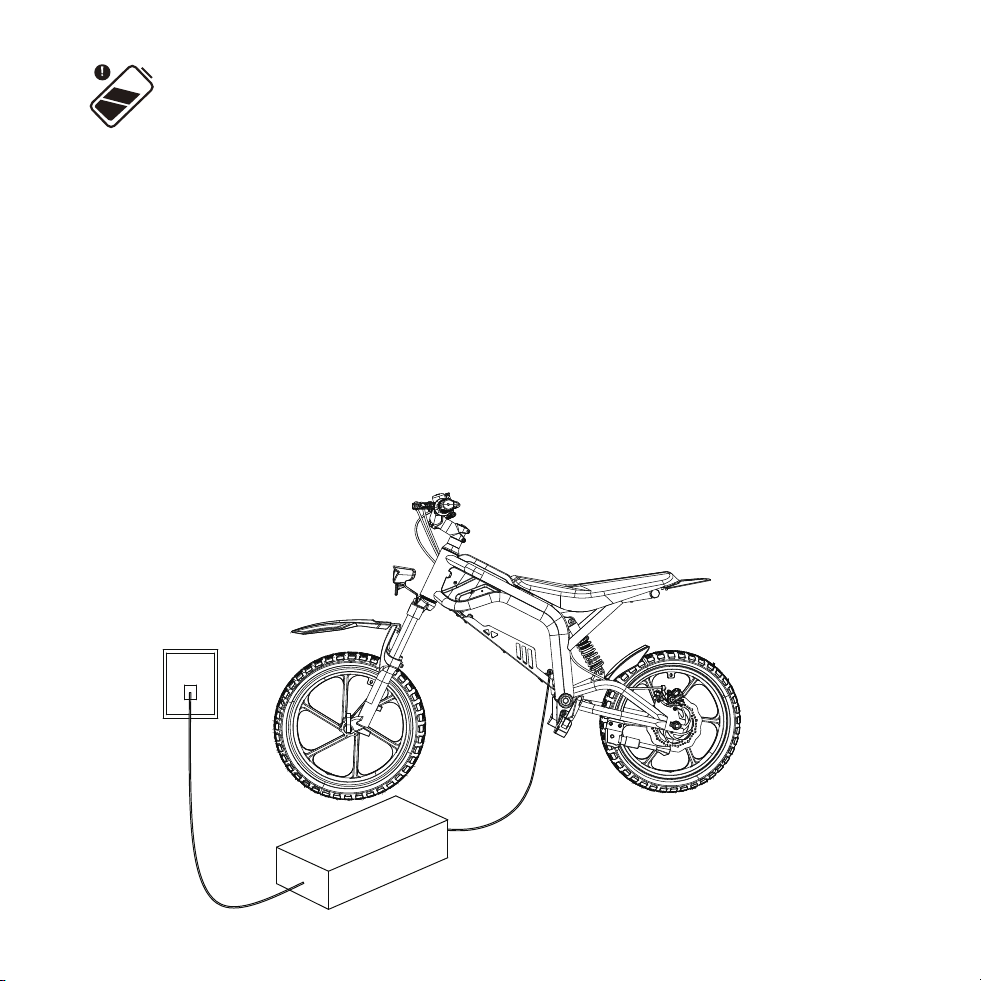

Charge Your Electric Dirt Bike
Before using the Electric Dirt Bike, you must fully charge the battery.
1.
2.
3.
4.
5.
Open the rubber charging port cover.
Insert the charging plug into the port.
The charger box will have a green light when fully charged
and a red light when charging.
When you are done charging, be sure to cover the
charging port to keep it clear of dust and debris.
Charging Time: About 5.2 hours.
10
Power on/off: Press and hold the power button for 2-3 seconds. The
display will light up, and the dirt bike will power on. Press and hold the
power button again for 2-3 seconds. The display screen will turn off, and the
dirt bike will power off.
Gear Shift: While the dirt bike is powered on, pressing the gear button will
switch the dirt bike between high (HIGH) and low (ECO) gears. This will also
release the parking mode.
If the vehicle remains stationary and inactive for 15 seconds, it will return to
parking mode automatically.
Parking Mode Release: After turning the dirt bike on, the display panel will
show the combination “P0.” Squeeze the brake lever or press the gear
button to release the parking mode. The display panel will show the
numbers “00,” and you will be able to ride normally.
Light Control: When the dirt bike is first powered on, the headlights are
turned off by default. While the dirt bike is powered on, give the gear
button a long press to activate the front and rear lights. In this state, they
will stay on continuously, and the display screen will show an illuminated
headlight icon. When the brakes are applied, the rear light will flash.
To turn off the lights and deactivate the light icon on the display, give the
gear button another long press.
Electric Dirt Bike Console Functions
11

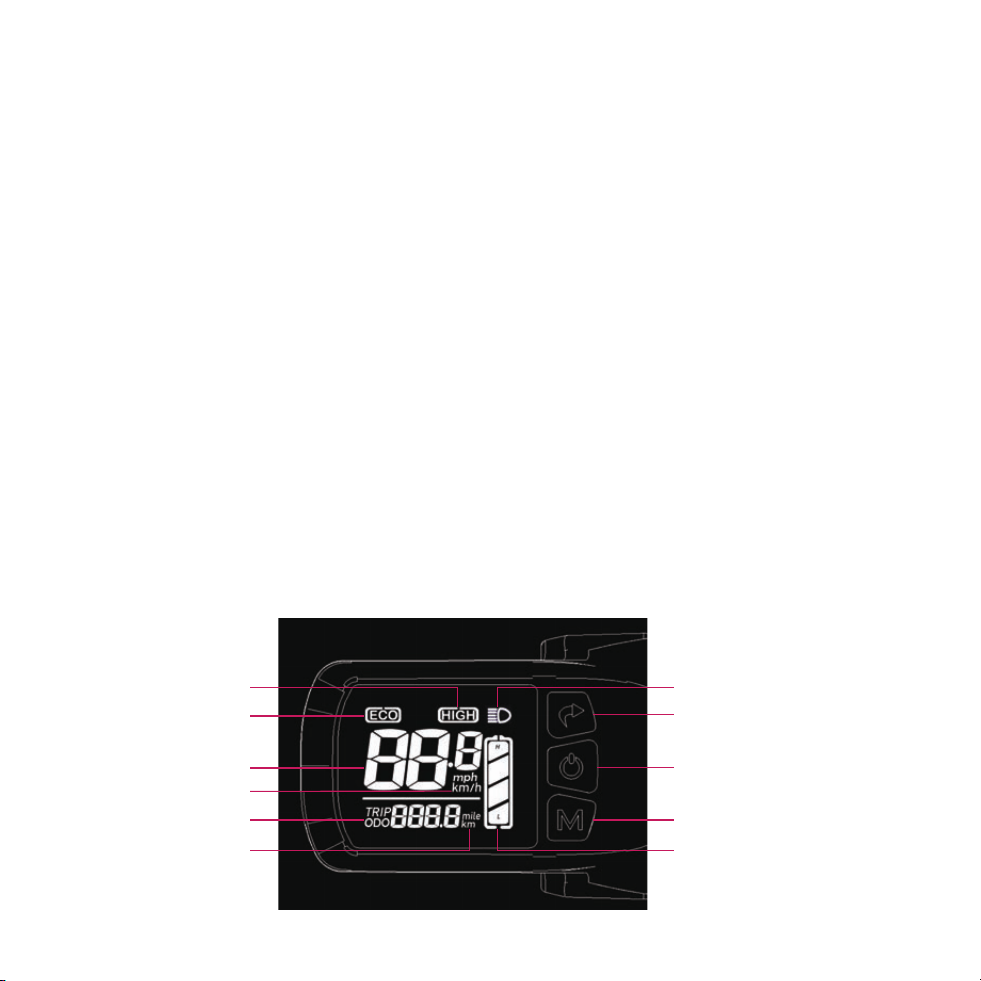

Headlight lconGear 2
Gear 1
Speed Display
Speed Unit
Mileage Display
Mileage Unit
Gear Button
Power Button
M key
Battery Level Display
Switching Between Single Mileage and Total Mileage Display: While the
dirt bike is on, press the M button to switch the display between single
mileage and total mileage.
Switching Between Miles and Kilometers: While the dirt bike is powered
on, press the gear button and the M button simultaneously for 5 seconds.
This will switch the display unit between miles and kilometers.
Clearing the ODO Mileage: While the dirt bike is powered on, press the
power button and the M button simultaneously for 10 seconds. This will
clear the total mileage, resetting it to zero.
Using the Bell: Use your finger to pluck the bell.
Battery Power Display: When the battery is fully charged, the battery icon
on the display screen will be full (it will show four bars). As you use the dirt
bike’s battery power, the bars in the battery display will decrease in turn.
When there is only one bar left, the battery is at low power and will need to
be charged soon.
12
Error code
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
Controller malfunction
Throttle malfunction
Brake failure
Mos tube fault
Motor Hall sensor malfunction
Stall protection
Under voltage protection
Over voltage protection
Motor over-temperature protection
Communication failure
Failure definition
Error Code
13

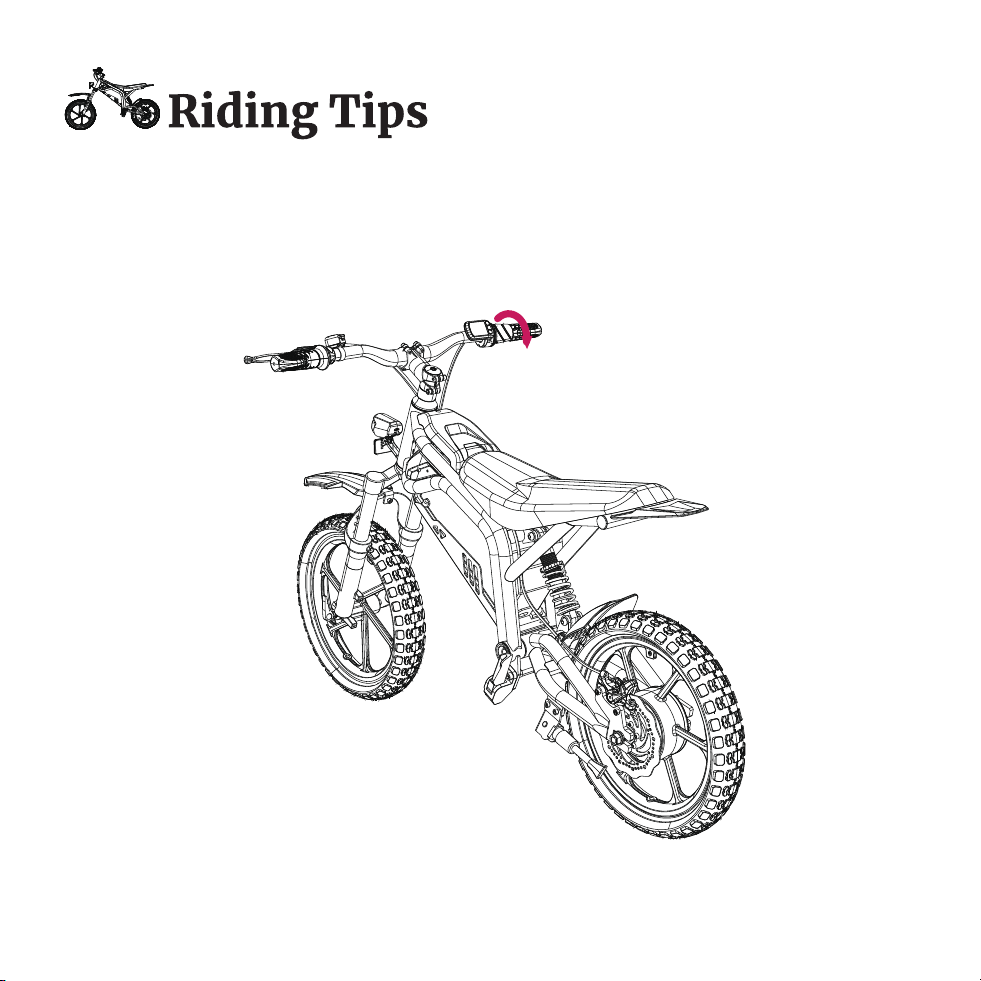

To begin riding the electric dirt bike, you will first need to sit on the saddle, placing
one foot on the pedal and keeping the other foot on the ground. Then, twist the
throttle on the handlebar to accelerate and begin moving.
14

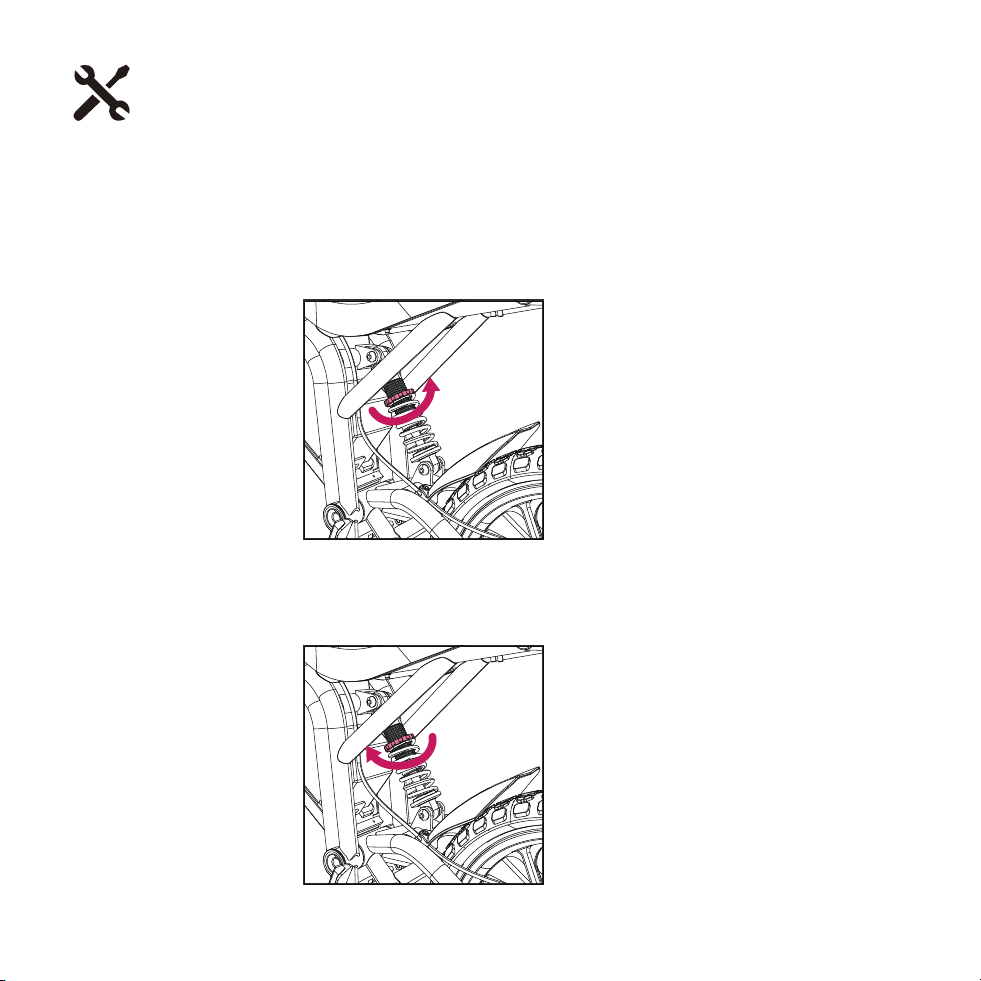

Adjusting the Shock Absorber: If the shock absorbing is too hard, turn the
shock absorber nut counterclockwise to loosen the spring.
lf the shock absorbing is too soft, turn the shock absorber nut clockwise to
compress the spring.
Maintenance & Repair
If you regularly clean and maintain your electric dirt bike, you will extend
its life.
15
Tires: If you notice that the tire pressure is low, you will need to fill the tires to
the recommended PSI, which is listed on the side of the tire. The recommended
PSI is 36.
DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to
clean the electric dirt bike. This can severely damage the appearance and
structure of the dirt bike. In addition, please do not use a pressure washer, as it
may also cause damage to the electronics.
Storage: When your electric dirt bike is not in use, store it in a cool and dry
location. Avoid storing your electric dirt bike outdoors, as sun exposure can
damage the dirt bike’s appearance and may negatively impact the life of the
battery and tires.
16
Only use the approved GOTRAX power adapter to charge your electric dirt
bike. Using other adapters may cause risk of fire and equipment may be
damaged.
Improper disposal of used batteries may seriously pollute the environment.
Please comply with local disposal regulations.
Make sure to store your electric dirt bike and power adapter in conditions
that do not exceed 122 degrees Fahrenheit or fall below -4 degrees
Fahrenheit.
Warning - Risk of Fire. No user serviceable parts. Prolonged exposure to UV
rays, rain, and the elements may damage the enclosed materials. Store
indoors when not in use.
17
Warranty
Please contact our customer service team if you are experiencing problems
or need more detailed information.
US team after-sales email: [email protected]
CA team after-sales email: [email protected]
1.
2.
3.
4.
Users should operate in accordance with the product manual. In case of any
performance fault caused by production quality, the company shall perform the
obligations of the three guarantees in accordance with the provisions of relevant
laws and regulations of the state.
The company is still responsible for the after-sales service of the faults beyond
three guarantees and the major components in the three guarantees, but there
will be a cost for repair.
If the battery needs to be replaced outside of the warranty period, our company
will supply the battery at factory price. To ensure safety and avoid pollution,
please follow local regulations for disposing of used lithium-ion batteries.
We do not cover physical damage due to negligent care and extreme riding.
18
(CA)www.gotraxcanada.com
(US) W W W .G OT R A X . C O M
GOTRAX.com
2201 Luna Rd.
Carrollton, TX 75006
(US) GOLABS, INC
170 Bartor Road, Unit 1 North York,
Ontario M9M 2W6,
Canada.
(CA) Tao Motor Canada Inc.
