DA-CM2050 INSTALLATION MANUAL
This manual is intended for users of the DA-CM2050 ceiling mounting bracket.
It includes instructions for mounting the DA-CM2050 ceiling mounting bracket
to a ceiling.
• This bracket is intended to be used with a specic model of camera.
Do not use it with other models of cameras except for those
approved by the dealer or distributor.
• This installation should be performed by a qualied service
personnel in conformance to all local codes.
• You may need to reinforce the ceiling. If the ceiling is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Mounting

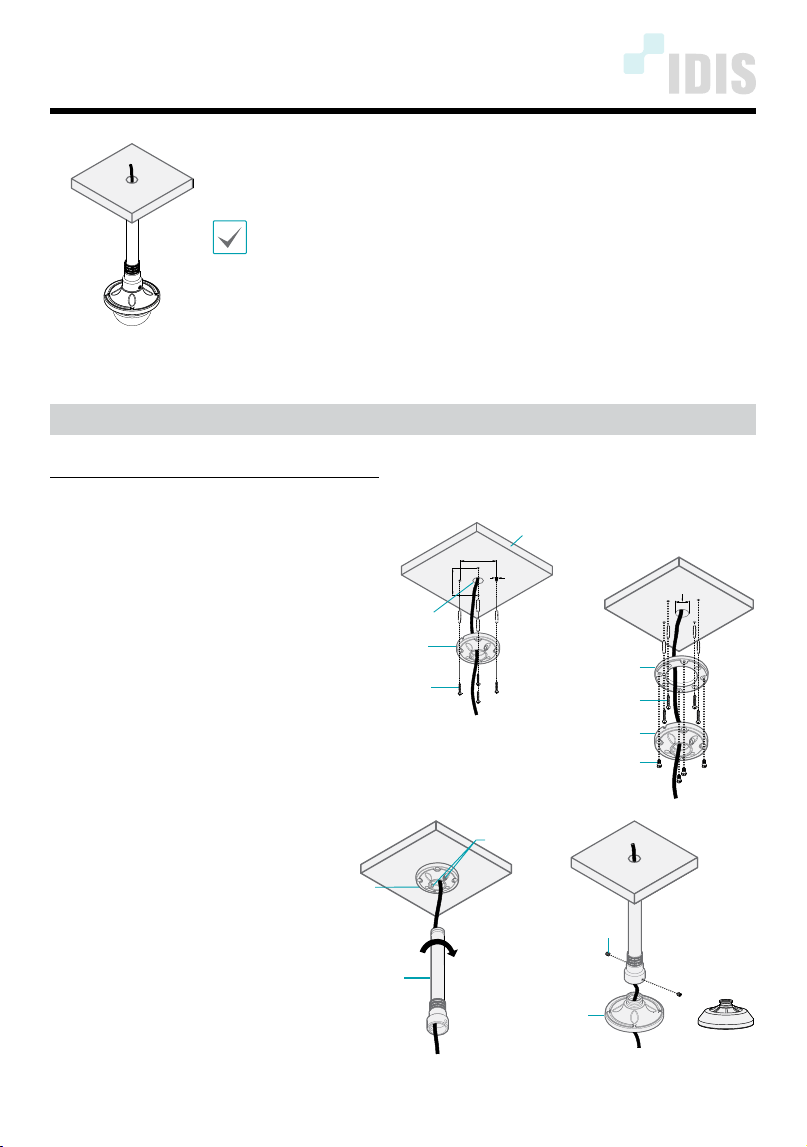

Mount the bracket to the ceiling as follows:
1
Insert cables from external
devices, network and power
adapter into base.
2
Mount base to the ceiling by
using the provided anchors
and screws. Or, mount bracket
1 to the ceiling and then the
base to bracket 1 by using the
provided anchors and screws.
Ø 30mm (1.18”)
Base
Screw 4X25, 4EA
Bracket 1
Hexagon Socket 5X10, 4EA
Ceiling
Hole Ø25~30mm
Base
Screw 4X25, 4EA
Ø 6.5mm
(0.26”)
84mm (3.31”)
84mm
3
Insert cables from external
devices, network and power
adapter through the ceiling
pipe.
4
Assemble the ceiling pipe into
the base.
5
Insert cables from external
devices, network and power
adapter into bracket 2, which is
purchased separately.
6
Assemble bracket 2 into the
ceiling pipe and x it by using
the screws.
Base
Ceiling Pipe
Screw Set M8X8
(2EA)
Screw Set M8X8, 2EA
Bracket 2
or
IDIS Co., Ltd.
For more information, please visit www.idisglobal.com
Ver.1.0
Dimensions
Unit: mm (inch)
4-Ø5.8(0.23)
308.1
`
5 (12.13)
Ø 99.5 (3.92)
4-Ø4.2 (0.17)
79 (3.11)
59.4 (2.34)
79 (3.11)
59.4 (2.34)
1/1
DA-CM2050
송진규 최진성 최진성
5XXXXX
Unit:mm (inch)
308.1 ± 5 (12.13)
