Video Intercom Villa Door Staon
User Manual
Legal Informaon
©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product.
Pictures, charts, images and all other informaon hereinaer are for
descripon and explanaon only. The informaon contained in the Manual
is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision
website (
hps://www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals
trained in supporng the Product.
Trademarks
and other Hikvision's trademarks and logos are the
properes of Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their
respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL
AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”.
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS
AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR
ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT,
TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
Video Intercom Villa Door Staon User Manual
i
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR
INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY
RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION
WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE
LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE
CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE,
FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE
RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND
OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION
OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN
THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Video Intercom Villa Door Staon User Manual
ii
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or
could result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not
avoided, could result in equipment damage, data loss,
performance degradaon, or unexpected results.
Note
Provides addional informaon to emphasize or
supplement important points of the main text.
Video Intercom Villa Door Staon User Manual
iii
Safety Instrucon
Warning
•
The working temperature of the device is from -10 ºC to 55 ºC.
•
All the electronic operaon should be strictly compliance with the electrical
safety regulaons, re prevenon regulaons and other related regulaons in
your local region.
•
Please use the power adapter, which is provided by normal company. The power
consumpon cannot be less than the required value.
• Do not connect several devices to one power adapter as adapter overload may
cause over-heat or re hazard.
•
Please make sure that the power has been disconnected before you wire, install
or dismantle the device.
•
When the product is installed on wall or ceiling, the device shall be rmly xed.
•
If smoke, odors or noise rise from the device, turn o the power at once and
unplug the power cable, and then please contact the service center.
•
If the product does not work properly, please contact your dealer or the nearest
service center. Never aempt to disassemble the device yourself. (We shall not
assume any responsibility for problems caused by unauthorized repair or
maintenance.)
Cauon
•
Do not drop the device or subject it to physical shock, and do not expose it to
high electromagnesm radiaon. Avoid the equipment installaon on vibraons
surface or places subject to shock (ignorance can cause equipment damage).
•
Do not place the device in extremely hot (refer to the specicaon of the device
for the detailed operang temperature), cold, dusty or damp locaons, and do
not expose it to high electromagnec radiaon.
•
The device cover for indoor use shall be kept from rain and moisture.
•
Exposing the equipment to direct sun light, low venlaon or heat source such
as heater or radiator is forbidden (ignorance can cause re danger).
•
Do not aim the device at the sun or extra bright places. A blooming or smear
may occur otherwise (which is not a malfuncon however), and aecng the
endurance of sensor at the same me.
Video Intercom Villa Door Staon User Manual
iv
• Please use the provided glove when open up the device cover, avoid direct
contact with the device cover, because the acidic sweat of the ngers may erode
the surface coang of the device cover.
•
Please use a so and dry cloth when clean inside and outside surfaces of the
device cover, do not use alkaline detergents.
•
Please keep all wrappers aer unpack them for future use. In case of any failure
occurred, you need to return the device to the factory with the original wrapper.
Transportaon without the original wrapper may result in damage on the device
and lead to addional costs.
•
Improper use or replacement of the baery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used baeries
according to the instrucons provided by the baery manufacturer.
•
Input voltage should meet both the SELV and the Limited Power Source
according to 60950-1 standard.
•
The power supply must conform to LPS. The recommended adaptor models and
manufacturers are shown as below. Use the aached adapter, and do not
change the adaptor randomly.
Model Manufacturer Standard
ADS-24S-12 1224GPCN SHENZHEN HONOR
ELECTRONIC CO.,LTD
CEE
G0549-240-050 SHENZHEN GOSPELL DIGITAL
TECHNOLOGY CO.,LTD
CEE
TS-A018-120015Ec SHENZHEN TRANSIN
TECHNOLOGIES CO., LTD
CEE
Video Intercom Villa Door Staon User Manual
v
Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC compliance: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful
interference in a residenal installaon. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instrucons, may cause harmful interference to radio
communicaons. However, there is no guarantee that interference will not
occur in a parcular installaon. If this equipment does cause harmful
interference to radio or television recepon, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to
the following two condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operaon.
Video Intercom Villa Door Staon User Manual
vi
EU Conformity Statement
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable
harmonized European standards listed under the EMC Direcve
2014/30/EU, the RoHS Direcve 2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the
European Union. For proper recycling, return this product to your
local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collecon points. For more informaon
see: www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery
that cannot be disposed of as unsorted municipal waste in the
European Union. See the product documentaon for specic
baery informaon. The baery is marked with this symbol,
which may include leering to indicate cadmium (Cd), lead (Pb),
or mercury (Hg). For proper recycling, return the baery to your
supplier or to a designated collecon point. For more informaon
see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
Video Intercom Villa Door Staon User Manual
vii
Contents
1 Appearance ................................................................................................ 1
2 Terminal and Wiring Descripon ................................................................ 7
2.1 Terminal Descripon ......................................................................................... 7
2.2 Wiring Descripon ............................................................................................ 8
2.2.1 Door Lock Wiring ...................................................................................... 8

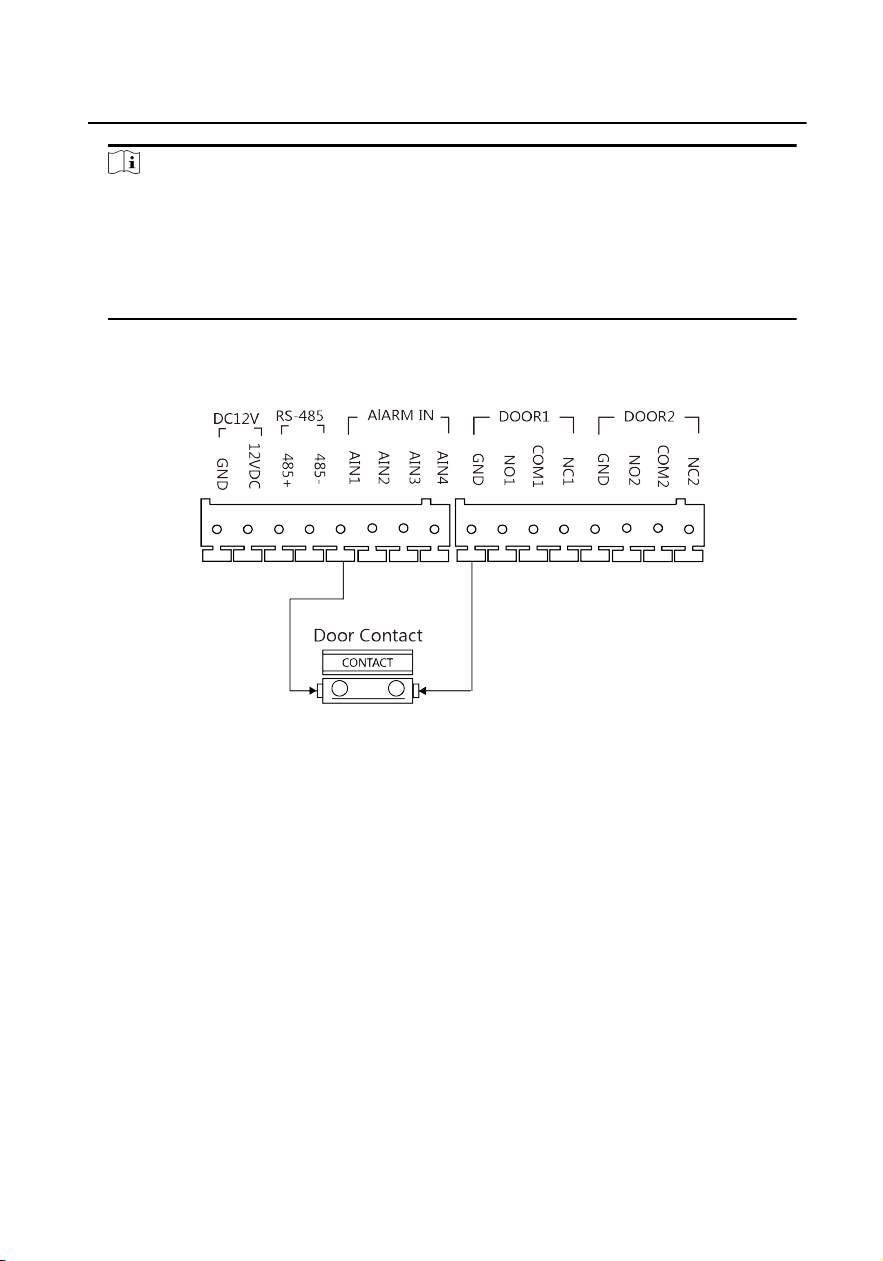

2.2.2 Door Contact Wiring ................................................................................. 9

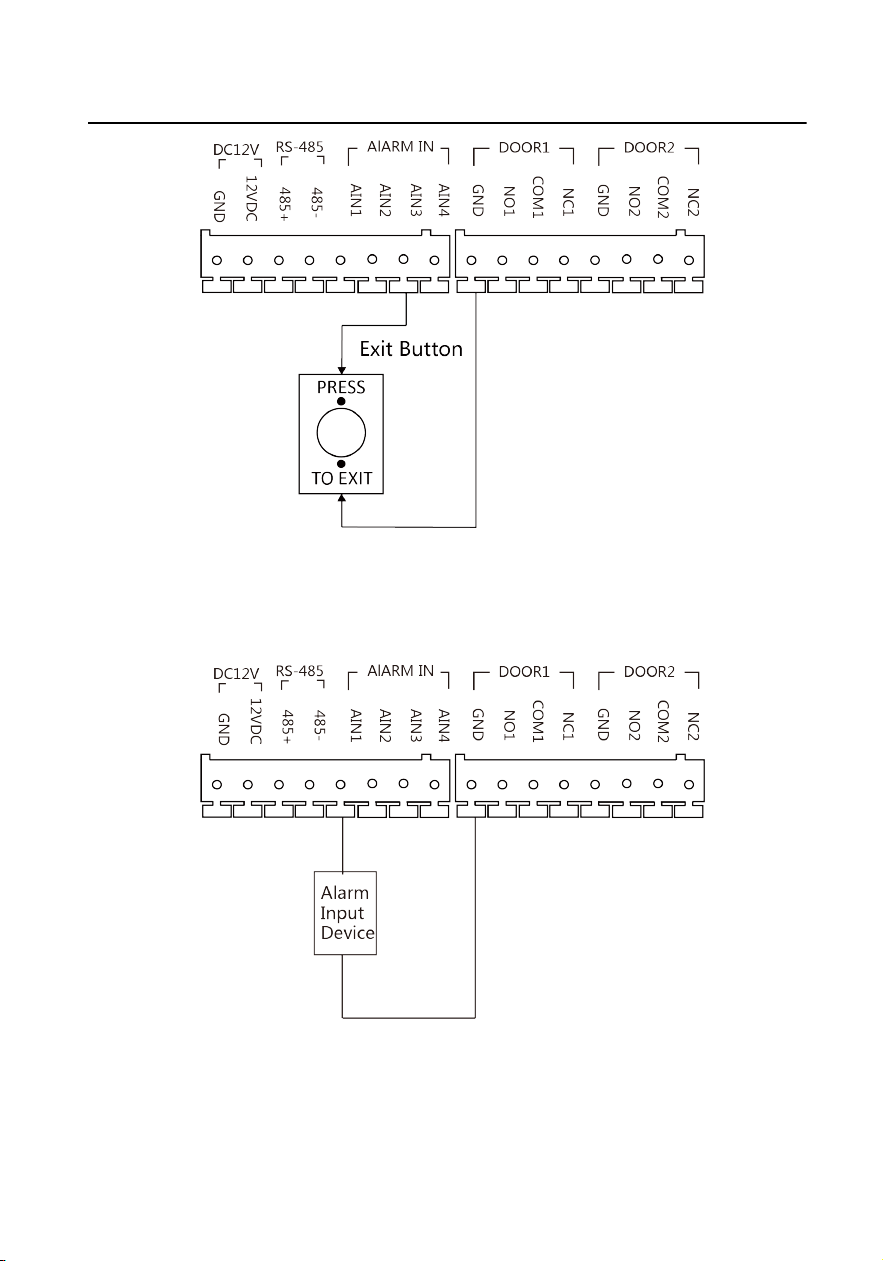

2.2.3 Exit Buon Wiring .................................................................................... 9
2.2.4 Alarm Input Device Wiring ..................................................................... 10
3 Installaon ................................................................................................ 11
3.1 Accessory Introducon ................................................................................... 11

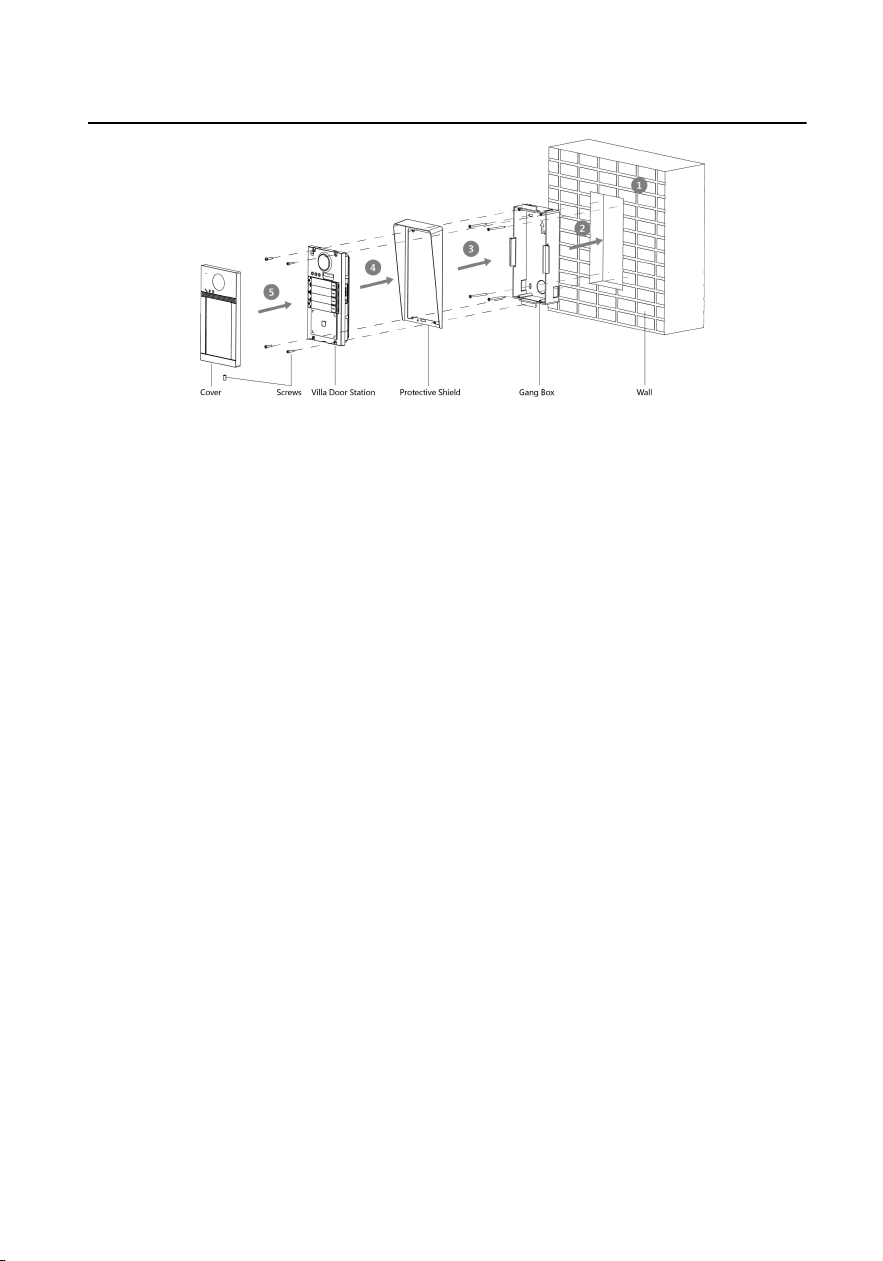

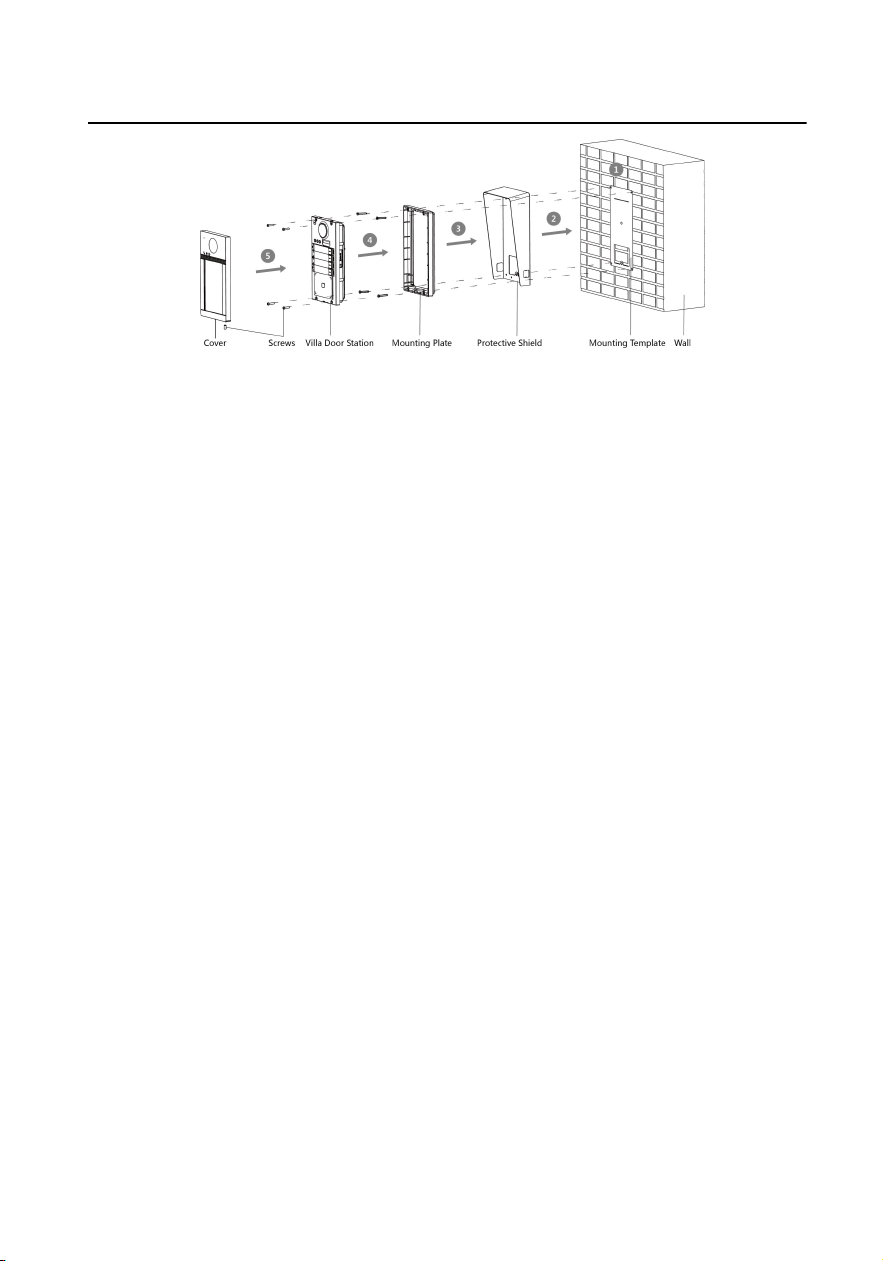

3.2 Surface Mounng with Protecve Shield ........................................................ 11
3.3 Surface Mounng without Protecve Shield .................................................. 13
3.4 Flush Mounng with Protecve Shield ........................................................... 15
3.5 Flush Mounng without Protecve Shield ...................................................... 17
4 Acvaon ................................................................................................. 20
4.1 Acvate Device via Web .................................................................................. 20
4.2 Acvate Device via Client Soware ................................................................. 20

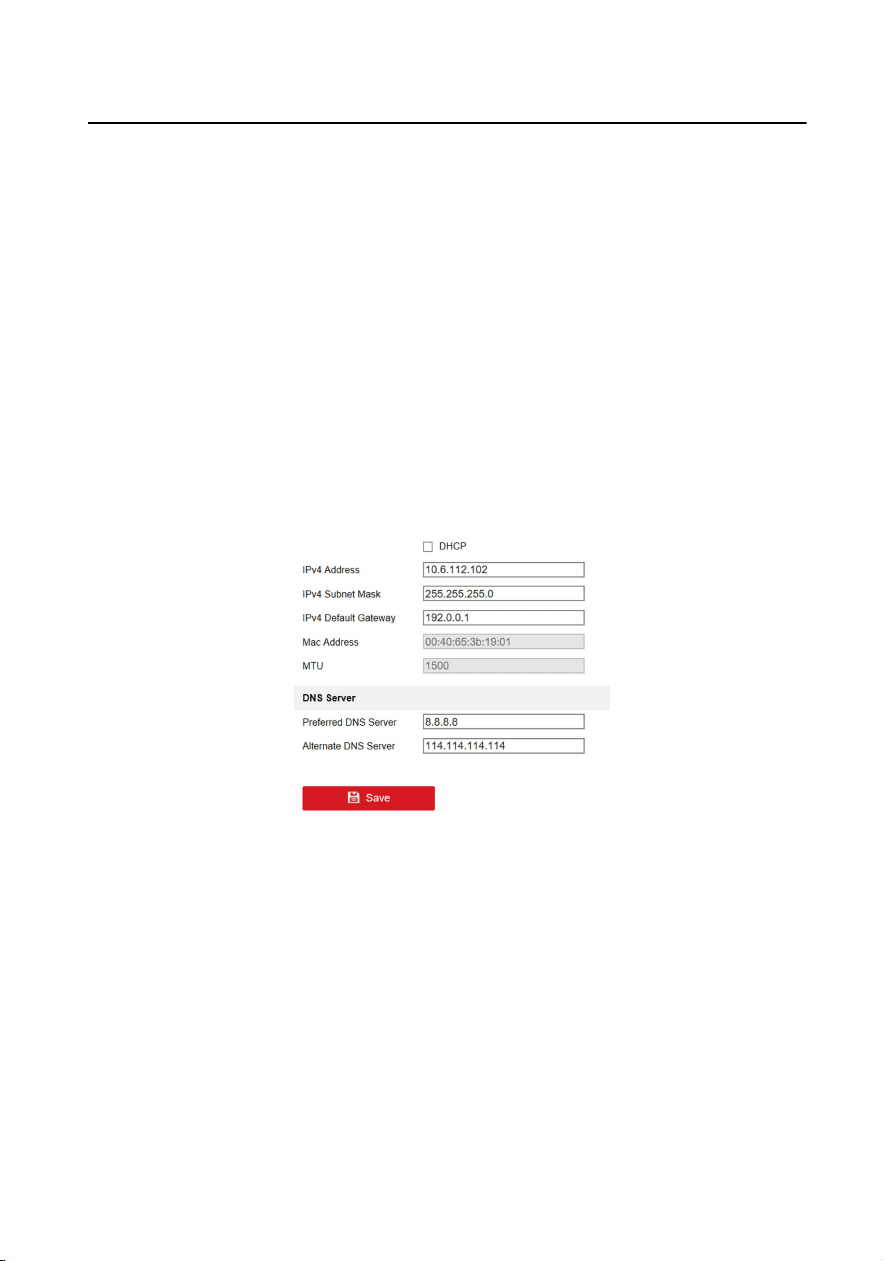

4.3 Edit Network Parameters ................................................................................ 21
5 Remote Conguraon via Web ................................................................ 22

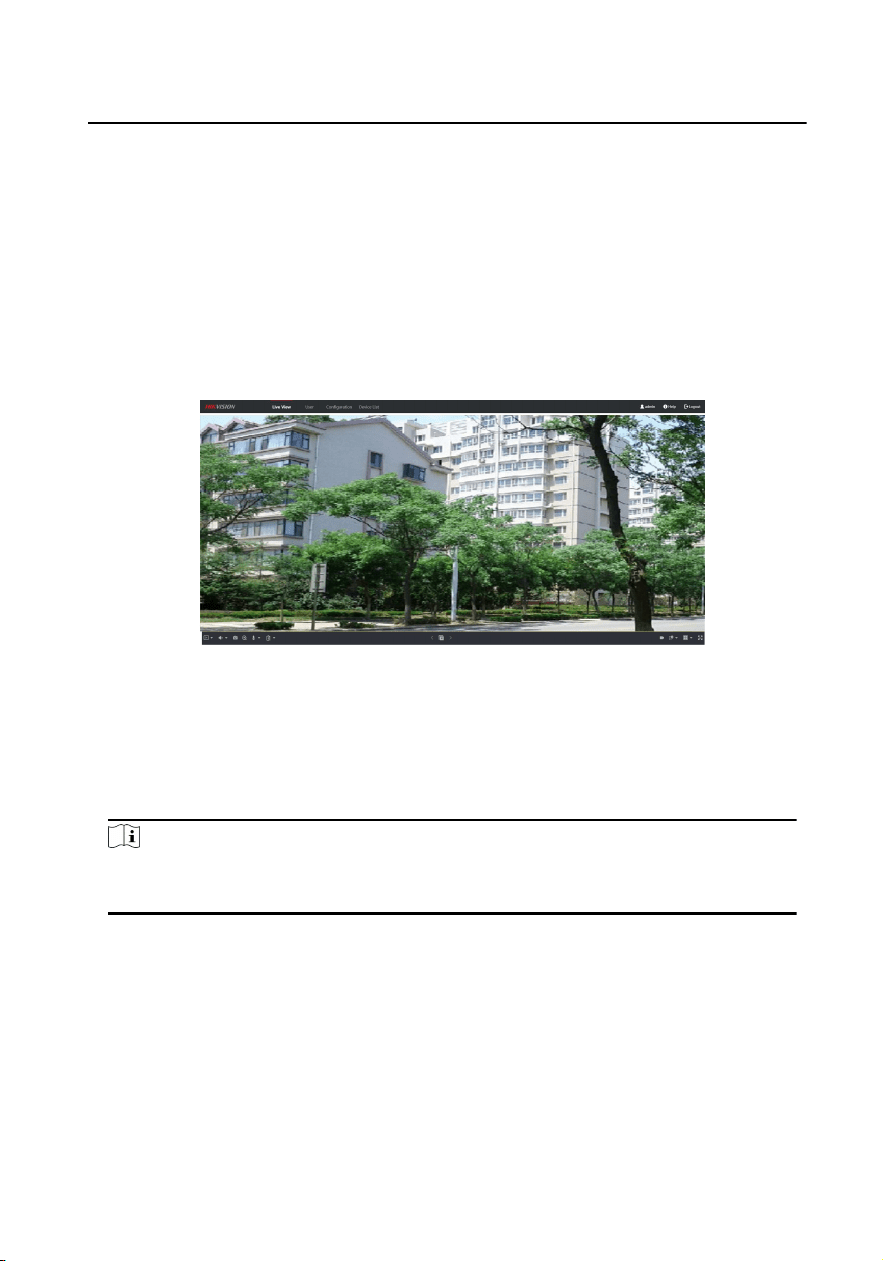

5.1 Live View ......................................................................................................... 22
5.2 User Management .......................................................................................... 22
5.3 Number Sengs ............................................................................................. 23
Video Intercom Villa Door Staon User Manual
viii
5.4 Device Management ....................................................................................... 23
5.5 Parameters Sengs ........................................................................................ 23
5.5.1 Local Parameters Sengs ....................................................................... 24
5.5.2 System Sengs ....................................................................................... 25
5.5.3 Network Sengs .................................................................................... 28
5.5.4 Video & Audio Sengs ........................................................................... 31
5.5.5 Image Sengs ........................................................................................ 34
5.5.6 Event Sengs ......................................................................................... 37
5.5.7 Schedule Sengs .................................................................................... 40
5.5.8 Intercom Sengs .................................................................................... 40
5.5.9 Access Control Sengs ........................................................................... 43
6 Conguraon via Client Soware ............................................................. 46
6.1 Device Management ....................................................................................... 46
6.1.1 Add Online Device .................................................................................. 46
6.1.2 Add Device by IP Address ....................................................................... 47
6.1.3 Add Device by IP Segment ...................................................................... 47
6.2 Live View via Door Staon .............................................................................. 48
6.3 Organizaon Management ............................................................................. 48
6.3.1 Add Organizaon .................................................................................... 48
6.3.2 Modify and Delete Organizaon ............................................................. 49
6.4 Person Management ....................................................................................... 49
6.4.1 Add Person ............................................................................................. 49
6.4.2 Modify and Delete Person ...................................................................... 51
6.4.3 Change Person to Other Organizaon .................................................... 51
Video Intercom Villa Door Staon User Manual
ix
6.4.4 Import and Export Person Informaon .................................................. 51
6.4.5 Get Person Informaon from Device ...................................................... 52
6.4.6 Issue Card in Batch ................................................................................. 52
6.4.7 Permission Sengs ................................................................................. 54
6.5 Video Intercom Sengs .................................................................................. 55
6.5.1 Receive Call from Door Staon ............................................................... 55
6.5.2 Release Noce ........................................................................................ 56
6.5.3 Search Video Intercom Informaon ....................................................... 57
6.5.4 Upload Armed Informaon .................................................................... 58
A. Communicaon Matrix and Device Command ....................................... 60
Video Intercom Villa Door Staon User Manual
x
1 Appearance
Single-Buon Villa Door Staon
Figure 1-1 Single-Buon Villa Door Staon Appearance
Table 1-1 Descripon
No. Descripon
1 Microphone
2 Indicator
Video Intercom Villa Door Staon User Manual
1
No. Descripon
Unlock (Green)/ Call (Orange)/
Communicate (White)
3 Camera
4 Loudspeaker
5 Buon
6 Card Reading Area
7 IR Light
8 Micro SD Card Slot (Reserved) &
Debugging Port
9 LAN
10 Terminals
Video Intercom Villa Door Staon User Manual
2
Two-Buon Villa Door Staon
Figure 1-2 Two-Buon Villa Door Staon Appearance
Table 1-2 Descripon
No. Descripon
1 Microphone
2 Indicator
Unlock (Green)/ Call (Orange)/
Communicate (White)
3 Camera
Video Intercom Villa Door Staon User Manual
3
No. Descripon
4 Loudspeaker
5 Buon
6 Card Reading Area
7 IR Light
8 Micro SD Card Slot (Reserved) &
Debugging Port
9 LAN
10 Terminals
Video Intercom Villa Door Staon User Manual
4
Four-Buon Villa Door Staon
Figure 1-3 Four-Buon Villa Door Staon Appearance
Table 1-3 Descripon
No. Descripon
1 Microphone
2 Indicator
Unlock (Green)/ Call (Orange)/
Communicate (White)
3 Camera
Video Intercom Villa Door Staon User Manual
5
No. Descripon
4 Loudspeaker
5 Buon
6 Card Reading Area
7 IR Light
8 Micro SD Card Slot (Reserved) &
Debugging Port
9 LAN
10 Terminals
Video Intercom Villa Door Staon User Manual
6
2 Terminal and Wiring Descripon
2.1 Terminal Descripon
Figure 2-1 Terminal Descripon
Table 2-1 Descripon of Terminal and Interfaces
Name Interface Descripon
DOOR NC2 Door Lock Relay Output 2 (NC)
COM2 Common Interface
NO2 Door Lock Relay Output 2 (NO)
GND Grounding
NC1 Door Lock Relay Output 1 (NO)
COM1 Common Interface
NO1 Door Lock Relay Output 1 (NO)
GND Grounding
ALARM IN AI1 Alarm Input 1 (For the access of Door
Contact)
AI2 Alarm Input 2 (For the access of Door
Contact)
Note
Before accessing to the Door Contact,
select Input as Door Status in I/O
Sengs page rst.
Video Intercom Villa Door Staon User Manual
7
Name Interface Descripon
AI3 Alarm Input 3 (For the access of Exit
Buon)
AI4 Alarm Input 4 (For the access of Exit
Buon)
Note
Before accessing to the Exit Buon,
select Input as Exit Buon in I/O
Sengs page rst.
RS-485 485+ RS-485 Communicaon Interface
485-
Power Input 12 VDC 12 VDC Input
GND
Network LAN Network Interface
2.2 Wiring Descripon
2.2.1 Door Lock Wiring
Figure 2-2 Door Lock Wiring
Video Intercom Villa Door Staon User Manual
8
Note
•
Terminal NC1/COM1 is set as default for accessing magnec lock/electric bolt;
terminal NO1/COM1 is set as default for accessing electric strike.
•
To connect electric lock in terminal NO2/COM2/NC2, it is required to set the
output of terminal NO2/COM2/NC2 to be electric lock with iVMS-4200 client
soware.
2.2.2 Door Contact Wiring
Figure 2-3 Door Contact Wiring
2.2.3 Exit Buon Wiring
Video Intercom Villa Door Staon User Manual
9
Figure 2-4 Exit Buon Wiring
2.2.4 Alarm Input Device Wiring
Figure 2-5 Alarm Input Device Wiring
Video Intercom Villa Door Staon User Manual
10
3 Installaon
Note
• Make sure the device in the package is in good condion and all the assembly
parts are included.
•
Make sure your power supply matches your door staon.
•
Make sure all the related equipment is power-o during the installaon.
•
Check the product specicaon for the installaon environment.
3.1 Accessory Introducon
Figure 3-1 Accessory Introducon
Note
The dimension of gang box for door staon is: 174 (length) × 83.66 (width) × 18
(depth) mm.
3.2 Surface Mounng with Protecve Shield
Video Intercom Villa Door Staon User Manual
11
Before You Start
• Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
•
Purchase the protecve shield before installaon.
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the
mounng template. Remove the template from the wall.
Figure 3-2 Mounng Template
2.
Align the protecve shield with mounng template.
3. Secure the mounng plate on the wall with 4 supplied screws according to the
screw holes.
4.
Secure the device on the mounng plate with 4 supplied set screws.
5.
Fix the cover onto the device with the screw.
Video Intercom Villa Door Staon User Manual
12
Figure 3-3 Surface Mounng with Protecve Shield
3.3 Surface Mounng without Protecve Shield
Before You Start
Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
Steps
1. Sck the mounng template on the wall. Drill screw holes according to the
mounng template. Remove the template from the wall.
Video Intercom Villa Door Staon User Manual
13
Figure 3-4 Mounng Template
2.
Secure the mounng plate on the wall with 4 supplied screws according to the
screw holes.
3.
Secure the device on the mounng plate with 4 supplied set screws.
4.
Fix the cover onto the device with the screw.
Video Intercom Villa Door Staon User Manual
14
Figure 3-5 Surface Mounng without Protecve Shield
3.4 Flush Mounng with Protecve Shield
Before You Start
• Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
•
Purchase the protecve shield before installaon.
Steps
1.
Sck the mounng template on the wall. Drill the hole according to the
mounng template. Remove the template from the wall.
Video Intercom Villa Door Staon User Manual
15
Figure 3-6 Mounng Template
Note
The suggested size of hole is 175 mm × 84 mm × 19 mm.
2.
Install the gang box into the hole with 4 screws.
3. Align the protecve shield with the gang box.
4.
Insert the device to the gang box. Secure the device with 4 supplied screws.
5.
Fix the cover onto the device with the screw.
Video Intercom Villa Door Staon User Manual
16
Figure 3-7 Flush Mounng with Protecve Shield
3.5 Flush Mounng without Protecve Shield
Before You Start
Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
Steps
1.
Sck the mounng template on the wall. Drill the hole according to the
mounng template. Remove the template from the wall.
Video Intercom Villa Door Staon User Manual
17
Figure 3-8 Mounng Template
Note
The suggested size of hole is 175 mm × 84 mm × 19 mm.
2.
Secure the gang box into the hole with 4 screws.
3. Insert the device to the gang box. Secure the device with 4 supplied screws.
4.
Fix the cover onto the device with the screw.
Video Intercom Villa Door Staon User Manual
18
Figure 3-9 Flush Mounng without Protecve Shield
Video Intercom Villa Door Staon User Manual
19
4 Acvaon
4.1 Acvate Device via Web
You are required to acvate the device rst by seng a strong password for it before
you can use the device.
Default parameters of the door staon are as follows:
•
Default IP Address: 192.0.0.65.
•
Default Port No.: 8000.
•
Default User Name: admin
Steps
1.
Power on the device, and connect the device to the network.
2.
Enter the IP address into the address bar of the web browser, and click Enter to
enter the acvaon page.
Note
The computer and the device should belong to the same subnet.
3.
Create and enter a password into the password eld.
4.
Conrm the password.
5.
Click OK to acvate the device.
4.2 Acvate Device via Client Soware
You can only congure and operate the door staon aer creang a password for
the device acvaon.
Default parameters of door staon are as follows:
•
Default IP Address: 192.0.0.65.
•
Default Port No.: 8000.
•
Default User Name: admin.
Steps
1.
Run the client soware, click Maintenance and Management → Device
Management → Device to enter the page.
2.
Click Online Device.
Video Intercom Villa Door Staon User Manual
20
3. Select an inacvated device and click Acvate.
4.
Create a password, and conrm the password.
Note
We highly recommend you to create a strong password of your own choosing
(using a minimum of 8 characters, including at least three kinds of following
categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we
recommend you change your password regularly, especially in the high security
system, changing the password monthly or weekly can beer protect your
product.
5.
Click OK to acvate the device.
Note
•
When the device is not acvated, the basic operaon and remote operaon
of device cannot be performed.
•
You can hold the Ctrl or Shi key to select mulple devices in the online
devices, and click the Acvate buon to acvate devices in batch.
4.3 Edit Network Parameters
To operate and congure the device via LAN (Local Area Network), you need connect
the device in the same subnet with your PC. You can edit network parameters via
iVMS-4200 client soware.
Steps
1.
Select an online acvated device and click the Modify Nenfo.
2.
Edit the device IP address and gateway address to the same subnet with your
computer.
3.
Enter the password and click OK to save the network parameters modicaon.
Note
•
The default port No. is 8000.
•
The default IP address of the door staon is 192.0.0.65.
•
Aer eding the network parameters of device, you should add the devices
to the device list again.
Video Intercom Villa Door Staon User Manual
21
5 Remote Conguraon via Web
5.1 Live View
In the browser address bar, enter the IP address of the device, and press the Enter
key to enter the login page.
Enter the user name and password and click Login to enter the Live View page. Or
you can click Live View to enter the page.
Figure 5-1 Live View
•
You can start/stop live view, capture, record, audio on/o, two-way audio, etc.
•
The stream type can be set as main stream or sub stream.
•
For IE (Internet Explorer) or Google users, the device support two-way audio
communicaon.
Note
Live View funcon may vary with dierent models. Please refer to the actual
product.
5.2 User Management
You can add, delete or search the informaon of the user.
Click User to enter the sengs page.
•
Click Add and enter the Name, Floor No. and Room No. to add.
•
Click Edit to modify the informaon of the user.
Video Intercom Villa Door Staon User Manual
22
• Check the box of the user and click Delete to delete the selected user.
•
Enter the keyword and click search icon. The informaon will display in the list.
Note
User management funcon may vary with dierent models. Please refer to the
actual product.
5.3 Number Sengs
Link the room No. and SIP numbers.
Click Number Sengs to enter the page.
Click Add, set the Room No. and SIP numbers in the pop-up dialog box.
5.4 Device Management
You can manage the linked device on the page.
Click Device List to enter the sengs page.
Add Device
•
Click Add to add the indoor staon or sub door staon. Enter the
parameters and click OK to add.
•
Click Import. Enter the informaon of the device in the template to
import devices in batch.
Export
Click Export to export the informaon to the PC.
Synchronize
Click Synchronize to synchronize the informaon.
5.5 Parameters Sengs
Click Conguraon to set the parameters of the device.
Video Intercom Villa Door Staon User Manual
23
Remote conguraon in iVMS-4200 and Batch Conguraon Tool is the same as that
in Web. Here takes the conguraon in web for example.
Note
Run the browser, click → Internet Opons → Security to disable the Protected
Mode.
5.5.1 Local Parameters Sengs
You can congure the parameters of the live view, record les and captured pictures.
The record les and captured pictures are the ones you record and capture by using
the web browser. You can also set and view the saving paths of the captured pictures
and recorded videos on the PC that running the web browser.
Live View Parameters
Stream Type
Set the stream type as Main Stream or Sub-stream.
Play Performance
Set the live view performance to Shortest Delay, Balanced or Fluent.
Auto Start Live View
Check Yes to enable the funcon.
Image Format
Select the image format for picture capture.
Click Save to enable the sengs.
Record File Parameters
Record File Size
Select the packed size of the manually recorded and downloaded video
les to 256M, 512M or 1G. Aer the selecon, the maximum record le
size is the value you selected.
Save record les to
Set the saving path for the manually recorded video les.
Click Save to enable the sengs.
Video Intercom Villa Door Staon User Manual
24
Picture and Clip Sengs
Save snapshots in live view to
Set the saving path of the manually captured pictures in live view mode.
Note
You can click Browse to change the directory for saving the clips and
pictures, and click Open to open the set folder of clips and picture saving.
Click Save to enable the sengs.
5.5.2 System Sengs
Follow the instrucons below to congure the system sengs, include System
Sengs, Maintenance, Security, and User Management, etc.
Click System to enter the sengs page.
Basic Informaon
Click System Sengs → Basic Informaon to enter the sengs page. On
the page, you can edit Device Name and Device No. Set the Language and
System Type according to your needs.
Click Save to enable the sengs.
Time Sengs
Click System Sengs → Time Sengs to enter the sengs page. Select the
Time Zone of your locaon from the drop-down list.
•
Enable NTP, set the Server Address, NTP Port and Interval.
•
Enable Manual Time Sync., set the me manually or check the Sync.
with computer me.
Click Save to enable the sengs.
DST
Click System Sengs → DST to check Enable DST. Set the parameters
according to your needs and click Save to enable the sengs.
Video Intercom Villa Door Staon User Manual
25
Maintenance
Click Maintenance → Upgrade & Maintenance to enter the sengs page.
Figure 5-2 Maintenance
•
Reboot: Click Reboot to reboot the device.
•
Restore
Click Restore to reset all the parameters, except the IP parameters
and user informaon, to the default sengs.
Default
Click Default to restore all parameters to default sengs.
•
Export parameters:
1. Select Device Parameters, and click Export to pop up the dialog box.
2. Set and conrm the encrypon password.
3. Click OK to export parameters.
•
Import Cong. File:
1. Click browse icon to select the conguraon le.
2. Click Import and enter the encrypon password to import.
•
Upgrade: Click browse icon to select the upgrade le.
Note
The upgrading process will last 1 to 10 minutes, do not power o during
the upgrading. The device reboots automacally aer upgrading.
Video Intercom Villa Door Staon User Manual
26
Authencaon
Click Security → Authencaon to enter the sengs page. On the page,
you can select RTSP Authencaonaccording to your actual needs.
Click Save to enable the sengs.
Security Service
Click Security → Security Service to enter the sengs page. On the page,
you can enable SSH according to your actual needs.
Click Save to enable the sengs.
User Management
Click User Management to enter the sengs page.
Administrator can edit the permission for the users.
Note
We highly recommend you to create a strong password of your own
choosing (using a minimum of 8 characters, including at least three kinds of
following categories: upper case leers, lower case leers, numbers, and
special characters) in order to increase the security of your product. And we
recommend you change your password regularly, especially in the high
security system, changing the password monthly or weekly can beer
protect your product.
Online Users
Click User Management → Online Users to enter the page.
Figure 5-3 Online Users
Click Refresh to get the present informaon.
Video Intercom Villa Door Staon User Manual
27
Arming/Disarming Informaon
Click User Management → Arming/Disarming Informaon to view the
informaon. Click Refresh to get the present informaon.
5.5.3 Network Sengs
TCP/IP Sengs
TCP/IP sengs must be properly congured before you operate the device over
network. The device supports IPv4.
Steps
1.
Click Network → Basic Sengs → TCP/IP to enter the sengs page.
Figure 5-4 TCP/IP Sengs
2.
Congure the network parameters.
-
Check DHCP, the device will get the parameters automacally.
-
Set the IPv4 Address, IPv4 Subnet Mask and IPv4 Default Gateway
manually.
3.
Congure the DNS server.
4.
Click Save to enable the sengs.
Port Sengs
Video Intercom Villa Door Staon User Manual
28
Steps
1. Click Network → Basic Sengs → Port to enter the sengs page.
Figure 5-5 Port Sengs
2.
Set the ports of the device.
HTTP Port
The default port number is 80, and it can be changed to any port No. which
is not occupied.
RTSP Port
The default port number is 554 and it can be changed to any port No. ranges
from 1 to 65535.
Server Port
The default server port number is 8000, and it can be changed to any port
No. ranges from 2000 to 65535.
3.
Click Save to enable the sengs.
Wi-Fi Sengs
Steps
1.
Click Network → Basic Sengs → Wi-Fi Sengs to enter the sengs page.
2.
Enter the SSID and Password of the Wi-Fi.
3.
Select Security Mode.
4.
Click Connect.
SIP Seng
Steps
1.
Click Network → Basic Sengs → SIP to enter the sengs page.
2.
Check Enable VOIP Gateway.
3.
Congure the SIP parameters.
Video Intercom Villa Door Staon User Manual
29
4. Click Save to enable the sengs.
FTP Sengs
Steps
1.
Click Network → Advanced Sengs → FTP to enter the sengs page.
Figure 5-6 FTP Sengs
2.
Check Enable FTP.
3.
Select Server Type.
4.
Input the Server IP Address and Port.
Video Intercom Villa Door Staon User Manual
30
5. Congure the FTP Sengs, and the user name and password are required for the
server login.
6.
Set the Directory Structure, Parent Directory and Child Directory.
7.
Set the picture naming rules.
8.
Click Save to enable the sengs.
Plaorm Access
Plaorm access provides you an opon to manage the devices via plaorm.
Steps
1.
Click Network → Advanced Sengs → Plaorm Access to enter the sengs
page.
2.
Check the checkbox of Enable to enable the funcon.
3.
Select the Plaorm Access Mode.
Note
Hik-Connect is an applicaon for mobile devices. With the App, you can view live
image of the device, receive alarm nocaon and so on.
4.
Create a Stream Encrypon/Encrypon for the device.
Note
6 to 12 leers (a to z, A to Z) or numbers (0 to 9), case sensive. You are
recommended to use a combinaon of no less than 8 leers or numbers.
5.
Click Save to enable the sengs.
5.5.4 Video & Audio Sengs
Video Parameters
Steps
1.
Click Video/Audio → Video to enter the sengs page.
Video Intercom Villa Door Staon User Manual
31
Figure 5-7 Video Parameters
2.
Select the Stream Type.
3.
Congure the video parameters.
Stream Type
Select the stream type to main stream or sub stream.
Video Type
Select the stream type to video stream, or video & audio composite stream.
The audio signal will be recorded only when the Video Type is Video &
Audio.
Resoluon
Select the resoluon of the video output.
Bitrate Type
Select the bitrate type to constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video quality are
selectable.
Frame Rate
Set the frame rate. The frame rate is to describe the frequency at which the
video stream is updated and it is measured by frames per second (fps). A
higher frame rate is advantageous when there is movement in the video
stream, as it maintains image quality throughout.
Video Intercom Villa Door Staon User Manual
32
Max. Bitrate
Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to
the higher video quality, but the beer bandwidth is required.
Video Encoding
The device supports H.264.
I Frame Interval
Set I Frame Interval from 1 to 400.
4. Click Save to save the sengs.
Audio Parameters
Steps
1.
Click Video/Audio → Audio to enter the sengs page.
Figure 5-8 Audio Sengs
2.
Congure the stream type and the audio encoding type.
Stream Type
Select the stream type to main stream or sub stream.
Audio Encoding
The device support G.711ulaw and G.711 alaw.
3. Adjust the Input Volume, Output Volume and Speak Volume.
Note
Available range of volume: 0 to 10.
4.
Click Save to save the sengs.
Video Intercom Villa Door Staon User Manual
33
5.5.5 Image Sengs
Display Sengs
Congure the image adjustment, backlight sengs and other parameters in display
sengs.
Steps
1.
Click Image → Display Sengs to enter the display sengs page.
Figure 5-9 Display Sengs
2.
Select the Format.
3.
Set the display parameters.
WDR
Wide Dynamic Range can be used when there is a high contrast of the bright
area and the dark area of the scene.
Brightness
Brightness describes bright of the image, which ranges from 1 to 100.
Contrast
Contrast describes the contrast of the image, which ranges from 1 to 100.
Saturaon
Saturaon describes the colorfulness of the image color, which ranges from 1
to 100.
Sharpness
Sharpness describes the edge contrast of the image, which ranges from 1 to
100.
Video Intercom Villa Door Staon User Manual
34
4. Set the Day/Night Mode.
Figure 5-10 Day/Night Mode
-
Set Day Mode or Night Mode manually.
-
Set the mode as Auto and edit the sensivity according to your needs.
-
Set the mode as Scheduled-Switch. Set the start me and end me.
Note
Dayme is from congured start me to congured me. The rest of the me is
set as night by default.
5.
Set the backlight parameters.
Video Intercom Villa Door Staon User Manual
35
Figure 5-11 Backlight
1) Check the checkbox to enable BLC.
2) Select BLC Area.
6. Click Save to enable the sengs.
OSD Sengs
You can customize the camera name, me/date format, display mode, and OSD size
displayed on the live view.
Steps
1.
Click Image → OSD Sengs to enter the sengs page.
2.
Check the corresponding checkbox to select the display of camera name, date or
week if required.
3. Edit the Camera Name.
4.
Select from the drop-down list to set the Time Format and Date Format.
5.
Adjust the OSD posion.
6.
Click Save to enable the sengs.
Target Cropping
Video Intercom Villa Door Staon User Manual
36
Steps
1. Click Image.
2.
Enable target cropping.
3.
Click "
" to crop photo.
4.
Click "
" to crop video.
5.
Select Cropping Resoluon.
6.
Click Save.
5.5.6 Event Sengs
Moon Detecon
Moon detecon detects the moving objects in the congured surveillance area,
and a series of acons can be taken when the alarm is triggered.
Steps
1.
Click Event → Moon to enter the sengs page.
Video Intercom Villa Door Staon User Manual
37
Figure 5-12 Moon Detecon
2.
Check Enable Moon Detecon to enable the funcon.
3.
Click Draw Area. Click and drag the mouse on the live video to draw a moon
detecon area. Click Stop Drawing to nish drawing one area. Click Save to save
the sengs.
Clear Area Click Clear All to clear all of the areas.
Adjust Sensivity Move the slider to set the sensivity of the detecon.
4.
Click Arming Schedule to edit the arming schedule.
5.
Click on the me bar and drag the mouse to select the me period. Click Save to
save the sengs.
Delete Schedule Click Delete to delete the current arming schedule.
6.
Click Linkage Method to enable the linkages.
Nofy Surveillance Center
Video Intercom Villa Door Staon User Manual
38
Send an excepon or alarm signal to the remote management soware
when an event occurs.
7.
Click Save to enable the sengs.
Event Linkage
Steps
1.
Click Event → Basic Event → Event Linkage to enter the sengs page.
Figure 5-13 Event Linkage
2.
Select the Major Type as Device Event or Door Event.
Video Intercom Villa Door Staon User Manual
39
3. Select the type of the Normal Linkage for the event.
4.
Click Save to enable the sengs.
5.5.7 Schedule Sengs
You can create call schedule, or else the device will call indoor staon all day by
default.
Steps
1.
Click Schedule → Video Intercom .
2. Click the next row below Enable Indoor Staon All Day by Default.
3.
Enter Schedule Name.
4.
Select Call Type.
5.
Set Weekly Schedule.
1) Click Weekly Schedule.
2) Drag mouse to set the schedule according to the actual needs.
3) Oponal: Click the copy icon to copy the schedule to other days according to
the actual needs.
4) Click Save.
6.
Set Holiday Schedule.
1) Click Holiday Schedule.
2) Click Add.
3) Set Start Time and End Time.
4) Select Call Type.
5) Drag mouse to set the schedule according to the actual needs.
6) Click OK.
7) You can edit or delete the schedule according to the actual needs.
8) Click Save.
Note
The holiday schedule have higher priority than weekly schedule when you
set the two schedule at the same me.
5.5.8 Intercom Sengs
Video Intercom Villa Door Staon User Manual
40
Device ID Conguraon
Steps
1.
Click Device ID Sengs to enter the page.
Figure 5-14 Device ID Sengs
2.
Select the device type from the drop-down list, and set the corresponding
informaon.
3.
Click Save to enable the device number conguraon.
Note
•
For main door staon (D series or V series), the serial No. is 0.
•
For sub door staon (D series or V series), the serial No. cannot be 0. Serial
No. ranges from 1 to 99.
• For each villa or building, at least one main door staon (D series or V series)
should be congured, and one sub door staons (D series or V series) can be
customized.
•
For one main door staon (D series or V series), up to 8 sub door staons
can be congured.
Linked Network Sengs
Steps
1.
Go to Intercom → Session Sengs to enter the sengs page.
2.
Set Register Number and Registraon Password.
3.
Set Main Staon IP and VideoIntercom Server IP.
Video Intercom Villa Door Staon User Manual
41
4. Enable Protocol 1.0.
5.
Click Save to enable the sengs.
Time Parameters
Go to Intercom → Time Parameters to enter the page.
Congure Max. Call Duraon, Max. Message Duraon, Max. Ring Duraon, and
click Save.
Ring-Back Tone Sengs
Click Intercom → Ringbacktone Sengs to enter the sengs page.
Click Add to select the ring tone from PC.
Note
Available Audio Format: WAV、AAC, Size: Less than 600 KB, Sample Rate: 8000Hz,
Mono.
Press Buon to Call
Steps
1.
Go to Intercom → Press Buon to Call to enter the sengs page.
2.
Check Call Indoor Staon or Call Management Center as the buon call target.
Note
If you check Call Indoor Staon, you should enter the call indoor staon No.
3.
Click Save.
Input and Output
Go to Intercom → I/O Sengs to enter the sengs page.
Video Intercom Villa Door Staon User Manual
42
Figure 5-15 IO Input and Output
Select I/O Input No., Input, I/O Output No. and Output.
Click Save to enable the sengs.
5.5.9 Access Control Sengs
Door Parameters
Steps
1.
Click Access Control → Door Parameters to enter the sengs page.
Figure 5-16 Door Parameters
2.
Select the door and edit the door name.
3.
Set door contact status.
4.
Set lock acon me.
5.
Click Save to enable the sengs.
Card Security
Video Intercom Villa Door Staon User Manual
43
Go to Access Control → Card Security to enter the sengs page.
Slide to enable card encrypon parameters and CPU card reading content. Click Save
to enable the sengs.
Elevator Control
Before You Start
•
Make sure your door staon is in the mode of main door staon. Only the main
door staon support elevator control funcon.
•
Make sure your door staon has been connected to the elevator controller via
RS-485 wire if you want to use RS-485 interface.
Steps
1.
Click Access Control → Elevator Control to enter the corresponding
conguraon page.
Figure 5-17 Elevator Control
2.
Check to enable elevator control funcon.
3.
Select an Elevator No., and select an elevator controller type for the elevator.
Video Intercom Villa Door Staon User Manual
44
4. Set the Negave Floor.
5.
Select the Interface Type as RS-485 or Network Interface. And enable the
elevator control.
-
If you select RS-485, make sure you have connected the door staon to the
elevator controller with RS-485 wire.
-
If you select Network interface, enter the elevator controller's IP address,
port No., user name, and password.
6.
Click Save to enable the sengs.
Note
•
Up to 4 elevator controllers can be connected to one door staon.
•
Up to 10 negave oors can be added.
•
Make sure the interface types of elevator controllers, which are connected
to the same door staon are consistent.
Video Intercom Villa Door Staon User Manual
45
6 Conguraon via Client Soware
6.1 Device Management
Device management includes device acvaon, adding device, eding device, and
deleng device, and so on.
Aer running the iVMS-4200, video intercom devices should be added to the client
soware for remote conguraon and management.
6.1.1 Add Online Device
Before You Start
Make sure the device to be added is in the same subnet with your computer.
Otherwise, please edit network parameters rst.
Steps
1.
Click Online Device to select an acve online device.
2.
Click Add.
3.
Enter corresponding informaon, and click Add.
Video Intercom Villa Door Staon User Manual
46
Figure 6-1 Add to the Client
6.1.2 Add Device by IP Address
Steps
1.
Click +Add to pop up the adding devices dialog box.
2.
Select IP/Domain as Adding Mode.
3.
Enter corresponding informaon.
4.
Click Add.
6.1.3 Add Device by IP Segment
Video Intercom Villa Door Staon User Manual
47
You can add many devices at once whose IP addresses are among the IP segment.
Steps
1. Click +Add to pop up the dialog box.
2.
Select IP Segment as Adding Mode.
3.
Enter corresponding informaon, and click Add.
6.2 Live View via Door Staon
Steps
1. On the main page of the client soware, click Main View to enter the Live View
page.
2.
In the le list of the window, double-click the device IP or click the play icon to
live view.
3.
Oponal: On the Live View page, control-click and select Capture to get the
picture of the live view.
6.3 Organizaon Management
On the main page of the Client Soware, click
PersonalManagement to enter
the conguraon page.
6.3.1 Add Organizaon
Steps
1.
In the organizaon list on the le, click +Add.
2.
Enter the Organizaon Name as desired.
3.
Click OK to save the adding.
4.
Oponal: You can add mulple levels of organizaons according to the actual
needs.
1) You can add mulple levels of organizaons according to the actual needs.
2) Then the added organizaon will be the sub-organizaon of the upper-level
organizaon.
Video Intercom Villa Door Staon User Manual
48
Note
Up to 10 levels of organizaons can be created.
6.3.2 Modify and Delete Organizaon
You can select the added organizaon and click
to modify its name.
You can select an organizaon, and click X buon to delete it.
Note
•
The lower-level organizaons will be deleted as well if you delete an
organizaon.
•
Make sure there is no person added under the organizaon, or the organizaon
cannot be deleted.
6.4 Person Management
Aer adding the organizaon, you can add person to the organizaon and manage
the added person such as issuing cards in batch, imporng and exporng person's
informaon in batch, etc.
Note
•
Up to 2,000 persons can be added.
• Up to 5 cards can be added to each person.
6.4.1 Add Person
Person informaon is necessary for the video intercom system. And when you set
linked device for the person, the intercom between intercom devices can be realized.
Steps
1.
Select an organizaon in the organizaon list and click Add on the Person panel
to pop up the adding person dialog.
Note
The Person No. will be generated automacally and is editable.
2. Set basic person informaon.
Video Intercom Villa Door Staon User Manual
49
1) Enter basic informaon: name, gender, tel, birthday details, eecve period
and email address.
Note
The length of person name should be less than 15 characters.
2) Click Add face to upload the photo.
Note
The picture should be in *.jpg format.
Click Upload Select the person picture from the local PC to
upload it to the client.
Click Take Phone Take the person's photo with the PC camera.
Click Remote
Collecon
Take the person's photo with the collecon device.
3.
Issue the card for the person.
1) Click Credenal → Card .
2) Click + to pop up the Add Card dialog.
3) Select Normal Card as Card Type.
4) Enter the Card No.
5) Click Read and the card(s) will be issued to the person.
4.
Link the device to the person.
1) Set the linked devices.
Linked Device
You can bind the indoor staon to the person.
Note
If you select Analog Indoor Staon in the Linked Device, the Door
Staon eld will display and you are required to select the door staon
to communicate with the analog indoor staon.
Room No.
You can enter the room No. of the person.
2) Click OK to save the sengs.
5.
Click Add to save the sengs.
Video Intercom Villa Door Staon User Manual
50
6.4.2 Modify and Delete Person
Select the person and click Edit to open the eding person dialog.
To delete the person, select a person and click Delete to delete it.
Note
If a card is issued to the current person, the linkage will be invalid aer the person is
deleted.
6.4.3 Change Person to Other Organizaon
You can move the person to another organizaon if needed.
Steps
1.
Select the person in the list and click Change Organizaon.
2.
Select the organizaon to move the person to.
3.
Click OK to save the sengs.
6.4.4 Import and Export Person Informaon
The person informaon can be imported and exported in batch.
Steps
1.
Exporng Person: You can export the added persons' informaon in Excel format
to the local PC.
1) Aer adding the person, you can click Export Person to pop up the following
dialog.
2) Click ... to select the path of saving the exported Excel le.
3) Check the checkboxes to select the person informaon to export.
4) Click OK to start exporng.
2.
Imporng Person: You can import the Excel le with persons informaon in
batch from the local PC.
1) Click Import Person.
2) You can click Download Template for Imporng Person to download the
template rst.
3) Input the person informaon to the downloaded template.
4) Click ... to select the Excel le with person informaon.
Video Intercom Villa Door Staon User Manual
51
5) Click OK to start imporng.
6.4.5 Get Person Informaon from Device
If the added device has been congured with person informaon (including person
details, ngerprint, issued card informaon), you can get the person informaon
from the device and import to the client for further operaon.
Steps
Note
This funcon is only supported by the device the connecon mothod of which is
TCP/IP when adding the device.
1. In the organizaon list on the le, click to select an organizaon to import the
persons.
2.
Click Get from Device to pop up the dialog box.
3.
The added device will be displayed.
4.
Click to select the device and then click Get to start geng the person
informaon from the device.
Note
•
The person informaon, including person details, person's ngerprint
informaon (if congured), and the linked card (if congured), will be
imported to the selected organizaon.
•
If the person name stored in the device is empty, the person name will be
lled with the issued card No. aer imporng to the client.
•
The gender of the persons will be Male by default.
6.4.6 Issue Card in Batch
You can issue mulple cards for the person with no card issued in batch.
Steps
1.
Click Batch Issue Cards to enter the dialog page. All the added person with no
card issued will display in the Person(s) with No Card Issued list.
Video Intercom Villa Door Staon User Manual
52
Figure 6-2 Issue Card in Batch
2.
Click Sengs.
Video Intercom Villa Door Staon User Manual
53
Figure 6-3 Card Sengs
3.
Select Card Type and Card No. Type.
4.
Click OK to save the sengs.
Result
Aer issuing the card to the person, the person and card informaon will display in
the Person(s) with Card Issued list.
6.4.7 Permission Sengs
Add Permissions
Steps
1.
On the main page, click
AccessControlInfo → Access Group to enter the
page.
2.
Click +Add to pop up the adding dialog box.
3.
Congure the parameters.
1) Enter the Name of the permission.
Video Intercom Villa Door Staon User Manual
54
2) Select the Template of the schedule.
3) Check the person to Selected according to your needs.
4) Check the device to Selected according to your needs.
4.
Click Save.
5.
Check the permission and click Apply All to Device.
The status of the permission displays as Applied.
6.
Oponal: Click Applying Status to check the details.
Modify/Delete Permissions
On the page of the permission sengs, click
to edit the parameters of the
permission.
Select one or more permissions, click Delete to remove the permissions.
6.5 Video Intercom Sengs
The Video Intercom Management module provides the funcon of video intercom,
checking call logs and managing noce via the iVMS-4200 Client Soware.
Note
For the user with access control module permissions, the user can enter the Access
Control module and manage video intercom and search informaon.
You should add the device to the soware and congure the person to link the
device in Access Control module before your conguraon remotely.
On the main page, click
AccessControlInfo → Video Intercom → Video
Intercom on the le bar to enter the Video Intercom page.
6.5.1 Receive Call from Door Staon
Steps
1.
Select the client soware in the page to start calling the client and an incoming
call dialog will pop up in the client soware.
2.
Click Answer to answer the call. Or click Hang Up to decline the call.
3.
Aer you answer the call, you will enter the In Call page.
Video Intercom Villa Door Staon User Manual
55
Adjust the Volume of
Loudspeaker
Click
to adjust the volume of loudspeaker.
Hang Up Click Hang Up to hang up.
Adjust the Volume of
Microphone
Click
to adjust the volume of microphone.
Unlock Remotely
For door staon, you can click
to open the
door remotely.
Note
•
One video intercom device can only connect with one client soware.
•
The maximum ring duraon can be set from 15s to 60s via the Remote
Conguraon of the video intercom device.
•
The maximum speaking duraon between indoor staon and iVMS-4200 can
be set from 120s to 600s via the Remote Conguraon of indoor staon.
•
The maximum speaking duraon between door staon and iVMS-4200 can
be set from 90s to 120s via the Remote Conguraon of door staon.
6.5.2 Release Noce
You can create dierent types of noces and send them to the residents. Four noce
types are available, including Adversing, Property, Alarm and Noce Informaon.
Before You Start
Make sure the person has been added to the client.
Steps
1.
On the video intercom sengs page, click Noce to enter the page.
2.
Click +Add to pop up the adding dialog box.
3.
Select the person according to your needs.
4.
Edit the Subject, Type and Informaon.
5.
Click View to select the picture.
6.
Click Send.
Video Intercom Villa Door Staon User Manual
56
Note
•
Up to 63 characters are allowed in the Subject eld.
•
Up to 6 pictures in the JPGE format can be added to one noce. And the
maximum size of one picture is 512KB.
•
Up to 1023 characters are allowed in the Informaon eld.
6.5.3 Search Video Intercom Informaon
Search Call Logs
Steps
1.
On the Video Intercom page, click Call Log to enter the page.
Figure 6-4 Search Call Logs
2.
Set the search condions, including call status, device type, start me and end
me.
Call Status
Click ˅ to unfold the drop-down list and select the call status as Dialed,
Received or Missed. Or select All to search logs with all statuses.
Device Type
Click ˅ to unfold the drop-down list and select the device type as Indoor
Staon, Door Staon, Outer Door Staon or Analog Indoor Staon. Or
select All Devices to search logs with all device types.
Video Intercom Villa Door Staon User Manual
57
Start Time/End Time
Click the me icon to specify the start me and end me of a me period to
search the logs.
Reset the Sengs Click Reset to reset all the congured search
condions.
3.
Click Search and all the matched call logs will display on this page.
4.
Oponal: Check the detailed informaon of searched call logs, such as call
status, ring/speaking duraon, device name, resident organizaon, etc.
5.
Oponal: Input keywords in the Search eld to lter the desired log.
6.
Oponal: Click Export to export the call logs to your PC.
Search Noce
Steps
1. On the Video Intercom page, click Noce to enter the page.
2.
Set the search condions, including noce type, start me and end me.
Type
Select Adversing Informaon, Property Informaon, Alarm Informaon or
Noce Informaon as Type according to your needs.
Start Time/End Time
Click the me icon to specify the start me and end me of a me period to
search the logs.
Reset the Sengs Click Reset to reset all the congured search
condiions.
3.
Click Search and the matched noce will display on this page.
4.
Oponal: Click Export to export the noces to your PC.
6.5.4 Upload Armed Informaon
Steps
1.
On the main page, click upper right
→ Tool → DeviceGuard to enter the page.
2.
Enable to arm or disarm the device.
Video Intercom Villa Door Staon User Manual
58
Note
•
While device has been added to the client soware, the device armed by
default.
•
When the device is armed, the alarm logs upload to the client soware
automacally.
•
Click Alarm Applicaon → Event Search to search the alarm logs.
3.
Oponal: Click Arm All or Disarm All to arm or disarm all the device.
Video Intercom Villa Door Staon User Manual
59
A. Communicaon Matrix and Device
Command
Communicaon Matrix
Scan the following QR code to get the device communicaon matrix.
Note that the matrix contains all communicaon ports of Hikvision access
control and video intercom devices.
Figure A-1 QR Code of Communicaon Matrix
Device Command
Scan the following QR code to get the device common serial port
commands.
Note that the command list contains all commonly used serial ports
commands for all Hikvision access control and video intercom devices.
Figure A-2 Device Command
Video Intercom Villa Door Staon User Manual
60
UD20207B
