Chapter 1 Overview
1.1 Product Introducon

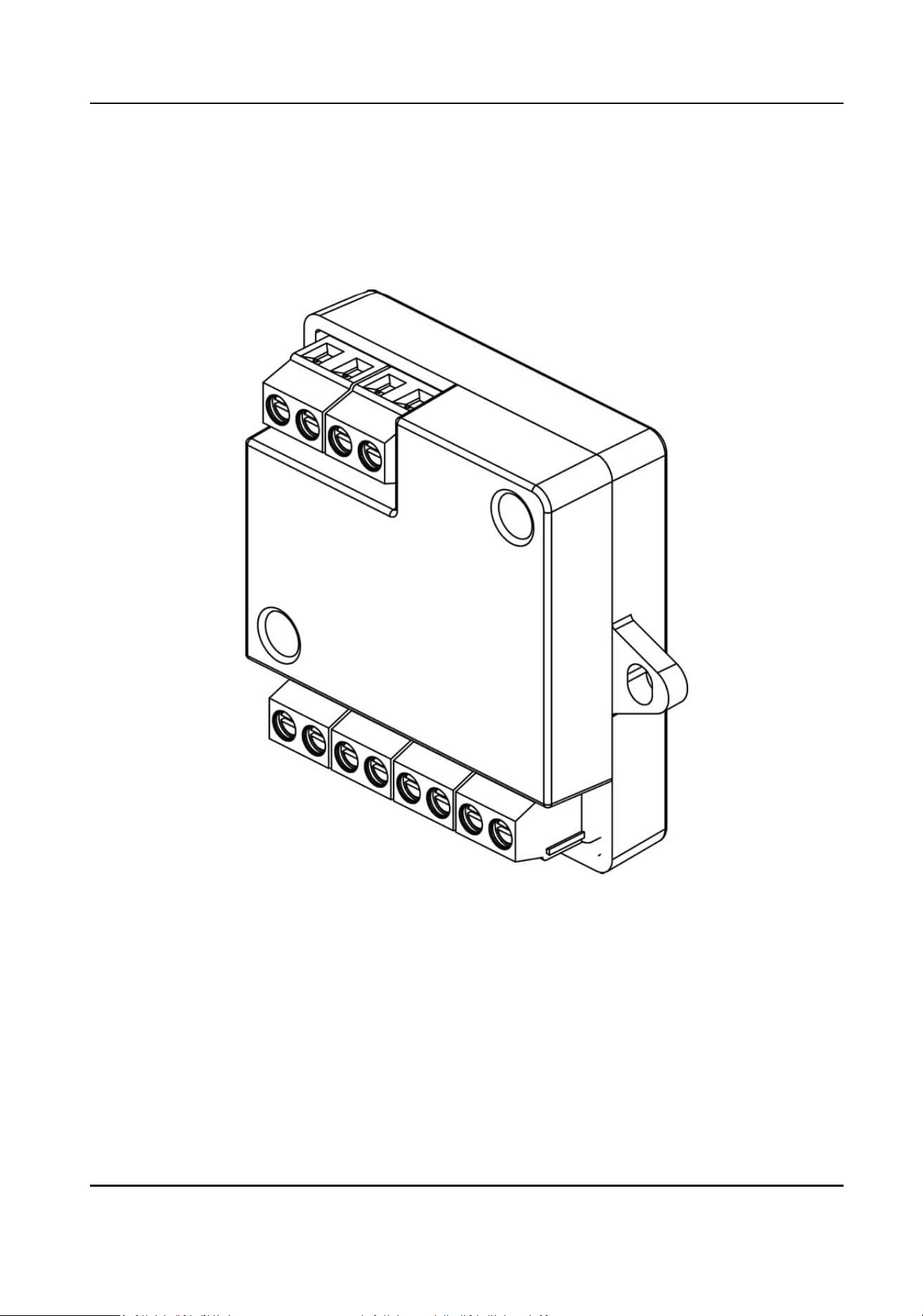

Figure 1-1 Appearance
Secure door control unit (hereinaer referred as "unit") is designed to keep the door in the status
before the access control terminal is crashed when the access control terminal is crashed or
damaged by external force.
Secure door control unit is the middle layer between access control terminal and door lock in the
access control system. The top side can be connected to exit
buon, and the boom side can be
connected to lock control, door contact and access control terminal. Equipped with access control
equipment, it is safer to control the door.
DS-K2M062 Secure Door Control Unit User Manual
1
1.2 Appearance Introducon
Figure 1-2 Appearance Descripon
Table 1-1 Appearance Descripon
No. Descripon
1 Power Input
2 Exit Buon
3 Lock
4 Door Contact
5 RS-485
DS-K2M062 Secure Door Control Unit User Manual
2
Chapter 2 Wiring Descripon
The wiring of external devices is as following.
External Devices Wiring

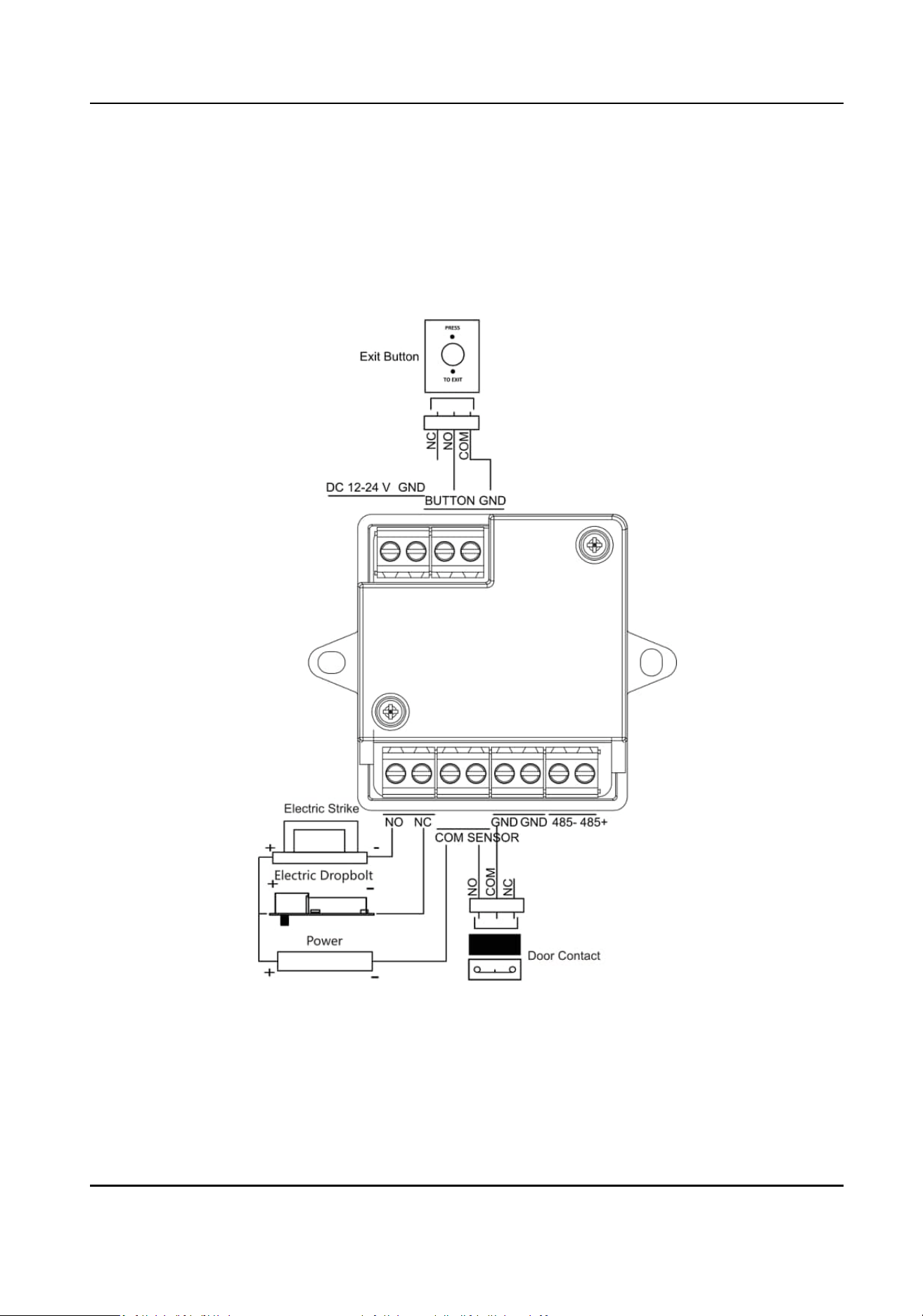

Figure 2-1 External Devices Wiring Descripon
DS-K2M062 Secure Door Control Unit User Manual
3
Applicaon

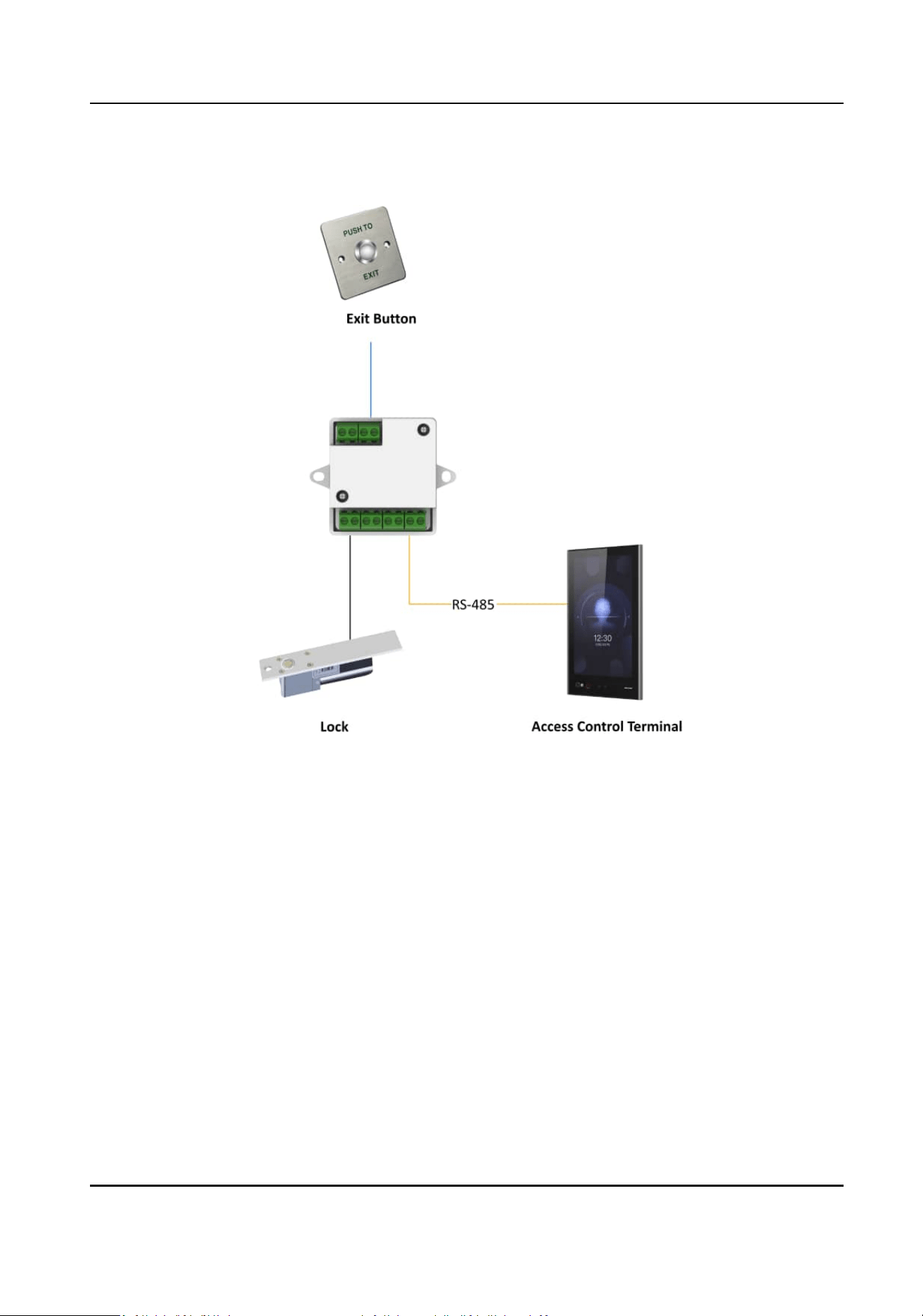

Figure 2-2 Topology
DS-K2M062 Secure Door Control Unit User Manual
4
Appendix A. Dimension

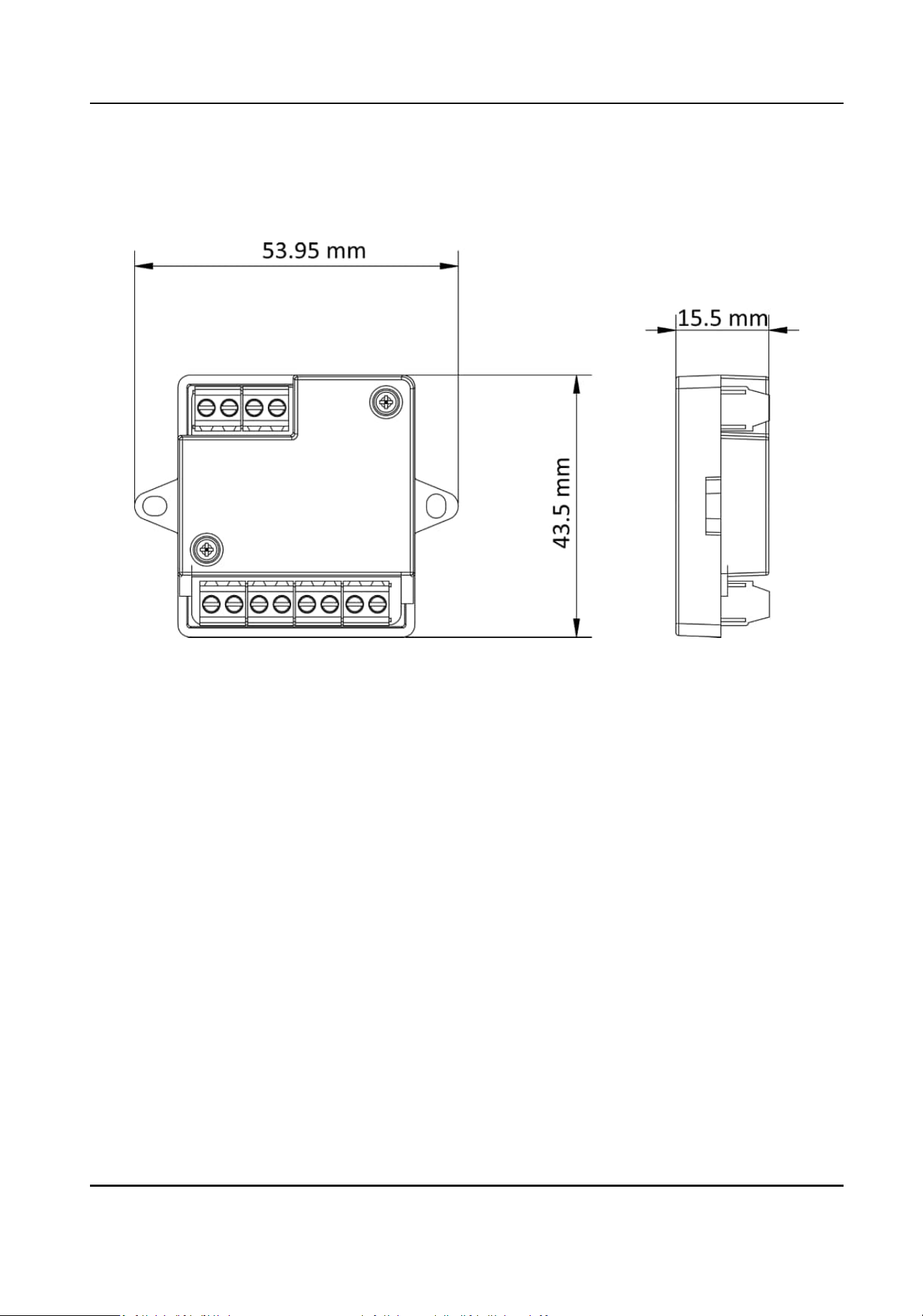

Figure A-1 Dimension
DS-K2M062 Secure Door Control Unit User Manual
5
Appendix B. Communicaon Matrix and Device
Command
Communicaon Matrix
Scan the following QR code to get the device communicaon matrix.
Note that the matrix contains all
communicaon ports of Hikvision access control and video
intercom devices.
Figure B-1 QR Code of Communicaon Matrix
Device Command
Scan the following QR code to get the device common serial port commands.
Note that the command list contains all commonly used serial ports commands for all Hikvision
access control and video intercom devices.
Figure B-2 Device Command
DS-K2M062 Secure Door Control Unit User Manual
6
UD27161B-A
