UNIMAC PPTSPYUMCA1KT 740W HVLP Electric Paint Sprayer Gun User Manual

User Manual

[Revision 5.0 December 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

HVLP Multi-Purpose Spray Station

i

Table of Contents

Introduction ........................................................................................................................................ 1

Specifications – Model No. UM-S1PT ............................................................................................ 1

Parts List ............................................................................................................................................. 2

Electrical Safety ............................................................................................................................. 3

Using an Extension Lead ........................................................................................................ 3

General Power Tool Safety Warnings ........................................................................................ 3

Spray Gun Safety Warnings ........................................................................................................... 5

Using an Extension Lead ........................................................................................................ 5

Preparation ......................................................................................................................................... 6

HVLP – High Volume Low Pressure ....................................................................................... 6

Explanation of the System ...................................................................................................... 6

Function Description ............................................................................................................... 7

Important – Selecting Paint ..................................................................................................... 7

Materials Which Can Be Used ................................................................................................ 7

Materials Which Cannot Be Used ........................................................................................... 7

Thinning .................................................................................................................................. 7

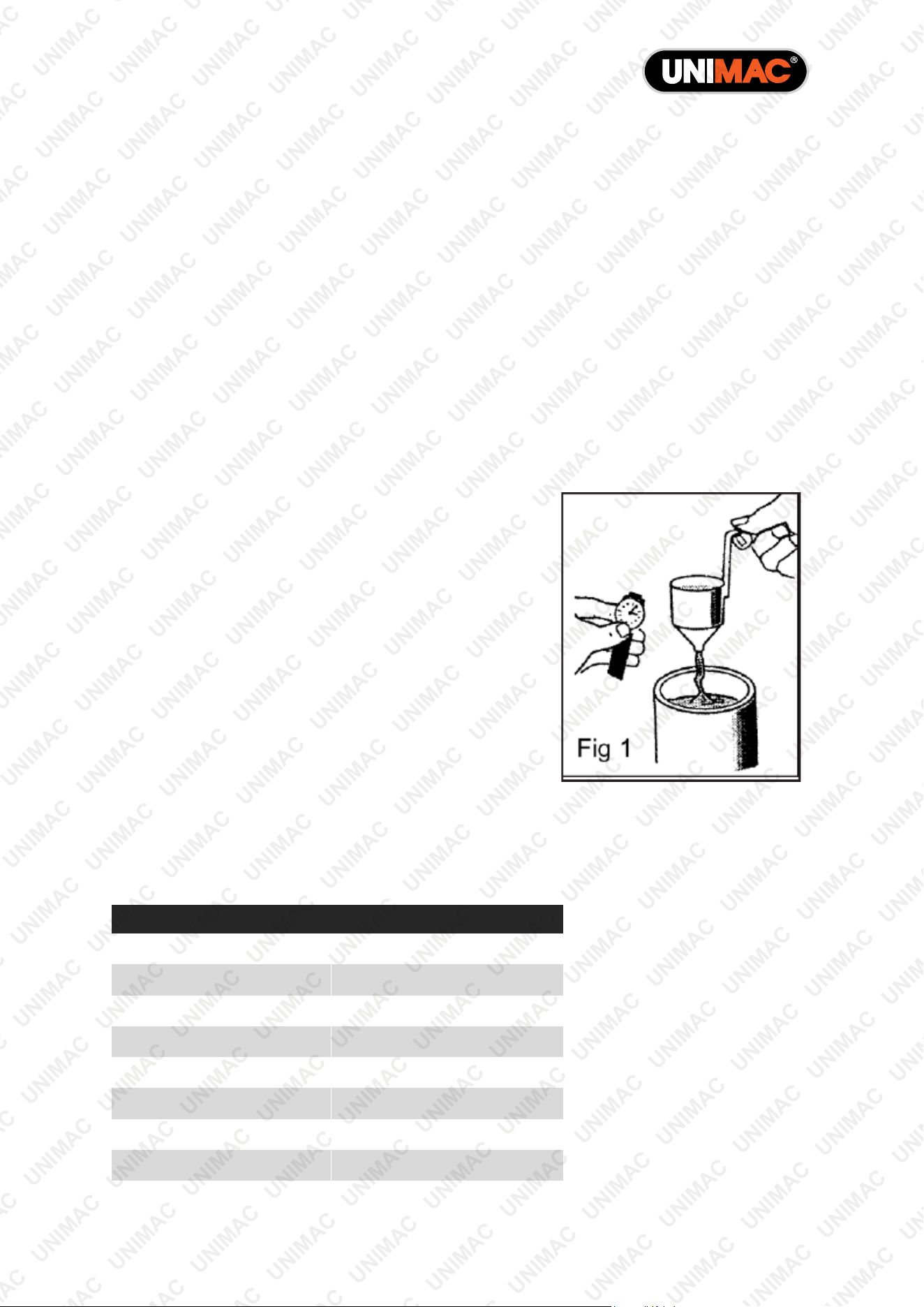

Determining Viscosity .............................................................................................................. 8

Viscosity vs. Material ............................................................................................................... 8

Operation ........................................................................................................................................... 10

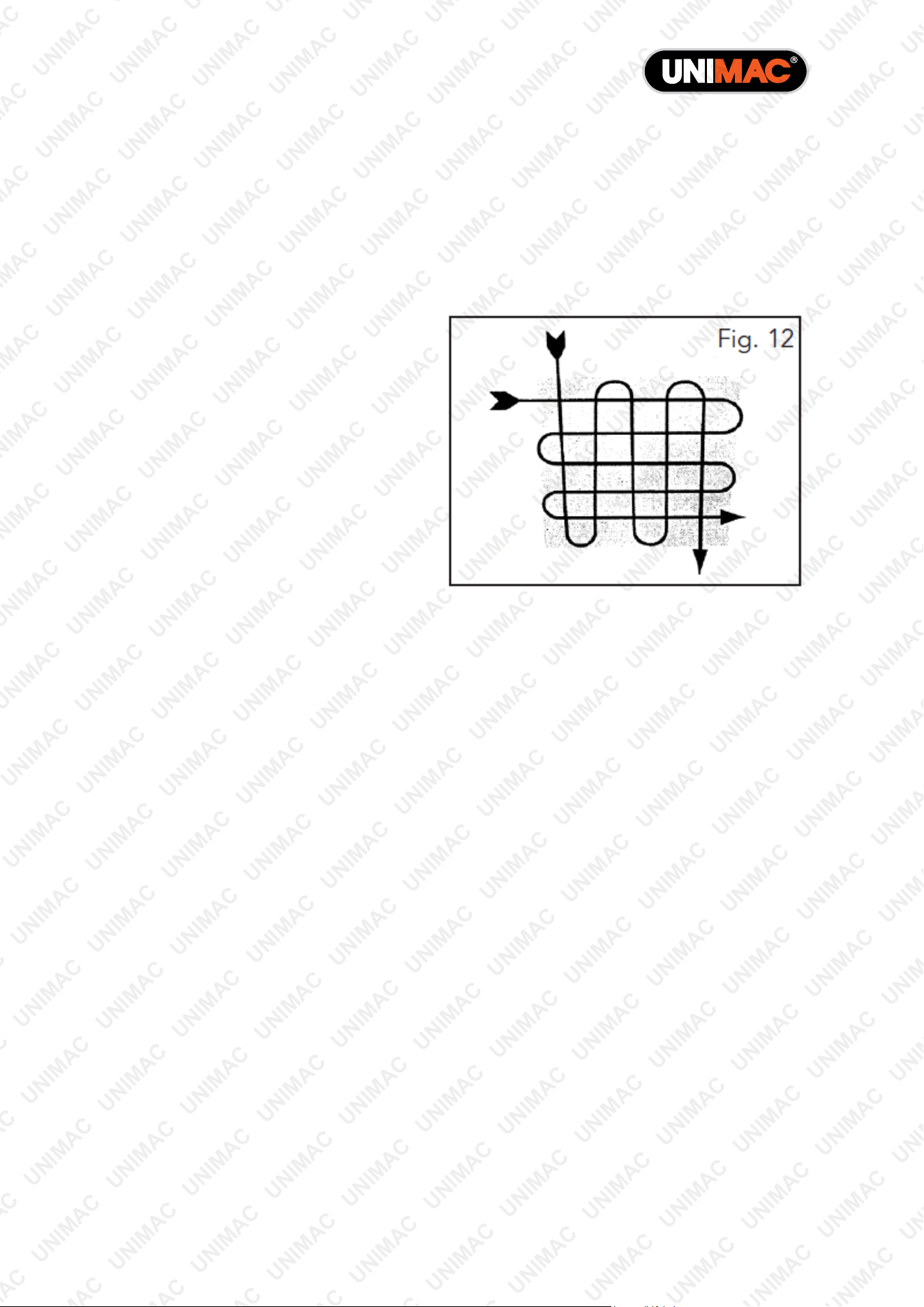

Spraying Technique .............................................................................................................. 12

Helpful Hints .......................................................................................................................... 14

Cleaning ............................................................................................................................................ 15

Clean After Every Use ........................................................................................................... 15

Clean-Up ............................................................................................................................... 16

Maintenance .................................................................................................................................... 17

Troubleshooting ............................................................................................................................. 18

Description of Symbols ................................................................................................................ 20

Caring for the Environment ........................................................................................................ 20

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

1

Introduction

Congratulations on purchasing the Unimac – UM-S1PT HVLP Multi-Purpose Spray Station. We

aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many

years. Before using, it is most important that you read and follow the instructions in this manual,

even if you feel you are quite familiar with this type of product.

Your Unimac – UM-S1PT HVLP Multi-Purpose Spray Station has been designed for Spray

Painting Surfaces such as fences, boats, radiators, louver doors, sheds, furniture, models etc.

and is intended for DIY use only.

Specifications – Model No. UM-S1PT

Motor

700W

Input

220-240V ~ 50Hz

Viscosity

20 to 80 seconds (DIN-S)

Air Pressure

0.1-0.3 bar (1.5-4.4 psi)

Max. Air Flow

1,200 l/min

Max Liquid Flow

640 ml/min

Sound Pressure Level

81.3 db (A) k = 3.0 db (A)

Air Hose Length

3m

Pot Capacity

800ml

Nozzle

ø2.5mm

Weight (tool only)

4.5kgs

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

2

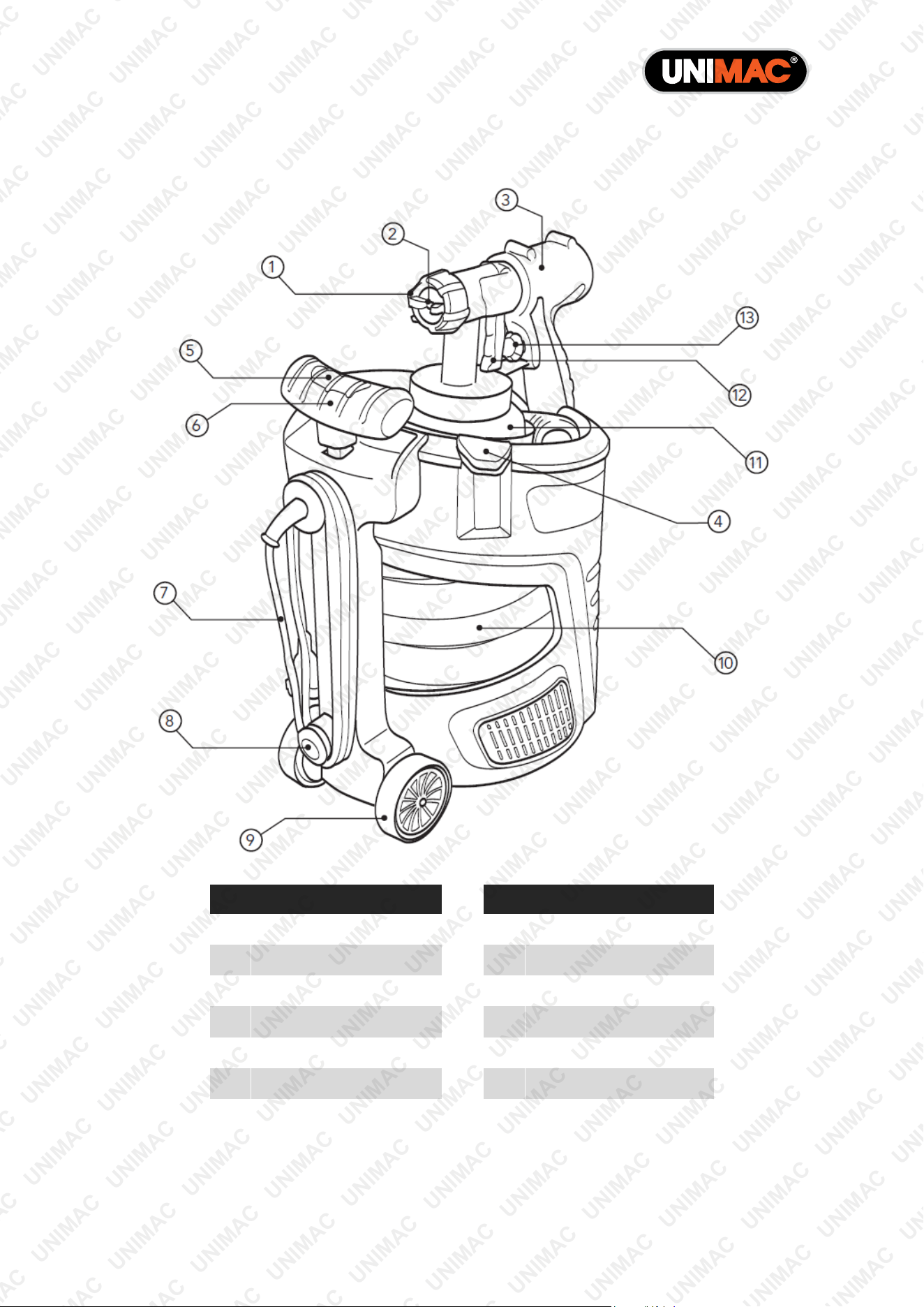

Parts List

No. Part Name No. Part Name

1 Air Cap 8 Knob

2 Nozzle 9 Wheels

3 Spray Gun 10 Air Hose

4 On/Off Switch 11 Paint Pot

5 Handle Lock 12 Trigger

6 Handle 13 Spray Regulator Dial

7 Power Cord

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

3

Electrical Safety

WARNING! When using mains-powered equipment, basic safety precautions, including the

following, should always be followed to reduce risk of fire, electric shock, personal injury and

material damage.

Read and understand the manual prior to operating this tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that the power

supply corresponds to the voltage on the rating plate.

This tool is double insulated in accordance with AS/NZS 60745-1; therefore no

earth wire is required.

If the supply cord is damaged, it must be replaced by a qualified electrician or a power tool

repairer in order to avoid a hazard.

If operating a power tool in a damp location is unavoidable use a residual current device (RCD)

protected supply Use of an RCD reduces the risk of electric shock. Always use a Residual

Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating

this item (electrical items only).

NOTE: Double insulation does not take the place of normal safety precautions when operating

this tool. The insulation system is for added protection against injury resulting from a possible

electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use,

inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if

damaged or defective. When using an extension lead on a reel, always unwind the lead

completely. Use of an extension lead not suitable for the power input of the tool or which is

damaged or defective may result in a risk of fire and electric shock.

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool" in all of the warnings refers to your mains-operated (corded) power

tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust

or fumes.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

4

c. Keep children and bystanders away while operating a power tool. Distractions can

cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not

use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,

ranges and refrigerators. There is an increased risk of electric shock if your body is

earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the

power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged

or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor

use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current

device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker /

Safety Switch when operating this item (electrical items only).

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools may

result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective

equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before

connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have

the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or

a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing

and gloves away from moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used. Use of dust collection can

reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The

correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool

that cannot be controlled with the switch is dangerous and must be repaired.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

5

c. Disconnect the plug from the power source and/or the battery pack from the power

tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool's

operation. If damaged, have the power tool repaired before use. Many accidents are

caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these

instructions, taking into account the working conditions and the work to be

performed. Use of the power tool for operations different from those intended could

result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

b. If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

Spray Gun Safety Warnings

Hold power tool by insulated gripping surfaces, when performing an operation where the

cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting

a "live" wire may make exposed metal parts of the power tool "live” and could give the operator

an electric shock.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for their

safety.

Recommendations for the use of a residual current device with a rated residual current of

30mA or less.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use,

inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if

damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension

lead not suitable for the power input of the tool or which is damaged or defective may result in a

risk of fire and electric shock.

It is recommended that the extension lead is a maximum of 25m in length. Do not use multiple

extension leads.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

6

NEVER under any circumstances aim the nozzle at another person or animal.

•

In the event of an injury occurring, seek medical advice immediately.

•

The spray gun must not be used for spraying flammable paints and solvents with a flash

point of less than 21ºC.

•

Always ensure there is adequate ventilation when spraying.

•

The use of ear protection is recommended.

•

Eye protection is recommended to keep hazardous vapours and liquids out of eyes.

•

Always wear a face mask when spraying.

•

Always read the paint manufacturers thinning instructions before using.

•

Always keep the spray basket nozzle in place during use. Never allow the spray to come in

direct contact with the skin.

DANGER! Never immerse the spray gun in liquid. This could lead to electric shock, personal

injury and material damage.

•

The spray gun must not be cleaned by using flammable liquids with a flash point of less than

21ºC.

NEVER spray near a naked flame, including an appliance pilot light.

NEVER smoke whilst spraying.

NEVER allow children to operate or play with the spray gun.

•

Before cleaning, always disconnect the appliance from the mains supply.

•

Always disconnect from mains supply when refilling the paint pot.

•

After every use ensure you clean your spray gun thoroughly.

NEVER use the spray gun outside when it is raining.

Preparation

HVLP – High Volume Low Pressure

Traditional spray guns require a compressor to spray with a constant pressure. Normal HVLP

Multi-Purpose Spray Stations have an electromagnetic plunger to spray paint; the disadvantage

of this is that there is no constant spray. The spray is actually pulsating. The HVLP HVLP Multi-

Purpose Spray Station has a powerful fan rather than a compressor. The fan provides a high

volume of air with low pressure, resulting in a constant spray without the assistance of a

compressor.

Explanation of the System

The device works according to low-pressure spraying technique. A high volume of air surround

the spray jet being ejected under low pressure. The air cap provides a very fine atomization with

the lowest of spray mist .The coating material is applied to the object quickly and exactly. The air

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

7

flow shortens the drying time for the coating material this gives perfect spraying result with a

saving of coating material and is therefore good for the environment.

Function Description

The motor blower produces a flow of air which flows through the air hose to the spray gun. The

air flow atomizes the coating material at the nozzle and also pressurizes the container. This

pressure pushes the coating material up the ascending pipe to the nozzle. The air and pressure

setting can be adjusted progressively.

NOTE: For obtaining the best results from your spray gun, surface preparation and paint thinning

are the two most important areas with which to be concerned. Ensure all surfaces are free from

dust, dirt and grease. Masking is important to ensure you do not spray those areas you wish to

remain untouched. Make sure paint is thoroughly mixed.

Important – Selecting Paint

Although a large number of paints and materials can be sprayed, some cannot. Please check

manufacturer’s recommendation before purchasing paint. If the paint can refers to brush

application only it cannot be sprayed.

Materials Which Can Be Used

Suitable for a range of oil and water based products recommended for spray application,

including paint, varnish, stains and wood preservatives.

Materials Which Cannot Be Used

THE SPRAY GUN CANNOT BE USED FOR PAINTS SUCH AS EXTERIOR TEXTURED WALL

PAINTS, MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES, DISPERSION

PAINTS, CAUSTIC AND ALKALINE SUBSTANCES OR TEXTURED COATINGS. TO OBTAIN

THE BEST RESULTS FROM YOUR SPRAY GUN, PLEASE READ THE INSTRUCTIONS

CAREFULLY BEFORE USE.

Thinning

Thinning is particularly important when spraying. Most paints are supplied ready for brush

application and need to be diluted sufficiently for spraying purposes.

Follow the manufacturers guide for thinning in conjunction with a spray gun. If in doubt please

consult the manufacturer of the paint. A viscosity cup will help you determine the correct

thickness of the paint. As some paints, wood preservatives and other sprayable materials contain

particles and have different qualities, please ensure that when filling the paint pot on your spray

gun, the paint is filtered through either a funnel with a filter on it, or through nylon tights or

stockings. This will ensure no large particles enter the paint pot, therefore preventing blockages

and providing you with trouble free spraying. Ensure that a face mask, gloves, goggles and ear

protectors are worn at all times when spraying.

Floetrol

®

is an acrylic paint conditioner that you can add to the paint pot which is for easy,

trouble-free spraying. It helps thin your paint however also reduces wear and replacement cost of

parts within the spray gun. It also reduces tip clogging avoiding freeze up in the trigger which

gives you a professional finish.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

8

Inadequate Thinning:

•

Paint must be thinned by approx. 15% when using a paint sprayer.

•

Use water to thin water-based paint.

•

Use turps to thin oil-based paint.

•

For 1 litre of paint, add 150ml of water/turps.

•

For 5 litres of paint, add 750ml of water/turps.

•

Be sure to stir the paint well after the water/turps has been added.

•

If the spray is still not fine enough or the flow is inadequate, try thinning the paint a little more.

•

Do not thin bulk amounts of paint until you have determined the ideal amount and tested it

through the sprayer.

Determining Viscosity

Information regarding dilution is normally found on the

material tin. Use the viscosity table to determine the

thickness of the coating material.

First stir the spraying material thoroughly then to

determine the viscosity, dip the viscosity cup into the

material below the rim level and fill up. Lift the cup out of

the tin and start timing as soon as the cup is above the

surface. Time how long it takes the viscosity cup to empty

(Fig. 1). Use the chart below as a guide to determine if the

material requires further thinning and thin accordingly,

within the material manufacturer’s recommendations.

Viscosity vs. Material

This runout time is called DIN seconds (DIN-s). Use this table as a guide only.

Material Viscosity Seconds (DIN-s)

2 component paint 20-50

Clear sealer Undiluted

Mordant Undiluted

Oil based paint 20-80

Oil based primer 20-50

Oil enamel 20-60

Oil stain Undiluted

Polyurethane Undiluted

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

9

Primer 20-50

Solvent containing gloss paint 20-50

Varnish 20-50

Water based paint 20-80

Wood preservative Undiluted

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

10

Operation

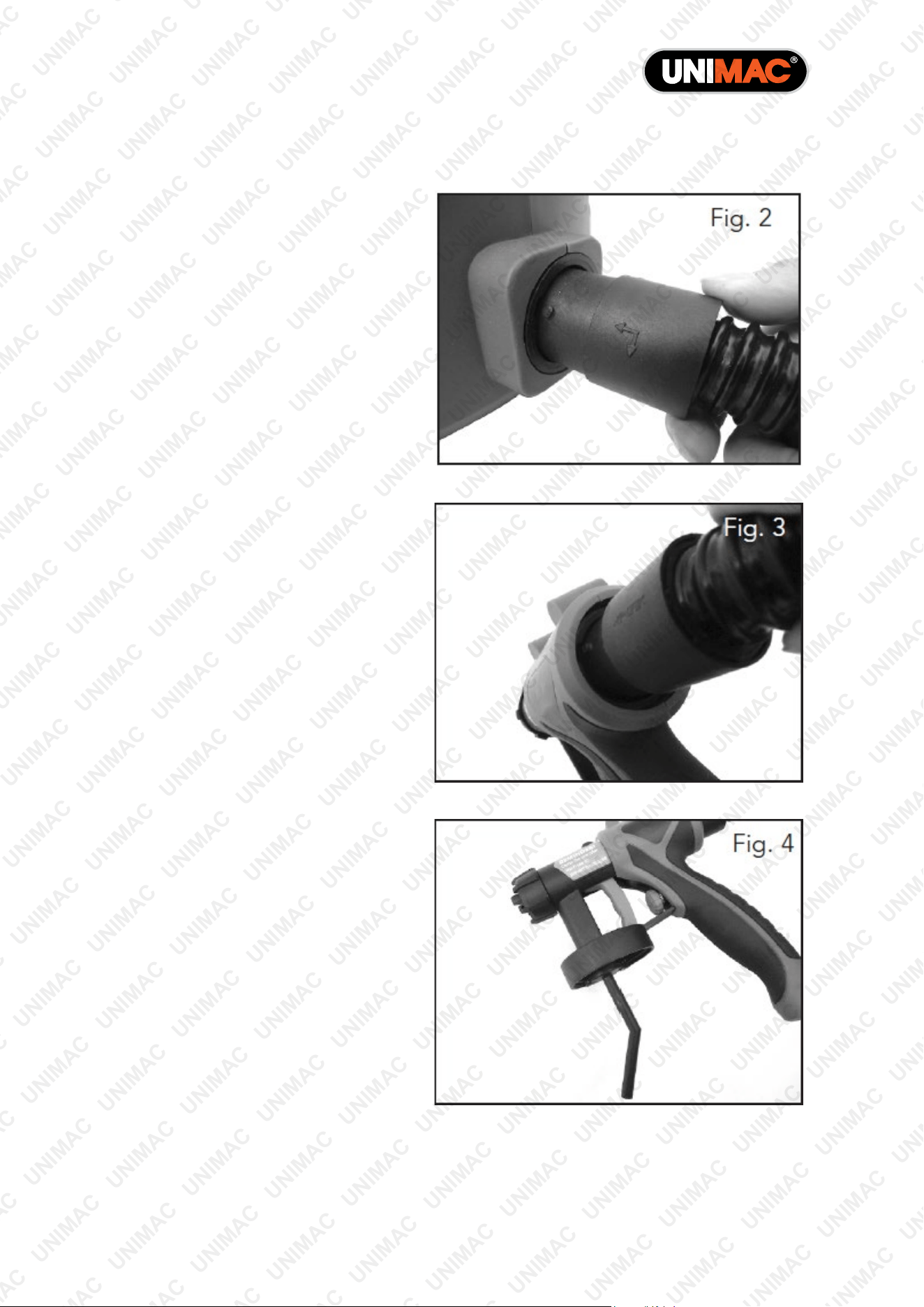

1. Attach air hose (10) to mobile base

end (Fig. 2). Align the lug with the

groove in the mobile base. Secure by

turning anti-clockwise.

2. Attach the other end of the air hose

(10) to the spray gun (3) (Fig. 3).

Align the lug with the groove in the

spray gun (3). Secure by turning anti-

clockwise.

3. Unscrew the paint pot (11) from the

spray gun.

4. Adjust the suction tube accordingly. It

should be possible to spray the

contents of the paint pot leaving

hardly any paint left in the paint pot

(11).

5. Spraying with horizontal objects

Turn suction tube forwards as the

suction tube should be pointing

toward the front of the spray gun

(Fig. 4).

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

11

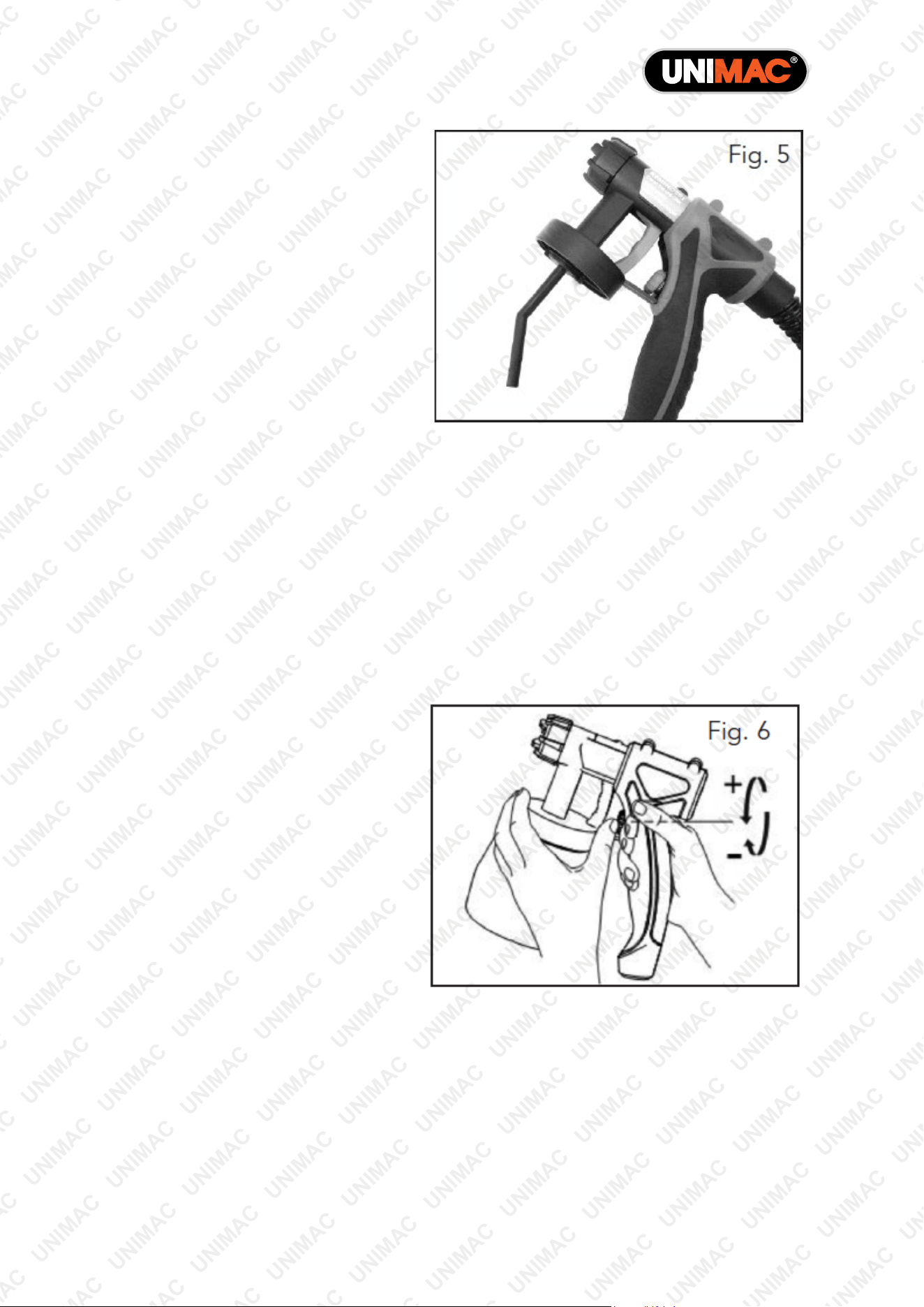

6. Spraying overhead objects

Turn suction tube to point backwards

as the suction tube should be

pointing toward the rear of the spray

gun (Fig. 5).

By pointing the suction tube in the

proper direction you will not have to

refill the paint pot (11) as often.

7. Filling the paint pot

While filling the pot with paint, filter the paint through a piece of nylon stocking or a funnel

which incorporates a filter to remove any lumps or particles. DO NOT OVERFILL. Screw the

pot into the spray gun ensuring it is secure.

8. Place the spray gun in the mobile base spray gun holder for transporting to the job.

9. Unwind mains cable (7). Insert the plug into mains power socket and switch On.

10. Remove the spray gun from the mobile base spray gun holder and point at a piece of

cardboard or newspaper. Turn on using On/Off switch (4) on the mobile base.

NOTE: When the mobile base is switched on the air will flow continually from the air cap (1).

11. Adjusting the Spray Gun

Squeeze the trigger (12) while aiming

the gun at a piece of cardboard or scrap

material and wait the spray to come out.

Turn the spray regulator dial (13) to

required position for optimum results

(Fig. 6).

NOTE: The spray regulator dial (13) is a

stop that limits distance the trigger can

be pressed.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

12

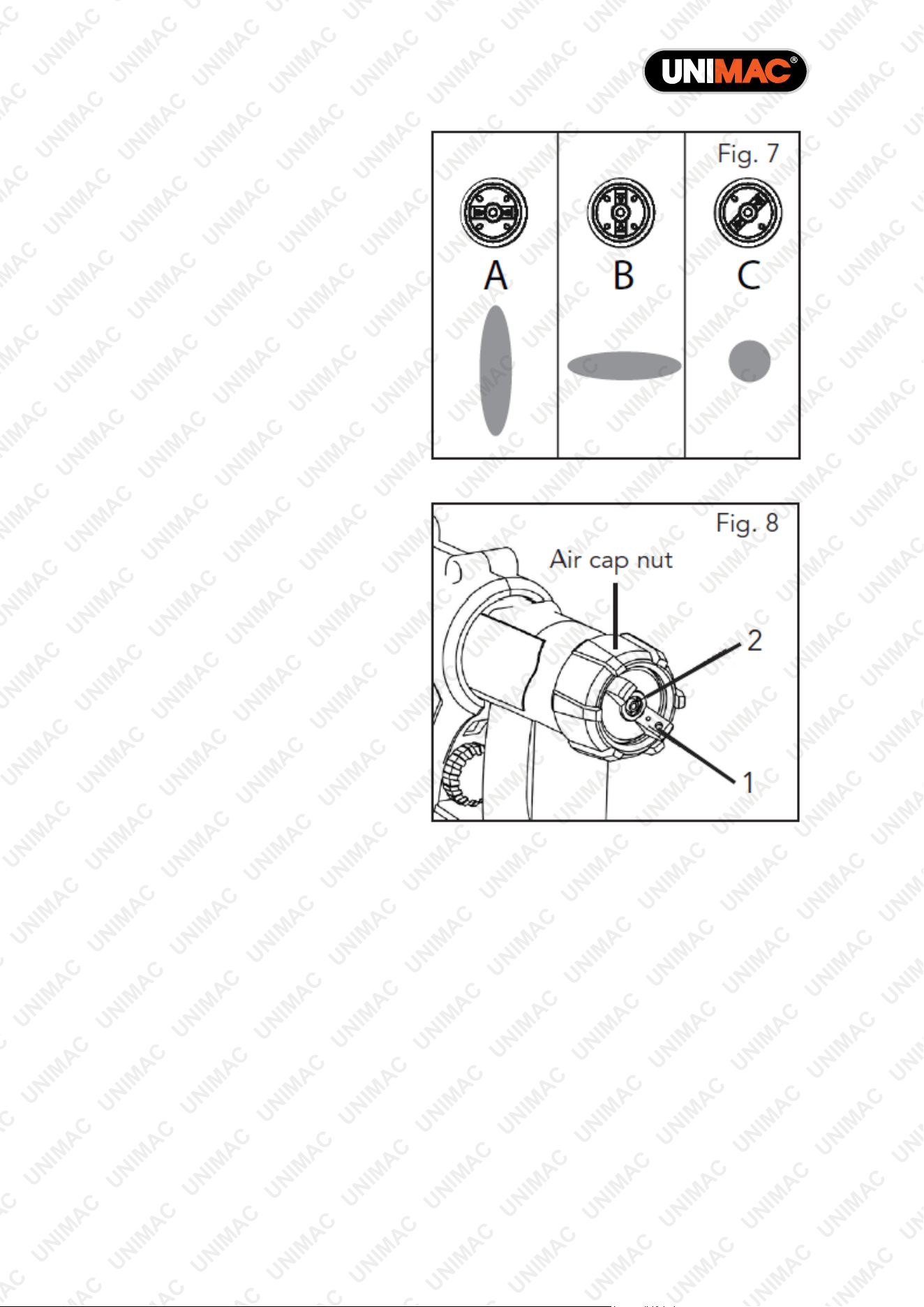

Choice of spraying pattern (Fig. 7)

A = vertical fan - for horizontal surfaces

B = horizontal fan - for vertical

surfaces

C = round fan - for corners, edges and

other hard to access places.

Adjusting the required spray pattern

(Fig. 8): With the air cap nut loosened,

turn air cap (1) to the required spray

pattern.

CAUTION: Never open trigger (12) when making adjustments on the air cap.

Spraying Technique

The spraying result depends considerably on now smooth and clean the surface is before

spraying is begun. For this reason the surface should be carefully prepared and kept free of dust.

Surfaces and parts not to be sprayed should be masked by covering with sticky tape and

newspaper. It is advisable to carry out a trial spraying onto cardboard or a similar surface to find

the most suitable spray gun adjustments.

NOTE: Start spraying outside the surface to be sprayed and avoid stopping in the middle of the

surface being sprayed.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

13

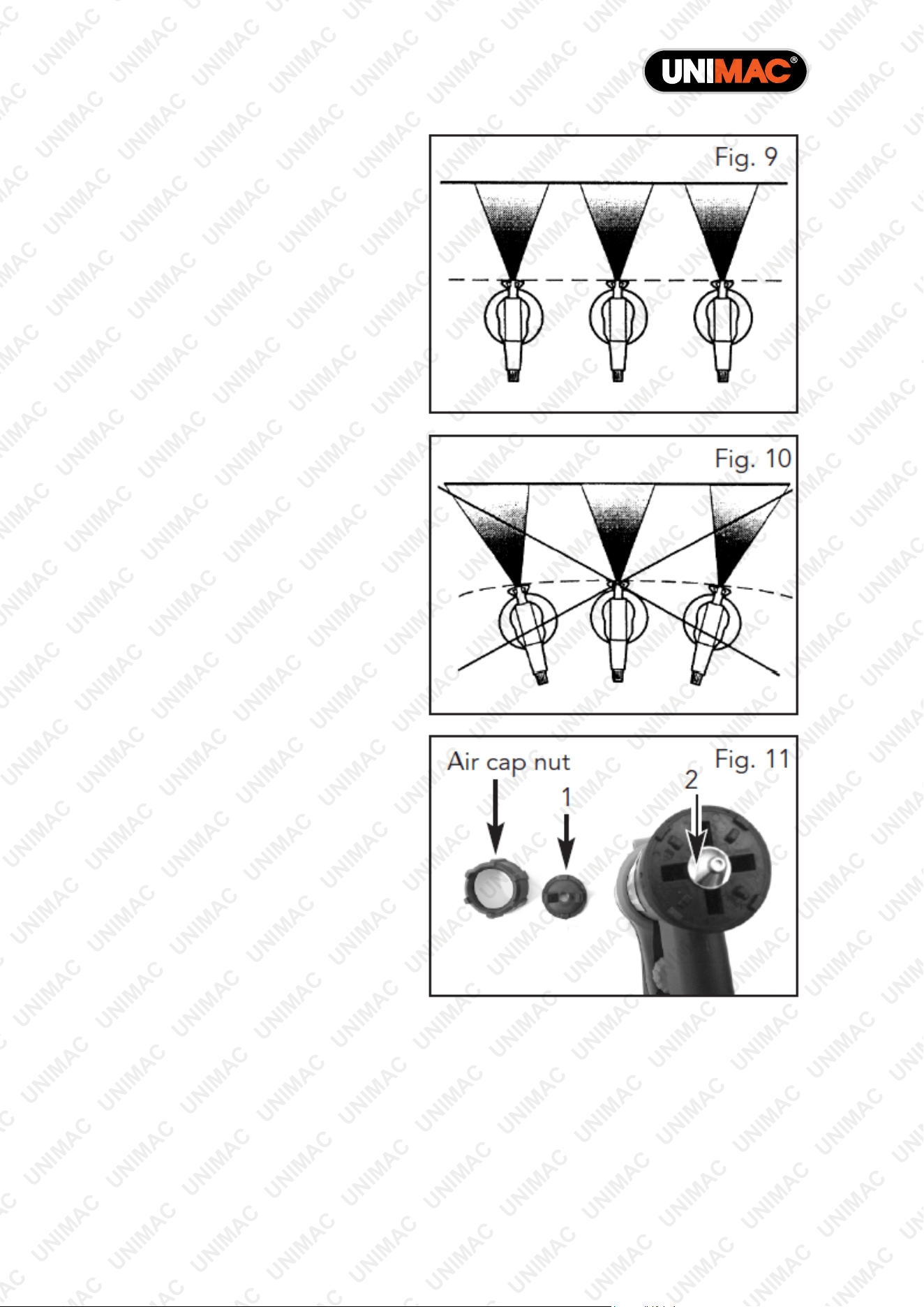

Always hold the spray gun at an even

distance from the object to be sprayed.

The distance will vary with the type of

paint being sprayed, 20cm is

suggested to start with and adjust if

necessary. Move the spray gun evenly

across or up and down, depending on

the adjusted spraying effect (Fig. 9).

The movement of the spray gun should

be by the arm rather than the wrist to

ensure that the space between the

spray gun and surface remains the

same throughout the operation.

Uneven movement of the spray gun will

give an uneven surface quality (Fig.10).

An even movement of the spray gun

will give a uniform surface quality.

If coating material builds up on the

nozzle (2) and air cap (1) (Fig.11).

Remove the air cap nut and air cap (1).

Clean both parts and around nozzle (2)

with solvent or water using a stiff brush.

If the nozzle (2) becomes blocked it

can be removed by using a 9mm open

ended spanner, carefully unscrew from

the paint head. Clean the nozzle (2)

and remove any paint build up. Be

careful not to damage the nozzle (2) as

this will affect the spray gun

performance.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

14

Helpful Hints

1. Do not spray outdoors on a windy day as the results may be unsatisfactory.

2. Evenly control the speed of movement of the spray gun. A fast speed will give a thin coat and

a slow speed will give a heavy coat.

3. Only apply one coat at a time. If a further coat is required follow the paint manufacturer’s

instructions for re-coating and drying times.

4. If spraying small areas or objects keep the output setting low as this will avoid excessive use

of paint and will minimise overspray.

5. When spraying large areas or objects,

it is best to use a crisscross pattern,

either from left to right then up or down

or vice-versa. This will ensure

maximum coverage (Fig. 12).

6. Avoid stopping and starting when

spraying as this can lead to too much

or not enough paint on a surface.

7. To ensure edges are covered,

commence spraying just to the side of

an area being sprayed, continue and

do not stop until the spray has gone

past the opposite edge.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

15

Cleaning

Clean After Every Use

After every use it is essential that you clean the gun thoroughly. This will prevent any blockages

occurring and provide reliable performance when you next come to use it.

1. Turn off device. Open trigger so that

the coating material in spray gun runs

back into the container.

2. Unscrew the container. Return

remaining material into the material

can.

3. Clean the container. Remove the

suction tube by turning counter-

clockwise and pull gently to

disassemble from the paint head.

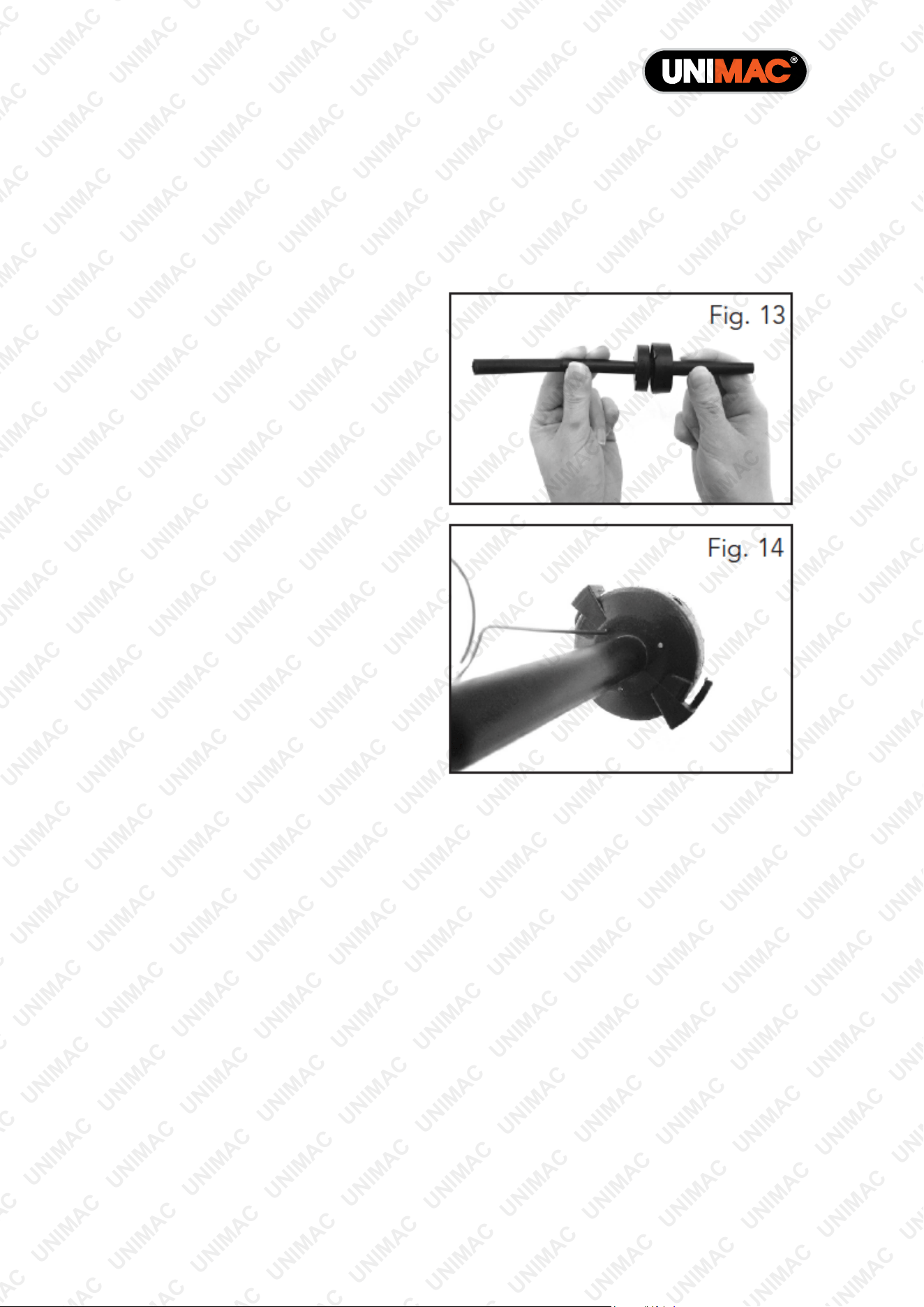

Disassemble the suction tube (Fig.13)

for further cleaning by turning

clockwise then pull to disassemble.

NOTE: Only use solvent with a flash

point of over 21°C

4. Take note of the 3 holes on the suction

tube, if blocked clean using the

provided cleaning needle (Fig. 14).

The 3 holes are used to pressurize the

paint pot (11) for the paint pickup. If

these holes are partially blocked it will

result in uneven and inconsistent

spraying.

5. Thoroughly clean the suction tube

using clear solvent or water before

reassembling.

6. Re-fit suction tube and fill container with solvent or water.

7. Screw container back in place. Turn on device and spray the solvent or water into a

container.

8. Repeat the above procedure until clear solvent or water comes out of the nozzle.

9. Turn off device.

10. Then completely empty the container. Always keep the container seal free of coating material

and check for damage.

11. If the housing of the gun requires cleaning dip a cloth in the solvent or water, ensuring the

cloth is not dripping, wipe the exterior of the spray gun.

12. Unscrew the air cap nut. Remove air cap. Clean the air cap and nozzle with brush and

solvent or water.

13. Prior to storing the mobile paint station, ensure it is completely dry. This will minimise residue

build-up for the next use.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

16

NOTE: the manufacturer will not be responsible for any damage or injuries caused by the repair

of the tool by an unauthorised person or by mishandling of the tool.

Clean-Up

It is extremely important to thoroughly flush the sprayer immediately after use.

1. Use water to flush out water-based paint.

2. Use turps to flush out oil-based paint.

3. Spray oil/turps through the sprayer in exactly the same way you use paint.

4. You must run enough water/turps through the sprayer to ensure absolutely all paint has been

removed from the system. Keep spraying until there's absolutely no paint coming out - the

oil/turps should be completely clear.

5. Then complete clean-up by thoroughly removing all paint residue from the spray nozzle, the

paint inlet and the rest of the machine.

6. Any trace of paint left in the unit or around the inlet or nozzle will prevent the sprayer from

working properly.

7. Simply let our team know the unit is blocked and they will advise the easiest solution for un-

blocking.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

17

Maintenance

If required the spray gun plunger can be

removed and cleaned. This is a

maintenance task and should not be

required on a frequent basis. If the paint

has been allowed to dry in the paint head

or the spray gun has had a lot of use then

removing and cleaning or replacing the

plunger may restore the original spray gun

performance.

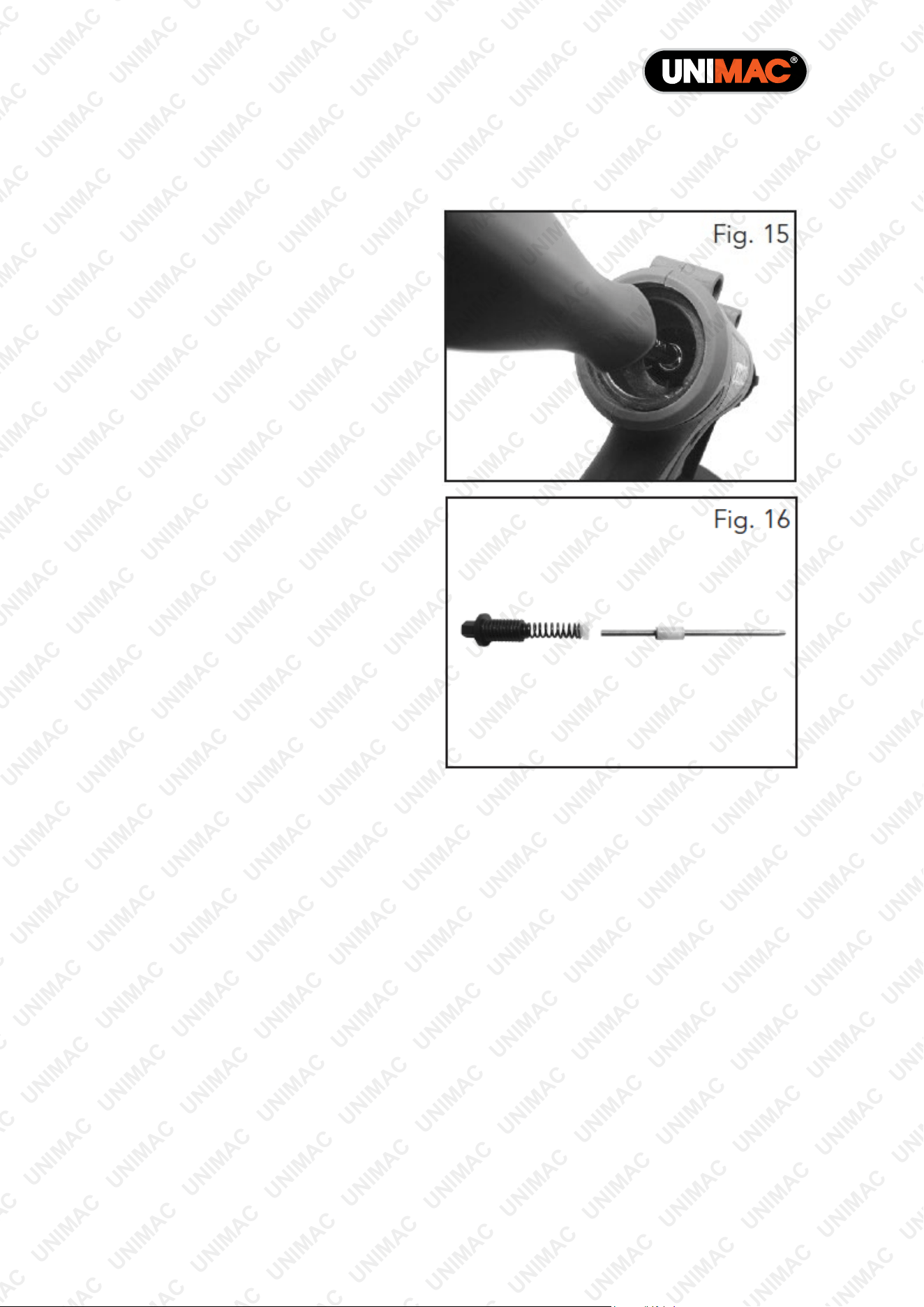

1. If attached remove the air hose (10)

from the spray gun. Using an 8mm

socket (not provided) carefully

unscrew and remove the spray gun

plunger assemble from the rear of the

spray gun (Fig. 15).

2. Clean the spray gun plunger assembly

and spray gun, remove any paint

using clear solvent or water.

3. After cleaning reassemble the plunger

assembly in the correct order (Fig. 16)

and refit to the rear of the spray gun.

NOTE: Do not use abrasive material to

clean the plunger as this may affect the

performance of the spray gun.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

18

Troubleshooting

Problem Cause Remedy

No coating material is coming

out of the nozzle

The nozzle is blocked Clean

The suction tube is blocked Clean

The small hole in the suction

tube is blocked

Clean

Material spray regulator dial

turned too far to the (-)

Turn to the (+)

The suction tube is loose Tighten pipe

No pressure is built up in the

paint pot

Tighten paint pot

The coating material drips

from the nozzle

The nozzle is loose Tighten

The nozzle is worn Change

Build-up of coating material

in the air cap and nozzle

Clean

Spray too coarse

Coating material has a too

high viscosity

Dilute

Too much material, spray

regulator dial turned too far

to (+)

Turn spray regulator dial to (-)

Nozzle dirty Clean

Air filter very dirty Change

Not enough pressure built up

in paint pot

Tighten paint pot

The spray jet pulses

Coating material in paint pot

is running out

Refill

The small hole in the suction

tube is blocked

Clean

Air filter very dirty Change

Run in the coating material

Too much coating material

applied

Turn the material spray regulator dial

to the (-)

Too much coating material

mist (overspray)

The distance to the object to

be sprayed is too large

Reduce spraying distance

Too much coating material

applied

Turn material spray regulator dial to

the (-)

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

19

Problem Cause Remedy

My paint sprayer will not

spray.

My paint sprayer sprays

unevenly.

Paint will not come out of my

paint sprayer when I try to use

it.

The paint comes out

unevenly.

The paint is not a fine spray

when it comes out.

The paint is blotchy or messy

when it sprays out.

The paint sprayer is blocked.

Inadequate thinning or

blockage.

Inadequate Thinning:



Paint must be thinned by approx.

15% when using a paint sprayer.



Use water to thin water-based

paint.



Use turps to thin oil-based paint.



For 1 litre of paint, add 150ml of

water/turps.



For 5 litres of paint, add 750ml of

water/turps.



Be sure to stir the paint well after

the water/turps has been added.



If the spray is still not fine enough

or the flow is inadequate, try

thinning the paint a little more.



Do not thin bulk amounts of paint

until you have determined the ideal

amount and tested it through the

sprayer.

Blockage:



As outlined in the product manual

it is extremely important to

thoroughly flush the sprayer

immediately after use.



Use water to flush out water-based

paint.



Use turps to flush out oil based

paint.



Spray oil/turps through the sprayer

in exactly the same way you use

paint.



You must run enough water/turps

through the sprayer to ensure

absolutely all paint has been

removed from the system. Keep

spraying until there's absolutely no

paint coming out - the oil/turps

should be completely clear.



Then complete clean-up by

thoroughly removing all paint

residue from the spray nozzle, the

paint inlet and the rest of the

machine.



Any trace of paint left in the unit or

around the inlet or nozzle will

prevent the sprayer from working

properly.



Simply let our team know the unit

is blocked and they will advise the

easiest solution for un-blocking.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

HVLP Multi-Purpose Spray Station

20

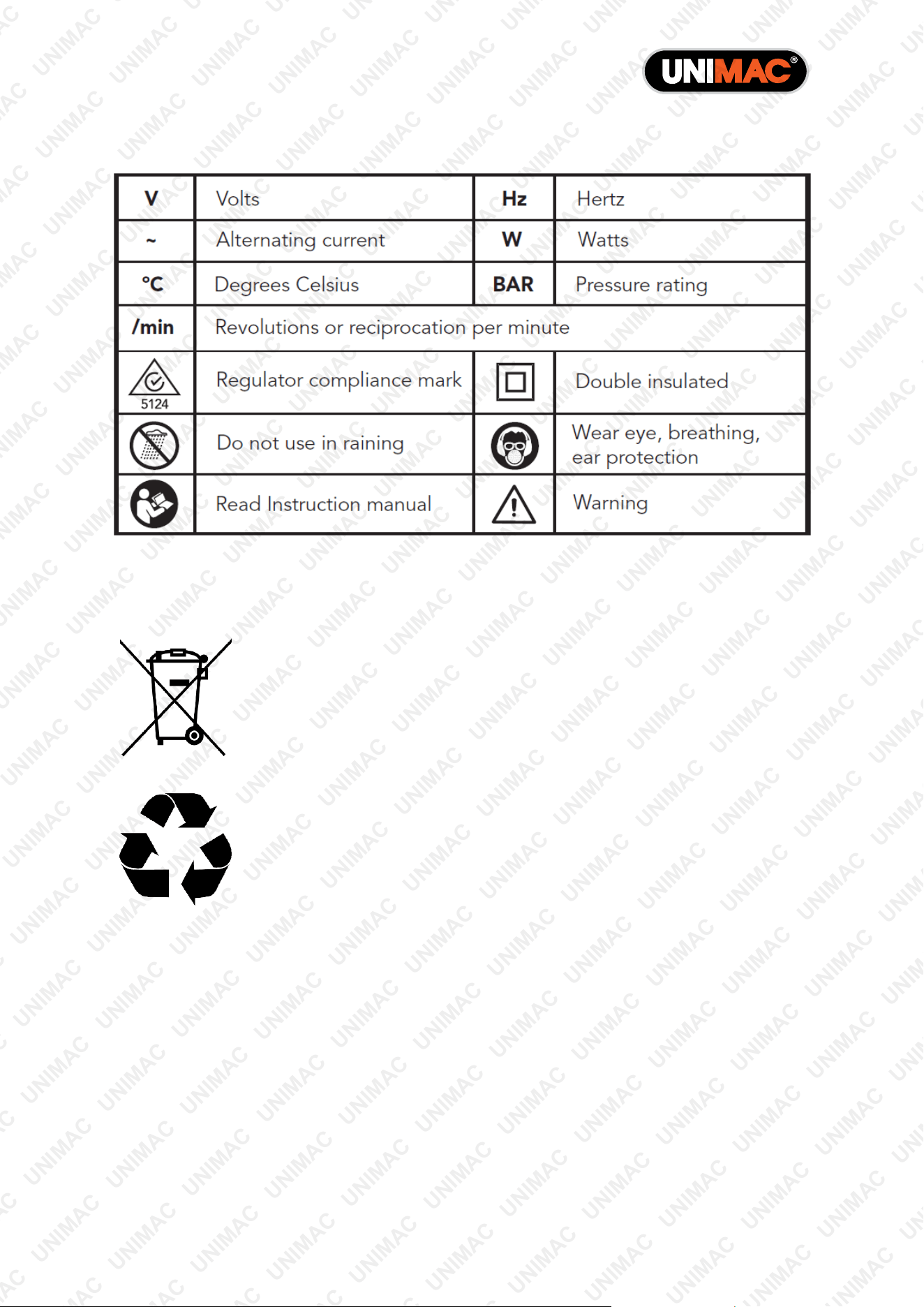

Description of Symbols

Caring for the Environment

Power tools that are no longer usable should not be disposed of with

household waste but in an environmentally friendly way. Please recycle

where facilities exist. Check with your local council authority for recycling

advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse

of recycled material decreases pollution in the environment. Please recycle

packaging where facilities exist.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

UNIMAC PPTSPYUMCA1KT 740W HVLP Electric Paint Sprayer Gun DIY Spray Station Tool

Product's Documents

Product manual

Specifications

UNIMAC PPTSPYUMCA1KT Questions and Answers
