United States Stove TH-100 TH100 750 Sq. Ft. Tiny Wood Stove User Manual

853954F-1904N

Report Number: F22-781

Tested Per EPA Methods 28R and ASTME2515

and ASTME2780 and CSAB415.1

Certified to UL 1482-2022 and

ULC-S627:2023

Mobile home/transportable building approved

TH100

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

Owner’s Instruction and Operation Manual

SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For

your safety, follow the installation instructions. Never use make-shift compromises

during the installation of this heater. Contact local building or fire ocials about

permits, restrictions and installation requirements in your area. NEVER OPERATE

THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury, or

even death. Improper Installation Will Void Your Warranty!

Save These Instructions In A Safe Place For Future Reference.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to www.P65warnings.ca.gov

U.S. Environmental Protection Agency

Certified to comply with 2020 particulate

emissions standards.

Model Number:

This manual describes the installation and operation of the USSC TH100 wood heater. This heater meets the 2020

U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020. Under

specific test conditions this heater has been shown to deliver heat at rates ranging from 10,652 to 26,028 Btu/hr with

1.7 g/hr and 75% eciency. Note: The BTU ratings mentioned above are based on the EPA test protocol under specific

test conditions. Our advertised BTU’s are based on the first hour of operation at high burn rate burning dry cordwood.

Combustible: Wood

Colors: Black

Flue Pipe Diameter: 6” (153 mm)

Flue Pipe Type: Black or Blued Steel 2100°F (650°C)

Minimum Chimney Height: 12’ (3.7 m)

Maximum Log Length: 11” (279 mm)

Electrical: 120VAC, 0.55A, 60Hz

Dimensions

DEPTH WIDTH HEIGHT

Overall: Depth x Width x Height: 13” (330 mm) 16.4” (417 mm) 26.75” (680 mm)

Combustion Chamber: Width x

Depth:

11.25” x 8.5” (286 mm X 216 mm)

Firebox Volume: Cubic Feet: .59 cubic feet

Door Opening: Width x Height: 9.6” x 9.6” (244 mm X 244 mm)

Pyroceramic Glass Door: (Viewing)

Width x Height:

9.5” x 10.5” (241 mm X 267 mm)

INTRODUCTION

CAUTIONS:

• HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE

SKIN BURNS.

• DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.

• DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED.

• DO NOT BURN GARBAGE, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR MOTOR OIL.

• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.

• ALWAYS CLOSE THE DOOR AFTER THE IGNITION.

For Customer Service, please call:

1-800-750-2723 Ext 5050 or;

Text to 423-301-5624 or;

Email us at:

customerservice@usstove.com

Note: Register your product by using your smart

phone with the QR code. Save your receipts with

your records for any warranty claims.

You can also register your product online at

www.usstove.com/support/product-registration

/ OR by downloading the US Stove Company app

available for iOS and Android.

INSTALLATION CHECKLIST

Your Wood Stove should be installed by a qualified installer only. An NFI qualified Installer can be found at;

www.nficertified.org/public/find-an-nfi-pro/

CUSTOMER SERVICE

1-800-750-2723 ext 5050

Text to 423-301-5624

Email to: Customerservice@usstove.com

COMMISSIONING CHECKLIST

This checklist is to be completed in full by the qualified person who installs this unit. Keep this page for future reference.

Failure to install and commission according to the manufacturer’s instructions and complete this checklist will

invalidate the warranty.

Please Print

Customer Name: Telephone Number:

Address:

Model:

Serial Number:

Installation Company Name: Phone Number:

Installation Technician’s Name: License Number:

DESCRIPTION OF WORK

Location of installed appliance: __________________________________________________________________________________

Chimney System: New Chimney System Yes No If yes, Brand _________________________________________

If no, Date of inspection of the existing chimney system: __________________________________________________________

COMMISSIONING

Confirm Hearth Pad Installation as per Installation Instructions ...................................................................................................

Confirm proper placement of internal parts ..........................................................................................................................................

Check soundness of door gasket and door seals .................................................................................................................................

Confirm clearances to combustibles as per installation instructions in this manual ..............................................................

Check the operations of the air controls .................................................................................................................................................

Confirm all flue pipe and chimney system are secure and sealed ..................................................................................................

Confirm the stove properly drafts when fired .......................................................................................................................................

Check to ensure a CO alarm is installed as per local building codes and is functional ............................................................

Explain the safe operation, proper fuel usage, cleaning and routine maintenance requirements ........................................

Declaration of Completion: As the qualified person responsible for the work described above, I confirm that the appliance

as associated work has been installed as per manufacturer’s instructions and following any applicable building and

installation codes.

Signed: ______________________________________ Print Name: __________________________________Date: ______________

Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

ASSEMBLY INSTRUCTIONS

TOOLS AND MATERIALS

You will need the following items for installation:

• A drill phillips head screwdriver.

• A ratchet wrench with a 7/16” and 1/2” sockets or

wrenches to install flue collar and leg assembly to the

unit.

• An 1/8” drill bit to drill pilot holes into the vent pipe for

securing each section.

• A non-combustible floor protector as specified in this

manual.

• All chimney and chimney connector components for

your particular chimney installation.

• Additional items for Mobile home/transportable

buildings may be needed. See “For use in Mobile home/

transportable buildings” section of this manual.

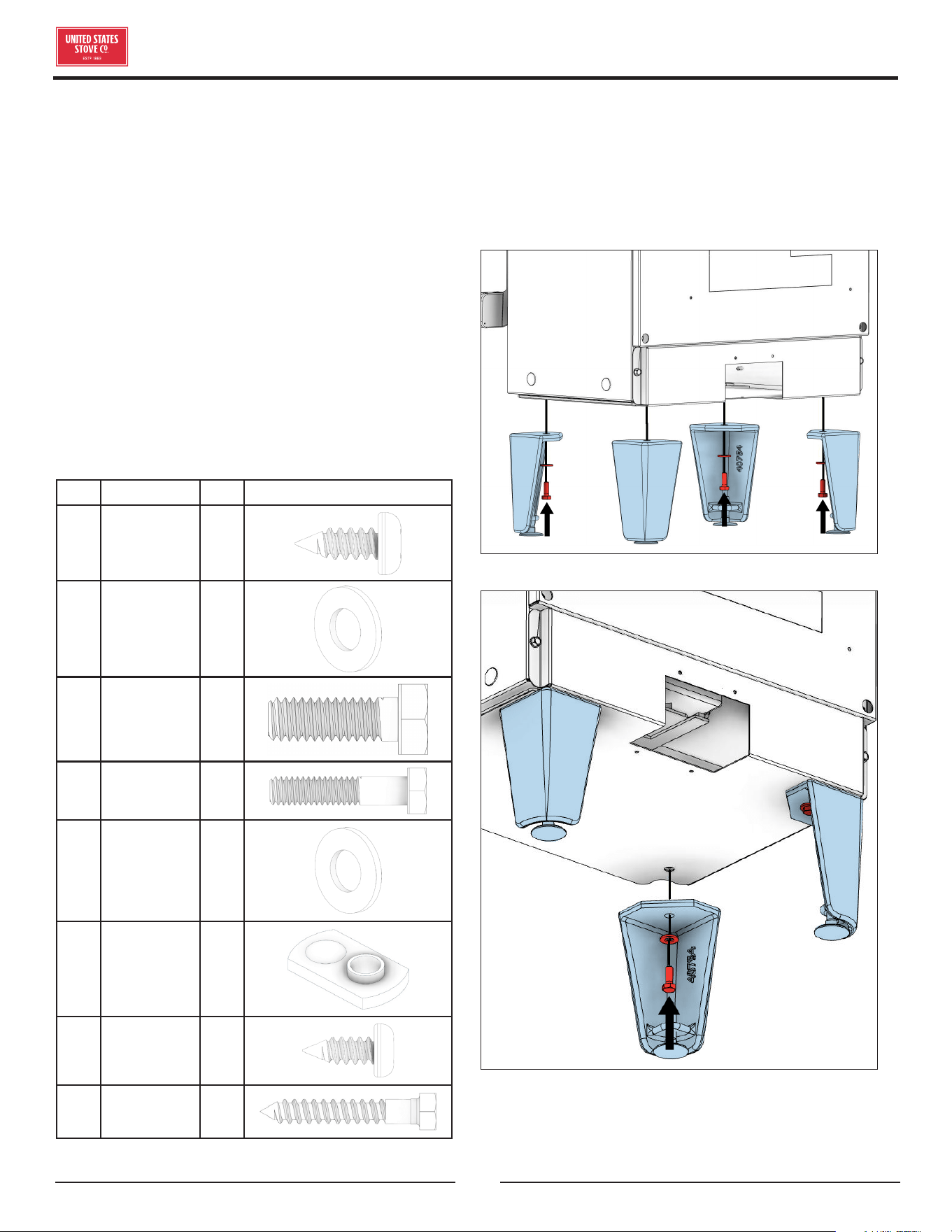

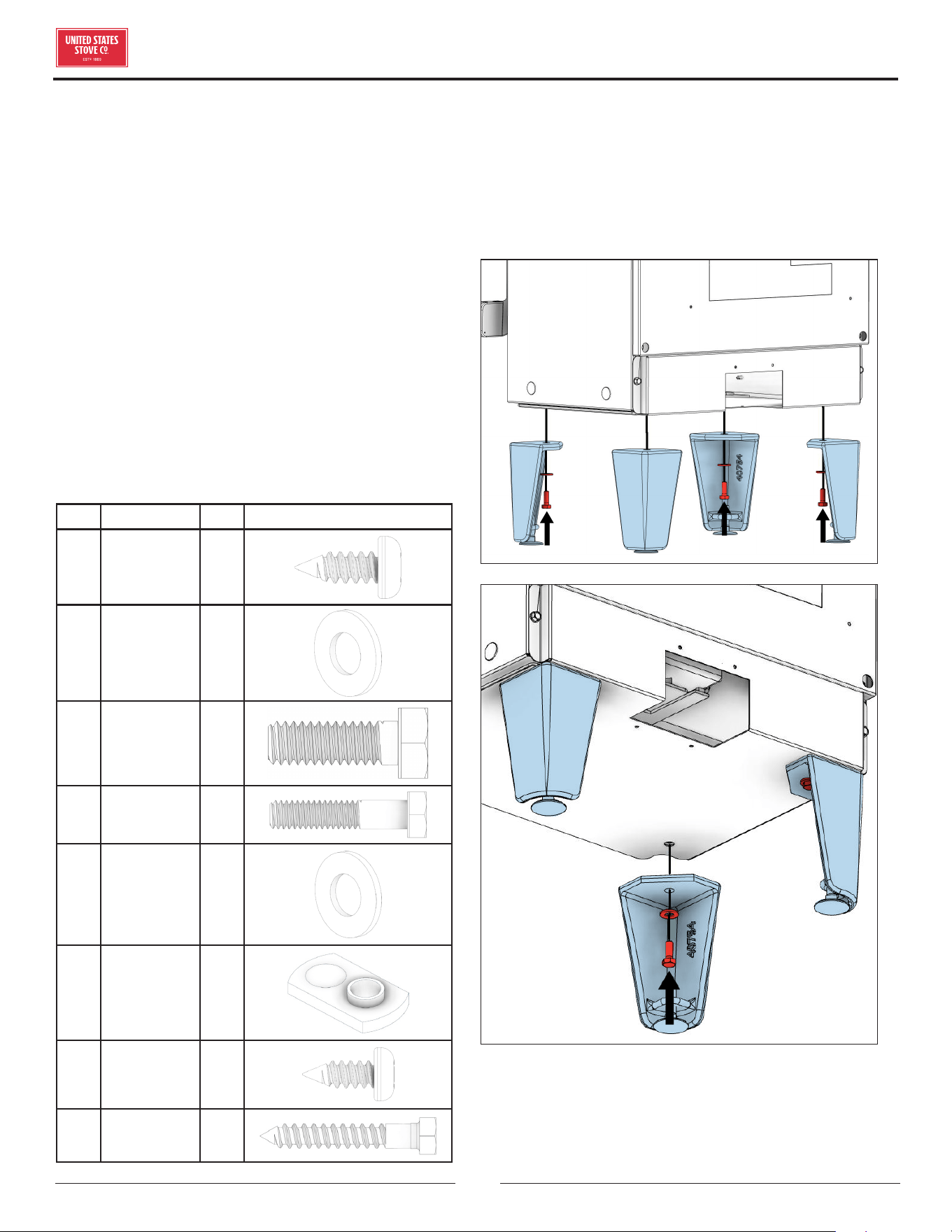

Key Description Qty

# 10 Sheet

Metal

Screw

b Washer 4

1/4-20 Hex

Bolt

5/16-18 x

1-1/2 Bolt

e Washer 3

f Weld Tab 3

Sheet Metal

Screw

1/4 x 1-1/2

Lag Screw

LEG INSTALLATION

Carefully lay the heater on its back and install all four legs

using a total of four (4) 1/4-20 hex bolts (c) and four (4)

washers (b). Note: To prevent scratching lay cardboard

down before placing the heater on its back.

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

ASSEMBLY INSTRUCTIONS

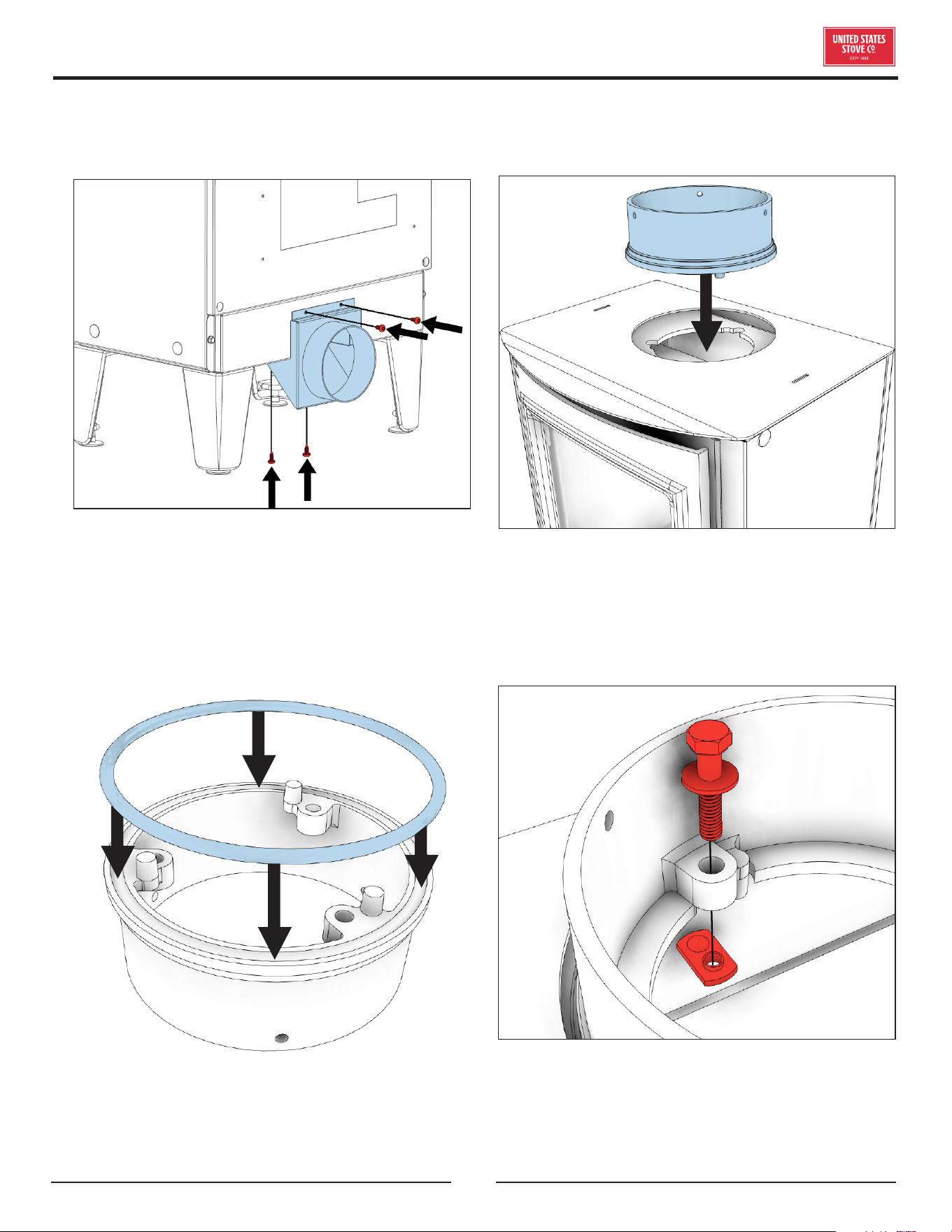

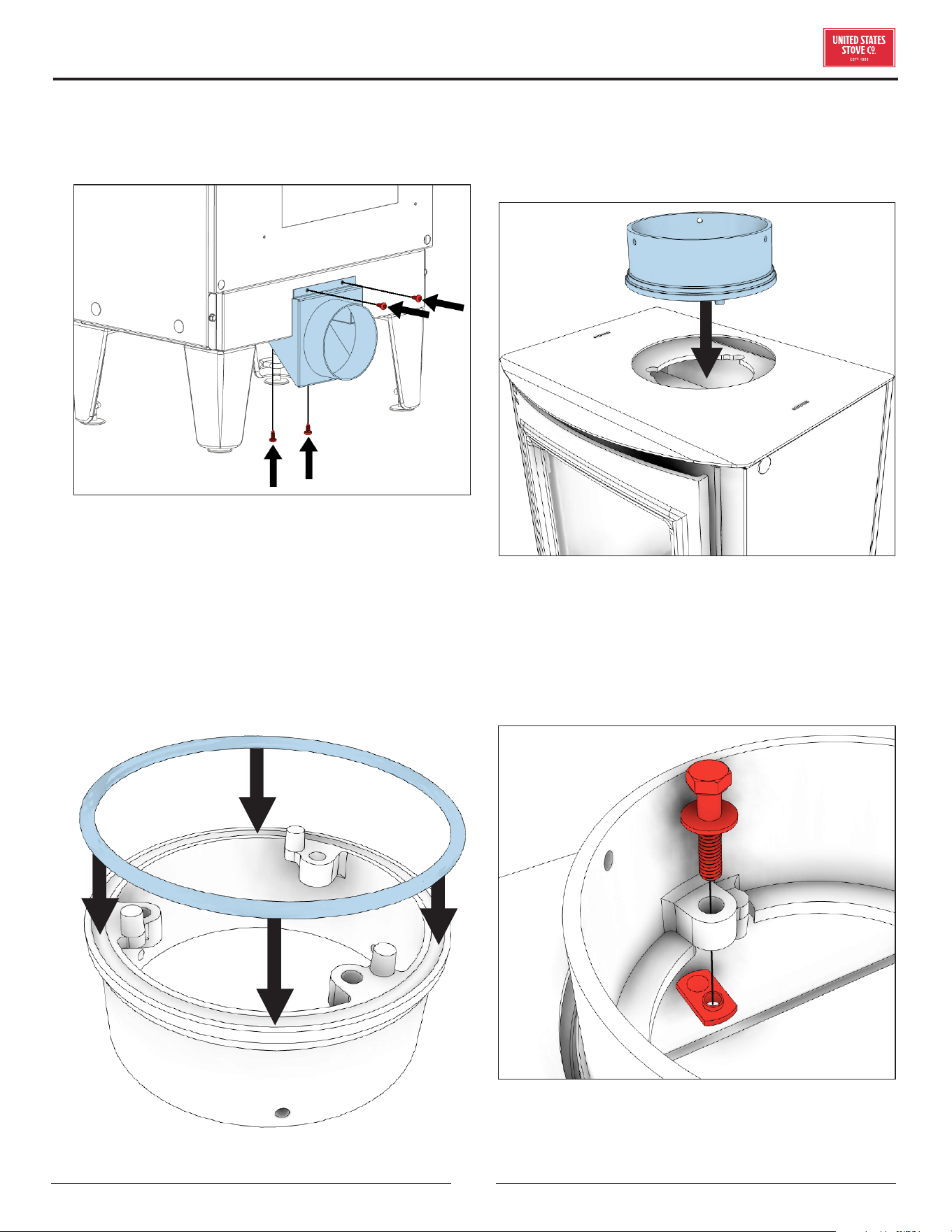

50FAK AIR INTAKE

Attach the 50FAK air intake using the four (4) sheet

metal screws (g) provided.

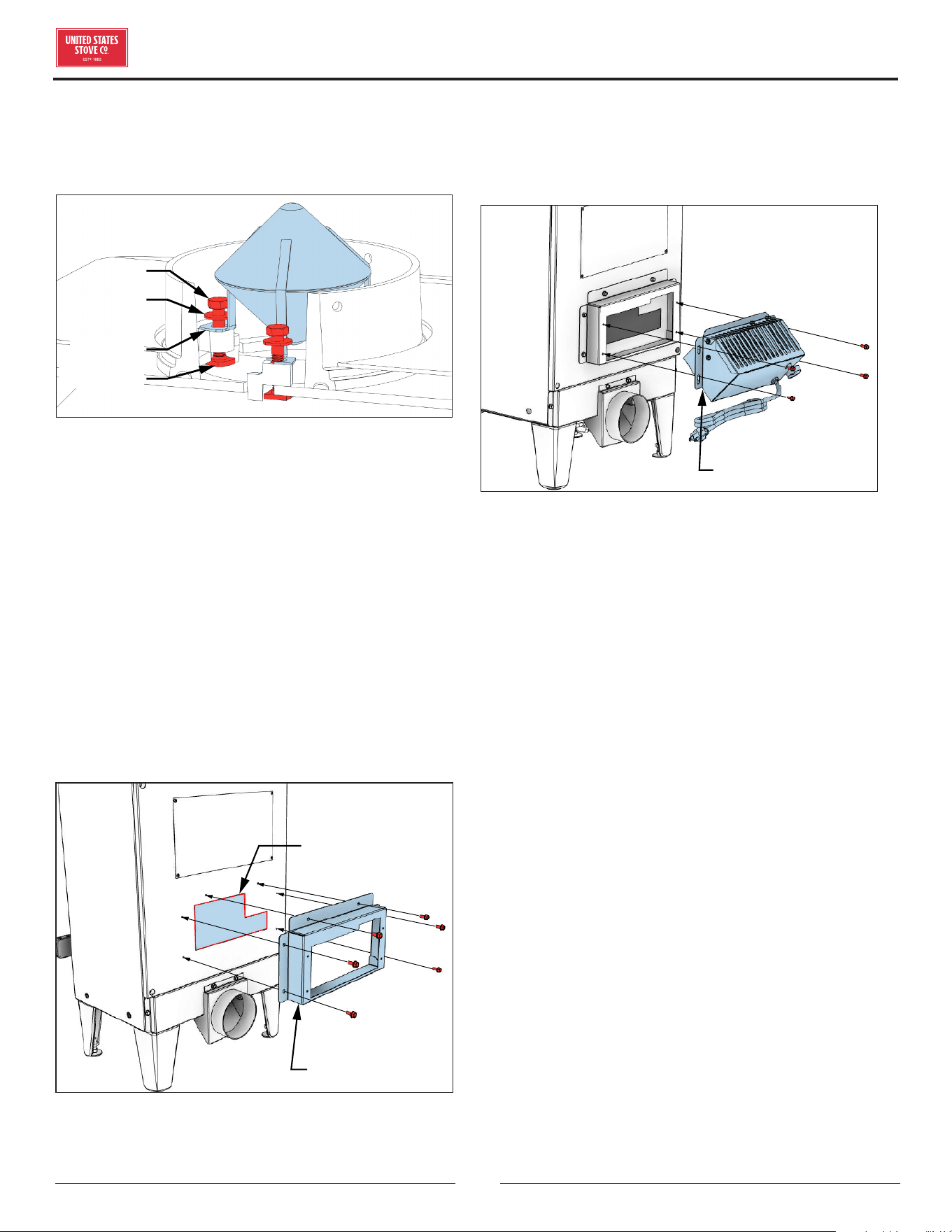

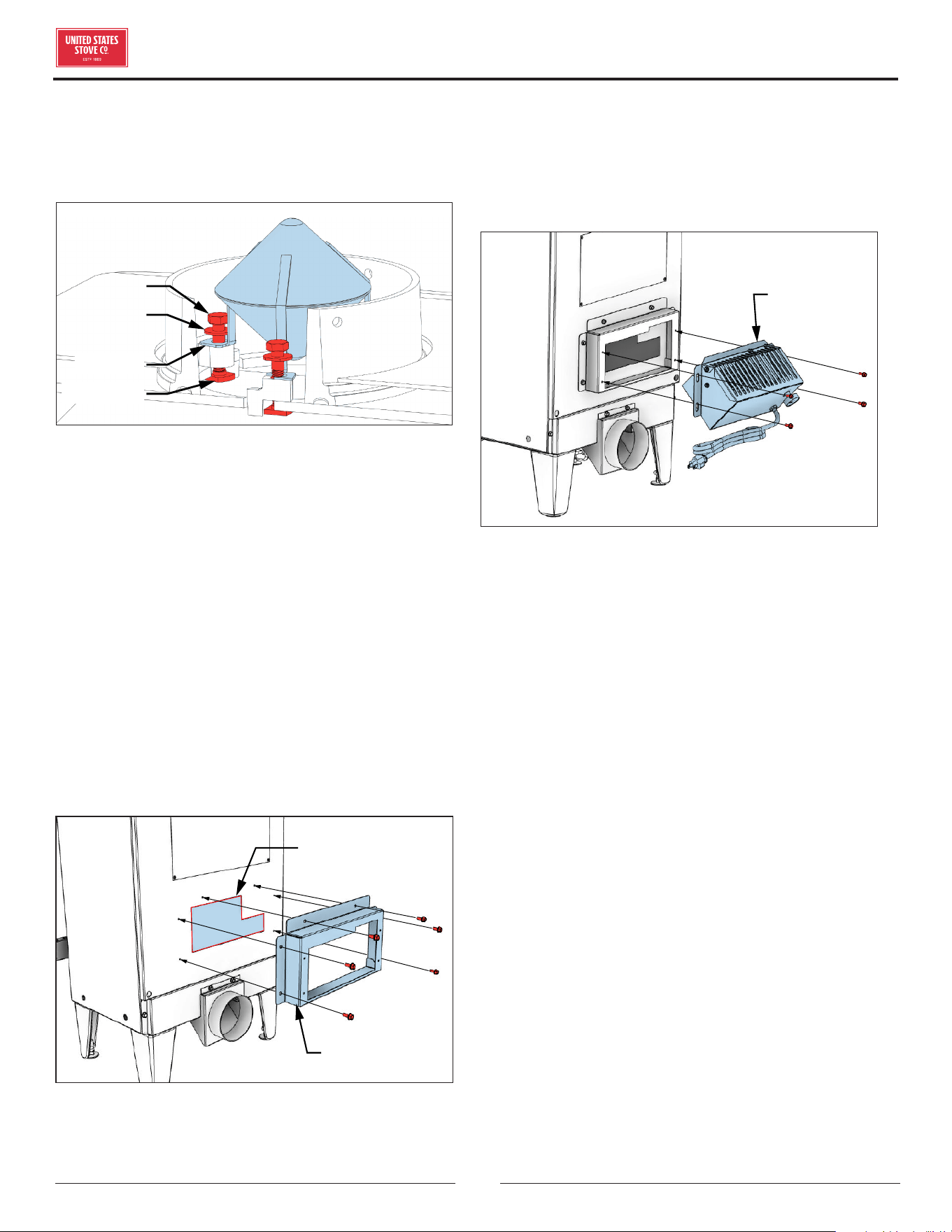

FLUE COLLAR ASSEMBLY

Mount the flue collar to the top of the unit as shown in

the following steps using the three (3) 5/16-18 x 1-1/2

bolts (d), three (3) washers (e), and three (3) weld tabs

(f) provided in the parts box.

1. The rope groove is located on the bottom section of

the flue collar. Remove the paper backing from the

rope gasket. Press the rope gasket firmly into rope

groove.

2. Place the flue collar onto the main weldment by

aligning the pegs located on the bottom of the flue

collar to the holes located at the top of the main

weldment.

3. Place one washer onto each bolt and insert it into

the corresponding bolt hole located in the flue

collar. Once the washers and bolts are in position

start threading one weld tab onto each of the bolts.

NOTE: Leave the weld tabs loose DO NOT tighten the

weld tabs onto the bolts.

4. Slide the slotted legs of the diuser onto each bolt.

Ensure the washers are above the slotted legs of the

diuser as shown. Use a socket and ratchet to tighten

the flue collar assembly to the unit.

Bolt

Washer

Diffuser

Weld Tabs

Above is an illustration of the installation of the flue collar

and diuser. The installation of this diuser is critical for

the proper functionality of the stove as well as achieving

the cleanest burning fires possible. Failure to install

this diuser can result in a possible over fire situation.

FAILURE TO INSTALL THE DIFFUSER CAN RESULT IN

FIRE, PROPERTY DAMAGE AND/OR DEATH.

BLOWER MOUNTING BRACKET

(INCLUDED)

A blower mounting bracket is required for this unit when

installing the CB36 blower Kit.

1. Remove blank from back panel of the heater.

2. Use the provided six (6) sheet metal screws (g) to

attach the blower mounting bracket to the rear of the

stove.

Step 1: Remove

Step 2: Attach

BLOWER ASSEMBLY

When installing the CB36 blower assembly, refer to the

instructions included with the kit.

1. Attach the CB36 blower assembly to the blower

bracket.

Step 3: Attach

Optional

ASSEMBLY INSTRUCTIONS

INSTALLATION

SAFETY NOTICE

• DO NOT INSTALL IN AN ALCOVE

• THIS ROOM HEATER SHALL NOT BE INSTALLED

IN A FACTORY-BUILT FIREPLACE.

• IF THIS STOVE IS NOT PROPERLY INSTALLED,

A HOUSE FIRE MAY RESULT. TO REDUCE THE

RISK OF FIRE, FOLLOW THE INSTALLATION

INSTRUCTIONS.

• CONSULT YOUR MUNICIPAL BUILDING

DEPARTMENT OR FIRE OFFICIALS ABOUT

PERMITS, RESTRICTIONS AND INSTALLATIONS

REQUIREMENTS IN YOUR AREA.

• USE SMOKE DETECTORS IN THE ROOM WHERE

YOUR STOVE IS INSTALLED.

• KEEP FURNITURE AND DRAPES WELL AWAY

FROM THE STOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE

LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO START

OR “FRESHEN UP” A FIRE IN THIS HEATER.

KEEP ALL SUCH LIQUIDS WELL AWAY FROM

THE HEATER WHILE IT IS IN USE.

• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE

AIR CONTROL FULL CLOSED TO DEPRIVE THE

FIRE OF OXYGEN. CALL THE FIRE DEPARTMENT.

• DO NOT CONNECT TO ANY AIR DISTRIBUTION

DUCT OR SYSTEM.

• A SOURCE OF FRESH AIR INTO THE ROOM OR

SPACE HEATED SHALL BE PROVIDED WHEN

REQUIRED.

• THIS ROOM HEATER SHALL NOT BE INSTALLED

IN A FACTORY BUILT FIREPLACE.

Your heater should be installed by a qualified NFI (US) or

WETT (Canada) technician. To find the nearest qualified

installer, go to:

https://nficertified.org,

https://www.wettinc.ca/

POSITIONING THE STOVE

It is very important to position the wood stove as close

as possible to the chimney, and in an area that will favor

the most ecient heat distribution possible throughout

the house. The stove must therefore be installed in the

room where the most time is spent, and in the most

spacious room possible. Recall that wood stoves produce

radiating heat, the heat we feel when we are close to a

wood stove. A wood stove also functions by convection,

that is through the displacement of hot air accelerated

upwards and its replacement with cooler air. If necessary,

the hot air distribution from the stove may be facilitated

by the installation of a blower. The wood stove must not

be hooked up to a hot air distribution system since an

excessive accumulation of heat may occur. A wood stove

must never be installed in a hallway or near a staircase,

since it may block the way in case of fire or fail to respect

required clearances.

INSTALLATION

FLOOR PROTECTOR

This heater must have a non-combustible floor protector,

UL 1618 listed or equal, with an R-Value of at least

2.8 installed beneath it if the floor is constructed of

combustible material. The floor protector should be large

enough to extend under the stove and beyond each side

as indicated below. If there is a horizontal run of chimney

connector pipe, there needs to be floor protection under

it that extends two inches beyond either side of the pipe.

REAR

FRONT

SIDE

Front 18” (457 mm)

Sides 8” (204 mm)

Rear 2” (51 mm)

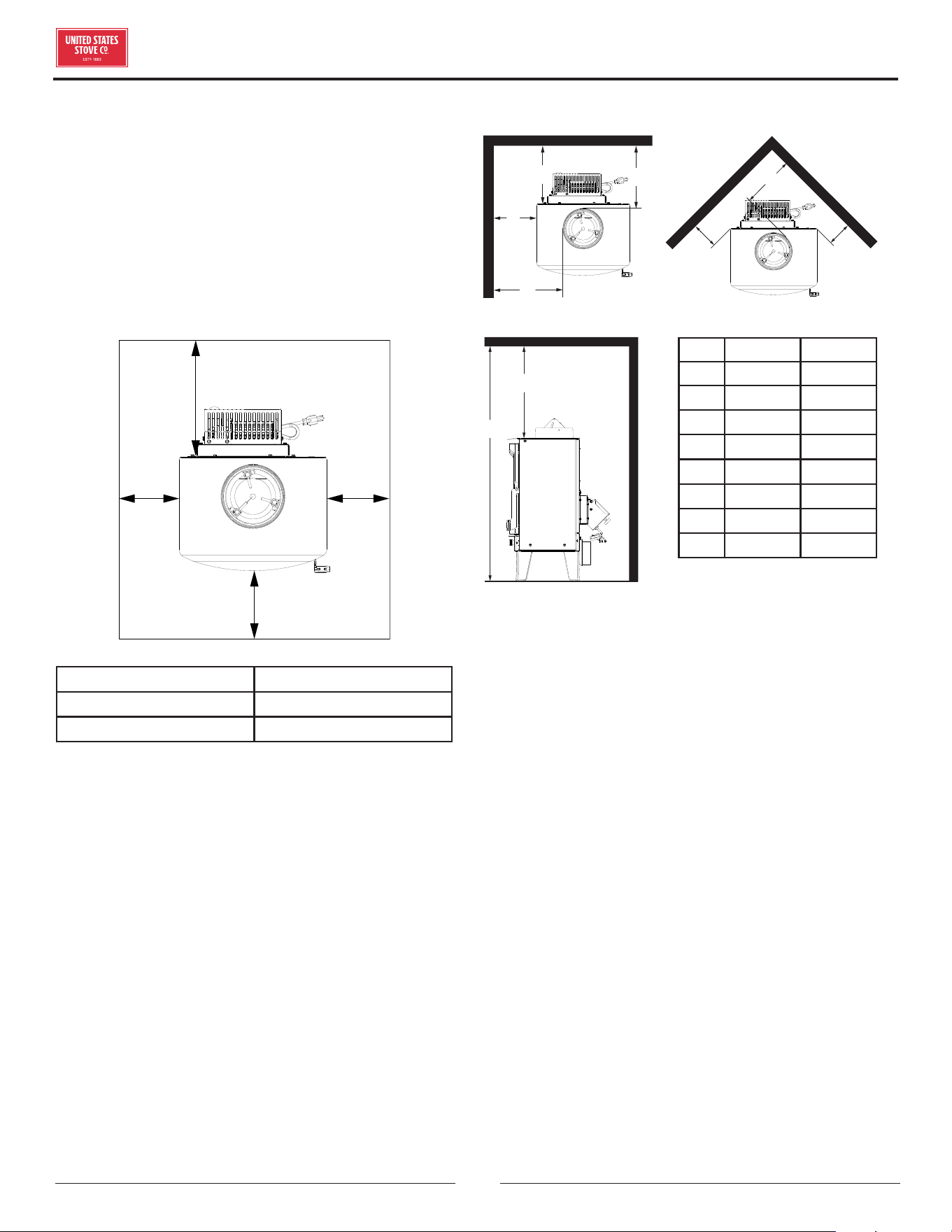

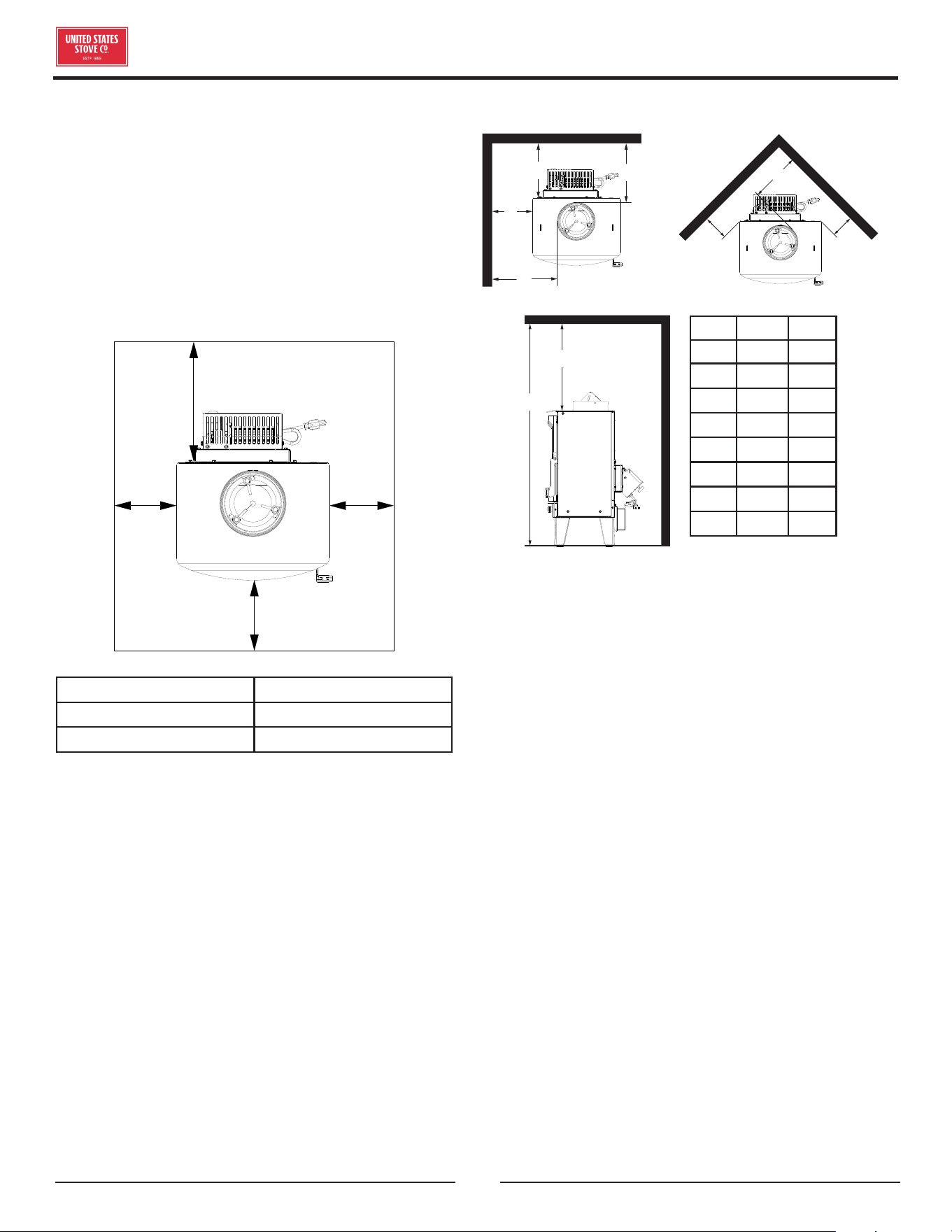

CLEARANCES TO COMBUSTIBLES

It is of utmost importance that the clearances to

combustible materials be strictly adhered to during

installation of the stove.

• Do not place any combustible material within 18” (458

mm) of the front of the unit.

• The clearance between the flue pipe and a wall are valid

only for vertical walls and for vertical flue pipe.

• The chimney connector must not pass through an attic

or roof space, closet or similar concealed space, a floor,

or a ceiling.

• For Canadian installations, where passage through a

wall, or partition of combustible construction is desired,

the installation must conform to CAN/CSA-B365.

• To reduce flue clearances from combustible materials,

contact your local safety department.

• Floor to ceiling height must be at least 7’ (2.13m).

Key in mm

A 13 331

B 13 331

C 14.5 369

D 18 458

E 10 254

F 15.5 394

G 60 1524

H 84 2134

OUTSIDE COMBUSTION AIR

Your wood stove is approved to be installed with an

outside air intake (4FAK) which is necessary for a mobile

home/transportable building. This type of installation is

also required in air tight houses and houses with negative

pressure problems. You can purchase this option through

your heater dealer. Make sure to specify the part number

mentioned in this booklet. Installation instructions are

supplied with the air intake kit. Outside combustion air

may be required if:

1. Your stove does not draw steadily, smoke roll-out

occurs, wood burns poorly, or back-drafts occur

whether or not there is combustion present.

2. Existing fuel-fired equipment in the house, such as

fireplaces or other heating appliances, smell, do

not operate properly, suer smoke roll-out when

opened, or back-drafts occur whether or not there is

combustion present.

3. Opening a window slightly on a calm (windless) day

alleviates any of the above symptoms.

4. The house is equipped with a well-sealed vapor

barrier and tight fitting windows and/or has any

powered devices that exhaust house air.

5. There is excessive condensation on windows in the

winter.

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

INSTALLATION

6. A ventilation system is installed in the house.

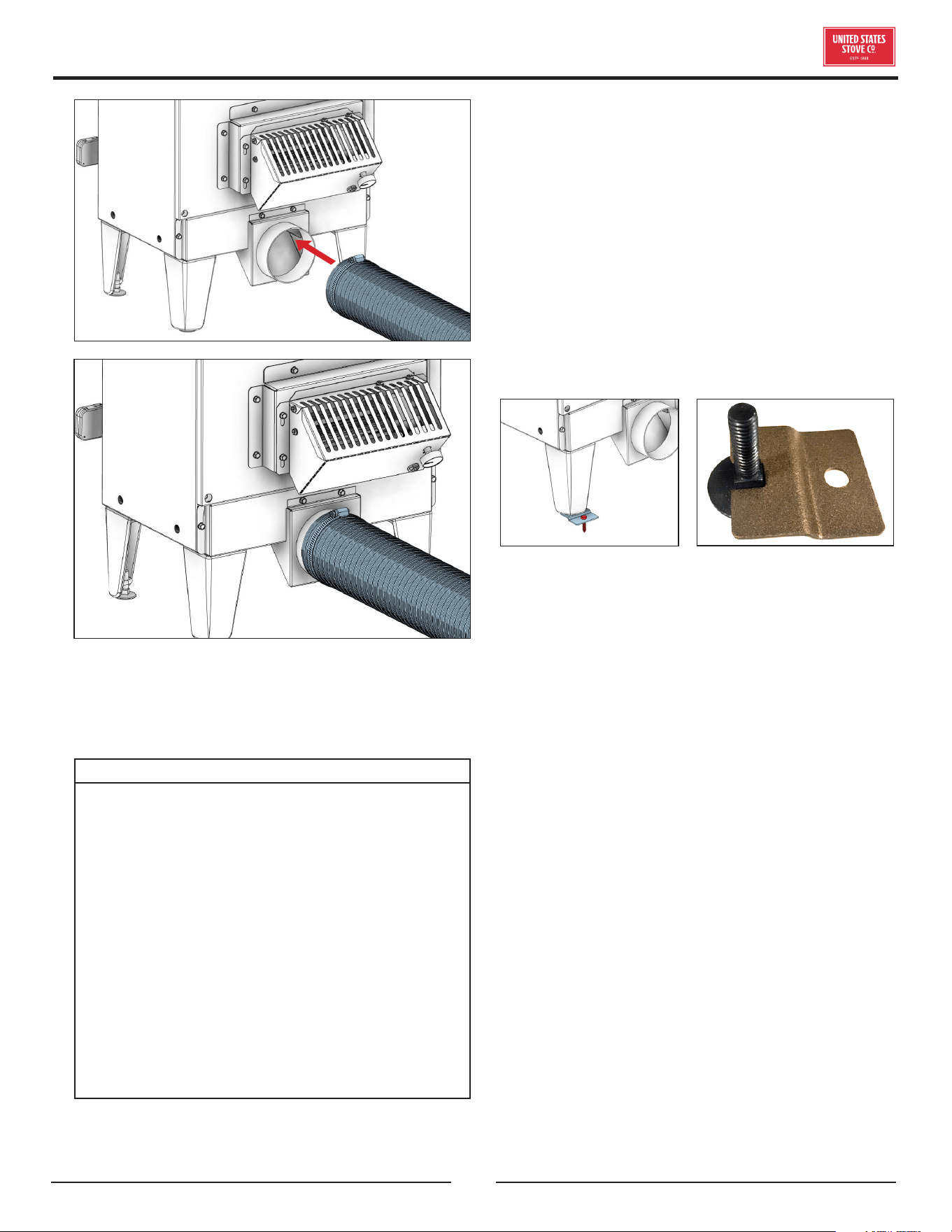

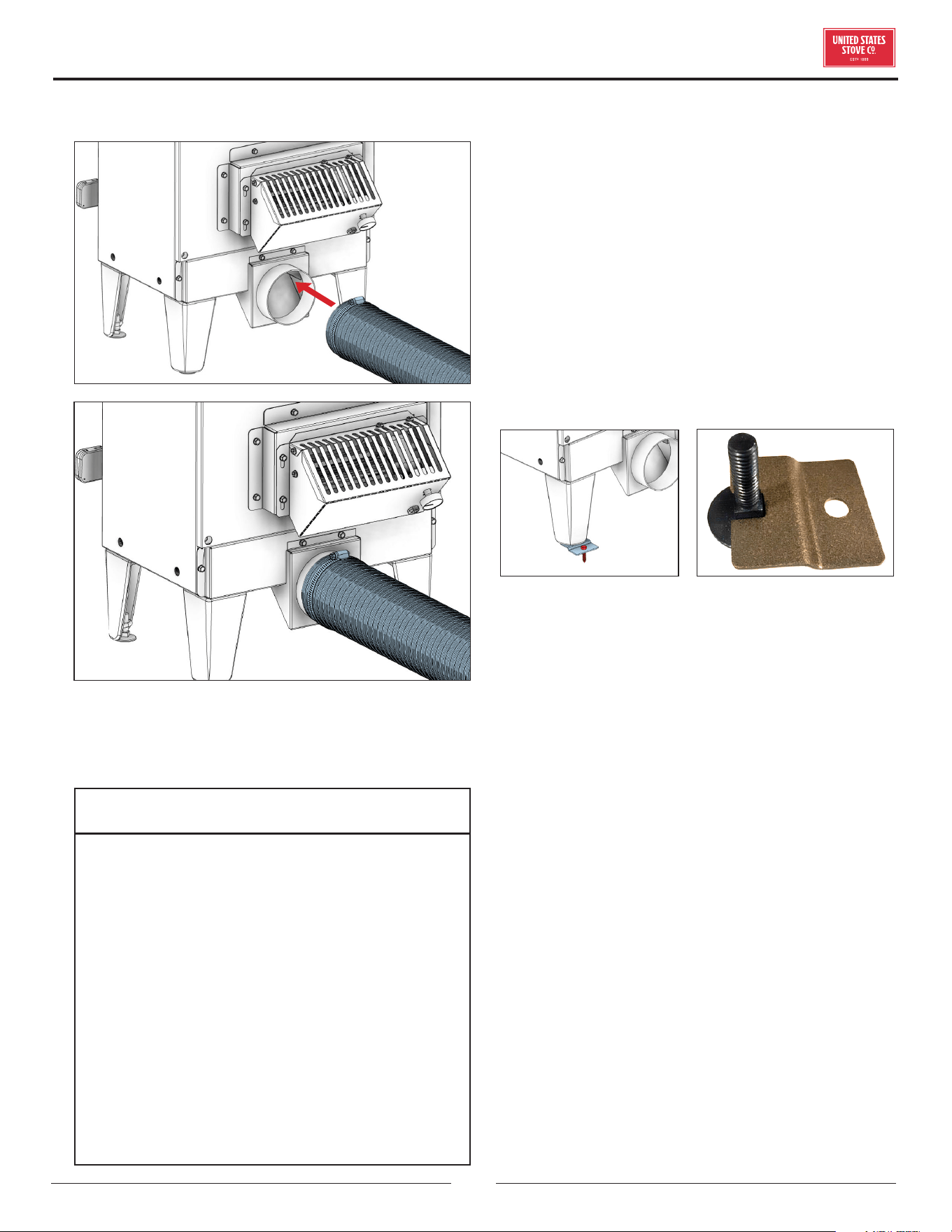

Slide the hose clamp over the aluminium flex pipe.

Then slide the flex pipe over the air intake tube of the

stove. Next tighten the hose clamp over the end of the

aluminium flex hose.

FOR USE IN MOBILE HOME/TRANSPORTABLE

BUILDINGS

• WARNING! DO NOT INSTALL IN SLEEPING

ROOM.

• CAUTION! THE STRUCTURAL INTEGRITY

OF THE MOBILE HOME/TRANSPORTABLE

BUILDING FLOOR, WALL, AND CEILING/ROOF

MUST BE MAINTAINED.

• INSTALL IN ACCORDANCE WITH 24 CFR, PART

3280 (HUD).

• USE A FACTORY BUILT CHIMNEY THAT

COMPLIES WITH UL 103 STANDARDS;

THEREFORE IT MUST BE A TYPE HT (2100°F).

• USE A SPARK ARRESTER.

• THE STOVE MUST BE ATTACHED TO THE

STRUCTURE OF THE MOBILE HOME/

TRANSPORTABLE BUILDING.

SECURING APPLIANCE’S WITH LEGS TO

THE FLOOR

1. The bracket engages around the square extrusion of

the leveling bolt inserted into the leg.

2. Once appliance is leveled, position the bracket and

attach to the floor using the two (2) provided 1/4 x

1-1/2 lag screws (h) to secure the unit to the floor.

NOTE: The two (2) provided 1/4 x 1-1/2 lag screws

(h) may not be suitable for installation in your mobile

home / transportable building. Refer to local codes to

determine what requirements are required for your

unit.

3. Install one bracket per leg or consult your local

authority having jurisdiction to determine how many

points of attachment are required.

In addition to the previously detailed installation

requirements, mobile home/transportable building

installations must meet the following requirements:

• The space heater is to be connected to a factory-built

chimney conforming to UL 103, Standard for 650°C

Factory-Built Chimneys.

• The heater must be permanently attached to the floor.

There are two holes in the pedestal base, use 3/8” bolts

through the floor.

• The heater must be electrically grounded to the steel

chassis of the mobile home/transportable building

with 8 GA copper wire using a serrated or star washer

to penetrate paint or protective coating to ensure

grounding.

• When moving your mobile home/transportable

building, all exterior venting must be removed while the

mobile home/transportable building is being relocated.

After relocation, all venting must be reinstalled and

securely fastened.

• Outside Air is mandatory for mobile home/transportable

building installation. See your dealer for purchasing.

• Check with your local building ocials as other codes

may apply.

• Only use the specified components listed in this manual

for this unit. The use of components that are not meant

for this unit can cause unsafe conditions.

INSTALLATION

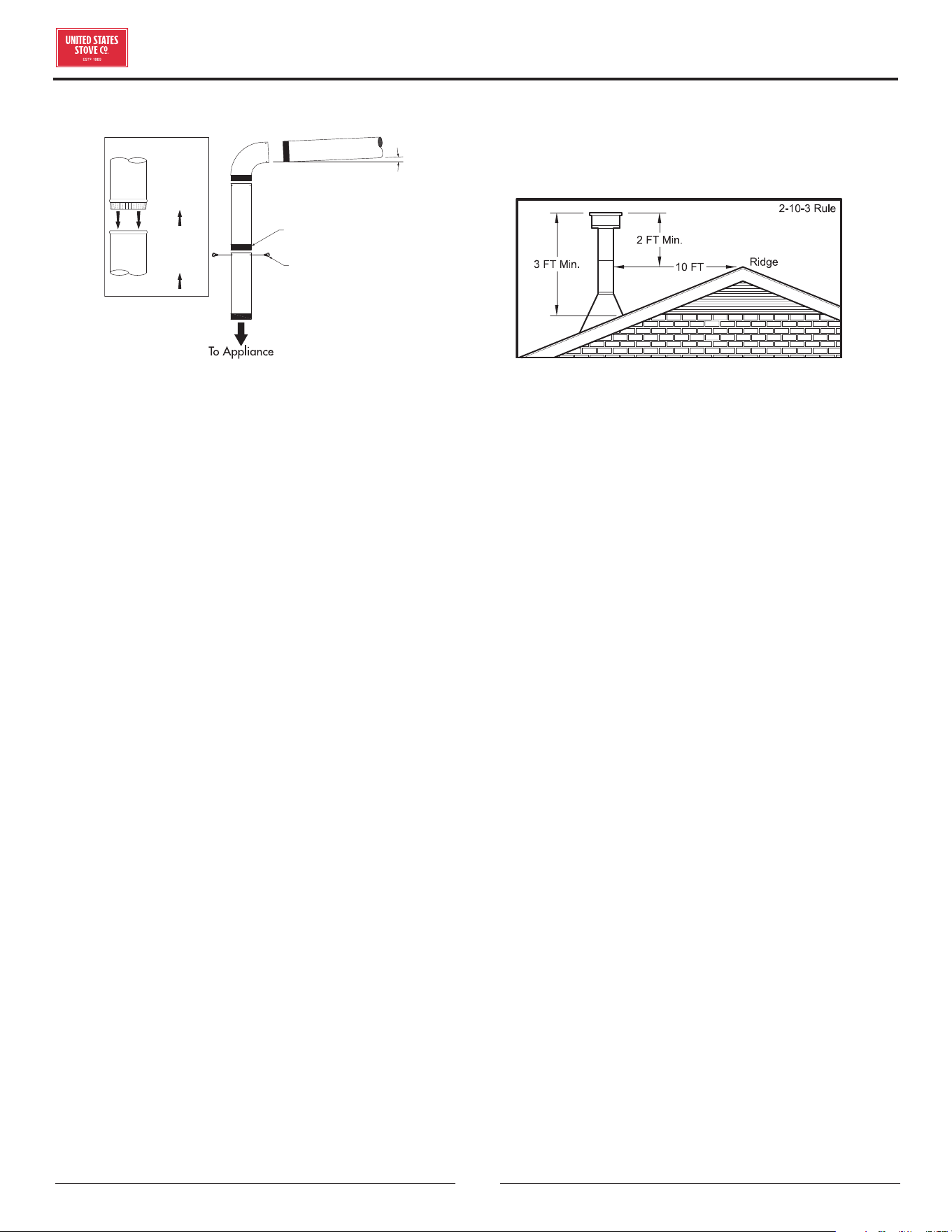

CHIMNEY CONNECTOR (STOVE PIPE)

3 screws

Flow

Direction

of Flue

Gases

Install

crimped

end

towards

stove.

Male Part Downwards

1/4” slope per foot

The chimney connector and chimney must have the same

diameter as the stove outlet (6”). If this is not the case,

we recommend you contact your dealer to ensure there

will be no problem with the draft. The stovepipe must be

made of aluminized or cold roll steel and have a minimum

thickness of 0.021” or 0.53 mm. It is strictly forbidden

to use galvanized steel. The smoke pipe should be

assembled to promote the male section (crimped end) of

the pipe to be faced down. Attach each section to another

with three metal screws spaced an equal distance apart.

The pipe must be short and straight. All sections installed

horizontally must slope at least 1/4 inch per foot, with

the upper end of the section toward the chimney. Any

installation with a horizontal run of chimney pipe must

conform to NFPA 211. To ensure a good draft, the total

length of the coupling pipe should never exceed 8’ to 10’

(2.4m to 3.04m). Except for cases of vertical installation,

in a cathedral-roof style where the smoke exhaust

system can be much longer and connected without

problem to the chimney at the ceiling of the room. There

should never be more than two 90 degrees elbows in the

smoke exhaust system. The installation of a “barometric

draft stabilizer” (fireplace register) on a smoke exhaust

system is prohibited. Furthermore, the installation of

a draft damper is not recommended. With a controlled

combustion wood stove, the draft is regulated upon

intake of the combustion air in the stove and not at the

exhaust.

IMPORTANCE OF PROPER DRAFT

Draft is a force that moves air from the appliance up

through the chimney. The amount of draft in your chimney

depends on the length of the chimney, local geography,

nearby obstructions and other factors. Too much draft

may cause excessive temperatures in the appliance. An

inadequate draft may cause back-pung into the room

and “plugging” of the chimney. An inadequate draft

will cause the appliance to leak smoke into the room

through appliance and chimney connector joints. An

uncontrollable burn or excessive temperature indicates

an excessive draft.

CHIMNEY

Your wood stove may be hooked up with a 6” factory-

built or masonry chimney. If you are using a factory-built

chimney, it must comply with UL 103 or CAN/ULC-S629

standard; therefore it must be a Type HT (2100°F).

It must be installed according to the manufacturer’s

specifications. Take into account the chimney’s location

to ensure it is not too close to neighbors or in a valley which

may cause unhealthy or nuisance conditions. If you are

using a masonry chimney, it must be built in compliance

with the specifications of the National Building Code. It

must be lined with firebricks, metal or clay tiles sealed

together with fire cement. Round flues are the most

ecient. The interior diameter of the chimney flue must

be identical to the stove smoke exhaust. A flue which is

too small may cause draft problems, while a large flue

favors rapid cooling of the gas, and hence the build-up

of creosote and the risk of chimney fires. Note that it is

the chimney and not the stove which creates the draft

eect; your stove’s performance is directly dependent

on an adequate draft from your chimney. Do not connect

this unit to a chimney flue serving another appliance.

The following recommendations may be useful for the

installation of your chimney:

1. It must rise above the roof at least 3’ (0.9m) from the

uppermost point of contact.

2. The chimney must exceed any part of the building or

other obstruction within a 10’ (3.04m) distance by a

height of 2’ (0.6m).

3. The installation of an interior chimney is always

preferable to an exterior chimney. Indeed, the interior

chimney will, by definition, be hotter than an exterior

chimney, being heated up by the ambient air in the

house. Therefore the gas which circulates will cool

more slowly, thus reducing the build-up of creosote

and the risk of chimney fires.

4. The draft caused by the tendency for hot air to rise

will be increased with an interior chimney.

INSTALLATION

5. Using a fire screen at the extremity of the chimney

requires regular inspection to ensure that it is not

obstructed thus blocking the draft, and it should be

cleaned when used regularly.

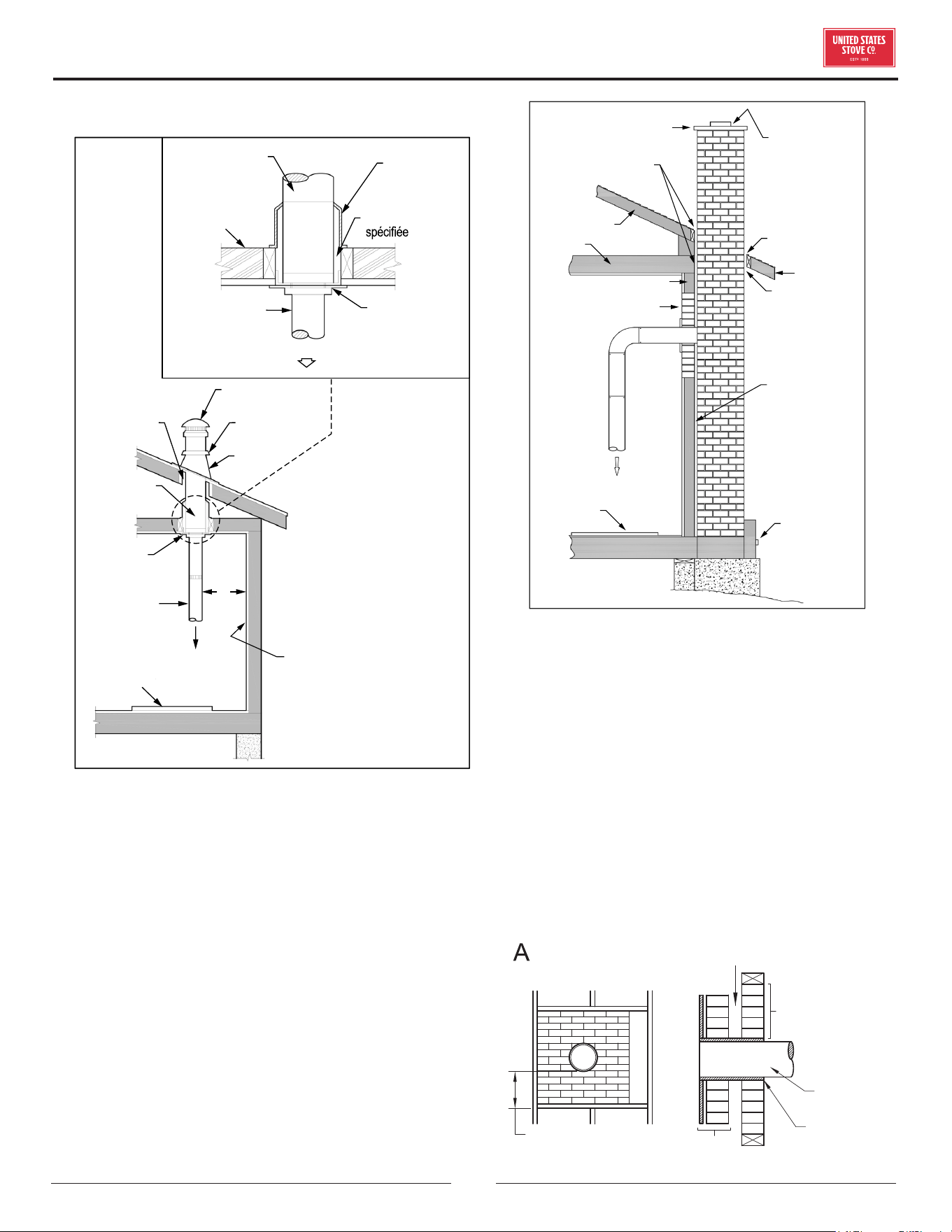

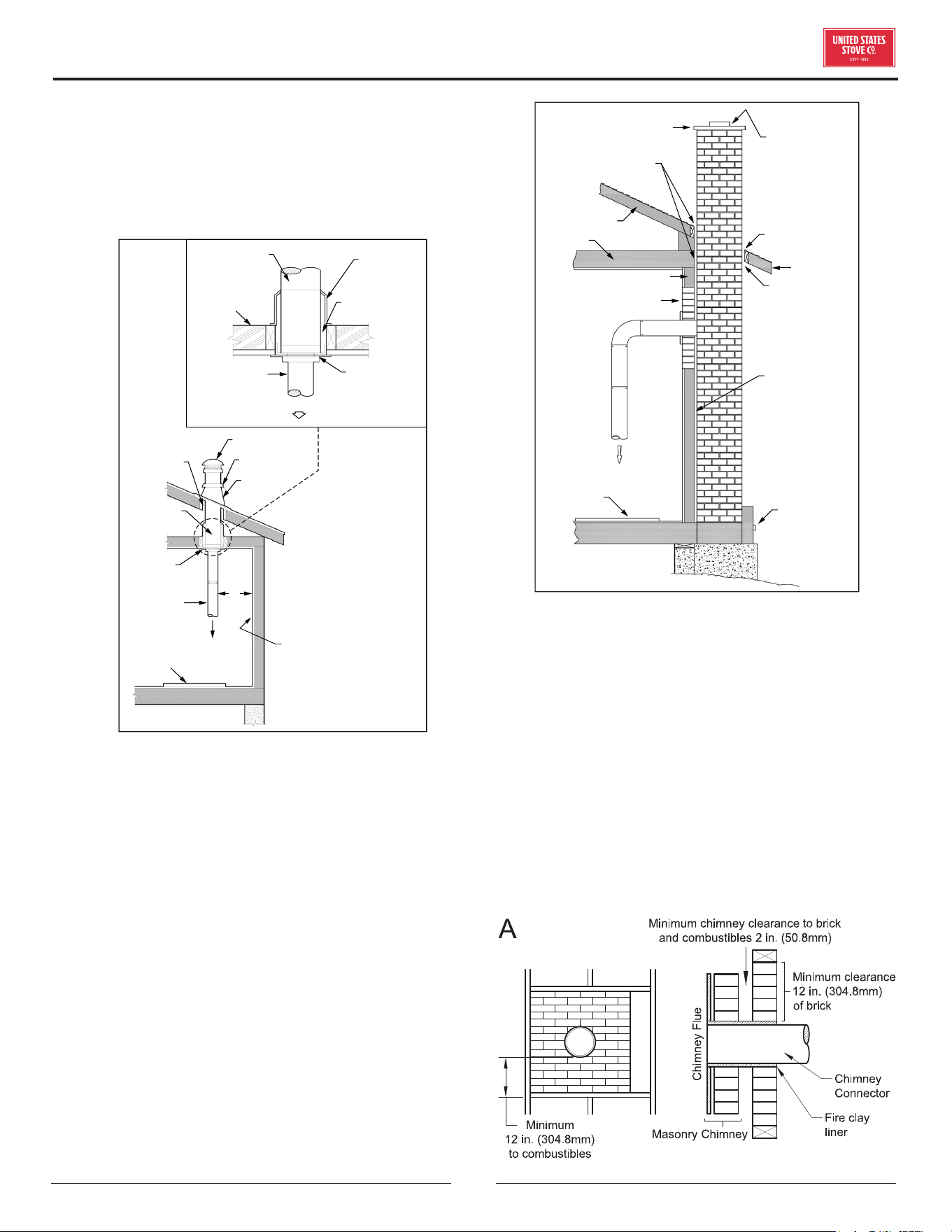

FACTORY BUILT CHIMNEY

Listed Cap

Maintain 2”

Clearance

Listed

Chimney

Ceiling

Support

Ceiling

Support

Chimney

Connector

* Refer to Clearance

to Combustibles

Combustible Wall

Floor

Protector

To Stove

Storm Collar

Flashing

Listed

Chimney

Attic

Insulation

Sheild

Specified

Clearance

Chimney

Connector

Combustible

Ceiling Joists

To Stove

When a metal prefabricated chimney is used, the

manufacturer’s installation instructions must be

followed. You must also purchase (from the same

manufacturer) and install the ceiling support package

or wall pass-through and “T” section package, firestops

(where needed), insulation shield, roof flashing, chimney

cap, etc. Maintain proper clearance to the structure as

recommended by the manufacturer. The chimney must be

the required height above the roof or other obstructions

for safety and proper draft operation.

MASONRY CHIMNEY

Ensure that a masonry chimney meets the minimum

standards of the National Fire Protection Association

(NFPA) by having it inspected by a professional. Make

sure there are no cracks, loose mortar or other signs

of deterioration and blockage. Be sure to the chimney

cleaned before the stove is installed and operated. When

connecting the stove through a combustible wall to a

masonry chimney, special methods are needed.

Sheathing

Airtight

Cleanout

Door

Floor

Protector

Thimble

12” of Brick

Combustible Wall

1” Clearance

with Firestop

Rafter

Concrete Cap

Flashing

To Stove

1” Clearance

Eave

Flashing

Fireclay Flue

Liner With

Airspace

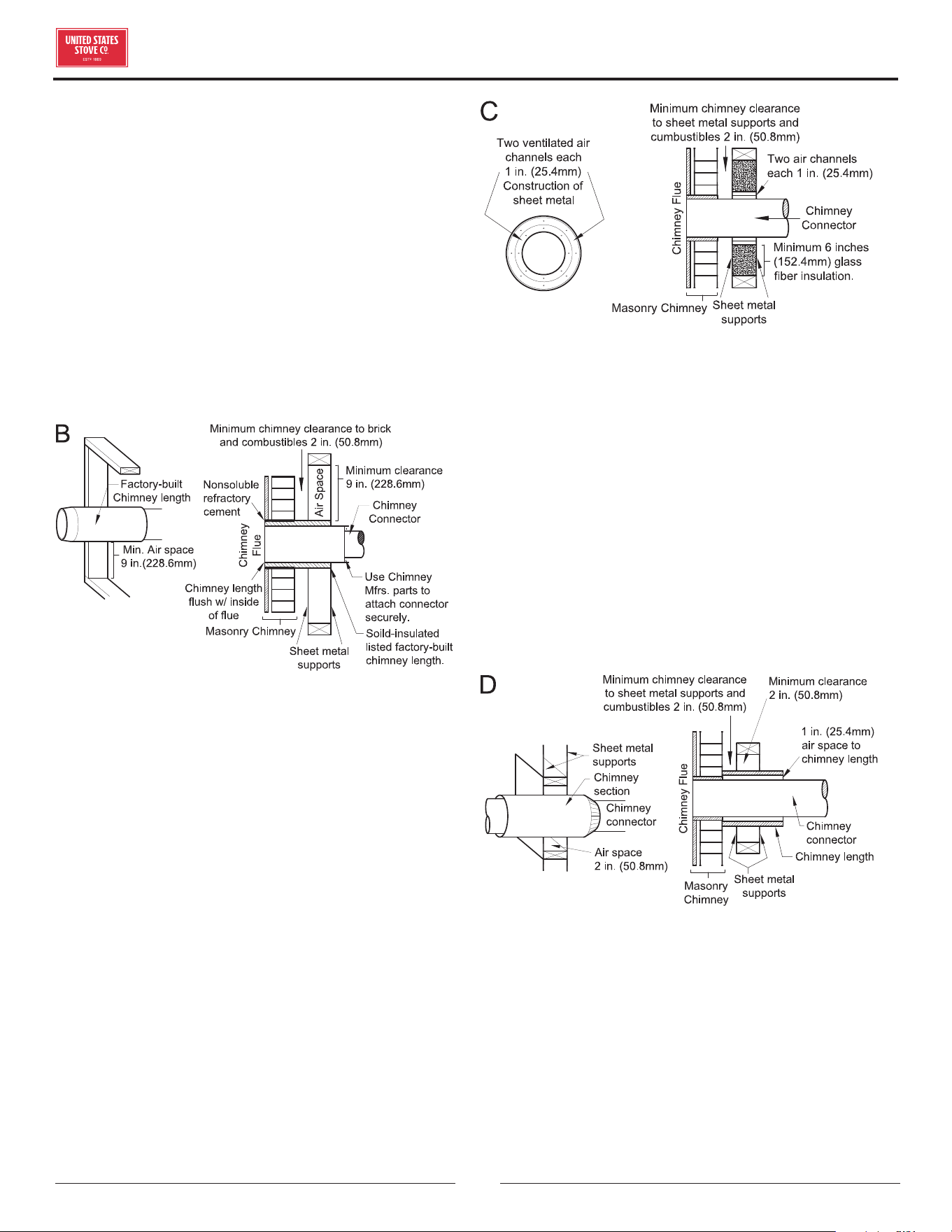

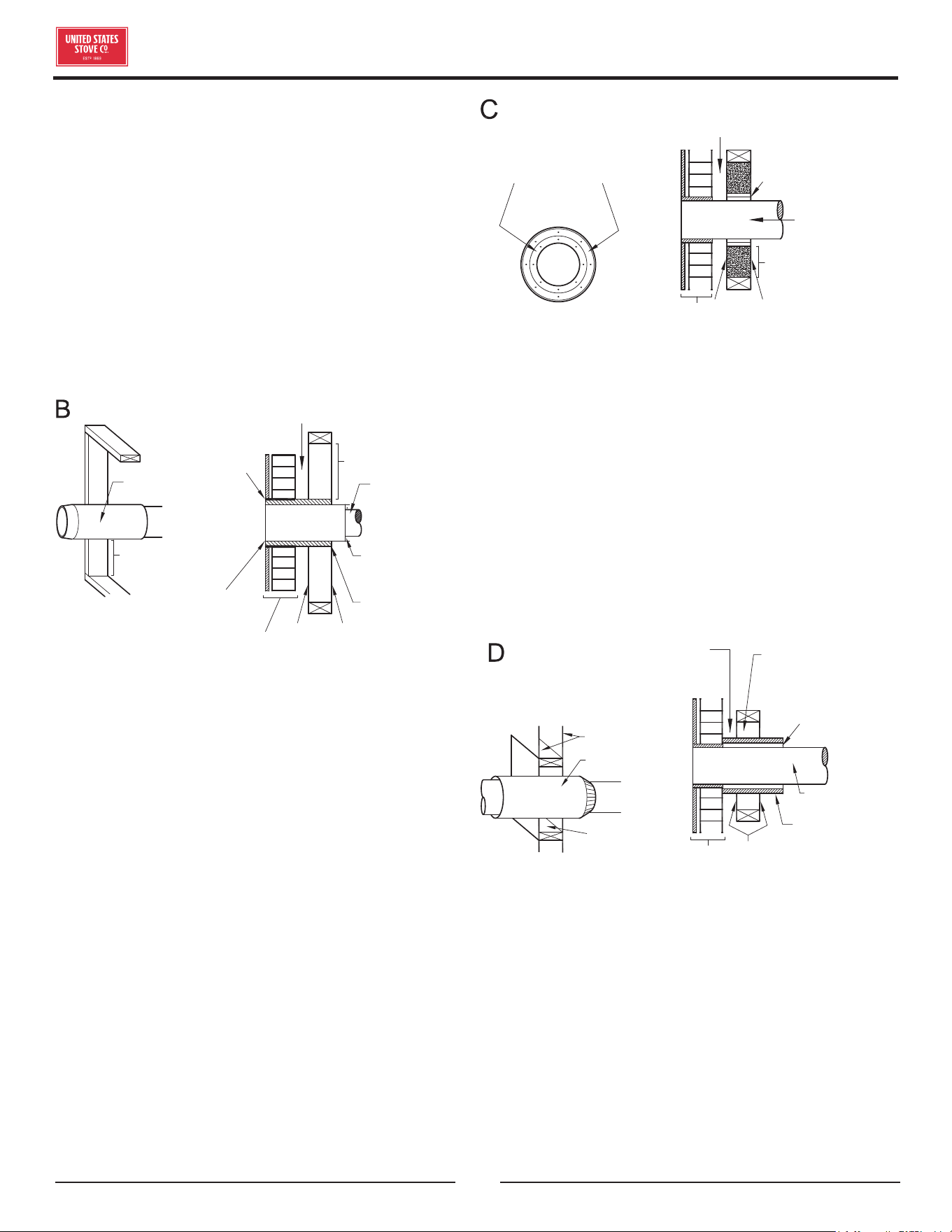

COMBUSTIBLE WALL CHIMNEY

CONNECTOR PASS-THROUGHS

METHOD A - 12” (304.8 mm) Clearance to Combustible

Wall Member: Using a minimum thickness 3.5” (89 mm)

brick and a 5/8” (15.9 mm) minimum wall thickness clay

liner, construct a wall pass-through. The clay liner must

conform to ASTM C315 (Standard Specification for

Clay Fire Linings) or its equivalent. Keep a minimum of

12” (304.8 mm) of brick masonry between the clay liner

and wall combustibles. The clay liner shall run from the

brick masonry outer surface to the inner surface of the

chimney flue liner but not past the inner surface. Firmly

grout or cement the clay liner in place to the chimney flue

liner.

INSTALLATION

METHOD B - 9” (228.6 mm) Clearance to Combustible

Wall Member: Using a 6” (152.4 mm) inside diameter,

listed, factory-built Solid-Pak chimney section with

insulation of 1” (25.4 mm) or more, build a wall pass-

through with a minimum 9” (228.6 mm) air space

between the outer wall of the chimney length and wall

combustibles. Use sheet metal supports fastened

securely to wall surfaces on all sides, to maintain the

9” (228.6 mm) air space. When fastening supports to

chimney length, do not penetrate the chimney liner (the

inside wall of the Solid-Pak chimney). The inner end of

the Solid-Pak chimney section shall be flush with the

inside of the masonry chimney flue, and sealed with a

non-water soluble refractory cement. Use this cement to

also seal to the brick masonry penetration.

METHOD C - 6” (152.4 mm) Clearance to Combustible

Wall Member: Starting with a minimum 24 gage (.024”

[.61 mm]) 6” (152.4 mm) metal chimney connector, and

a minimum 24 gage ventilated wall thimble which has

two air channels of 1” (25.4 mm) each, construct a wall

pass-through. There shall be a minimum 6” (152.4 mm)

separation area containing fiberglass insulation, from the

outer surface of the wall thimble to wall combustibles.

Support the wall thimble, and cover its opening with a

24-gage minimum sheet metal support. Maintain the 6”

(152.4 mm) space. There should also be a support sized

to fit and hold the metal chimney connector. See that

the supports are fastened securely to wall surfaces on

all sides. Make sure fasteners used to secure the metal

chimney connector do not penetrate chimney flue liner.

METHOD D - 2” (50.8 mm) Clearance to Combustible

Wall Member: Start with a solid-pak listed factory

built chimney section at least 12” (304 mm) long, with

insulation of 1” (25.4 mm) or more, and an inside diameter

of 8” (2 inches [51 mm] larger than the 6” [152.4 mm]

chimney connector). Use this as a pass-through for a

minimum 24-gauge single wall steel chimney connector.

Keep solid-pak section concentric with and spaced 1”

(25.4 mm) o the chimney connector by way of sheet

metal support plates at both ends of chimney section.

Cover opening with and support chimney section on both

sides with 24 gage minimum sheet metal supports. See

that the supports are fastened securely to wall surfaces

on all sides. Make sure fasteners used to secure chimney

flue line do not penetrate the inner liner.

NOTES:

• Connectors to a masonry chimney, excepting method

B, shall extend in one continuous section through the

wall pass-through system and the chimney wall, to but

not past the inner flue liner face.

• A chimney connector shall not pass through an attic or

roof space, closet or similar concealed space, or a floor,

or ceiling.

OPERATION INSTRUCTIONS

CAUTIONS: HOUSE FIRE HAZARDS

• DO NOT STORE WOOD ON FLOOR PROTECTOR,

UNDERNEATH STOVEPIPE(S) OR ANYWHERE

WITHIN CLEARANCES TO COMBUSTIBLE

SURFACES SPECIFIED FOR THIS APPLIANCE.

• NEVER OPERATE WITH SECONDARY TUBES,

FIBERBOARD, OR INSULATION REMOVED.

OPERATING SAFETY PRECAUTIONS

• NEVER OVERFIRE THIS APPLIANCE BY

BUILDING EXCESSIVELY HOT FIRES AS A

HOUSE/BUILDING FIRE MAY RESULT. YOU ARE

OVERFIRING THE APPLIANCE IF IT BEGINS TO

GLOW OR TURN RED.

• NEVER BUILD EXCESSIVELY LARGE FIRES IN

THIS TYPE OF APPLIANCE AS DAMAGE TO THE

FIREBOX OR SMOKE LEAKAGE MAY RESULT.

• DO NOT BUILD FIRE TOO CLOSE TO THE GLASS.

• HOT WHILE IN OPERATION. KEEP CHILDREN,

CLOTHING, AND FURNITURE AWAY. CONTACT

MAY CAUSE SKIN BURNS. DO NOT TOUCH THE

APPLIANCE UNTIL IT HAS COOLED.

• PROVIDE ADEQUATE AIR FOR COMBUSTION

TO THE ROOM WHERE THE APPLIANCE IS

INSTALLED.

• INSPECT CHIMNEY LINER EVERY 60 DAYS.

REPLACE LINER IMMEDIATELY IF IT IS RUSTING

OR LEAKING SMOKE INTO THE ROOM.

• ATTEMPTS TO ACHIEVE HEAT OUTPUT

RATES THAT EXCEED HEATER DESIGN

SPECIFICATIONS CAN RESULT IN PERMANENT

DAMAGE TO THE HEATER.

WARNING: EXPLOSION HAZARD

• NEVER USE CHEMICALS, GASOLINE, GASOLINE-

TYPE LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR FLAMMABLE

LIQUIDS TO START OR “FRESHEN UP” A FIRE IN

THE APPLIANCE.

• KEEP ALL FLAMMABLE LIQUIDS, ESPECIALLY

GASOLINE, OUT OF THE VICINITY OF THE

APPLIANCE - WHETHER IN USE OR IN STORAGE.

WOOD STOVE UTILIZATION

Your heating appliance was designed to burn well

seasoned natural wood only; no other materials should

be burned. Any type of well seasoned natural wood

may be used in your stove, but specific varieties have

better energy yields than others. Higher eciencies and

lower emissions generally result when burning air dried

seasoned hardwoods, as compared to softwoods or too

green or freshly cut hardwoods. The following resources

can assist in learning the burn characteristics of various

species of wood:

http://firewoodresource.com/firewood-btu-ratings/; or

https://forestry.usu.edu/forest-products/wood-heating

The operation of this wood heater in a manner

inconsistent with the owner’s manual will void your

warranty and is also against federal regulations. Waste

and other flammable materials should not be burned in

your stove. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint thinners,

or asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Saltwater driftwood or other previously salt water-

saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or particleboard.

The prohibition against burning these materials does

not prohibit the use of fire starters made from paper,

cardboard, sawdust, wax, and similar substances to

start a fire in an aected wood heater.

Burning these materials may result in the release of toxic

fumes or render the heater ineective and cause smoke.

Deadwood lying on the forest floor should be considered

wet and requires full seasoning time. Standing deadwood

can usually be considered to be about 2/3 seasoned.

Smaller pieces of wood will dry faster. All logs exceeding

6” in diameter should be split. The wood should not be

stored directly on the ground. Air should circulate through

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

OPERATION INSTRUCTIONS

the logs. A 24” to 48” air space should be left between

each row of logs, which should be placed in the sunniest

location possible. The upper layer of wood should be

protected from the element but not the sides. A good

indicator of if the wood is ready to burn is to check the

piece ends. If cracks are radiating in all directions from

the center then the wood should be dry enough to burn.

If your wood sizzles in the fire, even though the surface

is dry, it may not be fully cured and should be seasoned

longer. It is EXTREMELY IMPORTANT that you use DRY

WOOD only in your wood stove. The wood should have

dried for 9 to 15 months, such that the humidity content

(in weight) is reduced below 20% of the weight of the log.

It is very important to keep in mind that even if the wood

has been cut for one, two, or even more years, it is not

necessarily dry, if it has been stored in poor conditions.

Under extreme conditions, it may rot instead of drying.

This point cannot be overstressed; the vast majority of

the problems related to the operation of a wood stove is

caused by the fact that the wood used was too damp or

had dried in poor conditions. These problems can be:

• ignition problems

• creosote build-up causing chimney fires

• low energy yield

• blackened windows

• incomplete log combustion

Do not burn manufactured logs made of wax

impregnated sawdust or logs with any chemical

additives.

TESTING YOUR WOOD

• When the stove is thoroughly warmed, place one piece

of split wood (about five inches in diameter) parallel to

the door on the bed of red embers.

• Keep the air control fully open and close the door. If

the wood ignites within 90 seconds from the time it

was placed in the stove, your wood is correctly dried. If

ignition takes longer, your wood is damp.

• If your wood hisses and water or vapor escapes at

the ends of the piece, your wood is soaked or freshly

cut (green). Do not use this wood in your stove. Large

amounts of creosote could be deposited in your

chimney, creating potential conditions for a chimney

fire.

TAMPER WARNING

This wood heater has a manufacturer-set minimum low

burn rate that must not be altered. It is against federal

regulations to alter this setting or otherwise operate this

wood heater in a manner inconsistent with operating

instructions in this manual.

EFFICIENCIES

Eciencies can be based on either the lower heating

value (LHV) or the higher heating value (HHV) of the

fuel. The lower heating value is when water leaves the

combustion process as a vapor, in the case of woodstoves

the moisture in the wood being burned leaves the stove

as a vapor. The higher heating value is when water leaves

the combustion process completely condensed. In the

case of woodstoves this would assume the exhaust gases

are room temperature when leaving the system, and

therefore calculations using this heating value consider

the heat going up the chimney as lost energy. Therefore,

eciency calculated using the lower heating value of

wood will be higher than eciency calculated using the

higher heating value. The best way to achieve optimum

eciencies is to learn the burn characteristic of you

appliance and burn well-seasoned wood. Higher burn

rates are not always the best heating burn rates; after a

good fire is established a lower burn rate may be a better

option for ecient heating. A lower burn rate slows the

flow of usable heat out of the home through the chimney,

and it also consumes less wood.

NOTICE - INITIAL BURNS TO CURE PAINT

BECAUSE OF THE HIGH OPERATING TEMPERATURES,

THIS APPLIANCE IS COATED WITH A SPECIAL HIGH

TEMP PAINT WHICH REQUIRES A SERIES OF LOW TO

MEDIUM BURNS TO FULLY CURE FOR DURABILITY

AND A LIFETIME OF SERVICE.

Proper curing of the high-temp paint requires a series of

three initial burns. The appliance should be allowed to

cool o between each burn. The first two burns should

be small fires and low temperatures (250°F) for a

duration of 20 minutes each. The third fire should be at

a temperature of approximately 500°F for 20 minutes.

Provide adequate cross ventilation to clear any smoke or

odor caused by initial firings.

Notice: Use solid wood fuel only! Do not burn garbage,

or flammable fluids. Do not use coal. This appliance

is not designed to accommodate the air flow (draft)

required to properly burn coal or coal products. Do

not elevate the fire using grates or irons. Build the fire

directly on the firebrick.

FUELING INSTRUCTIONS

This wood stove has been certified by the US EPA

to meet strict 2020 guidelines. To ensure this unit

produces the optimal minimum emissions it is critical

OPERATION INSTRUCTIONS

that only well-seasoned cordwood is burned (see the

“Fuel Recommendations” section of this manual).

Burning unseasoned wet wood only hurts your stoves

eciency and leads to accelerated creosote buildup in

your chimney. Be considerate of the environment and

only burn dry wood.

CAUTION:

DO NOT LEAVE APPLIANCE UNATTENDED THE

WITH DOOR OPEN.

WARNINGS:

• NEVER OVERFIRE YOUR STOVE. IF ANY PART

OF THE STOVE STARTS TO GLOW RED, OVER

FIRING IS HAPPENING. READJUST THE AIR

INTAKE CONTROL AT A LOWER SETTING.

• THE INSTALLATION OF A LOG CRADLE OR

GRATES IS NOT RECOMMENDED IN YOUR WOOD

STOVE. BUILD FIRE DIRECTLY ON FIREBRICK.

• NEVER PUT WOOD ABOVE THE FIREBRICK

LINING OF THE FIREBOX.

• ATTEMPTS TO ACHIEVE HEAT OUTPUT

RATES THAT EXCEED HEATER DESIGN

SPECIFICATIONS CAN RESULT IN PERMANENT

DAMAGE TO THE HEATER.

IGNITION

After making sure that the stove air intake controls are

fully open (completely pull-out towards you), The top

down method of fire building is recommended for this

appliance. After making sure that the stove air intake

controls are fully open (completely pull-out towards

you), Place the largest pieces of wood on the bottom, laid

in parallel and close together. Smaller pieces are placed in

a second layer, crossways to the first.

A third layer of still smaller pieces is laid crossways

to the second, this time with some spaces between.

Then a fourth layer of loose, small kindling and twisted

newspaper sheets tops o the pile.

Before igniting the paper and kindling wood, it is

recommended that you warm up the chimney. This is

done in order to avoid back draft problems often due to

negative pressure in the house. If such is the case, open

a window slightly near the stove and twist together a few

sheets of newspaper into a torch. Light up this paper torch

and hold it as close as possible to the mouth of the pipe

inside the combustion chamber to warm up the chimney.

Once the updraft movement is initiated, you are ready to

ignite the stove by lighting the paper and kindling wood

inside the combustion chamber. When you have achieved

a good bed of hot embers, we recommend the following

burn procedures:

HIGH

LOW

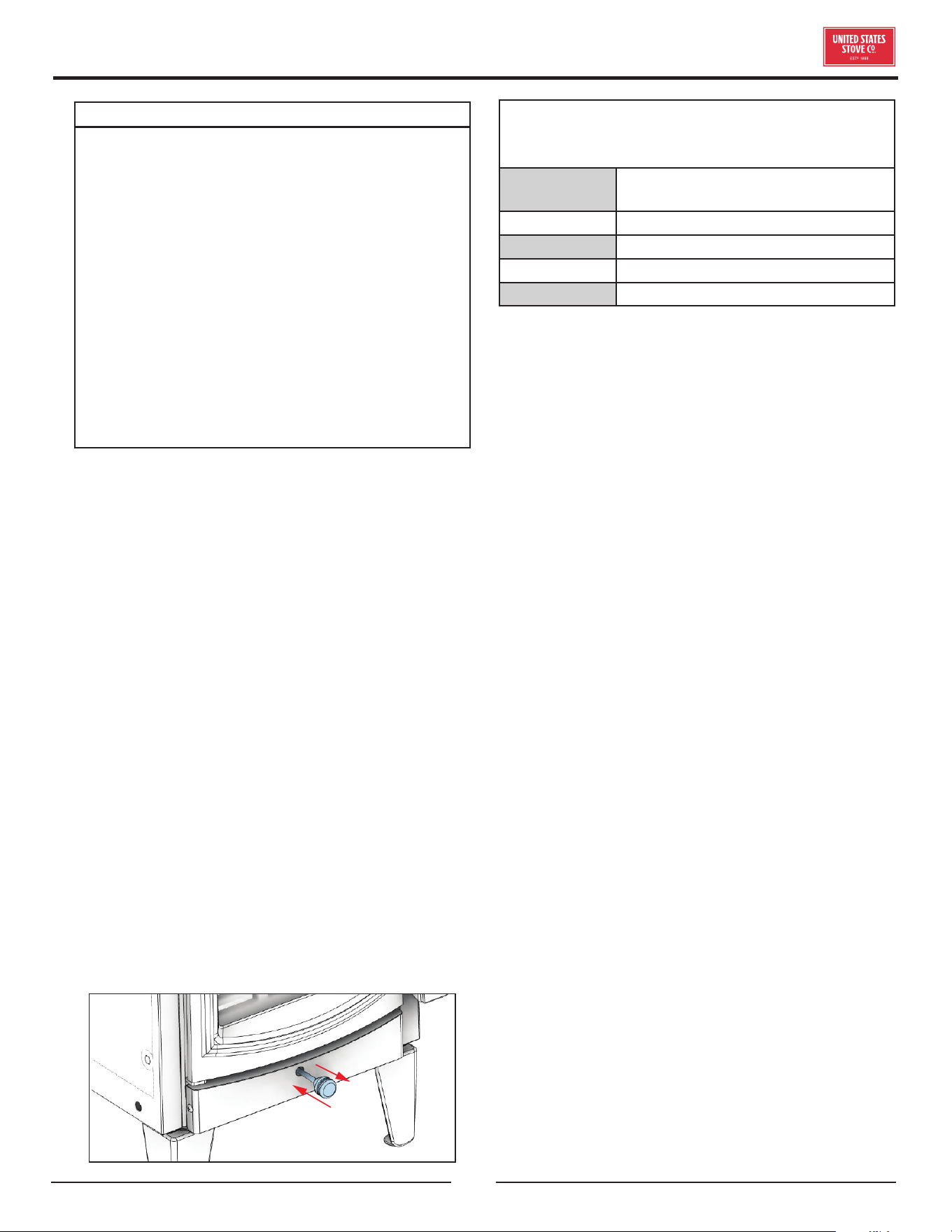

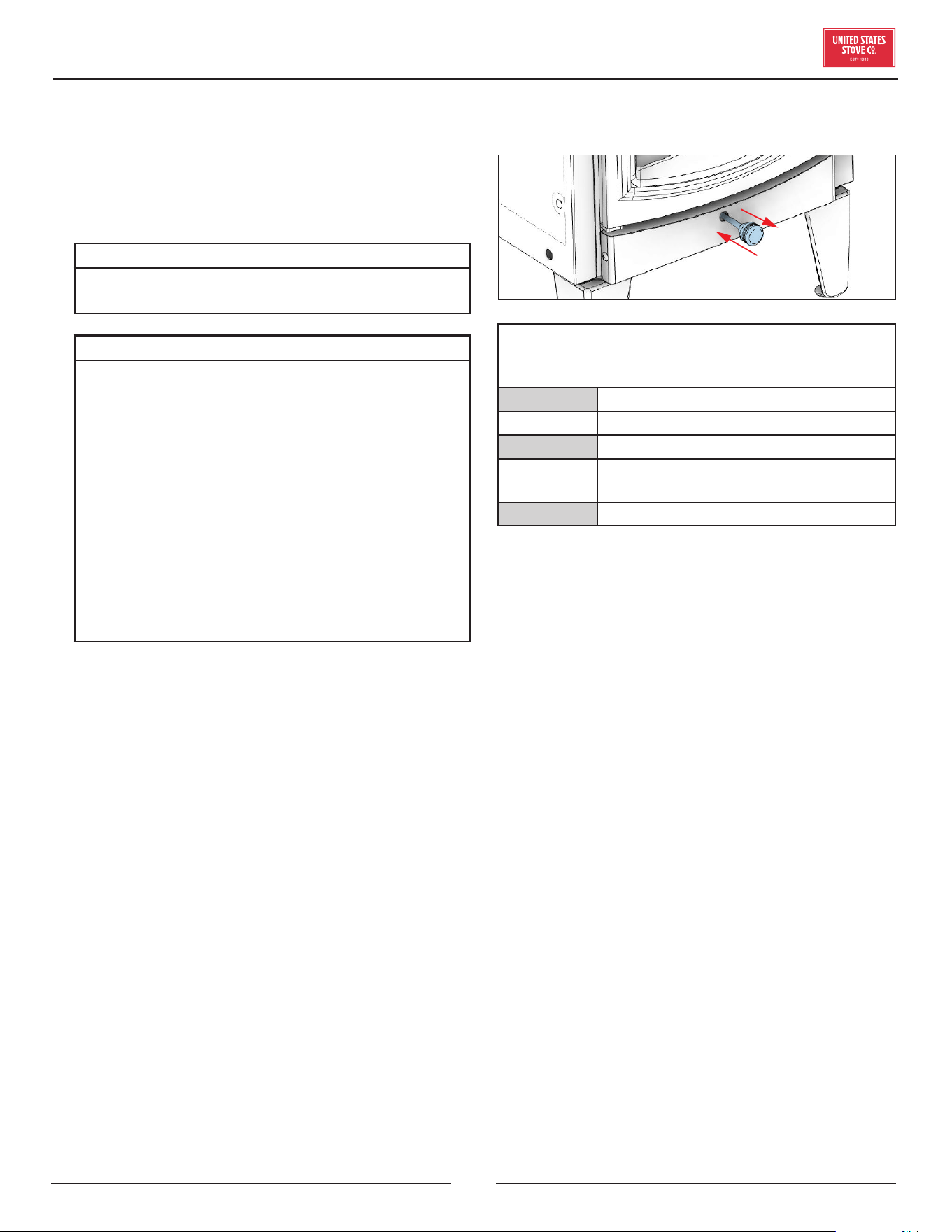

Primary Air Settings (Slide Damper is located in center

of stove under hearth plate) (Damper Adjustment:

Pulling out on damper increases air)

Burn Rate Adjust Damper From Fully Closed

Low Closed

Medium 1/8” (3.18mm)

Medium -

High

1/2” (12.7mm)

High Pull Rod Out Fully

VISIBLE SMOKE

The amount of visible smoke being produced can be

an eective method of determining how eciently the

combustion process is taking place in the given settings.

Visible smoke consists of unburned fuel and moisture

leaving your stove. Learn to adjust the air settings of your

specific unit to produce the smallest amount of visible

smoke. Wood that has not been seasoned properly and

has a high wood moisture content will produce excess

visible smoke and burn poorly.

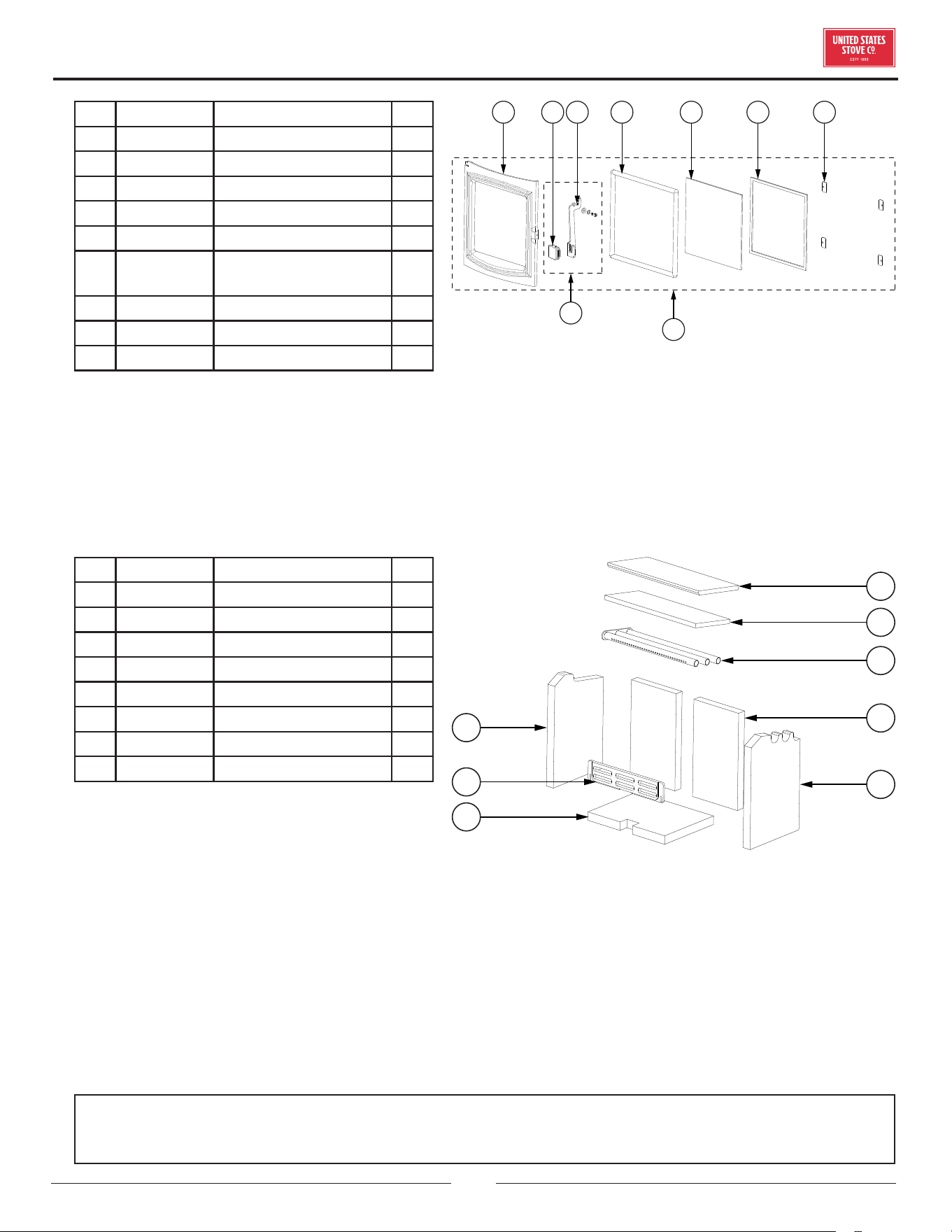

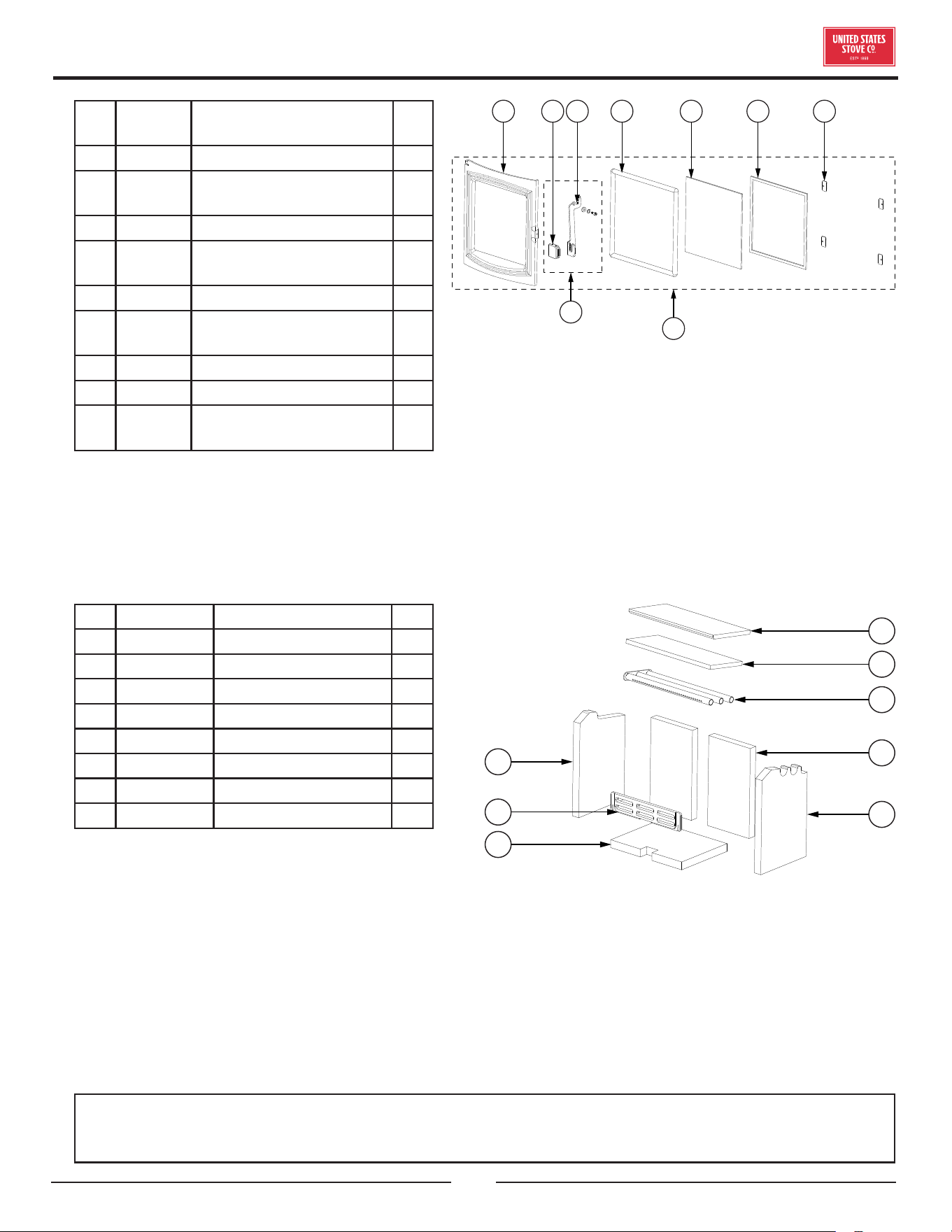

AIR TUBES

The air tubes assembled in this unit are designed to

provide an accurate mix of secondary air to ensure the

highest eciency. Any damage or deterioration of these

tubes may reduce the eciency of combustion.

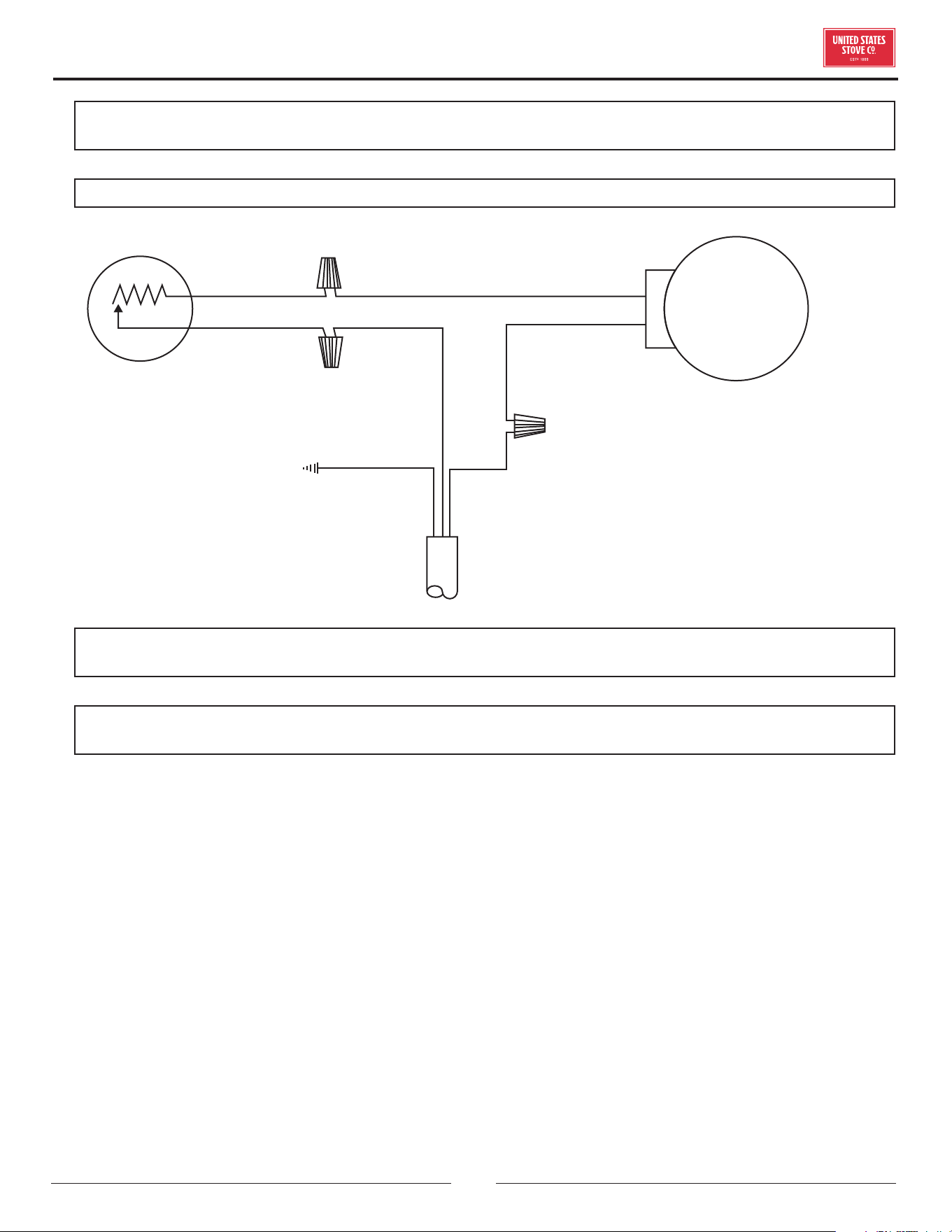

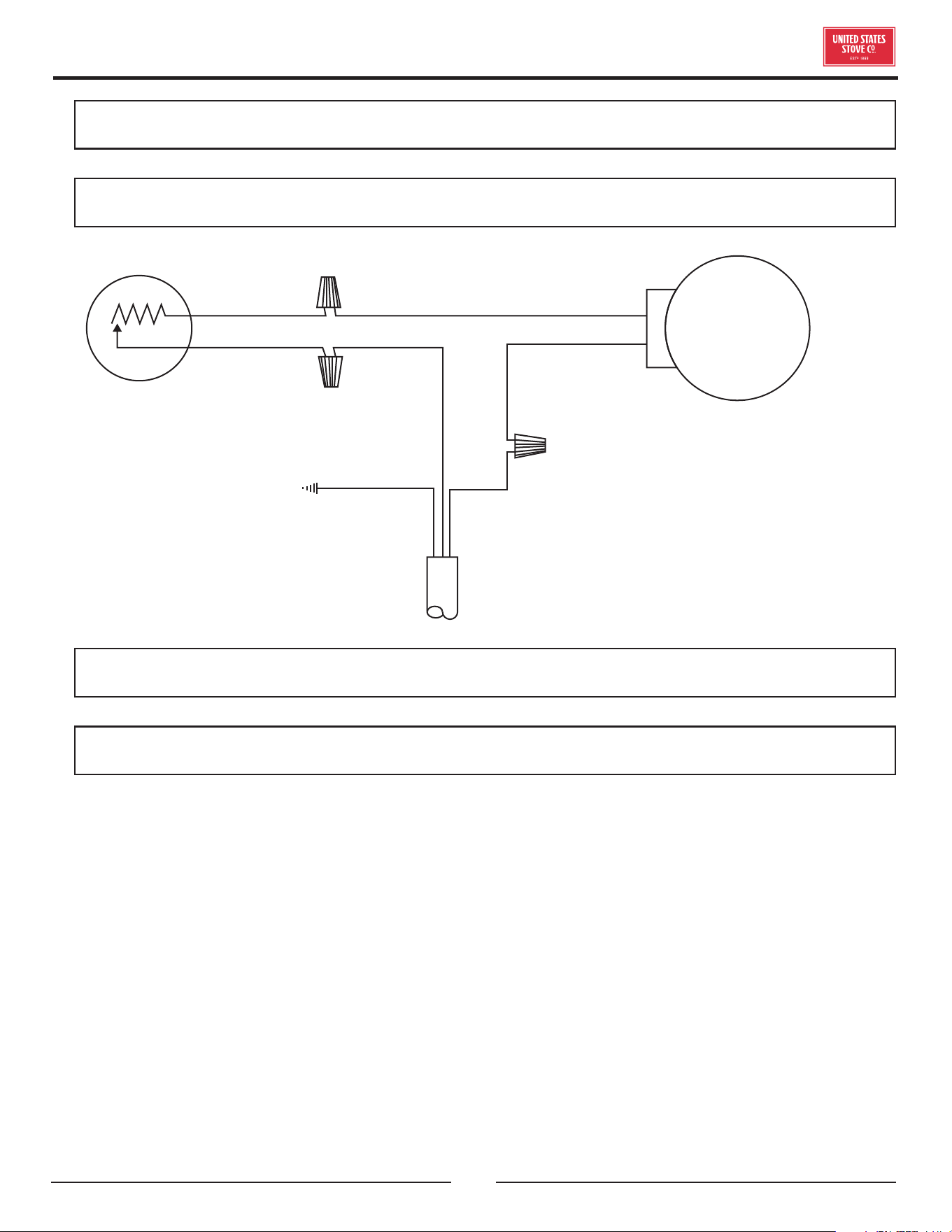

BLOWER OPERATION

The variable-speed blower circulates air warmed by the

firebox into the living area to distribute the heat more

evenly. The blower control knob is located on the side

of the blower housing. Turn the knob clockwise to turn

the blower on. The speed is controlled by turning the

knob clockwise for slower speeds and counter-clockwise

for faster speeds. To turn the blower o, turn the speed

control knob fully counter-clockwise. It is recommended

to turn the blower o when the unit is not in operation.

The blower should be removed at the beginning of every

“burn” season and air-blown clean, removing any dust or

build-up.

CHIMNEY MAINTENANCE

CAUTION:

DO NOT OVERFIRE APPLIANCE. YOU ARE

OVERFIRING IF ANY PART OF THE APPLIANCE

GLOWS RED. CLOSE THE DOOR AND SHUT DAMPER

IMMEDIATELY TO REDUCE THE AIR SUPPLY AND

SLOW DOWN THE FIRE.

CAUTION:

SLOW BURNING FIRES FOR EXTENDED USE OR

BURNING GREEN WOOD MAY CAUSE EXCESSIVE

CREOSOTE BUILD-UP. IGNITION OF CREOSOTE

OR OVERFIRING COULD CAUSE A CHIMNEY

FIRE. CHIMNEY FIRES BURN EXTREMELY HOT

AND MAY IGNITE SURROUNDING COMBUSTIBLE

MATERIALS. IN CASE OF A CHIMNEY FIRE, CALL

THE FIRE DEPARTMENT IMMEDIATELY!

CREOSOTE FORMATION AND NEED FOR

REMOVAL

When wood is burned slowly, it produces tar and other

organic vapors, which combine with expelled moisture

to form creosote. The creosote vapors condense in the

relatively cool chimney flue of a slow-burning fire. As a

result, creosote residue accumulates on the flue lining.

When ignited this creosote makes an extremely high

temper fire. The chimney connector and chimney should

be inspected at least once every two months during the

heating season to determine if a creosote build-up has

occurred. If creosote has accumulated (3 mm or more),

it should be removed to reduce the risk of a chimney fire.

We strongly recommend that you install a magnetic

thermometer on your smoke exhaust pipe, approximately

18” above the stove. This thermometer will indicate the

temperature of your gas exhaust fumes within the smoke

exhaust system. The ideal temperature for these gases

is somewhere between 275°F and 500°F. Below these

temperatures, the build-up of creosote is promoted.

Above 500°F, heat is wasted since a too large quantity is

lost into the atmosphere.

TO PREVENT CREOSOTE BUILD UP

• Always burn dry wood. This allows clean burns and

higher chimney temperatures, therefore less creosote

deposit.

• Leave the air control fully open for about 5 min. every

time you reload the stove to bring it back to proper

operating temperatures. The secondary combustion

can only take place if the firebox is hot enough.

• Always check for creosote deposit once every two

months and have your chimney cleaned at least once

a year.

• If a chimney or creosote fire occurs, close all dampers

immediately. Wait for the fire to go out and the heater

to cool, then inspect the chimney for damage. If no

damage results, perform a chimney cleaning to ensure

no more creosote deposits is remaining in the chimney.

CAUTION:

A CHIMNEY FIRE MAY CAUSE IGNITION OF WALL

STUDS OR RAFTERS WHICH WERE ASSUMED TO

BE A SAFE DISTANCE AWAY FROM THE CHIMNEY.

IF A CHIMNEY FIRE OCCURS, HAVE YOUR

CHIMNEY INSPECTED BY A QUALIFIED EXPERT

BEFORE USING AGAIN.

ASH REMOVAL & DISPOSAL

Whenever ashes get 3 to 4 inches deep in your firebox,

and when the fire has burned down and cooled, remove

excess ashes. Leave an ash bed approximately 1 inch deep

on the firebox bottom to help maintain a hot charcoal bed.

Ashes should be placed in a metal container with a tight-

fitting lid. The closed container of ashes should be placed

on a non-combustible floor or the ground, away from all

combustible materials, pending final disposal. The ashes

should be retained in the closed container until all cinders

have thoroughly cooled.

CAUTIONS:

• ASHES COULD CONTAIN HOT EMBERS EVEN

AFTER TWO DAYS WITHOUT OPERATING THE

STOVE.

• THE ASH PAN CAN BECOME VERY HOT. WEAR

GLOVES TO PREVENT INJURY.

• NEVER BURN THE STOVE WITH THE ASH TRAP

OPEN. THIS WOULD RESULT IN OVER FIRING

THE STOVE. DAMAGE TO THE STOVE AND EVEN

HOUSE FIRE MAY RESULT.

SMOKE & CO MONITORS

Burning wood naturally produces smoke and carbon

monoxide(CO) emissions. CO is a poisonous gas when

exposed to elevated concentrations for extended

periods. While the modern combustion systems in

heaters drastically reduce the amount of CO emitted

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

CHIMNEY MAINTENANCE

out the chimney, exposure to the gases in closed or

confined areas can be dangerous. Make sure your stove

gaskets and chimney joints are in good working order

and sealing properly to ensure unintended exposure. It is

recommended that you use both smoke and CO monitors

in areas having the potential to generate CO.

GLASS CARE

• Inspect and clean the glass regularly to detect any

cracks. If you spot one, turn the stove o immediately.

Do not abuse the glass door by striking or slamming

shut. Do not use the stove if the glass is broken.

• If the glass on your stove breaks, replace only with

the glass supplied from your heater dealer. Never

substitute other materials for the glass.

• To replace the glass, remove the screws retaining the

glass moldings inside the door. Remove the moldings

and replace the damaged piece with a new one.

Perform the procedure backward after replacing it.

When replacing the glass, you should change the glass

gasket to make sure you keep it sealed.

• Never wash the glass with a product that may scratch.

Use a specialized product, available in the stores where

wood stoves are sold. The glass should be washed only

when cold.

GASKET CARE

WARNING:

NEVER OPERATE THE STOVE WITHOUT THE

GASKET OR WITH A DAMAGED OR BROKEN

GASKET. OPERATING WITHOUT A GASKET OR

DAMAGED GASKET WILL RESULT IN DAMAGE TO

YOUR STOVE AND CAN RESULT IN A HOUSE FIRE.

This unit’s door uses a 5/8” diameter rope gasket. It is

recommended that you change the door gasket (which

makes your stove door air tight) once a year, in order

to ensure good control over the combustion, maximum

eciency and security. To change the door gasket, simply

remove the damaged one. Carefully clean the available

gasket groove, apply a high temperature silicone sold for

this purpose, and install the new gasket. You may light

up your stove again approximately 24 hours after having

completed this operation.

ATTENTION:

THIS WOOD HEATER NEEDS PERIODIC INSPECTION

AND REPAIR FOR PROPER OPERATION. IT IS

AGAINST FEDERAL REGULATIONS TO OPERATE

THIS WOOD HEATER IN A MANNER INCONSISTENT

WITH OPERATING INSTRUCTIONS IN THIS

MANUAL.

INSTRUCTIONS SPECIFIC FOR CANADIAN

INSTALLATIONS

Do not obstruct the space under the heater and do not

obstruct the combustion air openings.

Refer to the chimney manufacturer’s instructions for

disassembling the chimney for transportation of a

transportable building.

This heater meets the requirements of CAN/ULC-S627

and is suitable for installation on a combustible floor and

does not require radiant floor protection.

The parts or materials to be employed for ember

protectors and the minimum areas to be covered and

their relation to the space heater, as well as the notice:

“In Canada, to comply with CSA B365, Installation Code

for Solid-Fuel-Burning Appliances and Equipment, any

combustible covering beneath the appliance and/or

within the area extending horizontally at least 450 mm

(18 in) beyond the appliance on any side equipped with a

door, and at least 200 mm (8 in) beyond the appliance on

other sides, shall be protected by a continuous, durable,

non-combustible pad that will provide ember protection.

The 450 mm (18 in) ember protection required on any

side with a door shall extend for the full width of the

appliance plus the 200 mm (8 in) required on each side

of the appliance without a door. Where an appliance is

installed less than 200 mm (8 in) from a wall, the ember

pad need only extend to the base of the wall. An ember

pad shall not be placed on top of a carpet unless the pad

is structurally supported to prevent displacement and

distortion.

Note: Do not install the chimney directly at the outlet

of the appliance. A chimney connector (flue pipe) is

required.

If this appliance is installed in a transportable building,

removal of the chimney is required for transportation of

the building.

DO NOT INSTALL IN AN ALCOVE

DO NOT INSTALL IN ANY FIREPLACE

HOW TO ORDER REPAIR PARTS

For Parts Assistance, Call 800-750-2723 ext 5051 or Email: parts@usstove.com , or order at

www.myreplacementparts.com

The information in this owner’s manual is specific to your unit. When ordering replacement parts the information

in this manual will help to ensure the correct items are ordered. Before contacting customer service write down the

model number and the serial number of this unit. That information can be found on the certification label attached

to the back of the unit. Other information that may be needed would be the part number and part description of the

item(s) in question. Part numbers and descriptions can be found in the “Repair Parts” section of this manual. Once

this information has been gathered you can contact customer service by phone 1-800-750-2723 Ext 5051 or Email

parts@usstove.com.

Model Information

Model Number

Serial Number

OPTIONAL CB36 BLOWER WIRING DIAGRAM

WHITE /

BLANC

GREEN /

VERT

WHITE /

BLANC

BLACK /

NOIR

BLACK /

NOIR

BLACK /

NOIR

BLOWER

RHEOSTAT /

RHÉOSTAT DU

VENTILATEUR

BLOWER MOTOR

BLOWER SPECS: 120VAC, 60 Hz AC,0.55amp /

MTEUR DU

VENTILATEUR

DÉTAILS TECHNIQUES: 120VAC, 60 Hz CA,0,55AMP

BLACK /

NOIR

BLACK /

NOIR

NOTICE: DO NOT ALLOW THE POWER CORD TO TOUCH HOT SURFACES! KEEP THE POWER CORD AT LEAST

12”/30.5CM FROM THE STOVE OR PIPE SURFACES.

DANGER: SHOCK HAZARD DISCONNECT POWER SOURCE BEFORE INSTALLATION AND WHENEVER SERVICING

BLOWER ASSEMBLY.

CAUTION: MOVING PARTS CAN CAUSE INJURY. DO NOT OPERATE WITH COVER REMOVED.

NOTICE: ANY REPLACEMENT WIRING MUST HAVE EQUIVALENT INSULATION AND TEMPERATURE RATING

(105° C).

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL

MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE

MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY.

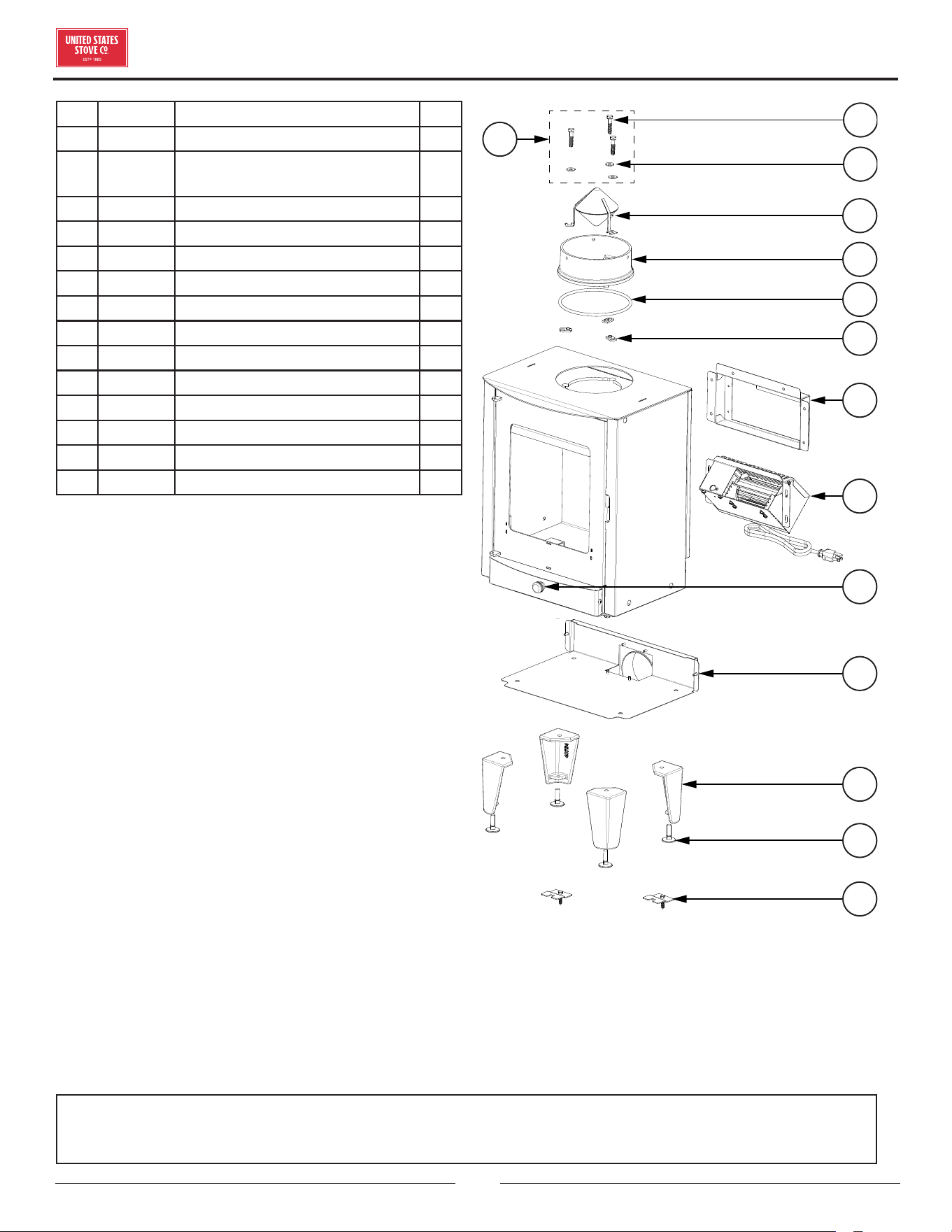

REPAIR PARTS

Key Part # Description Qty

1 83432 5/16-18 X 1-1/2 HX HD C/S PL 3

2 83045

Washer, 5/16”ID X 3/4” OD X

1/16 THK

3 893719 Diuser 1

4 40292A 6” Flue Collar 1

5 88042 1/4” Rope Gasket 1

6 83431 Weld Tab 3

7 50BK Blower Kit 1

8 CB36 Blower Assembly 1

9 893162 Knob, Wooden 1

10 50FAK Fresh Air Kit 1

11 40754 Leg, 8KW 4

12 83525 Elevator Bolt 4

13 29104 Leg Fastener 2

14 69782 Hardware Pack 1

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL

MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE

MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY.

REPAIR PARTS

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

Key Part # Description Qty

1 40909 Door 1

2 893910 Wooden Scale Handle 1

3 893730 Handle 1

4 88126 5/8” Rope Gasket 1

5 893718 Main Glass 1

6 88174

Gasket - Flat, Glass

(3/16T x 3/8W)

7 893731 Glass Clamp 4

8 893979 Door Handle Kit 1

9 893980 Complete Door Assy. 1

1 2 3

4 5 6 7

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

Key Part # Description Qty

1 893716 Top Bae 1

2 893711 Bottom Bae 1

3 893717 Tube Assembly 1

4 893713 Back Liner 2

5 893715 Right Liner 1

6 893712 Left Liner 1

7 40911 Log Guard 1

8 893714 Bottom Liner 1

SERVICE RECORD

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is

completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service as described in

the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary.

Service 01 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 03 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 05 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 07 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 02 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 04 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 06 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 08 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Numéro de rapport : F22-781

Testé selon les méthodes EPA 28R et ASTME2515

et ASTME2780 et CSAB415.1

Certifié selon la norme UL 1482-2022 et

ULC-S627:2023

Maisons mobiles/bâtiments portatifs approuvée

TH100

* Toutes les images contenues dans le présent manuel ne sont fournies qu’à titre d’illustration. Le produit en question peut diérer de celui illustré.

CE MANUEL EST SUSCEPTIBLE D'ÊTRE MODIFIÉ SANS PRÉAVIS.

Manuel d'instruction et d'utilisation destiné au propriétaire

AVIS DE SÉCURITÉ : Si ce chauage n’est pas correctement installé, un incendie résidentiel

pourrait se produire. Pour votre sécurité, respectez les directives d’installation. Ne faites

jamais de compromis sur la qualité pendant l’installation de ce chauage. Contactez

les responsables locaux de la construction ou des incendies pour connaître les permis,

les restrictions et les exigences d'installation dans votre région. NE JAMAIS FAIRE

FONCTIONNER CE PRODUIT SANS SURVEILLANCE.

AVERTISSEMENT! Veuillez lire ce manuel dans son intégralité avant d'installer ou d'utiliser

votre nouveau chauage d'appoint. Le non-respect des instructions peut entraîner des

dommages matériels, des blessures corporelles, voire la mort. Une installation incorrecte

annulera votre garantie!

Gardez les instructions dans un endroit sécuritaire pour consultation ultérieure.

AVERTISSEMENT DE LA PROPOSITION

65 DE LA CALIFORNIE :

Ce produit peut vous exposer à des produits chimiques,

notamment le monoxyde de carbone, qui est connu dans l'État

de Californie pour provoquer des cancers, des malformations

congénitales et/ou d'autres problèmes de reproduction. Pour

plus d'informations, consultez le site www.P65warnings.ca.gov

Agence américaine de protection

de l'environnement

Certifié conforme aux normes d'émissions

de particules de 2020.

Numéro de modèle :

BREVET

EN INSTANCE

LISTE DE VÉRIFICATION DE L’INSTALLATION

Votre poêle à bois doit être installé par un installateur qualifié. Vous trouverez un(e) installateur(trice) qualifié(e) NFI à l'adresse

www.nficertified.org/public/find-an-nfi-pro/

SERVICE À LA CLIENTÈLE

1-800-750-2723 poste 5050

Envoyez un SMS au 423-301-5624

Envoyez un courriel à : Customerservice@usstove.com

LISTE DE VÉRIFICATION DE MISE EN SERVICE

Cette liste de vérification doit être remplie intégralement par la personne qualifiée qui installe cet appareil. Conservez cette page pour

consultation ultérieure.

Le non-respect de l’installation et de la mise en service conformément aux instructions du fabricant et la non-exécution de cette liste

de vérification annuleront la garantie.

Veuillez imprimer

Nom du client/de la cliente : Numéro de téléphone :

Adresse :

Modèle :

Numéro de série :

Nom de l’entreprise d’installation : Numéro de téléphone :

Nom du(de la) technicien(ne) d’installation : Numéro de permis :

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé : __________________________________________________________________________________________________

Système de cheminée : Nouveau système de cheminée Oui Non Si oui, marque ____________________________________________

Si non, date d’inspection du système de cheminée existant : ___________________________________________________________________________

MISE EN SERVICE

Confirmez l’installation du tapis d’âtre conformément aux instructions d’installation ......................................................................................................

Confirmez le placement correct des pièces internes ........................................................................................................................................................................

Vérifiez la solidité du joint d’étanchéité et des joints de porte ......................................................................................................................................................

Confirmez les dégagements aux combustibles conformément aux directives d’installation de ce manuel ..............................................................

Vérifiez le fonctionnement des contrôles d’air ....................................................................................................................................................................................

Confirmez que le conduit de fumée et le système de cheminée sont bien fixés et scellés ................................................................................................

Confirmez que le poêle tire correctement lorsqu’il est allumé ......................................................................................................................................................

Assurez-vous qu’un avertisseur de CO est installé conformément aux codes de construction locaux et qu’il est fonctionnel .........................

Expliquez les exigences relatives à l’utilisation sûre, au bon usage du carburant, au nettoyage et à l’entretien de routine .................................

Déclaration d’achèvement des travaux : En tant que personne qualifiée responsable des travaux décrits ci-dessus, je confirme que

l’appareil, en tant que travail associé, a été installé conformément aux instructions du fabricant et en suivant les codes de construction et

d’installation applicables.

Signature : ___________________________________________ Nom en lettres moulées : ______________________________Date : _________________

Propriétaire du logement : CONSERVEZ CES INFORMATIONS POUR CONSULTATION ULTÉRIEURE

Ce manuel décrit l'installation et l'utilisation du chauage au bois USSC TH100. Cet appareil de chauage est conforme aux limites

d'émission de bois de corde de 2020 de l'Agence américaine de protection de l'environnement pour les appareils de chauage au bois

vendus après le 15 mai 2020. Sous des conditions spécifiques de test, ce chauage a oert des rendements calorifiques entre 10 652 et 26

028 BTU/h avec 1,7 g/h et 75 % de rendement. Remarque : Les cotes BTU mentionnées ci-dessus sont basées sur le protocole de test EPA

dans des conditions de test spécifiques. Nos BTU annoncés sont basés sur la première heure de fonctionnement à vitesse de combustion

élevée brûlant du bois de corde sec.

Combustible : Bois

Couleurs : Noir

Diamètre du conduit de cheminée : 153 mm (6 po)

Type de conduit Acier noir ou bleu 650 °C (2100 °F)

Hauteur minimale de la cheminée : 3,7 m (12 pi)

Longueur maximale des bûches : 279 mm (11 po)

Électrique : 120 V CA, 0,55 A, 60 Hz

Dimensions

PROFONDEUR LARGEUR HAUTEUR

Général : Profondeur x Largeur x Hauteur : 330 mm (13 po) 417 mm (16,4 po) 680 mm (26,75 po)

Chambre de combustion : Largeur x

Profondeur

286 mm x 216 mm (11,25 x 8,5 po)

Volume de la boîte à feu : Pieds cubes : 0,59 pi cubes

Ouverture de la porte : Largeur x Hauteur : 244 mm x 244 mm (9,6 x 9,6 po)

Porte en verre pyrocéramique

(Visualisation) Largeur x Hauteur :

241 mm x 267 mm (9,5 x 10,5 po)

INTRODUCTION

PRÉCAUTIONS :

• CHAUD LORSQU’IL FONCTIONNE. GARDER LES ENFANTS, LES VÊTEMENTS ET LES MEUBLES À L’ÉCART. LE CONTACT

PEUT ENTRAÎNER DES BRÛLURES DE LA PEAU.

• NE PAS UTILISER DE PRODUITS CHIMIQUES OU DE FLUIDES POUR ALLUMER LE FEU.

• NE PAS LAISSER LE POÊLE SANS SURVEILLANCE LORSQUE LA PORTE EST LÉGÈREMENT OUVERTE.

• NE PAS BRÛLER DE DÉCHETS, DE LIQUIDES INFLAMMABLES TELS QUE L’ESSENCE, LE NAPHTA OU L’HUILE

DE MOTEUR.

• NE PAS BRANCHER SUR UN CONDUIT OU UN SYSTÈME DE DISTRIBUTION D’AIR.

• FERMEZ TOUJOURS LA PORTE APRÈS LE CONTACT.

Pour le service client, veuillez appeler:

1-800-750-2723 poste 5050 ou;

Texte au 423-301-5624 ou;

Écrivez-nous à:

customerservice@usstove.com

Remarque: Enregistrez votre produit en utilisant votre

téléphone intelligent avec le code QR. Conservez vos reçus

avec vos dossiers pour toute réclamation au titre de la garantie.

Vous pouvez également enregistrer votre produit en ligne

sur www.usstove.com/support/product-registration / OU

en téléchargeant l’application US Stove Company disponible

pour iOS et Android.

LISTE DE VÉRIFICATION DE L’INSTALLATION

Votre poêle à bois doit être installé par un installateur qualifié. Vous trouverez un(e) installateur(trice) qualifié(e) NFI à l'adresse

www.nficertified.org/public/find-an-nfi-pro/

SERVICE À LA CLIENTÈLE

1-800-750-2723 poste 5050

Envoyez un SMS au 423-301-5624

Envoyez un courriel à : Customerservice@usstove.com

LISTE DE VÉRIFICATION DE MISE EN SERVICE

Cette liste de vérification doit être remplie intégralement par la personne qualifiée qui installe cet appareil. Conservez cette page pour

consultation ultérieure.

Le non-respect de l’installation et de la mise en service conformément aux instructions du fabricant et la non-exécution de cette liste

de vérification annuleront la garantie.

Veuillez imprimer

Nom du client/de la cliente : Numéro de téléphone :

Adresse :

Modèle :

Numéro de série :

Nom de l’entreprise d’installation : Numéro de téléphone :

Nom du(de la) technicien(ne) d’installation : Numéro de permis :

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé : __________________________________________________________________________________________________

Système de cheminée : Nouveau système de cheminée Oui Non Si oui, marque ____________________________________________

Si non, date d’inspection du système de cheminée existant : ___________________________________________________________________________

MISE EN SERVICE

Confirmez l’installation du tapis d’âtre conformément aux instructions d’installation ......................................................................................................

Confirmez les dégagements aux combustibles conformément aux directives d’installation de ce manuel ..............................................................

Confirmez que le conduit de fumée et le système de cheminée sont bien fixés et scellés ................................................................................................

Assurez-vous qu’un avertisseur de CO est installé conformément aux codes de construction locaux et qu’il est fonctionnel .........................

Expliquez les exigences relatives à l’utilisation sûre, au bon usage du carburant, au nettoyage et à l’entretien de routine .................................

Déclaration d’achèvement des travaux : En tant que personne qualifiée responsable des travaux décrits ci-dessus, je confirme que

l’appareil, en tant que travail associé, a été installé conformément aux instructions du fabricant et en suivant les codes de construction et

d’installation applicables.

Signature : ___________________________________________ Nom en lettres moulées : ______________________________Date : _________________

Propriétaire du logement : CONSERVEZ CES INFORMATIONS POUR CONSULTATION ULTÉRIEURE

INSTRUCTIONS D'ASSEMBLAGE

PRISE D’AIR 50FAK

Fixez la prise d’air 50FAK à l’aide des quatre (4) vis à tôle (g)

fournies.

ASSEMBLAGE DE COLLET DE CONDUIT

Montez le collier de fumée sur le dessus de l’appareil comme

indiqué à l’aide des (3) boulons 5/16-18 x 1-1/2 (d), (3) rondelles (e)

et (3) languettes à souder (f). fourni dans la boîte de pièces.

1. La rainure du câble est située sur la partie inférieure de la

buse. Retirez le support en papier du joint de corde. Appuyez

fermement sur le joint de corde dans la rainure de corde.

2. Placez le collier de fumée sur la construction soudée principale

en alignant les chevilles situées au bas du collier de fumée avec

les trous situés en haut de la construction soudée principale.

3. Placez une rondelle sur chaque boulon et insérez-la dans le

trou de boulon correspondant situé dans le collier de cheminée.

Une fois les rondelles et les boulons en place, commencez

à enfiler une languette à souder sur chacun des boulons.

REMARQUE : laissez les languettes de soudure desserrées.

NE serrez PAS les languettes de soudure sur les boulons.

INSTRUCTIONS D'ASSEMBLAGE

OUTILS ET MATÉRIAUX

Vous aurez besoin des éléments suivants pour l’installation :

• Un tournevis cruciforme.

• Une clé à cliquet avec des douilles ou des clés de 7/16 po et 1/2 po

pour installer la buse et le pied sur l’appareil.

• Un foret de 1/8 po pour percer des avant-trous dans le tuyau

d’évent pour fixer chaque section.

• Un protecteur de sol incombustible tel que spécifié dans ce

manuel.

• Tous les composants de cheminée et de connecteur de cheminée

pour votre installation de cheminée particulière.

• Des articles supplémentaires pour les maisons mobiles/bâtiments

portatifs peuvent être nécessaires. Voir la section « Pour une

utilisation dans les maisons mobiles/bâtiments portatifs » de ce

manuel.

Clé Description Qté

# 10 Sheet

Metal

Screw

b Washer 4

1/4-20 Hex

Bolt

5/16-18 x

1-1/2 Bolt

e Washer 3

f Weld Tab 3

Sheet Metal

Screw

1/4 x 1-1/2

Lag Screw

INSTALLATION DES JAMBES

Posez soigneusement le radiateur sur le dos et installez les quatre

pieds à l’aide d’un total de quatre (4) boulons hexagonaux 1/4-20

posez le carton avant de placer le radiateur sur le dos.

POUR LE SERVICE À LA CLIENTÈLE, APPELEZ : 800-750-2723 POSTE 5050

INSTRUCTIONS D'ASSEMBLAGE

PRISE D’AIR 50FAK

Fixez la prise d’air 50FAK à l’aide des quatre (4) vis à tôle (g)

fournies.

ASSEMBLAGE DE COLLET DE CONDUIT

Montez le collier de fumée sur le dessus de l’appareil comme

indiqué à l’aide des (3) boulons 5/16-18 x 1-1/2 (d), (3) rondelles (e)

et (3) languettes à souder (f). fourni dans la boîte de pièces.

1. La rainure du câble est située sur la partie inférieure de la

buse. Retirez le support en papier du joint de corde. Appuyez

fermement sur le joint de corde dans la rainure de corde.

2. Placez le collier de fumée sur la construction soudée principale

en alignant les chevilles situées au bas du collier de fumée avec

les trous situés en haut de la construction soudée principale.

3. Placez une rondelle sur chaque boulon et insérez-la dans le

trou de boulon correspondant situé dans le collier de cheminée.

Une fois les rondelles et les boulons en place, commencez

à enfiler une languette à souder sur chacun des boulons.

REMARQUE : laissez les languettes de soudure desserrées.

NE serrez PAS les languettes de soudure sur les boulons.

INSTALLATION

AVIS DE SÉCURITÉ

• NE PAS INSTALLER DANS UNE ALCÔVE

• CET APPAREIL DE CHAUFFAGE NE DOIT PAS ÊTRE

INSTALLÉ DANS UN FOYER PRÉFABRIQUÉ EN USINE.

• SI CE POÊLE N'EST PAS CORRECTEMENT INSTALLÉ,

UN INCENDIE PEUT SE PRODUIRE DANS LA MAISON.

POUR RÉDUIRE LE RISQUE D'INCENDIE, SUIVEZ LES

INSTRUCTIONS D'INSTALLATION.

• CONSULTEZ VOTRE SERVICE DE BÂTIMENT

MUNICIPAL OU VOS RESPONSABLES D'INCENDIE AU

SUJET DES PERMIS, RESTRICTIONS ET EXIGENCES

D'INSTALLATION DE VOTRE RÉGION.

• UTILISEZ DES DÉTECTEURS DE FUMÉE DANS

LA PIÈCE OÙ VOTRE POÊLE EST INSTALLÉ.

• ÉLOIGNEZ LES MEUBLES ET LES RIDEAUX DU POÊLE.

• N'UTILISEZ JAMAIS DE L'ESSENCE, DE L'HUILE DE

LAMPE DE TYPE GAZOLE, DU KÉROSÈNE, DU LIQUIDE

D'ALLUMAGE DE CHARBON DE BOIS OU DES LIQUIDES

SIMILAIRES POUR DÉMARRER CET APPAREIL OU LE

RALLUMER. GARDEZ TOUS CES LIQUIDES LOIN DU

CHAUFFAGE QUAND IL EST EN MARCHE.

• EN CAS D'INCENDIE DE CHEMINÉE, POUSSEZ LE

CONTRÔLE D'AIR COMPLÈTEMENT FERMÉ POUR

PRIVER L'INCENDIE D'OXYGENE. APPELLEZ LES

POMPIERS.

• NE PAS BRANCHER SUR UN CONDUIT OU UN

SYSTÈME DE DISTRIBUTION D’AIR.

• UNE SOURCE D'AIR FRAIS DANS LA PIÈCE OU LE

LOCAL CHAUFFÉ DOIT ÊTRE FOURNIE EN CAS

DE BESOIN.

• CET APPAREIL DE CHAUFFAGE DE PIÈCE NE DOIT

PAS ÊTRE INSTALLÉ DANS UN FOYER PRÉFABRIQUÉ.

Nous recommandons que nos produits de foyer

des

au Canada par le

programme de formation

technique en énergie

du bois (WETT).

CERTIFIÉ

Votre appareil de chauage doit être installé par un technicien

qualifié NFI (États-Unis) ou WETT (Canada). Pour trouver

l’installateur qualifié le plus proche, rendez-vous sur :

https://nficertified.org,

https://www.wettinc.ca/

PLACEMENT DU POÊLE

Il est très important de positionner le poêle à bois le plus près

possible de la cheminée, et dans une zone qui favorisera la

distribution de chaleur la plus ecace possible dans toute la

maison. Le poêle doit donc être installé dans la pièce où le plus

de temps est passé, et dans la pièce la plus spacieuse possible.

Rappelez-vous que les poêles à bois produisent de la chaleur

rayonnante, la chaleur que nous ressentons lorsque nous sommes

près d'un poêle à bois. Un poêle à bois fonctionne également

par convection, c'est-à-dire par le déplacement de l'air chaud

accéléré vers le haut et son remplacement par de l'air plus froid.

Si nécessaire, la distribution d'air chaud à partir du poêle peut être

facilitée par l'installation d'une souante. Le poêle à bois ne doit

pas être raccordé à un système de distribution d'air chaud car une

accumulation excessive de chaleur pourrait se produire. Un poêle

à bois ne doit jamais être installé dans un couloir ou près d'un

escalier, car il peut bloquer le chemin en cas d'incendie ou ne pas

respecter les dégagements requis.

INSTRUCTIONS D'ASSEMBLAGE

4. Faites glisser les pieds fendus du diuseur sur chaque boulon.

Assurez-vous que les rondelles sont au-dessus des pieds

fendus du diuseur, comme illustré. Utilisez une douille et un

cliquet pour serrer l’ensemble de collier de fumée à l’unité.

Boulon

Machine

à laver

Diffuseur

Onglets de

soudure

Ci-dessus, une illustration de l’installation du conduit de fumée et

du diuseur. L’installation de ce diuseur est essentielle au bon

fonctionnement du poêle ainsi qu’à l’obtention des feux les plus

propres possibles. Le fait de ne pas installer ce diuseur peut

entraîner une éventuelle situation de sur-incendie LE DÉFAUT

D’INSTALLATION DU DE L’INSTALLATION PEUT PROVOQUER

UN INCENDIE, DES DOMMAGES À LA PROPRIÉTÉ ET/OU LA

MORT.

SUPPORT DE MONTAGE DU VENTILATEUR

(INCLUS)

Un support de montage de ventilateur est requis pour cette unité

lors de l’installation du kit de ventilateur CB36.

1. Retirez le cache du panneau arrière du radiateur.

2. Utilisez les six (6) vis à tôle fournies (g) pour fixer le support de

montage du ventilateur à l’arrière du poêle.

Étape 1 : Supprimer

Étape 2 : Attachez

ASSEMBLAGE DU VENTILATEUR

Lors de l’installation de l’ensemble ventilateur CB36, reportez-

vous aux instructions fournies avec le kit.

1. Fixez l’ensemble de ventilateur CB36 au support de ventilateur.

Étape 3 : Attachez

Facultatif
