INSTALLATION GUIDE
for the
SB-S-BRZFRS/10TW3
SKU# 94564
2013 & Up Subaru BRZ / Scion FRS
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
Continued on Next Page
SB-S-BRZ/10TW3 INSTR_SKU# 011353
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
1 HOUR
SPECIFICATIONS
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
INCLUDED HARDWARE
(1) BRZ Mounting Bracket
(2) 1/4 - 20 x 1” Bolt
(4) 1/4” Flat Washer
(2) 1/4” Lock Washer
(2) 1/4 - 20 Hex Nut
(1) 3/8 - 16 x 2” Bolt
(2) 3/8” Flat Washer
(2) 3/8” Fender Washer
(2) 3/8” Lock Washer
(2) 3/8 - 16 Hex Nut
SB-S-BRZ/10TW3 INSTR_SKU# 011353
POWER RECOMMENDATION

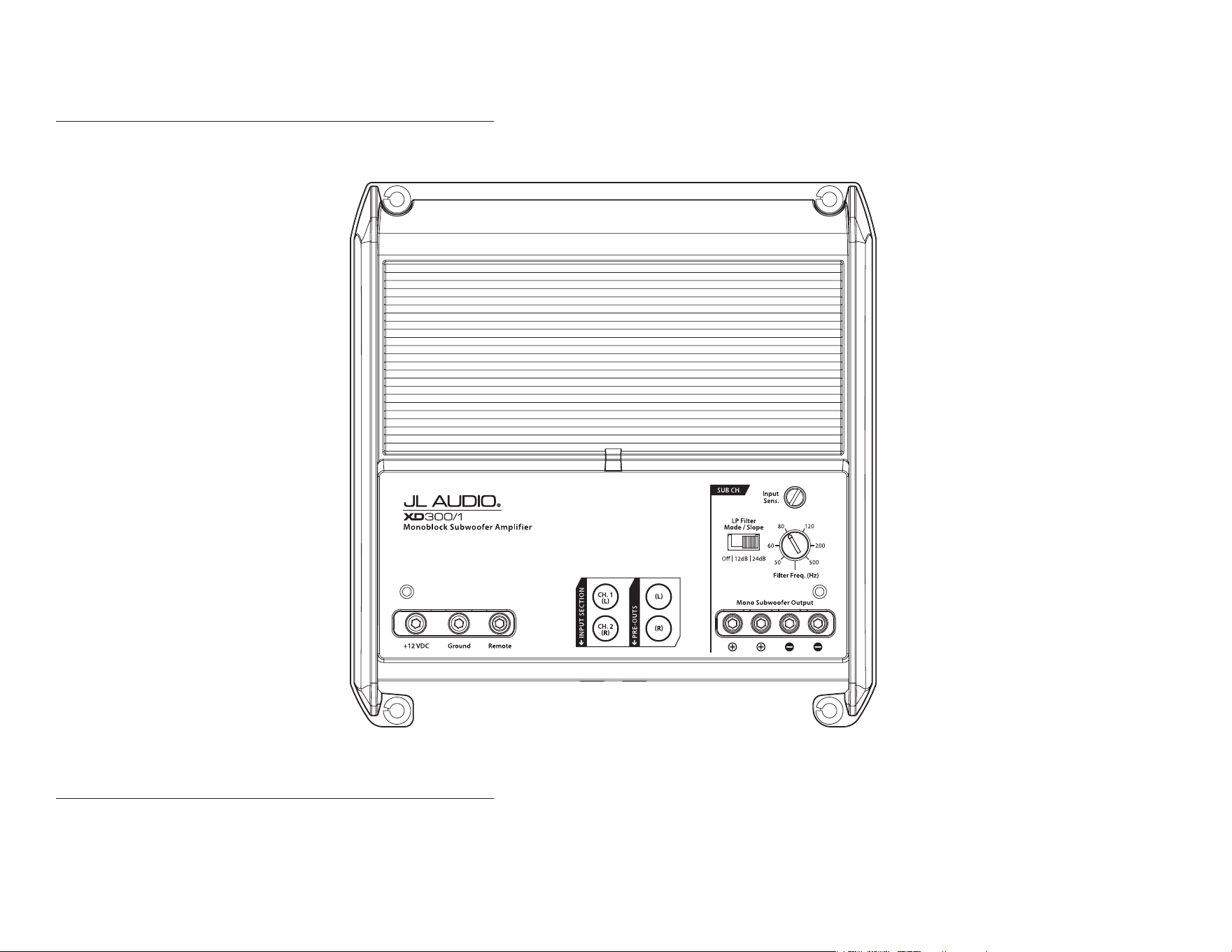

JL Audio recommends high quality ampliers such as the JL Audio XD300/1. The diagram below shows the recommended crossover settings for the XD300/1. For a detailed description of the amplier settings, consult the
owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits
are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio
reccomends using 12AWG speaker wire for subwoofers.
Continued on Next Page Page 2 • JL Audio, Inc., 2013
Continued on Next Page
SB-S-BRZ/1TW3 INSTR_SKU# 011353
Page 3 • JL Audio, Inc., 2013

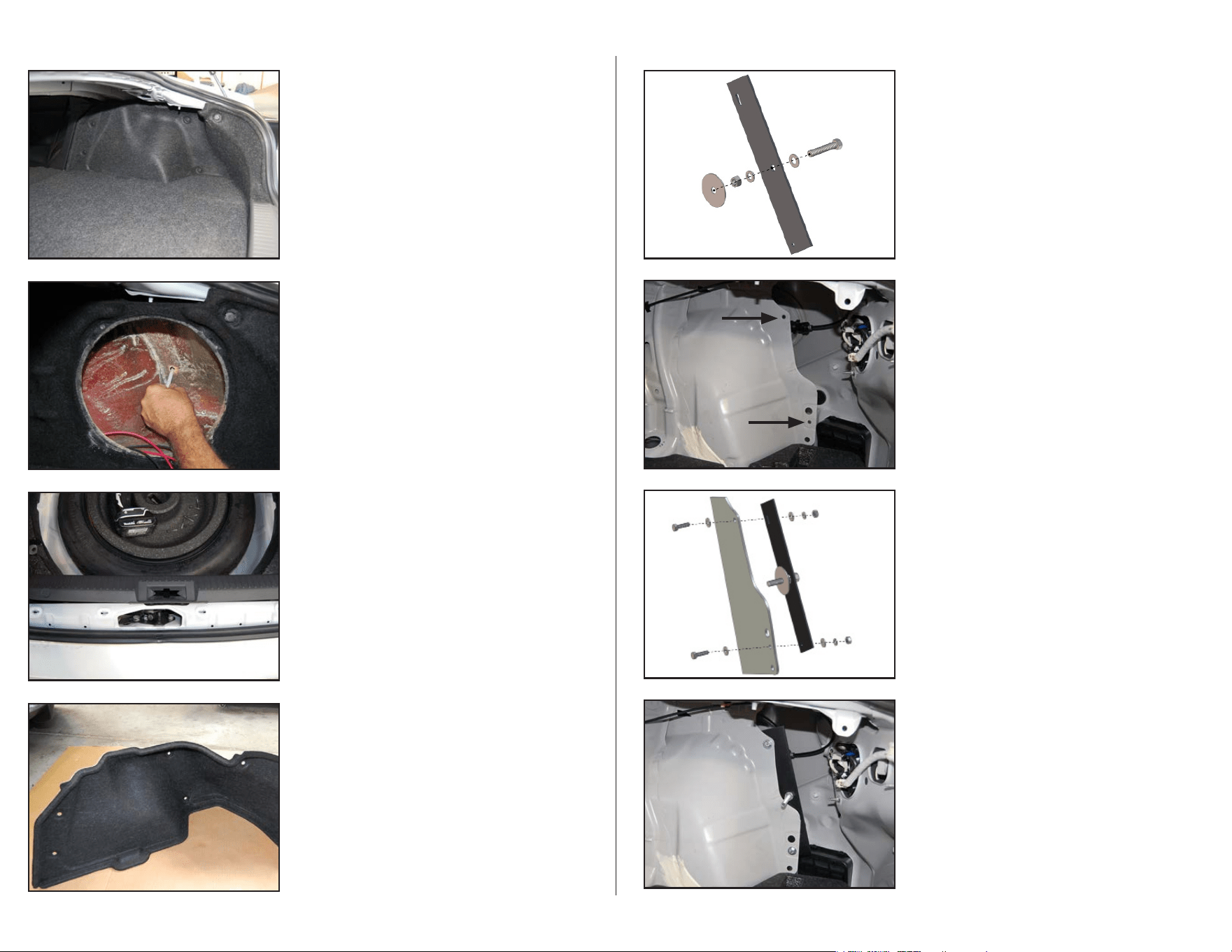

STEP 4

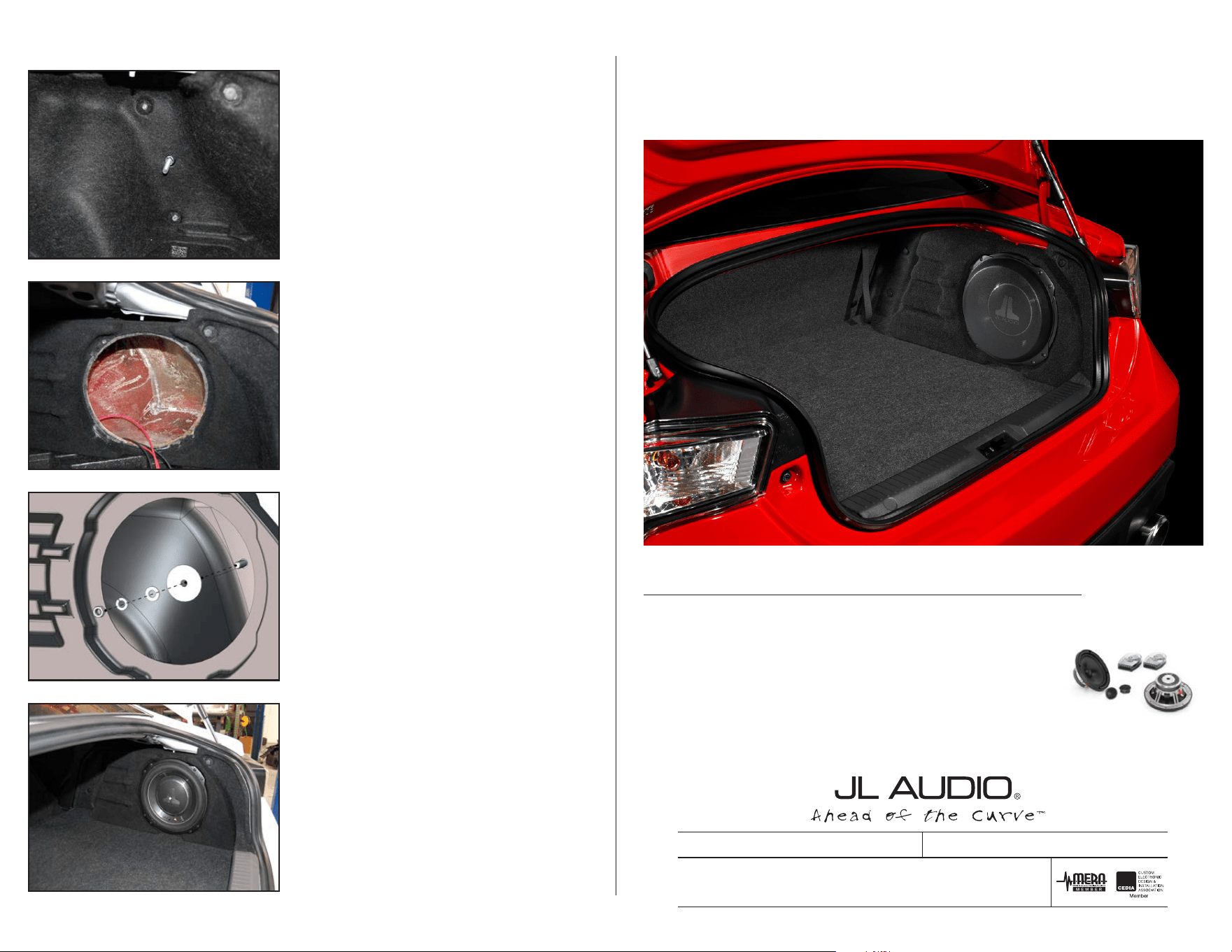

Remove the five clips that hold in the passenger side trunk
liner and remove the liner. Cut a 1/2” diameter hole in the
liner where marked in Step 2.
STEP 8
Pictured is the assembly secured to the metal brace.
Note: The 3/8” Fender Washer isn’t shown in this image.
STEP 3
Carefully unclip and remove the trunk sill panel.
STEP 7
Attach the assembly from Step 5 to the holes indicated
in Step 6 using a pair of 1/4 - 20 x 1” Bolts, four 1/4” Flat
Washers, two 1/4” Lock Washers, and two 1/4 - 20 Hex Bolts
as illustrated.
STEP 2
Using a Phillips head screwdriver, remove the subwoofer
from the Stealthbox®. Place the enclosure into position and
use a Sharpie® to mark the location of the hole in the box
onto the trunk liner. Remove the enclosure.
Note: It is not necessary to remove the grille before
removing the subwoofer.
STEP 6
Pictured is the passenger side of the trunk with the trunk
liner removed. Locate the two indicated holes in the metal
brace.
STEP 1
Empty out the trunk of the vehicle.
STEP 5
Create the illustrated assembly using a 3/8 - 16 x 2” Bolt,
a 3/8” Lock Washer, a 3/8 - 16 Hex Nut, and a 3/8” Fender
Washer.
SB-S-BRZ/10TW3 INSTR_SKU# 011353
Page 4 • JL Audio, Inc., 2013
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650x, & ZR570-CSi
Rear Speaker Size / Location: 3-1/2”- Rear Quater Panels
Fits JL Audio Models: TR350-CXi & C2-650x
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.,. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.,.
JLA-SKU# 94564 03.15.2013 • Printed in USA • ©2011 JL Audio, Inc.,. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
STEP 11
Slide the other 3/8” Fender Washer, a 3/8” Flat Washer, a 3/8”
Lock Washer, and a 3/8 - 16 Hex Nut over the 3/8 - 16 x 2”
Bolt, and firmly tighten.
STEP 10
Connect speaker cable to the terminal cup on the
Stealthbox® and place the enclosure back into position,
allowing the 3/8 - 16 x 2” Bolt to pass through the hole in the
back of the enclosure.
STEP 9
Reinstall the trunk liner, allowing the 3/8 - 16 x 2” Bolt to pass
through the hole cut in Step 4.
CONGRATULATIONS!
You have completed the installation for this model. Enjoy your new Stealthbox®!
STEP 12
Reinstall the subwoofer.
