Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice
regulations adhered to when using this product.
WARNING! Use caution when handling and assembling the metal components.
The metal may have sharp edges or corners, the use of protective gloves is recommended.
8 DO NOT open more than one drawer at a time.
8 DO NOT step on the drawers.
8 DO NOT let children play with the roll cab or top chest.
9 Ensure all drawers are fully closed and the self locking catch is activated, before moving the toolbox.
9 Secure the brakes when rollcab is in the desired position.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the mounting frame clean and tidy in accordance with good workshop practice.
8 DO NOT use in damp work areas.
WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot
cover all possible conditions and situations that may occur. It must be understood that common
sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
2. INTRODucTION
AP41104BWS
Extra wide retro styled top chest with modern day functionality. Features 4 drawers with 45kg ball
bearing slides and stylish trimmed lift latch drawer pulls preventing inadvertent opening. Chest is further enhanced with gas strut supported
opening clam shell top providing additional storage. Retro theme is continued with recessed chrome side handles. Drawers and top lid are
fitted with drawer liners and lock on one key turn. For use with AP41206 series rollcabs to make a complete retro style stack unit.
AP41206BWS
Extra wide retro styled rollcab with modern day functionality. Features 6 drawers with 45kg ball bearing slides and stylish trimmed lift latch
drawer pulls preventing inadvertent drawer opening. Retro theme is continued with stylish heavy duty casters, two with brakes. All drawers
are fitted with liners and lock on one key turn. For use with AP41104 series topchests to make a complete retro style stack unit.
3. SPEcIFIcATION
Model No: ....................................................... AP41104BWS Model No: ...................................................................AP41206BWS
Overall Dimensions (W x D x H): ...........1080 x 450 x 495mm Overall Dimensions (W x D x H): .....................1100 x 460 x 1040mm
Clam Shell Top: .........................................960 x 430 x 80mm Clam Shell Top: .............................................................................. n/a
Medium Drawer (x4): .................................945 x 400 x 60mm Medium Drawer (x4): .....................................................................n/a
Medium Drawer (x3): ......................................................... n/a Medium Drawer (x3): .............................................945 x 400 x 60mm
Large Drawer (x2): ............................................................ n/a Large Drawer (x2): ...............................................945 x 400 x 135mm
Extra Large Drawer (x1): ................................................... n/a Extra Large Drawer (x1): ......................................945 x 400 x 210mm
AP41104BWS & AP41206BWS | Issue:2 (H,F) 30/10/19
Original Language Version
© Jack Sealey Limited
TOPcHEST 4 DRAWER WIDE RETRO STYLE
ROLLcAB 6 DRAWER WIDE RETRO STYLE
BLuE WITH WHITE STRIPES
MODEL No's:
AP41104BWS & AP41206BWS
Refer to
instruction
manual
Wear
protective
gloves

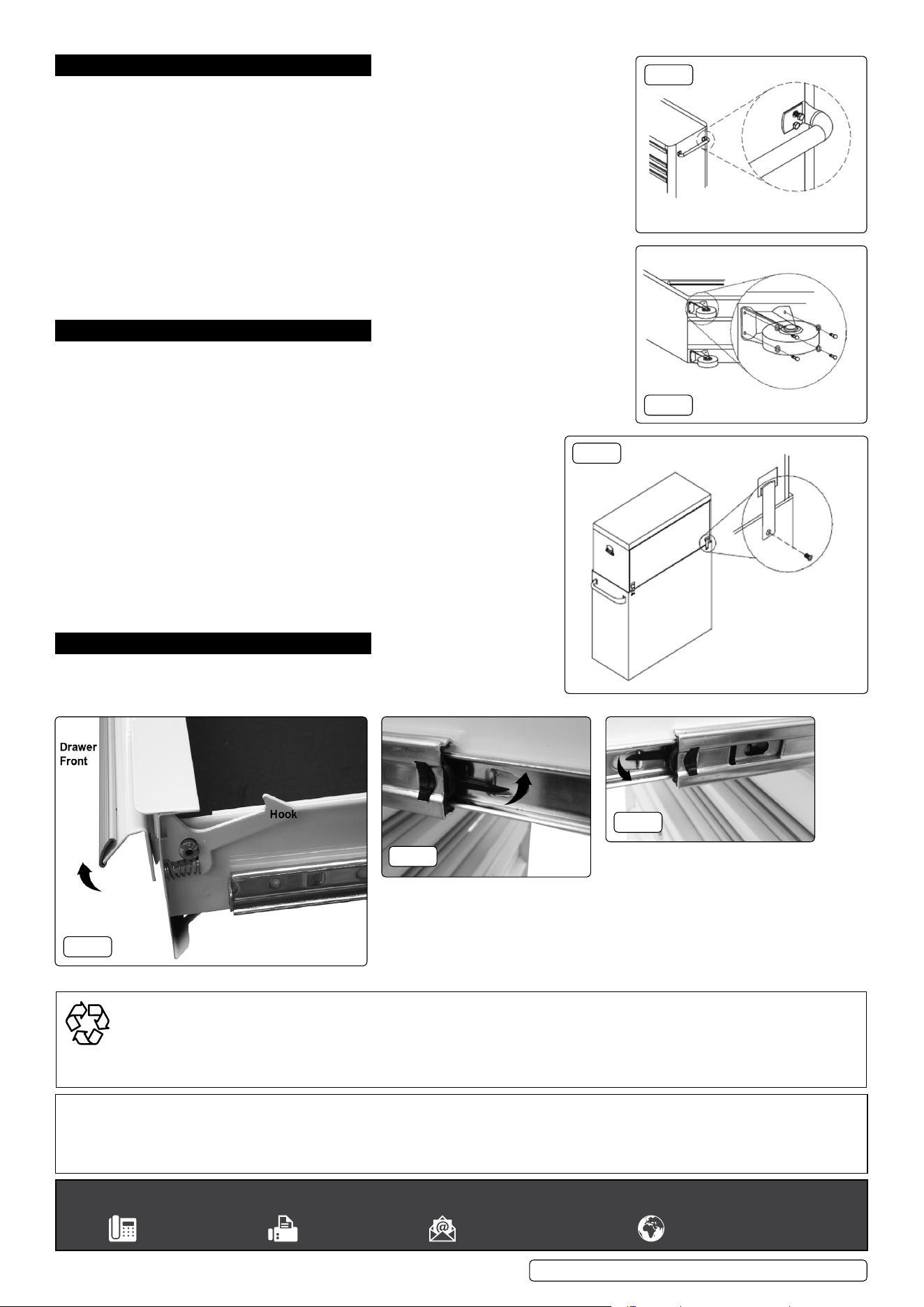

4. ASSEMBLY
4.1. ROLL cAB HANDLE INSTALLATION
4.1.1. Position the handle over the holes in the roll cab, attach using the M6 x 12mm hex bolts
andtightensecurely(g.1).Assemblingthehandlerstwillmakeiteasiertohandlethe
the roll cab.
4.2. cASTOR INSTALLATION
4.2.1. Laytherollcabcarefullyonitsback,protectingitwithasoftmatplacedontheoor.
4.2.2. Position the two rigid castors at the end opposite the handle.
4.2.3. Insert the M8 x 20mm hex bolts through the washers, then through the castors and into
the base of the roll cab, tighten securely.
4.2.4. Repeat with the two swivel castors on the opposite (handle) end.
4.3. ROLL cAB AND TOP cHEST cONNEcTION
4.3.1. Place the top chest onto the roll cab.
4.3.2. Snaptheconnectorsintothesquareholesonthebackofthetopchest(g.3.).
4.3.3. Fasten the connectors with the screws provided.
5. OPERATION
5.1. RAISE AND RELEASE DRAWERS
5.1.1. Toopen:liftthedrawerfrontwhilstpullingitout(g.4).
5.1.2. Toclose:shutthedrawerrmlyuntilthelatchengages.
5.1.3. Ifthedrawerdoesnotlatch,thehook(g.4)maybemisalignedorbinding.
5.1.4. Bend the hook gently until it is parallel to the drawer edge and engages when
closed.
5.2. TO REMOvE DRAWERS
5.2.1. Pull drawer out almost fully.
5.2.2. Locatetheblacklockinglevers(gs.5&6).
5.2.3. Facingthedrawer;liftoneleverup(g.5),andpushtheotherleverdown
(g.6).
5.2.4. With both levers deployed, the drawer can be pulled out from the slides.
5.3. TO REPLAcE DRAWERS
5.3.1. Extend the drawer runners from the cabinet.
5.3.2. Engage the slides on either side of the drawer carefully into the runners.
5.3.3. Push the drawer closed squarely until the drawer is closed fully, engaging the
locking levers as it goes.
6. MAINTENANcE
6.1. Lubricate the drawer slides sparingly every six months.
6.2. Clean the metalwork periodically with warm water and a mild detergent.
6.3. Stubborn grease and oil marks can be removed by using a non-abrasive cleaner.
g.3
g.4
g.5
g.6
g.1
g.2
Original Language Version
© Jack Sealey Limited
AP41104BWS & AP41206BWS | Issue:2 (H,F) 30/10/19
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENvIRONMENT PROTEcTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
