STEP 1: Shower Base Installation Instructions
STEP 3: Shower Door Installation Instructions
OR
Wall Profile
with Flange
Wall Profile
without Flange
STEP 2:
Shower Backwall Installation Instructions
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
1
SLIMLINE SHOWER BASE
S
HOWER
B
ASE
D
IMENSIONS AND
I
NSTALLATION
I
NSTRUCTIONS
IMPORTANT
DreamLine® reserves the right to alter, modify or redesign products at any time without prior
notice for the purpose of product improvement and customer experience. Please refer to the
model’s web page on DreamLine.com for the latest technical drawings, installation manuals,
warranty information or additional product details.
Please review this entire manual before beginning installation
For more information about DreamLine
®
products please visit
DreamLine.com
Color options:
--- - White
-22- Biscuit
-88- Black
Double Threshold Shower Base with Corner Drain Configuration
shown as an example
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
2
Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the
piece count with your packing slip. After opening all boxes and packages read this introduction
carefully. Check that all of the parts are included in the package by checking off the
components on the parts list. If the unit has been damaged, has a finishing defect, or has
missing parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine
®
will not replace any damaged products or
missing parts free of charge after 3 business days or if the product has been installed.
Please contact DreamLine
®
if with any questions and please provide an order number, job
name or other proof of purchase to help identify the original order.
2. Install all of the required plumbing and drainage before installing the shower base. Use a
competent and licensed (if required by local code) plumber for all plumbing installation.
3. Shower bases must be installed by a licensed plumber. Please note that you should
consult your local building codes with questions on installation compliance standards.
Building and plumbing codes may vary by location and DreamLine
®
is not responsible for
code compliance standards for your project.
4. Make sure that prior to the installation the installation surface is leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. While
some adjustment in leveling of the tray is possible, irregular installation surface level or
improper angle of side walls will result in serious problems for your installation. Please note
that some adjustments may be necessary during the installation process.
5. Center drain configurations are centered on the width only. See technical drawing tables
for drain locations.
6. Drain not included with this product. The drain opening is 3-3/8” in diameter and accepts a
standard 2” compression fitted drain.
IMPORTANT NOTE:
Dimensions provided are for reference only. Measure the actual shower tray
before installation. This includes overall dimensions and drain location.
Allowed tolerance for center of the drain is +/-1/2".

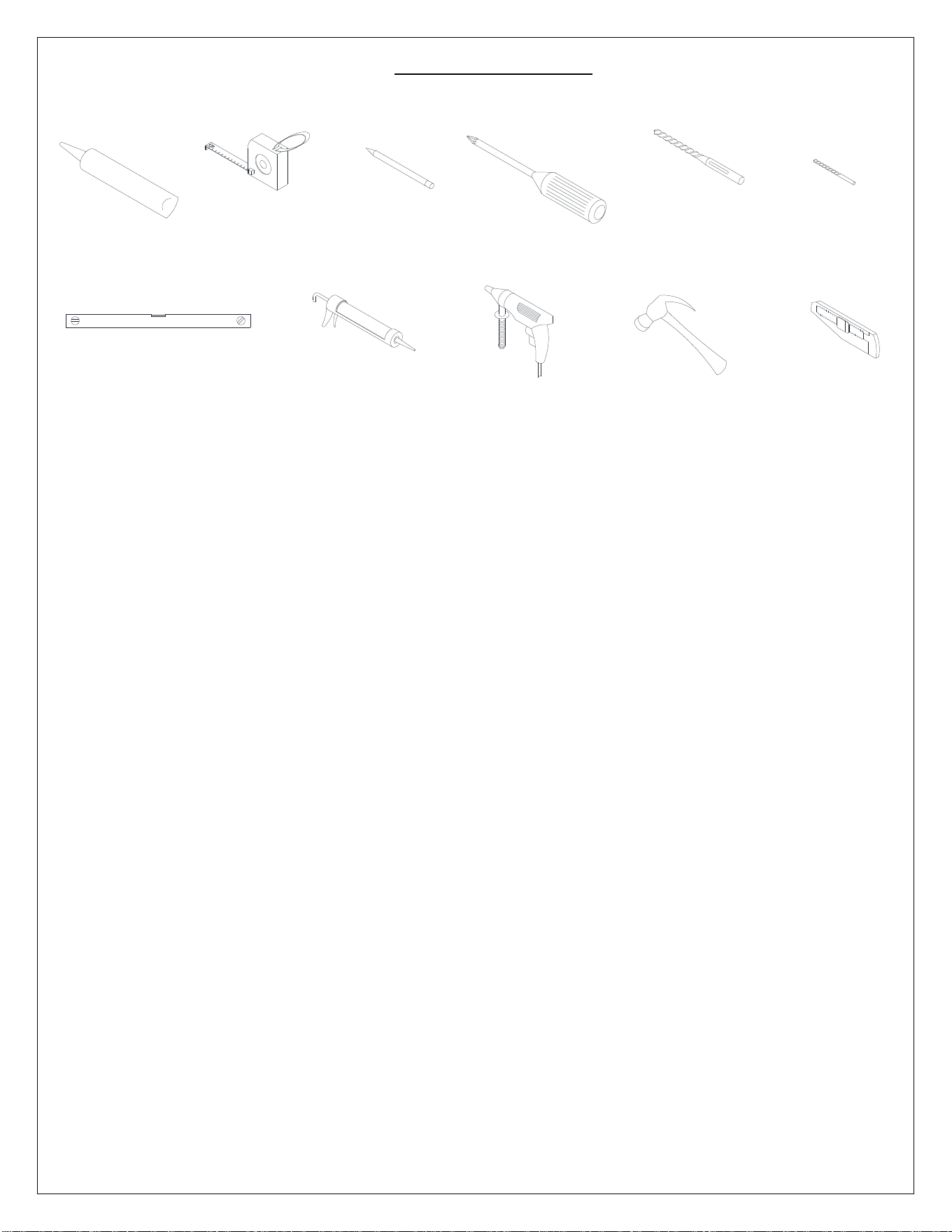

Tools Required
XXX
Tape
Measure
Pencil
Level
Mortar
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
3
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
4
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
5

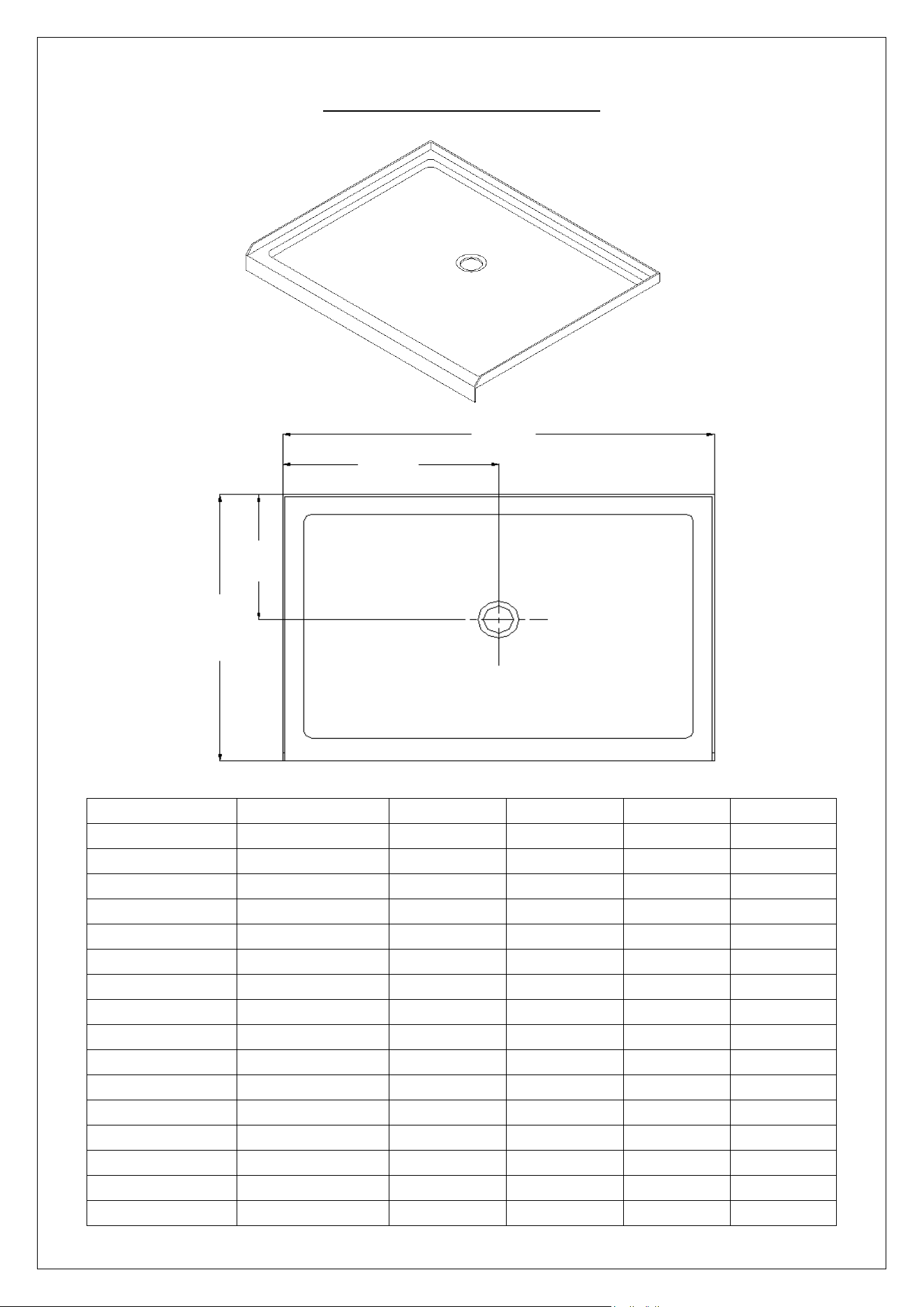

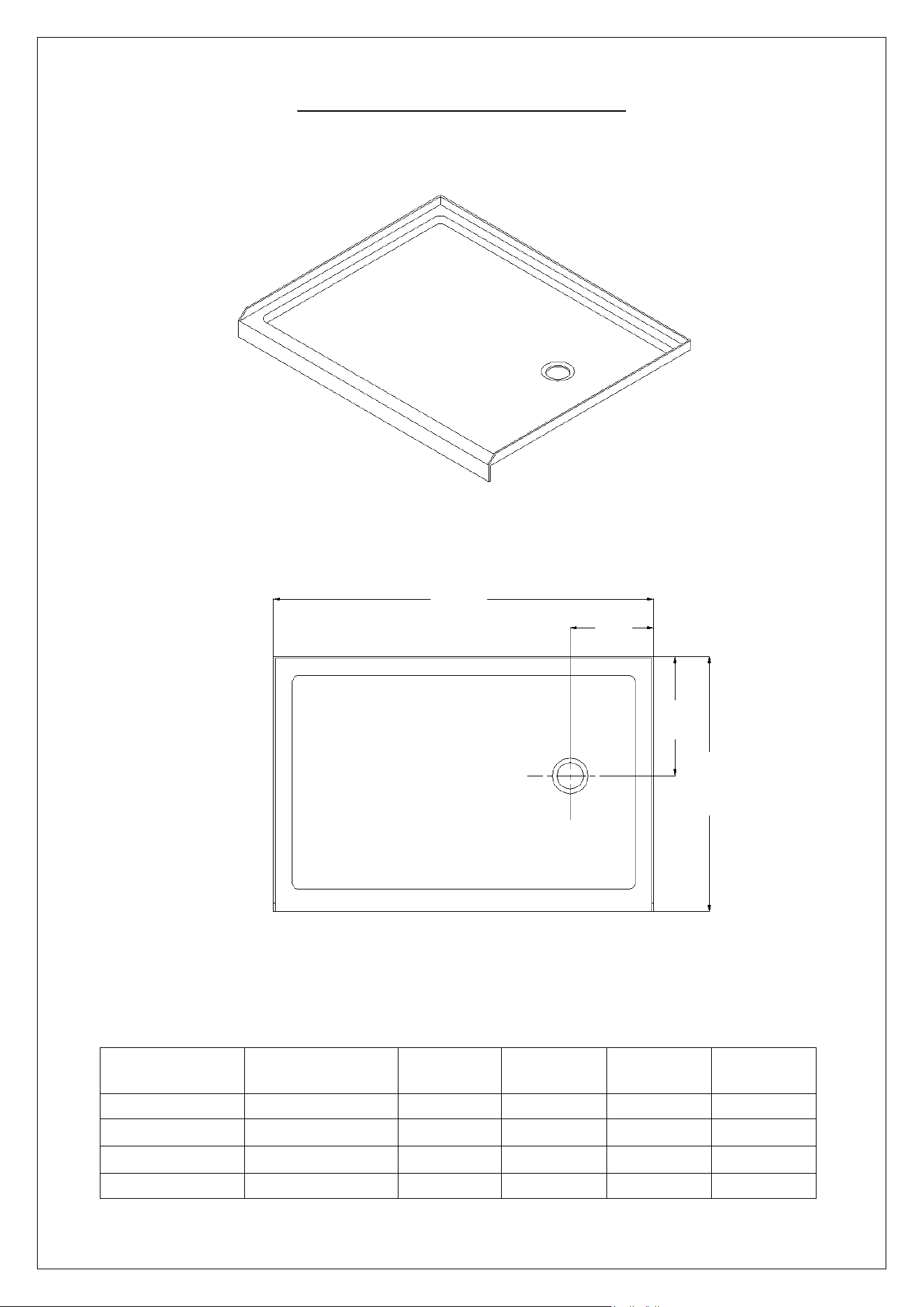

SINGLE THRESHOLD SHOWER BASE
Center Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1132320
32"× 32"
32"
32"
15"
16"
DLT-1136360
36"× 36"
36"
36"
15"
18"
DLT-1132420
32” x 42”
32”
42”
15”
21”
DLT-1134420
34” x 42”
34”
42”
15”
21”
DLT-1136420
36” x 42”
36”
42”
15”
21”
DLT-1142420
42” x 42”
42”
42”
20”
21”
DLT-1132480
32"× 48"
32”
48”
15”
24”
DLT-1134480
34” x 48”
34”
48”
15”
24”
DLT-1136480
36"× 48"
36"
48"
15"
24"
DLT-1132540
32” x 54”
32”
54”
15”
27”
DLT-1134540
34” x 54”
34”
54”
15”
27”
DLT-1136540
36” x 54”
36”
54”
15”
27”
DLT-1130600
30"× 60"
30"
60"
15"
30"
DLT-1132600
32"× 60"
32"
60"
15"
30"
DLT-1134600
34"× 60"
34"
60"
15"
30"
DLT-1136600
36"× 60"
36"
60"
15"
30"
W
D
W1
D1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
6

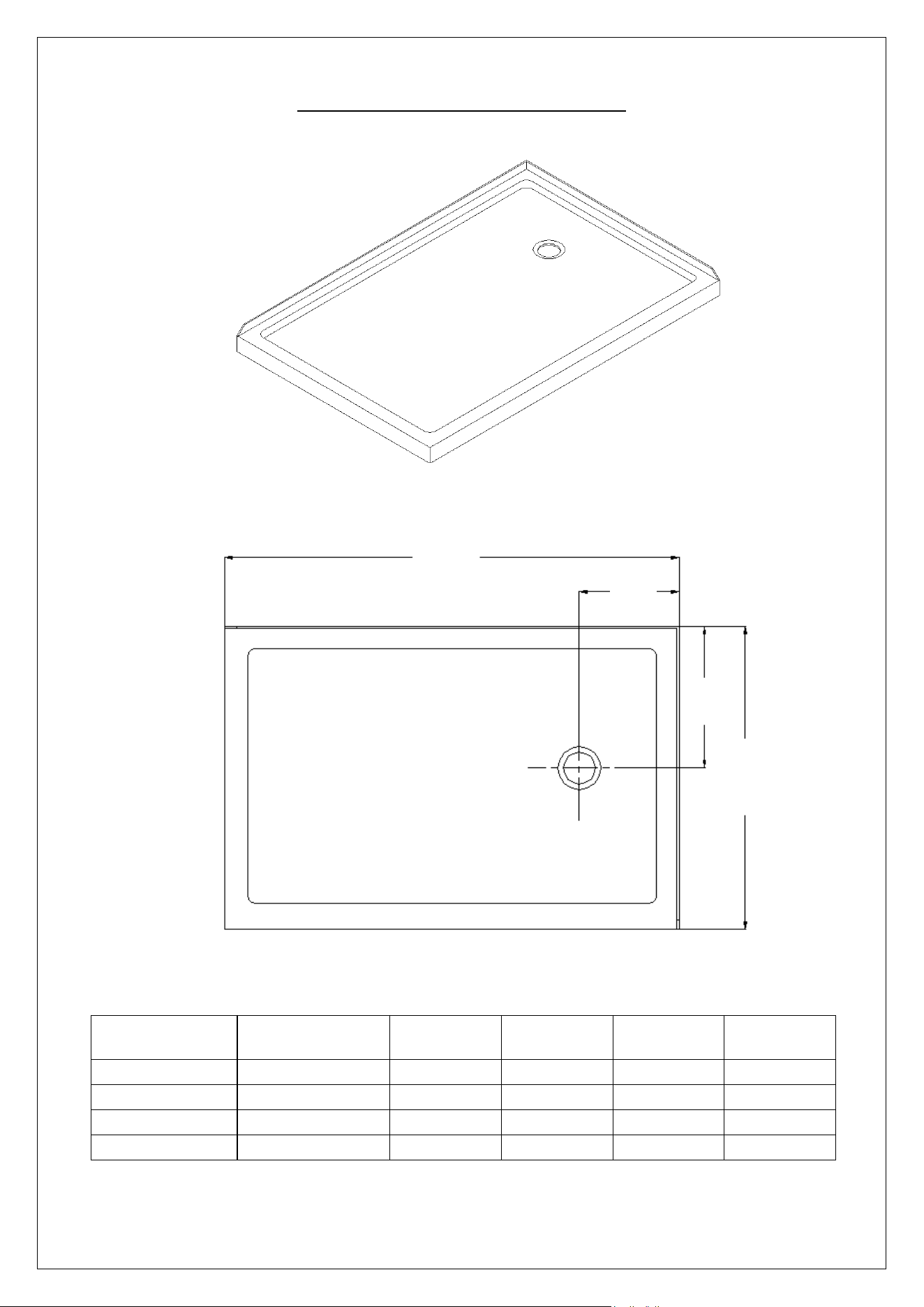

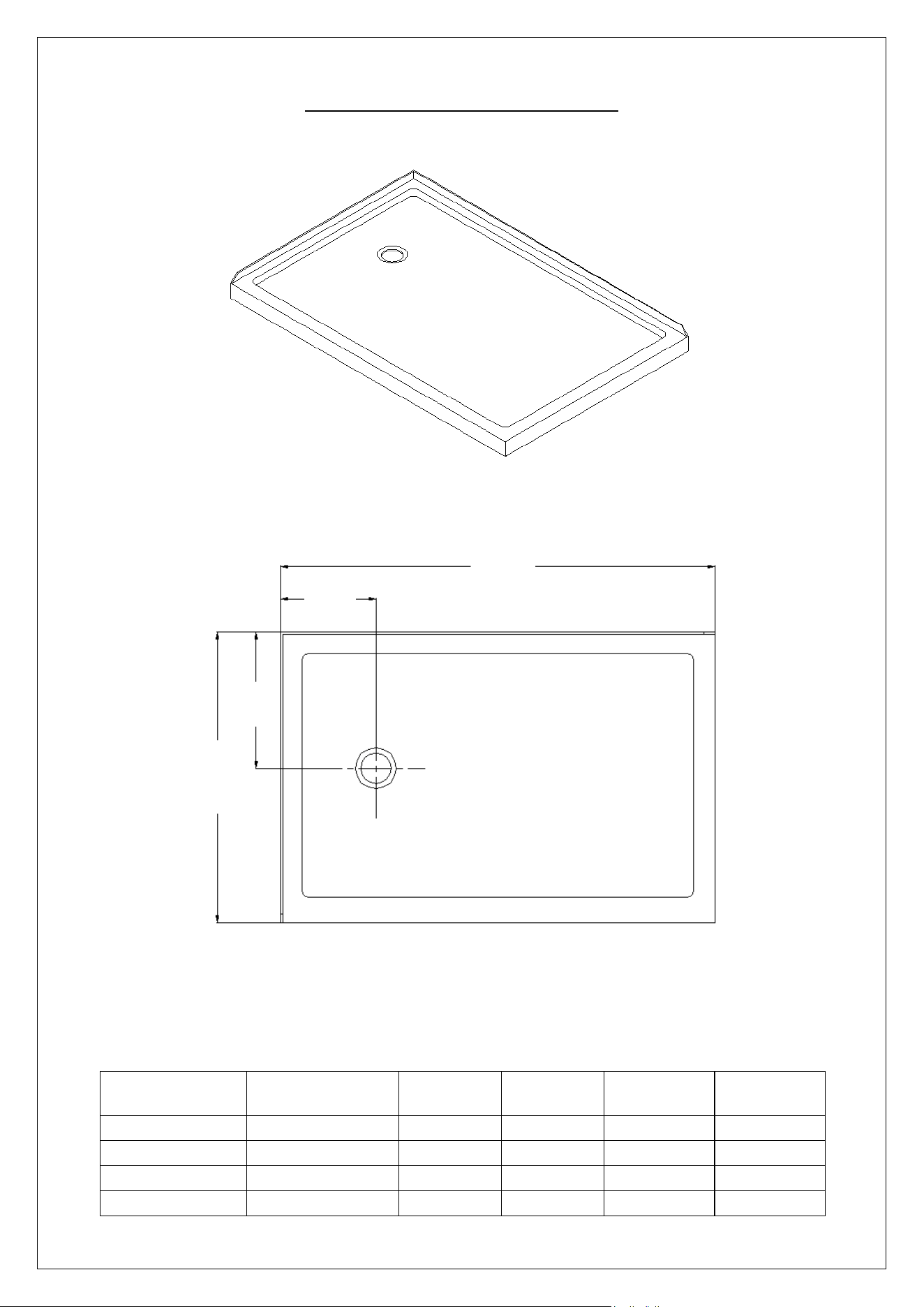

SINGLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1130601
30"×60"
30"
60"
15"
12"
DLT-1132601
32"×60"
32"
60"
15"
12"
DLT-1134601
34"×60"
34"
60"
17"
12"
DLT-1136601
36"×60"
36"
60"
18"
12"
W
D
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
7

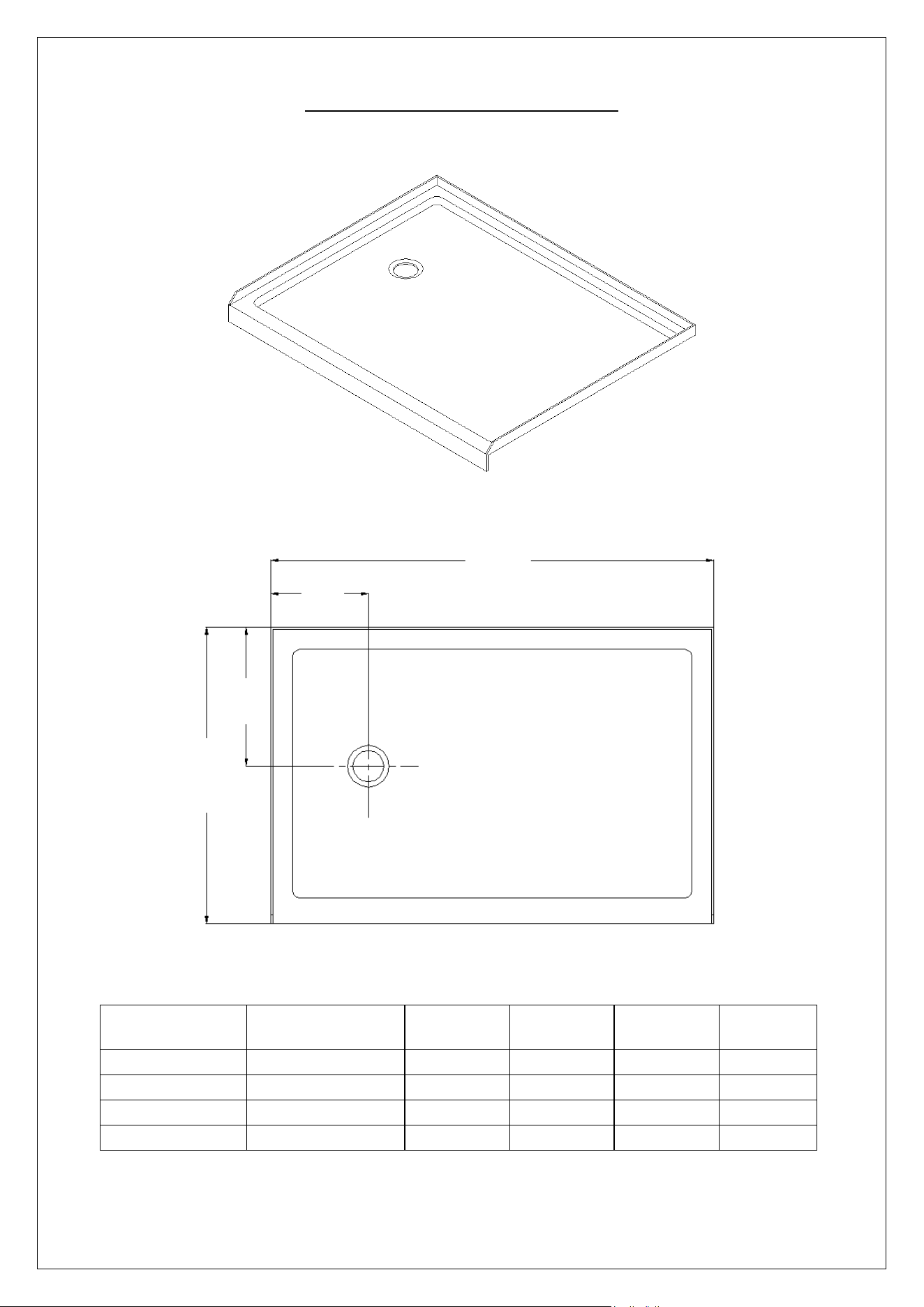

SINGLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1130602
30"×60"
30"
60"
15"
12"
DLT-1132602 32"×60" 32" 60" 15" 12"
DLT-1134602
34"×60"
34"
60"
17"
12"
DLT-1136602
36"×60"
36"
60"
18"
12"
W1
W
D
D1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
8
NEO ANGLE SHOWER BASE
MODEL SPECIFICATION W (in) A (in) B (in) C (in)
DLT-2036360
36"×36"
36"
18 5/16"
25"
12"
DLT-2038380
38"×38"
38"
20 5/16"
25"
12"
DLT-2040400
40"×40"
40"
22 5/16"
25"
14 3/8"
DLT-2042420
42"×42"
42"
24 5/16"
25"
14 3/8"
W
W
A
A
C
C
B
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
9

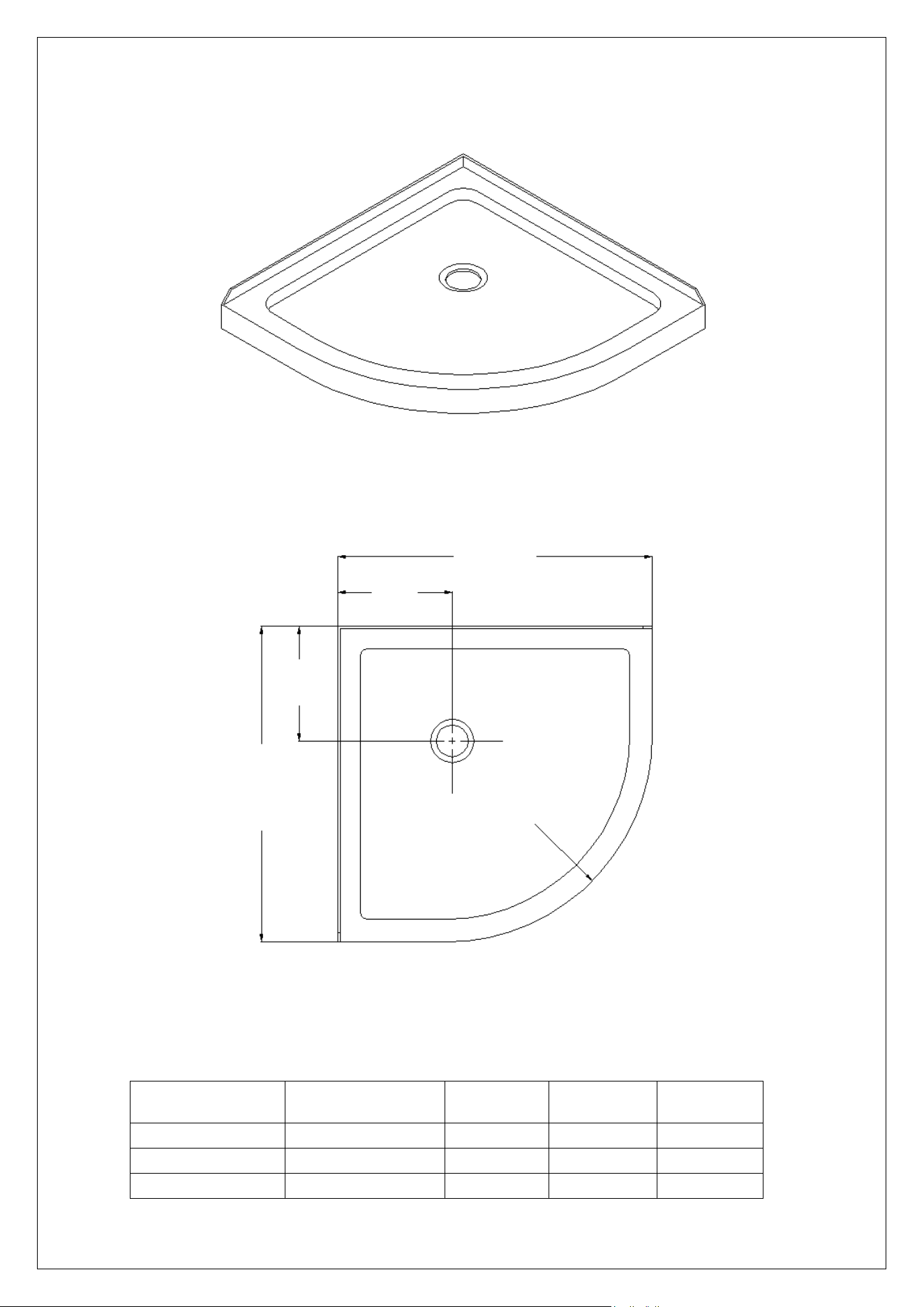

QUARTER ROUND SHOWER BASE
MODEL SPECIFICATION W (in) C (in) R (in)
DLT-7033330
33"×33"
33"
12"
21 5/8"
DLT-7036360
36"×36"
36"
12"
21 5/8"
DLT-7038380
38"×38"
38"
12"
21 5/8"
W
W
C
C
R
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
10
DOUBLE THRESHOLD SHOWER BASE
Corner Drain Configuration
MODEL SPECIFICATION W (in) C (in)
DLT-1032320
32"×32"
32"
12"
DLT-1036360
36"×36"
36"
12"
DLT-1042420
42” x 42”
42”
12”
W
W
C
C
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
11
DOUBLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1034481
34"×48"
34"
48"
17"
12"
DLT-1036481
36"×48"
36"
48"
18"
12"
DLT-1036541
36"×54"
36"
54"
18"
12"
DLT-1036601
36"×60"
36"
60"
18"
12"
D
W
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
12
DOUBLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1034482
34"×48"
34"
48"
17"
12"
DLT-1036482
36"×48"
36"
48"
18"
12"
DLT-1036542
36"×54"
36"
54"
18"
12"
DLT-1036602
36"×60"
36"
60"
18"
12"
W
D
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
13

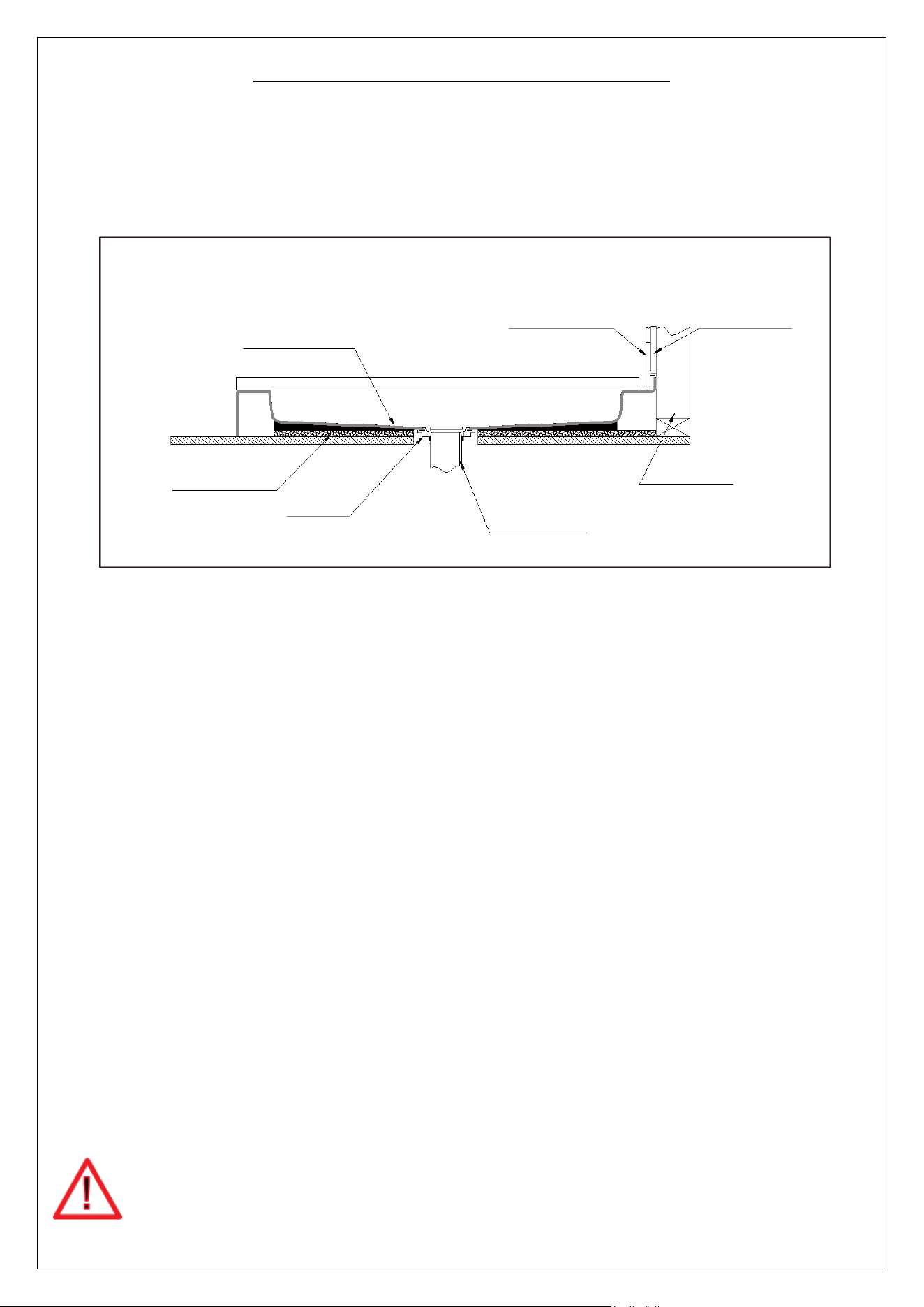

Shower Base Cross Section Diagram
This product should be installed by someone familiar with the construction
requirements for this type of project and the care necessary for the safe
installation and operation of the product.
Finished Wall
Cement board
Shower Base
Mortar
Drain*
(2"×4") Stud
* not included
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
14

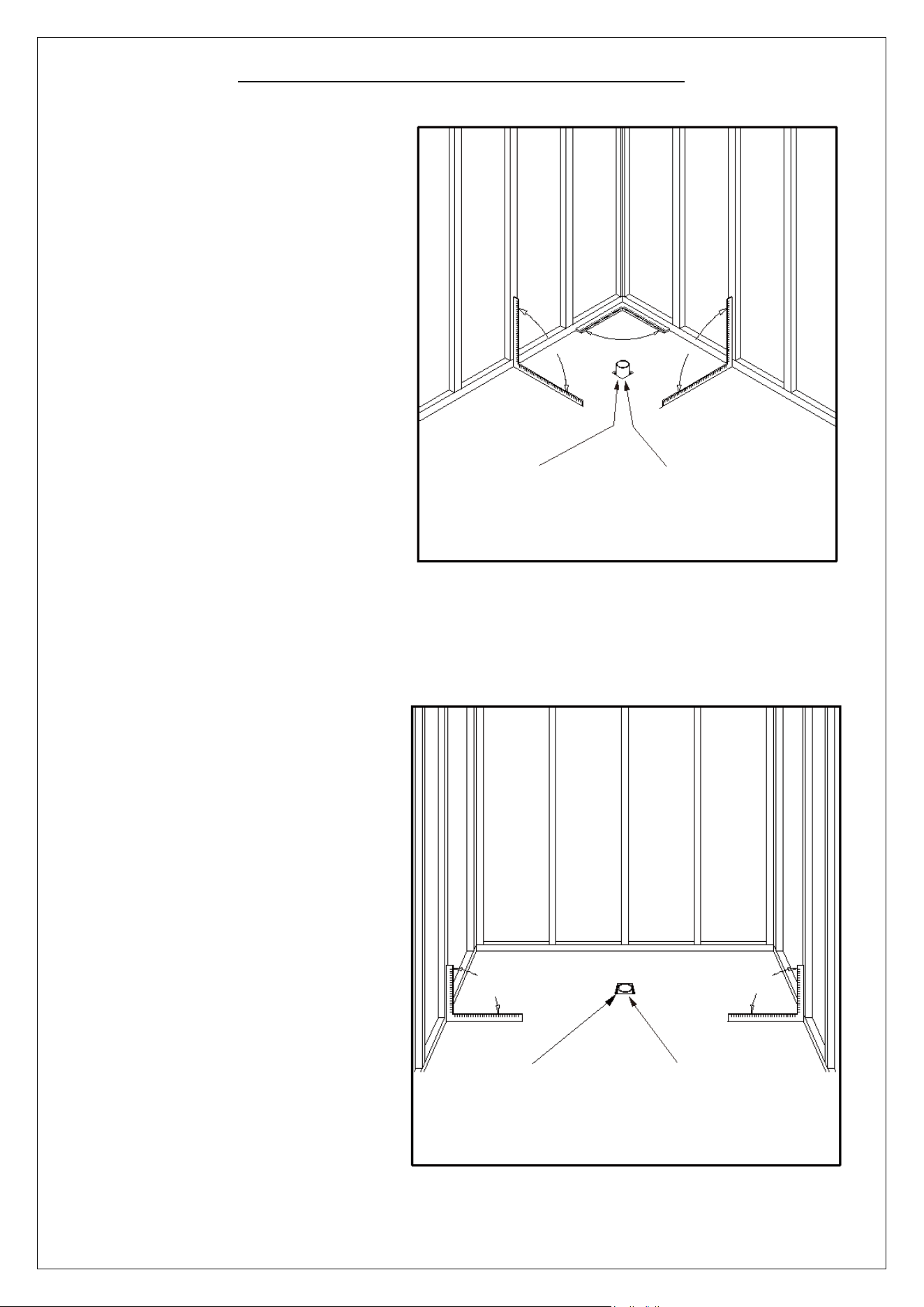

Shower Base Installation - Preparation
1. Ensure that the floor and the studs
are at right angles.
Provide a 5”×5” opening in the sub-
floor for the drain.
The 2” PVC waste pipe should
extend above the surface of the
sub-floor according to the drain
installation instructions and the
height of the Shower base.
Refer to the product drawings and
tables in this installation manual for
the drain location.
(Fig 1a and Fig 1b)
Fig 1a
Fig 1b
(See Product Chart for Drain Location)
(5"×5") Opening
2" PVC Waste Pipe
90°
90°
90°
90°
90°
2" PVC Waste Pipe
(5"×5") Opening
(See Product Chart for Drain Location)
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
15

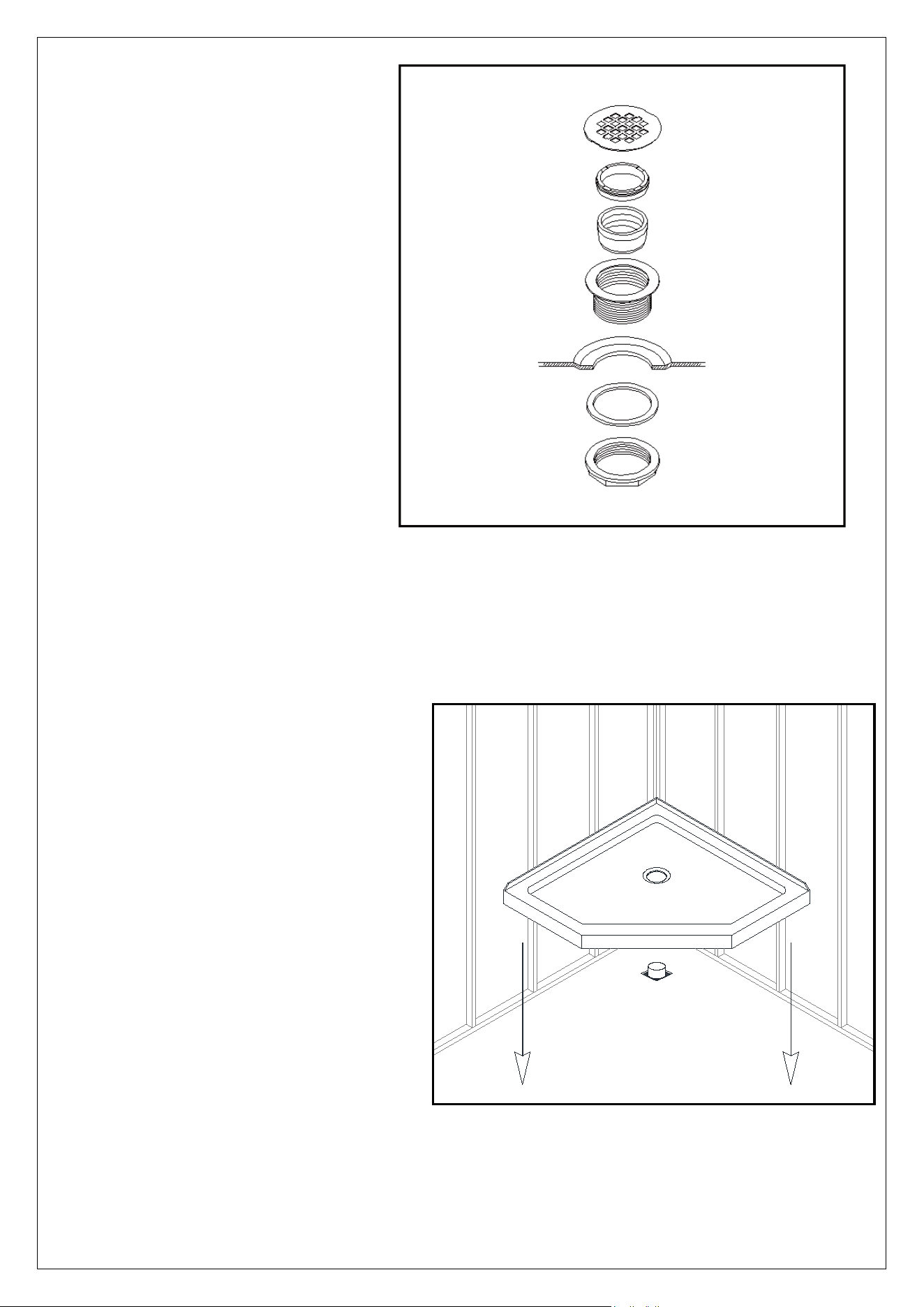

2. Install the shower drain (NOT
INCLUDED) according to the
drain installation manual
(supplied with the drain).
(Fig 2)
Fig 2
3. Place the tray into the designated
position so that the Drain cutout drops
around the Drain Pipe and butt the
Shower Base up against the studs.
(Fig 3)
Lower the base over the drain pipe
and set it into place against the studs.
Fig 3
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
16

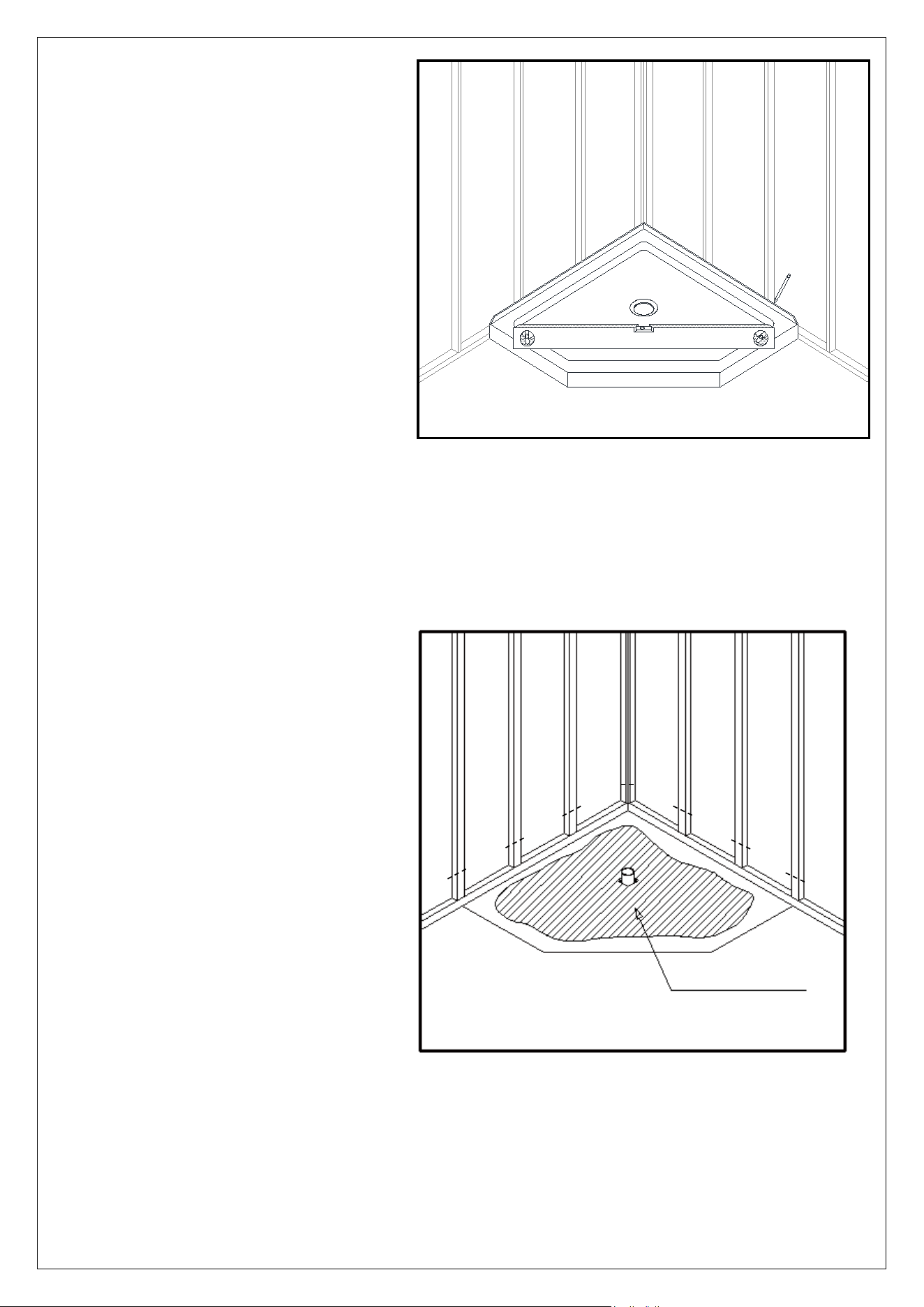

4. Level the tray and place marks on the
studs above the upper edge of the tile
flange.
(Fig 4)
5. Mix the bedding material (Mortar,
cement-sand mix, etc.) Concrete
or plaster is not recommended.
Apply enough bedding material
to support the entire bottom of
the shower base. This will add
additional stability and prevent the
base from shifting position.
(Fig 5)
Fig 5
Level base in two directions
Mortar
Fig 4
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
17
6. After the bedding material has been
poured and
before
it sets, place the
shower base into the position with the
drain assembly sliding over the PVC
waste pipe. It will be necessary to push
the shower base until the top of the tile
flange aligns with the marks drawn on
the studs and the front edge is
contacting the rough floor along the
entire length of the shower base. Ensure
that the base is level in all directions.
You may need to use shims to hold the
tray level until the bedding fully sets.
Remove all excess mortar.
(Fig 6)

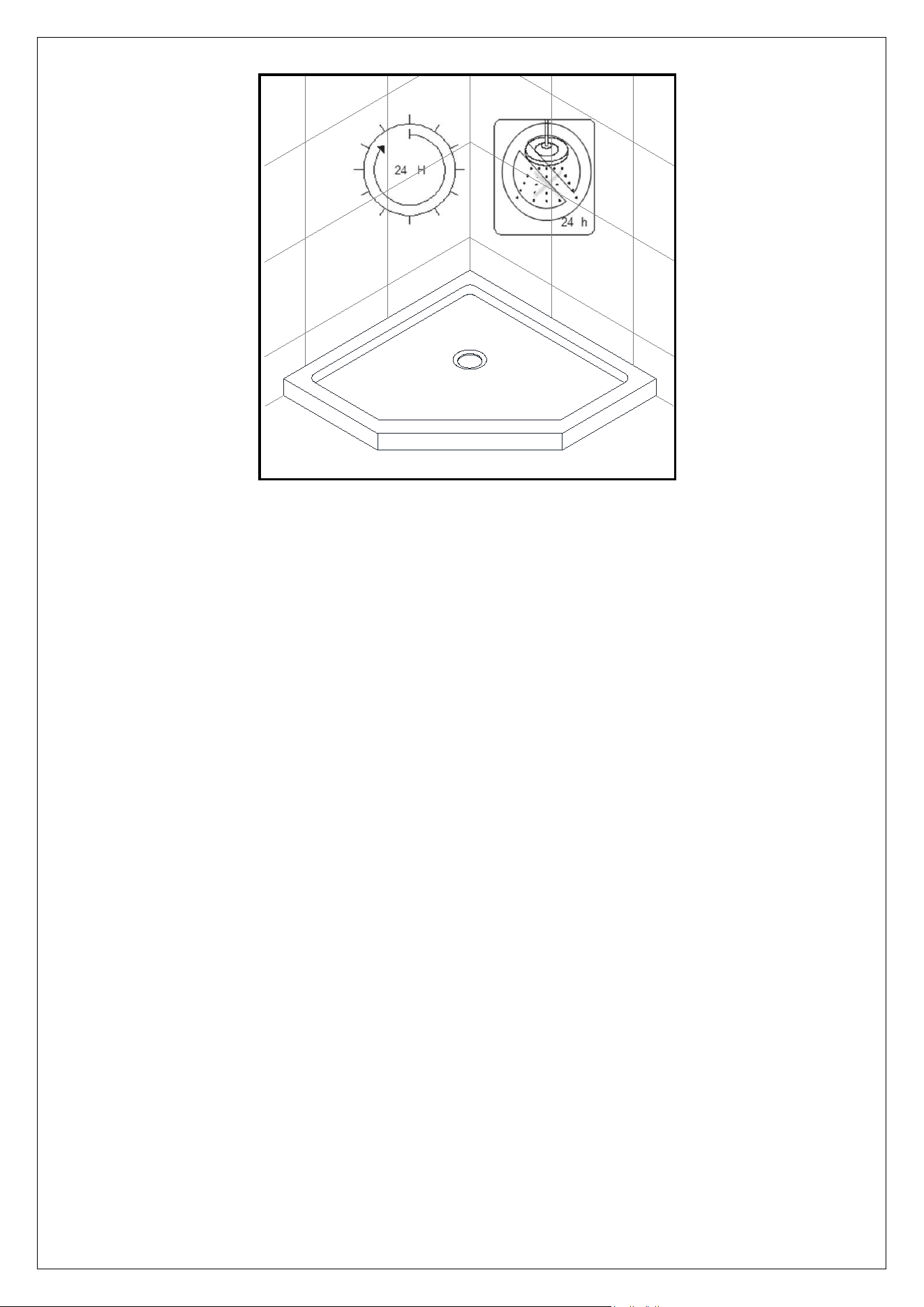

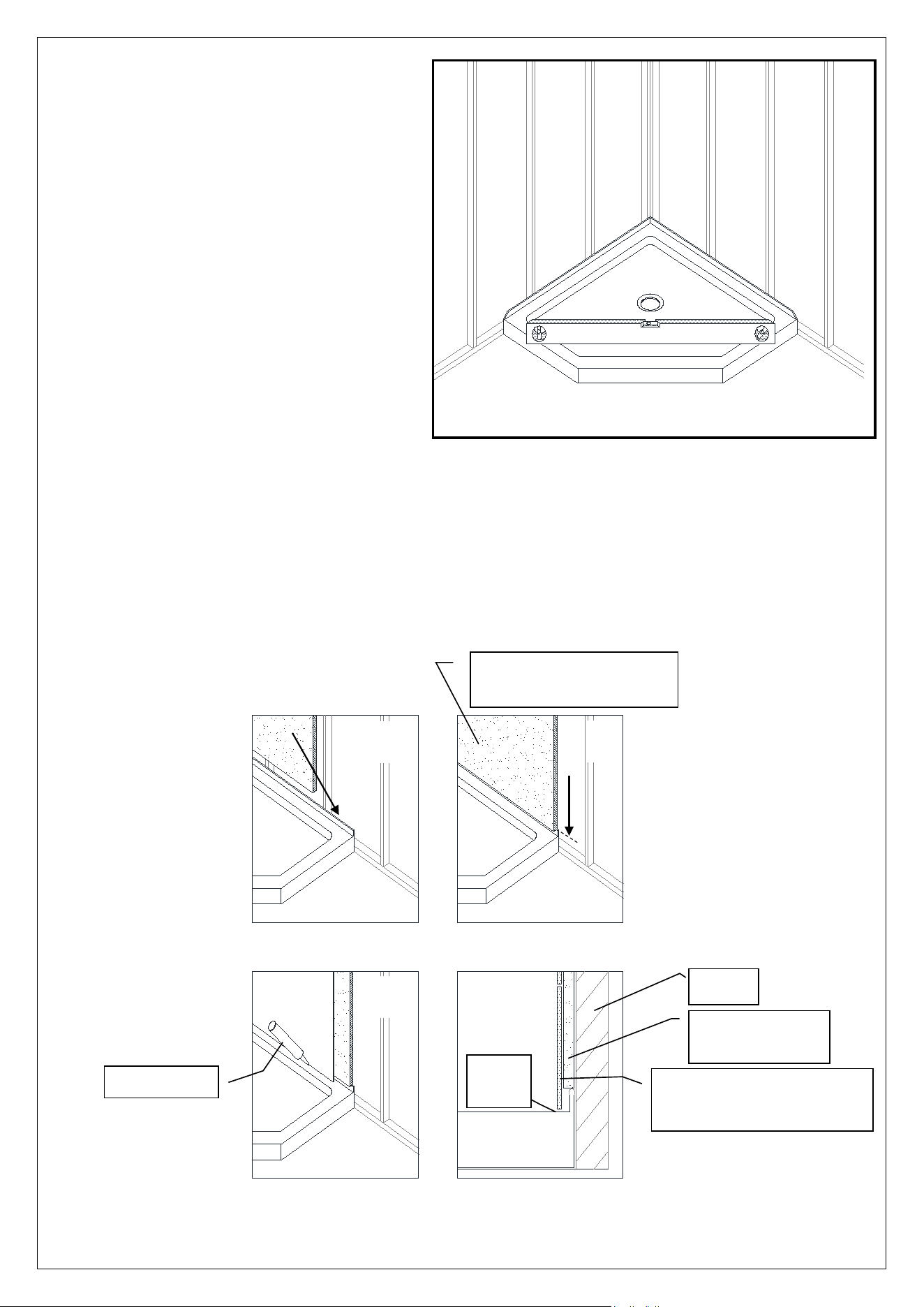

7. Allow the bedding material to completely harden before applying weight to the bottom of the
shower base.
Install the cement board (or the wallboard) above the tile flanges and secure it to the studs.
Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between
the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap.
(Fig 7a and Fig 7b)
Fig 6
Fig 7a
Waterproof Drywall to
the top of the tile flange
Caulk
Finished wall overlaps the
dry wall and tile flange
Stud
1
2
Waterproof
Drywall
4
3
Side View
1/8”
gap
Base
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
18
Fig 7b
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
19
Product Maintenance
BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:
wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use
non-abrasive sprays or cream-based cleaners. Avoid the use of aerosol spray cleaners.
Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.
GLASS: To ensure long-lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to
dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that
contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the
surface.
HARDWARE: To ensure a long-lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish
(peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with
a soft cloth.
Clean stainless-steel surfaces at least once a week. When applying stainless steel cleaner or
polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive
sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.
NOTE: To maximize the life of your door, it is important to regularly inspect the glass
and other hardware for misalignment, proper attachment, and/or damage. Contact
DreamLine with any questions or concerns.
Q-Wall 4 manual Ver 1 Rev 2 08/2015
QWALL – 4
A
CRYLIC
S
HOWER
W
ALL
I
NSTALLATION
I
NSTRUCTIONS
IMPORTANT
DreamLine
TM
reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to your model’s web page on
BathAuthority.com
Please read these instructions carefully before installing. If you have any questions
regarding installation, please contact our technical support specialists Monday through
Friday 8:00 AM – 7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or
e-mail our technical support group at Su[email protected]
For more information on DreamLine
TM
Shower Back Wall please visit www.BathAuthority.com
Q-Wall 4 manual Ver 1 Rev 2 08/2015
2
Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare
the piece count with your packing slip. After opening all boxes and packages read this
introduction carefully. Check that all of the needed parts are included in the package by
checking off the components on the “Detailed Diagram of Acrylic Shower Wall
Components”. If the unit has been damaged, has a finishing defect, or has missing parts,
please contact our customer support department within 3 business days of the delivery
date. Please note that DreamLine
TM
will not replace any damaged products or missing
parts free of charge after 3 business days or if the product has been installed. Feel
free to contact DreamLine
TM
if you have any questions, and please provide an order
number, job name or other proof of purchase to help us identify your original order.
1. Please note that you should consult your local building codes with questions on
installation compliance standards. Building and plumbing codes may vary by
location, and DreamLine is not responsible for code compliance standards for your
project.
2. This acrylic wall system is specially designed to be installed over any solid surface. If you
are installing the acrylic walls over the existing tiles, remove all loose tiles before the
installation. If you are installing over the existing painted walls, take all loose paint off.
Please, note that some cutting and drilling might be necessary during the installation
process.
3. Make sure to turn off the water supply, remove faucet, handles or any fixture trims
protruding from the wall. Clean the surface removing soap film and dirt from all wall
surfaces using regular household detergent, and then wipe it dry.

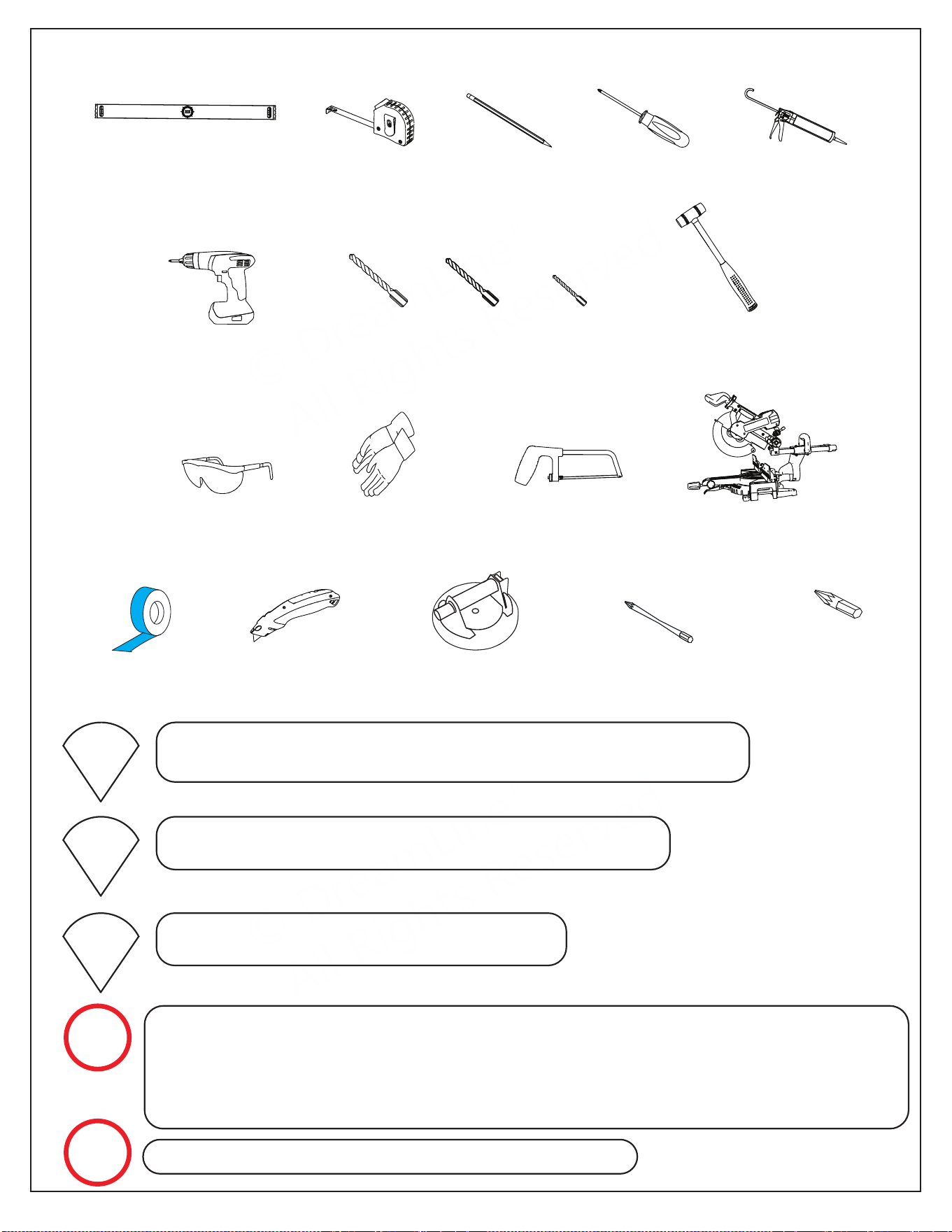

Tools Required
Caulk
Tape
Measure Pencil
Screwdriver
Phillips
(Ø 5/16")
Drill bit
Level
Gun
Caulk
Drill
Electric
Hammer
Knife
T-Square
Q-Wall 4 manual Ver 1 Rev 2 08/2015
3

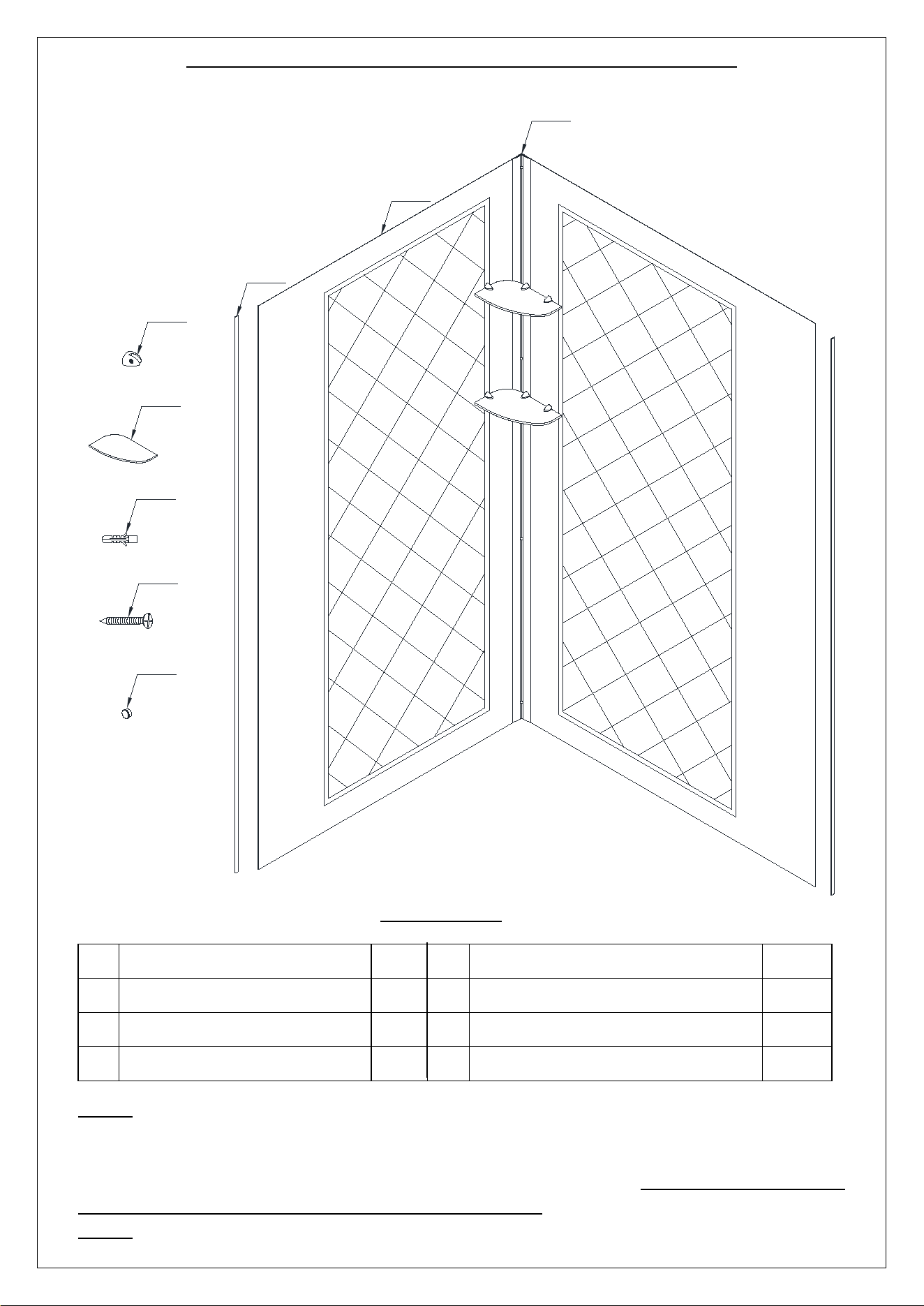

Detailed Diagram of Acrylic Shower Wall Components
5
6
7
8
4
2
1
3
Packing List
01 Side panel 2pcs 05 Glass shelf 2pcs
02 Corner cover 1pc 06 Wall anchor 11pcs
03 Decorative edge molding 2pcs 07 Countersunk screw ST4.2×40 11pcs
04 Shelf bracket 6pcs 08 Decorative cover 5pcs
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the carton,
check for small hardware bags that may have fallen to the bottom of the box. If any parts are
damaged or missing, please contact DreamLine
TM
for replacement. The shipping boxes may
contain extra parts not used in your model configuration.
NOTE: Retain these installation instructions for future reference.
Q-Wall 4 manual Ver 1 Rev 2 08/2015
4

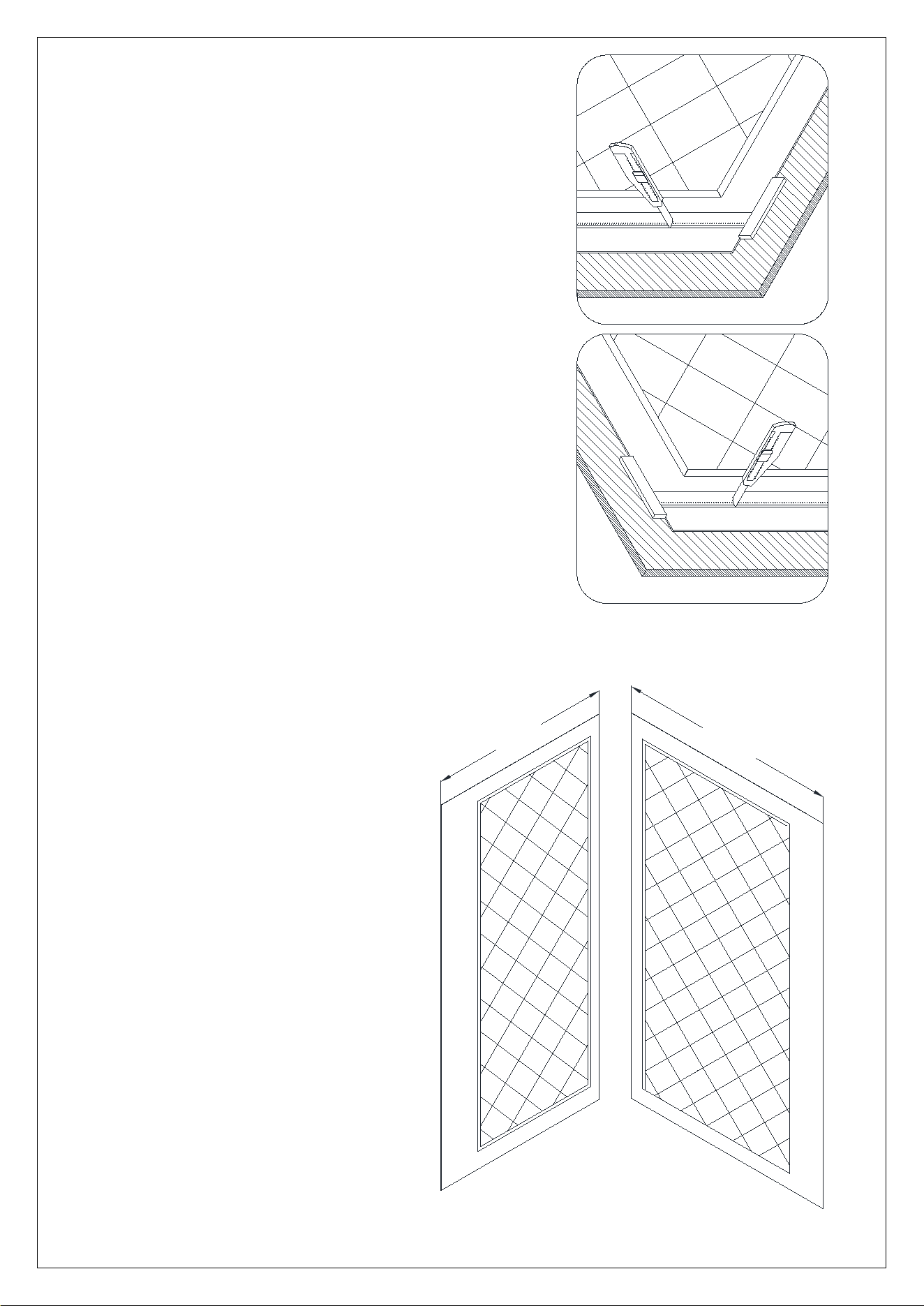

Preparation for Installation of Side Panel
ATTENTION:
See Fig. 1 for details.

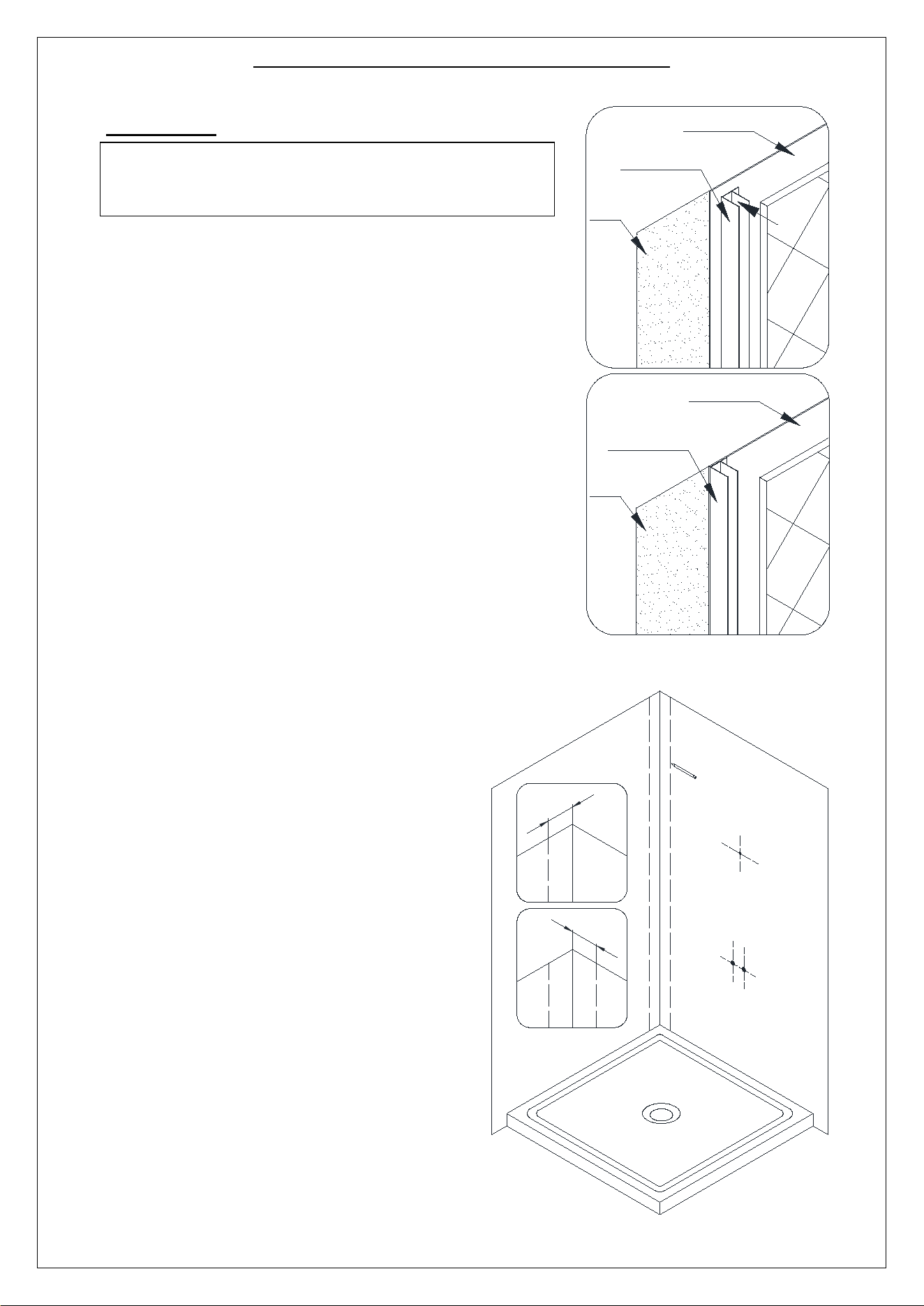

Fig. 1

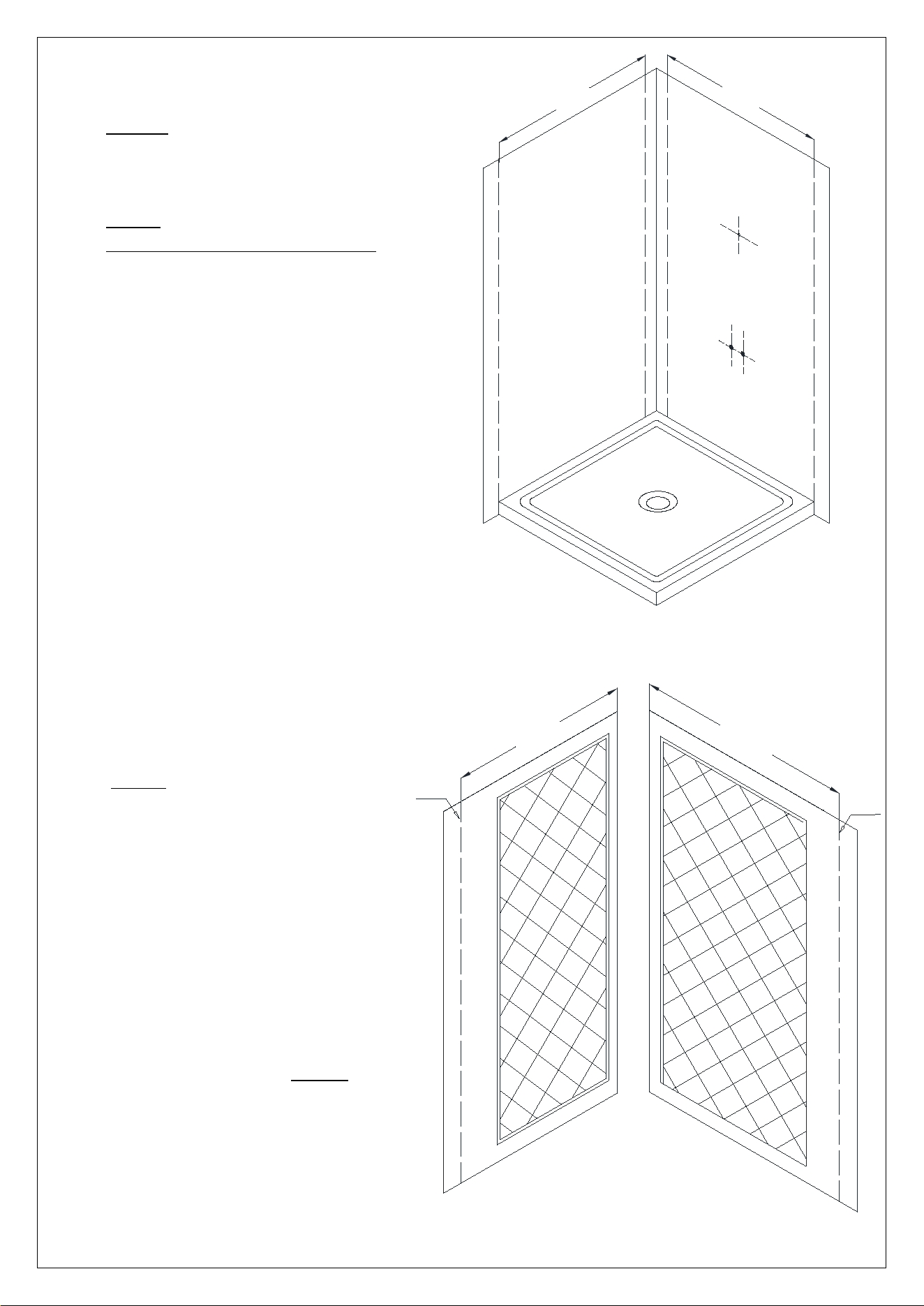

1. Place a mark on the walls with a distance
of 1” (one inch) from the corner and draw
a plumb vertical line from top to bottom.
See Fig. 2 for details.
Fig. 2
If you are installing a shower enclosure with a wall
profile, you can hide the edge of the Side panel (01)
behind the wall profile.
1"
1"
1
2
1
2
Wall Profile
Side Panel
Wall
Side Panel
Wall Profile
Wall
Q-Wall 4 manual Ver 1 Rev 2 08/2015
5
2. Measure the walls of the shower from the
1” (one inch) line in the corner (from
Step. 1) to the points where you want
Side panels (01) to end.
The distances are “D1” and “D2”.
NOTE:
“D2” Shows wall with the fixture.
See Fig. 3 for details.
Fig. 3
3. Determine the position of both
Side panels (01).
NOTE:
a) The narrow edge of the Side
panels fits behind the corner
cover and cannot be trimmed.
b) The wide edge of the Side
panel can be trimmed to the
size of your measurements
from step 2.
Measure from the narrow edge of
the Side panel and place a mark
at a distance of “D1” and “D2”
(that you measured in Step 2).
Draw a straight line from top to
bottom along the wide edge of
the Side panel.
See Fig. 4 for details.
Fig. 4
D1
D2
D1
D1
D2
to cut
Line
to cut
Line
Q-Wall 4 manual Ver 1 Rev 2 08/2015
6
4. Place the Side panel (01) on a flat piece of plywood
or particle board. Use a sharp industrial knife and a T-
square to score along the marked wide ends of the
Side panel and continue scoring until you have fully
cut through the panel.
See Fig. 5 and Fig. 6 for details.
Fig. 5
Fig. 6
1
2
D1
D2
Q-Wall 4 manual Ver 1 Rev 2 08/2015
7

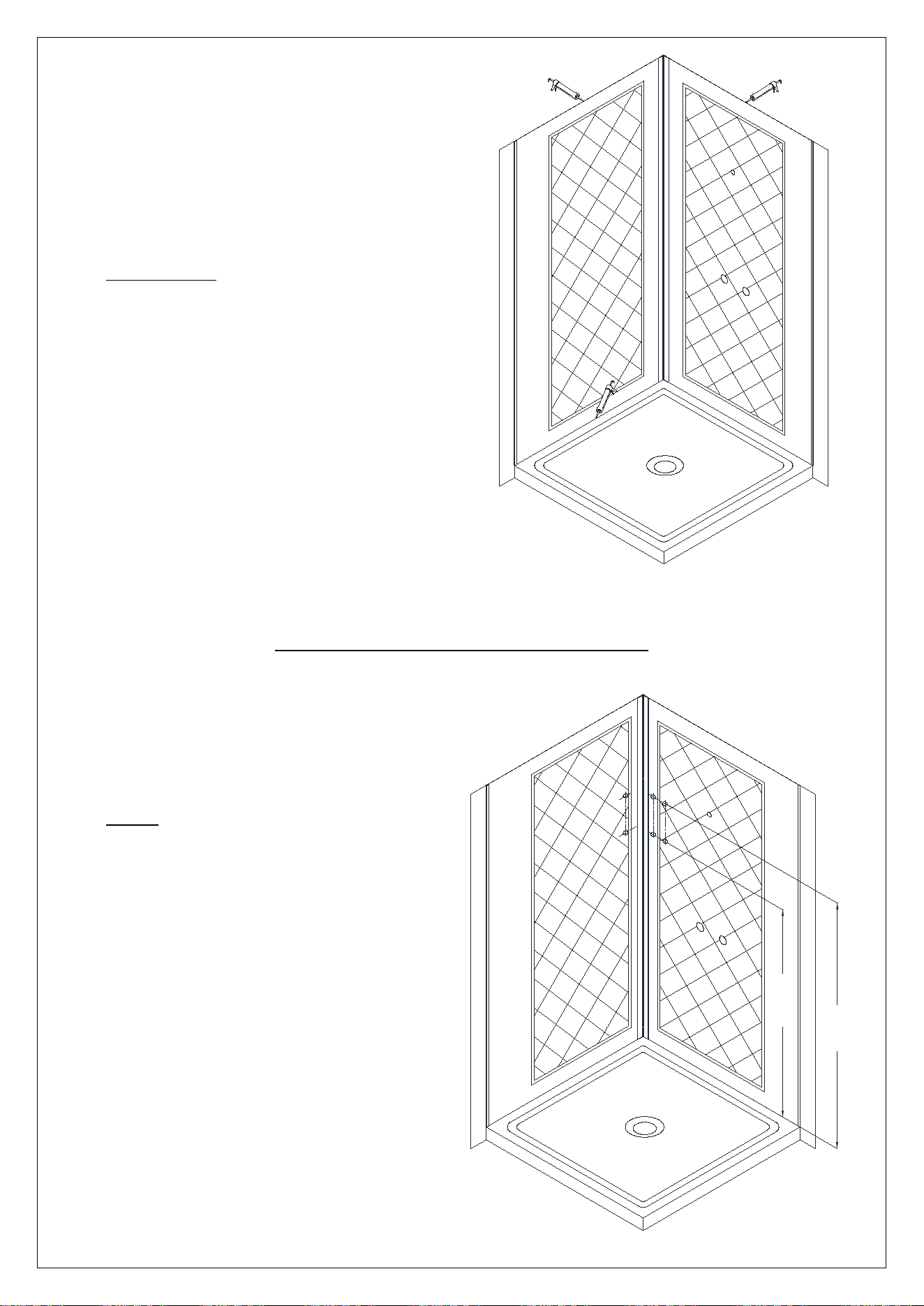

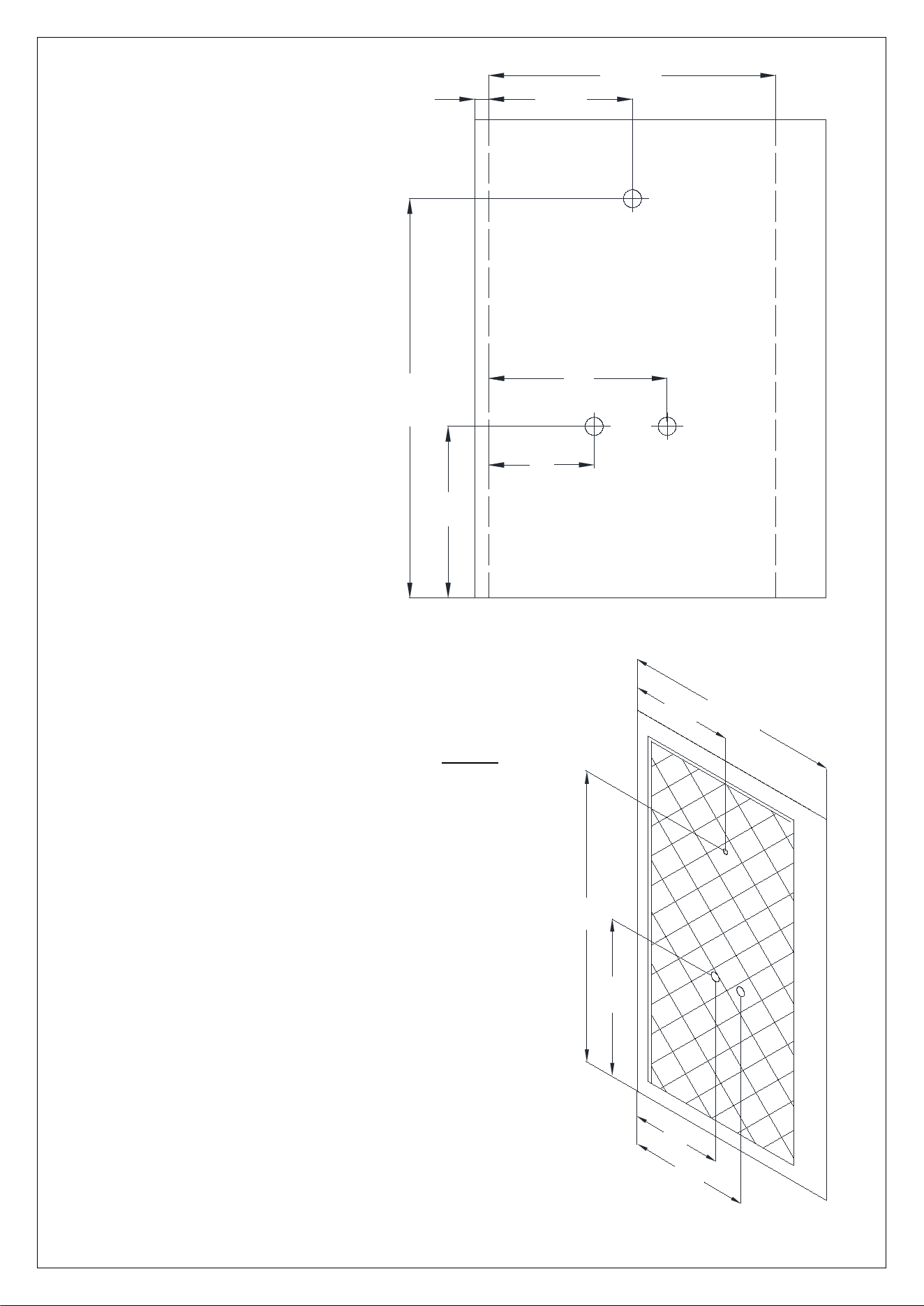

5. Take exact measurements of
the fixture on the wall:
• from the 1” (one inch) line
in the corner of the shower
to the fixture:
(A, B, C)
• from the bottom of the wall
of the shower to the fixture:
(E, F).
See Fig. 7 for details.
Fig. 7
6. Determine which Side panel (01) will be installed on
the side wall with the fixture.
Mark the fixture location on the Side panel
according to the measurements taken in Step. 5.
See Fig. 8 for details.
Fig. 8
D2
A
F
E
1"
B
C
D2
F
E
A
B
C
Q-Wall 4 manual Ver 1 Rev 2 08/2015
8

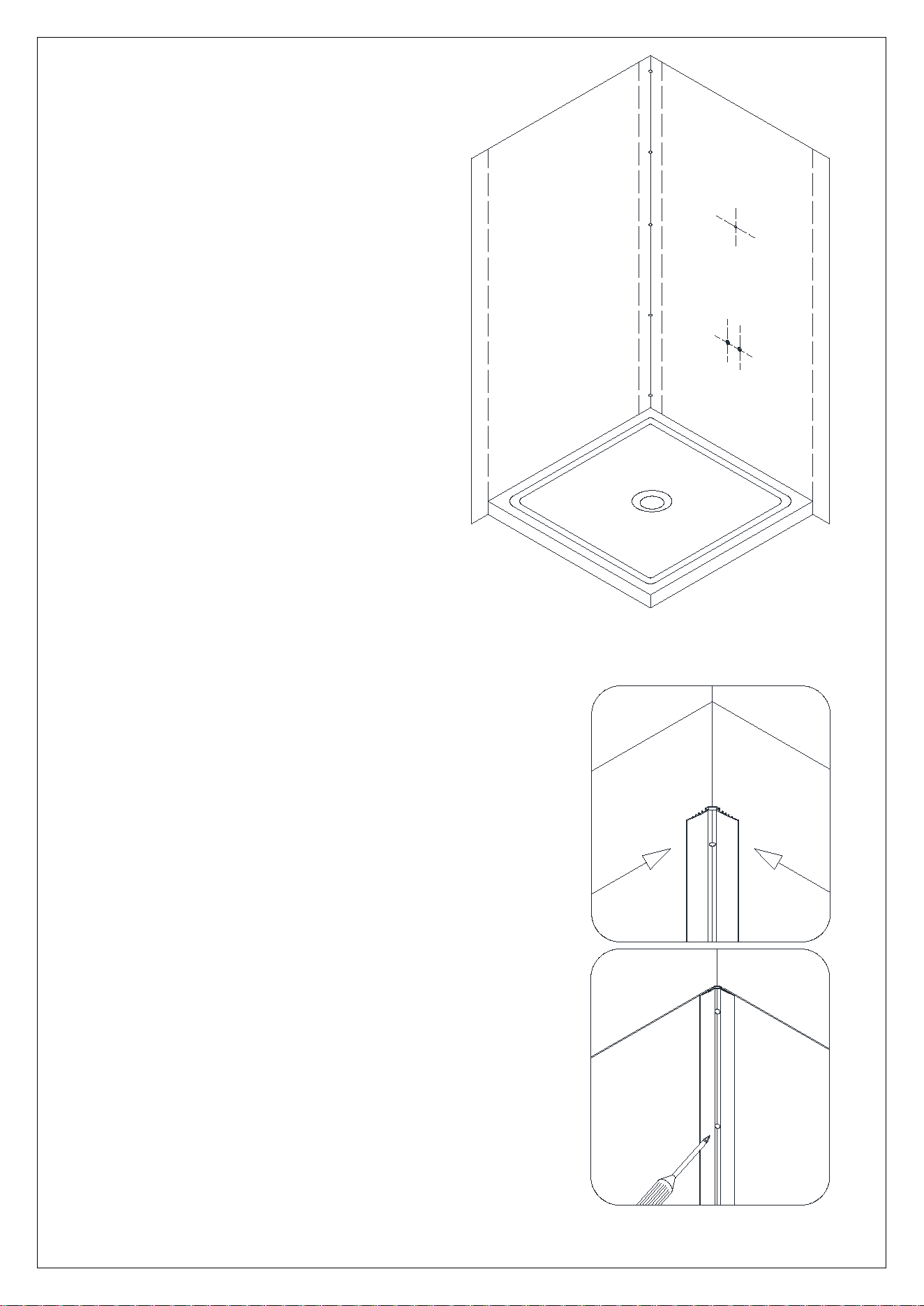

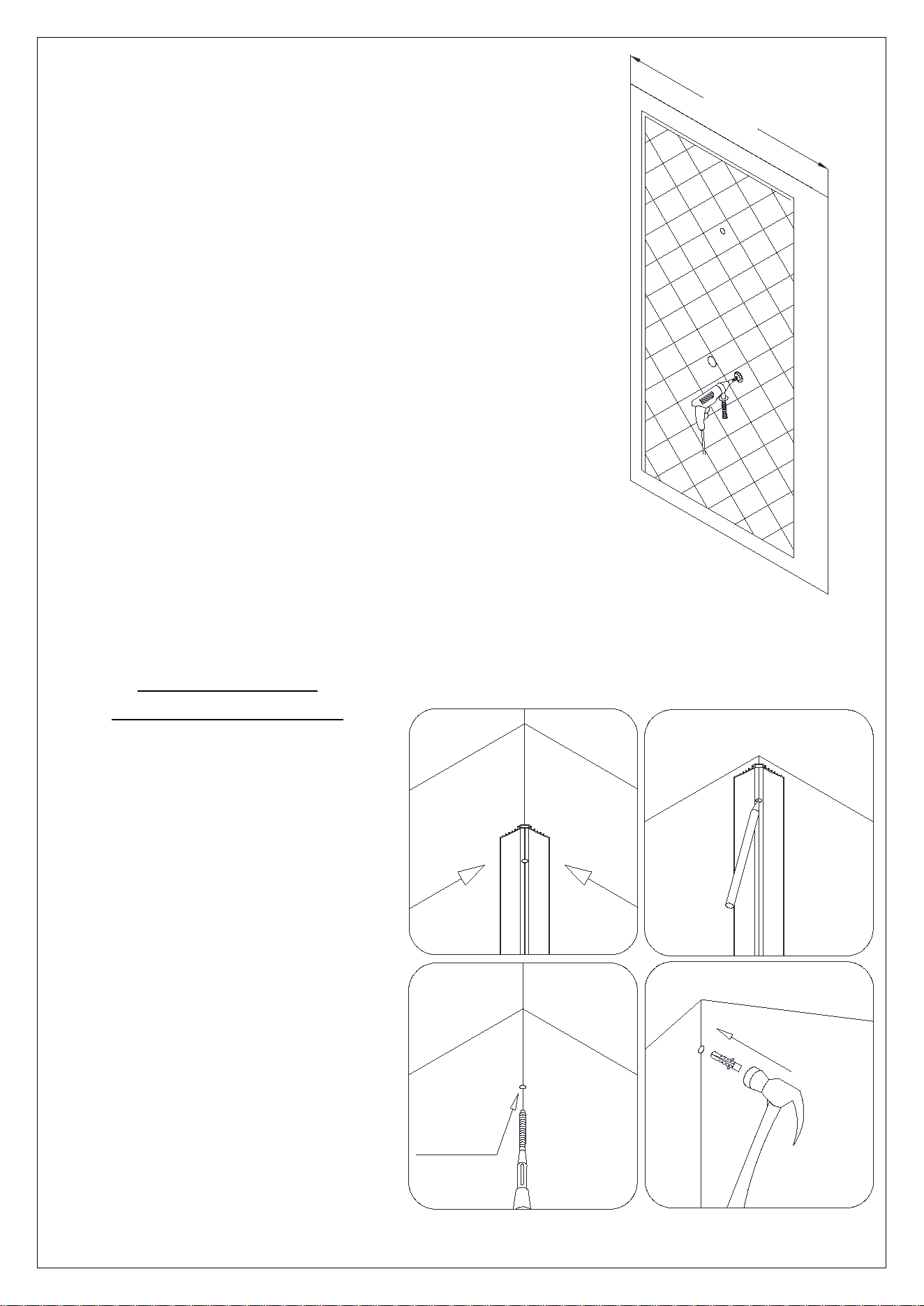

7. Drill the holes for the fixtures in the Side panel (01) using
the proper diameter saw bit or a handheld jig saw.
See Fig. 9 for details.
Fig. 9
Acrylic Side Panel
Installation Instruction
8. Attach the Corner cover (02) to
the corner of the shower and
mark the drilling holes through
the predrilled holes in the
Corner cover.
Move aside the Corner cover,
Drill the holes using Ø5/16” drill
bit and insert the Wall Anchors
(06).
See Fig. 10 and Fig. 11 for details.
Fig. 10
1
2
3 4
Ø5/16"
D2
Q-Wall 4 manual Ver 1 Rev 2 08/2015
9
Fig. 11
9. Mount the Corner cover (02) to the corner of the
shower using the Countersunk screws ST4.2×40 (07).
Do not fully tighten the screws at this time; leave them
loose for further installation.
See Fig. 12 and Fig. 13 for details
Fig. 12
1
2
Q-Wall 4 manual Ver 1 Rev 2 08/2015
10
Fig. 13

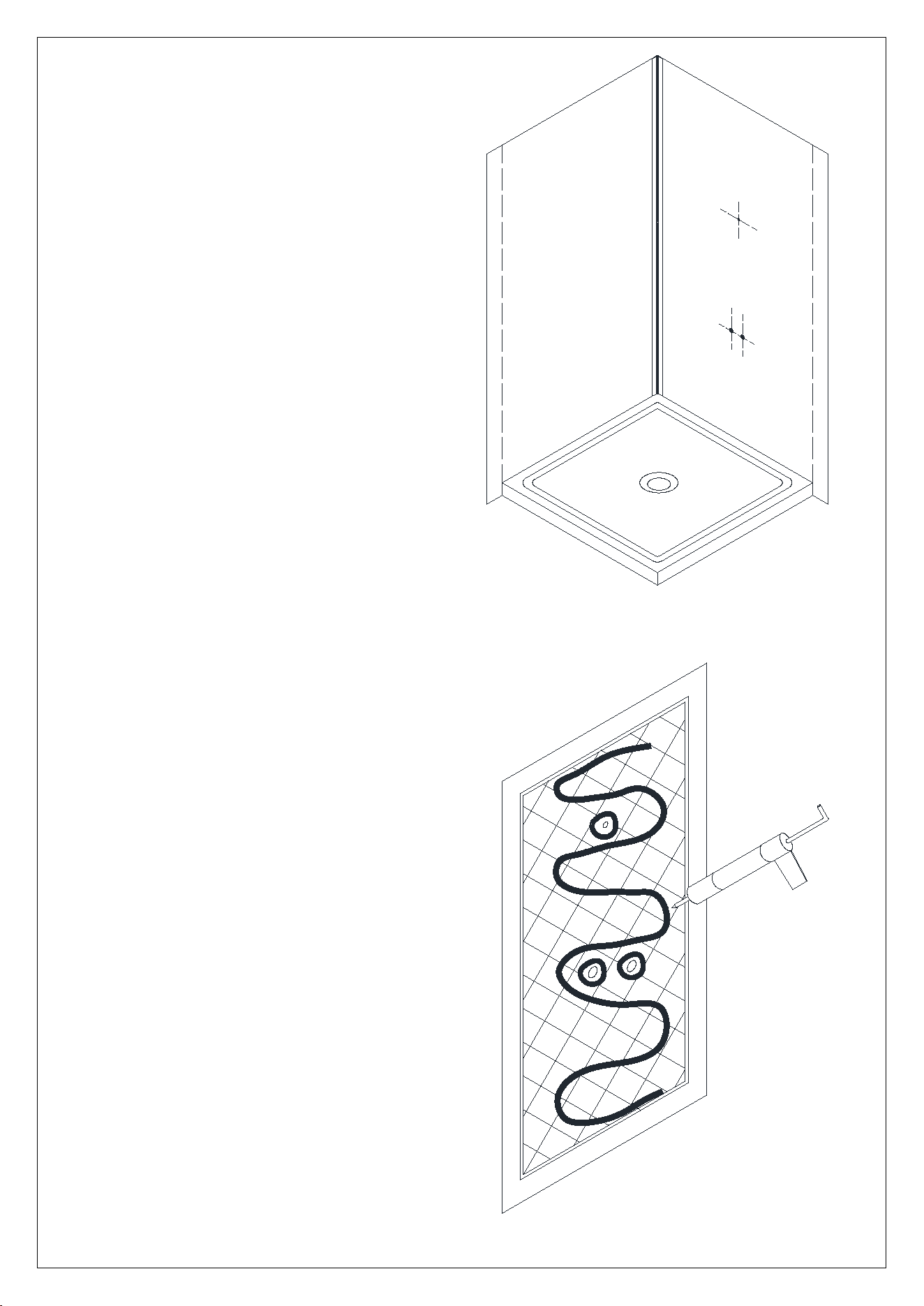

10. Apply the sealant to the entire surface of the
reverse side of the Side panel (01).
Also, apply the sealant around the drilled
holes.
See Fig. 14 for details.
Fig. 14
Q-Wall 4 manual Ver 1 Rev 2 08/2015
11

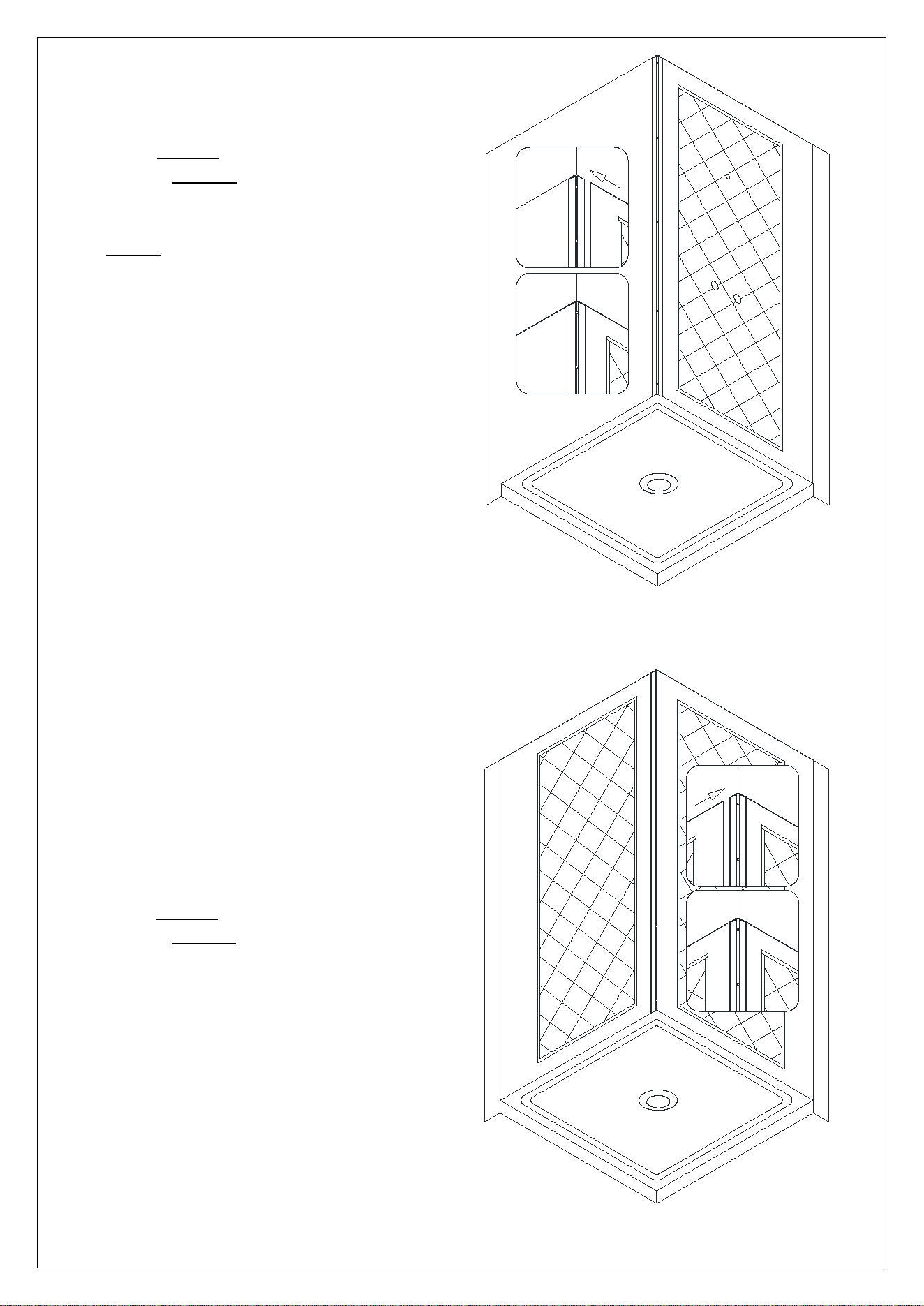

11. Slide the narrow edge of the Side panel
(01) behind the Corner cover (02).
Align trimmed edge of the Side panel
(from Step. 4) with the marked line on the
wall (in Step. 2) and push the Side panel
against the wall.
NOTE:
Make sure the drilled holes on the Side
panel are also aligned with the fixtures on
the wall.
See Fig. 15 for details.
12. Apply sealant to the entire surface of the
reverse side of the other Side panel (01).
See Fig. 14 for details.
13. Slide the narrow edge of the Side panel
(01) behind the Corner cover (02).
Align trimmed edge of the Side panel
(from Step. 4) with the marked line on the
wall (in Step. 2) and push the Side panel
against the wall.
Align the top of both Side panels and the
Back panel before the sealant sets. Apply
equal pressure to the whole surface of the
Acrylic panels from top to bottom.
See Fig. 16 for details.
Fig. 16
1
2
1
2
Fig
. 15
Q-Wall 4 manual Ver 1 Rev 2 08/2015
12

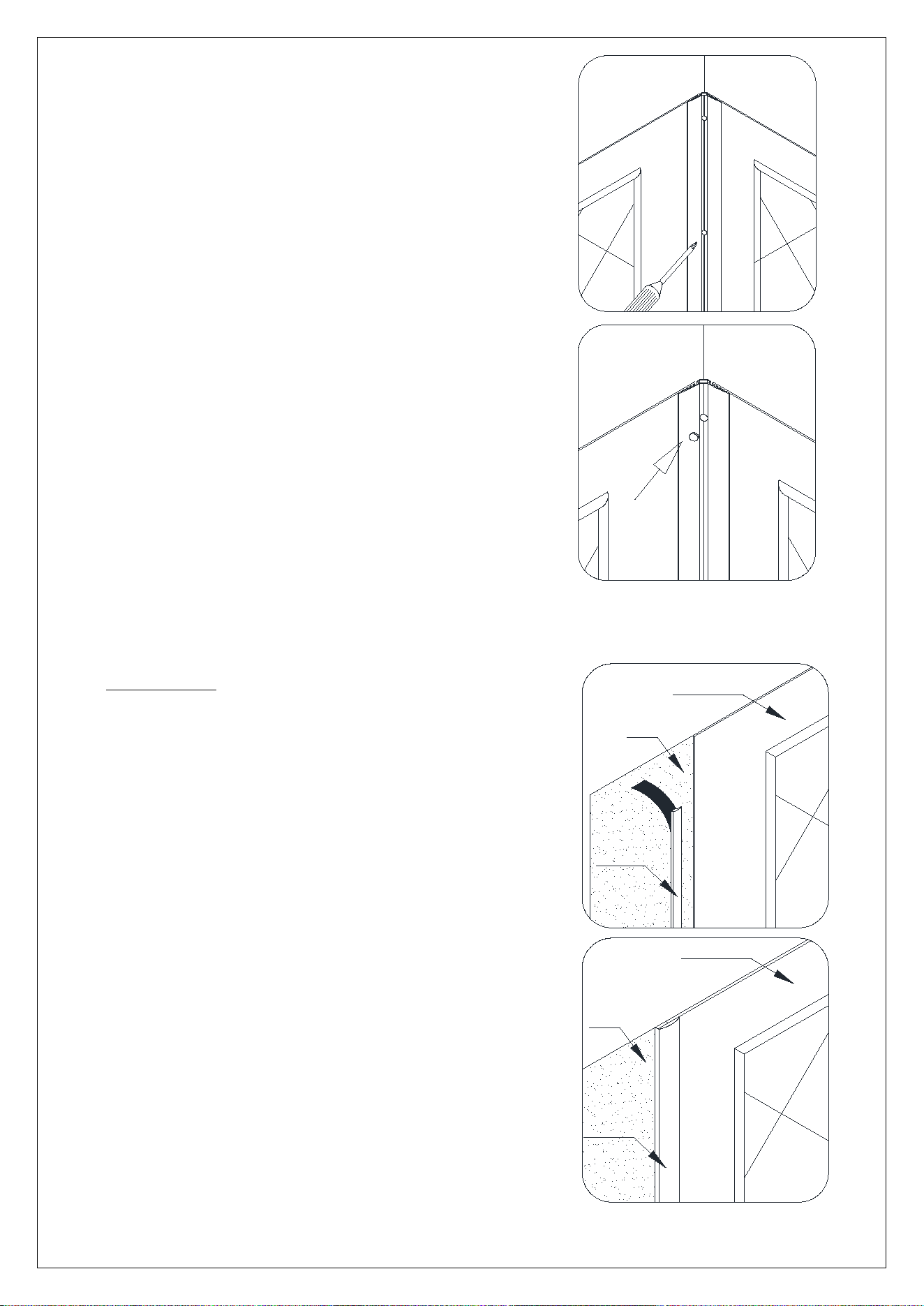

14. Once Side panels (01) aligned, fasten tight the
Corner cover (02) to secure the Side panels.
Cover the screw holes with the Decorative cover
(08).
See Fig. 17 for details.
Fig. 17
ATTENTION;
Prior to the next step, please be sure the part of
the wall for installation of the Decorative edge
molding (03) is clean, dry and free from soap, oil
and any construction debris.
15. Gently remove the plastic tape from the adhesive side
of the Decorative edge molding (03) and firmly
press it to the edge of the Side panel (02) from top
to bottom.
See Fig. 18 for details.
Fig. 18
1
2
1
2
Side Panel
Wall
Molding
Decorative
Side Panel
Wall
Molding
Decorative
Q-Wall 4 manual Ver 1 Rev 2 08/2015
13
16. Apply caulk along the top edge of the Side
panels (01) and along the connection of
the bottom edges of the Side panels with
the Shower base.
See Fig. 19 for details.
ATTENTION:
Installation of “QWALL-4” Acrylic shower
wall is complete.
If you want to install Glass shelves (05) to
your Shower, follow to the next step.
Fig. 19
Glass Shelves Installation Instruction
17. Determine the desired height for the
Glass shelves (05) and mark the
locations on the wall.
NOTE:
The Glass shelves can be installed either
two in one corner, or one in each.
See Fig. 20 for details.
Fig. 20
G
H
Fig. 20
Q-Wall 4 manual Ver 1 Rev 2 08/2015
14

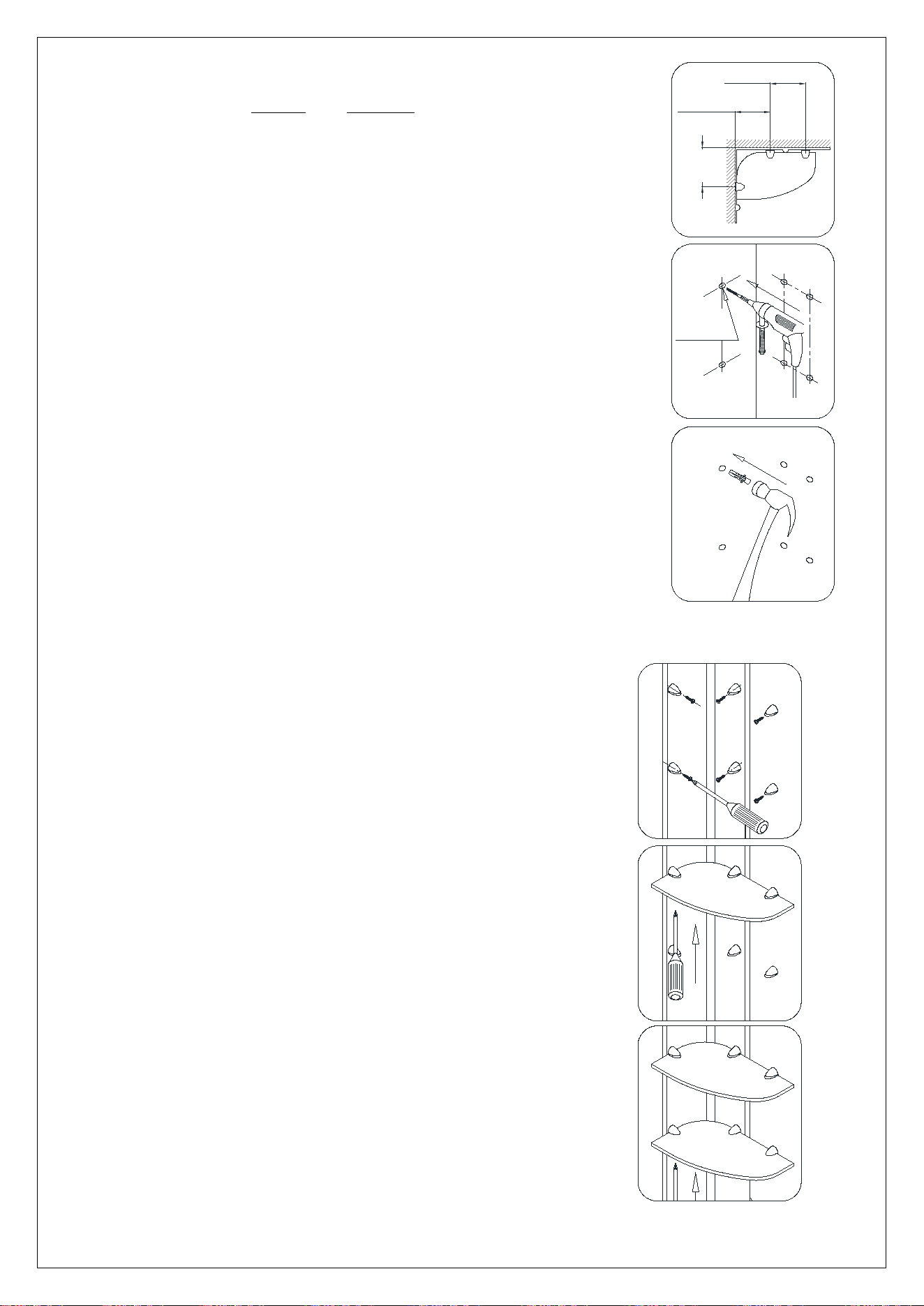

18. Mark the location for the Shelf brackets (04) according to the
measurements in Fig. 20 and Fig. 21.1.
Drill the holes using Ø5/16” drill bit and insert the Wall anchors
(06).
See Fig. 21 for details.
19. Mount the Shelf brackets (04) to the wall using the
Countersunk screws ST4.2×40 (07).
NOTE: the padded set screw of the Glass bracket should be
facing down.
Slide the upper Glass shelf (05) into the upper Shelf
brackets and tighten the set screws at the bottom of the
brackets. Then slide the bottom Glass shelf in place. Tighten
the set screws on the bottom Shelf brackets as well.
See Fig. 22 and Fig. 23 for details.
Fig. 22
1
2
3
3 1/2"
3 1/2"
3 1/2"
Ø 5/16"
1
2
3
Fig
. 21
Q-Wall 4 manual Ver 1 Rev 2 08/2015
15
Fig. 23
Product maintenance
To ensure long lasting life for your acrylic back walls, wipe them off after each use with a soft
cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never
use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.
Acrylic cleaning procedure:
Acrylic should be cleaned with warm water and a clean, non-abrasive cloth. If desired, a
mild, non-abrasive detergent may also be used. Use only light pressure when cleaning.
Avoid rubbing dirt or grit into the surface. Turn the cloth often and replace with a clean
cloth frequently. Dry by blotting gently with a clean, dry cloth.
DO NOT USE:
Window cleaning sprays, alcohol, kitchen abrasive compounds, or solvents (such as acetone,
gasoline, or thinners). Do not use ammonia based cleaning solutions on the acrylic as it will
damage the surface.
How do you get scratches out of Acrylic?
For light scratches, use a buffing compound such as a car wax. Use a buffer or lightly polish
the surface by hand until scratches disappear.
PRIME
SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior
notice. For the latest up-to-date technical drawings, manuals or any other details please refer
to your model’s web page on DreamLine.com
Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8:00 AM –
7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support
group at [email protected].
For more information about DreamLine
®
products please visit www.DreamLine.com
Model #s
SHEN-7031310
SHEN-7031310-FR
SHEN-7034340
SHEN-7034340-FR
SHEN-7036360
SHEN-7036360-FR
01= Chrome
FR= Frosted Glass
“PRIME” Enclosure Ver.1 Rev.3 12/2015
2

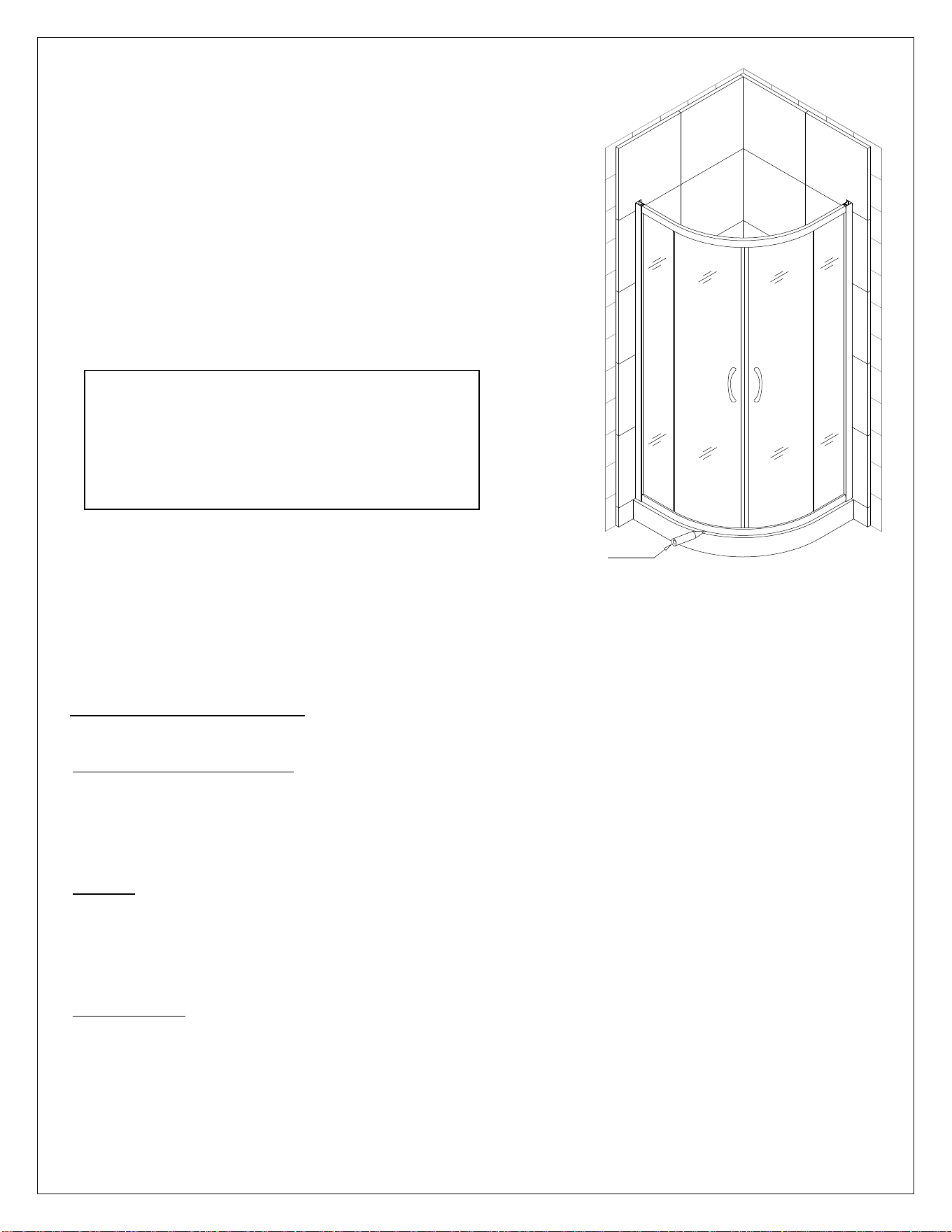

Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece
count with your packing slip. After opening all boxes and packages read this introduction carefully.
Check that all of the needed parts are included in the package by checking off the components on
the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a
finishing defect, or has missing parts, please contact our customer support department within
3 business days of the delivery date. Please note that DreamLine
®
will not replace any
damaged products or missing parts free of charge after 3 business days or if the product has
been installed. Feel free to contact DreamLine
®
if you have any questions, and please provide an
order number, job name or other proof of purchase to help us identify your original order.
2. Please note that you should consult your local building codes with questions about
installation compliance standards. Building and plumbing codes may vary by location, and
DreamLine
®
is not responsible for code compliance standards for your project and will not
accept any returns.
3. If this unit is going to be installed in a new construction, please install all of the required plumbing
and drainage before installing the shower. Use a competent and licensed (if required by local
code) plumber for all plumbing installation.

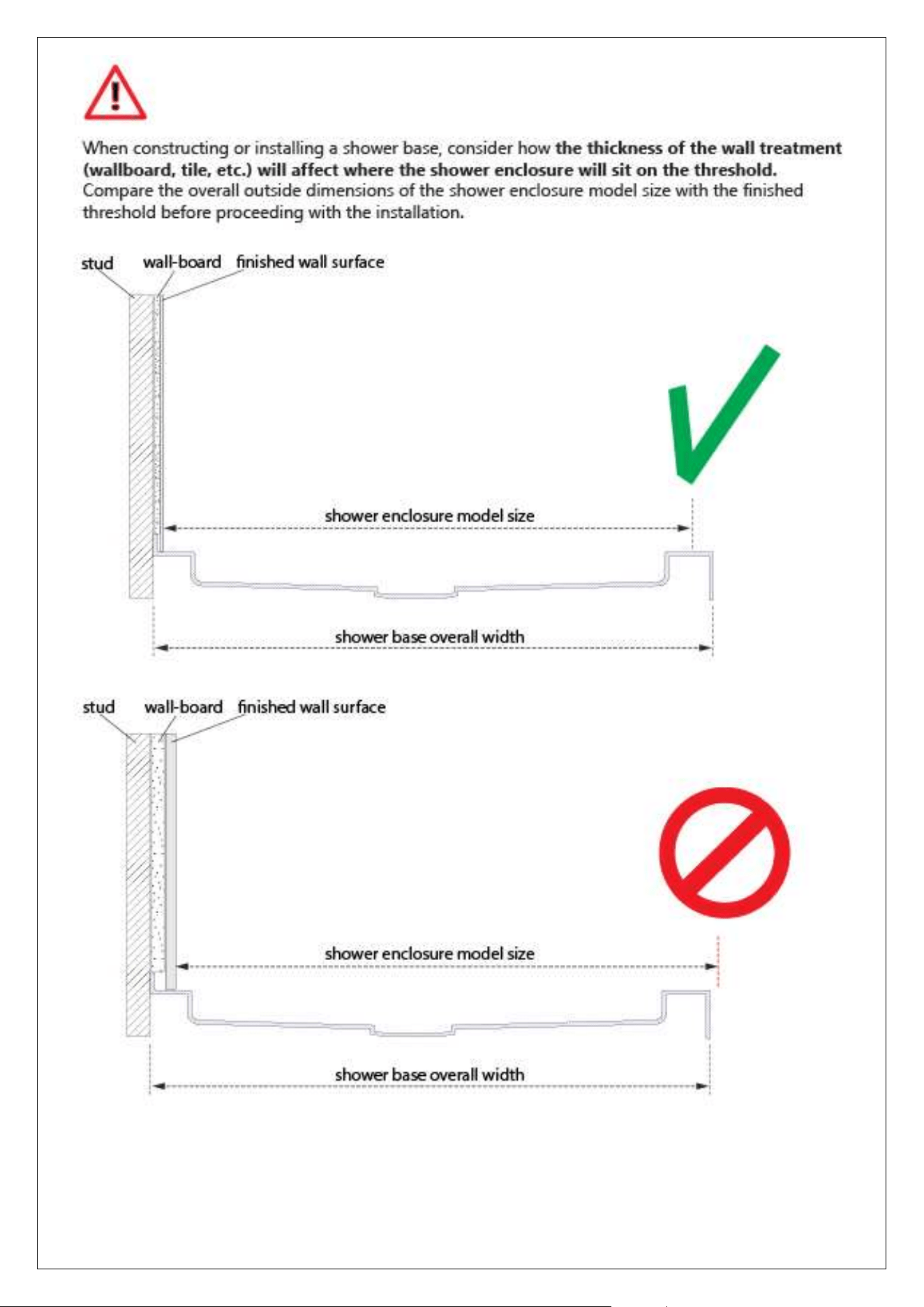

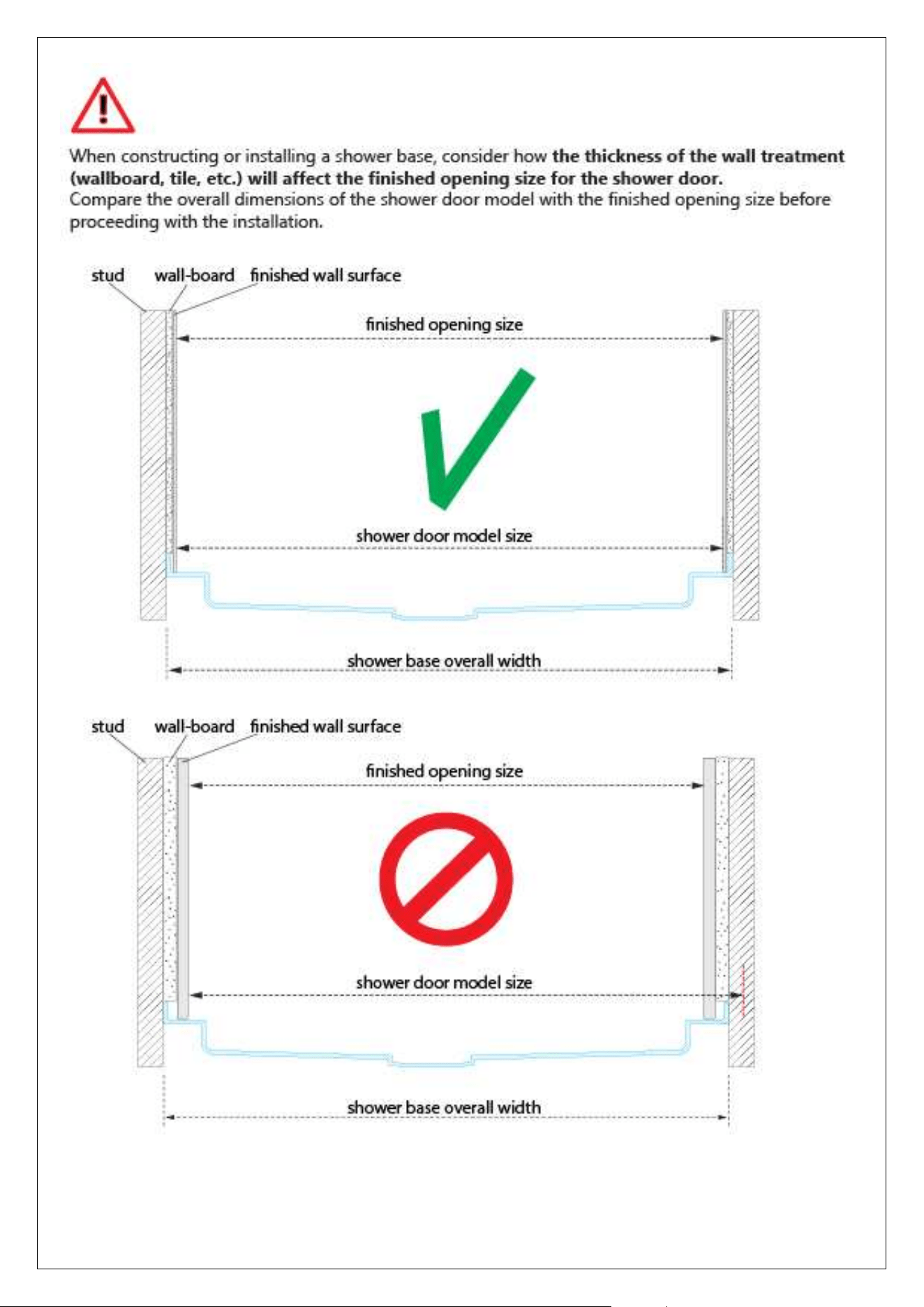

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will
be able to support the total weight of the unit. Also make sure the walls are at right angles.
Irregular installation surface level, radius corners or improper angle of side walls will result in
serious problems for your installation. Please, note that some adjustments and drilling may be
necessary during the installation process.
5. Please protect all primary surfaces of the product during installation. Never set your glass down
directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always
use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to
and during installation.
6. This unit must be installed upon a finished threshold and against finished walls.
7. This model has 1” of adjustment for out-of-plumb wall conditions within the wall profiles.
NOTE: DO NOT install the handles
onto the door glass until instructed to do so. DO NOT lift the
glass using the handles.
This could result in damage to the glass and /or serious personal injury.
NOTE: For models with Frosted glass, install the textured surface towards the inside of the shower
“PRIME” Enclosure Ver.1 Rev.3 12/2015
3
Tools Required
Caulk
Tape
Measure Pencil
Screwdriver
Phillips
(Ø=5/16")
Drill bit
Level
Gun
Caulk
Drill
Electric
Hammer
(Ø=1/8")
Drill bit
Knife
“PRIME” Enclosure Ver.1 Rev.3 12/2015
4

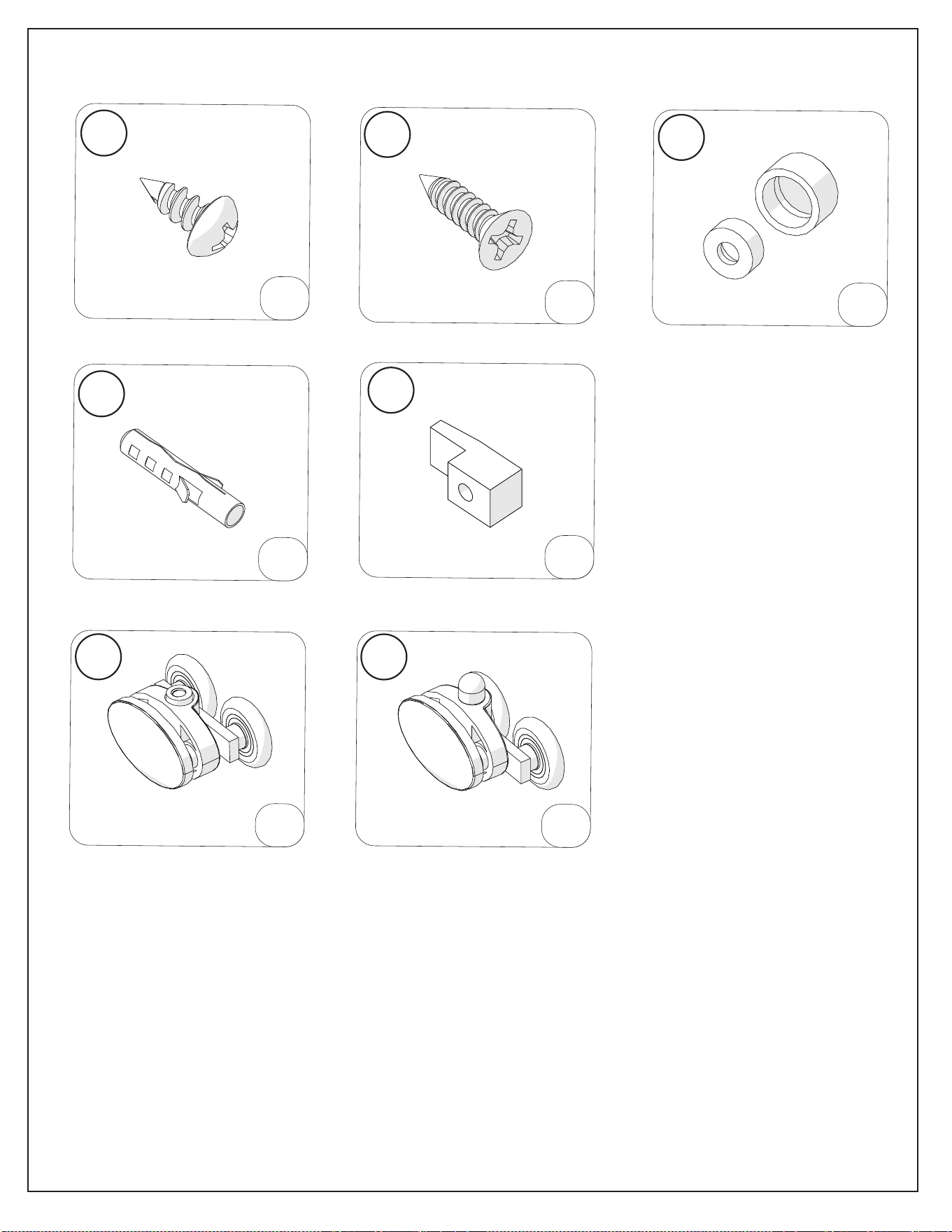

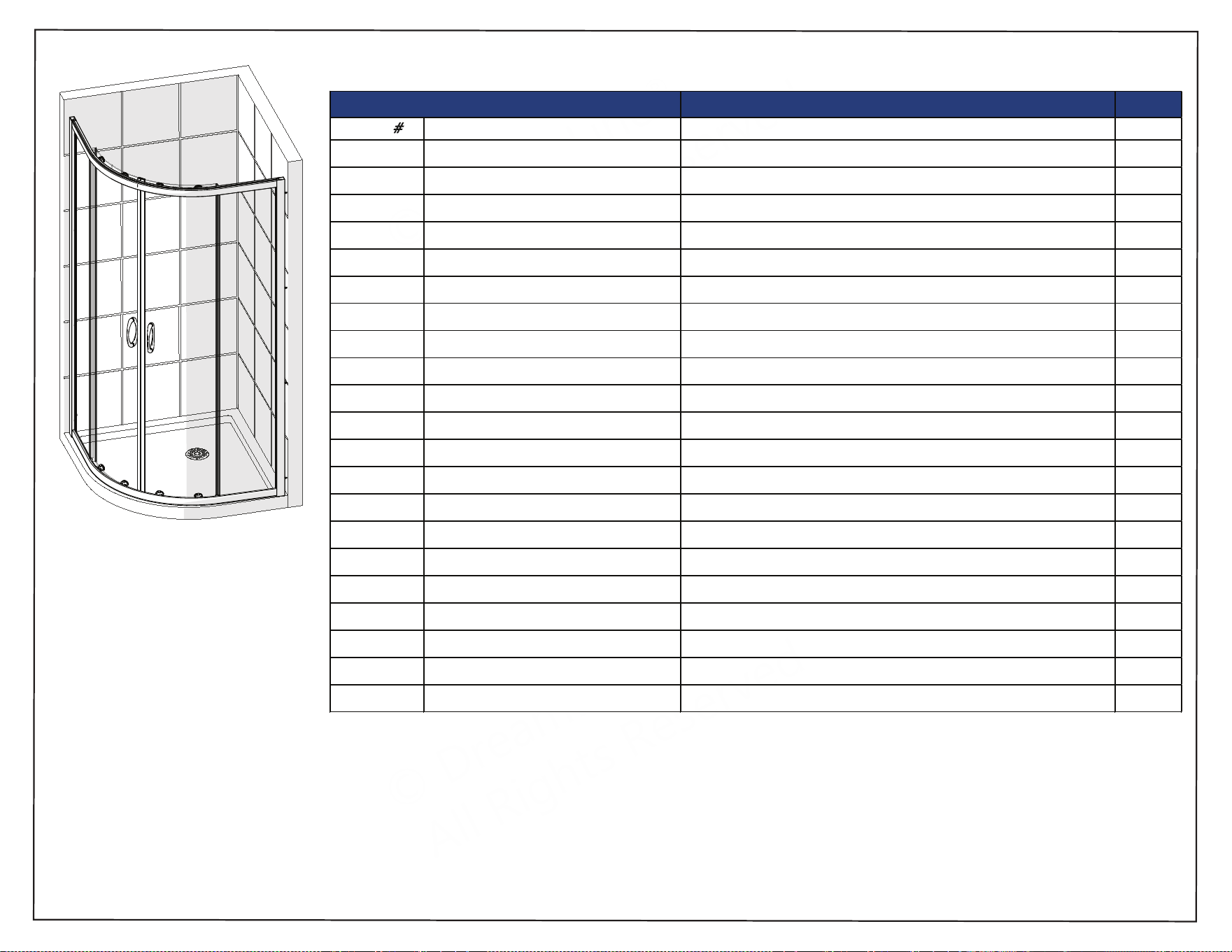

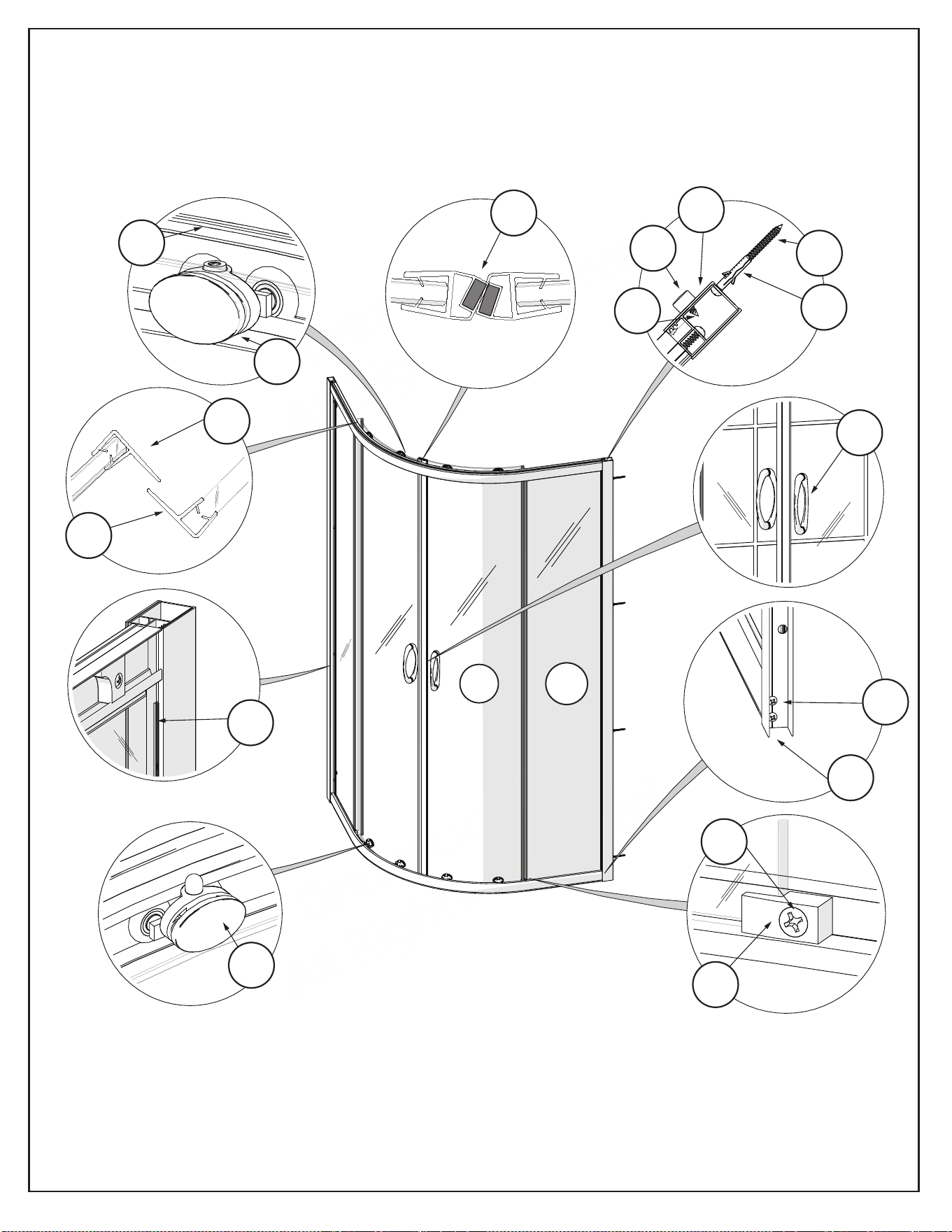

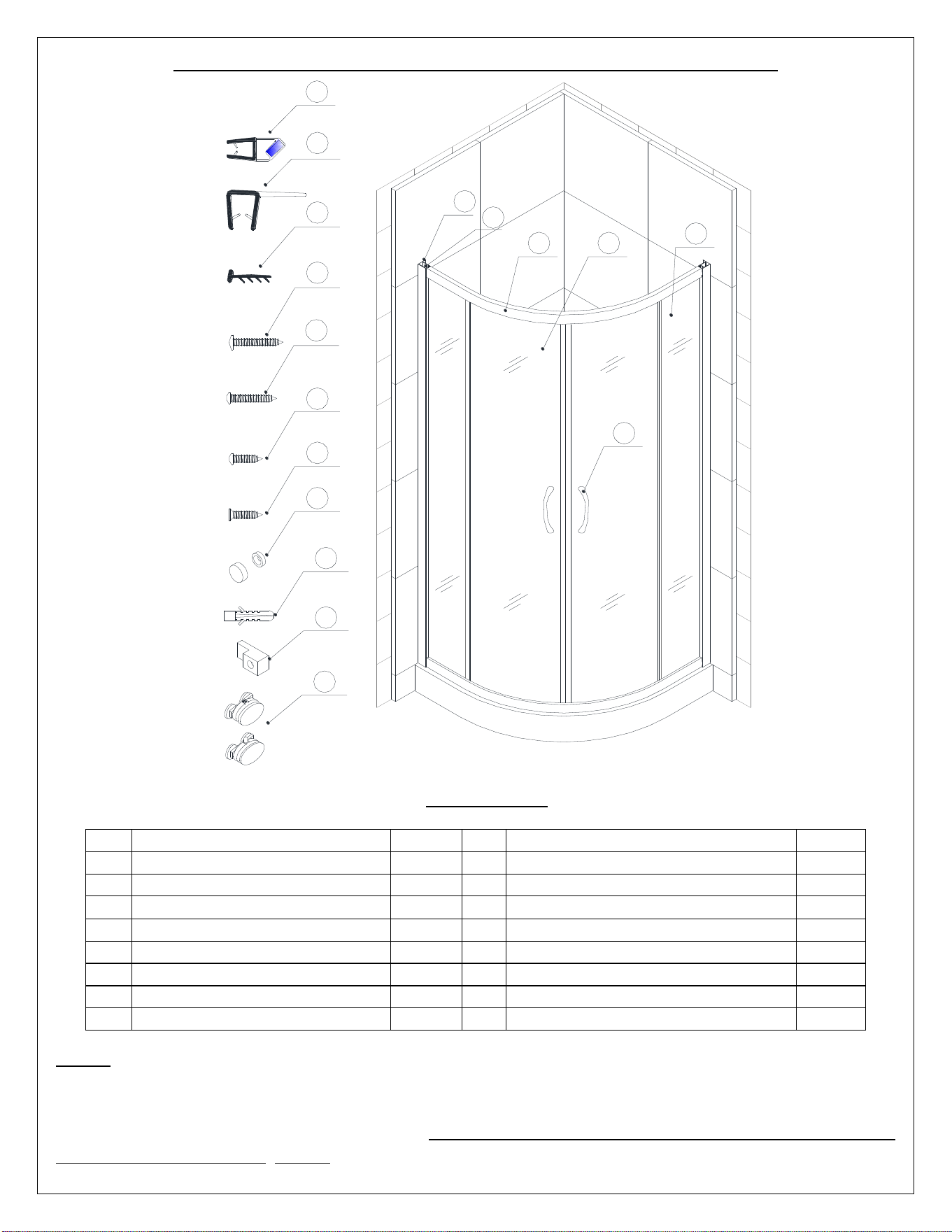

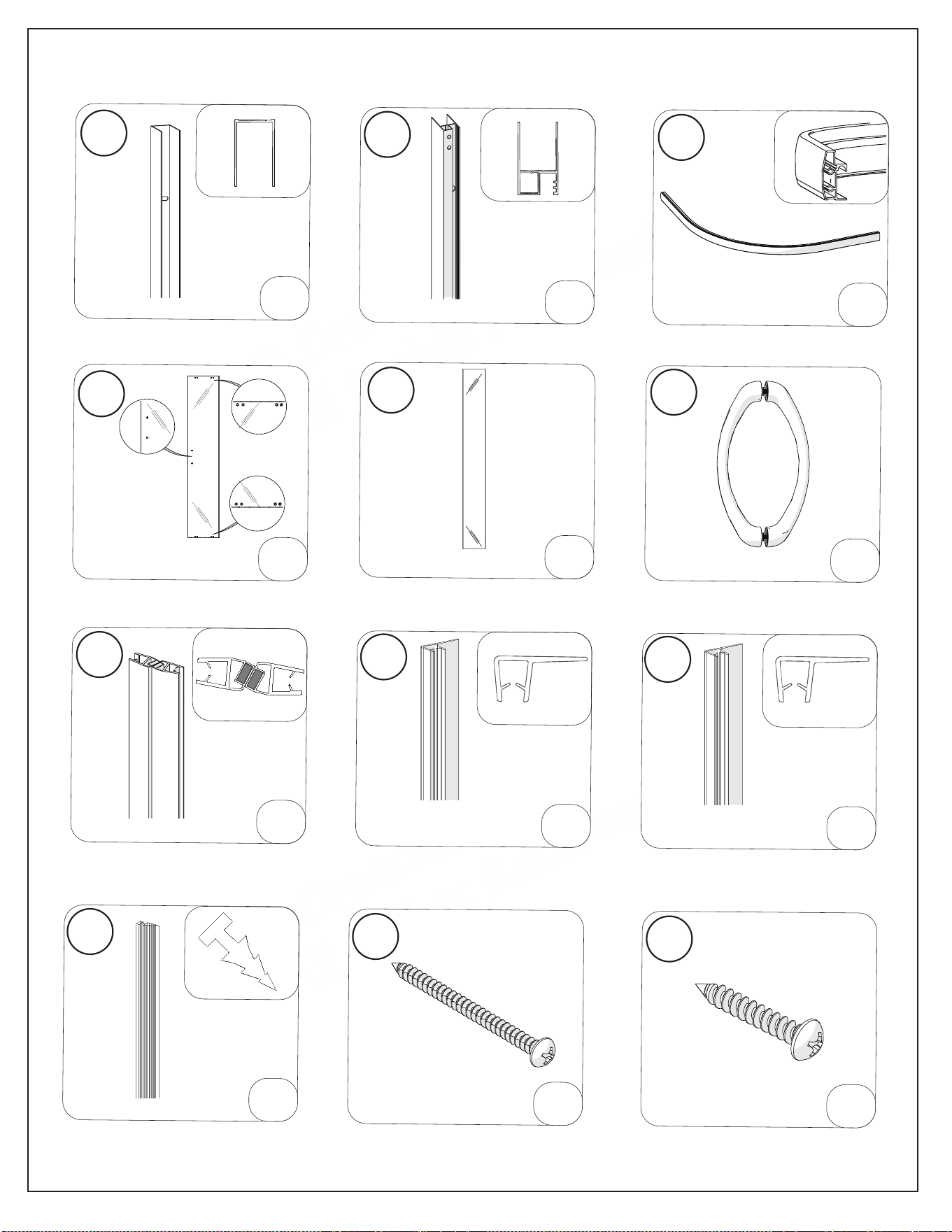

Detailed Diagram of Shower Enclosure Components
7
8
9
10
12
13
14
15
11
16
1
2
3 4
5
6
17

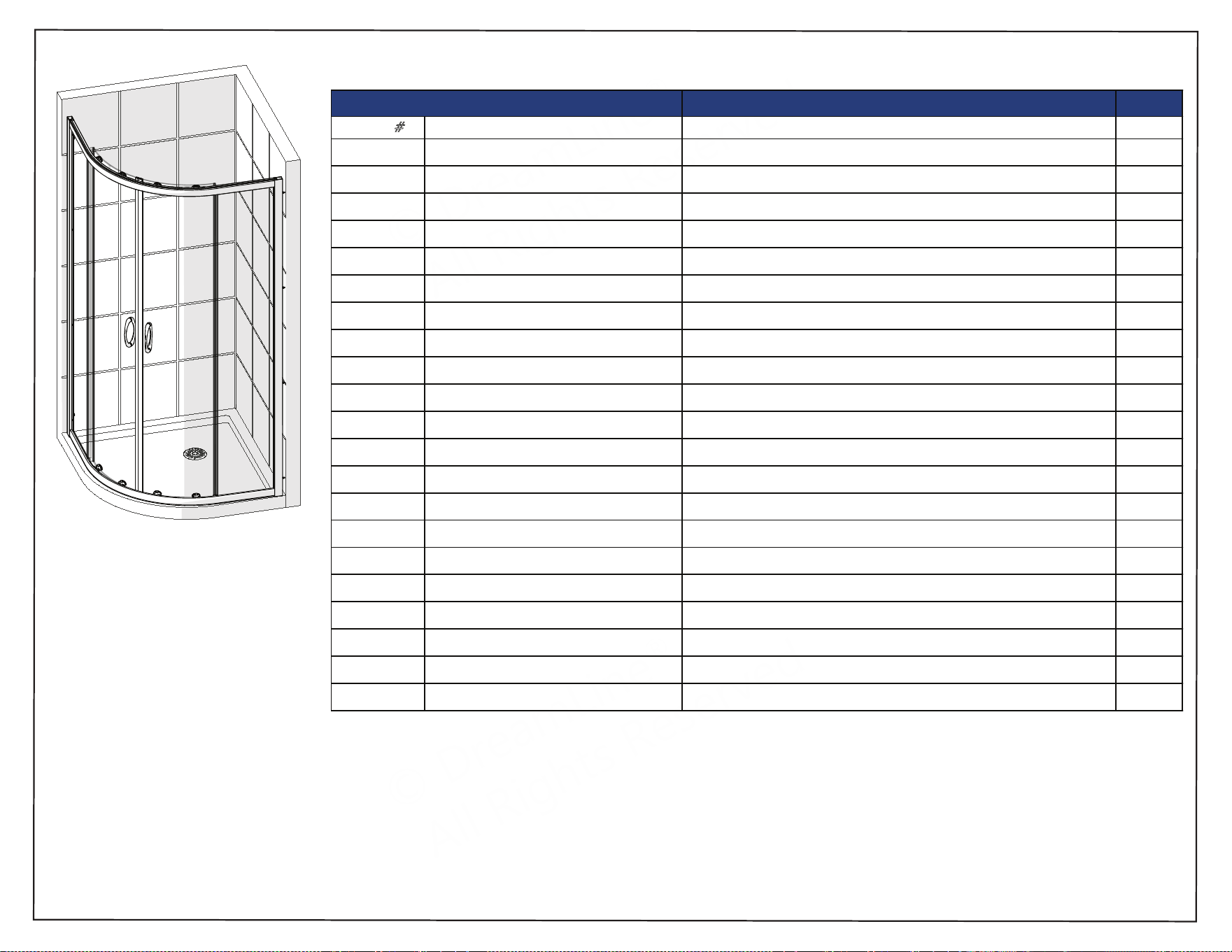

Packing List
01
Wall profile
2pcs
10
Truss head screw ST4.2×40
8pcs
02
Glass profile
2pcs
11
Round head screw ST4.2x25
8pcs
03
Guide rail
2pcs
12
Round head screw ST4.2x10
4pcs
04
Glass door
2pcs
13
Flat head screw ST4.2x16
4pcs
05
Stationary glass
2pcs
14
Decorative cover with washer
4pcs
06
Handle
2pairs
15
Wall anchor
8pcs
07
Magnetic strip
1pair
16
Glass holder
4pcs
08
Anti-water strip (2 long, 2 short)
4pcs
17
Wheel assembly (top & bottom)
4pairs
09
Single side strip
2pcs
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed
diagram and packing list in this manual as a reference. Before discarding the carton, check for small
hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,
please contact DreamLine
®
for replacement. The shipping boxes may contain extra parts not used in
your model configuration. NOTE: Retain these installation instructions for future reference.
“PRIME” Enclosure Ver.1 Rev.3 12/2015
5
Shower Enclosure Installation

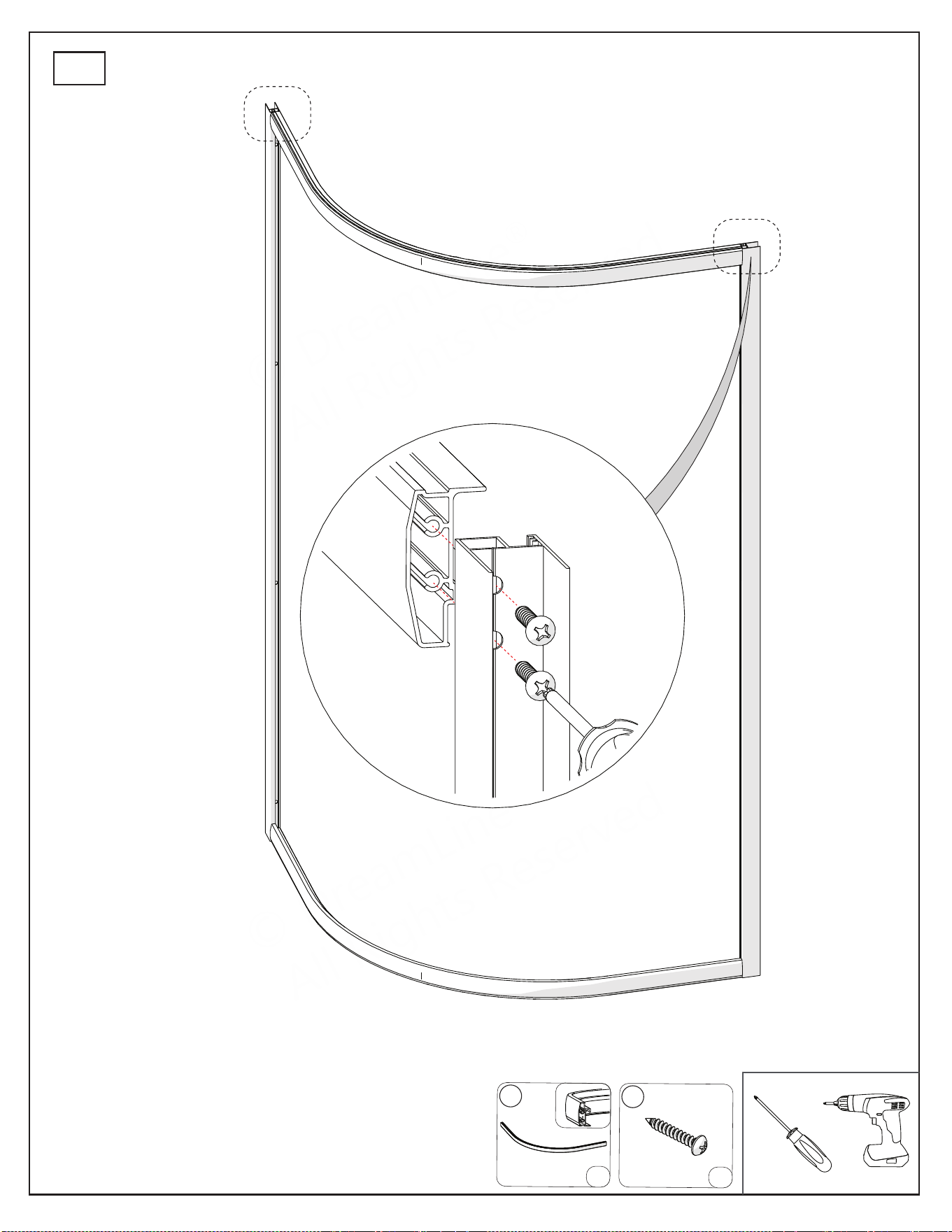

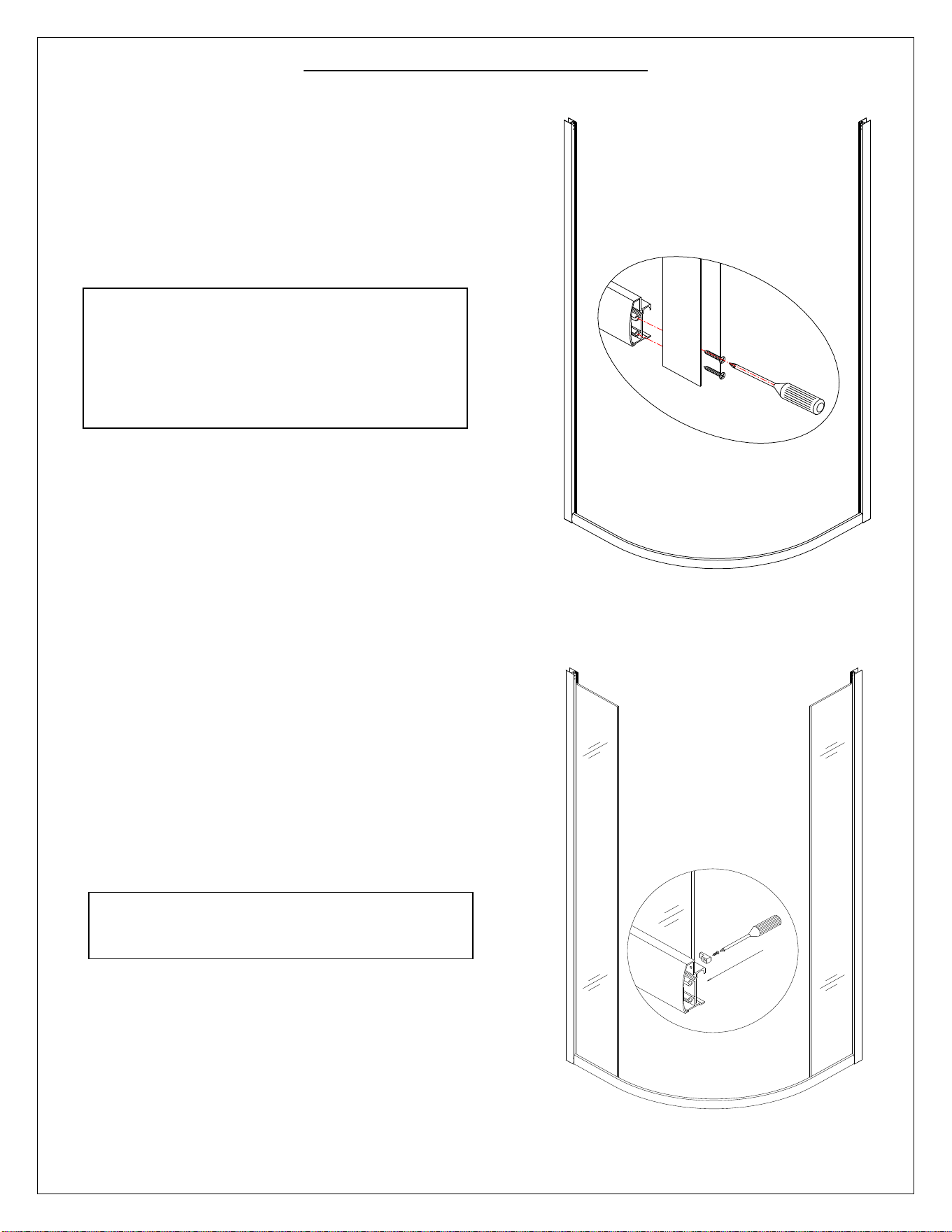

1. Fasten the bottom Guide rail (03) to the Glass
profiles (02) with the Round head screws ST4.2x25
(11).
See Fig. 1 for details.
Fig. 1
2. Slide each Stationary glass (05) fully into the groove
of the Glass profiles (02), and then secure it by
attaching the Glass holders (16) to the bottom Guide
rail (03) using the Flat Head ST4.2 x 16 screws (13).
See Fig. 2 for details.
Fig. 2
TIP: Apply a small amount of wax or liquid
soap to the screws to make installation
easier and to prevent stripping the screws
while screwing the Glass profiles (02) to the
Guide rails (03).
TIP: Apply a thin bead of silicone to the
bottom rail when setting the glass in place.
“PRIME” Enclosure Ver.1 Rev.3 12/2015
6

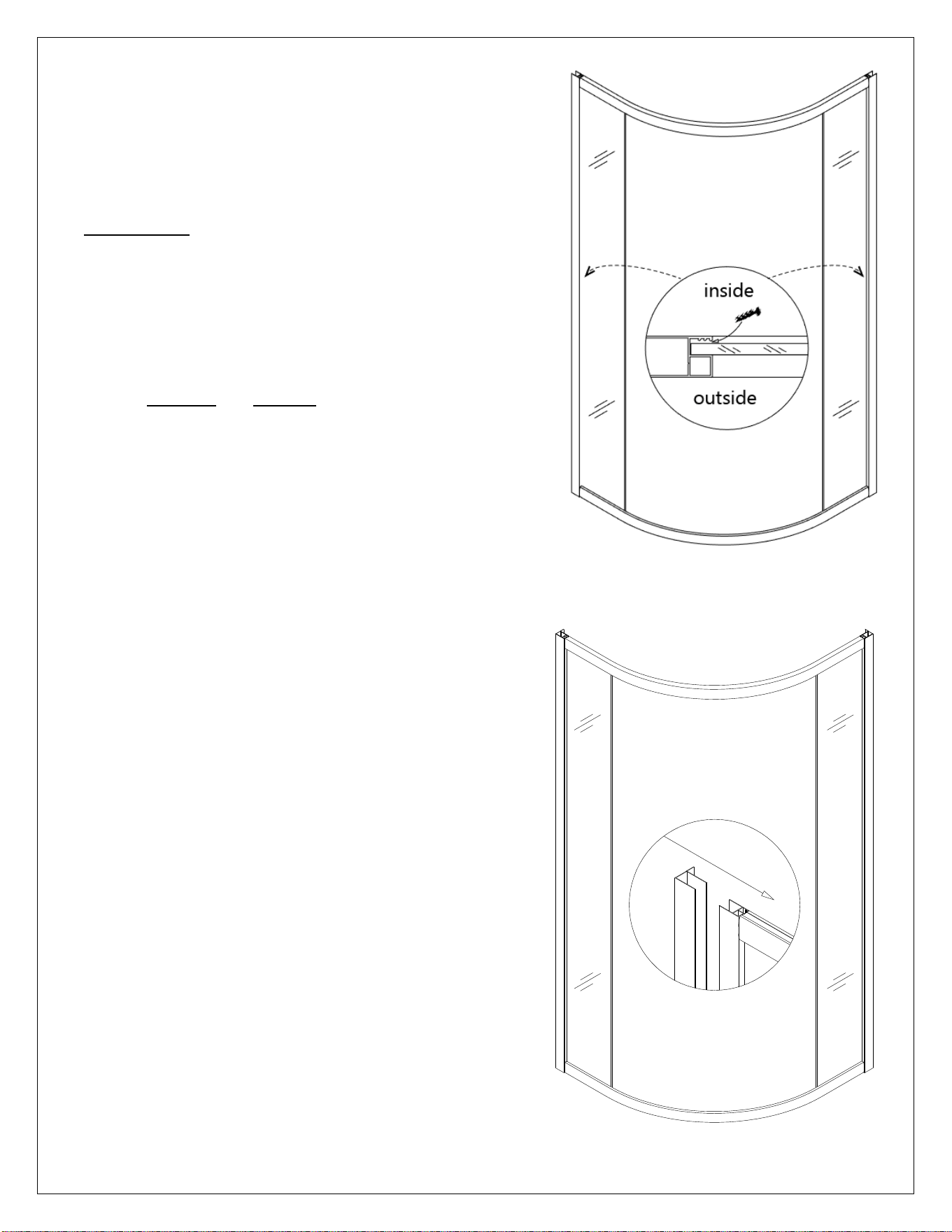

3. Insert the Single side strips (09) in-between the
Stationary glass (05) and the Glass profiles (02)
using a wooden shim or plastic blade. The strips
should be inserted from the side that will face inside
the shower.
ATTENTION:
Do not use a screwdriver or other metal objects to
push in the strips to prevent scratching or
damaging the glass and aluminum.
See Fig. 3 for details.
4. Repeat Step #1 and Step #2 to fasten the upper Guide
rail (03) to the Glass profiles and secure the
Stationary glass with the Glass holders (16).
See Fig. 1 and Fig. 2 for details.
5. Slide the Wall profiles (01) all the way over the
Glass profiles (02) on both sides. Make sure the
flanges of the Wall profiles (01) face inside the
shower.
See Fig. 4 for details.
Fig. 3
inside
Fig. 4
“PRIME” Enclosure Ver.1 Rev.3 12/2015
7

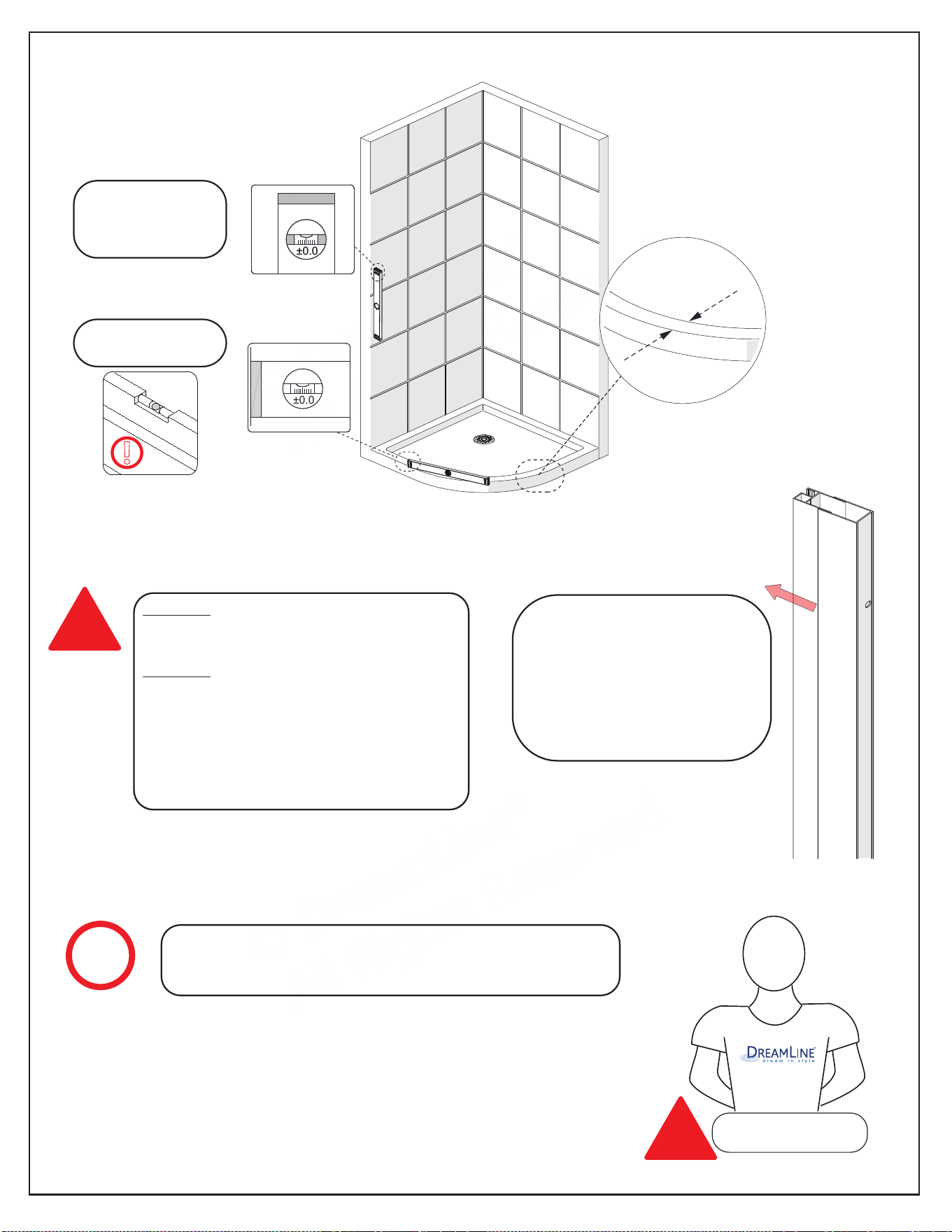

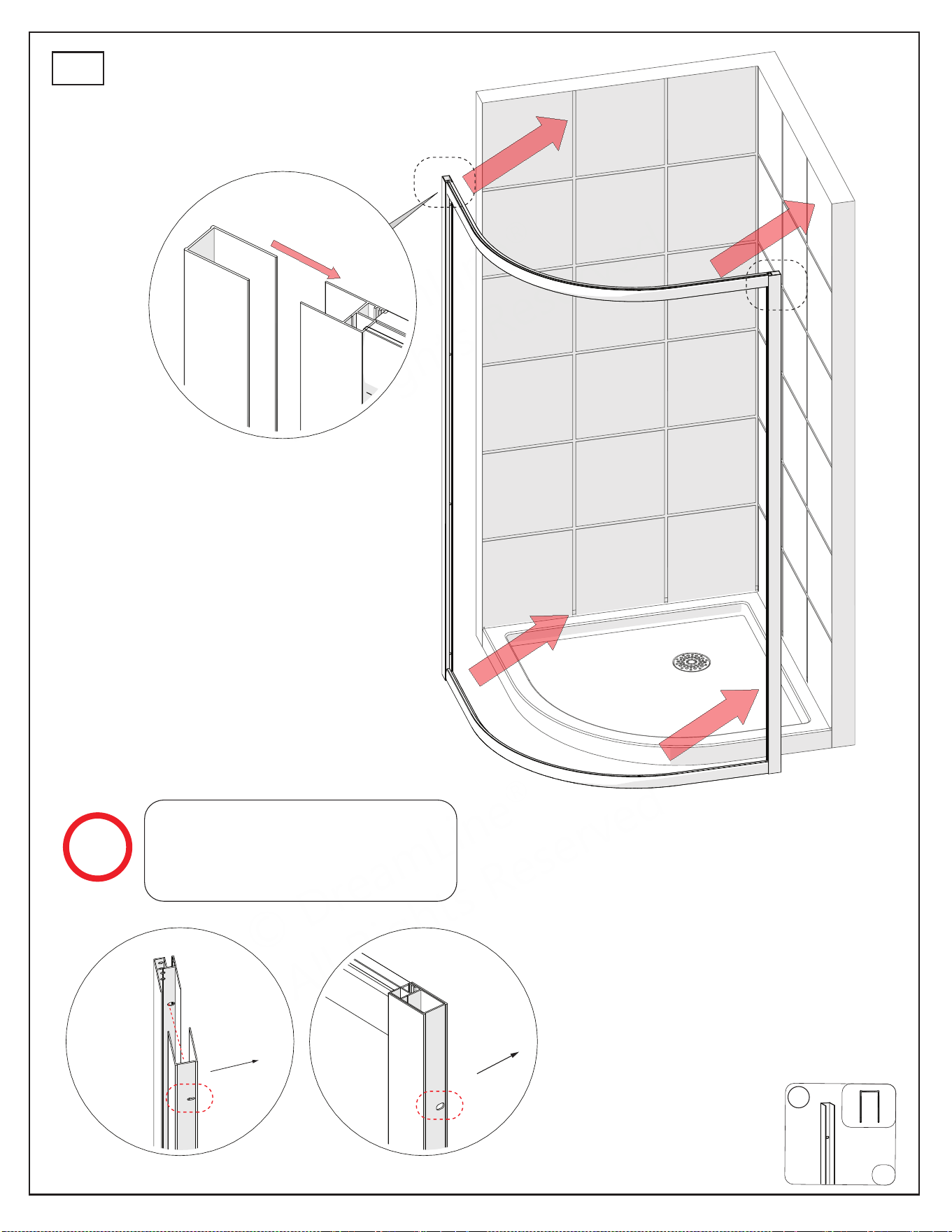

6. Move the finished frame to the designated position on
the shower base or threshold and push it tight to the
walls. If the walls are out-of-plumb, make adjustments
by slightly pulling the Wall profiles (01) out of the
Glass Profiles (02).
Use a level to adjust the frame into a plumb, vertical
position on both walls.
See Fig. 5 for details.

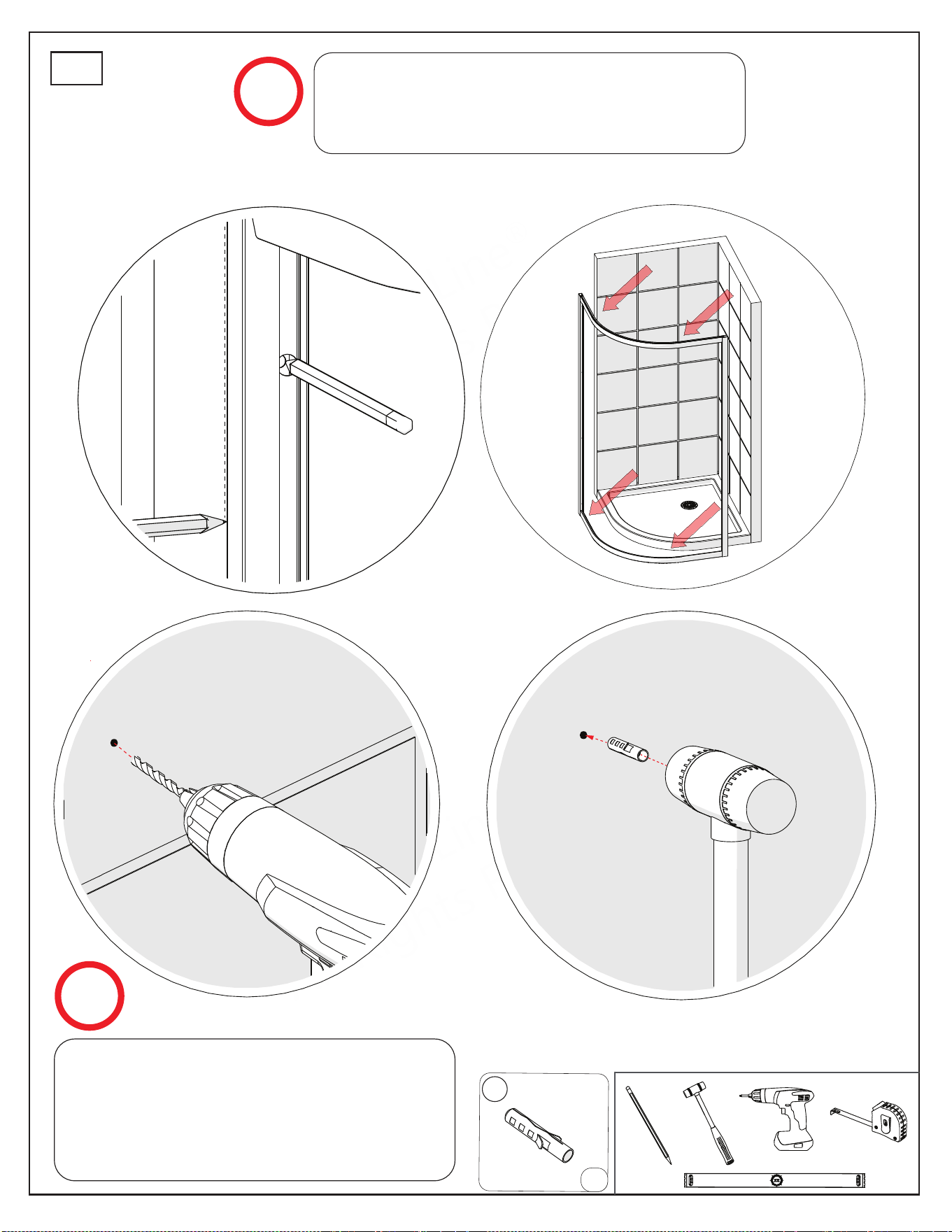

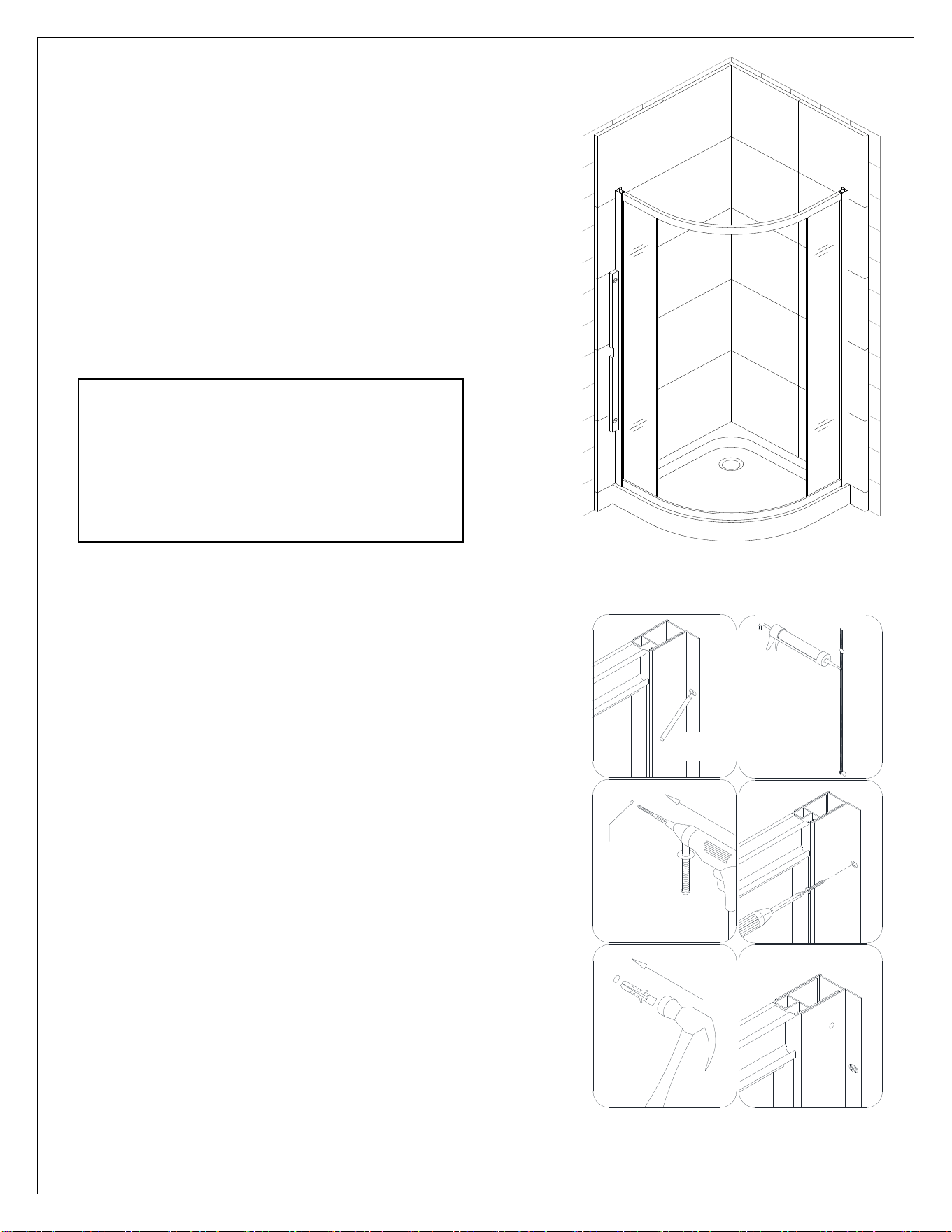

7. Hold this assembly in position and mark the drill holes on
the wall through the holes on the flange of the Wall
Profiles (01).
Carefully set the assembled unit aside; drill the holes using
a Ø 5/16” drill bit and insert the Wall anchors (15).
Apply silicone caulk along the Wall profiles (01) and
around the holes on the wall. Also apply silicone under
the bottom Guide rail (03). Place the entire shower
assembly back into the designated position on the
threshold and secure it to the walls using the Truss head
screws ST4.2×40 (10).
See Fig. 6 for details.
Fig. 6
Ø5/16”
2
1
3
4
5
6
NOTE: The installed unit may not sit
perfectly centered on the threshold,
depending on the thickness of the finished
wall treatment used. You may adjust the
position outward slightly by extending the
wall profiles.
Fig. 5
inside
“PRIME” Enclosure Ver.1 Rev.3 12/2015
8

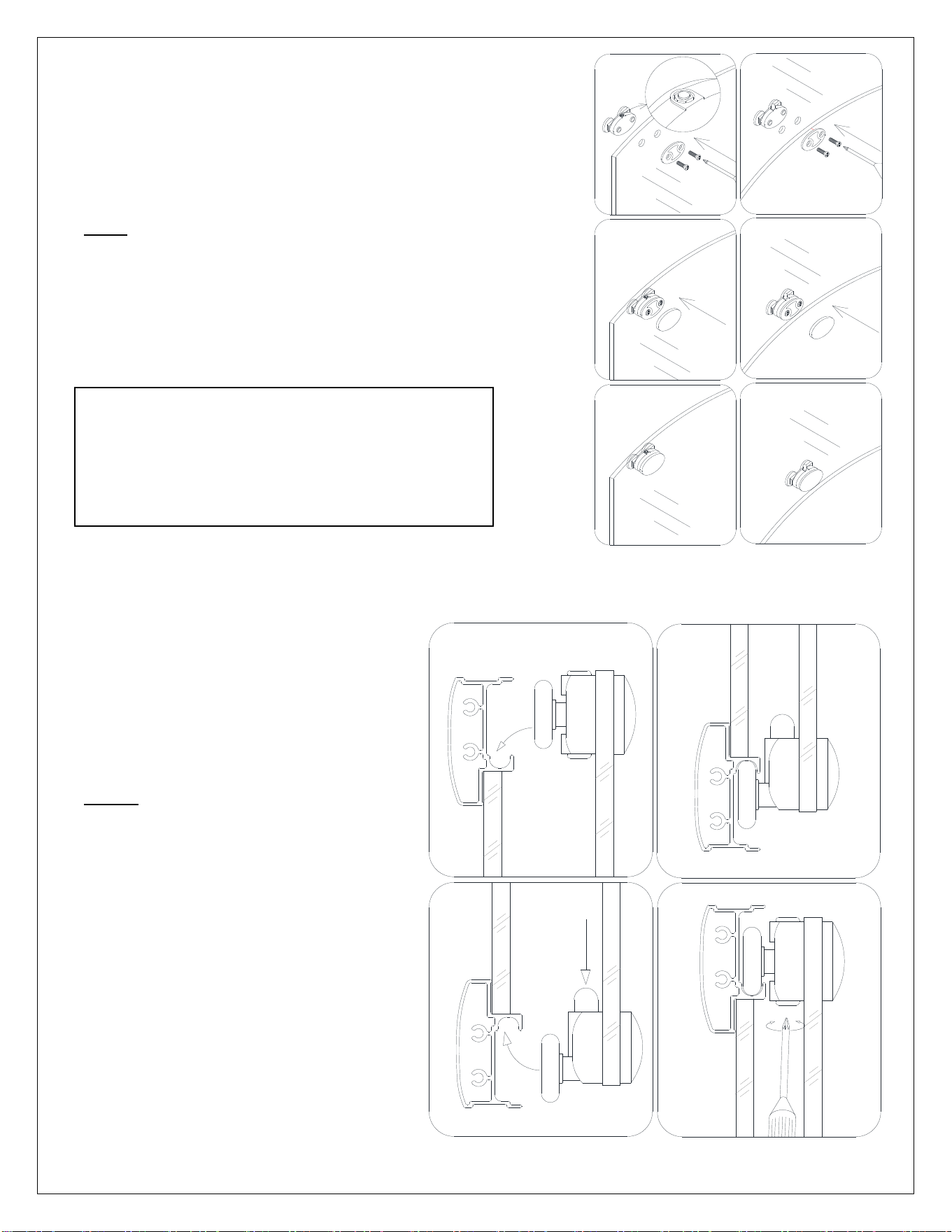

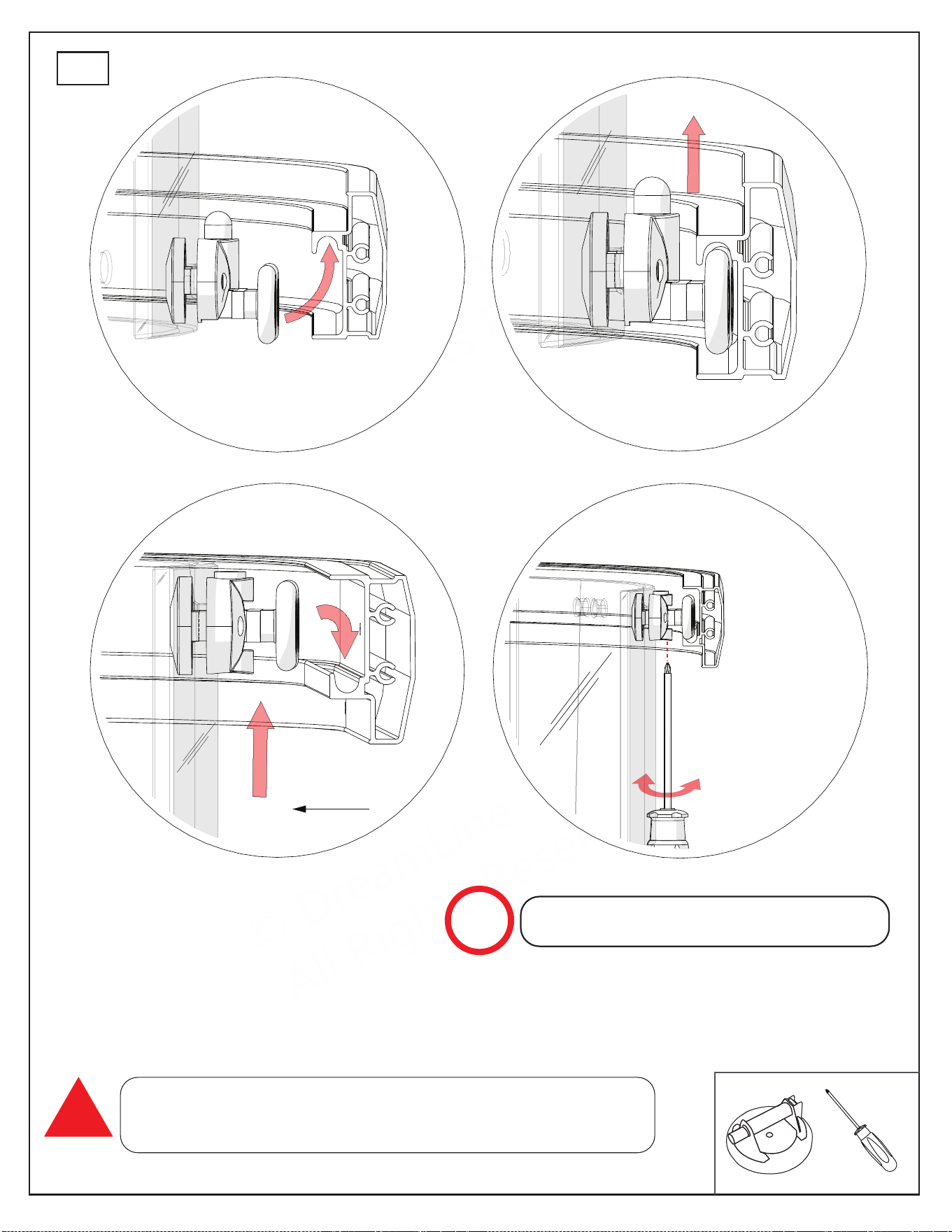

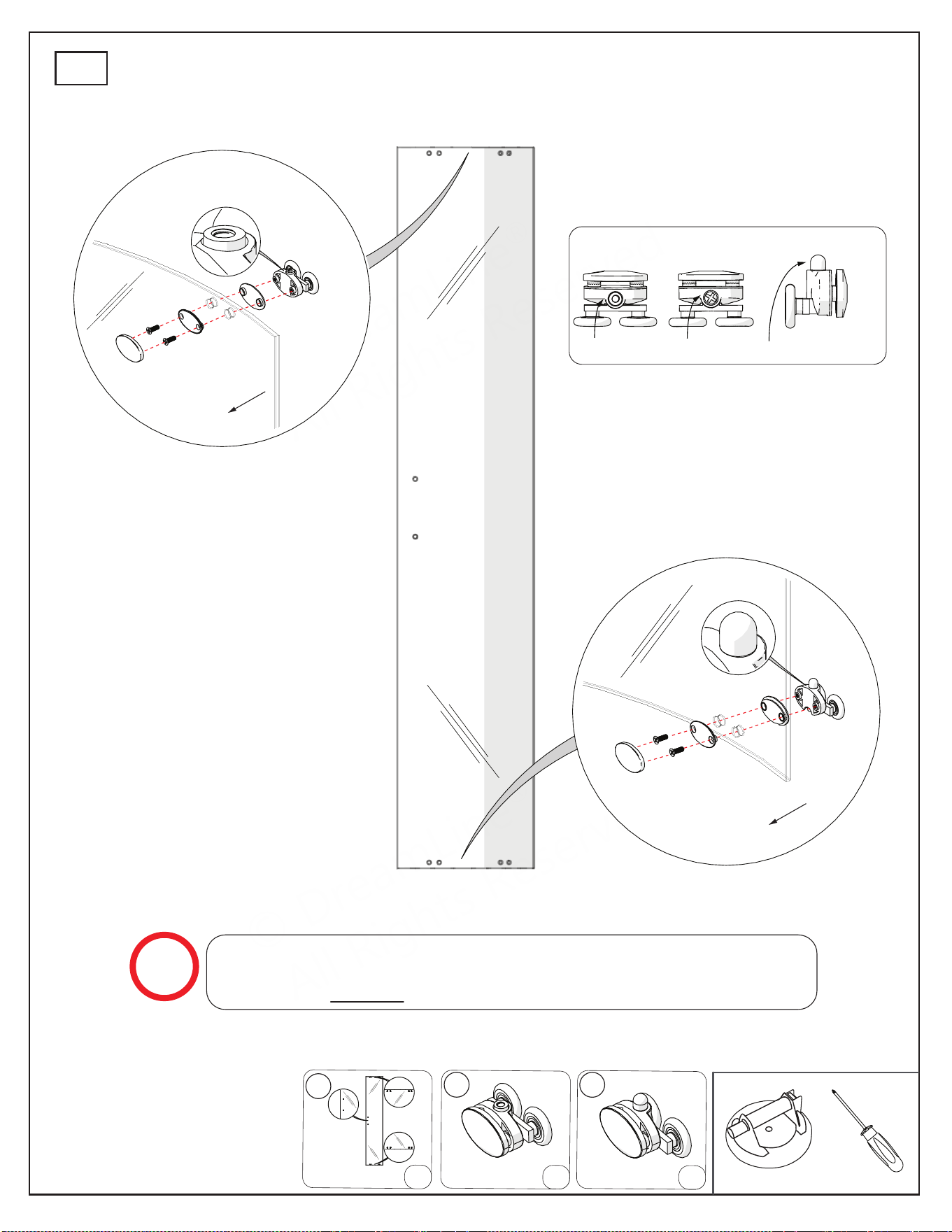

8. Fasten the top and the bottom Wheel assemblies (17) to
the Glass doors (04). The top wheels can adjust the door
level with the adjustable bolt and lock nut. The bottom
wheel has a press button to allow installation of the wheel
into Guide rail (03).
Note:
The lock nut of the upper wheel (Fig 7.1) and the press
button of the bottom wheel should be pointing up.
See Fig. 7 & 8 for details.
Fig. 7
9. Slide the top door wheels into the top
Guide rail (03). Push the bottom
wheels into the bottom Guide rail (03)
by pressing the button on the Wheel
assembly (17).
NOTE:
If necessary, use a hand screwdriver
(do not use a power screwdriver) to
adjust the upper wheels to make
minor adjustments so that the doors
operate smoothly and seal tight with
the magnets.
See Fig. 8 for details.
Fig. 8
2
1
3
4
5
6
NOTE: DO NOT install the handles onto the
door glass until instructed to do so. DO NOT
lift the glass using the handles.
This could
result in damage to the glass and/or serious
personal injury.
1
2
3
4
inside
“PRIME” Enclosure Ver.1 Rev.3 12/2015
9

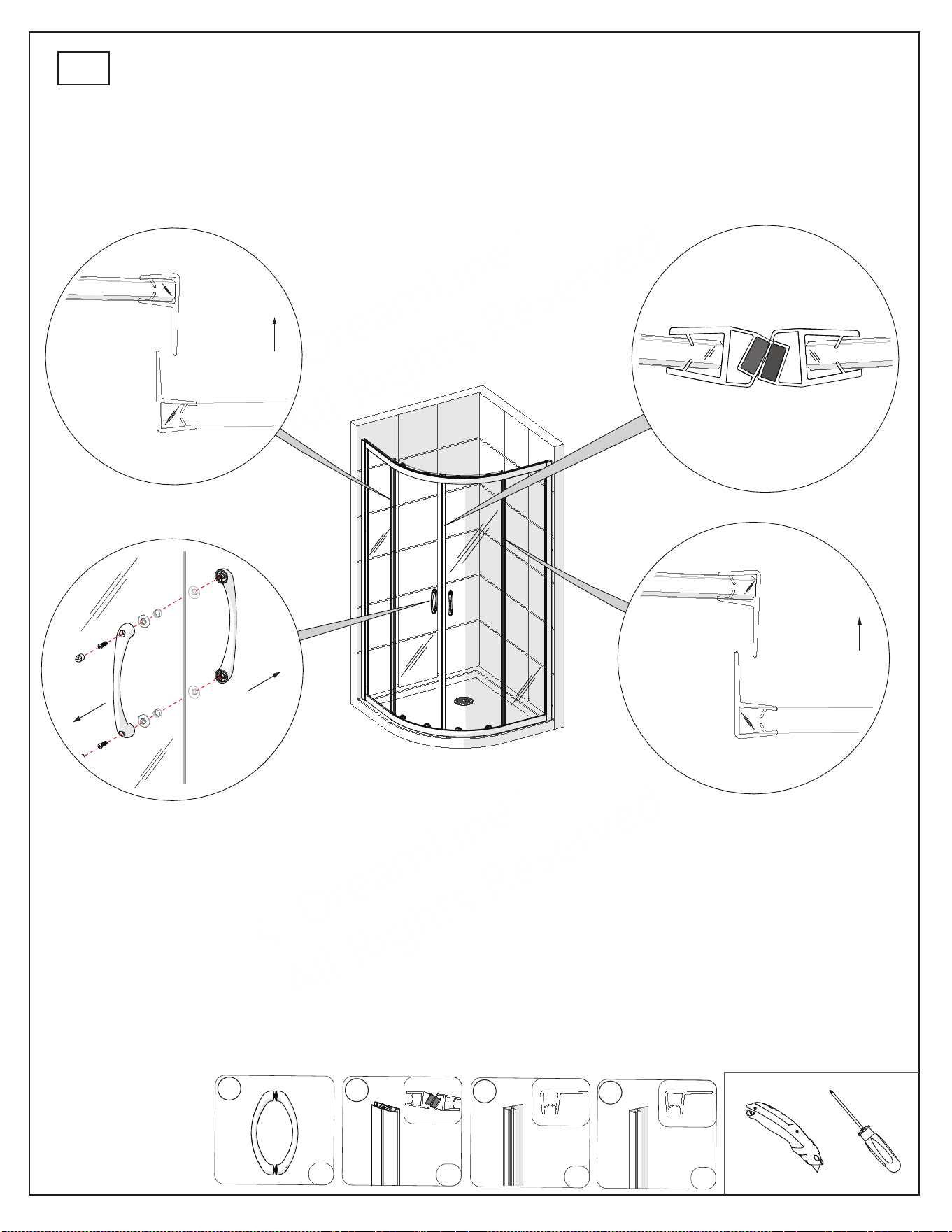

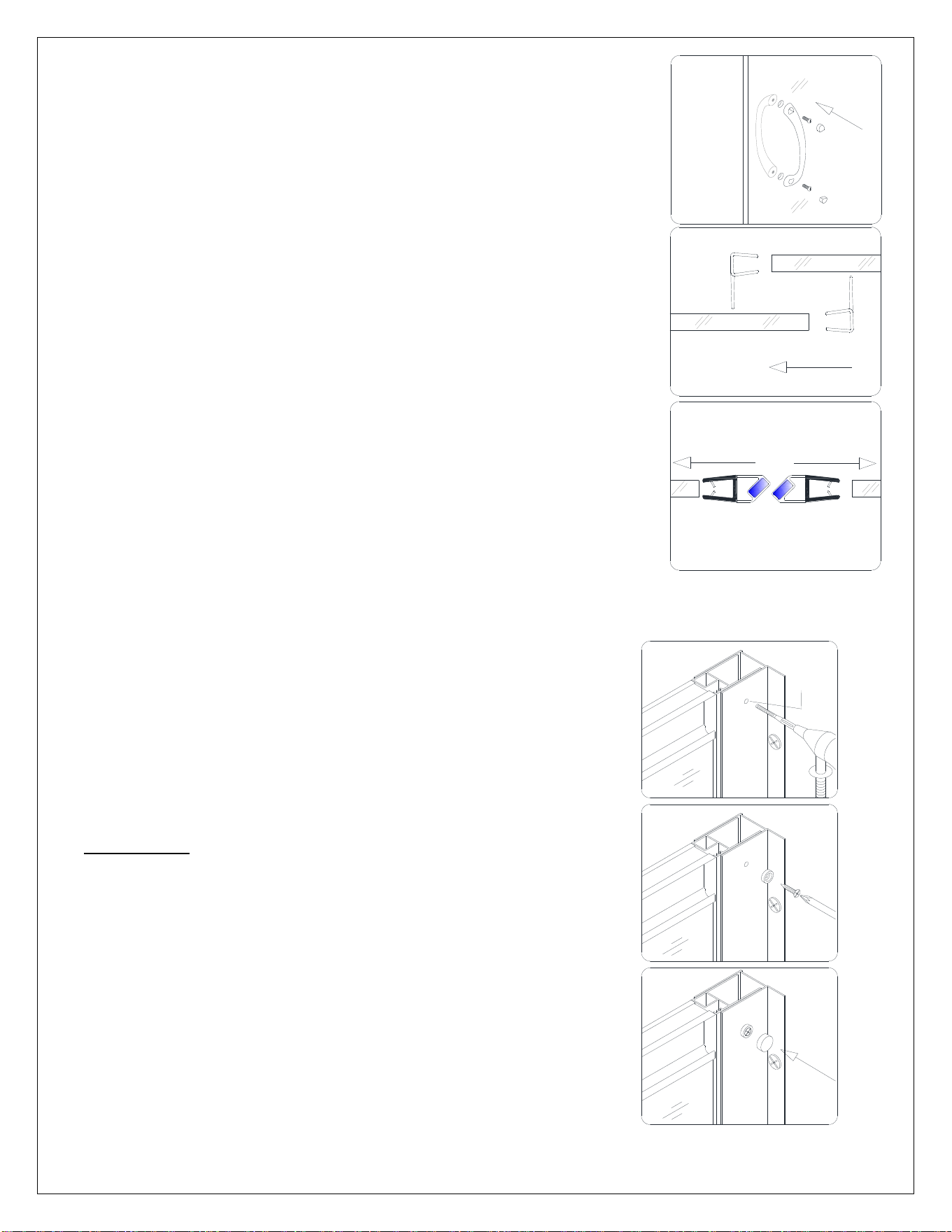

10. Install the Handles (06) onto the Glass doors (04).
Press the Anti-water strips (08) onto the vertical edges of the
Stationary glass (05) and both vertical edges of the Glass doors
(04) (the shorter strips attach to the panel glass and the longer
strips onto the doors).
Press the Magnetic strips (07) onto the vertical edges of both
Glass doors (04) for a tight seal.
See Fig. 9 for details.
Fig. 9

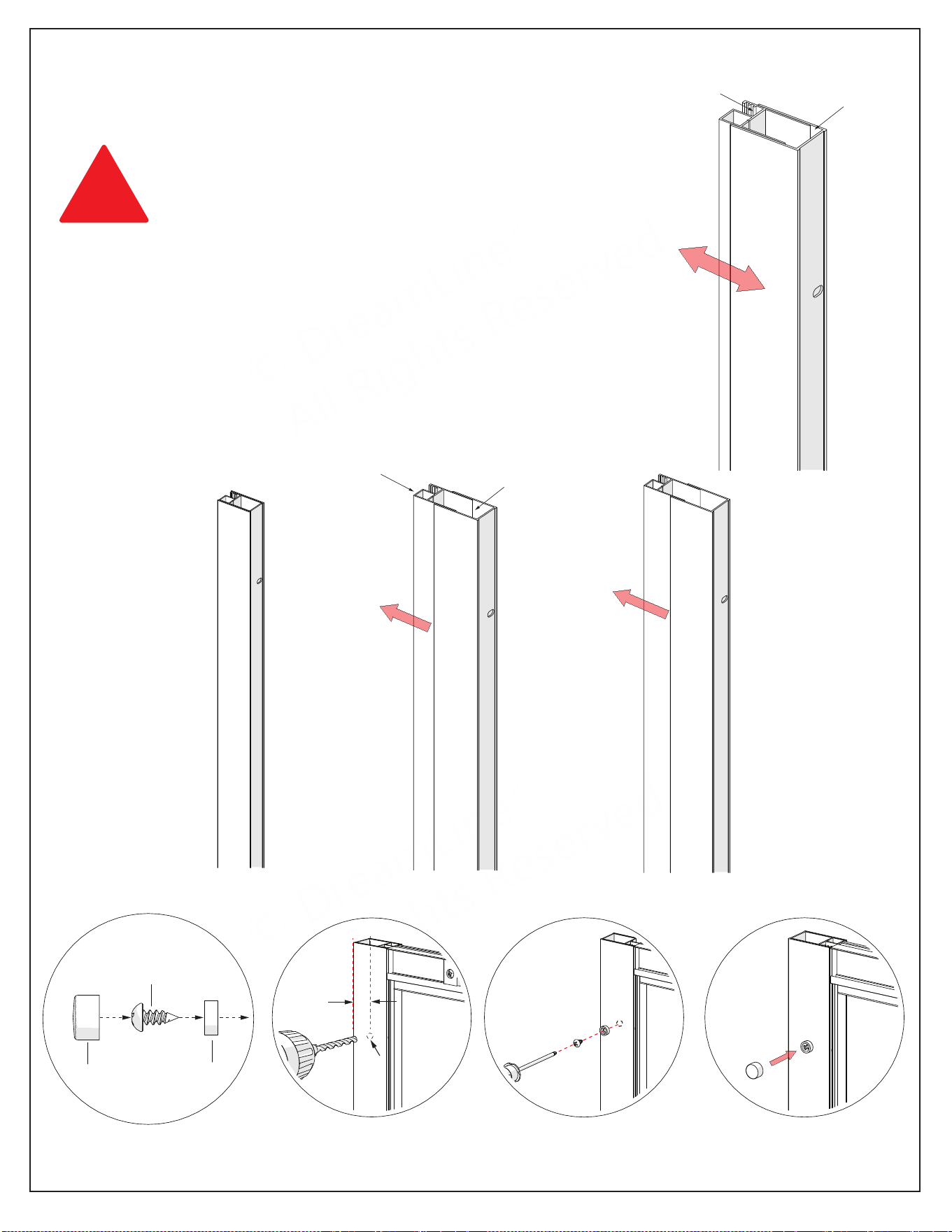

11. Make final adjustments of the assembled unit within the Wall
profiles (01), making the unit tight to the walls and tight to the
threshold.

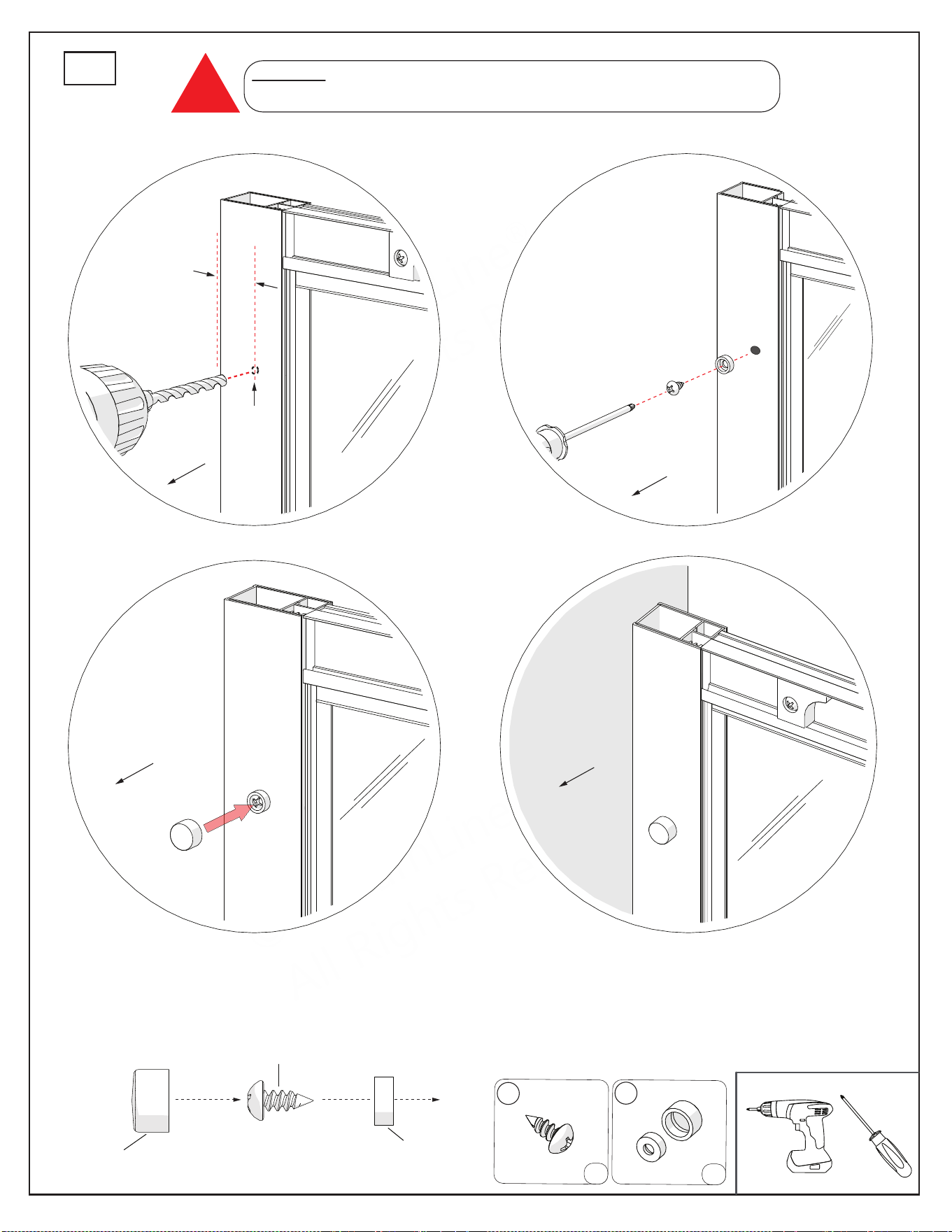

From inside of the shower area, drill 2 holes through the Wall
Profiles (01) into the Glass profiles (02) using an Ø 1/8” drill bit.
(one hole at the top and one hole at the bottom)
ATTENTION:
Do not drill the profiles throughout, only through the first
layer of the wall profile and the glass profile.
Secure the Wall profiles (01) to the Glass profiles (02) using
the Round head screws ST4.2×10 (12) and washers (Fig 10.2).
Cover the exposed screw heads with the Decorative covers
(14).
See Fig. 10 for details.
2
1
3
Ø1/8”
2
1
3
Fig. 10
door
panel
door
inside
door
“PRIME” Enclosure Ver.1 Rev.3 12/2015
10
12. Apply a good quality mildew-resistant silicone sealant
along the profiles and guide rails; on the seams between
the bottom guide rail and the profiles as well as along
the shower base or threshold from the inside of the
shower area. You may also apply silicone along the
outside if you choose.
See Fig. 11 for details.
Fig. 11
Product Maintenance
BASES and BACKWALLS: To ensure a long life for your acrylic back walls: wipe them off after
each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based
cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the
surface.
GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots. To prevent scratching the surface: never use abrasive cleaners and
cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges.
HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent finish peeling or corrosion. After
cleaning the shiny finishes, rinse thoroughly and wipe dry with soft cloth. Never use abrasive
sponges or cloth, steel wool or wired brushes as these may permanently scratch the surface.

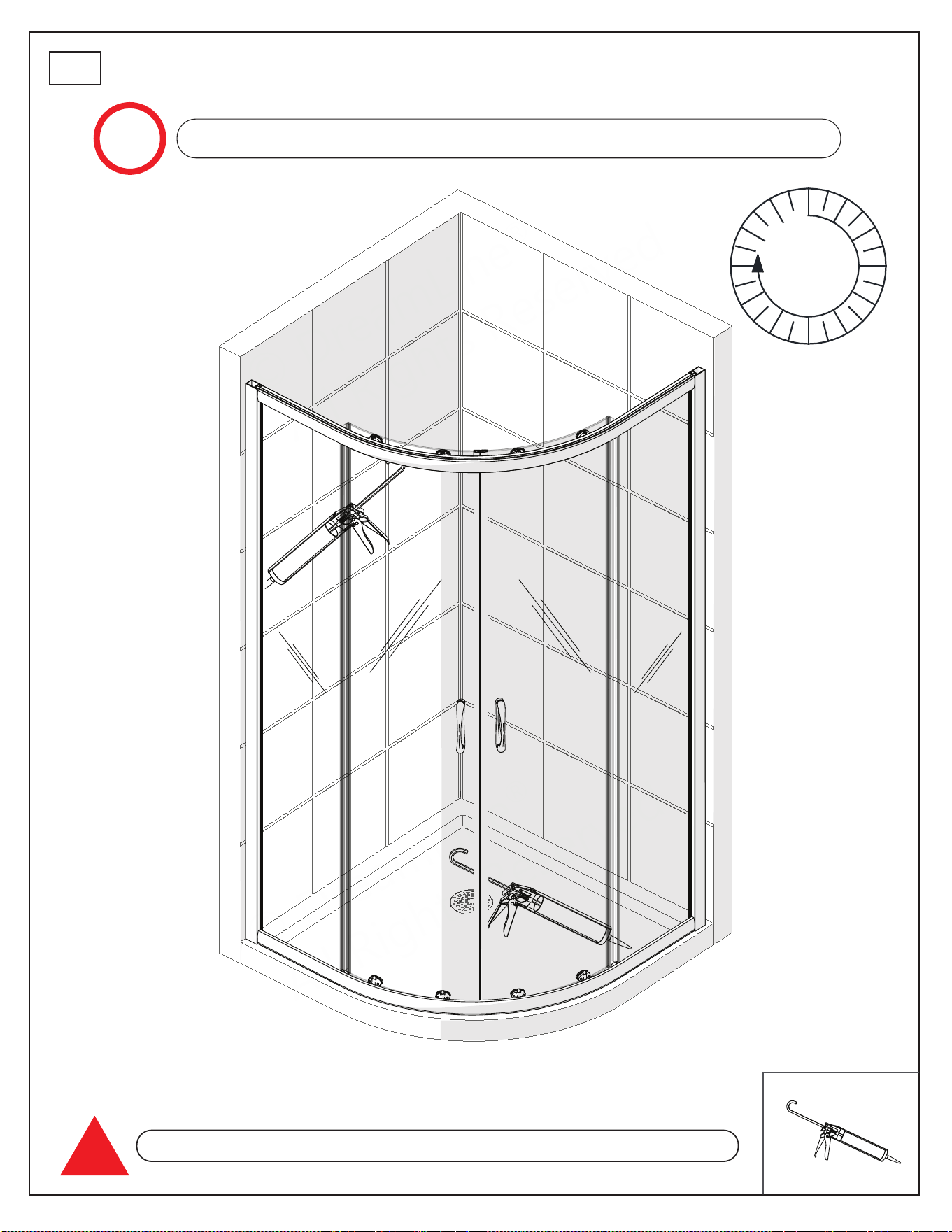

Caulk
Allow 24 hours for the silicone to fully cure
before using the shower.
Follow the safety guidelines from the Sealant
manufacturer concerning application, proper
ventilation and cure time.
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION
IMPORTANT!
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior notice for the
purpose of product improvement and customer experience. Please refer to the model’s web page on
DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional
product details.
PRIME
SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS
Do Not Return Product to the Store. Contact DreamLine® with any questions
MODEL #s
SHEN-7031310-##
SHEN-7031310-##-FR
SHEN-7034340-##
SHEN-7034340-##-FR
SHEN-7036360-##
SHEN-7036360-##-FR
## = finish
01 - Chrome
04 - Brushed Nickel
FR - Frosted Glass
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Installation Date
OD Number
(optional)
SKU Number
*found on the shipping box or label
if available.
Purchase Order
Number
Store/Vendor
Purchased From
Installed By:
Record the following purchase information for your records or in the event you need to contact DreamLine
®
:
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Table of Contents
Symbol Legend
Section Title Page #
Warnings and General Preparation 2
Model Specific Preparation 3
Adjustable Wall Profile System 4
Tools 5

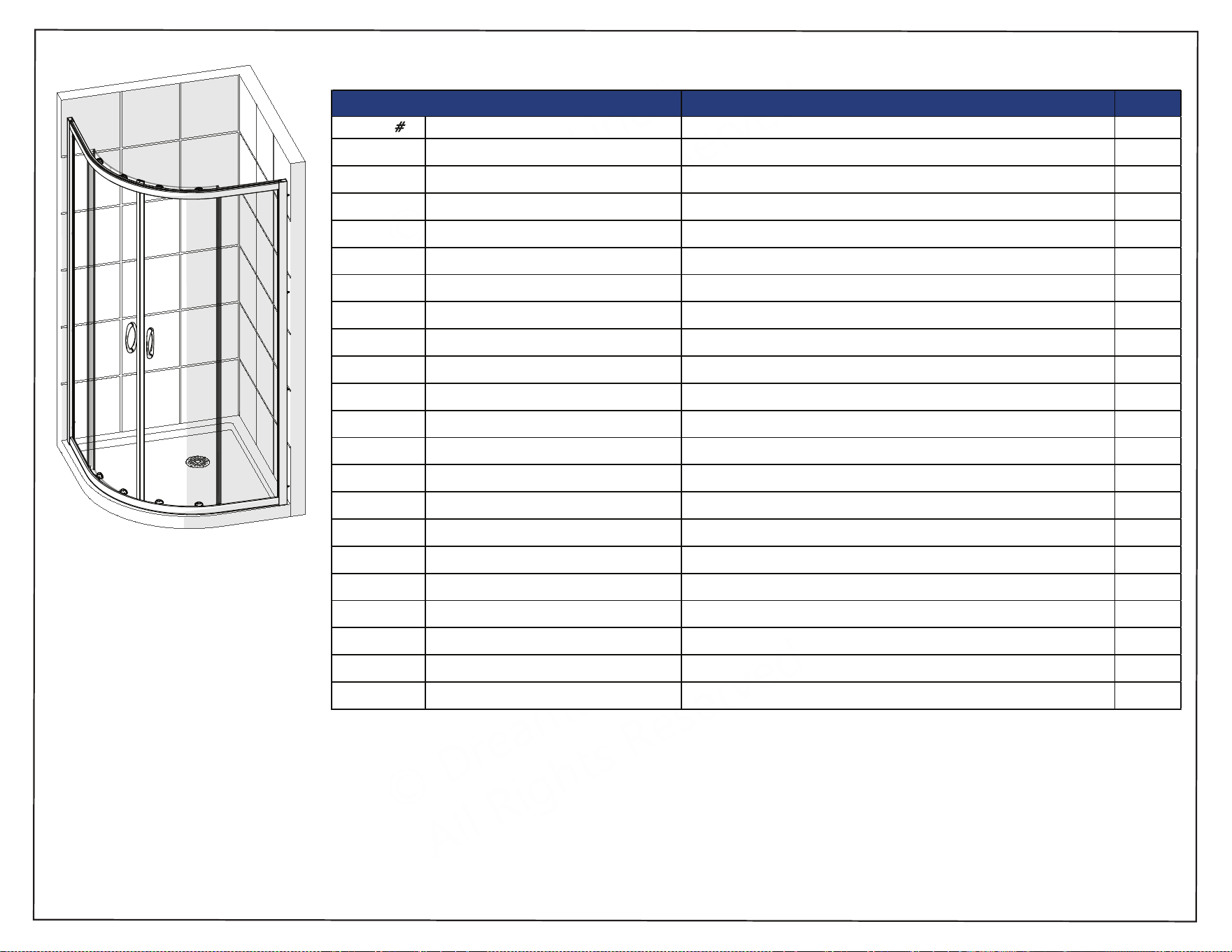

Detailed Diagram of Shower Door Components 6
Parts List 7-8
Installation Steps 9-20
Top and Bottom Roller Assembly Installation 16-17
Handle and Vinyl(s) Installation 18
Decorative Cover with Washer Installation 19
Product Maintenance 21
Troubleshooting 22
Factory Parts Information 23-25
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
!
TIP
NOTE
TIP - for ease of installation.
NOTE - take note of special
feature; additional information.
INCORRECT -
not recommended.
CORRECT -
recommended.
REQUIRED - requires special
attention; signifies a warning.
Average Installation Time
1.5 hrs
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
IMPORTANT
• DreamLine® reserves the right to alter, modify or redesign products any time without
prior notice for product improvement and customer experience. Please refer to the
model’s web page on DreamLine.com for the latest technical drawings, installation
manuals, warranty information or additional product details.
• This product should be installed by someone familiar with the construction requirements
for this type of project and the care necessary for the safe installation and operation of
the product.
• The safety of any installation is the responsibility of the installer.
•
Professional installation required
.
(Enigma Series)
•
• To prevent damage or serious injury, Do Not lean against the installed panel/door/glass.
• To prevent damage or serious injury: Do Not attempt to lift or move a heavy lite of glass
alone. Use an assistant and/or a professional grade glass suction cup.
• The installation of some models may require drilling down into the threshold. Contact the
manufacturer of the base, tub, or threshold material with any questions regarding the
drilling of holes into their product.
• All drawings in this installation manual are for illustrative purposes only and are not drawn
to scale.
T
EMPERED GLASS WARNING
• Your Shower Door Glass Could Shatter Without Warning if Improperly Installed or
Mishandled
• Do Not install or operate a shower door if the glass has chipped corners, slivered edges or
is otherwise damaged and/or has been dropped or banged into a hard surface such as
tile, marble or glass.
• The main causes of tempered glass breakage are:
o Improper handling, storage or installation
o Misuse/abuse
o Lack of maintenance
o Failure to replace damaged glass
o Improper handling during storage, unpacking and installation:
o Corners and edges are the most susceptible area to damage on a lite of tempered
glass and should be protected and handled with care during storage, unpacking,
installation and operation. A concentrated point of pressure or impact with a surface
harder than itself may cause the tempered glass to shatter. The tempered glass may
release immediately, within several hours or even days later.
o Incorrect installation of door hardware, rollers, hinges, channels, stopper or glass:
o Improper installation may include: loose hardware and/or lack of proper gaskets
between the hardware and glass. Additionally, improper al
ignment of guide rails, wall
profiles or other hardware during installation or operation may place stress on the
glass edges and cause it to break.
o This product must be installed by a professional and experienced installer familiar with
the safe handling of tempered glass.
o Improper use of this product:
o Aggressively opening or closing the door may cause trauma to the glass, which can
lead to
breakage. This may occur immediately or hours or even days later.
o The shower door hardware and glass should be inspected periodically:
Instruct the homeowner how to perform a periodic inspection of the shower
hardware and glass - some minor adjustments may be necessary based upon
the use (or misuse) of the shower door. Ensure that the hardware remains tight
and that the door alignment and o
peration are correct. Any adjustments
should be made upon discovery to prevent damage to the product.
Additional considerations should be given to the installation of frameless
tempered glass products in households with young children or an elderly
person due to an increased chance of improper handling. In such cases,
alternatives such as shower curtains or grab bars should be considered.
GENERAL PREPARATION
• After opening all boxes and packages, read this introduction carefully. Check that all the
items are included in the package by marking off the components on the “Detailed
Diagram of Product Components” page. Examine all boxes and packages for shipping
damage. If the unit has been damaged, has a finishing defect, or is missing parts; please
contact our Customer Support depart
ment within
3 business days of the delivery date. Please note that DreamLine® will not replace any
damaged products or missing parts free of charge after 3 business days or if the
product has been installed. Please contact DreamLine® if you have any questions.
• Please note that you should refer to your local building codes with questions on
installation compliance standards. Building and plumbi
ng codes may vary by
location, and DreamLine® is not responsible for code compliance standards for your
project and will not accept any returns.
• If this unit is going to be installed in a new construction, install all the required plumbing
and drainage before installing the shower. Use a competent and licensed (if required
by local code) plumber for all plumbing installation.
• Make sure that prior to beginning the installation, the surfaces are leveled and solid and
will be able to support the t
otal weight of the unit. Also make sure the walls are at right
angles. Irregular installation surface level, radius corners or improper angle of side walls
will result in serious problems for your installation. Please not that some adjustments and
drilling will be necessary during the installation process.
• Protect all primary surfaces of the product during installation. Never set your glass down
directly onto a tile floor. Leave corner protectors in place until it is necessary to remove
them. Always use a piece of wood or cardboard to protect the bottom edge and corners
of the glass prior to and during installation.
• This unit must be installed upon a finished threshold and against finished walls.
•
DreamLine
®
shower doors are not designed to be installed into a fiberglass surround due
to the radius corners and lack of a solid surface to mount the hardware.
WARNING: TO AVOID THE RISK OF DAMAGE OR INJURY:
• Follow all recommendations and requirements as shown in the installation
instructions.
• Perform a thorough inspection of the glass and all parts for any damage prior to
installation. Any damage to tempered glass can cause breakage.
Do Not install damaged glass!
• Do Not install or operate a shower or tub door if the glass has chipped corners, slivered
edges or is otherwise damaged. Do Not install or operate a shower or tub door that has
been dropped or banged into a hard surface such as tile, marble or glass.
• CAUTION: Contact with any hard surface can damage tempered glass and cause it to
shatter.
• This product uses tempered glass. Glass cannot be cut after it has been tempered.
Do Not attempt to cut tempered glass.
• DreamLine
®
Glass Shower doors, Tub doors, Inline panels, and Return panels can shatter
due to improper handling or lack of maintenance. Conduct periodic inspections of glass
and all parts for possible damage, missing or loose parts.
• Always wear proper safety equipment such as: safety goggles, work gloves and
appropriate footwear during the installation process.
• WARNING. Risk of leakage and/or damage. Follow
all instructions regarding the
application of silicone sealant or caulk. Allow 24 hours for the sealant to cure before the
initial use of the shower or tub product. Follow the silicone manufacturer’s
recommendations regarding the use of their product.
• Thoroughly read these instructions before installing or using this product.
• Leave this manual for the end-user of the product.
!
This product should be installed by someone familiar with the
construction requirements for this type of product and the care
necessary for the safe installation and operation of the product.
Professional installation recommended. (All Models)
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
2
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Model Specific Preparation
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
3
©2019 DreamLine
®
All Rights Reserved
1” Out-of-Plumb
Adjustment; Verify
threshold and walls
with a level
Threshold must be
level
!
1” max
This model has a 1” adjustable
wall profile system for
Out-of-Plumb wall conditions and
overall width within the model size
when installed into a finished
opening. For more infomation, see
the Adjustable Wall Profile System
on
page 4.
±
0
.0
±
0
.0
±
0
.0
±
0
.0
1”
minimum
flat threshold
Professional Installation
recommended.
Certified Professional
!
!
DO NOT attach the handle and/or
towel bar to the glass until instructed
to do so.
DO NOT attempt to use the
handle/towel bar to lift the glass
during installation. This may result in
damage to the glass and/or serious
injury. Always use a professional
grade glass suction cup and an
assistant.
NOTE
For models with Frosted glass, install the textured
(Frosted) surface facing towards the inside of the
shower.
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Adjustable Wall Profile System
The Glass Profiles can be adjusted
within the Wall Profiles for overall
width or to correct for out-of-plumb
conditions within the model size.
Screw them together after making
final adjustments.
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
4
©2019 DreamLine
®
All Rights Reserved
!
Wall Profile
Glass Profile
1” max
3/4”
Ø1/8”
washer (#14)
decorative
cap (#14)
ST4.0×10mm
Pan Head Screw (#10)
Wall Profile
Glass Profile
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
5
©2019 DreamLine
®
All Rights Reserved
Soft Head
Hammer
Professional-grade
Glass suction cup
Extender Driver Bit
#2 Phillips
Driver Bit
Level
Measure
Tape
Pencil
Drill
Power
Razor Knife
Painter’s Tape
Phillips
Screwdriver
Silicone
Hacksaw
Work Gloves
Safety Glasses
NOTE
TIP
To be sure that the correct model size has been ordered.
Measure the finished opening before proceeding with the installation.
TIP
Cover the shower/tub drain with tape prior to installation to
prevent the loss of screws or small parts.
TIP
To prevent stripping the screw heads, set power
drill to a low setting when installing screws.
NOTE
Unpack your unit carefully and inspect it. Lay it out and identify all parts using the Detailed
Diagram on
page 6 and the included packing list in this manual as a reference. Before
discarding the carton, check for small hardware bags that may have fallen to the bottom of
the box. If any parts are damaged or missing, please contact DreamLine
®
for replacement.
The shipping boxes may contain extra parts not used in your model configuration.
Retain these installation instructions for future reference.
Mitre Saw
Ø3/16"
(4mm)
Drill Bit
Drill Bit
Ø5/16"
(8mm)
Ø1/8"
(3mm)
Drill Bit
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Detailed Diagram of Shower Door Components
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
6
©2019 DreamLine
®
All Rights Reserved
01
02
03
04
05
06
07
08a
08b
09
10
11
12
13
14
15
16
17a
17b
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Parts List
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
7
©2019 DreamLine
®
All Rights Reserved
10
11
x8
x8
09
x2
08b
x2
08a
x2
07
x1pair
06
x2sets
05
x2
04
x2
03
x2
02
x2
Guide Rail
(Top and Bottom)
Door Glass
Inline Panel Glass
Back-to-Back Handle
Magnetic Strike Vinyl
Vertical Vinyl Seal
(for inline panel)
Vertical Vinyl Seal
(for door)
Push-in Glazing Vinyl
ST4.0x55mm
Pan Head Screw
ST4.0x25mm
Pan Head Screw
Wall Profile
Glass Profile
01
x2
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Parts List
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
8
©2019 DreamLine
®
All Rights Reserved
17a
17b
x4
x4
15
16
x8
x4
14
12
13
x4
x4
x4sets
Decorative Cover
with Washer
ST4.0x10mm
Pan Head Screw
ST4.2x16mm
Countersunk Screw
Wall Anchor
8mm (5/16”)
Glass Clip
for 6mm (1/4”) Glass
Double Roller
Assembly (top)
Double Roller
Assembly (bottom)
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Installation Steps
Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
9
©2019 DreamLine
®
All Rights Reserved
TIP
Add liquid soap, wax, or lubricant to screws prior to attaching the Glass Profiles (#02)
to the Guide Rails (#03).
Use a low setting on the power drill, to prevent stripping the screws.
11
x4
03
x1
02
x2
Fig 1
1
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
10
©2019 DreamLine
®
All Rights Reserved
11
x4
03
x1
Fig 2
2
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Parts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
11
©2019 DreamLine
®
All Rights Reserved
01
x2
NOTE
The holes in the Wall Profiles (#01)
are off-center and must line up with
the corresponding holes in the
Glass Profiles (#02).
1 2
inside
inside
Fig 3
3
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved

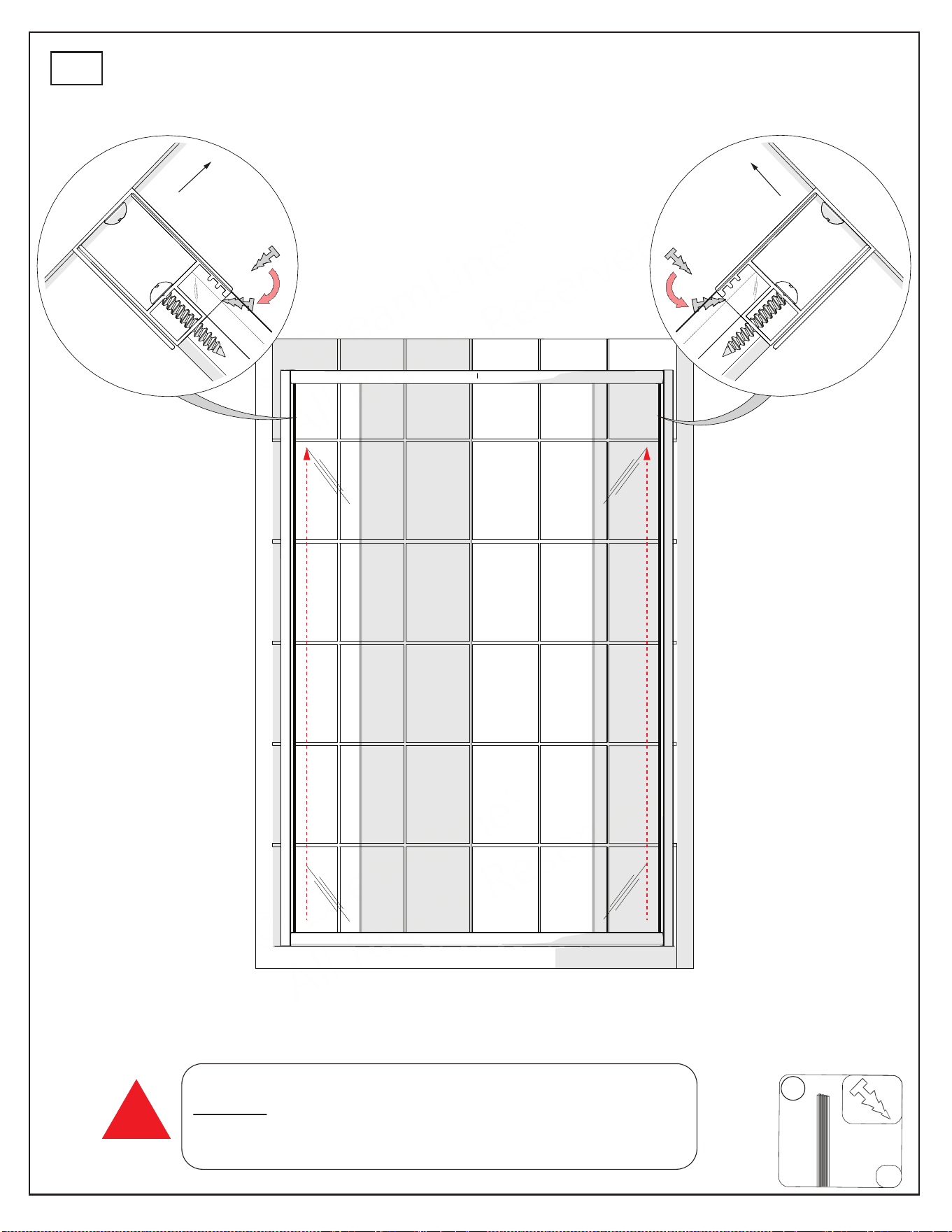

Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
12
©2019 DreamLine
®
All Rights Reserved
1 2
15
x8
Fig 4
Before marking the holes for drilling, confirm that:
◻ the assembled frame is tight to the threshold
◻ the Wall Profiles (#01) are tight to the walls
◻ the frame is level
NOTE
Ø3/16”
Drill Bit
*see NOTE
3 4
NOTE
If a stud is present behind the wall, drill a hole
using a Ø3/16” drill bit and do not use wall
anchors.
If no stud is present, drill the hole using a
Ø5/16” drill bit and insert Wall Anchors (#15)
as shown in Fig 4.3.
4
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved

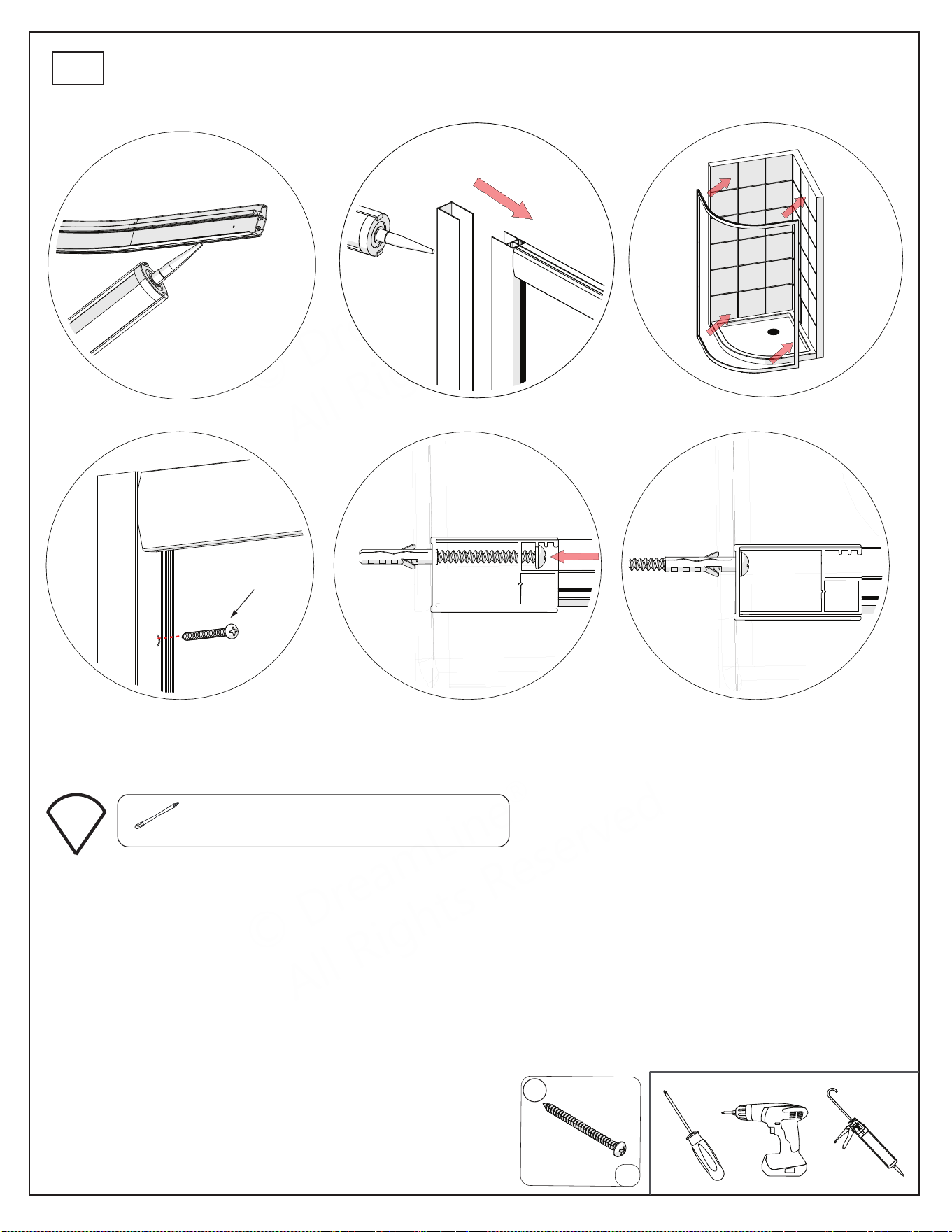

Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
13
©2019 DreamLine
®
All Rights Reserved
wall
ST4.0×55
ST4.0×55
Overhead View
wall
1
4
2
5
3
6
Extender Driver Bit recommended
for the installation of these screws.
TIP
bottom
10
x8
Fig 5
5
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved

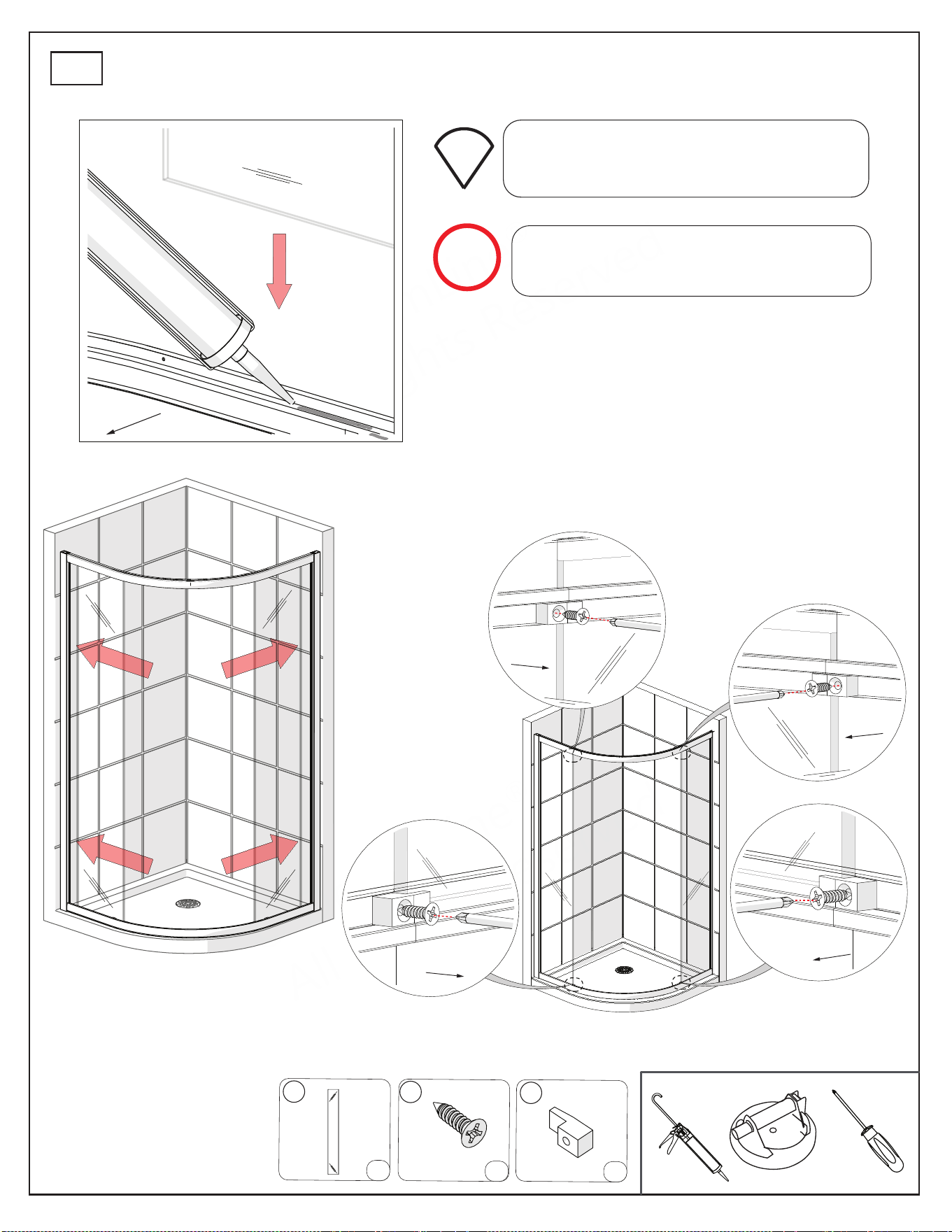

Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
14
©2019 DreamLine
®
All Rights Reserved
NOTE
For models with Frosted glass, install the
textured (Frosted) surface facing towards
the inside of the shower.
inside
inside
inside
inside
16
x4
13
x4
05
x2
Fig 6b
TIP
Apply a thin bead of silicone caulk to the
bottom Guide Rail (#03) when setting
the Inline Panel Glass (#05) in place.
Fig 6c
Fig 6a
inside
6
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Parts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
15
©2019 DreamLine
®
All Rights Reserved
!
To prevent scratching or damaging the glass and aluminum,
DO NOT use a screwdriver or other metal tool to install the
Push-in Glazing Vinyl (#09). Use a plastic putty knife or
similar if necessary.
Begin installing the
Push-in Glazing Vinyl
(#09) from the bottom
inside inside
09
x2
Fig 7
7
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools NeededParts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
16
©2019 DreamLine
®
All Rights Reserved
17a
17b
x4
x4
04
x2
inside
inside
Bottom Wheels
Button faces up
Top Wheels
Faces DownFaces Up
Fig 8
NOTE
The lock nut on the Top Roller Assembly (#17a) and the push-button
on the Bottom Roller Assembly (#17b) should both be pointing up for
easier access. DO NOT overtighten the Roller Assemblies (#17a/17b).
8
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
17
©2019 DreamLine
®
All Rights Reserved
!
Use caution not to bang the door glass together during
installation. Install the Magnetic Vinyl Seals (#07) onto the
door glass before fully closing the doors.
Adjust the Top Roller Assemblies (#17a),
if necessary, for smoother operation.
NOTE
1
3
2
4
Fig 9
inside
adjust
9
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools NeededParts Needed
Handle and Vinyl Installation
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
18
©2019 DreamLine
®
All Rights Reserved
door
door
door
door
panel
panel
inside
inside
inside
outside
08b
x2
08a
x2
07
x1pair
06
x2sets
Fig 10
10
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools Needed
Parts Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
19
©2019 DreamLine
®
All Rights Reserved
!
DO NOT drill the profiles throughout, ONLY through the
first layer of the Wall Profile (#01) and Glass Profile (#02).
inside
3/4”
Ø1/8”
wall
1
Decorative Cap (#14)
Washer (#14)
ST4.0×10mm Pan Head Screw (#12)
inside
2
wall
inside
3
wall
inside
4
wall
14
x4sets
12
x4
Fig 11
11
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Tools Needed
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
20
©2019 DreamLine
®
All Rights Reserved
!
Allow 24 hours for the silicone caulk to cure before using shower.
24
Hours
NOTE
The surfaces need to be clean and free of debris before applying silicone.
Fig 12
12
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Product Maintenance
PRIME Maintenance Checklist
Maintenance Checklist
◻ Inspect the Roller Assemblies; tighten if necessary
◻ Test operation of the doors; adjust rollers if necessary for smooth operation
◻ Inspect Handles; tighten if necessary
◻ Inspect glass clips; tighten if necessary
◻ Inspect and replace damaged or missing Vinyl Seals.
◻ Remove Vinyl Seals to inspect the edges of the glass for concealed damage.
Damaged glass must be replaced!
◻ Inspect silicone application. Repalce as necessary to prevent leakage. (refer to the manufacture’s
recommendations on the proper application of their product).
To maximize the life of your door, it is important to regularly inspect
the glass and other hardware for misalignment, proper attachment,
and/or damage. Contact DreamLine
®
with any questions or concerns.
NOTE
BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off
after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream
based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal
brushes or scrapers that could permanently scratch or dull the surface.
GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry).
To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain
scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface of the
glass.
HARDWARE: To ensure a long lasting finish: wipe off all metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or
corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft clean-
cloth.
Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish
to stainless steel hardware, work with the grain (not across the grain). Never use an abrasive
sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
21
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Troubleshooting
Prior to contacting DreamLine® Customer Service, please have the following information
readily available:
- Purchase Order Information
- Name, PO Number, Dealer/Vendor Name, etc.
- SKU/Model Number (see Pages 23-25)
- Factory Part Information (see Pages 23-25)
Problem/Symptom Suggested Solution
Missing Parts
•Check all shipping/packaging material for missing parts/components.
•If not found, contact DreamLine Customer Support [1-855-831-2126] to order
factory part replacement.
Magnetic Strike Vinyl (#07) is not creating a tight
seal.
•Inspect the Magnetic Vinyl Seal (#07) for proper installation so that the
magnets attract and create a tight seal.
•See Step 10 for an image of the correct installation method.
Water Leakage: underneath Bottom Guide Rail (#03)
•Make certain that the bottom rail is tight to the threshold and that silicone is
creating a seal along the entire length of the bottom rail.
•If the bottom rail is not making contact with the threshold, it may be necessary to
redo Steps 4-5 to create a better seal.
Water Leakage: Inline Panel/Door Glass (#05/04)
•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#09) is
correctly inserted into the glass profile. [see Fig 7]
•If possible, direct the flow of water away from the area.
Door Glass (#04) is not rolling smoothly/closing
tightly.
•Use a #2 phillips screwdriver to evenly adjust the Top Wheel Assemblies
(#17a) until the Door Glass (#04) rolls smoothly and tightly closes. [see Fig 9.4]
•The top wheel assemblies for both doors will need to be adjusted so that the
magnetic vinyls will create a tight seal when the doors are closed.
Inline Panel Glass (#05) shakes/rattles while in
operation.
•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#09)
is
installed tightly between the Inline Panel Glass (#05) and Glass Profile (#02).
•Inspect the Glass Clips (#16) for correc
t installation and tighten if necessary.
[see Step 7]
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
22
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Factory Parts Information
Contact [email protected] for Part replacement, installation assistance or addtional information
Complete Warranty information is available on DreamLine.com
FACTORY PARTS INFORMATION
ITEM
#
FACTORY PART NUMBER ITEM DESCRIPTION QTY
01 04183011-1830 / 04183041-1830
Left or Right Wall Profile 2 pcs
02 04002011-1830 / 04002041-1830
Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs
03 04001012-1280 / 04001042-1280
Top or Bottom Guide Rail (curved) 2 pcs
---
07550009
Roller Stopper (pre-attached to #03) 8 pcs
---
092102
ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs
04 013021015 / 013021019
Door Glass (Clear / Frosted) 2 pcs
05 013021012 / 013021016
Inline Panel Glass (Clear / Frosted) 2 pcs
06 07241001 / 07244001
Back-to-Back Handle for 6mm (1/4in) Glass 2 sets
07 062002061-1813
Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair
08a 063001060-1743
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs
08b 063001060
-1814
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs
09 060001000-1765
Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs
10 091131
ST4.0 × 55 Pan Head Screw 8 pcs
11 091104
ST4.0 x 25mm Pan Head Screw 8 pcs
12 091101
ST4.0 x 10mm Pan Head Screw 4 pcs
13 092102
ST4.2 x 16mm Countersunk Screw 4 pcs
14 07551011 / 07554011
Decorative Cover and Washer 4 sets
15 07550045
Wall Anchor 8mm (5/16in) 8 pcs
16 07551014 / 07554014
Glass Clip for 6mm (1/4in) Glass 4 pcs
17a 07341010 / 07344010
Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs
17b 07341011 / 07344011
Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs
PRIME 31x31 SHEN-7031310
SHEN-7031310
PRIME 31x31
BOLD digit indicates finish color:
1 = Chrome
4 = Brushed Nickel
23
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Factory Parts Information
Contact [email protected] for Part replacement, installation assistance or addtional information
Complete Warranty information is available on DreamLine.com
FACTORY PARTS INFORMATION
ITEM
#
FACTORY PART NUMBER ITEM DESCRIPTION QTY
01 04183011-1830 / 04183041-1830
Left or Right Wall Profile 2 pcs
02 04002011-1830 / 04002041-1830
Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs
03 04001012-1432 / 04001042-1432
Top or Bottom Guide Rail (curved) 2 pcs
---
07550009
Roller Stopper (pre-attached to #03) 8 pcs
---
092102
ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs
04 013021015 / 013021019
Door Glass (Clear / Frosted) 2 pcs
05 013021013 / 013021017
Inline Panel Glass (Clear / Frosted) 2 pcs
06 07241001 / 07244001
Back-to-Back Handle for 6mm (1/4in) Glass 2 sets
07 062002061-1813
Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair
08a 063001060-1743
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs
08b 063001060
-1814
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs
09 060001000-1765
Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs
10 091131
ST4.0 × 55 Pan Head Screw 8 pcs
11 091104
ST4.0 x 25mm Pan Head Screw 8 pcs
12 091101
ST4.0 x 10mm Pan Head Screw 4 pcs
13 092102
ST4.2 x 16mm Countersunk Screw 4 pcs
14 07551011 / 07554011
Decorative Cover and Washer 4 sets
15 07550045
Wall Anchor 8mm (5/16in) 8 pcs
16 07551014 / 07554014
Glass Clip for 6mm (1/4in) Glass 4 pcs
17a 07341010 / 07344010
Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs
17b 07341011 / 07344011
Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs
PRIME 34x34 SHEN-7034340
SHEN-7034340
PRIME 34x34
BOLD digit indicates finish color:
1 = Chrome
4 = Brushed Nickel
24
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
Factory Parts Information
Contact [email protected] for Part replacement, installation assistance or addtional information
Complete Warranty information is available on DreamLine.com
FACTORY PARTS INFORMATION
ITEM
#
FACTORY PART NUMBER ITEM DESCRIPTION QTY
01 04183011-1830 / 04183041-1830
Left or Right Wall Profile 2 pcs
02 04002011-1830 / 04002041-1830
Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs
03 04001012-1534 / 04001042-1534
Top or Bottom Guide Rail (curved) 2 pcs
---
07550009
Roller Stopper (pre-attached to #03) 8 pcs
---
092102
ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs
04 013021015 / 013021019
Door Glass (Clear / Frosted) 2 pcs
05 013021014 / 013021018
Inline Panel Glass (Clear / Frosted) 2 pcs
06 07241001 / 07244001
Back-to-Back Handle for 6mm (1/4in) Glass 2 sets
07 062002061-1813
Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair
08a 063001060-1743
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs
08b 063001060
-1814
Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs
09 060001000-1765
Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs
10 091131
ST4.0×55mm Pan Head Screw 8 pcs
11 091104
ST4.0 x 25mm Pan Head Screw 8 pcs
12 091101
ST4.0 x 10mm Pan Head Screw 4 pcs
13 092102
ST4.2 x 16mm Countersunk Screw 4 pcs
14 07551011 / 07554011
Decorative Cover and Washer 4 sets
15 07550045
Wall Anchor 8mm (5/16in) 8 pcs
16 07551014 / 07554014
Glass Clip for 6mm (1/4in) Glass 4 pcs
17a 07341010 / 07344010
Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs
17b 07341011 / 07344011
Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs
PRIME 36x36 SHEN-7036360
SHEN-7036360
PRIME 36x36
BOLD digit indicates finish color:
1 = Chrome
4 = Brushed Nickel
25
PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019
©2019 DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
© DreamLine
®
All Rights Reserved
TEL: 866-731-2244
FAX: 866-857-3638
DREAMLINE.COM
For more information on DreamLine
®
Shower Doors and Enclosures please visit DreamLine.com
©2019 DreamLine
®
All Rights Reserved
