DreamLine DL615009 Translucent Vinyl Insert Glass Shower User Manual

Cornerview Shower Enclosure, Base & Backwall

SHOWER ENCLOSURE, BASE & BACKWALL INSTALLATION INSTRUCTIONS

For more information about DreamLine

®

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

IMPORTANT

DreamLine

®

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

CORNERVIEW SHOWER ENCLOSURE, BASE & BACKWALL

STEP 1: Shower Base Installation Instructions

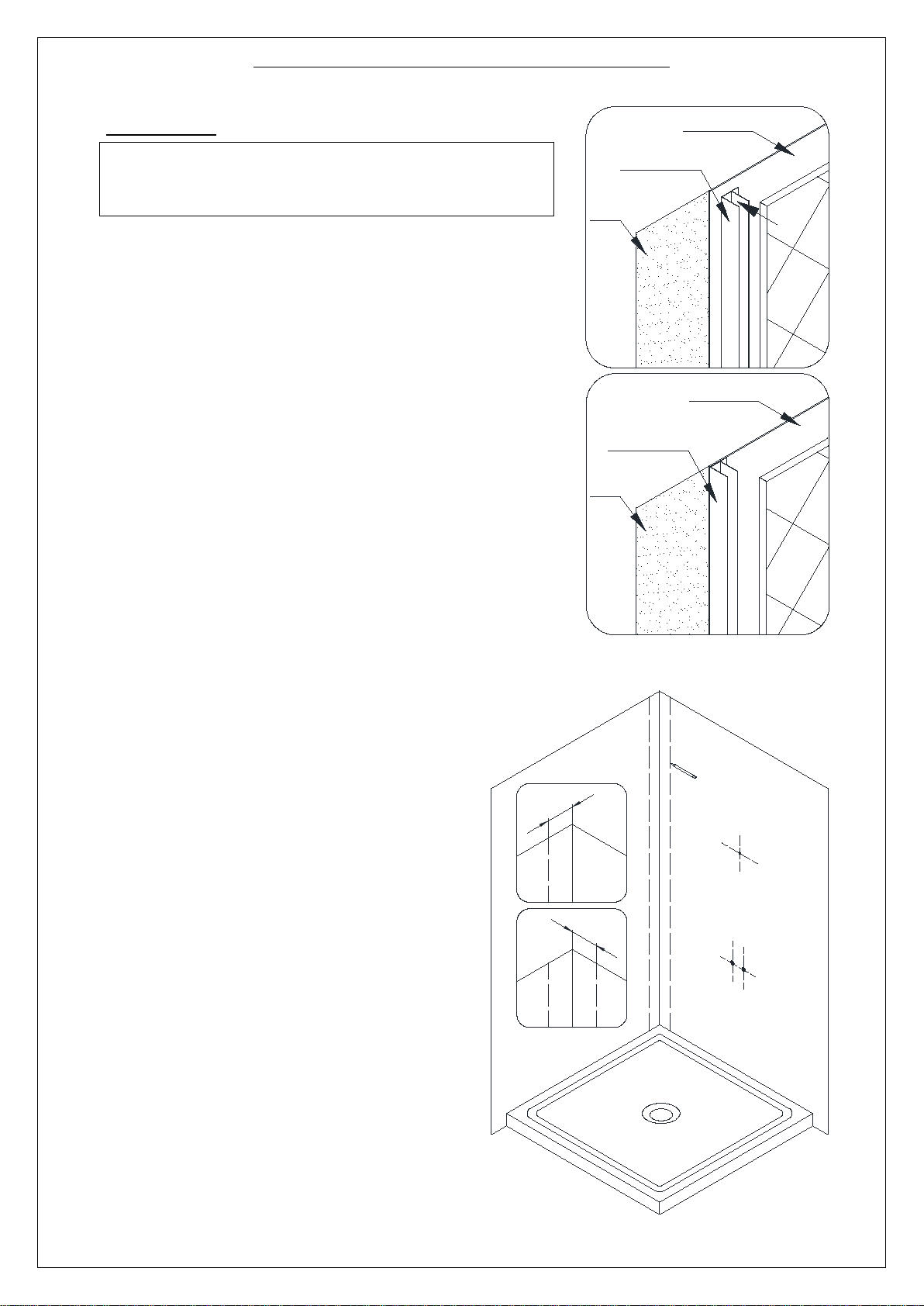

STEP 2: Shower Backwall Installation Instructions

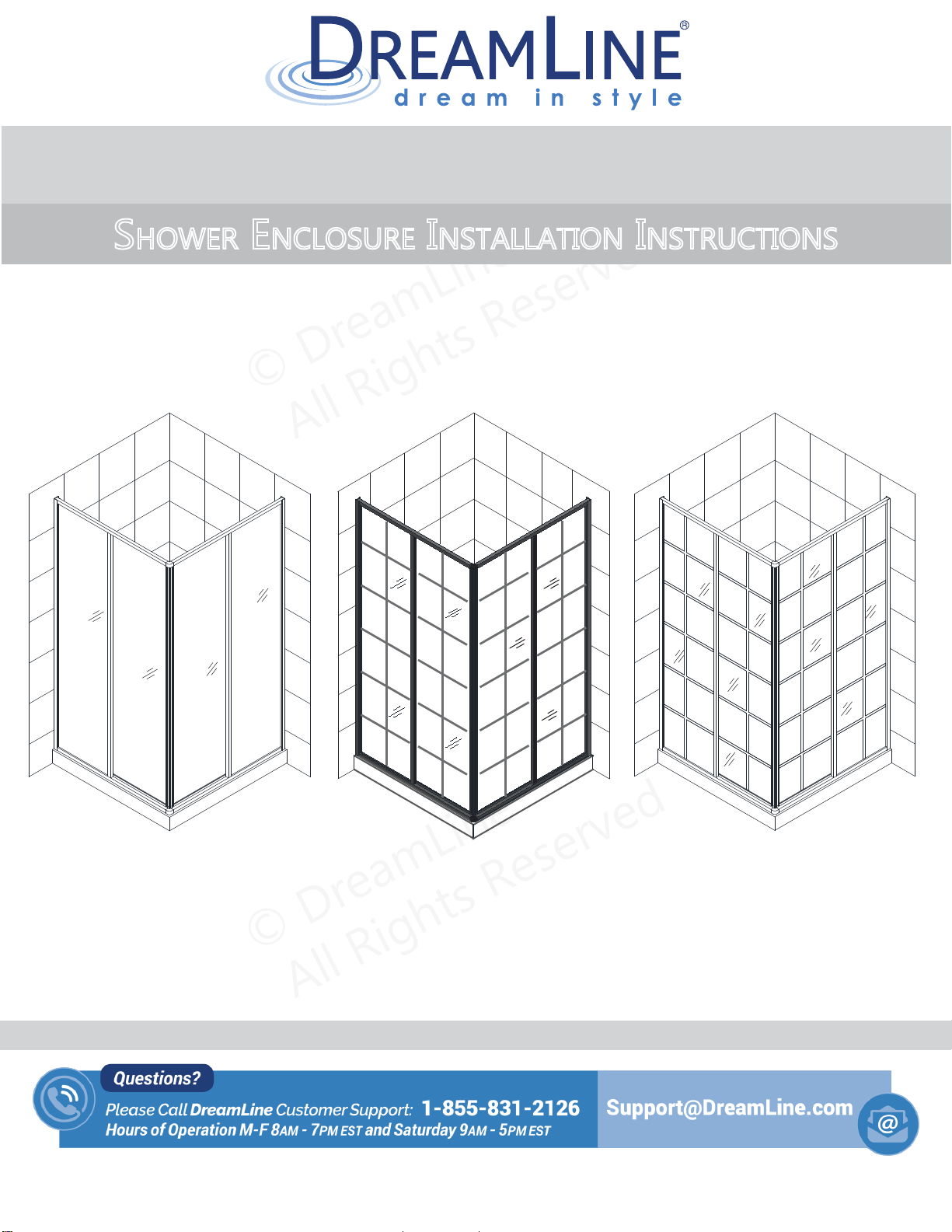

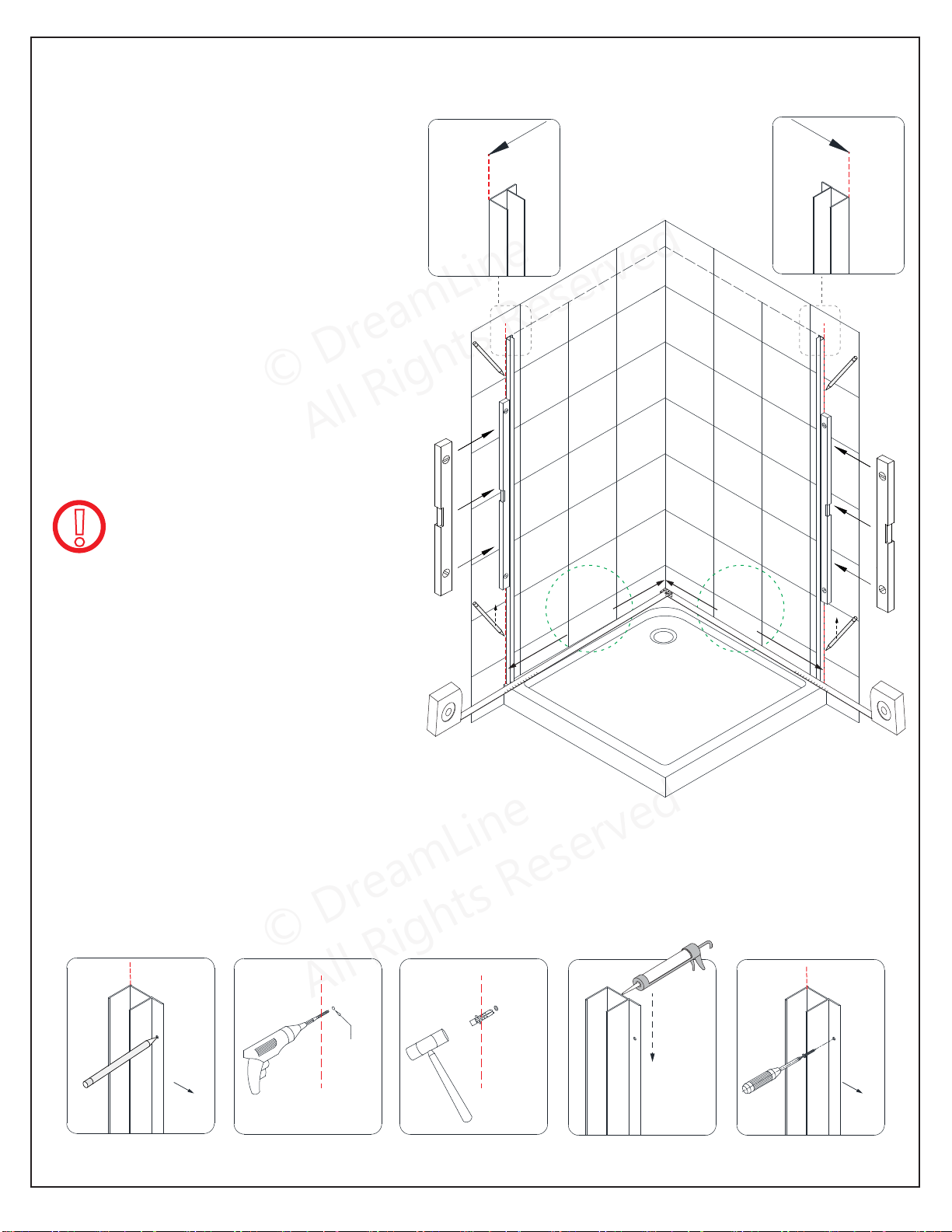

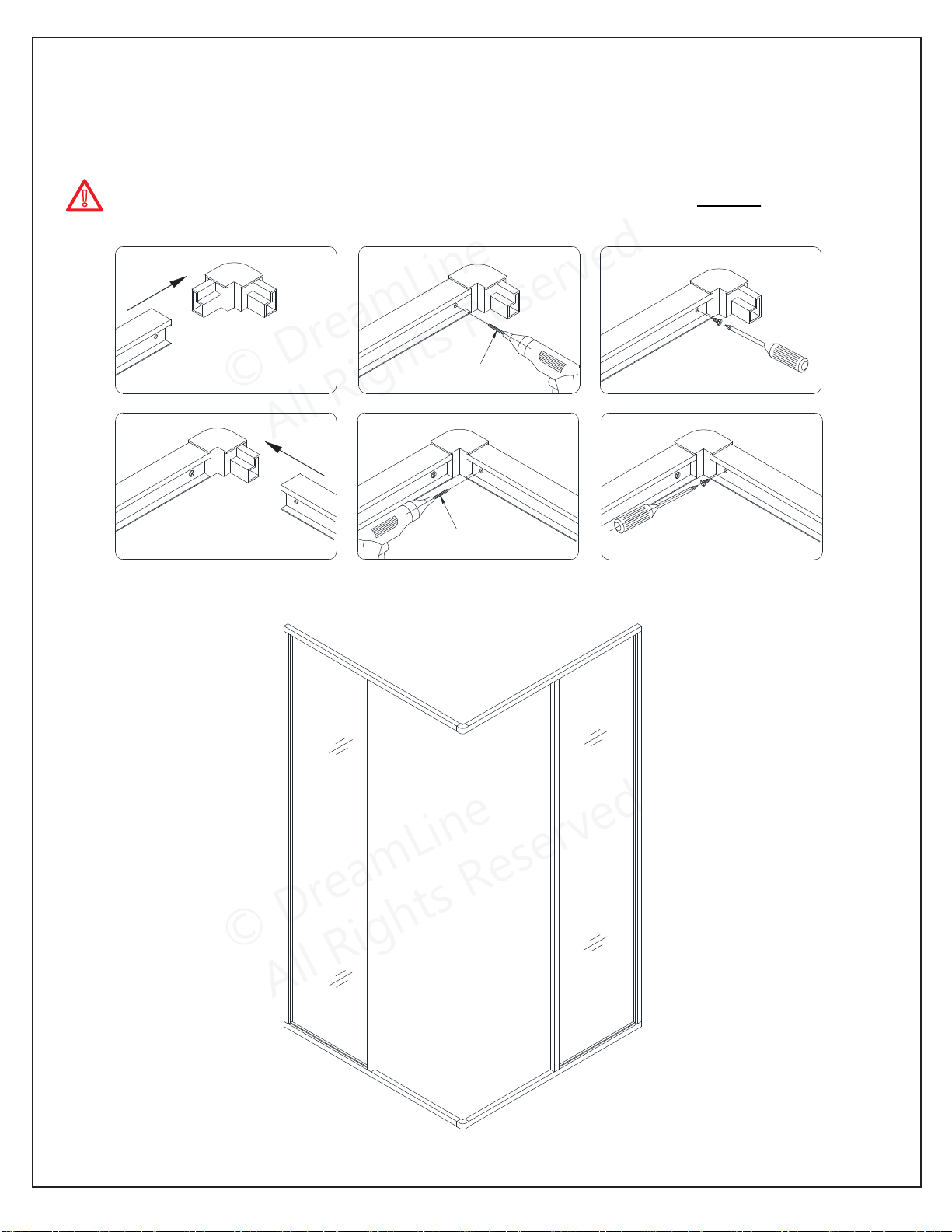

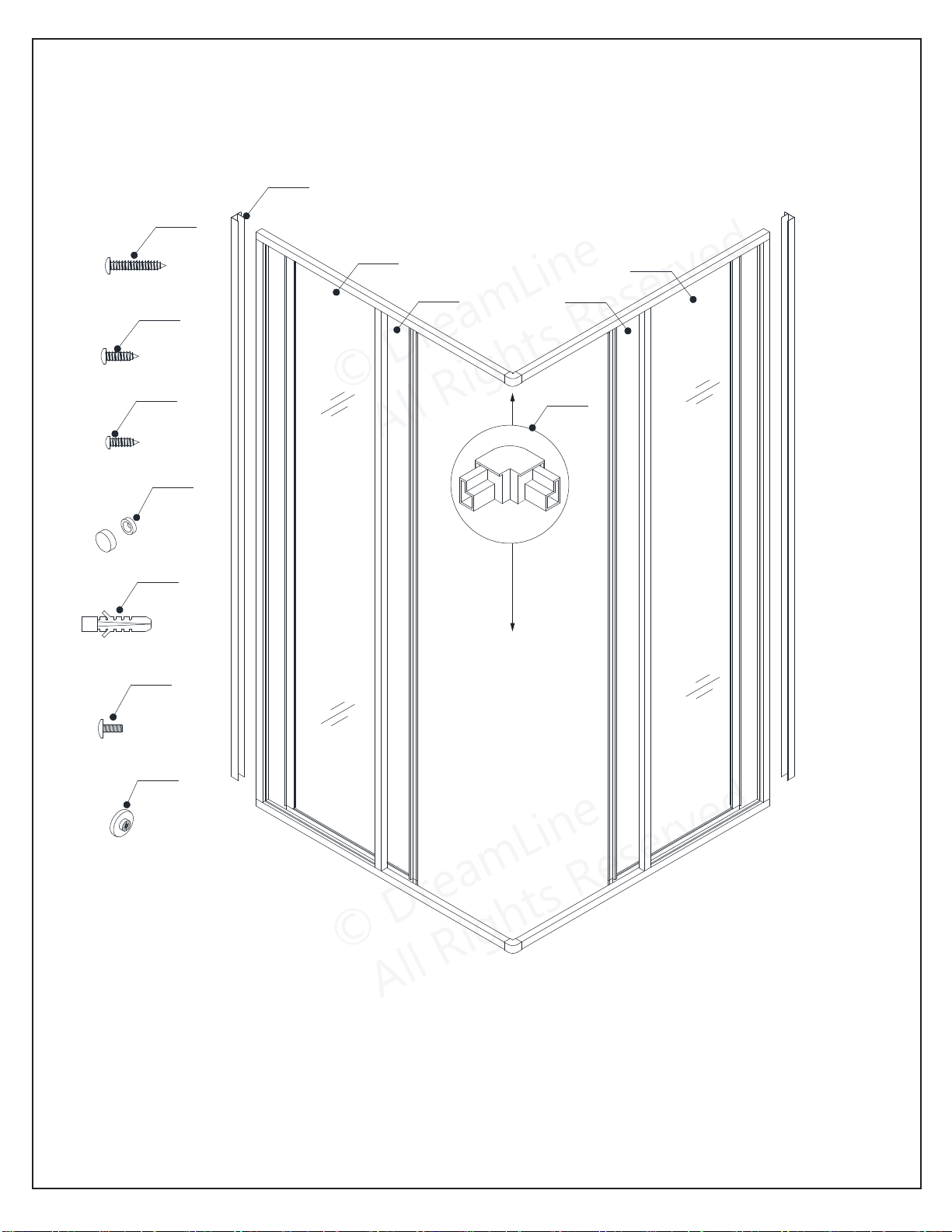

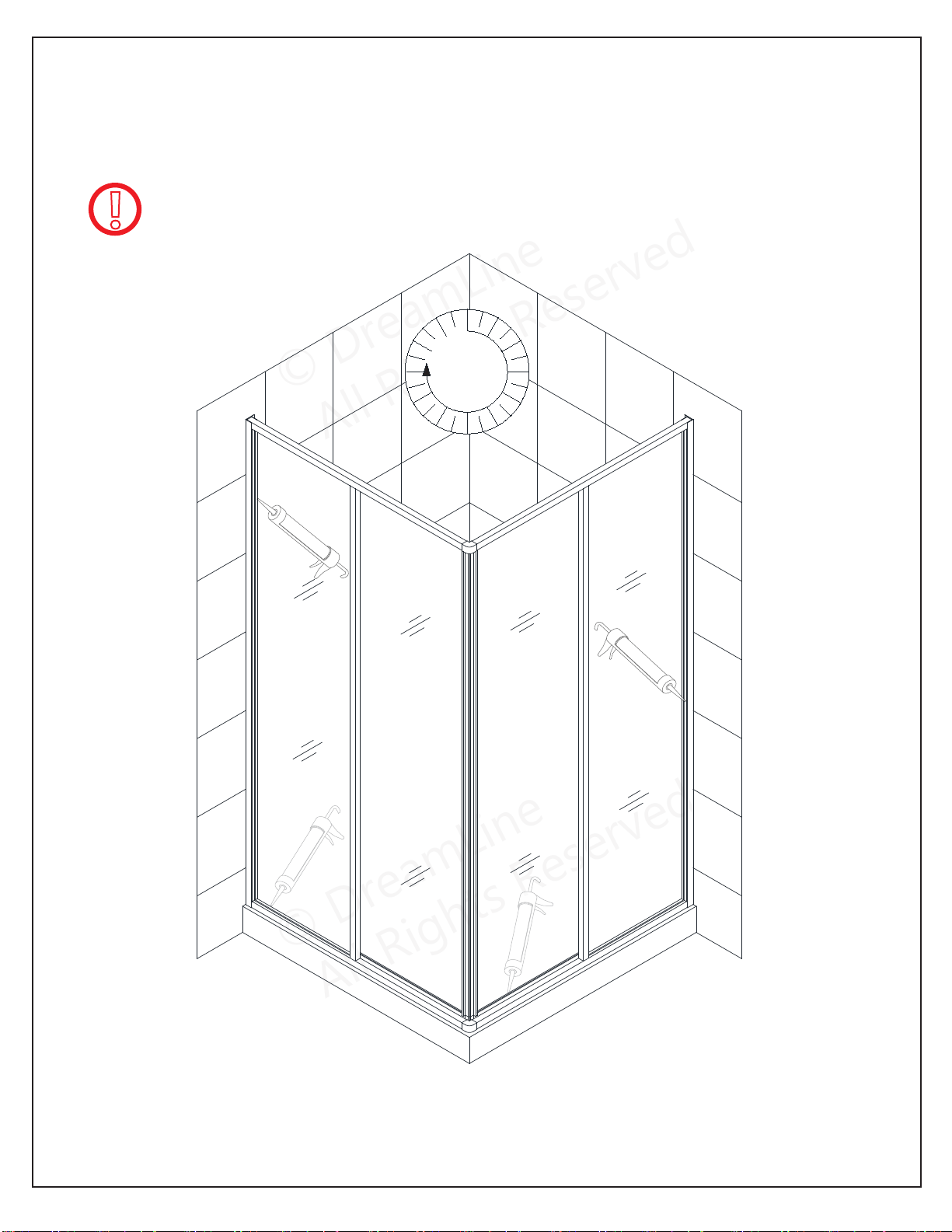

STEP 3: Shower Enclosure Installation Instructions

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

1

SLIMLINE SHOWER BASE

S

HOWER

B

ASE

D

IMENSIONS AND

I

NSTALLATION

I

NSTRUCTIONS

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior

notice for the purpose of product improvement and customer experience. Please refer to the

model’s web page on DreamLine.com for the latest technical drawings, installation manuals,

warranty information or additional product details.

Please review this entire manual before beginning installation

For more information about DreamLine

®

products please visit DreamLine.com

Color options:

--- - White

-22- Biscuit

-88- Black

Double Threshold Shower Base with Corner Drain Configuration

shown as an example

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

2

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the

piece count with your packing slip. After opening all boxes and packages read this introduction

carefully. Check that all of the parts are included in the package by checking off the

components on the parts list. If the unit has been damaged, has a finishing defect, or has

missing parts, please contact our customer support department within 3 business days of the

delivery date. Please note that DreamLine

®

will not replace any damaged products or

missing parts free of charge after 3 business days or if the product has been installed.

Please contact DreamLine

®

if with any questions and please provide an order number, job

name or other proof of purchase to help identify the original order.

2. Install all of the required plumbing and drainage before installing the shower base. Use a

competent and licensed (if required by local code) plumber for all plumbing installation.

3. Shower bases must be installed by a licensed plumber. Please note that you should

consult your local building codes with questions on installation compliance standards.

Building and plumbing codes may vary by location and DreamLine

®

is not responsible for

code compliance standards for your project.

4. Make sure that prior to the installation the installation surface is leveled and solid and will be

able to support the total weight of the unit. Also make sure the walls are at right angles. While

some adjustment in leveling of the tray is possible, irregular installation surface level or

improper angle of side walls will result in serious problems for your installation. Please note

that some adjustments may be necessary during the installation process.

5. Center drain configurations are centered on the width only. See technical drawing tables

for drain locations.

6. Drain not included with this product. The drain opening is 3-3/8” in diameter and accepts a

standard 2” compression fitted drain.

IMPORTANT NOTE:

Dimensions provided are for reference only. Measure the actual shower tray

before installation. This includes overall dimensions and drain location.

Allowed tolerance for center of the drain is +/-1/2".

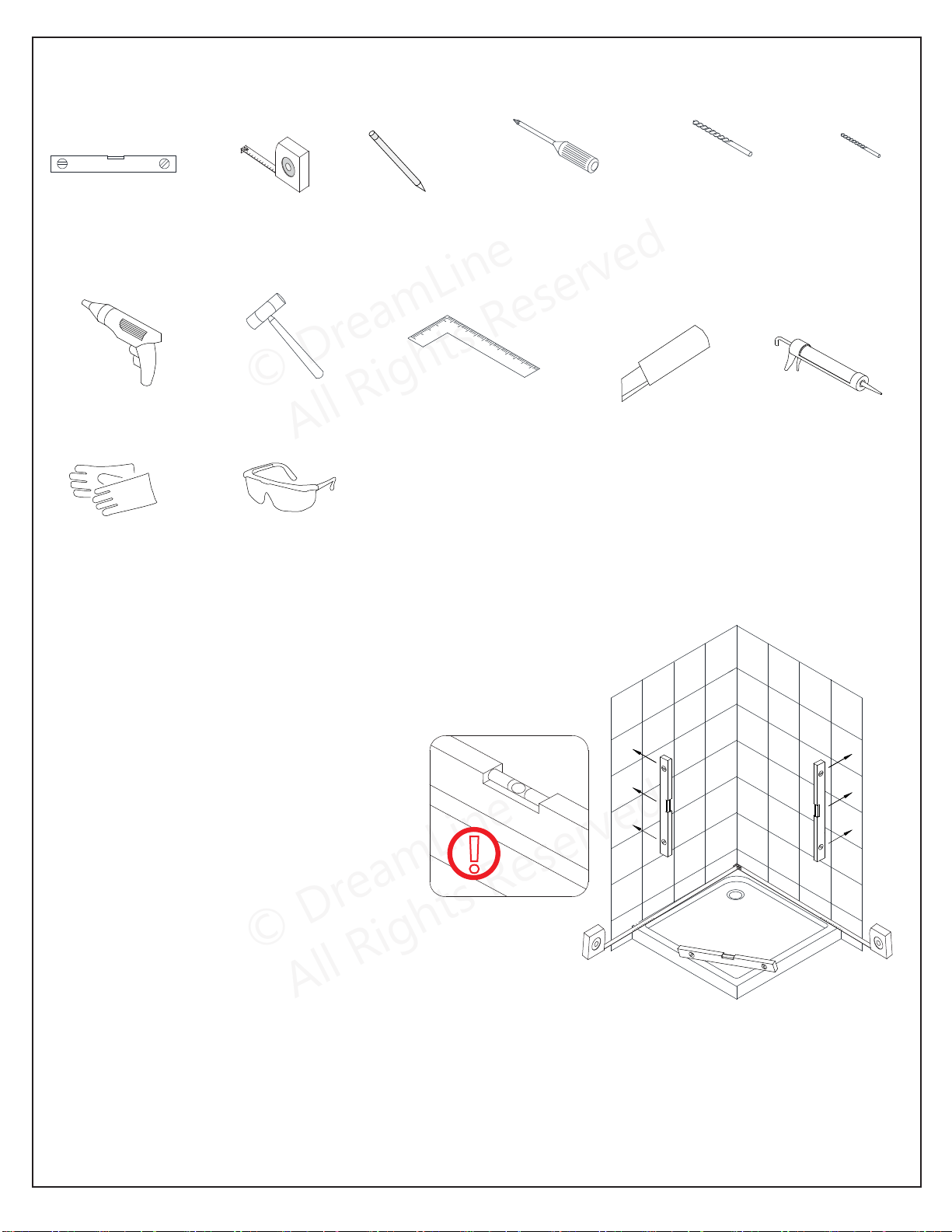

Tools Required

XXX

Tape

Measure

Pencil

Level

Mortar

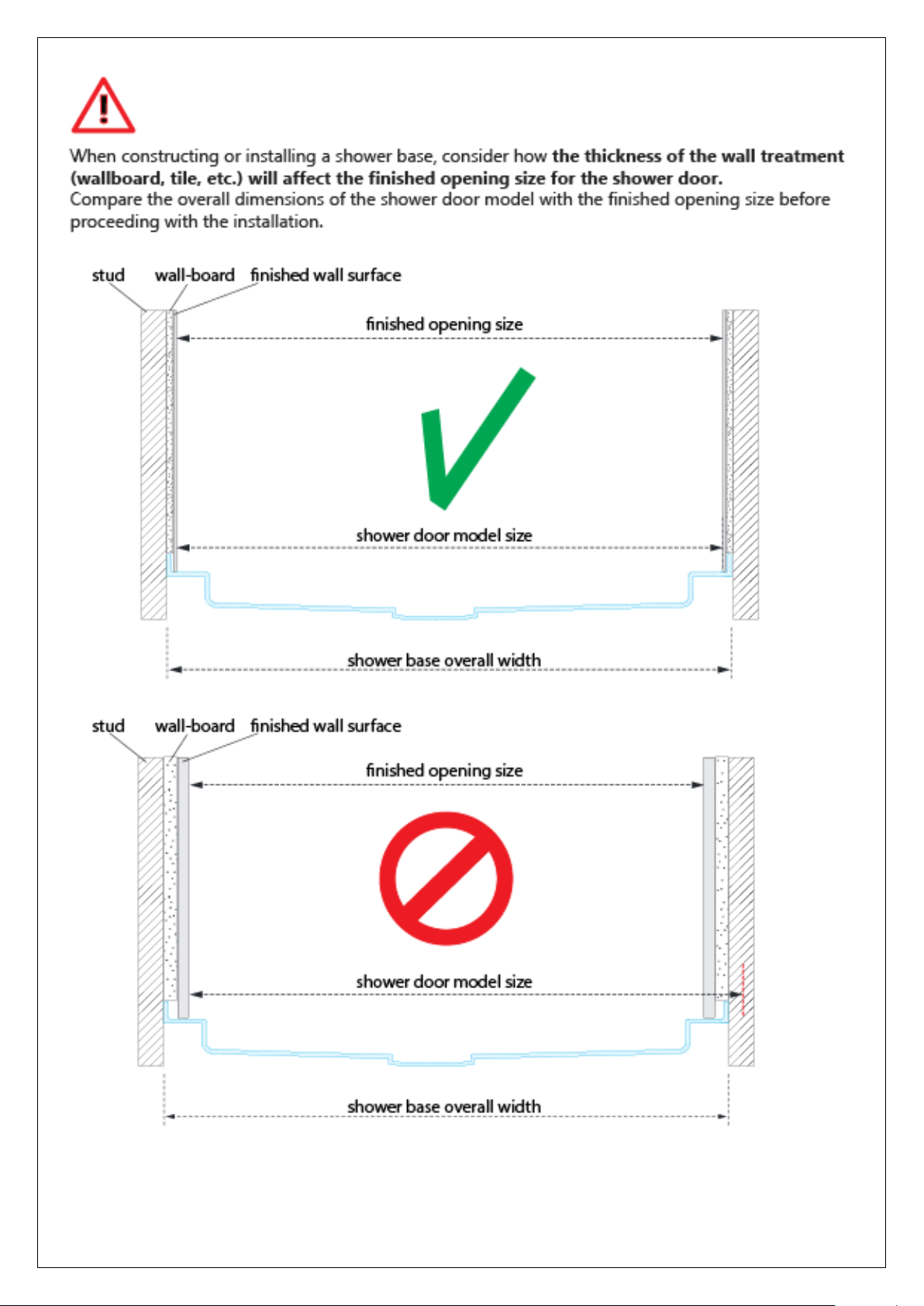

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

3

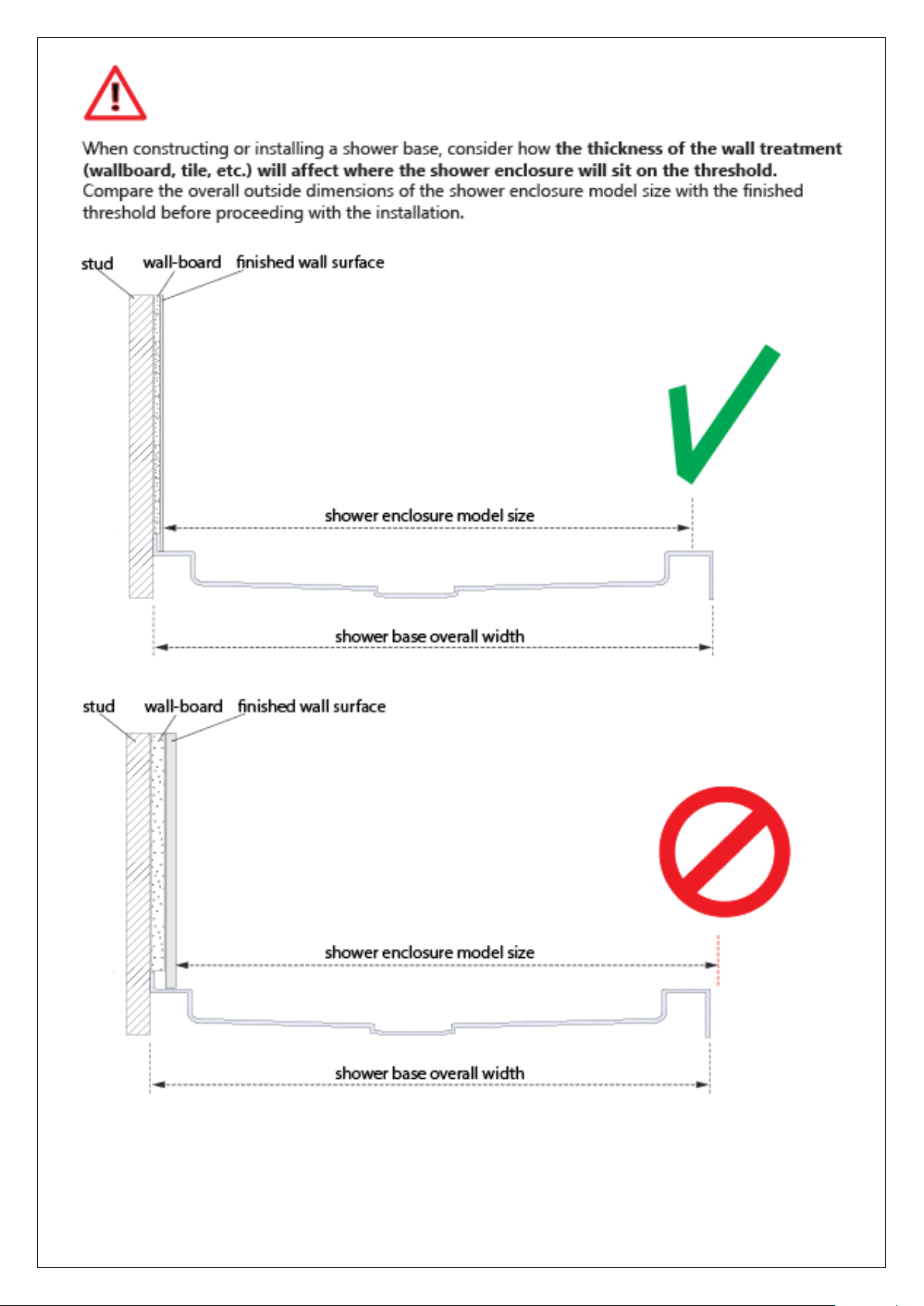

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

4

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

5

SINGLE THRESHOLD SHOWER BASE

Center Drain Configuration

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1132320

32"× 32"

32"

15"

16"

DLT-1136360

36"× 36"

36"

15"

18"

DLT-1132420

32” x 42”

32”

42”

15”

21”

DLT-1134420

34” x 42”

34”

42”

15”

21”

DLT-1136420

36” x 42”

36”

42”

15”

21”

DLT-1142420

42” x 42”

42”

20”

21”

DLT-1132480

32"× 48"

32”

48”

15”

24”

DLT-1134480

34” x 48”

34”

48”

15”

24”

DLT-1136480

36"× 48"

36"

48"

15"

24"

DLT-1132540

32” x 54”

32”

54”

15”

27”

DLT-1134540

34” x 54”

34”

54”

15”

27”

DLT-1136540

36” x 54”

36”

54”

15”

27”

DLT-1130600

30"× 60"

30"

60"

15"

30"

DLT-1132600

32"× 60"

32"

60"

15"

30"

DLT-1134600

34"× 60"

34"

60"

15"

30"

DLT-1136600

36"× 60"

36"

60"

15"

30"

W

D

W1

D1

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

6

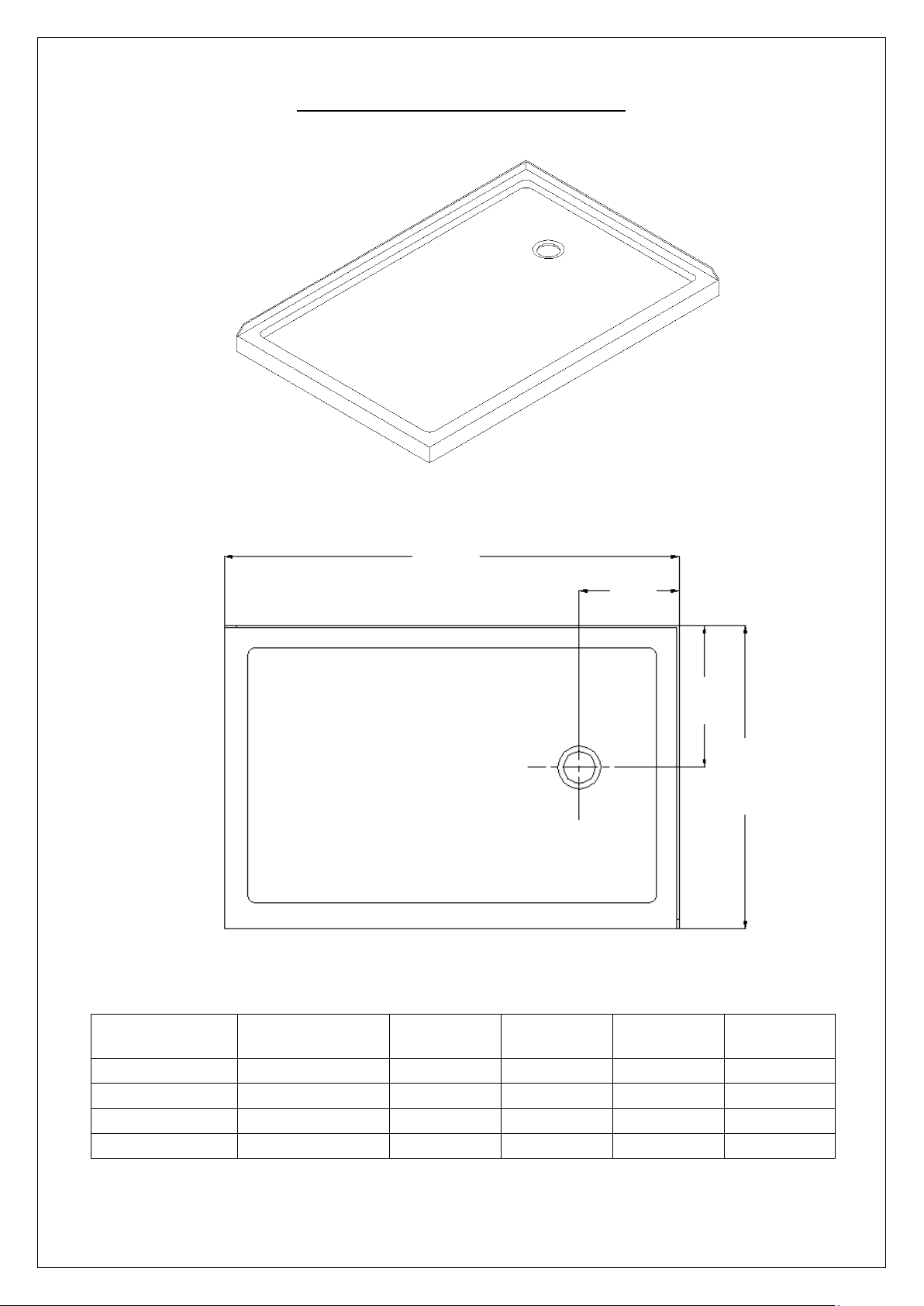

SINGLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

DLT-1130601

30"×60"

30"

60"

15"

12"

DLT-1132601

32"×60"

32"

60"

15"

12"

DLT-1134601

34"×60"

34"

60"

17"

12"

DLT-1136601

36"×60"

36"

60"

18"

12"

W

D

D1

W1

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

7

SINGLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

DLT-1130602

30"×60"

30"

60"

15"

12"

DLT-1132602 32"×60" 32" 60" 15" 12"

DLT-1134602

34"×60"

34"

60"

17"

12"

DLT-1136602

36"×60"

36"

60"

18"

12"

W1

W

D

D1

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

8

NEO ANGLE SHOWER BASE

MODEL SPECIFICATION W (in) A (in) B (in) C (in)

DLT-2036360

36"×36"

36"

18 5/16"

25"

12"

DLT-2038380

38"×38"

38"

20 5/16"

25"

12"

DLT-2040400

40"×40"

40"

22 5/16"

25"

14 3/8"

DLT-2042420

42"×42"

42"

24 5/16"

25"

14 3/8"

W

A

C

B

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

9

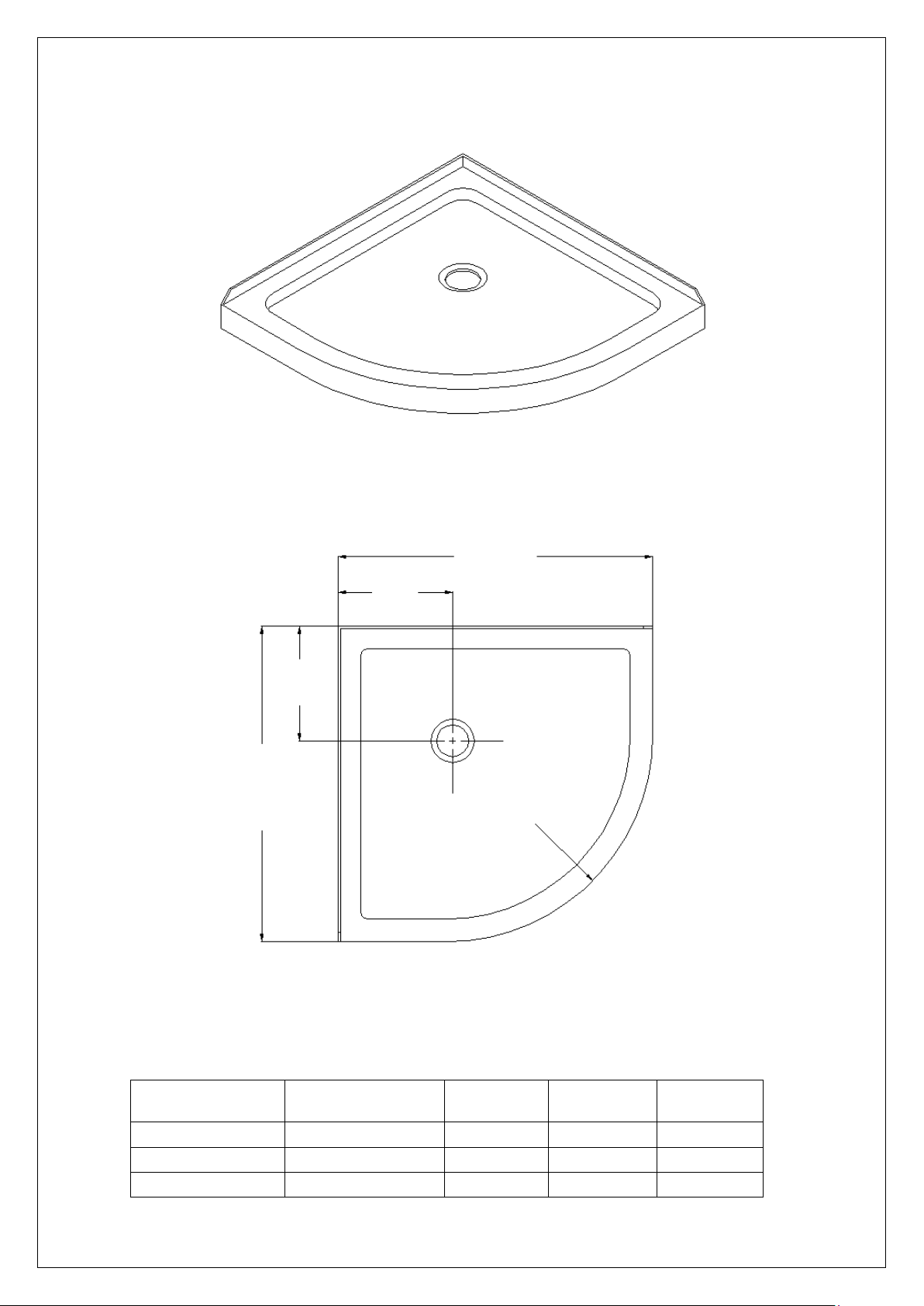

QUARTER ROUND SHOWER BASE

MODEL SPECIFICATION W (in) C (in) R (in)

DLT-7033330

33"×33"

33"

12"

21 5/8"

DLT-7036360

36"×36"

36"

12"

21 5/8"

DLT-7038380

38"×38"

38"

12"

21 5/8"

W

C

R

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

10

DOUBLE THRESHOLD SHOWER BASE

Corner Drain Configuration

MODEL SPECIFICATION W (in) C (in)

DLT-1032320

32"×32"

32"

12"

DLT-1036360

36"×36"

36"

12"

DLT-1042420

42” x 42”

42”

12”

W

C

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

11

DOUBLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

DLT-1034481

34"×48"

34"

48"

17"

12"

DLT-1036481

36"×48"

36"

48"

18"

12"

DLT-1036541

36"×54"

36"

54"

18"

12"

DLT-1036601

36"×60"

36"

60"

18"

12"

D

W

D1

W1

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

12

DOUBLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

DLT-1034482

34"×48"

34"

48"

17"

12"

DLT-1036482

36"×48"

36"

48"

18"

12"

DLT-1036542

36"×54"

36"

54"

18"

12"

DLT-1036602

36"×60"

36"

60"

18"

12"

W

D

D1

W1

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

13

Shower Base Cross Section Diagram

This product should be installed by someone familiar with the construction

requirements for this type of project and the care necessary for the safe

installation and operation of the product.

Finished Wall

Cement board

Shower Base

Mortar

Drain*

(2"×4") Stud

* not included

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

14

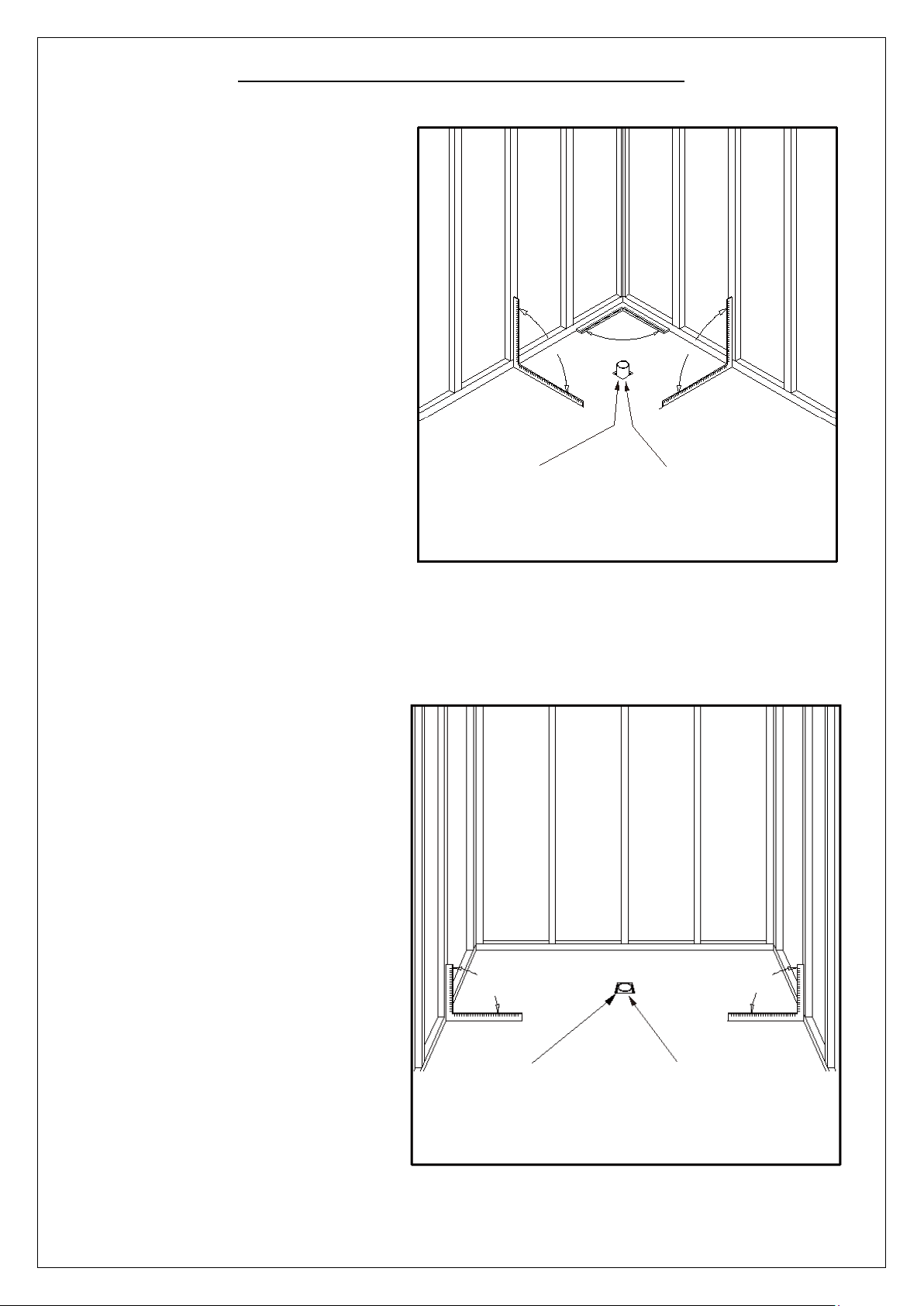

Shower Base Installation - Preparation

1. Ensure that the floor and the studs

are at right angles.

Provide a 5”×5” opening in the sub-

floor for the drain.

The 2” PVC waste pipe should

extend above the surface of the

sub-floor according to the drain

installation instructions and the

height of the Shower base.

Refer to the product drawings and

tables in this installation manual for

the drain location.

(Fig 1a and Fig 1b)

Fig 1a

Fig 1b

(See Product Chart for Drain Location)

(5"×5") Opening

2" PVC Waste Pipe

90°

2" PVC Waste Pipe

(5"×5") Opening

(See Product Chart for Drain Location)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

15

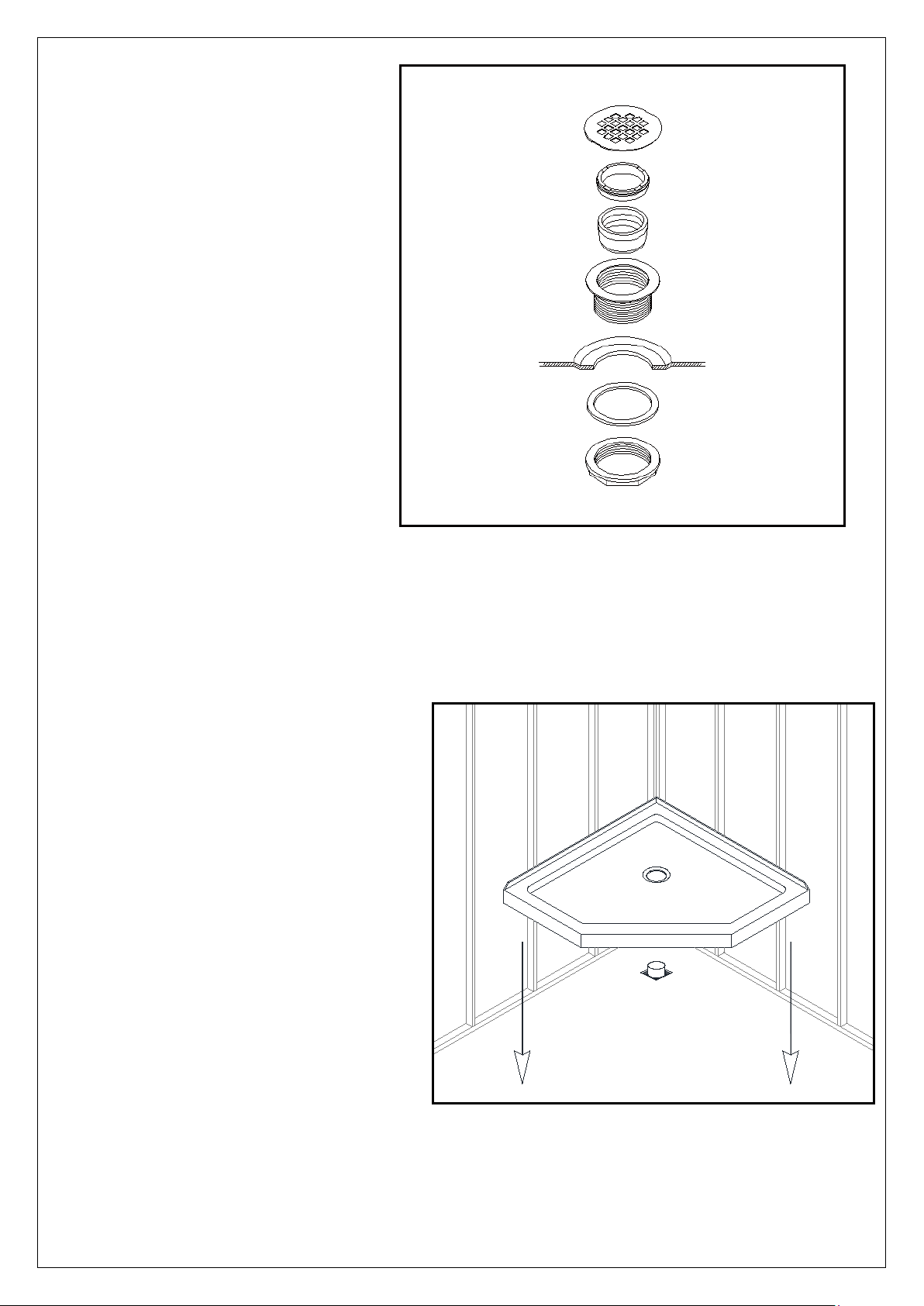

2. Install the shower drain (NOT

INCLUDED) according to the

drain installation manual

(supplied with the drain).

(Fig 2)

Fig 2

3. Place the tray into the designated

position so that the Drain cutout drops

around the Drain Pipe and butt the

Shower Base up against the studs.

(Fig 3)

Lower the base over the drain pipe

and set it into place against the studs.

Fig 3

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

16

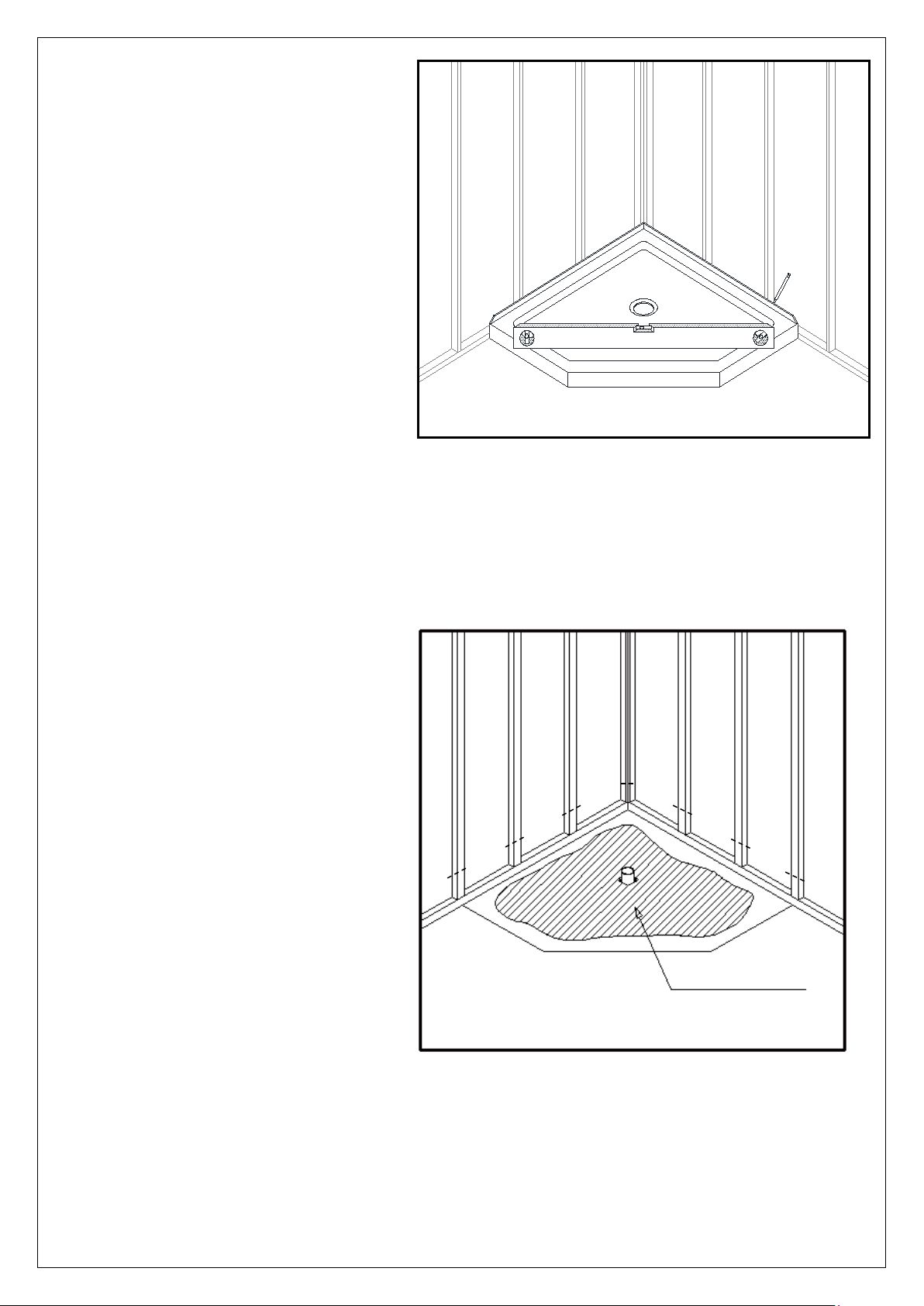

4. Level the tray and place marks on the

studs above the upper edge of the tile

flange.

(Fig 4)

5. Mix the bedding material (Mortar,

cement-sand mix, etc.) Concrete

or plaster is not recommended.

Apply enough bedding material

to support the entire bottom of

the shower base. This will add

additional stability and prevent the

base from shifting position.

(Fig 5)

Fig 5

Level base in two directions

Mortar

Fig 4

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

17

6. After the bedding material has been

poured and

before

it sets, place the

shower base into the position with the

drain assembly sliding over the PVC

waste pipe. It will be necessary to push

the shower base until the top of the tile

flange aligns with the marks drawn on

the studs and the front edge is

contacting the rough floor along the

entire length of the shower base. Ensure

that the base is level in all directions.

You may need to use shims to hold the

tray level until the bedding fully sets.

Remove all excess mortar.

(Fig 6)

7. Allow the bedding material to completely harden before applying weight to the bottom of the

shower base.

Install the cement board (or the wallboard) above the tile flanges and secure it to the studs.

Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between

the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap.

(Fig 7a and Fig 7b)

Fig 6

Fig 7a

Waterproof Drywall to

the top of the tile flange

Caulk

Finished wall overlaps the

dry wall and tile flange

Stud

1

2

Waterproof

Drywall

4

3

Side View

1/8”

gap

Base

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

18

Fig 7b

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

19

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:

wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use

non-abrasive sprays or cream-based cleaners. Avoid the use of aerosol spray cleaners.

Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products: wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent

soap buildup and water spots (Hard water can etch the surface of the glass over time if left to

dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that

contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the

surface.

HARDWARE: To ensure a long-lasting finish: wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If

accidentally used, rinse the surface as soon as possible to prevent damage to the finish

(peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with

a soft cloth.

Clean stainless-steel surfaces at least once a week. When applying stainless steel cleaner or

polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive

sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass

and other hardware for misalignment, proper attachment, and/or damage. Contact

DreamLine with any questions or concerns.

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine

®

Shower Doors and Enclosures please visit DreamLine.com

Q-Wall 4 manual Ver 1 Rev 2 08/2015

QWALL – 4

A

CRYLIC

S

HOWER

W

ALL

I

NSTALLATION

I

NSTRUCTIONS

IMPORTANT

DreamLine

TM

reserves the right to alter, modify or redesign products at any time

without prior notice. For the latest up-to-date technical drawings, manuals or any

other details please refer to your model’s web page on BathAuthority.com

Please read these instructions carefully before installing. If you have any questions

regarding installation, please contact our technical support specialists Monday through

Friday 8:00 AM – 7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or

e-mail our technical support group at Su[email protected]

For more information on DreamLine

TM

Shower Back Wall please visit www.BathAuthority.com

Q-Wall 4 manual Ver 1 Rev 2 08/2015

2

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare

the piece count with your packing slip. After opening all boxes and packages read this

introduction carefully. Check that all of the needed parts are included in the package by

checking off the components on the “Detailed Diagram of Acrylic Shower Wall

Components”. If the unit has been damaged, has a finishing defect, or has missing parts,

please contact our customer support department within 3 business days of the delivery

date. Please note that DreamLine

TM

will not replace any damaged products or missing

parts free of charge after 3 business days or if the product has been installed. Feel

free to contact DreamLine

TM

if you have any questions, and please provide an order

number, job name or other proof of purchase to help us identify your original order.

1. Please note that you should consult your local building codes with questions on

installation compliance standards. Building and plumbing codes may vary by

location, and DreamLine is not responsible for code compliance standards for your

project.

2. This acrylic wall system is specially designed to be installed over any solid surface. If you

are installing the acrylic walls over the existing tiles, remove all loose tiles before the

installation. If you are installing over the existing painted walls, take all loose paint off.

Please, note that some cutting and drilling might be necessary during the installation

process.

3. Make sure to turn off the water supply, remove faucet, handles or any fixture trims

protruding from the wall. Clean the surface removing soap film and dirt from all wall

surfaces using regular household detergent, and then wipe it dry.

Tools Required

Caulk

Tape

Measure Pencil

Screwdriver

Phillips

(Ø 5/16")

Drill bit

Level

Gun

Caulk

Drill

Electric

Hammer

Knife

T-Square

Q-Wall 4 manual Ver 1 Rev 2 08/2015

3

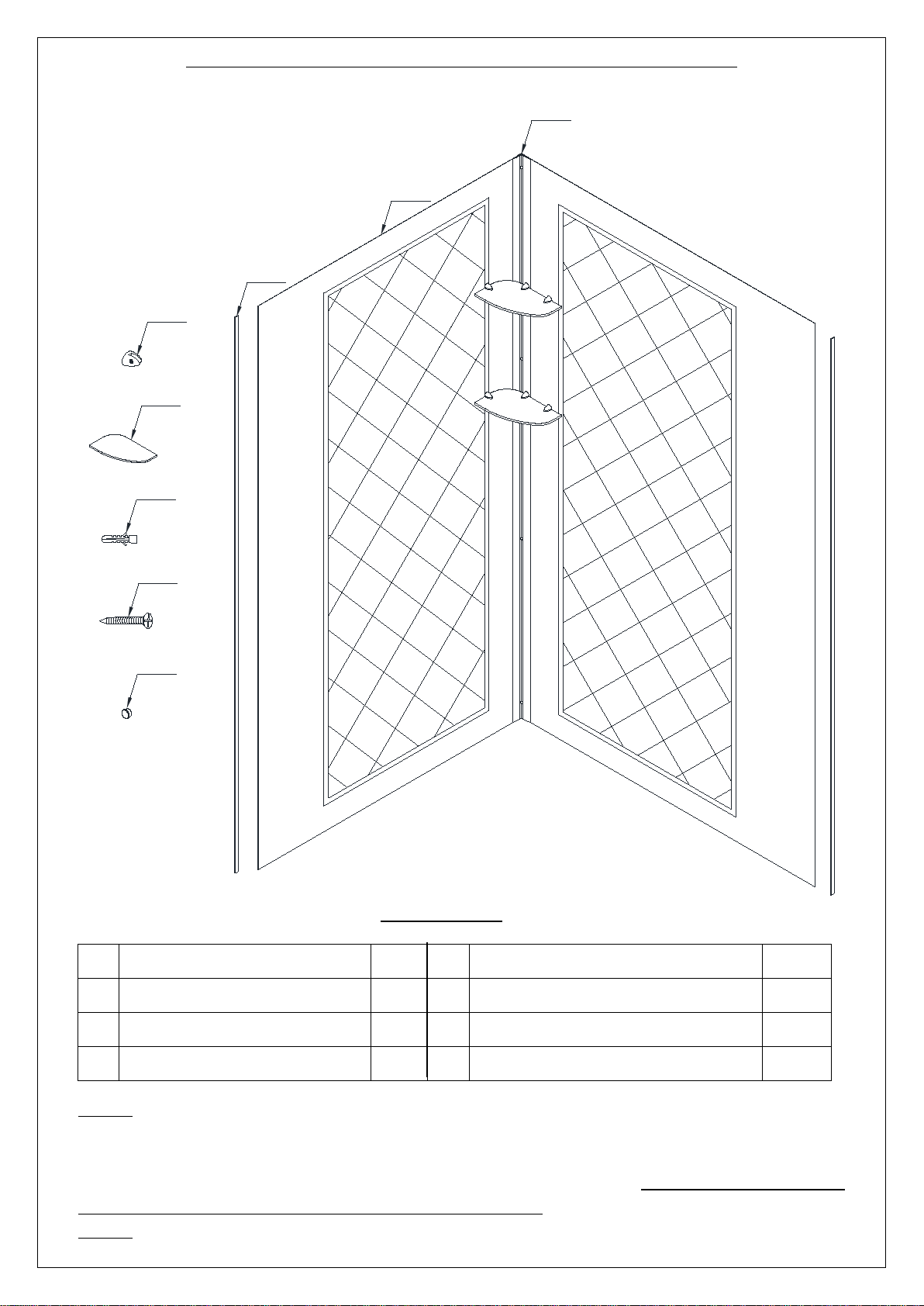

Detailed Diagram of Acrylic Shower Wall Components

5

6

7

8

4

2

1

3

Packing List

01 Side panel 2pcs 05 Glass shelf 2pcs

02 Corner cover 1pc 06 Wall anchor 11pcs

03 Decorative edge molding 2pcs 07 Countersunk screw ST4.2×40 11pcs

04 Shelf bracket 6pcs 08 Decorative cover 5pcs

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the

detailed diagram and packing list in your manual as a reference. Before discarding the carton,

check for small hardware bags that may have fallen to the bottom of the box. If any parts are

damaged or missing, please contact DreamLine

TM

for replacement. The shipping boxes may

contain extra parts not used in your model configuration.

NOTE: Retain these installation instructions for future reference.

Q-Wall 4 manual Ver 1 Rev 2 08/2015

4

Preparation for Installation of Side Panel

ATTENTION:

See Fig. 1 for details.

Fig. 1

1. Place a mark on the walls with a distance

of 1” (one inch) from the corner and draw

a plumb vertical line from top to bottom.

See Fig. 2 for details.

Fig. 2

If you are installing a shower enclosure with a wall

profile, you can hide the edge of the Side panel (01)

behind the wall profile.

1"

1

2

1

2

Wall Profile

Side Panel

Wall

Side Panel

Wall Profile

Wall

Q-Wall 4 manual Ver 1 Rev 2 08/2015

5

2. Measure the walls of the shower from the

1” (one inch) line in the corner (from

Step. 1) to the points where you want

Side panels (01) to end.

The distances are “D1” and “D2”.

NOTE:

“D2” Shows wall with the fixture.

See Fig. 3 for details.

Fig. 3

3. Determine the position of both

Side panels (01).

NOTE:

a) The narrow edge of the Side

panels fits behind the corner

cover and cannot be trimmed.

b) The wide edge of the Side

panel can be trimmed to the

size of your measurements

from step 2.

Measure from the narrow edge of

the Side panel and place a mark

at a distance of “D1” and “D2”

(that you measured in Step 2).

Draw a straight line from top to

bottom along the wide edge of

the Side panel.

See Fig. 4 for details.

Fig. 4

D1

D2

D1

D2

to cut

Line

to cut

Line

Q-Wall 4 manual Ver 1 Rev 2 08/2015

6

4. Place the Side panel (01) on a flat piece of plywood

or particle board. Use a sharp industrial knife and a T-

square to score along the marked wide ends of the

Side panel and continue scoring until you have fully

cut through the panel.

See Fig. 5 and Fig. 6 for details.

Fig. 5

Fig. 6

1

2

D1

D2

Q-Wall 4 manual Ver 1 Rev 2 08/2015

7

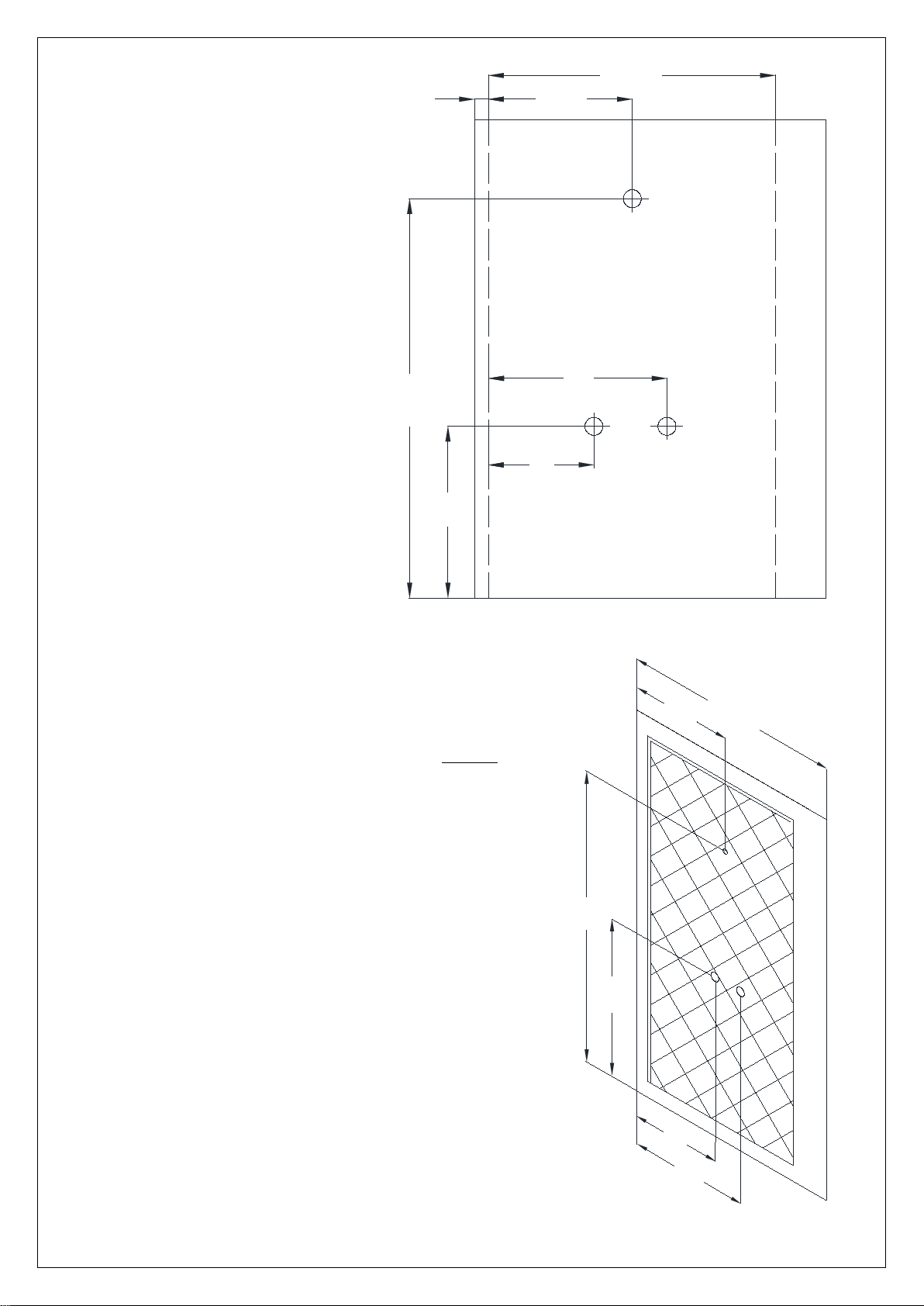

5. Take exact measurements of

the fixture on the wall:

• from the 1” (one inch) line

in the corner of the shower

to the fixture:

(A, B, C)

• from the bottom of the wall

of the shower to the fixture:

(E, F).

See Fig. 7 for details.

Fig. 7

6. Determine which Side panel (01) will be installed on

the side wall with the fixture.

Mark the fixture location on the Side panel

according to the measurements taken in Step. 5.

See Fig. 8 for details.

Fig. 8

D2

A

F

E

1"

B

C

D2

F

E

A

B

C

Q-Wall 4 manual Ver 1 Rev 2 08/2015

8

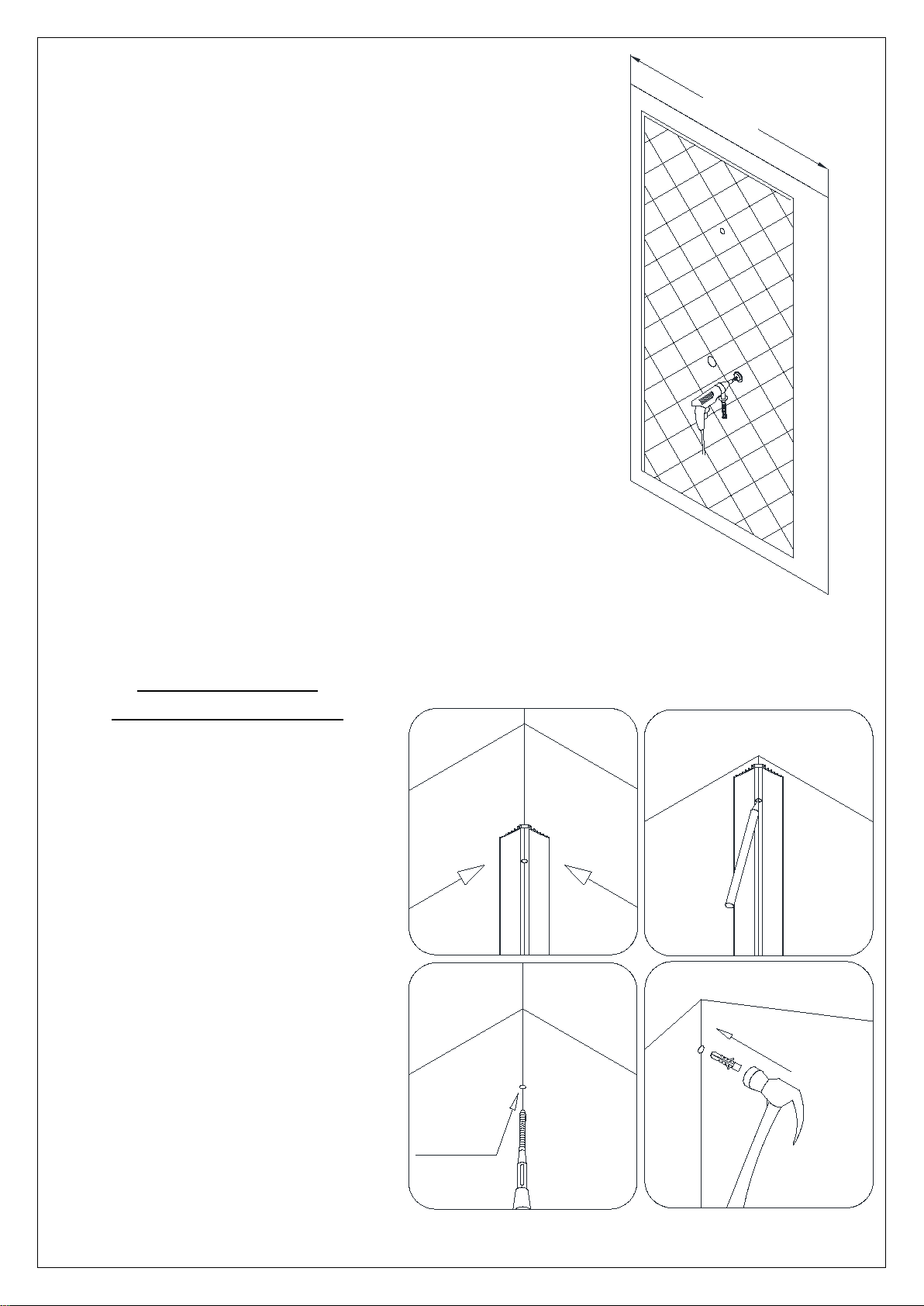

7. Drill the holes for the fixtures in the Side panel (01) using

the proper diameter saw bit or a handheld jig saw.

See Fig. 9 for details.

Fig. 9

Acrylic Side Panel

Installation Instruction

8. Attach the Corner cover (02) to

the corner of the shower and

mark the drilling holes through

the predrilled holes in the

Corner cover.

Move aside the Corner cover,

Drill the holes using Ø5/16” drill

bit and insert the Wall Anchors

(06).

See Fig. 10 and Fig. 11 for details.

Fig. 10

1

2

3 4

Ø5/16"

D2

Q-Wall 4 manual Ver 1 Rev 2 08/2015

9

Fig. 11

9. Mount the Corner cover (02) to the corner of the

shower using the Countersunk screws ST4.2×40 (07).

Do not fully tighten the screws at this time; leave them

loose for further installation.

See Fig. 12 and Fig. 13 for details

Fig. 12

1

2

Q-Wall 4 manual Ver 1 Rev 2 08/2015

10

Fig. 13

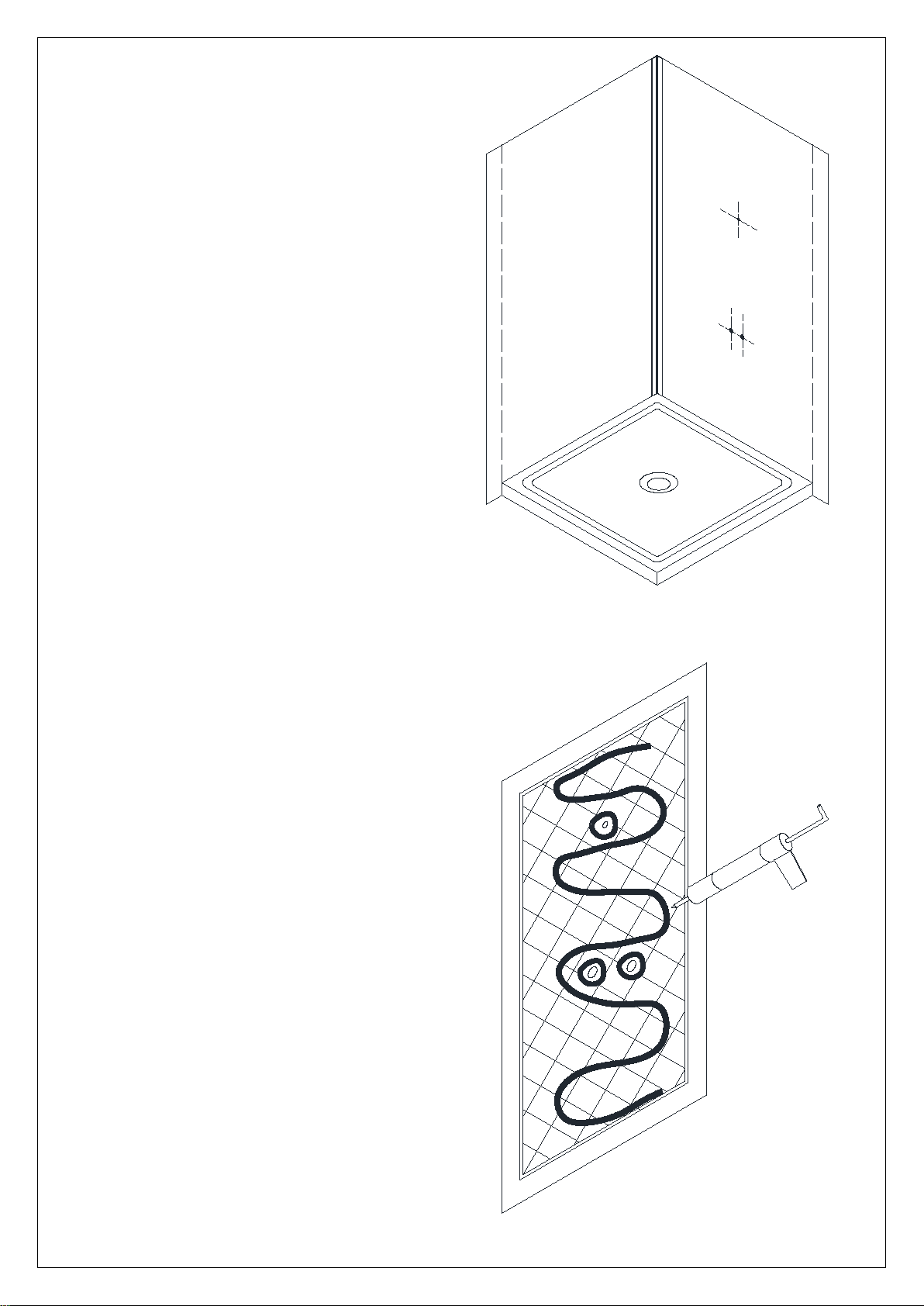

10. Apply the sealant to the entire surface of the

reverse side of the Side panel (01).

Also, apply the sealant around the drilled

holes.

See Fig. 14 for details.

Fig. 14

Q-Wall 4 manual Ver 1 Rev 2 08/2015

11

11. Slide the narrow edge of the Side panel

(01) behind the Corner cover (02).

Align trimmed edge of the Side panel

(from Step. 4) with the marked line on the

wall (in Step. 2) and push the Side panel

against the wall.

NOTE:

Make sure the drilled holes on the Side

panel are also aligned with the fixtures on

the wall.

See Fig. 15 for details.

12. Apply sealant to the entire surface of the

reverse side of the other Side panel (01).

See Fig. 14 for details.

13. Slide the narrow edge of the Side panel

(01) behind the Corner cover (02).

Align trimmed edge of the Side panel

(from Step. 4) with the marked line on the

wall (in Step. 2) and push the Side panel

against the wall.

Align the top of both Side panels and the

Back panel before the sealant sets. Apply

equal pressure to the whole surface of the

Acrylic panels from top to bottom.

See Fig. 16 for details.

Fig. 16

1

2

1

2

Fig

. 15

Q-Wall 4 manual Ver 1 Rev 2 08/2015

12

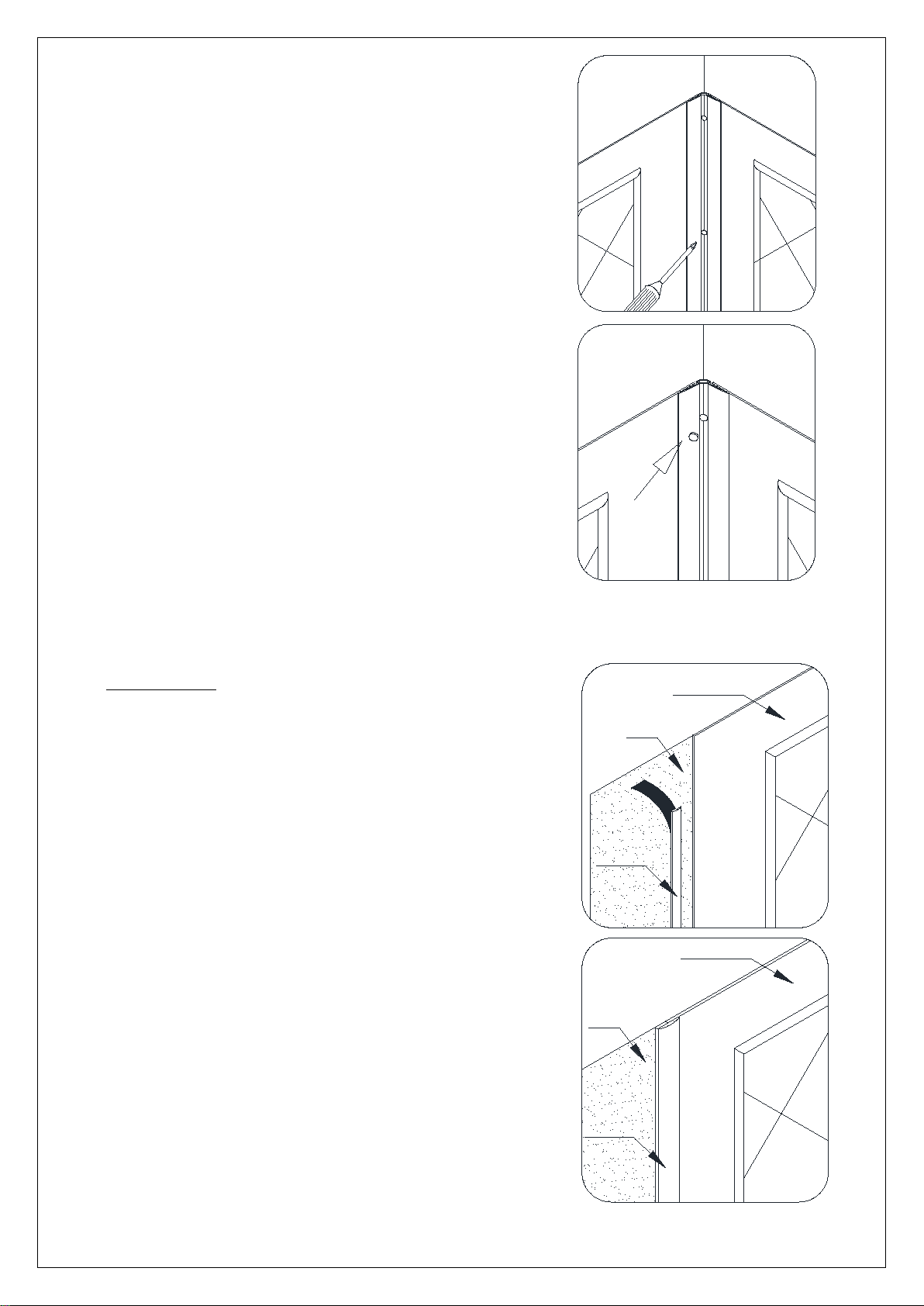

14. Once Side panels (01) aligned, fasten tight the

Corner cover (02) to secure the Side panels.

Cover the screw holes with the Decorative cover

(08).

See Fig. 17 for details.

Fig. 17

ATTENTION;

Prior to the next step, please be sure the part of

the wall for installation of the Decorative edge

molding (03) is clean, dry and free from soap, oil

and any construction debris.

15. Gently remove the plastic tape from the adhesive side

of the Decorative edge molding (03) and firmly

press it to the edge of the Side panel (02) from top

to bottom.

See Fig. 18 for details.

Fig. 18

1

2

1

2

Side Panel

Wall

Molding

Decorative

Side Panel

Wall

Molding

Decorative

Q-Wall 4 manual Ver 1 Rev 2 08/2015

13

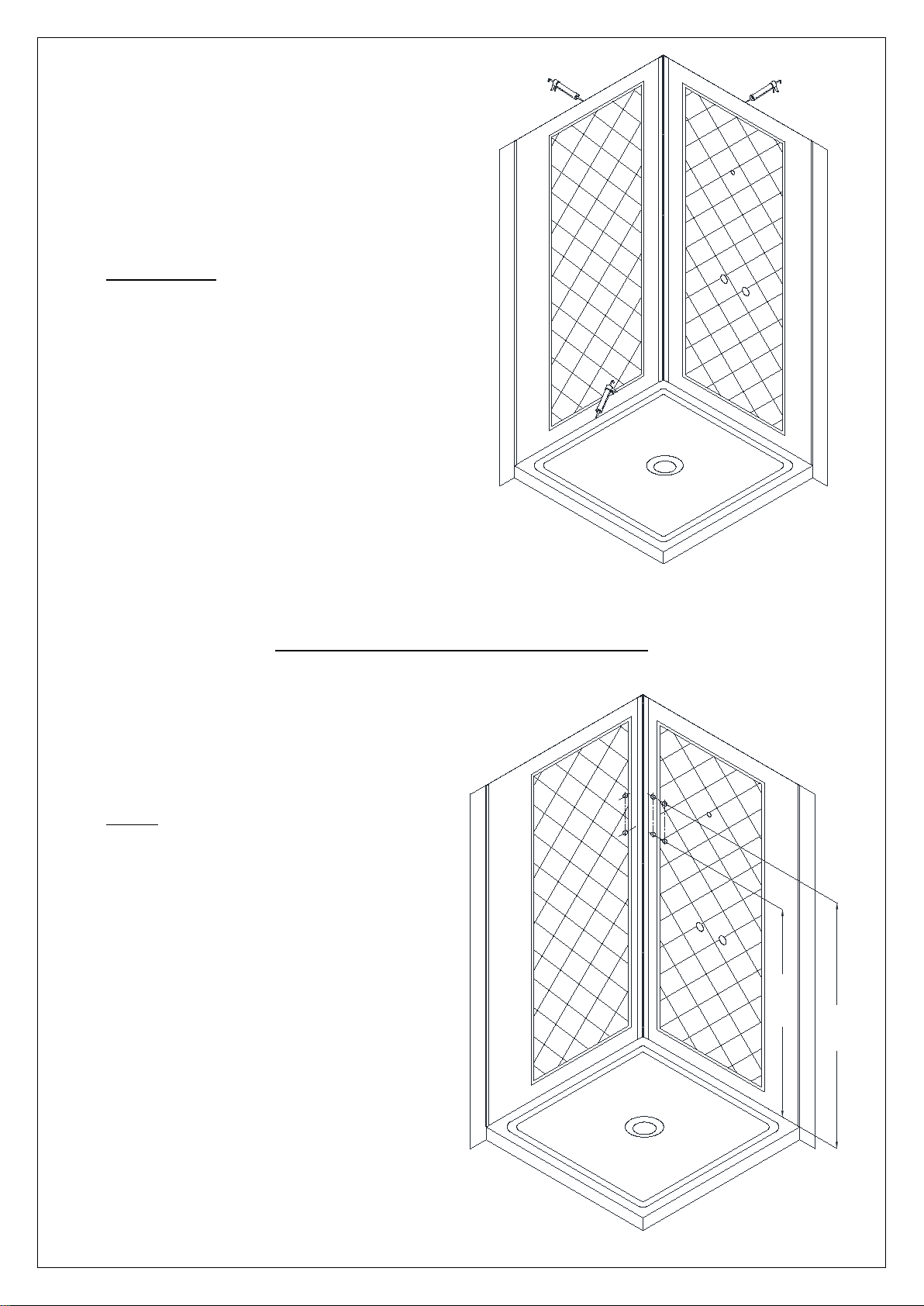

16. Apply caulk along the top edge of the Side

panels (01) and along the connection of

the bottom edges of the Side panels with

the Shower base.

See Fig. 19 for details.

ATTENTION:

Installation of “QWALL-4” Acrylic shower

wall is complete.

If you want to install Glass shelves (05) to

your Shower, follow to the next step.

Fig. 19

Glass Shelves Installation Instruction

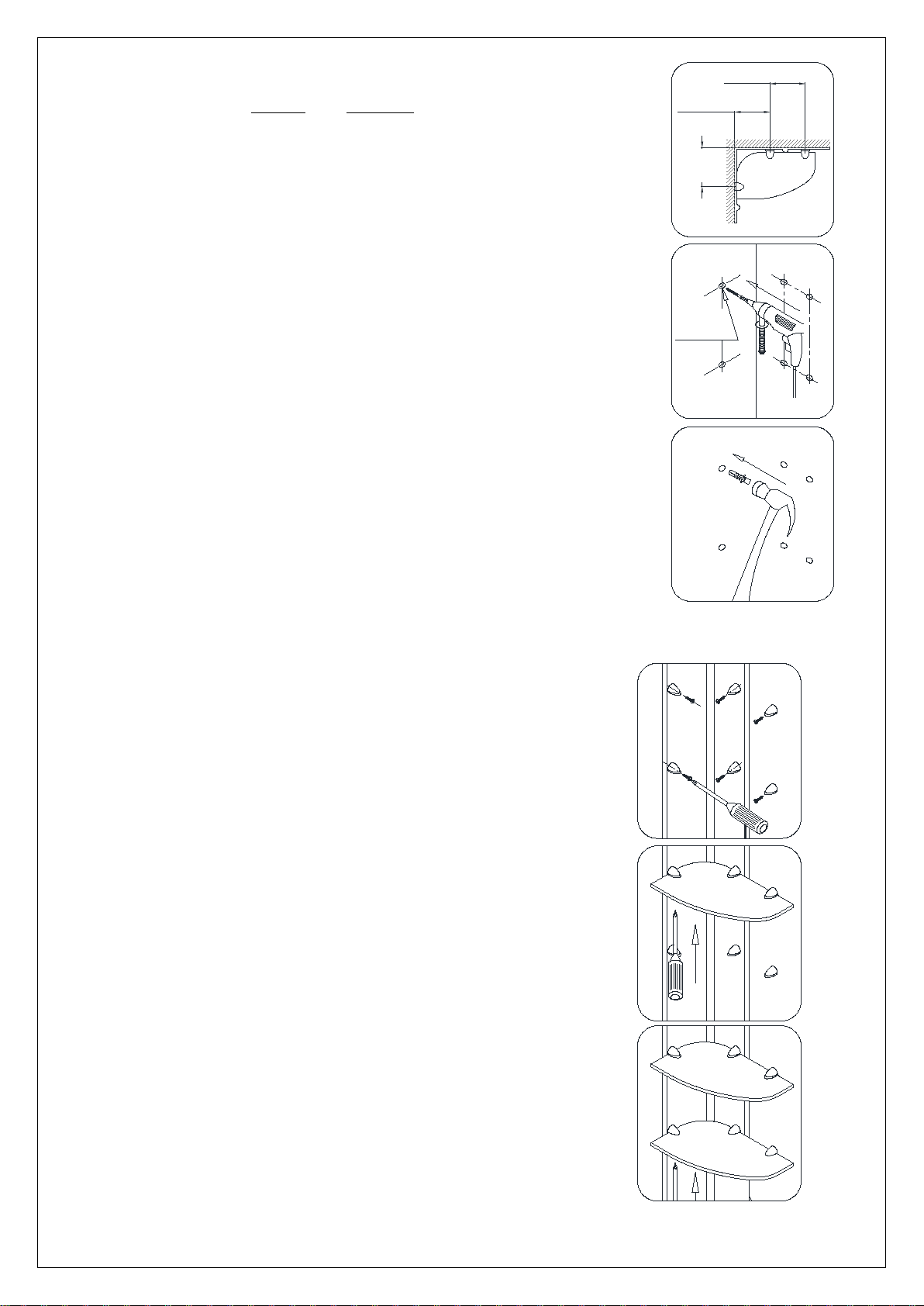

17. Determine the desired height for the

Glass shelves (05) and mark the

locations on the wall.

NOTE:

The Glass shelves can be installed either

two in one corner, or one in each.

See Fig. 20 for details.

Fig. 20

G

H

Fig. 20

Q-Wall 4 manual Ver 1 Rev 2 08/2015

14

18. Mark the location for the Shelf brackets (04) according to the

measurements in Fig. 20 and Fig. 21.1.

Drill the holes using Ø5/16” drill bit and insert the Wall anchors

(06).

See Fig. 21 for details.

19. Mount the Shelf brackets (04) to the wall using the

Countersunk screws ST4.2×40 (07).

NOTE: the padded set screw of the Glass bracket should be

facing down.

Slide the upper Glass shelf (05) into the upper Shelf

brackets and tighten the set screws at the bottom of the

brackets. Then slide the bottom Glass shelf in place. Tighten

the set screws on the bottom Shelf brackets as well.

See Fig. 22 and Fig. 23 for details.

Fig. 22

1

2

3

3 1/2"

Ø 5/16"

1

2

3

Fig

. 21

Q-Wall 4 manual Ver 1 Rev 2 08/2015

15

Fig. 23

Product maintenance

To ensure long lasting life for your acrylic back walls, wipe them off after each use with a soft

cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never

use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

Acrylic cleaning procedure:

Acrylic should be cleaned with warm water and a clean, non-abrasive cloth. If desired, a

mild, non-abrasive detergent may also be used. Use only light pressure when cleaning.

Avoid rubbing dirt or grit into the surface. Turn the cloth often and replace with a clean

cloth frequently. Dry by blotting gently with a clean, dry cloth.

DO NOT USE:

Window cleaning sprays, alcohol, kitchen abrasive compounds, or solvents (such as acetone,

gasoline, or thinners). Do not use ammonia based cleaning solutions on the acrylic as it will

damage the surface.

How do you get scratches out of Acrylic?

For light scratches, use a buffing compound such as a car wax. Use a buffer or lightly polish

the surface by hand until scratches disappear.

Q-Wall 4 manual Ver 1 Rev 2 08/2015

16

TEL: 866-731-2244

FAX: 866-857-3638

WWW.BATHAUTHORITY.COM

For more information on DreamLine

TM

Shower Back Wall please visit www.BathAuthority.com

Please review this entire manual prior to installation

CORNERVIEW / FRENCH CORNER

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

®

reserves the right to alter, modify or redesign products at any time without prior notice. Please refer to the model’s

web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product

details.

For more information about DreamLine

®

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

Cornerview Model#

SHEN-8134340-01 (chrome)

SHEN-8140400-01

French Corner Model#

SHEN-8134340-89 (satin black)

SHEN-8140400-89

French Corner Model#

SHEN-8134340-00 (white)

Parts List & Shower Enclosure Plan view

Installation Steps

Detailed Diagram of Shower Door Components

Table of Contents

Section title

Page #

Tools

Preparation

Product Maintenance 12

5

4

3

2

6-11

This product should be installed by someone familiar with the

construction requirements for this type of project and the care

necessary for the safe installation and operation of the product.

!

CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with the packing slip. After opening all boxes and packages read this introduction carefully.

Check that all of the necessary parts are included in the package by checking off the components on

the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing

defect, or has missing parts, please contact our customer support department within 3 business

days of the delivery date. Please note that DreamLine

®

will not replace any damaged products

or missing parts free of charge after 3 business days or if the product has been installed.

Contact DreamLine

®

if you have any questions, and please provide an order number, job name or

other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine

®

is

not responsible for code compliance standards for your project and will not accept any

returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing

and drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be

able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular

installation surface level, radius corners or improper angle of side walls will result in serious

problems for your installation. Note that some adjustments and drilling will be necessary during the

installation process.

5. Protect all primary surfaces of the product during installation. Never set the glass down directly

onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece

of wood or cardboard to protect the bottom edge and corners of the glass prior to and during

installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This model has 1/2” of adjustment for out-of-plumb wall conditions within the wall

profiles.

8. This model requires a minumum of 1” of flat threshold space for installation.

9. Professional installation recommended.

2CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

!

This enclosure is available with clear glass as the “Cornerview”, or with patterned glass

as the “French Corner”. The installation of the “Cornerview” modelwith clear glass will be

used as an example throughout this manual.

Tools

Tip: Measure the finished opening before

proceeding with the installation to be sure

that the correct model size has been

ordered.

Tip: Prior to installation, cover the

shower/tub drain with tape to prevent

losing screws or small parts.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small

hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine

®

for replacement. The shipping boxes may contain extra parts not used in

your model configuration.

NOTE: Retain these installation instructions for future reference.

Tip: Set screw gun clutch to low setting

when installing screws and bolts to

prevent stripping the heads.

3CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

Razor Knife

Power

Carpenter’s

Square

Ø1/8"

(3mm)

Drill bit

Ø5/16"

(8mm)

Drill bit

Hammer

Soft Head

Phillips

Drill

Screwdriver

Pencil

Tape

Measure

Level

Threshold must be level.

!

100% Silicone

Work Gloves

Safety Glasses

Detailed Diagram of shower door components

4CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

5

1

2

3

2

4

6

7

8

9

10

11

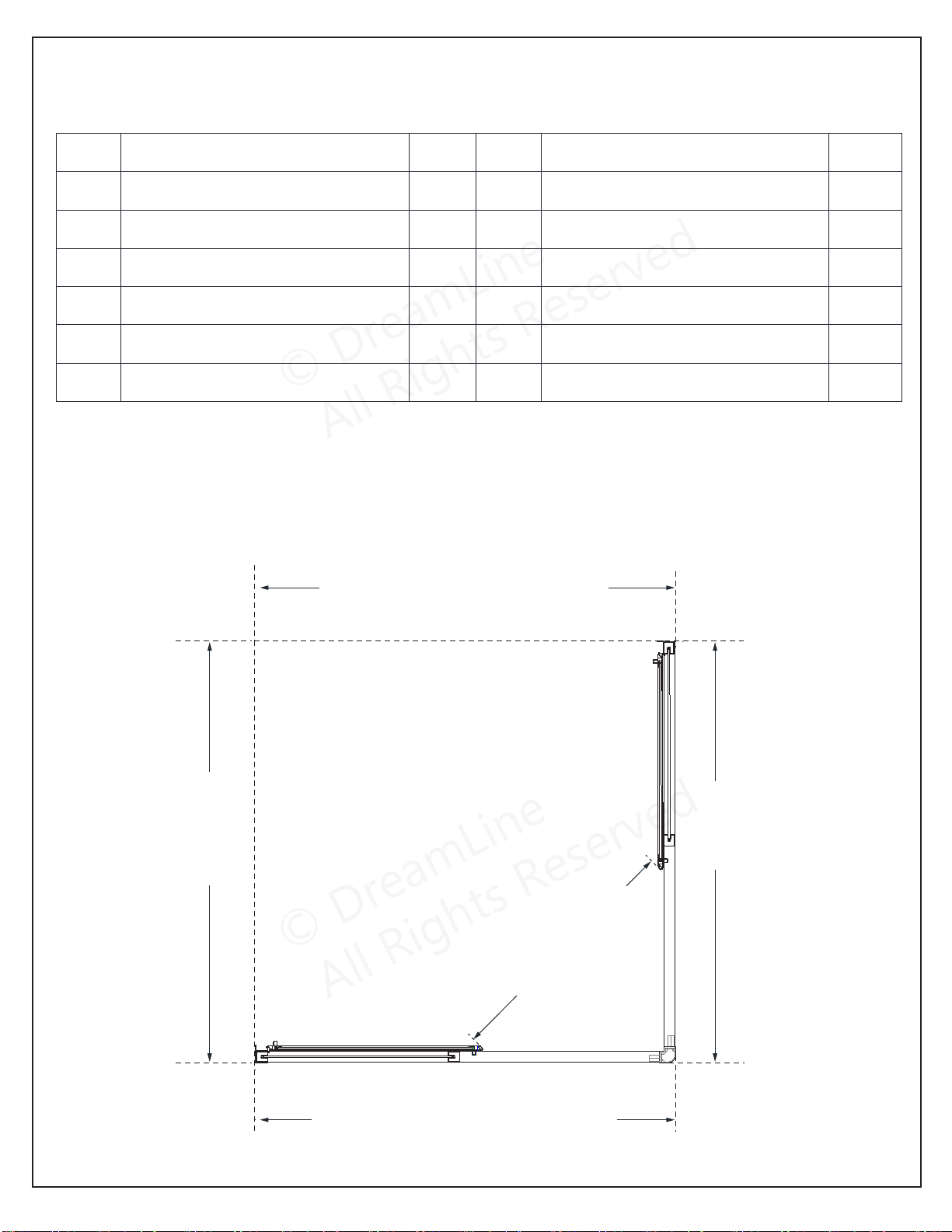

Parts List

Shower Enclosure Plan

5CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

01

Part# Part#

02

03

04

05

06

07

08

DESCRIPTION DESCRIPTION

QTY QTY

Panel Glass Assembly

2pcs

09

11

Wall profile

Rail connector

Door Glass Assembly

Decorative cover and washer

Wall anchor

4pcs

2pcs

8pcs

10

8pcs

4pcs

ST4.2x40 Truss head screw

M5x8 Bolt

ST4.2x10 Pan head screw

Roller wheel

2pcs

4pcs

8pcs

ST4.2x10 Truss head screw

20-3/4” (527mm)

access space

34-1/2” min to 34-7/8” max

40-7/16” min to 40-13/16” max

finished wall surface

34-1/2” min to 34-7/8” max

40-7/16” min to 40-13/16” max

34-1/2” min to 34-7/8” max

40-7/16” min to 40-13/16” max

34-1/2” min to 34-7/8” max

40-7/16” min to 40-13/16” max

SHEN-8134340-## / SHEN-8140400-##

Installation steps

6CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

outside

Fig 1

Fig 2

!

34-1/2"

40-7/16"

or

34-1/2"

or

40-7/16"

Ø5/16”

1

2 3

4 5

Measure from the finished corner

of the shower to the outside of

the wall profile at the threshold

and draw a plumb line up from

there.

inside

1. Place the Wall Profiles (#01) onto the

threshold at a distance of 34-1/2” or

40-7/16” (depending on the model

size). Measure from the finished corner of

the opening and mark the position on the

wall at the threshold. Use a level to align

the Wall Profiles (#01) vertically and mark

the wall.

(Refer to the Shower Enclosure Plan on

page 5 and Fig 1)

2. Mark the drilling holes on the wall through the predrilled holes in the Wall Profiles (#01).

Drill the holes in the wall using a Ø5/16” drill bit and insert the Wall Anchors (#09).

Run a bead of silicone along the back surface of the Wall Profiles (#01) and around the holes in the

wall. Attach the Wall Profiles (#01) to the wall using the ST4.2 x 40 Truss Head Screw (#05). (Fig 2)

7CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

NOTE: To prevent damaging the Rail Connector (#04), tighten but Do Not overtighten

the screws.

Fig 3a

Fig 3b

1

2

3

4

5 6

!

Ø1/8”

3. Insert the Rail Connector (#04) into the guide rails of the Panel Glass Assembly (#02). Drill a hole

into the outer layer of the Rail Connector (#04), through the predrilled hole in the guide rails using an

Ø1/8” drill bit.

Fasten the top and bottom Rail Connector (#04) to the guide rails with the ST4.2×10 Truss Head

Screws (#06). (Fig 3a and Fig 3b)

8CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

Wall Profile

Glass Profile

Fig 4

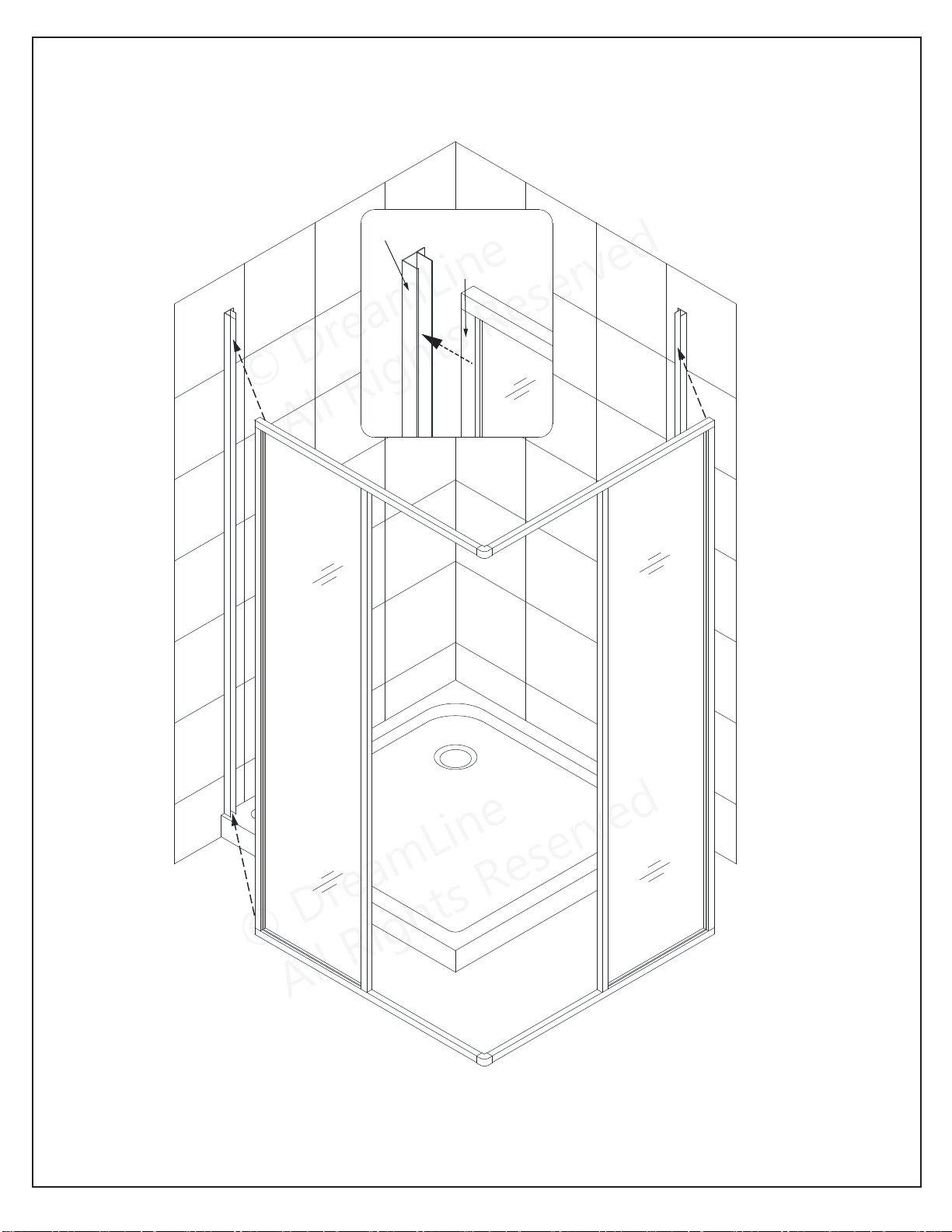

4. Align the assembled Panel Glass Panels (#02) onto the Shower base and slide the Glass Profiles

into the installed Wall Profiles (#01). (Fig 4)

9CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

door

inside

panel

magnetic

vinyl seal

!

Fig 5a

Fig 5b

1

2

3

Test the operation

of the doors to

make sure that the

magnets make full

contact and create a

seal when in the

closed position

5. Insert the Roller Wheels (#11) into the groove of the Upper Guide Rail, then attach the

Door Glass Assemblies (#03) to the Roller Wheels (#11) using the M5×8 Bolts (#10).

Repeat this procedure to attach the Door Glass Assemblies (#03) to the Roller Wheels (#11) in the

Bottom Guide Rail. Be sure to install the doors so that the magnetic vinyl seals will meet in the corner.

(See Step#6 for details regarding adjusting the rollers.) (Fig 5a and Fig 5b)

10CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

washer

screw

decorative cap

adjust (if necessary)

!

NOTE: Do not drill the

profiles throughout, only

through the first layer.

Fig 6

Ø1/8”

1

2

3 4

1/2”

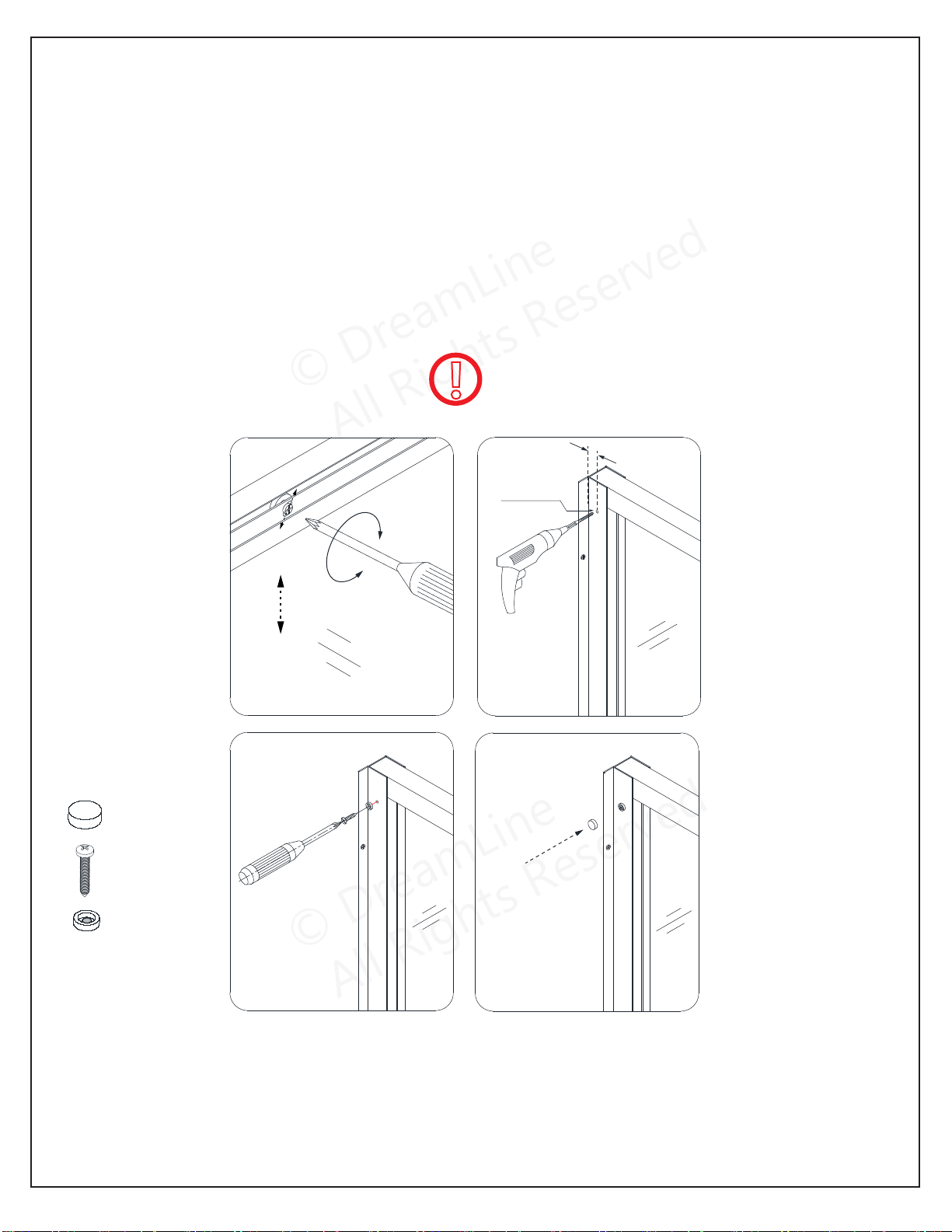

6. If necessary, adjust the position of the Roller Wheels (#11) within the slot(s) in the top and bottom

rails of the Door Glass Assemblies (#03). (Fig 6.1)

Perform any final adjustments of the assembled unit within the Wall Profiles (#01) and make certain

that the bottom rails are tight to the threshold.

From inside the shower, drill holes into the first layer of the Wall Profile and the Glass Profile (Fig 6.2)

using an Ø1/8” drill bit.

Secure the Glass Profile to the Wall Profile (#01) using the Pan Head Screws ST4.2×10 (#07) and

Washers (#08) and cover the exposed screws and washers with the Decorative Covers (#08).

(Fig 6)

11CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

!

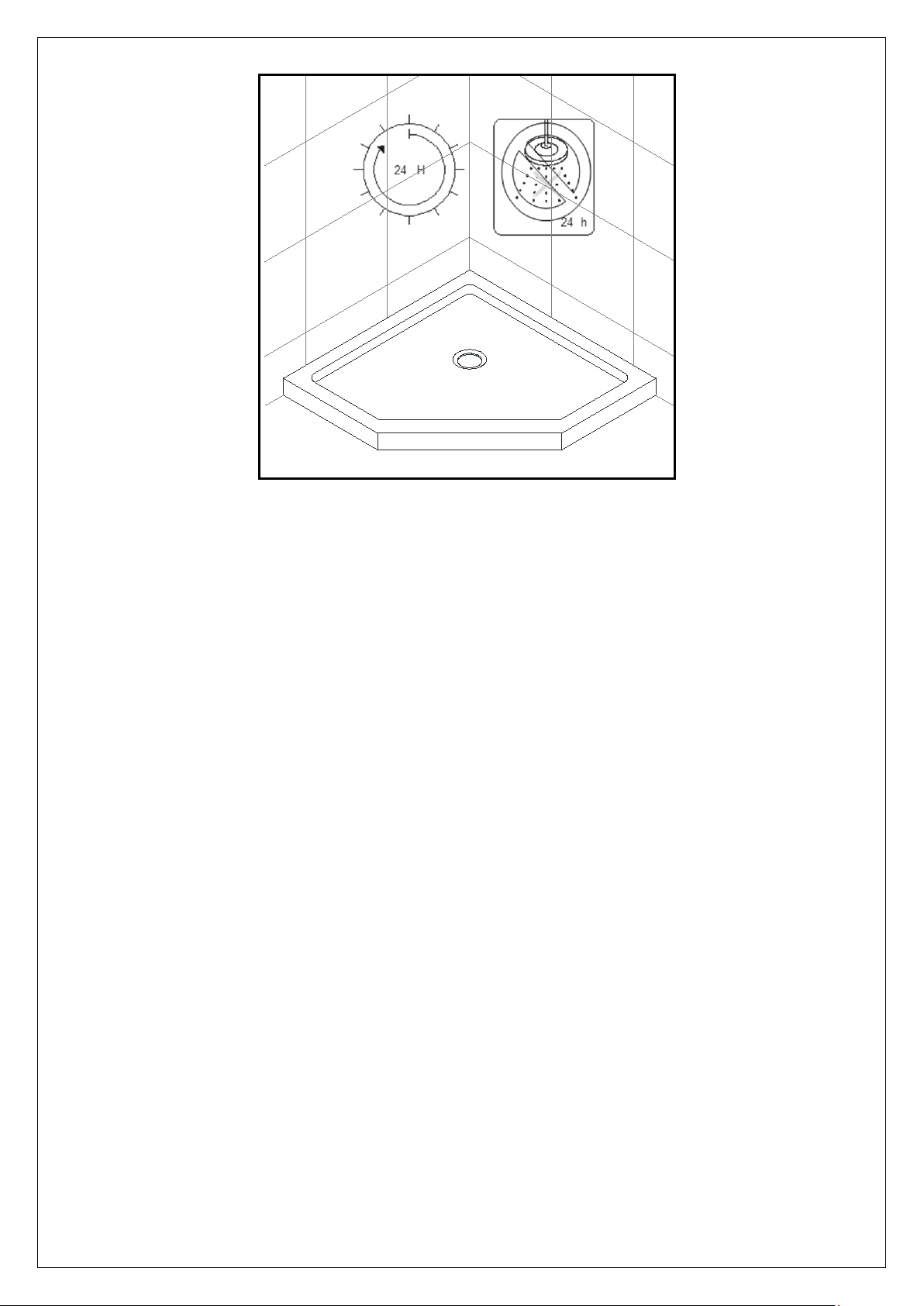

Allow 24 hours for the silicone to cure before using the shower.

Fig 7

24

Hours

NOTE: The surfaces need to be clean and free of debris before applying silicone.

7. Use a good quality mildew-resistant silicone to seal the connections between the Wall Profiles and

the walls, and where the Bottom Guide Rail meets the threshold. (Fig 7)

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream

based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal

brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent

soap buildup and water spots (Hard water can etch the surface of the glass over time if left to

dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that

contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the

surface.

HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If

accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling

or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft

cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or

polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive

sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect

the glass and all hardware for misalignment, proper attachment, and/or

damage. Contact DreamLine

®

with any questions or concerns.

DreamLine

®

shower doors and enclosures are designed not to leak when

installed properly and the flow of water is not pointed directly at the vinyl

seals.

Maintenance checklist

◻ Periodically inspect the roller wheels and tigten if necessary

12CORNERVIEW/FRENCH CORNER Shower Enclosure manual Ver 4 Rev 1 10/2018

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine

®

Shower Doors and Enclosures please visit DreamLine.com

DreamLine DL615009 Translucent Vinyl Insert Glass Shower Door

Product's Documents

User Manual

Specifications

DreamLine DL615009 Questions and Answers

Related Products

DreamLine DL6227R04 - 3/4 H Inch Semi-Frameless Shower Door with Drain Base and Backwalls, Right

DreamLine SHDR636076009 Essence 56-60 in. W x 76 in. H Frameless Bypass Shower Door

Moen BP0215CH Contemporary Chrome 8" shower door handle

Moen BP0218NL Contemporary Chrome 18" shower door towel bar

Moen BP0115CH Contemporary Chrome 8" shower door handle

Vevor CNH-DE-S722 Bathtub Shower Door Semi-Frameless Bypass Design Durable and Stylish for Contemporary Bathrooms
