Please review this entire manual prior to installation

IMPORTANT

DreamLine

®

reserves the right to alter, modify or redesign products at any time without prior notice for the

purpose of product improvement and customer experience. Please refer to the model’s web page on

DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional

product details.

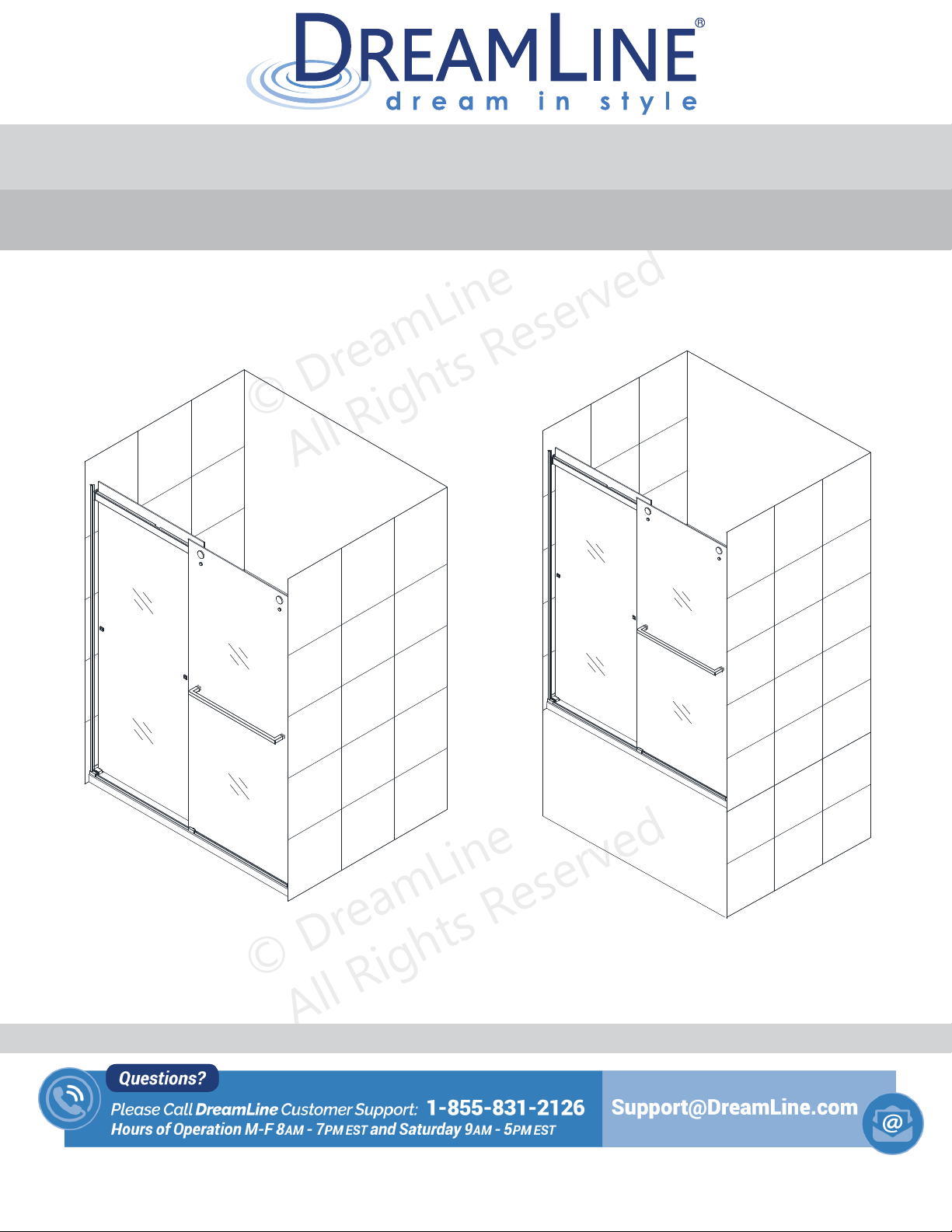

ESSENCE

SHOWER / TUB DOOR INSTALLATION INSTRUCTIONS

model#s

SHDR-6348760-##

SHDR-6360760-##

For more information about DreamLine

®

Shower Doors & Tub Doors please visit DreamLine.com

model#

SHDR-6360600-##

## = finish

01 - Chrome

04 - Brushed Nickel

09 - Satin Black

G - Gray Glass

ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

This model is treated with DreamLine’s

exclusive ClearMax

TM

Glass technology.

This is a specially formulated coating

that prevents the buildup of soap and

water spots.

Install the surface with the ClearMax

TM

label towards the inside of the shower.

Please note that depending on the

model, the glass may be coated on

either one or both surfaces.

For best results, squeegee the glass after

each use and dry with a soft cloth.

Table of Contents

Detailed Diagram of Shower Door Components

Parts List

Installation Steps

Guide Block

Section Title

Page #

Tools

Preparation

Wheel Assembly Adjustment

Anti-Water Side Strips

Product Maintenance

5

4

3

2

21

Roller Guards

19

14, 18

6-23

10-13

23

ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Preparation

1 21 2

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with

your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the

needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower

Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact

our customer support department within 3 business days of the delivery date. Please note that DreamLine

®

will not replace any damaged products or missing parts free of charge after 3 business days or if the

product has been installed. Feel free to contact DreamLine

®

if you have any questions and please provide an

order number, job name or other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation compliance

standards. Building and plumbing codes may vary by location, and DreamLine

®

is not responsible for code

compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all

plumbing installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to

support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface

level, radius corners or improper angle of side walls will result in serious problems for your installation. Please,

note that some adjustments and drilling might be necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down directly onto

a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or

cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. Note: The installation of this unit requires that you drill down into the threshold. Contact the

manufacturer of the base, tub or threshold material with any questions regarding the drilling of holes

into their product.

8. This model can accommodate up to 1/4“ of out-of-plumb by adjusting the rollers on the door glass.

(see Fig 17c on page #21). Use a level to verify that your walls are within 1/4” of plumb before proceeding

with the installation.

9. Threshold must be level for proper installation.

10. This model requires a minimum 2-3/4” of flat level threshold space for installation.

11. These instructions will show the installation of the shower door as an example. Please follow the same steps

for the installation of the tub door.

12. Professional installation recommended.

NOTE: DO NOT install the towel bars onto the glass until instructed.

DO NOT lift the glass using the towel bars. This could result in damage to the glass and/or

serious personal injury. Always use an assistant or a professional grade glass suction cup

when handling heavy glass.

2ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

!

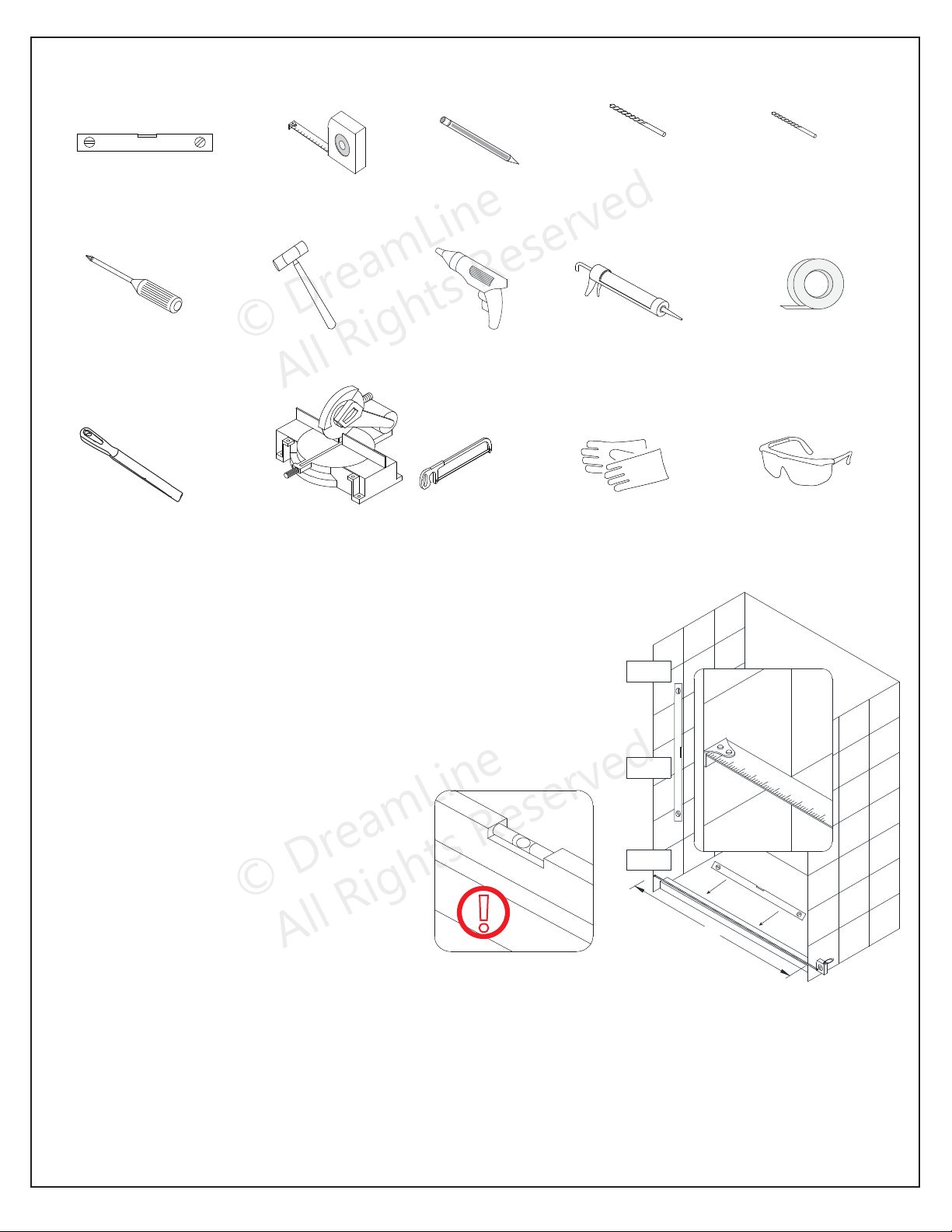

Tools

NOTE: Unpack your unit carefully and inspect it. Identify all parts using the detailed diagram and

packing list in this manual as a reference. Before discarding the carton, check for small hardware

bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please

contact DreamLine

®

for replacement. The shipping boxes may contain extra parts not used in your

model configuration.

NOTE: Retain these installation instructions for future reference.

3ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Tape

Phillips

Silicone

Measure

Power

Drill

PencilLevel

Screwdriver

Hammer

Painter’s Tape

Drill bit

(Ø5/16")

(Ø8mm)

Drill bit

(Ø1/8")

(Ø3mm)

Metal File

Miter saw or Hacksaw

Work Gloves

Safety Glasses

Tip: Measure the finished opening before

proceeding with the installation to be sure

that the correct model size has been

ordered.

Tip: Prior to installation, cover the

shower/tub drain with tape to prevent

losing screws or small parts.

Tip: Set screw gun clutch to low setting

when installing screws and bolts to

prevent stripping the heads.

W

Top

Middle

Bottom

Threshold must be level.

!

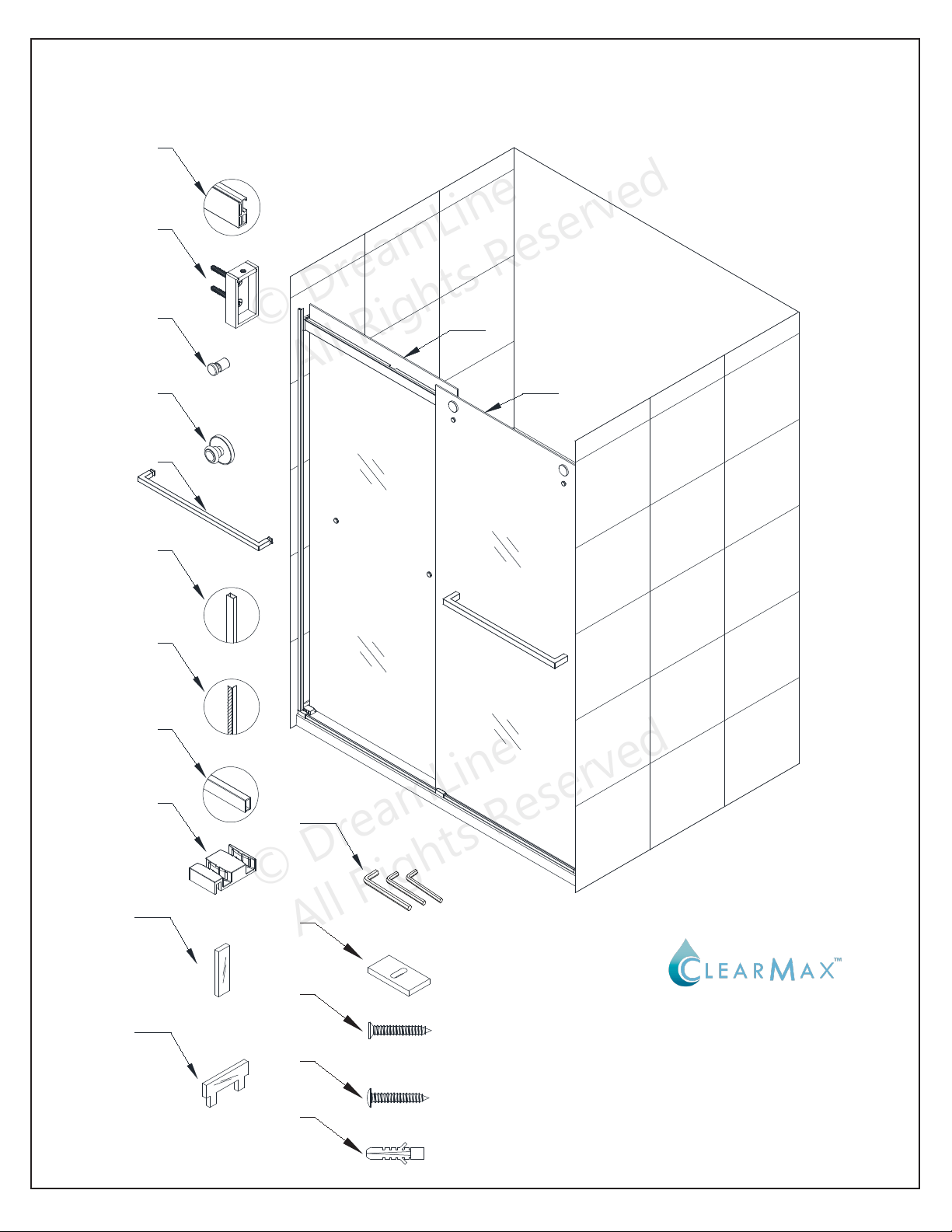

Detailed Diagram of Shower Door Components

4

ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

10

7

1

2

3

4

5

6

8

9

12

13

11

14

outside door glass

inside door glass

15

16

17

18

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

Parts List

5ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

# Item Qty # Item Qty

# Box

1

2

3

1. 2. 3. 4. 5. 6. 8. 9. 10. 11. 14. 15. 16. 17. 18

7. 12. 13

Boxes

Package Contents by part#

10. 11 - 1 pc/ea

Upper Guide Rail

1pc

2pcs

3pcs

2pcs

4pcs

7pcs

1each

3pcs

Wall Bracket Assembly

Upper Bumper

Bottom Bumper

Inside Door Glass

Outside Door Glass

Allen Wrench: 2.5mm / 3mm / 4mm

Guide Block Bracket

Countersunk Screw ST4.2 x 40

Truss Head Screw ST4.2 x 40

Ø5/16” (8mm) Wall Anchors

Roller Guard

Roller

Towel Bar

Wall Profile

Anti-Water Side Strip

Bottom Rail

Guide Block

Glass Box

Spare Acc Box

Ø5/16” (8mm) Anchors, Countersunk Screw ST4.2x40 - 3pcs/ea

Profile and Acc Box

01

10

11

12

13

14

15

16

17

18

02

03

04

05

06

07

08

09

Installation Steps

6ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 1

W1

W2

_____________ Finished opening top (W1)

_____________ Finished opening bottom (W2)

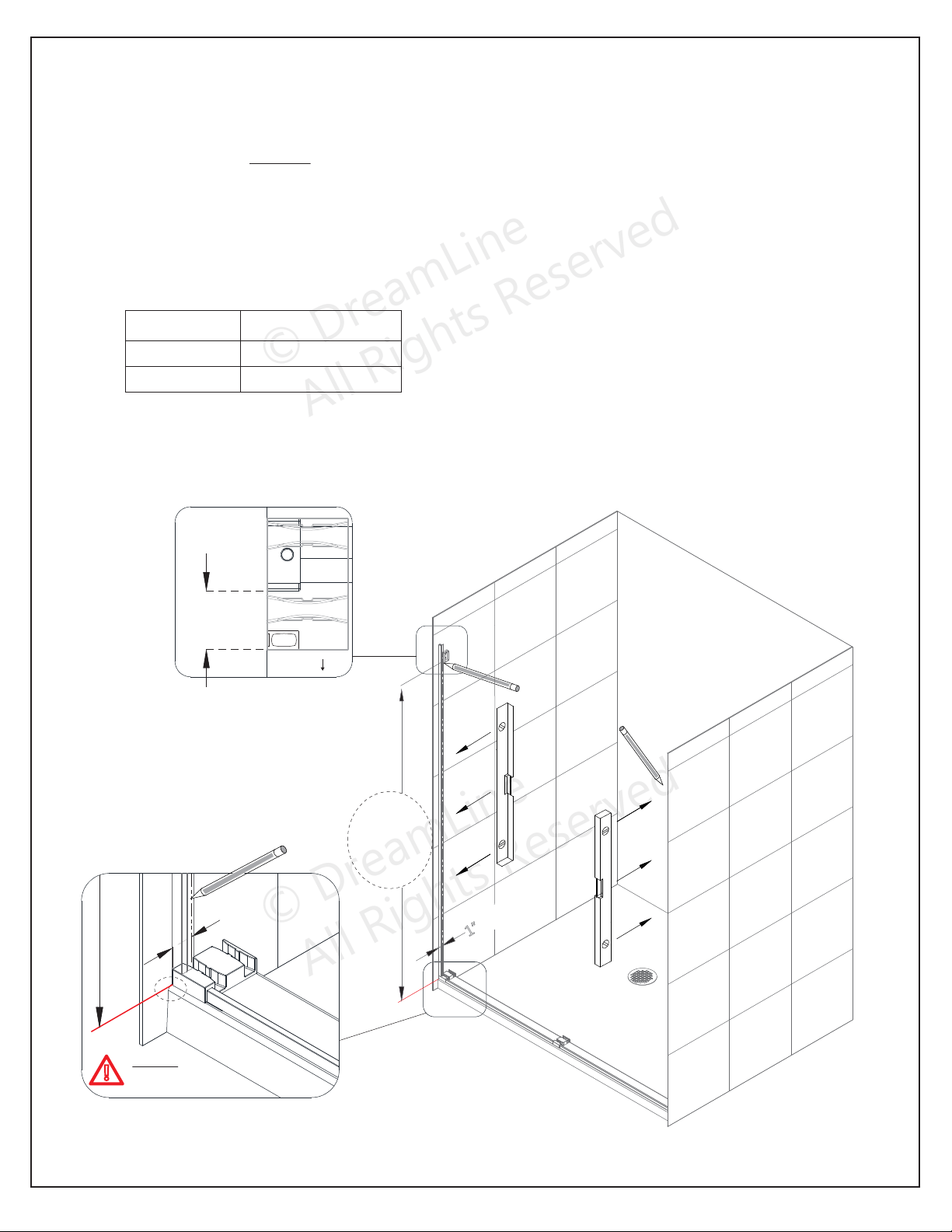

1. Measure the finished opening width at the bottom and at the model height.

Use these dimensions as “W1” (top) and “W2”(bottom) in step #2. Also check the threshold for level

and the walls for plumb. (Fig 1)

NOTE: This model will only accommodate up to 1/4” for out-of-plumb conditions.

7ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 2

W1 - 1/4”

W2 - 1/16”

NOTE:

The Upper Guide Rail, Wall Profiles and Bottom

Rail are pre-cut for the model size:

Upper Guide Rail (#01) = 48” or 60”

Wall Profiles (#06) = 60” or 76”

Bottom Rail (#08) = 48” or 60”

Only the Upper Guide Rail (#01) and Bottom

Rail (#08) need to be cut to fit the finished

opening size.

Upper Guide Rail (#01)

Bottom Rail (#08)

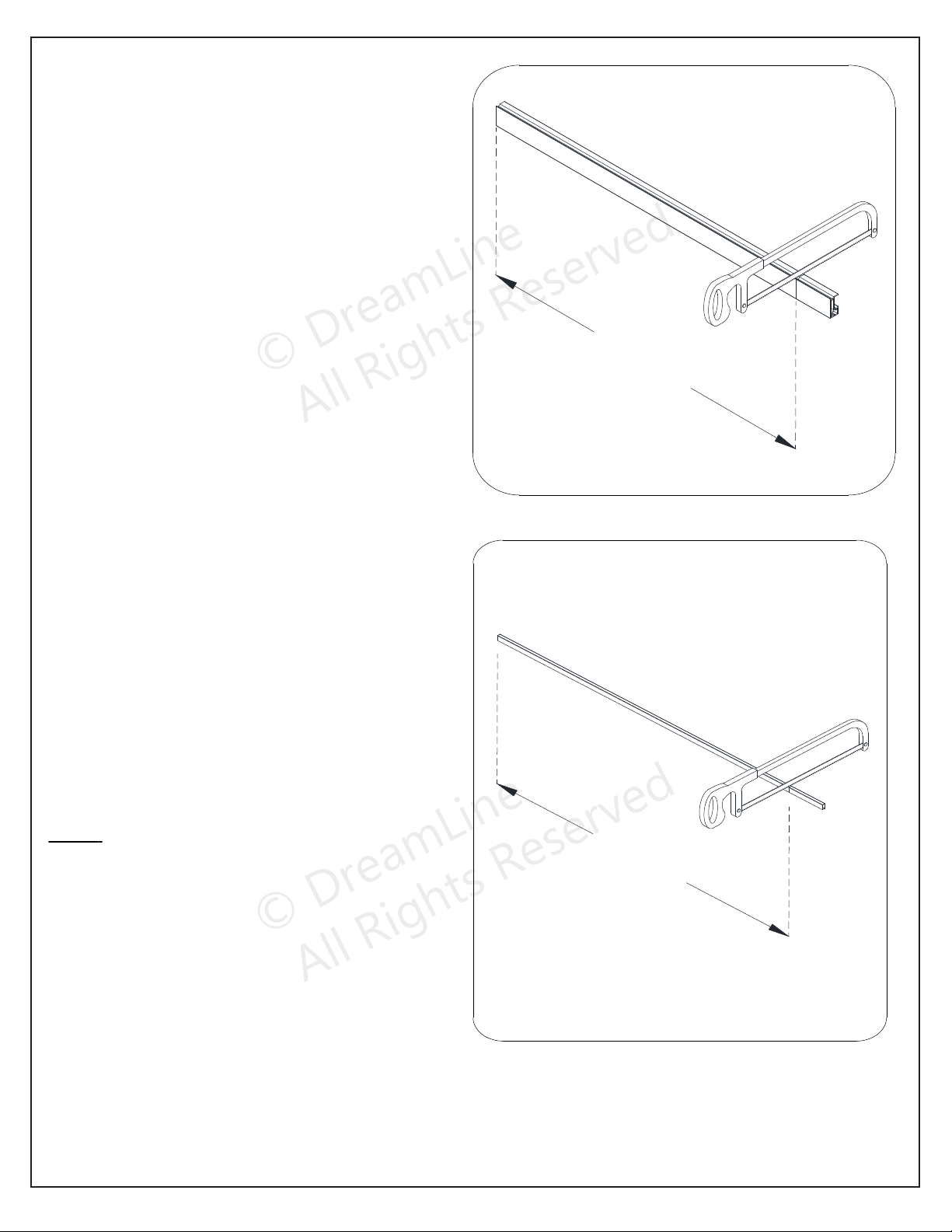

2. Cut the Upper Guide Rail (#01) and the

Bottom Rail (#08) to fit your finished opening

using either a miter saw or a hacksaw:

Cut the Upper Guide Rail (#01) to:

“W1”(top) dimension - 1/4“

Cut the Bottom Rail (#08) to:

“W2” (bottom) dimension - 1/16”

Use a metal file to remove any burrs from the cut

ends. (Fig 2)

8ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 3

Fig 4

2-3/4” min.

Threshold must be level.

!

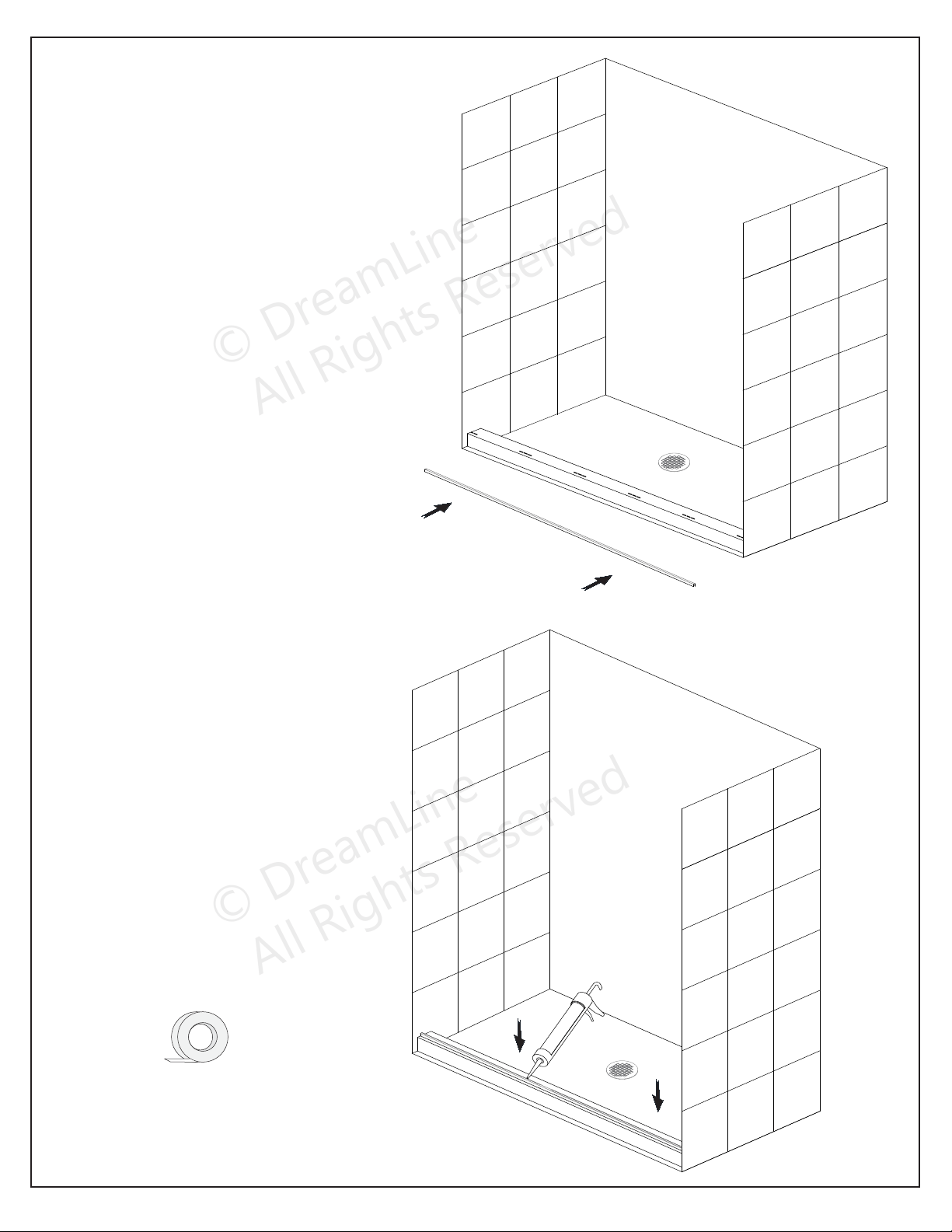

3. Set the Bottom Rail (#08) onto the threshold

parallel with the outside edge and mark the

position on the threshold. (Fig 3)

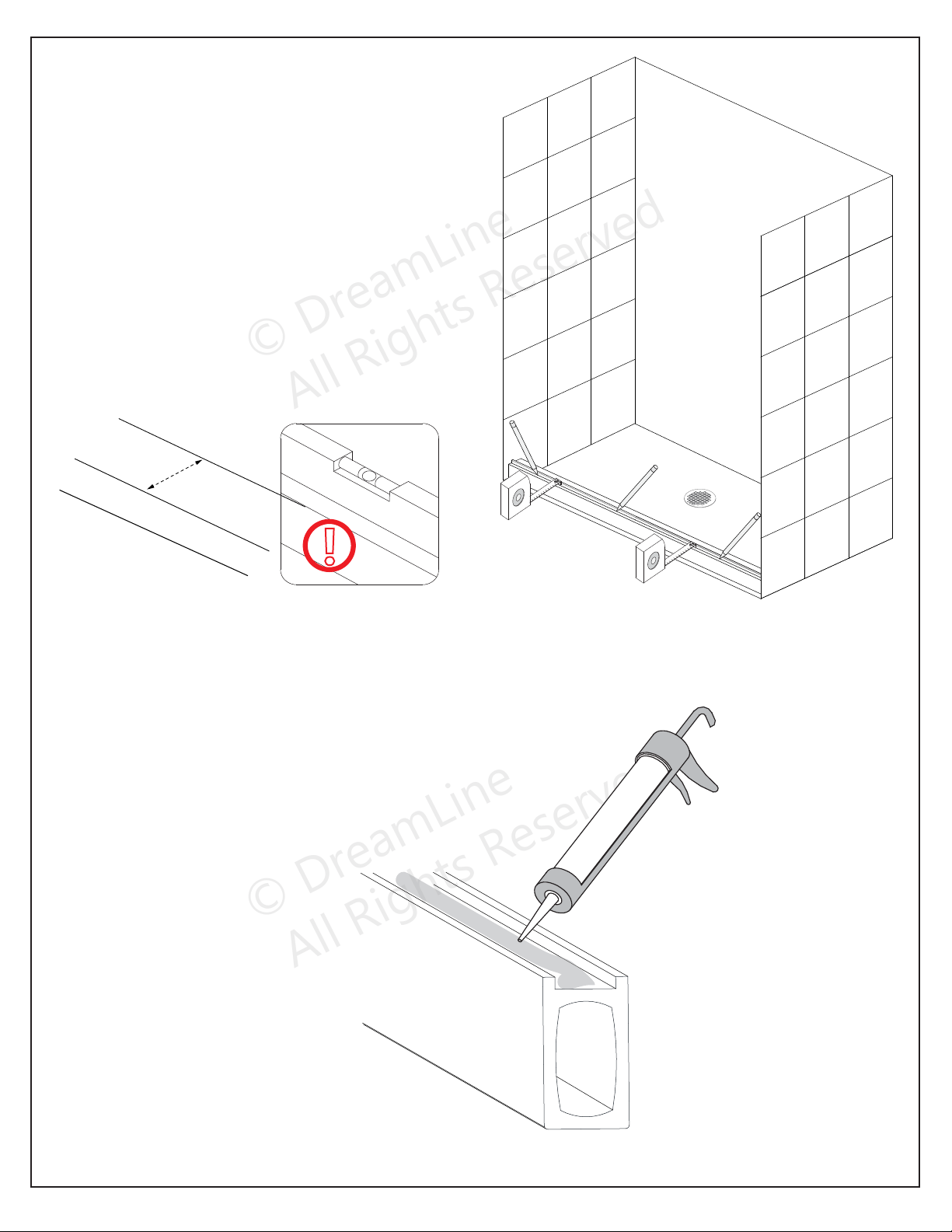

4. Apply silicone into the groove along the

bottom of the Bottom Rail (#08). (Fig 4)

NOTE: This model requires a minimum 2-3/4”

of flat level threshold space for installation.

9ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Use several strips of Painter’s Tape

to hold the bottom rail in position

while the silicone cures.

Fig 5

Fig 6

5. Replace the Bottom Rail (#08) onto the

marked position on the threshold. (Fig 5)

6. Run a bead of Silicone along the

inside edge of Bottom Rail (#08).

(Fig 6)

10ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 7

Truss

Head

Screw

ST.4.2x40

(#17)

TIP: Use one of the Guide Block Brackets as an 1/8”

spacer to offset the bracket’s placement from the wall

1-1/16”

(27mm)

1/8”

(3mm)

only use

anchors

with tile

oset

1/8”

from

the

wall

13/16” from wall to slot

1-1/16”

from the outside of

the bottom guide rail

to the front edge of

the guide block

bracket

Fig 7 detail

Ø see

step #7

ST.4.2x40

anchor for tile

Guide Block Bracket

Guide Block

outside

1 2

3

5

7

9

4

6

8

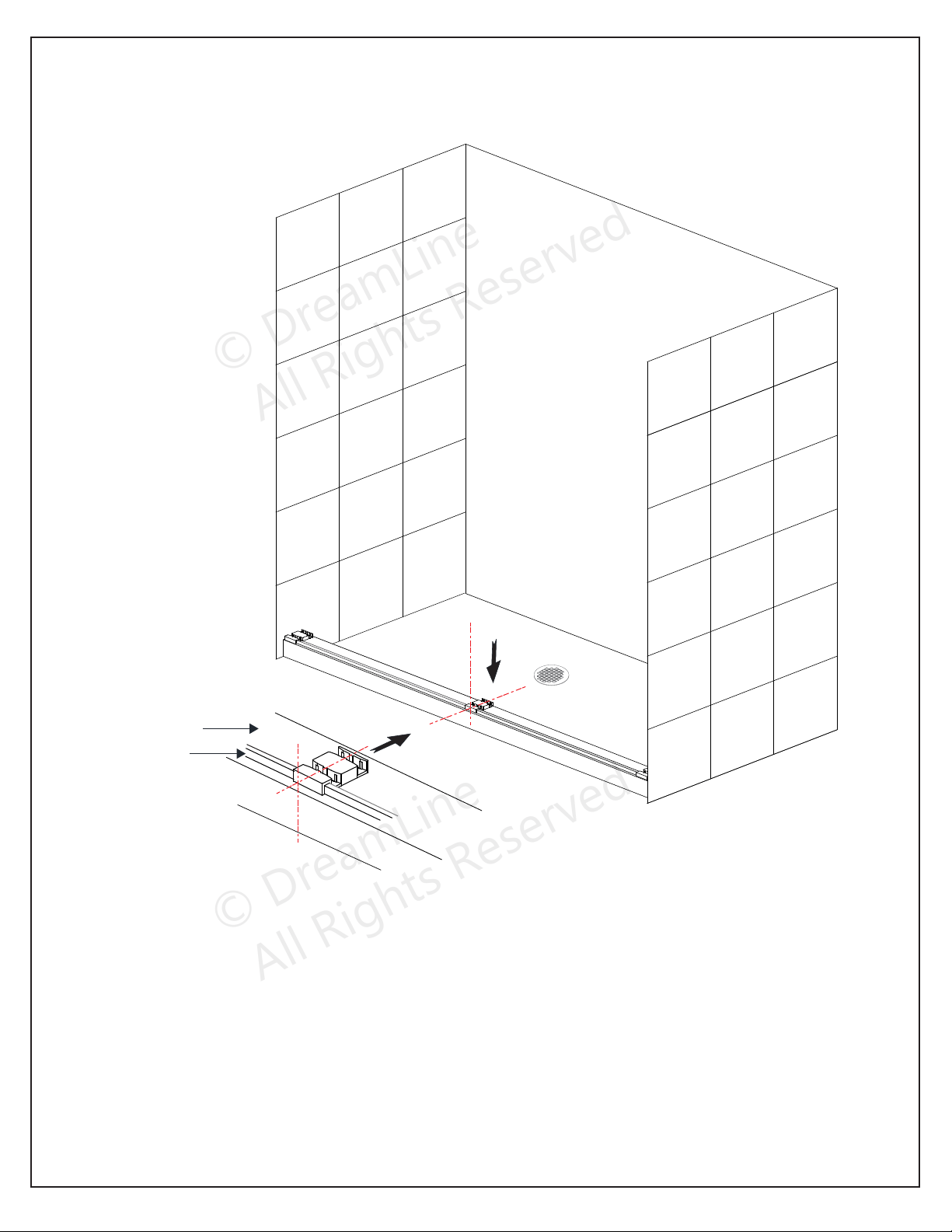

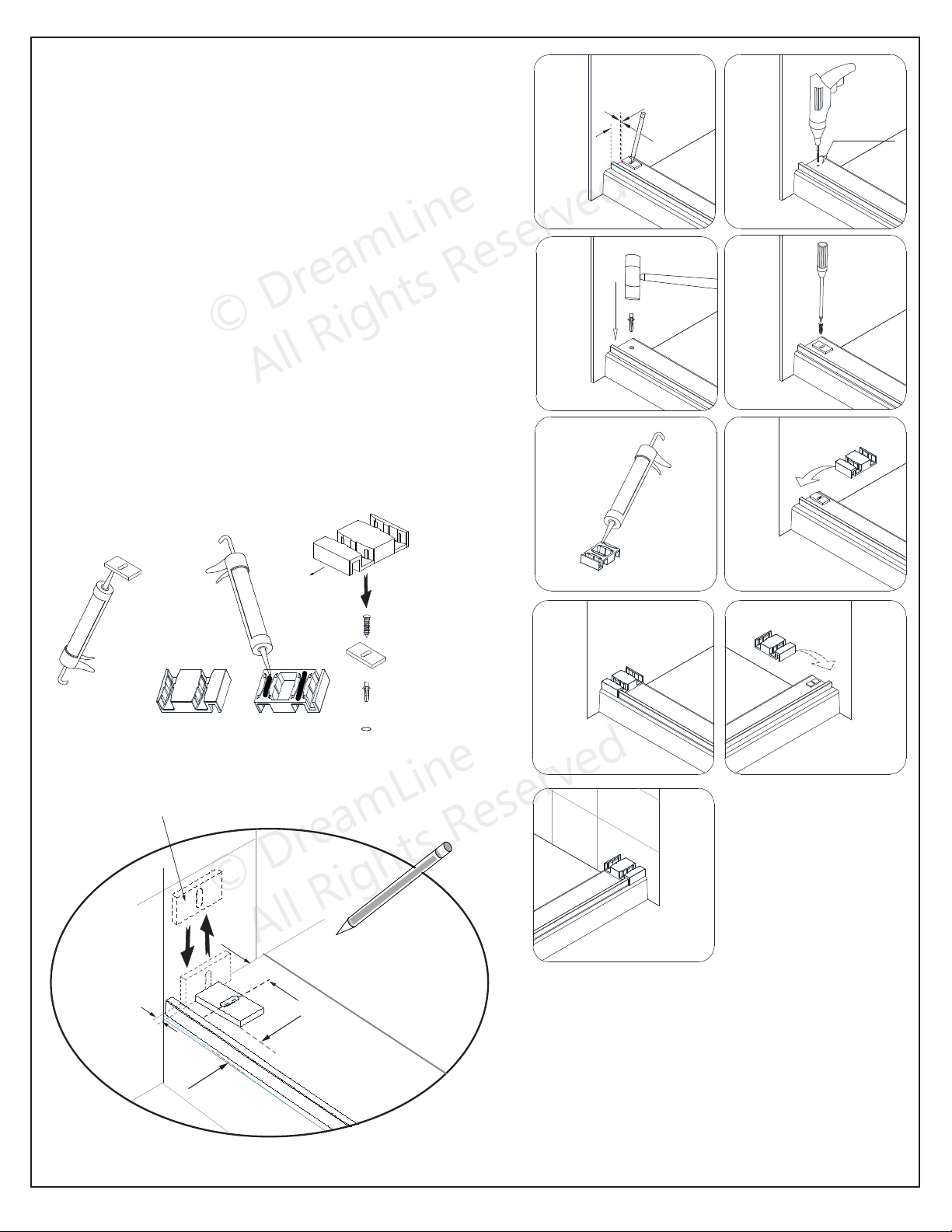

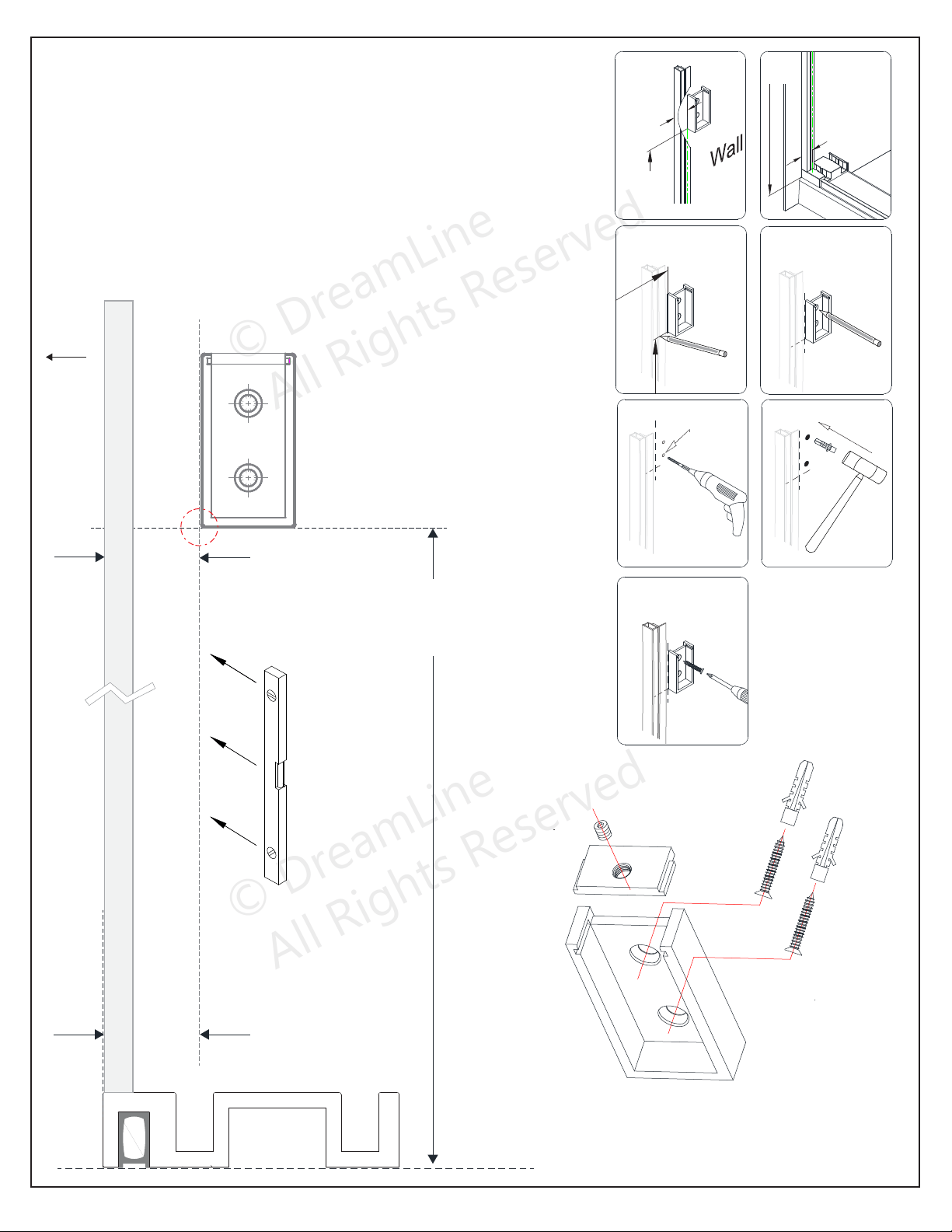

7. Place one of the Guide Block Brackets (#15) onto

the threshold: 1-1/16” (27mm) from the outside of the

Bottom Rail (#08) and 1/8” (3mm) from the wall.

Mark the hole for drilling. (Fig 7)

◾ For installation onto a tile threshold, drill a Ø5/16”

(8mm) hole and insert the Wall Anchor (#18)

◾ For installation onto an acrylic threshold, drill an 1/8”

(3mm) hole only and do not use the anchor.

Apply silicone to the bottom of the Guide Block

Brackets (#15) and attach to the threshold using an

ST4.2 x 40 Truss Head Screw (#17).

Apply silicone to the bottom of the Guide Block (#09)

and install it over the Guide Block Bracket (#15) and

the Bottom Rail (#08).

Repeat this process for the Guide Block Bracket (#15)

and Guide Block (#09) installation on the opposite

wall. (Fig 7)

11ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 8

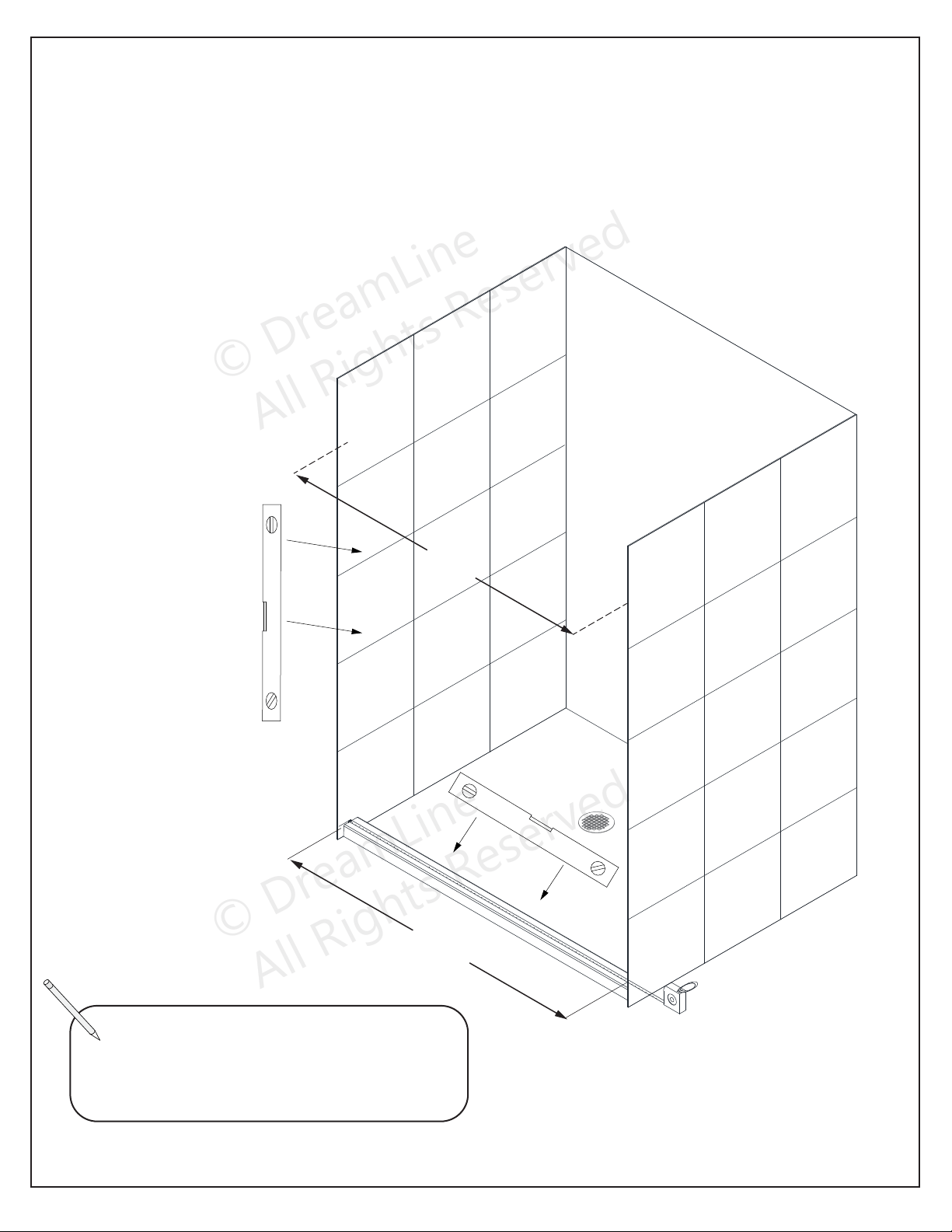

8. Measure across the width of the threshold to locate and mark the center. (Fig 8)

12ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

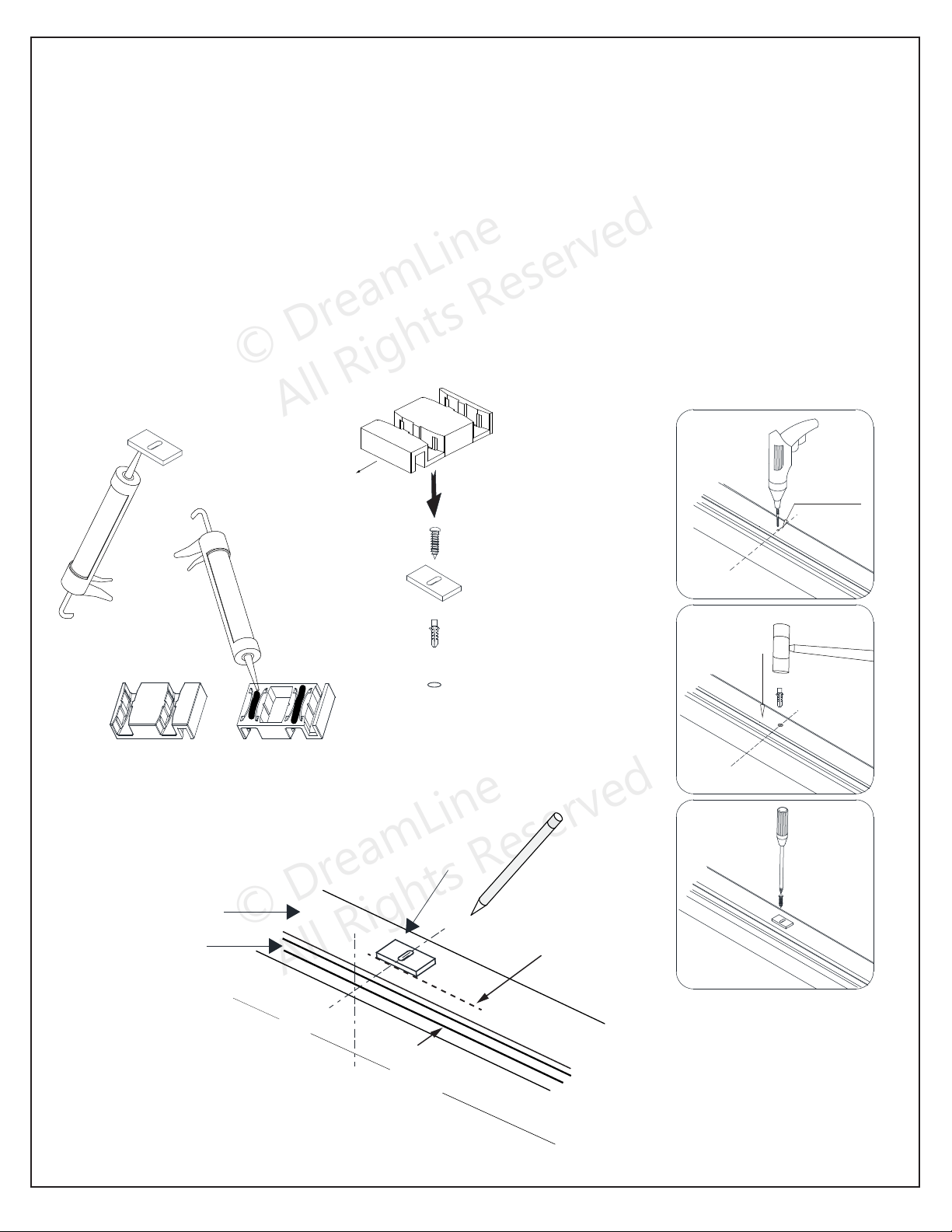

9. Place the remaining Guide Block Bracket (#15) onto the threshold:

1-1/16” (27mm) from the outside of the Bottom Rail (#08) and align the slot with the centerline

measured in the previous step. Mark the hole for drilling.

◾For installation into a tile threshold, drill a Ø5/16” (8mm) hole and insert the Wall Anchor (#18)

◾For installation into an acrylic threshold, drill an 1/8” (3mm) hole and do not use the anchor.

Apply silicone to the bottom of the Guide Block Bracket (#15) and attach to the threshold using an

ST4.2 x 40 Truss Head Screw (#17).

Apply silicone to the bottom of the Guide Block (#09) and install it over the Guide Block Bracket

(#15) and the Bottom Rail (#08). (Fig 9a and Fig 9b)

center

threshold

bottom rail

1-1/16”

outside of

bottom trail

guide block

bracket

Fig 9a

Truss

Head

Screw

ST.4.2x40

(#17)

Ø see

step #9

only use

anchors

with tile

ST.4.2x40

anchor for tile

Guide Block Bracket

Guide Block

outside

1

2

3

13ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 9b

center

threshold

bottom rail

14ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

2

3

4

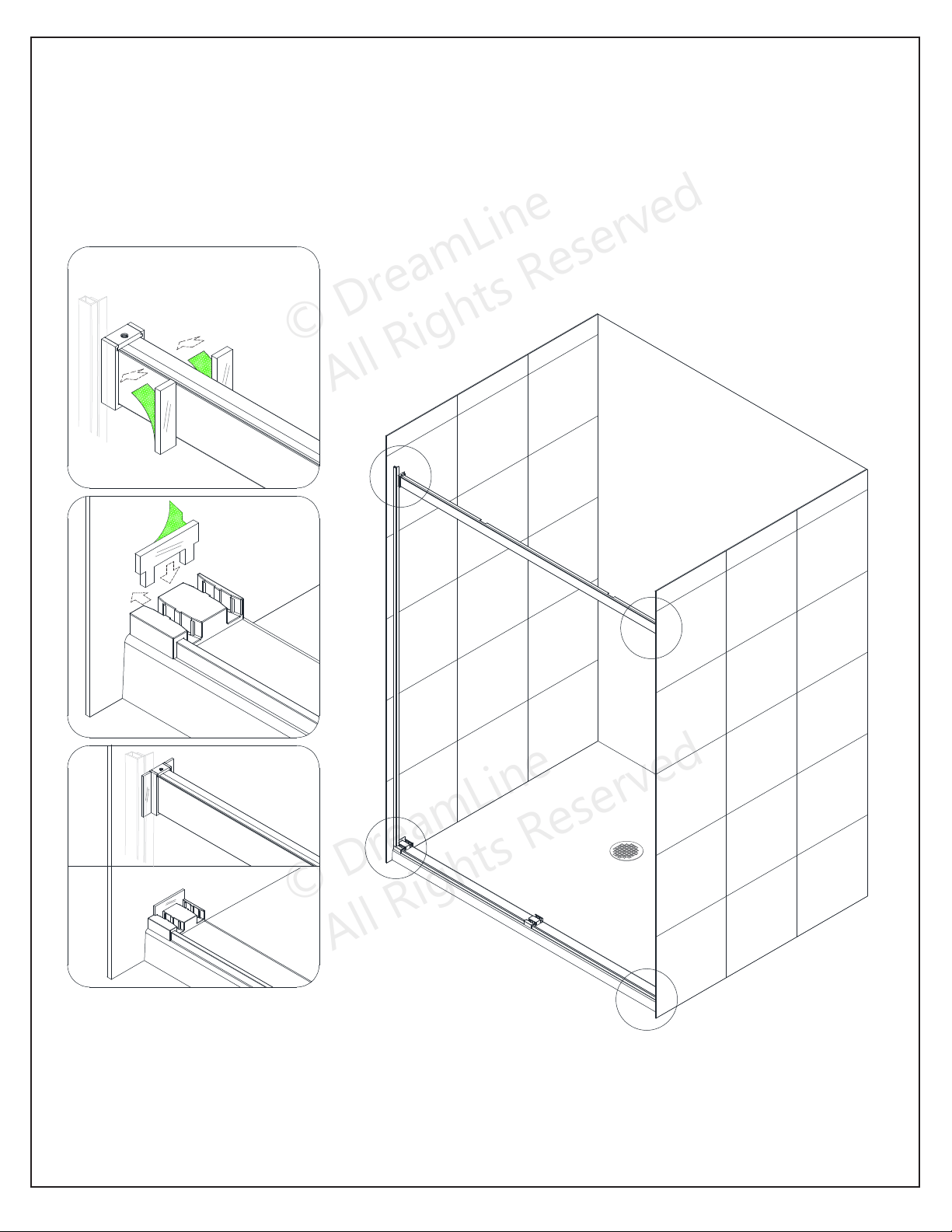

Fig 10

Use several strips of Painter’s

Tape to hold the Wall profiles

in position while the silicone

cures.

Fig 11

left

right

1

plumb

flush

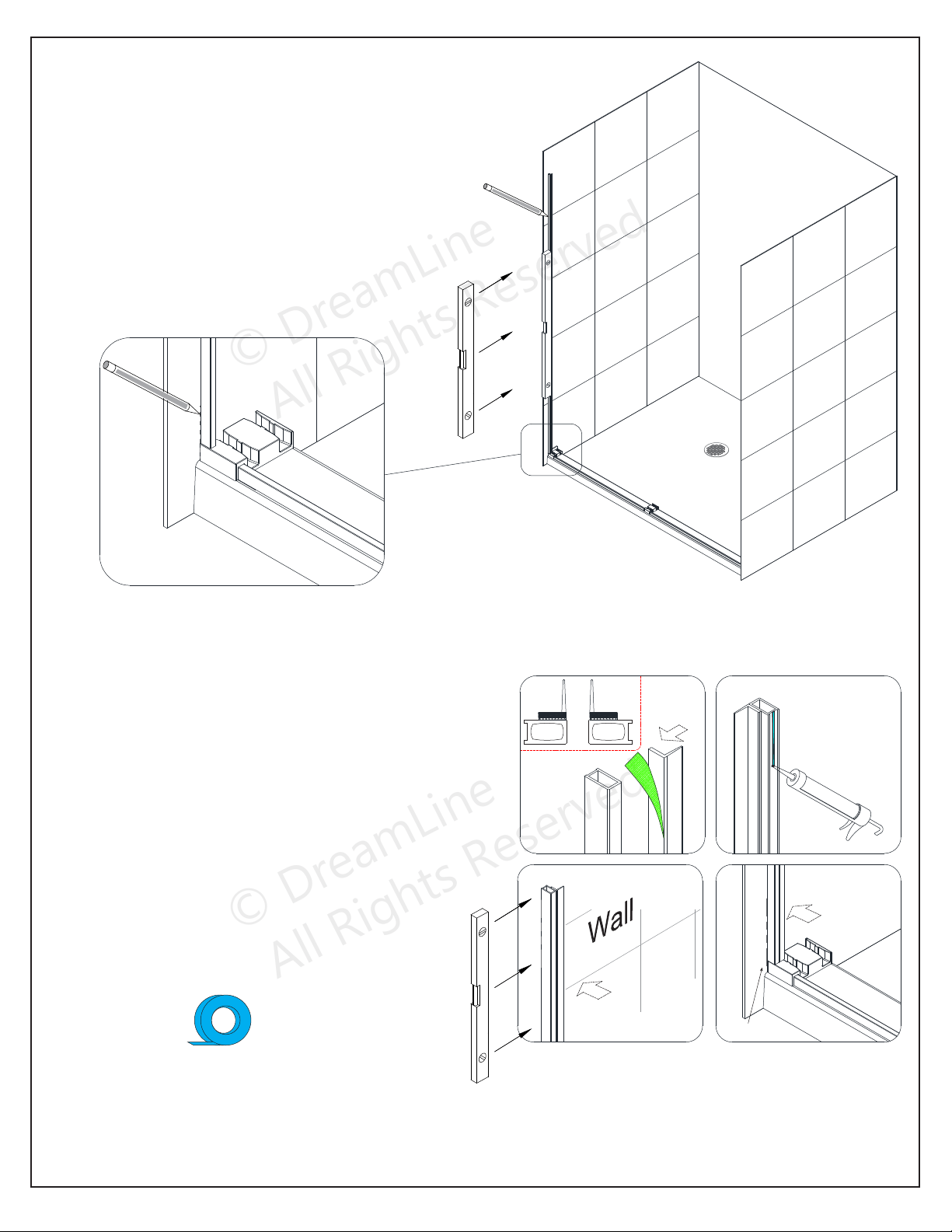

10. Position the Wall Profiles (#06) on the wall, flush

with the outside edge of the Guide Blocks (#09).

Check for plumb with a level and mark the position of

the Wall Profiles (#06) on the walls. (Fig 10)

11. Remove the paper backing from the Anti-Water

Side Strips (#07).

Attach the Anti-Water Side Strips

(#07) to the Wall Profiles (#06) as shown in Fig 11.1.

Apply silicone along the entire length of the

Wall Profiles (#06). (Fig 11.2)

Position the Wall Profiles (#06) on the wall, flush

with the marks made in the previous step.

It is important that the wall profiles are plumb and

inline with the bottom guide block (Fig 11.4).

(Fig 11)

15ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

1”

Fig 12

see Table 1

for

dimensions

1”

top view

OUTSIDE

wall

profile

wall

bracket

Model height

Wall Bracket height

76" (1930mm)

60" (1524mm)

71-1/8" (1807mm)

55-3/16" (1401mm)

Table 1

!

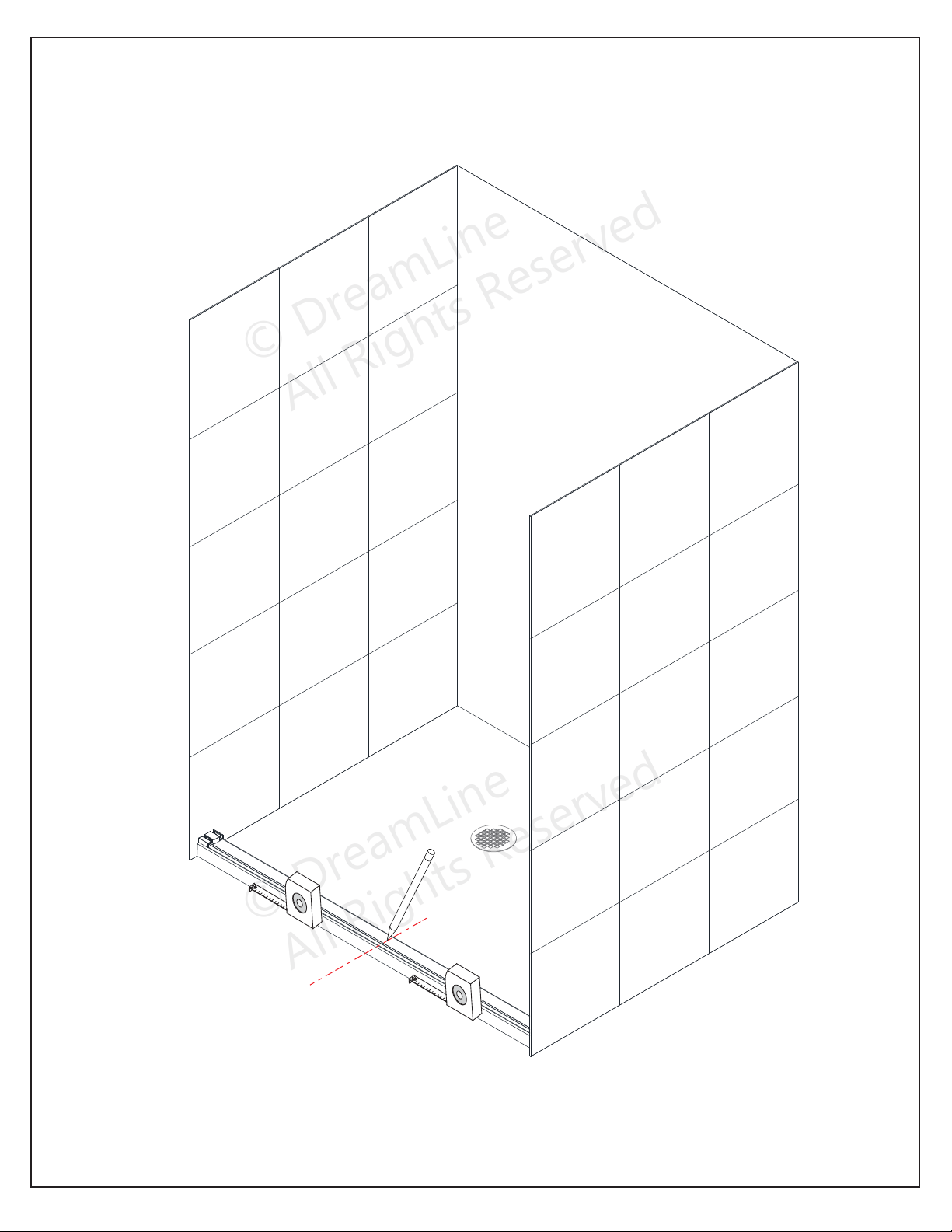

12. To position the Wall Bracket Assemblies (#02):

Measure up from the threshold to the bottom corner of the Wall Bracket Assembly (#02):

71-1/8” for shower height model or 55-3/16” for tub height model. (See Table 1)

Measure in 1” from the outside of the Wall Profile (#06) and draw a plumb line.

Repeat this process, marking a plumb line on the opposite wall, 1” in from the outside of the wall

profile. (Fig 12 and Fig 13)

NOTE: Measure up

from the threshold.

16ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Drawing Not to Scale

1”

Ø5/16”

(8mm)

1”

71-1/8”

or

55-3/16”

1

71-1/8” for shower model height (76“)

or

55-3/16” for tub model height (60”)

1”

2

4

6

ST4.2 x 40

countersunk

screws

OUTSIDE

wall

profile

wall

bracket

guide

bracket

threshold or

tub deck

Wall Bracket Assembly

Fig 13

set screw

top

wall

bracket

ST4.2x40 screws (#16)

5/16” wall

anchors

3

5

7

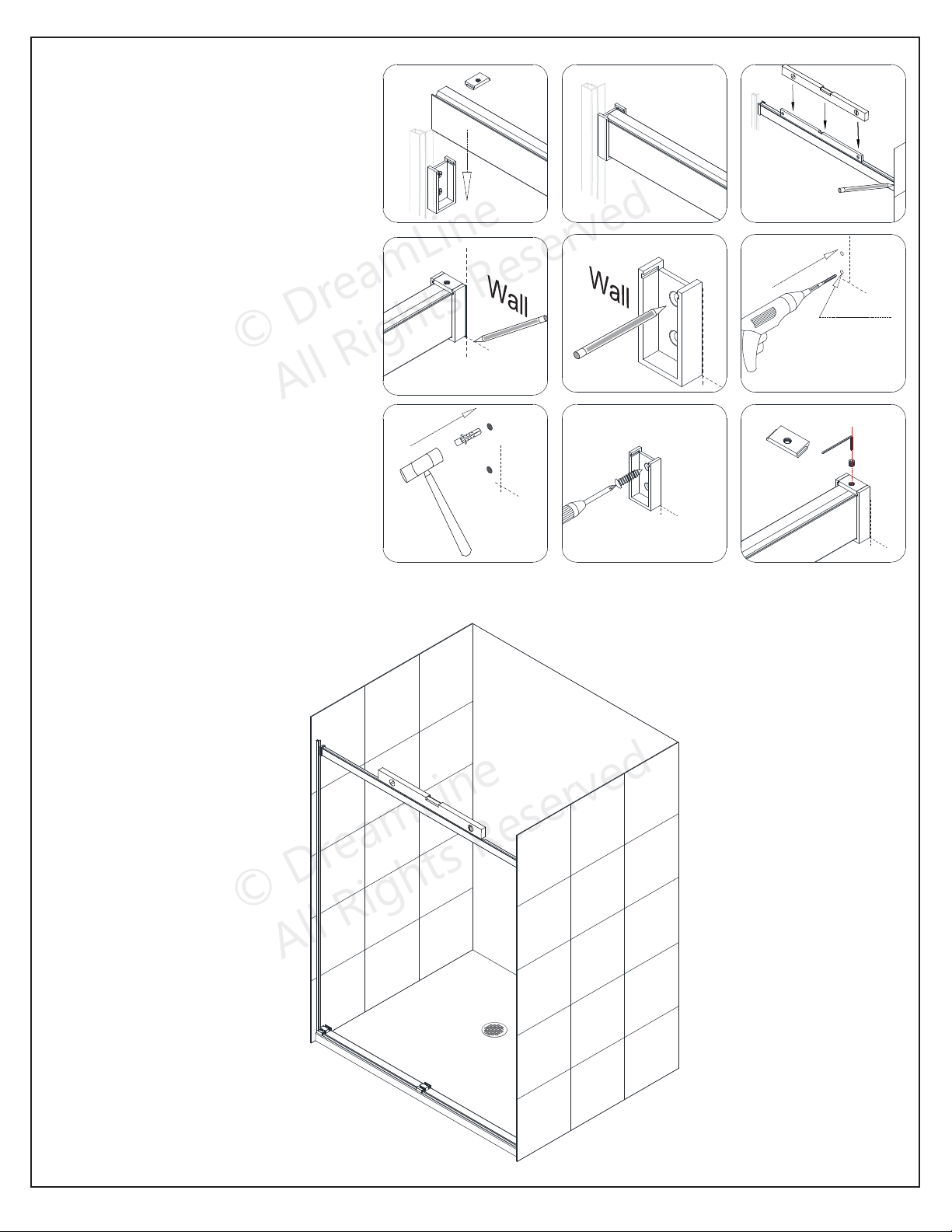

13. Hold the Wall Bracket Assembly (#02) in the designated

position and mark the holes for drilling.

Drill the holes using a Ø5/16” drill bit and insert the wall anchors.

Attach the wall bracket assemblies using the ST4.2 x 40

Countersunk Screws (#16). (Fig 13)

17ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

2

3

9

1

5

Fig 14

outside

Ø

5/16”

(8mm)

4

6

7 8

14. Insert the Upper Guide Rail (#01)

into the installed Wall Bracket

Assembly (#02).

Temporarily attach the remaining Wall

Bracket Assembly (#02) to the

opposite end of the Upper Guide Rail

(#01). Place a level on top of the

Upper Guide Rail (#01). Align the

Wall Bracket Assembly (#02) with

the opposite plumb line from step#12

and mark the bracket’s position on the

wall.

Remove the Upper Guide Rail (#01)

and position the wall bracket onto the

wall and mark the holes for drilling.

Drill the holes using a Ø5/16” drill bit

and insert the Wall Anchors (#18).

Attach the Wall Bracket to the wall

using the ST4.2 x 40 Countersunk

Screws. Slide the Upper Guide Rail

(#01) into both Wall Brackets, install

both of the Wall Bracket Assembly

tops and secure with the set screws.

(Fig 14)

18ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Fig 15

1

2

3

15. Remove the paper backing and attach the Top Bumpers (#10) to the wall on either side of both

of the Wall Bracket Assemblies (#02), flush with the top of the wall brackets (Fig 15.1).

Remove the paper backing and attach the Bottom Bumpers (#11) into the Guide blocks (#09) and to

the wall (Fig 15.2). (Fig 15)

19ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

1

4

6

5

Fig 16

Fig 17a

wheel

cap

outside door glass

inside door glass

notch

adjustment

disk

roller guard

inside

!

2 3

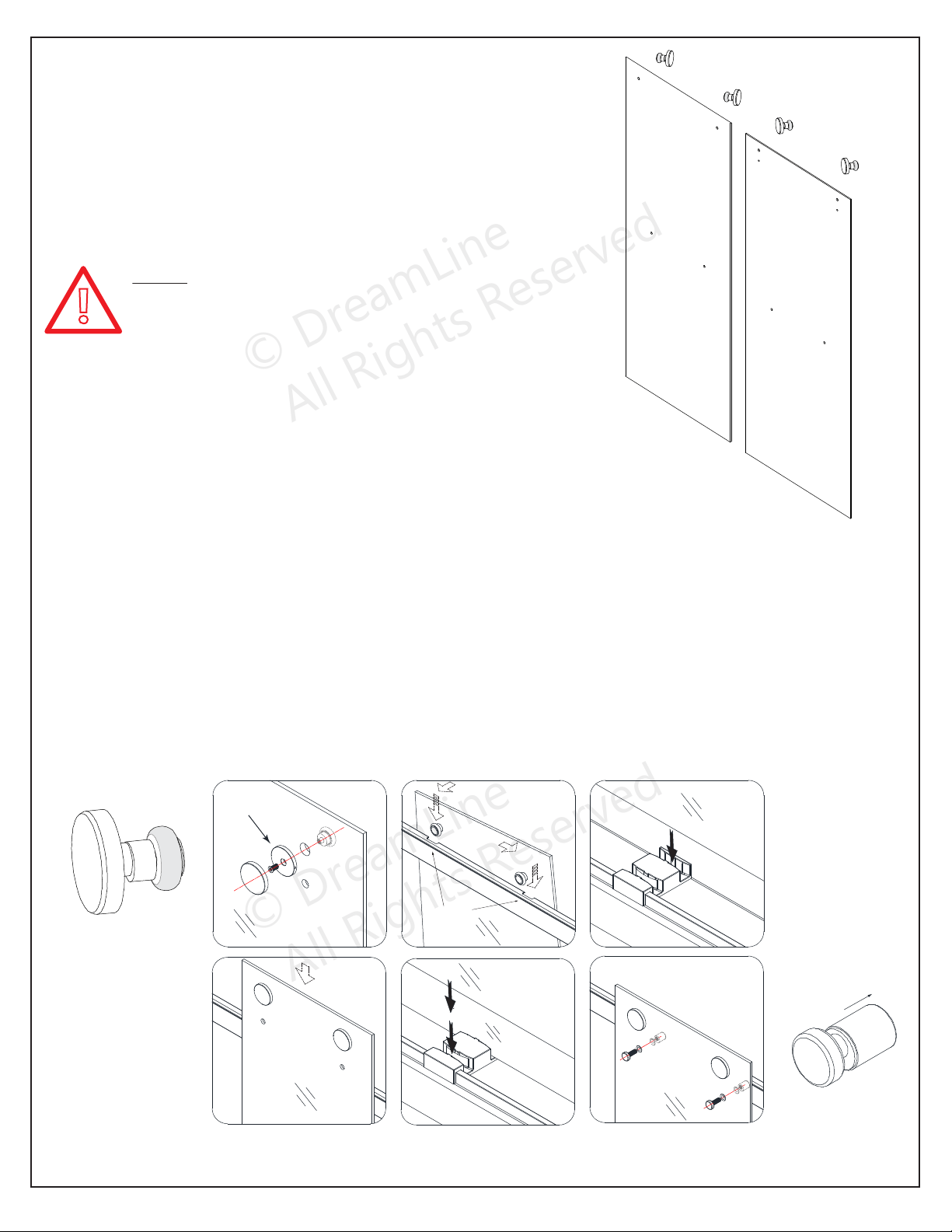

NOTE: DO NOT install the towel bars on the

glass until instructed.

DO NOT lift the glass using the towel bars.

This could result in damage to the glass and/or

serious personal injury.

Always use an assistant or a professional grade

glass suction cup when handling heavy glass.

16. Remove the cap and screw from the Rollers (#04) and

attach the Rollers (#04) to the Inside Door Panel (#12) and

to the Outside Door Panel (#13). (Fig 16 and Fig 17)

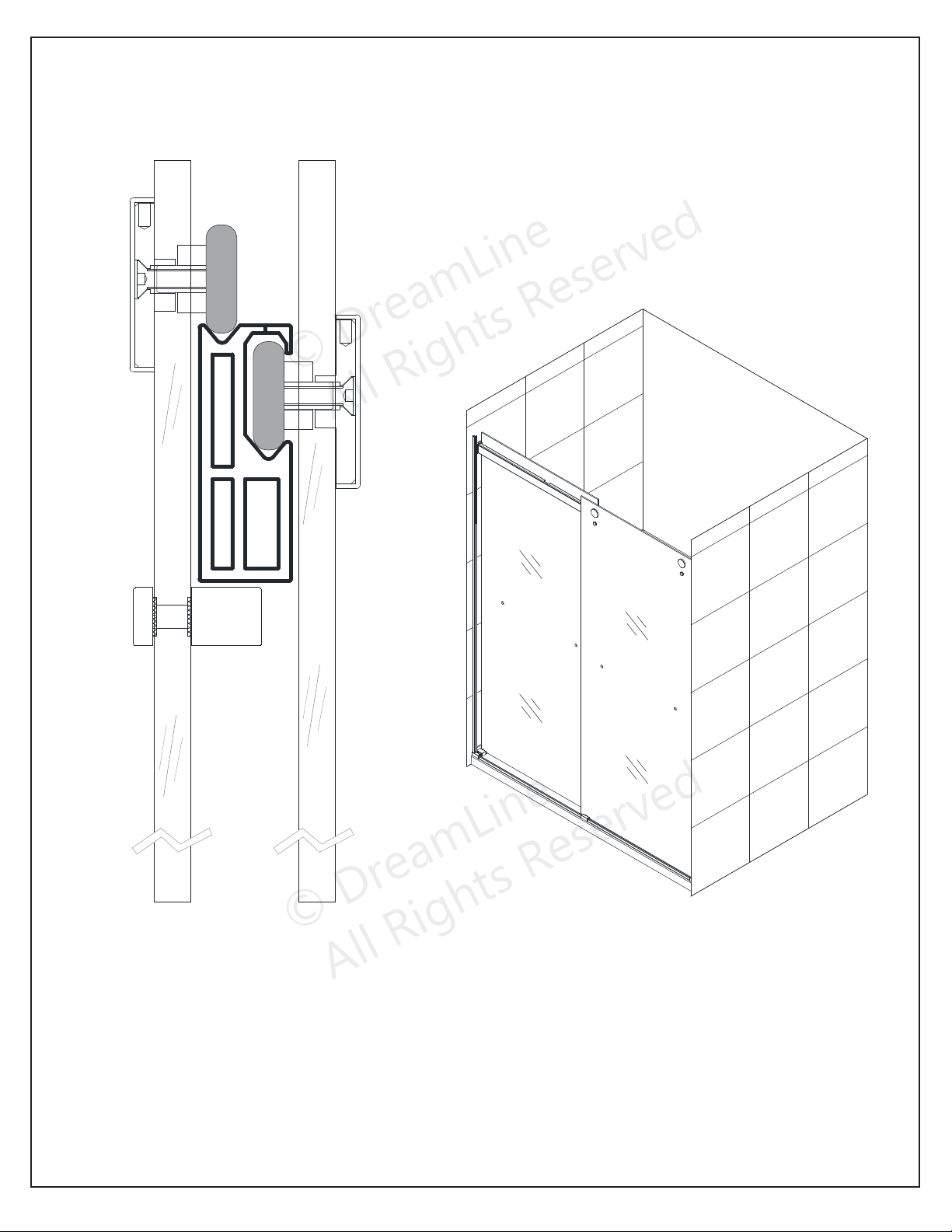

17. From inside the shower, hang the Inside Door Panel (#12) first. Insert one wheel into the notch in

the top of the Upper Guide Rail (#01). Slide the door over and insert the other roller wheel into the

second notch (Fig 17a.2) while inserting the Glass into the Guide Block (#09). (Fig 17a.3)

Next, from outside the shower, install the Outside Door Panel (#13) into the track on top of the Upper

Guide Rail (#01) and into the Guide Block (#09).

Attach the Roller Guards (#03) to the Outside Door Glass (#13) (Fig 17a.6) to prevent the door glass

from being lifted off of the Upper Guide Rail (#01). Adjust the Roller Guards (#03) to within 1/16”

beneath the Upper Guide Rail (#01). (Fig 17a and Fig 17b)

20ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

Drawing Not to Scale

OUTSIDE

DOOR

INSIDE

DOOR

Fig 17b

ROLLER

GUARD

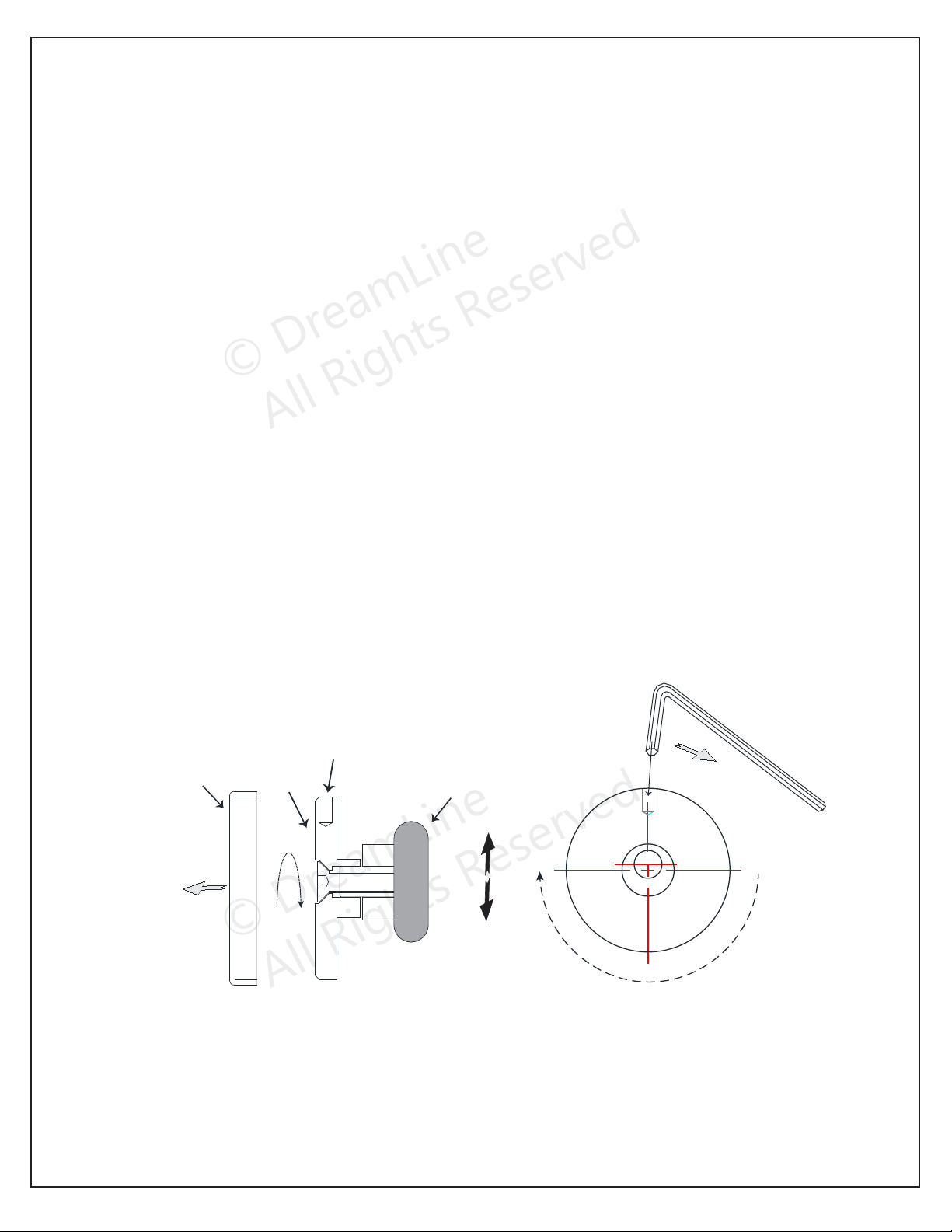

Wheel Assembly Adjustment

21ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

cap

disk

Fig 17c

wheel

small hole

2.5mm allen wrench

TIP: The wheel assembly bushing that fits through the hole in the glass is elliptical.

By rotating this disk, the door glass can be adjusted slightly in order to make even contact

with both the top and bottom wall bumpers.

◾Use a shim beneath the door glass so that it does not make contact with the threshold

during adjustments

◾Temporarily adjust the roller guards for clearance

◾Remove the cap from the wheel assembly and loosen the bolt

◾Insert the small 2.5mm allen wrench or similar into the small hole in the edge of the

adjustment disk to help rotate the disk (see Figure 20.1) and tilt the door glass into the

desired position

◾Hold the glass in position and re-tighten the bolt

◾Test the operation of the door. Repeat on the other wheels as necessary

◾Replace the Wheel assembly cap and re-adjust the roller guards to within 1/16” beneath

the upper guide rail.

(Fig 17a, Fig 17b and Fig 17c)

22ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

24

Hours

Fig 18

Fig 19

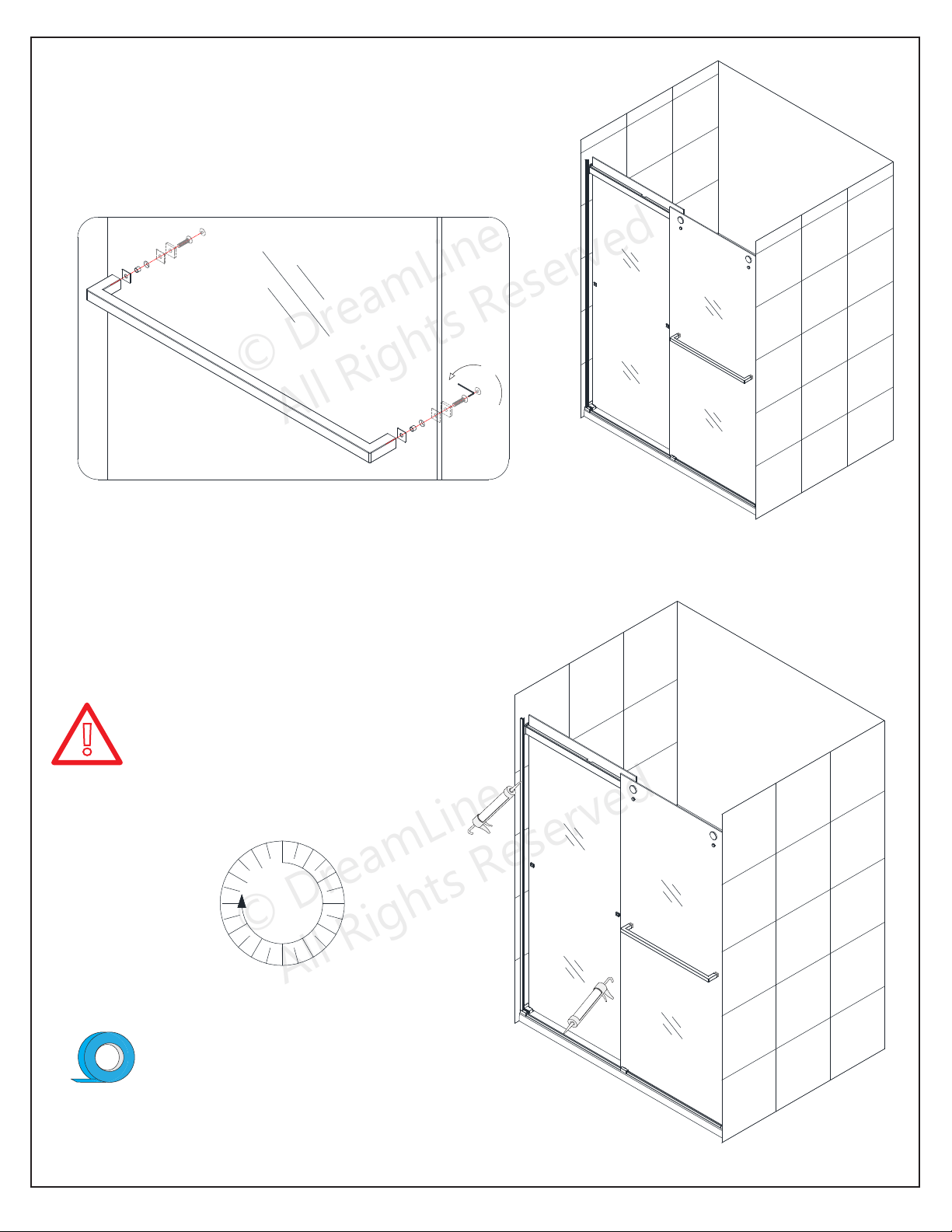

Use Painter’s Tape to hold the Wall profiles and

Bottom rail tight in position while the silicone cures.

!

Allow 24 hours for the silicone to

fully cure before using the shower.

18. Attach the Towel Bars (#05) to the Inside Door Panel (#12)

and to the Outside Door Panel (#13). Be sure to use all of the

supplied rubber gaskets to protect the glass.

(Fig 18)

19. Apply a good quality mildew-resistant silicone

on the walls and threshold along the bottom profile

and wall profiles. (Fig 19)

ESSENCE Maintenance checklist

◻ Inspect the Guide rail

◻ Inspect the Guide rail brackets

◻ Inspect the Guide blocks -square to the threshold and glass

◻ Proper clearance beneath the door glass between the threshold and within the guide block

◻ Door Glass adjusted so that the glass makes even contact into the SafeClose™ bumpers

◻ Inspect the Wheel assemblies

◻ Inspect the Roller guards - positioned within 1/16” beneath the guide rail and tight

◻ Inspect the Towel Bars -tighten if loose

◻ Inspect the edges of the door glass for concealed damage

o Damaged glass must be replaced!

◻ Inspect vinyl seals- replace if damaged or missing

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream

based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal

brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent

soap buildup and water spots (Hard water can etch the surface of the glass over time if left to

dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that

contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the

surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If

accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling

or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or

polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive

sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect

the glass and all hardware for misalignment, proper attachment, and/or

damage. Contact DreamLine with any questions or concerns.

23ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

NOTES:

ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

®

NOTES:

ESSENCE Shower and Tub Door manual Ver 1 Rev 3 112020

®

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine

®

Shower Doors and Enclosures please visit DreamLine.com

®

DreamLine SHDR636076009 Essence 56-60 in. W x 76 in. H Frameless Bypass Shower Door

Product's Documents

Installation Instructions

Specifications

DreamLine SHDR636076009 Questions and Answers
