HYDRAULIC SCISSOR LIFT PLATFORM TABLE
150kg, 300kg
MODEL NO: HPT150.V2, HPT300.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
Original Language Version
© Jack Sealey Limited
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations and recommendations are strictly
adhered to when lifting or moving heavy loads. The lifting or movement of heavy loads may be dangerous if not undertaken correctly.
9 Familiarise yourself with the application and limitations, as well as the specific potential hazards peculiar to the truck.
9 Maintain the truck in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty.
9 Use a qualified person to lubricate and maintain the truck. DO NOT use brake fluid to top up hydraulic unit. Use Sealey hydraulic oil
only.
9 Keep the truck clean for best and safest performance. DO NOT use on tarmacadam when fully laden as the wheels may sink in.
9 Locate truck in an adequate working area for its function, keep area clean and tidy and free from unrelated materials.
WARNING! Use truck on flat, level, solid ground, preferably concrete. Ensure the floor over which the truck will be transported is swept
clean and that there are no obstacles in the way.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep children and non essential persons away from the loading/unloading and transporting area.
9 Keep hands and body clear of the edge and underside of the platform when operating the truck.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
WARNING! Ensure load is placed level and centrally on truck platform and if necessary strap load in place before attempting to lift,
lower,or transport. When raised, check that the platform will not foul on the handle and/or your hand when lowering the load.
WARNING! Use the truck with diligence. DO NOT allow truck to knock into anything. Even when unladen, the truck is heavy and if
misused could cause serious damage or personal injury. Continually monitor transportation, lifting and lowering operation.
9 Take care to ensure you can view the way ahead when moving the truck. Take special care when approaching blind corners.
9 Before lifting check that there are no overhead obstructions.
9 Engage the wheel locks before attempting to raise or lower the platform.
▲ DANGER! If a heavy load tips or leans STOP WHAT YOUR ARE DOING. MOVE QUICKLY TO A SAFE DISTANCE. DO NOT TRY
TO HOLD OR STEADY a heavy load. Failure to follow this instruction may cause serious personal injury.
9 Ensure the truck is fully lowered before attempting to transport a load.
9 Before lowering the platform, ensure there are no obstructions underneath the platform and that all persons are standing clear of the
truck.
9 The lowering speed is a fixed rate regardless of the load weight. Stop lowering by releasing the valve control lever on the handle.
WARNING! DO NOT exceed the rated capacity of the truck.
8 DO NOT use the truck if a part is missing or damaged.
8 DO NOT load the truck so that it is top-heavy. Ensure loads are evenly placed on the truck platform.
8 DO NOT ride on the truck or allow any person to be transported on the truck.
8 DO NOT use the truck for any purpose other than lifting, lowering and transporting loads.
8 DO NOT allow truck to free wheel in transit. Always propel and control the truck by using the handle.
8 DO NOT use the truck on sloping surfaces.
8 DO NOT operate the truck when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT allow children to operate the truck.
8 DO NOT adjust or tamper with the hydraulic safety valve.
8 DO NOT place any part of your body within or under the truck platform when raised.
9 When not in use, fully lower the platform and store in a safe, dry, childproof area.
2. INTRODUCTION
Heavy-dutyconstruction.Fittedwithfourcompositewheels,twoxedandtwolockingcastor,foreasy-rollingoverroughworkshopand
warehouseoors.One-piecehydraulicunitcontrolledbylargerearmountedfootpedal.Safetyreleasemechanismpositionedon
handlebar for smooth controlled descent and safety bars to prevent inadvertent lowering. Suitable for numerous garage, industrial and
warehouse applications. Supplied with non-slip platform cover for added load security. May also be used as a mobile service bench.
Wear safety
footwear
HPT150.V2 HPT300.V3 Issue: 4 (3) 31/08/23
No reaching
in
3. SPECIFICATION
Model:.............................................................. HPT150.V2.........................HPT300.V3
Capacity (kg): ...........................................................150kg..........................300kg
Max platform height (mm):.....................................700mm..........................770mm
Min platform height (mm):......................................225mm..........................270mm
Platform length:......................................................705mm..........................820mm
Platform width (mm):..............................................450mm..........................520mm
Wheel diameter:.....................................................100mm..........................125mm
4. ASSEMBLY
4.1. A minimum of two people will be required to lift the truck out of its packaging. Alternatively, cut and fold down flat one end of the box and
wheel the truck out.

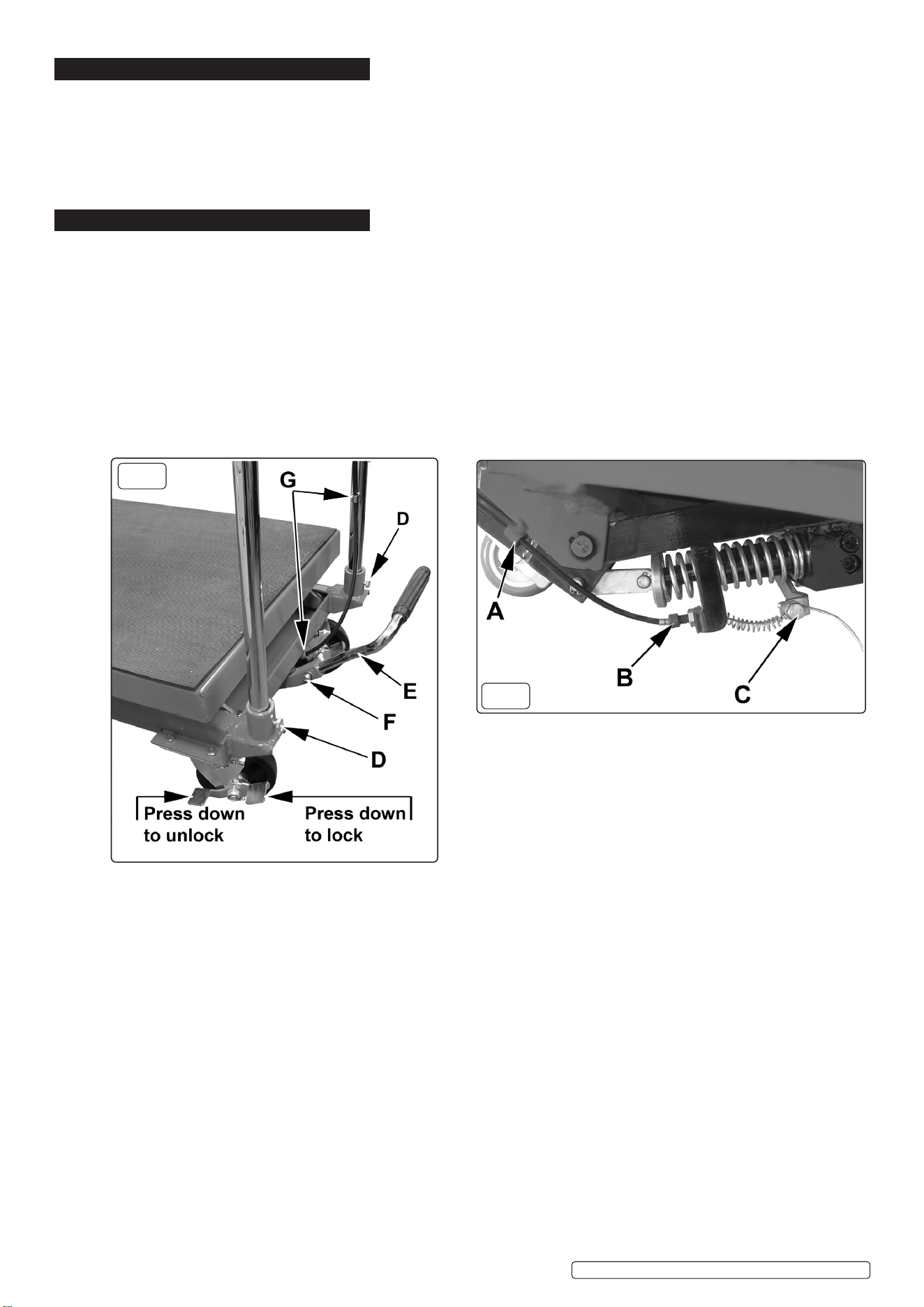

4.2. FITTING THE HANDLE At the back of the truck there are two upstanding sockets to receive the bent loop handle,fig.1D.
Partially unscrew the two locking bolts that pass into the sockets so that they no longer protrude into the sockets. Drop the ends of the
bent chrome handle into the sockets and tighten the bolts until the handle is held firmly.
4.3. FITTING THE FOOT PEDAL Slide the end of the foot pedal into the socket situated centrally between the two handle uprights, see
fig.1E.The foot pedal retaining bolt, see fig.1F, screws directly into the material of the foot pedal stem.
4.4. CONNECTING THE CONTROL CABLE Remove the cable guide bush, fig.2B, from the free end of the cable and feed the end of the
cable and cable sheath through the cable guide tubes welded to the handle and the underside of the frame. See fig.1G and fig.2A. Once
the cable been fed through the guides slide the bush back over the cable and onto the sheath. Feed the cable through the hole in the
bush retaining bracket and then through the hole in the clamping bolt on the actuating lever, fig.2C. Now screw the guide bush into the
bracket, see Fig.2B. Pull the end of the cable so that there is no play in the movement of the lever mounted on the handle with
another 14mm ring spanner.
© Jack Sealey Limited
Original Language Version
HPT150.V2 HPT300.V3 Issue: 4 (3) 31/08/23
g.1
g.2
5. OPERATION
5.1. BEFORE FIRST USE

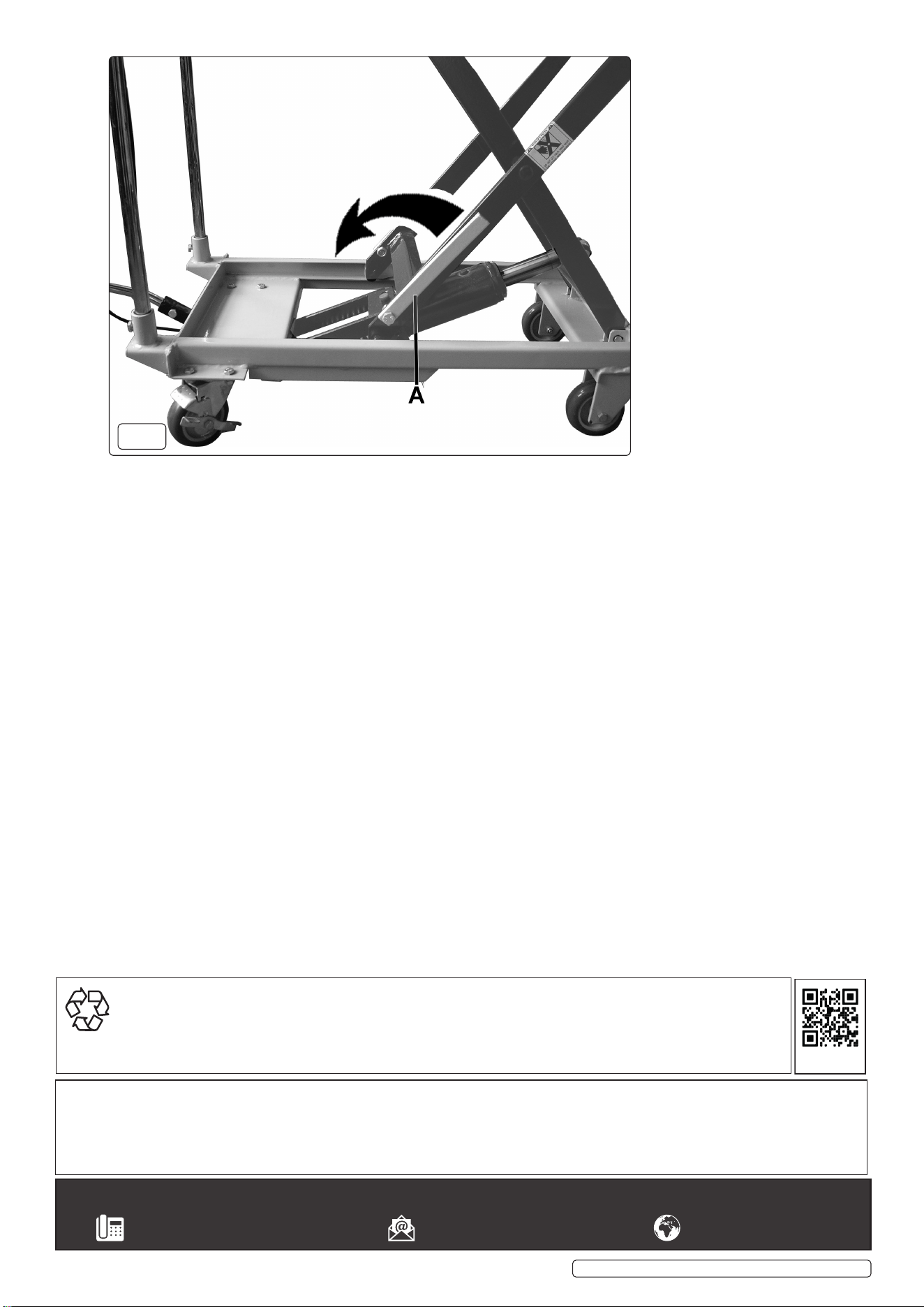

5.1.1. Before using the truck for the first time purge any air from the hydraulic circuit by pumping the foot pedal 10 to 15 times whilst holding
thereleaselever,g.3Ain.
5.1.2. Totestthetruck,releasetheleverwhichwillclosethehydraulicvalve.Pumpthefootpedal,g.1E,andraisethetruckplatformtoits
highestposition.Pullthevalvelever,g.3Atolowertheplatform(theplatformmaybeslowtodescendimmediatelyfromitshighest
point). If the platform fails to descend adjust the cable length to remove excess play in the release lever movement.
5.2. USING THE TRUCK
WARNING! Ensure you read, understand and follow the safety instructions. Ensure all Health and Safety, local authority and
general workshop practice regulations and recommendations are strictly adhered to when lifting or moving heavy loads. The lifting or
movement of heavy loads may be dangerous if not undertaken correctly.
5.2.1. Move the truck to the required loading area and raise the platform to loading height and engage safety bars, fig.5A. Lock the truck wheels
individually with the wheel foot brakes, see fig.1.
5.2.2. LOAD THE TRUCK
5.2.3. Remove safety bars and lower the truck platform to the lowest position before unlocking the wheels.
WARNING! Ensure the load will not foul on anything, and is clear of your hands and the handle when lowering, fig.4.
5.2.4. Unlock the wheels and transport the load to the required destination.
5.2.5. To unload, lock the wheels and raise platform if required, then unload the truck.
NOTE: With or without a load, always transport the truck with platform in its lowest position. When not in use, store the truck with the
platform in the lowest position.
6. MAINTENANCE
6.1. When the truck is not in use, the platform must be in the lowest position to minimise ram and piston corrosion.
6.2. Keep the truck clean and wipe off any oil or grease. Lubricate all moving parts with acid free oil.
8 DO NOT use truck if believed to have been subjected to abnormal load or shock load. Inspect and if necessary take appropriate action.
6.3. Periodically check the pump piston and piston rod for signs of corrosion. Clean exposed areas with a clean oiled cloth.
IMPORTANT: Only fully qualied personnel should attempt maintenance or repair of the truck hydraulic system.
6.4. The oil cylinder is a sealed unit and must not be accessed. For service contact your authorised dealer.
IMPORTANT: All other maintenance and repair (including oil change) must only be undertaken by fully qualied personnel.
Contact your local authorised service agent.
6.5. The oil cylinder is a sealed unit and in principle should not be accessed. To top up or change the oil remove oil plug.
WARNING! Only a good quality hydraulic oil such as SEALEY HYDRAULIC JACK OIL must be used, DO NOT use brake fluid.
IMPORTANT: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THE TRUCK.
Hydraulic products are only repaired by local service agents.
We have service/repair agents in all parts of the UK.
DO NOT RETURN TRUCK TO US. Please telephone 01284 757500 to obtain address and ‘phone number of your local agent. If truck
is under guarantee please contact your stockist.
De-commissioning the truck: Should the truck become completely unserviceable and require disposal, draw off the oil into an
approved container and dispose of the truck and the oil according to local regulations.
© Jack Sealey Limited
Original Language Version
HPT150.V2 HPT300.V3 Issue: 4 (3) 31/08/23

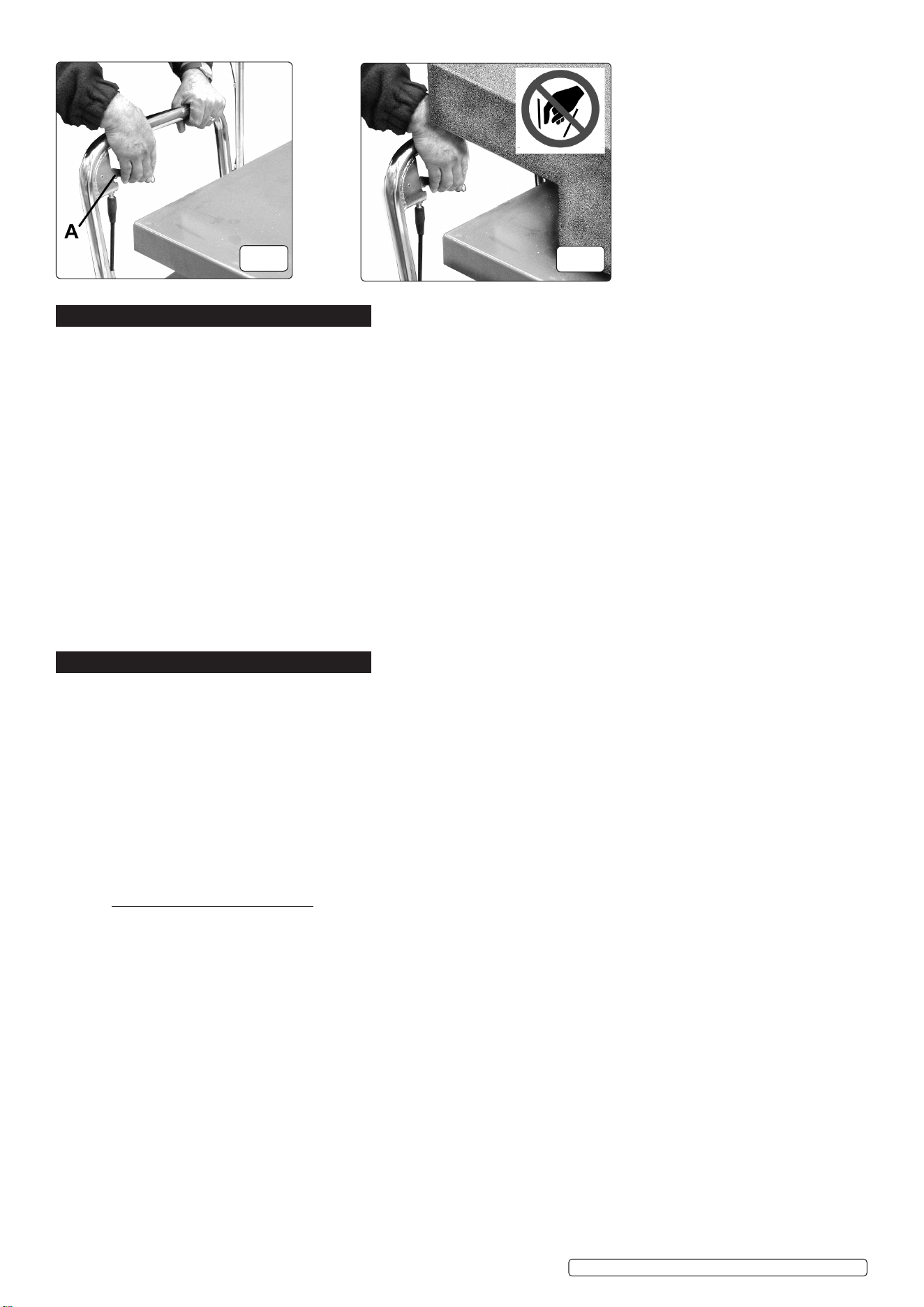

g.3
g.4
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Original Language Version
© Jack Sealey Limited
REGISTER YOUR
PURCHASE HERE
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
HPT150.V2 HPT300.V3 Issue: 4 (3) 31/08/23
g.5
