TURBO HD
D8T Series
Bullet Camera &Turret
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model
Type I
Camera
DS-2CE16D8T-(A)IT3ZF
Type II
Camera
DS-2CE56D8T-IT3ZF
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
0100001081023
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information, see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
Internal synchronization
SMART IR mode
3-axis adjustment
1.2 Overview
Before you start:
The cables of device vary according to different models.
The cables of each type are shown in the figures below,
refer to the actual sample.
1.2.1 Overview of Type I Camera
Video
Cable
Power Cord
Switch Button
Main Body
Bracket
Lens
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
DC12VIN
Power Cord
Camera
Enclosure
Clip Plate
Mounting Base
Switch Button
Video Cable
Figure 1-2 Overview of Type II Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
2 Installation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera and the
bracket.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
Before you start:
The installation steps of ceiling mounting and wall
mounting are similar and the following takes ceiling
mounting as an example to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes and the cable hole (optional) in
the ceiling/wall according to the drill template.
120°
120°

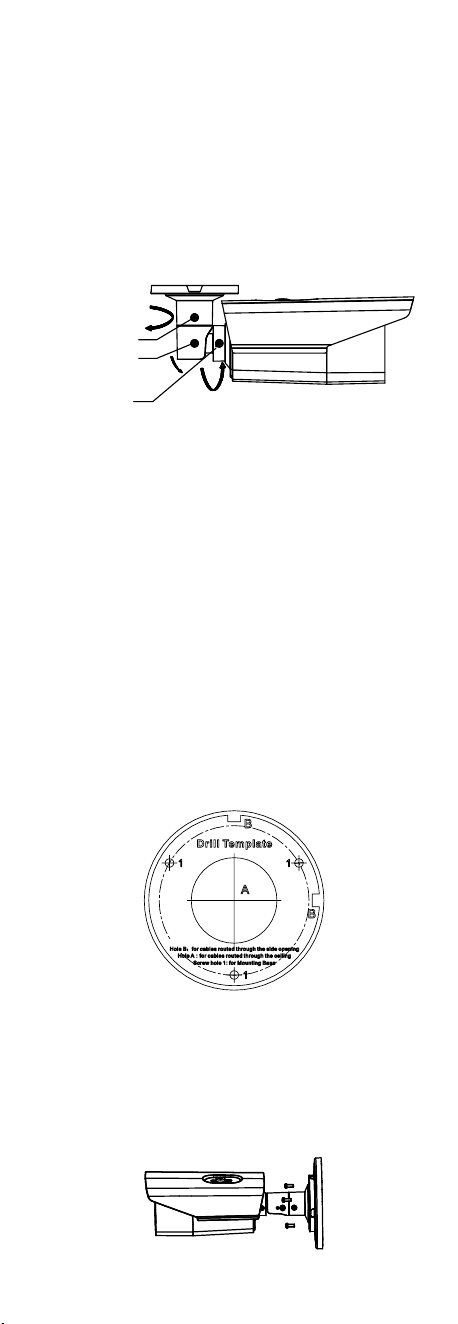

Figure 2-1 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Route the cables through the cable hole, or the side
opening.
4. Install the camera to the ceiling with supplied
screws.
Figure 2-2 Install the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
R
T
P
Pan Position
[0°to 360°]
Rotation Position
[0° to 360°]
Tilt Position
[0° to 90° ]
Figure 2-3 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 90°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole in the
ceiling/wall according to the holes of the drill
template.

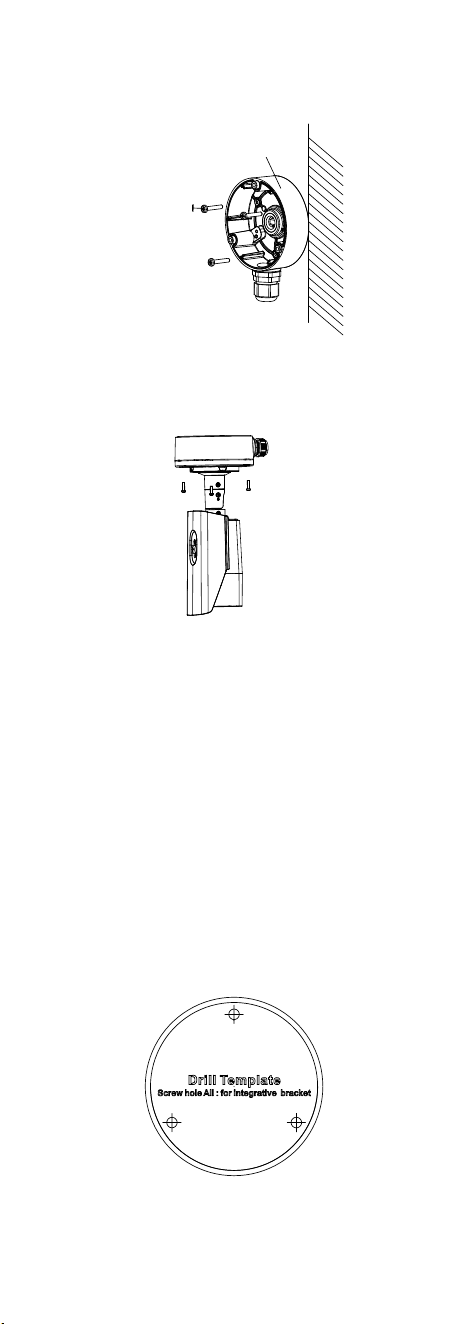

Figure 2-4 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
4. Fix the camera on the junction box’s cover.
Figure 2-5 Fix the Camera on the Junction Box’s cover
5. Attach the junction box’s body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Screw
Junction
Box Body
Figure 2-6 Secure the Box’s Body to the Ceiling
7. Route the cables through the cable hole, or the side
opening of the junction box.
8. Combine the junction box cover with its body.
Figure 2-7 Install the Junction Box Cover back to its
Body
9. Refer to step 5 to 6 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Before you start:
The installation steps of ceiling mounting and wall
mounting are similar and the following takes ceiling
mounting as an example to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.

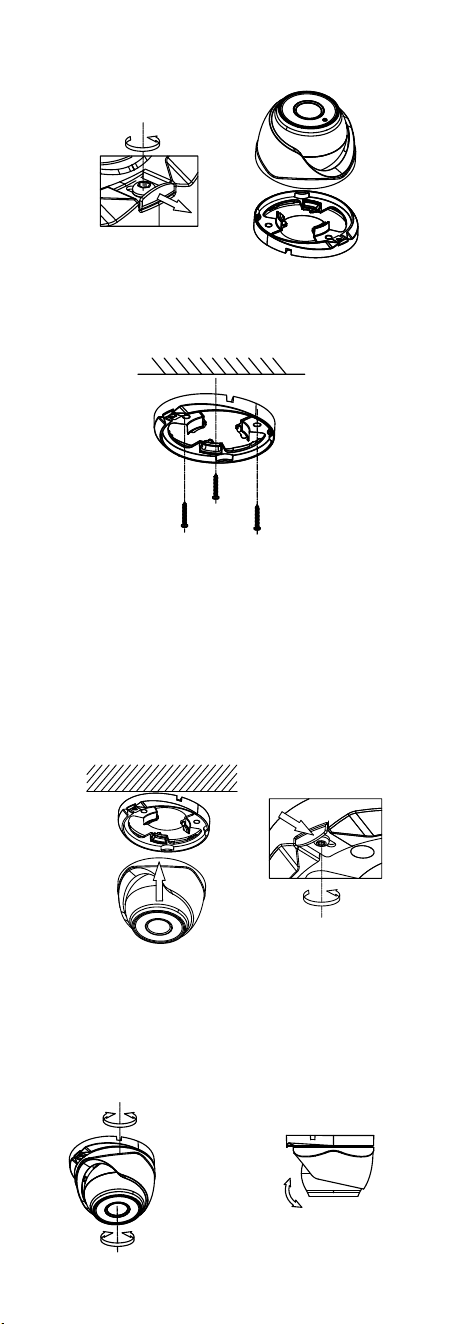

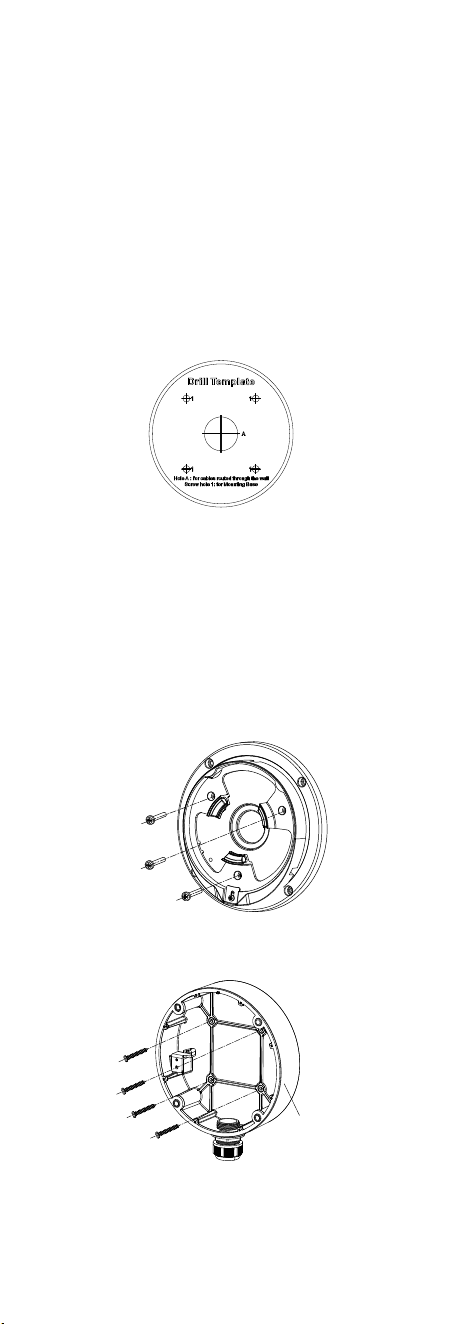

Figure 2-8 Drill Template
Note:
Drill the cable hole in the center of the drill template,
when adopting ceiling outlet to route the cable.
3. Loosen screws to remove the clip plate, and take out
the main body.
Clip
Plate
Figure 2-9 Remove the Clip Plate
4. Install the camera to the ceiling with supplied
screws.
Figure 2-10 Install the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to install the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the main body to the mounting base and
insert the clip plate.
Figure 2-11 Install the Turret Camera
7. Tighten the screws with the screw driver.
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0°to 360°]
Rotation Position
[0°to 360°]
Tilt Position
[0°to 75°]
Figure 2-12 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.
Figure 2-13 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Refer to step 3 of 2.2.1 Ceiling/Wall Mounting
without Junction Box to take out the camera’s main
body.
4. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
5. Fix the camera’s mounting base on the junction
box’s cover with three PM4 × 10 screws.
Figure 2-14 Secure Screws on Junction Box’s Cover
6. Secure the junction box’s body on the ceiling/wall
with four PA4 × 25 screws.
Junction
Box Body
Figure 2-15 Secure the Junction Box’s Body on Wall
/Ceiling
7. Combine the junction box cover with its body with
supplied screws on the junction box’s cover.
3 Menu Description
Please follow the steps below to call the menu.
Steps:
1. Connect the camera with the TVI DVR, and the

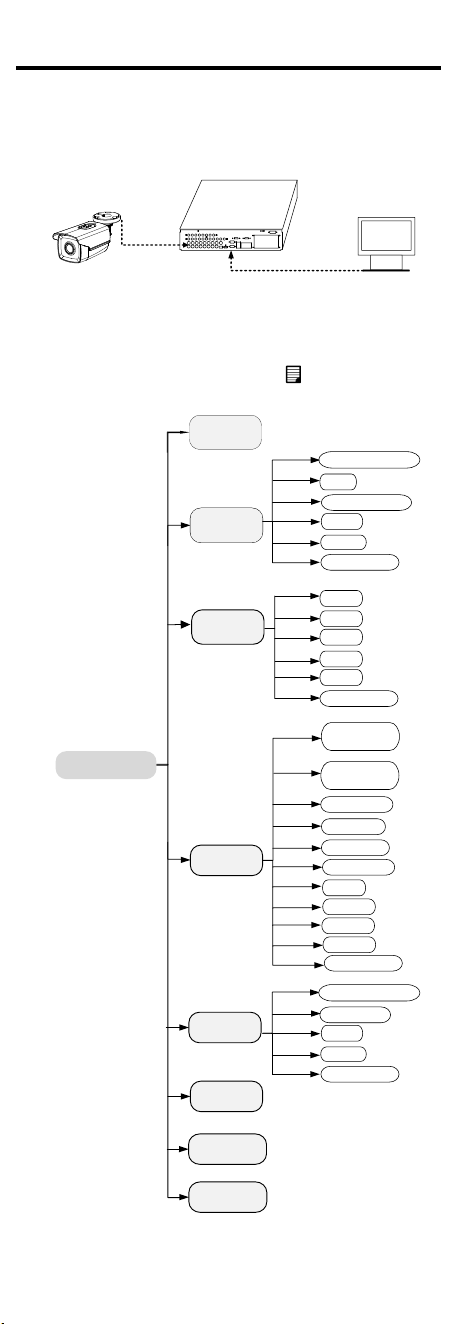

monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
preset No. 95.
MAIN MENU
VIDEO
SETTINGS
FACTORY
DEFAULT
EXIT
EXPOSURE MODE
CONTRAST
SHARPNESS
SATURATION
3DNR
MIRROR
BACK
AGC
EXPOSURE
VIDEO
FORMAT
BACK
EXIT
SAVE & EXIT
WHITE
BALANCE
BRIGHTNESS
SAVE & EXIT
EXIT
SAVE & EXIT
DAY/NIGHT
COLOR
B/W
AUTO
BACK
EXIT
SAVE & EXIT
SLOW SHUTTER
FUNCTIONS
MOTION DET
PRIVACY
BACK
EXIT
SAVE & EXIT
MODE
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
(1) Click up/down direction button to select the
item.
(2) Click Iris + to confirm the selection.
(3) Click left/right direction button to adjust the
value of the selected item.
3.1 VIDOE FORMAT
When switching the video output as CVBS, you can
set the video format as PAL, or NTSC.
When switching the video output as TVI, you can
set the video format 2MP@25fps, or 2MP@30fps.
When switching the video output as AHD, you can
set the video format 2MP@25fps, or 2MP@30fps.
When switching the video output as CVI, you can
set the video format 2MP@25fps, or 2MP@30fps.
3.2 EXPOSURE
Exposure describes the brightness-related parameters,
which can be adjusted by EXPOSURE MODE, AGC and
SLOW SHUTTER.
EXPOSURE
EXPOSURE MODE
AGC
SLOW SHUTTER
BACK
EXIT
SAVE & EXIT
GLOBAL
LOW
OFF
Figure 3-3 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, BLC,
WDR, and HLC.
GLOBAL
GLOBAL refers to the normal exposure mode which
performs exposure according to the whole image
brightness.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light for the
front object to make it clear, but this may cause the
over-exposure of the background, where the light is
strong.
WDR (Wide Dynamic Range)
The WDR helps the camera provide clear images even
under backlight circumstances. When both very bright
and very dark areas simultaneously exist in the image,
WDR balances the brightness level of the whole image
to provide clear images with details.
HLC (High Light Compensation)
HLC: Masks strong light sources that usually flare across
a scene. This makes it possible to see the detail of the
image that would normally be hidden.
AGC (Automatic Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM,
or LOW.
Note:
The noise will be amplified when setting the AGC level.
The higher the level is, the more obvious the noise is.
SLOW SHUTTER
SLOW SHUTTER increases the exposure time on a single
frame, which makes a camera more sensitive to the
light so it can produce images even in low lux
conditions.
You can set the SLOW SHUTTER function as OFF, x2, x4,
x6, x8, x10, x12, x14, or x16 according to the different
light conditions.
3.3 DAY/NIGHT
COLOR, BW (Black White), and AUTO are selectable for
DAY/NIGHT switch.
COLOR
The image is colored in day mode all the time.
B & W (Black and White)
The image is black and white all the time, and the IR
LIGHT turns on in the poor light conditions.
You can turn on/off the IR LIGHT and set the value of
SMART IR in this menu
DAY/NIGHT
MODE
IR LIGHT
SMART IR
LEVEL
BACK
EXIT
SAVE & EXIT
B & W
ON
MODE 1
1
Figure 3-4 B & W
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure.
You can select the mode as MODE 1, or MODE 2.
MODE 1 is the default mode that can be applied to both
indoor conditions, and outdoor conditions. When
selecting the MODE 1, the IR Light has more obvious
effects.
LEVEL
The LEVEL value can be adjusted from 0 to 3. The
greater the value is, the more obvious effects are.
AUTO
Automatically switch Color, or BW (Black and White)
according to actual scene brightness.
You can turn on/off the IR LIGHT, and set the value of
SMART IR in this menu.
DAY/NIGHT
MODE
IR LIGHT
SMART IR
LEVEL
D N THRESHOLD
N D THRESHOLD
BACK
EXIT
SAVE & EXIT
AUTO
ON
MODE 1
1
7
7
Figure 3-5 AUTO
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure.
You can select the mode as MODE 1, or MODE 2.
MODE 1 is the default mode that can be applied to both
indoor conditions, and outdoor conditions. When
selecting the MODE 1, the IR Light has more obvious
effects.
D N Threshold (Day to Night Threshold)
Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
N D Threshold (Night to Day Threshold)
Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
3.4 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. WHITE BALANCE, BRIGHTNESS,
CONTRAST, SHARPNESS, SARUTATION, DNR, and
MIRROR are adjustable.
VIDEO SETTINGS
IMAGE MODE STD
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
3DNR
MIRROR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
OFF
Figure 3-6 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation,
and you can set it as STD (Standard), or HIGH-SAT (High
Saturation)
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set the mode as AUTO, or MANUAL.
AUTO
Under AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MANUAL
You can set the R GAIN/B GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE & EXIT
MANUAL
5
5
Figure 3-7 MANUAL MODE
BRIGHTNESS
Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 9 to darken
or brighten the image. The higher the value is, the
brighter the image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 9.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 9.
SATURATION
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 9.
3DNR (Digital Noise Reduction)
The 3DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions and delivering more accurate and sharp
image. You can set the 3DNR value from 1 to 9.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.5 FUNCTIONS
On the FUNCTIONS submenu, you can set the motion
detection and the privacy mask of the camera.
MOTION DETECTION
In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.
MOTION DET
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
SENSITIVITY
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
OFF
RED
5
OFF
Figure 3-8 MOTION
Select a MOTION area. Set the MODE as ON. Click the
up/down/left/right button to define the position, and the
size of the area. Set the SENSITIVITY from 1 to 9.
PRIVACY
The privacy mask allows you to cover certain areas
which you don’t want to be viewed, or recorded. Up to
4 privacy areas are configurable.
PRIVACY
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
ON
RED
OFF
Figure 3-9 PRIVACY
Select a PRIVACY area. Set the MODE as ON. Click
up/down/left/right button to define the position, and the
size of the area.
3.6 FACTORY DEFAULT
Move the cursor to FACTORY DEFAULT and click Iris+ to
reset all the settings to the factory default.
3.7 EXIT
Move the cursor to EXIT and click Iris+ to exit the menu
without saving.
3.8 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.
UD12114B
