TURBO HD
D8T POC Series Bullet &
Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model
Type I Camera
DS-2CE16D8T-IT1E
DS-2CE16D8T-IT3E
DS-2CE16D8T-IT5E
Type II Camera
DS-2CE16D8T-IT3ZE
Type III Camera
DS-2CE16D8T-ITE
Type IV Camera
DS-2CE56D8T-IT3ZE
Type V Camera
DS-2CE56D8T-IT1E
DS-2CE56D8T-IT3E
Type VI Camera
DS-2CE56D8T-ITME
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
0100001081224
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information, see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
SMART IR
Power over coaxial
3-Axis adjustment
1.2 Overview

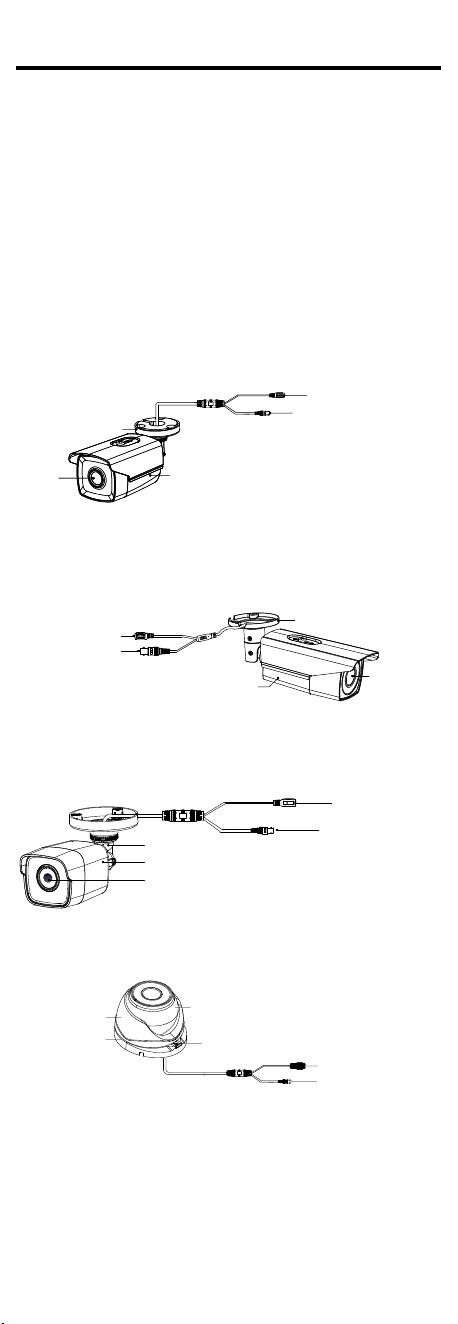

1.2.1 Overview of Type I Camera
Lens
Main Body
Power Cord
Video Cable
Bracket
Figure 1-1 Overview of Type I Camera
1.2.2 Overview of Type II Camera
Power Cord
Video
Cable
Bracket
Main Body
Lens
Figure 1-2 Overview of Type II Camera
1.2.3 Overview of Type III Camera
DC12VIN
Power Cord
Video Cable
Lens
Bracket
Main Body
Figure 1-3 Overview of Type III Camera
1.2.4 Overview of Type IV Camera
DC12VIN
Main Body
Clip Plate
Enclosure
Mounting
Base
Video Cable
Power Cord
Figure 1-4 Overview of Type IV Camera
1.2.5 Overview of Type V Camera
DC12VIN
Enclosure
Main Body
Mounting Base
Power Cord
Video Cable
Figure 1-5 Overview of Type V Camera
1.2.6 Overview of Type VI Camera
Clip Plate
Mounting Base
Enclosure
Main Body
Power Cord
Video Cable
Trim Ring
Figure 1-6 Overview of Type VI Camera
2 Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera, and the
mount.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I/Type II/Type III Camera
2.1.1 Ceiling/Wall Mounting
Before you start:
The installation steps of Type I, Type II, and Type III
Camera are similar and the following takes Type I as an
example to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes on the ceiling/wall according to
the drill template.

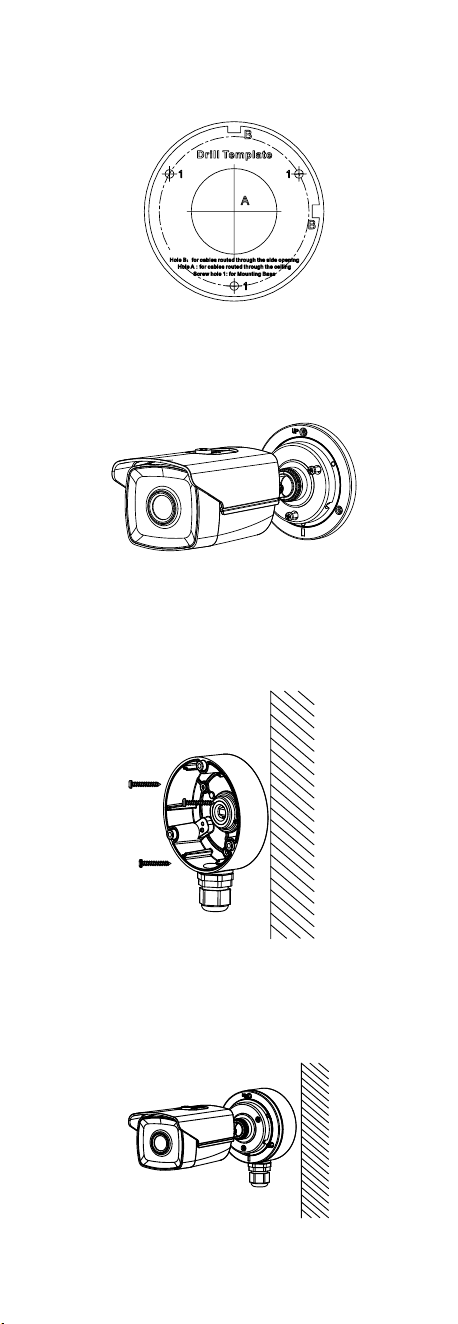

Figure 2-1 The Drill Template
3. Route the cables through the cable hole, or the side
opening.
4. Install the camera to the ceiling with supplied
screws.
Figure 2-2 Install the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0°to 360°]
Rotation
Position
[0° to 360°]
Tilt Position [0° to 180° ]
P
R
T
Figure 2-3 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance. The
installation steps of Type I, Type II, and Type III Camera
are similar and the following takes Type I as an example
to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill screw holes on the ceiling/wall according to the
drill template.

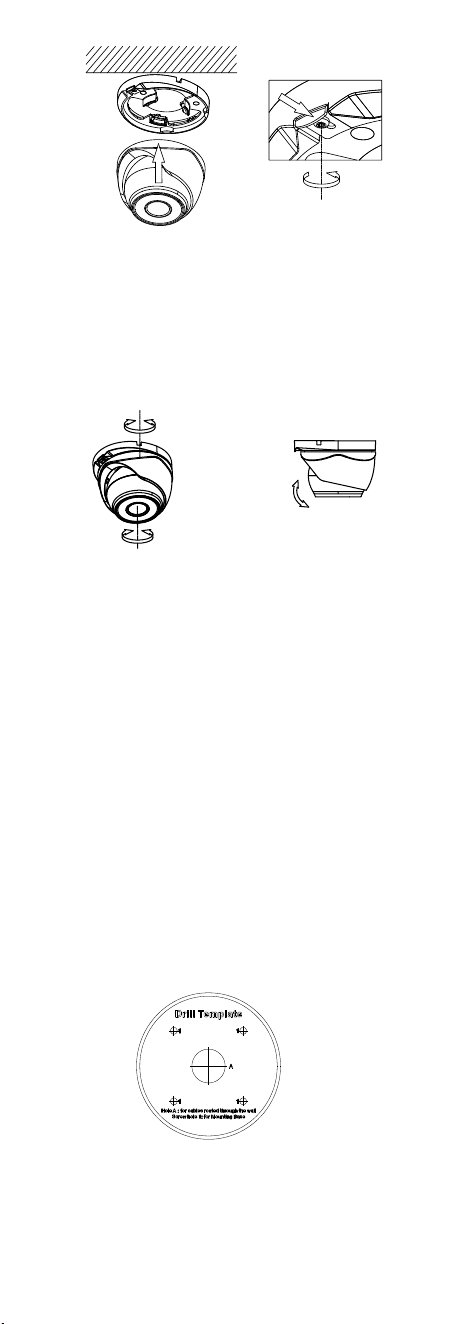

Figure 2-4 The Drill Template
3. Take apart the junction box, and align the screw
holes of the camera with those on the Junction
box’s cover.
4. Install the camera on the junction box’s cover.

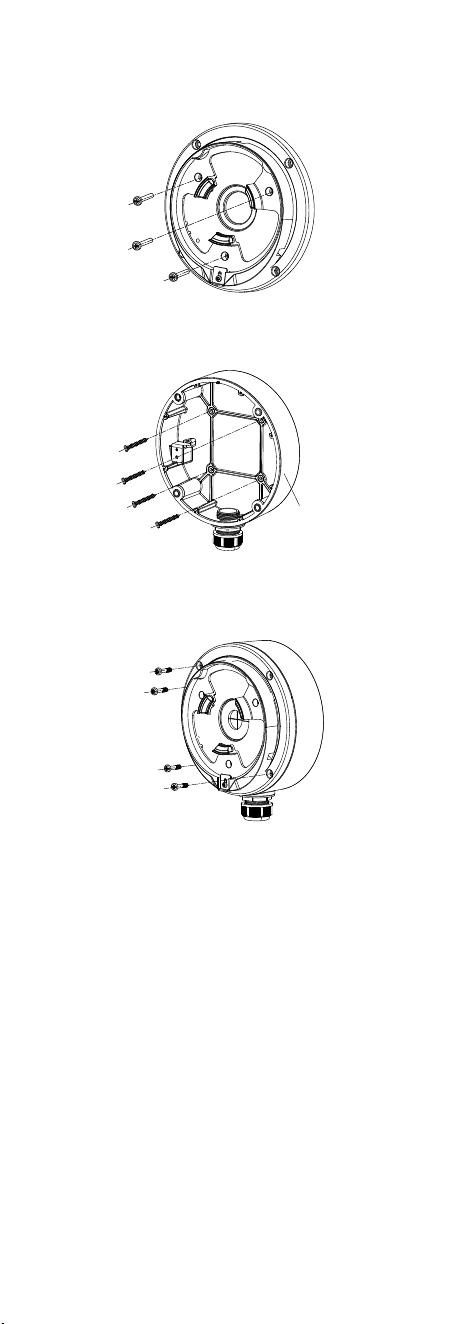

Figure 2-5 Install the Camera on the Junction Box’s
Cover
5. Attach the junction box’s body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body on the ceiling/wall
with supplied screws.
Figure 2-6 Secure the Junction Box’s Body on the
Wall/Ceiling
7. Route the cables through cable holes, or side
openings.
8. Combine the junction box’s cover with its body.
Figure 2-7 Combine the Junction Box’s Cover with its
Body
9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall
Mounting to finish the installation.
2.2 Installation of Type IV/Type V/Type VI Camera
2.2.1 Ceiling/Wall Mounting
Before you start:
The installation steps of Type IV, Type V, and Type VI
Camera are similar and the following takes Type IV as an
example to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes on the ceiling/wall according to
the drill template.
120°

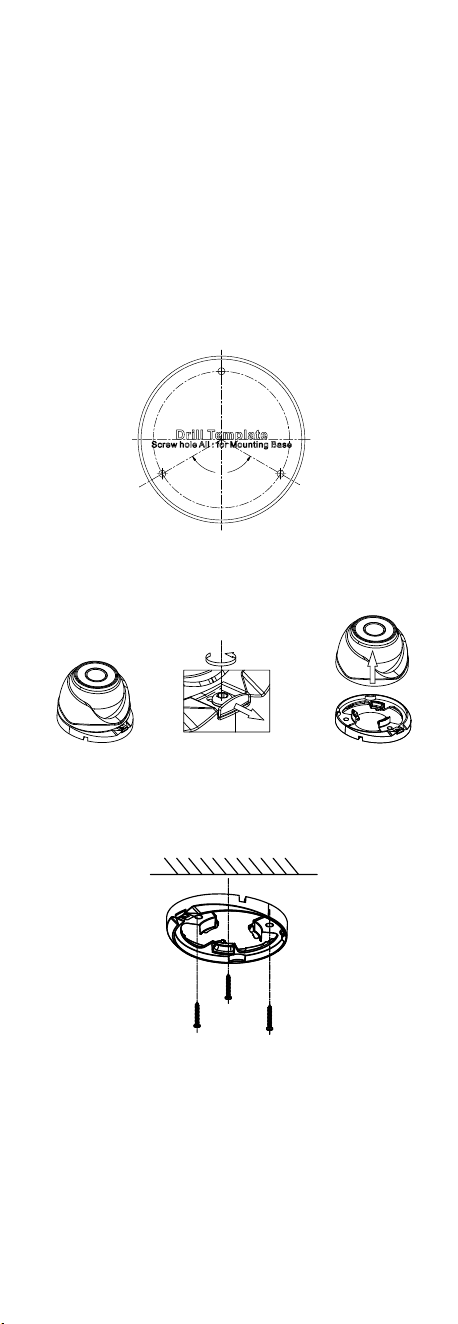

Figure 2-8 The Drill Template
3. Loosen screws to remove the clip plate, and take out
the main body.
Clip Plate
Figure 2-9 Take out the Main Body
4. Install the camera to the ceiling with supplied
screws.
Figure 2-10 Install the Mounting Base to Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to install the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the main body to the mounting base and
insert the clip plate.
Figure 2-11 Assemble the Camera
7. Tighten the screws with the screw driver.
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0°to 360°]
Rotation Position
[0°to 360°]
Tilt Position
[0°to 75°]
Figure 2-12 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance. The
installation steps of Type IV, Type V, and Type VI Camera
are similar and the following takes Type IV as an
example to describe the steps.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes on the ceiling/wall according to
the drill template.
Figure 2-13 The Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Refer to step 3 of 2.1.1 Ceiling/Wall Mounting to
take out the camera’s main body.
4. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
5. Install the mounting base to the junction box’s cover
with three PM4 × 10 screws.
Figure 2-14 Secure Screws on Junction Box’s Cover
6. Secure the junction box’s body on the ceiling/wall
with four PA4 × 25 screws.
Junction
Box Body
Figure 2-15 Secure the Junction Box’s Body on Wall
/Ceiling
7. Combine the junction box’s cover with its body.
Figure 2-16 Combine the Junction Box’s with its body
8. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounting
to finish the installation.
3 Menu Description
Follow the steps below to call the menu.
Note:
The actual display may vary with your camera model.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the camera, TVI DVR, and the monitor to
view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
EXPOSURE
EXPOSURE MODE
MAIN MENU
VIDEO SETTINGS
FUNCTIONS
EXIT
SAVE & EXIT
AGC
BACK
EXIT
CONTRAST
SHARPNESS
SATURATION
3 DNR
MIRROR
BACK
BACK
EXIT
VIDEO FORMAT
FACTORY
DEFAULT
SAVE & EXIT
WHITE BALANCE
BRIGHTNESS
EXIT
SAVE & EXIT
SAVE & EXIT
DAY/NIGHT
BACK
EXIT
SAVE & EXIT
SLOW SHUTTER
IR LIGHT
Smart IR
D->N THRESHOLD
N->D THRESHOLD
IMAGE MODE
MOTION DET
PRIVACY
MODE
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
You can set the video format to 2MP@25fps or
2MP@30fps.
3.2 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE to GLOBAL, BLC, HLC,
or WDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
HLC (Highlight Compensation)
HLC stands for highlight compensation. The camera
detects the strong spots (the over-exposure portion of
image), then reduce the brightness of the strong spots
to improve the overall images.
WDR (Wide Dynamic Range)
The wide dynamic range (WDR) function helps the
camera provide clear images even under back light
circumstances. When there are both very bright and
very dark areas simultaneously in the field of view, WDR
balances the brightness level of the whole image and
provide clear images with details.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM
or LOW.
Note:
The noise will be amplified when the AGC is on.
SLOW SHUTTER
SLOW SHUTTER increases the exposure time on a single
frame, which makes a camera more sensitive to the
light so it can produce images even in low lux
conditions.
You can set the SLOW SHUTTER function as OFF, x2, x4,
x6, x8, x10, x12, x14, or x16 according to the different
light conditions.
Note:
This function is not available, when adopts power over
coaxial to supply power.
3.3 DAY/NIGHT
COLOR, B&W (Black White), and AUTO are selectable
for DAY and NIGHT switches.
COLOR
The image is colorful in day mode all the time.
B&W
The image is black and white all the time, and it is
better to turn the IR LIGHT on in poor light conditions.
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The greater the value is, the more obvious
effects are.
AUTO
You can turn on/off the IR LIGHT, and set the value of
SMART IR in this menu.
DAY/NIGHT
MODE
IR LIGHT
SMART IR
D->N THRESHOLD
N->D THRESHOLD
BACK
EXIT
SAVE&EXIT
AUTO
ON
2
2
7
Figure 3-3 DAY/NIGHT
IR LIGHT
You can turn on/off the infrared to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The greater the value is, the more obvious
effects are.
DN THRESHOLD (Day to Night Threshold)
Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
ND THRESHOLD (Night to Day Threshold)
Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
3.4 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, WHITE BALANCE,
BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, 3
DNR, and MIRROR are adjustable.
VIDEO SETTINGS
IMAGE MODE STD
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
3DNR
MIRROR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
OFF
Figure 3-4 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation,
and you can set it as STD (Standard), or HIGH-SAT (High
Saturation).
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WHITE BALANCE mode as AUTO,
or MANUAL.
AUTO
Under AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MANUAL
You can set the R-GAIN/B-GAIN value to adjust the
shades of red/blue color of the image.
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE&EXIT
MANUAL
5
5
Figure 3-5 MANUAL WHITE BALANCE MODE
BRIGHTNESS
Brightness refers to the brightness of the image. You
can set the brightness value from 1 to 9 to darken or
brighten the image. The greater the value is, the
brighter the image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 9.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 9.
SATURATION
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 9.
3 DNR (3D DNR)
3 DNR refers to 3D digital noise reduction. Comparing
with the general 2D digital noise reduction, the 3D
digital noise reduction function processes the noise
between two frames besides processing the noise in
one frame. The noise will be much less and the video
will be clearer.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.5 FUNCTIONS
MOTION DET
In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.
MOTION DET
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
SENSITIVITY
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
OFF
RED
5
OFF
Figure 3-6 MOTION DET
Set the MODE to ON. Select a MOTION area, then set
the X/Y position, and the size of the area according to
your needs.
PRIVACY
The privacy mask allows you to cover certain areas
which you do not want to be viewed, or recorded. Up to
4 privacy areas are configurable.
PRIVACY
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
ON
RED
OFF
Figure 3-7 PRIVACY
Set the MODE to ON. Select a PRIVACY area, then set
the X/Y position, and the size of the area according to
your needs.
3.6 FACTORY DEFAULT
Reset all the settings to the factory default.
3.7 EXIT
Move the cursor to EXIT and click Iris+ to exit the menu.
3.8 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.
UD13128B
