Product Overview

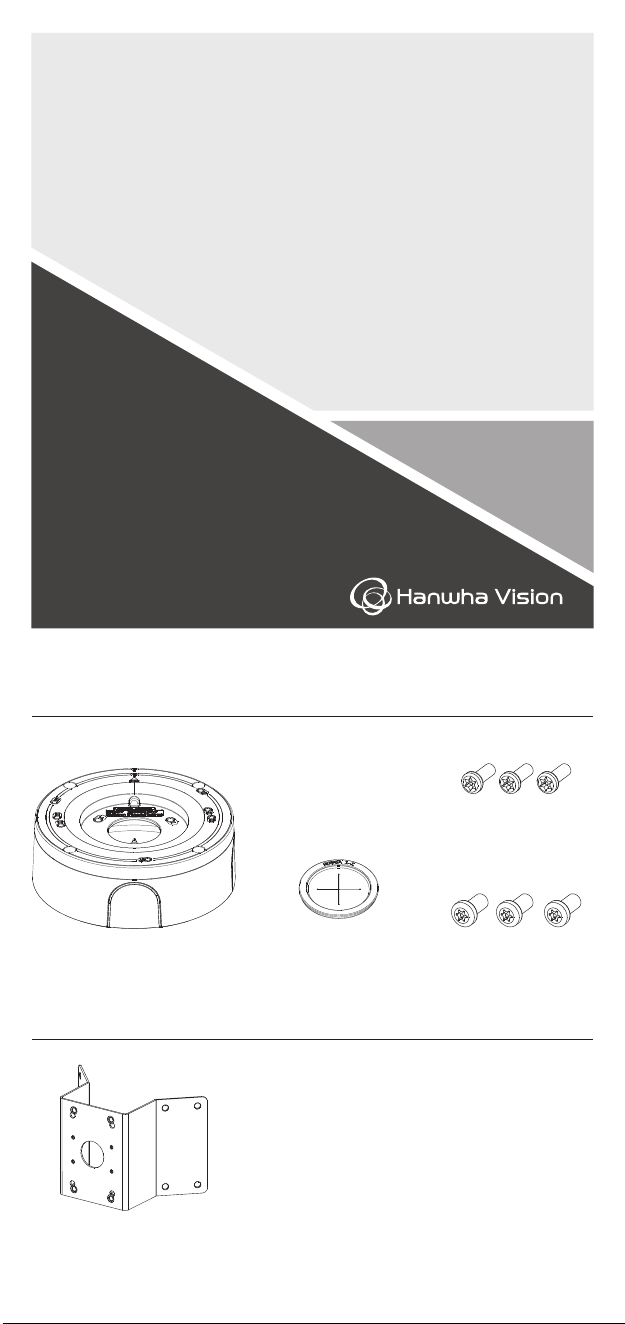

Package
Optional Accessory
Backbox
SBV-A14B
Installation Precautions
Installation
This product is an adapter used in installation that provides a space to
install compatible cameras(ANE-L6012R, ANE-L7012R, ANO-L6012R,
ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, ANO-L7082R,
ANV-L6012R, ANV-L6082R, ANV-L7012R, ANV-L7082R) and connect
cables.
(For compatible models, please visit our website.)
` Make sure that the installation place can endure at least 4 times of
the total weight of this product and camera.
` Depending on some installation conditions, this product can be
connected to 0.75” PF which is a screw peak processed pipe.
` Each anchor bolt must be capable of withstanding an extraction
force of 700 kg.
` When installing the product outdoors, use interlocking devices made
of stainless steel.

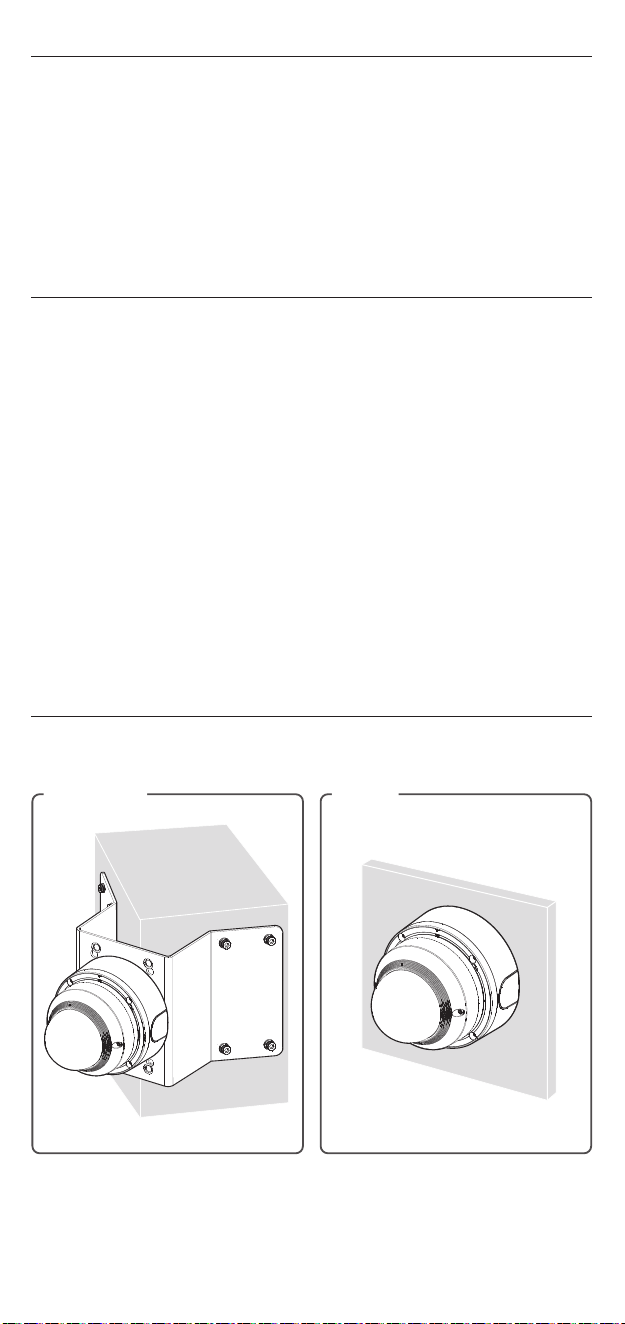

Corner Wall
1
BACKBOX COVER-HOLE
MACHINE SCREW
M4 (3 EA)
MACHINE SCREW
M5 (3 EA)
CORNER MOUNT
ADAPTOR
:SBP-300KMW1
2

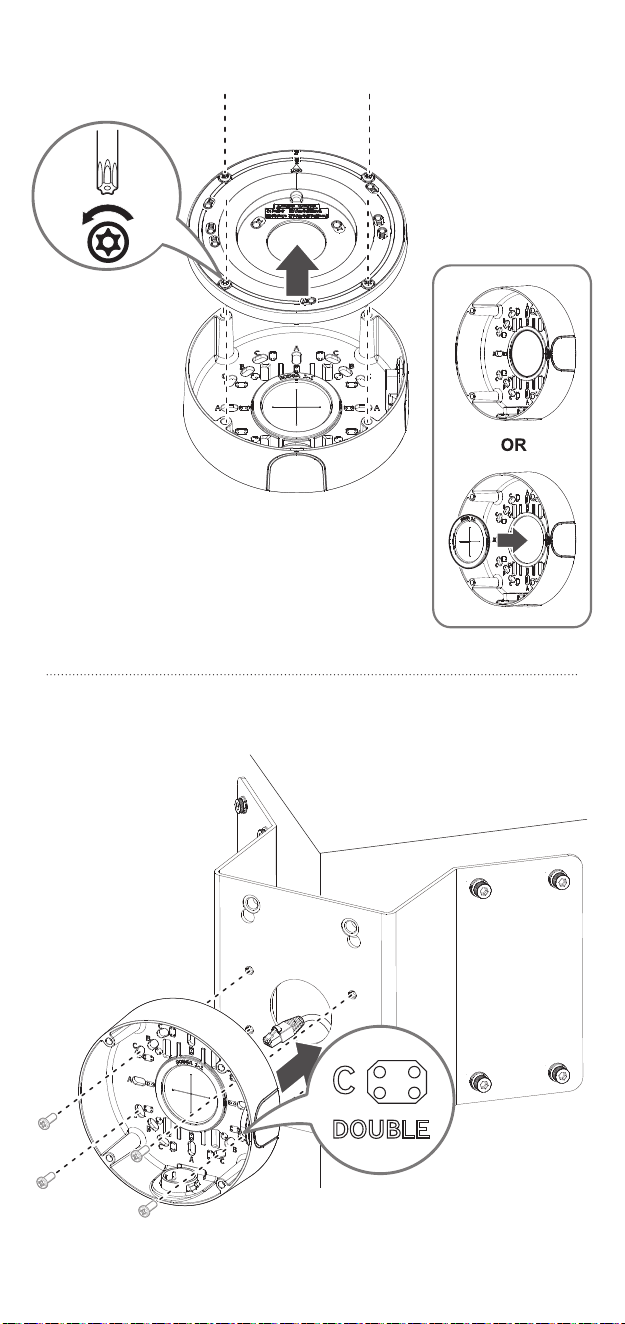

(Corner)
4x
TR20
PT01-005882B
Product Overview
Package
Optional Accessory
Backbox
SBV-A14B
Installation Precautions
Installation
This product is an adapter used in installation that provides a space to
install compatible cameras(ANE-L6012R, ANE-L7012R, ANO-L6012R,
ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, ANO-L7082R,
ANV-L6012R, ANV-L6082R, ANV-L7012R, ANV-L7082R) and connect
cables.
(For compatible models, please visit our website.)
` Make sure that the installation place can endure at least 4 times of
the total weight of this product and camera.
` Depending on some installation conditions, this product can be
connected to 0.75” PF which is a screw peak processed pipe.
` Each anchor bolt must be capable of withstanding an extraction
force of 700 kg.
` When installing the product outdoors, use interlocking devices made
of stainless steel.
Corner Wall
1
BACKBOX COVER-HOLE
MACHINE SCREW
M4 (3 EA)
MACHINE SCREW
M5 (3 EA)
CORNER MOUNT
ADAPTOR
:SBP-300KMW1
2
(Corner)
4x
TR20
PT01-005882B
Product Overview
Package
Optional Accessory
Backbox
SBV-A14B
Installation Precautions
Installation
This product is an adapter used in installation that provides a space to
install compatible cameras(ANE-L6012R, ANE-L7012R, ANO-L6012R,
ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, ANO-L7082R,
ANV-L6012R, ANV-L6082R, ANV-L7012R, ANV-L7082R) and connect
cables.
(For compatible models, please visit our website.)
` Make sure that the installation place can endure at least 4 times of
the total weight of this product and camera.
` Depending on some installation conditions, this product can be
connected to 0.75” PF which is a screw peak processed pipe.
` Each anchor bolt must be capable of withstanding an extraction
force of 700 kg.
` When installing the product outdoors, use interlocking devices made
of stainless steel.
Corner Wall
1
BACKBOX COVER-HOLE
MACHINE SCREW
M4 (3 EA)
MACHINE SCREW
M5 (3 EA)
CORNER MOUNT
ADAPTOR
:SBP-300KMW1
2
(Corner)
4x
TR20
PT01-005882B
4
Ⅰ
:

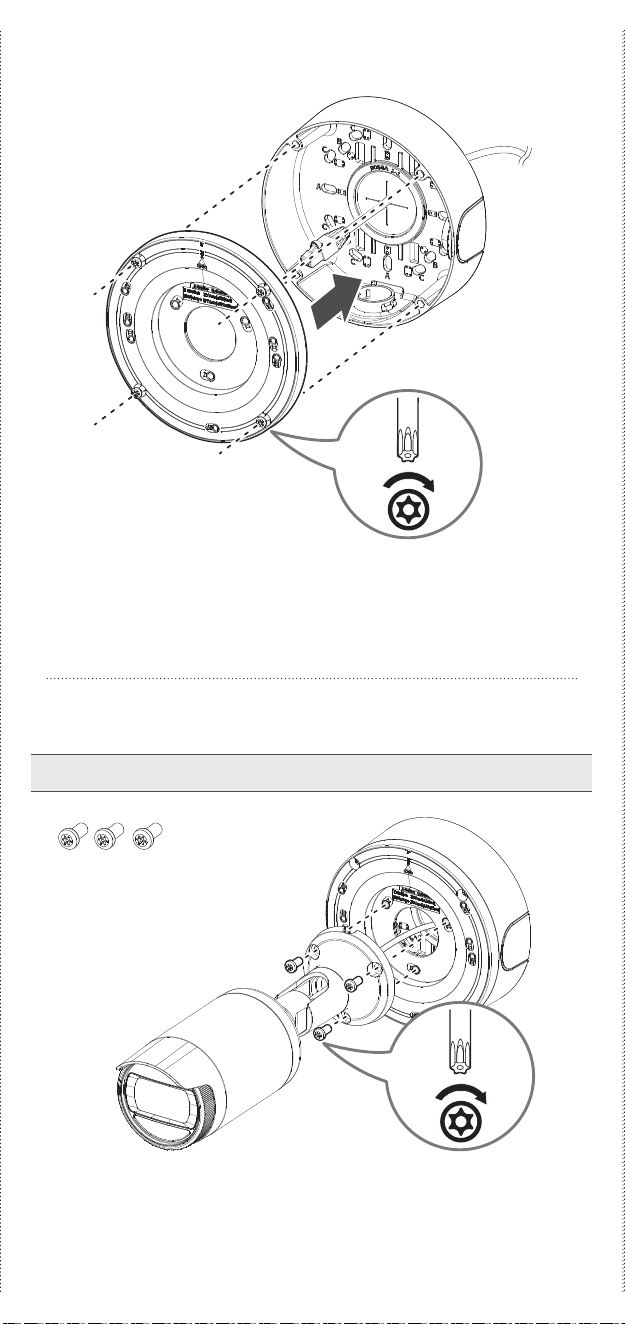

Bullet camera
(M5)
3x
TR20

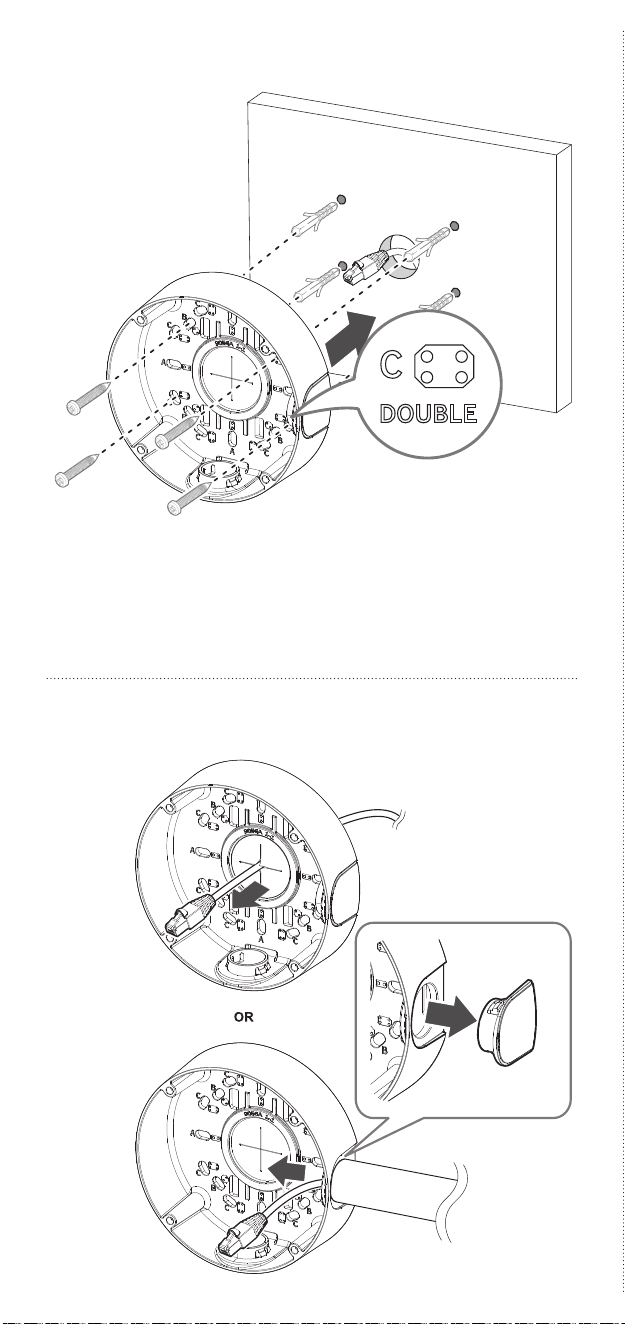

(Wall)
2
3
4x
TR20
Ⅱ
:

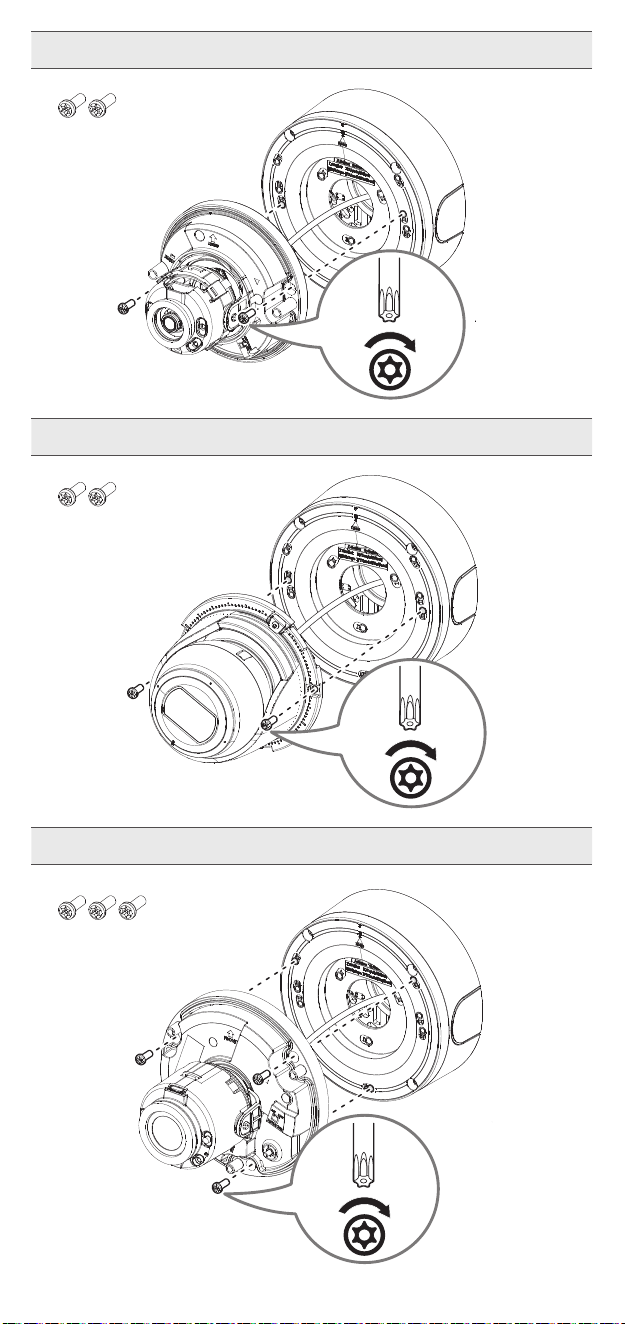

Vandal camera(Fixed focal lens)
(M4)
2x
TR20
Ⅲ
:
Flateye camera
(M4)
2x
TR20
Ⅳ
:
Vandal camera(Varifocal lens)
(M4)
3x
TR20
