Refrigerator
MRB19B5AST
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
BOTTOM MOUNTED FREEZER SERIES
02
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER
------------------------------------------- 02
SPECIFICATIONS
------------------------------------------------- 03
PRODUCT OVERVIEW
------------------------------------------ 04
PRODUCT INSTALLATION
------------------------------------ 05
OPERATION INSTRUCTIONS
--------------------------------- 11
CLEANING AND MAINTENANCE
---------------------------- 14
TROUBLESHOOTING
------------------------------------------- 16
WARRANTY
------------------------------------------------------- 18
Free 3 months
extension of the
original limited warranty
period!* Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the three months
immediately following
the completion of the product’s original warranty
period. Individuals do not need to register the
product in order to get all the rights and remedies
of registered owners under the original limited
warranty.
03
SPECIFICATIONS
Rated Voltage 115V~
Rated Frequency 60Hz
Rated Current 1.8A
Defrost Power 200W
Refrigerant, Amount R600a, 1.76oz(50g)
Foaming Agent Cyclopentane
04
PRODUCT OVERVIEW

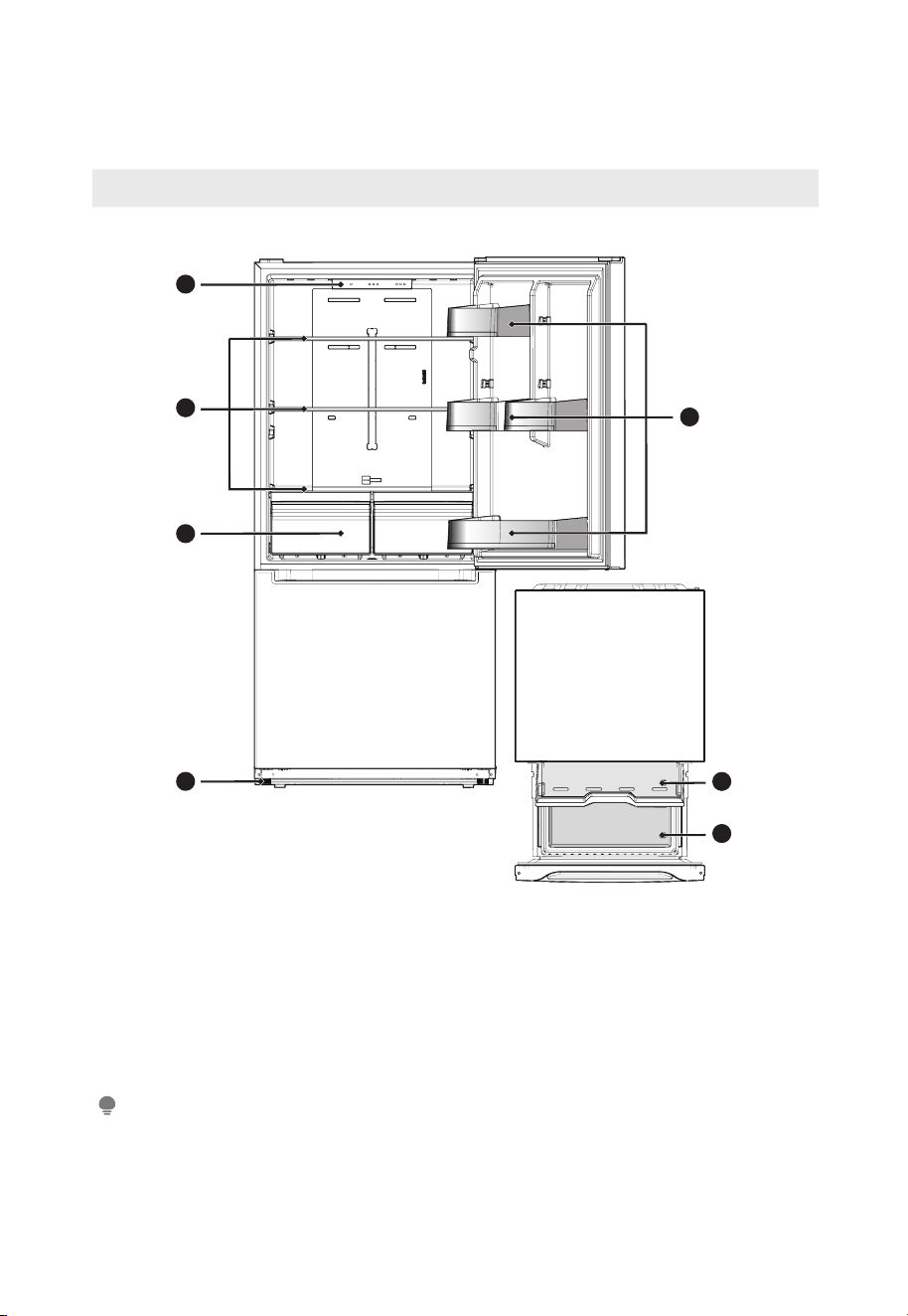

Names of components
1
LED light & temperature
control panel
5
Door tray
2
Shelf
6
Top drawer of freezer
3
Fruit and vegetable box
7
Drawer under freezer
4
Leveling feet (2-bottom front)
Wheels (2-bottom back)
ATTENTION
The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor.
1
5
2
3
4
6
7
05
PRODUCT INSTALLATION
Install Instruction
Installing an Optional Ice Maker
The refrigerator comes set up for ice maker installation, This refrigerator is
compatible with Midea IM1900MD ice maker. Please refer to individual ice
maker installation instruction manual.
• WARNING: Connect to potable water supply only.
• Minimum/Maximum inlet water pressure: 138/827 kPa (20/120 psig).
Dimensions and Clearances
• Too small of a distance from adjacent items may result in the degradation
of freezing capability and increased electricity costs. Allow over 100 mm of
clearance from each adjacent wall when installing the appliance.
Top ViewTop View
>100mm
>100mm
>100mm
>100mm
>100mm
>100mm
ATTENTION
The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor.
06
Space requirement diagram (when the door is open and when the door is closed)
C
E
B
135 °
B
A
C1
D
Width
Overall
Height
Depth
Depth
Wiht handle
Depth
doors open
135
o
Width
doors open
135
o
A B C C1 D E
750 1692 785 705 1350 1275
Notice: All dimensions in mm
07
Door right-left change(Optional)

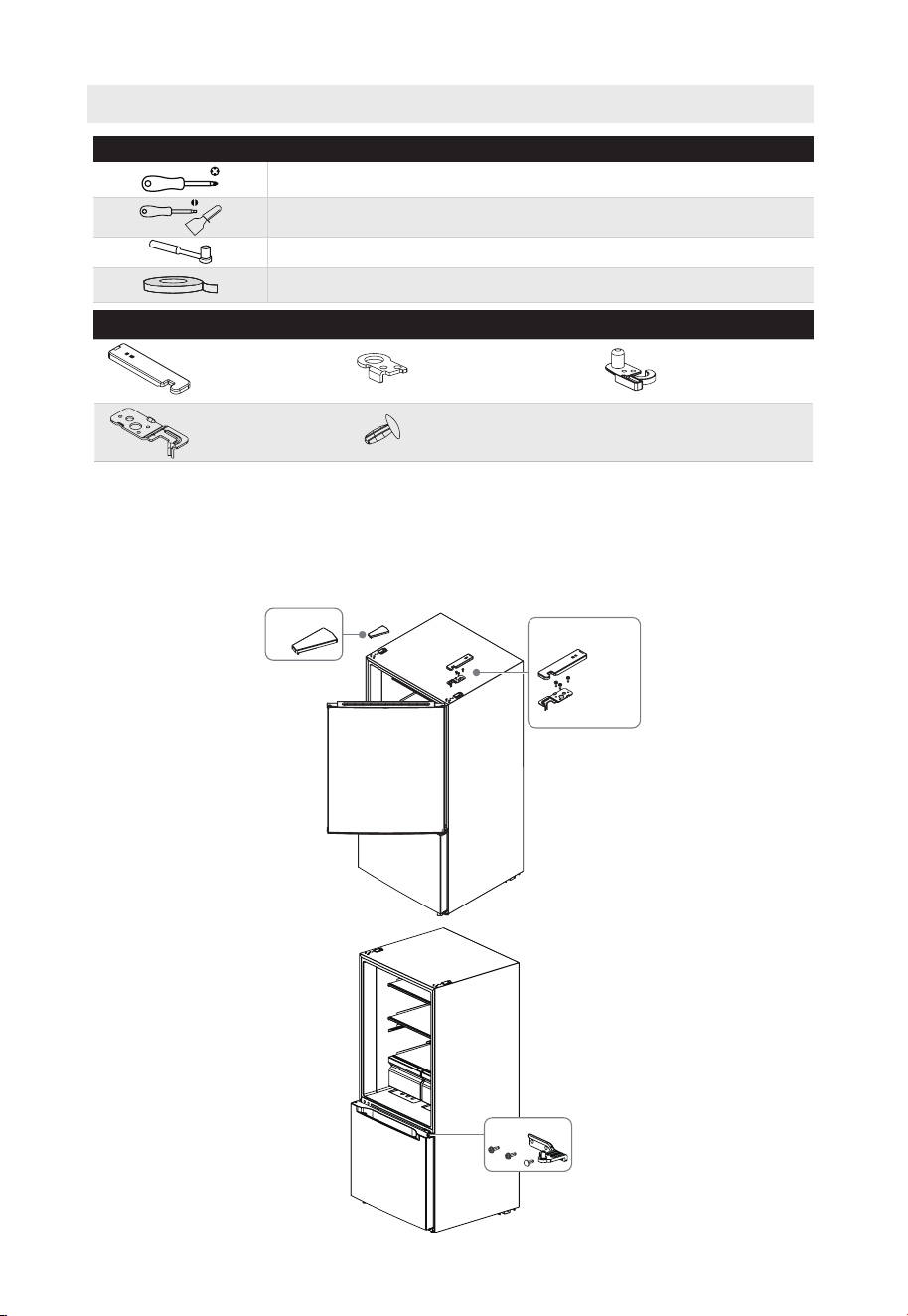

List of tools to be provided by the user
Allen wrench-Cross screwdriver
Putty knife Thin-blade screwdriver
5/16
″
socket spanner
Masking tape
Parts included with the hinge kit
Left top
hinge cover
(1)
Left door- open
stopper (1)
Left door-
self-locking
block (1)
Top left
hinge (1)
Extra hole caps
(2)
1. Make sure that your refrigerator is unplugged and empty.
2. Pry the left cover plate and right top hinge cover from the top of the refrigerator.
3. Remove the three screws that secure the upper hinge to the refrigerator, then remove the
hinge. Save the screws to reuse.
4. Remove the refrigerator compartment door from the cabinet.
Top right hinge
Right top
hinge cover
Screws
Cover
plate
08

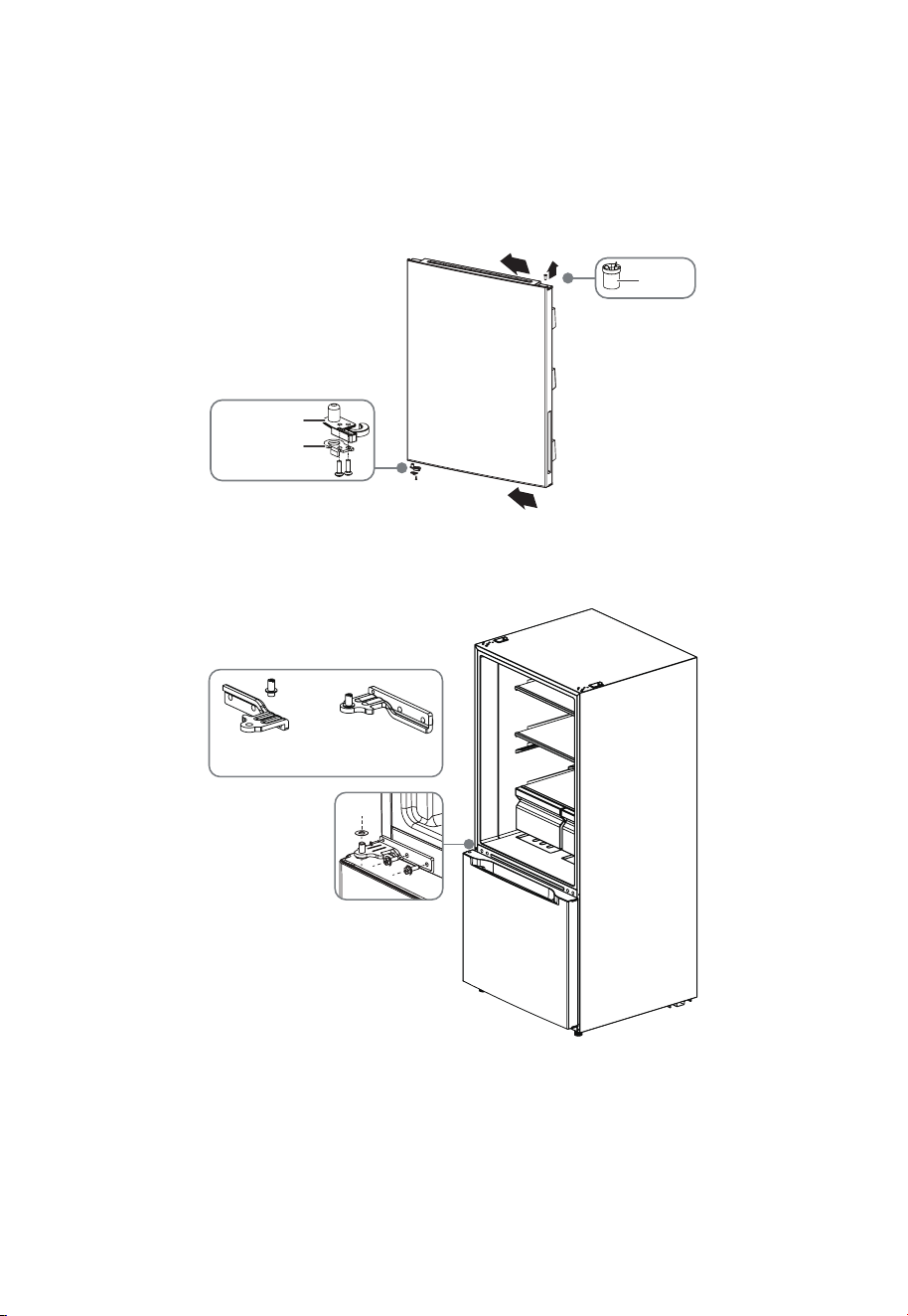

5. Remove the three screws that secure the center hinge to the refrigerator, then remove the
center hinge. Save the screws to reuse.
6. Remove the sleeves and hole caps from the refrigerator door, then install them in the
opposite side of the door.
7. Take the left-side self-locking block and stopper from the accessory bag and install them
in the bottom left side of the refrigerator door as shown below.
Sleeve
Left door-
open stopper
Left door-self-
locking block
8. Remove the center hinge, remove the center hinge shaft with a slotted screwdriver, install
hinge shaft on opposite side of the hinge and install the hinge to the left of the box.
In the order shown above, the
center hinge shaft is changed.
9. Insert the door stopper on the bottom left side of the refrigerator door onto the hinge pin
you installed in the middle left side of the refrigerator.
10. Take the left-side top hinge from the accessory bag and install it on the top left side of the
refrigerator with the screws you previously removed, and the hinge pin in the door sleeve
of the refrigerator door.
09

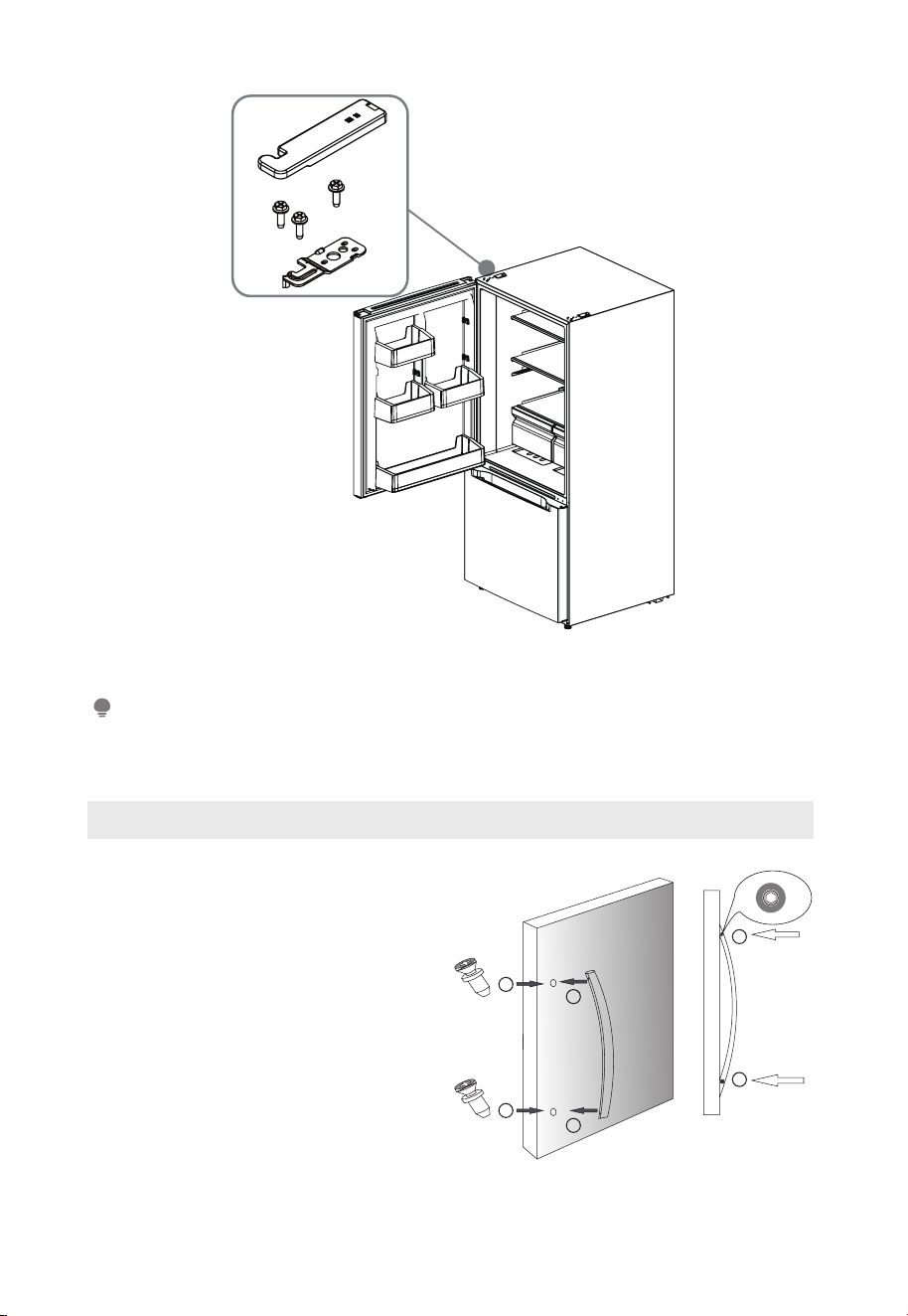

11. Install the hinge cover on the left side of the refrigerator and the hole cover on the right
side.
ATTENTION
The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor.
Handle installation(Optional)
The appliance must be unplugged before
installing the handle.
1. Take 2 screws and install them in the pre-
drilled door holes, be sure to turn them
until they cannot be further tightened.
2. Position the handle over the screws.
3. Put the other set of handle screws in the
hole on the side of the handle and turn
until they are fully tightened.
3
1
1
3
2
2
10
Leveling feet
To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate for the uneven oor.
The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws counterclockwise to raise the unit, clockwise to
lower it.
Changing the light
Any replacement or maintenance of the lamps is intended to be made by the
manufacturer, its service agent or similar qualied person.
Connecting the appliance
After installing the appliance, connect the power plug into a socket outlet.
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
Tips for energy saving
• Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for
longer, resulting in increased energy consumption.
• Ensure that there is sufcient ventilation at the base of the appliance, on the sides
of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter “Installation”.
• The arrangement of drawers, shelves and racks as shown in the illustration offers the
most efcient use of energy and should therefore be retained as far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should
be removed last if necessary.
• An evenly lled refrigerator/freezer compartment contributes to optimal energy
use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
already cooled down increases energy efciency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
the energy efciency.
• Open the door only as briey as necessary to minimise cold loss. Opening the door
briey and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
11
OPERATION INSTRUCTIONS
Control panal
Key
A
Alarm/power off/power on button
B
Freezer button
C
Fridge button
Display
When the initial power is up, it is 3 seconds, While the boot bell rings, and then goes
into normal operation display. (Refrigerator and freezer are mid-range at the time of
rst power-up)
Display fault code in the event of a failure (Loop display); display the set gear of the
refrigeration room in the event of trouble-free.
Under normal circumstances, the current set gear is displayed, and when a “fault
code visible” class failure occurs, the fault code is displayed.
ATTENTION
The actual control panel may differ from model to model.
12
Operating instructions
Refrigerator settings
• Press the refrigeration key to adjust the refrigeration set gear, each press the
refrigeration key once, the gear change one gear, the order is as follows:
8℃
4
℃
2℃
Freezer settings
• Press the refrigeration key to adjust the refrigeration set gear, each press the
refrigeration key once, the gear change one gear, the order is as follows:
-16℃
-19℃
-2 ℃
Note: The temperature of each gear is within ±2 of the set temperature, and the actual
situation is slightly different according to the load situation.
Alarm o
• When a fault alarm occurs, press the alarm off key short, and the fault alarm sound
is canceled.
Open the door and alarm
• When the freezer door or refrigerator door opens for 120 seconds without shutting
down or not closed well, the buzzer alarms until the freezer door or refrigerator
door closes. Or press the alarm off key to cancel the buzzer alarm.
Standby mode
• Press the alarm off key for 3 seconds to enter standby mode, cooling stops, light
not on, display is off
.
In standby mode, long press the alarm off for 3 seconds, return
to normal control.
Fault indication
• The following warnings appearing on the display indicate corresponding faults
of the refrigerator. Though the refrigerator may still have refrigerator a freezing
function with the following faults, the user shall contact maintenance specialist for
maintenance, so as to ensure normal use of the refrigerator.
Fault Code Fault Description
LED1/LED2 ashing Refrigerator temperature sensor fault
LED1/LED5 ashing Freezer temperature sensor fault
LED1/LED3 ashing Freezer defrost sensor fault
LED2/LED4 ashing Communication fault
LED1/LED4 ashing Ambient temperature sensor fault
4
13
Tips on storing food
Freezer compartment
• The freezer is designated for the storage of food frozen at very low temperature,
long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing
hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, sh or chopped meat), cut them into parts
that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be
followed. If there is no information on the packaging, food should not be stored for
longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable
temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be
returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that
it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the
thermostat setting, the frequency of opening the door of the freezer, the type of
food and the time of transporting the product from the shop to the household.
Always follow the instructions printed on the packaging and never exceed the
maximum storage time stated on the package.
Cooling compartment
• To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
• Never put warm foods in the refrigerator. These should rst cool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
• Meat and clean sh (packed in a package or plastic foil) can be placed in the
refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
Recommended Temperature
The optimal temperature setting for food storage:
• Fridge: 4 °C, Freezer: -19°C.
ATTENTION
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
14
CLEANING AND MAINTENANCE
Defrosting
• The refrigerator is made based on the air-cooling principle and thus has
automatic defrosting function. Frost formed due to change of season or
temperature may also be manually removed by disconnection of the appliance
from power supply or by wiping with a dry towel.
Cleaning of door tray

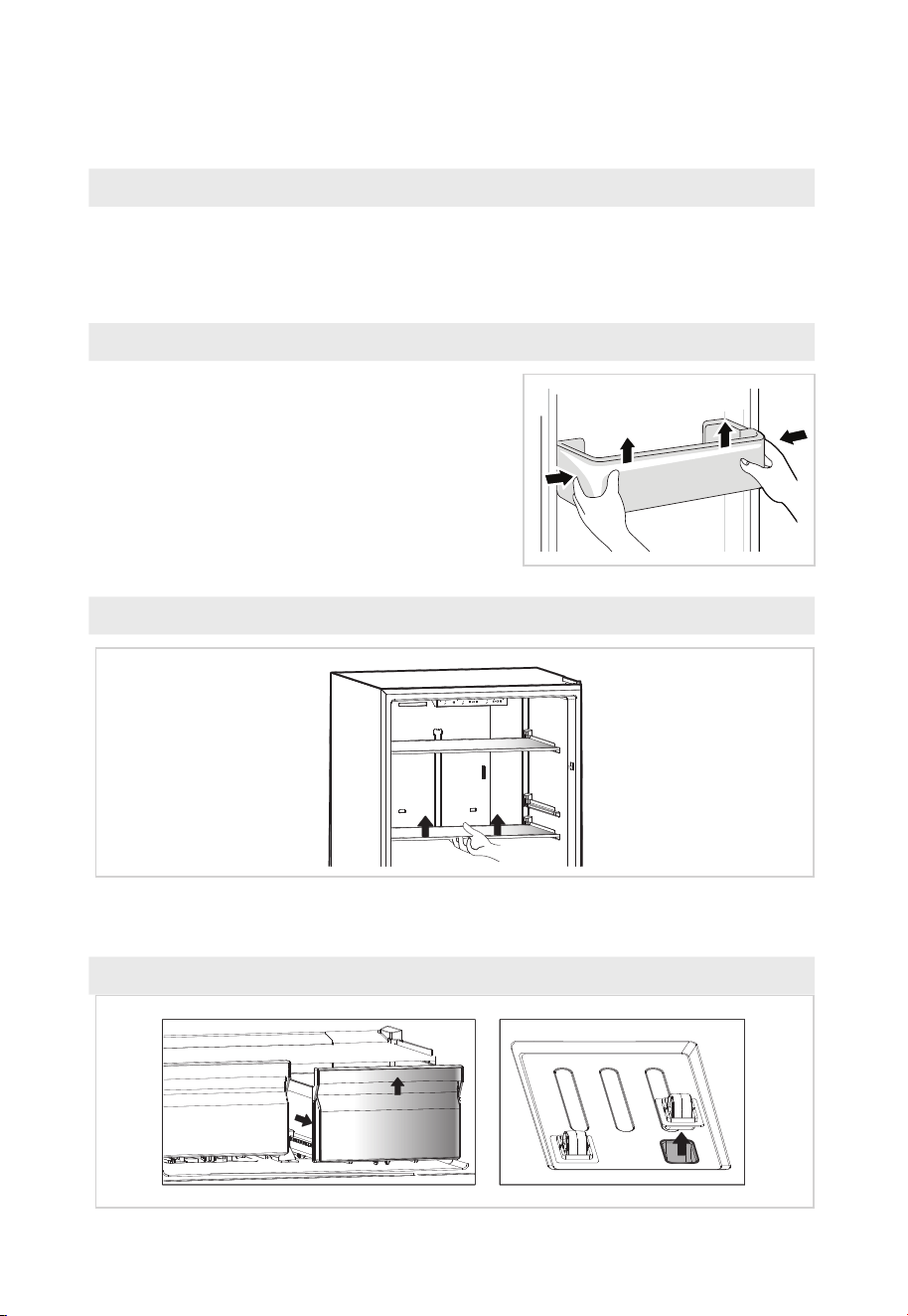

• According to the direction arrow in the
gure below, use both hands to squeeze
the tray, and push it upward, then you can
take it out.
• After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of glass shelf
Please dismantle the cantilever shelf according to the arrows shown as above:
1. Since the shelf and the box gall have the innermost stop, rst lift the shelf up,
and then pull out outward
.
Cleaning of Box gall bottom roller groove
15
• First pull out the fruit and vegetable box, because the fruit and vegetable box
has a stop, it needs to lift be lifted upward before the fruit and vegetable box
can be removed.
• The roller seat is stuck in the box tank groove, press the arrow in the direction
of the image, remove the roller seat, clean the box tank groove as needed.
Cleaning of freezer lower drawer
Upper freezer drawer
：

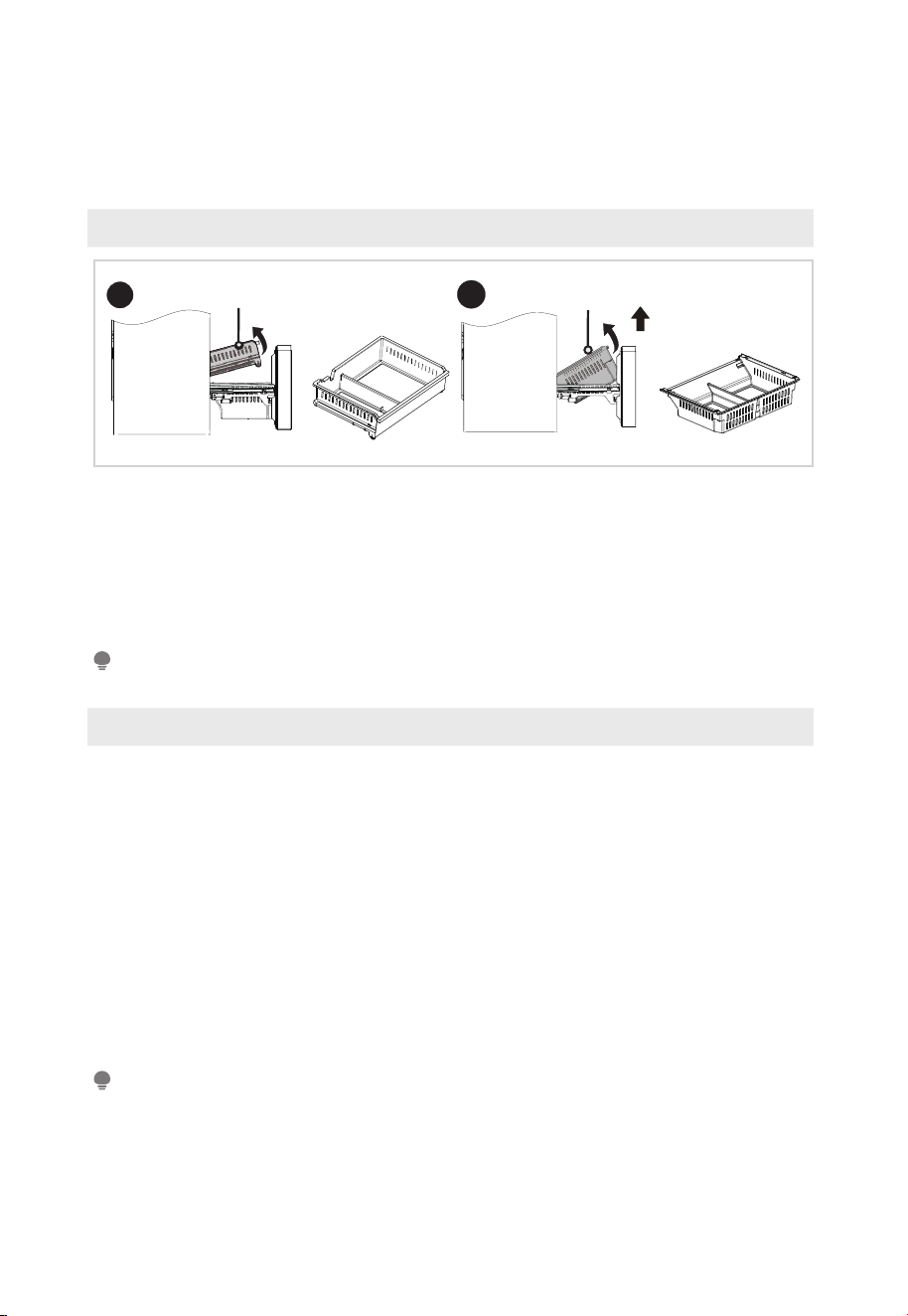

• Open the freezing chamber door to the maximum stroke, lift the tail of the upper
drawer of the freezing chamber, take out the
upper freezer drawer
.
Lower freezer drawer
：
• Open the freezing chamber door to the maximum stroke, Lift the end of the
lower
freezer drawer
and lift it up
.
Note: Don’t remove the lower freezer drawer if not necessary.
Stop using
Power failure:
In case of power failure, even if it is in summer, foods inside the appliance can be kept
for several hours; during the power failure, the times of door opening shall be reduced,
and no more fresh food shall be put into the appliance.
Long-time nonuse:
The appliance shall be unplugged and then cleaned; then the doors are left open to
prevent odor.
Moving:
Before the refrigerator is moved, take all objects inside out, x the glass partitions,
vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling
feet; close the doors and seal them with tape. During moving, the appliance shall not
be laid upside down or horizontally, or be vibrated; the inclination during movement
shall be no more than 45°.
ATTENTION
The appliance shall run continuously once it is started. Generally, the operation of the
appliance shall not be interrupted; otherwise the service life may be impaired.
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door.
ATTENTION
1
Upper freezer drawer
2
Lower freezer drawer
16
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial circuits have
tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer
• When the ambient temperature is high It is not suggestible
having too much food in the appliance at the same time
• Food shall get cool before being put into the appliance
• The doors are opened too frequently
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not be
properly closed
• The door is stuck by food packages Too much food is placed
• The refrigerator is tilted
Loud noises
• Check whether the oor is level and whether the refrigerator
is placed stably
• Check whether accessories are placed at proper locations
17
Problem Possible reason
Door seal fails to be
tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating)
Water pan overows
• There is too much food in the chamber or food stored
contains too much water, resulting in heavy defrosting
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal when housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during operation,
and the buzzes are loud particularly upon start or stop. This is
normal.
• Creak: Refrigerant owing inside of the appliance may
produce creak, which is normal.
18
WARRANTY
Midea
REFRIGERATOR
LIMITED
WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE
IS REQUIRED TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you
call the Customer Service Center:
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer
name and address
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair.
Some questions can be addressed without service. Please take a few minutes to review the
Troubleshooting section of the User Manual, or visit http://us.Midea.com/support
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the
U.S. and Canada.
Midea Customer Service
In the U.S.A. or Canada, call 1-866-646-4332.
If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to
determine whether another warranty applies.
1 YEAR PARTS AND LABOR
WHAT IS COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
M
idea will repair or replace, without charge, any defects due to faulty materials or workmanship for
o
ne full year from the date of purchase. For further detail of warranty coverage and warranty repair
in
formation, visit www.midea.com or call 1-866-646-4332.
Consumer will be r
esponsible for:
Diagnostics, removal, transportation and reinstallation cost required because of service.
Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES
OF THE CONSUMER**
NORMAL RESPONSIBILITIES OF THE C
ONSUMER**
This w
arranty applies only to products in ordinary household use, and the consumer is
r
esponsible for the items listed below:
1.
Proper use of the appliance in accordance with the instructions provided with the product.
2.
Routine maintenance and cleaning necessary to keep the good working condition.
3.
Proper installation by an authorized service professional in accordance with instructions provided
with the appliance and in accordance with all local plumbing, electrical and / or gas codes.
4.
Proper connection to a grounded power supply of sufficient voltage, replacement of blown
fuses, repair of loosened connections or defects in house wiring.
5.
Expenses for making the appliance accessible for servicing.
6.
Damages to finish after installation.
Y
OUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
RE
PAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated
servi
ce company. This limited warranty is valid only in the 50 States of the United States or Canada
and applies only when the major applian
ce is used in the country in which it was purchased. This
limi
ted warranty is ectie ve from the date of original consumer purchase. Proof of original purchase
date is required to obtain service under this limited warranty.
19
WHAT IS NOT COVERED
1.
Failure caused by damage to the unit while in your possession (other than damage caused
by defect or malfunction), by its improper installation, or by unreasonable use of the product,
including without limitation, failure to provide reasonable and necessary maintenance or to
follow the written Installation and Instruction Manual.
2.
Products purchased “as-is” or refurbished are not covered by this warranty.
3.
Food loss caused by refrigerator or freezer failure.
4.
Service calls to repair or replace consumables such as water filters, light bulbs airfilters etc., or
handles, knobs and other cosmetic parts.
5.
Product that has been transferred from its original owner.
6.
Interior or exterior rust on the unit.
7.
Damages caused by services performed by persons other than authorized Midea servicers; use
of parts other than Midea replacement parts; obtained from persons other than such Midea
customer service; or external causes such as abuse, misuse, inadequate power supply or acts of
God.
8.
Service calls resulting from improper installation of your product.
9.
Service calls to instruct you on the use of your product.
10
. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls,
ferry trip charges, or mileage expense for service calls to remote areas, including the state of
Alaska.
11.
If the unit is put to commercial, business, rental, or other use or application other than for
consumer use, we make no warranties, express or implied, including but not limited to, any
implied warranty of merchantablility or fitness for particular use or purpose.
12.
Product that has been removed outside the USA or Canada.
13.
Products without original serial numbers or products that have serial numbers which have been
altered or cannot be readily determined.
NOTE
: Some states do not allow the exclusion or limitation of incidental or consequential damages.
So this limitation or
exclusion may not apply to you.
The
cost of repair or replacement under these excluded circumstances shall be borne by the
cust
omer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTES
T PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the du
ration of implied warranties of merchantability or fitness, so this limitation may
not apply
to you. This warranty gives you specific legal rights, and you also may have other rights
that
vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
M
idea makes no representations about the quality, durability, or need for service or repair of this
major applianc
e other than the representations contained in this warranty. If you want a longer or
mo
re comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Midea or
your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YO
UR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REP
AIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR
C
ONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or
consequential damages, so these limitations and exclusions may not apply to you. This
wa
rranty gives you specific legal rights, and you also may have other rights that vary from state to
state or pr
ovince to province.
05/19
2023
