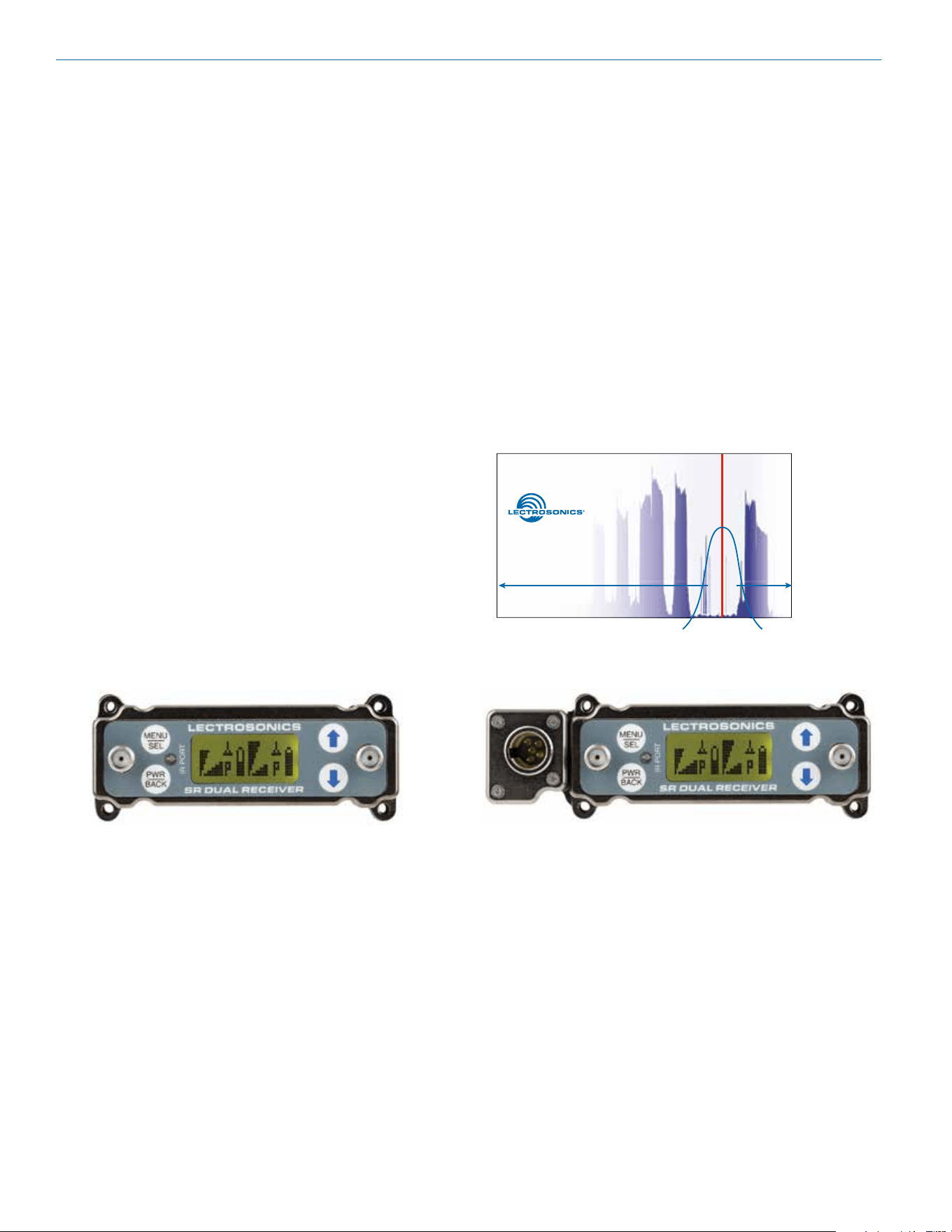

SRc5P & SRc
Camera Slot Dual UHF Receiver
Featuring
Digital Hybrid Wireless
®
Technology
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com
Fill in for your records:
Serial Number:
Purchase Date:
U.S. Patent 7,225,135
Quick Start Summary
The following checklist includes the minimum required
settings to start using the receiver.

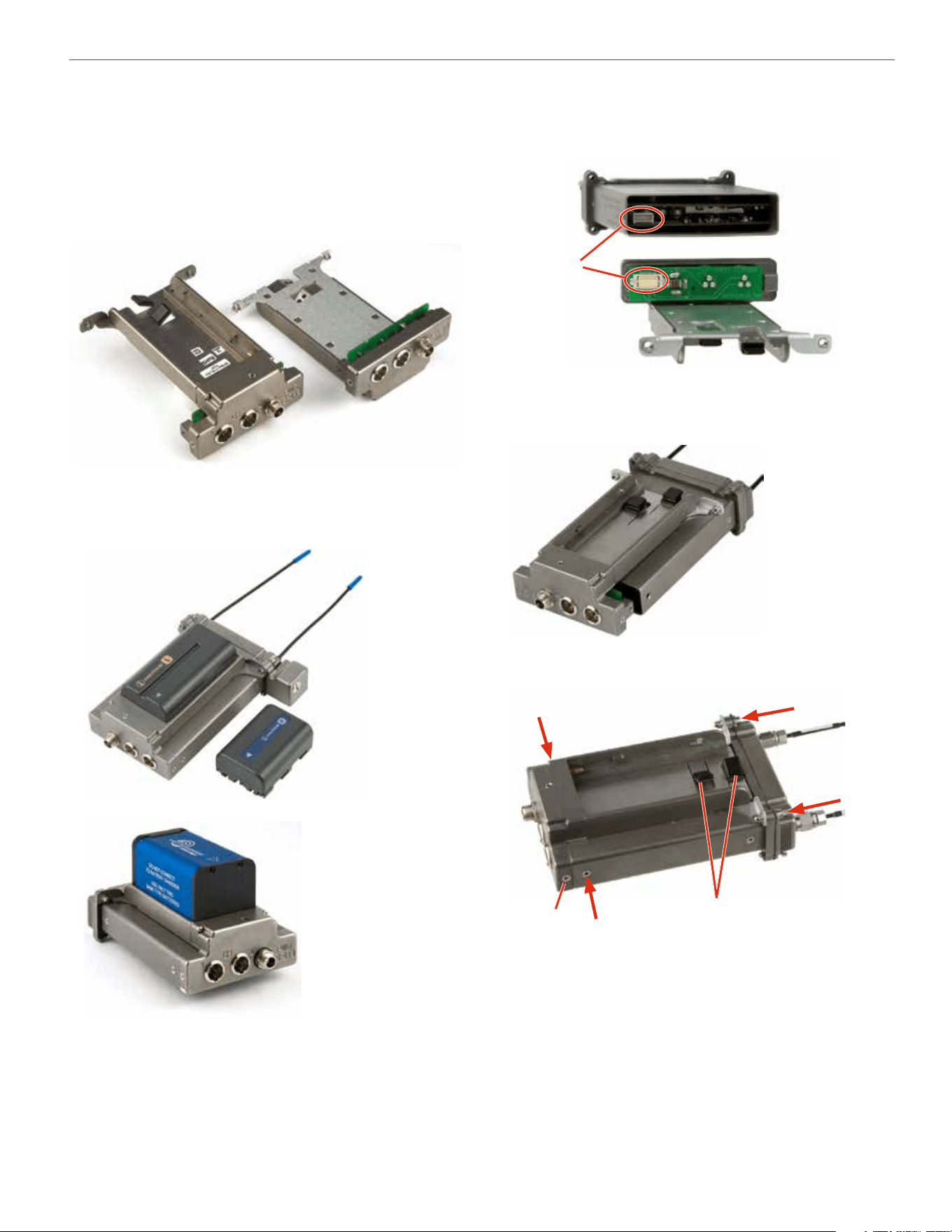

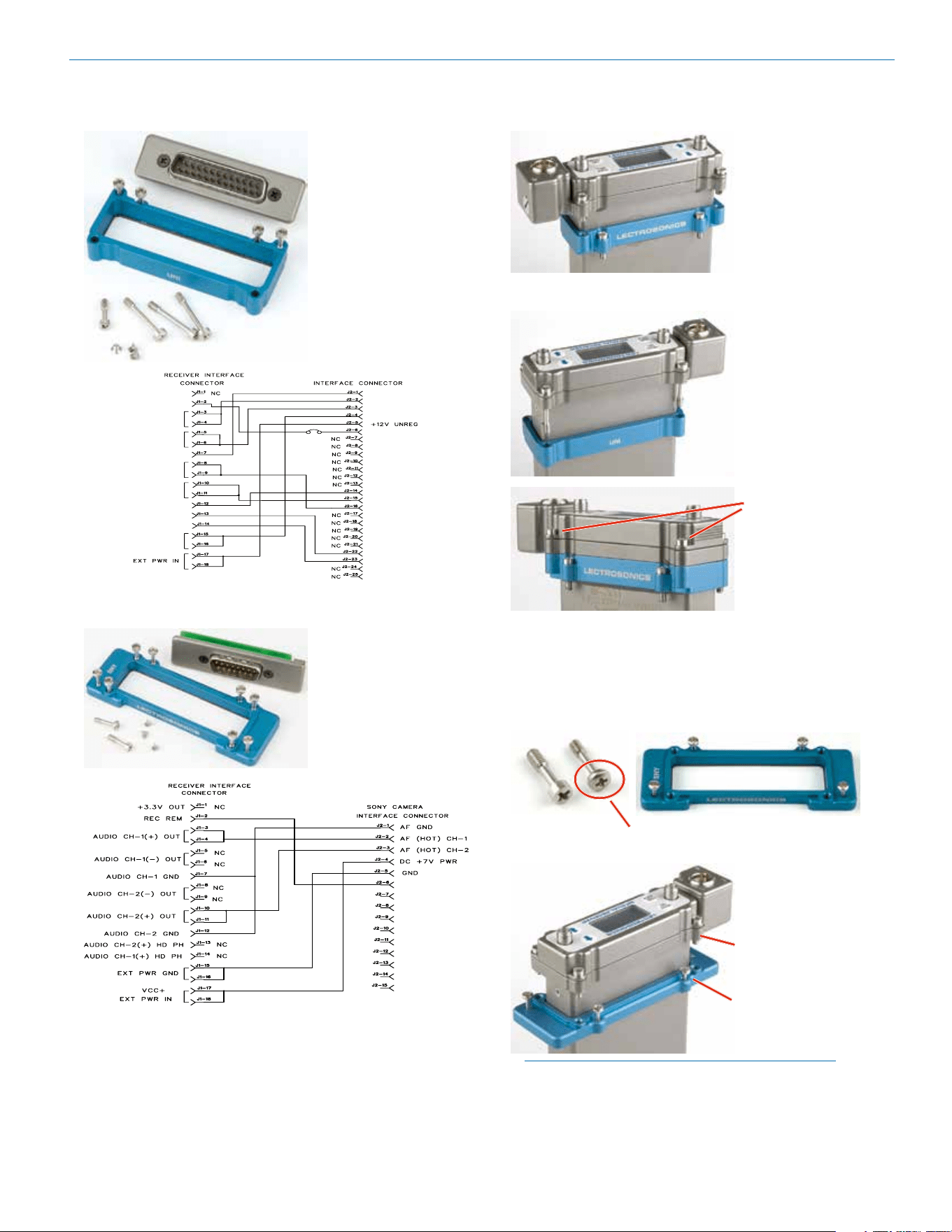

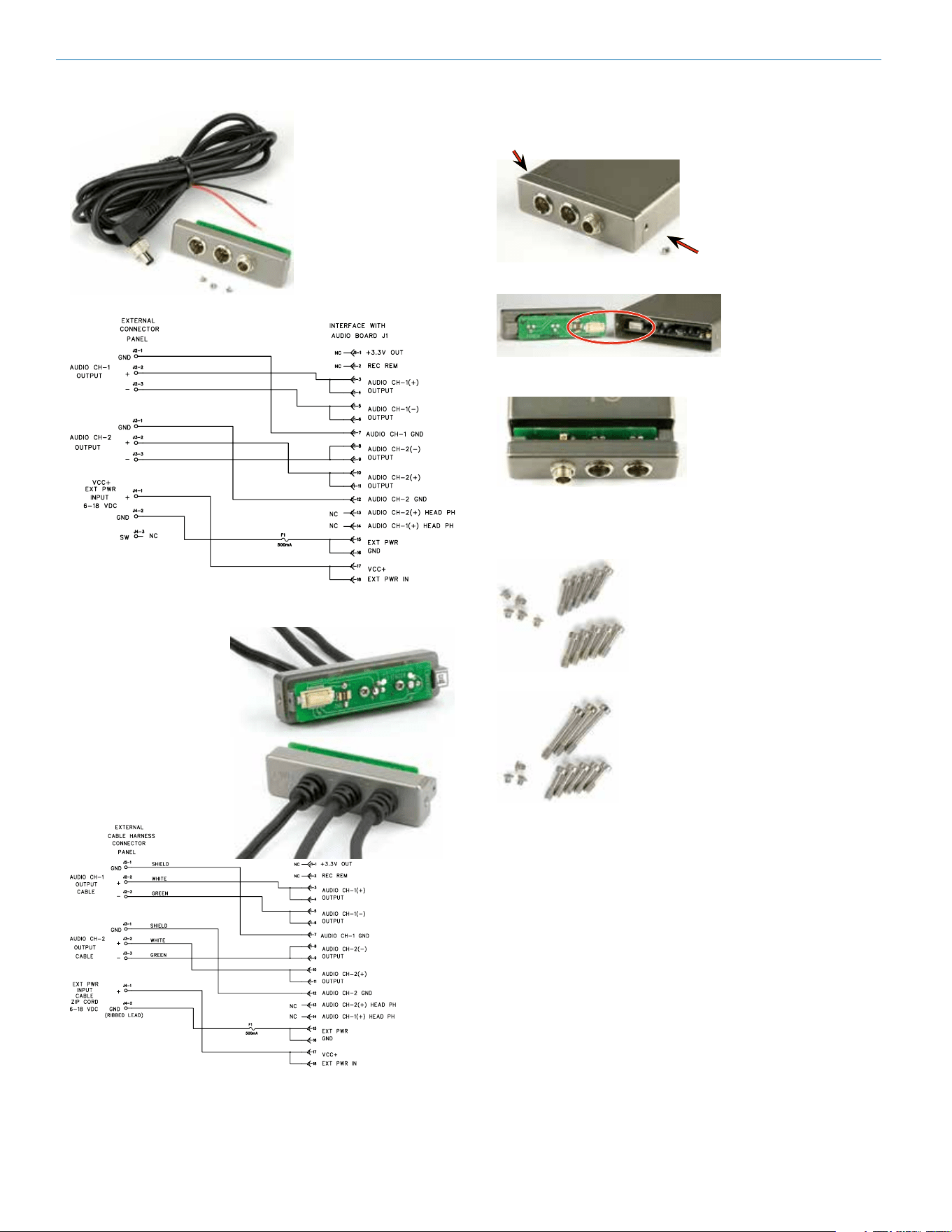

• Install either a battery sled, camera slot adapter or
other power source (see pages 9-13).

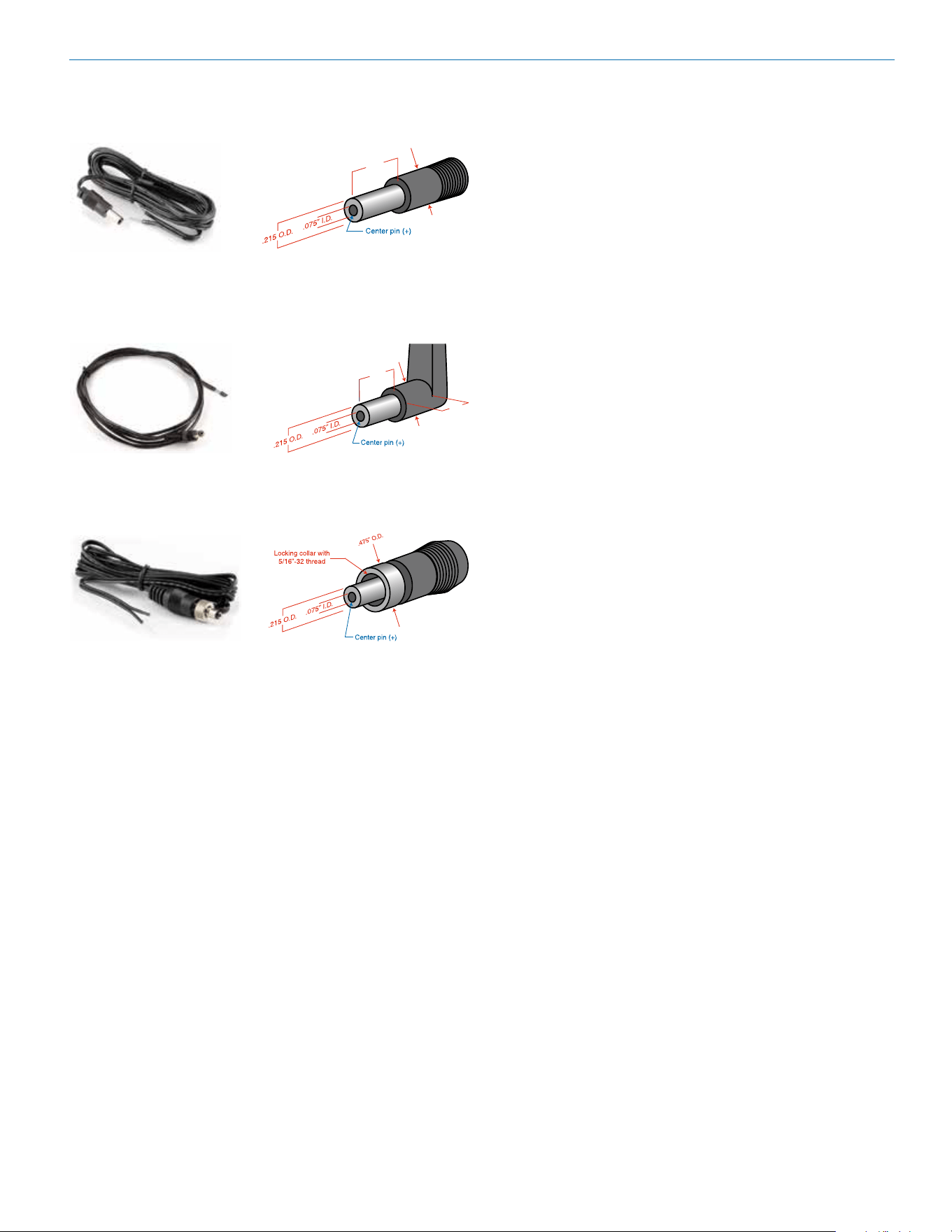

• Connect power to the receiver (see pages 11, 12,
15).
• Set the DIVMODE for single or dual channel opera-
tion (see page 21).
• Set the COMPAT (compatibility) mode for the trans-
mitters to be used (see page 21).

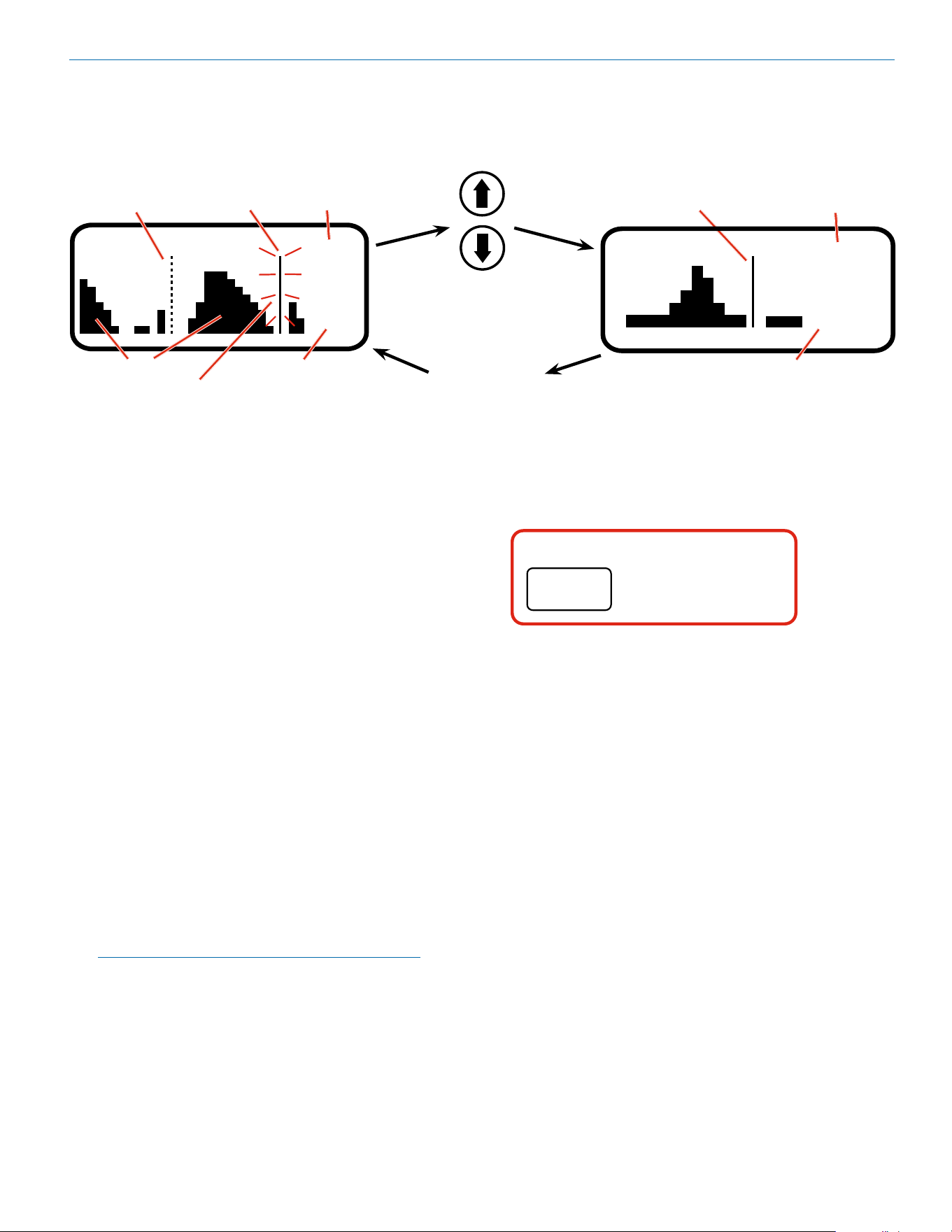

• Find clear operating frequencies for one or both re-
ceivers using SmartTune or manual scanning (see
pages 24, 25).
IMPORTANT:
FREQ.
WARNING
Performance will be degraded if
Receiver 2 is set 4.2 to 4.8 MHz higher
than Receiver 1. The LCD will also flash
this message periodically.
• Set transmitters on the matching frequencies (see
transmitter manual).
• Verify transmitters are set to the same compatibility
mode as the receiver (see transmitter manual).
• Adjust transmitter input gain to match voice level
and mic position (see transmitter manual).
• Adjust receiver output level as needed for the
camera or mixer input level desired (see LEVEL on
page 21).
