Summary of Contents for Bosch WGG254A0TH:
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Getting to know the appliance 22
3
Z Laundry 25
3
C Detergent 27
3
P Overview of programmes 28
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 34
3
a Intelligent dosing system 37
3
Q Appliance settings 42
4
H Sensors 43
4
2 Cleaning and maintenance 43
4
3 Faults and what to do about them 46
4
4 After-sales service 51
4
[ Consumption values 52
4
J Technical data 53
4
r Aqua-Stop warranty 53
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
12
5 Positioning and connecting
12
Positioning and connecting
12
Standard accessories
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14

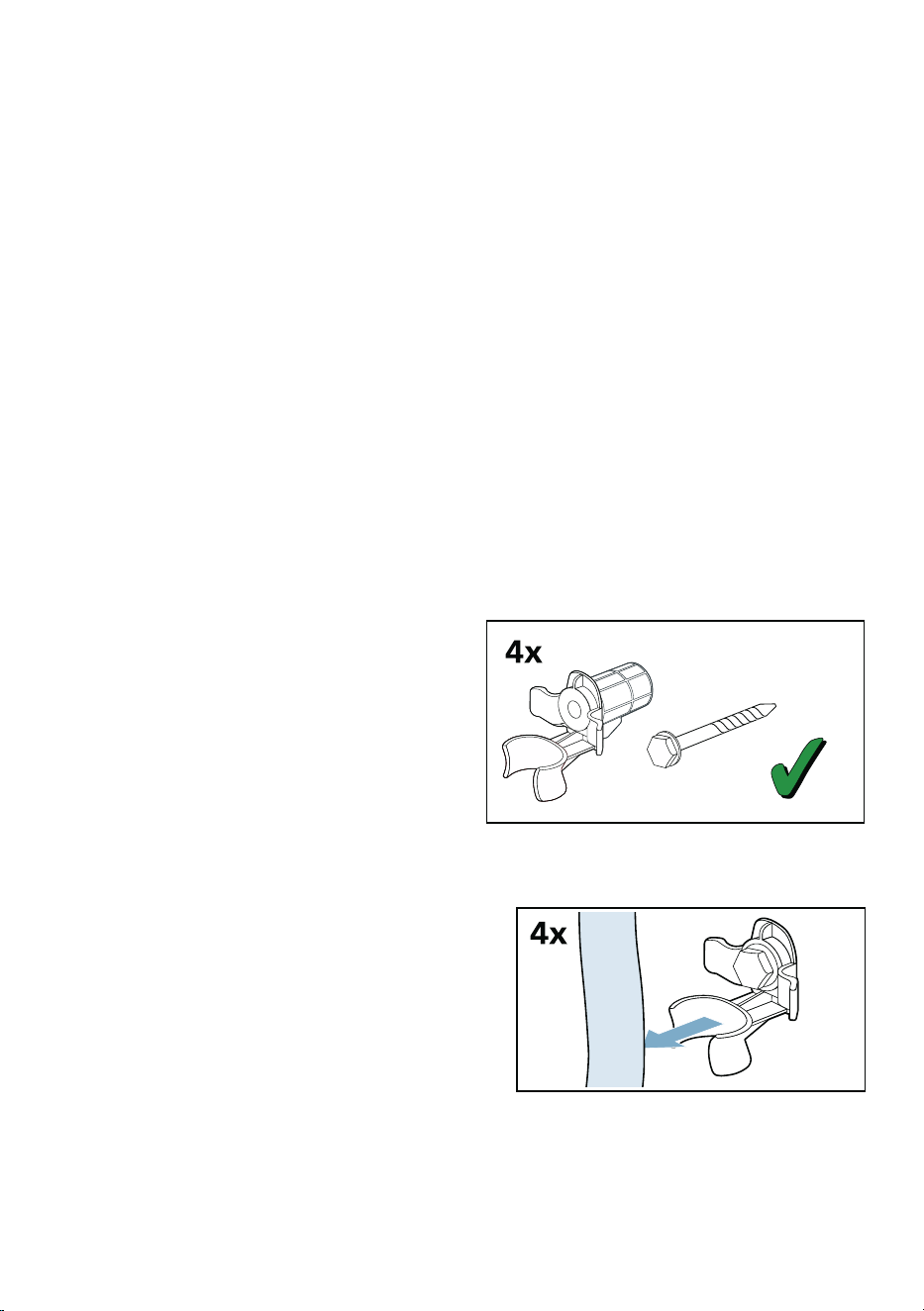

Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14

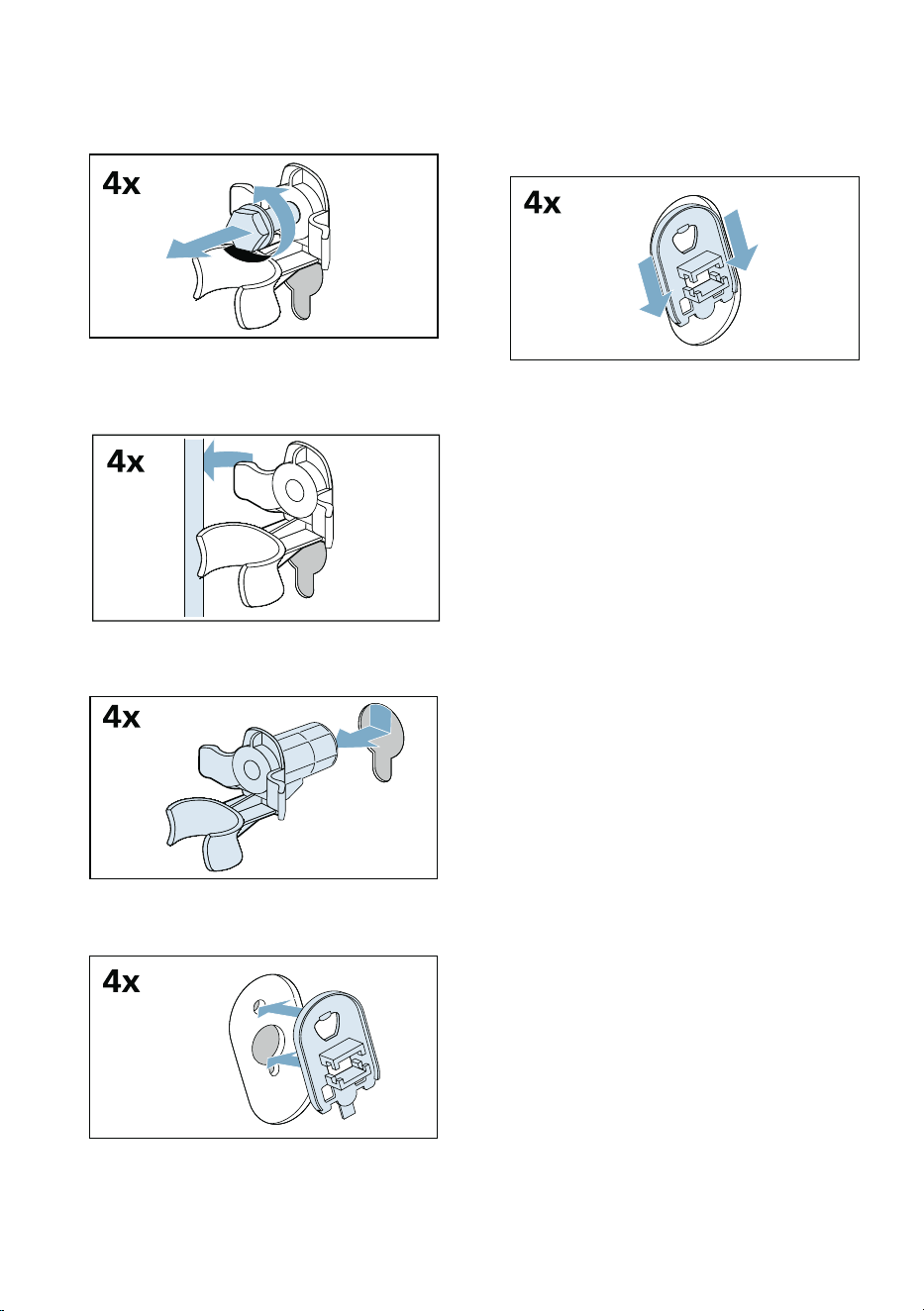

1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
15
a) Remove the mains cable from the holders.
15
b) Remove the sleeves.
15
3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Removing the support struts
15
1. Unscrew and remove all screws in the vertical transport struts.
15
2. Remove the transport struts.
15
3. Undo and remove the screws on the horizontal transport strut.
15
4. Remove the transport strut.
16

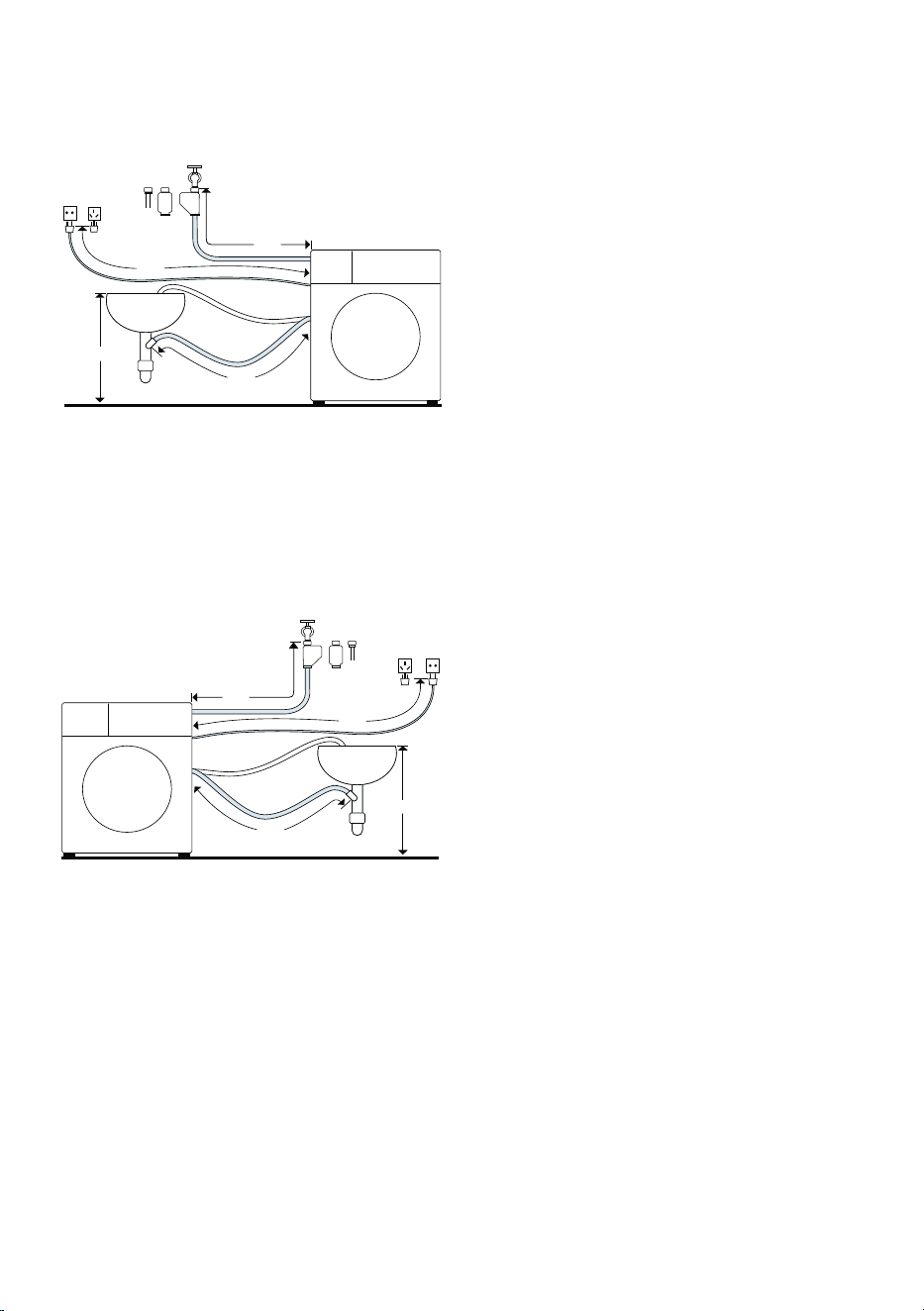

Hose and cable lengths
16
Note:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16

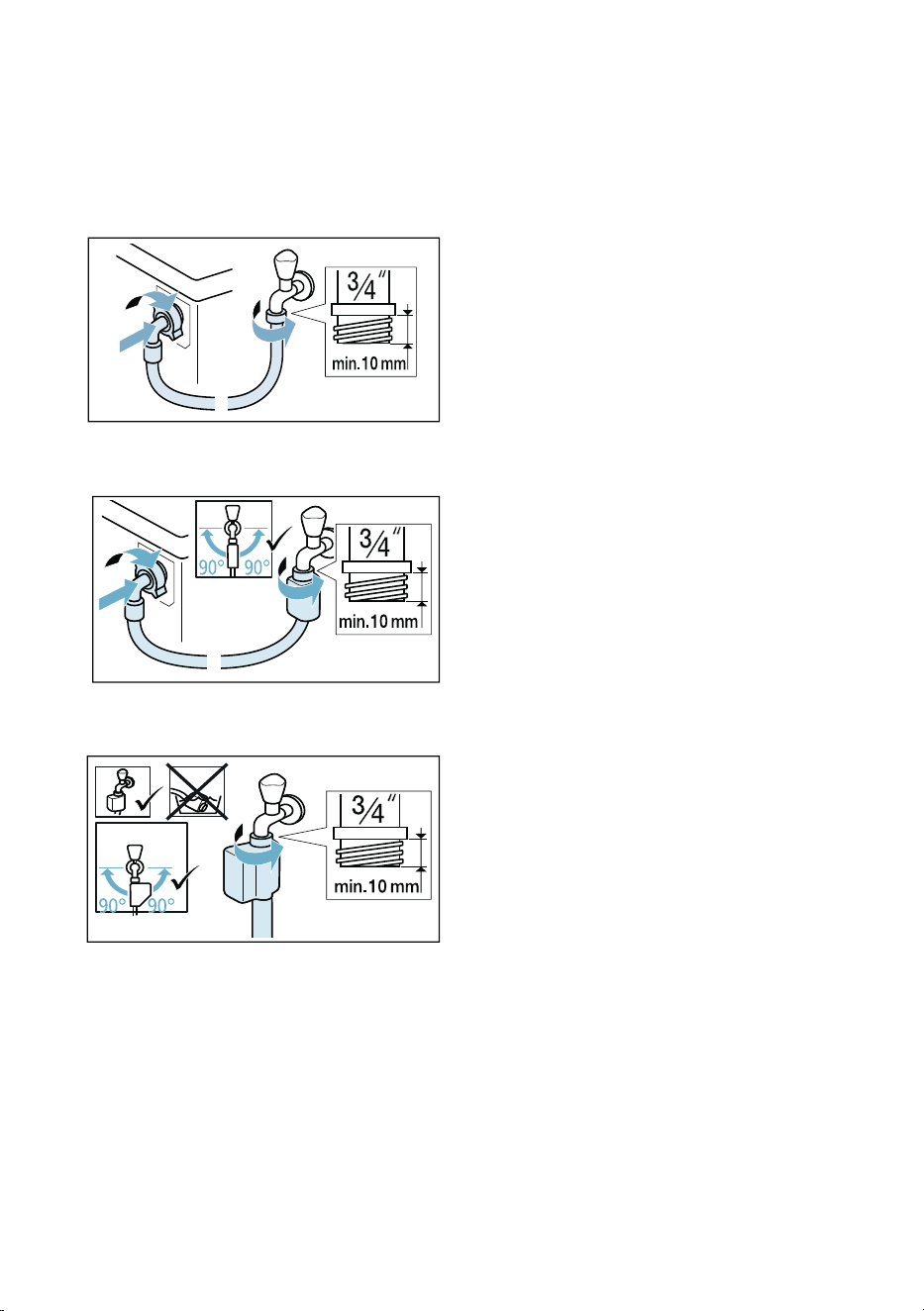

1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
17
Tip:
17

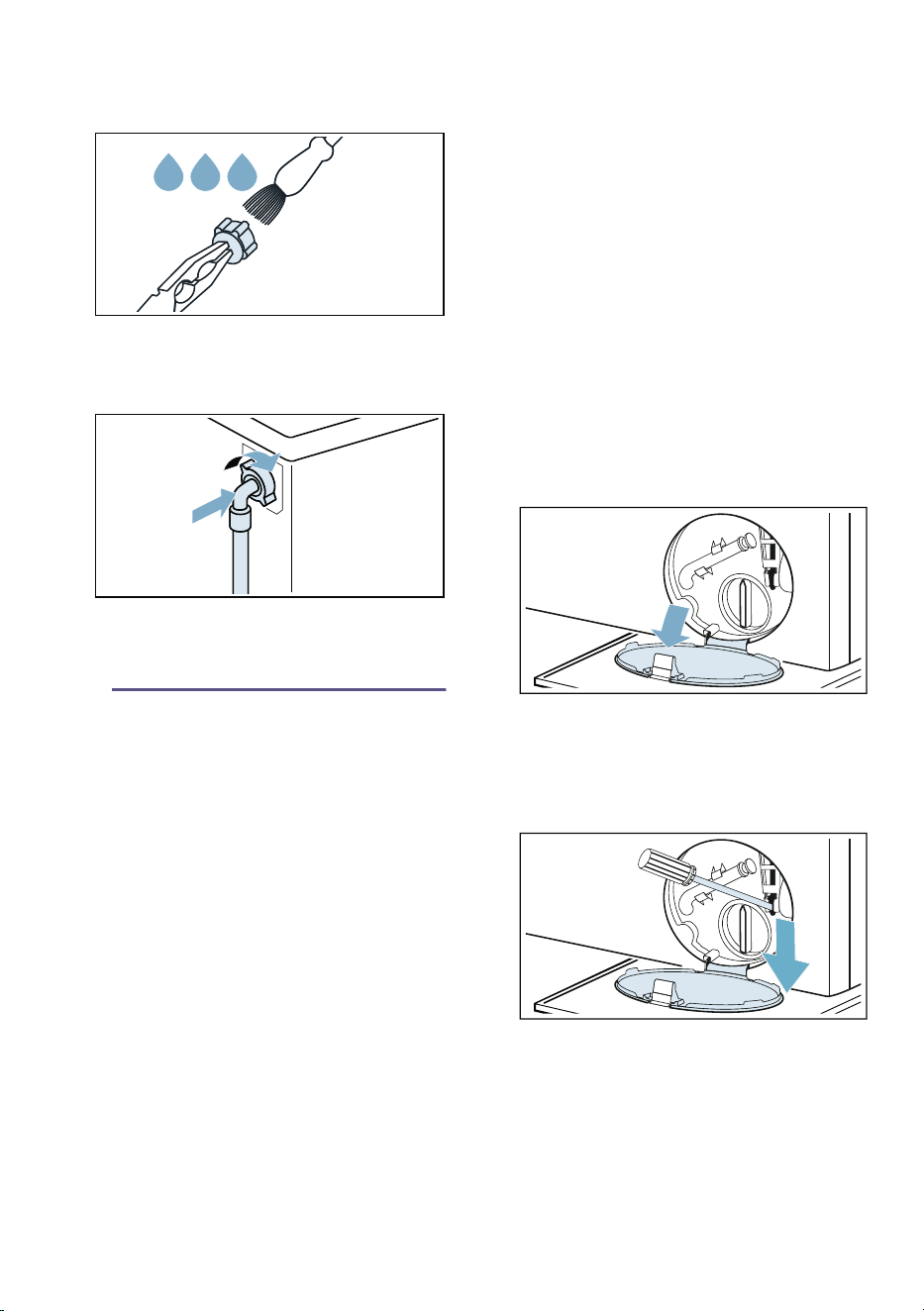

2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to the appliance/fabrics
17
Note:
17
Note:
18
Alignment
18
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
18
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
18
3. Tighten the lock nut against the housing.
18
Electrical connection
19
: Warning
19
Risk of death!
19
Notes
19
Before washing for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the water tap on.
19
3. Close the door. Do not load any laundry.
19
4. Select the Û Drum Clean 90°C programme.
19
5. Open the detergent drawer.
19
6. Pour approx. 1 litre of water into manual dosing compartment.
19
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
19
Note:
19
8. Close the detergent drawer.
19
9. Select Start/Pause A.
19
10. When the programme ends, turn the programme selector to Off.
19
Transportation
20
1. Turn off the water tap.
20
2. Reduce the water pressure in the supply hose. ~ Page 45
20

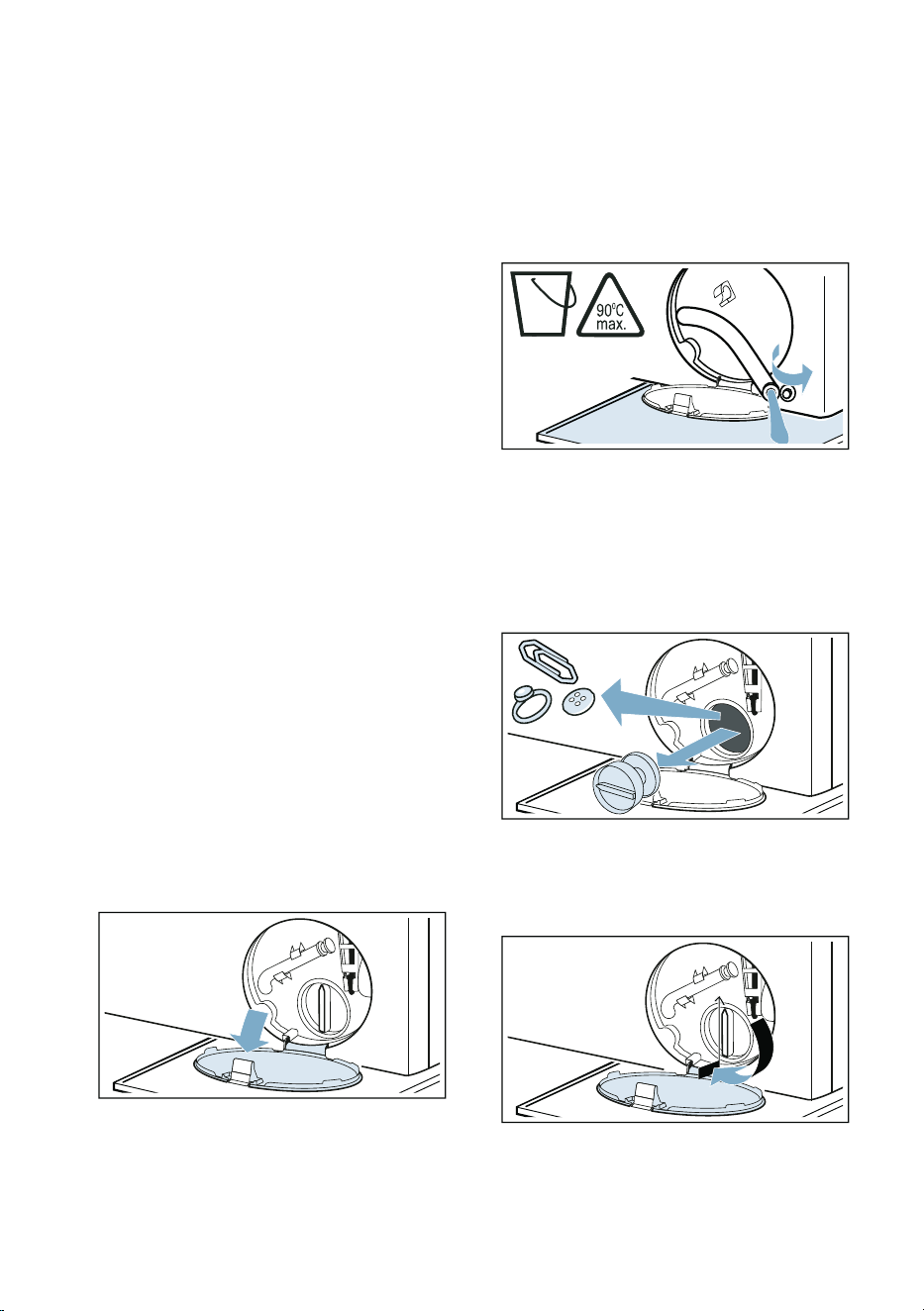

3. Drain any residual water. ~ Page 44
20
4. Disconnect the appliance from the mains.
20
5. Remove the hoses.
20
6. Empty the dispensers.
20
Caution!
20
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
20
1. Remove the covers and keep them in a safe place.
20
Note:
20

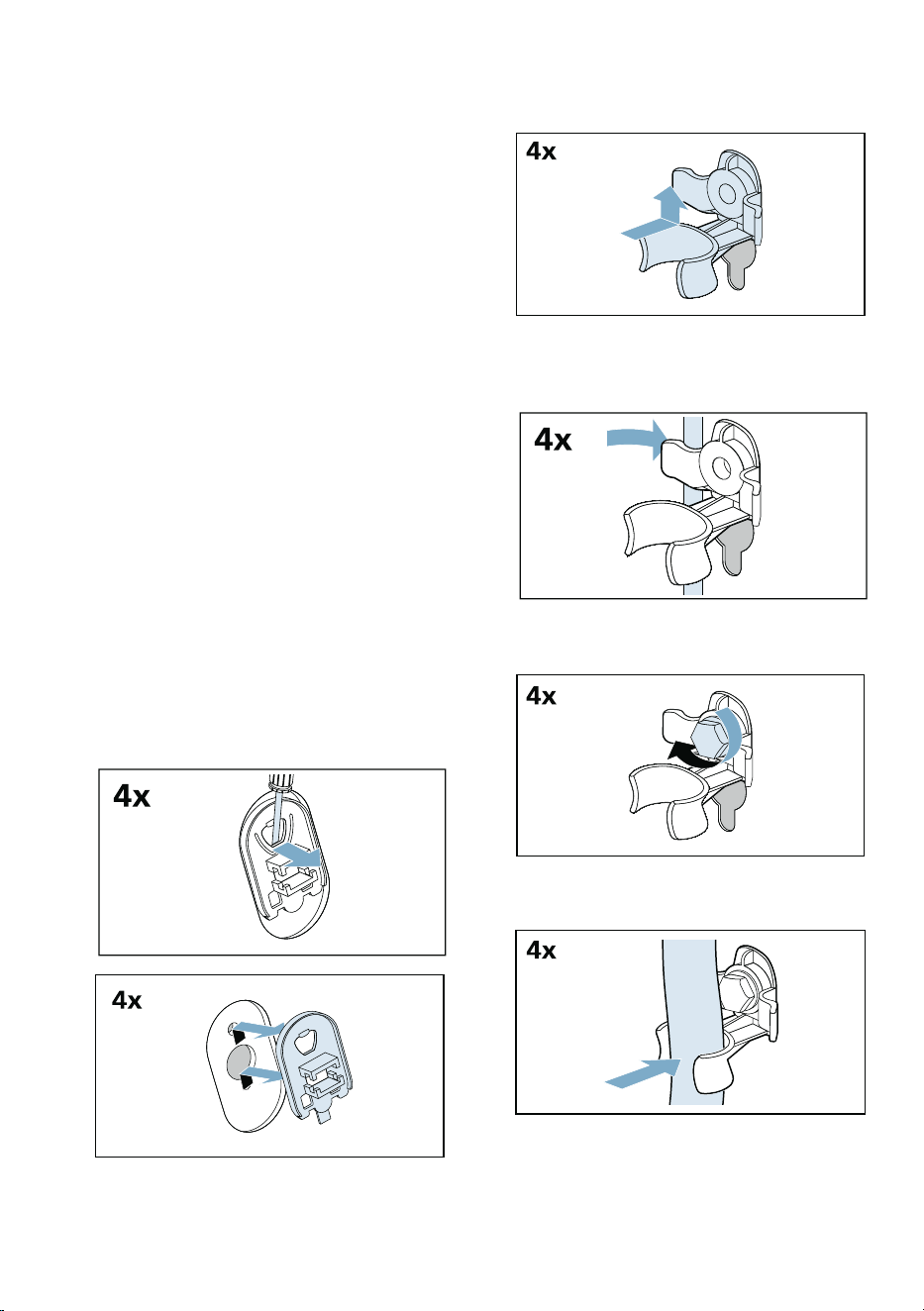

2. Insert all four sleeves.
20
a) Clip the mains cable securely in the holders.
20
b) Insert and tighten the screws.
20
c) Clip the hoses securely in the holders.
20
Notes
21
* Getting to know the appliance
22
Getting to know the appliance
22

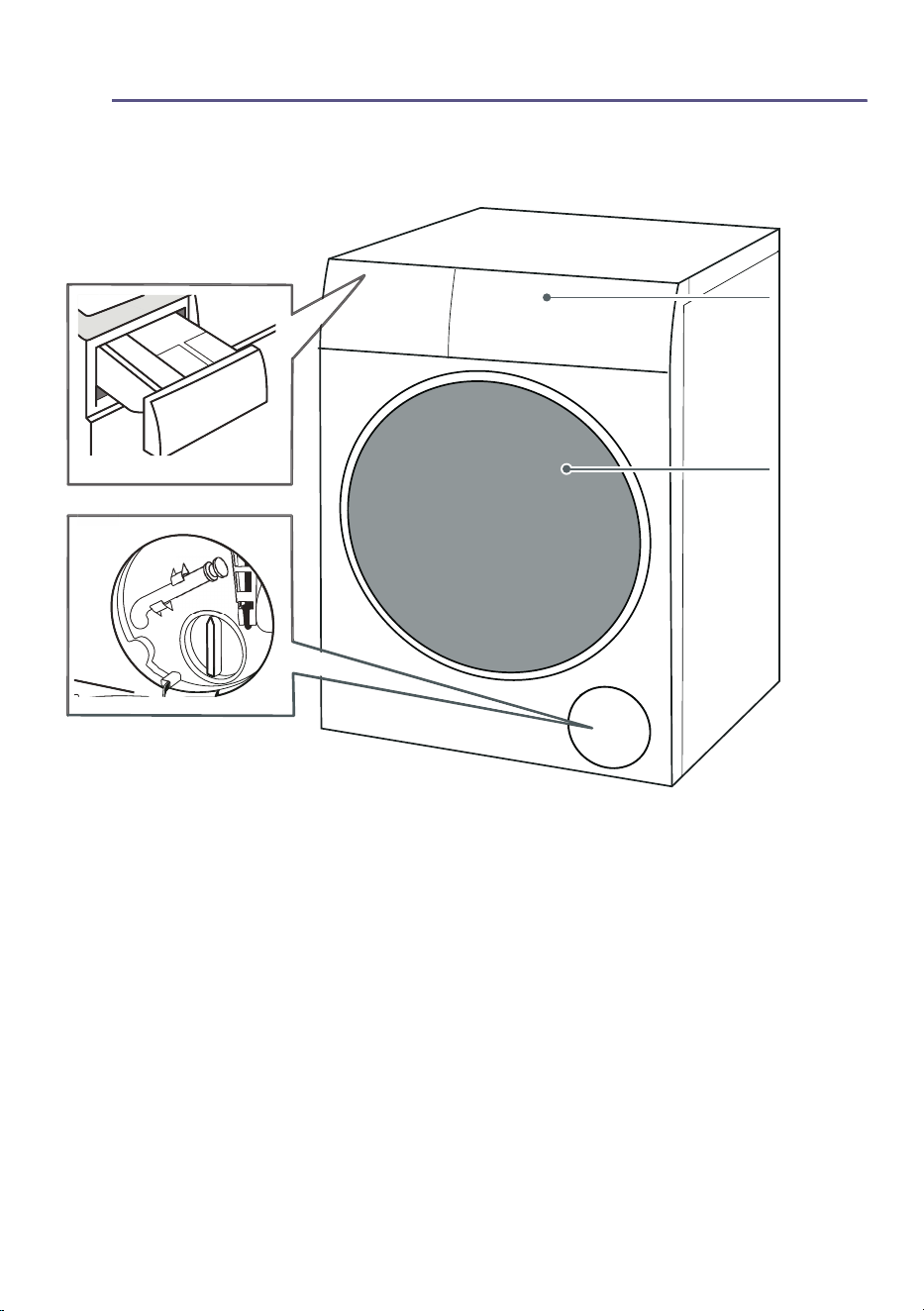

Appliance
22
Control panel
23
Display panel
24
Programme default settings
24
Display
24
Setting
24
Description
24
Additional programme settings
24
Display
24
Setting
24
Intelligent dosing system (Ž i-DOS)
24
Display
24
Setting
24
Status indicators for the programme progress (programme sequence)
25
Display
25
Setting
25
Z Laundry
25
Laundry
25
Protecting your laundry and appliance
25
Caution!
25
Damage to the appliance/textiles
25
Sorting laundry
26
Note:
26
Starching
26
Note:
26
1. Switch on the appliance.
26
2. Select the à Rinse programme.
26
3. Measure starch into manual dosing compartment in accordance with the manufacturer's instructions (clean first if necessary).
26
4. Touch the Start/Pause A button.
26
Dyeing/bleaching
26
C Detergent
27
Detergent
27
Correct selection of detergent
27
Saving energy and detergent
27
Saving
27
Soiling/note
27
Note:
27
P Overview of programmes
28
Overview of programmes
28
Selectable programme
28
Programme/Type of washing
28
Options/Information
28
Notes
29
1. Select a programme.
30
Note:
30
2. For washing the laundry, use a special detergent for outdoor textiles; add the correct dosage to the manual dosing compartment in accordance with the manufacturer's instructions. Thoroughly clean the compartment beforehand.
30
3. Start the programme. The programme stops before the waterproofing cycle, and the symbols - - - and ~ (indicator lamp of Start/Pause A button) are flashing on the display panel. You can change the spin speed if necessary, and add the dosage of wate...
30
4. Press the Start/Pause A button to continue the programme. After-treat the laundry in accordance with the manufacturer's instructions.
30
Note:
31
Note:
31
0 Programme default settings
32
Programme default settings
32
6 Temp. °C
32
0 Spin
32
ñ Ready In
32
1. Select a programme (except myTime programme).
32
2. Select the ñ Ready In button repeatedly until the required number of hours is displayed.
32
3. Select the Start/Pause A button.
32
Note:
32
1. Select the Start/Pause A button.
32
2. Select the ñ Ready In button repeatedly to change the number of hours.
32
3. Select the Start/Pause A button.
32
\ Additional programme settings
33
Additional programme settings
33
Note:
33
Ï Extra Rinse
33
ç Disinfectant
33
Note:
33
S Silent Wash
33
Note:
33
G Speed Perfect
33
Note:
33
Ž i-DOS setting
33
1 Operating the appliance
34
Operating the appliance
34
Preparing the appliance
34
Notes
34
1. Insert mains plug.
34
: Warning
34
Risk of death from electric shock!
34
2. Turn the water tap on.
34
3. Open the appliance door.
34
Select programme/switch on the appliance
34
Note:
34
Placing laundry into the drum
34
Notes
35
Measuring and adding detergent and care products
35
Starting the programme
35
Childproof lock
35
Note:
35
Adding/removing laundry
35
Notes
36
Changing the programme
36
1. Touch the Start/Pause A button.
36
2. Select another programme.
36
3. And touch the Start/Pause A button again. The new programme starts from the beginning.
36
Cancel the programme
36
1. Touch the Start/Pause A button.
36
2. To cool down laundry: Select à Rinse.
36
3. And touch the Start/Pause A button again.
36
1. Touch the Start/Pause A button.
36
2. Select 0 Spin.
36
3. And touch the Start/Pause A button again.
36
Programme end
36
Removing laundry/switching off the appliance
36
1. Set programme selector to Off.
36
2. Open the door and remove the laundry.
36
3. Turn off the water tap.
36
Note:
36
Notes
36
a Intelligent dosing system
37
Intelligent dosing system
37
Familiarising yourself with Ž i-DOS
37
Ž i-DOS Detergent drawer
37
Before setting up Ž i-DOS
37
Notes
37
Automatic dosing
37
The automatic dosage operates as follows:
37
1. Switch on the appliance.
37
2. Select a programme with Ž i-DOS settings.
37
3. Start the programme.
37
Tip:
38
Notes
38
Ž i-DOS Setting the dosage
38
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
38
Below is an example of detergent dosages on a packaging label:
38
For standard load 4 - 5 kg
38
Level of soiling
38
light
38
normal
38
heavy
38
Adjusting the basic dosage
38
1. Press and hold Ž i-DOS for approx. three seconds.
38
2. Change the setting using: ñ Ready In
38
3. Briefly press Ž i-DOS.
38
4. Change the setting using: ñ Ready In
38
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
38
Notes
39
Filling the dispensers
39
Notes
39
Fill the dispensers as follows:
39
1. Pull out the detergent drawer.
39
2. Open the dispenser lids.
39
3. Pour liquid detergent and fabric softener into the relevant dispensers.
39
Notes
39
4. Close the dispenser lids.
39
Note:
39
5. Push in the detergent drawer.
39
Note:
39
Manual dosing
40
Note:
40
Dosing and adding detergent
40
Note:
40
1. Pull out the detergent drawer.
40
2. Pour laundry detergent and/or care product into the manual dosing compartment.
40
3. Push in the detergent drawer.
40
Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
40
1. Switch off the appliance.
40
2. Pull out the detergent drawer.
40
3. Press down the insert and remove the drawer completely.
40
4. Press the pump unit insert and remove it.
41
5. Unclip the rear detergent drawer lid and remove it.
41
6. Empty the detergent drawer.
41
7. Clean the pump unit with a damp cloth.
41
Caution!
41
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
41
9. Dry the drawer, lids and pump unit and put them back together.
41
10. Clean the inside of the detergent drawer housing.
42
11. Push in the detergent drawer.
42
Q Appliance settings
42
Appliance settings
42
Activate setting mode:
42
1. Set the programme selector to position 1. The appliance is switched on.
42
2. Touch and hold the 0 Spin button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 Spin button.
42
Changing the volume and drum care information
42
H Sensors
43
Sensors
43
Unbalanced load detection system
43
Note:
43
Aqua-Sensors
43
2 Cleaning and maintenance
43
Cleaning and maintenance
43
: Warning
43
Risk of death!
43
Caution!
43
Fire and explosion hazard!
43
Caution!
43
The appliance may be damaged!
43
Appliance housing/control panel
43
Drum
44
Descaling
44
Drain pump is blocked
44
Note:
44
: Warning
44
Risk of scalding!
44
1. Turn the programme selector to Off. Pull out the mains plug.
44
2. Open the service flap.
44
3. Take the drain hose out of the retainer.
44
4. Carefully unscrew the pump cover; residual water may leak out.
44
5. Refit and screw on the pump cover. The handle must be in a vertical position.
44
6. Close the service flap.
45
Note:
45
The drain hose at the siphon is blocked
45
1. Turn the programme selector to Off. Pull out the mains plug.
45
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
45
3. Clean the drain hose and siphon connecting piece.
45
4. Re-attach the drain hose and secure the connection point using the hose clamp.
45
Filter in the water supply is blocked
45
1. Turn off the water tap.
45
2. Select the i Cottons (activate G Speed Perfect setting) programme.
45
Note:
45
3. Select the Start/Pause A button. Allow the programme to run for approx. 40 seconds.
45
4. Turn the programme selector to Off.
45
5. Pull out the mains plug.
45
1. Disconnect the hose from the rear of the appliance.
45
2. Use pliers to remove the filter.
45
3. Clean the filter with a small brush.
46
4. Connect the hose and check for leaks.
46
3 Faults and what to do about them
46
Faults and what to do about them
46
Emergency release
46
: Warning
46
Risk of scalding!
46
: Warning
46
Risk of injury!
46
Caution!
46
Water damage!
46
1. Turn the programme selector to Off. Pull out the mains plug.
46
2. Open the service flap.
46
3. Drain the water. ~ Page 44
46
4. Pull the emergency release downwards with a tool and release.
46
Information on the display panel
47
Display
47
Cause/Remedy
47
Notes
47
Faults and what to do about them
48
Faults
48
Cause/Remedy
48
Note:
48
Note:
50
4 After-sales service
51
After-sales service
51
[ Consumption values
52
Consumption values
52
Energy and water consumption, programme duration and residual moisture for the main washing programmes (approximate values)
52
Programme
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
r Aqua-Stop warranty
53
Aqua-Stop warranty
53
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
53
2. The liability guarantee is valid for the service life of the appliance.
53
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
53
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
53
*9001449170*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
File type: PDF
File name: 13236056_wgg254a0th.pdf
File size: 2.28 MB
File Language: English
Pages: 56
Author: Bosch
File created: 2020-03-12
Published: 2024-03-22
Updated: 2024-03-22
Download File
Specifications
Brand:
Bosch
Model: WGG254A0TH
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WGA25400TH
SPV4HMX65K
MMBH4P3B
HBF010BA1T
HBA5360B0K
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Fisher & Paykel WH1160FG2
Bosch WGG254A0SG
Bosch WGG454A0TH
Bosch WGG254A0SG/01
Bosch WGG25401GB
Bosch WGG244A0NL
Bosch WGG254F0GB
Bosch WGG25402GB
Bosch WGA244A0TH
Bosch WGA25400TH
Bosch WGA154A00W/01
Bosch WGG244A0SG/01
Bosch WGA254U0AU
Bosch WGG256M1GB
Bosch WGG245S1GB
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Getting to know the appliance 22
3
Z Laundry 25
3
C Detergent 27
3
P Overview of programmes 28
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 34
3
a Intelligent dosing system 37
3
Q Appliance settings 42
4
H Sensors 43
4
2 Cleaning and maintenance 43
4
3 Faults and what to do about them 46
4
4 After-sales service 51
4
[ Consumption values 52
4
J Technical data 53
4
r Aqua-Stop warranty 53
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
12
5 Positioning and connecting
12
Positioning and connecting
12
Standard accessories
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14
Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
15
a) Remove the mains cable from the holders.
15
b) Remove the sleeves.
15
3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Removing the support struts
15
1. Unscrew and remove all screws in the vertical transport struts.
15
2. Remove the transport struts.
15
3. Undo and remove the screws on the horizontal transport strut.
15
4. Remove the transport strut.
16
Hose and cable lengths
16
Note:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
17
Tip:
17
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to the appliance/fabrics
17
Note:
17
Note:
18
Alignment
18
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
18
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
18
3. Tighten the lock nut against the housing.
18
Electrical connection
19
: Warning
19
Risk of death!
19
Notes
19
Before washing for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the water tap on.
19
3. Close the door. Do not load any laundry.
19
4. Select the Û Drum Clean 90°C programme.
19
5. Open the detergent drawer.
19
6. Pour approx. 1 litre of water into manual dosing compartment.
19
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
19
Note:
19
8. Close the detergent drawer.
19
9. Select Start/Pause A.
19
10. When the programme ends, turn the programme selector to Off.
19
Transportation
20
1. Turn off the water tap.
20
2. Reduce the water pressure in the supply hose. ~ Page 45
20
3. Drain any residual water. ~ Page 44
20
4. Disconnect the appliance from the mains.
20
5. Remove the hoses.
20
6. Empty the dispensers.
20
Caution!
20
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
20
1. Remove the covers and keep them in a safe place.
20
Note:
20
2. Insert all four sleeves.
20
a) Clip the mains cable securely in the holders.
20
b) Insert and tighten the screws.
20
c) Clip the hoses securely in the holders.
20
Notes
21
* Getting to know the appliance
22
Getting to know the appliance
22
Appliance
22
Control panel
23
Display panel
24
Programme default settings
24
Display
24
Setting
24
Description
24
Additional programme settings
24
Display
24
Setting
24
Intelligent dosing system (Ž i-DOS)
24
Display
24
Setting
24
Status indicators for the programme progress (programme sequence)
25
Display
25
Setting
25
Z Laundry
25
Laundry
25
Protecting your laundry and appliance
25
Caution!
25
Damage to the appliance/textiles
25
Sorting laundry
26
Note:
26
Starching
26
Note:
26
1. Switch on the appliance.
26
2. Select the à Rinse programme.
26
3. Measure starch into manual dosing compartment in accordance with the manufacturer's instructions (clean first if necessary).
26
4. Touch the Start/Pause A button.
26
Dyeing/bleaching
26
C Detergent
27
Detergent
27
Correct selection of detergent
27
Saving energy and detergent
27
Saving
27
Soiling/note
27
Note:
27
P Overview of programmes
28
Overview of programmes
28
Selectable programme
28
Programme/Type of washing
28
Options/Information
28
Notes
29
1. Select a programme.
30
Note:
30
2. For washing the laundry, use a special detergent for outdoor textiles; add the correct dosage to the manual dosing compartment in accordance with the manufacturer's instructions. Thoroughly clean the compartment beforehand.
30
3. Start the programme. The programme stops before the waterproofing cycle, and the symbols - - - and ~ (indicator lamp of Start/Pause A button) are flashing on the display panel. You can change the spin speed if necessary, and add the dosage of wate...
30
4. Press the Start/Pause A button to continue the programme. After-treat the laundry in accordance with the manufacturer's instructions.
30
Note:
31
Note:
31
0 Programme default settings
32
Programme default settings
32
6 Temp. °C
32
0 Spin
32
ñ Ready In
32
1. Select a programme (except myTime programme).
32
2. Select the ñ Ready In button repeatedly until the required number of hours is displayed.
32
3. Select the Start/Pause A button.
32
Note:
32
1. Select the Start/Pause A button.
32
2. Select the ñ Ready In button repeatedly to change the number of hours.
32
3. Select the Start/Pause A button.
32
\ Additional programme settings
33
Additional programme settings
33
Note:
33
Ï Extra Rinse
33
ç Disinfectant
33
Note:
33
S Silent Wash
33
Note:
33
G Speed Perfect
33
Note:
33
Ž i-DOS setting
33
1 Operating the appliance
34
Operating the appliance
34
Preparing the appliance
34
Notes
34
1. Insert mains plug.
34
: Warning
34
Risk of death from electric shock!
34
2. Turn the water tap on.
34
3. Open the appliance door.
34
Select programme/switch on the appliance
34
Note:
34
Placing laundry into the drum
34
Notes
35
Measuring and adding detergent and care products
35
Starting the programme
35
Childproof lock
35
Note:
35
Adding/removing laundry
35
Notes
36
Changing the programme
36
1. Touch the Start/Pause A button.
36
2. Select another programme.
36
3. And touch the Start/Pause A button again. The new programme starts from the beginning.
36
Cancel the programme
36
1. Touch the Start/Pause A button.
36
2. To cool down laundry: Select à Rinse.
36
3. And touch the Start/Pause A button again.
36
1. Touch the Start/Pause A button.
36
2. Select 0 Spin.
36
3. And touch the Start/Pause A button again.
36
Programme end
36
Removing laundry/switching off the appliance
36
1. Set programme selector to Off.
36
2. Open the door and remove the laundry.
36
3. Turn off the water tap.
36
Note:
36
Notes
36
a Intelligent dosing system
37
Intelligent dosing system
37
Familiarising yourself with Ž i-DOS
37
Ž i-DOS Detergent drawer
37
Before setting up Ž i-DOS
37
Notes
37
Automatic dosing
37
The automatic dosage operates as follows:
37
1. Switch on the appliance.
37
2. Select a programme with Ž i-DOS settings.
37
3. Start the programme.
37
Tip:
38
Notes
38
Ž i-DOS Setting the dosage
38
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
38
Below is an example of detergent dosages on a packaging label:
38
For standard load 4 - 5 kg
38
Level of soiling
38
light
38
normal
38
heavy
38
Adjusting the basic dosage
38
1. Press and hold Ž i-DOS for approx. three seconds.
38
2. Change the setting using: ñ Ready In
38
3. Briefly press Ž i-DOS.
38
4. Change the setting using: ñ Ready In
38
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
38
Notes
39
Filling the dispensers
39
Notes
39
Fill the dispensers as follows:
39
1. Pull out the detergent drawer.
39
2. Open the dispenser lids.
39
3. Pour liquid detergent and fabric softener into the relevant dispensers.
39
Notes
39
4. Close the dispenser lids.
39
Note:
39
5. Push in the detergent drawer.
39
Note:
39
Manual dosing
40
Note:
40
Dosing and adding detergent
40
Note:
40
1. Pull out the detergent drawer.
40
2. Pour laundry detergent and/or care product into the manual dosing compartment.
40
3. Push in the detergent drawer.
40
Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
40
1. Switch off the appliance.
40
2. Pull out the detergent drawer.
40
3. Press down the insert and remove the drawer completely.
40
4. Press the pump unit insert and remove it.
41
5. Unclip the rear detergent drawer lid and remove it.
41
6. Empty the detergent drawer.
41
7. Clean the pump unit with a damp cloth.
41
Caution!
41
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
41
9. Dry the drawer, lids and pump unit and put them back together.
41
10. Clean the inside of the detergent drawer housing.
42
11. Push in the detergent drawer.
42
Q Appliance settings
42
Appliance settings
42
Activate setting mode:
42
1. Set the programme selector to position 1. The appliance is switched on.
42
2. Touch and hold the 0 Spin button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 Spin button.
42
Changing the volume and drum care information
42
H Sensors
43
Sensors
43
Unbalanced load detection system
43
Note:
43
Aqua-Sensors
43
2 Cleaning and maintenance
43
Cleaning and maintenance
43
: Warning
43
Risk of death!
43
Caution!
43
Fire and explosion hazard!
43
Caution!
43
The appliance may be damaged!
43
Appliance housing/control panel
43
Drum
44
Descaling
44
Drain pump is blocked
44
Note:
44
: Warning
44
Risk of scalding!
44
1. Turn the programme selector to Off. Pull out the mains plug.
44
2. Open the service flap.
44
3. Take the drain hose out of the retainer.
44
4. Carefully unscrew the pump cover; residual water may leak out.
44
5. Refit and screw on the pump cover. The handle must be in a vertical position.
44
6. Close the service flap.
45
Note:
45
The drain hose at the siphon is blocked
45
1. Turn the programme selector to Off. Pull out the mains plug.
45
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
45
3. Clean the drain hose and siphon connecting piece.
45
4. Re-attach the drain hose and secure the connection point using the hose clamp.
45
Filter in the water supply is blocked
45
1. Turn off the water tap.
45
2. Select the i Cottons (activate G Speed Perfect setting) programme.
45
Note:
45
3. Select the Start/Pause A button. Allow the programme to run for approx. 40 seconds.
45
4. Turn the programme selector to Off.
45
5. Pull out the mains plug.
45
1. Disconnect the hose from the rear of the appliance.
45
2. Use pliers to remove the filter.
45
3. Clean the filter with a small brush.
46
4. Connect the hose and check for leaks.
46
3 Faults and what to do about them
46
Faults and what to do about them
46
Emergency release
46
: Warning
46
Risk of scalding!
46
: Warning
46
Risk of injury!
46
Caution!
46
Water damage!
46
1. Turn the programme selector to Off. Pull out the mains plug.
46
2. Open the service flap.
46
3. Drain the water. ~ Page 44
46
4. Pull the emergency release downwards with a tool and release.
46
Information on the display panel
47
Display
47
Cause/Remedy
47
Notes
47
Faults and what to do about them
48
Faults
48
Cause/Remedy
48
Note:
48
Note:
50
4 After-sales service
51
After-sales service
51
[ Consumption values
52
Consumption values
52
Energy and water consumption, programme duration and residual moisture for the main washing programmes (approximate values)
52
Programme
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
r Aqua-Stop warranty
53
Aqua-Stop warranty
53
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
53
2. The liability guarantee is valid for the service life of the appliance.
53
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
53
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
53
*9001449170*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
Search:
×
Search
