Instruction Manual and Installation Instructions
Washing machine
WAW28790AU
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WAW28790AU:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 23
3
* Getting to know the appliance 24
3
Z Laundry 27
3
C Detergent 28
3
/ Overview of programmes 29
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
Q Appliance settings 42
4
H Sensors 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 47
4
4 After-sales service 51
4
[ Consumption rates 52
4
J Technical data 53
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Irritation of the respiratory tract/eyes!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17

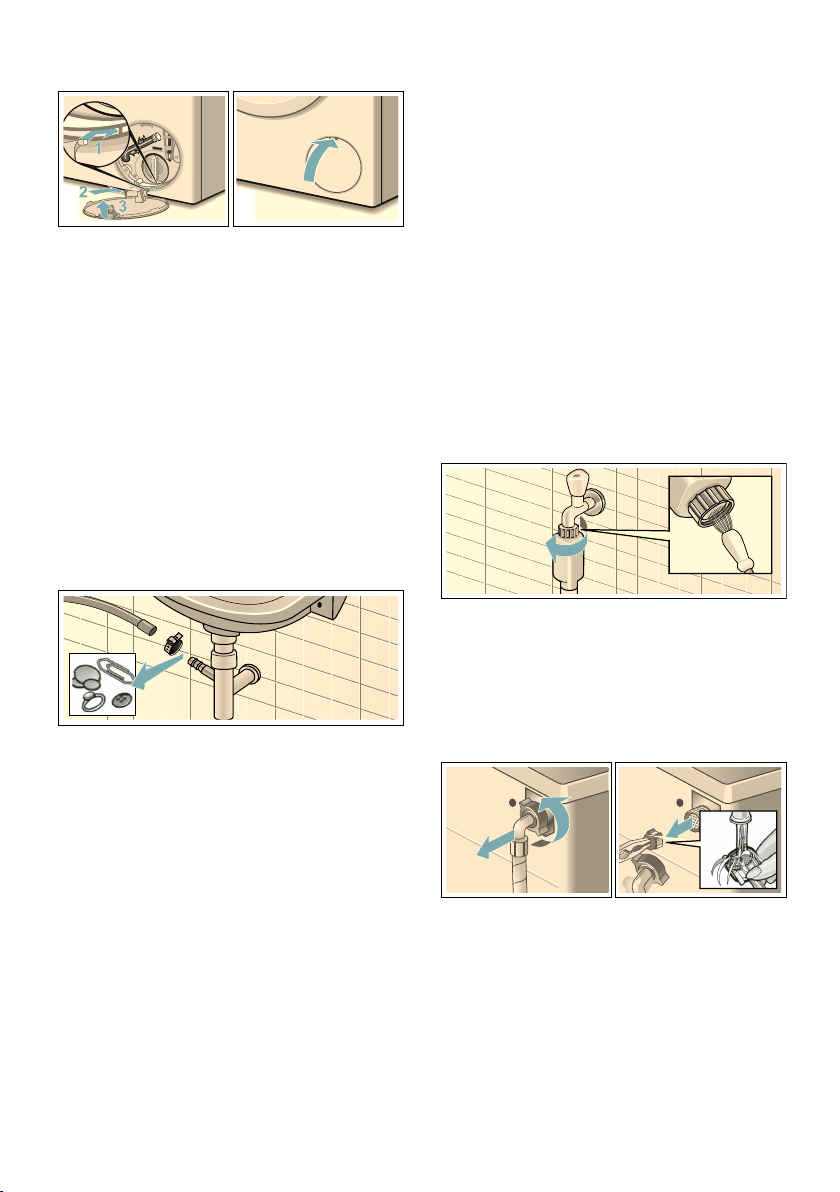

Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18

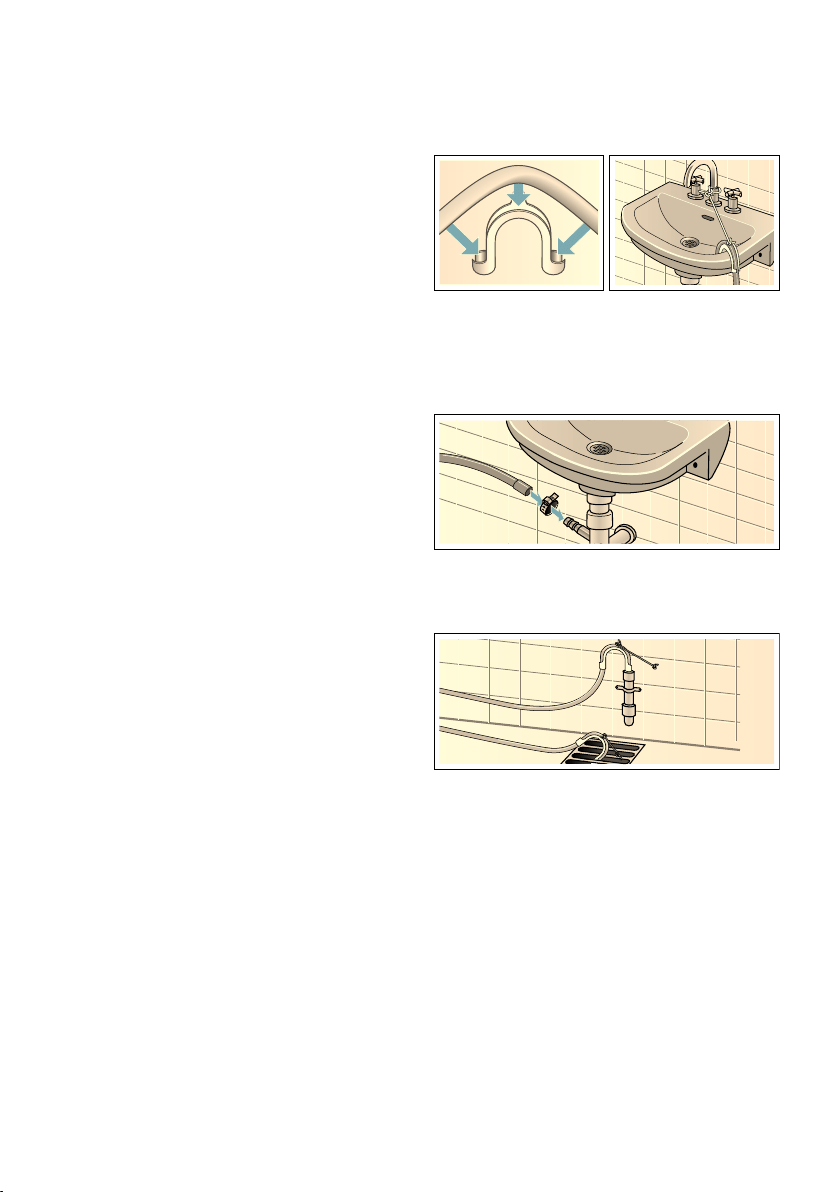

Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
20
: Warning
20
Danger of death!
20
Notes
20
Before using the appliance for the first time
21
Notes
21
Preparatory work:
21
1. Check the machine.
21
2. Remove the protective film from the control panel.
21
3. Plug in the mains plug.
21
4. Turn on the tap.
21
Running the programme without laundry:
21
1. Switch on the appliance.
21
2. Close the door (do not load any laundry).
21
3. Set the Û Drum Clean 90 °C programme.
21
4. Open the detergent drawer.
21
5. Pour approximately 1 litre of water into compartment II.
21
6. Pour standard washing powder into compartment II.
21
Note:
21
7. Close the detergent drawer.
21
8. Press the A button.
21
9. Switch off the appliance at the end of the programme.
21
Transportation
22
Preparatory work:
22
1. Turn off the tap.
22
2. Reduce the water pressure in the supply hose: ~ Page 46; Cleaning and maintenance – filter in the water supply blocked
22
3. Disconnect the washing machine from the mains.
22
4. Drain the remaining water: ~ Page 45; cleaning and maintenance – the drain pump is blocked, emergency draining
22
5. Remove the hoses.
22
Fitting the transportation securing means:
22
1. Remove the covers and keep them in a safe place.
22
2. Insert all four sleeves.
22
Notes
22

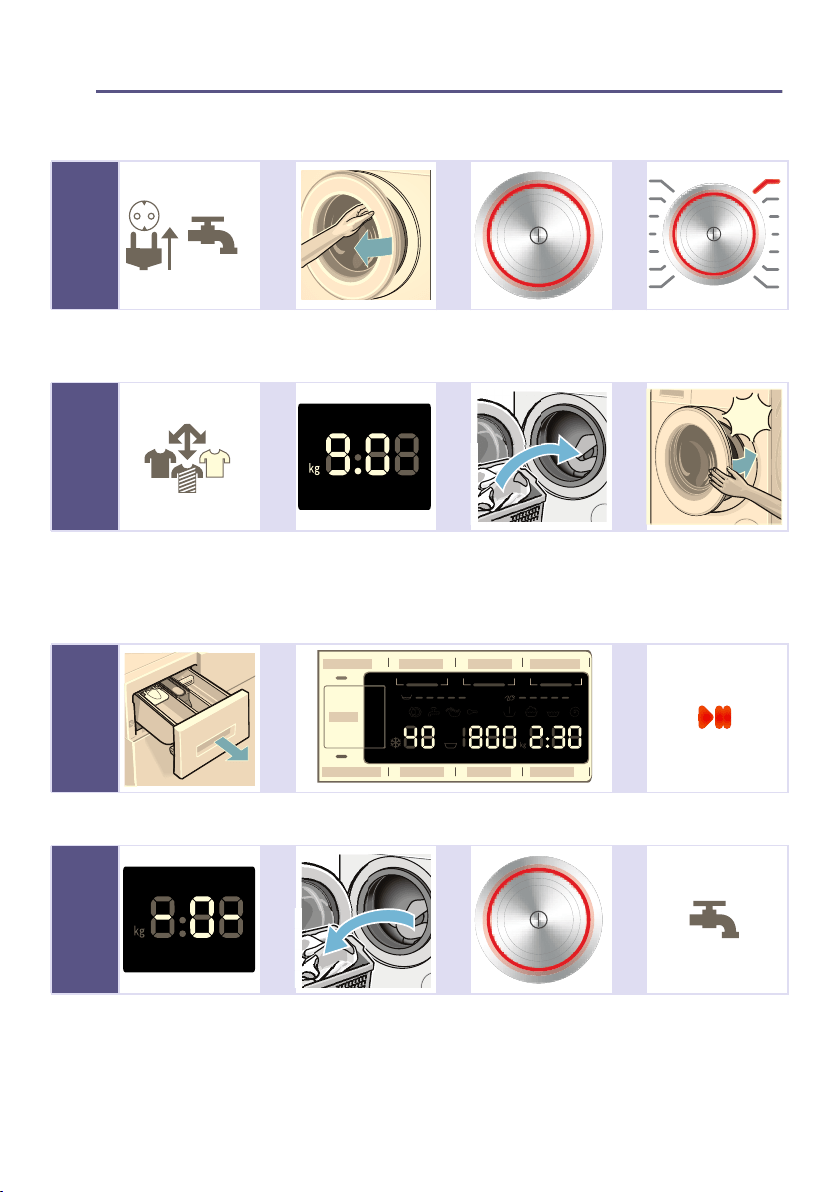

Y Main points in brief
23
Main points in brief
23
* Getting to know the appliance
24
Getting to know the appliance
24
Washing machine
24
Control panel
25
Additional programme settings: ~ Page 36
25
A button for:
25
Changing the default programme settings: ~ Page 35
25
Display panel
26
Default programme settings:
26
Information on energy and water consumption: ~ Page 13
26
Further information
26
Z Laundry
27
Laundry
27
Prepare the laundry
27
Caution!
27
Damage to the appliance/fabrics
27
Sorting laundry
27
Note:
27
Note:
27
C Detergent
28
Detergent
28
Correct selection of detergent
28
Saving energy and detergent
28
Saving
28
Soiling/note
28
Note:
28
/ Overview of programmes
29
Overview of programmes
29
Programmes on the programme selector
29
Programme/type of laundry/information
29
Settings
29
Note:
29
Note:
29
Note:
30
Notes
30
Note:
31
Notes
31
Notes
31
Note:
32
Notes
32
Notes
33
Notes
33
Active Oxygen Refresh Ø
34
Notes
34
Starching
34
Note:
34
Dyeing/bleaching
34
Soaking
34
1. Switch on the appliance.
34
2. Select the i Cottons 30 °C programme.
34
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
34
4. Press the A button. The programme starts.
34
5. After approx. 10 minutes, press the A button to pause the programme.
34
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
34
Notes
34
0 Programme default settings
35
Programme default settings
35
Temperature
35
Spin speed
35
Finished in
35
1. Select a programme.
35
2. Press the Finished in button repeatedly until the required number of hours is displayed.
35
Note:
35
3. Press the A button.
35
Note:
35
1. Press the A button.
35
2. Use the Finished in - or + button to change the number of hours.
35
3. Press the A button.
35
\ Additional programme settings
36
Additional programme settings
36
SpeedPerfect
36
Note:
36
EcoPerfect
36
Prewash
36
Note:
36
Rinse Plus
36
Easy Iron
36
Note:
36
Active Oxygen Ø
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Switching on the appliance/ selecting a programme
37
Note:
37
Placing laundry into the drum
37
: Warning
37
Danger of death!
37
Notes
37
1. Unfold presorted laundry items and place them in the drum.
37
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
37
Measure and add detergent and care products
38
Caution!
38
Damage to the appliance
38
Dosing
38
Filling
38
: Warning
38
Eye/skin irritation!
38
Note:
38
1. Pull out the detergent drawer as far as possible.
38
2. Add detergent and/or care products.
38
3. Close the detergent drawer.
38
Measuring aid* for liquid detergent
38
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
38
2. Slide the measuring aid forwards, fold it down and click it into place.
38
3. Reinsert the drawer.
38
Note:
38
Change the programme default settings
39
Note:
39
Select additional programme settings
39
Start the programme
39
Note:
39
Note:
39
Child lock E 3 sec.
39
Note:
39
Adding laundry
40
Notes
40
Changing the programme
40
1. Press the A button.
40
2. Select another programme.
40
3. Press the A button. The new programme starts from the beginning.
40
Note:
40
Cancel the programme
40
1. Press the A button.
40
2. To cool down laundry: Select Rinse '.
40
3. Press the A button.
40
1. Press the A button.
40
2. Select Spin 0 or [ Drain.
40
3. Press the A button.
40
Note:
40
Programme end during rinse hold
40
Programme end
41
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Press the # button. The appliance is switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
Q Appliance settings
42
Appliance settings
42
Activating the setting mode
42
1. Press the # button.
42
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
42
Changing the signal volume
42
Selecting/deselecting the appliance automatic switch- off
42
Switching the drum-care information signal on/off
42
Exiting setting mode
42
H Sensors
43
Sensors
43
Automatic load sensing
43
Unbalanced load detection system
43
Note:
43
AquaSensor
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
Drum
44
Descaling
44
Detergent drawer and housing
45
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
45
2. To remove the insert: Push the insert upwards from below with your finger.
45
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
45
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
5. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
45
: Warning
45
Risk of scalding!
45
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
45
2. Switch off the appliance. Pull out the mains plug.
45
3. Open and remove the service flap.
45
4. Take the drain hose out of the retainer.
45
5. Carefully unscrew the pump cover; residual water may leak out.
45
6. Place the service flap back on, lock it into place, and close it.
45
Note:
46
The drain hose at the siphon is blocked
46
1. Switch off the appliance. Pull out the mains plug.
46
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
46
3. Clean the drain hose and siphon connecting piece.
46
4. Re-attach the drain hose and secure the connection point using the hose clamp.
46
Filter in the water supply blocked
46
First, reduce the water pressure in the supply hose:
46
1. Turn off the tap.
46
2. Select any programme (except Rinse/Spin/Empty).
46
3. Press the A button. Allow the programme to run for approximately 40 seconds.
46
4. Press the # button. The appliance is switched off.
46
5. Pull out the mains plug.
46
Then clean the filter:
46
1. Disconnect the hose from the tap.
46
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
46
3. Connect the hose and check for leaks.
46
3 Faults and what to do about them.
47
Faults and what to do about them.
47
Emergency release
47
: Warning
47
Risk of scalding!
47
: Warning
47
Risk of injury!
47
: Warning
47
Irritation of the respiratory tract!
47
Caution!
47
Water damage
47
1. Switch off the appliance. Pull out the mains plug.
47
2. Drain the water. ~ Page 45
47
3. Use a tool to pull the emergency release downwards and then release.
47
Information on the display panel
48
Indicator/symbol
48
Cause/remedy
48
Notes
48
Faults and what to do about them.
49
Faults
49
Cause/remedy
49
Note:
50
4 After-sales service
51
After-sales service
51
[ Consumption rates
52
Consumption rates
52
Energy and water consumption, programme duration and residual moisture for the main washing programmes
52
Programme
52
Additional function
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
Technical data
53
Information for test institute
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
File type: PDF
File name: Bosch WAW28790AU Washer.pdf
File size: 5.46 MB
File Language: English
Pages: 56
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Verified by
Kathryn Cummings
on 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WAW28790AU
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WAW28620AU
WAW28640AU
WAY32891AU
HBC86K753B
HBC86P753B
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAS20160UC/20
Bosch WAYH8790GB
Bosch WAW28640AU
Bosch WAW28620AU
Bosch WAW28420AU
Bosch WAW28460AU
Bosch WAW28441AU
Bosch WAU28490AU
Bosch WAW28440AU
Bosch WAW28740EU
Bosch WAY32890AU
Bosch WAY32790AU
Bosch WAW285V0
Bosch WAW285H2
Bosch WAW28550
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 23
3
* Getting to know the appliance 24
3
Z Laundry 27
3
C Detergent 28
3
/ Overview of programmes 29
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
Q Appliance settings 42
4
H Sensors 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 47
4
4 After-sales service 51
4
[ Consumption rates 52
4
J Technical data 53
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Irritation of the respiratory tract/eyes!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17
Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
20
: Warning
20
Danger of death!
20
Notes
20
Before using the appliance for the first time
21
Notes
21
Preparatory work:
21
1. Check the machine.
21
2. Remove the protective film from the control panel.
21
3. Plug in the mains plug.
21
4. Turn on the tap.
21
Running the programme without laundry:
21
1. Switch on the appliance.
21
2. Close the door (do not load any laundry).
21
3. Set the Û Drum Clean 90 °C programme.
21
4. Open the detergent drawer.
21
5. Pour approximately 1 litre of water into compartment II.
21
6. Pour standard washing powder into compartment II.
21
Note:
21
7. Close the detergent drawer.
21
8. Press the A button.
21
9. Switch off the appliance at the end of the programme.
21
Transportation
22
Preparatory work:
22
1. Turn off the tap.
22
2. Reduce the water pressure in the supply hose: ~ Page 46; Cleaning and maintenance – filter in the water supply blocked
22
3. Disconnect the washing machine from the mains.
22
4. Drain the remaining water: ~ Page 45; cleaning and maintenance – the drain pump is blocked, emergency draining
22
5. Remove the hoses.
22
Fitting the transportation securing means:
22
1. Remove the covers and keep them in a safe place.
22
2. Insert all four sleeves.
22
Notes
22
Y Main points in brief
23
Main points in brief
23
* Getting to know the appliance
24
Getting to know the appliance
24
Washing machine
24
Control panel
25
Additional programme settings: ~ Page 36
25
A button for:
25
Changing the default programme settings: ~ Page 35
25
Display panel
26
Default programme settings:
26
Information on energy and water consumption: ~ Page 13
26
Further information
26
Z Laundry
27
Laundry
27
Prepare the laundry
27
Caution!
27
Damage to the appliance/fabrics
27
Sorting laundry
27
Note:
27
Note:
27
C Detergent
28
Detergent
28
Correct selection of detergent
28
Saving energy and detergent
28
Saving
28
Soiling/note
28
Note:
28
/ Overview of programmes
29
Overview of programmes
29
Programmes on the programme selector
29
Programme/type of laundry/information
29
Settings
29
Note:
29
Note:
29
Note:
30
Notes
30
Note:
31
Notes
31
Notes
31
Note:
32
Notes
32
Notes
33
Notes
33
Active Oxygen Refresh Ø
34
Notes
34
Starching
34
Note:
34
Dyeing/bleaching
34
Soaking
34
1. Switch on the appliance.
34
2. Select the i Cottons 30 °C programme.
34
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
34
4. Press the A button. The programme starts.
34
5. After approx. 10 minutes, press the A button to pause the programme.
34
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
34
Notes
34
0 Programme default settings
35
Programme default settings
35
Temperature
35
Spin speed
35
Finished in
35
1. Select a programme.
35
2. Press the Finished in button repeatedly until the required number of hours is displayed.
35
Note:
35
3. Press the A button.
35
Note:
35
1. Press the A button.
35
2. Use the Finished in - or + button to change the number of hours.
35
3. Press the A button.
35
\ Additional programme settings
36
Additional programme settings
36
SpeedPerfect
36
Note:
36
EcoPerfect
36
Prewash
36
Note:
36
Rinse Plus
36
Easy Iron
36
Note:
36
Active Oxygen Ø
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Switching on the appliance/ selecting a programme
37
Note:
37
Placing laundry into the drum
37
: Warning
37
Danger of death!
37
Notes
37
1. Unfold presorted laundry items and place them in the drum.
37
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
37
Measure and add detergent and care products
38
Caution!
38
Damage to the appliance
38
Dosing
38
Filling
38
: Warning
38
Eye/skin irritation!
38
Note:
38
1. Pull out the detergent drawer as far as possible.
38
2. Add detergent and/or care products.
38
3. Close the detergent drawer.
38
Measuring aid* for liquid detergent
38
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
38
2. Slide the measuring aid forwards, fold it down and click it into place.
38
3. Reinsert the drawer.
38
Note:
38
Change the programme default settings
39
Note:
39
Select additional programme settings
39
Start the programme
39
Note:
39
Note:
39
Child lock E 3 sec.
39
Note:
39
Adding laundry
40
Notes
40
Changing the programme
40
1. Press the A button.
40
2. Select another programme.
40
3. Press the A button. The new programme starts from the beginning.
40
Note:
40
Cancel the programme
40
1. Press the A button.
40
2. To cool down laundry: Select Rinse '.
40
3. Press the A button.
40
1. Press the A button.
40
2. Select Spin 0 or [ Drain.
40
3. Press the A button.
40
Note:
40
Programme end during rinse hold
40
Programme end
41
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Press the # button. The appliance is switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
Q Appliance settings
42
Appliance settings
42
Activating the setting mode
42
1. Press the # button.
42
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
42
Changing the signal volume
42
Selecting/deselecting the appliance automatic switch- off
42
Switching the drum-care information signal on/off
42
Exiting setting mode
42
H Sensors
43
Sensors
43
Automatic load sensing
43
Unbalanced load detection system
43
Note:
43
AquaSensor
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
Drum
44
Descaling
44
Detergent drawer and housing
45
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
45
2. To remove the insert: Push the insert upwards from below with your finger.
45
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
45
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
5. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
45
: Warning
45
Risk of scalding!
45
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
45
2. Switch off the appliance. Pull out the mains plug.
45
3. Open and remove the service flap.
45
4. Take the drain hose out of the retainer.
45
5. Carefully unscrew the pump cover; residual water may leak out.
45
6. Place the service flap back on, lock it into place, and close it.
45
Note:
46
The drain hose at the siphon is blocked
46
1. Switch off the appliance. Pull out the mains plug.
46
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
46
3. Clean the drain hose and siphon connecting piece.
46
4. Re-attach the drain hose and secure the connection point using the hose clamp.
46
Filter in the water supply blocked
46
First, reduce the water pressure in the supply hose:
46
1. Turn off the tap.
46
2. Select any programme (except Rinse/Spin/Empty).
46
3. Press the A button. Allow the programme to run for approximately 40 seconds.
46
4. Press the # button. The appliance is switched off.
46
5. Pull out the mains plug.
46
Then clean the filter:
46
1. Disconnect the hose from the tap.
46
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
46
3. Connect the hose and check for leaks.
46
3 Faults and what to do about them.
47
Faults and what to do about them.
47
Emergency release
47
: Warning
47
Risk of scalding!
47
: Warning
47
Risk of injury!
47
: Warning
47
Irritation of the respiratory tract!
47
Caution!
47
Water damage
47
1. Switch off the appliance. Pull out the mains plug.
47
2. Drain the water. ~ Page 45
47
3. Use a tool to pull the emergency release downwards and then release.
47
Information on the display panel
48
Indicator/symbol
48
Cause/remedy
48
Notes
48
Faults and what to do about them.
49
Faults
49
Cause/remedy
49
Note:
50
4 After-sales service
51
After-sales service
51
[ Consumption rates
52
Consumption rates
52
Energy and water consumption, programme duration and residual moisture for the main washing programmes
52
Programme
52
Additional function
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
Technical data
53
Information for test institute
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
Search:
×
Search
