DUAL READING DIGITAL DIAL BORE GAUGE
MODEL NO: DBG506D
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using
tools and equipment.
9 Avoid shocks, impact, dropping etc.
8 DO NOT use the dial bore gauge if damaged.
8 DO NOT remove output connector lid, without using the output interface. Output should never be connected to anything metal. Doing
so could damage the dial indicator.
8 DO NOT connect any part of the dial indicator to a voltage source. Doing so will damage the circuits within.
9 This is a precision instrument, always return gauge components to the storage case.
9 Remove the battery if the dial indicator is not used for a long period of time.
9 Keep indicator face clean and dry.
9 Maintain the gauge in good and clean condition for best and safest performance.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Ensuretheworkareaoorisnotslippery;wearnonslipshoes.
9 Components to be measured and the dial bore gauge to be stored at room temperature (21°C).
2. INTRODUCTION
Digital dial bore gauge for use in precision engineering. Digital display shows both metric and imperial measurements. Measuring range between
0-25.4mm. Features lugged back plate for mounting on magnetic bases.
3. SPECIFICATION
Model no ................................................................DBG506D
Deection/travel ..................................................... 0-25.4mm
Graduation ................................................................0.01mm

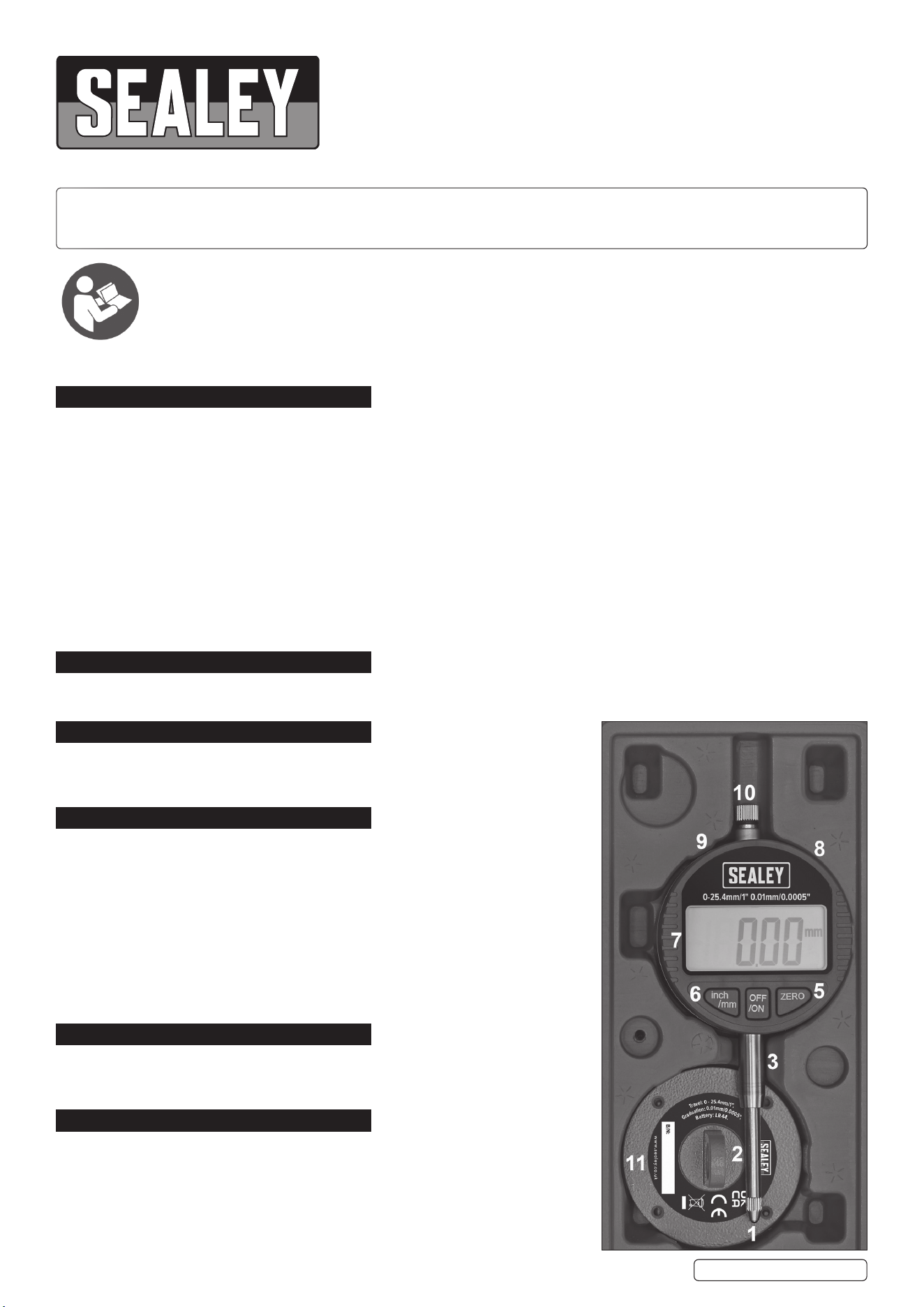

4. FEATURES
1. Contact point
2. Spindle
3. Mounting diameter
4.On/oswitch
5. Zero-setting
6.Inch/mmswitch
7. LCD display
8. Data output interface
9. Battery compartment
10. Dust cap
11.Backcover/lug
5. FUNCTION
5.1. Can be zeroed in any position.
5.2. Metric/imperialcanbechangedatanypoint.
5.3. Has two types of data output interfaces: normal or micro USB.
6. OPERATION
6.1. Clean the contact point spindle with a soft cloth before use.
6.2. PresstheOn/oswitch,the0.00mmor0.000mmdisplay
appears and the dial indicator is ready for measurement.
6.3. BATTERY REPLACEMENT
Remove battery compartment lid and replace battery
(SR44) with its positive (+) side upwards.
Refer to
instruction
manual
DBG506DIssue:114/07/21
Original Language Version
© Jack Sealey Limited
7. TROUBLESHOOTING
.
Original Language Version
© Jack Sealey Limited
Problem Cause Solution
All digits appear
simultaneously
and change rapidly
Battery power low Replace battery
Display does not
work (only when
changing the
battery)
Poor voltage when
replacing battery
Remove battery
and replace it after
30 seconds
Reading error for
fulllengthis≤
0.1mm
Dirthasdamaged/
covered sensor
Remove cover and
slider assembly.
Nothing appears
on the LCD
Poor battery
contact or battery
voltage is under
1.1V
Check battery
contact or replace
battery
