AR**AXHQAWK*SA
1
User manual/
Installation manual
Table of Contents
Safety Precautions ....................................................................................
03
User manual
Unit Specications and Features ............................................................
10
1. Indoor unit display ……………………………………………………………………………………………10
2. Operating temperature
………………………………………………………………………………………11
3. Other features
…………………………………………………………………………………………………12
4. Setting angle of airow
………………………………………………………………………………………13
5. Manual operation (without Remote)
…………………………………………………………………………13
Care and Maintenance ..............................................................................
14
Troubleshooting ........................................................................................
16
2
User manual/
Installation manual
Installation Manual
Accessories
.................................................................................................
19
Installation Summary - Indoor Unit
...............................................................
20
Unit Parts
.........................................................................................21
Indoor Unit Installation
....................................................................22
1. Select installation location ……………………………………………………………………………………22
2. Attach mounting plate to wall ………………………………………………………………………………22
3. Drill wall hole for connective piping …………………………………………………………………………23
4. Prepare refrigerant piping ……………………………………………………………………………………24
5. Connect drain hose …………………………………………………………………………………………24
6. Connect signal cable …………………………………………………………………………………………26
7. Wrap piping and cables ………………………………………………………………………………………27
8. Mount indoor unit ……………………………………………………………………………………………28
Outdoor Unit Installation ..........................................................................
29
1. Select installation location ……………………………………………………………………………………29
2. Install drain joint ………………………………………………………………………………………………30
3.
Anchor outdoor unit …………………………………………………………………………………………30
4. Connect signal and power cables …………………………………………………………………………32
Refrigerant Piping Connection ................................................................
33
A. Note on Pipe Length …………………………………………………………………………………………33
B. Connection Instructions – Refrigerant Piping ……………………………………………………………33
1. Cut pipe ……………………………………………………………………………………………………33
2. Remove burrs ……………………………………………………………………………………………34
3. Flare pipe ends ……………………………………………………………………………………………34
4. Connect pipes ……………………………………………………………………………………………34
Air Evacuation ...........................................................................................
36
1. Evacuation Instructions ………………………………………………………………………………………36
2. Note on Adding Refrigerant …………………………………………………………………………………37
Electrical and Gas Leak Checks ..............................................................
39
Test Run .....................................................................................................
39
3
User manual/
Installation manual
Safety Precautions
Read Safety Precautions Before Operation and Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classied as either a WARNING or
CAUTION.
WARNING
This symbol indicates the possibility of
personnel injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
WARNING
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision (EN Standard requirements).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance (IEC Standard requirements).
The air conditioner should be used only for the applications for which it has been designed: the indoor
unit is not suitable to be installed in areas used for laundry.
WARNINGS FOR PRODUCT USE
● If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the
power. Call your dealer for instructions to avoid electric shock, re or injury.
● Do not insert ngers, rods or other objects into the air inlet or outlet. This may cause injury, since the
fan may be rotating at high speeds.
● Do not use ammable sprays such as hair spray, lacquer or paint near the unit. This may cause re
or combustion.
● Do not operate the air conditioner in places near or around combustible gases. Emitted gas may
collect around the unit and cause explosion.
● Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much
exposure to water can cause electrical components to short circuit.
● Do not expose your body directly to cool air for a prolonged period of time.
● Do not allow children to play with the air conditioner. Children must be supervised around the unit at
all times.
● If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the
room to avoid oxygen deciency.
● In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed
air-conditioning units is highly recommended.
● Do not use means to accelerate the defrost operation or to clean, other than those recommended by
Samsung.
● Do not pierce or burn.
● Be aware that refrigerants may not contain an odour.
4
User manual/
Installation manual
CLEANING AND MAINTENANCE WARNINGS
● Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical
shock.
● Do not clean the air conditioner with excessive amounts of water.
● Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause re or deformation.
● The product shall be stored in a room with no ignition sources (e.g. open ames, gas appliance,
electric heater, etc.).
- Note that the refrigerant has no odour.
● Please cover the air conditioner with PE BAG after installation, and remove it when you start to run
air conditioner.
CAUTION
● Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.
● Turn off and unplug the unit during storms.
● Make sure that water condensation can drain unhindered from the unit.
● Do not operate the air conditioner with wet hands. This may cause electric shock.
● Do not use device for any other purpose than its intended use.
● Do not climb onto or place objects on top of the outdoor unit.
● Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if
the humidity is very high.
ELECTRICAL WARNINGS
● Only use the specied power cord. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
● Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty
plugs can cause re or electric shock.
● Do not pull power cord to unplug unit. Hold the plug rmly and pull it from the outlet. Pulling directly
on the cord can damage it, which can lead to re or electric shock.
● Do not modify the length of the power supply cord or use an extension cord to power the unit.
● Do not share the electrical outlet with other appliances. Improper or insufcient power supply can
cause re or electrical shock.
● The product must be properly grounded at the time of installation, or electrical shock may occur.
● For all electrical work, follow all local and national wiring standards, regulations, and the Installation
Manual. Connect cables tightly, and clamp them securely to prevent external forces from damaging
the terminal. Improper electrical connections can overheat and cause re, and may also cause
shock. All electrical connections must be made according to the Electrical Connection Diagram
located on the panels of the indoor and outdoor units.
● All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not closed properly, it can lead to corrosion and cause the connection points
on the terminal to heat up, catch re, or cause electrical shock.
● If connecting power to xed wiring, an all-pole disconnection device which has at least 3mm
clearances in all poles, and have a leakage current that may exceed 10mA, the residual current
device (RCD) having a rated residual operating current not exceeding 30mA, and disconnection
must be incorporated in the xed wiring in accordance with the wiring rules.
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specications of the fuse are printed on the circuit board, such as:
Indoor unit: T3.15AL/250VAC, T5AL/250VAC, T3.15A/250VAC, T5A/250VAC, etc.
Outdoor unit: T20A/250VAC (<=18000Btu/h units), T30A/250VAC (>18000Btu/h units)
5
User manual/
Installation manual
NOTE: For the units with R32 or R290 refrigerant , only the blast-proof ceramic fuse can be used.
WARNINGS FOR PRODUCT INSTALLATION
1. Installation must be performed by an authorized dealer or specialist. Defective installation can cause
water leakage, electrical shock, or re.
2. Installation must be performed according to the installation instructions. Improper installation can
cause water leakage, electrical shock, or re.
(In North America,installation must be performed in accordance with the requirement of NEC and
CEC by authorized personnel only.)
3. Contact an authorized service technician for repair or maintenance of this unit. This appliance shall
be installed in accordance with national wiring regulations.
4. Only use the included accessories, parts, and specied parts for installation. Using non-standard
parts can cause water leakage, electrical shock, re, and can cause the unit to fail.
5. Install the unit in a rm location that can support the unit’s weight. If the chosen location cannot
support the unit’s weight, or the installation is not done properly, the unit may drop and cause
serious injury and damage.
6. Install drainage piping according to the instructions in this manual. Improper drainage may cause
water damage to your home and property.
7. For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any
combustible materials.
8.
Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible
gas accumulates around the unit, it may cause re.
9. Do not turn on the power until all work has been completed.
10. When moving or relocating the air conditioner, consult experienced service technicians for
disconnection and reinstallation of the unit.
11. How to install the appliance to its support, please read the information for details in “indoor unit
installation” and “outdoor unit installation” sections .
12. The outdoor unit shall be installed in an open space that is always ventilated.
13. The local gas regulations shall be observed.
14. To handle, purge, and dispose the refrigerant, or break into the refrigerant circuit, the worker should
have a certicate from an industry-accredited authority.
15. Do not install the indoor unit in the following areas:
16. Area lled with minerals, splashed oil, or steam. It will deteriorate plastic parts, causing failure or
leakage.
17. Area that is close to heat sources.
18. Area that produces substances such as sulfuric gas, chlorine gas, acid, and alkali. It may cause
corrosion of the pipings and brazed joints.
19. Area that can cause leakage of combustible gas and suspension of carbon bers, ammable dust,
or volatile ammables.
20. Area where refrigerant leaks and settles.
21. Area where animals may urinate on the product. Ammonia may be generated.
22. Do not use the indoor unit for preservation of food items, plants, equipment, and art works. This may
cause deterioration of their quality.
23. Do not install the indoor unit if it has any drainage problem.
24. Because your air conditioner contains R-32 refrigerant, make sure that it is installed, operated, and
stored it in a room whose oor area is larger than the minimum required oor area specied in the
following table:
Wall-mounted type
m(kg) A(m
2
)
≤1.842 No requirement
6
User manual/
Installation manual
Wall-mounted type
1.843 4.45
1.9 4.58
2.0 4.83
2.2 5.31
2.4 5.79
2.6 6.39
2.8 7.41
3.0 8.51
● m : Total refrigerant charge in the system
● A : Minimum required oor area
● IMPORTANT: it’s mandatory to consider either the table above or taking into consideration the local
law regarding the minimum living space of the premises.
● Minimum installation height of indoor unit is 0.6 m for oor mounted, 1.8 m for wall, 2.2 m for ceiling.
Installation of the outdoor unit
● While in installation or relocation of the product, do not mix the refrigerant with other gases including
air or unspecied refrigerant. Failure to do so may cause pressure increase to result in rupture or
injury.
● Do not cut or burn the refrigerant container or pipings.
● Use clean parts such as manifold gauge, vacuum pump, and charging hose for the refrigerant.
● Installation must be carried out by qualied personnel for handling the refrigerant. Additionally,
reference the regulations and laws.
● Be careful not to let foreign substances (lubricating oil, refrigerant, water, etc.) enter the pipings. The
application of oil or refrigerant deteriorates the pipings to result in drain leakage. For storage, securely
seal their openings.
● When mechanical ventilation is required, ventilation openings shall be kept clear of obstruction.
● For disposal of the product, follow the local laws and regulations.
● Do not work in a conned place.
● The work area shall be blocked.
● The refrigerant pipings shall be installed in the position where there are no substances that may result
in corrosion.
● The following checks shall be performed for installation:
- The charging amount depends on the room size.
- The ventilation devices and outlets are operating normally and are not obstructed.
- Markings and signs on the equipment shall be visible and legible.
● Upon leakage of the refrigerant, ventilate the room. When the leaked refrigerant is exposed to ame,
it may cause generation of toxic gases.
● Make sure that the work area is safe from ammable substances.
● To purge air in the refrigerant, be sure to use a vacuum pump.
● Note that the refrigerant has no odour.
● The units are not explosion proof so they must be installed with no risk of explosion.
● This product contains uorinated gases that contribute to global greenhouse effect. Accordingly, do
not vent gases into the atmosphere.
● Because the working pressure for R-32 is 1.6 times higher than that for R-22, use exclusive pipings
and tools specied. In case of replacing an R-22 model with an R-32 model, be sure to replace the
conventional pipings and are nuts with exclusive ones.
● The models that use the refrigerant R-32 have a different thread diameter for the charging port to
prevent charging failure. Therefore, check its diameter (1/2 inch) in advance.
● Servicing shall be performed as recommended by the manufacturer. In case other skilled persons
are joined for servicing, it shall be carried out under supervision of the person who is competent in
handling ammable refrigerants.
● For servicing the units containing ammable refrigerants, safety checks are required to minimise the
risk of ignition.
7
User manual/
Installation manual
● Servicing shall be performed following the controlled procedure to minimize the risk of ammable
refrigerant or gases.
● Do not install where there is a risk of combustible gas leakage.
● Do not place heat sources.
● Be cautious not to generate a spark as follows:
- Do not remove the fuses with power on.
- Do not disconnect the power plug from the wall outlet with power on.
- It is recommended to locate the outlet in a high position. Place the cords so that they are not
tangled.
● If the indoor unit is not R-32 compatible, an error signal appears and the unit will not operate.
● After installation, check for leakage. Toxic gas may be generated and if it comes into contact with an
ignition source such as fan heater, stove, and cooker. cylinders, make sure that only the refrigerant
recovery cylinders are used.
Note about Fluorinated Gasses (Not applicable to the unit using Refrigerant)
1. This air-conditioning unit contains uorinated greenhouse gasses. For specic information on the
type of gas and the amount, please refer to the relevant label on the unit itself or the “Owner’s
Manual - Product Fiche” in the packaging of the outdoor unit. (European Union products only).
2. Installation, service, maintenance and repair of this unit must be performed by a certied technician.
3. Product uninstallation and recycling must be performed by a certied technician.
4. For equipment that contains uorinated greenhouse gases in quantities of 5 tonnes of CO
2
equivalent or more, but of less than 50 tonnes of CO
2
equivalent, If the system has a leak-detection
system installed, it must be checked for leaks at least every 24 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
6. When the air conditioner does not operate properly for cooling or heating, there is a possibility of
refrigerant leakage. If any leakage, stop operation, ventilate the room, and consult your dealer
immediately for recharging refrigerant.
7. The refrigerant is not harmful. However, if it comes in contact with re, it may generate harmful
gases and there is risk of re.
8. During transportation of the indoor unit, the pipe lines shall be covered with brackets for protection.
Do not move the product with holding the pipe lines.
9. It may cause gas leakage.
10. Do not cut or burn the refrigerant container or pipings.
11. Do not point the air direction to the replace or heater.
WARNING for Using R32 Refrigerant
● When ammable refrigerant are employed, appliance shall be stored in a well -ventilated area where
the room size corresponds to the room area as speciec for operation.
For R32 frigerant models:
Appliance shall be installed, operated and stored in a room with a oor area larger than 4m
2
.
Appliance shall not be installed in an unvertilated space, if that space is smaller than 4m
2
.
● Reusable mechanical connectors and ared joints are not allowed indoors.
(EN Standard Requirements).
● Mechanical connectors used indoors shall have a rate of not more than 3g/year at 25% of the
maximum allowable pressure. When mechanical connectors are reused indoors, sealing parts shall
be renewed. When ared joints are reused indoors, the are part shall be re-fabricated.
(UL Standard Requirements)
● When mechanical connectors are reused indoors, sealing parts shall be renewed. When ared joints
are reused indoors, the are part shall be re-fabricated.
(IEC Standard Requirements)
8
User manual/
Installation manual
● For the product that uses the R-32 refrigerant, Install the indoor unit on the wall 1.8 m or higher from
the oor.
Preparation of re extinguisher
● If a hot work is to be done, an appropriate re extinguishing equipment should have been available.
● A dry powder or CO
2
re extinguisher shall be equipped near the charging area.
Ignition sources free
● Make sure to store the units in a place without continuously operating ignition sources (for example,
open ames, an operating gas appliance or an operating electric heater).
● The service engineers shall not use any ignition sources with the risk of re or explosion.
● Potential ignition sources shall be kept away from the work area where the ammable refrigerant can
possibly be released to the surrounding.
● The work area should be checked to ensure that there are no ammable hazards or ignition risks. The
“No Smoking” sign shall be attached.
● Under no circumstances shall potential sources of ignition be used while in detection of leakage.
● Make sure that the seals or sealing materials have not degraded.
● Safe parts are the ones with which the worker can work in a ammable atmosphere. Other parts may
result in ignition due to leakage.
● Replace components only with parts specied by Samsung. Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
Area ventilation
● Make sure that the work area is well ventilated before performing a hot work.
● Ventilation shall be made even during the work.
● The ventilation should safely disperse any released gases and preferably expel them into the
atmosphere.
● Ventilation shall be made even during the work.
Leakage detection methods
● The leakage detector shall be calibrated in a refrigerant-free area.
● Make sure that the detector is not a potential source of ignition.
● The leakage detector shall be set to the LFL (lower ammability limit).
● The use of detergents containing chlorine shall be avoided for cleaning because the chlorine may
react with the refrigerant and corrode the pipings.
● If leakage is suspected, naked ames shall be removed.
● If a leakage is found while in brazing, the entire refrigerant shall be recovered from the product or
isolated (e.g. using shut-off valves). It shall not be directly released to the environment. Oxygen free
nitrogen (OFN) shall be used for purging the system before and during the brazing process.
● The work area shall be checked with an appropriate refrigerant detector before and during work.
● Ensure that the leakage detector is appropriate for use with ammable refrigerants.
Labelling
● The parts shall be labelled to ensure that they have been decommissioned and emptied of refrigerant.
● The labels shall be dated.
● Make sure that the labels are afxed on the system to notify it contains ammable refrigerant.
Recovery
● When removing refrigerant from the system for servicing or decommissioning, it is recommended to
remove the entire refrigerant.
● When transferring refrigerant into cylinders, make sure that only the refrigerant recovery cylinders are
used.
● All cylinders used for the recovered refrigerant shall be labelled.
9
User manual/
Installation manual
● Cylinders shall be equipped with pressure relief valves and shut-off valves in a proper order.
● Empty recovery cylinders shall be evacuated and cooled before recovery.
● The recovery system shall operate normally according to the specied instructions and shall be
suitable for refrigerant recovery.
● In addition, the calibration scales shall operate normally.
● Hoses shall be equipped with leak-free disconnect couplings.
● Before starting the recovery, check for the status of the recovery system and sealing state. Consult
with the manufacturer if suspected.
● The recovered refrigerant shall be returned to the supplier in the correct recovery cylinders with the
Waste Transfer Note attached.
● Do not mix refrigerants in the recovery units or cylinders.
● If compressors or compressor oils are to be removed, make sure that they have been evacuated to
the acceptable level to ensure that ammable refrigerant does not remain in the lubricant.
● The evacuation process shall be performed before sending the compressor to the suppliers.
● Only the electrical heating to the compressor body is allowed to accelerate the process.
● Oil shall be drained safely from the system.
● For installation with handling the refrigerant (R-32), use dedicated tools and piping materials. Because
the pressure of the refrigerant, R-32 is approximately 1.6 times higher than that of R-22, failure to
use the dedicated tools and piping materials may cause rupture or injury. Furthermore, it may cause
serious accidents such as water leakage, electric shock, or re.
● Never install a motor-driven equipment to prevent ignition.
● In case of a malfunction, immediately stop operation of the air conditioner and disconnect the entire
power system. Then consult the authorized service personnel.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste
at the end of their working life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government ofce, for details of where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product and its electronic accessories should not be mixed with other commercial
wastes for disposal.
Correct disposal of batteries in this product
This marking on the battery, manual or packaging indicates that the batteries in this product should
not be disposed of with other household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above
the reference levels in EC Directive 2006/66.
10
User manual/
Installation manual
Unit Specications and Features

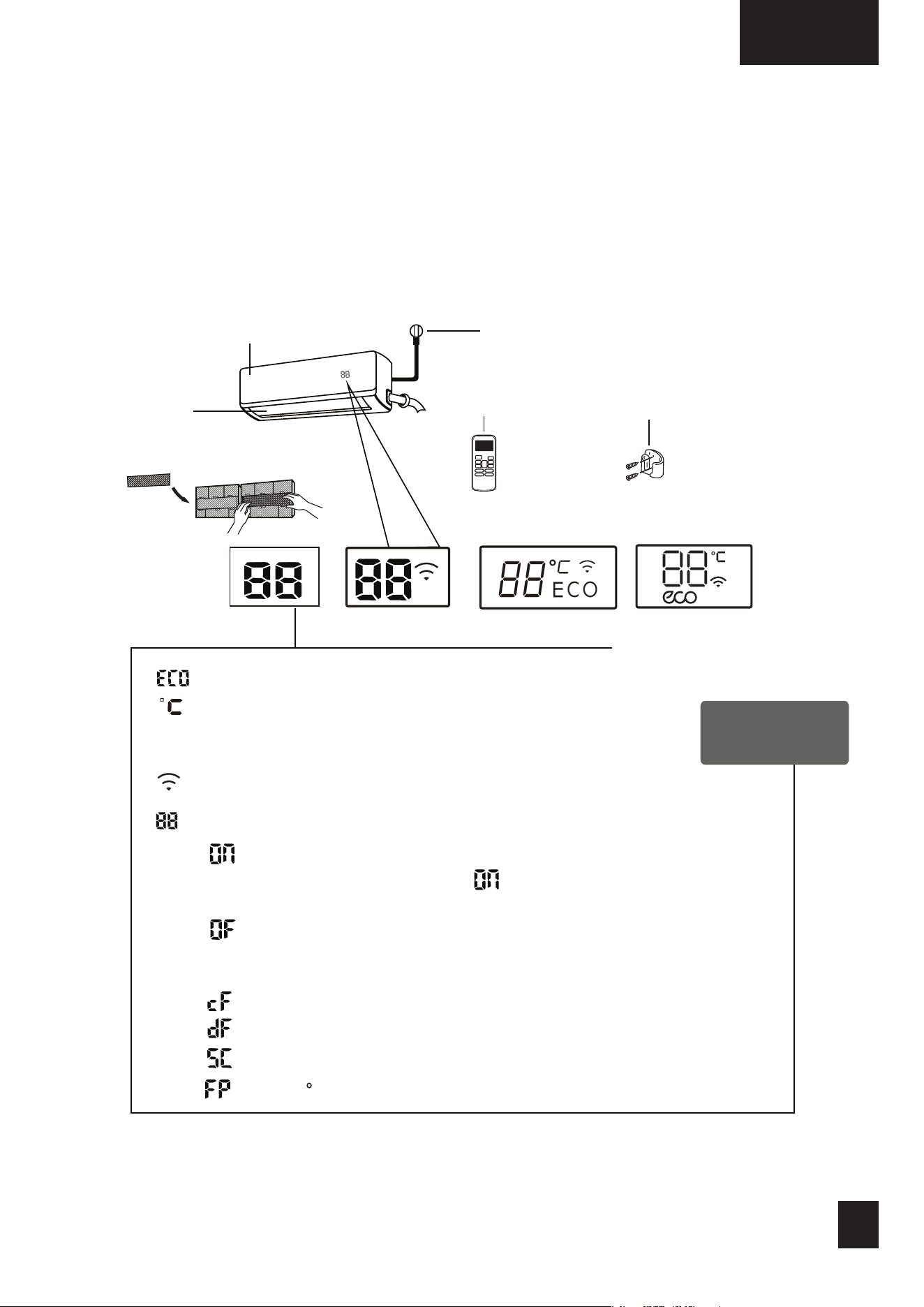

Indoor unit display
NOTE: Different models have different front panel and display window. Not all the indicators
describing below are available for the air conditioner you purchased. Please check the indoor display
window of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be
slightly different. The actual shape shall prevail.

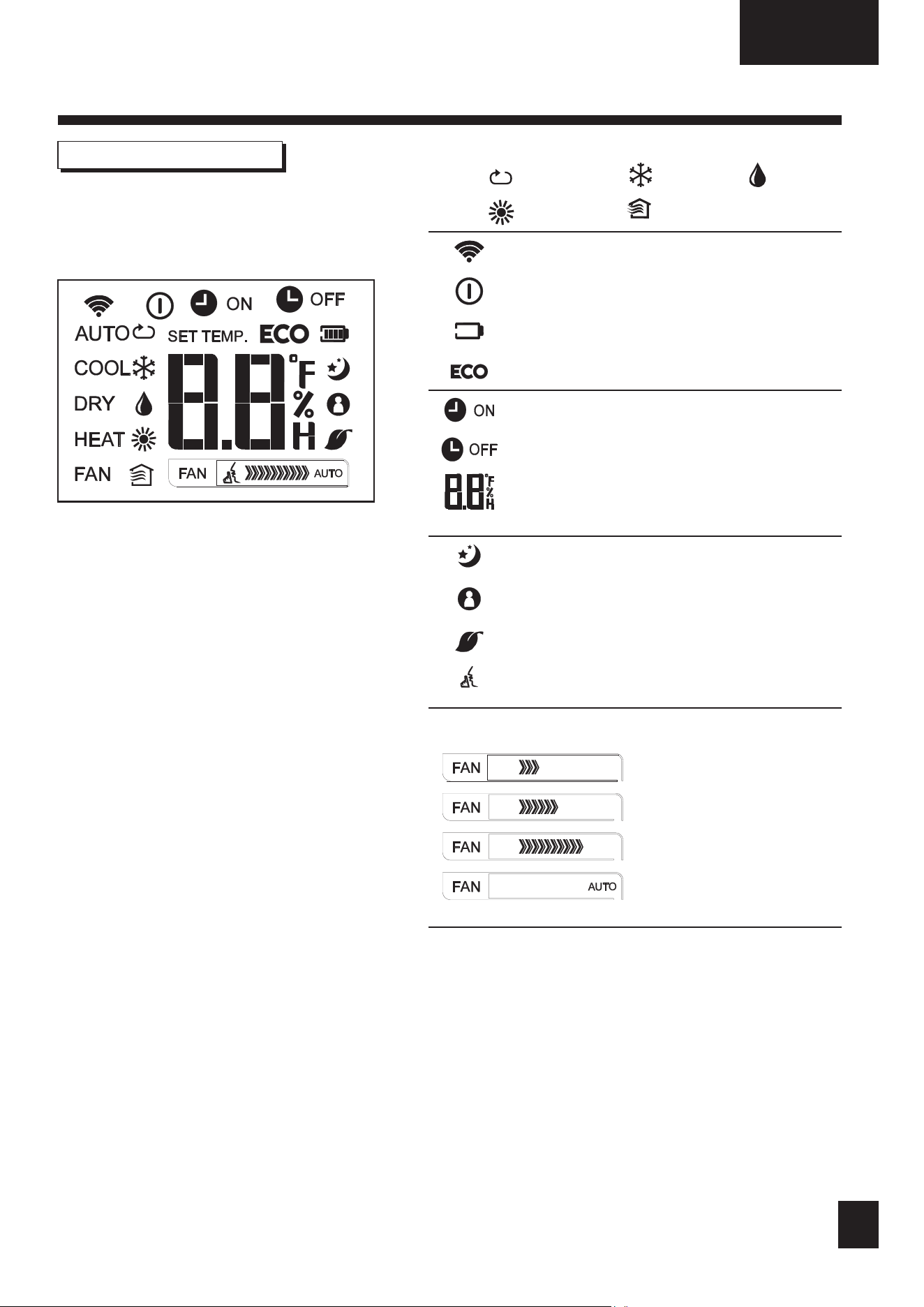

Display Code
Meanings
Power Cable (Some Units
)
Remote Control
Remote Control
Holder (Some Units)
Functional Filter
(On Back of Main Filter - Some Units)
Louver
Front Panel
Display window
(A)
(B)
(C)
(D)
”“
“ ”
when ECO function is activated(some units)
Lights up in different colour according to the operation
mode(some units):
Under COOL and DRY mode, it displays as cool colour.
Under HEAT mode, it displays as warm colour.
“ ” when Wireless Control feature is activated(some units)
““ ” for 3 seconds when
•
“
TI
“
• TIMER
O
“
•• TIMER ON is set (if the unit is OFF
TIMER ON i when TIMER ON is set )
• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is urned on
” for 3 seconds when““
• TIMER OFF is se
• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off
“
“
“
“
” when anti-cold air feature is turned on
” when defrosting(cooling & heating units)
” when unit is self-cleaning
” when 8 C heating feature is turned on
“ ”
Displays temperature, operation feature and Error codes:
11
User manual/
Installation manual
Operating temperature
When your air conditioner is used outside of the following temperature ranges, certain safety protection
features may activate and cause the unit to disable.
Inverter Split Type
COOL mode HEAT mode DRY mode
FOR OUTDOOR UNITS
WITH AUXILIARY
ELECTRIC HEATER
When outside
temperature is below
0°C (32°F), we strongly
recommend keeping the
unit plugged in at all time
to ensure smooth ongoing
performance.
Room Temperature
17°C - 32°C
(62°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C
(5°F - 122°F)
(For models with
low temp. cooling
systems.)
0°C - 52°C
(32°F - 126°F)
(For special
tropical models)
0°C - 52°C
(32°F - 126°F)
(For special
tropical models)
To further optimize the performance of your unit, do the following:
● Keep doors and windows closed.
● Limit energy usage by using TIMER ON and TIMER OFF functions.
● Do not block air inlets or outlets.
● Regularly inspect and clean air lters.
12
User manual/
Installation manual
A guide on using the infrared remote is not
included in this literature package. Not all the
functions are available for the air conditioner,
please check the indoor display and remote
control of the unit you purchased.
Other Features
●
Auto-Restart (some units)
If the unit loses power, it will automatically
restart with the prior settings once power has
been restored.
●
Anti-mildew (some units)
When turning off the unit from COOL, AUTO
(COOL), or DRY modes, the air conditioner will
continue operate at very low power to dry up
condensed water and prevent mildew growth.
●
Wireless Control (some units)
Wireless control allows you to control your air
conditioner using your mobile phone and a
wireless connection.
For the USB device access, replacement,
maintenance operations must be carried out by
professional staff.
●
Louver Angle Memory (some units)
When turning on your unit, the louver will
automatically resume its former angle.
●
Refrigerant Leakage Detection (some
units)
The indoor unit will automatically display “EC”
or “EL0C”or ash LEDS (model dependent )
when it detects refrigerant leakage.
●
Sleep Operation
The SLEEP function is used to decrease energy
use while you sleep (and don’t need the same
temperature settings to stay comfortable). This
function can only be activated via remote control.
And the Sleep function is not available in FAN or
DRY mode.
Press the SLEEP button when you are ready to
go to sleep. When in COOL mode, the unit will
increase the temperature by 1°C (2°F) after 1
hour, and will increase an additional 1°C (2°F)
after another hour.
When in HEAT mode, the unit will decrease the
temperature by 1°C (2°F) after 1 hour, and will
decrease an additional 1°C (2°F) after another
hour.
The sleep feature will stop after 8 hours and the
system will keep running with nal situation.
SLEEP Operation
Saving energy during sleep
Set
temperature
Keep running
Cool mode (+1°C/2°F) per hour for the
rst two hours
Heat mode (-1°C/2°F) per hour for the
rst two hours
1hr 1hr
13
User manual/
Installation manual

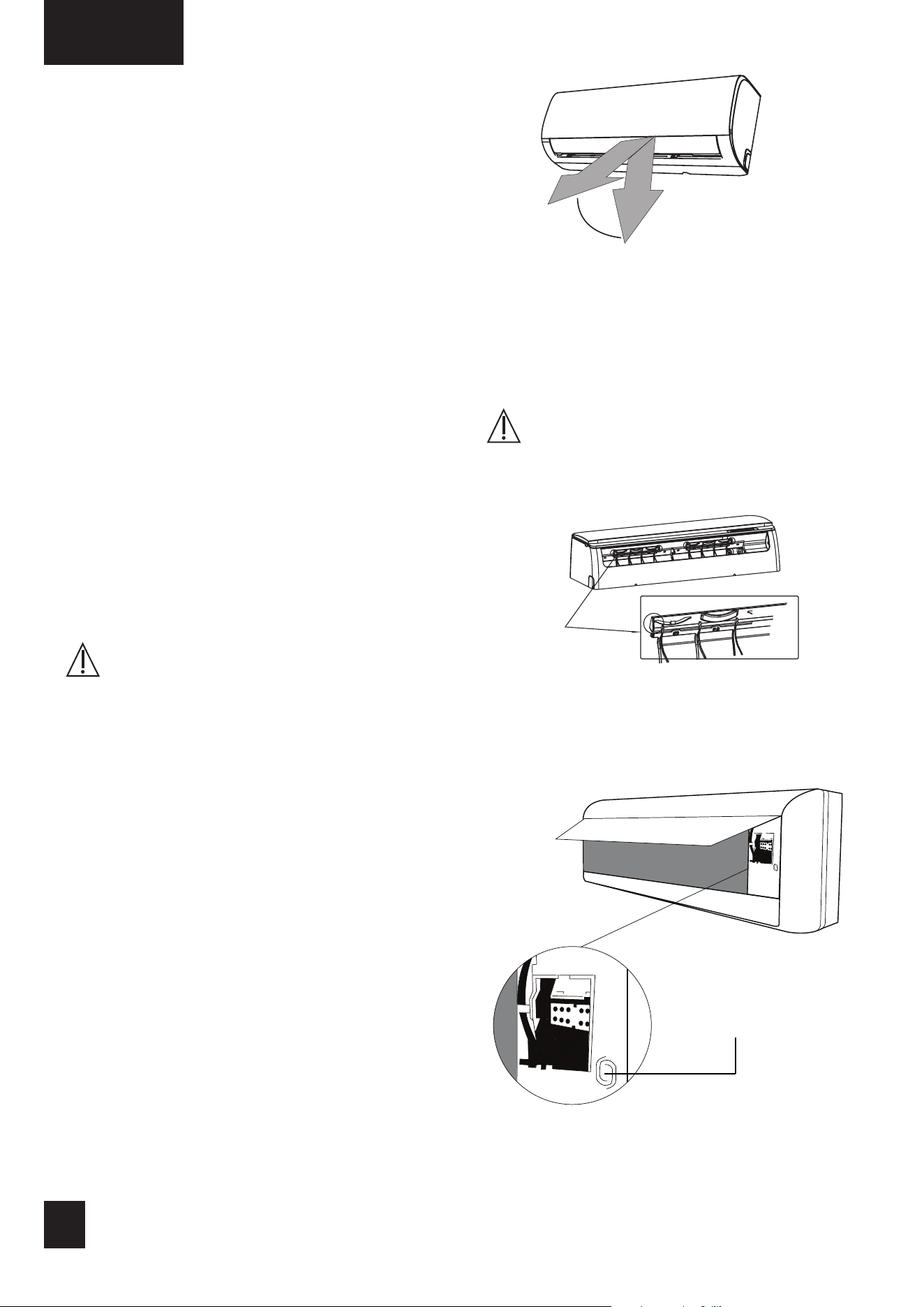

● Setting Angle of Air Flow
Setting vertical angle of air ow
While the unit is on, use the SWING/DIRECT
button on remote control to set the direction
(vertical angle) of airow. Please refer to the Re
mote Control Manual for details.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your oor or
furnishings.
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air ow.
Setting horizontal angle of air ow
The horizontal angle of the airow must be set
manually. Grip the deector rod (See Fig.B) and
manually adjust it to your preferred direction.
For some units, the horizontal angle of the airow
can be set by remote control. please refer to the
Remote Control Manual.
Manual Operation (without remote)
CAUTION
The manual button is intended for testing purposes
and emergency operation only. Please do not
use this function unless the remote control is lost
and it is absolutely necessary. To restore regular
operation, use the remote control to activate
the unit. Unit must be turned off before manual
operation.
To operate your unit manually:
1. Open the front panel of the indoor unit.
2. Locate the MANUAL CONTROL button on
the right-hand side of the unit.
3. Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode.
4. Press the MANUAL CONTROL button again
to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a third
time to turn the unit off.
6. Close the front panel.
Range
NOTE: Do not move louver by hand. This will
cause the louver to become out of sync. If this
occurs, turn off the unit and unplug it for a few
seconds, then restart the unit. This will reset the
louver.
Fig. A
CAUTION
Do not put your ngers in or near the blower and
suction side of the unit. The high-speed fan inside
the unit may cause injury.
Deector rod
Fig. B
Manual control button
14
User manual/
Installation manual
Care and Maintenance
Cleaning Your Indoor Unit
BEFORE CLEANING OR
MAINTENANCE
ALWAYS TURN OFF YOUR AIR
CONDITIONER SYSTEM AND DISCONNECT
ITS POWER SUPPLY BEFORE CLEANING
OR MAINTENANCE.
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
● Do not use chemicals or chemically treated
cloths to clean the unit
● Do not use benzene, paint thinner, polishing
powder or other solvents to clean the unit.
They can cause the plastic surface to crack or
deform.
● Do not use water hotter than 40°C (104°F) to
clean the front panel. This can cause the panel
to deform or become discolored.
Cleaning Your Air Filter
A clogged air conditioner can reduce the cooling
efciency of your unit, and can also be bad for
your health. Make sure to clean the lter once
every two weeks.
1. Lift the front panel of the indoor unit.
2. First press the tab on the end of lter to
loosen the buckle, lift it up, then pull it towards
yourself.
3. Now pull the lter out.
4. If your lter has a small air freshening lter,
unclip it from the larger lter. Clean this air
freshening lter with a hand-held vacuum.
5. Clean the large air lter with warm, soapy
water. Be sure to use a mild detergent.
6. Rinse the lter with fresh water, then shake off
excess water.
7. Dry it in a cool, dry place, and refrain from
exposing it to direct sunlight.
8. When dry, re-clip the air freshening lter to the
larger lter, then slide it back into the indoor
unit.
9. Close the front panel of the indoor unit.
Filter Tab
15
User manual/
Installation manual

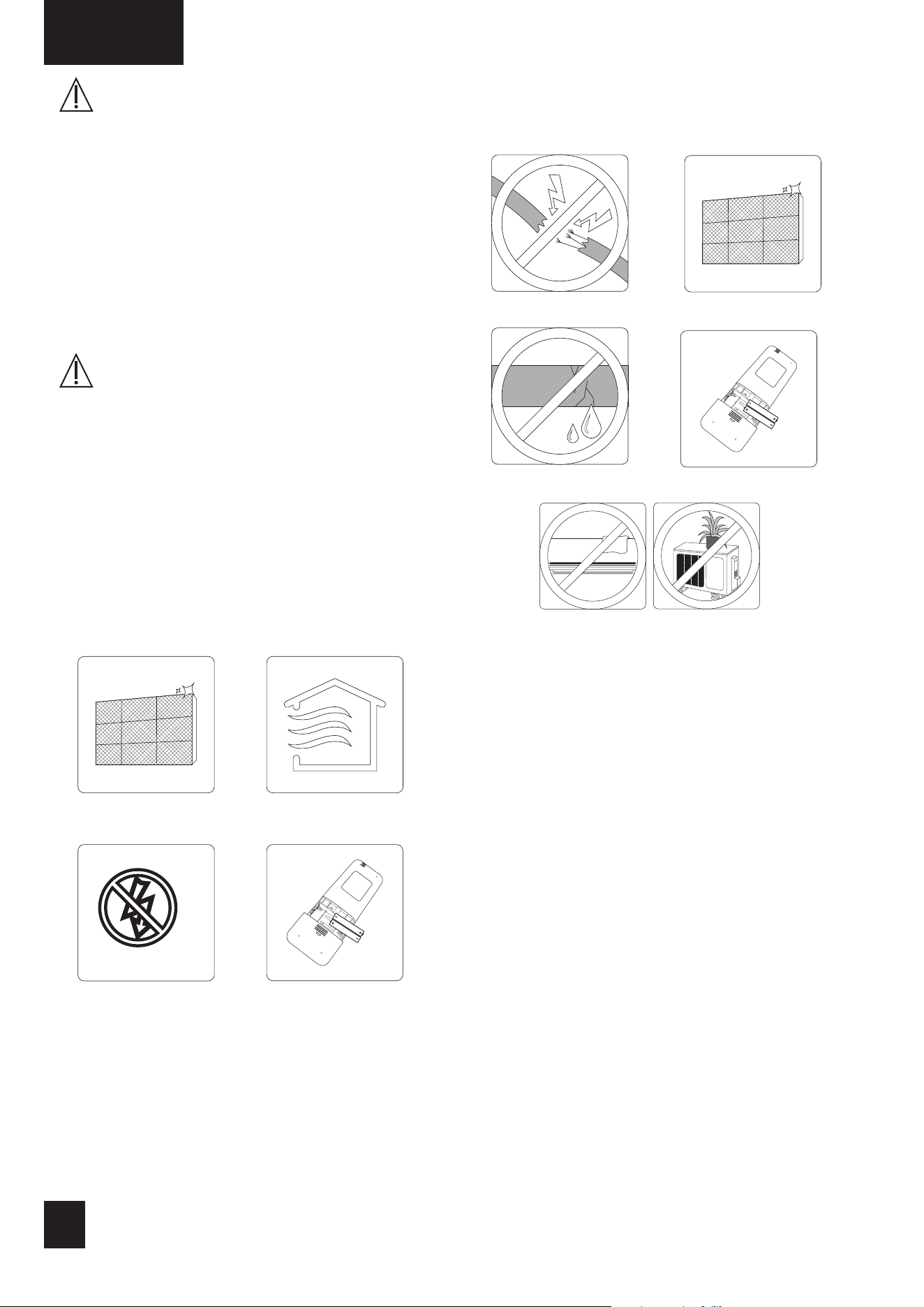

CAUTION
● Before changing the lter or cleaning, turn off
the unit and disconnect its power supply.
● When removing lter, do not touch metal parts
in the unit. The sharp metal edges can cut you.
● Do not use water to clean the inside of the
indoor unit. This can destroy insulation and
cause electrical shock.
● Do not expose lter to direct sunlight when
drying. This can shrink the lter.
CAUTION
● Any maintenance and cleaning of outdoor unit
should be performed by an authorized dealer or
a licensed service provider.
● Any unit repairs should be performed by an
authorized dealer or a licensed service provider.
Maintenance – Long Periods of Non-
Use
If you plan not to use your air conditioner for an
extended period of time, do the following:
Clean all lters
Turn off the unit and
disconnect the power
Turn on FAN function until
unit dries out completely
Remove batteries from
remote control
Maintenance – Pre-Season Inspection
After long periods of non-use, or before periods of
frequent use, do the following:
Check for damaged wires
Check for leaks
Clean all lters
Replace batteries
Make sure nothing is blocking all air inlets and outlets
16
User manual/
Installation manual
Troubleshooting
SAFETY PRECAUTIONS
If ANY of the following conditions occurs, turn off your unit immediately!
● The power cord is damaged or abnormally warm
● You smell a burning odor
● The unit emits loud or abnormal sounds
● A power fuse blows or the circuit breaker frequently trips
● Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED
SERVICE PROVIDER IMMEDIATELY!
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Issue Possible Causes
Unit does not turn on
when pressing ON/OFF
button
The Unit has a 3-minute protection feature that prevents the unit from overloading.
The unit cannot be restarted within three minutes of being turned off.
The unit changes from
COOL/HEAT mode to
FAN mode
The unit may change its setting to prevent frost from forming on the unit.
Once the temperature increases, the unit will start operating in the previously
selected mode again.
The set temperature has been reached, at which point the unit turns off the
compressor. The unit will continue operating when the temperature uctuates
again.
The indoor unit emits
white mist
In humid regions, a large temperature difference between the room’s air and the
conditioned air can cause white mist.
Both the indoor and
outdoor units emit white
mist
When the unit restarts in HEAT mode after defrosting, white mist may be emitted
due to moisture generated from the defrosting process.
The indoor unit makes
noises
A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor unit
and outdoor unit make
noises
Low hissing sound during operation: This is normal and is caused by refrigerant
gas owing through both indoor and outdoor units.
Low hissing sound when the system starts, has just stopped running, or is
defrosting: This noise is normal and is caused by the refrigerant gas stopping or
changing direction.
Squeaking sound: Normal expansion and contraction of plastic and metal parts
caused by temperature changes during operation can cause squeaking noises.
17
User manual/
Installation manual
Issue Possible Causes
The outdoor unit makes
noises
The unit will make different sounds based on its current operating mode.
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use, which will
be emitted when the unit is turned on. This can be mitigated by covering the unit
during long periods of inactivity.
The unit emits a bad
odor
The unit may absorb odors from the environment (such as furniture, cooking,
cigarettes, etc.) which will be emitted during operations.

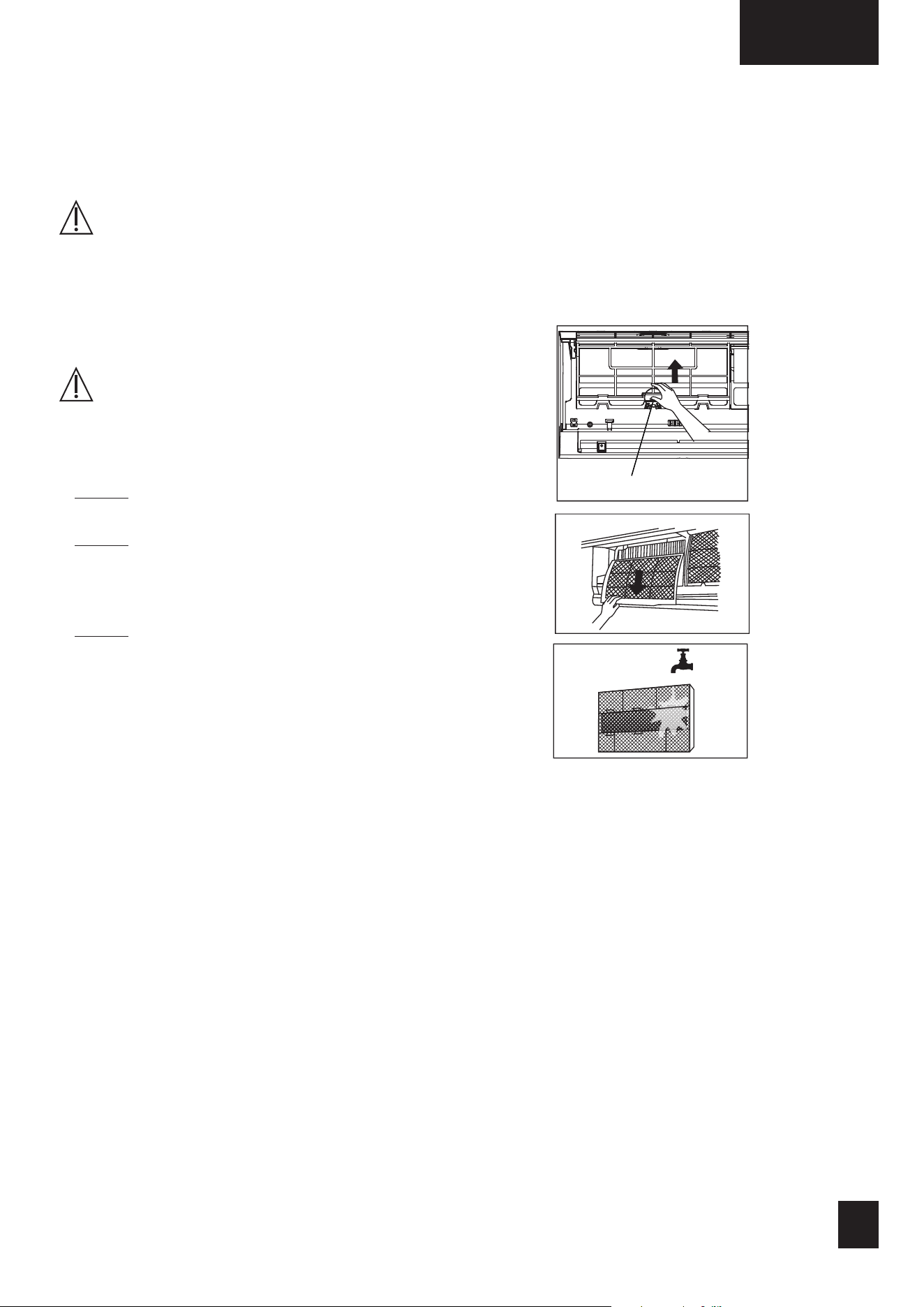

The unit’s lters have become moldy and should be cleaned.
The fan of the outdoor unit
does not operate
During operation, the fan speed is controlled to optimize product operation.
Operation is erratic,
unpredictable, or unit is
unresponsive
Interference from cell phone towers and remote boosters may cause the unit to
malfunction.
In this case, try the following:
● Disconnect the power, then reconnect.
● Press ON/OFF button on remote control to restart operation.
NOTE:
If problem persists, contact a local dealer or your nearest customer service center. Provide
them with a detailed description of the unit malfunction as well as your model number.
Troubleshooting
When troubles occur, please check the following points before contacting a repair company.
Problem
Possible Causes
Solution
Poor Cooling
Performance
Temperature setting may be higher than
ambient room temperature
Lower the temperature setting
The heat exchanger on the indoor or
outdoor unit is dirty
Clean the affected heat exchanger
The air lter is dirty Remove the lter and clean it according
to instructions
The air inlet or outlet of either unit is
blocked
Turn the unit off, remove the obstruction
and turn it back on
Doors and windows are open Make sure that all doors and windows
are closed while operating the unit
Excessive heat is generated by sunlight
Close windows and curtains during
periods of high heat or bright sunshine
Too many sources of heat in the room
(people, computers, electronics, etc.)
Reduce amount of heat sources
Low refrigerant due to leak or long-term
use
Check for leaks, re-seal if necessary
and top off refrigerant
SILENCE function is activated
(optional function)
SILENCE function can lower product
performance by reducing operating
frequency. Turn off SILENCE function.
18
User manual/
Installation manual
Problem Possible Causes
Solution
The unit is not working
Power failure Wait for the power to be restored
The power is turned off Turn on the power
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace batteries
The Unit’s 3-minute protection has been
activated
Wait three minutes after restarting the
unit
Timer is activated Turn timer off
The unit starts and
stops frequently
There’s too much or too little refrigerant
in the system
Check for leaks and recharge the
system with refrigerant.
Incompressible gas or moisture has
entered the system.
Evacuate and recharge the system with
refrigerant
The compressor is broken Replace the compressor
The voltage is too high or too low
Install a manostat to regulate the
voltage
Poor heating
performance
The outdoor temperature is extremely
low
Use auxiliary heating device
Cold air is entering through doors and
windows
Make sure that all doors and windows
are closed during use
Low refrigerant due to leak or long-term
use
Check for leaks, re-seal if necessary
and top off refrigerant
Indicator lamps continue
ashing
The unit may stop operation or continue to run safely. If the indicator lamps
continue to ash or error codes appear, wait for about 10 minutes. The problem
may resolve itself.
If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest customer
service center.
Error code appears and
begins with the letters
as the following in
the window display of
indoor unit:
● E (x), P (x), F (x)
● EH (xx), EL (xx), EC
(xx)
● PH (xx), PL (xx), PC
(xx)
NOTE:
If your problem persists after performing the checks and diagnostics above, turn off your unit
immediately and contact an authorized service center.
To perform its antimicrobial function this product has been treated with the biocide substance
Silver zinc zeolite.
19
User manual/
Installation manual

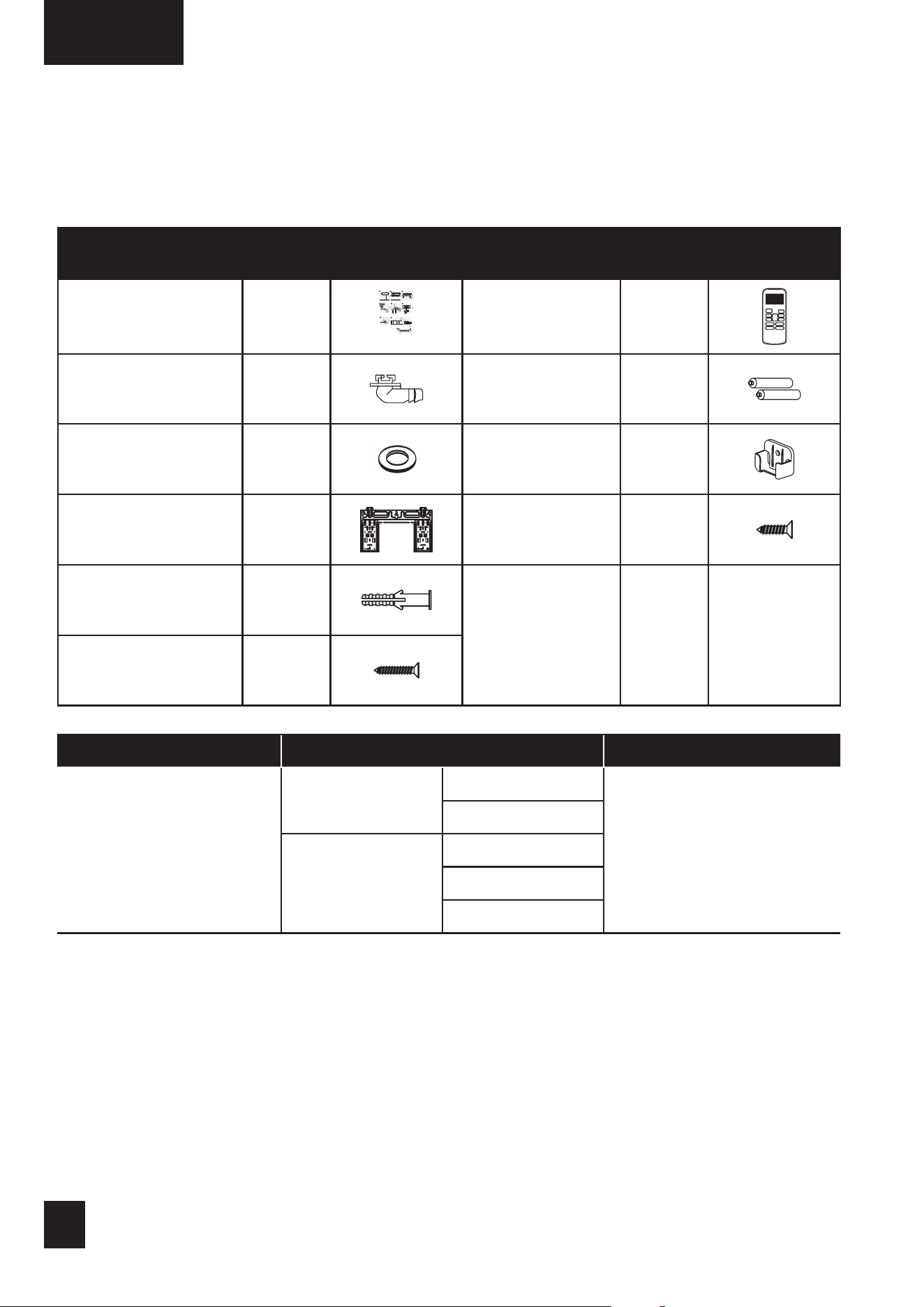

Accessories
The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electrical shock and re, or cause the equipment to fail. The items are not included
with the air conditioner must be purchased separately.
Name of Accessories Q’ty (pc) Shape
Name of
Accessories
Q’ty (pc) Shape
Manual 2-3
1
2
3
4
12cm
(4.75in)
2.3m (90.55in)
12cm
(4.75in)
15cm (5.9in)
STEP
8
4
5
6
7
8
9
Remote controller
1
Drain joint
(for cooling &
heating models)
1 Battery
2
Seal
(for cooling &
heating models)
1
Remote controller
holder (optional)
1
Mounting plate
1
Fixing screw for
remote controller
holder (optional)
2
Anchor
5~8
(depending
on models)
Mounting plate xing
screw
5~8
(depending
on models)
Name Shape Quantity (PC)
Connecting pipe assembly
Liquid side
ø6.35 (1/4 in)
Parts you must purchase
separately. Consult the dealer
about the proper pipe size of the
unit you purchased.
ø9.52 (3/8in)
Gas side
ø9.52 (3/8in)
ø12.7 (1/2in)
ø15.88 (5/8in)
20
User manual/
Installation manual

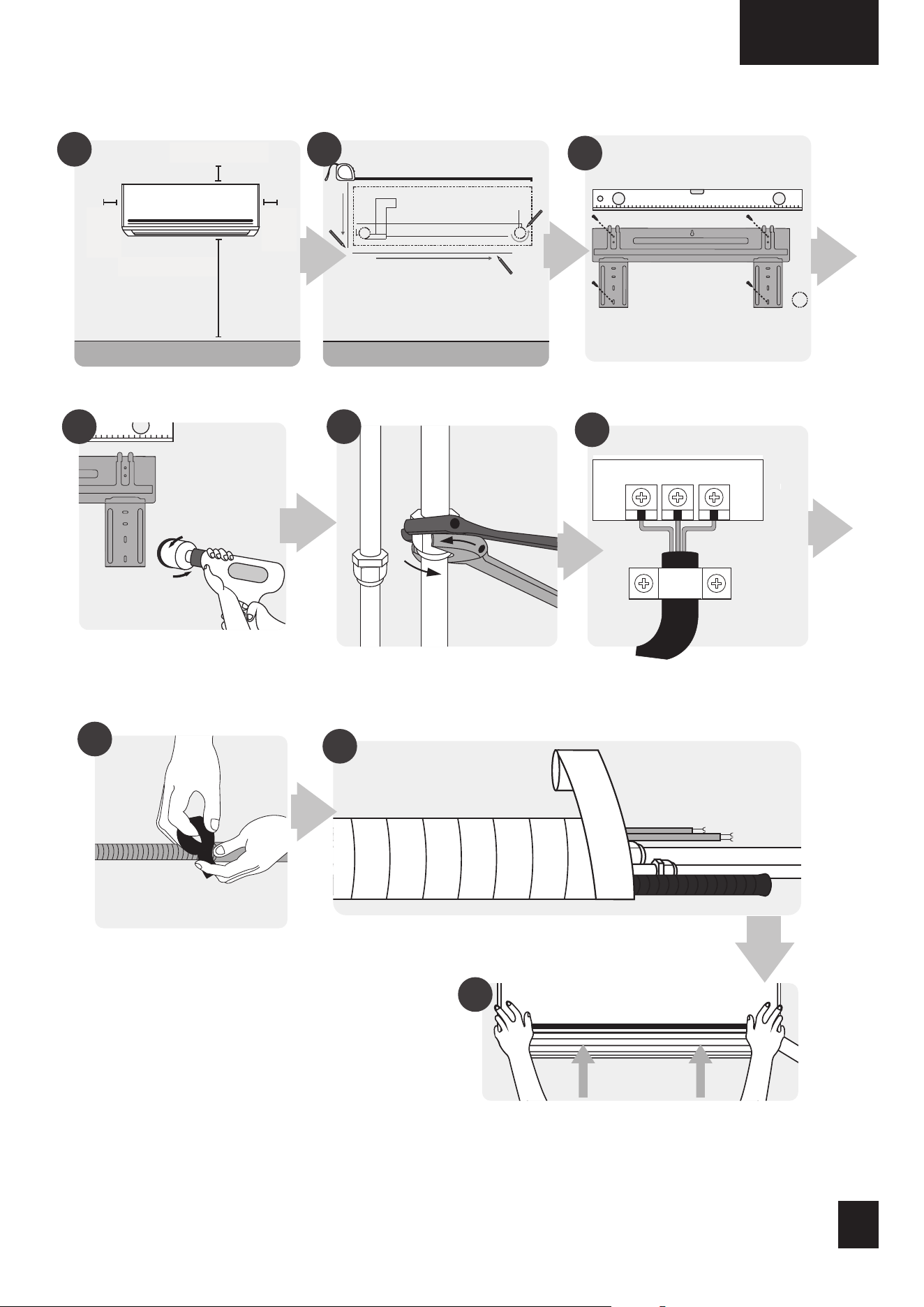

Installation Summary - Indoor Unit
1
2
3
4
12cm
(4.75in)
2.3m (90.55in)
12cm
(4.75in)
15cm (5.9in)
STEP
8
4 5
6
7
8
9
Select Installation Location
Drill Wall Hole
Prepare Drain Hose
Determine Wall Hole Position
Connect Piping
Mount Indoor Unit
Wrap Piping and Cable
(not applicable for some locations in the US)
Attach Mounting Plate
Connect Wiring
(not applicable for some locations
in the US )
12cm
(4.75in)
12cm
(4.75in)
15cm (5.9in)
2.3m (90.55in)
21
User manual/
Installation manual

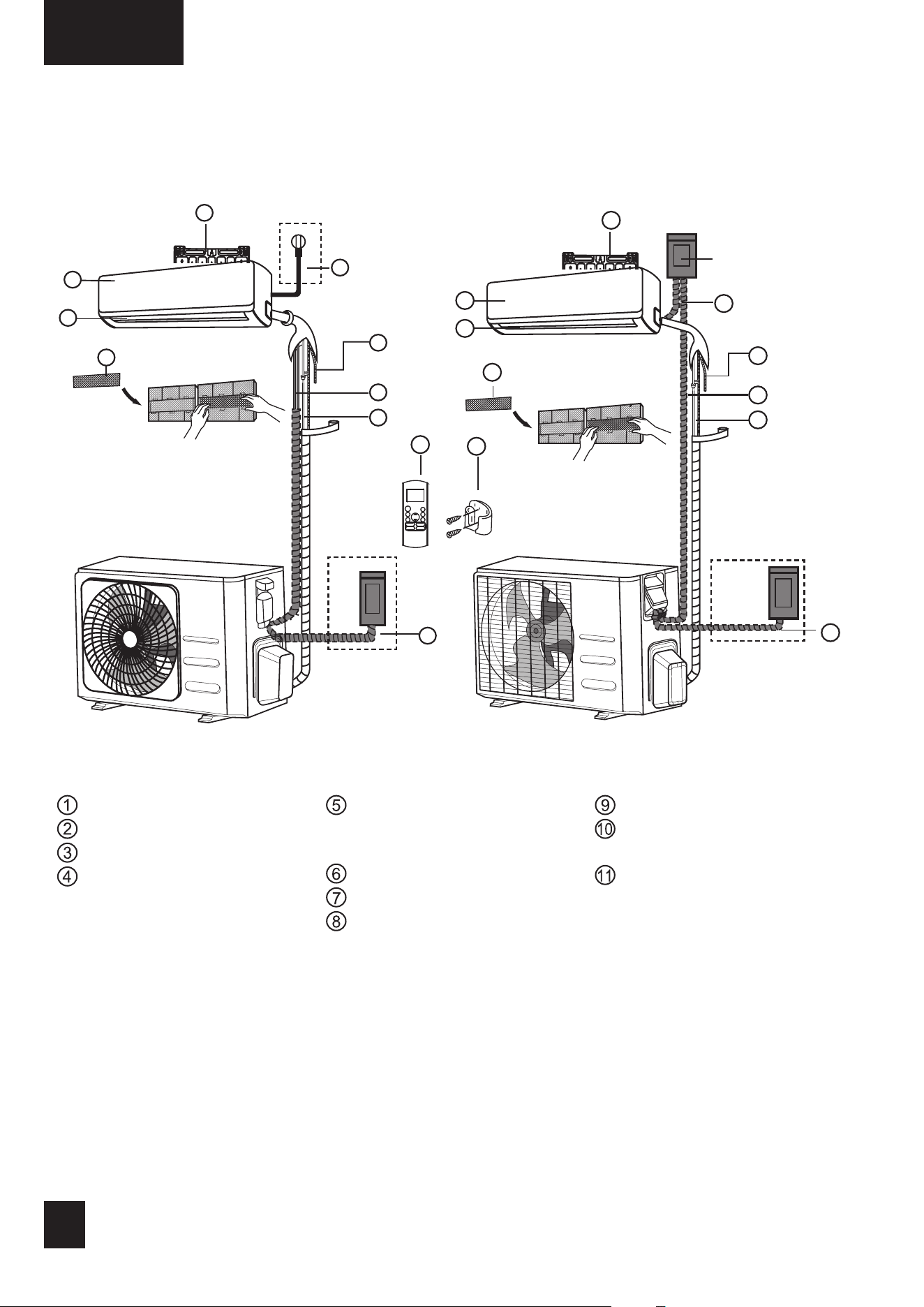

Unit Parts
NOTE: The installation must be performed in accordance with the requirement of local and
national standards. The installation may be slightly different in different areas.
(1) (2)
1
2
3
4
6
7
8
9
10
11
3
1
2
4
5
6
7
8
11
5
Air-break switch
Wall Mounting Plate
Front Panel
Power Cable (Some Units)
Louver
Functional Filter (On Back
of Main Filter - Some
Units)
Drainage Pipe
Signal Cable
Refrigerant Piping
Remote Controller
Remote controller Holder
(Some Units)
Outdoor Unit Power Cable
(Some Units)
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
22
User manual/
Installation manual
Indoor Unit Installation
Installation Instructions – Indoor unit
PRIOR TO INSTALLATION
Before installing the indoor unit, refer to
the label on the product box to make sure
that the model number of the indoor unit
matches the model number of the outdoor
unit.
Step 1: Select installation location
Before installing the indoor unit, you must
choose an appropriate location. The
following are standards that will help you
choose an appropriate location for the unit.
Proper installation locations meet the
following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb other
people
Firm and solid—the location will not
vibrate
Strong enough to support the weight of
the unit
A location at least one meter from all
other electrical devices (e.g., TV, radio,
computer)
DO NOT install unit in the following
locations:
Near any source of heat, steam, or
combustible gas
Near ammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight
NOTE ABOUT WALL HOLE:
If there is no xed refrigerant piping:
While choosing a location, be aware that
you should leave ample room for a wall hole
(see Drill wall hole for connective piping
step) for the signal cable and refrigerant
piping that connect the indoor and outdoor
units. The default position for all piping is the
right side of the indoor unit (while facing the
unit). However, the unit can accommodate
piping to both the left and right.
Refer to the following diagram to ensure
proper distance from walls and ceiling:
15cm (5.9in) or more
2.3m (90.55in) or more
12cm (4.75in)
or more
12cm (4.75in)
or more
Step 2: Attach mounting plate to wall
The mounting plate is the device on which
you will mount the indoor unit.
● Take out the mounting plate at the back of
the indoor unit.
● Secure the mounting plate to the wall
with the screws provided. Make sure that
mounting plate is at against the wall.
NOTE FOR CONCRETE OR BRICK
WALLS:
If the wall is made of brick, concrete, or
similar material, drill 5mm-diameter (0.2in-
diameter) holes in the wall and insert the
sleeve anchors provided. Then secure the
mounting plate to the wall by tightening the
screws directly into the clip anchors.
23
User manual/
Installation manual

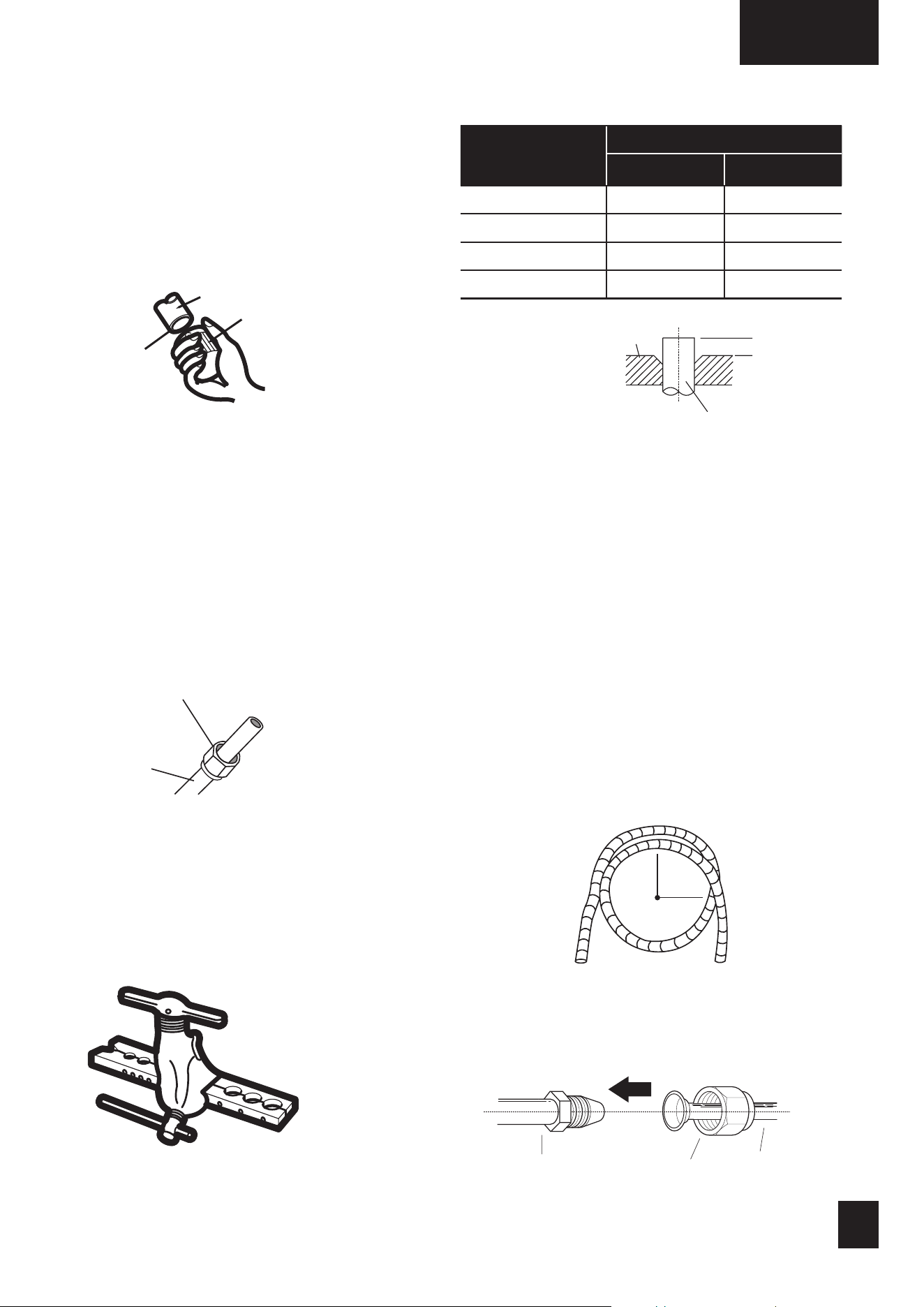

Step 3: Drill wall hole for connective
piping
1. Determine the location of the wall hole
based on the position of the mounting
plate. Refer to Mounting Plate
Dimensions.
2. Using a 65mm (2.5in) or 90mm (3.54in)
(depending on models )core drill, drill a
hole in the wall. Make sure that the hole
is drilled at a slight downward angle,
so that the outdoor end of the hole is
lower than the indoor end by about 5mm
to 7mm (0.2-0.275in). This will ensure
proper water drainage.
3. Place the protective wall cuff in the
hole. This protects the edges of the hole
and will help seal it when you nish the
installation process.
CAUTION
When drilling the wall hole, make sure to
avoid wires, plumbing, and other sensitive
components.
Wall
Indoor Outdoor
5-7mm
(0.2-0.275in)

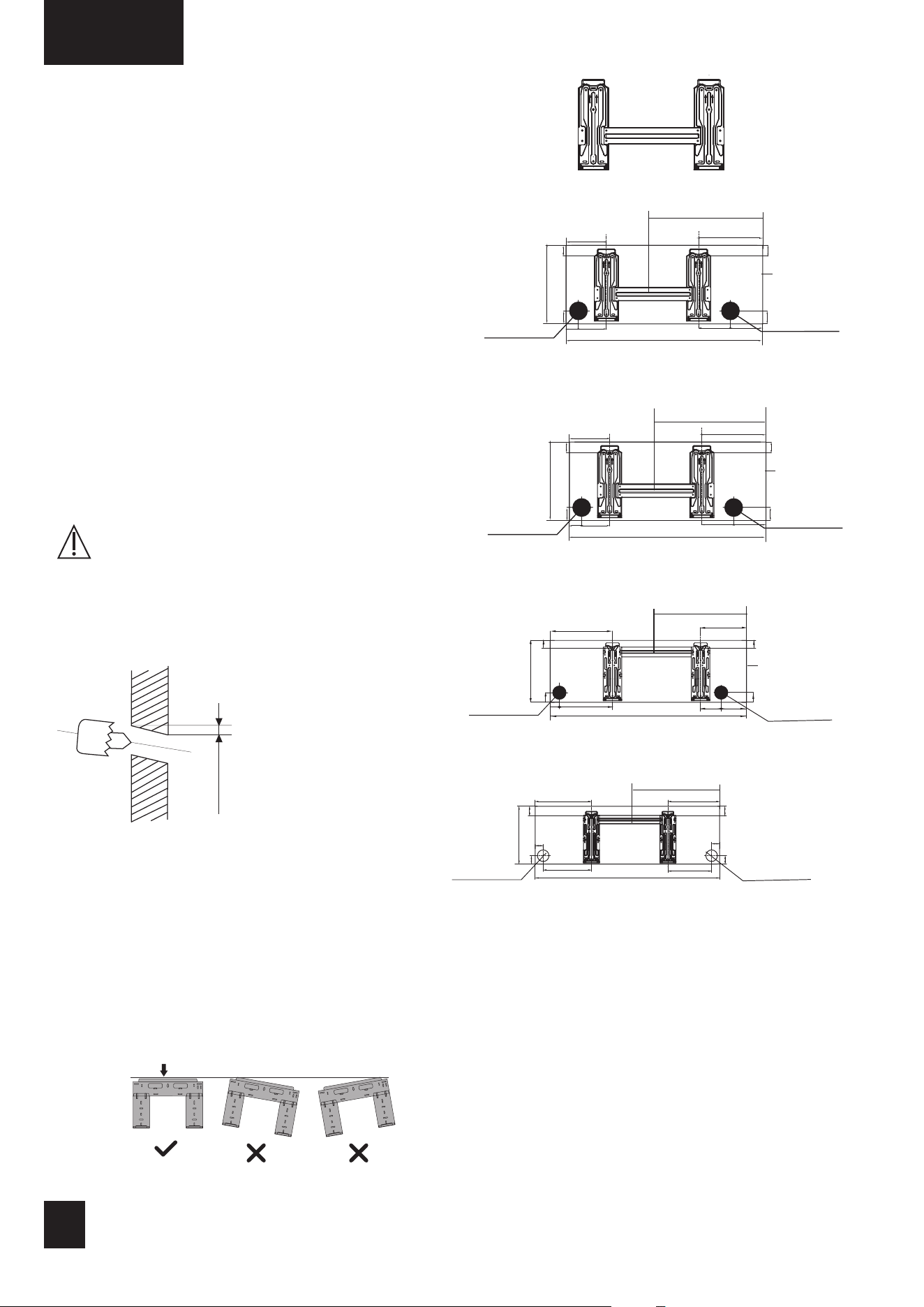

MOUNTING PLATE DIMENSIONS
Different models have different mounting
plates.
For the different customization requirements,
the shape of the mounting plate may
be slightly different. But the installation
dimensions are the same for the same size
of indoor unit.
See Type A and Type B for example:
Correct orientation of Mounting Plate
Type B
402mm (15.8in)
411mm (16.2in)
458mm (18in)
559mm (22in)
344mm (13.5in)
45mm
(1.77in)
55mm (2.16in)
47mm (1.85in)
264mm (10.4in)
219mm (8.6in)
1037.6mm (40.85in)
299mm (11.8in)
324.9mm (12.79in)
958.3mm (37.7in)
243mm (9.57in)
285mm (11.2in)
302mm (11.88in)
246mm (9.7in)
Left rear
wall hole
65mm (2.5in)
Left rear
wall hole
65mm (2.5in)
Left rear
wall hole
65mm (2.5in)
Left rear
wall hole
65mm (2.5in)
Indoor unit outline
Indoor unit outline
Indoor unit outline
Right rear
wall hole
65mm (2.5in)
Right rear
wall hole
65mm (2.5in)
Right rear
wall hole
65mm (2.5in)
Right rear
wall hole
65mm (2.5in)
Model A
Model B
Model C
Model D
148mm (5.8in)
230mm (9.1in)
805mm (31.7in)
715mm (28in)
45mm (1.7in)
45mm (1.7in)
45mm (1.7in)
130mm (5.1in)
139mm (5.5in)
143mm (5.6in)
107mm (4.2in)
107mm (4.2in)
100mm (3.9in)
103mm (4.1in)
185mm (7.3in)
240mm (9.5in)
285mm (11.2in)
285mm (11.2in)
39mm (1.5in)
36mm (1.4in)
55mm (2.16in)
47mm (1.85in)
47mm (1.85in)
47mm (1.85in)
39mm (1.5in)47mm (1.85in)
39mm (1.5in)
39mm (1.5in)
47mm (1.85in)
47mm (1.85in)
36mm (1.4in)
47mm
(1.85in)
237mm (9.3in)
NOTE: When the gas side connective pipe
is ø15.88mm (5/8in) or more, the wall hole
should be 90mm (3.54in).
24
User manual/
Installation manual
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating
sleeve attached to the back of the unit. You
must prepare the piping before passing it
through the hole in the wall.
1. Based on the position of the wall hole
relative to the mounting plate, choose the
side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole
is to the side of the indoor unit, remove
the plastic knock-out panel from that side
of the unit. This will create a slot through
which your piping can exit the unit. Use
needle nose pliers if the plastic panel is
too difcult to remove by hand.

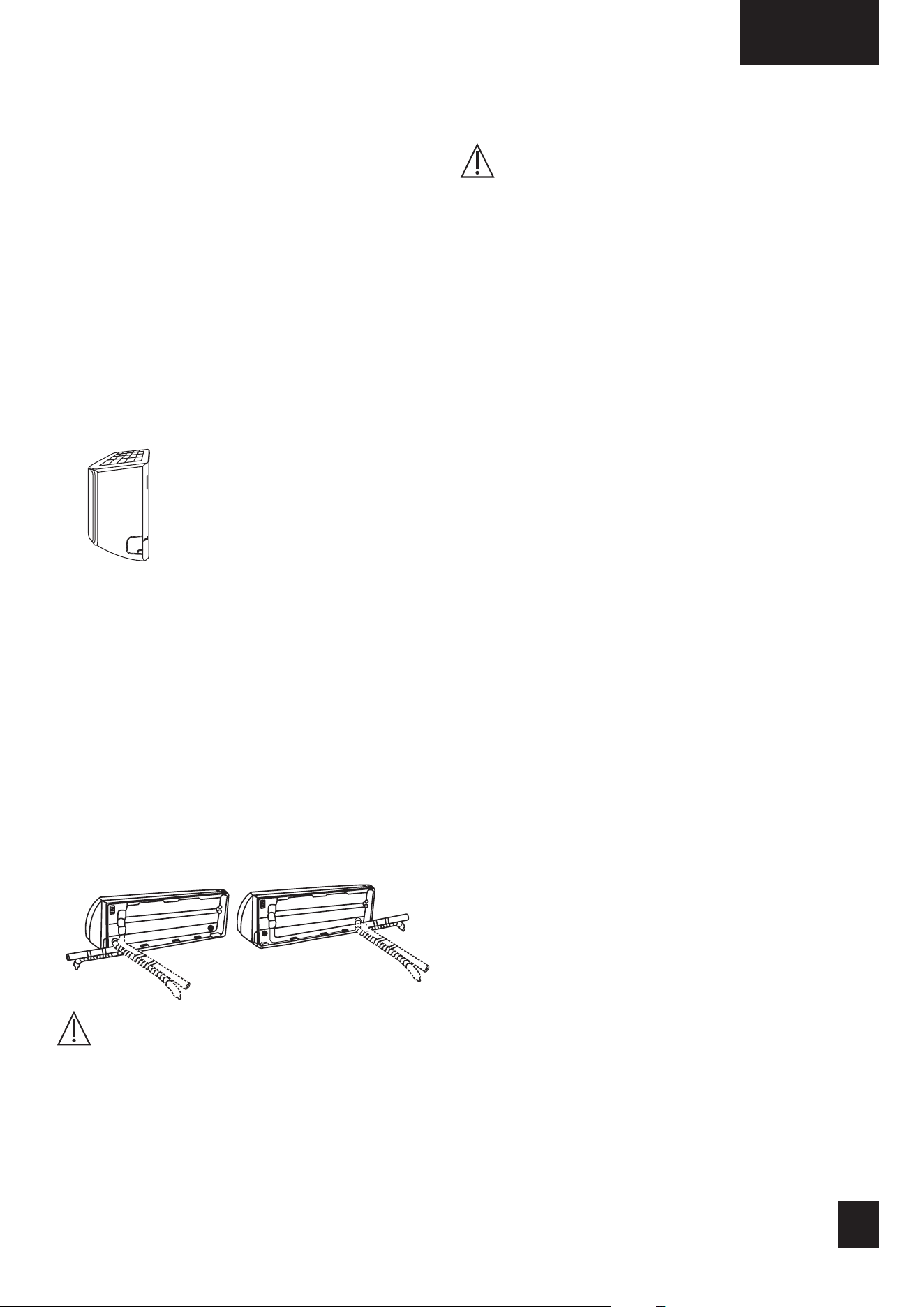

Knock-out Panel
3. If existing connective piping is already
embedded in the wall, proceed directly
to the Connect Drain Hose step. If
there is no embedded piping, connect
the indoor unit’s refrigerant piping to
the connective piping that will join the
indoor and outdoor units. Refer to the
Refrigerant Piping Connection section
of this manual for detailed instructions.
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor
unit from four different angles:Left-hand
side,Right-hand side, Left rear, Right rear.
CAUTION
Be extremely careful not to dent or damage
the piping while bending them away from
the unit. Any dents in the piping will affect
the unit’s performance.
● Tighten the nuts to the specied torques.
If overtightened, the nuts could be broken
so refrigerant may leak.
CAUTION
● Keep the piping length at a minimum
to minimize the additional refrigerant
charge due to piping extension.
(Maximum allowable piping length: 15
m (for **09/12*******) and 30 m (for
**18/24*******))
● When connecting the pipes, make sure
that surrounding objects do not interfere
with or contact them to prevent refrigerant
leakage due to physical damage.
● Make sure that the spaces where the
refrigerant pipes are installed comply with
national gas regulations.
● Be sure to perform works such as
additional refrigerant charging and pipe
welding under the conditions of good
ventilation.
● Be sure to perform welding and piping
works for mechanical connections under
the conditions that the refrigerant does not
circulate.
● When reconnecting the pipes, make sure
to perform ared-jointing newly to prevent
refrigerant leakage.
● When working on the refrigerant pipes
and the exible refrigerant connectors,
be careful that they are not damaged
physically by surrounding objects.
Step 5: Connect drain hose
By default, the drain hose is attached to the
lefthand side of unit (when you’re facing the
back of the unit). However, it can also be
attached to the right-hand side. To ensure
proper drainage, attach the drain hose on the
same side that your refrigerant piping exits the
unit. Attach drain hose extension (purchased
separately) to the end of drain hose.
● Wrap the connection point rmly with
Teon tape to ensure a good seal and to
prevent leaks.
● For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
25
User manual/
Installation manual
● Remove the air lter and pour a small
amount of water into the drain pan to make
sure that water ows from the unit smoothly.

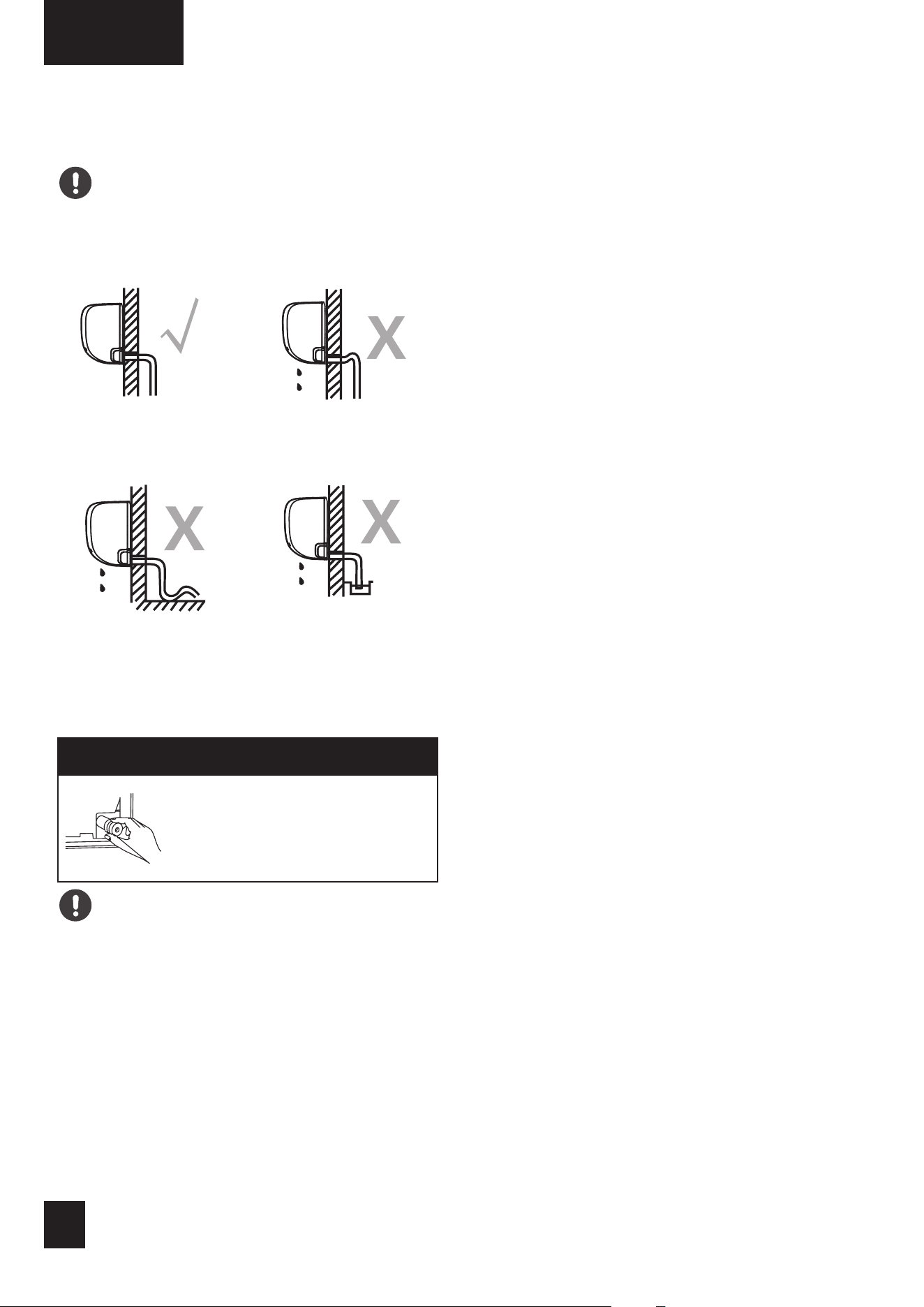

NOTE ON DRAIN HOSE
PLACEMENT
Make sure to arrange the drain hose
according to the following gures.
CORRECT
Make sure there are no kinks
or dent in drain hose to ensure
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of the
drain hose in water or in
containers that collect water.
This will prevent proper
drainage.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks
you must plug the unused
drain hole with the rubber
plug provided.
BEFORE PERFORMING ANY
ELECTRICAL WORK, READ THESE
REGULATIONS
4. All wiring must comply with local and
national electrical codes, regulations and
must be installed by a licensed electrician.
5. All electrical connections must be made
according to the Electrical Connection
Diagram located on the panels of the
indoor and outdoor units.
6. If there is a serious safety issue with the
power supply, stop work immediately.
Explain your reasoning to the client, and
refuse to install the unit until the safety
issue is properly resolved.
7. Power voltage should be within 90-
110% of rated voltage. Insufcient power
supply can cause malfunction, electrical
shock, or re.
8. If connecting power to xed wiring,
install a surge protector and main power
switch with a capacity of 1.5 times the
maximum current of the unit.
9. If connecting power to xed wiring,
a switch or circuit breaker that
disconnects all poles and has a contact
separation of at least 1/8in (3mm) must
be incorporated in the xed wiring.
The qualied technician must use an
approved circuit breaker or switch.
10. Only connect the unit to an individual
branch circuit outlet. Do not connect
another appliance to that outlet.
11. Make sure to properly ground the air
conditioner.
12. Every wire must be rmly connected.
Loose wiring can cause the terminal to
overheat, resulting in product malfunction
and possible re.
13. Do not let wires touch or rest against
refrigerant tubing, the compressor, or
any moving parts within the unit.
14. If the unit has an auxiliary electric heater,
it must be installed at least 1 meter (40in)
away from any combustible materials.
15. To avoid getting an electric shock, never
touch the electrical components soon
after the power supply has been turned
off. After turning off the power, always
wait 10 minutes or more before you
touch the electrical components.
26
User manual/
Installation manual
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO THE
SYSTEM.
Step 6: Connect signal cable
The signal cable enables communication
between the indoor and outdoor units. You
must rst choose the right cable size before
preparing it for connection.
Cable Types
● Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
● Outdoor Power Cable: H07RN-F
● Signal Cable: H07RN-F
Minimum Cross-Sectional Area of Power
and Signal Cables (For reference)
Rated Current
of Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and ≤ 6 0.75
> 6 and ≤ 10 1
> 10 and ≤ 16 1.5
> 16 and ≤ 25 2.5
> 25 and ≤ 32 4
> 32 and ≤ 40 6
● For the product that uses the R-32
refrigerant, be cautious not to generate
a spark by keeping the following
requirements:
- Do not remove the fuses with power on.
- Do not disconnect the power plug from
the wall outlet with power on.
- It is recommended to locate the outlet in
a high position. Place the cords so that
they are not tangled.
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable,
signal cable, fuse, and switch needed is
determined by the maximum current of the
unit. The maximum current is indicated on
the nameplate located on the side panel of
the unit. Refer to this nameplate to choose
the right cable, fuse, or switch.
27
User manual/
Installation manual

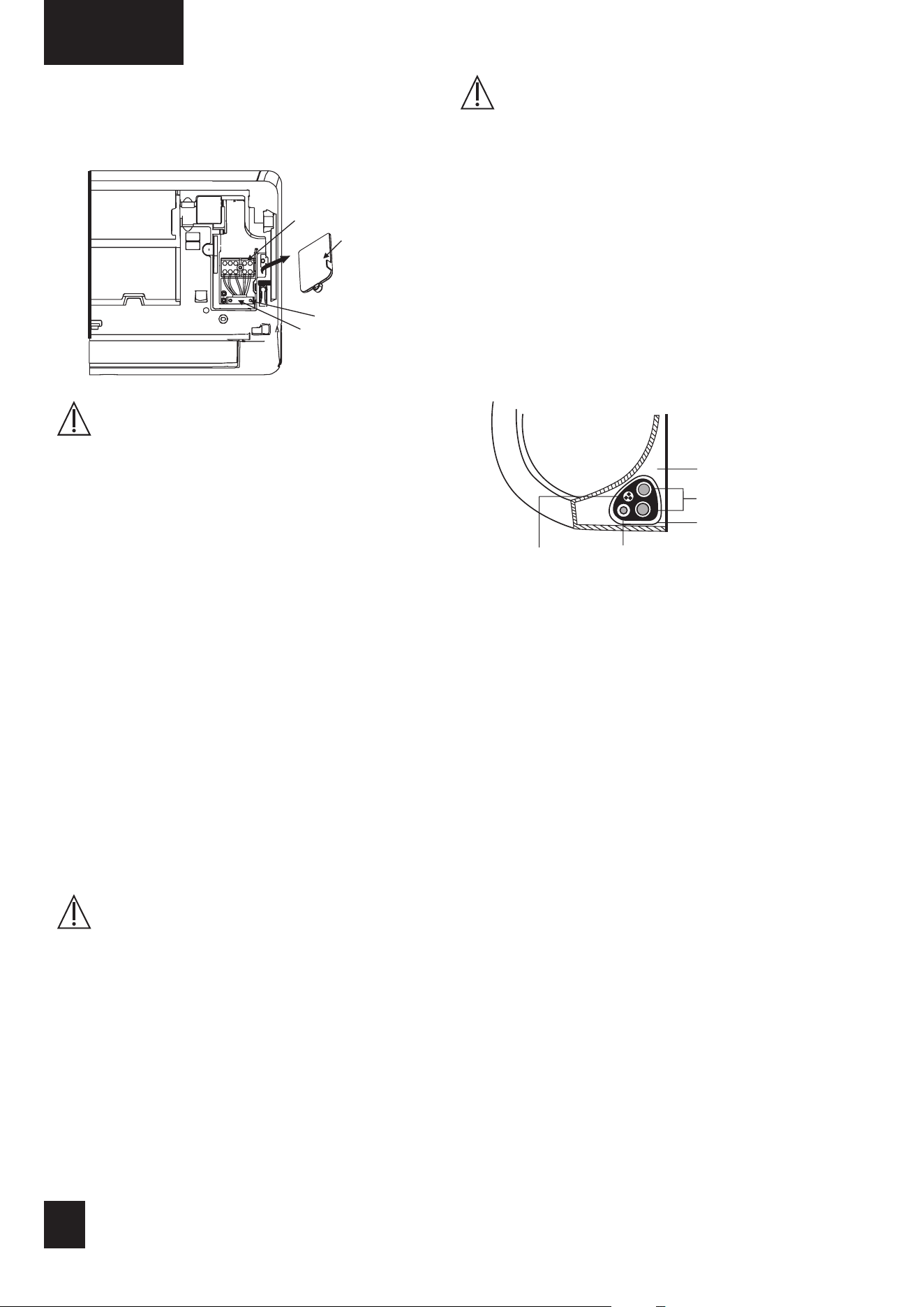

1. Open front panel of the indoor unit.
2. Using a screwdriver, open the wire box
cover on the right side of the unit. This will
reveal the terminal block.
Terminal block
Wire cover
Screw
Cable clamp
WARNING
ALL WIRING MUST BE PERFORMED
STRICTLY IN ACCORDANCE WITH
THE WIRING DIAGRAM LOCATED ON
THE BACK OF THE INDOOR UNIT’S
FRONT PANEL.
3. Unscrew the cable clamp below the
terminal block and place it to the side.
4. Facing the back of the unit, remove the
plastic panel on the bottom left-hand
side.
5. Feed the signal wire through this slot,
from the back of the unit to the front.
6. Facing the front of the unit, connect the
wire according to the indoor unit’s wiring
diagram, connect the u-lug and rmly
screw each wire to its corresponding
terminal.
CAUTION
DO NOT MIX UP LIVE AND NULL
WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
7. After checking to make sure every
connection is secure, use the cable
clamp to fasten the signal cable to the
unit. Screw the cable clamp down tightly.
8. Replace the wire cover on the front of the
unit, and the plastic panel on the back.
NOTE ABOUT WIRING
THE WIRING CONNECTION PROCESS
MAY DIFFER SLIGHTLY BETWEEN UNITS
AND REGIONS.
Step 7: Wrappiping and cables
Before passing the piping, drain hose,
and the signal cable through the wall hole,
you must bundle them together to save
space, protect them, and insulate them (Not
applicable in North America).
1. Bundle the drain hose, refrigerant pipes,
and signal cable as shown below:
Indoor Unit
Space behind
Refrigerant piping
Insulation tape
Signal wire Drain hose
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the
bottom of the bundle. Putting the drain hose
at the top of the bundle can cause the drain
pan to overow, which can lead to re or
water damage.
DO NOT INTERTWINE SIGNAL CABLE
WITH OTHER WIRES
While bundling these items together, do not
intertwine or cross the signal cable with any
other wiring.
2. Using adhesive vinyl tape, attach the
drain hose to the underside of the
refrigerant pipes.
3. Using insulation tape, wrap the signal
wire, refrigerant pipes, and drain hose
tightly together. Double-check that all
items are bundled.
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends
of the piping unwrapped. You need to
access them to test for leaks at the end of
the installation process (refer to Electrical
Checks and Leak Checks section of this
manual).
28
User manual/
Installation manual
Step 8: Mount indoor unit
If you installed new connective piping to
the outdoor unit, do the following:
1. If you have already passed the refrigerant
piping through the hole in the wall, proceed
to Step 4.
2. Otherwise, double-check that the ends
of the refrigerant pipes are sealed to
prevent dirt or foreign materials from
entering the pipes.
3. Slowly pass the wrapped bundle of
refrigerant pipes, drain hose, and signal
wire through the hole in the wall.
4. Hook the top of the indoor unit on the
upper hook of the mounting plate.
5. Check that unit is hooked rmly on
mounting by applying slight pressure to
the left and right-hand sides of the unit.
The unit should not jiggle or shift.
6. Using even pressure, push down on the
bottom half of the unit. Keep pushing
down until the unit snaps onto the hooks
along the bottom of the mounting plate.
7. Again, check that the unit is rmly
mounted by applying slight pressure to
the left and the right-hand sides of the
unit.
If refrigerant piping is already embedded
in the wall, do the following:
1. Hook the top of the indoor unit on the
upper hook of the mounting plate.
2. Use a bracket or wedge to prop up the
unit, giving you enough room to connect
the refrigerant piping, signal cable, and
drain hose.
Wedge
3. Connect drain hose and refrigerant
piping (refer efer to Refrigerant Piping
Connection section of this manual for
instructions).
4. Keep pipe connection point exposed to
perform the leak test (refer to Electrical
Checks and Leak Checks section of this
manual).
5. After the leak test, wrap the connection
point with insulation tape.
6. Remove the bracket or wedge that is
propping up the unit.
7. Using even pressure, push down on the
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along
the bottom of the mounting plate.
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the mounting
plate are smaller than the holes on the back
of the unit. If you nd that you don’t have
ample room to connect embedded pipes to
the indoor unit, the unit can be adjusted left
or right by about 30-50mm (1.25-1.95in),
depending on the model.
Move to left or right
30-50mm
(1.2-1.95in)
30-50mm
(1.2-1.95in)
29
User manual/
Installation manual

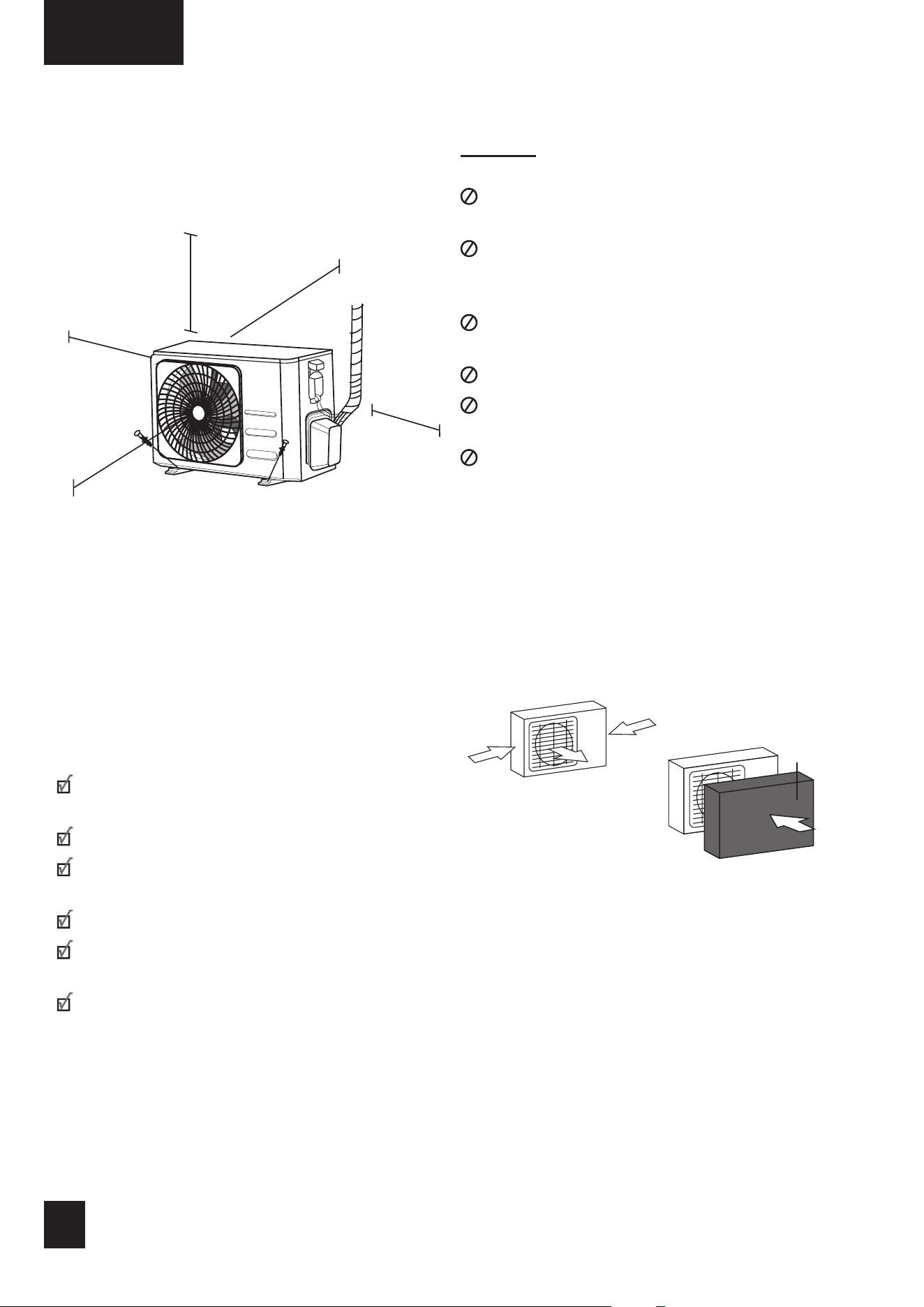

Outdoor Unit Installation
Install the unit by following local codes and
regulations , there may be differ slightly
between different regions.
60cm (24in) above
30cm (12in)
on left
30cm (12in)
from back wall
200cm (79in)
in front
60cm (24in)
on right
Installation Instructions – Outdoor unit
Step 1: Select installation location
Before installing the outdoor unit, you
must choose an appropriate location. The
following are standards that will help you
choose an appropriate location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements above.
Good air circulation and ventilation
Firm and solid—the location can support
the unit and will not vibrate
Noise from the unit will not disturb others
Protected from prolonged periods of
direct sunlight or rain
Where snowfall is anticipated, raise the
unit above the base pad to prevent ice
buildup and coil damage. Mount the unit
high enough to be above the average
accumulated area snowfall. The minimum
height must be 18 inches
DO NOT install unit in the following
locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or
where noise from the unit will disturb
others
Near animals or plants that will be
harmed by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive
amounts of salty air
SPECIAL CONSIDERATIONS FOR
EXTREME WEATHER
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90°
angle to the direction of the wind. If needed,
build a barrier in front of the unit to protect it
from extremely heavy winds.
See Figures below.
Strong wind
Strong
wind
Wind
Bafe
Strong wind
If the unit is frequently exposed to heavy
rain or snow:
Build a shelter above the unit to protect
it from the rain or snow. Be careful not to
obstruct air ow around the unit.
If the unit is frequently exposed to salty
air (seaside):
Use outdoor unit that is specially designed
to resist corrosion.
30
User manual/
Installation manual

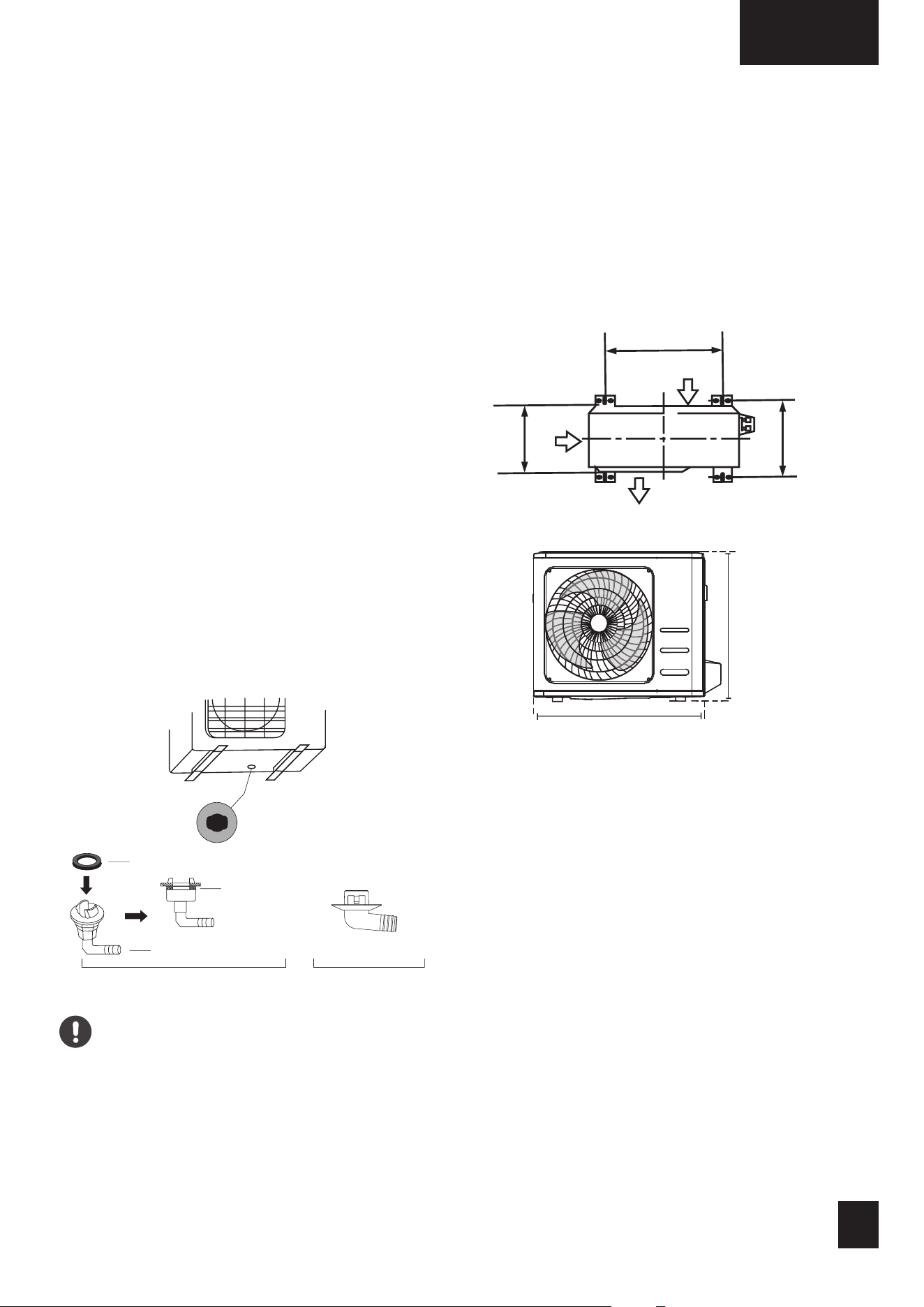

Step 2: Install drain joint (Heat pump unit
only)
Before bolting the outdoor unit in place, you
must install the drain joint at the bottom of
the unit. Note that there are two different
types of drain joints depending on the type
of outdoor unit.
If the drain joint comes with a rubber seal
(see Fig. A ), do the following:
1. Fit the rubber seal on the end of the
drain joint that will connect to the outdoor
unit.
2. Insert the drain joint into the hole in the
base pan of the unit.
3. Rotate the drain joint 90° until it clicks in
place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating mode.
If the drain joint doesn’t come with a
rubber seal (see Fig. B), do the following:
1. Insert the drain joint into the hole in the
base pan of the unit. The drain joint will
click in place.
2. Connect a drain hose extension (not
included) to the drain joint to redirect water
from the unit during heating mode.
Base pan hole of outdoor
unit
Seal
Seal
Drain joint
(A) (B)
IN COLD CLIMATES
In cold climates, make sure that the drain
hose is as vertical as possible to ensure
swift water drainage. If water drains too
slowly, it can freeze in the hose and ood
the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the
ground or to a wall-mounted bracket with
bolt (M10). Prepare the installation base of
the unit according to the dimensions below.
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor
unit sizes and the distance between their
mounting feet. Prepare the installation base
of the unit according to the dimensions
below.
A
D
B
Air inlet
Air inlet
Air outlet
H
W
31
User manual/
Installation manual
Outdoor Unit Dimensions (mm)
W × H × D
Mounting Dimensions
Distance A (mm) Distance B (mm)
If you will install the unit on the ground
or on a concrete mounting platform, do
the following:
1. Mark the positions for four expansion bolts
based on dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Place a nut on the end of each expansion
bolt.
4. Hammer expansion bolts into the pre-
drilled holes.
5. Remove the nuts from expansion bolts,
and place outdoor unit on bolts.
6. Put washer on each expansion bolt, then
replace the nuts.
7. Using a wrench, tighten each nut until
snug.
WARNING
WHEN DRILLING INTO CONCRETE,
EYE PROTECTION IS RECOMMENDED
AT ALL TIMES.
If you will install the unit on a wall-
mounted bracket, do the following:
CAUTION
Make sure that the wall is made of solid
brick, concrete, or of similarly strong
material. The wall must be able to support
at least four times the weight of the unit.
1. Mark the position of bracket holes based
on dimensions chart.
2. Pre-drill the holes for the expansion bolts.
3. Place a washer and nut on the end of
each expansion bolt.
4. Thread expansion bolts through holes in
mounting brackets, put mounting brackets
in position, and hammer expansion bolts
into the wall.
5. Check that the mounting brackets are
level.
6. Carefully lift unit and place its mounting
feet on brackets.
7. Bolt the unit rmly to the brackets.
8. If allowed, install the unit with rubber
gaskets to reduce vibrations and noise.
765 × 555
× 303 (30.12” × 21.8” × 11.9”)
452 (17.8”) 286
(11.3”)
890 × 673 × 342 (35.0” × 26.5” × 13.5”) 663 (26.1”) 354 (13.9”)
32
User manual/
Installation manual

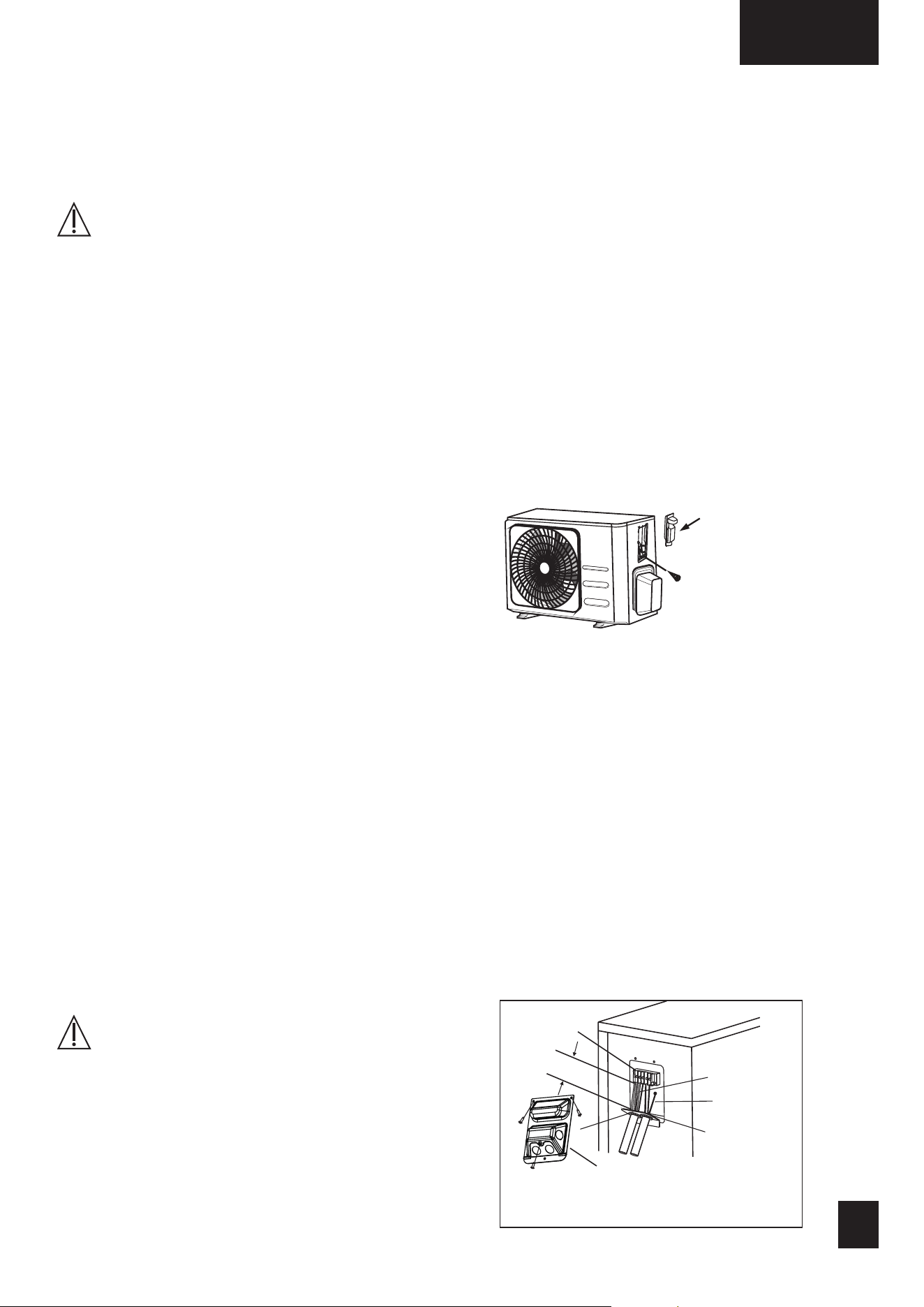

Step 4: Connect signal and power cables
The outside unit’s terminal block is protected
by an electrical wiring cover on the side of
the unit. A comprehensive wiring diagram is
printed on the inside of the wiring cover.
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO THE
SYSTEM.
1. Prepare the cable for connection:
USE THE RIGHT CABLE
● Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
● Outdoor Power Cable: H07RN-F
● Signal Cable: H07RN-F
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable,
signal cable, fuse, and switch needed is
determined by the maximum current of the
unit. The maximum current is indicated on
the nameplate located on the side panel of
the unit. Refer to this nameplate to choose
the right cable, fuse, or switch.
a. Using wire strippers, strip the rubber
jacket from both ends of cable to reveal
about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using a wire crimper, crimp u-lugs on the
ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other
wires.
WARNING
ALL WIRING WORK MUST BE
PERFORMED STRICTLY IN
ACCORDANCE WITH THE WIRING
DIAGRAM LOCATED INSIDE OF WIRE
COVER OF THE OUTDOOR UNIT.
2. Unscrew the electrical wiring cover and
remove it.
3. Unscrew the cable clamp below the
terminal block and place it to the side.
4. Connect the wire according to the wiring
diagram, and rmly screw the u-lug of
each wire to its corresponding terminal.
5. After checking to make sure every
connection is secure, loop the wires
around to prevent rain water from owing
into the terminal.
6. Using the cable clamp, fasten the cable to
the unit. Screw the cable clamp down tightly.
7. Insulate unused wires with PVC electrical
tape. Arrange them so that they do not
touch any electrical or metal parts.
8. Replace the wire cover on the side of the
unit, and screw it in place.
Cover
Screw
In North America
1. Remove the wire cover from the unit by
loosening the 3 screws.
2. Dismount caps on the conduit panel.
3. Temperarily mount the conduit tubes (not
included) on the conduit panel.
4. Properly connect both the power supply
and low voltage lines to the corresponding
terminals on the terminal block.
5. Ground the unit in accordance with local
codes.
6. Be sure to size each wire allowing
several inches longer than the required
length for wiring.
7. Use lock nuts to secure the conduit tubes.
G
Terminal block
Connecting cable
Power supply cord
Conduit panel
Wire Cover
Please select the appropriate through-hole
according to the diameter of the wire.
Over 1.57in. (40mm)
33
User manual/
Installation manual
Refrigerant Piping Connection
When connecting refrigerant piping, do not let substances or gases other than the specied
refrigerant enter the unit. The presence of other gases or substances will lower the unit’s
capacity, and can cause abnormally high pressure in the refrigeration cycle. This can cause
explosion and injury.
Note on Pipe Length
The length of refrigerant piping will affect the performance and energy efciency of the
unit. Nominal efciency is tested on units with a pipe length of 5 meters (16.5ft) to minimise
vibration & excessive noise.
Refer to the table below for specications on the maximum length and drop height of piping.
Maximum Length and Drop Height of Refrigerant Piping per Unit Model
Model Capacity (BTU/h) Max. Length (m) Max. Drop Height (m)
R32 Inverter Split Air
Conditioner
< 15,000 25 (82ft) 10 (33ft)
≥ 15,000 and < 24,000 30 (98.5ft) 20 (66ft)
≥ 24,000 and < 36,000 50 (164ft) 25 (82ft)
Connection Instructions – Refrigerant Piping
Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and are them properly. This will
ensure efcient operation and minimize the
need for future maintenance.
1. Measure the distance between the indoor
and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
3. Make sure that the pipe is cut at a
perfect 90° angle.
90°
Oblique Rough Warped
DO NOT DEFORM PIPE WHILE
CUTTING
Be extra careful not to damage, dent, or
deform the pipe while cutting. This will
drastically reduce the heating efciency of the
unit.
34
User manual/
Installation manual
Step 2: Remove burrs
Burrs can affect the air-tight seal of
refrigerant piping connection. They must be
completely removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool,
remove all burrs from the cut section of
the pipe.
Pipe
Reamer
Point down
Step 3: Flare pipe ends
Proper aring is essential to achieve an
airtight seal.
1. After removing burrs from cut pipe,
seal the ends with PVC tape to prevent
foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place are nuts on both ends of pipe.
Make sure they are facing in the right
direction, because you can’t put them on
or change their direction after aring.
Flare nut
Copper pipe
4. Remove PVC tape from ends of pipe
when ready to perform aring work.
5. Clamp are form on the end of the pipe.
The end of the pipe must extend beyond
the edge of the are form in accordance
with the dimensions shown in the table
below.
PIPING EXTENSION BEYOND FLARE
FORM
Outer Diameter
of Pipe (mm)
A (mm)
Min. Max.
ø6.35 (ø0.25”) 0.7 (0.0275”)
1.3 (0.05”)
ø9.52 (ø0.375”) 1.0 (0.04”) 1.6 (0.063”)
ø12.7 (ø0.5”) 1.0 (0.04”) 1.8 (0.07”)
ø15.88 (ø0.63”) 2.0 (0.078”) 2.2 (0.086”)
Flare form
Pipe
6. Place aring tool onto the form.
7. Turn the handle of the aring tool
clockwise until the pipe is fully ared.
8. Remove the aring tool and are form,
then inspect the end of the pipe for
cracks and even aring.
Step 4: Connect pipes
When connecting refrigerant pipes, be
careful not to use excessive torque or to
deform the piping in any way. You should
rst connect the low-pressure pipe, then the
high-pressure pipe.
MINIMUM BEND RADIUS
When bending connective refrigerant piping,
the minimum bending radius is 10cm.
Radius
≥10cm (4in)
Instructions for Connecting Piping to
Indoor Unit
1. Align the center of the two pipes that you
will connect.
Indoor unit tubing Flare nut Pipe
35

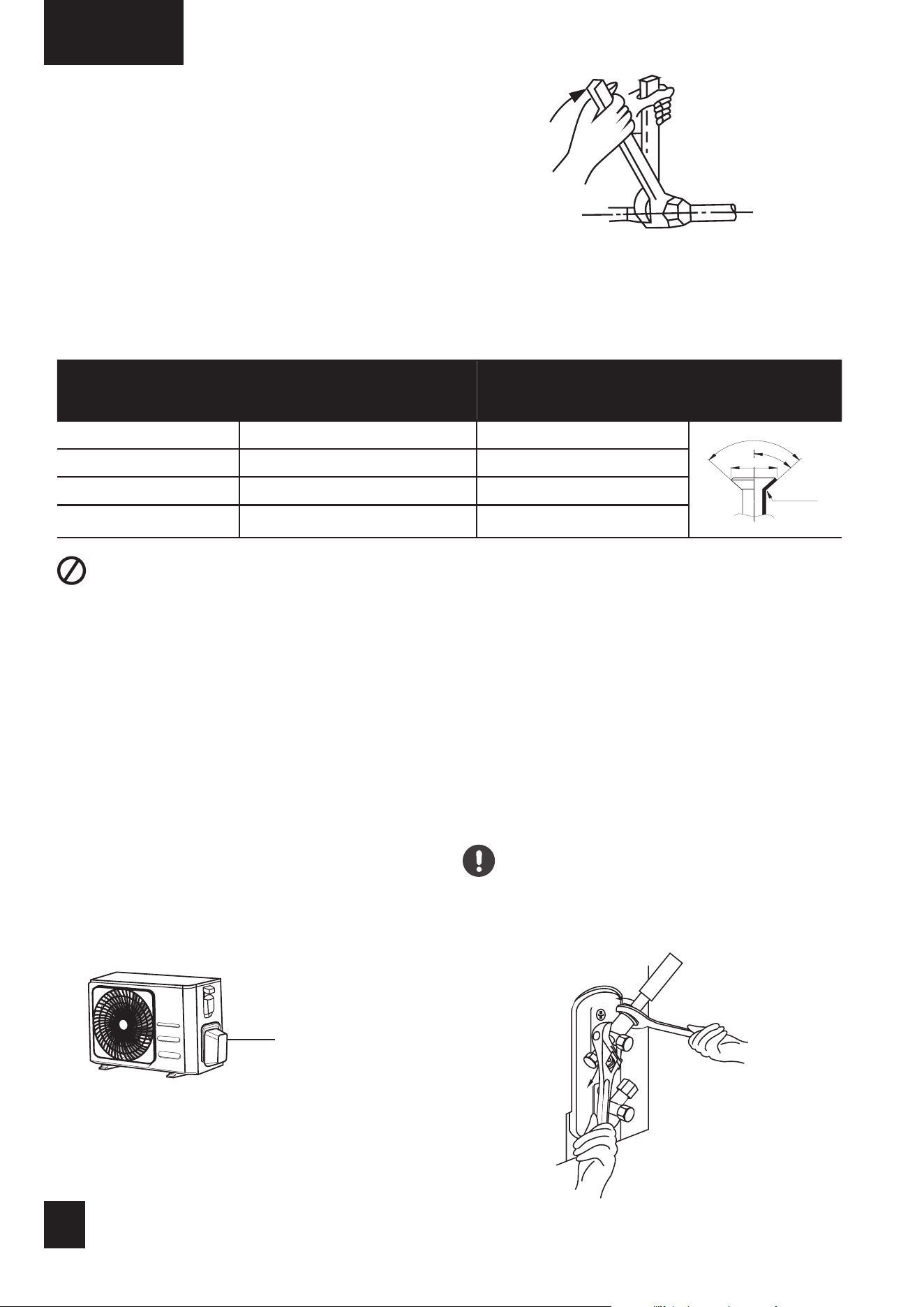

User manual/
Installation manual
2. Tighten the are nut as tightly as
possible by hand.
3. Using a spanner, grip the nut on the unit
tubing.
4. While rmly gripping the nut on the unit
tubing, use a torque wrench to tighten
the are nut according to the torque
values in the Torque Requirements
table below. Loosen the aring nut
slightly, then tighten again.
1. Unscrew the cover from the packed
valve on the side of the outdoor unit.
2. Remove protective caps from ends of
valves.
3. Align ared pipe end with each valve,
and tighten the are nut as tightly as
possible by hand.
4. Using a spanner, grip the body of the
valve. Do not grip the nut that seals the
service valve.
Valve cover
5. While rmly gripping the body of the
valve, use a torque wrench to tighten the
are nut according to the correct torque
values.
6. Loosen the aring nut slightly, then
tighten again.
7. Repeat Steps 3 to 6 for the remaining
pipe.
USE SPANNER TO GRIP MAIN
BODY OF VALVE
Torque from tightening the are nut can
snap off other parts of valve.
TORQUE REQUIREMENTS
Outer Diameter of
Pipe (mm)
Tightening Torque
(N•m)
Flare dimension (B)
(mm)
Flare shape
ø6.35 (ø0.25”) 18~20 (180~200kgf.cm) 8.4~8.7 (0.33~0.34”)
R0.4~0.8
45°±2
90°±4
B
ø9.52 (ø0.375”) 32~39 (320~390kgf.cm) 13.2~13.5 (0.52~0.53”)
ø12.7 (ø0.5”) 49~59 (490~590kgf.cm) 16.2~16.5 (0.64~0.65”)
ø15.88 (ø0.63”) 57~71 (570~710kgf.cm) 19.2~19.7 (0.76~0.78”)
DO NOT USE EXCESSIVE TORQUE
Excessive force can break the nut or damage the refrigerant piping. You must not exceed
torque requirements shown in the table above.
Instructions for Connecting Piping to Outdoor Unit
36
User manual/
Installation manual
Air Evacuation
Preparations and Precautions
Air and foreign matter in the refrigerant
circuit can cause abnormal rises in pressure,
which can damage the air conditioner,
reduce its efciency, and cause injury. Use
a vacuum pump and manifold gauge to
evacuate the refrigerant circuit, removing any
non-condensable gas and moisture from the
system.
Evacuation should be performed upon initial
installation and when unit is relocated.
BEFORE PERFORMING EVACUATION
Check to make sure the connective pipes
between the indoor and outdoor units are
connected properly.
Check to make sure all wiring is
connected properly.

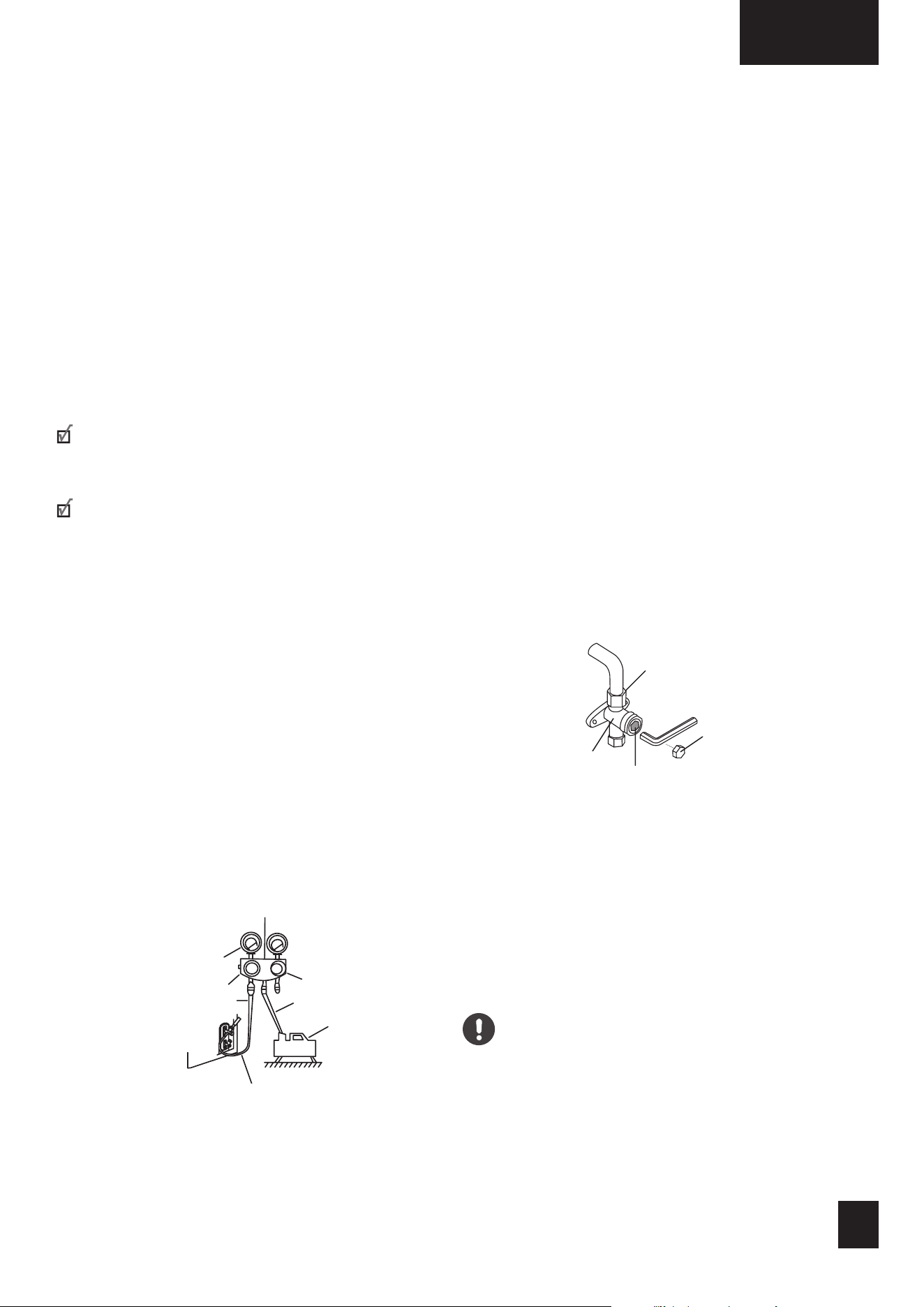

Evacuation Instructions
1. Connect the charge hose of the manifold
gauge to service port on the outdoor
unit’s low pressure valve.
2. Connect another charge hose from the
manifold gauge to the vacuum pump.
3. Open the Low Pressure side of the
manifold gauge. Keep the High Pressure
side closed.
4. Turn on the vacuum pump to evacuate
the system.
5. Run the vacuum for at least 15 minutes,
or until the Compound Meter reads
-76cmHG (-10
5
Pa).
Manifold Gauge
Compound gauge
-76cmHg
Low pressure valve
Pressure hose/
High pressure valve
Charge hose
Vacuum pump
Charge hose
Low pressure valve
6. Close the Low Pressure side of the
manifold gauge, and turn off the vacuum
pump.
7. Wait for 5 minutes, then check that there
has been no change in system pressure.
8. If there is a change in system pressure,
refer to Gas Leak Check section for
information on how to check for leaks. If
there is no change in system pressure,
unscrew the cap from the packed valve
(high pressure valve).
9. Insert hexagonal wrench into the packed
valve (high pressure valve) and open
the valve by turning the wrench in a 1/4
counterclockwise turn. Listen for gas
to exit the system, then close the valve
after 5 seconds.
10. Watch the Pressure Gauge for one
minute to make sure that there is no
change in pressure. The Pressure
Gauge should read slightly higher than
atmospheric pressure.
11. Remove the charge hose from the
service port.
Flare nut
valve stem
valve body
Cap
12. Using hexagonal wrench, fully open
both the high pressure and low pressure
valves.
13. Tighten valve caps on all three valves
(service port, high pressure, low
pressure) by hand. You may tighten it
further using a torque wrench if needed.
OPEN VALVE STEMS GENTLY
When opening valve stems, turn the
hexagonal wrench until it hits against the
stopper. Do not try to force the valve to open
further.
37
User manual/
Installation manual
Note on Adding Refrigerant
Some systems require additional charging depending on pipe lengths. The standard pipe
length is 5m (16’). The refrigerant should be charged from the service port on the outdoor
unit’s low pressure valve. The additional refrigerant to be charged can be calculated using
the following formula:
ADDITIONAL REFRIGERANT PER PIPE LENGTH
Connective Pipe
Length (m)
Air Purging
Method
Additional Refrigerant
≤ Standard pipe
length
Vacuum Pump N/A
> Standard pipe
length
Vacuum Pump
Liquid Side: ø6.35 (ø0.25”)
R32:
(Pipe length – standard length) × 12g/m
(Pipe length – standard length) × 0.13oZ/ft
Liquid Side: ø9.52 (ø0.375”)
R32:
(Pipe length – standard length) × 24g/m
(Pipe length – standard length) × 0.26oZ/ft
CAUTION
DO NOT mix refrigerant types.
Precautions on adding the R-32 refrigerant
In addition to the conventional charging procedure, the following requirements shall be kept.
● Make sure that contamination by other refrigerants does not occur for charging.
● To minimize the amount of refrigerant, keep the hoses and lines as short as possible.
● The cylinders shall be kept upright.
● Make sure that the refrigeration system is earthed before charging.
● Label the system after charging, if necessary.
● Extreme care is required not to overcharge the system.
● Before recharging, the pressure shall be checked with nitrogen blowing.
● After charging, check for leakage before commissioning.
● Be sure to check for leakage before leaving the work area.

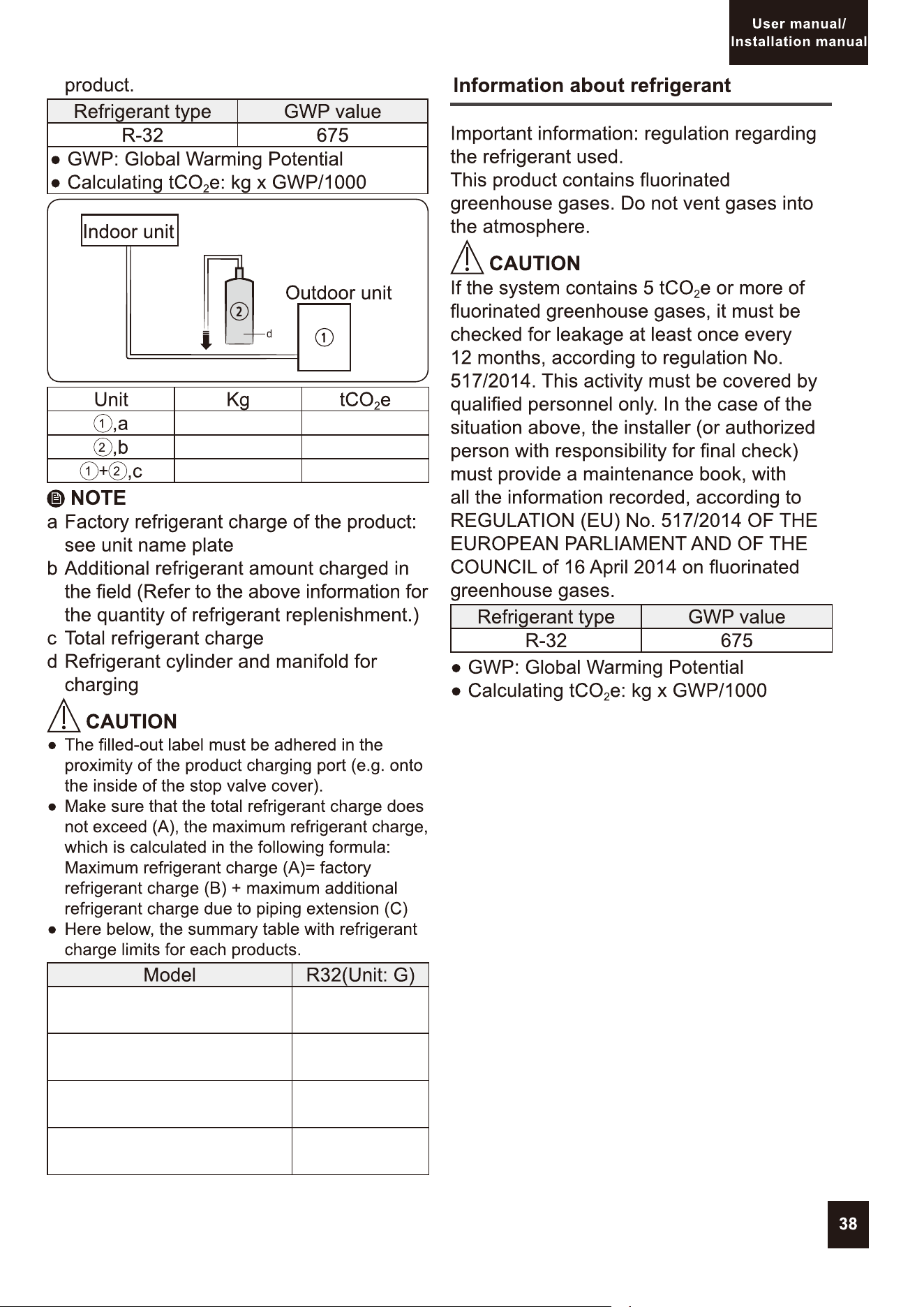

Important information: regulation regarding the refrigerant used
This product contains uorinated greenhouse gases. Do not vent gases into the
atmosphere.
CAUTION
Inform user if the system contains 5 tCO
2
e or more of uorinated greenhouse gases. In this
case, it must be checked for leakage at least once every 12 months, according to regulation
No. 517/2014. This activity must be covered by qualied personnel only. In the case of the
situation above, the installer (or authorized person with responsibility for nal check) must
provide a maintenance book, with all the information recorded, according to REGULATION
(EU) No. 517/2014 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16 April
2014 on uorinated greenhouse gases.
1 Please ll in the following with indelible ink on the refrigerant charge label supplied with
this product and on this manual.
●
1
the factory refrigerant charge of the product,
●
2
the additional refrigerant amount charged in the eld and
●
1
+
2
the total refrigerant charge. on the refrigerant charge label supplied with the
AR09AXHQAWKNSA
AR12AXHQAWKNSA
AR18AXHQAWKNSA
AR24AXHQAWKNSA
1300
1200
850
800
39
User manual/
Installation manual
Electrical and Gas Leak Checks
Before Test Run
Only perform test run after you have
completed the following steps:
● Electrical Safety Checks – Conrm that
the unit’s electrical system is safe and
operating properly
● Gas Leak Checks – Check all are nut
connections and conrm that the system
is not leaking
● Conrm that gas and liquid (high and low
pressure) valves are fully open
Electrical Safety Checks
After installation, conrm that all electrical
wiring is installed in accordance with local
and national regulations, and according to
the Installation Manual.
BEFORE TEST RUN
Check Grounding Work
Measure grounding resistance by visual
detection and with grounding resistance
tester. Grounding resistance must be less
than 0.1Ω.
Note: This may not be required for some
locations in the US.
DURING TEST RUN
Check for Electrical Leakage
During the Test Run, use an electroprobe
and multimeter to perform a comprehensive
electrical leakage test.
If electrical leakage is detected, turn off
the unit immediately and call a licensed
electrician to nd and resolve the cause of
the leakage.
Note: This may not be required for some
locations in the US.
WARNING – RISK OF ELECTRIC
SHOCK
ALL WIRING MUST COMPLY WITH
LOCAL AND NATIONAL ELECTRICAL
CODES, AND MUST BE INSTALLED BY A
LICENSED ELECTRICIAN.
Gas Leak Checks
There are two different methods to check for
gas leaks.
Soap and Water Method
Using a soft brush, apply soapy water or
liquid detergent to all pipe connection points
on the indoor unit and outdoor unit. The
presence of bubbles indicates a leak.
Leak Detector Method
f using leak detector, refer to the device’s
operation manual for proper usage
instructions.
AFTER PERFORMING GAS LEAK
CHECKS
After conrming that the all pipe connection
points DO NOT leak, replace the valve cover
on the outside unit.
A
B
C
D
Check-point of indoor unit
Check-point of outdoor unit
A: Low pressure stop valve
B: High pressure stop valve
C& D: Indoor unit are nuts
40

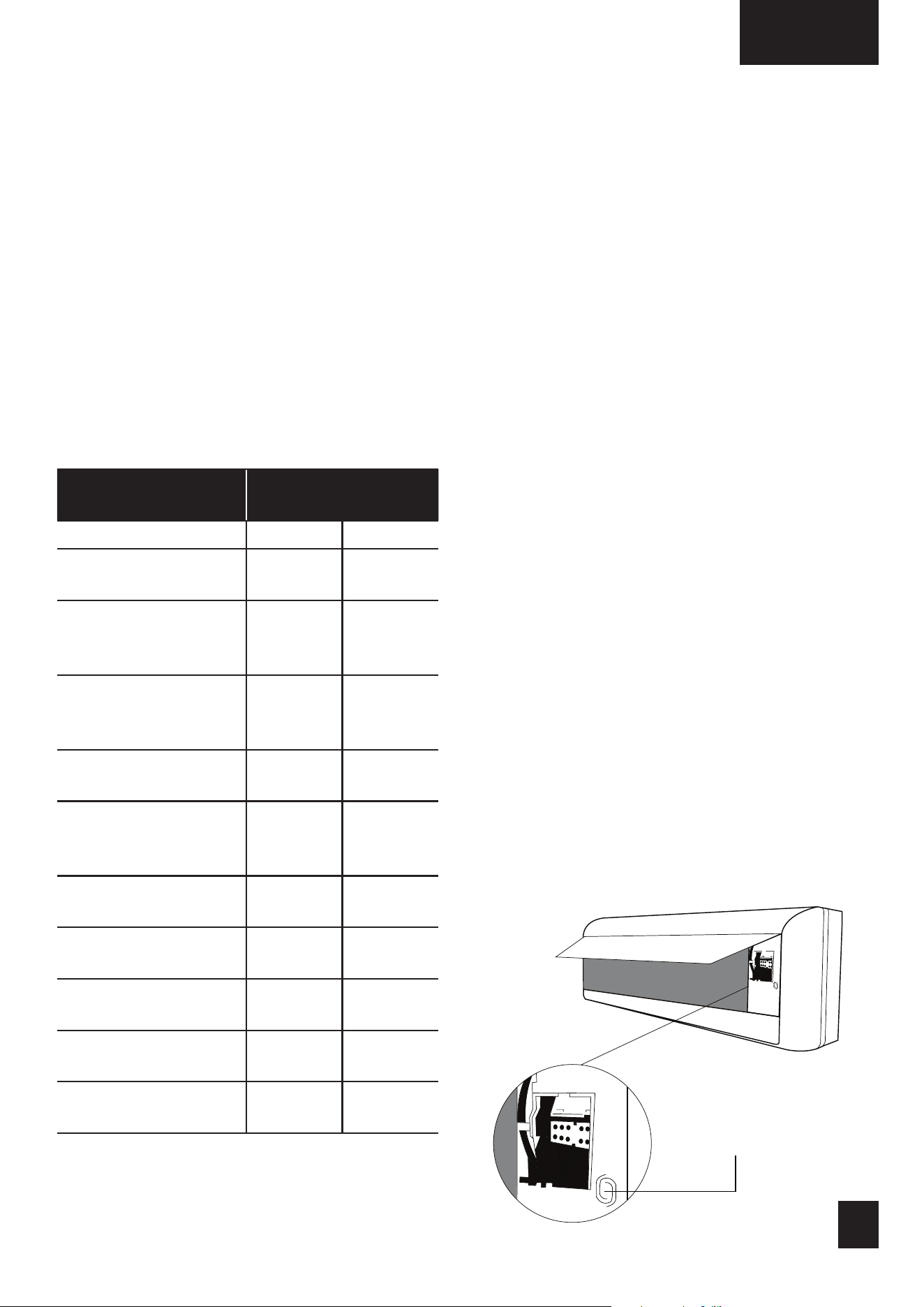

User manual/
Installation manual
Test Run
Test Run Instructions
You should perform the Test Run for at least
30 minutes.
1. Connect power to the unit.
2. Press the ON/OFF button on the remote
controller to turn it on.
3. Press the MODE button to scroll through
the following functions, one at a time:
● COOL – Select lowest possible
temperature
● HEAT – Select highest possible
temperature
4. Let each function run for 5 minutes, and
perform the following checks:
List of Checks to
Perform
PASS/FAIL
No electrical leakage
Unit is properly
grounded
All electrical
terminals properly
covered
Indoor and outdoor
units are solidly
installed
All pipe connection
points do not leak
Outdoor
(2):
Indoor
(2):
Water drains
properly from drain
hose
All piping is properly
insulated
Unit performs COOL
function properly
Unit performs HEAT
function properly
Indoor unit louvers
rotate properly
Indoor unit responds
to remote controller
DOUBLE-CHECK PIPE CONNECTIONS
During operation, the pressure of the
refrigerant circuit will increase. This may
reveal leaks that were not present during
your initial leak check. Take time during the
Test Run to double-check that all refrigerant
pipe connection points do not have leaks.
Refer to Gas Leak Check section for
instructions.
5. After the Test Run is successfully
completed, and you conrm that all
checks points in List of Checks to
Perform have PASSED, do the following:
a. Using remote control, return unit to
normal operating temperature.
b. Using insulation tape, wrap the indoor
refrigerant pipe connections that you
left uncovered during the indoor unit
installation process.
IF AMBIENT TEMPERATURE IS BELOW
17°C (62°F)
You can’t use the remote controller to turn
on the COOL function when the ambient
temperature is below 17°C. In this instance,
you can use the MANUAL CONTROL
button to test the COOL function.
1. Lift the front panel of the indoor unit, and
raise it until it clicks in place.
2. The MANUAL CONTROL button is
located on the right-hand side of the
unit. Press it 2 times to select the COOL
function.
3. Perform Test Run as normal.
Manual control button
41
42
Remote Manual
AIR CONDITIONER
REMOTE CONTROLLER ILLUSTRATION
Thank you very much for purchasing our air conditioner.
Please read this owner’s manual carefully before using
your air conditioner. Make sure to save this manual for
future reference.
43
Remote Manual
CONTENTS
Remote controller Specications ................................................. 44
Operation buttons .......................................................................... 45
Indicators on LCD .......................................................................... 48
How to use the buttons ................................................................. 49
Auto operation ............................................................................... 49
Cooling/Heating/Fan operation ..................................................... 49
Dehumidifying operation ............................................................... 50
Timer operation .............................................................................. 51
Handling the remote controller ..................................................... 55
44

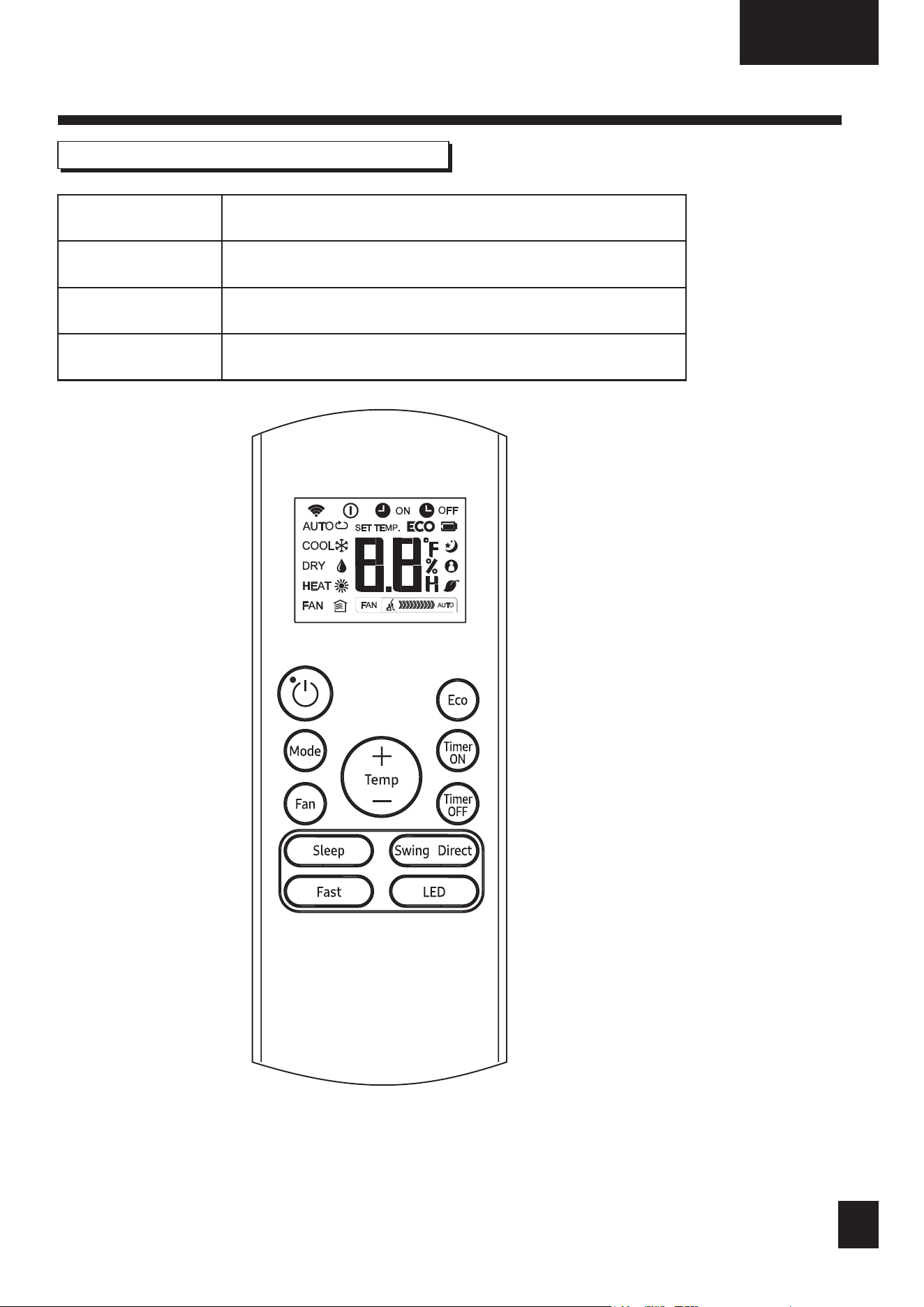

Remote Manual
Remote Controller Specications
Model
RG57B1/BGE
Rated Voltage 3.0V (Dry batteries R03/LR03×2)
Signal Receiving
Range
8m
Environment -5ºC~60ºC
RG57B1/BGE
45
Remote Manual

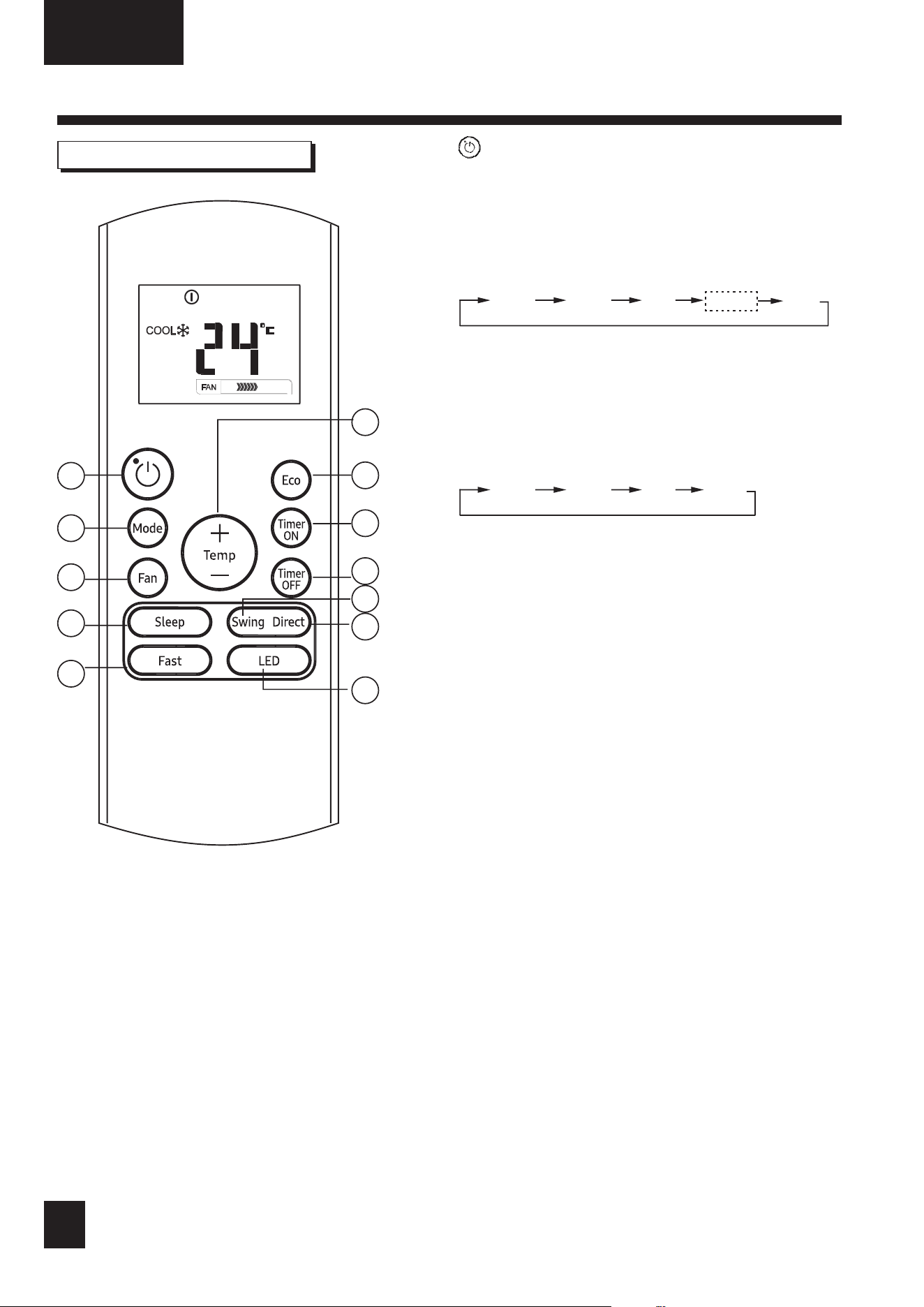

Operation of buttons
a
Button
This button turns the air conditioner ON and
OFF.
b
MODE Button
Press this button to modify the air
conditioner mode in a sequence of following:
AUTO COOL
HEAT
DRY FAN
NOTE: Please do not select HEAT mode if
the machine you purchased is cooling only
type. Heat mode is not supported by the
cooling only appliance.
c
FAN Button
Used to select the fan speed in four steps:
AUTO LOW MED HIGH
NOTE: You can not switch the fan speed in
AUTO or DRY mode.
d
SLEEP Button
● Active/Disable sleep function. It can maintain
the most comfortable temperature and save
energy. This function is available on COOL,
HEAT or AUTO mode only.
● For the detail, see “sleep operation” in
“USER’S MANUAL”.
NOTE: While the unit is running under
SLEEP mode, it would be cancelled if MODE,
FAN SPEED or ON/OFF button is pressed.
e
FAST Button
Active/Disable Turbo function. Fast function
enables the unit to reach the preset
temperature at cooling or heating operation
in the shortest time (if the indoor unit does
not support this function, there is no
corresponding operation happened when
pressing this button.)
f
SELF CLEAN Button
(applicable to RG57A7/BGEF)
Active/Disable Self Clean function
1
2
4
3
8
9
7
5
10
12
11
14
RG57B1/BGE
46

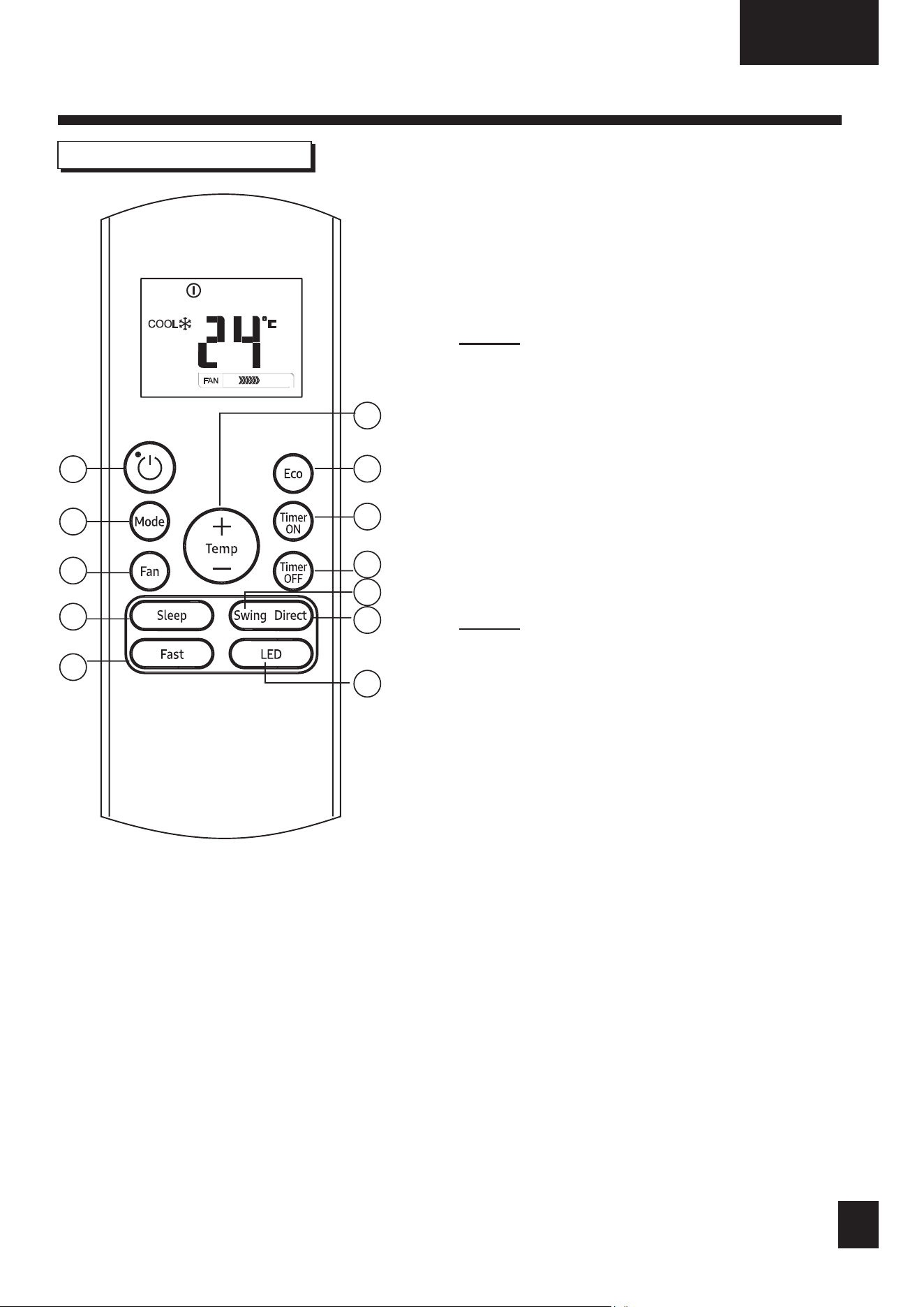

Remote Manual
Operation of buttons
1
2
4
3
8
9
7
5
10
12
11
14
RG57B1/BGE
g
UP Button ( + )
Push this button to increase the indoor
temperature setting in 1ºC increments to
30ºC.
DOWN Button ( - )
Push this button to decrease the indoor
temperature setting in 1ºC increments to
17ºC.
NOTE:
Temperature contol is not available
in Fan mode.
h
ECO Button
Used to enter the energy efcient mode.
Under cooling mode, press this button, the
remote controller will adjust the temperature
automatically to 24ºC, fan speed of Auto to
save energy (but only if the set temperature
is less than 24ºC). If the set temperature
is between 24ºC and 30ºC, press the ECO
button, the fan speed will change to Auto,
the set temperature will remain unchanged.
NOTE:
● Pressing the TURBO and SLEEP button,
modifying the mode or adjusting the set
temperature to less than 24ºC will stop ECO
operation.
● Under ECO operation, the set temperature
should be 24ºC or more. it may result in
insufcient cooling. If you feel uncomfortable,
just press the ECO button again to stop it.
i
TIMER ON Button
Press this button to initiate the auto-on time
sequence. Each press will increase the auto-
timed setting in 30 minutes increments. When
the setting time displays 10.0, each press will
increase the autotimed setting 60 minutes
increments. To cancel the auto-timed program,
simply adjust the auto-on time to 0.0.
j
TIMER OFF Button
Press this button to initiate the auto-off time
sequence. Each press will increase the auto
-timed setting in 30 minutes increments. When
the setting time displays 10.0, each press will
increase the auto-timed setting 60 minutes
increments. To cancel the autotimed program,
simply adjust the auto-off time to 0.0
47

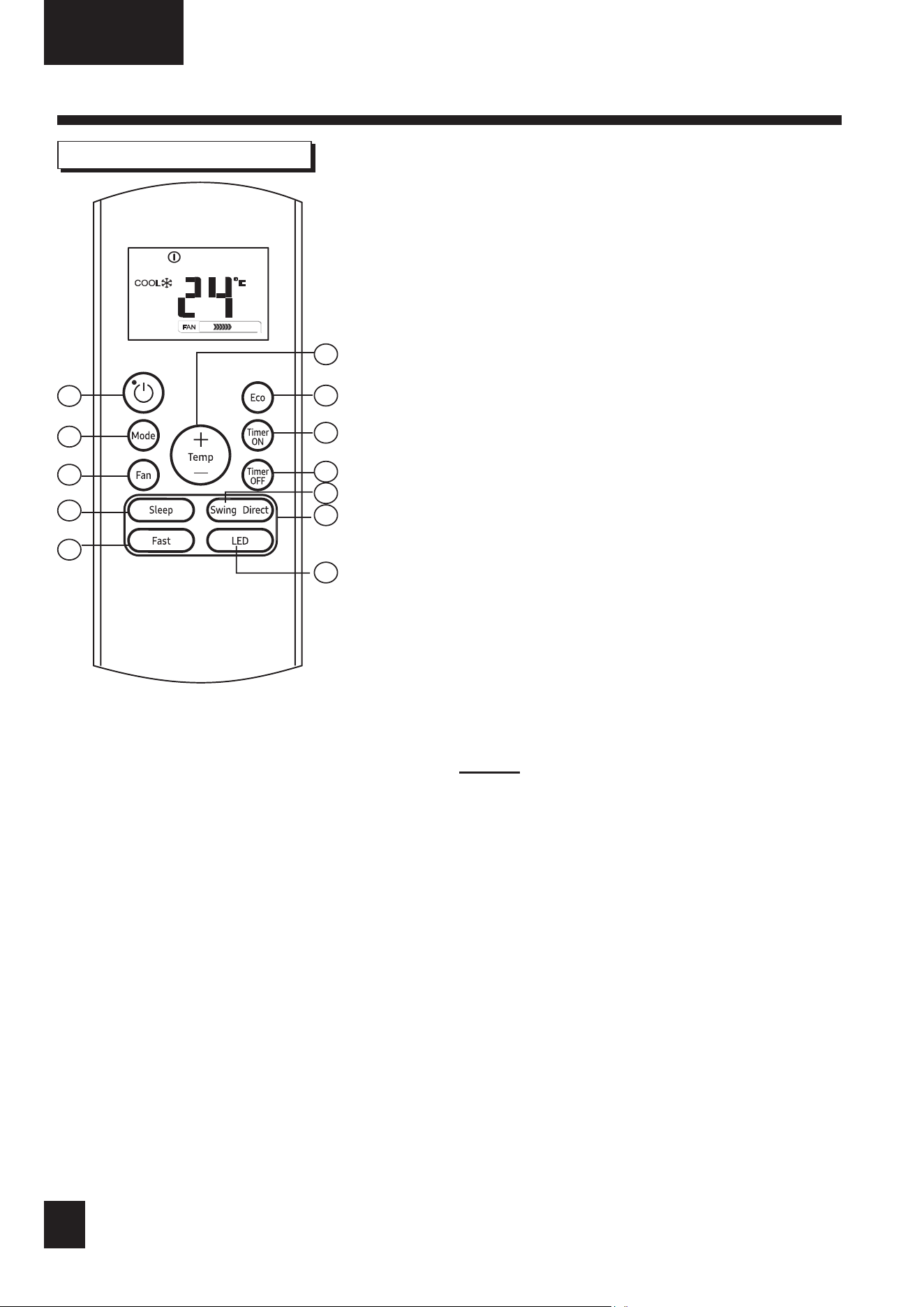

Remote Manual
Operation of buttons
1
2
4
3
8
9
7
5
10
11
12
14
RG57B1/BGE
k
SWING Button
Used to stop or start horizontal louver auto
swing feature.
l
DIRECT Button
Used to change the louver movement and
set the desired up/down air ow direction.
The louver changes 6º in angle for each
press.
m
FOLLOW ME Button
(applicable to RG57A7/BGEF)
Push this button to initiate the Follow
Me feature, the remote display is actual
temperature at its location. The remote
control will send this signal to the air
conditioner every 3 minutes interval until
press the Follow Me button again. The air
conditioner will cancel the Follow Me feature
automatically if it does not receive the signal
during any 7 minutes interval.
n
LED Button
Disable/Active indoor screen Display. When
pushing the button, the indoor screen
display is cleared, press it again to light the
display.
NOTE:
● Buttons design is based on typical model
and might be slightly different from the
actual one you purchased, the actual shape
shall prevail.
● All the functions described are accomplished
by the unit. If the unit has no this feature,
there is no corresponding operation
happened when press the relative button on
the remote controller.
● When there are wide differences between
“Remote controller Illustration” and “USER’S
MANUAL” on function description, the
description of “USER’S MANUAL” shall
prevail.
48
Remote Manual
Indicators on LCD
Mode display
AUTO COOL DRY
HEAT FAN
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display (low battery detection).
Displayed when ECO feature is activated.
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Shows set temperature or room
temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is
operating in Follow me mode.
Not available for this unit.
Not available for this unit.
Fan speed indication
Low speed
Medium speed
High speed
Auto fan speed
Note:
All indicators shown in the gure are for the
purpose of clear presentation. But during the
actual operation only the relative functional
signs are shown on the display window.
Information are displayed
when the remote controller
is powered up.
49
Remote Manual

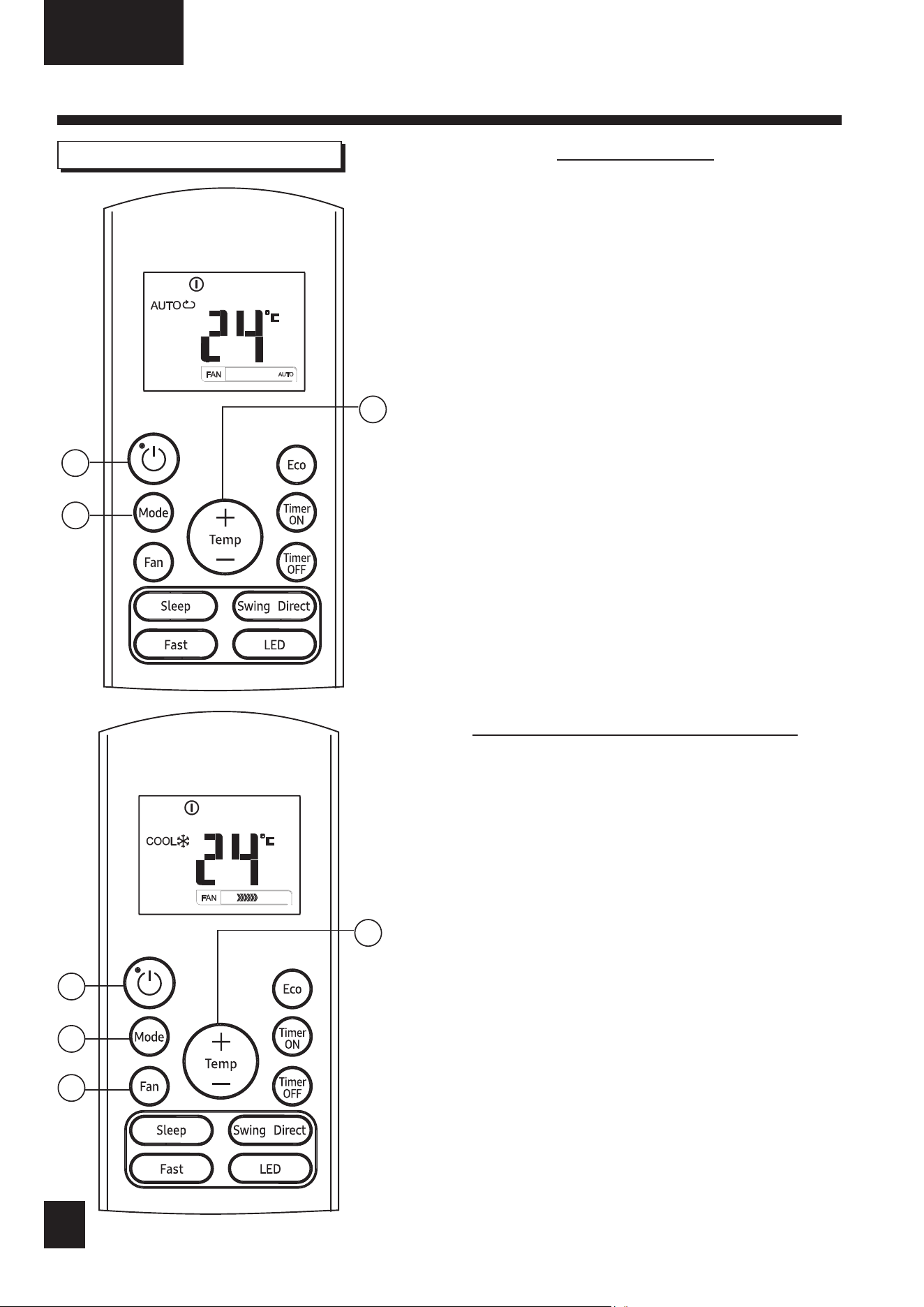

How to use the buttons
4
1
3
2
3
1
2
Auto operation
Ensure the unit is plugged in and power is
available.
1. Press the MODE button to select Auto.
2. Press the UP/DOWN button to set the
desired temperature. The temperature can
be set within a range of 17ºC~30ºC in 1ºC
increments.
3. Press the ON/OFF button to start the air
conditioner.
NOTE
1. In the Auto mode, the air conditioner can
logically choose the mode of Cooling, Fan,
and Heating by sensing the difference
between the actual ambient room
temperature and the setting temperature on
the remote controller.
2. In the Auto mode, you can not switch the
fan speed. It has already been automatically
controlled.
3. If the Auto mode is not comfortable for you,
the desired mode can be selected manually.
Cooling /Heating/Fan operation
Ensure the unit is plugged in and power is
available.
1. Press the MODE button to select COOL,
HEAT (cooling & heating models only) or
FAN mode.
2. Press the UP/DOWN buttons to set the
desired temperature. The temperature can
be set within a range of 17ºC~30ºC in 1ºC
increments.
3. Press the FAN button to select the fan
speed in four steps- Auto, Low, Med,or High.
4. Press the ON/OFF button to start the air
conditioner.
NOTE
In the FAN mode, the setting temperature
is not displayed in the remote controller
and you are not able to control the room
temperature either. In this case, only step 1,
3 and 4 may be performed.
50

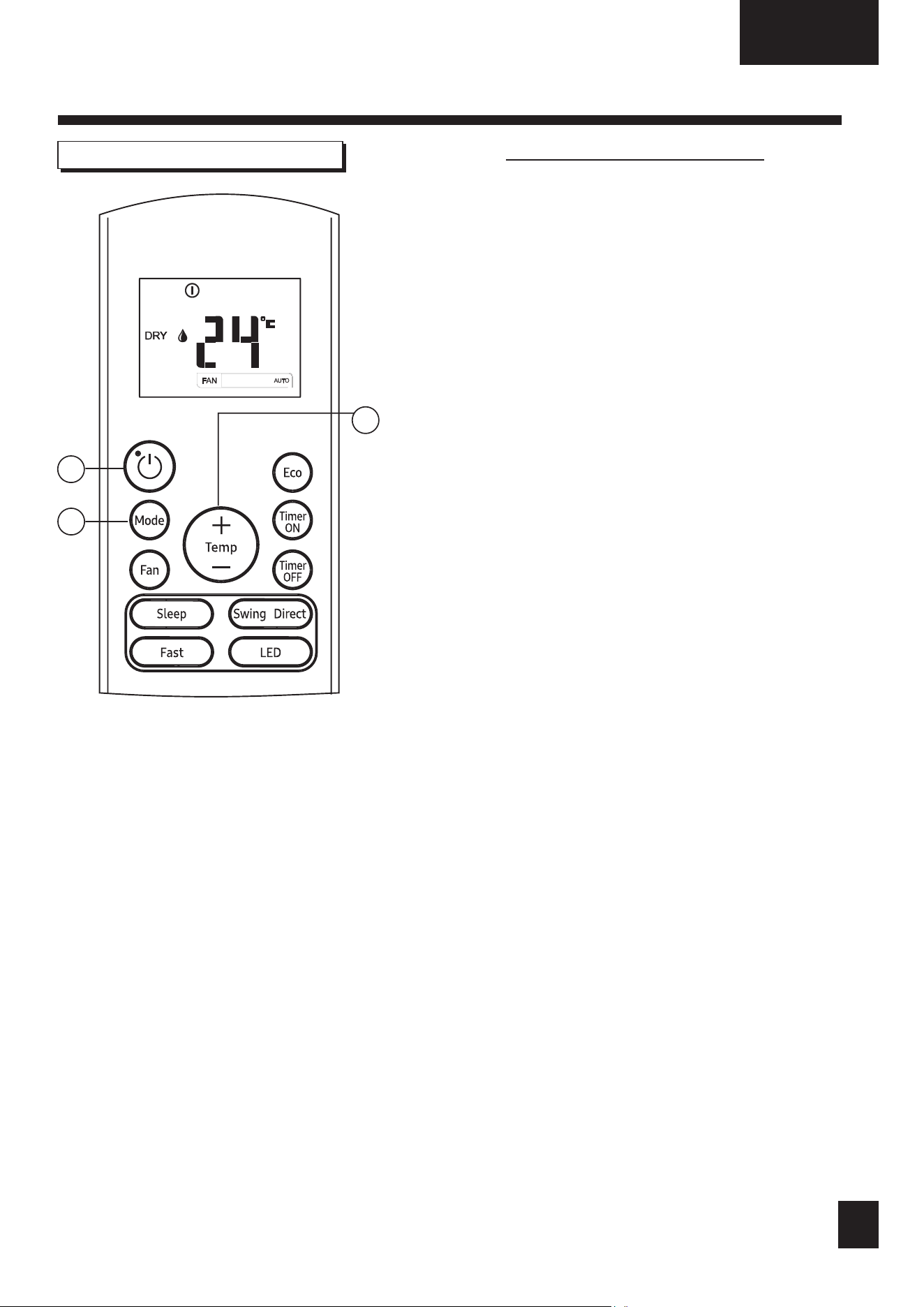

Remote Manual
How to use the buttons
3
1
2
Dehumidifying operation
Ensure the unit is plugged in and power is
available.
1. Press the MODE button to select DRY
mode.
2. Press the UP/DOWN buttons to set the
desired temperature. The temperature can
be set within a range of 17ºC~30ºC in 1ºC
increments.
3. Press the ON/OFF button to start the air
conditioner.
NOTE
In the Dehumidifying mode, you can not
switch the fan speed. It has already been
automatically controlled.
51

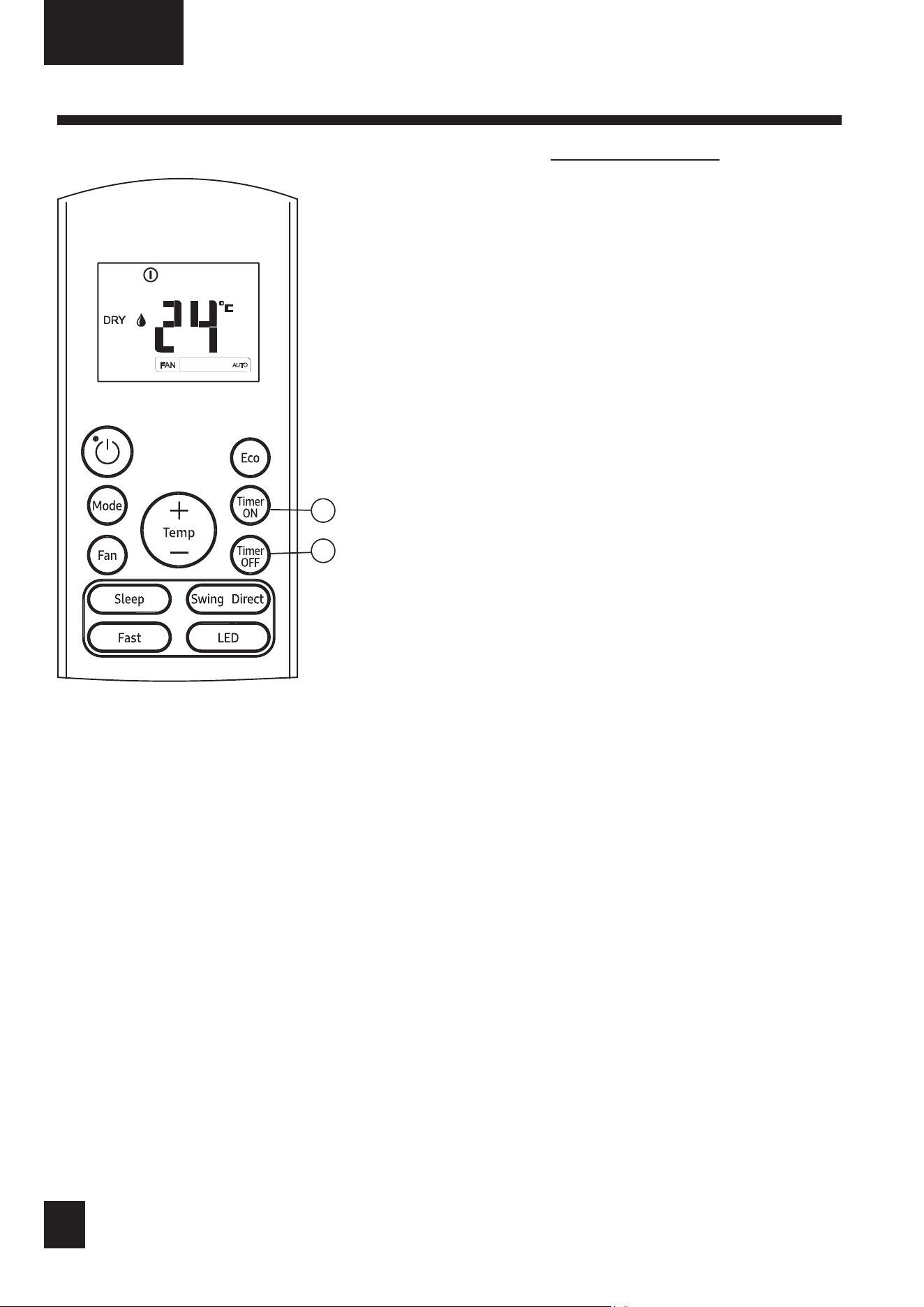

Remote Manual
Timer operation
Press the TIMER ON button can set the auto-on
time of the unit. Press the TIMER OFF button
can set the auto-off time of the unit.
To set the Auto-on time.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-
on setting time and the signal “H” will be
shown on the LCD display area. Now it is
ready to reset the Auto-on time to START
the operation.
2. Push the TIMER ON button again to set
desired Auto-on time. Each time you press
the button, the time increases by half an
hour between 0 and 10 hours and by one
hour between 10 and 24 hours.
3. After setting the TIMER ON ,there will be
a one second delay before the remote
controller transmits the signal to the air
conditioner. Then, after approximately
another 2 seconds, the signal “h” will
disappear and the set temperature will
re-appear on the LCD display window.
To set the Auto-off time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the last Auto-
off setting time and the signal “H” will be
shown on the LCD display area. Now it is
ready to reset the Auto-off time to stop the
operation.
2. Push the TIMER OFF button again to set
desired Auto-off time. Each time you press
the button, the time increases by half an
hour between 0 and 10 hours and by one
hour between 10 and 24 hours.
3. After setting the TIMER OFF ,there will
be a one second delay before the remote
controller transmits the signal to the air
conditioner. Then, after approximately
another 2 seconds, the signal “H” will
disappear and the set temperature will
re-appear on the LCD display window.
2
1
52
Remote Manual
TIMER ON
(Auto-on Operation)
The TIMER ON feature is useful when you
want the unit to turn on automatically before
you return home. The air conditioner will
automatically start operating at the set time.
Example:
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last setting
of starting operation time and the signal “H”
will show on the display area.
2. Press the TIMER ON button to display “6.0H”
on the TIMER ON display of the remote
controller.
3. Wait for 3 seconds and the digital display
area will show the temperature again. The
“TIMER ON” indicator remains on and this
function is activated.
CAUTION
● The effective operation time set by the remote controller for the timer function is limited
to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0,
7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
Example of timer setting
Set 6 hours later
Start
Off
53
Remote Manual
TIMER OFF
(Auto-off Operation)
The TIMER OFF feature is useful when you
want the unit to turn off automatically after
you go to bed. The air conditioner will stop
automatically at the set time.
Example:
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last
setting of stopping operation time and the
signal “H” will show on the display area.
2. Press the TIMER OFF button to display
“10H” on the TIMER OFF display of the
remote controller.
3. Wait for 3 seconds and the digital display
area will show the temperature again. The
“TIMER OFF” indicator remains on and this
function is activated.
COMBINED TIMER
(Setting both ON and OFF timers
simultaneously)
TIMER OFF → TIMER ON
(On → Stop → Start operation)
This feature is useful when you want to stop
the air conditioner after you go to bed, and start
it again in the morning when you wake up or
when you return home.
Example:
To stop the air conditioner 2 hours after setting
and start it again 10 hours after setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to
display 2.0H on the TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to display
10H on the TIMER ON display .
5. Wait for 3 seconds and the digital display
area will show the temperature again. The
“TIMER ON OFF” indicator remains on and
this function is activated.
Stop
On
Set
Set
10 hours later
2 hours later
after setting
10 hours later
after setting
Start
Stop
On
54
Remote Manual
TIMER ON → TIMER OFF
(Off → Start → Stop operation)
This feature is useful when you want to start the
air conditioner before you wake up and stop it
after you leave the house.
Example:
To start the air conditioner 2 hours after setting,
and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to display
2.0H on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to
display 5.0H on the TIMER OFF display .
5. Wait for 3 seconds and the digital display
area will show the temperature again.
The “TIMER ON & TIMER OFF” indicator
remains on and this function is activated.
The device could comply with the local national regulations.
● In Canada, it should comply with CAN ICES-3 (B)/NMB-3 (B).
● In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modications not approved by the party responsible for compliance could
void user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Set 2 hours later
after setting
5 hours later
after setting
Start
StopOff
55

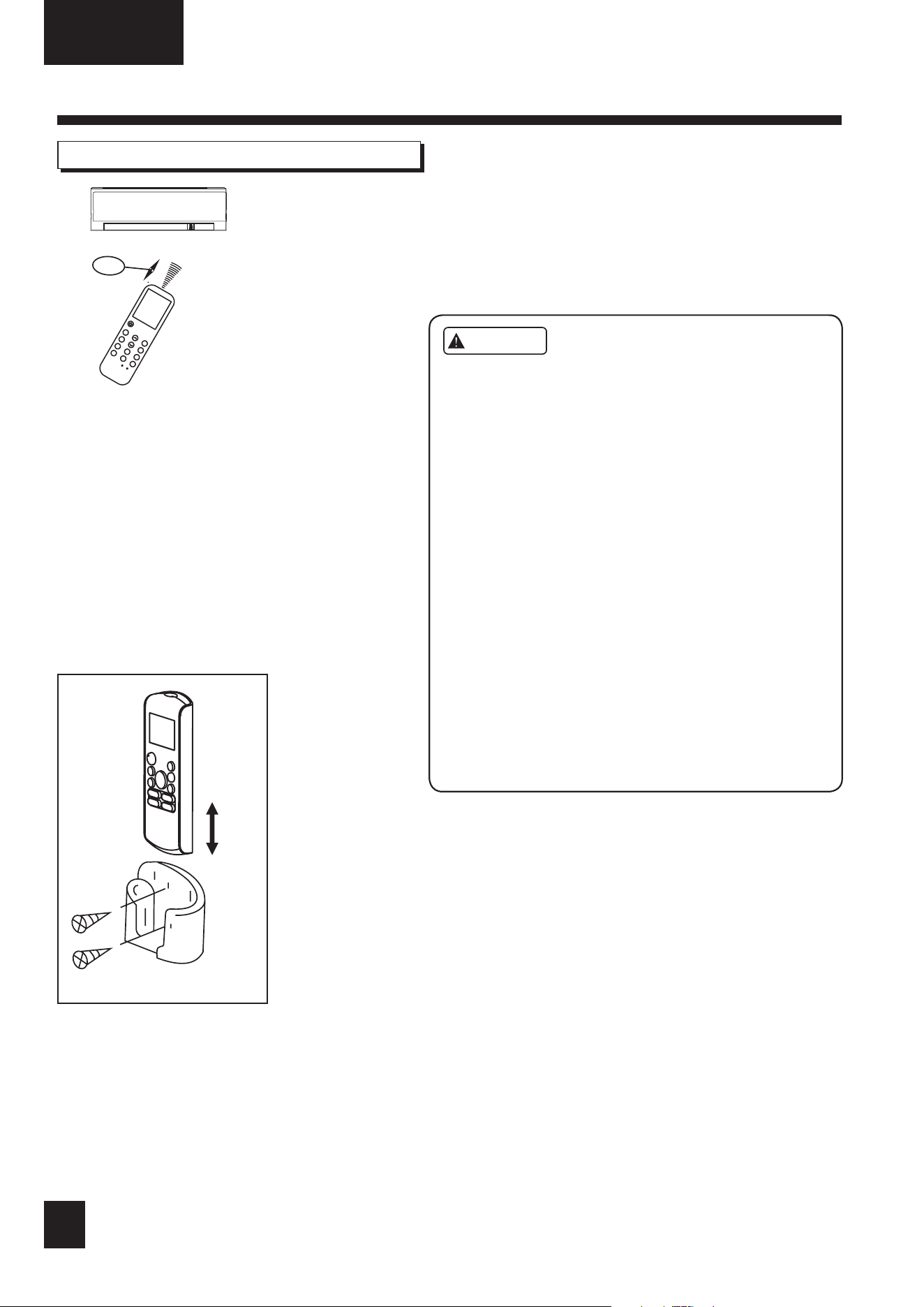

Remote Manual
Handling the remote controller
Location of the remote controller.
● Use the remote controller within a distance
of 8 meters from the appliance, pointing it
towards the receiver. Reception is conrmed
by a beep.
CAUTIONS
● The air conditioner will not operate if
curtains, doors or other materials block the
signals from the remote controller to the
indoor unit.
● Prevent any liquid from falling into the
remote controller. Do not expose the
remote controller to direct sunlight or heat.
● If the infrared signal receiver on the indoor
unit is exposed to direct sunlight, the air
conditioner may not function properly. Use
curtains to prevent the sunlight from falling
on the receiver.
● If other electrical appliances react to
the remote controller, either move these
appliances or consult your local dealer.
● Do not drop the remote controller. Handle
with care.
● Do not place heavy objects on the remote
controller, or step on it.
Using the remote controller holder
(optional)
● The remote controller can be attached to
a wall or pillar by using a remote controller
holder (not supplied, purchased separately).
● Before installing the remote controller, check
that the air conditioner receives the signals
properly.
● Install the remote controller with two screws.
● For installing or removing the remote
controller, move it up or down in the holder.
8m
M
O
D
E
S
W
ING
T
EMP
SHOR
TC
UT
F
AN
S
P
E
E
D
TIM
E
R
OF
F
R
E
S
E
T
LOCK
L
E
D
F
OLLOW
M
E
T
I
MER
ON
T
UR
B
O
S
E
L
F
CL
E
A
N
D
IRE
CT
S
L
EEP
FRE
S
H
56
Remote Manual

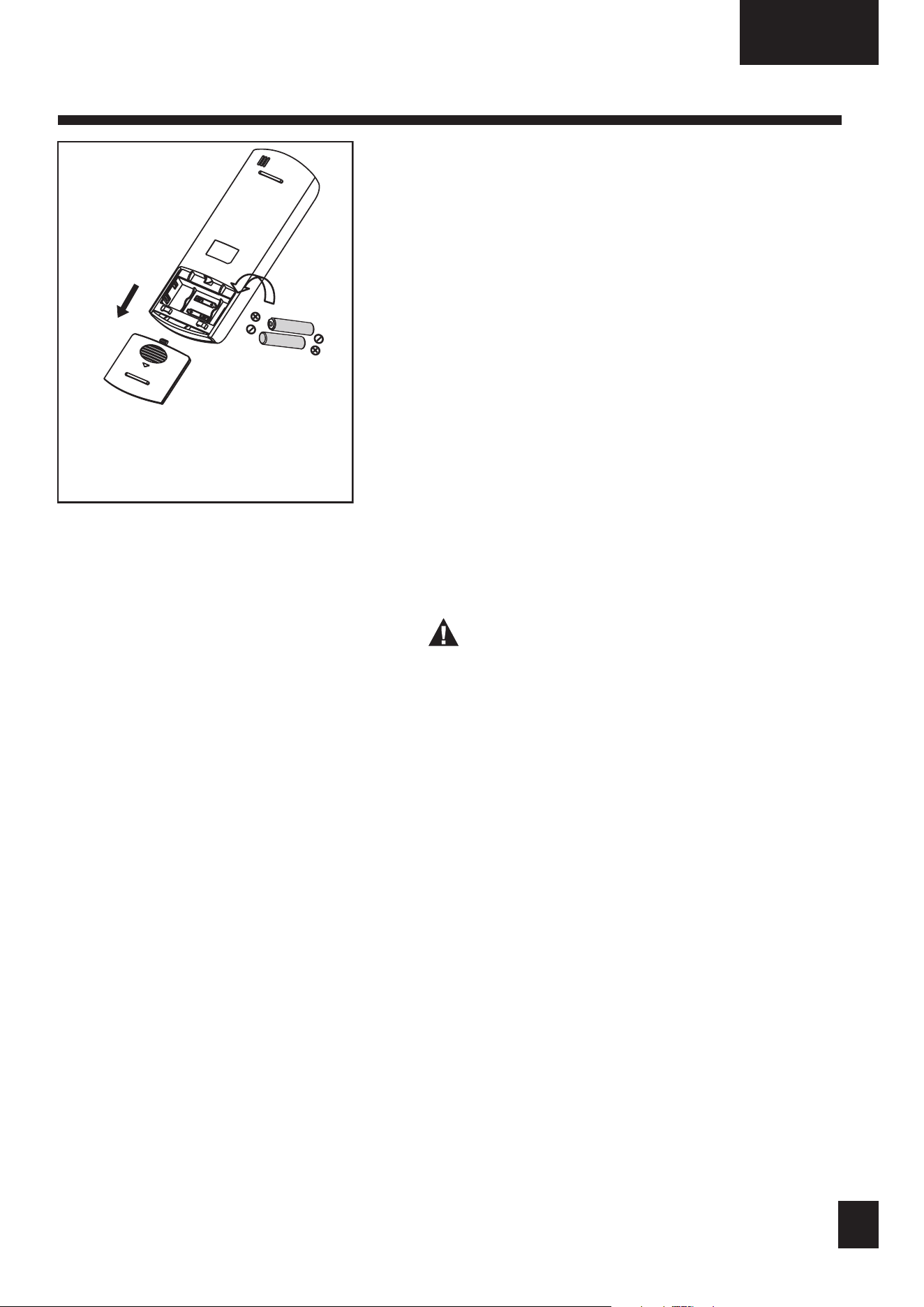

Replacing batteries
The following cases signify exhausted batteries.
Replace old batteries with new ones.
● Receiving beep is not emitted when a signal
is transmitted.
● Indicator fades away.
The remote controller is powered by two dry
batteries (R03/LR03×2) housed in the back rear
part and protected by a cover.
(1) Remove the cover in the rear part of the
remote controller.
(2) Remove the old batteries and insert the
new batteries, placing the (+) and (-) ends
correctly.
(3) Install the cover back on.
NOTE: When the batteries are removed, the
remote controller erases all programming. After
inserting new batteries, the remote controller
must be reprogrammed.
CAUTIONS
● Do not mix old and new batteries or batteries
of different types.
● Do not leave the batteries in the remote
controller if they are not going to be used for
2 or 3 months.
● Do not dispose batteries as unsorted
municipal waste. Collection of such waste
separately for special treatment is necessary.
Maintenance Procedures
Performing the gas leak tests for repair
In case of repair of the refrigerant circuit,
the following procedure must be kept to
consider ammability.
1 Remove the refrigerant.
2 Purge the refrigerant circuit with inert gas.
3 Perform evacuation.
4 Purge the circuit again with inert gas.
5 Open the circuit.
6 Perform repair work.
7 Charge the system with refrigerant.
8 Flush the system with nitrogen blowing for
safety.
9 Repeat the previous steps several times
until no refrigerant is within the system.
CAUTION
● Compressed air or oxygen shall not be used.
● Flush the system with nitrogen blowing, ll the
refrigerant until the working pressure is reached,
ventilate to atmosphere, and then pull down to a
vacuum state.
● For the nal nitrogen blowing charge, the
system shall be ventilated down to atmospheric
pressure.
● The procedure is absolutely vital in case of
brazing on the pipings.
● Make sure that the outlet of the vacuum pump
is not closed to any ignition sources and there is
ventilation available.
● Do not apply any permanent inductive or
capacitance loads to the circuit without ensuring
that this will not exceed the permissible voltage
and current permitted for the air condiitoner.
Decommissioning
The following requirements must be
fullled before and while taking the
decommissioning procedure:
● Before decommissioning, the worker shall
be familiar with the product details.
● The entire refrigerant shall be recovered
safely.
● Before starting the process, oil and
refrigerant samples shall be taken just in
case analysis is required for reuse.
● Before starting the process, power supply
must be available.
1 Be familiar with the equipment details.
2 Isolate the system electrically.
3 Before starting the process, make sure
that:
● Any mechanical equipment is available for
handling refrigerant cylinders.
● All PPE (personal protective equipment) is
available for servicing.
● The recovery process shall be supervised
by a competent person.
● The recovery equipment and cylinders
comply with the standards.
4 Lower the refrigeration system, if possible.
5 If vacuuming is not possible, make a
manifold so that refrigerant can be easily
removed from the parts of the system.
6 Make sure that the cylinders are placed
on the scales before recovery.
7 Run the recovery system in accordance
with the manufacturer’s instructions.
8 Do not overcharge the cylinders. (No more
than 80 %)
9 Be sure to keep the cylinder within
the maximum working pressure, even
temporarily.
10 After charging, make sure that the
cylinders and the equipment are promptly
removed from the site and all isolation
valves are closed.
11 Recovered refrigerant shall not be
charged into other refrigeration system
unless it is cleaned and checked.
For information on Samsung’s environmental commitments and product-specic regulatory
obligations, e.g. REACH, WEEE, Batteries, visit : samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/data_corner.html
This appliance is lled with R-32.
