General information..........................................................................1

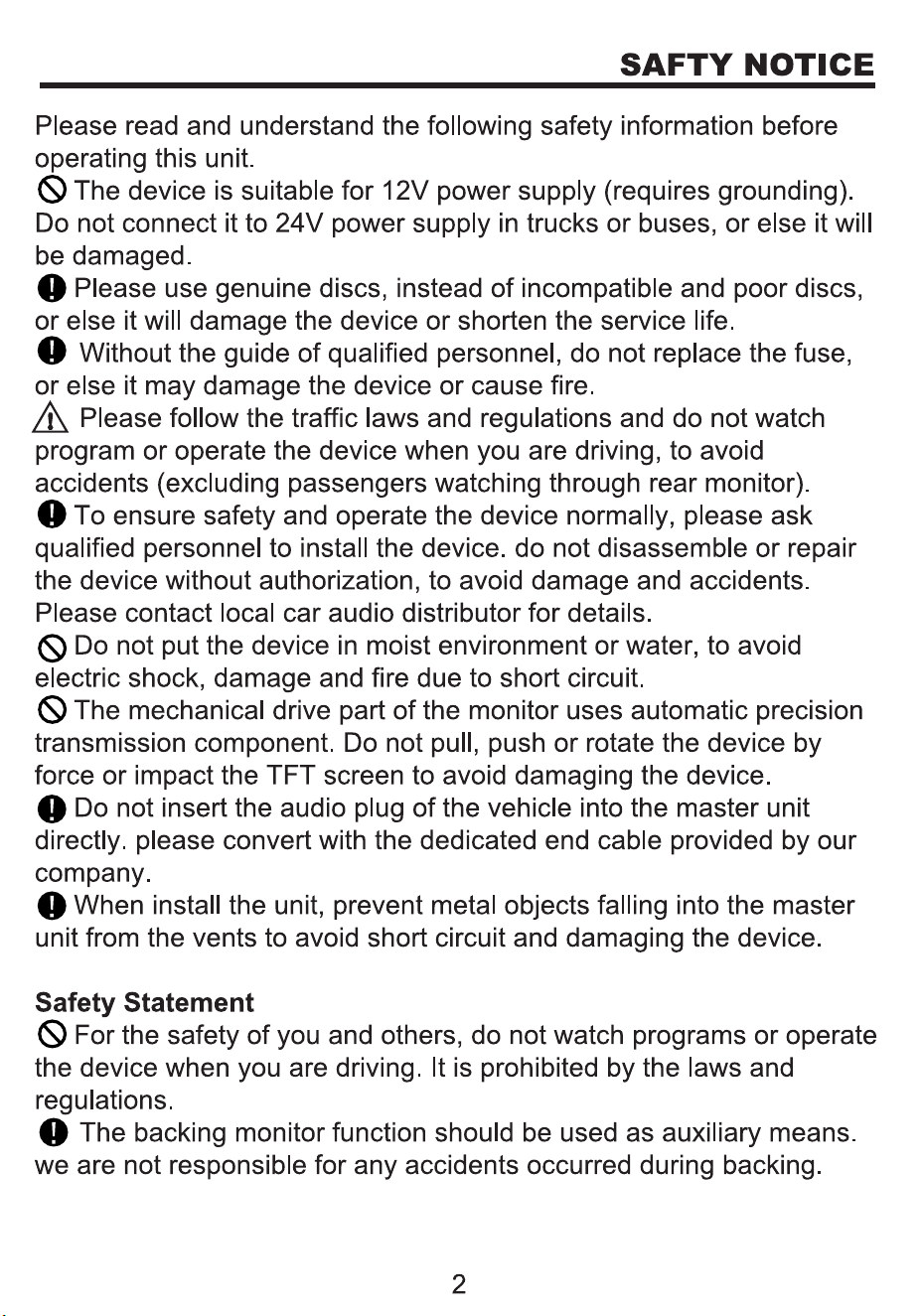

Safety notice ..................................................................................... 2
Accessories........................................................................................3

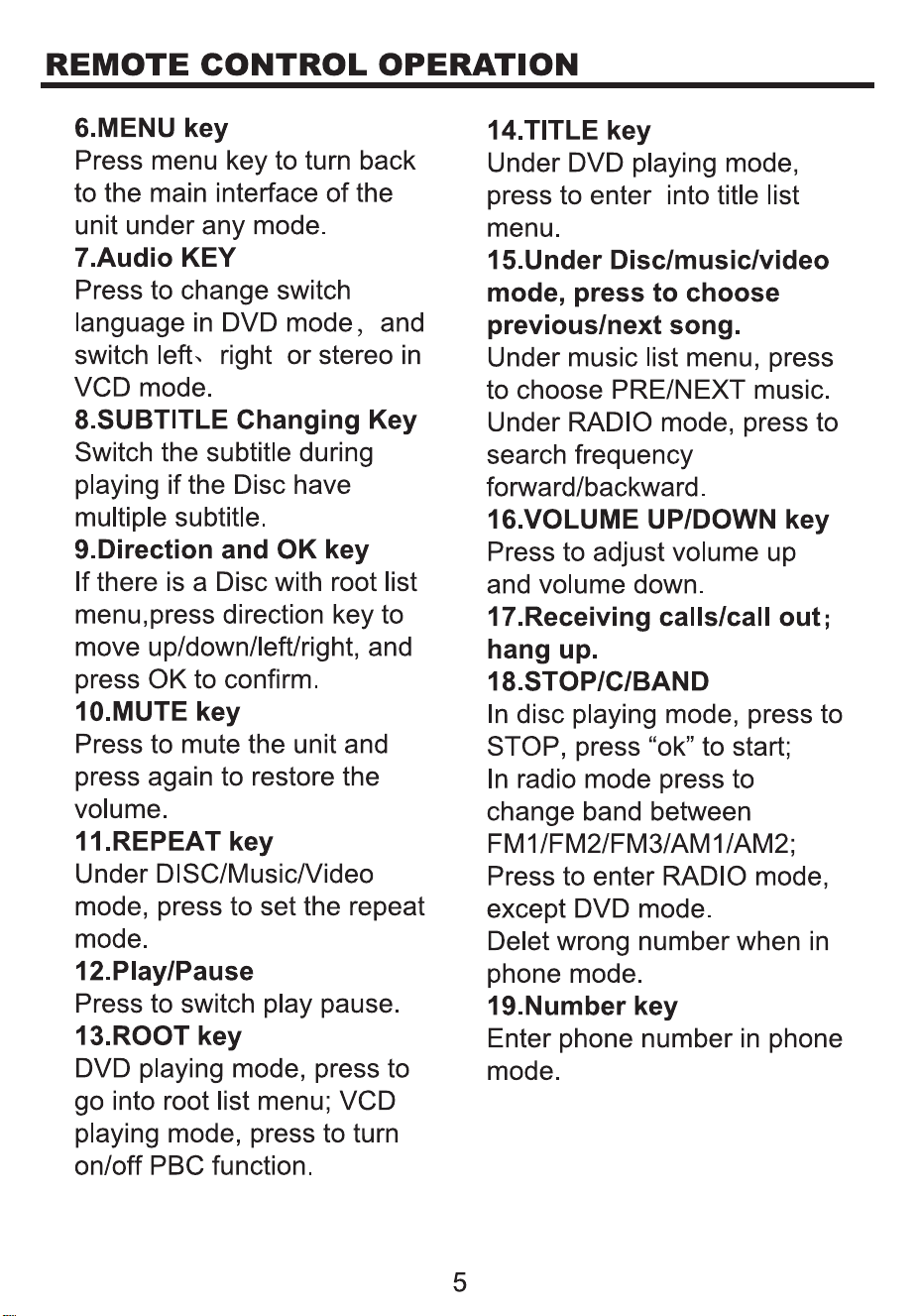

Remote control operation..............................................................
.................................................................................
. 4

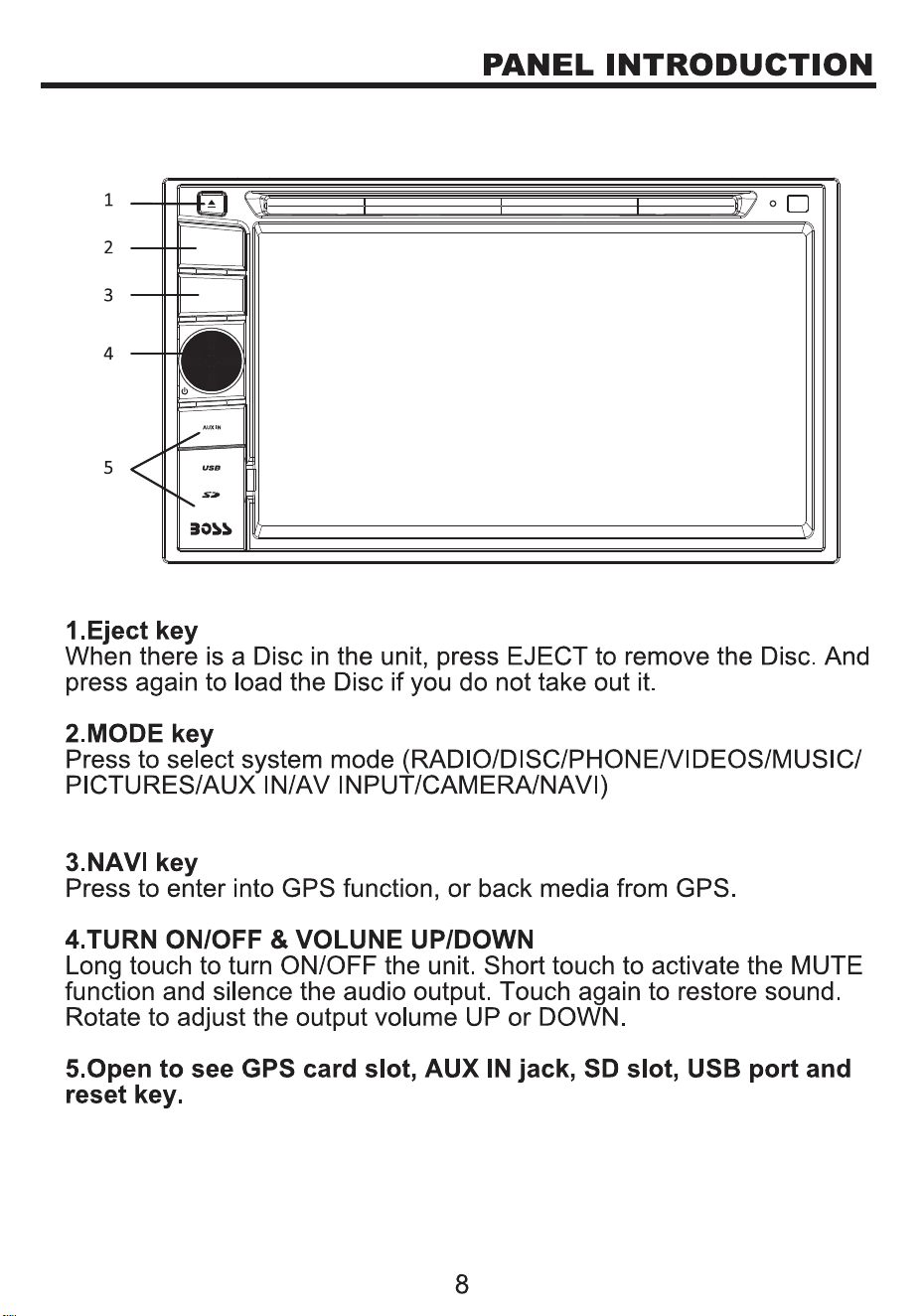

Panel introduction......
Unit Installation
.......................................................
Wires Connection Description
...................................................................... 8
6
7

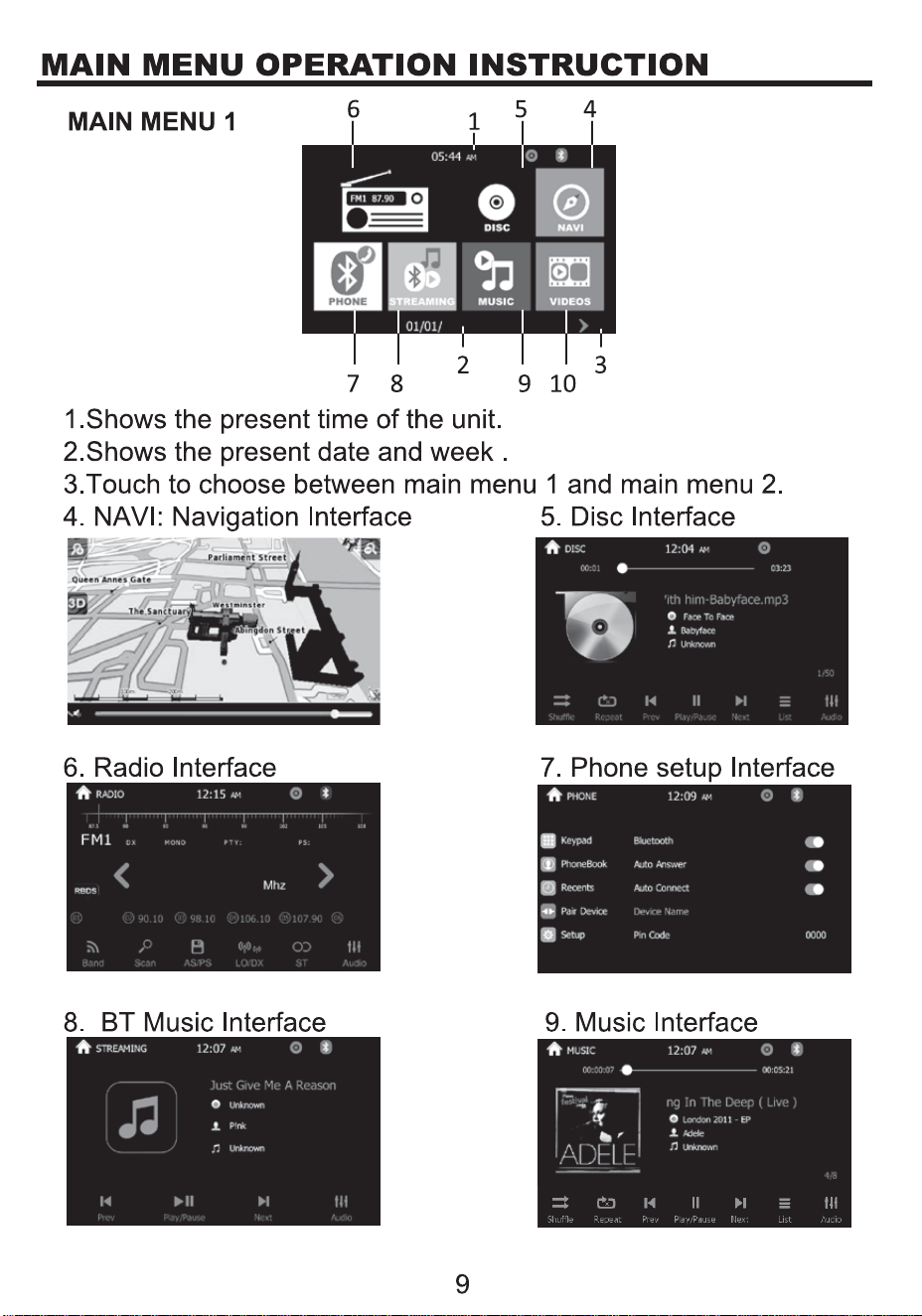

Main menu operation instruction...................................................9

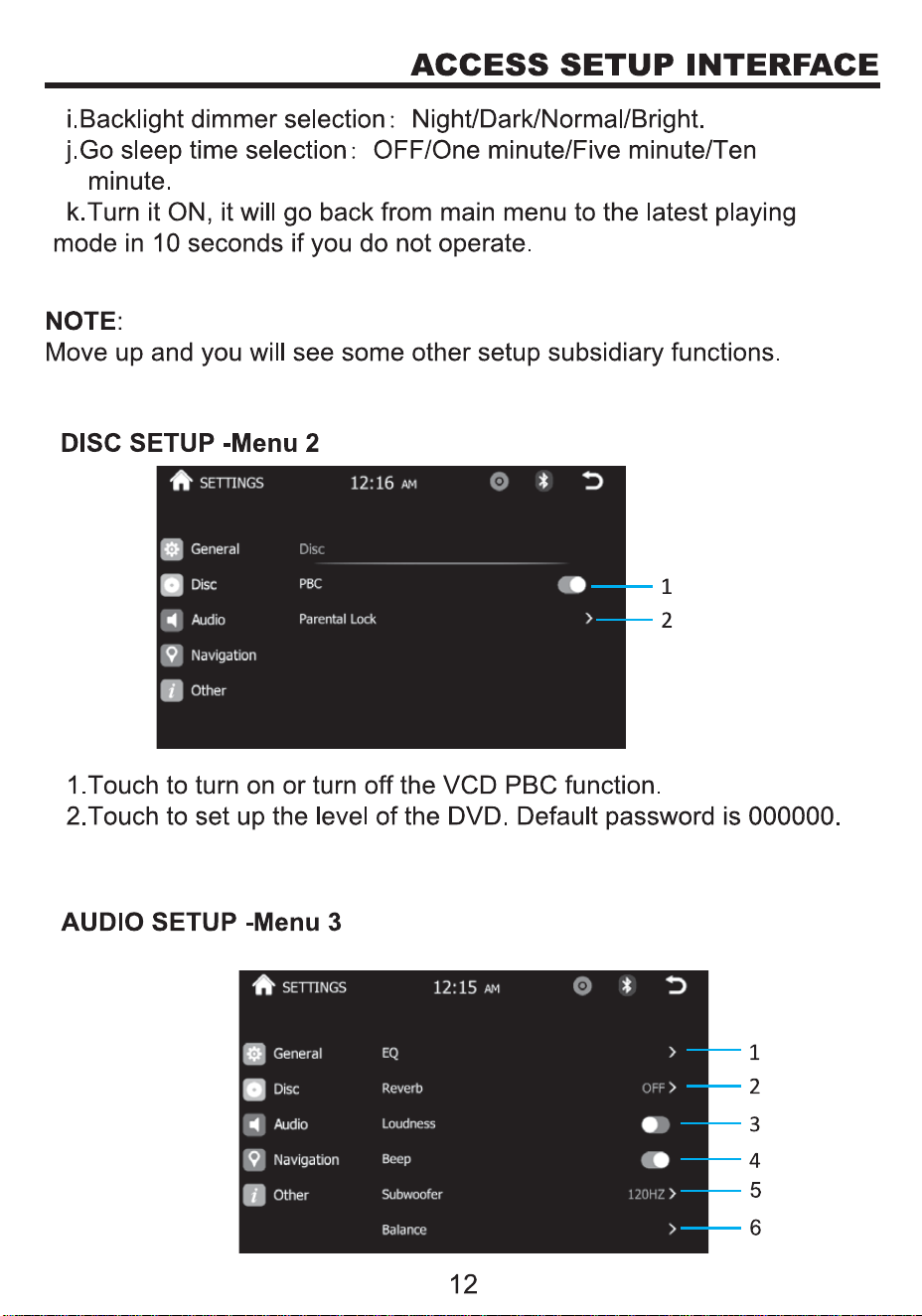

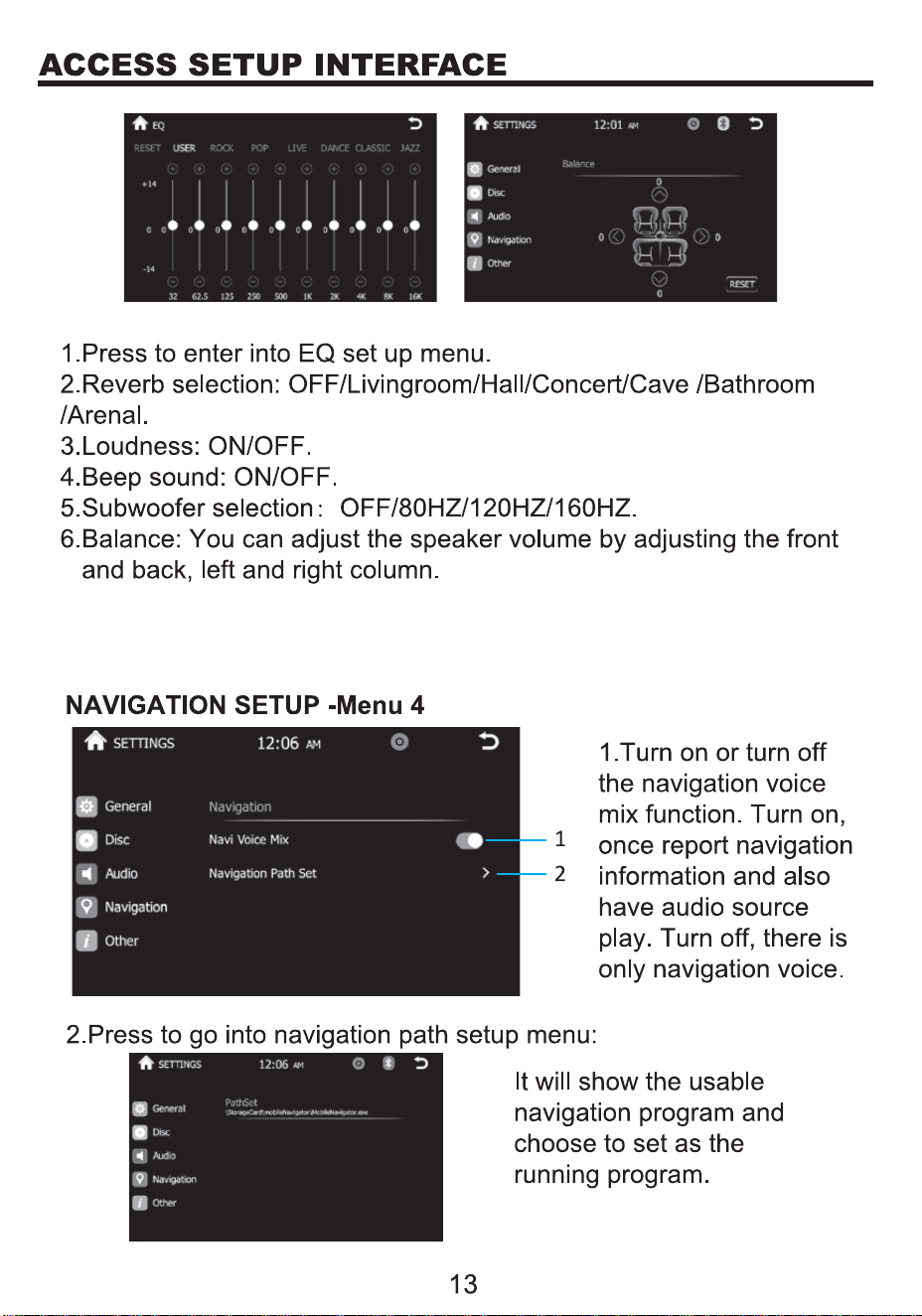

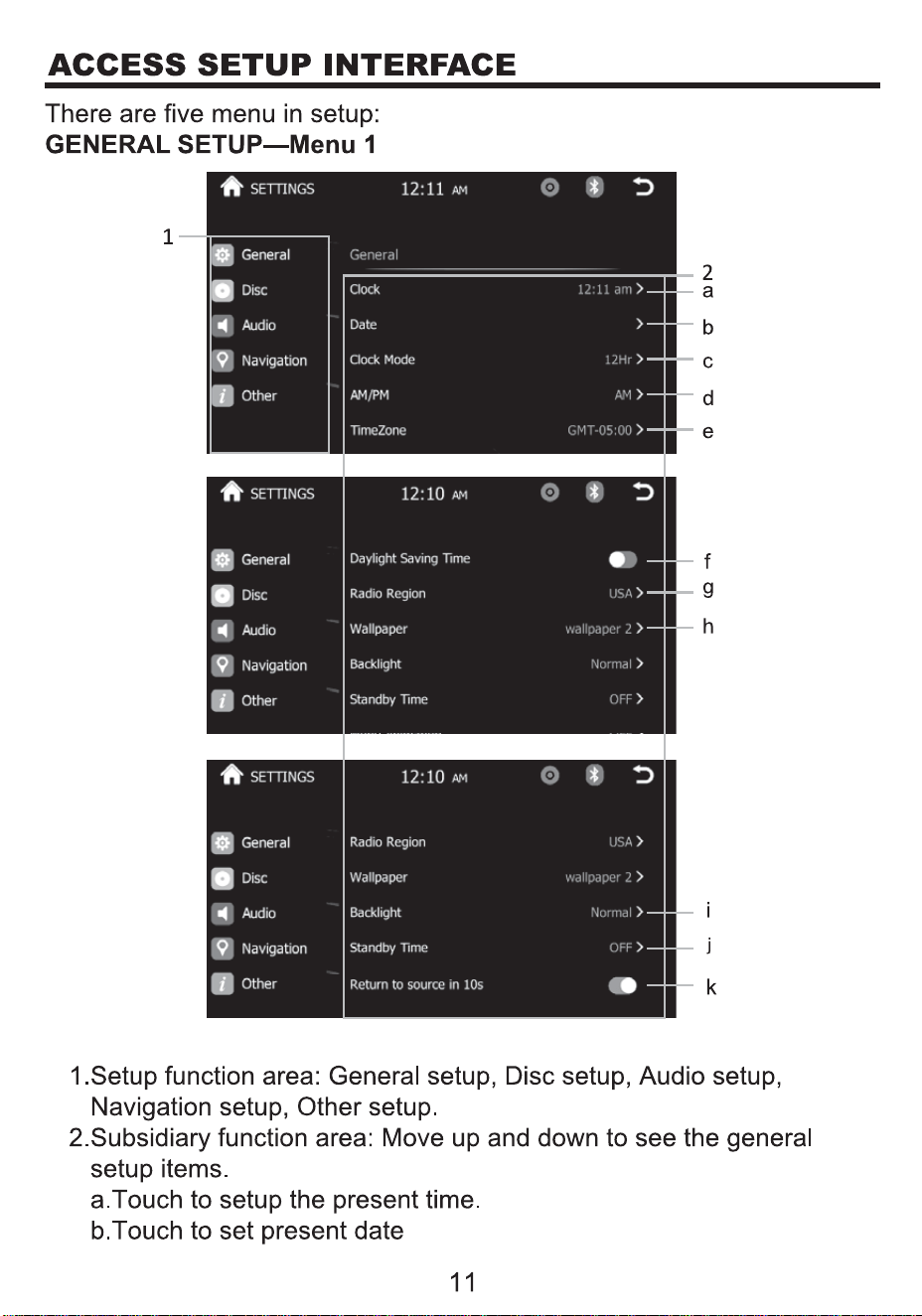

Access setup interface..................................................................11
General setup............................................................................11
Disc setup.................................................................................12
Audio setup..............................................................................12
Navigation setup.....................................................................13
Other setup..............................................................................14

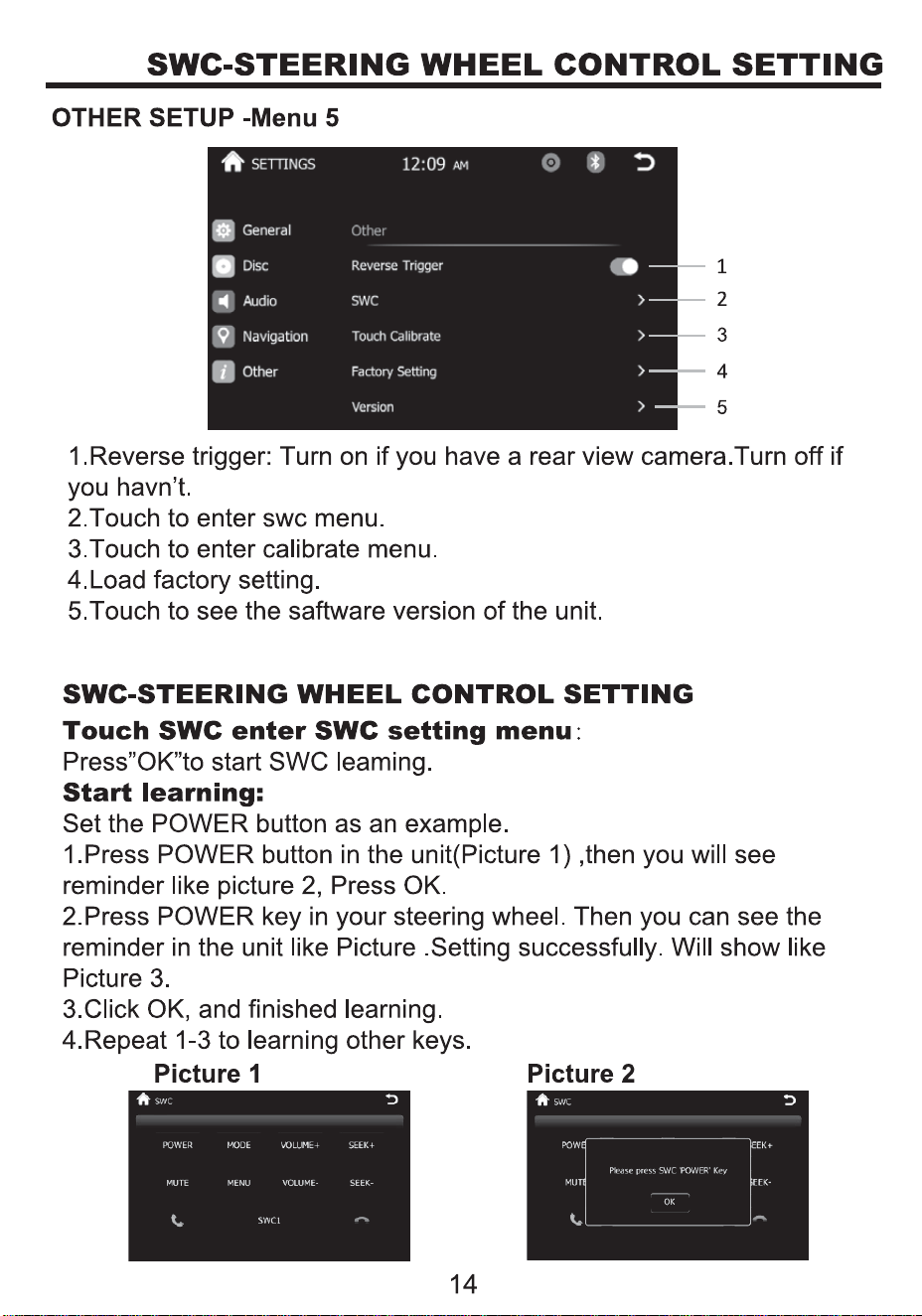

Swc-steering Wheel Control Setting...........................................14

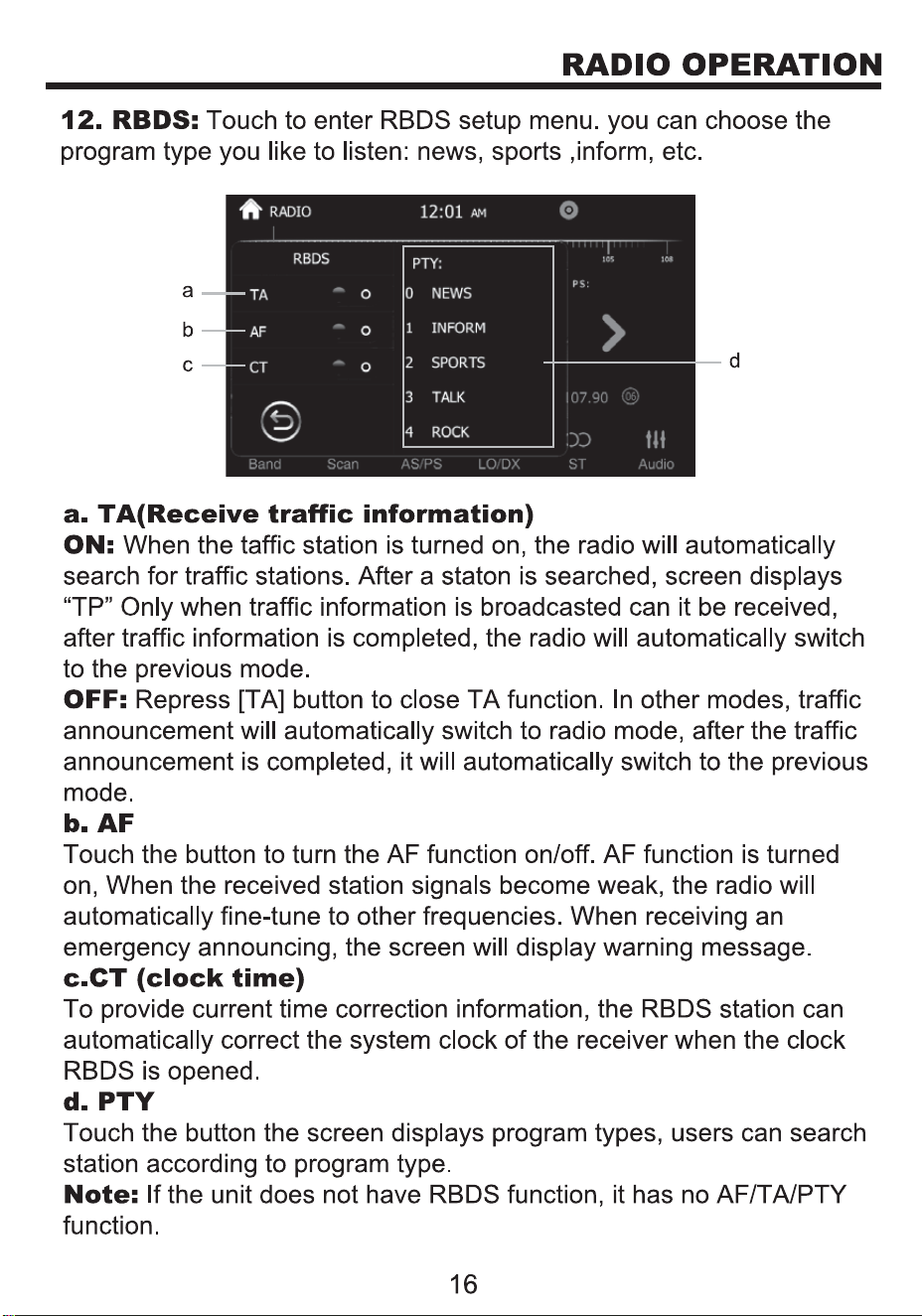

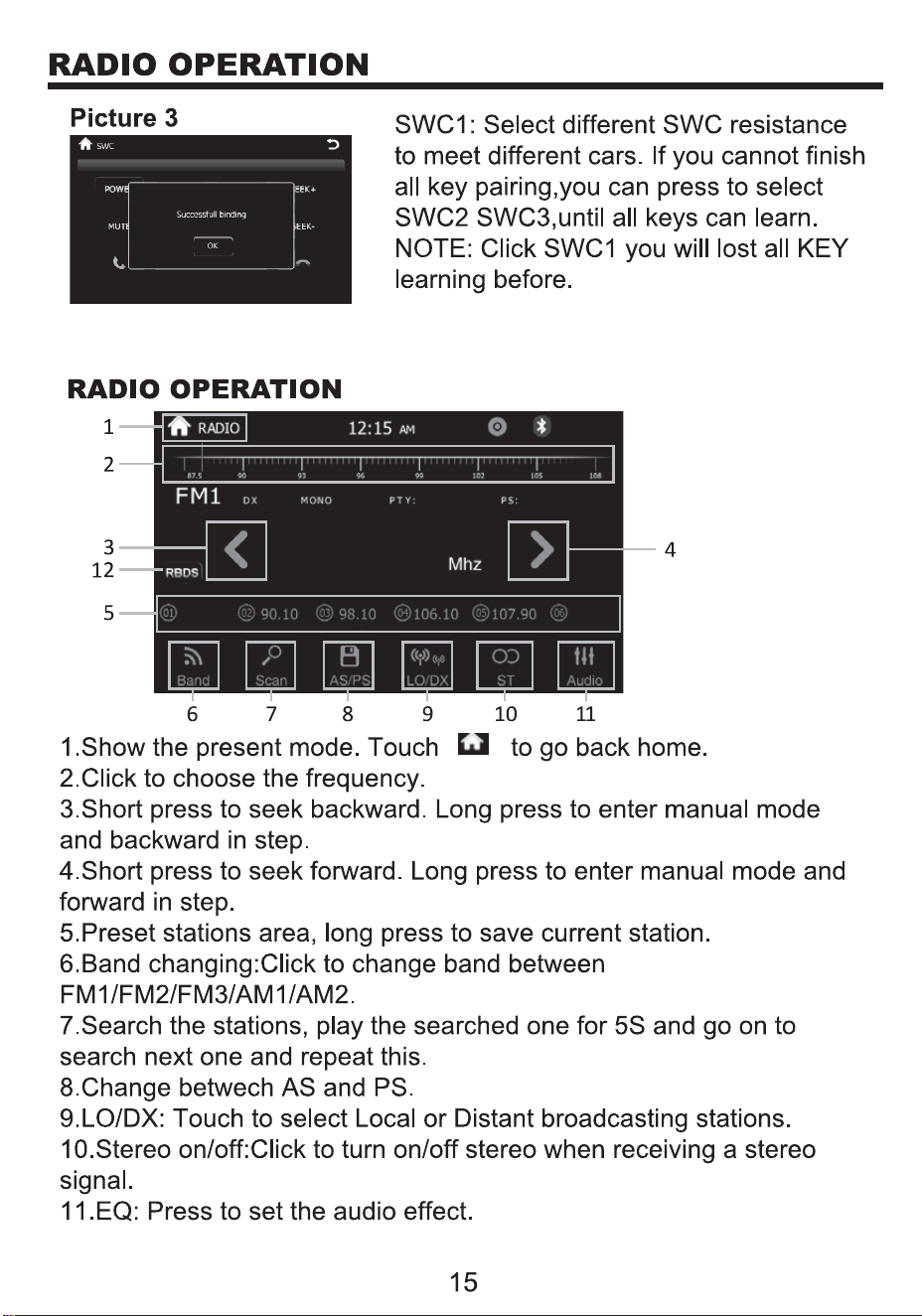

Radio Operation..............................................................................15

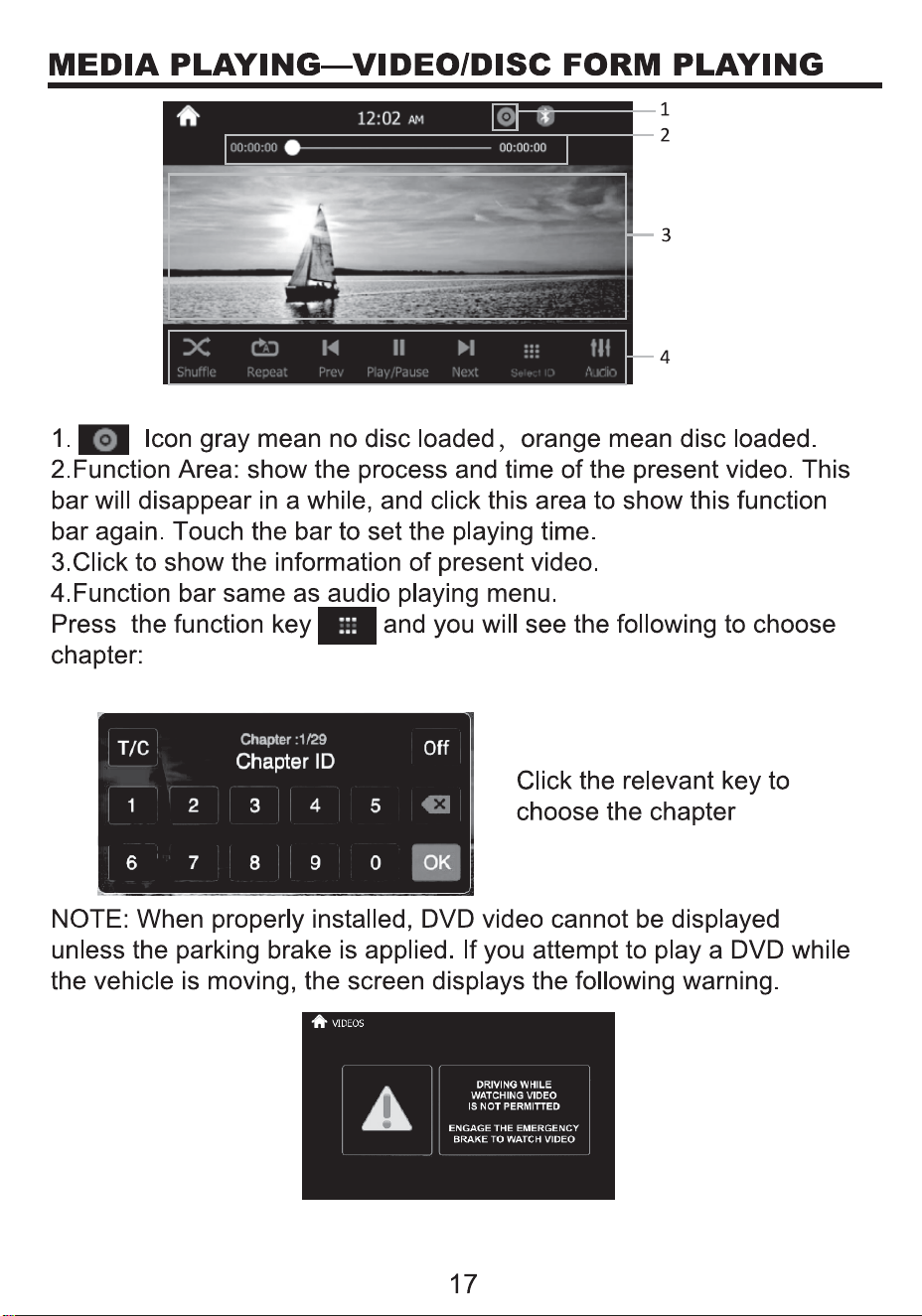

Media Playing—video/disc Form Playing.................................17

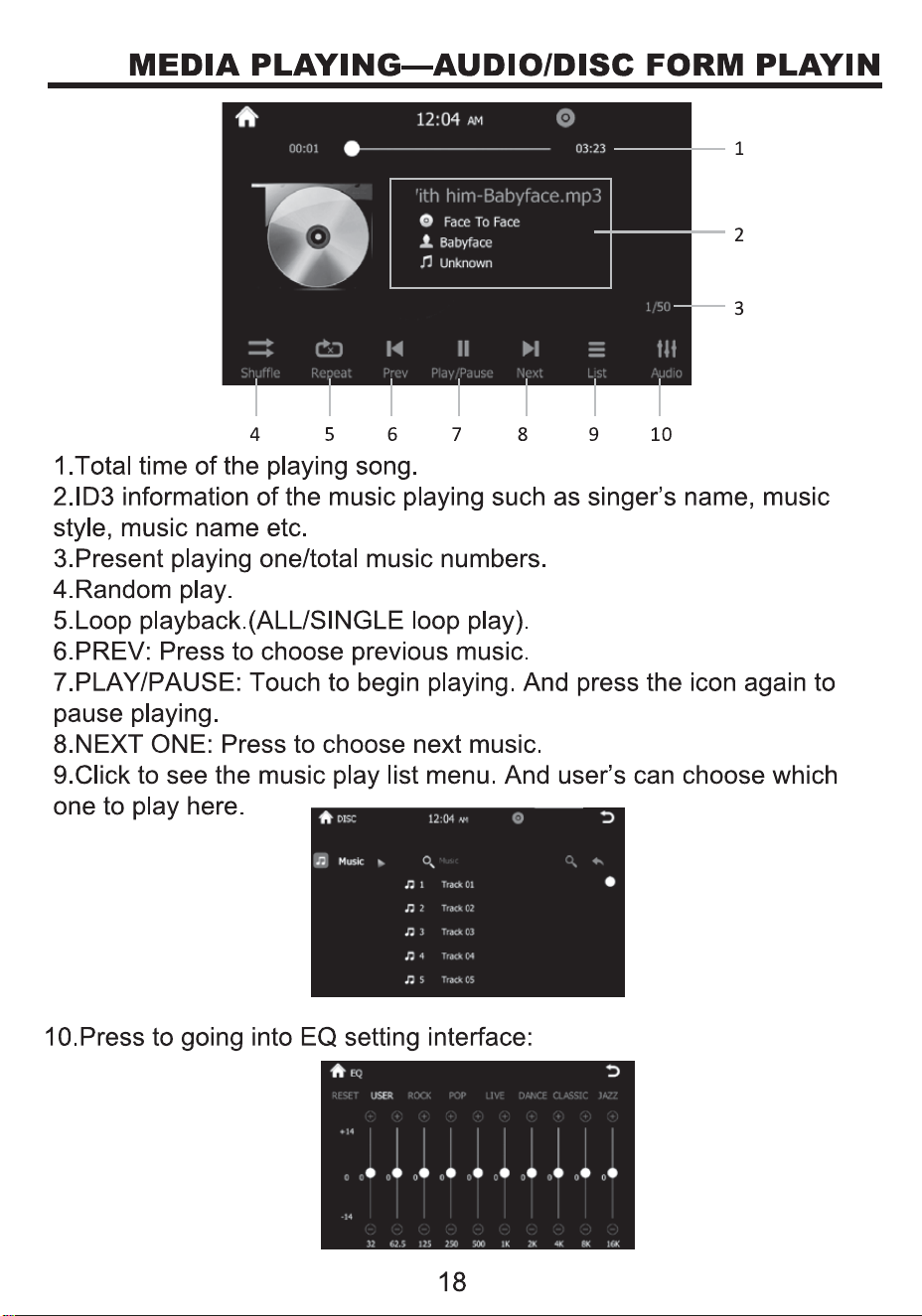

Media Playing—audio/disc Form Playin.................................. 18
Music Playing Menu.......................................................................19
BT operation...................................................................................19

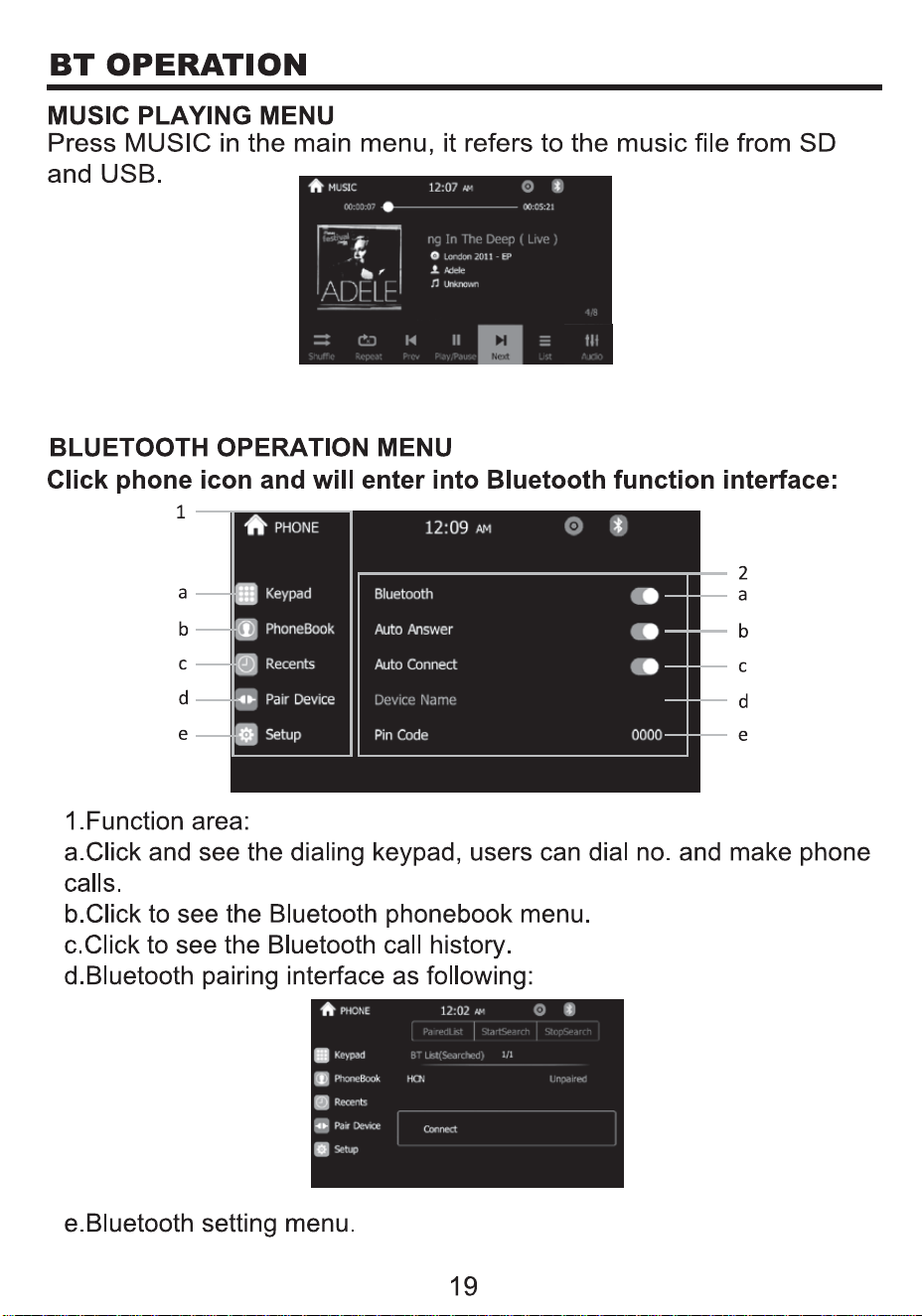

Bluetooth operation menu...................................................... 19

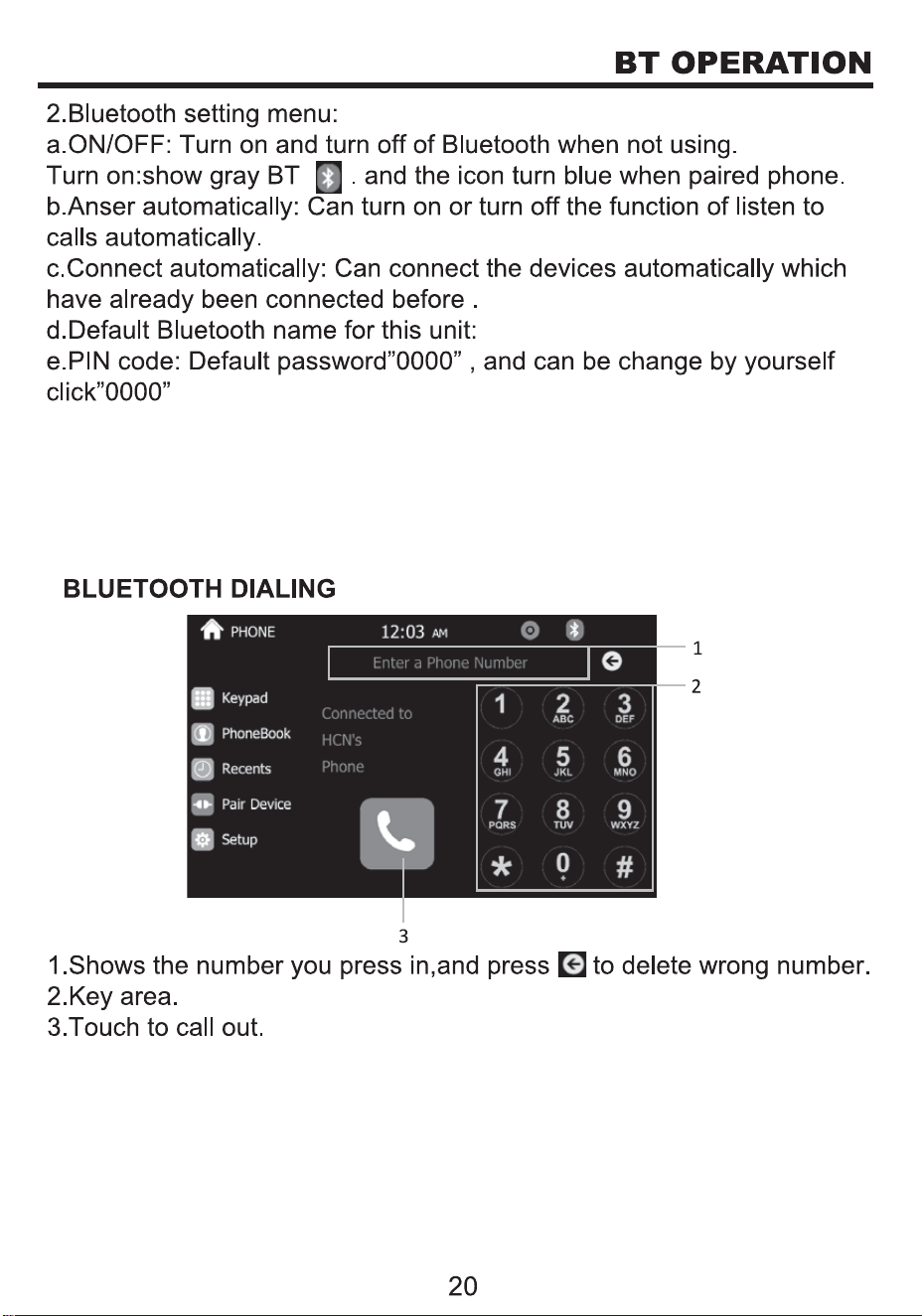

Bluetooth dialing.................................................................... 20

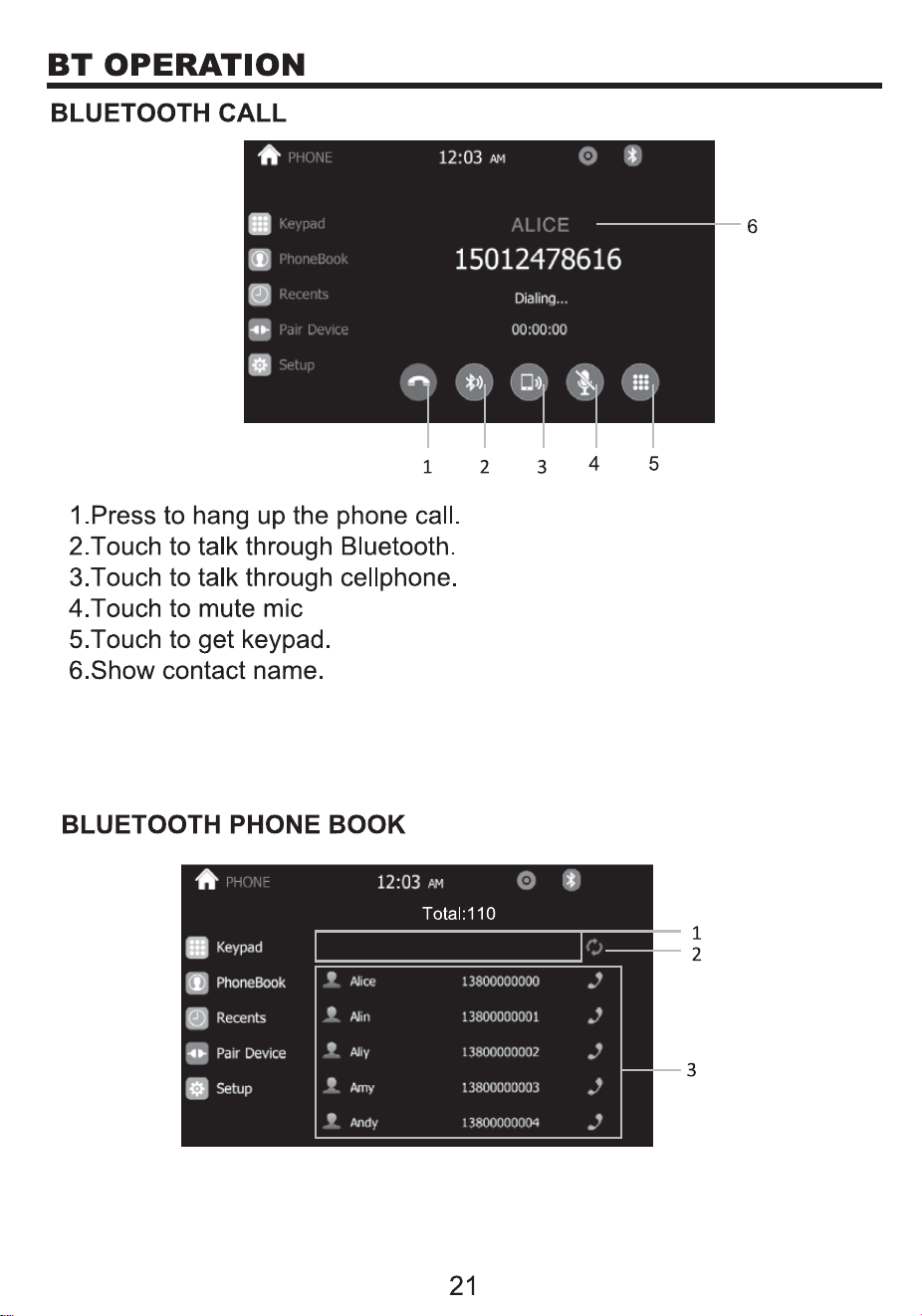

Bluetooth call...........................................................................21
Bluetooth phone book..............................................................21

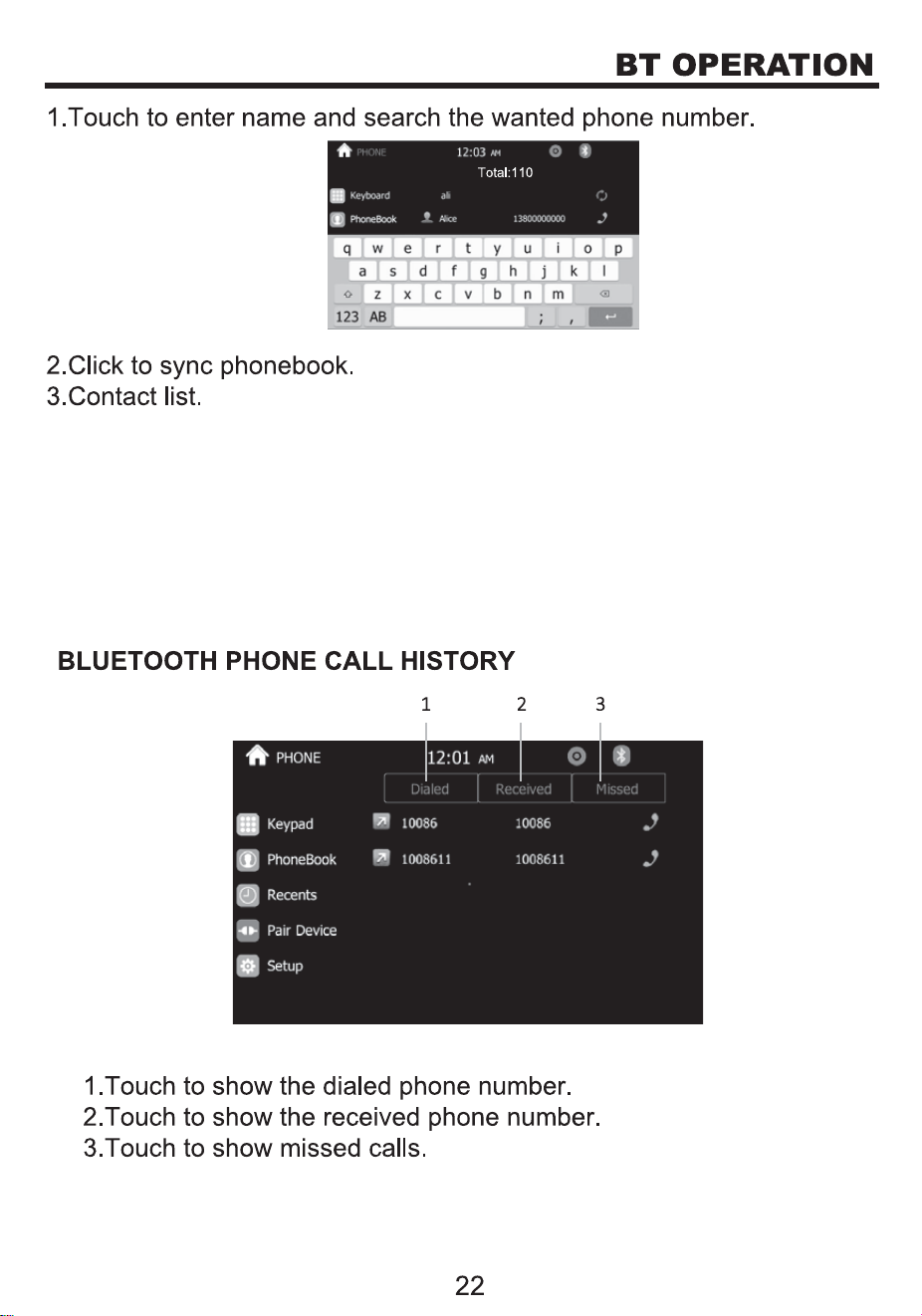

Bluetooth phone call history................................................... 22

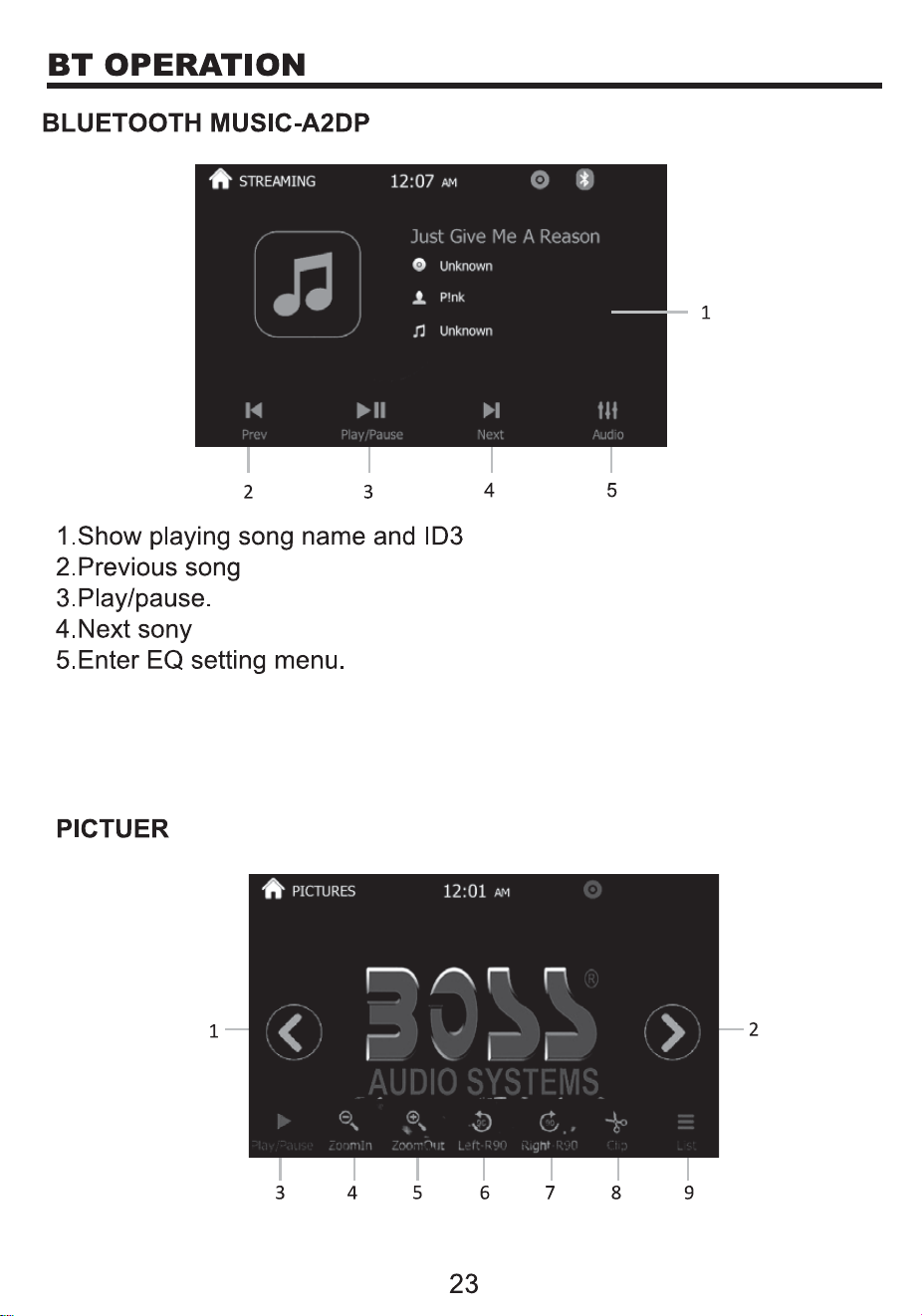

Bluetooth Music-a2dp..............................................................23

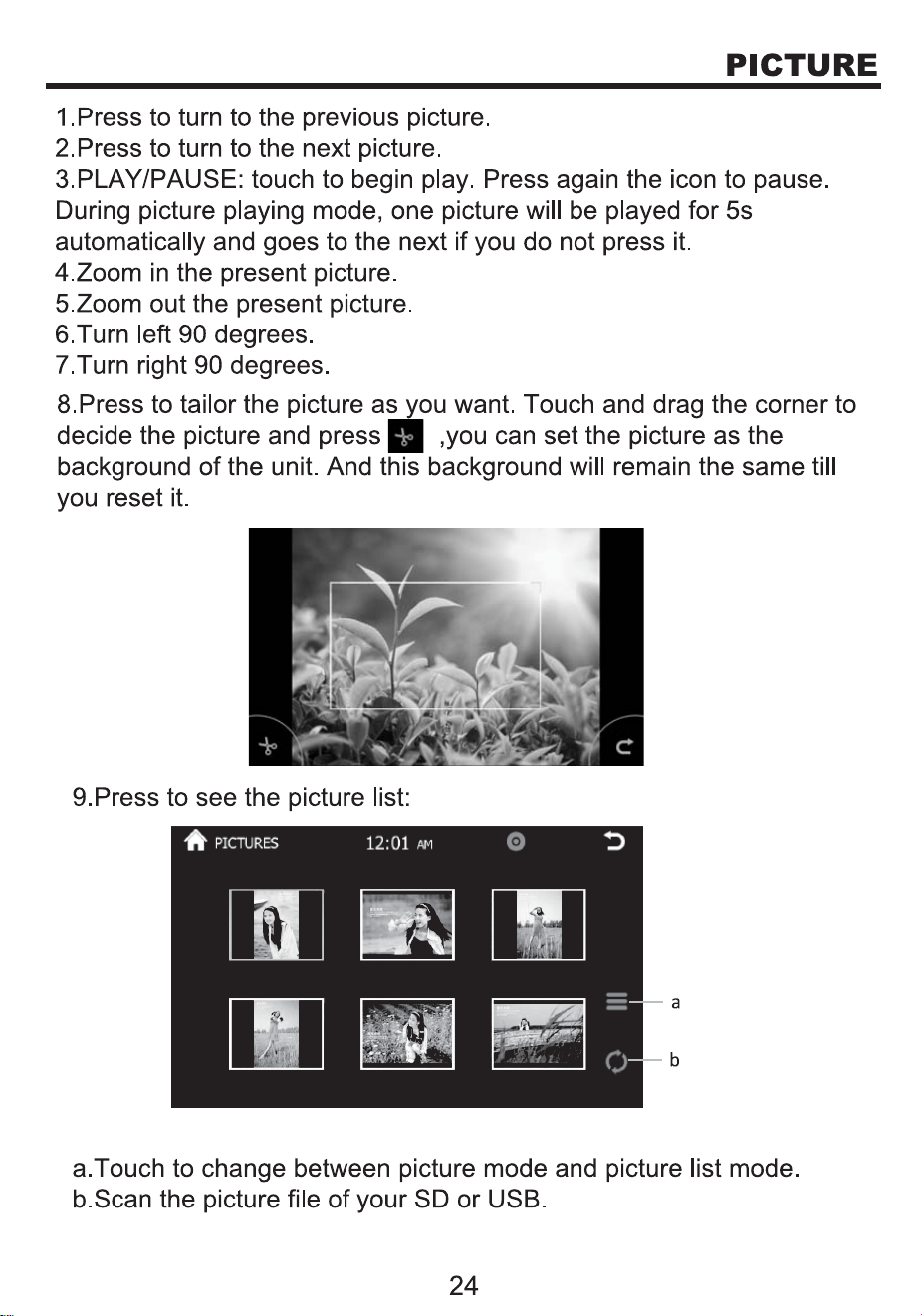

Picture...............................................................................................23

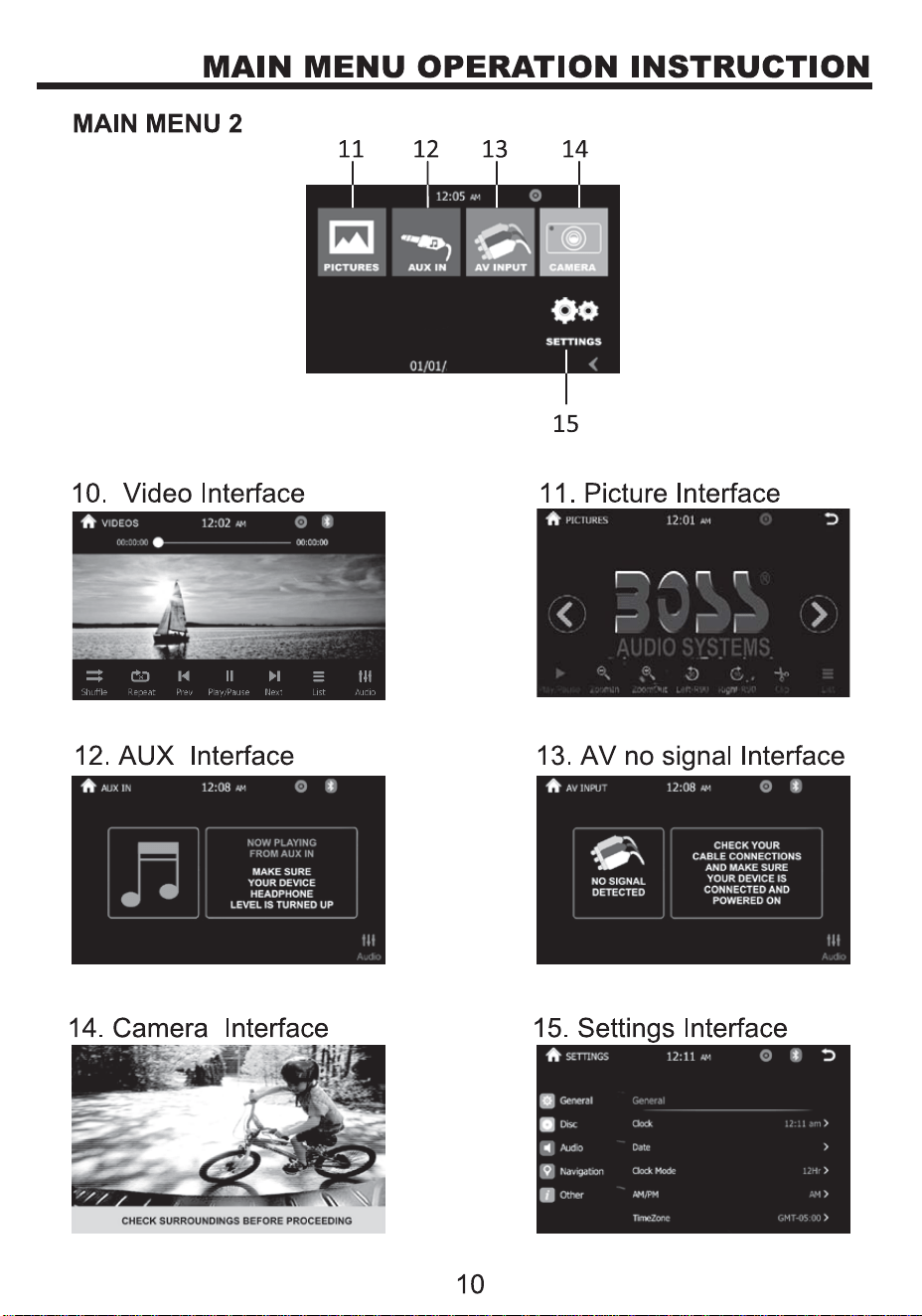

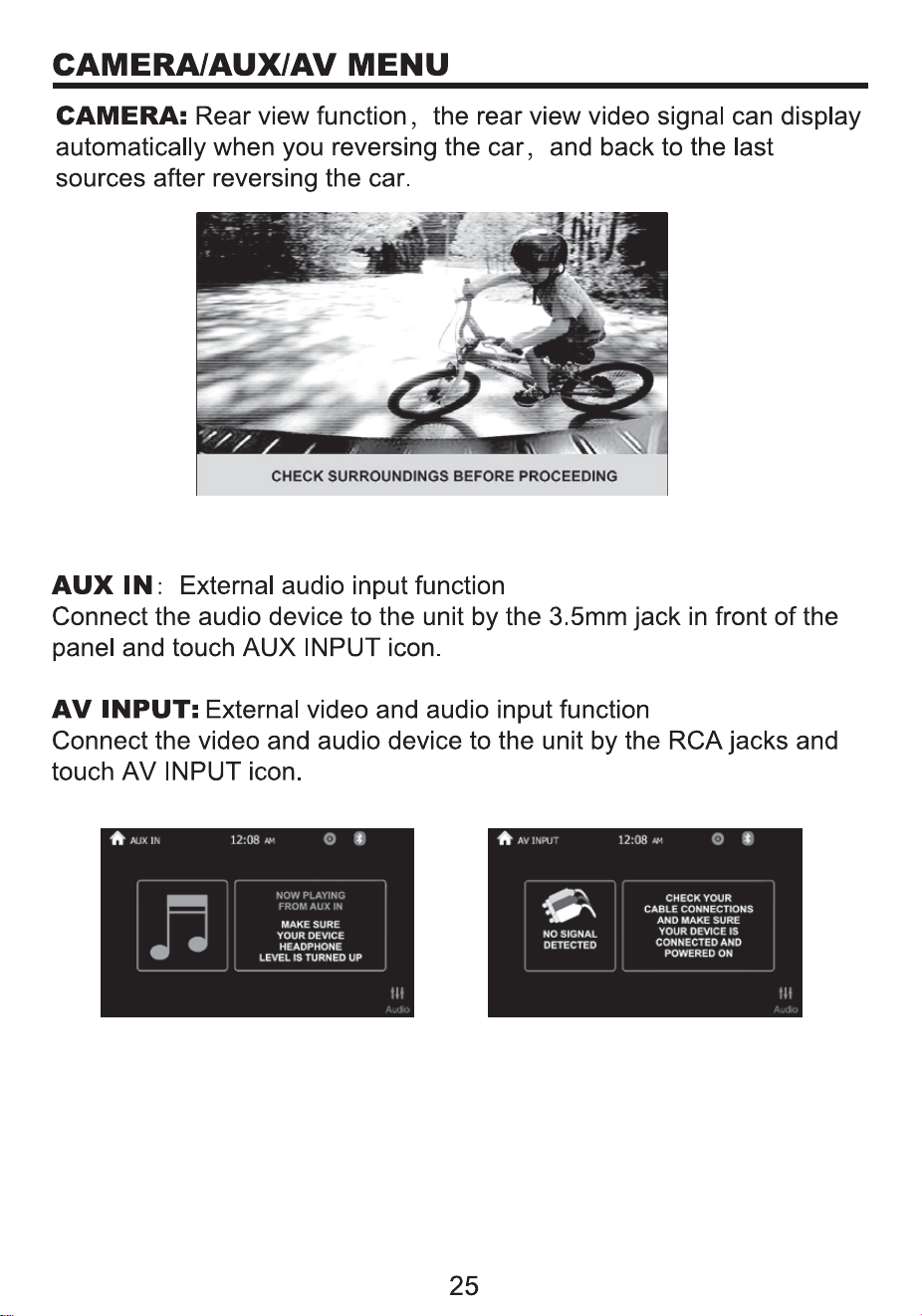

Camera/Aux/Av meun...................................................................25

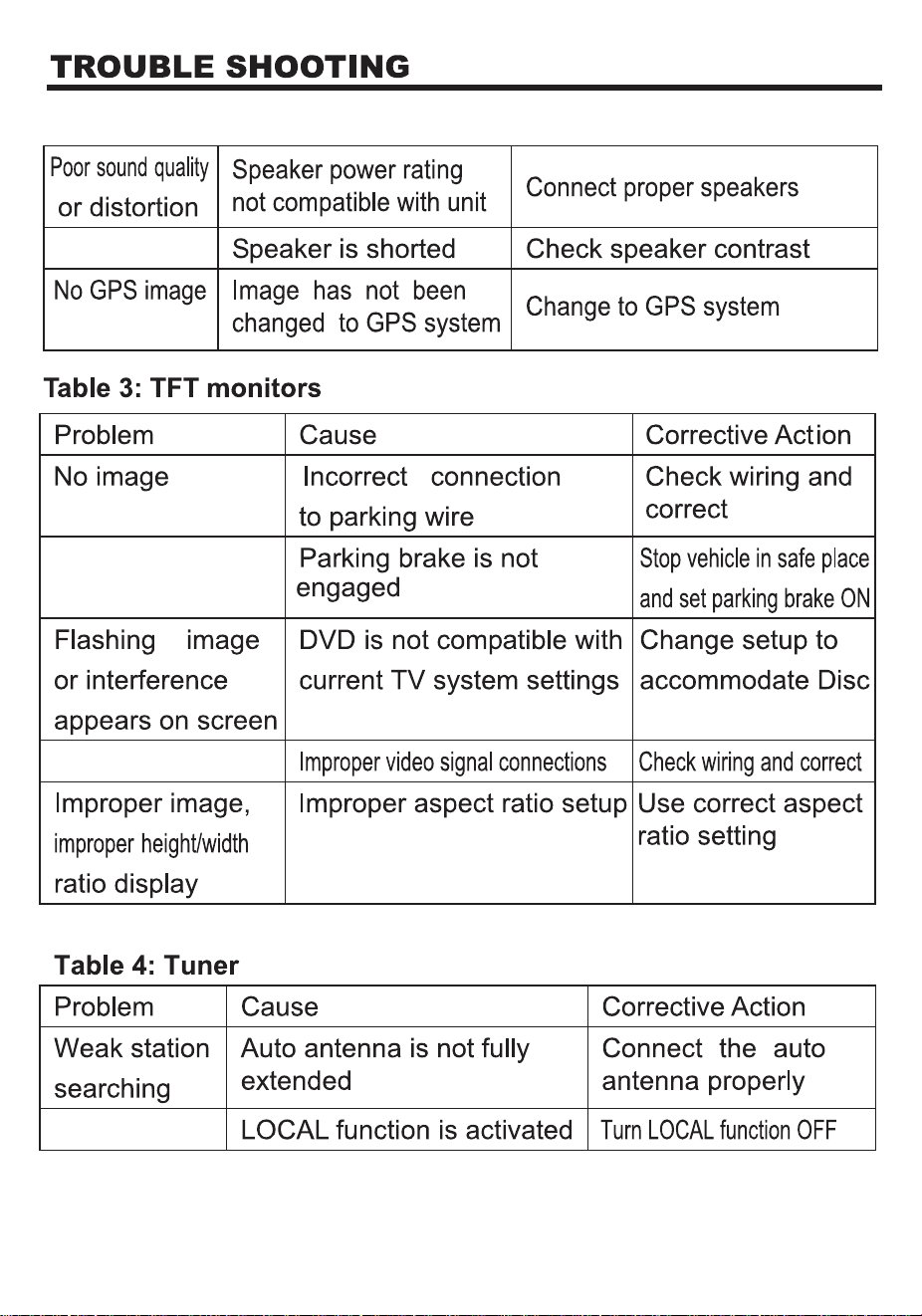

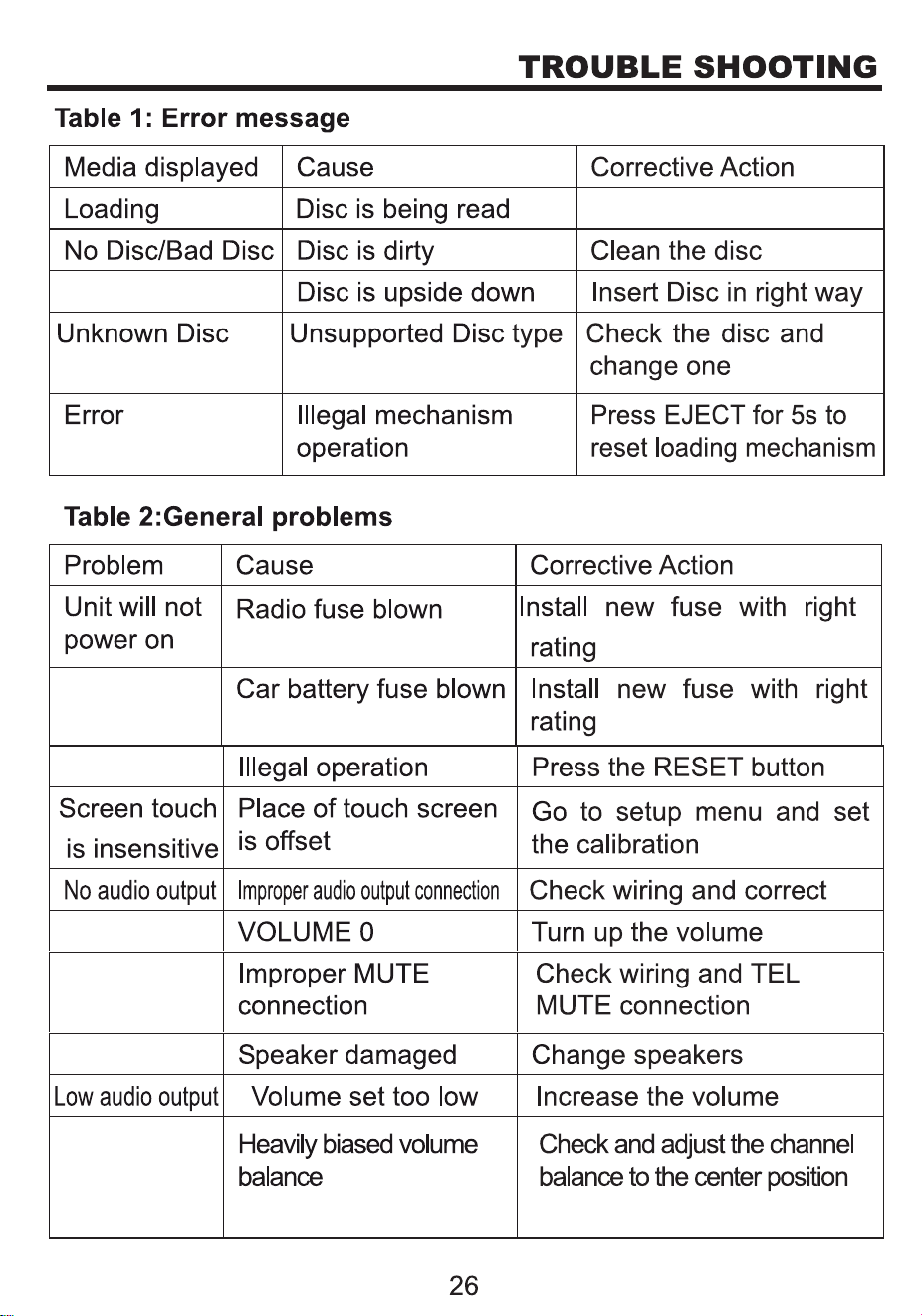

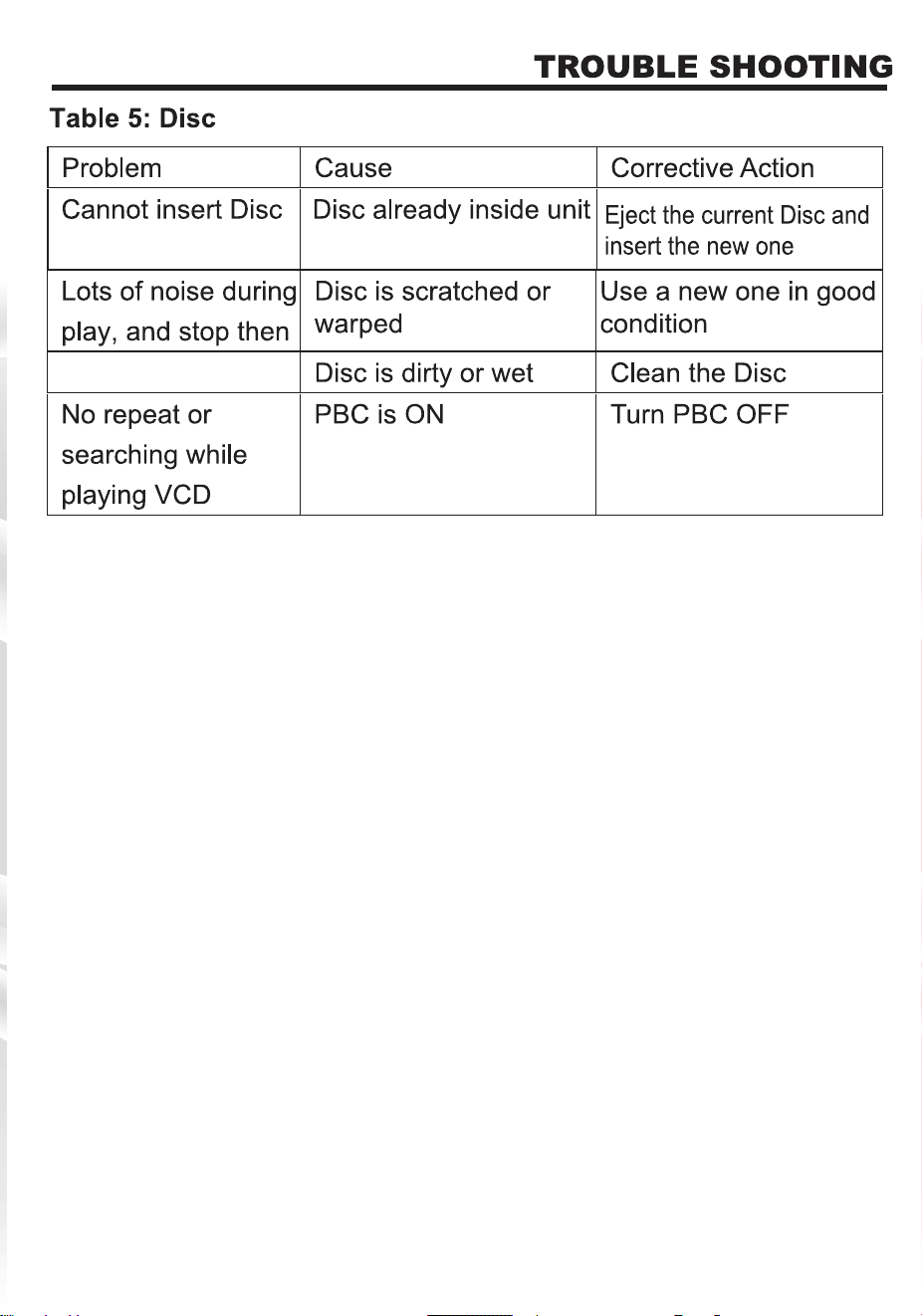

Trouble shooting.............................................................................26

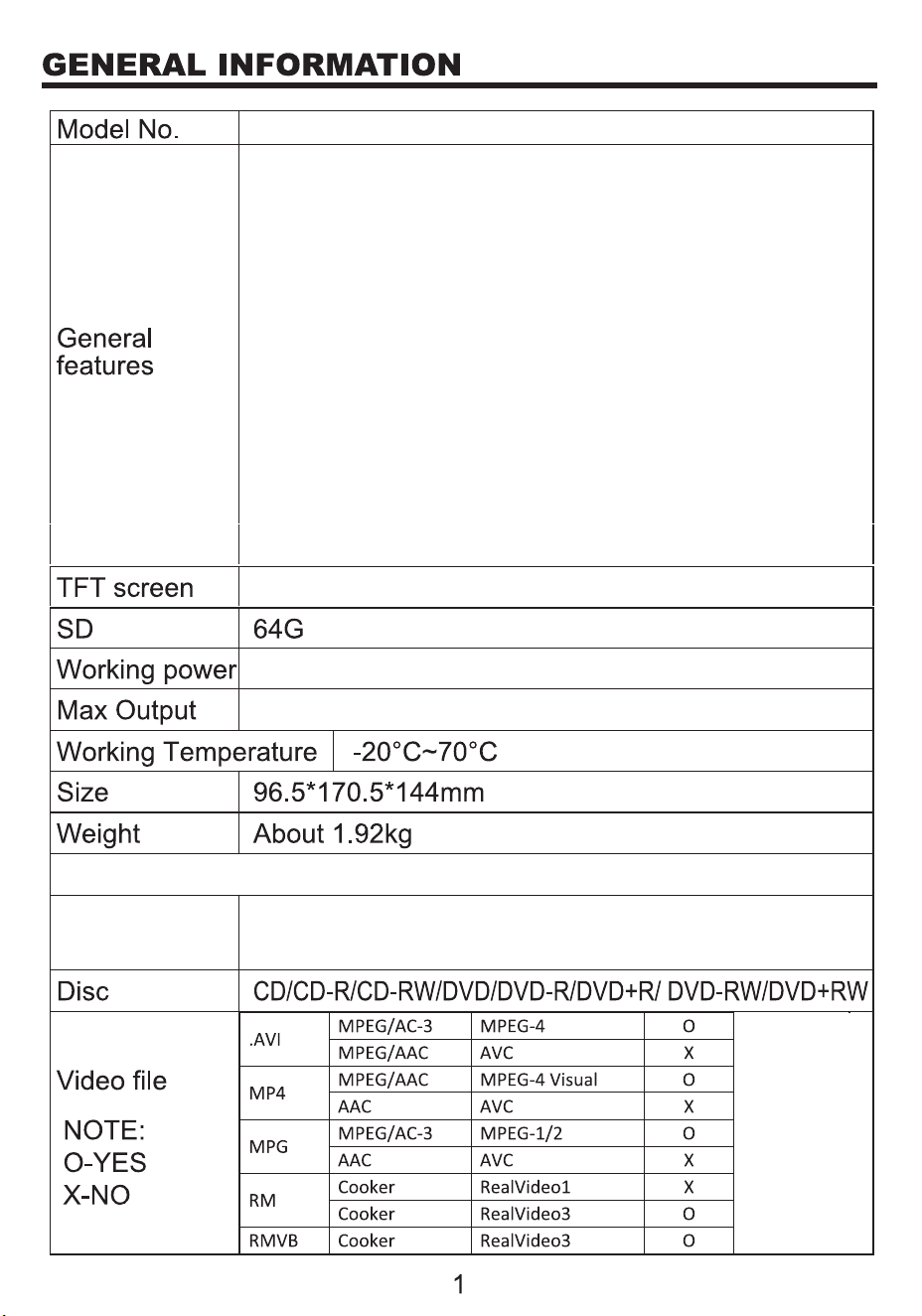

DVD ±R/RW Audio &
BN965BLC
Video
CD ±R/RW Audio & Video
FM/AM Tuner (Switchable Tuner)
USB Port
SD Port (64GB Max)
USB Charging (1A)
A/V In/Out
Rear Camera Input
Front, Rear, Sub Pre-Amp Outputs
Steering Wheel Control Input
6.5 TFT (800 x 480 Resolution)
11-16 V DC Allowable, Negative Ground
4 x 80 Watts
JPEG, BM
Picture/Audio
formats
P, PNG, MP3,AAC,WAV
Compatible Formats

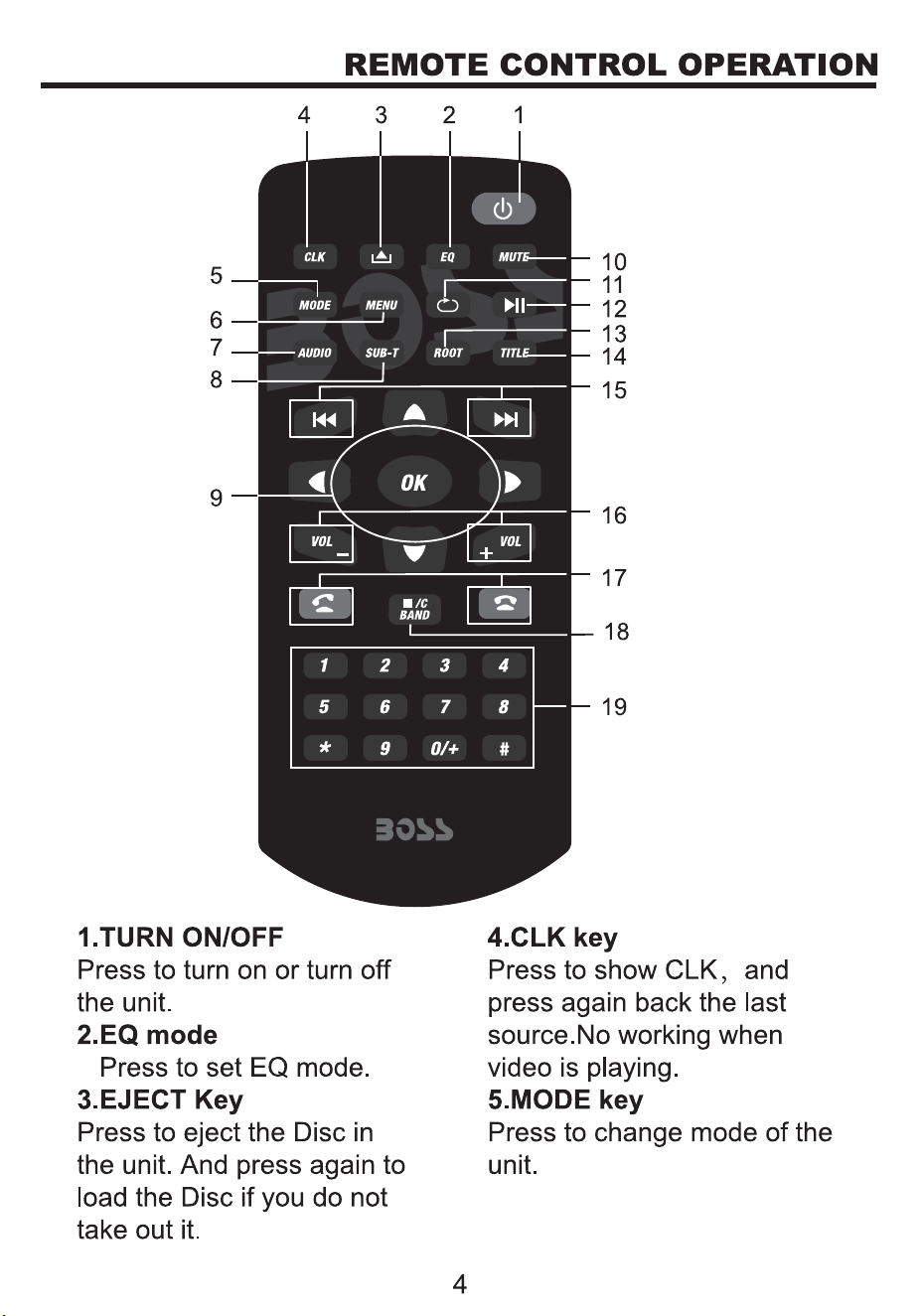

Remote Control
GPS Antenna
Power Cable RCA Cable

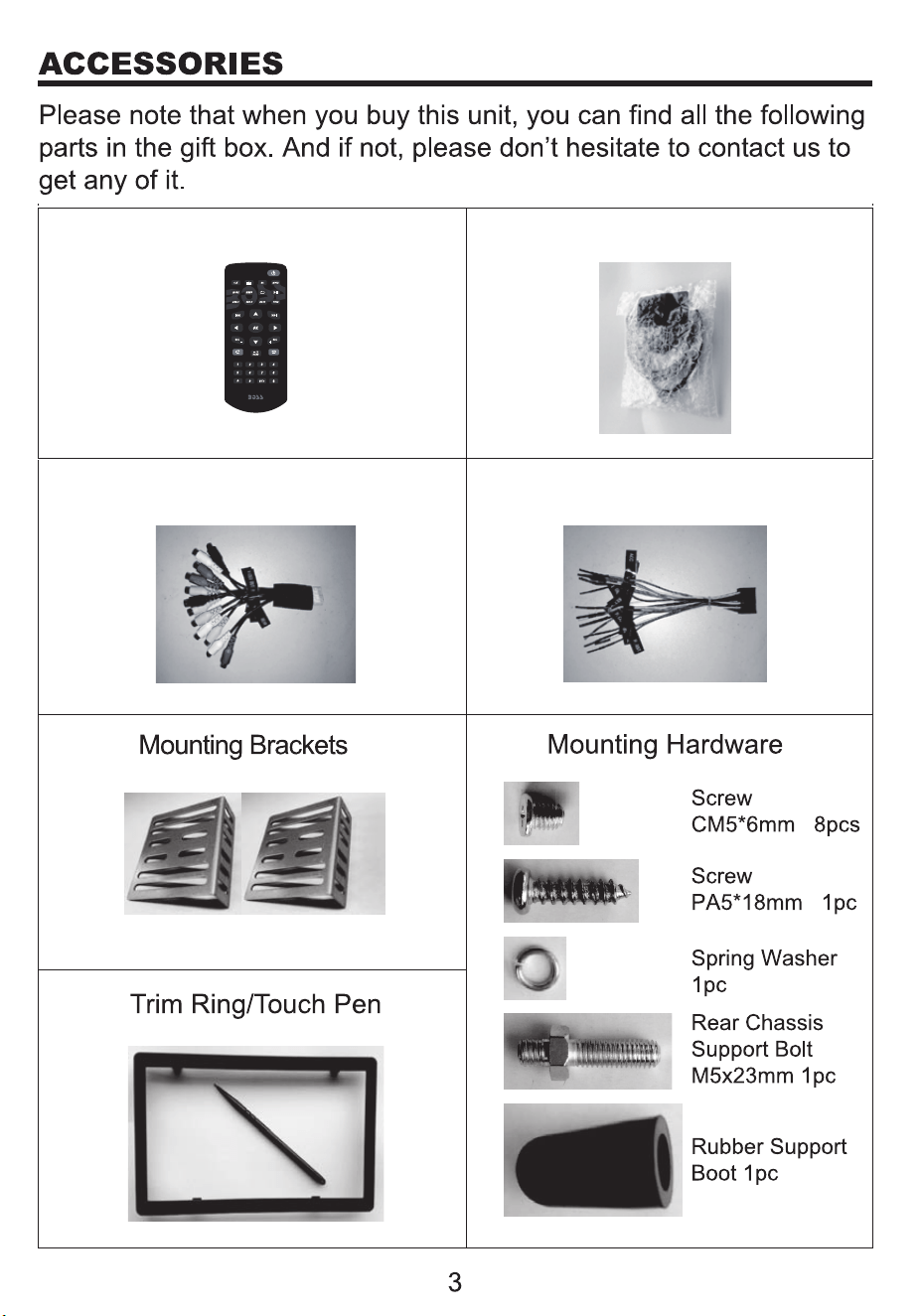

UNIT INSTALLATION
Bracket

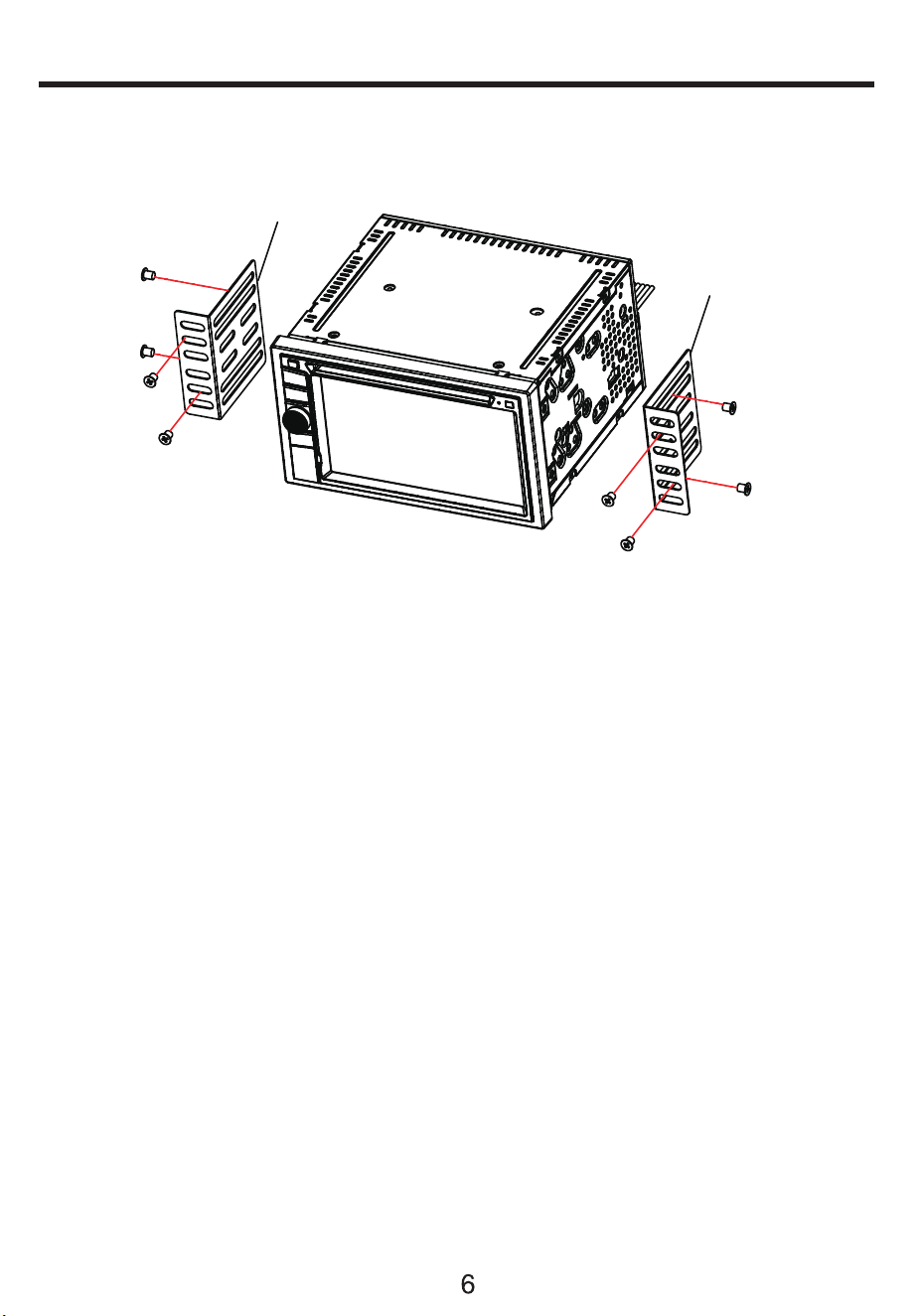

1.Put the 2 brackets to the left and right side of the unit;
Bracket
Screw
2.Use screws to fix the brackets to the unit.
3. Once the screws are attached, the brackets can be adjusted
forward or aft depending on the installation requirements.

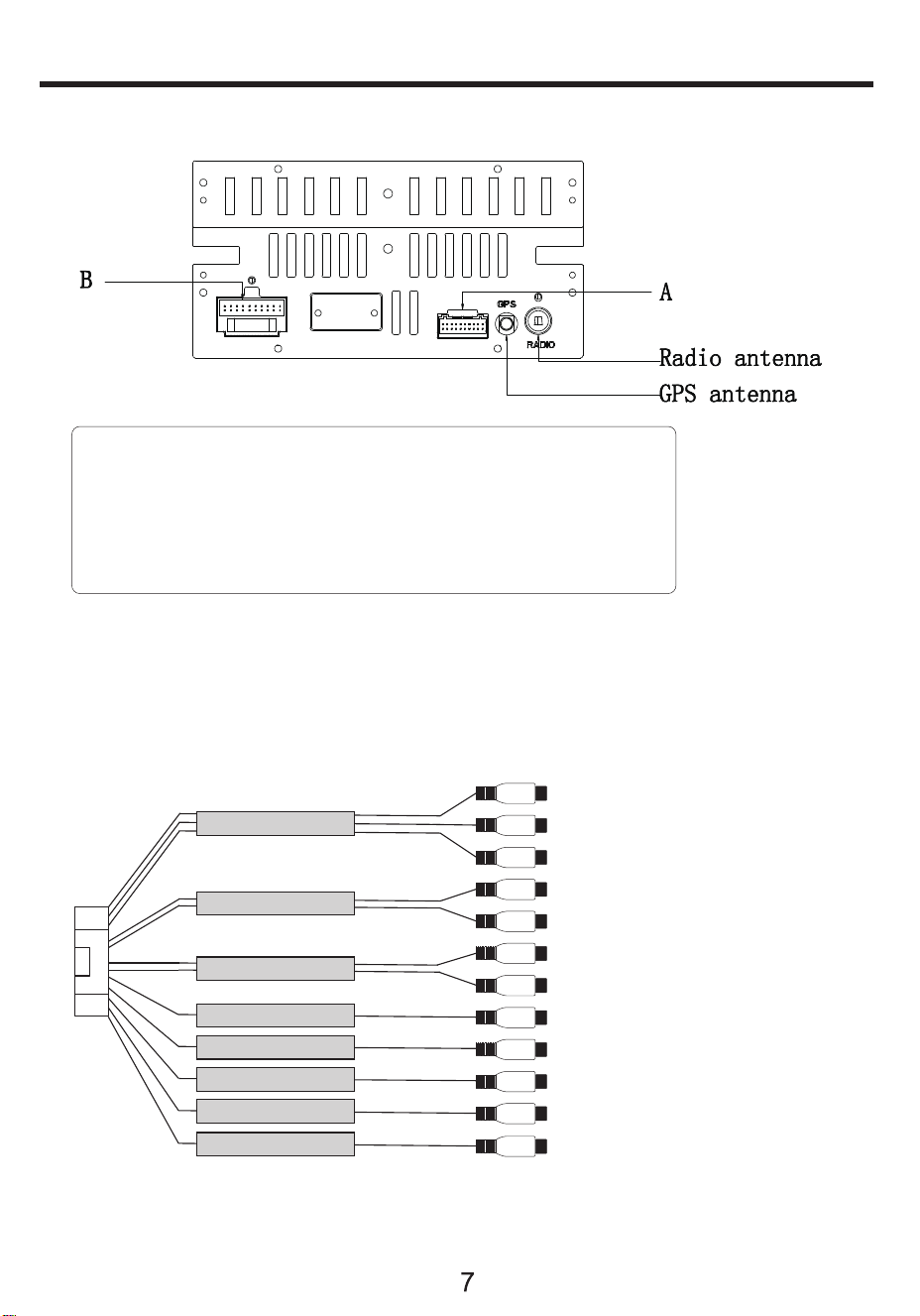

WIRES CONNECTION DESCRIPTION
The Description of the Input/Output Interface
Description of the Wiring Diagram for Socket A
White RCA L Input
White
Rear L Output
Yellow
Reverse
Video
Input
YELLOW. .... . . . . ..... . . . . (B+)12V
RED.. . . . . . . ...... . . . . . ACC(+12V)
LT.GREEN. . ... . . ..PARKING BRAKE
VIOLET/WHITE. . . . . . . . . . REVERSE
BLUE. . . . ... . . . .... . . ..ANT.CONT
BLACK......... . . . . . . . . . GROUND
BLUE/ WHITE. . . . . . . . . . . . . P. CONT
WHITE. . .... . . ... . LEFT FRONT(+)
WHITE/ BLACK.. . . ..LEFT FRONT(-)
GREEN. . .... . .... . . LEFT REAR(+)
GREEN/ BLACK. . . ... . LEFT REAR(-)
GREY. . ... . . .... . RIGHT FRONT(+)
GREY/ BLACK.. . ...RIGHT FRONT(-)
VIOLET. . . ... . . . . ..RIGHT R
EAR(+)
VIOLET/ BLACK. . . ...RIGHT REAR(-)
WHITE. . .... . . ... . . ... . . ... KEY A
BROWN. . .... . . ... . . ... . . ..KEY B
BLACK. . .... . . ... . . ... . . KEY GND
S TE E R ING WHE E L C ONTR O L
Blue
Subwoofer Output
Blue
Subwoofer Output
Yellow
Video Output 1
A
Red Rear R Output
White
Front L Output
Red Front R Output
Yellow Video Input
Red RCA R Input
AV IN
SUB OUT
SUB OUT
VIDEO OUT 1
FRONT
REAR
CAMERA
Yellow Video Output 2
VIDEO OUT 2
MIC
MODE
VOL
NAVI
2016 FRI
87.5087.50
87.50
Boss Audio BN965BLC
2016 FRI
01/01/2016
01/01/2016
87.50
87.5087.50
87.50
DISC
VIDEO
Boss Audio BN965BLC
Boss Audio BN965BLC
27
28
