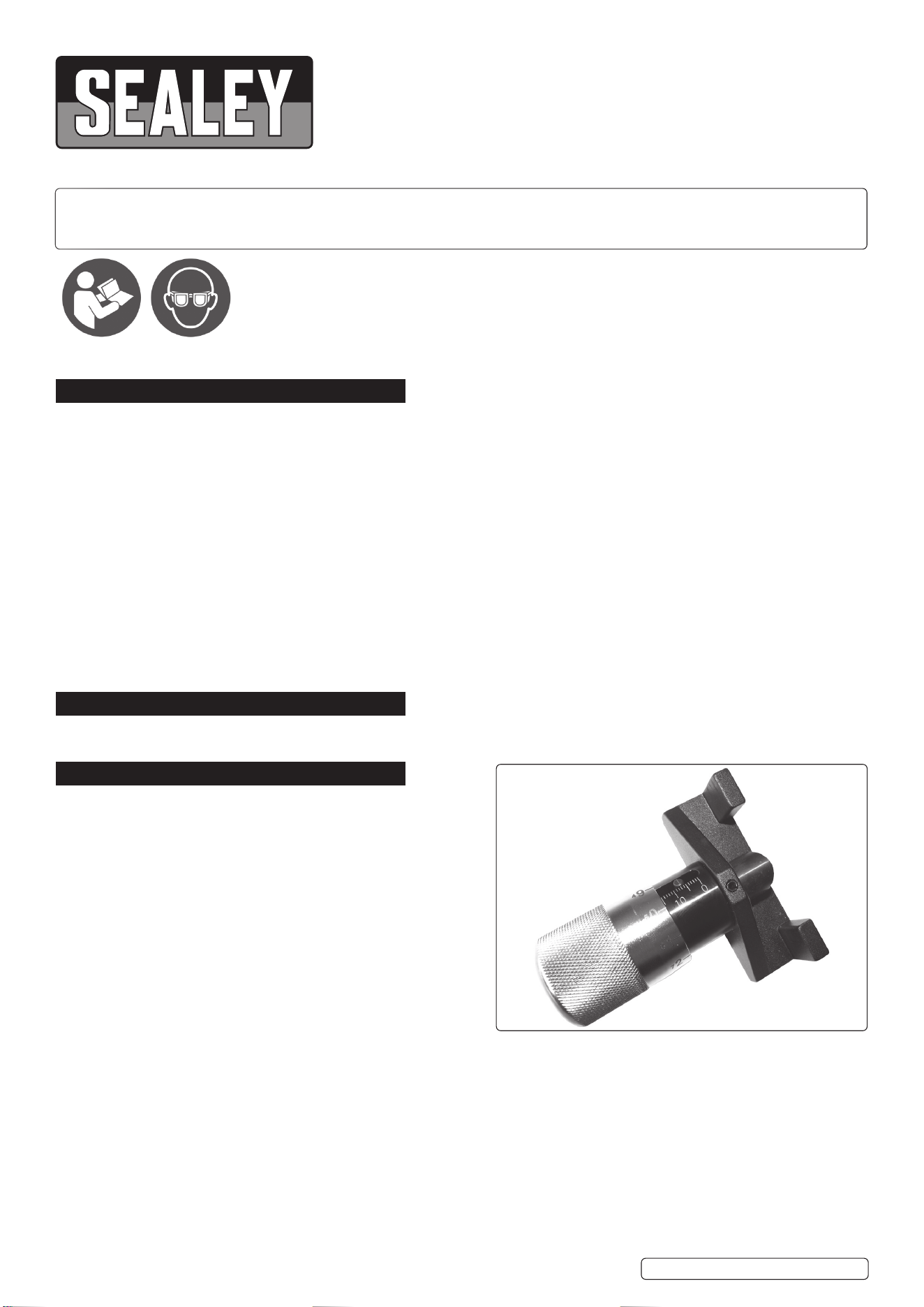

BELT TENSIONING GAUGE, UNIVERSAL FIT
MODEL NO: VSE110.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Wear approved eye protection. Wear appropriate Personal Protective Equipment. A full range of Personal Protective
Equipment is available from your Sealey dealer.
WARNING! Ensure that Health & Safety, Local Authority Regulations and general workshop practice Regulations are adhered to when
using tools.
8 DO NOT use tools if damaged.
9 Maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
9 Ensure that a vehicle that has been raised by a jack is adequately supported. Use axle stands.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9 Account for all tools, parts and components being used. DO NOT leave these in or near the engine. Return tools to suitable
storage after use.
▲ IMPORTANT! These Instructions are provided as a guide only. Always refer to the vehicle manufactures’ service instructions or a
proprietary manual to establish the correct procedure and data.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations. The Operator /
user must apply caution and common sense (good practical sense).
9 When timing an engine, always prevent the engine from being turned over. Use a notice and/or inhibit the engine.
WARNING! Incorrect or out of phase camshaft timing can result in contact between the valve head and the piston crown. This will
cause damage to the engine.
2. INTRODUCTION
Ensures accurate measurement of belt tension. Clear increment and dual scale for ease of use. Tension chart guide is included.
Suitable for belts of varying thickness.
3. INSTRUCTIONS
The Belt Tension Gauge is suitable for use on camshaft drive
belts, and serpentine drive belts. It is designed for ease of use
and can be used to check the tension on a variety of belts where
the movement of the belt is measured by load. There is a clear
increment and a dual scale for accurate measurement of the belt
tension.
NOTE: Always follow the manufacturer’s data for the belt tension
requirements and the correct position of where the belt tension
should be measured. The Belt Tension Gauge is set for 5mm thick
belts but can measure various belt thickness.
3.1. CHECKING THE BELT TENSION
3.1.1. Fit the Belt Tension Gauge on the belt at the correct location as
Detailed by the manufacturer for load testing.
3.1.2. Obtain the manufacturer’s data for belt deection (mm) and load.
(daN).
3.1.3. Using the table supplied, nd the correct tension setting.
3.1.4. Turn the knurled knob until the bevelled edge is on the required tension setting, the increments shown are for precise setting.
3.1.5. The belt tension can now be read from the internal slide. This reading can now be compared to the optimum tension readings on the
table overleaf.
3.1.6. Adjust the belt to the correct tension as required.
3.1.7. If the belt to be tightened is thicker that 5mm, simply add the difference to the tension setting and to the optimum tension.
For example; (Example shown in the shaded area on the table).
Belt thickness = 6mm
Belt load = 4.5 daN
Belt deection = 3.5mm
The tension setting = 16mm + 1mm = 17mm
Optimum Tension = 13mm + 1mm = 14mm
Original Language Version
© Jack Sealey Limited
Refer to
Instructions
Wear eye
Protection
VSE110.V2 Issue 1 18/10/23
Original Language Version
© Jack Sealey Limited
VSE110.V2 Issue 1 18/10/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please
email or call our technical team on technical@sealey.co.uk or 01284 757505.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
