TECHNICAL DATA
Item number 10040146, 10040147
Power supply 220-240 V 50–60 Hz
Dear Customer,
Congratulations on purchasing this equipment. Please
read this manual carefully and take care of the following
hints to avoid damages. Any failure caused by ignoring
the items and cautions mentioned in the instruction
manual are not covered by our warranty and any
liability. Scan the QR code to get access to the latest
user manual and other information about the product.
CONTENTS
24
EN
SAFETY INSTRUCTIONS
Please take the time to read this instruction manual before installing or using the
appliance. This instruction booklet must be kept with the appliance for any future
reference. If the appliance is sold or transferred to another person,ensure the booklet is
passed on to the new user.
• This appliance shall be installed in accordance with regulations in force and only
used in a well ventilated space.
• Prior to installation,ensure that the gas and electrical supply complies with the type
stated on the rating plate.
• Where this appliance is installed in marine craft or in caravans, it should not be
used as a space heater.
• The gas pipe and electrical cable must be installed in such a way that they do not
touch any parts or the appliance.
• This appliance should be installed by a qualied technician or installer.
• The adjustment conditions for this appliance are stated on the label or data plate.
• Remove all packaging before using the appliance.
• After unpacking the appliance, make sure the product is not damaged and that
the connection cord is in perfect condition. Otherwise, contact the dealer before
installing the appliance.
• The adjacent furniture and all materials used in the installation must be able to
withstand a minimum temperature of 85 °C above the ambient temperature of the
• room it is located in, whilst in use.
• In the event of burner ames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
• The use of a gas cooking appliance results in the production of heat and moisture
in the room in which it is installed. Ensure that the kitchen is well ventilated: keep
natural ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more effective ventilation, for example
increasing he level of mechanical ventilation where present.
• Do not allow children to play near or with the appliance.
• The appliance gets hot when it is in use.
• Children should be kept away until it has cooled.
• This appliance is designed to be operated by adults.
• Children can also injure themselves by pulling pans or pots off the appliance.
• This appliance is not intended for use by children or other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents them
from using the appliance safety without supervision or instruction by a responsible
person to ensure that they can use the appliance safety.
• Only use the appliance for preparing food.
• Do not modify this appliance. Burner panel is not designed to operate from an
external timer or separate remote control system.
• The use of a gas cooking appliance results in the production of heat and moisture
in the room in which it is installed. Ensure that the kitchen is well ventilated : keep
naturalventilation holes open or install a mechanical ventilation device (mechanical
25
EN
extractor hood).
• Do not use this appliance if it comes in contact with water. Do not operate this
appliance with wet hands.
• The heating and cooking surfaces of the appliance become hot when they are in
use, take all due precautions.
• Do not use large cloths, tea towels or similar as the ends could touch the ames
and catch re.
• Never leave the appliance unattended when cooking.
• Unstable or misshapen pans should not be used on the appliance as they can
cause an accident by tipping or spillage.
• Do not use or store ammable materials in the storage drawer near this
appliance.
• Perishable food, plastic items and aerosols may be affected by heat and should
not stored above or below the appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in operaiton.
• Ensure the control knobs are in the '' position when not in use.
• This appliance is intended for domestic cooking only.It is not designed for
commercial or industrial purposes.
• Prolonged intensive use of the appliance may call for additional ventilation,for
example opening of a window, or increasing the level of mechanical ventilation
where present.
• Use heat-resistant pot holders or gloves when handling hot pots and pans.
• Do not let pot holders come near open ames when lifting cookware.
• Take care not to let pot holders or gloves get damp or wet, as this causes heat to
transfer through the material quicker with the risk of burning yourself.
• Only ever use the burners after placing pots and pans on them. Do not heat up
any empty pots or pans.
• Never use plastic or aluminium foil dishes on the appliance.
• When using other electrical appliances, ensure the cable does not come into
contact with the appliance surfaces of the cooking appliance.
• If you have any mechanical parts eg. an artical heart in your body, consult a
doctor before using the appliance.
• Do not use a tea towel or similar materials in place of a pot holder.Such cloths
can catch re on a hot burner.
• When using glass cookware, make sure it is designed for top plate cooking. If
the surface is made of glass-cracked, switch off the appliance to avoid defeat
electrocution.
• To minimise the possibility of burns, ignition of ammable materials and spillage,
turn cookware handles toward the side or center of the top plate without
extending over adjacent burners.
• Always turn burner controls off before removing cookware.
• Carefully watch foods being fried at a high ame setting.
• Always heat fat slowly and watch as it heats.
• Foods for frying should be as dry as possible. Frost on frozen foods or moisture on
fresh foods can cause hot fat to bubble up and over the sides of the pan.
• Never try to move a pan of hot fat,especially a deep fat fryer. Wait until the fat is
completely cool.
26
EN
DISASSEMBLY
Note: Installation/assembly and disassembly of the unit must only be carried
out by qualied personnel.
Before dismantling, any gas in the unit must be vented. Proceed as follows:
• Close all supply valves, but do not disconnect the gas cooker from the line yet.
• Now light all the burners. The remaining gas contained in the appliance burns off in
a short time.
• After that, the appliance’s pipes are free of gas and the gas cooker can be
disconnected from the connections.
Important notes on dismantling the unit
• The disassembly is the same as the installation / assembly in the reverse order of
the steps.
• Have a second person help you during disassembly to avoid injury.
• Ensure sufcient ventilation of the working area during disassembly.
• There are no motors or accumulators in this gas hob. Observe the section “Disposal
Considerations”.
27
EN
DESCRIPTION OF THE APPLIANCE

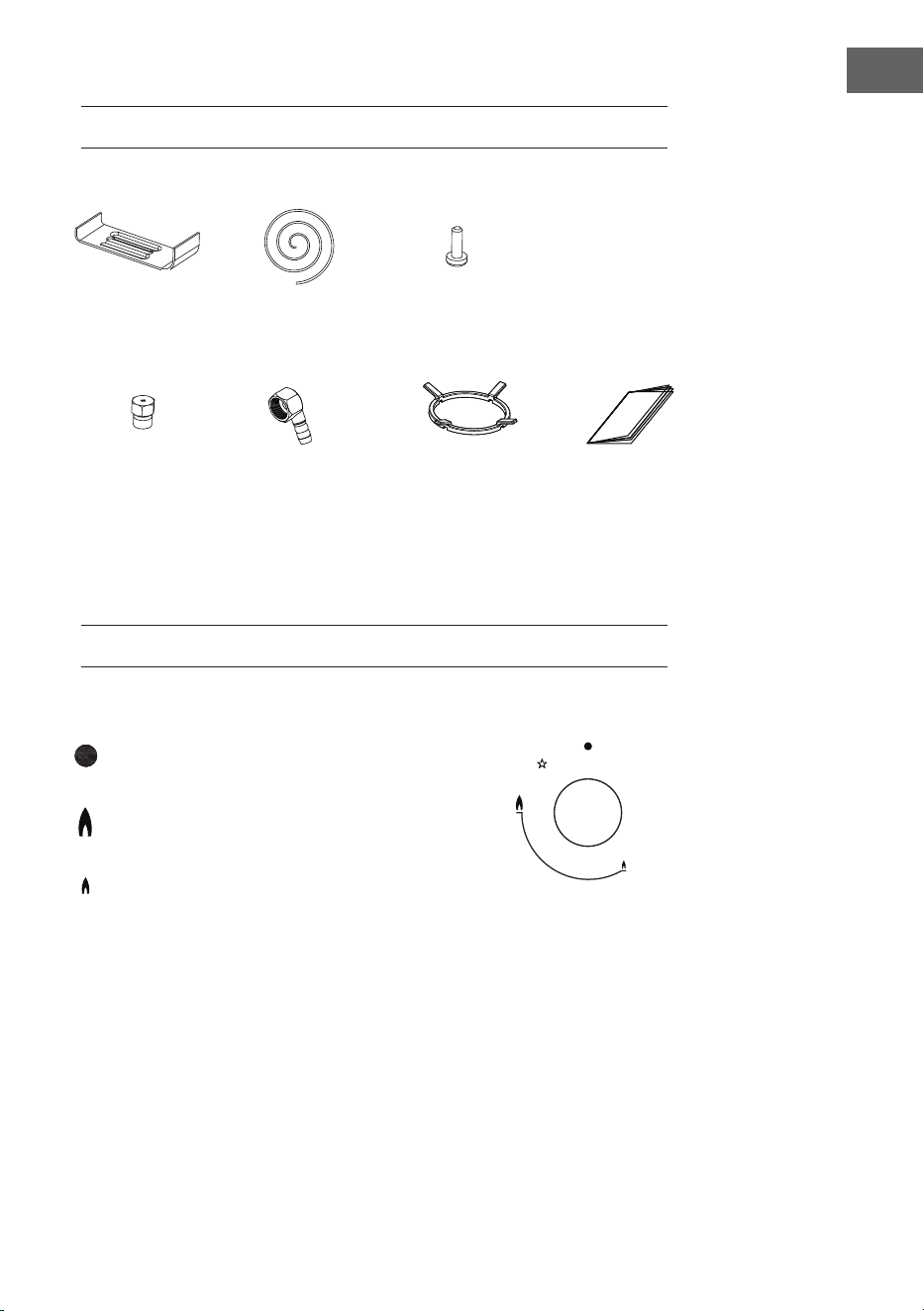

Accessories
Bracket
(4)
Sponge
(4)
Screw
(4)
Instruction
Manual (1)
Cast iron rack (1)
Injector (5)
Gas-pipe bend (1)
HOW TO USE THE APPLIANCE
The following symbols will appear on the control panel, next to each control handle.
Black circle: gas off
Large ame: maximum setting
Small ame: minimum setting
The minimum setting is at the end of the anti-clockwise rotation of the control handle.
All operation positions must be selected between the maximum and minimum position.
The symbol on the control panel,next to the control handle will indicate which burner it
operates.
28
EN
Automatic ignition with ame failure safety device
• The appliance is tted with a ame failure safety device on each burner, which is
designed to stop the ow of gas to the burner head in the event of the ame going
out.
Warning: Danger of re or explosion
If gas seems to leak, take the actions as follow:
• Do not turn on the light.
• Do not switch on/off any electrical appliance and do not touch
any electric plug.
• Do not use a telephone.
1. Stop using the product and close the middle valve.
2. Open the window to ventilate.
3. Contact our service centre by using a phone outside.
To ignite a burner
• Press in the control knob of the burner that you wish to light and turn it anti-
clockwise to the maximum position.
• If you keep the control knob depressed, the automatic ignition for the burner will
operate.
• You should hold down the control knob for 15 seconds after the ame on the
burner has lit. If after 15s the burner has not lit, stop operating the device and
open the compartment door and/or wait at least 1 min before attempting a
further ignition of the burner.
• After this 15-second interval, to regulate the ame you should continue turning the
control knob anti-clockwise until the ame is at a suitable level.
• The operating position MUST be at a position between the maximum and
• minimum position.
• To switch the burner off, turn the control knob fully clockwise to the gas off
position.
• In case of power failure, the burners can be lit by carefully using a match.
29
EN
SAFETY AND ENERGY SAVING ADVICE
The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS
PANS
min. max.
Triple-Crown 200 mm 240 mm
Rapid 200 mm 240 mm
Semi-Rapid 160 mm 160 mm
Auxiliary 120 mm 180 mm
NO YES
Do not use small diameter
cookware on large burners.
The ame should never come up
the sides ofthe cookware.
Always use cookware that is suitable
for each burner, to avoid wasting gas
and discolouring the cookware.
Avoid cooking without a lid or with
the lid half off -as this wastes energy
Place a lid on the cookware:
Do not use a pan with a convex
or concave bottom.
Only use pots,saucepans and
frying pans with a thick,at
bottom.
Do not place cookware on one side
of a burner,as it could tip over.
Always place the cookware right
over the burners,not to one
side.
Do not use cookware with a large
diameter on the burners near the
controls,which when placed on the
middle of the burner may touch the
controls or be so close to them that
they increase the temperature in this
area and may cause damage.
Never place cookware
directly on top of the
burner.
Place the cookware on top of
the trivet.
Do not place anything,eg.ame
tamer,asbestos mat,between
pan and pan
support as serious damage
to the appliance
may result.
30
EN
Do not use excessive weight and do not
hit the cooktop with heavy objects.
Handle cookware carefully when
they are on the burner.
tIt is not recommended to use roasting pans,frying pans or grill stonesheated
simultaneously on several burners because the resulting heatbuild-up may damage the
appliance.
Do not touch the top plate and trivet whilst in use for a certain period after use.
As soon as a liquid starts boiling,turn down the ame so that it will barely keep the liquid
simmering.
DISASSEMBLY
Note: Installation/assembly and disassembly of the unit must only be carried
out by qualied personnel.
Before dismantling, any gas in the unit must be vented. Proceed as follows:
• Close all supply valves, but do not disconnect the gas cooker from the line yet.
• Now light all the burners. The remaining gas contained in the appliance burns off in
a short time.
• After that, the appliance’s pipes are free of gas and the gas cooker can be
disconnected from the connections.
Important notes on dismantling the unit
• The disassembly is the same as the installation / assembly in the reverse order of
the steps.
• Have a second person help you during disassembly to avoid injury.
• Ensure sufcient ventilation of the working area during disassembly.
• There are no motors or accumulators in this gas hob. Observe the section “Notes on
disposal”.
31
EN
CLEANING AND CARE
• Cleaning operations must only be carried out when the appliance is completely
cool.
• The appliance should be disconnected from your mains supply before
commencing any cleaning process.
• Clean the appliance regularly, preferably after each use.
• Abrasive cleaners or sharp objects will damage the appliance surface; you
should clean it using water and a little washing up liquid.
Usable Unusable
Soft Cloth Nylon Brush
Neutral Detergent Edible Oil
Abrasive
Metal Brush
Acidic/Alkali Detergent
Thinner/Benzene
Pan support, control handles
• Take off the pan support
• Clean these and the control handles with a damp cloth, washing up liquid and
warm water. For stubbon soiling, soak beforehand.
• Dry everything with a clean soft cloth.
Top plate
• Regularly wipe over the top plate using a soft cloth well wrung-out in warm water
to which a little washing up liquid has been added.
• Dry the top plate thoroughly after cleaning.
• Thoroughly remove salty foods or liquids from the hob as soon as possible to
avoid the risk of corrosion.
• Stainless steel parts of the appliance may become discoloured over time. This is
normal because of the high temperatures. Each time the appliance is used these
parts should be cleaned with a product that is suitable for stainless steel.
Burners
• Remove the burner lids and Flame Spreaders by pulling them upwards and away
from the top plate.
• Soak them in hot water and a little detergent or washing up liqui.
• After cleaning and washing them, wipe and dry them carefully. Make sure that
the ame holes are clean and completely dry.
32
EN
• Wipe the xed parts of the burner cup with a damp cloth and dry afterwards .
• Gently wipe the ignition device and ame supervision device with a well wrung-out
cloth and wipe dry with a clean cloth.
• Before placing the burners back on the top plate, make sure that the injector is not
blocked.

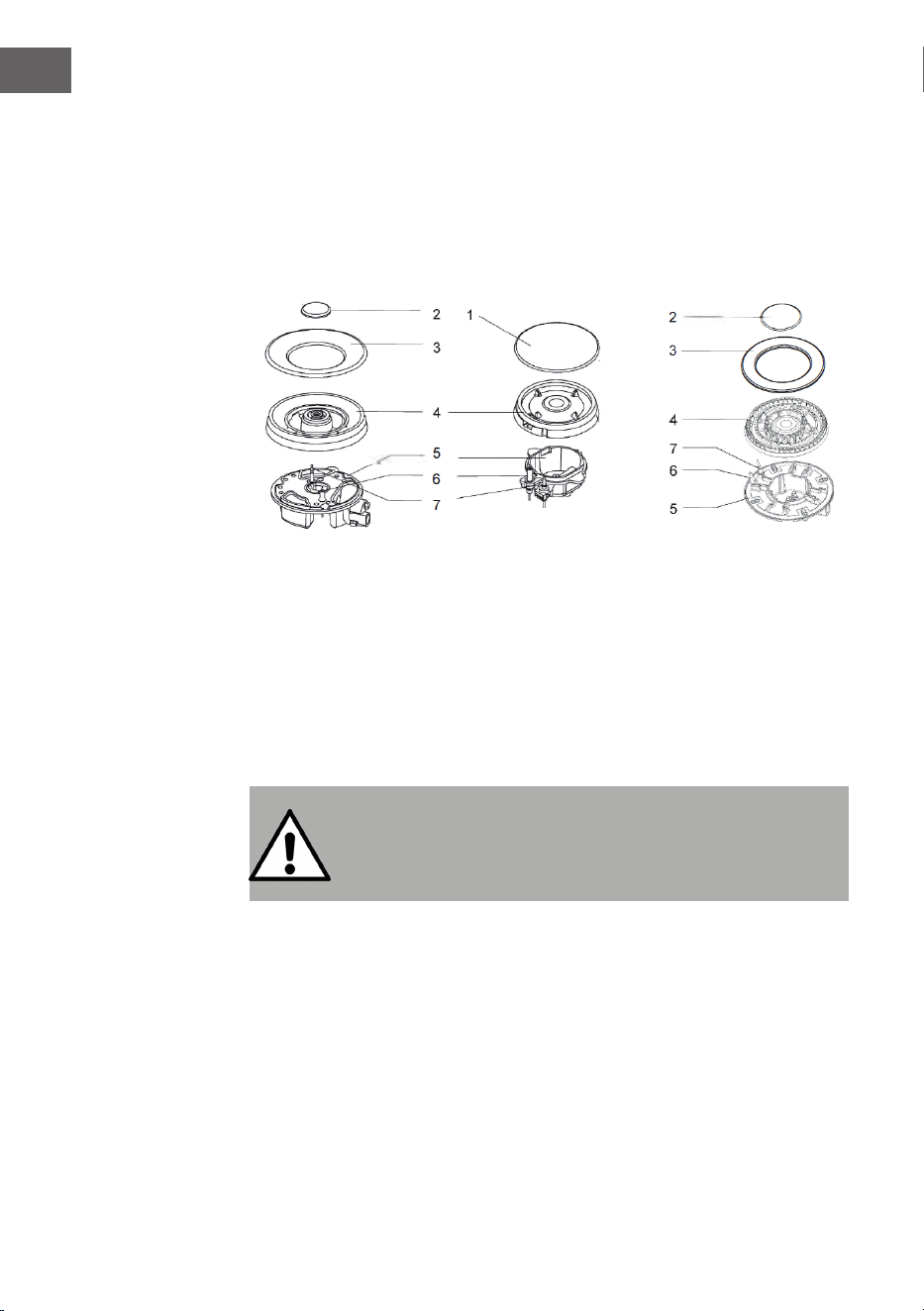

Re-assemble the Auxiliary, Semi-Rapid, Rapid and Triple-Crown burners as
follows
1. Place the ame spreader ( 4 ) on to the burner cup ( 5 ) so that the ignition device
and the ame supervision device extend through their respective holes in the
ame spreader.The ame spreader must click into place correctly.
2. Position the burner lid ( 1,2,3 ) onto the ame speader ( 4 ) so that the retaining
pins t into their respective recesses.
Warning: Danger of re
Do not mix up the top and bottom.
The locating pins must t exactly into the notches.
33
EN
INSTALLATION
Safety instructions for installation
• Do not modify this appliance.
• This appliance must be installed by an authorised technician or installer.
• Prior to installation, ensure that the local distribution conditions (nature of the gas
and gas pressure) and the adjustment of the appliance are compatible.
• The adjustment conditions for this appliance are stated on the label (or data
plate).
• This appliance is not connected to a combustion products evacuation installation
regulations. Particular attention shou ld be giv en to the relevant requirements
regarding ventilaton.
• Before installing, turn off the gas and electricity supply to the appliance.
• All appliances containing any electrical components must be earthed.
• Ensure that the gas pipe and electrical cable are installed in such a way that they
do not touch any parts of the appliance which may become hot.
• Gas pipe or connector shouldn’t be bent or blocked by any other appliances.
• Check the dimensions of the appliance as well as the dimensions of the gap to be
cut in the kitchen unit.
• The panels located above the work surface, directly next to the appliance, must
be made of non-ammable material. Both the stratied surfacing and the glue
used to secure it should be heat resistant, to prevent deterioration.
• Turn on appliance tap and light each burners.
• Check for a clear blue ame without yellow tipping.
• If burners shows any abnormalities check the following :
- Burner lid on correctly
- Flame spreader positioned correctly
- Burner vertically aligned with injector nipple
• A full operational test and a test for possible leakages must be carried out by the
tter after installation.
• The exible hose shall be tted in such a way that it cannot come into contact
with a moveable part of the housing unit and does not pass through any space
susceptible of becoming congested.device. It should be installed and connected
in accordance with current.
• Grease cranes produced at the factory to meet the requirement of all life hob.
34
EN
Positioning
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
900mm
700mm
400mm
400mm
60mm
480mm
i
20 m0
.M n
m
830/815mm*
• The edges of the hob must be a minimum distance of mm from a side or rear wall.
• 700 mm between the highest point of the hob surface (including the burners) and
the underside of any horizontal surface directly above it.
• 400 mm between the hob surfaces, providing that the underside of the horizontal
surface is in line with the outer edge of the hob. If the underside of the horizontal
surface is lower than 400 mm, then it must be at least 50 mm away from the outer
edges of the hob.
• 50 mm clearance around the appliance and between the hob surface and any
combustible materials.
• You must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
45
• This appliance is to be built into a kitchen unit or 600mm worktop,providing the
following minium distances are allowed.An oven must have forced ventilation to
* 10040146 - 830 mm × 480 mm
10040147 - 815 mm × 490 mm
35
EN

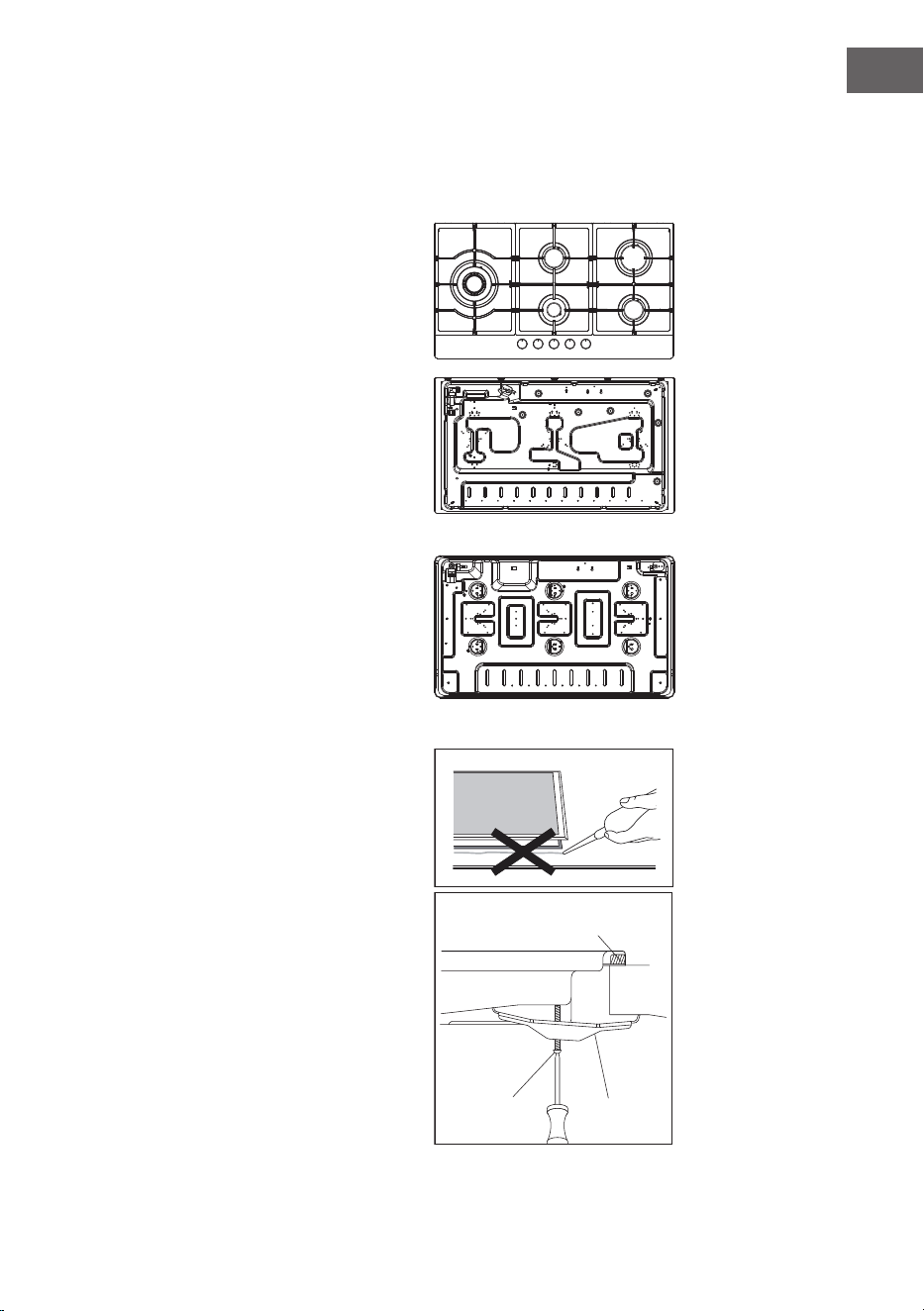

install a hob above it.
• Check the dimensions of the oven in the installation manual.
• The cut out size must obey the indication.
1. Remove the pan supports, the burner lid
and ame spreader and carefully turn the
appliance upside down and place it on a
cushioned mat.
Take care that the Ignition devices
and ame supervision devices are not
damaged in this operation.
2. Apply the sponge provided around the
edge of the appliance.
3. Do not leave a gap in the sealing agent or
overlap the thickness.
Do not use a silicon sealant to seal the
appliance against the aperture This will make
it difcult to remove the appliance from the
aperture in future, particularly if it needs to be
serviced.Do not use a silicon sealant to seal
theappliance against the aperture.
(A) SEALING STRIP
(C) SCREW
(B) BRACKET
1. Place the bracket (B) over the holes that
match the size of the screws.There are one
set of screw holes in each corner of the
hob (H)
Slightly tighten a screw (C) through the
bracket (B) so that the bracket is attached
to the hob, but so that you can still adjust
the position .
2. Carefully turn the hob back over and then
gently lower it into the aperture hole that
you have cut out.
3. On the underneath of the hob, adjust the
brackets into a position that is suitable for
your worktop. Then fully tighten the screws
(C) to secure the hob into position.
Bottom10040146
Bottom10040147
36
EN
Gas connection
This appliance must be installed and connected in accordance with installation
regulations in force in the country in which the appliance is to be used.
This appliance is supplied to run on LPG and natural gas. Conversion for
use on LPG and natural gases must only be undertaken by a qualied person.
seal
G1/2"Female coupler
The gas rail
seal
The gas rail
Ø11.5 Female coupler
LPG > NG NG > LPG
Gas supply replacement and installation guidelines:
It is the law that all gas appliances are installed by competent persons in
accordance with the current edition of the Gas Safety Installation and
Use Regulations .
It is in your interest and that of safety to ensure compliance with the law.
Gas adjustment
• Take precautions on the operations and adjustments to be carried out when
converting from one gas to another.
• All work must be carried out by a qualied technician.
• Before you begin, turn off the gas and electricity supply to the appliance.
1 Change the injector of the burners
Injector
Remove the pan support, Burner lid and Flame spreader.
Unscrew the injector using a 7mm box spanner and
replace it with the stipulated injector for new gas
supply. Carefully reassemble the all components.
After injectors are replaced, it is advisable to strongly
tighten the injector in place.
37
EN
2 Adjustment of minimum level of the ame
Control handle
Tap
Sealing ring
1. Turn the taps down to minimum.
2. Remove the knob from the tap and place a
small bladed screwdriver in the centre of the
tap shaft.
3. The correct adjustment is obtained when the
ame has a length of about 3 - 4 mm.
• For butane / propane gas, the adjusting screw
must Make sure that the ame does not go
out by quickly turning from maximum ow to
minimum ow. If it does then remove the control
knob and make further adjustments to the gas
ow, testing it again once the adjustment has
been made.
4. Repeat this process for each one of the gas
taps.
• Do not dismantle the tap shafe: in the event of a malfunction, change the whole
tap.
• Before placing the burners back on the top place, make sure that the injector is
not blocked. carried out after gas conversion. (such as soap water or gas in the
event of a malfunction, change the whole tap.
• A full operational test and a test for possible leakages must be detector) Do not
dismantle the tap shafe:
• After completing conversion a qualied technician or installer has to mark “V”
on the right gas category to match with the setting in rating plate. Remove the
previous setting “V” mark.
38
EN
TROUBLESHOOTING
Repairs should be performed by a licensed technician only.Improper repair may result
in considerable danger to you and others. However, some minor problems can be
resolved as follows.
Problem Probable cause Solution
Not ignited
No Spark. Check the electricity
supply.
The gas supply is closed. Assemble the lid correctly.
The burner lid is badly
assembled.
Open the gas supply
completely.
Badly ignited
The gas supply is not
completely open.
Open the gas supply
completely.
The burner lid is badly
assembled..
Assemble the lid correctly.
The ignition plug is
contaminated with alien
substance.
Wipe alien substance
with a dry cloth.
The burners are wet. Dry the burners lids
carefully.
The holes in the ame
spreader are clogged..
Clean the ame spreader.
Noise made when
combusted and ignited
The burner lid is badly
assembled.
Assemble the burner lid
correctly..
Flame goes out
when in use.
The ame supervision
device is contaminated
with alien substance.
Clean the ame
supervision device.
Product being cooked
has boiled over and
extinguished the ame.
Turn off burner knob.Wait
one minute and reignite
zone.
A strong draught may
have blown the ame out.
Please turn off zone and
check cooking area for
draught such as open
windows.Wait one minute
and reignite zone.
Yellow Flame
The holes in the ame
spreader are clogged.
Clean the ame spreader.
39
EN
Problem Probable cause Solution
Unstable Flame
The burner lid is badly
assembled.
Assemble the burner lid
correctly.
Gas Smell Gas leakage
Stop using the product
and close the middle
valve.Open the window
to ventilate. Contact our
service centre by using a
phone outside.
If problem is not solved, please contact customer care centre.
Gas type &
pressure
Heat input and orice size marked (mm)
Wok burner Rapid burner Semi-rapid Auxiliary rapid
3.6 kW (262 g/h) 3.0 kW (218 g/h) 1.75 kW (127 g/h) 1.0 (73 g/h)
G30 50 mbar 0.85 0.78 0.60 0.46
G20 20 mbar 1.41 1.30 1.00 0.78
Gas specications for model 10040146, 10040147
40
EN
EU PRODUCT DATA SHEET
This document serves to demonstrate conformity with Regulation (EU) No 66/2014.
Specications according to EN 30-2-1:2015
The energy efciency of gas burners in a domestic hob is calculated as follows:
Symbol Burner Value Unit
Model iden-
tication
10040146, 10040147
Type of hob
Gas Hob
Number of
gas burner
-- -- 5 --
Energy eciency
per gas burner
EE
gas burner
Wok burner 54.4
%
Rapid burner 58.4
Semi-rapid burner 58.4
Auxiliary burner 60.0
Energy eciency
per gas hob
EE
gas hob
57.8 %
=
× 100
41
EN
DISPOSAL CONSIDERATIONS
If there is a legal regulation for the disposal of electrical
and electronic devices in your country, this symbol on the
product or on the packaging indicates that this product must
not be disposed of with household waste. Instead, it must be
taken to a collection point for the recycling of electrical and
electronic equipment. By disposing of it in accordance with
the rules, you are protecting the environment and the health of
your fellow human beings from negative consequences. For
information about the recycling and disposal of this product,
please contact your local authority or your household waste
disposal service.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Chal-Tec UK limited
Unit 6 Riverside Business Centre
Brighton Road
Shoreham-by-Sea
BN43 6RE
United Kingdom
