NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Important Assembly
Information
Care and Maintenance
Parts List
Warranty
Ordering Parts
Model
SM-7553
Retain This
Manual for
Reference
220801
OWNER'S
MANUAL
MARCY PRO
DELUXE SMITH CAGE
SM-7553
IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPEX
®
INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: 800- 999-8899
www.marcypro.com
©IMPEX INC. www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
EXERCISE GUIDELINES
3
WARNING LABEL PLACEMENT
5
FREE AND TRAINING AREA
6
IMPORTANT ASSEMBLY INFORMATION
7
WEIGHT CAPACITY AND DIMENSION
8
CARE AND MAINTANENCE
9
OPERATING NOTES
9
CAGE PARTS LIST
10
BENCH PARTS LIST
17
EXPLODED DIAGRAM - CAGE
20

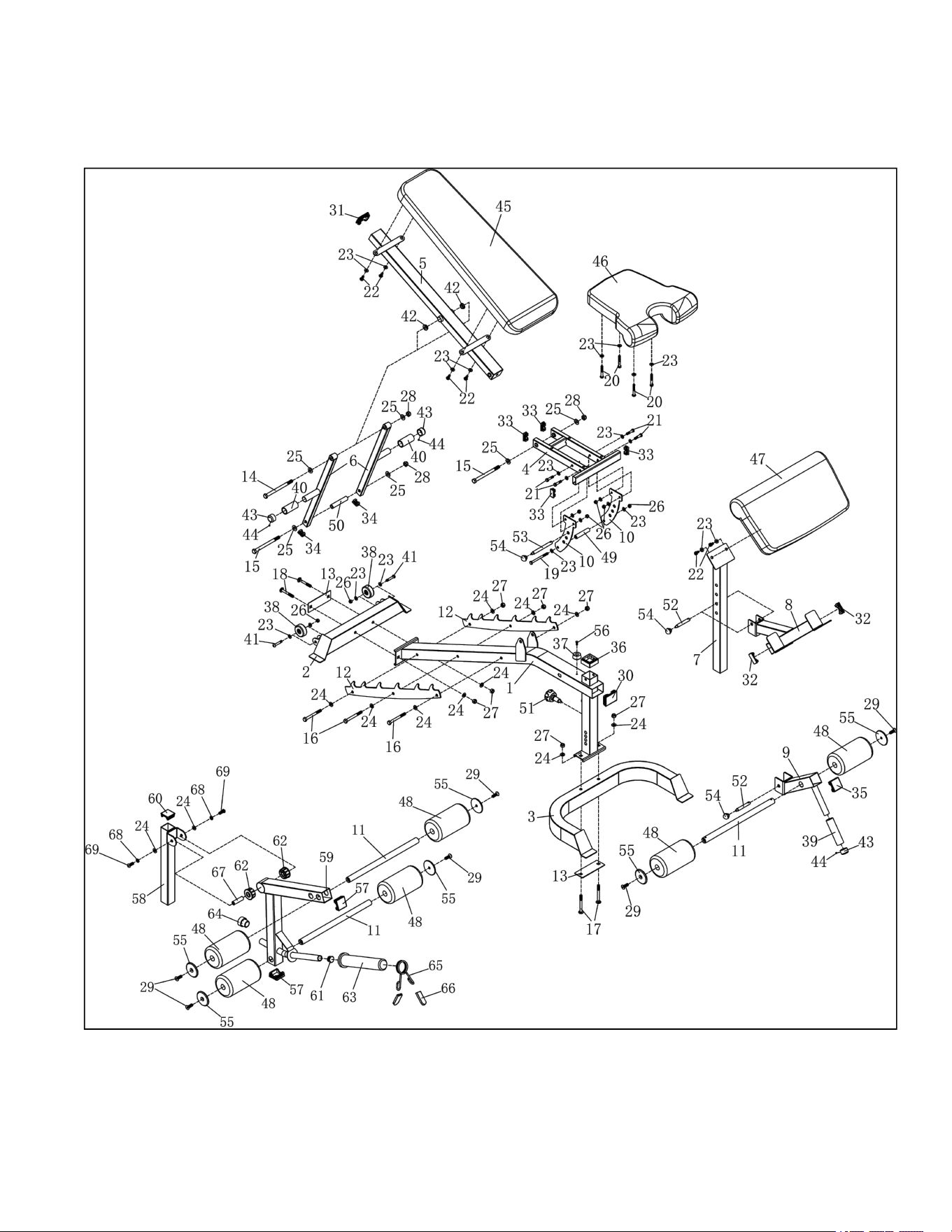

EXPLODED DIAGRAM - BENCH
22
WARRANTY
23
ORDERING PARTS
23
BEFORE YOU BEGIN
Thank you for selecting MARCY PRO DELUXE SMITH CAGE SM-7553 by
IMPEX
®
INC. For your safety and benefit, read this manual carefully before
using the equipment. As a manufacturer, we are committed to providing you
with complete customer satisfaction. If you have any questions, or find there
are missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer Service
Agents will provide immediate assistance.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.marcypro.com
©IMPEX INC. www.marcypro.com
2
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your equipment. In particular, note the following safety
precautions:
1. Keep children and pets away from the equipment at all times. DO NOT
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled persons should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not for
commercial use.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
©IMPEX INC. www.marcypro.com
3
EXECISE GUIDELINES
Building Muscle and Gaining Weight
Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on
strength training. A gradual weight gain can occur while building the size and strength of muscles.
While developing muscle mass, your body adapts to the stress placed upon it. You can modify your
diet to include foods such as meat, fish and vegetables. These foods help muscles recover and
replenish important nutrients after a strenuous workout.
Muscle Strength and Endurance
To achieve the greatest benefit from exercise, it is important to develop an exercise program that
allows you to work all of the major muscle groups equally.
To increase muscle strength, follow this principle:
Increasing resistance and maintaining the number of repetitions of an exercise results in increased
muscle strength.
To tone your body, follow this principle: Decreasing resistance plus increasing the number of
repetitions of an exercise results in increased body tone.
Once you feel comfortable with an exercise, you can change the resistance, the number of repetitions,
or the speed at which you do the exercise. It is not necessary to change all three variables. For
example, let’s say that you are training at 23 kg (50 lb.) and performing the exercise 10 times in 3
minutes. When this becomes too easy, you may decide to move up to lifting 27 kg (60 lb.) for the
same number of repetitions in the same amount of time. Lifting more weights fewer times most often
develops muscle strength. To gain both muscle strength and endurance, it is recommended that you
perform each exercise 15 to 20 reps per set.
Training Intensity
How hard you begin to train depends on your overall level of fitness. The soreness you experienced
can be lessened by decreasing the load you place on your muscles and by performing fewer sets. To
avoid injury, you should gradually work into an exercise program and set the load to your individual
fitness level. The load should increase as your fitness level increases.
Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a
long time, it may be time to change your program. Eventually, your muscle system will become
accustomed to the stress and strain placed on it.
©IMPEX INC. www.marcypro.com
4
Beginning a Strength Building Program
Warming Up
To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes.
This helps prepare the body for more strenuous exercise by increasing circulation, raising your body
temperature and developing more oxygen to your muscles.
Workout
For each workout, to keep in mind that muscle soreness that lasts for a long period is not desirable
and may mean that injury has occurred.
Cool Down
At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each
stretch only going as far as you can. This stage allows your muscles to wind down after training.
To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is
performed in addition to the strength training.
Drinking Water
For the body to function properly, it must be properly hydrated. If you are exercising, you should
increase your fluid intake. The reason for this is that the water you take in will leave your system
through the sweating mechanism that cools your body during exercise. The water you lose through
exercise must be replaced so that the muscles can recover properly.
Rest Day
Although you may not feel like doing it, taking a rest day at least once a week is important because it
gives your body a chance to heal itself. Continuously working your muscles will result in over- training,
which will not benefit you in the long run.
©IMPEX INC. www.marcypro.com
5

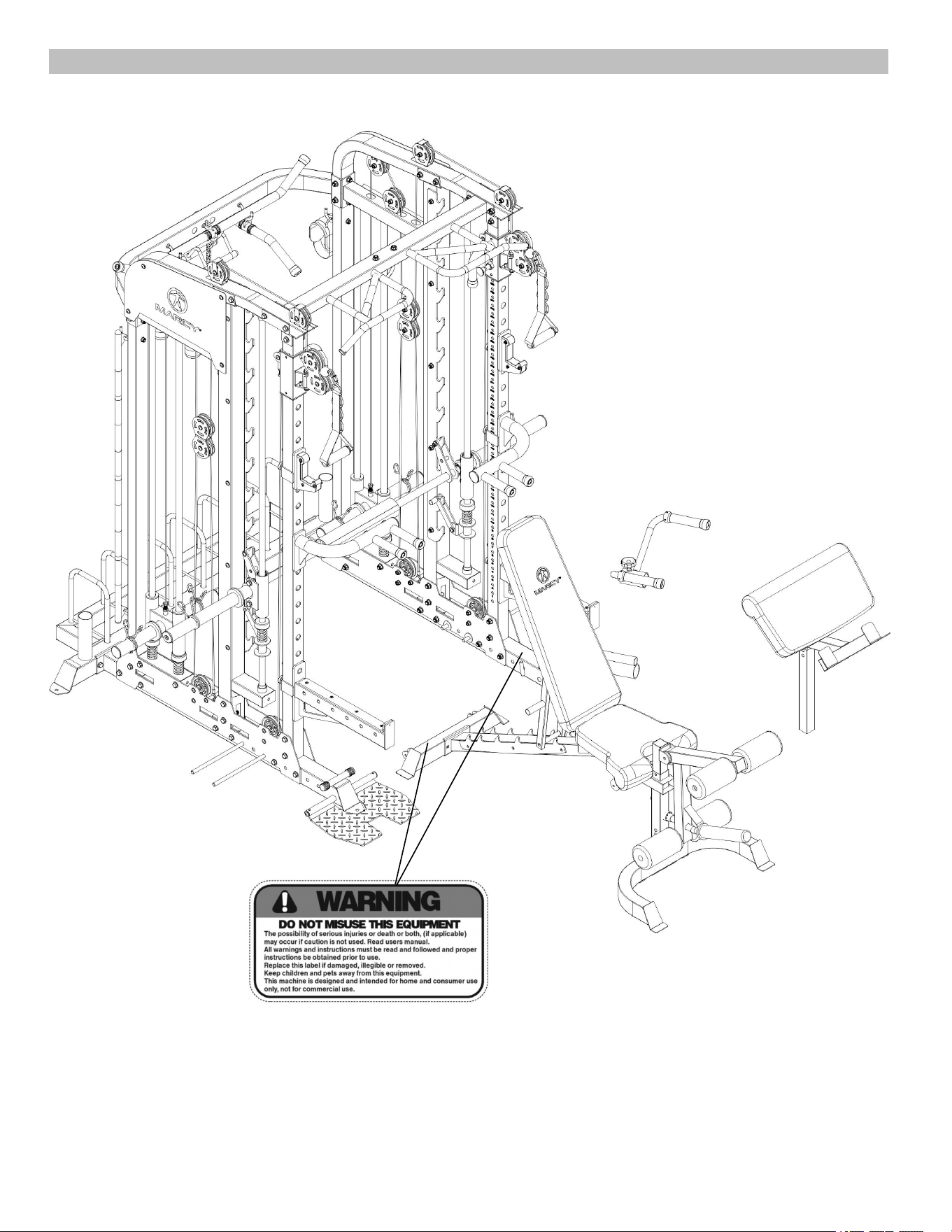

WARNING LABEL PLACEMENT
The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper Frame. If the
labels are missing or illegible, please call customer service at 1-800-999-8899 for replacements. Apply the labels
in the location shown.
©IMPEX INC. www.marcypro.com
6

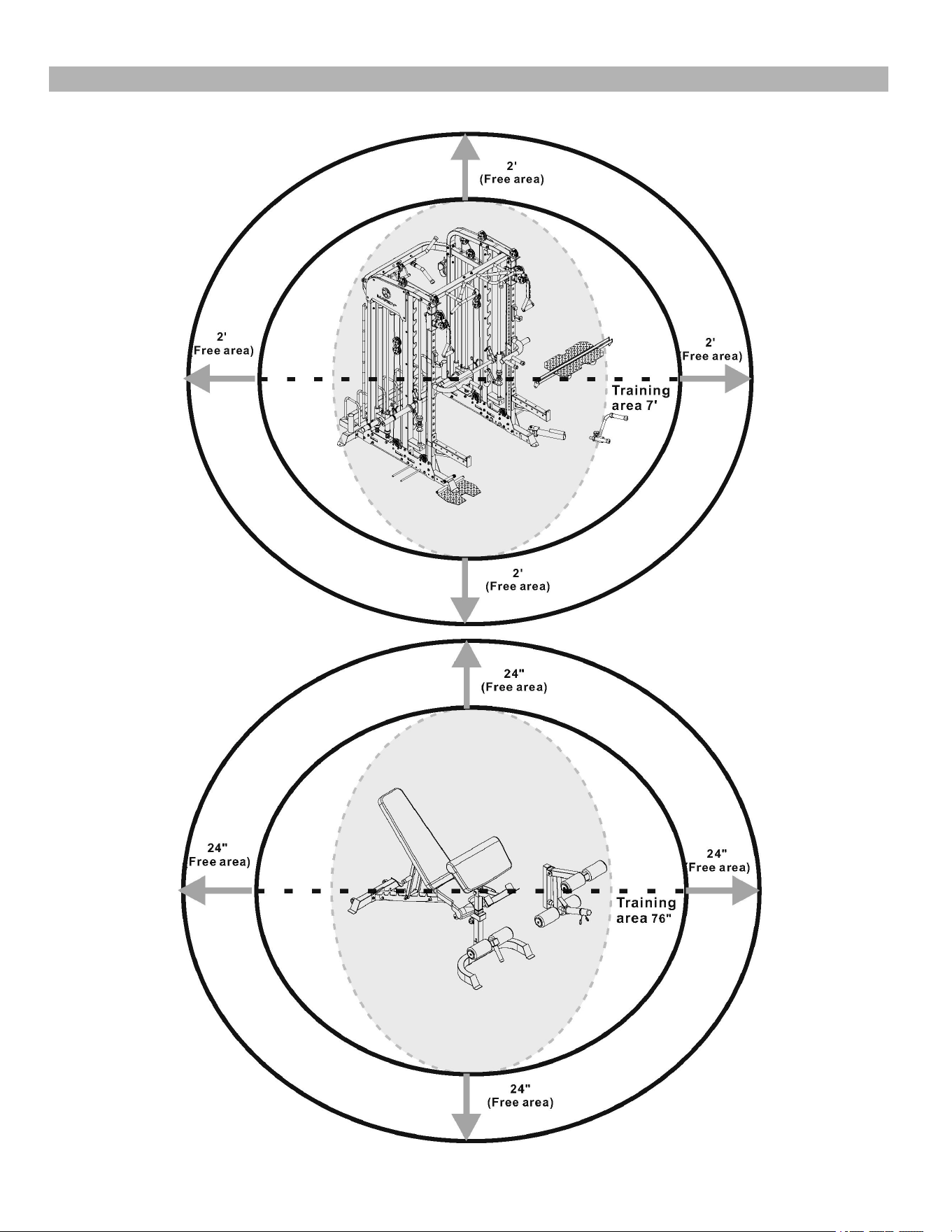

FREE AND TRAINING AREA
©IMPEX INC. www.marcypro.com
7

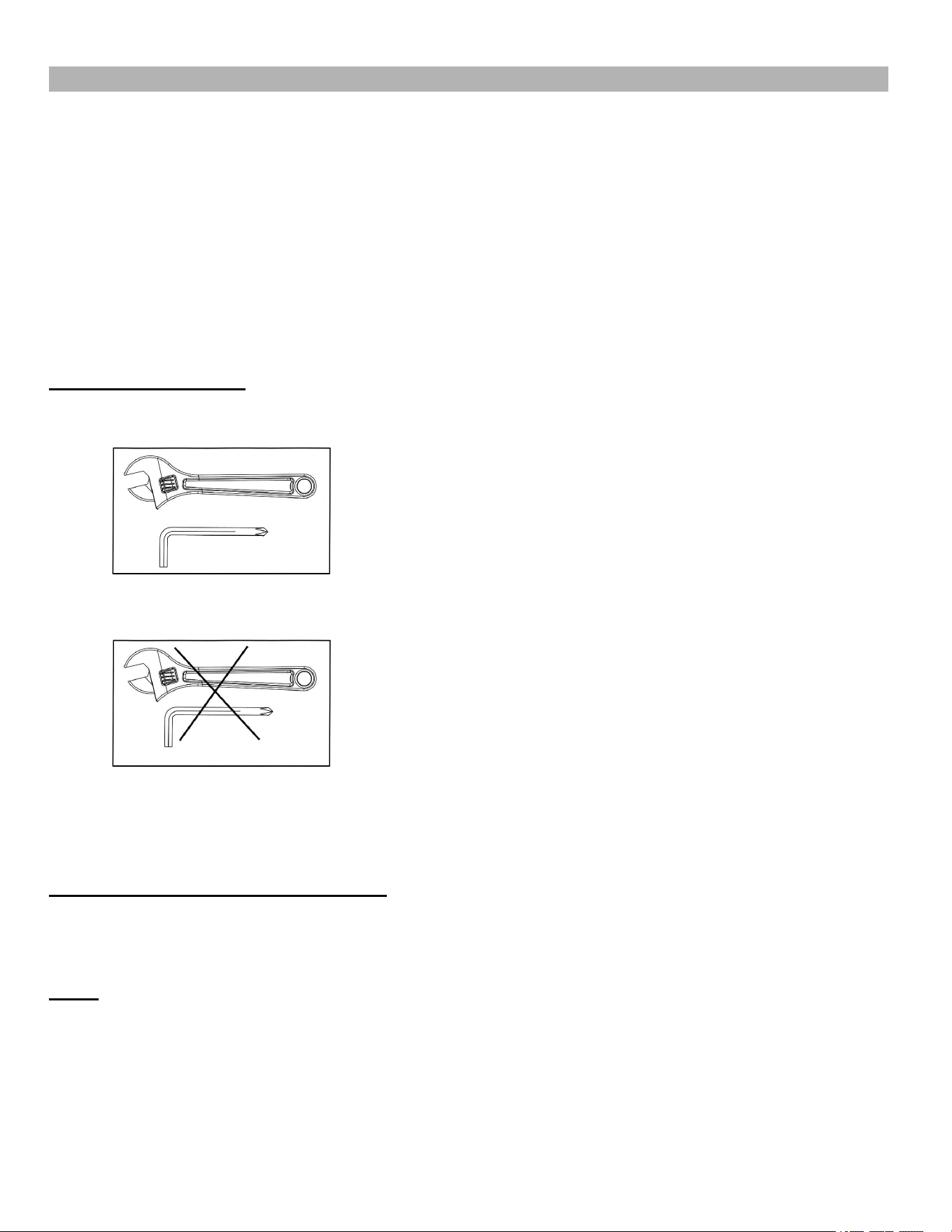

IMPORTANT ASSEMBLY INFORMATION
Tools required for assembling the bench: Two adjustable Wrenches and Allen wrenches.
NOTE: It is strongly recommended that this equipment be assembled by two or more
people to avoid possible injury.
Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to
be assembled. Attach washer only to end of the Carriage Bolt.
Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to
be assembled.
Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not
tighten each bolt right after it is installed
Fasten Nuts and Bolts
Securely tighten all nuts and bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over-tighten any component with
pivoting function.
Make sure all pivoting components are able to move
freely.
Do not tighten all nuts and bolts in this step.
Inspect and ensure all bolts and Nuts are fastened after the equipment is
completely assembled.
Assemble with correct Hardware Pack
Only use the hardware packs marked “For Smith Machine” to assemble Smith Machine.
Only use the hardware packs marked “For Bench” to assemble Bench.
Tools
Tools required for assembling this equipment: Allen Wrenches (provided by manufacturer), and
Adjustable Wrench, or Socket Wrench, or Ratchet Wrench.
NOTE: It is strongly recommended that this machine be assembled and moved by two or
more people to avoid possible injury.
©IMPEX INC. www.marcypro.com
8

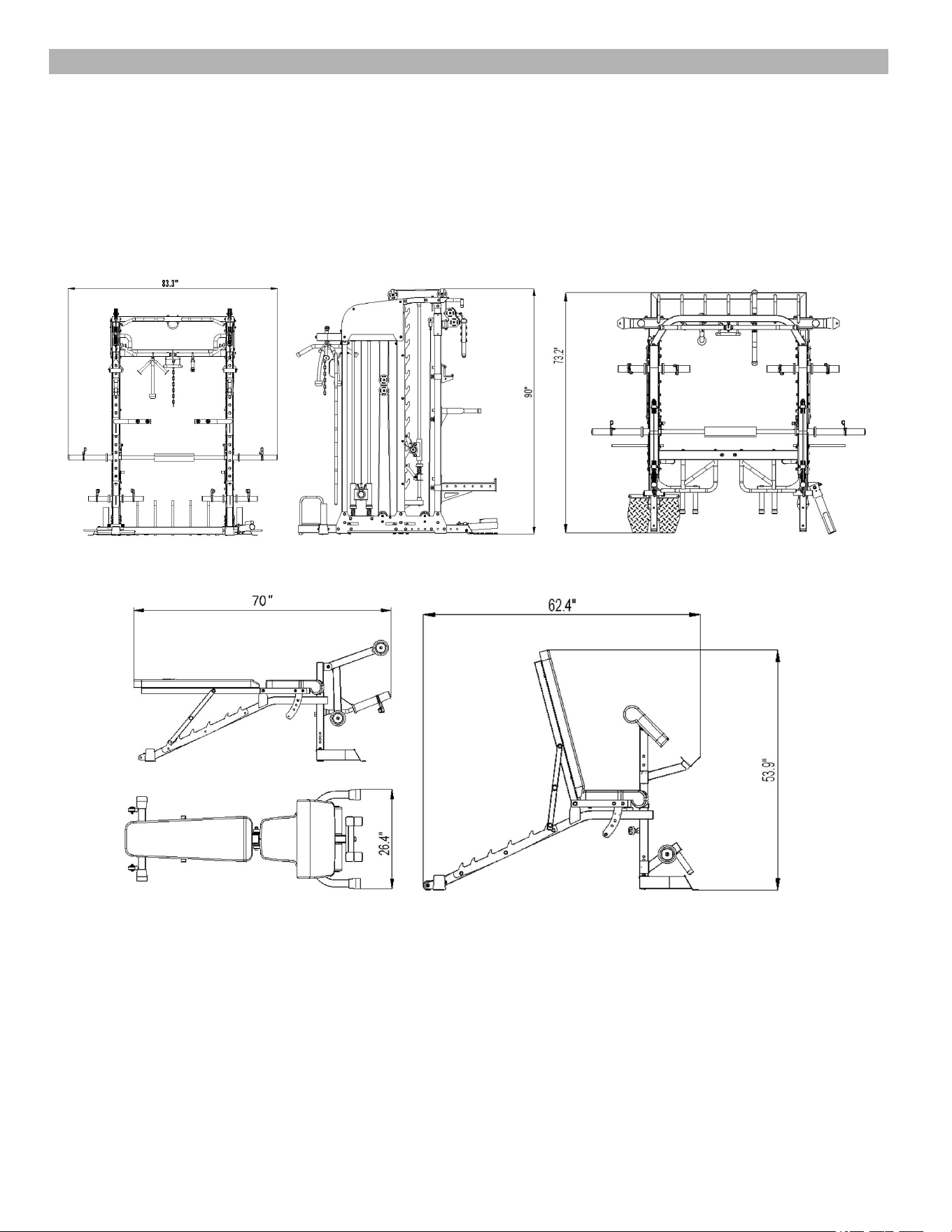

WEIGHT CAPACITY AND DIMENSION
1. Maximum user weight: 300 lbs.
2. Maximum weight on Sliding Weight Trolley: 300 lbs (150lbs on each side)
3. Maximum weight on Safety Bar Catch Brace and Bar catches: 300 lbs
4. Maximum weight on Weight Bar: 300 lbs
5. Cage assembled dimensions: 73.2”x83.3”x90”
6. Bench assembled dimensions: 70”x26.4”x53.9”
©IMPEX INC. www.marcypro.com
9
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Examine the equipment regularly for signs of damage or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until
repair.
6. Failure to examine regularly may affect the safety level of the equipment.
OPERATION NOTES
This equipment should be placed on flat surface. The incline or decline of surface should
be limited to 3% or less for best performance and safety.

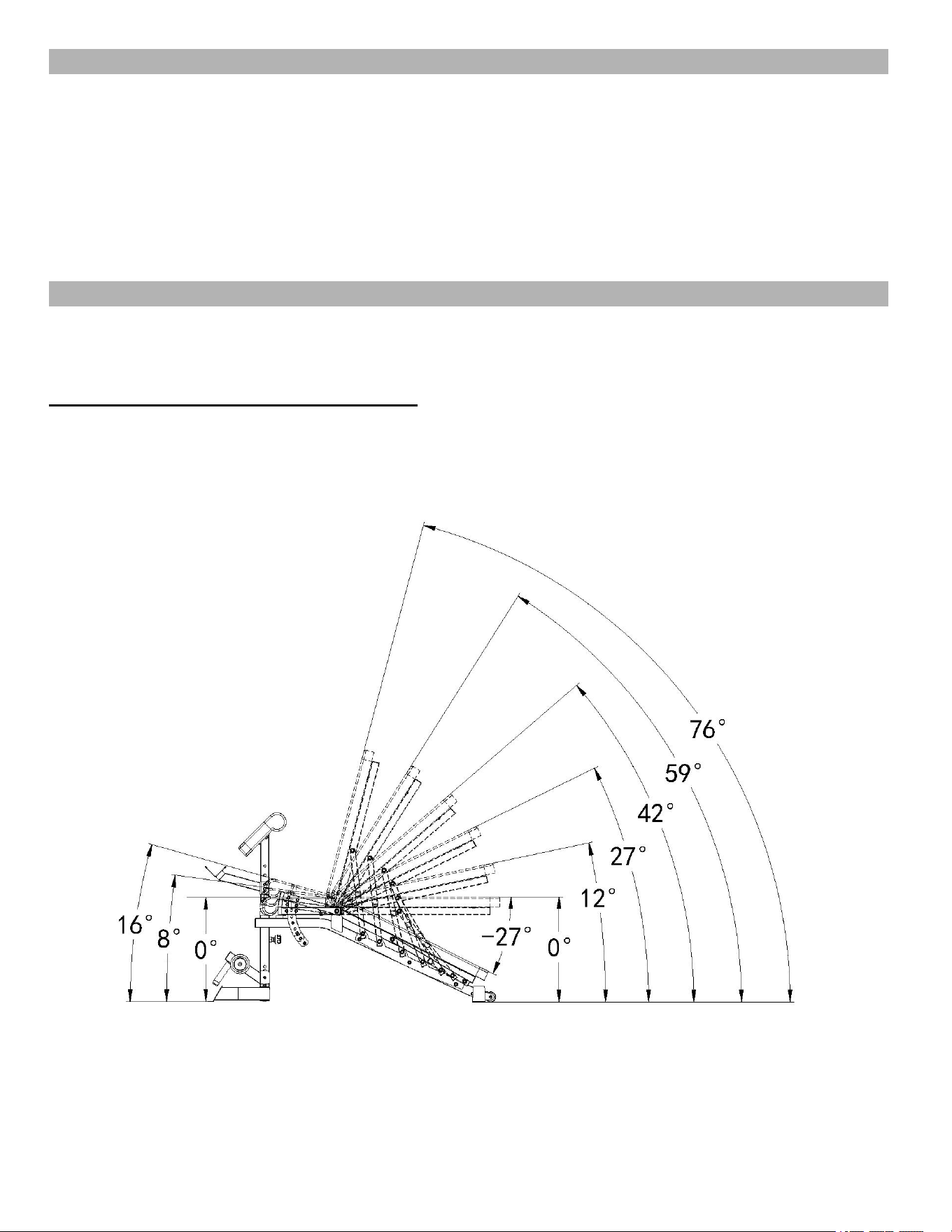

Bench Backrest Adjustment Angles
Backrest adjustment angle ranges from -27
0
to 76
0
.
Seat pad adjustment angle ranges from 0
0
to 16
0
©IMPEX INC. www.marcypro.com
10
SM-7553 CAGE PARTS LIST
PARTS
NO.
DESCRIPTION
SIZE
QTY
1
Right Base Frame
1
2
Left Base Frame
1
3
Left Upper Frame
1
4
Right Upper Frame
1
5
Left Middle Vertical Beam
1
6
Right Middle Vertical Beam
1
7
Right Cable Pulley Assembly
1
8
Left Cable Pulley Assembly
1
9
Upper Cross Brace
1
10
Multi-Grip Pullup Rack
1
11
Rear Base Frame
1
12
Double Pulley Assembly
2
13
Food plate
1
14
Left Pullup Bar
1
15
Right Pullup Bar
1
16
Trolley Guide Rod
Ø1"×68.8"
4
17
U-shape hook
1
18
Front Vertical Beam
2
19
Bar Swivel Frame
2
20
Rear Vertical Beam
2
©IMPEX INC. www.marcypro.com
11
21
Guide Rod
Ø1"×72"
2
22
Guide Rod Sleeve
2
23
Weight Bar
1
24
Right Upper Rear Support
1
25
Left Upper Rear Support
1
26
Cross Brace
1
27
Trolley Base Frame
2
28
Weight Trolley
2
29
J-shape hook
5
30
Leg Press Frame
1
31
Double Pulley Bracket
2
32
Removable Anchor
4
33
Left Dip Handle
1
34
Right Dip Handle
1
35
T-Locking Bar
2
36
V Bar
1
37
Weight Plate Divider
7
38
Smith Bar Olympic Sleeve
2
39
Foam Roller Frame
1
40
Food plate Tube
1
41
Sawtooth Safety Catch
2
42
Long Bar
1
43
Landmine Attachment Handle
1
©IMPEX INC. www.marcypro.com
12
44
Left Safety Catch
1
45
Right Safety Catch
1
46
Left Bar Catch
1
47
Right Bar Catch
1
48
Hook Attachment Bracket
2
49
Lat Bar
1
50
Short Bar Sleeve
1
51
Foam Roller Tube
Ø1"×17"
1
52
Lower Safety Stop Hook
2
53
Lower Safety Stop Frame
2
54
Cable Retainer
4
55
Swivel Attachment
1
56
Landmine Attachment
1
57
Cable adjusting frame
2
58
Left Logo Decorative plate
1
59
Right Logo Decorative plate
1
60
Pulley Bushing
Ø1/2"×Ø3/8"×1"
8
61
Pulley Bushing
Ø1/2"×Ø3/8"×1 3/8"
4
62
Base Frame Bracket
4
63
Bracket
2" × 6"
2
64
Lock Pin/Red
Ø 1 3/8"×Ø 3/8"×2 3/4“
6
65
Lock Pin/Red
Ø 1 3/8"×Ø 1/2"×4"
1
66
Lock Knob
M10×2"
2
©IMPEX INC. www.marcypro.com
13
67
Lock Knob
M10×1"
1
68
Guide Rubber Bumper
Ø 1 5/8"×Ø 1"
4
69
Guide Rubber Bumper
Ø 1 1/8"×Ø 1"×1 1/8"
4
70
Bar End Cap
Ø2"
2
71
V Handle
1
72
Ankle Strap
1
73
Adjustable Single Handle
2
74
Spring
6
75
Chain
2
76
Locking Carabiner Clip
6
77
Triceps Rope
1
78
Pulley
Ø 3 1/2"
20
79
Guide Rod Stopper
6
80
Rubber Bumper
Ø3⅛” × Ø2"
6
81
Foam Roller End Cap
2
82
Cable Pulley Locking Pin
M18×3⅛”
2
83
Locking Pin
φ8 ×1½”
1
84
Spring Clip
φ2"
6
85
End Cap
Ø1"×Ø1 1/8"
2
86
Cable Pulley Assembly End Cap
3"×3"
4
87
End Cap
Ø2"×2
2
88
End Cap
Ø2"×2.5
4
89
End Cap
2"×2"
1
©IMPEX INC. www.marcypro.com
14
90
Weight Trolley Bumper
2
91
Bar Clip
8
92
Bar Catch Rubber Bumper
2
93
End Cap/Red
Ø5/8"
2
94
Rubber Bumper
Ø3/8"× 1/2"
4
95
Safety Catch Rubber Bumper
1 ¾” x 18 ½”
2
96
Safety Catch Rubber Bumper
1 ⅛” x 2”
2
97
End Cap
Ø1"
6
98
Nylon Bushing
φ2"×φ1"
8
99
Bar End Cap
Ø1"
12
100
Bar Front Cap
Ø1"
2
101
End Cup
Ø1"
8
102
Grip
Ø1"× 5"
6
103
Grip
Ø1"× 7 7/8"
2
104
Grip
Ø1"× 9 1/2"
2
105
Grip
Ø1"× 19"
2
106
Linear Bearing
4
107
Bearing
61905-Z
4
108
Bearing
6001-2Z
4
109
Large Swivel Attachment Bushing
2
110
Small Swivel Attachment Bushing
2
111
Allen Bolt
M6 × ⅜”
10
112
Phillips Screw
M6 × 5/8"
2
©IMPEX INC. www.marcypro.com
15
113
Rivet
8
114
Allen Bolt/Galvanized
M10× 1"
14
115
Spring Washer/Galvanized
M10
14
116
Bushing
Ø 3/4"×Ø 3/8"×1"
2
117
Allen Bolt
M10× 2"
6
118
Washer
Ø 3/4"
111
119
Aircraft Nut
M10
47
120
Allen Bolt
M6× 1 5/8"
6
121
Washer
Ø 1/2"
12
122
Cap nut
M6
6
123
Hex Bolt
M12 × 4"
32
124
Hex Bolt
M12 × 3 3/4"
20
125
Hex Bolt
M12 × 3 1/2"
3
126
Hex Bolt
M12 × 3 3/8"
2
127
Hex Bolt
M12 × 3 "
4
128
Hex Bolt
M12 × 1 1/8"
4
129
Allen Bolt
M10 × 3 3/4"
20
130
Allen Bolt
M10 × 1 3/4"
14
131
Allen Bolt
M10 × 1 1/2"
2
132
Allen Bolt
M10 × 1"
14
133
Allen Bolt
M10 × 1/2"
8
134
Washer
Ø1"
134
135
Spring Washer
Ø3/4"
22
©IMPEX INC. www.marcypro.com
16
136
Aircraft Nut
M12
67
137
Allen Bolt
M10×3 "
2
138
Allen Bolt
M10 × 1⅛"
2
139
Foam Roller
2
140
Barbell Pad Cover
1
141
Allen Screw
M6 × ¼"
4
142
Washer
Ø1"× Ø3/4"
2
143
Barbell Pad
1
144
O-ring
Ø1 1/8"
2
145
O-ring
Ø1 1/2"
4
146
Upper Cable
220"
2
147
Adjustable Cable
133.8"
2
148
C-Clip
4
149
Multi-Wrench
17×19
2
©IMPEX INC. www.marcypro.com
17
SM-7553 BENCH PARTS LIST
PARTS
NO.
DESCRIPTION
SIZE
QTY
1
Main Frame
1
2
Rear Stabilizer
1
3
Front Stabilizer
1
4
Seat Support
1
5
Backrest Support
1
6
Incline Support
2
7
Arm Curl Support
1
8
Arm Curl Rack
1
9
Ankle Support
1
10
Seat Incline Support
2
11
Foam Roller Tube
3
12
Incline Adjustment Base
2
13
Bracket
5 1/2”×4 3/8"
2
14
Hex Bolt
M12×6 1/4"
1
15
Hex Bolt
M12×6"
2
16
Hex Bolt
M10×3 3/4"
3
17
Carriage Bolt
M10×3 1/2"
2
18
Carriage Bolt
M10×2 3/4"
2
19
Hex Bolt
M8×4"
1
20
Hex Bolt
M8×2 1/8"
4
21
Hex Bolt
M8×1 3/8"
4
22
Hex Bolt
M8×3/4"
6
©IMPEX INC. www.marcypro.com
18
23
Washer
Φ5/8"
24
24
Washer
φ3/4"
12
25
Washer
φ1"
6
26
Aircraft Nut
M8
7
27
Aircraft Nut
M10
7
28
Aircraft Nut
M12
3
29
Allen Bolt
M10×1 1/8"
6
30
End Cap
2"×2 3/4"
1
31
End Cap
1 1/2"×2 3/8"
1
32
End Cap
1"×2"
2
33
End Cap
3/4"×1 1/2"
4
34
End Cap
3/4"×1 1/8"
2
35
End Cap
2"
1
36
Sleeve
2"×1 3/4"
1
37
Bumper
1
38
Transport Wheel
φ2"
2
39
Ankle Support Grip
φ1"×4 3/4"
1
40
Incline Adjustment Base Grip
φ1"×2 3/4"
2
41
Pan Head Allen Bolt
M8×1 1/4"
2
42
Bushing
φ1"
2
43
Aluminum End Cap
3
44
Allen Screw
M5×1/8"
3
45
Backrest Pad
1
46
Seat Pad
1
©IMPEX INC. www.marcypro.com
19
47
Arm Curl Pad
1
48
Foam Roller
6
49
Spacer
φ5/8"×φ3/8"×3 1/8"
1
50
Spacer
φ5/8"×φ1/2"×3 5/8"
1
51
Locking Knob
1
52
Locking Pin
φ1/2"×3 3/8"×M10
2
53
Locking Pin
φ1/2"×5"×M10
1
54
M8 Ball Cap
2
55
Foam Roller Cap
6
56
Pan Head Phillips Screw
1
57
End Cap
2"×2"
2
58
Leg Developer Holder
1
59
Leg Developer
1
60
End Cap
1 3/4”×1 3/4”
1
61
End Cap
Ø1“
1
62
Bushing
φ5/8"×φ1/2"×3 5/8"
2
63
Sleeve
Ø2"×8"
1
64
Leg Developer Rubber Bumper
1
65
Spring Collar
Ø2"
1
66
Spring Collar Sleeve
2
67
Leg Developer Axle
1
68
Spring Washer
Ø 3/4”
2
69
Allen Bolt
M10×3/4”
2
©IMPEX INC. www.marcypro.com
20
SM-7553 SMITH MACHINE EXPLODED DIAGRAM
©IMPEX INC. www.marcypro.com
21
©IMPEX INC. www.marcypro.com
22
©IMPEX INC. www.marcypro.com
23
IMPEX
®
INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX
®
") warrants this product to be free from defects in workmanship and material, under normal use
and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only
to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer Service
Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This
warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service centre or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by
IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with
the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of
revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages of
whatsoever natures. Some States do not allow the exclusion or limitation of incidental or consequential damages.
Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some States do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may
not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from State to State.
Register online at www.marcypro.com.
IMPEX
®
INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899 during our
regular business hours: Monday through Friday, 9 a.m. to 5 p.m. Pacific standard time.
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
