INSTALLATION GUIDE
for the
SB-GM-SLVEXT2/10W1v3
SKU#94467 - 94470
2007 - 2013 Chevrolet Silverado / GMC Sierra Extended Cab
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With
proper installation, your new vehicle-specific enclosed subwoofer system will deliver
years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your
authorized JL Audio dealer. The installation professionals employed by your dealer have
the necessary tools and experience to disassemble and reassemble your vehicle properly.
Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your
own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Empty out the area under the back seat so that you have a
Clean area to work in.
Continued on Next Page
STEP 2
Measure 14” in from the inside of the rear sill trim as shown,
this should be the center of the 3” x 3” Wax Square.

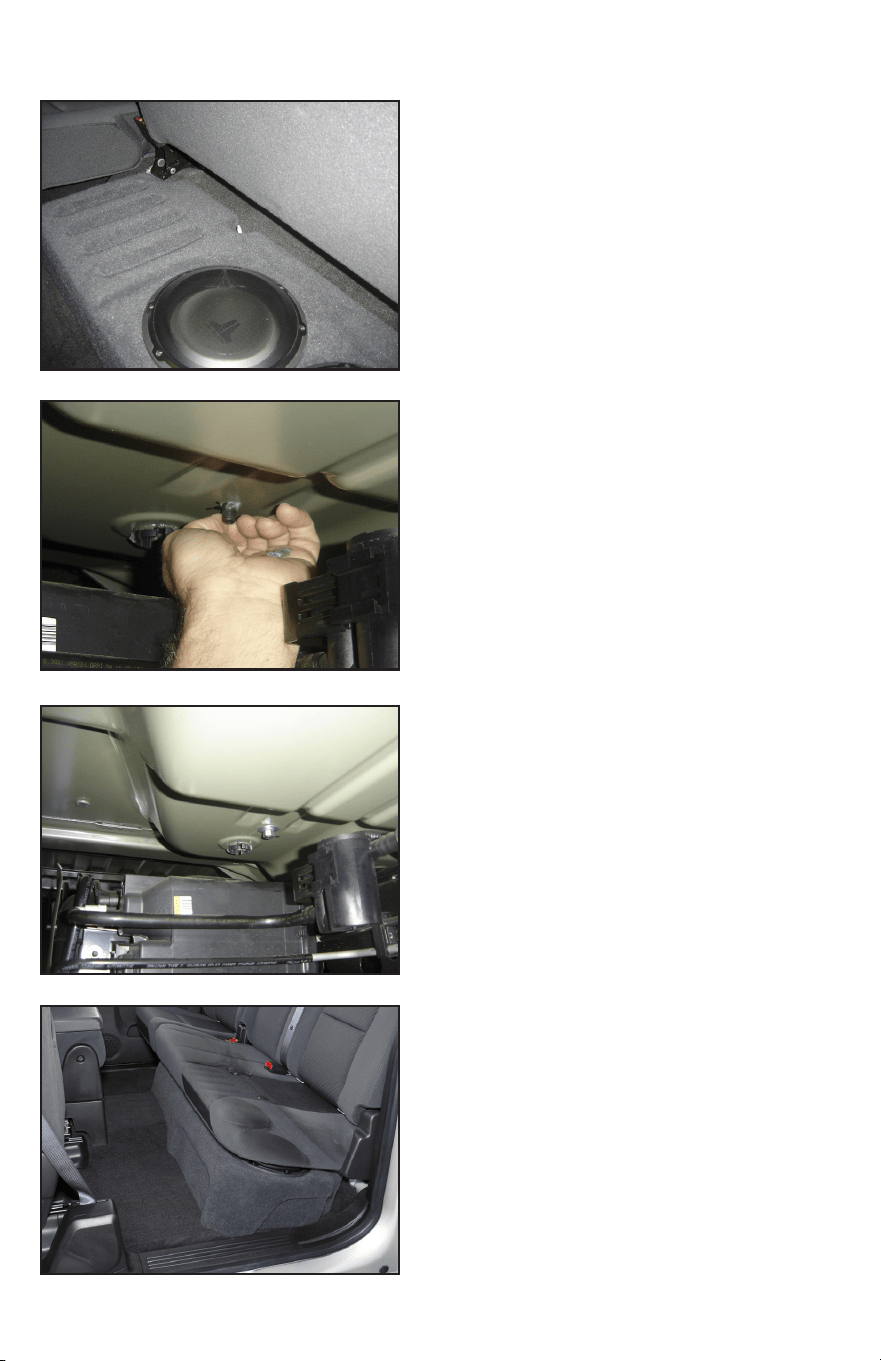

STEP 3
Thread the Mounting Stud into the bottom of the
Stealthbox® so that only 1/4”- 3/8” is exposed.
SB-GM-SLVEXT2/10W1v3 INSTR_SKU# 011300
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
1 HOUR
14”
