Features
• Cat. Nos. DOS02 and DVS02 have a sensing angle of 180° and a sensing
area of coverage of 30 x 30 ft. See coverage diagram for details.
• Adjustable ambient light (DOS02 only), time delay and area of coverage
controls. See adjustment setting section for details.
• Indicator light alerts the user of device status.
• Adjustable time delay setting for 1, 5, 10 and 20 minutes plus a test mode
with 5 seconds on. A Temporary Bypass mode that disables the Auto-on
feature is available only for DOS02.
• With Zero Cross turn-ON technology to extend the life of the
switching relays.
• Color change kits are available in white, light almond, ivory, black, brown,
and gray.
• Also available with larger loads, 3-way (cat. nos. DOS05/DVS05) and multi-
way or multi-sensor (cat. nos. DOS15/DVS15)
Mounting Location
• The device responds to temperature changes and care should be taken
when mounting the device.
• DO NOT mount directly above a heat source, in a location where hot or
cold drafts will blow directly on the sensor, or where unintended motion
(e.g., hallway traffic) will be within sensor's field-of-view.
You Will Need
• Slotted/Phillips screwdriver
• Electrical tape
• Cutters
• Pliers
Single Pole Wide View Motion Activated Light Control
Cat. Nos. DOS02, DVS02 - INDOOR USE ONLY
Ratings: 120VAC, 60Hz 250 W Incandescent/Halogen, 2 A Resistive, 150W LED and CFL, 250 VA ELV, 200VA MLV
INSTALLATION INSTRUCTIONS
ENGLISH
PK-A3345-10-00-2B
WARNINGS:
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER
OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control
a receptacle, or a load in excess of the specified rating.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
CAUTIONS:
• To avoid damage to the product, DO NOT use disinfecting products, including foggers,
sprays or other types of atomized cleaning agents.
• DO NOT spray liquid onto the product.
• To clean use a damp cloth with mild soap.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.

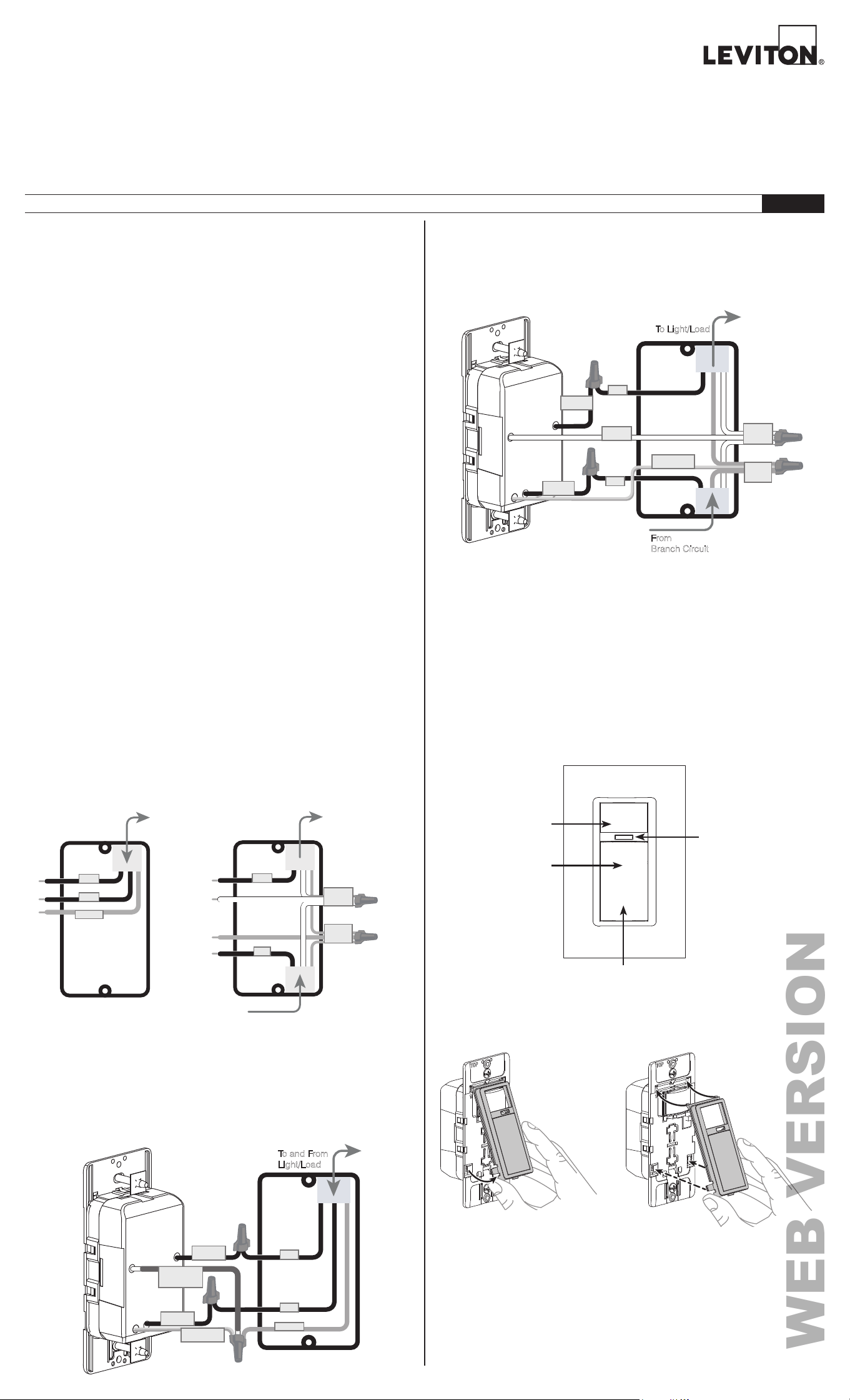

Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at circuit breaker or
fuse and test that the power is off before wiring.
1. Identify your wires (most common):
NOTE: Neutral wire (if present), or a Ground wire is required for operation.
If the wiring in the wall box does not resemble this configuration, consult
an electrician.
2b. Wire (when Neutral is present).
Remove the Green sleeve from the White wire. Working on one connection at a time,
connect wires as shown.
NOTE: This device is designed so the line and load wires can be wired interchangeably.
LINE/LOAD
(Black)
LINE/LOAD
(Black)
GROUND
(Green/Yellow)
NEUTRAL
(White)
NEUTRAL
GROUND
LINE
LOAD
From
Branch Circuit
To Light/Load
Operation
3. Test and mount.
• Restore power. Wait 10-20 seconds for sensor to power up.
• Lights will turn ON when push pad is pressed. For cat. no. DOS02, the lights
will also turn ON with any motion event after the warm-up period.
NOTE: If lights do not turn ON, refer to the "What to do if..." section.
Turn off power at circuit breaker before completing the installation.
• Gently push wires into wall box. Screw light control to box.
• Install wallplate.
• Restore power.
2a. Wire (when Neutral is NOT present).
Working on one connection at a time, connect wires as shown.
NOTES:
• This device is designed so the Line and Load wires can be
wired interchangeably.
• Both GREEN wires need to be connected to Ground.
LOAD
LINE
LINE/LOAD
(Black)
LINE/LOAD
(Black)
GROUND
(Green sleeved
wire)
GROUND
(Green/Yellow)
GROUND
To and From
Light/Load

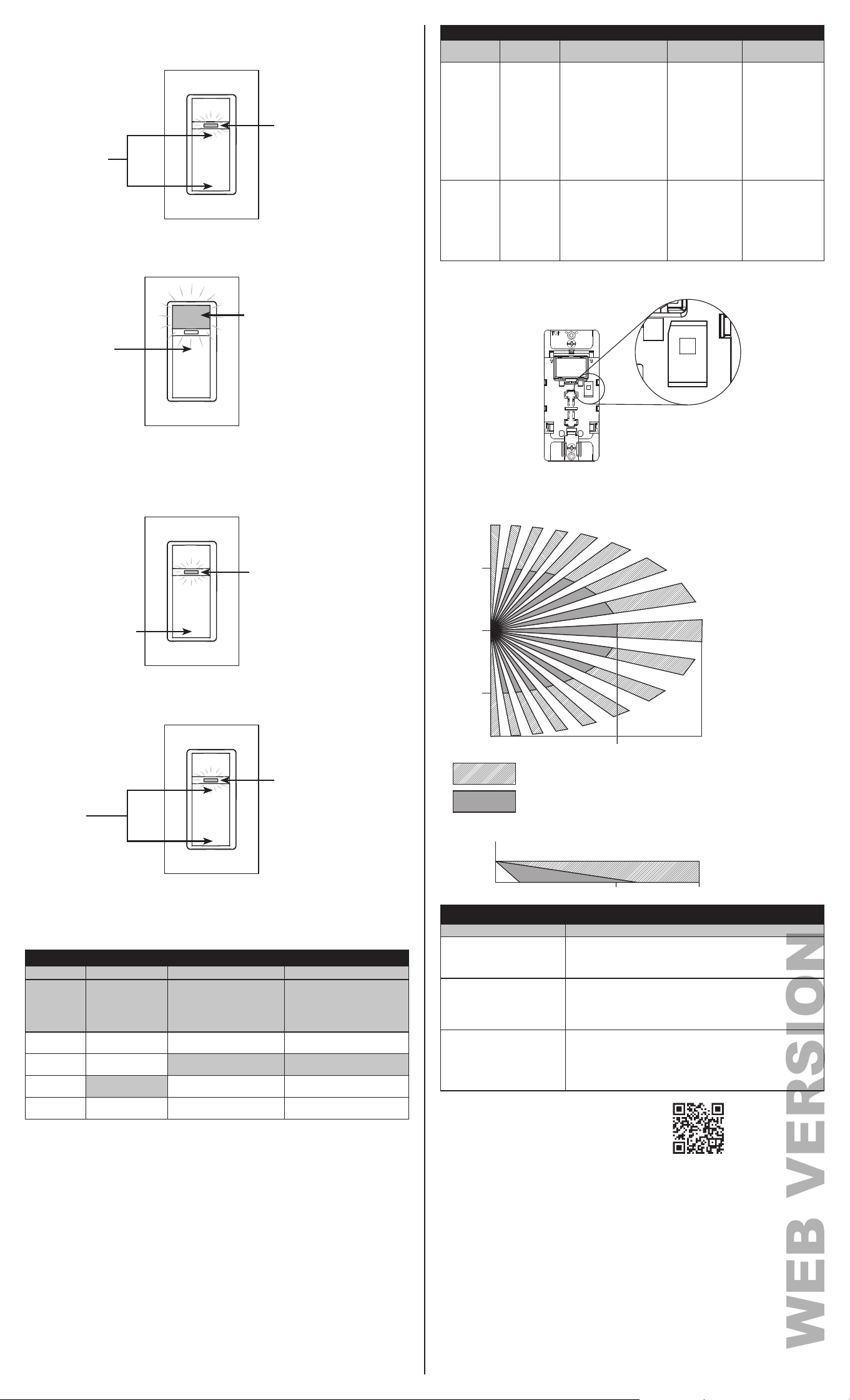

RED indicator light
(Will flash any time
motion is detected)
TOP of button
BOTTOM of button
GREEN locator/
indicator light
(Turns ON when
load is OFF)
NOTE: Press either TOP or
BOTTOM of button to turn
ON/OFF.
Available in White (W), Light Almond (T), Ivory (I), Brown (B), Black (E), Grey (G),
(DOSKT-1Lx)
No Neutral wire With Neutral wire
GROUND
GROUND
LOAD
LOAD
LINE
LINE
To and From
To and From
Light/Load
Light/Load
GROUND
GROUND
From
From
Branch Circuit
Branch Circuit
To Light/Load
To Light/Load
LOAD
LOAD
LINE
LINE
NEUTRAL
NEUTRAL
Changing your device color
Remove Replace
VA
C
VAC
