Multiply your PoE network range
OUTREACH MAX and OUTREACH LITE let you instantly extend your
Ethernet network installation beyond its 100 metre (328 foot) limit.
Because they use Power over Ethernet (PoE) technology, OUTREACH MAX
and OUTREACH LITE can be easily fitted wherever network extension is
required, with no need for a local power source.

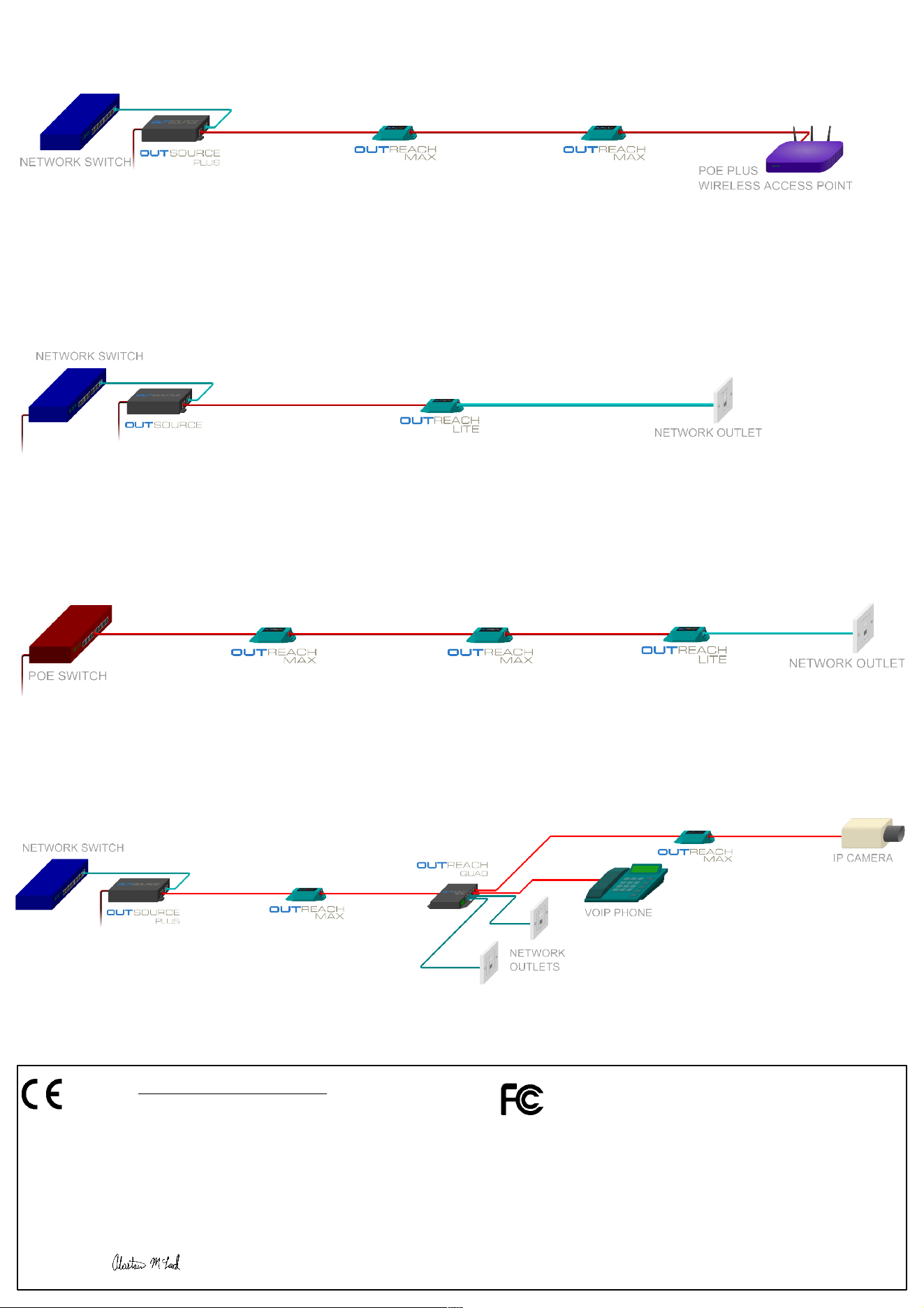

OUTREACH MAX extends Cat5e, Cat 6 or similar network connections to
devices that use PoE power, such as IP cameras and wireless access points:
OUTREACH LITE extends network connections to devices that do not use
PoE, such as PCs and routers:
As OUTREACH MAX and OUTREACH LITE restore the Ethernet connection
every 100 metres (328 feet), full-capacity 100BASE-TX or 10BASE-T is
maintained across the entire link, with no bandwidth restrictions.
Connections and mounting
Technical specification
Device power 1.3 watts
Forwarded
PoE power
(MAX only)
PoE forwarding of up to 70 watts depending on standard
Maximum current 0.7 amps on data pairs
Maximum current 1.5 amps on spare pairs
PoE standard IEEE 802.3af / 802.3at / custom PoE compatible (MAX)
IEEE 802.3af Class 2 powered device (LITE)
Ethernet Two independently auto-configuring ports:
- 10BASE-T or 100BASE-TX
- Half or full-duplex; maintains 200Mbit/s link bandwidth
- Patch or crossover cables
Dimensions 105 x 40 x 22 mm ( 4.13 x 1.57 x 0.87” ) LxWxH
Weight 70g ( 2.5 oz )
Environmental Operating temperature: -10 to 50
O
C ( 14 to 122
O
F )
Humidity: up to 85%, non-condensing
LED indicators – both connectors
Network status PoE Status
On Link On PoE power enabled
Flashing Activity Off PoE not enabled
Off No link
Note that the LEDs on OUTREACH MAX will not light until the PoE source
and powered device are both connected
If the powered device is disconnected, then the OUTREACH MAX should
also be disconnected from the PoE power source. OUTREACH MAX should
not be connected to equipment that is not PoE compatible.
Maximum extension distance
By installing an OUTREACH MAX for every extra 100 metres of cable, PoE
and Ethernet can be extended for considerable distances, with no
bandwith restrictions or any requirement for electrical power installation.
The maximum distance from the PoE source to the IP camera or other
device depends on how much PoE power the device requires:
Maximum range, for PoE power (watts)
PoE Source 0W
1
5W 10W 15W 20W 25W
PoE switch
800m
2625ft
450m
1476ft
300m
984ft
N/A
2
N/A
2
N/A
2
OUTSOURCE
1150m
3773ft
800m
2625ft
400m
1316ft
N/A
2
N/A
2
N/A
2
PoE Plus switch
800m
2625ft
600m
1969ft
400m
1316ft
300m
984ft
200m
656ft
100m
328ft
3
OUTSOURCE PLUS
1150m
3773ft
800m
2625ft
550m
1804ft
400m
1316ft
300m
984ft
200m
656ft
1. Non-PoE applications; using an OUTREACH LITE at the end of the chain
2. Not applicable; these power levels are for PoE Plus source and devices only
3. Extension is not possible at this power level with this power source
These figures are strict upper limits for installations using regular 24AWG
Cat 5e cable. Because actual power use and installed cable distances can
vary, using OUTSOURCE or OUTSOURCE PLUS is always recommended.
OUTSOURCE is an enhanced PoE injector and is fully compliant with the
IEEE 802.3af standard. OUTSOURCE PLUS is an enhanced PoE Plus injector
and is fully compliant with the IEEE 802.3at standard.
The distance limits for extension at other peak power levels can be checked
using the graph below:
Non-standard PoE
OUTREACH MAX can be used with many implementations of PoE that are
not IEEE 802.3af or 802.3at compliant. This includes high-current PoE, or
PoE which is “always-on” or uses a proprietary signature.
Four-pair PoE, in which current is carried on both spare and data pairs to
double available power, is also supported. See application notes.
INSTALLATION MANUAL
PLEASE READ CAREFULLY
7mm (0.28”) mounting holes
centres 89mm (3.5”) apart
10/100
network
connection
PoE in from
midspan
injector
or PoE switch
10/100
network
connection
PoE out to
powered
device
eg. IP camera
(MAX only)
