SMART EASY ASSEMBLY
FOLDING TREADMILL
SF-T7610 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto or
off of a moving belt. Read Instruction Manual Before Using.

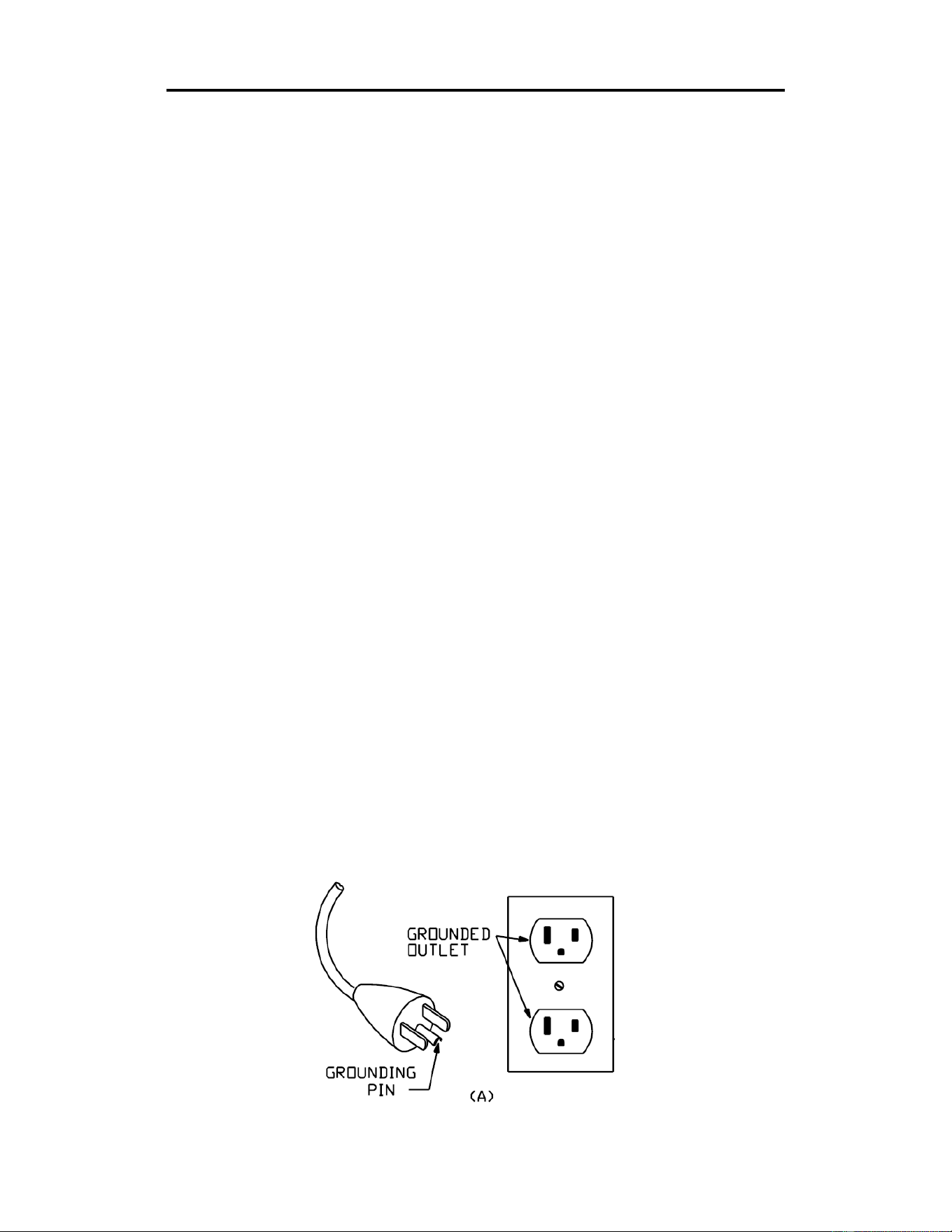

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
15. This treadmill is not suitable for disable people.
16. Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS
2
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 240cm (8 feet) of free space behind it and
60cm (2 feet) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 lbs (100 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial use!
4
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 10 for instructions on how to
properly apply lubricant.
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the treadmill.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the running belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side
rails while it starts up, then step onto the running belt once it’s in motion.
6. Always hold the handrails when making changes in the settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the running belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This treadmill is designed for adult use only! Children should not be allowed to use or play near
this treadmill. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
5

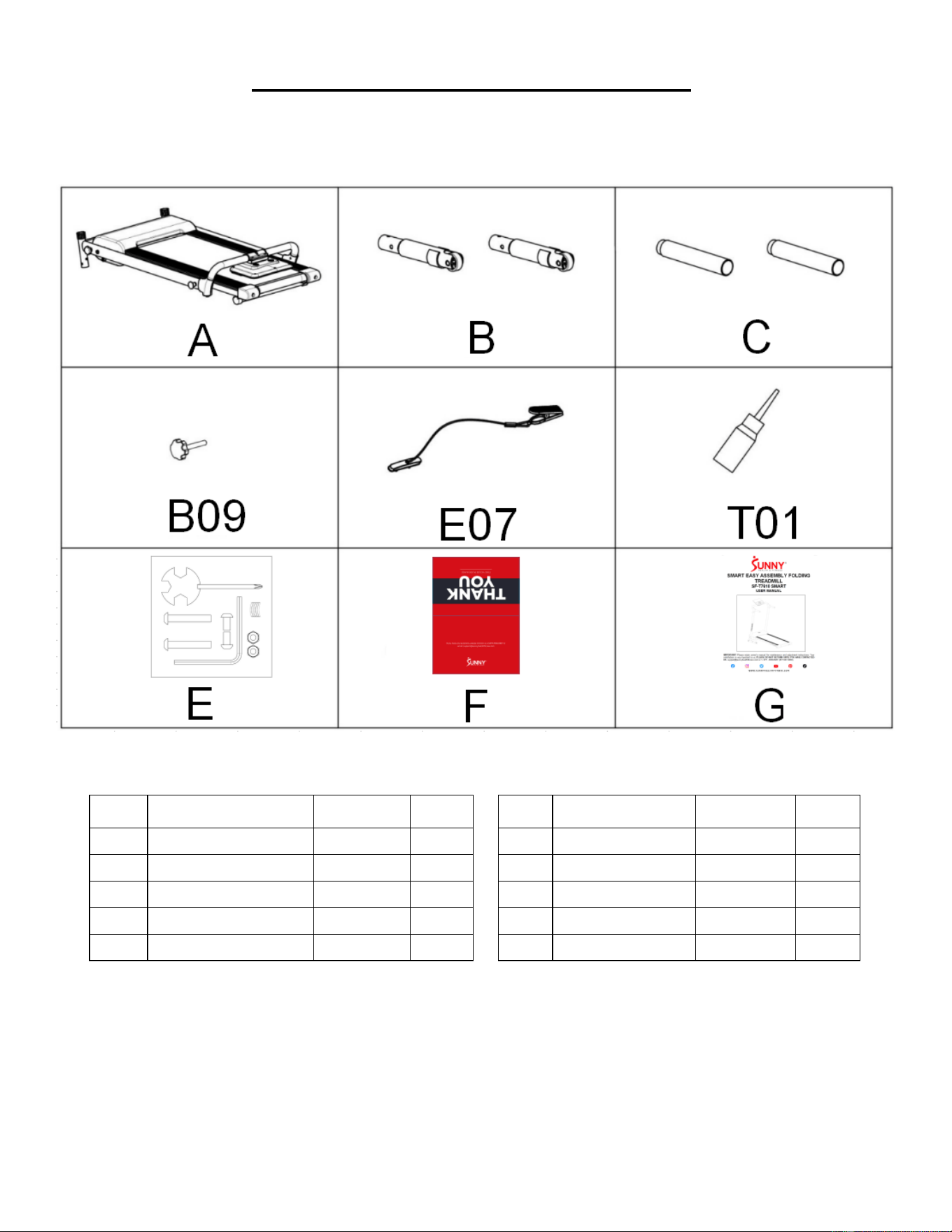

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
A
Treadmill
1
T01
Lubricant Oil
1
B
Base Support Tube
2
E
Hardware Pack
1
C
Handrail Bracket
2
F
Thank You Card
1
B09
Lock Knob
1
G
Manual
1
E07
Safety Key
1
6

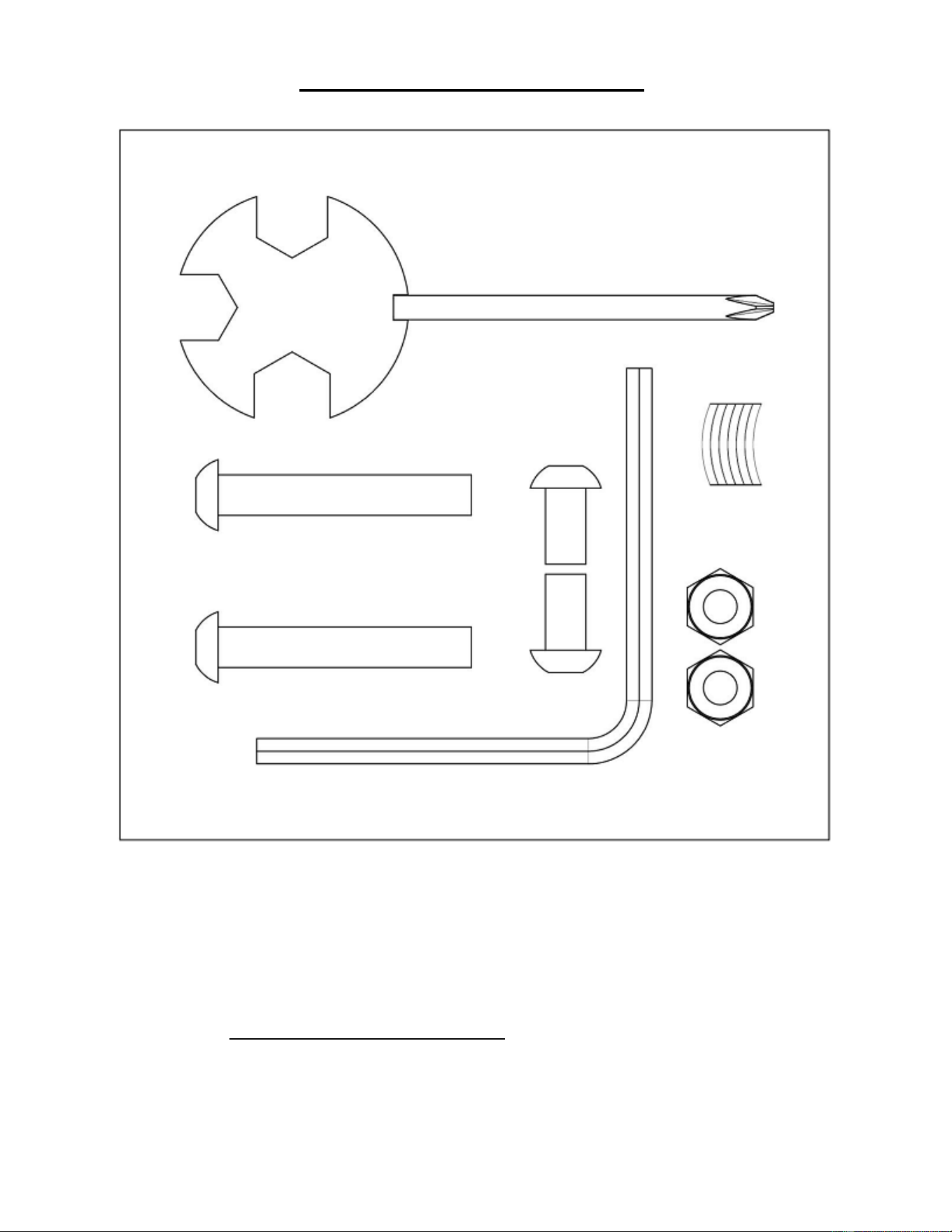

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

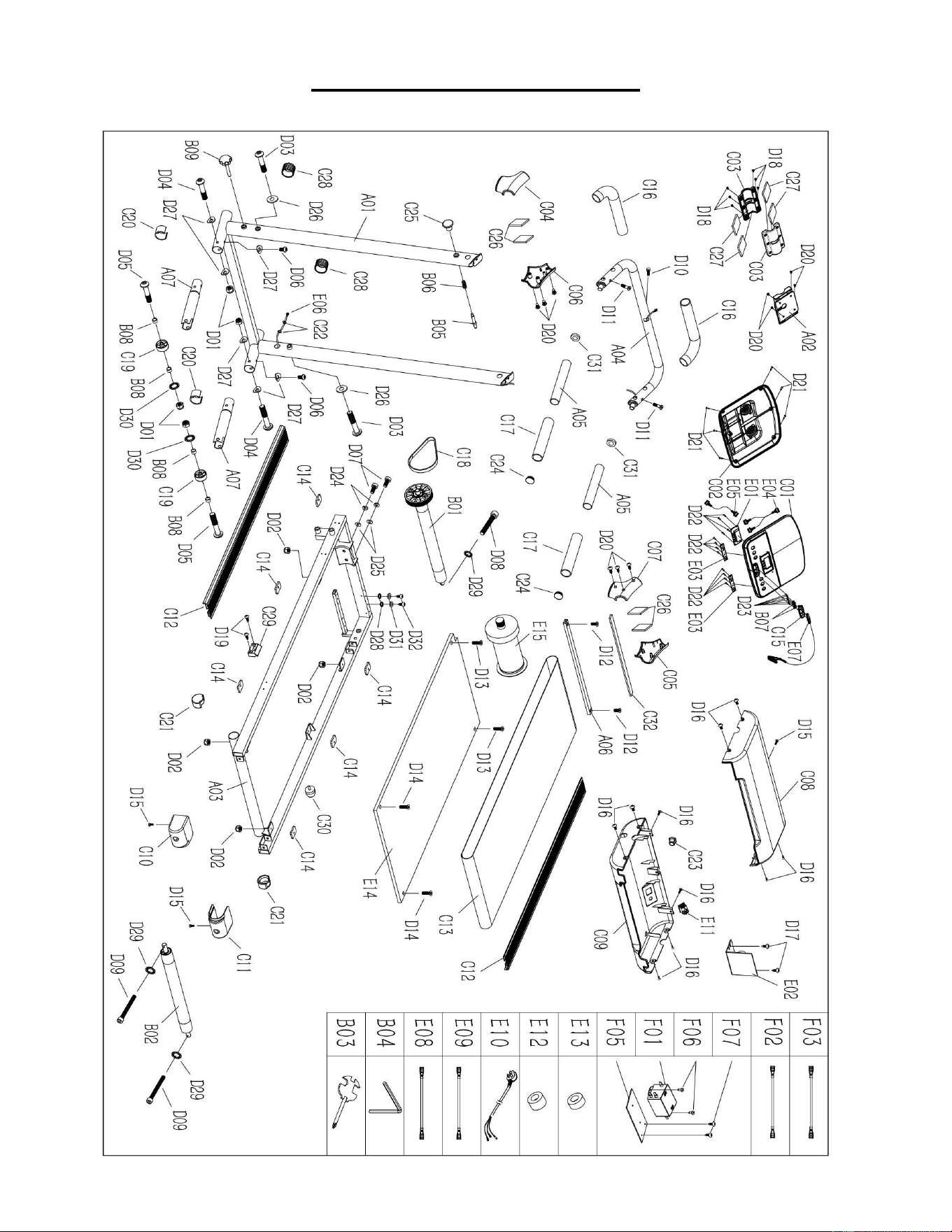

✓ The part number found on the “EXPLODED DIAGRAM” (page 22) and “PARTS LIST” (pages 23~24)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
7
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-907-
8669).

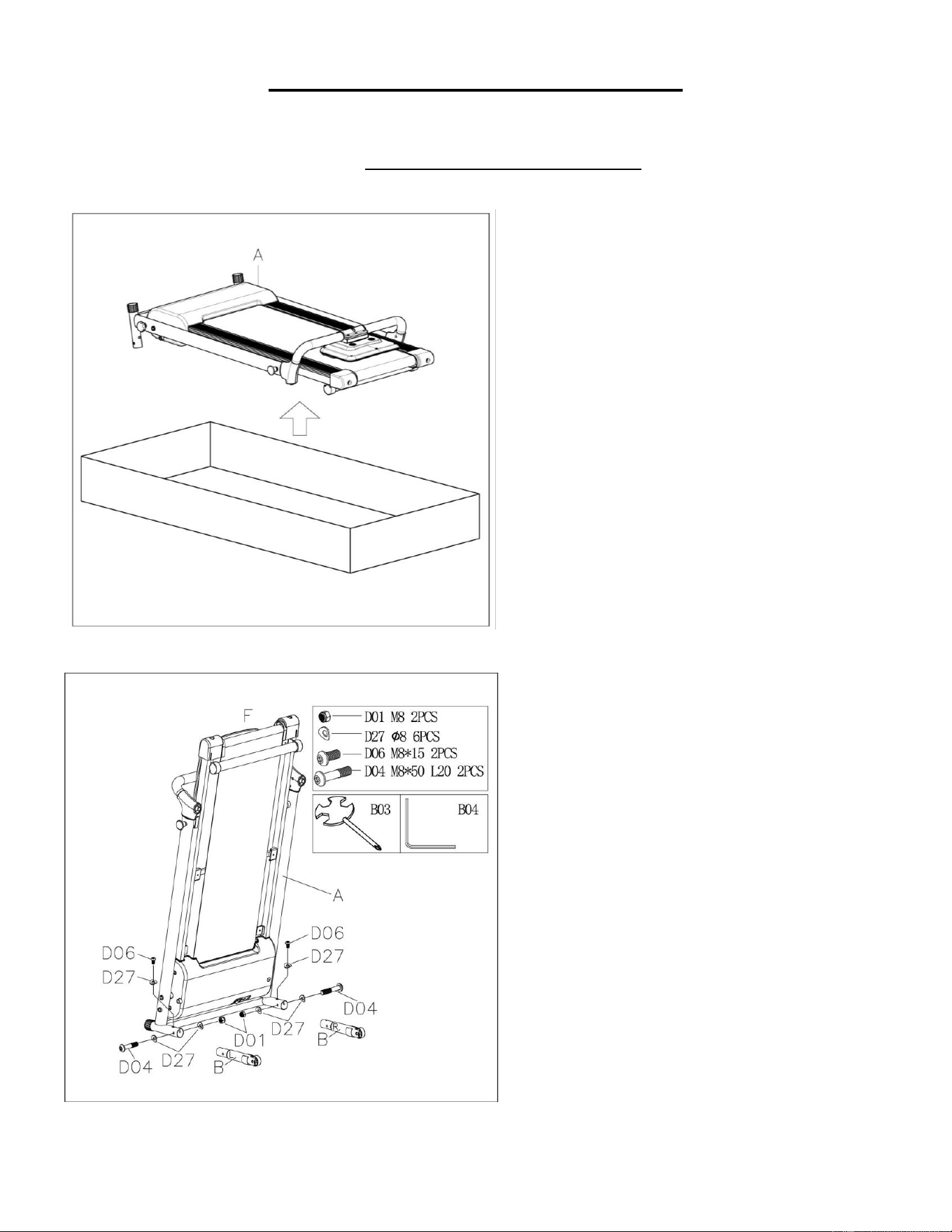

STEP 1:
Note: We recommend having two
people to do the assembly.
Open the carton, take out the contents,
and place the Treadmill (No. A) on
leveled ground.
STEP 2:
Note: Support Treadmill (No. A) at
position “F” with one hand to prevent it
from falling during assembly.
Attach the 2 Base Support Tubes (No.
B) to Treadmill (No. A). Use Spanner
w/ Screw Driver (No. B03) and Allen
Wrench (No. B04) to screw the 2 Bolts
(No. D04), 4 Arc Washers (No. D27),
and 2 Nuts (No. D01) into the
Treadmill (No. A).
Screw the 2 Bolts (No. D06) and 2 Arc
Washers (No. D27) into both sides of
the Treadmill (No. A) by using Allen
Wrench (No. B04).
Note：Base Support Tubes (No. B)
has remarked L&R, please check L&R
before assembly.
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-907-
8669).

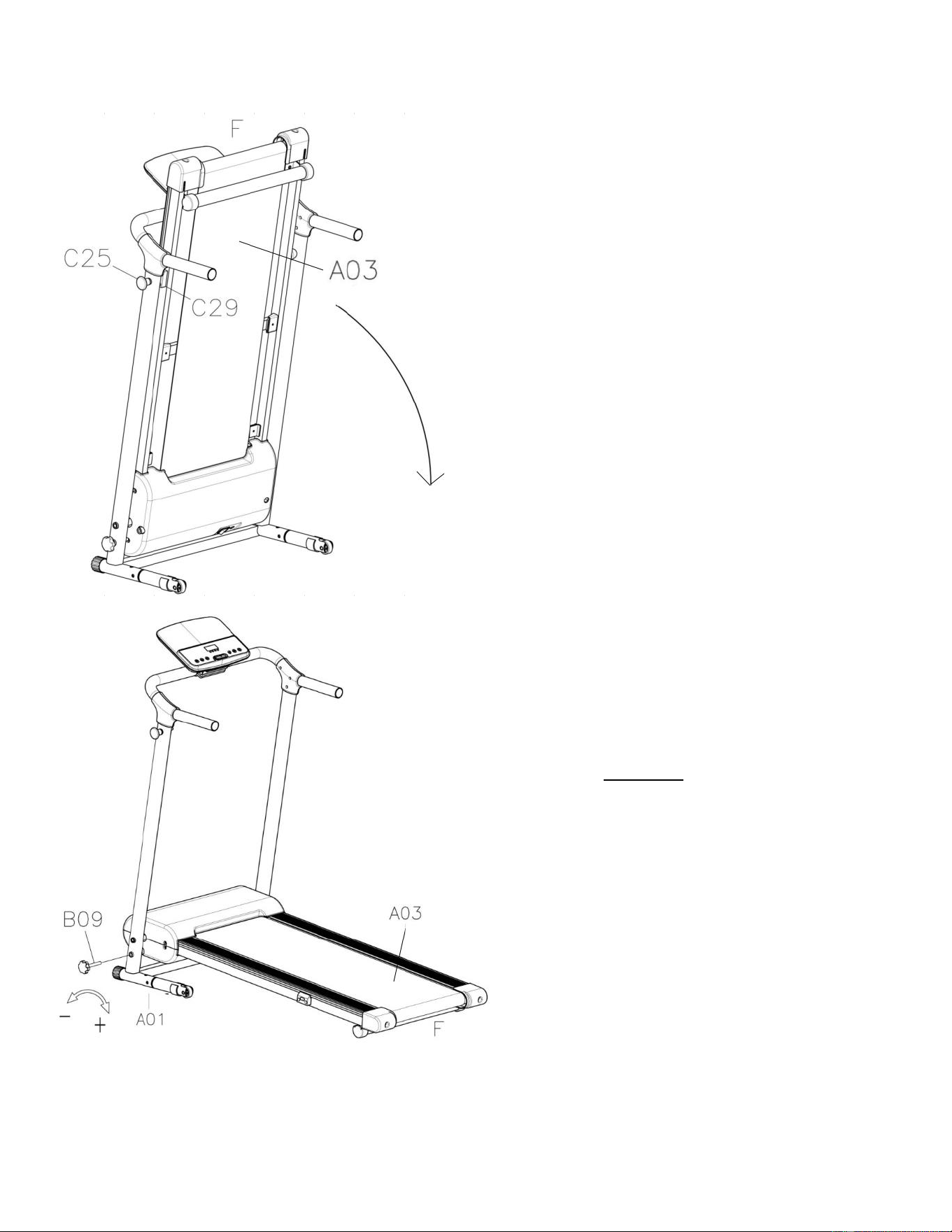

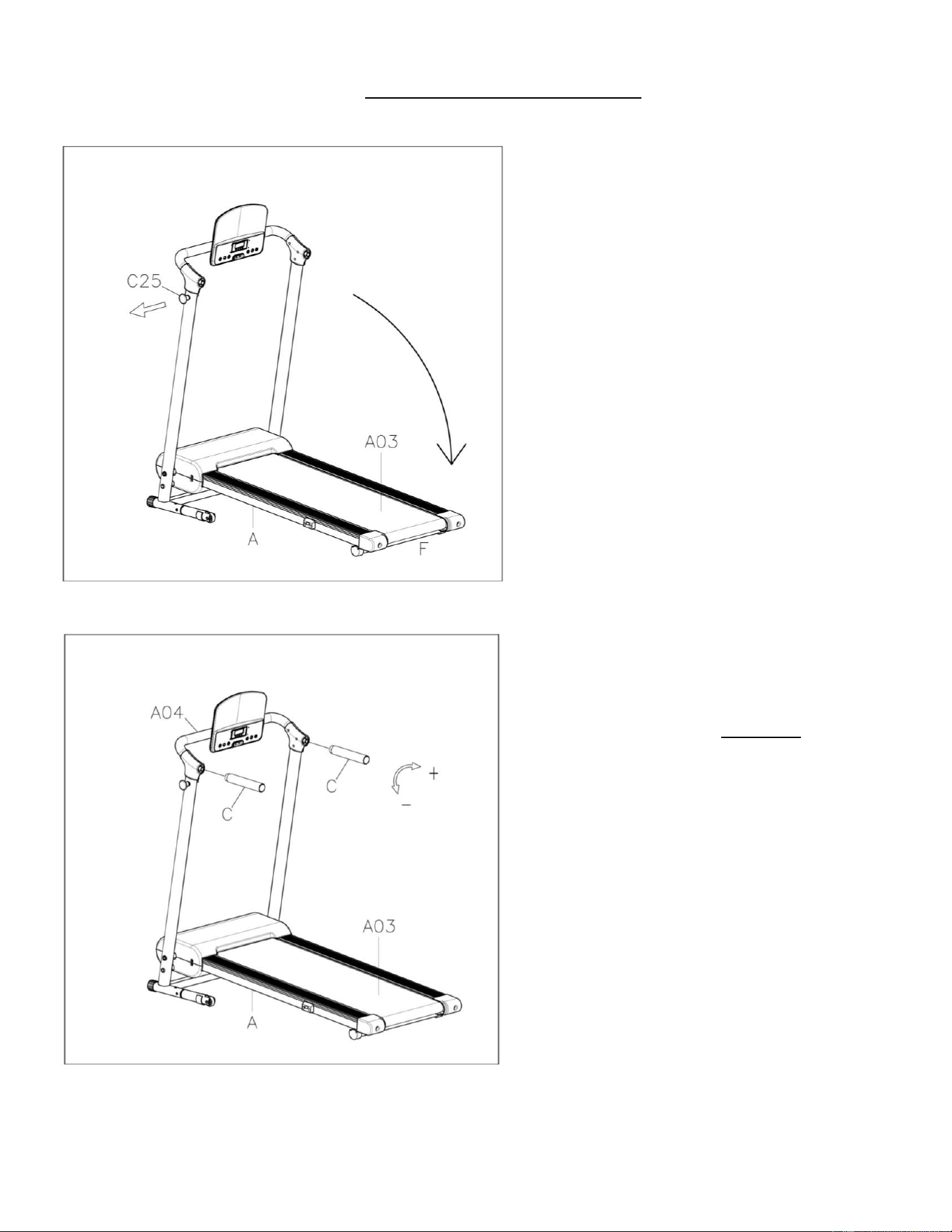

STEP 3:
To avoid any possible injury, please hold
on to the Main Frame (No. A03) at
position “F” before you pull the
Locking Pin (No. C25) and ensure that
the space directly underneath is clear of
any objects. Once the Main Frame (No.
A03) is released, please continue to
hold on until it reaches the floor.
Pull the Locking Pin (No. C25) and
lower the Main Frame (No. A03) to the
floor.
Note: The Locking Pin (No. C25) will
snap back into the treadmill. It does not
detach from the treadmill.
STEP 4:
Attach the 2 Handrail Brackets (No.
C) into Handrail Connecting Bracket
(No. A04) by turning clockwise.
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-907-
8669).

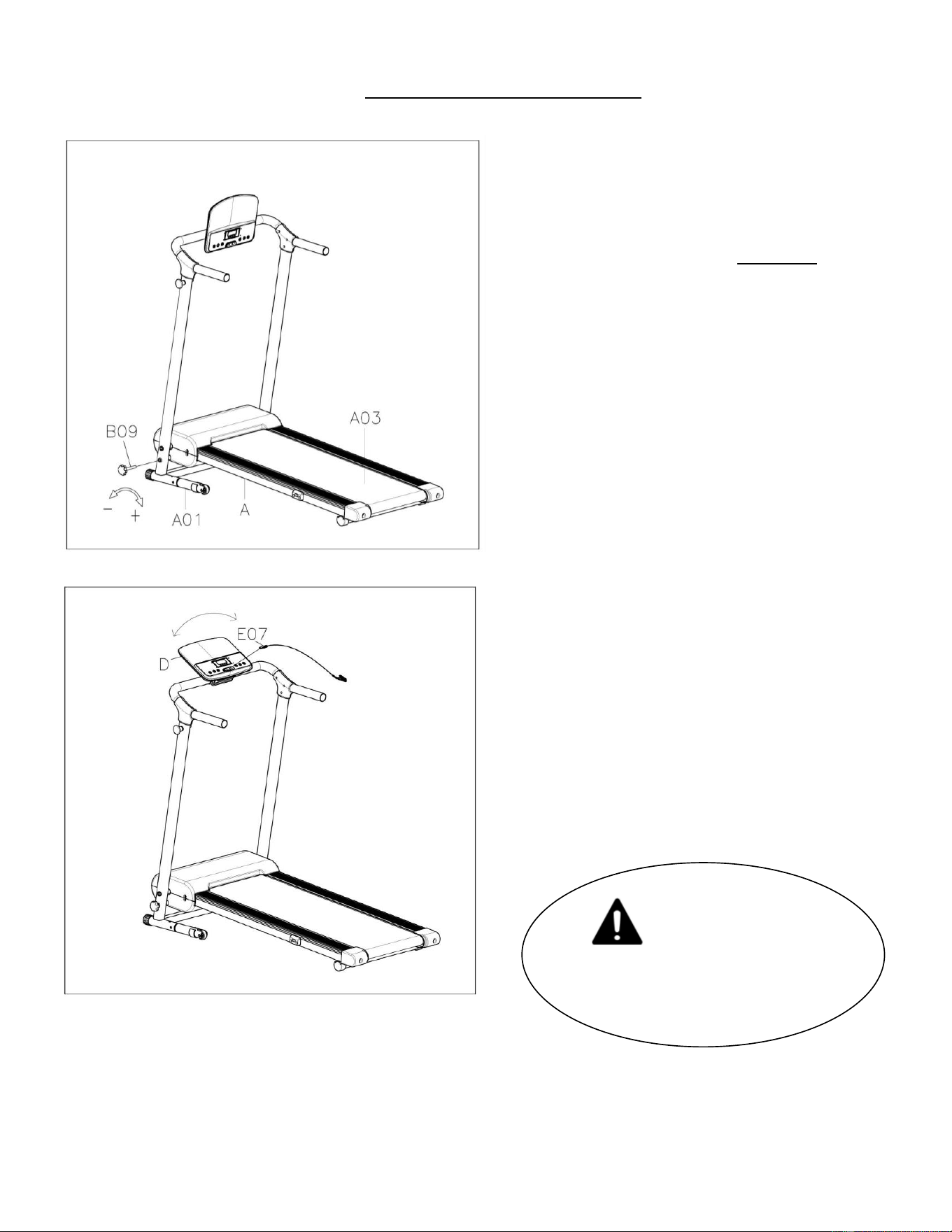

STEP 5:
Insert Lock Knob (No. B09) into the
Base Frame (No. A01) and secure to
the Main Frame (No. A03) by turning
Lock Knob (No. B09) clockwise until
it is tight.

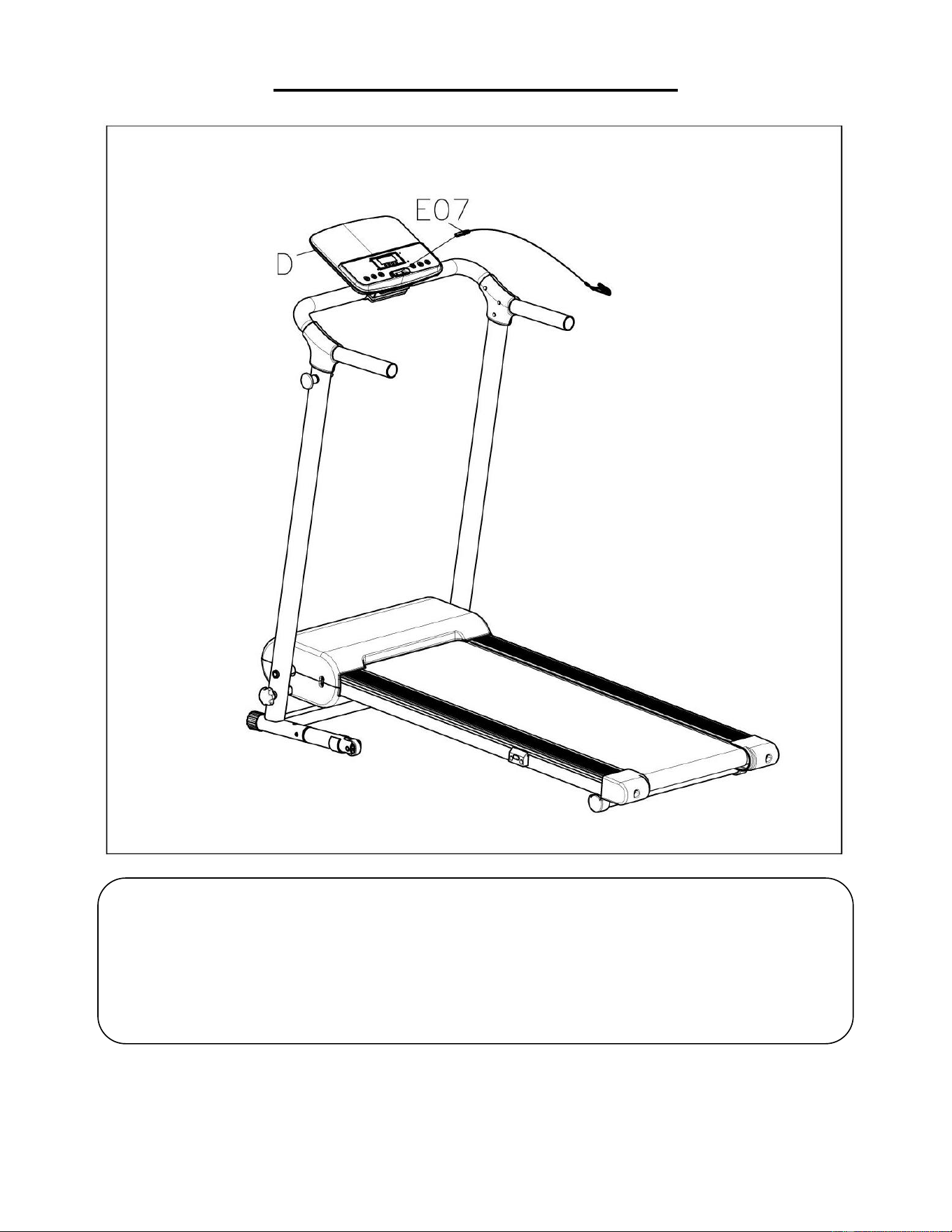

STEP 6:
Adjust the Console (No. D) to a
suitable angle.
NOTE: Attach the clip end of the
Safety Key (No. E07) to your clothes
before you start your workout.
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the
first use. See Page 10.
10
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. E14) and Running Belt (No. C13) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Board (No. E14) and
Running Belt (No. C13) regularly. If you find any wear on the Running Board (No. E14), please
contact us at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.

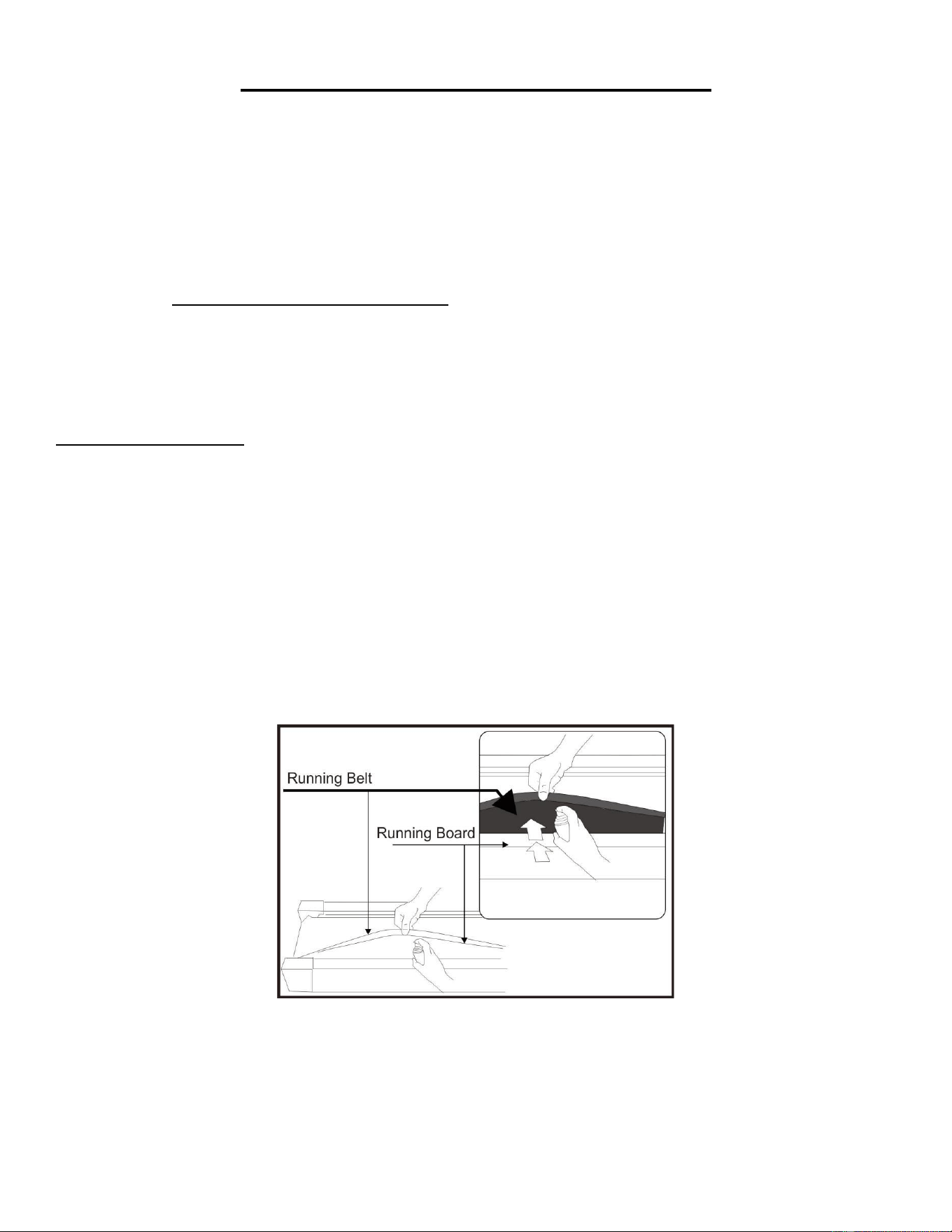

HOW TO LUBRICATE:
1. To apply lubricant, lift one side of the Running Belt (No. C13) and apply oil to the middle of the
Running Board (No. E14). Next, start the treadmill and place it at the lowest speed setting and allow
the oil to spread over the Running Board (No. E14). Repeat this process for the other side.
2.The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
treadmill. Inspect and tighten bolts regularly.
3.To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C13) will result in the runner sliding off during use, while too
tight of a Running Belt (No. C13) will negatively affect the motor’s performance and create more
friction between the roller and Running Belt (No. C13). The most suitable tightness for the Running
Belt (No. C13) is when it is pulled out 50-75mm from the Running Board (No. E14).
The following timetable is recommended:
Light user (less than 3 hours/ week)
Medium user (3-5 hours/ week)
Heavy user (more than 5 hours/ week)
every three months
every two months
every six months
11
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C13) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from
your shoes does not wear the Running Board (No. E14) and Running Belt (No. C13). Clean the
surface of the Running Belt (No. C13) with a clean, damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.

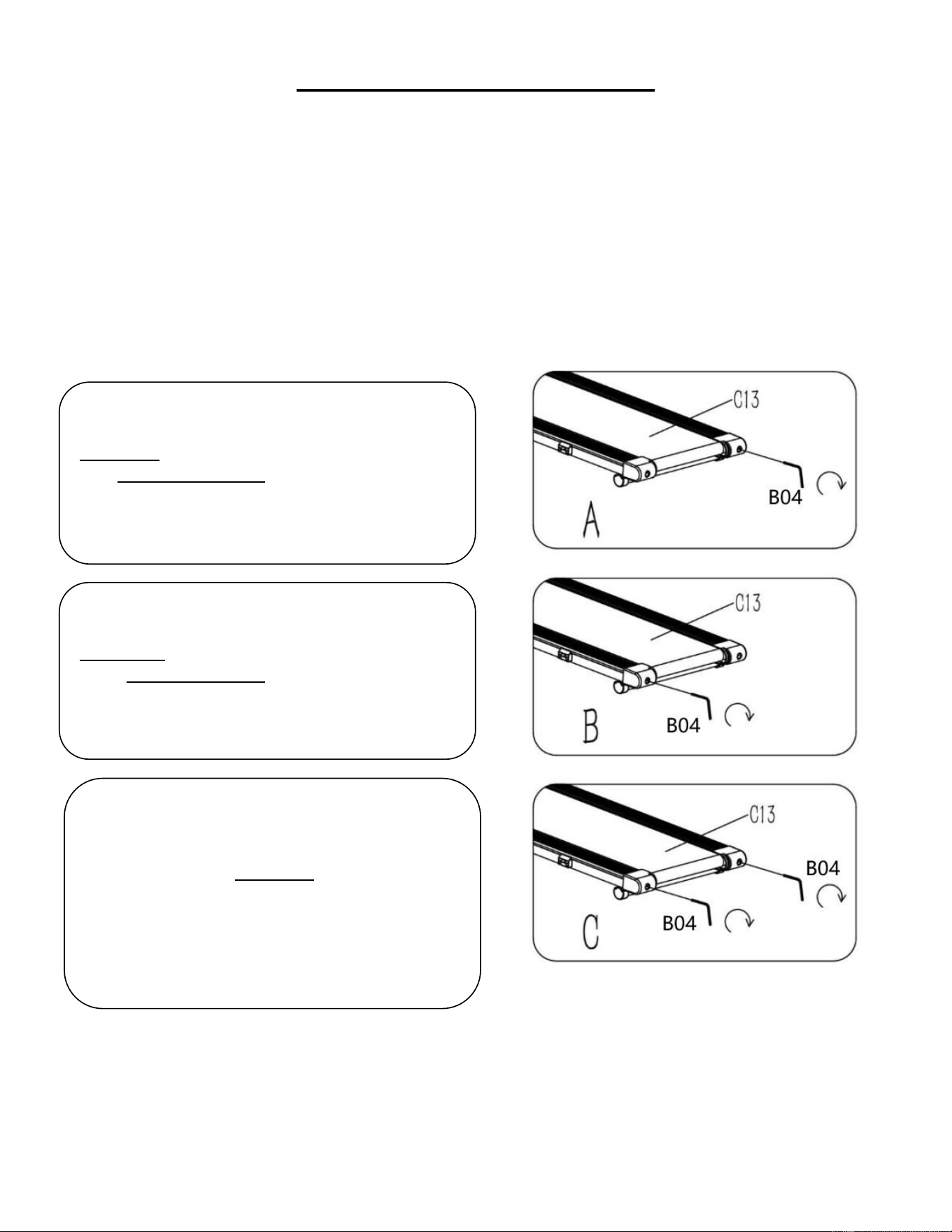

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. C13) drifts
from the center.
1. If the Running Belt (No. C13) moves to
the right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjusting bolt ¼
turn counter-clockwise. If the Running Belt
(No. C13) does not move, repeat this step
until it centers. Refer to Figure A.
2. If the Running Belt (No. C13) moves to
the left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjusting bolt ¼
turn counter-clockwise. If the Running Belt
(No. C13) does not move, repeat this step
until it centers. Refer to Figure B.
3. Over time, the Running Belt (No. C13)
will loosen. To tighten the Running Belt
(No. C13), turn the Left & Right adjusting
bolts one full turn clockwise, check the
tension of the Running Belt (No. C13).
Continue this process until Running Belt
(No. C13) is at the correct tension. Make
sure to adjust both sides equally to ensure
correct belt alignment. Refer to Figure C.
12

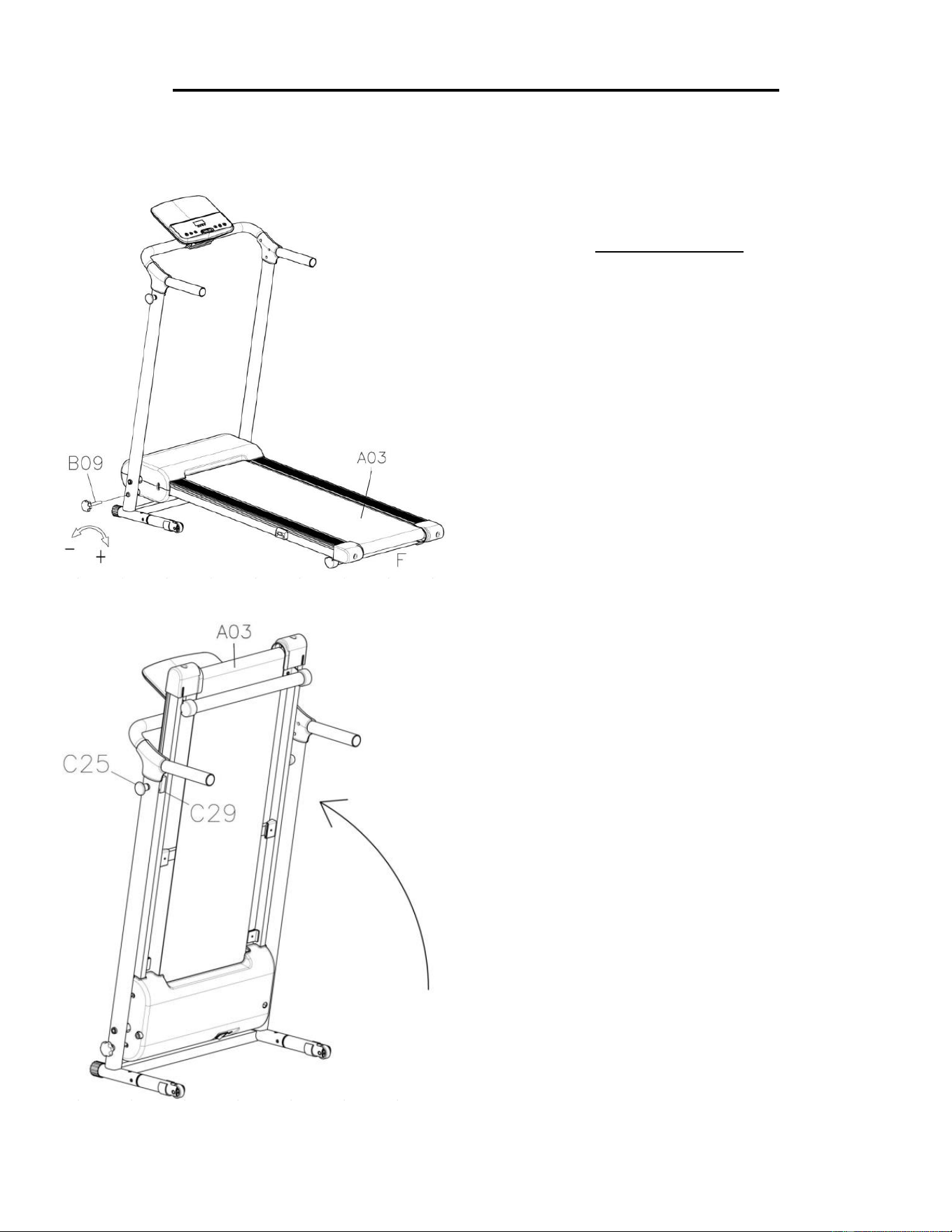

FOLDING & UNFOLDING INSTRUCTIONS
FOLDING:
STEP 1:
Loosen the Lock Knob (No.
B09) counter-clockwise and pull
it out. Fold up the Main Frame
(No. A03).
Note: Remember where you
keep the Lock Knob (No. B09)
after you pull it out. You will
need it when you unfold the
treadmill.
STEP 2:
Pull out the Locking Pin (No.
C25) with one hand, then lift up
the Main Frame (No. A03) at
position “F” with the other hand
until the Locking Pin (No. C25)
snaps into the hole of Fixed
Block (No. C29).
13
UNFOLDING:
STEP 1:
Note: Before lowering the Main
Frame (No. A03), ensure that
the space directly underneath is
clear of any objects.
To avoid any possible injury,
please hold the Main Frame (No.
A03) at position “F” before you
pull the Locking Pin (No. C25).
Once the Main Frame (No. A03)
is released, continue to hold on
at position “F” until it reaches the
floor.
(Please keep everyone and all
pets away from the treadmill
when unfolding.)
STEP 2:
Insert Lock Knob (No. B09) into
the Base Frame (No. A01) and
secure to the Main Frame (No.
A03) by turning Lock Knob (No.
B09) clockwise until it is tight.
14

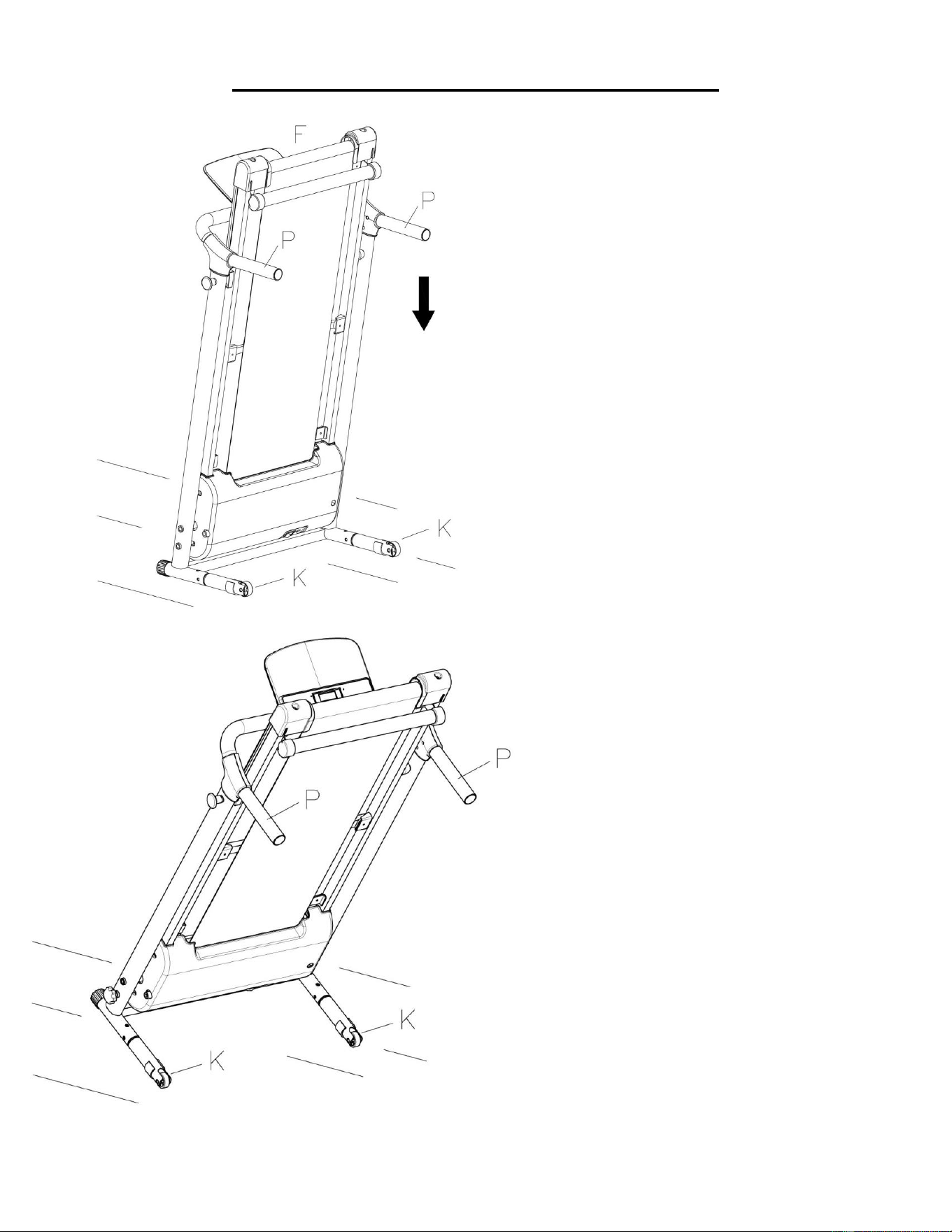

HOW TO MOVE THE TREADMILL
STEP 1:
Before attempting to move the
treadmill, make sure that it has
been properly folded and the power
cord is unplugged.
To tilt, start by placing one hand at
position “P” to support the top end
of the treadmill. Next, place one
foot at position “K” to hold the
bottom end of the treadmill steady.
With your foot at “K”, slowly tilt the
top of the treadmill downward
towards the ground until the Main
Frame is low enough, where the
wheels of the treadmill touch the
ground.
STEP 2:
To transport, hold the tiled treadmill
from position “P” and move to your
desired location.
15
HOW TO USE SAFETY KEY
Insert the pin end of Safety Key (No. E07) into the hole of the Console (No. D) and
clip the other end to your clothes.
Note: In an emergency, pull out the Safety Key (No. E07), and the treadmill will stop.
16
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120 V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a plug that has an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are unsure whether the product has been
properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
GROUNDING METHOD
17

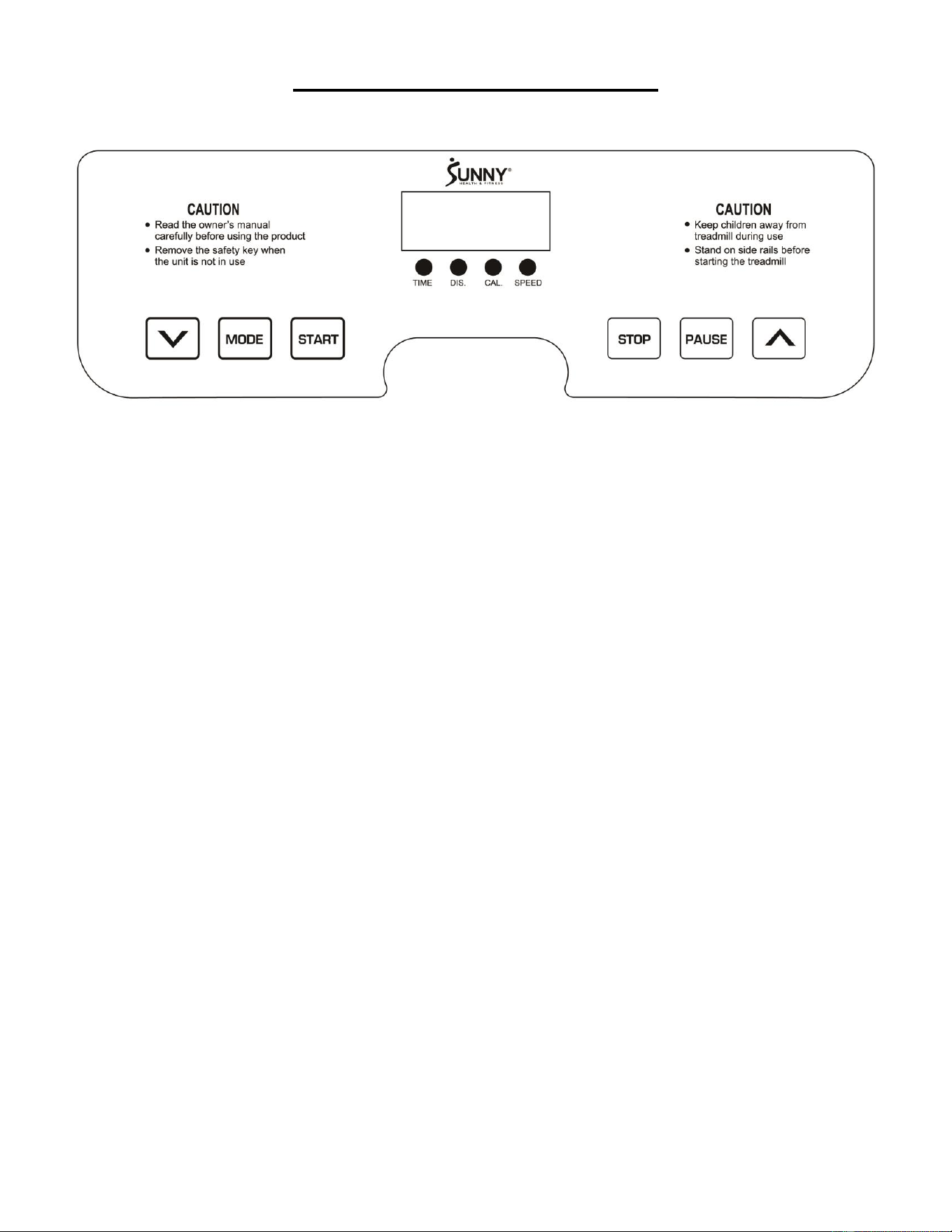

THE DISPLAY CONSOLE
DISPLAY
SPEED: Displays current speed (range 0.5 - 6.5 MPH).
TIME: Displays running time. If the time reaches 99:59, the treadmill will stop smoothly and display
“End” then enter standby mode after 5 seconds. When in countdown mode, it will count down from
the setting time to 0:00. When it reaches 0:00, the treadmill will stop smoothly and show “End”, then
enter standby mode after 5 seconds.
DISTANCE: Displays the distance traveled (range 0.00-99.9 MILES). When the distance reaches
99.9, it will reset to 0.00 and begin counting again from 0.00. When in countdown mode, it will count
down from the set distance to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display
“End”, then enter standby mode after 5 seconds.
CALORIES: Displays user’s calories burned (range 0.0-999 KCAL). When calories reach 999, it will
start again from 0. In countdown mode, it will count down from the set number of calories you set to
0.0. When it reaches 0, the treadmill will stop smoothly and show “End”, then enter standby mode
after 5 seconds.
Note: When no person walks or runs on the machine, distance and calories will not count.
FUNCTION KEYS
MODE: When stopped, press this button to select a Countdown mode.
15:00 MINS is the default Countdown for TIME.
1.0 Mile is the default Countdown for DISTANCE.
50 KCAL is the default Countdown for CALORIES.
When setting each Countdown Mode, you can press the speed +/– buttons to increase or decrease
from the default value. Press START to start the treadmill.
START: To start the treadmill, insert the pin end of the Safety Key (No. E07) into the computer
console then press the START button. This treadmill requires the Safety Key (No. E07) in order to
start. 0.5 MPH is the default start speed.
18
STOP: This button can STOP. When in use, press this button once to terminate your workout session
completely and all data from this session will be deleted.
PAUSE: This button can PAUSE. When in use, press this button to PAUSE your workout and the
current workout data will still be shown.
SPEED +/–: Press the SPEED +/- buttons to increase or decrease the speed in increments of 0.1
MPH. Pressing and holding either of these buttons for a duration of over half a second will increase or
decrease the speed continuously.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The treadmill beeps every 10 seconds
and displays an “OIL” icon on your display to remind you when it is time. Please read the
LUBRICATING THE TREADMILL instructions on Page 10 to learn the proper steps to lubricating your
treadmill. Apply the lubricating oil to the middle of the running board on both sides. After application,
press and hold the STOP button for 3 seconds to clear the reminder.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN: SECOND)
0
15:00
5:00—99:00
00:00—99:59
SPEED (MPH)
0.0
0.5
0.5－6.5
0.5－6.5
DISTANCE (MILE)
0
1.0
0.5-99.9
0.00--99.9
CALORIES (KCAL)
0
50.0
10.0-990
0.0--999
19
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Remove the Safety Key (No. E07) from the console while the treadmill is running, and the treadmill
will stop immediately. Once the treadmill reaches a full stop, the display will show “SAFE” and the
buzzer will beep 1 time. To start the treadmill again, insert the pin end of the Safety Key (No. E07)
into the computer console and press the START button.
POWER SAVING FUNCTION:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While the treadmill
is in this mode, the display of the console will be turned off. To turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes during
exercise.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold the handrails
until you become familiar with the treadmill.
Insert the pin end of the Safety Key (No. E07) into the console and clip the safety clip to your clothing
before starting your workout. To end your workout, press the STOP button or remove the Safety Key
(No. E07) and the treadmill will stop immediately
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts
to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
20
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not start.
Not plugged in.
Plug power cord into outlet.
Safety Key is not inserted.
Insert Safety Key.
Running speed
inaccurate.
Not calibrated correctly.
Re-calibrate speed setting.
Speed set in the wrong units of
measurement.
Change setting to proper units.
Running belt is not
centered.
Running belt tension is not
correct on the left or right sides
of the running board.
Tighten the left and right adjusting
bolts of the rear roller.
Computer is not
working.
Wires from the console and
bottom control board not
properly connected.
Check wire connections from the
console to the bottom control
board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
SAFE: Safety Key is not
inserted.
The safety switch board is
damaged or the console is
damaged.
Change a new safety switch
board or a new console.
E01: Message failure.
Wires from the console and
bottom control board are not
properly connected.
Check wire connections from the
console to the bottom control
board.
Check the console, replace if
damaged.
Check the control board, replace
if damaged.
E03: Burst clash
protection.
Incoming voltage is higher than
the required voltage.
Check if the incoming power
supply is the correct voltage.
Check the control board, replace
if damaged.
E04: Current overload
protection.
The incoming voltage is too low
or too high. The control board is
damaged.
Restart the treadmill. Check the
incoming voltage to ensure it is
correct. Check the control board,
replace if damaged.
A moving part of the treadmill is
stuck and therefore, the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Add the oil.
Check the motor, listen for
strange noise and check for a
burning smell. Replace the motor
if necessary.
21
NOTE:
1. If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or scan
the QR code below:
2. If you require additional support, please contact [email protected].
E05: Overload
protection.
The incoming voltage is too low
or too high. The control board is
damaged.
Restart the treadmill. Check the
incoming voltage to ensure it is
correct. Check the control board,
replace if damaged.
A moving part of the treadmill is
stuck and therefore, the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Add the oil.
Check the motor, listen for
strange noise and check for a
burning smell. Replace the motor
if necessary.
E06: Motor Abnormality.
The motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if the
motor is connected. If the wire
has been punctured or damaged,
you will need to replace it. If the
problem is not rectified, you may
need to replace the motor.
E07:
Control Board
Abnormality.
The control board is not
connected.
Check the upper and middle
wires to see if the control board is
connected. If the wire has been
punctured or damaged, you will
need to replace it. If the problem
is not rectified, you may need to
replace the control board or
console.
E13: IGBT short-
circuited.
The control board is damaged.
Replace with a new control board.
E14: Motor Abnormality.
Motor is short-circuited.
Replace with a new motor.
The control board is damaged.
Replace with a new control board.
22
EXPLODED DIAGRAM
23
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Base Frame
1
C25
Locking Pin
1
A02
Console Fixing Frame
1
C26
EVA Cushion 1
50*20*4
4
A03
Main Frame
1
C27
EVA Cushion 2
50*40*3
4
A04
Handrail Connecting
Bracket
1
C28
Tube Plug
2
A05
Handrail Bracket
2
C29
Fixed Block
1
A06
Running Board Support
Tube
1
C30
Cushion
1
A07
Base Support Tube
2
C31
Small Rubber Cushion
2
B01
Front Roller
1
C32
Big Rubber Cushion
1
B02
Rear Roller
1
D01
Nut
M8
4
B03
Spanner w/ Screw Driver
S=13, 14, 15
1
D02
Nut
M6
4
B04
Allen Wrench
S5
1
D03
Bolt
M10*60 L20
2
B05
Locking Pin Iron
1
D04
Bolt
M8*50 L20
2
B06
Pressure Spring
Φ10.5*30
1
D05
Bolt
M8*48 L20
2
B07
Safety Key Plate
Φ20*0.3
2
D06
Bolt
M8*15
2
B08
Transportation Wheel
Bushing
Φ11*Φ8.5*7
4
D07
Hexagon Socket Cap
Head Bolt
M8*15
2
B09
Lock Knob
Φ45*62*M10
1
D08
Bolt
M6*45
1
C01
Console Top Cover
1
D09
Bolt
M6*55
2
C02
Console Bottom Cover
1
D10
Bolt
M6*15
1
C03
Console Rotate Cover
2
D11
Bolt
M8*48
2
C04
Left Upright Tube Cover
1
D12
Bolt
M6*46
2
C05
Right Upright Tube Cover
1
D13
Bolt
M6*28
2
C06
Left Upright Tube Inner
Cover
1
D14
Bolt
M6*25
2
C07
Right Upright Tube Inner
Cover
1
D15
Bolt
M5*12 (including
washer)
3
C08
Motor Top Cover
1
D16
Bolt
M5*8 (including
washer)
10
C09
Motor Bottom Cover
1
D17
Screw
ST4.2*12 with
washer
2
C10
Left Rear Cover
1
D18
Screw
ST4.2*25
6
C11
Right Rear Cover
1
D19
Screw
ST4.2*20
2
C12
Side Rail
2
D20
Screw
ST4.2*12
10
C13
Running Belt
1
D21
Screw
ST3.5*10
6
C14
Rubber Cushion
6
D22
Screw
ST2.9*8
12
C15
Safety Key Base
1
D23
Screw
ST2.5*6
6
C16
Foam
295mm
2
D24
Spring Washer
Φ8
2
C17
Foam
185mm
2
D25
Flat Washer C
Φ8
2
C18
Motor Belt
1
D26
Flat Washer C
Φ10
2
C19
Transportation Wheel
2
D27
Arc Washer
Φ8
6
C20
C-Shape Foot Pad 1
2
D28
Lock Washer
Φ5
2
C21
C-Shape Foot Pad 2
2
D29
Lock Washer
Φ6
3
C22
Ring Protecting Wire Plug
2
D30
Lock Washer
Φ8
2
C23
Power Wire Buckle
1
D31
Spring Washer
Φ5
2
C24
Plastic Holder
2
D32
Bolt
M5*12
2
24
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
E01
Console
1
E12
Magnetic Ring
1
E02
Control Board
1
E13
Magnetic Core
1
E03
Keyboard
2
E14
Running Board
1
E04
Connection Line
100mm
1
E15
DC Motor
1
E05
Console Upper Wire
650mm
1
F01
Filter
1
E06
Console Lower Wire
1600mm
1
F02
AC Single Line
Blue 350mm
1
E07
Safety Key
1
F03
AC Single Line
Brown 350mm
1
E08
AC Single Line
Blue 200mm
1
F04
Grounding Wire
1
E09
AC Single Line
Brown 200mm
1
F05
Filter Connecting Board
1
E10
Power Wire
1
F06
Bolt
M5*8
2
E11
Power Switch
1
F07
Screw
ST4.2*12
2
Version 1.2
25
