1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment, make sure you know where the nearest re extinguisher is.
WARNING! Always wear approved eye / face protection when operating the torch.
WARNING! DO NOT use the torch if you notice that it is damaged or if there could be a gas leak from it.
WARNING! Butane gas is extremely ammable, handle with care.
WARNING! Always point the torch away from the eyes and body when igniting and during operation.
WARNING! DO NOT put the torch down when it is lit, do not leave it unattended.
WARNING! The ame is not easily visible in bright daylight.
WARNING! Ensure the ame is completely extinguished after use. Do not use water to cool the torch down.
WARNING! Only use in a well ventilated area.
8 DO NOT use the torch in an area where paint fumes, solvents or other ammable solids, liquids or gases pose a potential hazard.
9 Keep ammable material away from the torch when operating.
8 DO NOT operate the torch when you are tired or under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT hold any workpiece by hand.
8 DO NOT touch the workpiece close to the heated area as it will be very hot. Allow to cool.
8 DO NOT operate the torch if it is damaged as this may cause failure and/or possible personal injury.
8 DO NOT touch the top of the torch during or immediately after use, as it will be very hot. Allow to cool.
8 DO NOT allow children to operate the torch.
9 After use, allow the torch to cool before storing it.
9 When not in use, store away from direct sunlight in a safe, dry, childproof location.
8 DO NOT store at over 40°C, such as in a car in hot weather.
2. INTRODUCTION
Comprehensive soldering/heating kit with accessories, ideal for a range of applications. Features a high-powered soldering, heating,
and shrinking torch with piezoelectric ignition. Accessories include a pack of varied size heat shrinks and high quality electrical shears.
Supplied in storage case.
3. SPECIFICATION
Model No: ..........................................................SD400K
Temperature Range: ........................................... 1300°C
4. CONTENTS
• Soldering Torch
• Tips (x3)
• Hot Air Nozzle
• Deector Nozzle
• Hot Knife
• 115mm Side Cutters
• Electrical Shears
• 3mm De-soldering Braid
• Wire Stripper/Cutter/Crimper with Wire Guide
• Heat Shrink Pack; 1.5, 2.5, 3, 5, 6mm
5. OPERATION
5.1. FILLING
Use standard butane fuel. Fill in a well ventilated area away from open ame. Turn the torch off. Make sure the ame is out. Allow to
cool down for ve minutes before lling.
5.1.1. Hold the torch upside down and insert the lling can’s nozzle into the gas lling valve (g.1). Press the nozzle into the valve and
PROFESSIONAL SOLDERING/HEATING KIT, WITH
HEAT SHRINKS AND ELECTRICAL SHEARS
MODEL NO: SD400K
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
Original Language Version
© Jack Sealey Limited
SD400K Issue 2 (H,2,F) 02/10/23
Refer to
instructions
Wear a face
shield
WARNING!
Hot surfaces
release gas. Once gas begins to seep out around the edge of the nozzle, the gas tank is full. Remove the lling can.
5.1.2. The fuel level may be checked by looking in the fuel level window (g.1).
5.2. OPERATION
5.2.1. Remove the anti-ignition cap.
5.2.2. Select required ame size using the ame control (g.2).
5.2.3. Soldering Iron. Ensure soldering tip (g.1) is tted, press the safety button (g.1) and pull the trigger down. Once the ame is
established, the trigger may be locked by sliding the trigger lock (g.2) to the right.
5.2.4. Pencil Torch. Remove the soldering head and ignite.
5.2.5. Flameless Heat Source. Remove the soldering tip from the soldering head and ignite.
5.2.6. If the trigger has been locked, move the trigger lock to the left to extinguish the flame.
5.2.7. Deploy the retractable rest to stand the torch after use to avoid damaging the surface on which it stands.

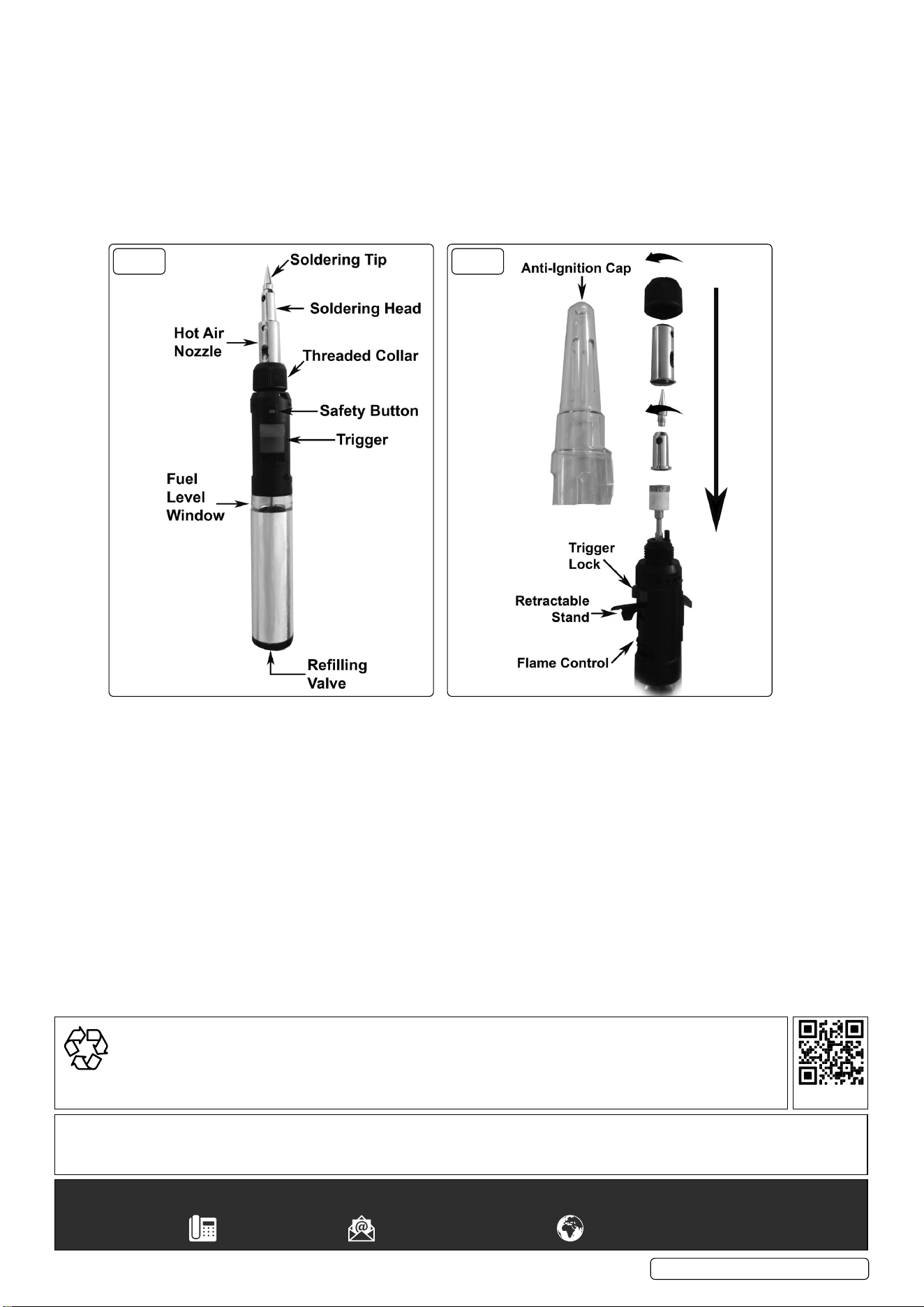

FIG.1 FIG.2
Original Language Version
© Jack Sealey Limited
SD400K Issue 2 (H,2,F) 02/10/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 36 months from purchase date, proof of which is required for any claim.
