Trigger wires
To monitor trigger – signals monitor to switch to the backup camera
To reverse backup light positive
Camera Power
Red to reverse backup light positive
Black to ground / chassis
Harness / Extension Connection
Video connector
Power harness connector
1
2
3
A
B
Control Loops
White loop: reverse image (default)
cut = normal image
Blue loop: parking guidelines on (default)
cut = parking guidelines off
c

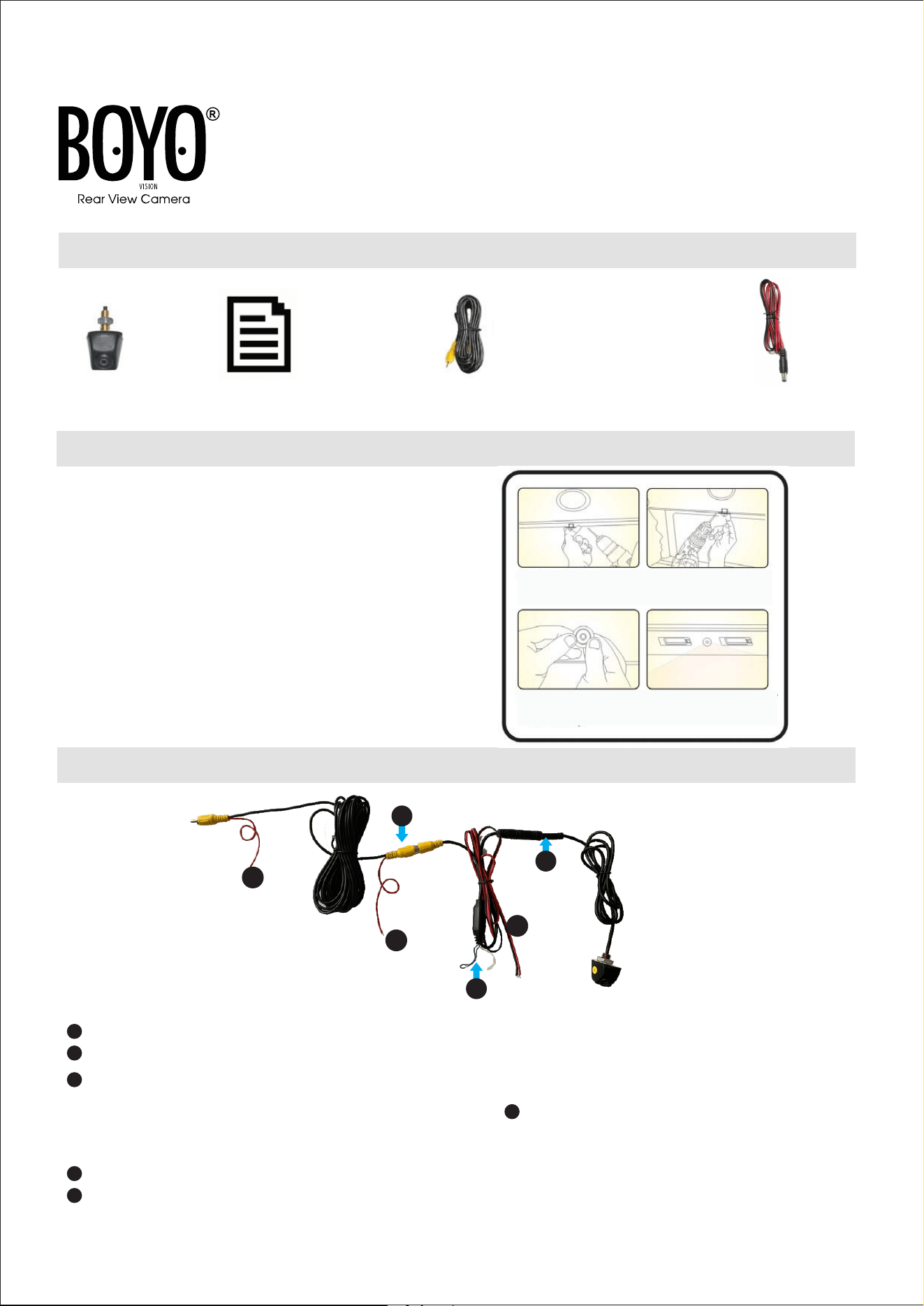

USER’S MANUAL
Model: VTK230HD
MINI LIP MOUNT
1. BILL OF MATERIAL
Camera
Manual
2. SPECIFICATION
• High sensitive 1/4” HD Color CMOS Sensor
(1089)
• Reverse/ Non-reverse image selectable
• Parking guide line on/o ffselectable
• Waterproof (Ip68)
• 170° wide viewing angle
• Super sensitive low Lux performance
• 12VDC (Tolerance 9V ~ 16V)
• Chipset 1089 HD
• Pixel: NTSC/PAL 800x533
• 0.05 Lux
3. WIRING
For technical support contact 888-941-3060 or email [email protected]
WWW.VISIONTECHAMERICA.COM
4. Installation Tip
1. Select suitalbe flat position
near the license plate light
and mark it.
2. Drill a hole according to the
the camera diameter
3. Mount the camera into the
hole using your two thumbs to
press it evenly for tight and flat
mounting
4. Read section #3 for wiring
help.
24’ Male to male RCA cable Power Harness
