Sealey TP67 Gear Oil Transfer Pump User Manual

GEAR OIL TRANSFER PUMP & FIXING KIT FOR

EP80 GEAR OIL DRUMS

MODEL NO’S: TP67 & TP67/X

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

 WARNING! Ensure all health and safety, local authority, and general workshop practice regulations are strictly adhered to when

using this equipment.

9  Familiariseyourselfwiththeapplicationandlimitationsofthisproduct,aswellasthespecicpotentialhazardspeculiartothearea.

9 Ensure safety eye protection and protective clothing are worn when using this product.

9 Keep the work area clean, uncluttered and ensure there is adequate lighting.

9 Dispose of waste liquids in accordance with local with local authority regulations.

8 DO NOT use the pump to transfer solvents, (see application below).

8 DO NOT use the pump for any purpose other than for which it is designed.

8 DO NOT place the oil drum on an uneven surface, or in contact with any heat source.

8 DO NOTattempttomovetheoildrumbypullingontheoilsupplyortheuidtransferhose.

9 Keep the pump clean and store in a safe dry location when not in use.

2. INTRODUCTION

TP67: Self-priming pump with polypropylene body. Suitable for pumping gear-oil or other products with a similar viscosity. Includes 1.5m of hose

and universal adaptor.

Note: If the container you have will not accept direct mounting of Model No. TP67, order a Model No. TP67DT Trolley and a TP67/X Top Plate.

Thepumpxestothetopplatewhichinturnmountsontothetrolleyandavoidstheneedtoconnectthepumpdirectlytothecontainer.

TP67/X: FixingKitforEP80GearOilDrumsforusewithModelNo.TP67GearOilTransferPump.

3. APPLICATIONS

Note: As a rule if the chemical you want to pump is delivered in a plastic container then you can use a plastic pump to transfer it. The

TP67 and TP67/X can not be used for the transfer of solvents. The unit will handle most disinfectants, detergents, pesticides,

degreasers, mild acids, alkalis, oils, weed-killers and chemical additives. If in doubt as to the suitability of use with a particular

substance contact your local Sealey supplier for advice.

4. ASSEMBLY

Refer to

instruction

manual

TP67, TP67/X Issue:2 27/11/23

Original Language Version

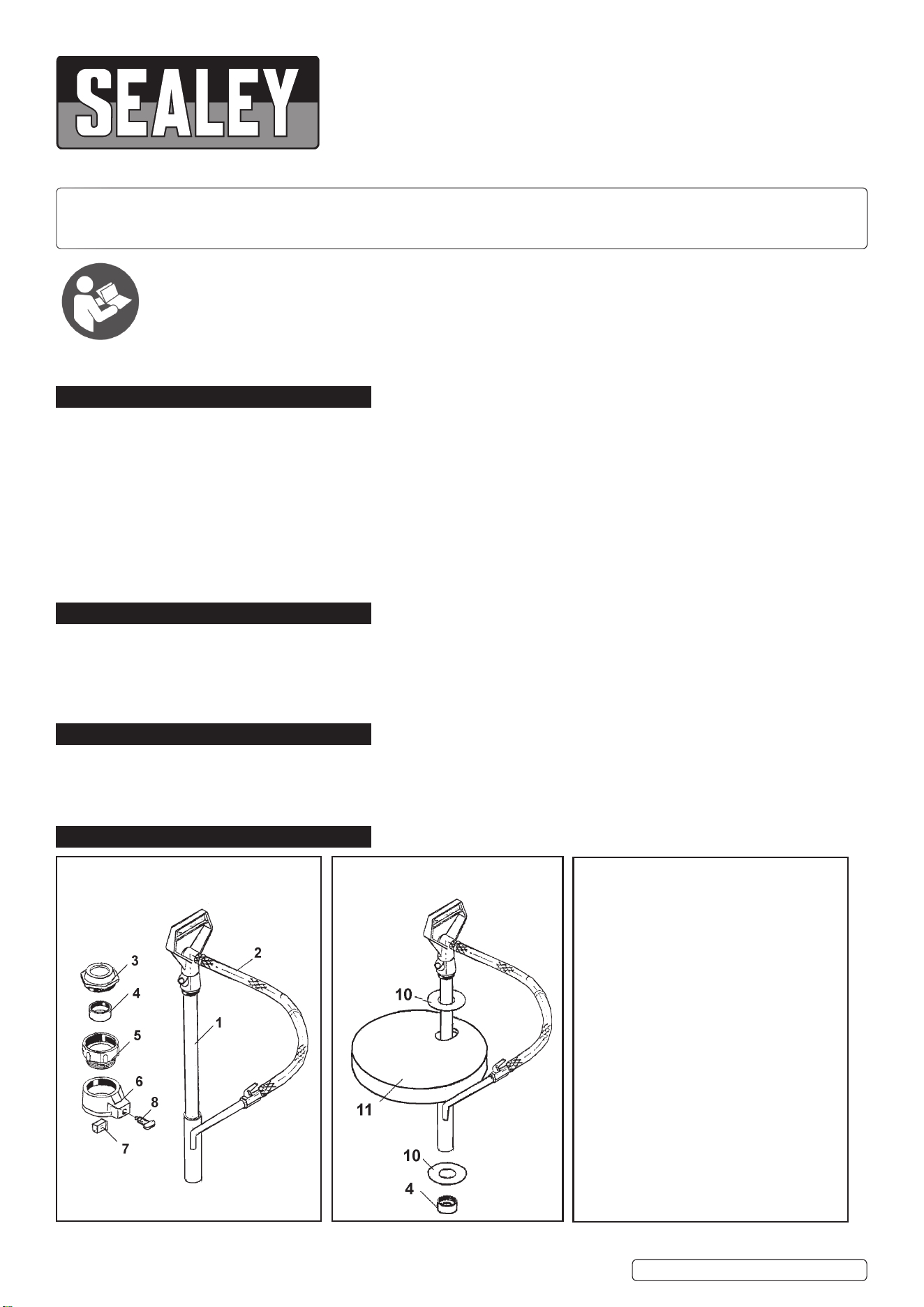

fig.1 TP67 Gear Oil Pump

fig.2 TP67/X Adaptor kit

PARTS LIST Refer to figs 1 & 2.

ITEM PART NO DESCRIPTION

1 TP67 Pump assembly

 2 TP67.02 Hoseassembly

 3 TP67/03 2”BSPadaptor

 4 TP67/04 Locknut

 5 TP67/05 Trisureadaptor

 6 TP67/06 Multi-neckadaptor

 7 TP67/07 Clamppad

 8 TP67/08 Clampingscrew

9 TP67/X Washer

 10 TP67X Lid(spinning)

5. ASSEMBLY

5.1. PREPARATIONS FOR ASSEMBLY

5.1.1.  Removeparts3,5,6,7,8fromthemainpumpassembly(g1),andstoreinasafeplaceforfutureuse.

5.1.2. Identify parts 1,2 & 4, and keep for to use for Adaptor assembly.

5.2. ADAPTOR ASSEMBLY

5.2.1.  Assembleasshown(g2)incorporatingparts1,2fromthemainpumpassembly.

5.2.2.  Takepart4(locknut),invertit,andtittotheendofthepump.

5.3.

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts

without prior notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

PURCHASE HERE

TP67, TP67/X Issue:2 27/11/23
