3
BASICS
Power Up
Note: After all parts have been powered on, the
station will begin searching for your outdoor sensors.
These should automatically connect within the next 10
minutes.
3.
Install the power cord into an
outlet, and then into the back of
the weather station. For backup,
install 3 “AA” batteries into the
Battery Compartment.
Note: Power cord is required
for constant backlight. Display
will come on for 10 seconds at a
time after a button push if only
powered via batteries.
Bottom of Breeze Sensor
Model No. TX145WSDTHv3
Back of Station
Model No. 328-1414

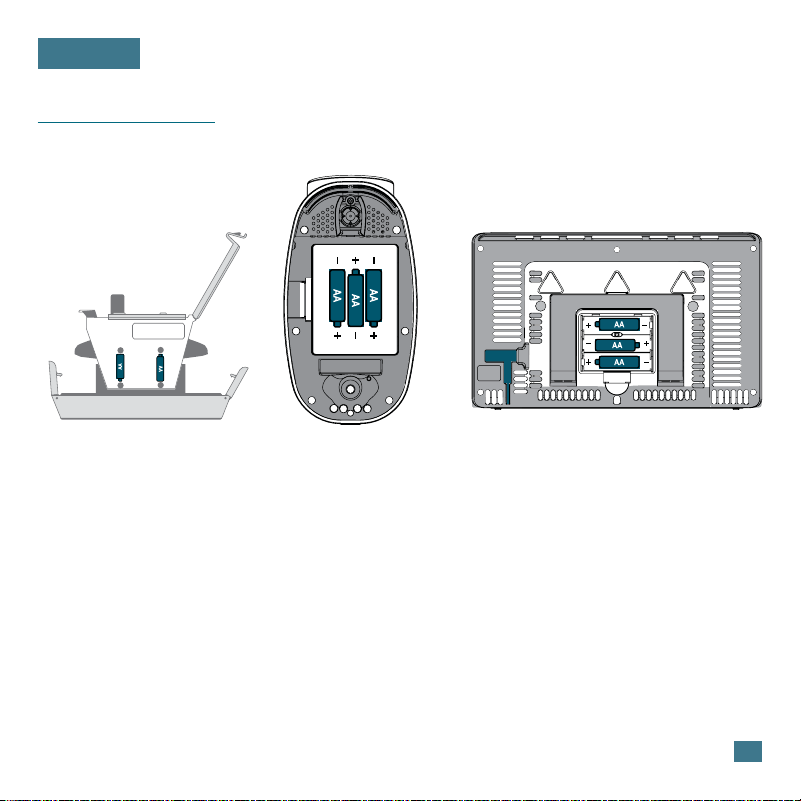

Initial Setup
1.
Remove the top
Funnel and install
2 “AA” batteries
into your Rain
Sensor’s Battery
Compartment.
Inside of Rain Sensor
Model No. TX145R
Install 3 “AA” batteries
into your Breeze
Sensor’s Battery
Compartment.
2.
4

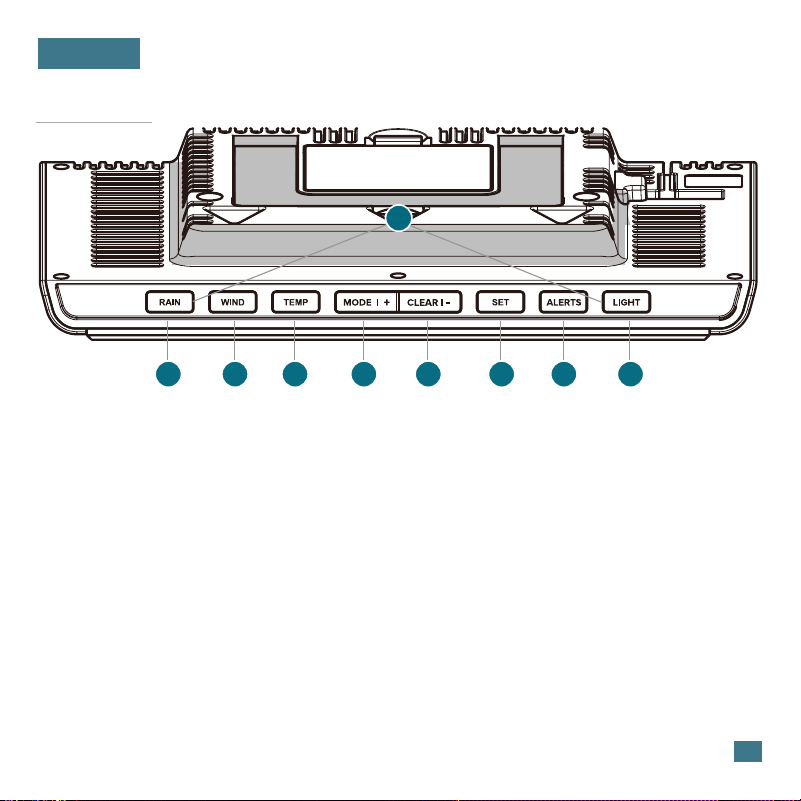

Buttons
1. RAIN
Press to view Rain History.
While viewing, hold the
CLEAR | - button to delete the
history reading. Hold to search
for Rain Sensor.
3. TEMP.
Press to view Temperature
and Humidity History. While
viewing, hold the CLEAR | -
button to delete the history
reading. Hold to search for
TH sensor.
Hold to enter Settings Menu.
Press to start or stop search
for Atomic Time Signal.
4. MODE | +
Press to change viewing
24-hour Rainfall data, Pressure
data or auto-scroll between
both options.
2. WIND
Press to view Wind Speed
History. While viewing, hold the
CLEAR | - button to delete the
history reading. Hold to search
for Breeze Sensor.
Hold to enter Alert Settings.
Press MODE | + or CLEAR | -
button to arm/disarm alerts.
7. ALERTS
Hold together to Factory Reset
your station. All history will
be lost.
9
1 8765432
Press to view add-on TH
sensor reading. While viewing,
hold to delete add-on TH
sensor.
Press to adjust backlight. Hold
to enter auto-dim settings.
5. CLEAR | - 6. SET
8. LIGHT
9. RAIN and LIGHT
BASICS
5

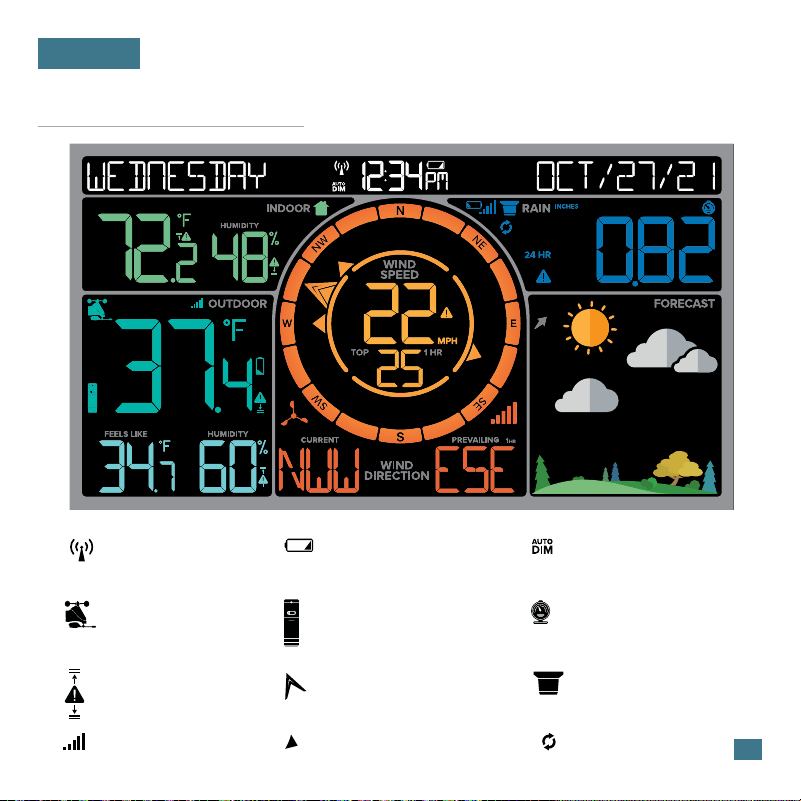

LCD Display Icons
Pressure
Rain
Auto-scroll
Atomic Time
Alerts
Sensor Reception
Breeze Sensor
Temp/Humidity
Low Battery
Wind Direction
Prevailing Direction
Add-on Sensor
Temp/Humidity
Auto Dim
BASICS
6
Station Settings
Daylight Saving Time (DST) Options
Automatic: Changes in Spring & Fall
Always ON: No change to in Fall
Always OFF: No change in Spring
Time Zone Options
Atlantic, Eastern, Central, Mountain,
Pacific, Alaska, & Hawaii
Settings Menu Order
• Greeting
• Language
• Beep ON/OFF
• Atomic ON/OFF
• DST:
Automatic/Always ON/Always OFF
• Time Zone
• 12/24 Hour Time
• Hour
• Minutes
• Year
• Month
• Date
• Month/Date or Date/Month
• Fahrenheit/Celsius
• Temp Decimal / No Decimal
• Wind Speed Units (MPH or KMH)
• Wind Direction (Letters or Degrees)
• Rainfall Inches or Millimeters
Weekday will set automatically after year,
month, & date settings are adjusted.
BASICS
1. Hold the SET button to enter the Settings Menu.
2. Use the MODE | + or CLEAR | - button to adjust the values, and the SET button to
confirm and move to the next setting.
3. You may exit the menu at any time by pressing the LIGHT button.
Atomic Time Signal
The station will only search for the atomic
signal at UTC 7:00, 8:00, 9:00, 10:00,
and 11:00.
• Press the SET button to start or stop a
signal search.
• The tower Icon will flash while
searching, and be solid when the signal
is received.
• More WWVB info at: bit.ly/AtomicTime
PRESSURE & RAIN
View Pressure & Rain Readings
• Pressure and Rainfall readings share the same display area on your station.
Pressure is displayed.
Rain is displayed.
Auto-scroll between
Pressure and Rain
readings.
Select Pressure or 24-Hour Rain to display:
Pressure24-HOUR Rain
Sensor Reception
Auto-scroll both readings
• Press the MODE | + button to toggle between Pressure and 24-hour Rain
readings.
• The Pressure or Rain icon will show to indicate which reading you are viewing.
• When the Auto-scroll Icon is displayed, the station will toggle between current
Pressure and Rain readings.
• To stop the auto-scroll, press the MODE | + button until the Auto-scroll Icon
disappears.
7
RAIN READINGS
Rain History Readings
1. Press and release the RAIN button to view dierent rainfall history readings.
When viewing Monthly Rain, press the MODE | + button to view the current month
and the past eleven months of rain history.
2. When the Auto-scroll Icon is displayed, the station will toggle between all Rain
History readings. To stop the auto-scroll, press the RAIN button until the
Auto-scroll Icon disappears.
Rain History:
1 HOUR: Last one-hour rainfall. Example: current time is 6:49, 1HR rain is
accumulated total between 5:50 and 6:49. Updates every 5 minutes.
24 HOURS: A running total for the past 24 hours of accumulated rain. This will
update at the top of each hour.
7 DAYS: Rainfall from the last 7 consecutive 24HR readings. Updates each day at
midnight.
MONTH: Current Month Total (Jan. 1 to Jan. 31). This will reset to zero & the start of
each new calendar month.
YEAR: Current year (January 1-December 31). This will reset to zero at the start of
each new calendar year.
TOTAL: Total rainfall since powered on or reset.
8
Reset Rain Records
1. Press and release the RAIN button to
view indiviual Rainfall Records.
2. Hold the CLEAR | - button to reset the
rainfall record you are viewing to zero.
Search for Rain Sensor
• Hold the RAIN button to search for the Rain Sensor.
• The Reception Indicator will animate while
searching and be solid once connected.
Positioning the Rain Sensor
For Accurate Measurements
• Mount the Rain Sensor in an open area at least 3 feet above
the ground for accurate rainfall readings.
• Ensure the sensor is level and mounted horizontally.
• Make sure the base of your Rain Sensor is not in a
depression. The Rain Sensor has drainage holes in the
bottom to allow it to self-empty.
• View sensor mounting video at: bit.ly/Rain_SensorMounting
RAIN

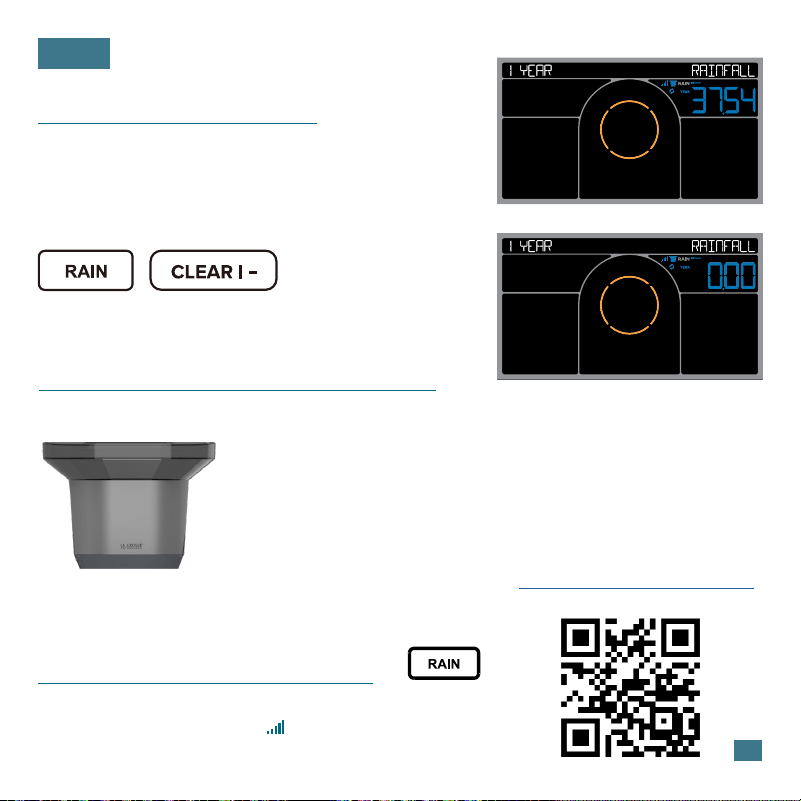

1 Year Rainfall
1 Year Rainfall Reset
9
Winter Storage Options
• Remove batteries and store in a safe place.
• Remove batteries and cover in place.
• Leave outside, uncovered. While the Rain Sensor cannot accurately record
snowfall, when the snow melts the water will be counted as rain.
• The Rain Sensor is self-emptying, so water will not freeze inside.
• This Rain Sensor is designed for outdoor use and will withstand temperatures
below freezing.
Cleaning Your Rain Sensor
• Leaves, grass, and other debris may need to be removed periodically from the
funnel of your Rain Sensor.
• Insects or dirt may also get inside your Rain Sensor and restrict the movement of
the rocker.
• Open the locking tabs on the side of the Rain Sensor to remove the funnel. This
allows you to clean the funnel and the inside of the Rain Sensor.
Cleaning and Storage
RAIN
10

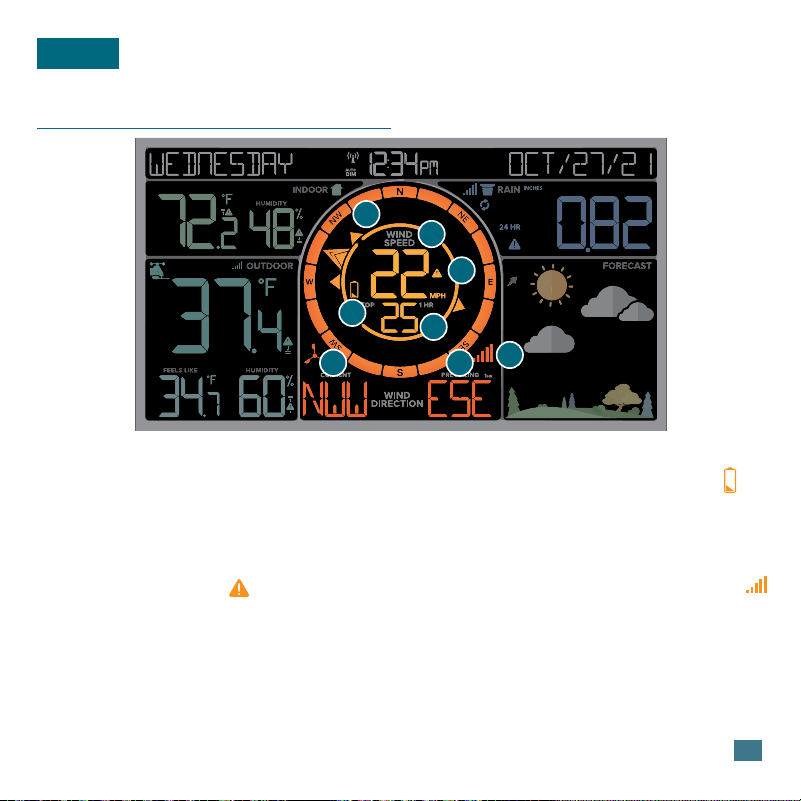

Viewing Wind Readings
WIND
1. COMPASS ROSE
2. CURRENT WIND SPEED
Displays cardinal direction
with animated arrows
(16 directions total).
5. TOP WIND SPEED
Indicates if the station is
receiving data from the
sensor.
8. PREVAILING DIRECTION
The top wind speed in
the past 60 minutes.
The top wind speed in the
past 31 seconds.
Choose between cardinal
points (letters) or degrees
in the Settings Menu.
Appears if a wind speed
alert is set & active.
Prevailing Wind Direction
over the past hour.
1
2
3
4
5
6
7 8
4. WIND SPEED ALERT
3. LOW BATTERY ICON
Appears when the Breeze
Sensor batteries need to
be replaced.
6. RECEPTION INDICATOR
7. WIND DIRECTION
11
Wind Speed Records
Viewing Wind Speed Records
1. Press and release the WIND button to toggle through wind speed records with
time and date stamps.
The wind speed records include: Past 24 hours, 7 days, 1 month, & 1 year.
Reset Wind Speed Records
1. Press the WIND button to view wind speed records.
2. Hold the CLEAR | - button to reset individual records to current readings.
Monthly Record Monthly Record Reset
WIND
12
For Accurate Measurements
• Ensure the Breeze Sensor is is mounted level with the Solar Panel facing
directly to the South. This will help optimize battery life and transmit correct
wind direction.
• Ideally, the Breeze Sensor should be mounted on the tallest object in your
area. Avoid positioning the sensor parallel or below eaves, rooflines, trees,
or other objects that may obstruct wind readings.
• Make sure all the screws on the Mounting Bracket, Wind Cups, Wind Vane,
and Battery Compartment are securely fastened.
• The Breeze Sensor should be mounted with the Wind Cups on the top.

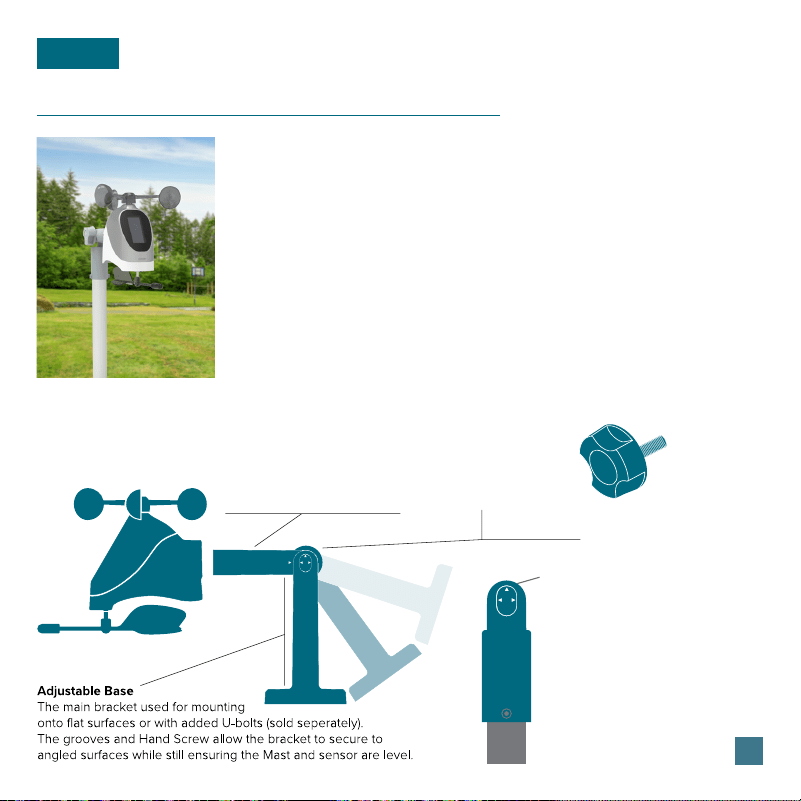

Positioning the Breeze Sensor
13
r
r
Pole Adapter
Used in place of the Adjustable Base
for mounting on top of cylindrical
conduits.
1-Inch Maximum Pole Diameter
Hand Screw
Used to lock down and secure the Mast
to the Adjustable Base or Pole Adapter.
Included Mounting Accessories
Alignment Arrows
These Arrows provide exact
90 or 180 degree angles
when aligned with the arrow
on the Mast.
Mast
The horizontal conduit where the sensor
attaches. This piece will connect to either
the Adjustable Base or Pole Adapter.
WIND
U-bolt Adapters
Tripod Setup
Chimney Mount
1B Pole Adapter
1A Adjustable Base

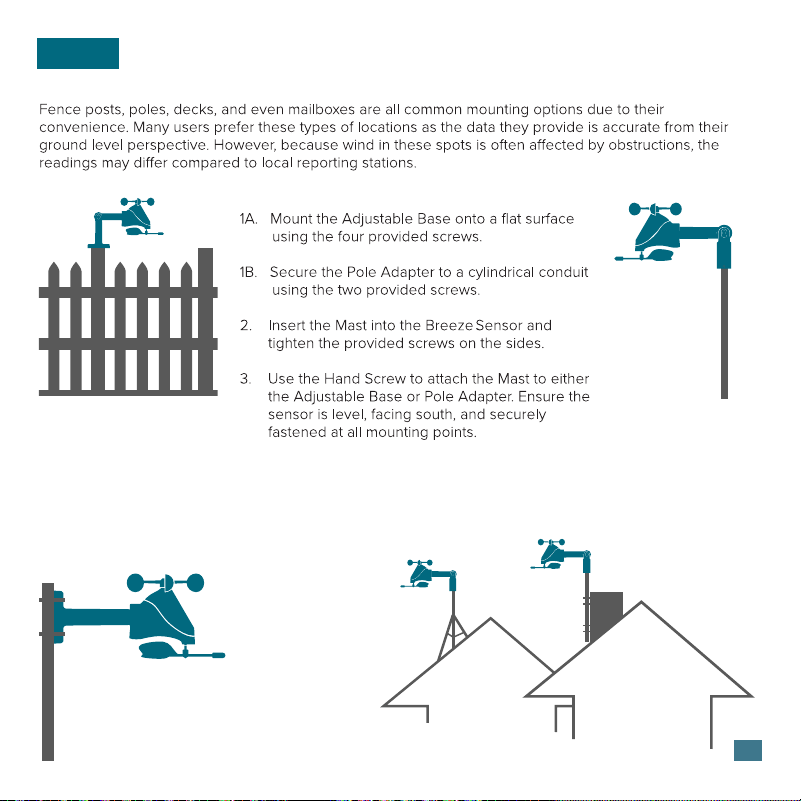

Basic Assembly
Basic Installation Options
Advanced Installation Option
s
Some advanced installation options include tripods, wall mounts, eave cross mounts, chimney mounts,
and many others. Any of these can be combined with U-bolts for attachment onto a tall cylindrica
l
conduit using our Adjustable Base. Please note that these advanced options will require additional
equipment and possibly professional help for best results
.
The illustrations above are not to scale and are for informative purposes only.
La Crosse Technology is not responsible for any damages or injury that may occur during installation.
WIND
14
Current Indoor Temperature.
1. INDOOR TEMPERATURE
5. OUTDOOR TEMPERATURE 6. LOW BATTERY INDICATOR
Current Indoor Humidity.
2. INDOOR HUMIDITY
Current Outdoor
Temperature.
8. “FEELS LIKE” TEMP
Appears when the sensor
battery needs to be
replaced.
Based on current
temperature & wind speed
(heat index & wind chill).
Current Outdoor Humidity.
8.
9. OUTDOOR HUMIDITY

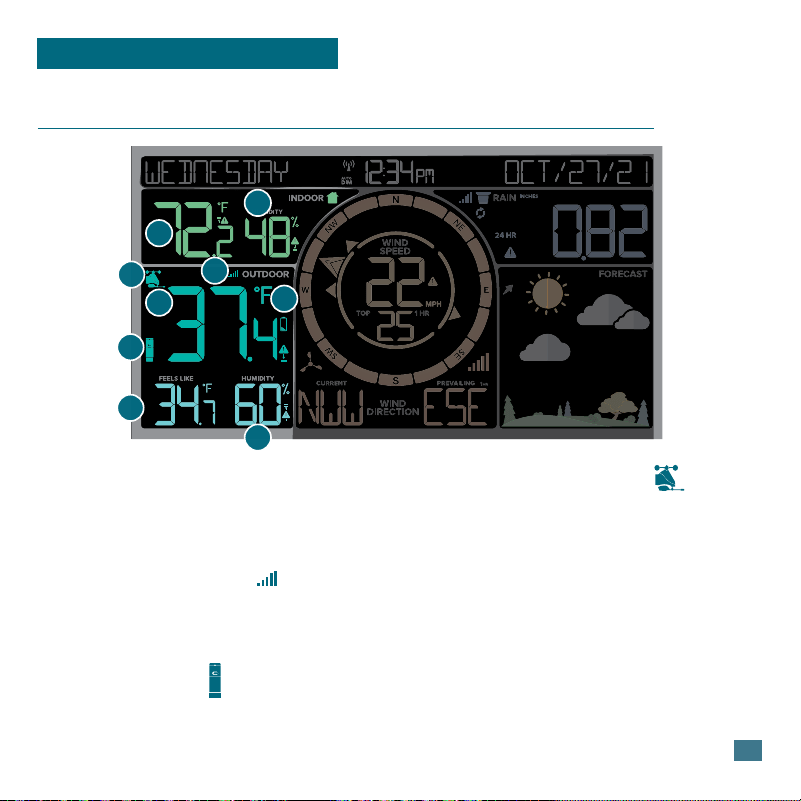

Viewing Temperature & Humidity Readings
1
2
3
4
5
6
7
8
9
3. WIND ICON
Indicates the Temperature/
Humidity readings are from
the Breeze Sensor.
Indicates if the station is
receiving data from the
sensor.
4. RECEPTION INDICATOR
7. TH SENSOR ICON
Indicates Temperature/
Humidity readings are from
add-on TH sensor.
TEMPERATURE & HUMIDITY
15
Current Temperature: When the temperature is between 51°F (10.5ºC) and 79°F (26.1ºC) the
readings will remain the same as the outdoor value regardless of wind speed.

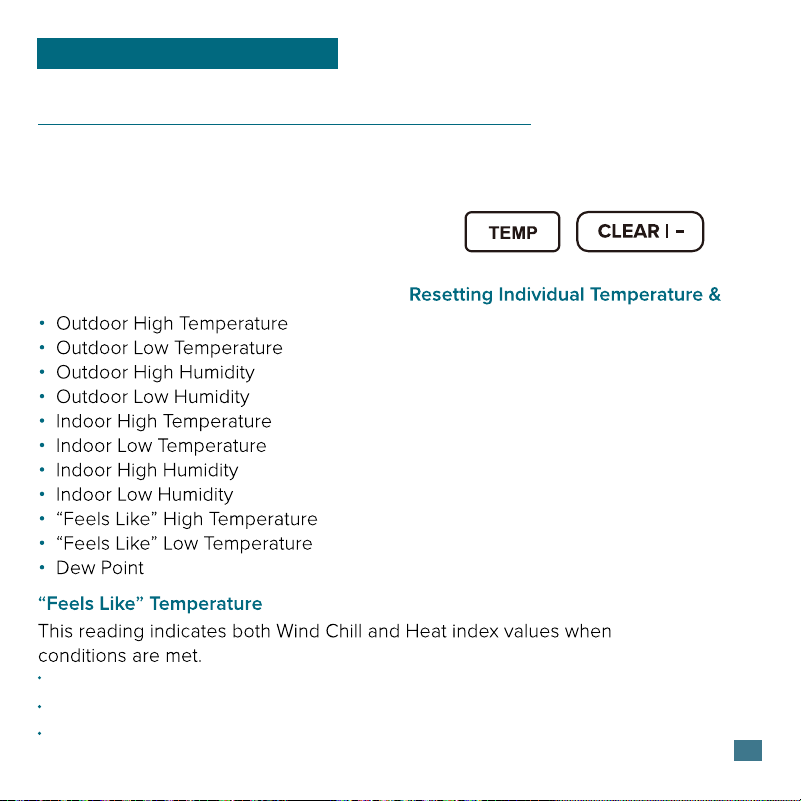

Temperature & Humidity Records
Press and release the TEMP button to
toggle through temperature/humidity
records with time and date stamps.
View Temperature/Humidity Records
Temperature/Humidity Records Order
Humidity Records
1. Press the TEMP button to view the
individual temperature and humidity
records you would like to reset.
2. Hold the CLEAR | - button until dashes
appear on the LCD.
3. This reading is now reset to your
current temperature or humidity value.
TEMPERATURE & HUMIDITY
16
Wind Chill: When temprature is below 50ºF (10ºC) and there is 5 MPH (8KPH) sustained wind speed.
Heat Index: When temperature is above 80ºF (27ºC).
ALERTS
1. Hold the ALERTS button to enter Alert Settings.
2. Use the MODE | + or CLEAR | - button to Arm/Disarm Alerts, and to adjust Alert Values
when flashing.
3. Press the ALERTS button to move to next alert.
Set Alerts
Alert Setting Order
High Wind Speed
24 Hour Rainfall
Low Pressure
Outdoor High Temperature
Outdoor Low Temperature
Outdoor High Humidity
Outdoor Low Humidity
Indoor High Temperature
Indoor Low Temperature
Indoor High Humidity
Indoor Low Humidity
Wind, Rain or Pressure Alert
Alert IndicatorsActive Alert
When the alert value is reached, the station will beep
5 times each minute until out of the alert range.
The flashing Alert Value and Indicator will let you
know if it is a High or Low Alert.
Press any button to silence the alert. The Alert Value
and Indicator will continue to flash while in the alert
range.
Low Alert
High Alert
17

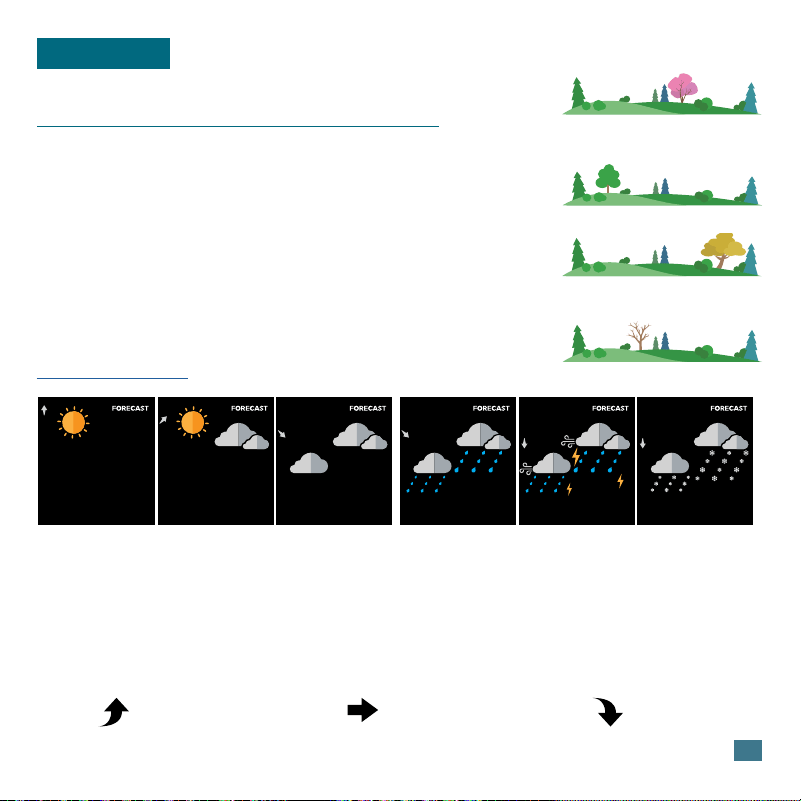

Viewing Your Forecast Data
FORECAST
Forecast Icons
Note: The Forecast Icons may not represent your current weather. They are a future
prediction of the weather to come over the next 12 hours.
Your station will use changes in barometric pressure
to predict your weather to come in the next 12 hours.
This is represented by the 6 forecast scenes below.
Watch our Forecast Icons Video for more details:
bit.ly/forecast_vid
Seasonal Trees
Trend Arrows
The Trend Arrows represent the change in pressure over the past 3 hours.
Pressure is rising Pressure is fallingPressure is steady
SUN SNOW T-STORM RAIN CLOUDY PARTLY
SUNNY
The foliage scene in the forecast section changes
seasonally. The dates are pre-programmed.
Spring (March 20
th
to June 20
th
)
Summer (June 21
st
to Sept. 20
th
)
Fall (Sept. 21
st
to Dec. 20
th
)
Winter (Dec. 21
st
to March 19
th
)
18
FORECAST
Day/Night Forecast
From 7am to 6:59pm the forecast will show a Sun
Icon when the forecast is Sunny or Partly Sunny.
From 7pm to 6:59am the forecast will show a Moon
Icon when the forecast is Sunny or Partly Sunny.
Note: The Moon Icon does not change to provide
Moon Phase. The Moon Icon indicates nighttime only.
7pm to 6:59am
7am to 6:59pm
• Press the LIGHT button to adjust the backlight intensity.
• There are 4 brightness levels, plus an o option.
Adjustable Backlight
BACKLIGHT & AUTO-DIM
Auto-Dim Settings
1. Hold the LIGHT button to enter the Auto-Dim Settings Menu.
2. Press the MODE | + or CLEAR | -
button to turn the Auto-Dim feature on or o.
Press LIGHT to confirm.
3. Press the MODE | + or CLEAR | - button to adjust the starting hour.
Press LIGHT to confirm.
4. Press the MODE | + or CLEAR | - button to adjust the stopping hour.
Press LIGHT to confirm and exit.
Note: Only the hour can be set.
Program your display to automatically dim during preselected times.
19

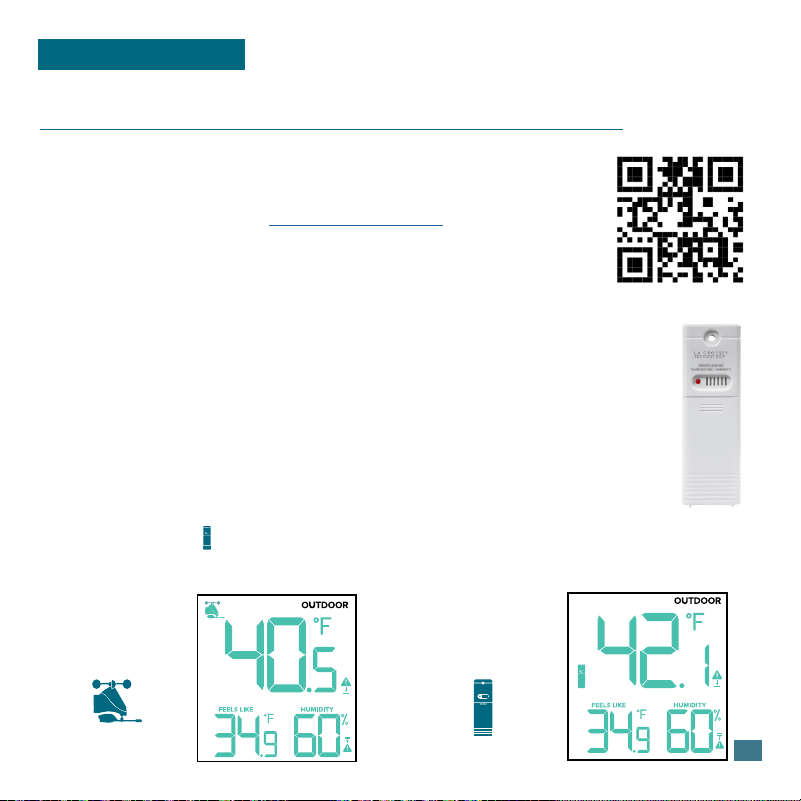

Add-on Temperature & Humidity Sensor
ADD-ON SENSOR
If you feel the temperature & humidity is not reading correctly
from your Breeze Pro Sensor, you can add a separate sensor
to your system.
Scan the QR code or visit: bit.ly/328-1414_parts to find a list of
compatible add-on sensors.
2.
Hold the CLEAR | - button to to delete the Temp/Humidity
connection from your Breeze Sensor. Your station will start to
search for a new signal.
3.
Install new batteries into the add-on sensor and press the TX
button inside its battery compartment. The LED light on the sensor
will flash.
Adding a Separate Temperature & Humidity Sensor
1.
Press the CLEAR | - button and the Outdoor Temperature will
begin to flash.
4.
The sensor should connect almost instantly with its data appearing
on screen. The icon will appear when an add-on TH sensor is
being used.
Temperature &
Humidity from the
Breeze Sensor
Temperature &
Humidity from an
add-on TH Sensor
20
7
Low Battery Indicator
By Wind, replace batteries in the
Breeze sensor.
By Time, replace batteries in the Station.
By Rain, replace batteries in the Rain sensor.
By Outdoor Temperature, replace batteries
in the Add-On TH sensor.
Warnings
Sensor Search
Hold the RAIN button to search for the Rain
sensor.
Hold the WIND button to search for the
Breeze sensor.
Hold the TEMP button to search for the
Add-on TH sensor.
Factory Restart
Hold the RAIN and LIGHT buttons
together for several seconds to reset the
station.
All records will be lost.
21
Ask questions, watch setup videos, and
provide feedback on our social media outlets.
Not for children under 3 years old.
We’re Here to Help
If you require additional support, get in touch
with our friendly customer support team
based in La Crosse, WI.
Our knowledgable customer support team is
available Mon-Fri: 8am-6pm CST
Phone: 1.608.782.1610
Email: bit.ly/contact_techsupport
Self-Help: bit.ly/328-1414_support
SUPPORT
Scan for
Manuals
and FAQs.
22
CARE + MAINTENANCE
SPECIFICATIONS
Battery Replacement Instructions
When batteries of dierent brand or type are used
together, or new and old batteries are used together,
some batteries may be over-discharged due to a
dierence of voltage or capacity. This can result
in venting, leakage, and rupture and may cause
personal injury.
• Always purchase the correct size and grade of
battery most suitable for the intended use.
• Always replace the whole set of batteries at one
time, taking care not to mix old and new ones, or
batteries of dierent types.
• Clean the battery contacts and also those of the
device prior to battery installation.
• Ensure the batteries are installed correctly with
regard to polarity (+ and -).
• Remove batteries from product during periods of
non-use. Battery leakage can cause corrosion and
damage to this product.
• Remove used batteries promptly.
• For recycling and disposal of batteries, and
to protect the environment, please check the
internet or your local phone directory for local
recycling centers and/or follow local government
regulations.
WEATHER STATION (328-1414)
• Indoor Temp. Range: 32°F to 122°F (0°C to 50°C)
• Indoor Humidity Range: 10 to 99%RH
• Relative Pressure Range: 23.62 to 32.48 InHg
(800 to 1100 hPa)
Power Requirements: 5-volt power adapter
(included) AC6: GPU280500150WAOO
Input: 5.0VAC 150mA.
Optional: 3 “AA” LR6 Batteries (not included)
The plug on the power adapter is intended to serve
as the disconnect device, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
• Station Dimensions: 8.98” L x 1.00” W x 5.43” H
(22.8cm L x 2.6cm W x 13.8cm H)
• Language Options:
English, Spanish, French, and German
(Translation Available for Menus & Calendar)
BREEZE SENSOR (TX145WSDTHv3)
• Wind Speed Range: 0 to 111 mph (0 to 178 kMh)
• Degrees of Wind Direction: 360° with 16 Cardinal
Directions
• Outdoor Temp. Range: -40°F to 140°F (-40°C to 60°C)
• Outdoor Humidity Range: 10 to 99%RH
• Transmission Range: 330 feet (100 meters)
• Power Requirements: 3 “AA” batteries (not included)
• Update Interval: Every 31 Seconds
• Sensor Dimensions:
• With Bracket: 11.97” L x 6.25” W x 9.76” H
(30.41cm L x 15.88cm W x 24.8cm H)
• Without Bracket: 7.94” L x 6.25” W x 6.99” H
(20.17cm L x 15.88cm W x 17.75cm H)
RAIN SENSOR (TX145R)
• Rainfall Range: 0-9999mm (0-393.6 in)
• Transmission Range: 330 feet (100 meters)
• Power Requirements: 2 “AA” batteries
(not included)
• Update Interval: Every 45 Seconds
• Sensor Dimensions:
7.16” L x 5.24” W x 5.04” H
(18.2 cm L x 13.3 cm W x 12.8 cm H)
23
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.
The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any
responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.
FCC STATEMENT
WARRANTY INFO
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product
relating to manufacturing defects in materials & workmanship.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
CALIFORNIA RESIDENTS
WARNING: This product can expose you to chemicals including acrylonitrile, butadiene, and styrene,
which are known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov
