BAUMR-AG PLTL11BMRA1C2 65CC Pole Chainsaw Petrol Chain Saw User Manual

Colours and appearances may vary

User Manual

[Revision 13.0 January 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to

add adequate eng

ine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Petrol Powered Pole Tools

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

• Before Use - If you are not familiar with

the safe operation/handling of the

equipment, or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical safety.

• Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

• Keep packaging away from children -

risk of suffocation!

• Operators must use the equipment

correctly,consider conditions and pay

due care to persons and property.

• Ensure that any property that may be

damaged by equipment failure is not

within the work area / operating range.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

• Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

• Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

• This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

• Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

• The equipment is designed for

domestic use only.

• Handle the equipment safely and

carefully.

• Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

• Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

• Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

• Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

• The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and

care, see Equipment Safety.

Petrol Powered Pole Tools

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

• Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and

safety codes.

• Wherever possible, use a residual

current device (RCD).

• High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

• Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

• Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

• Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift,

move or carry equipment.

• Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

• Do NOT attempt any maintenance or

repair work not described in this

manual.

• After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

• Do NOT make adjustments while the

equipment is running.

• Perform service related activities in

suitable conditions, such as a

workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Petrol Powered Pole Tools

DANGER

Running combustion engines in confined areas

CAN KILL IN MINUTES. Engine exhaust fumes

contain carbon-monoxide – a deadly gas that

you cannot smell or see.

NEVER run a combustion engine in confined

areas EVEN IF windows and doors are open.

ONLY run petrol engines OUTDOORS and away

from doors, windows, and vents.

Do not operate the equipment in hazardous locations, such as

where there may be a risk of fire or explosions from flammable

liquids, gases or dust.

Do not operate the equipment in confined areas where exhaust

gases, smoke or fumes could reach dangerous concentrations.

Do not refuel a combustion engine while it is running on or hot.

Never smoke while refueling combustion engines or handling

flammable substances.

For generators, the electrical output is potentially lethal and

must only be connected to a fixed electrical installation by an

appropriately licensed person.

Be aware that the equipment may include hazardous

components, such as blades, hot surfaces and moving parts.

Handle any flammable substance with extreme caution.

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces

and moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient

PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using

this equipment. Failure to do so may cause serious injury.

•

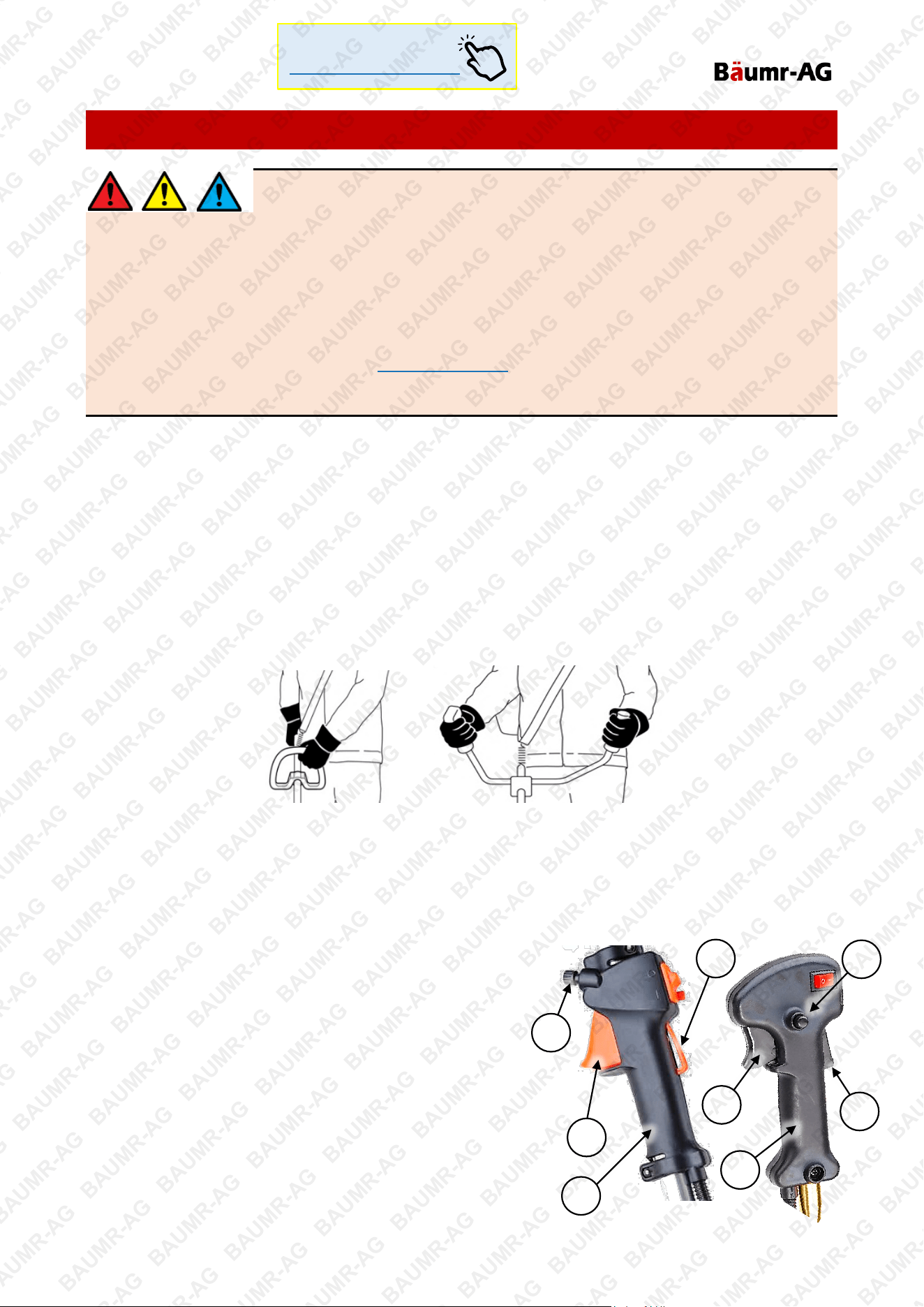

Maintain a secure grip of the trigger assembly at all times.

Petrol Powered Pole Tools

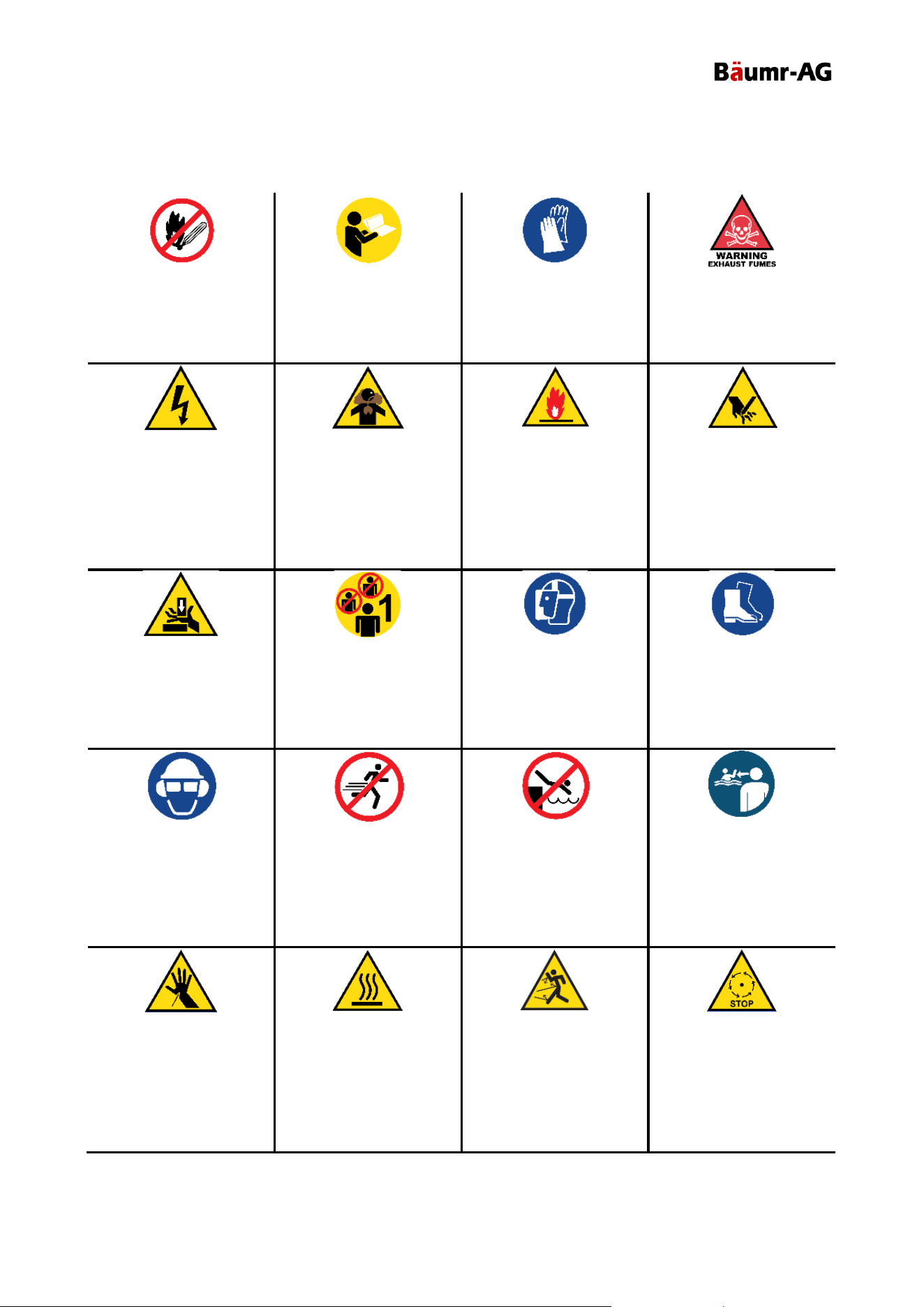

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

Petrol Powered Pole Tools

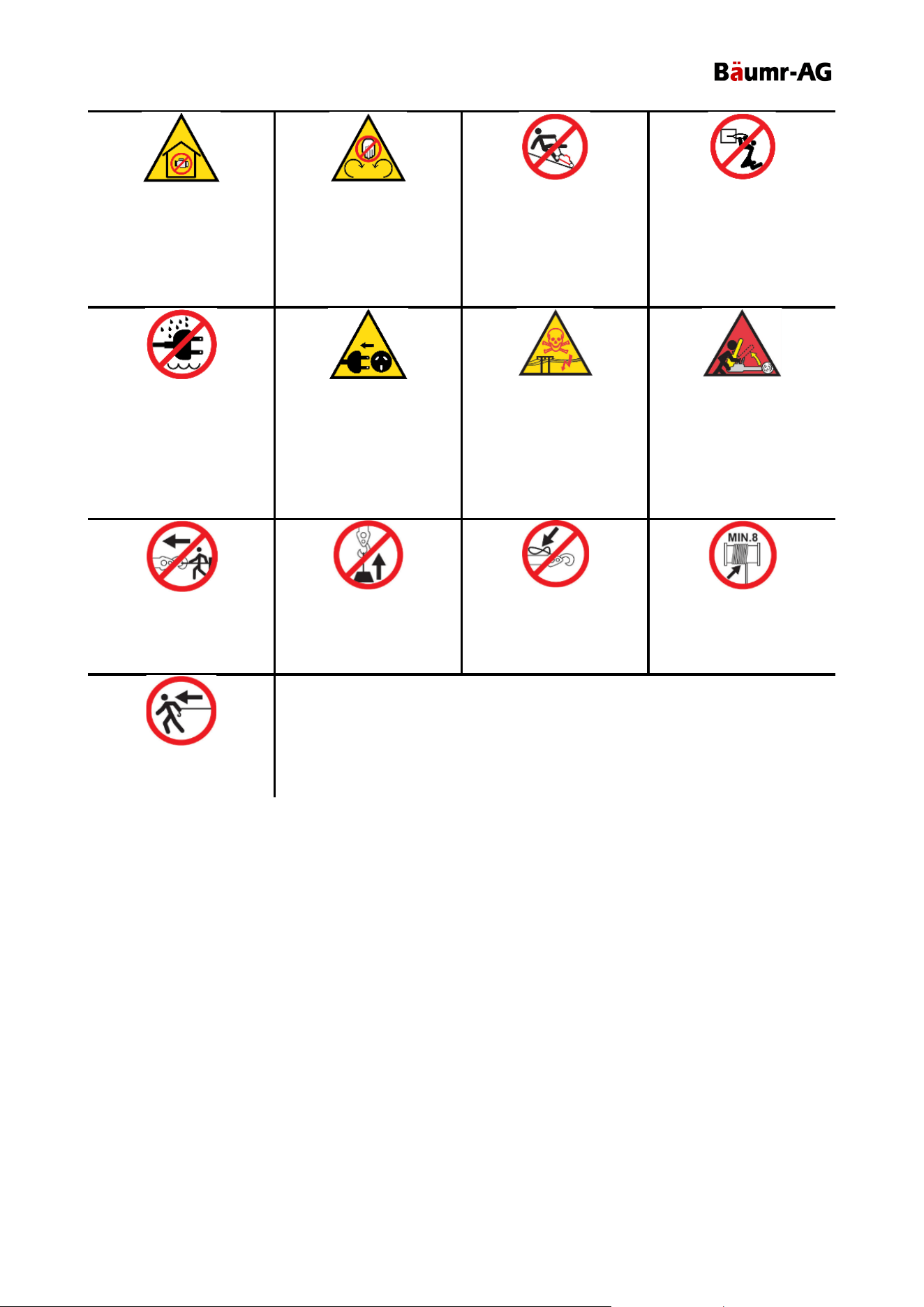

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

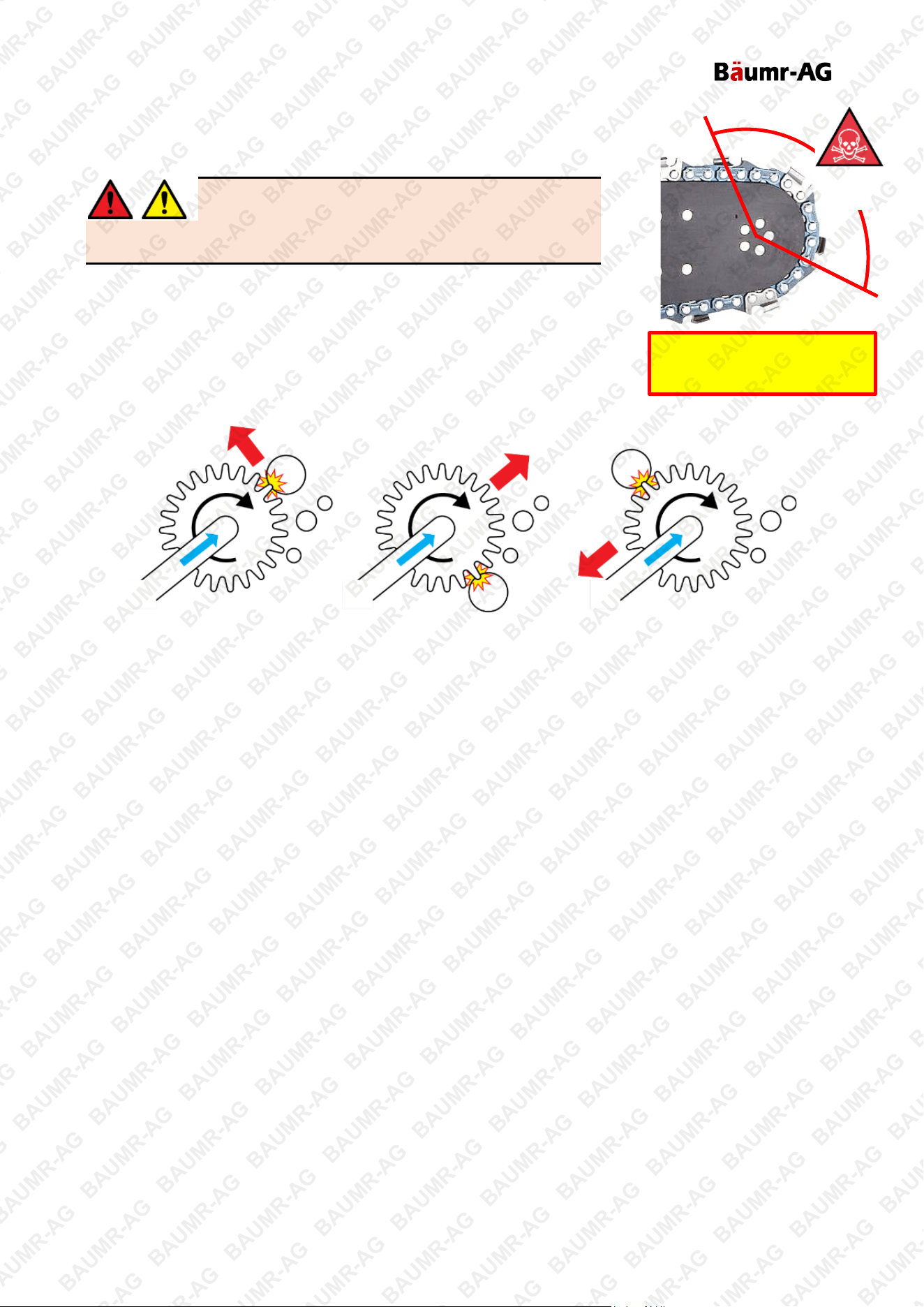

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Petrol Powered Pole Tools

Equipment Safety

Pole tool accessories are high-speed, fast-cutting equipment with exposed blades that can

cause serious or fatal injury if not used correctly or without taking proper safety precautions.

It is extremely important that you read and fully understand the information in this section and all

other safety warnings / recommendations and usage instructions before using the equipment.

Operator

• If you are untrained in the use of a pole tool or particular accessory, such as a chainsaw, it is highly

recommended that you be trained/instructed by a suitably qualified or experienced user before using the

machine.

• Fully understand how to safely operate the machine and the various attachments to avoid "kick-back" or

other hazards. See Operation.

• You must be in good physical condition to use a pole tool. NEVER operate the machine when tired, or

under the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement,

alertness, physical strength, vision or dexterity.

• Maintain sure-footing and balance always when using or handling the machine and have full awareness

of your surroundings and any possible hazards.

• Prolonged use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To

help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and

hands warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended

to seek medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

• Wear approved safety goggles, or safety glasses with adequate top and side protection. In addition to

eye protection, wearing a full-face shield is highly recommended.

• Wear suitable hearing protection.

• Wear an approved safety hard-hat.

• Wear heavy-duty, non-slip leather or protective gloves.

• Wear approved heavy-duty safety boots, with steel toe-caps and non-slip soles.

• Wear suitable overalls or work clothing that fits snugly, but does not restrict movement. Avoid loose

fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by

the machine or by tree branches etc.

Work Area Safety

• Use EXTREME CAUTION to avoid power lines – contact can be fatal. Do NOT cut branches touching

power lines or that may fall onto power lines when cut.

• To operate the machine at height it is highly recommended to use a "scissor lift" or "cherry picker" and

ensure that the work platform is completely stable. Do NOT use ladders, ropes or tree branches.

• Ensure that any person other than the operator and any assistants is kept a minimum 25m (75') away

from where the equipment is being used or where there is any possibility of falling branches etc. Be

aware of any property that may be affected by falling branches etc.

• Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if

equipped) is well maintained and that engine is tuned correctly.

• Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling

location.

Petrol Powered Pole Tools

Operational Safety

• Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not

operating correctly – have the machine inspected and repaired at an authorised service centre before

using it again.

• Fully understand how to safely operate the machine and the various attachments to avoid "kick-back" or

other hazards. See Operation.

• Always hold the machine firmly with both hands during operation. Always use the machine handles,

straps etc.

• Do NOT use a ladder or tree branches as a platform when using the machine at height – always use a

stable, flat platform such as a cherry-picker or scissor-lift.

• Do NOT use the equipment for purposes it is not designed for, such as wood chipping.

• Before cutting any branch, limb, pruning or cross-cutting, ensure that none of the materials to be cut is

under tension that may be released unexpectedly during cutting.

Transportation Safety

• Always STOP the engine and ensure all cutting devices have fully stopped before putting the machine

down, transporting or working on it (refuelling, adjusting etc).

• Fit all blade covers or sheaths whenever transporting or storing the machine.

• When transporting the machine in a vehicle, ensure the engine is OFF. Secure the machine in an upright

position to prevent tip-over, machine damage or fuel spills.

Petrol Powered Pole Tools

Table of Contents

Safety ................................................................................................................................................ 2

Safety Symbols ............................................................................................................................................ 5

Equipment Safety ............................................................................................................................. 7

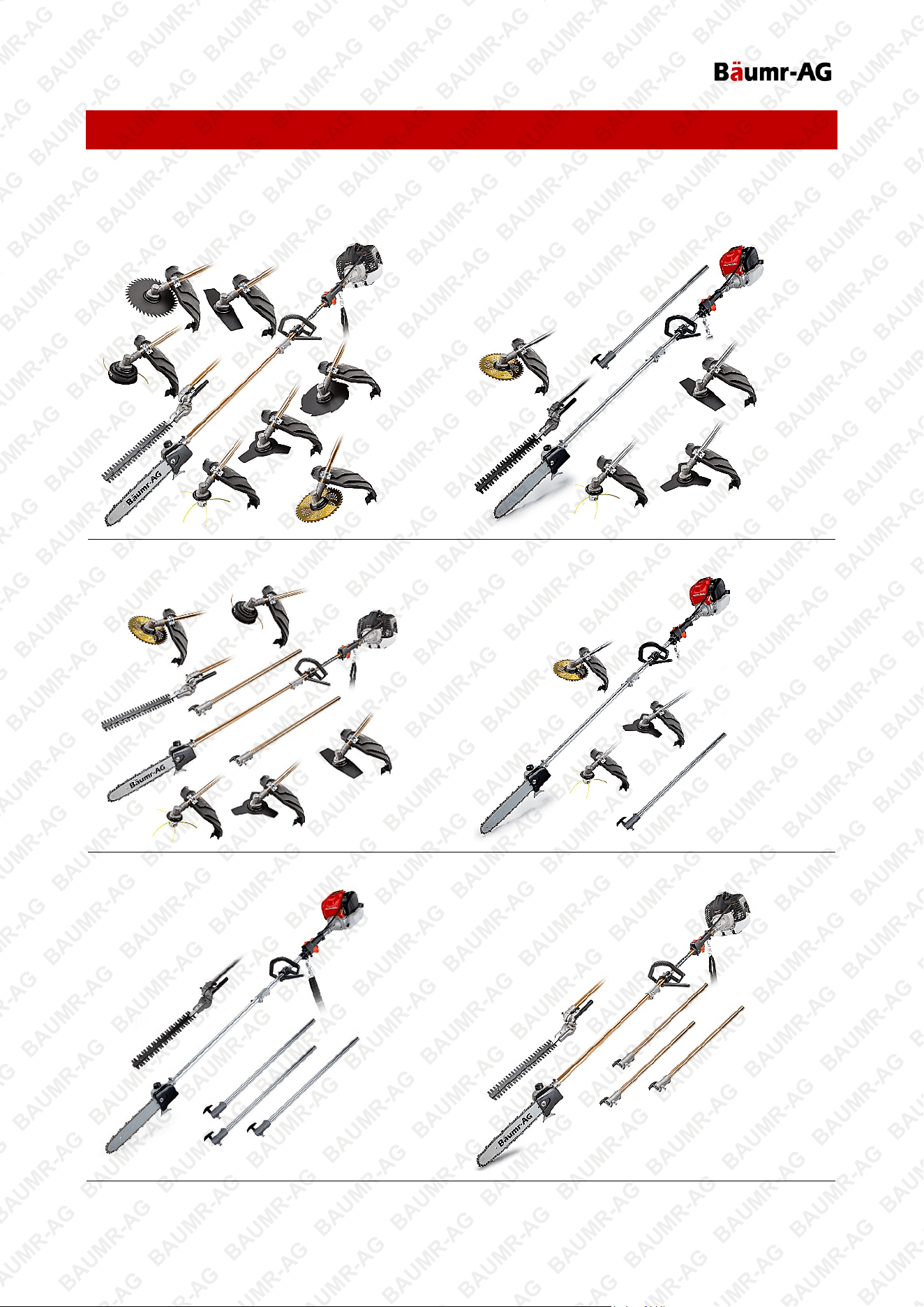

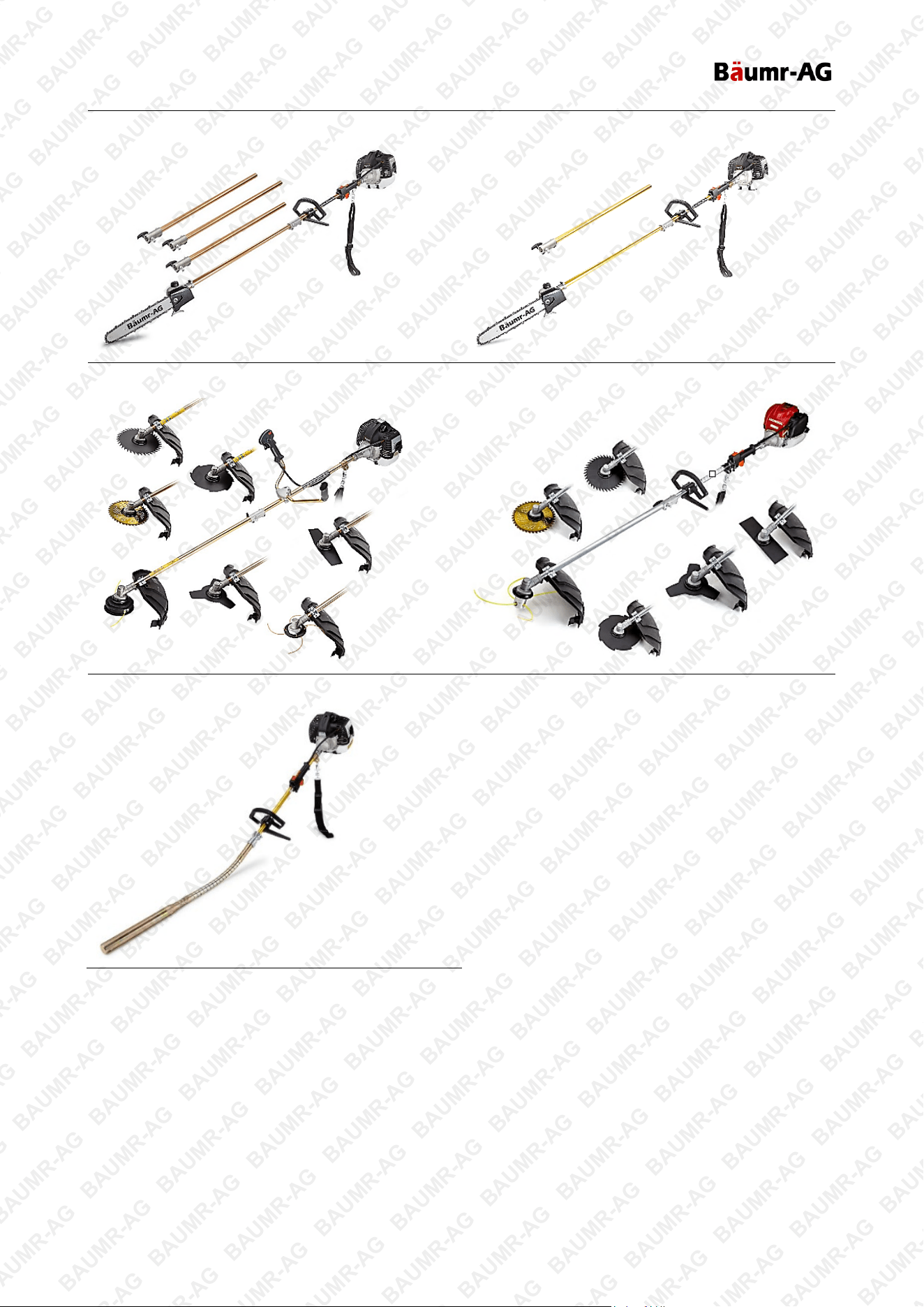

Applicable Models ......................................................................................................................... 11

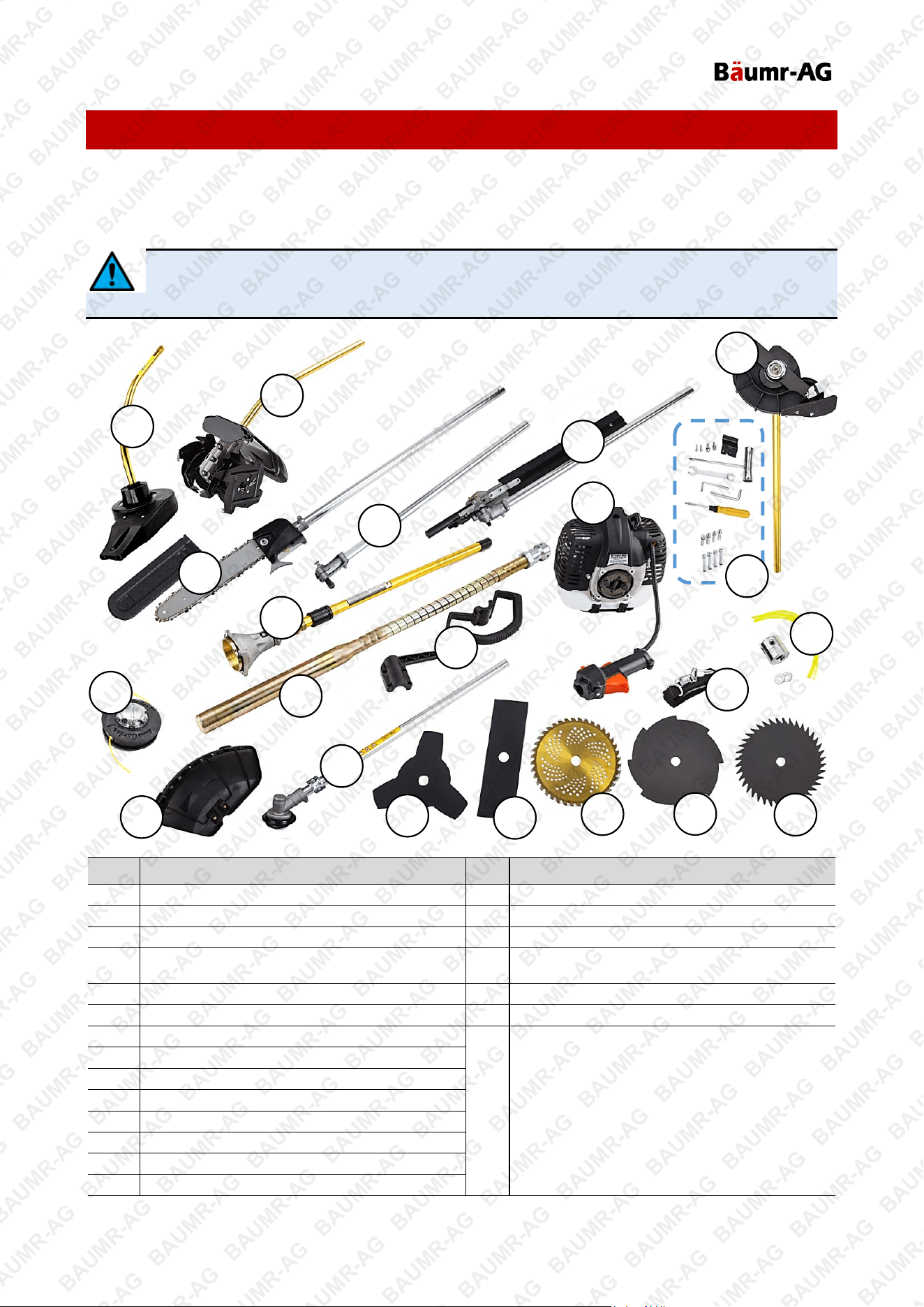

Parts Identification ......................................................................................................................... 13

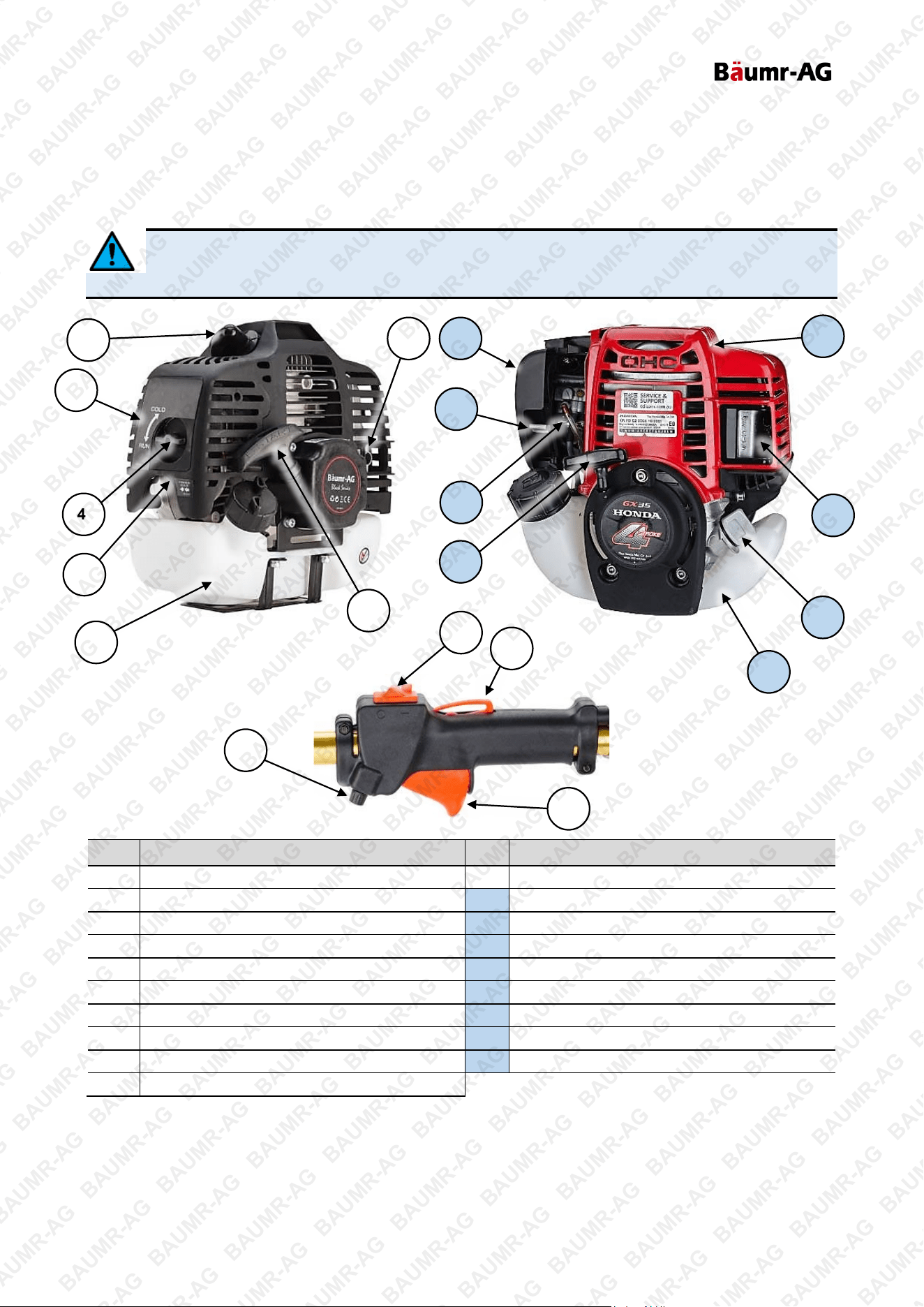

Parts Identification - Engines ..................................................................................................................... 14

Spare Parts ..................................................................................................................................... 15

Before Use Checklist ..................................................................................................................... 17

Basic Tool Assembly .................................................................................................................................. 17

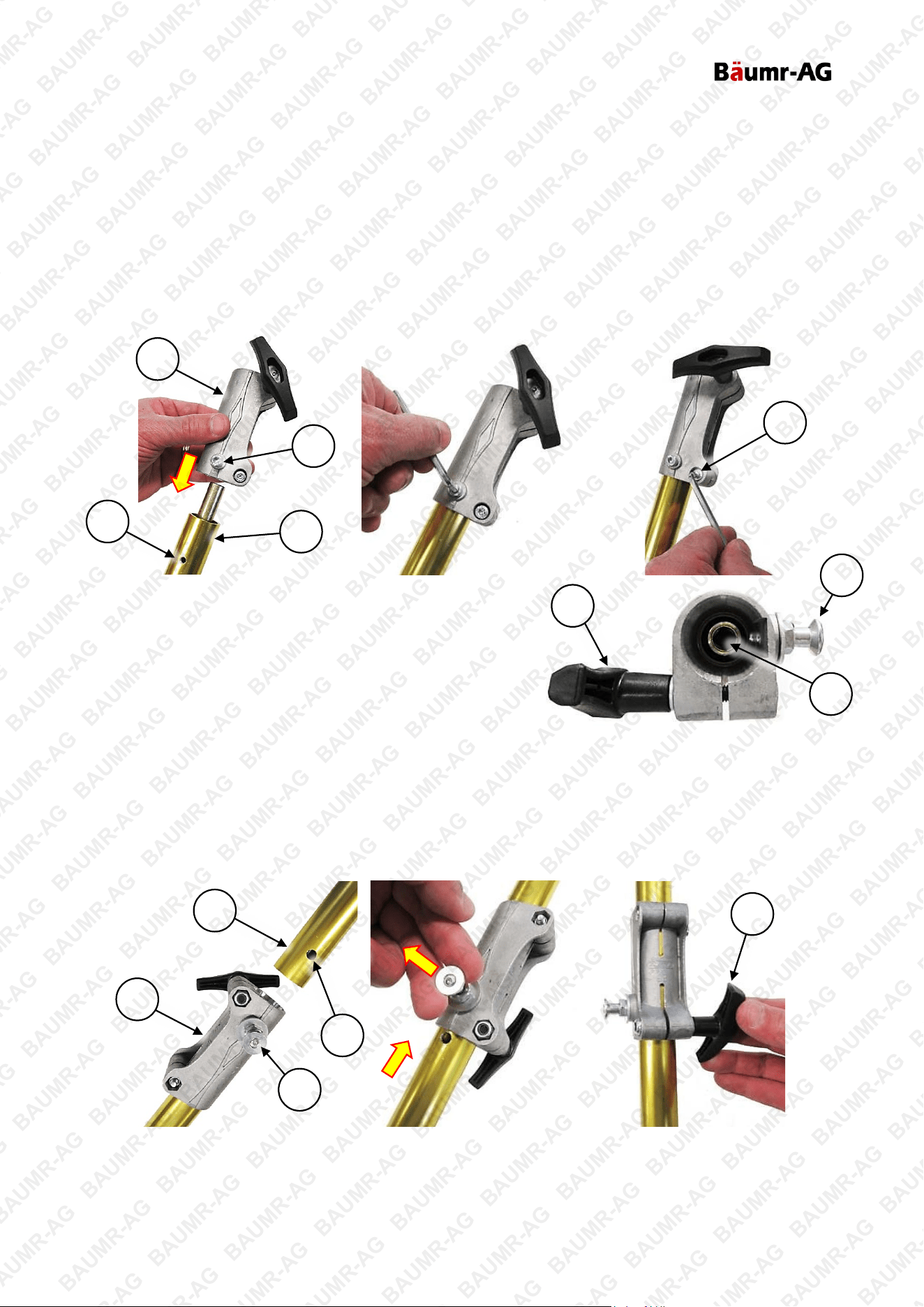

Pole Assembly ........................................................................................................................................... 19

Cutting Guard Assembly ...................................................................................................................... 20

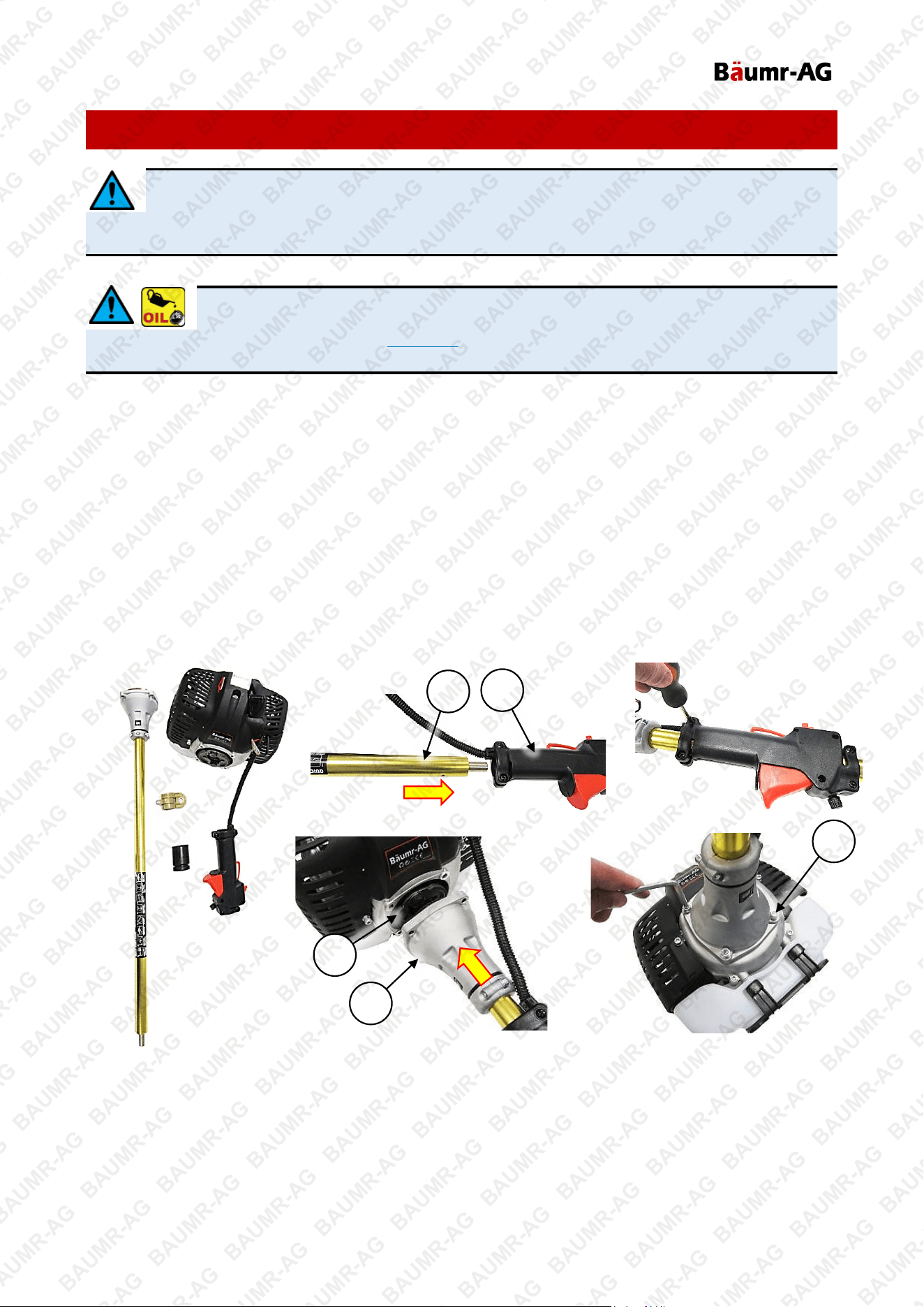

Concrete Vibrator Assembly ...................................................................................................................... 20

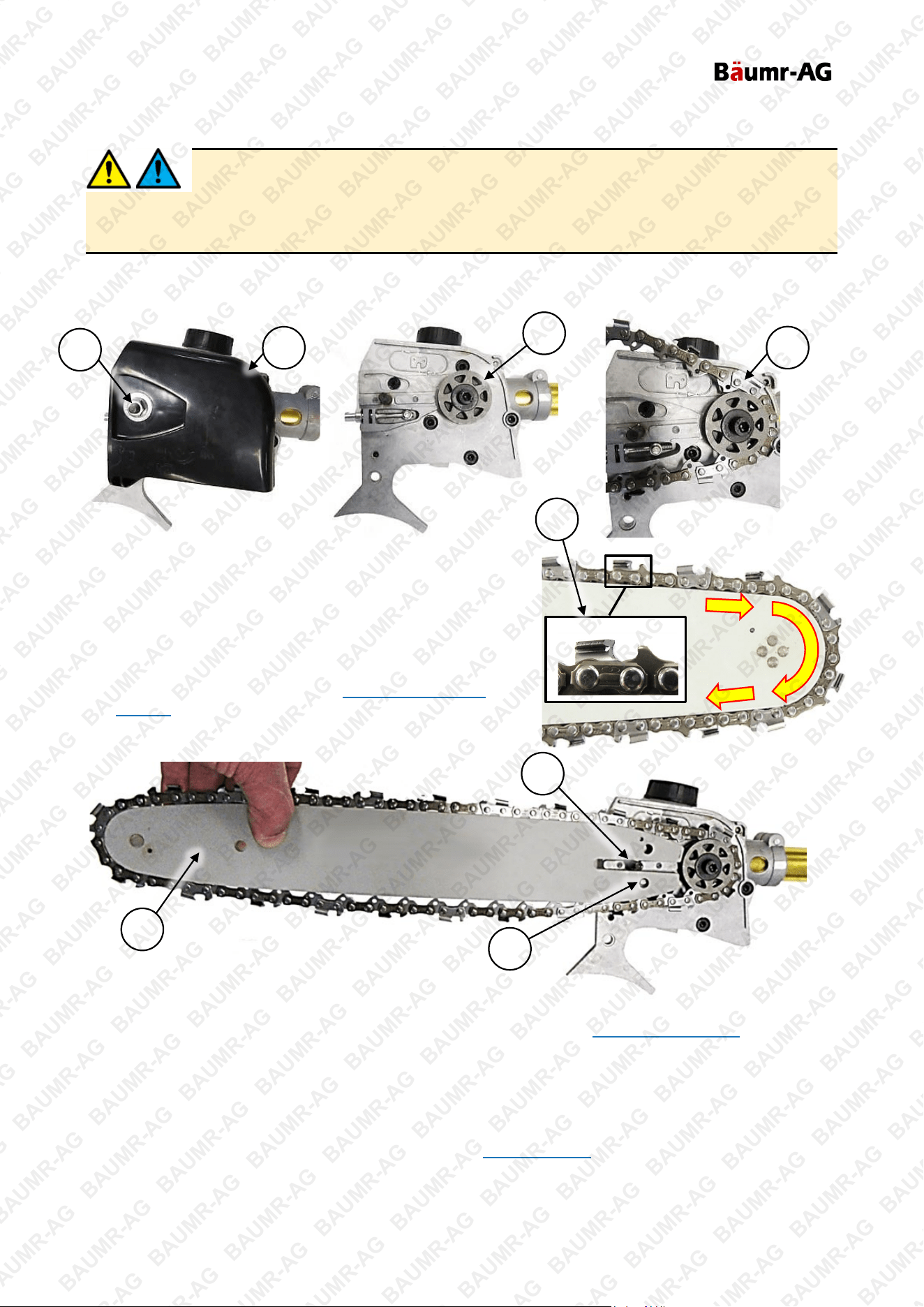

Chainsaw Attachment Assembly ............................................................................................................... 21

Saw Chain Lubricant ........................................................................................................................... 21

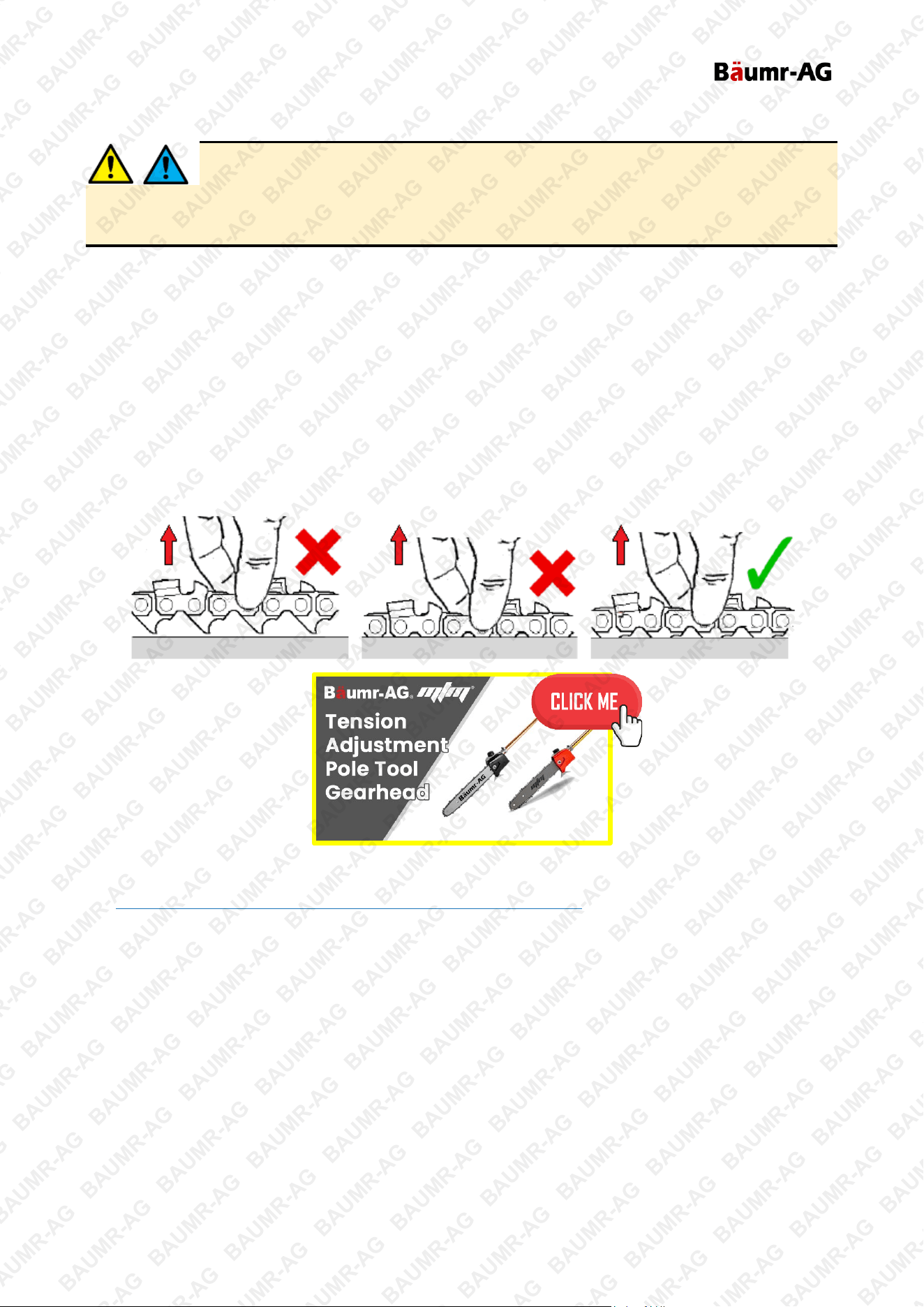

Saw Chain Tension.............................................................................................................................. 22

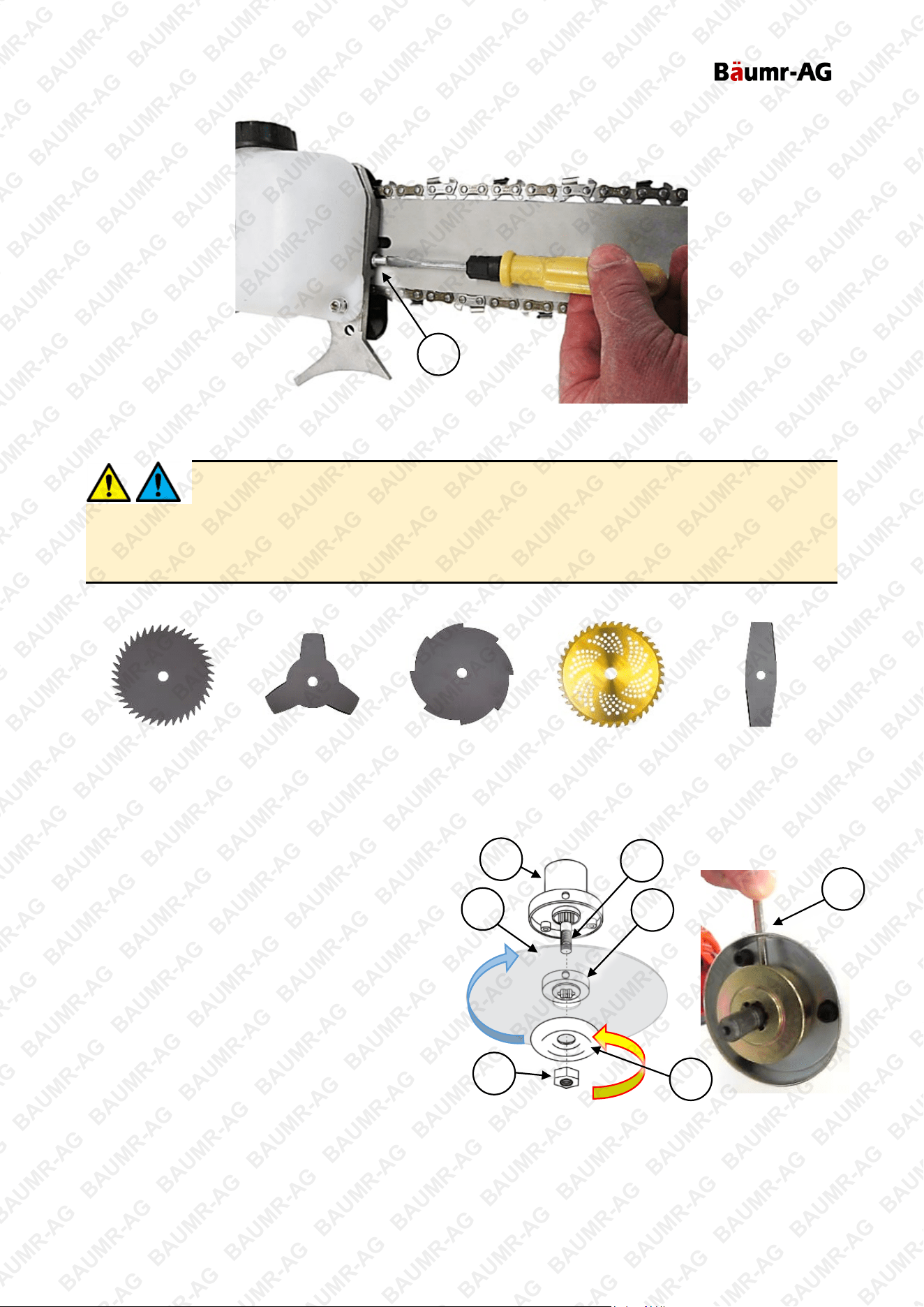

Attaching Cutting Tools .............................................................................................................................. 23

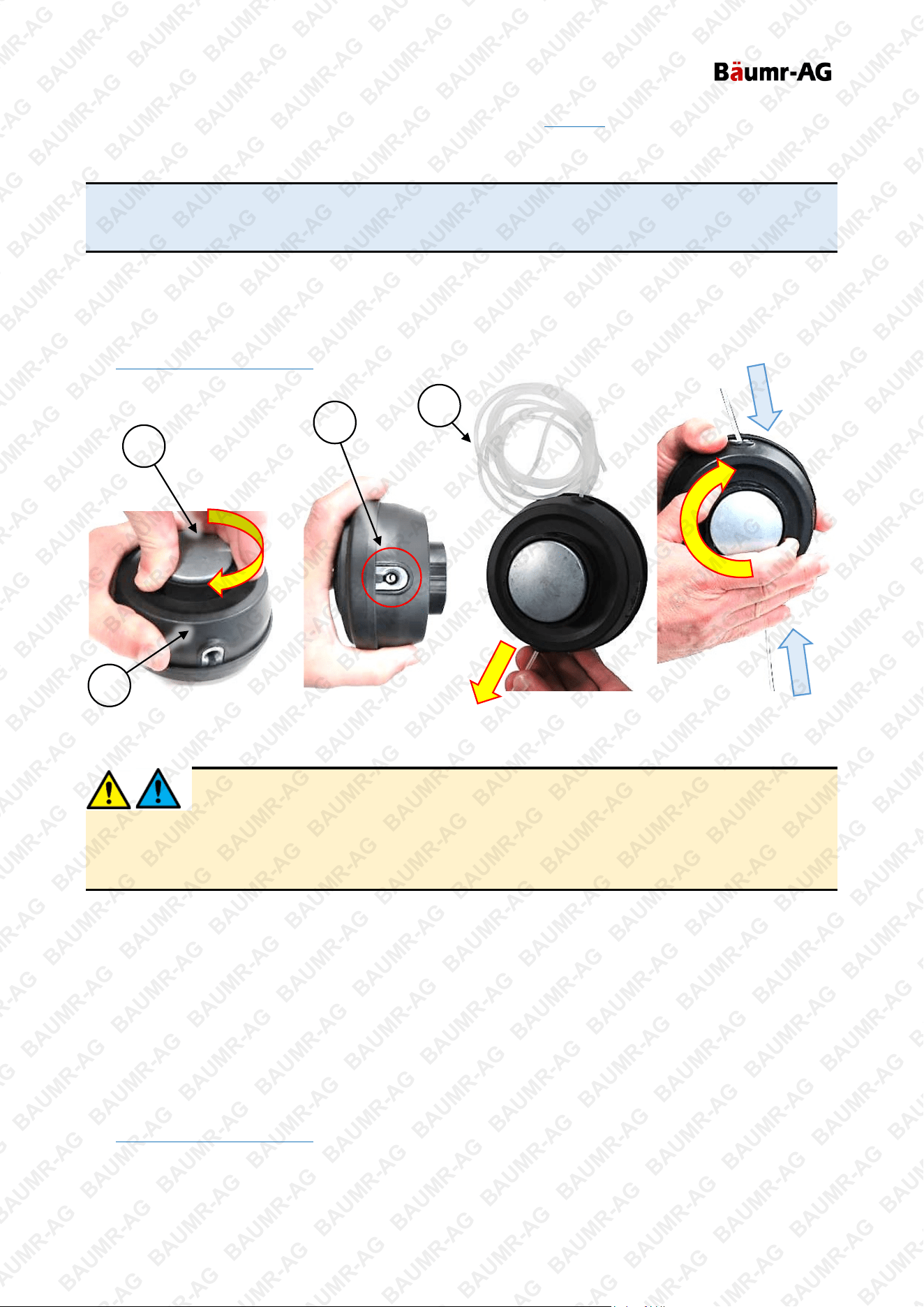

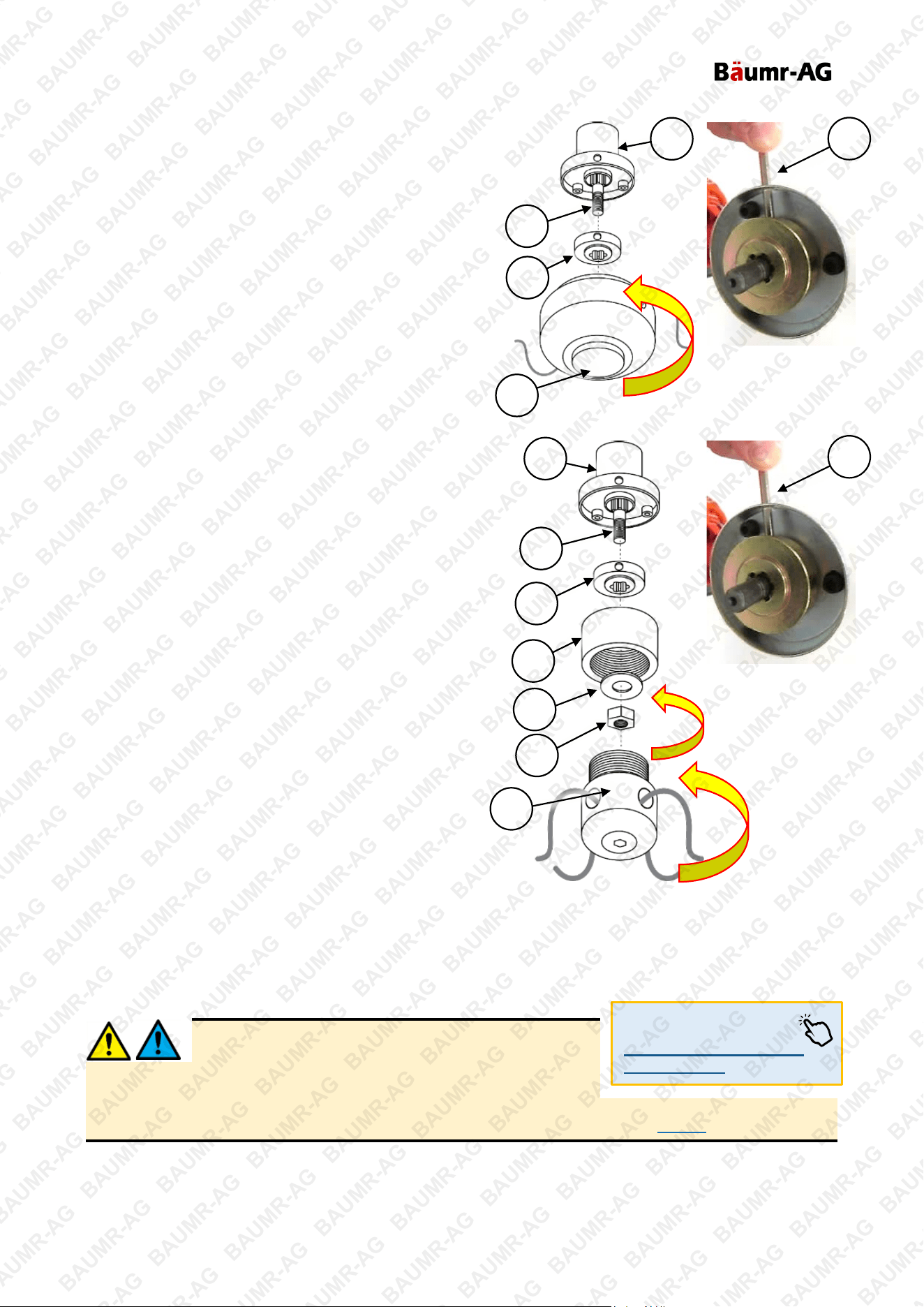

Loading the Grass Cutting "Bump" Head ............................................................................................ 24

Loading the Grass Cutting "Fixed Line" Head ..................................................................................... 25

Adjusting Hedge Trimmer Angle .......................................................................................................... 26

Air Filter ...................................................................................................................................................... 27

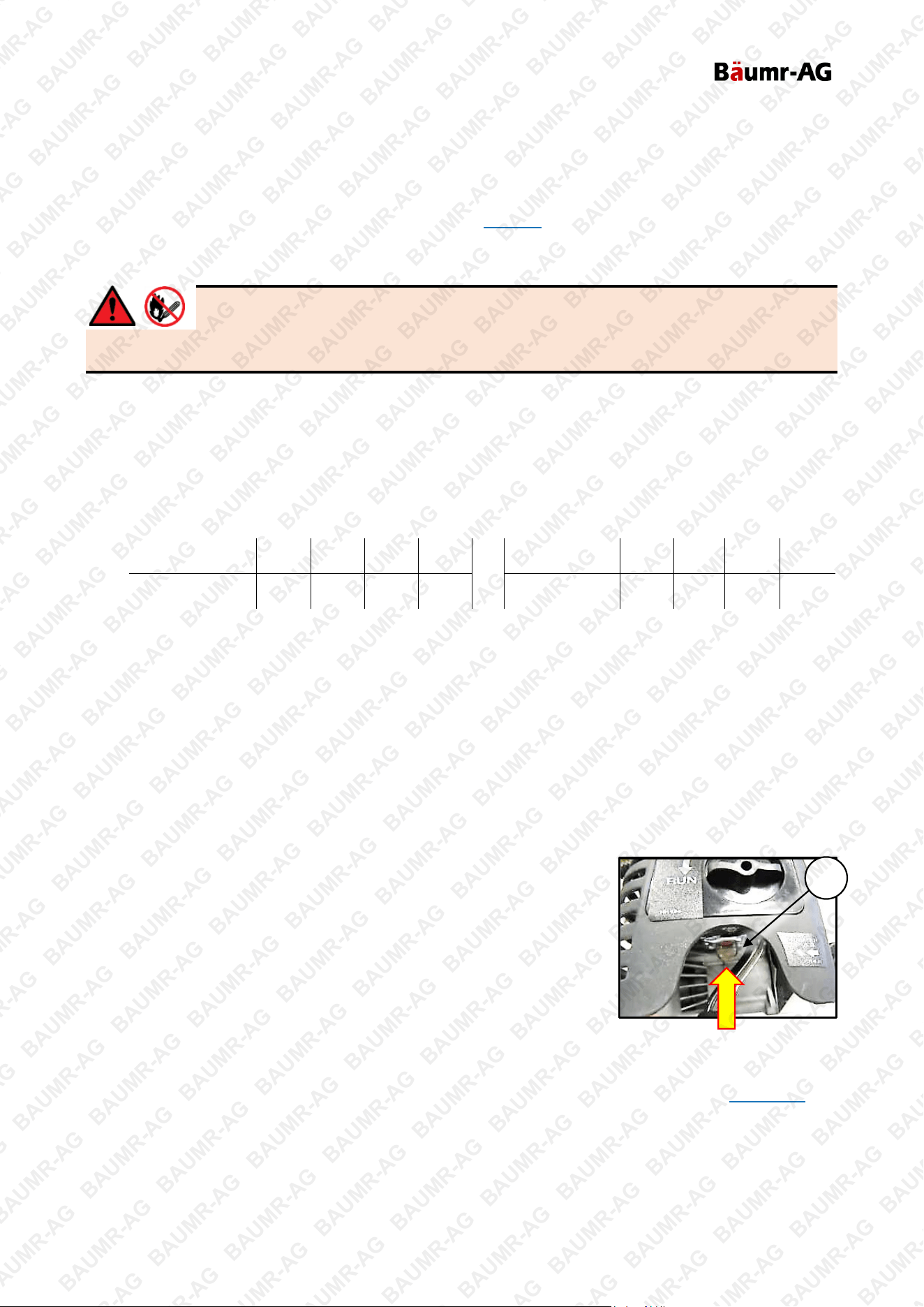

Fuel ............................................................................................................................................................ 27

Priming the Fuel System ..................................................................................................................... 27

Spark Plug .................................................................................................................................................. 27

Engine Starting and Stopping ...................................................................................................... 28

Starting the Engine ..................................................................................................................................... 28

Stopping the Engine ................................................................................................................................... 28

Environmental Considerations ................................................................................................................... 29

Operation ........................................................................................................................................ 30

Using the Throttle and Adjusting Engine Speed ........................................................................................ 30

Understanding and Avoiding "Kick-Back" and Other Reactionary Forces ................................................. 31

Maintenance ................................

................................................................................................... 32

Maintenance Schedule – 2-Stroke Engine / Machine ................................................................................ 33

Maintenance Schedule – 4-Stroke Engine / Machine ................................................................................ 34

Grass Cutting "Bump" Head ....................................................................................................................... 35

Inspection and Cleaning ...................................................................................................................... 35

Removal/Installation ............................................................................................................................ 35

Saw Chain and Chain Bar (Chainsaw Attachment) ................................................................................... 36

Inspection and Cleaning ...................................................................................................................... 36

Petrol Powered Pole Tools

Removal/Installation ............................................................................................................................ 36

Chain Lubricant (Chainsaw Attachment) ............................................................................................. 37

Gear Head ........................................................................................................................................... 38

Air Filter ...................................................................................................................................................... 38

Inspection and Cleaning ...................................................................................................................... 38

Removal/Installation – 2-Stroke Engine .............................................................................................. 38

Removal/Installation – 4-Stroke Engine .............................................................................................. 39

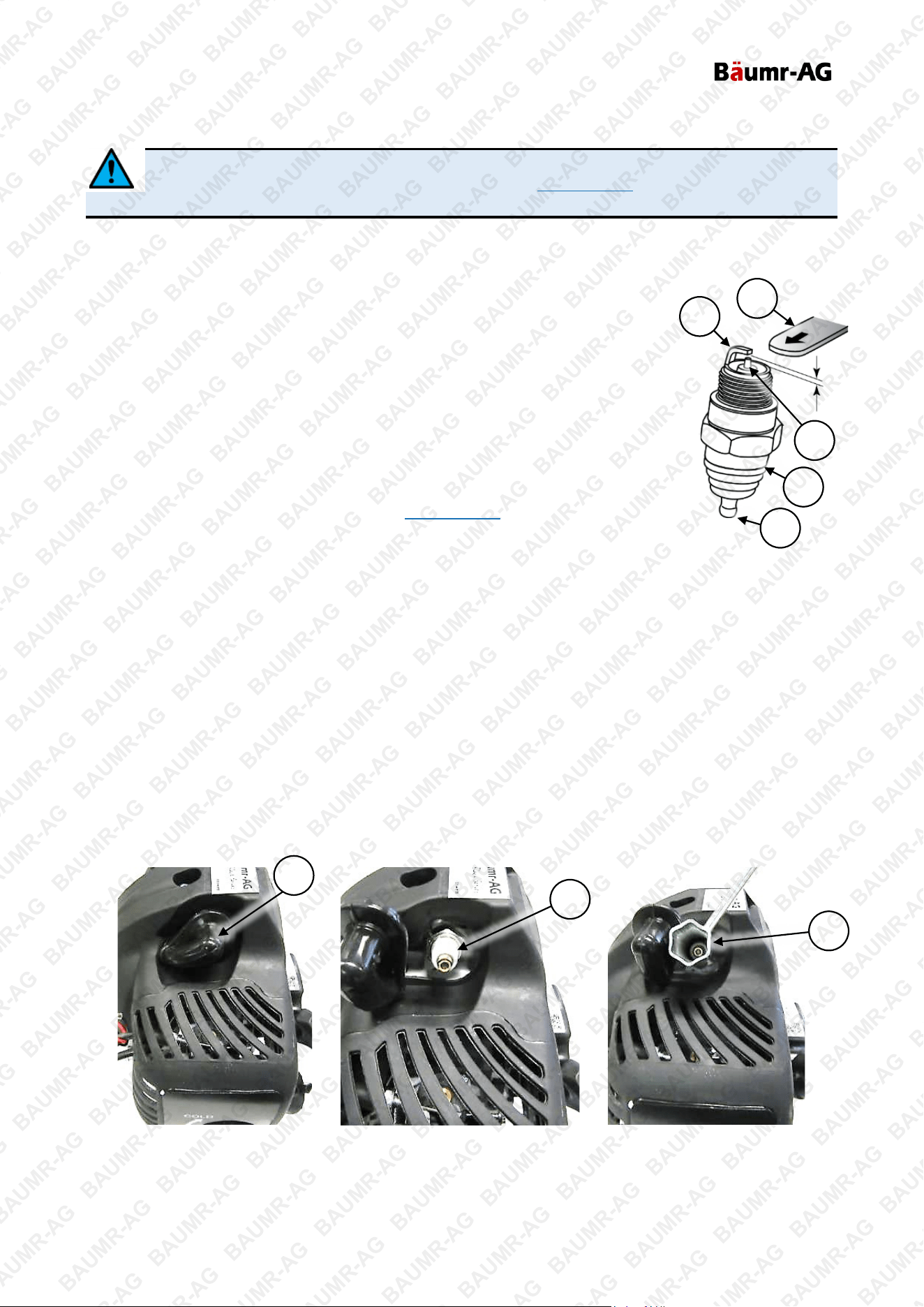

Spark Plug .................................................................................................................................................. 40

Cleaning and Gap Checking ................................................................................................................ 40

Removal/Installation – 2-Stroke Engine .............................................................................................. 40

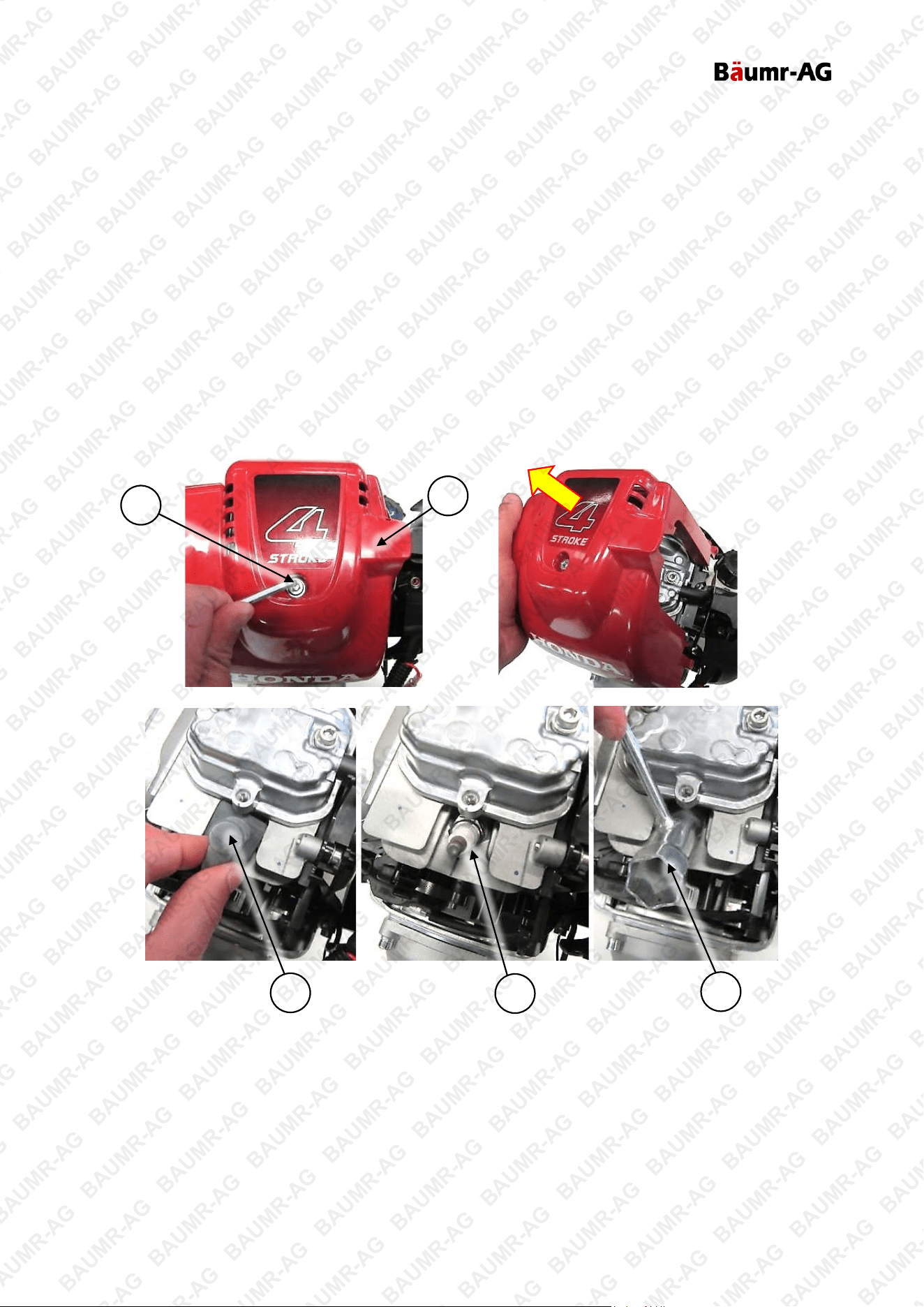

Removal/Installation – 4-Stroke Engine .............................................................................................. 41

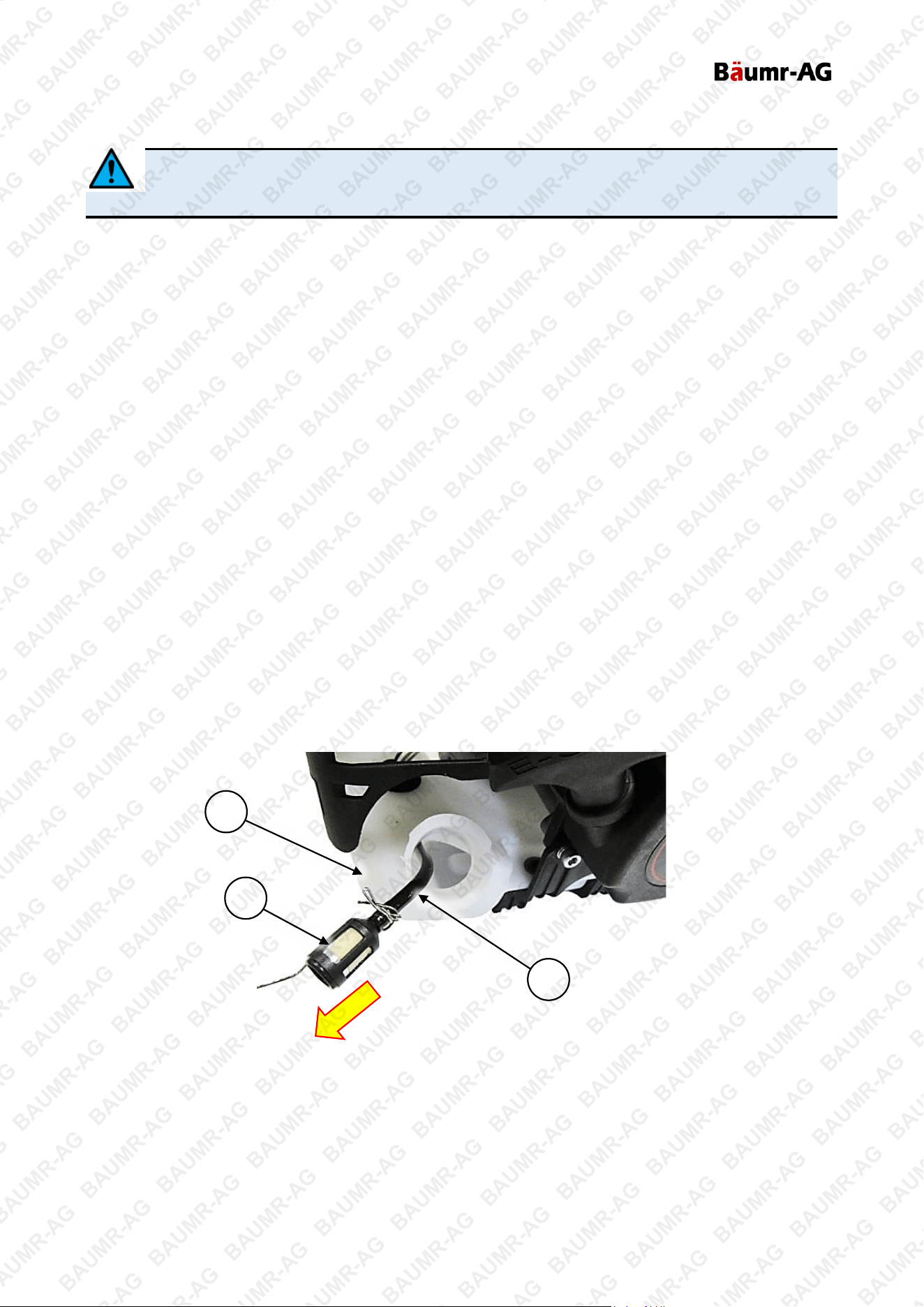

Fuel Strainer ............................................................................................................................................... 42

Inspection and Cleaning ...................................................................................................................... 42

Removal/Installation ............................................................................................................................ 42

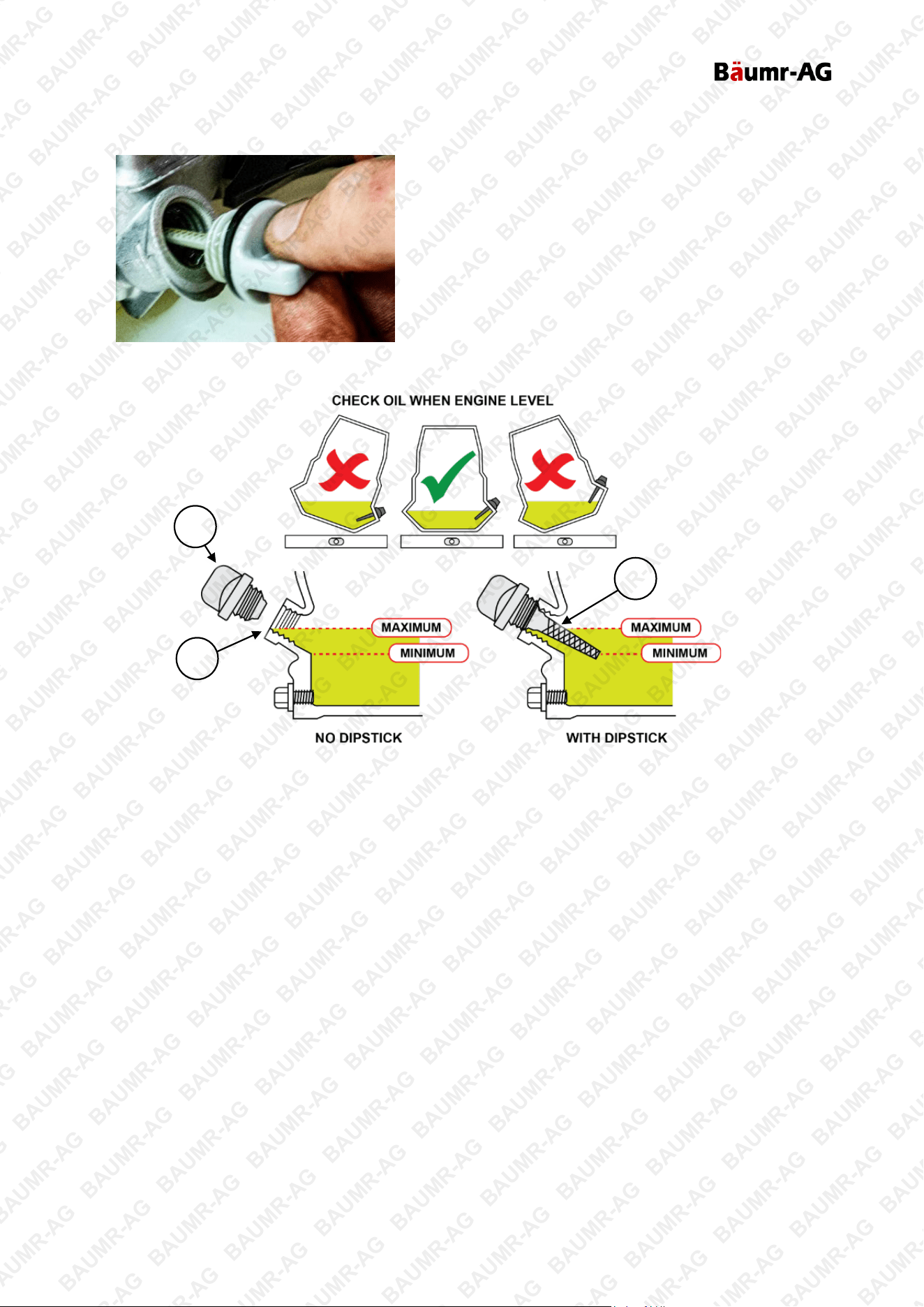

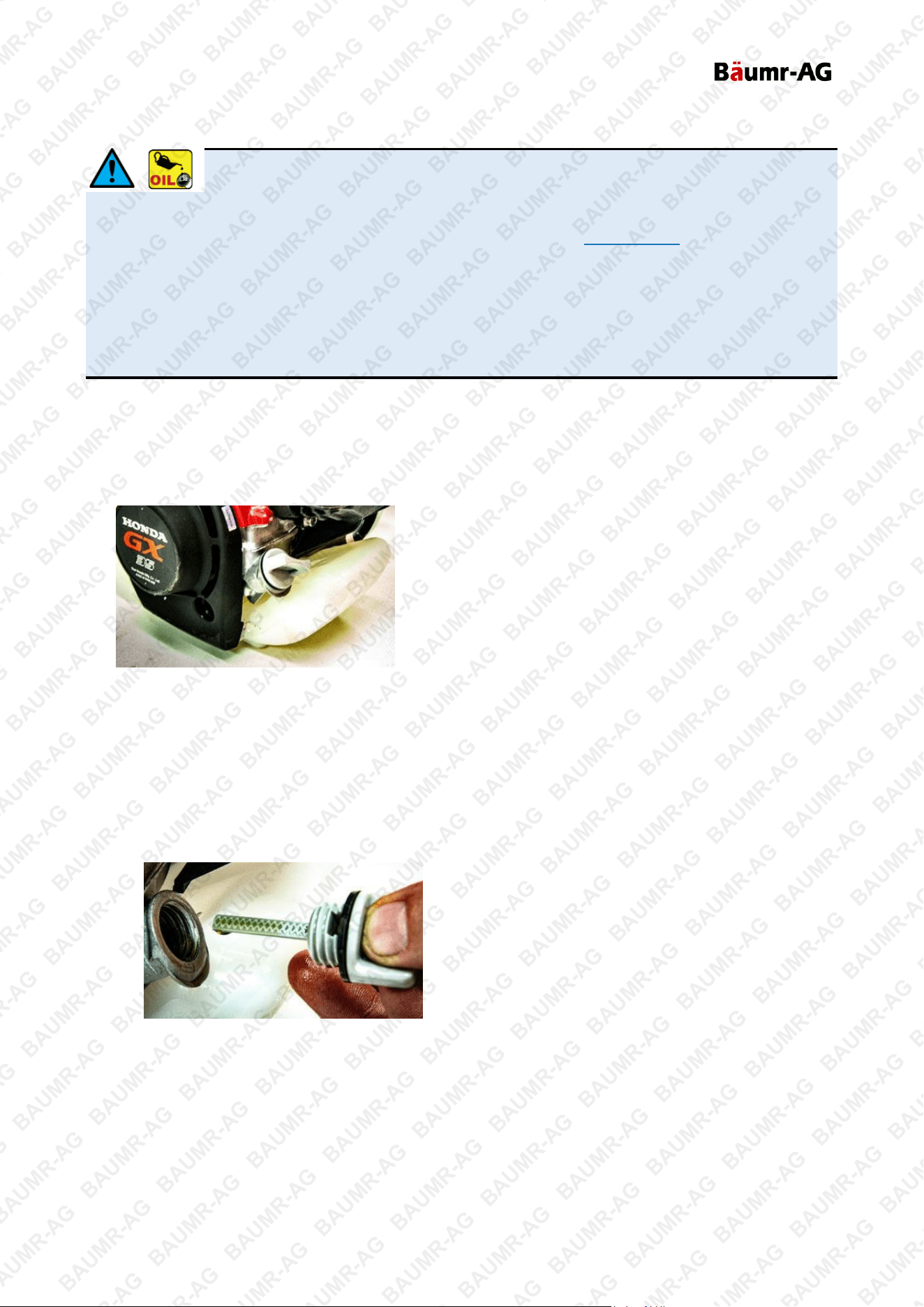

Engine Oil – 4 Stroke Engine ..................................................................................................................... 43

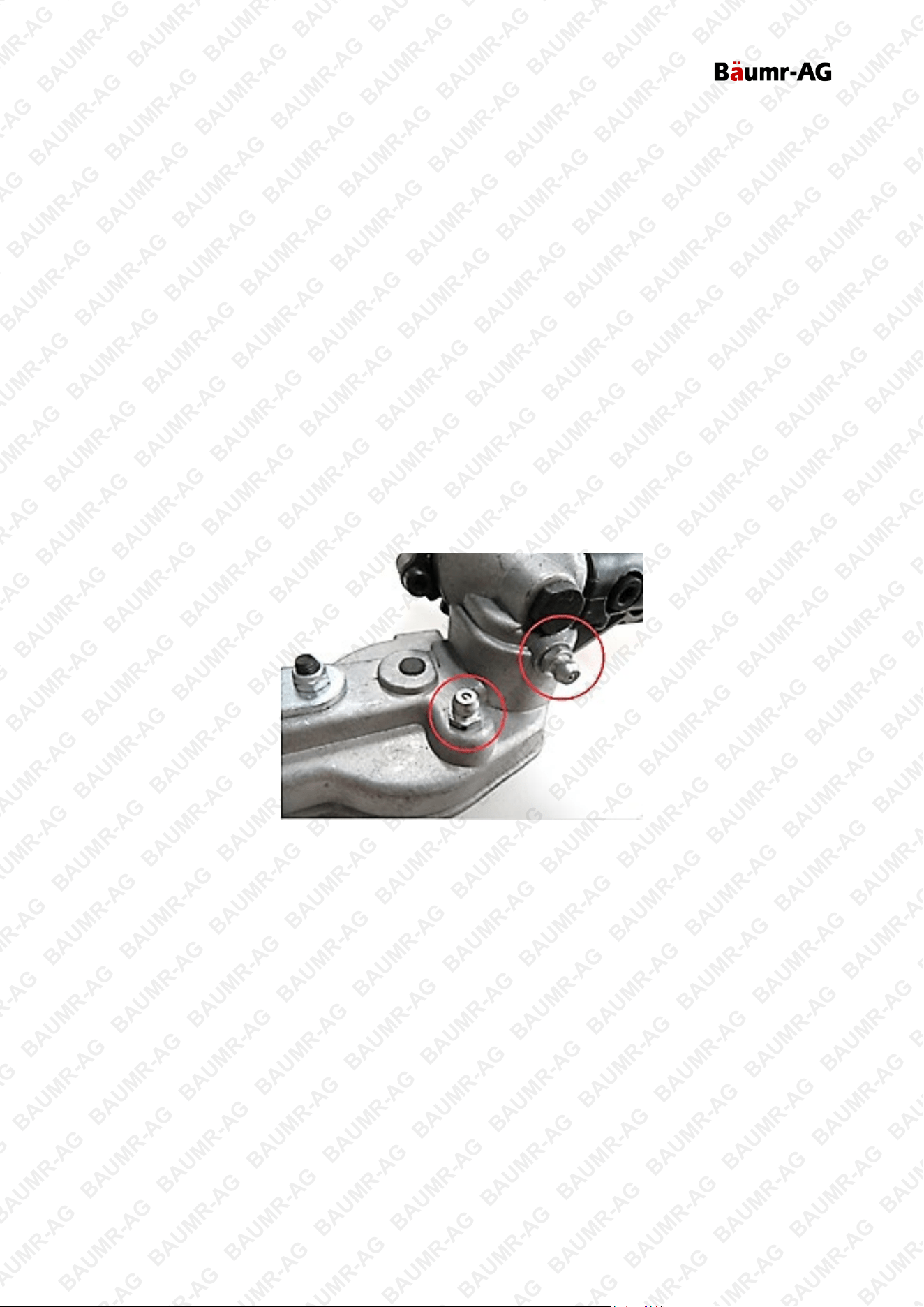

Greasing Gearboxes / Joints ...................................................................................................................... 45

Cleaning Guidelines ................................................................................................................................... 46

Cleaning and Lubricating Cutters ........................................................................................................ 46

Engine Tuning Guidelines ............................................................................................................. 47

2-Stroke Engine ......................................................................................................................................... 47

Carburettor Adjustments ...................................................................................................................... 47

Factory Settings ................................................................................................................................... 48

Tuning .................................................................................................................................................. 48

4-Stroke Engine ......................................................................................................................................... 48

Carburettor Adjustments ...................................................................................................................... 48

Factory Settings ................................................................................................................................... 49

Tuning .................................................................................................................................................. 49

Transportation and Storage .......................................................................................................... 50

Troubleshooting ............................................................................................................................. 51

Specifications ................................................................................................................................. 53

Engine Service and Maintenance Record .................................................................................... 54

Petrol Powered Pole Tools

Applicable Models

This manual applies to the following Bäumr-AG pole tools:

SMX920

SMX750 (Honda 4-Stroke Engine)

SMX720

SMX550 (Honda 4-Stroke Engine)

SMX250 (Honda 4-Stroke Engine)

SMX220

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

SMX120

SMX100

BCX720

BCX750 (Honda 4-Stroke Engine)

CVB760 Concrete Vibrator

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Parts Identification

The equipment comes with all parts required for normal domestic use, with various attachments supplied

depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly

recommended that you familiarise yourself with all major components of the machine before using it or

performing any maintenance tasks. Some parts may come pre-assembled.

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described. This section shows typical major components of a pole tool kit –

cutting accessories and the number of components may vary between models.

No. Name No. Name

1 Pole Tool (includes engine and throttle assembly) 15 8-Tooth Cutter (where applicable)

2 Cutter Drive Shaft (where applicable) 16 Toothed Cutter (where applicable)

3

Extension Shaft (where applicable)

17

Concrete Vibrator (where applicable)

4

Cutter Guard (where applicable, bracket and trimming

blade included)

18 Tiller (where applicable)

5 Chainsaw (where applicable, sheath included) 19 Heavy-Duty Edger (where applicable)

6 Hedge Trimmer (where applicable) 20 Blower (where applicable)

7

Strap 21 Tools / Fasteners (as applicable):

4 / 5 / 6mm Allen Key

Screwdriver

Spanner

Spark Plug Tool

Handle Fasteners (4)

Cutter Guard Fasteners (2)

Trimmer Blade Fasteners (2)

Drive Shaft Fasteners (4)

Fuel Bottle

8 Extension Drive Shaft (where applicable)

9 Handle (typical)

10

Grass Cutter "Bump" Head (where applicable)

11 Grass Cutter Fixed Line Head (where applicable)

12 3-Blade Cutter (where applicable)

13

Lawn Edger (where applicable)

14 Brush Saw (where applicable)

2

3

4

5

6

7

8

10

12

1

14

13

15

17

11

16

9

18

20

19

21

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Parts Identification - Engines

Pole tools come with all parts required for normal domestic use, with various attachments supplied

depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly

recommended that you familiarise yourself with all major components of the machine before using it or

performing any maintenance tasks.

Products detailed in this manual may vary in appearance, inclusions, description, and packaging

from those shown or described. This section shows typical major engine components for 2-stroke

and 4-stroke (highlighted in blue) petrol powered machines.

No. Name No. Name

1

Fuel Tank

11

Throttle Limiter / Throttle Lock (where applicable)

2 Spark Plug 12 Fuel Tank

3

Starting Cord

13

Spark Plug (under top cover)

4 Choke Control 14 Starting Cord

5 Fuel Primer (under air filter cover) 15 Choke Control

6

Air Filter Cover (filter inside)

16

Fuel Primer (under air filter cover)

7

Exhaust

17

Air Filter Cover (filter inside)

8

Throttle Control

18

Exhaust

9 Throttle Lockout 19 Engine Oil Filler / Dipstick

10 Engine ON / OFF Switch

2

3

4

5

8

7

6

10

12

1

14

13

15

17

11

16

9

18

19

2-Stroke Engine

4-Stroke Engine

Typical Throttle

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

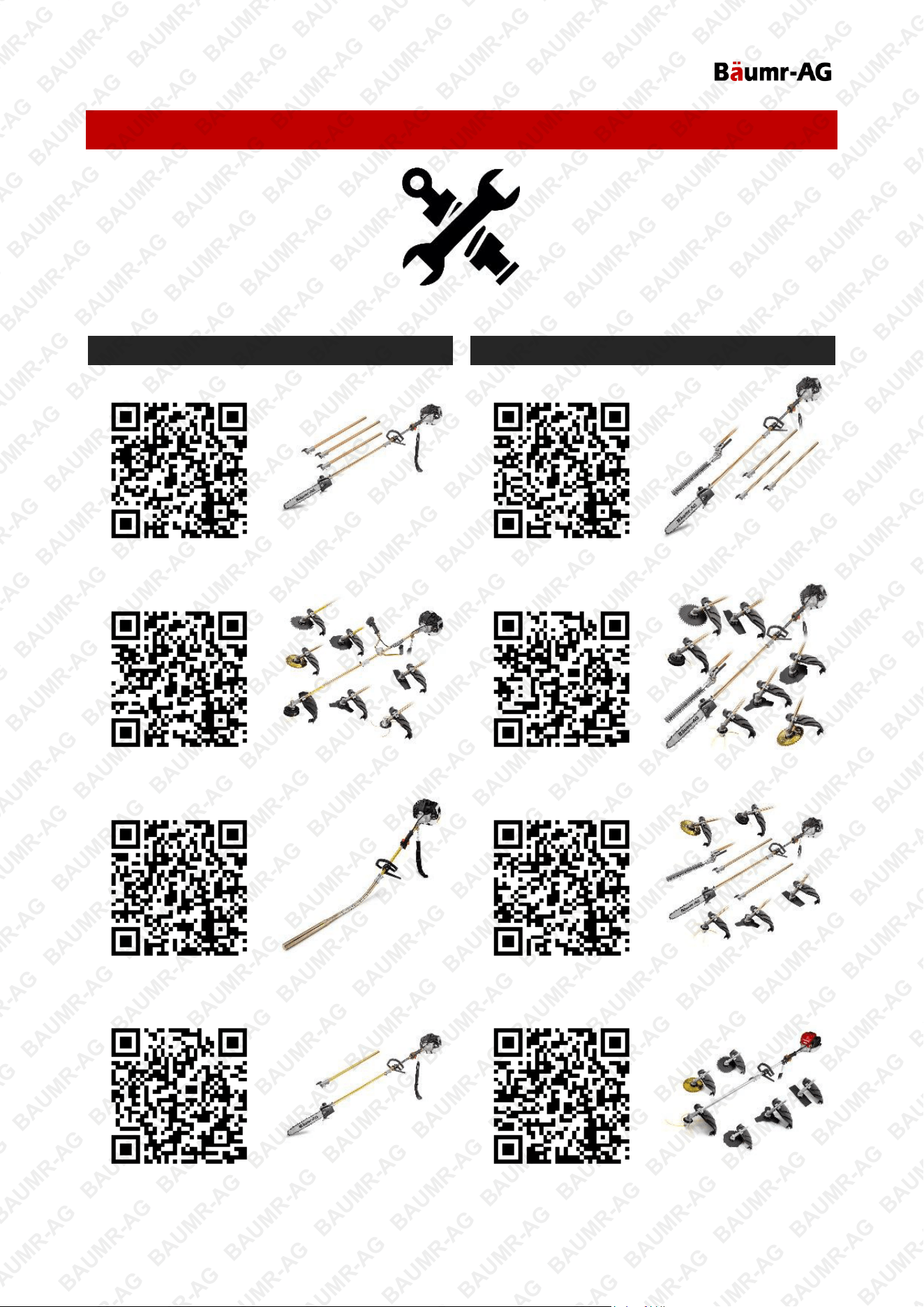

Spare Parts

Spare parts available for purchase, scan QR codes below:

QR Code SKU QR Code SKU

PLTL11BMRA1C2

PLTL21BMRA2C2

BCTS71BMRA7C2

PLTL91BMRA9C2

CONVIBBMRA7X0

PLTL71BMRA7C2

PLTM11BMRA1C0

BCTHONBMRAS71

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

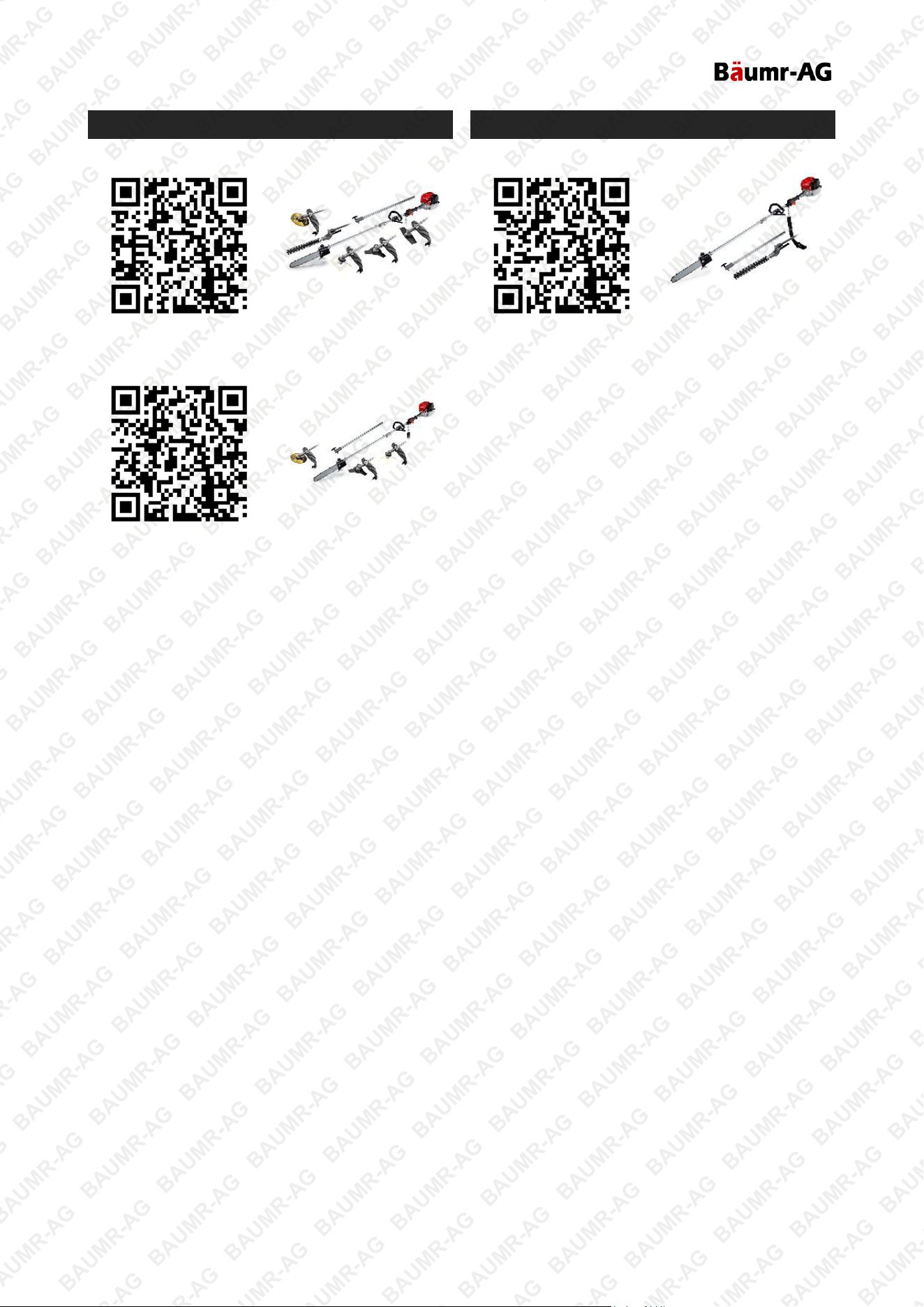

QR Code SKU QR Code SKU

PLTHONBMRAL71

PLTHONBMRAL21

PLTHONBMRAL51

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between different

models may exist. Failure to follow the checklist and carry out the procedures correctly may result in

making the product warranty void. • Wear suitable gloves when handling cutting devices.

Products with 4-stroke engines are NOT supplied with engine oil, although traces of oil from

the manufacturing process may be present. It is essential to add adequate engine oil of the

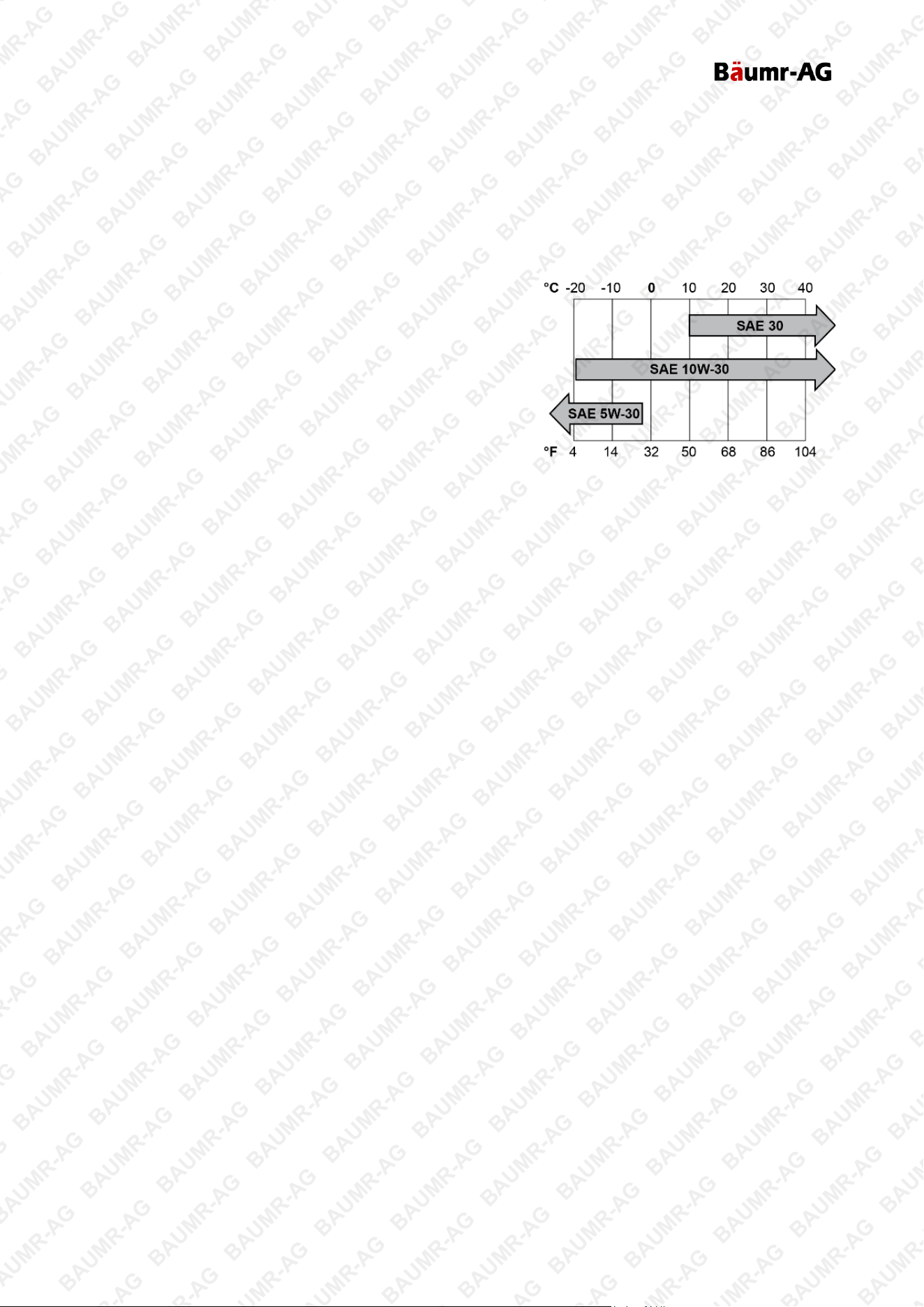

correct type to the engine before use – see Engine Oil. Failure to add engine oil will void the product

warranty.

Basic Tool Assembly

Typically, the main pole tool requires minimal assembly, however, due to the modular nature of the design,

various attachments may require some assembly. Prior to assembly, unpack all components and check that

all items have been received. The following assembly instructions may not apply to all models as some are

pre-assembled or partially pre-assembled.

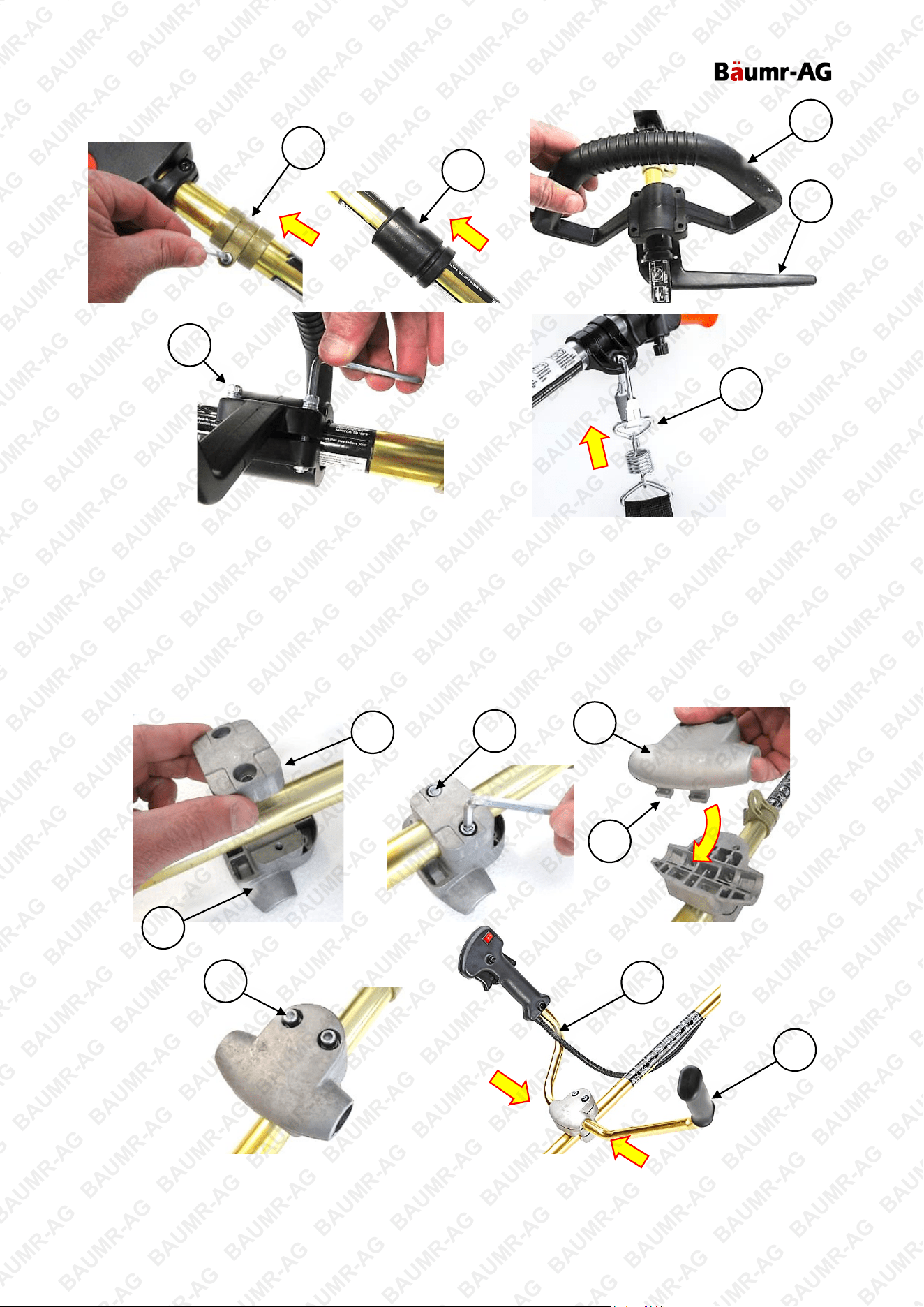

Drive Shaft, Handle, Throttle and Strap

1. Slide the drive shaft (A) through the throttle assembly (B). Be careful not to stretch or pull on the throttle

assembly wiring. Secure the throttle assembly in position using the screws and nuts (C) on either end of

the throttle.

2. Bring the driven end (C) of the drive shaft up to the motor, then slide it over the motor output clutch (D).

Secure the drive shaft to the motor using 4 M6 cap screws (E) – tighten the screws progressively and

from opposite corners to help ensure that drive shaft is mounted squarely against the engine.

3. Slide the swivel collar (F) onto the drive shaft, to a position where the strap will be effective and

comfortable to use. Tighten the swivel screw to secure it.

4. Slide the rubber vibration isolator (G) onto the drive shaft, to a position where the handle will be effective

and comfortable to use. Clamp the 2 handle components (H and I) over the rubber vibration isolator and

secure it using 4 screws and nuts (J).

5. Clip the strap (K) to the swivel collar.

B

A

B

C

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

If the tool features a "bull horn" type handle, it will include the handle poles, attachment yoke and fasteners.

Assemble it as follows:

1. Place the yoke (L) and lower clamp (M) onto the drive shaft in a position where the handle will be

effective and comfortable to use. Firmly secure the yoke and clamp in position using 2 screws (N).

2. Hook the tabs (P) on the underside of the upper clamp (O) to the yoke, then insert 2 screws (N),

however, do not tighten them yet.

3. Insert the handle tubes (Q) into the yoke as desired – orient the handle tubes, throttle etc so they are in a

comfortable position, then firmly tighten the upper clamp screws.

Once the engine, drive shaft, throttle and handle are assembled, the machine is ready for use by attaching a

cutter etc to it.

G

F

H

I

J

K

M

L

N

O

Q

P

N

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Pole Assembly

The machine may feature extension poles to increase reach. The system uses a "collar" that locks to the end

of the pole, and clamps to the next pole. If it is necessary to assemble a collar to a pole:

1. Slide the collar (A) over the end of the pole (B), with the locking screw (C) and hole (D) in the pole

aligned.

2. Firmly tighten the locking screw, however, be careful not to over-tighten as the screw is threading into

aluminium.

3. Firmly tighten the clamping screw (E), however, be careful not to over-tighten as the screw is threading

into aluminium.

The collar features a spring loaded locking pin (F) and a

clamping screw (G). The system allows secure attachment of

poles without any tools required. Internally, the driven shafts

connect using a square drive coupling (H).

Extension poles and attachments that include a pole; for

example, chainsaw and hedge trimmer, are connected as

follows. Disconnection of parts is a reversal of the connection

procedure.

1. Position the collar (A) and pole (B) so the locking pin (F) and hole (I) are aligned.

2. Pull up and hold the locking pin, then insert the pole into the collar. It may be necessary to rotate the

pole so the internal square drive coupling engages. Push the pole fully into the collar, then release the

locking pin.

3. Rotate the pole until the locking pin "pops" into the hole, then firmly tighten (rotate right / clockwise) the

clamping screw (E) by hand.

A

C

B

D

E

F

G

H

A

I

B

F

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

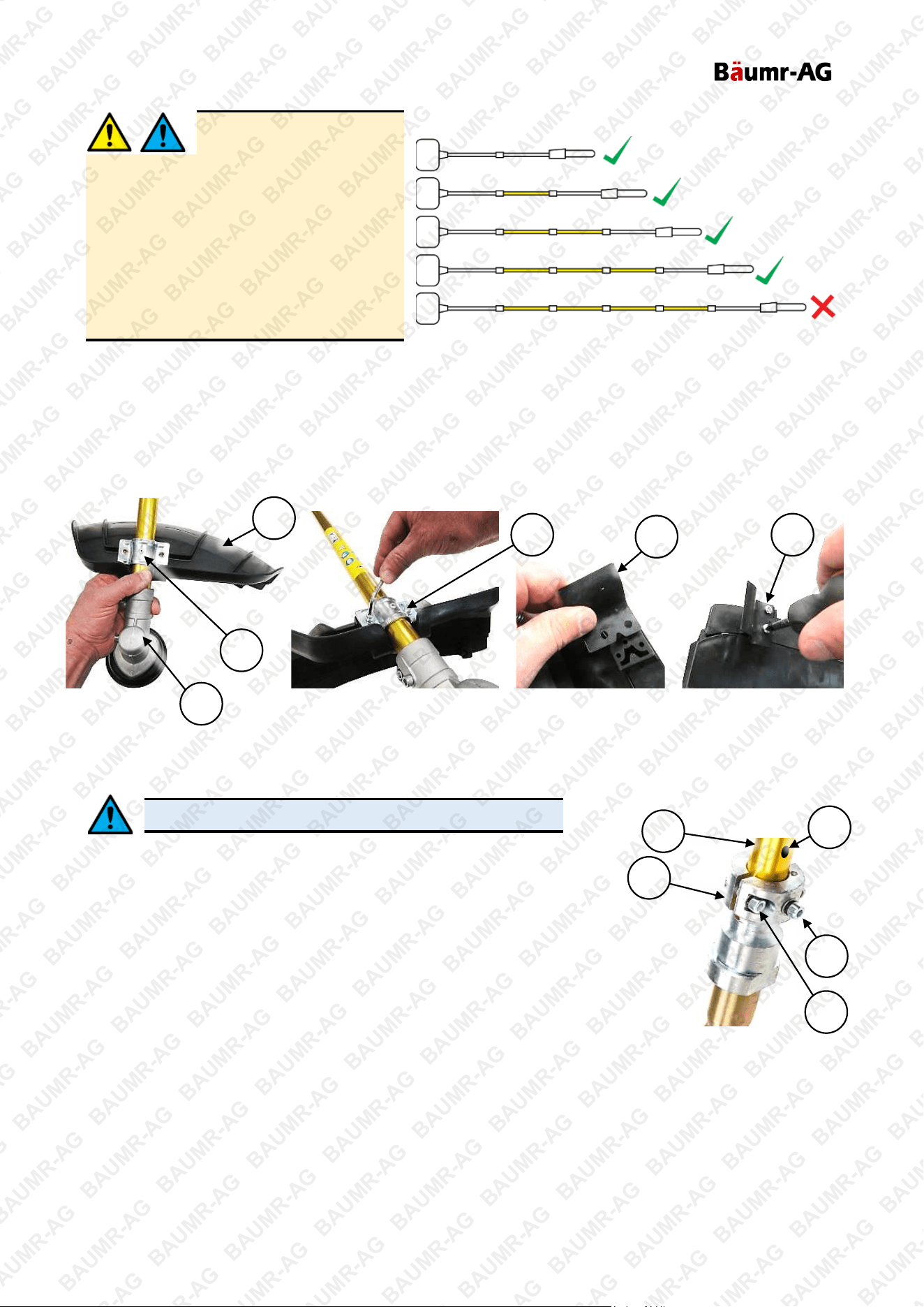

When assembling extension

poles and attachments, do

NOT exceed 5 pole lengths from the engine

to the cutter. For example, no more than 3

extension poles between the drive shaft and

chainsaw attachment – see adjacent diagram

(extension poles are shown in yellow). Over

extending the tool may damage it and / or

render it a hazard and will void warranty. •

When the overall length of the tool exceeds

3m (10'), it may be necessary to have an

assistant help support the weight of the tool.

Cutting Guard Assembly

1. Bring the cutter guard (A) into position with the cutter drive shaft (B) as shown, and align the mounting

bracket (C) holes with the threaded inserts in the guard.

2. Secure the cutter guard to the bracket using 2 M5 cap screws (D).

3. Place the trimming blade (E) into position on the underside of the cutter guard and secure it using 2 self-

tapping screws (F). Be careful not to over-tighten the screws as they are screwing into plastic.

Concrete Vibrator Assembly

Do NOT use extension poles with the vibrator attachment.

The concrete vibrator attachment (where applicable) requires assembly.

This attachment uses a slightly different connection method to "standard"

attachment collar due to the additional vibrational stresses.

1. Slide the vibrator collar (A) over the end of the drive shaft (B), with the

locking screw (C) and hole (D) in the drive shaft aligned. It may be

necessary to rotate the pole so the internal square drive coupling

engages.

2. Firmly tighten the locking screw, however, be careful not to over-

tighten as the screw is threading into aluminium.

3. Firmly tighten the 2 clamping screws (E), however, be careful not to over-tighten as the screws are

threading into aluminium.

A

C

B

D

E

F

B

D

C

A

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Chainsaw Attachment Assembly

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are

undamaged, safe to use and are properly and securely fastened to the machine. • Ensure that the saw chain

is installed so it rotates in the direction of the cutting edges. • Do NOT use cutting equipment that is cracked,

bent, chipped or damaged in any way. Replace damaged parts.

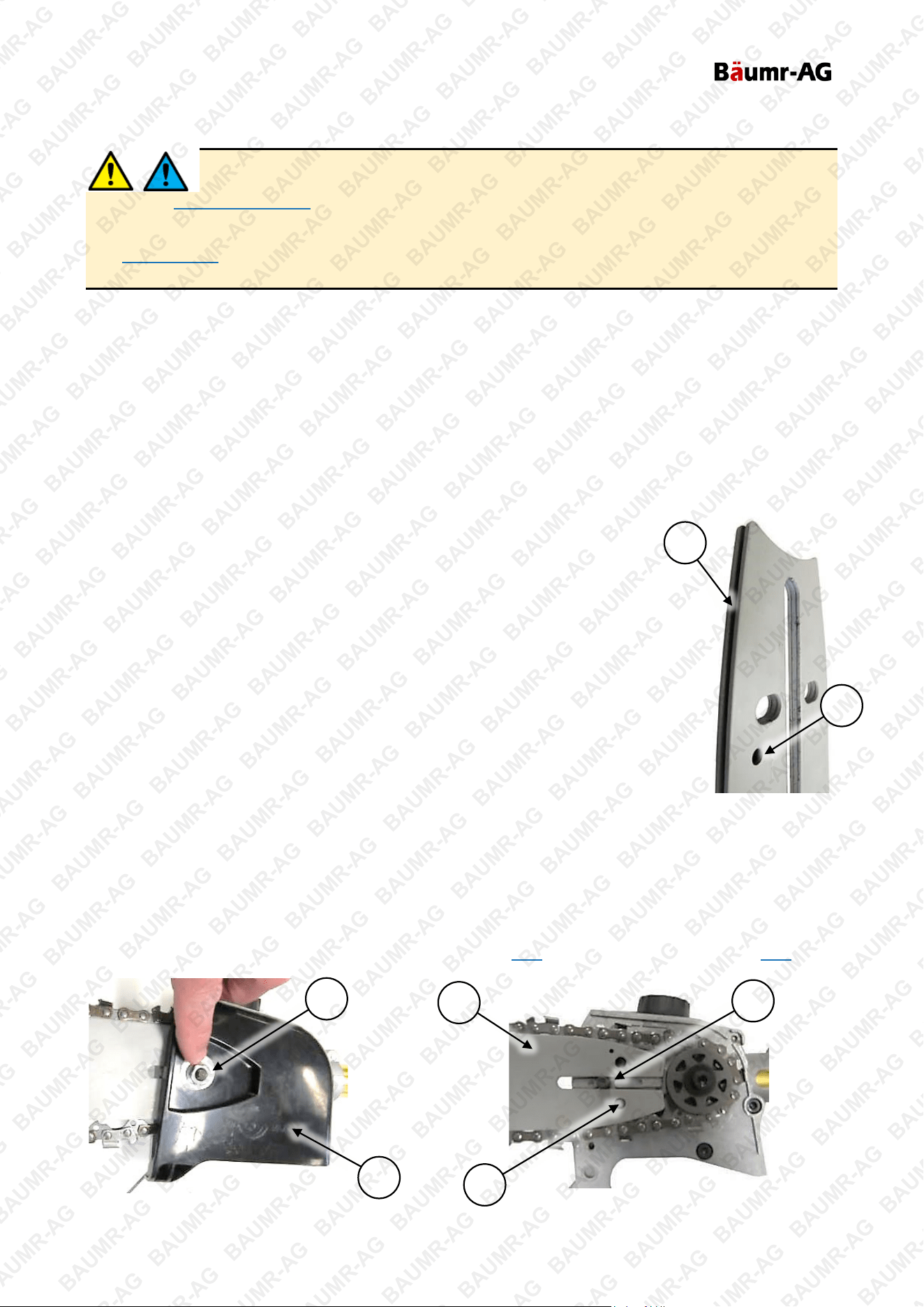

The chainsaw attachment (where applicable) requires assembly.

1. Remove the chain drive cover (A) nut (B), then remove the cover from the chainsaw attachment.

2. Place the saw chain (C) into position and engage it with the

drive sprocket (D). Ensure that the sharp edges of the saw

chain cutters (AA) are facing the correct direction.

3. Place the chain bar (E) into position so the drive chain

cover stud (F) protrudes through the slot in the chain bar,

and that the chain tension spigot (G) engages with its hole

in the chain bar (it may be necessary to adjust the position

of the chain tension spigot – see

Adjusting Saw Chain

Tension).

4. Wrap the chain around the chain bar so it is sitting in the

chain bar groove.

5. Place the chain drive cover in position over the drive cover stud. Re-install the drive chain cover nut, and

tighten to "finger-tight" only at this stage. Ensure you thoroughly read Adjust Chain Tension

bef

ore

proceeding.

Saw Chain Lubricant

The saw chain and drive system for the chainsaw accessory requires adequate lubricant of the correct type

to operate safely and efficiently. The machine is shipped without chain lubricant. Check the chain lubricant

level and ensure that it is at the recommended level. See Chain Lubricant

.

AA

C

E

F

G

D

B

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

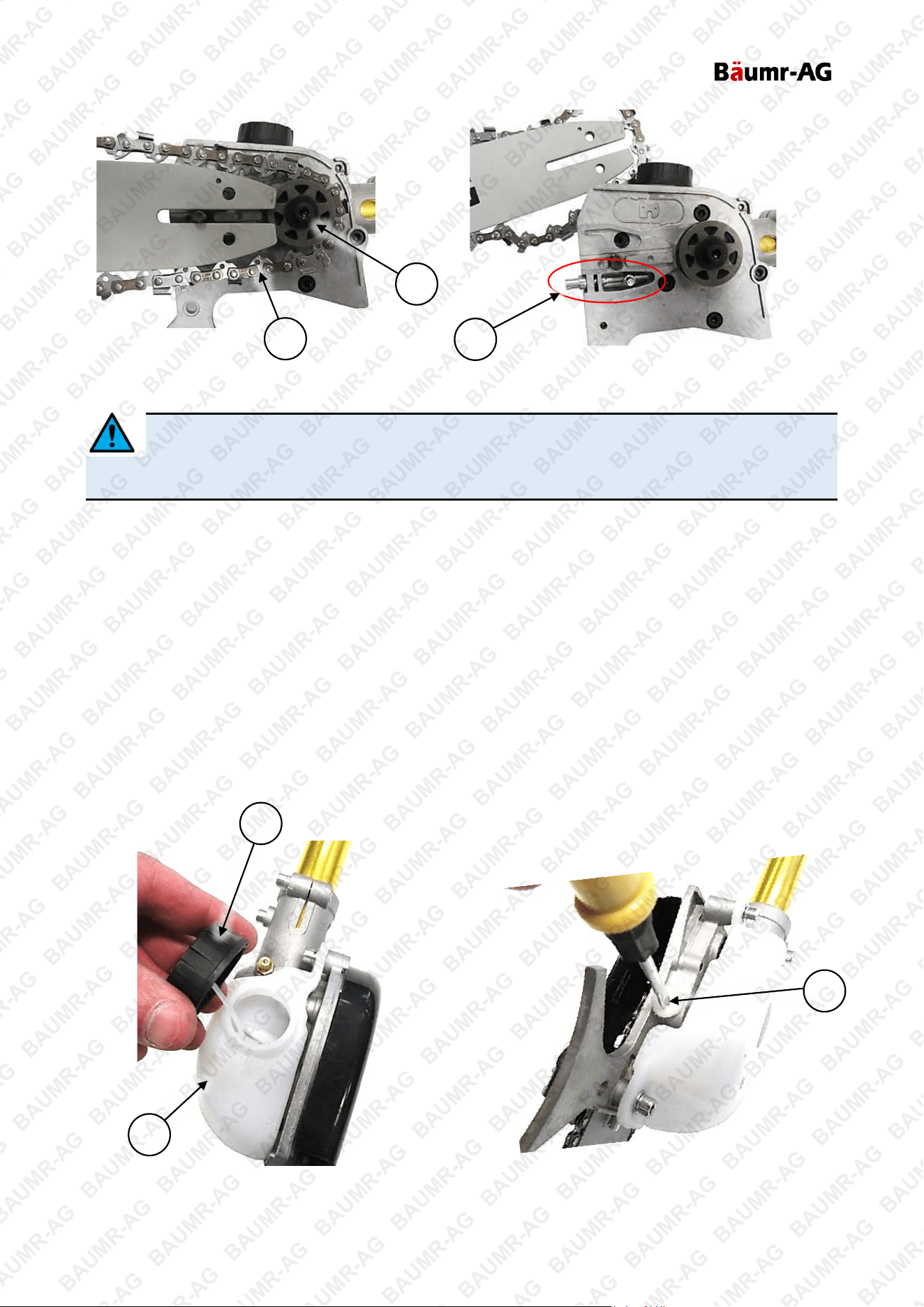

Saw Chain Tension

Ensure that the saw chain is correctly tensioned and the chain drive cover nuts are properly

tightened before use and during cutting. • The saw chain will "stretch" with use, so it is

important to check chain tension before and during use • Wear suitable gloves when handling cutting

devices. • Do NOT check chain tension with the engine running. • Do NOT adjust chain tension with

the engine running.

Correct saw chain tension is extremely important in terms of both machine efficiency and operator safety.

Check chain tension before each use. Check chain tension frequently during use – whenever the machine is

put down (engine MUST be stopped first).

Checking Tension

Ensure engine is not running when adjusting chain tension.

• The saw chain should fit snugly into the groove in the chain bar and it must be possible to pull the chain

along the bar with a gloved hand. You should be able to lift the saw chain just out of the chain bar groove

without excessive effort.

• If the chain "sags" under the chain bar or can be lifted well out of the chain bar groove, it is too loose.

• If the chain is snug in the chain bar groove but cannot be lifted out slightly or be pulled around the bar by

hand, it is too tight.

Adjusting Tension

1. Clean the chain (if necessary), chain bar and tensioning mechanism.

2. Ensure the cover nut holding the chain drive on is only "finger-tight".

3. Lift and hold the end of the chain bar up, then using a suitable screwdriver, rotate the adjustment screw

(D) as required – rotate right (clockwise) to increase tension; rotate left (anti-clockwise) to reduce

tension.

4. While still holding the end of the chain bar up, securely tighten the cover nut with the tools provided.

5. Check chain tension and re-adjust, if necessary. Ensure the cover nut is loosened again to "finger tight"

before making tension adjustments. Once the tension is correct, ensure the cover nut is securely

tightened with the tools provided.

LOOSE

TIGHT

CORRECT

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Attaching Cutting Tools

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are

undamaged, safe to use and are properly and securely fastened to the machine. • Ensure that brush cutter

and brush saw blades are installed so that they rotate in the direction of the cutting edges. • Do NOT use

cutting equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts. • The

toothed cutter and brush saw are not designed to be re-sharpened.

Cutting tools may include the following types. Use the cutter appropriate for the job, type of grass/brush etc:

Toothed Cutter

3-Blade Cutter

8-Tooth Cutter

Brush Saw

Lawn Edger

1. Place the drive washer (A) on to the drive shaft (B) protruding from the attachment head (C). Ensure that

the grooves in the washer align with the splines on the drive shaft.

2. Place the attachment on to the drive washer:

For the brush cutter and saw type attachments:

a. Place the cutter attachment (D) on to the

drive washer. Ensure that direction of the

cutting teeth or blades faces the direction

shown by the blue arrow. Ensure that the

hole in the centre of the attachment sits

squarely on the raised portion of the drive

washer.

b. Place the cup washer (E) over the drive

shaft, then secure the assembly with the

nut (F). The thread on the drive shaft is

"left-hand". This means that you must

rotate the nut to the left (anti-clockwise) to

screw it on as shown by the yellow arrow.

Firmly tighten the nut using the supplied spanner. To prevent the drive shaft from rotating as you

tighten the nut, insert a suitable object (G) (Allen key, screwdriver etc) through the hole in the

attachment head and into the hole in the drive washer when tightening – you may need to rotate

the drive washer until the holes are aligned. Remove the object when the nut is secured.

G

A

D

C

E

F

B

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

For grass cutting "bump" head:

a. Screw the grass cutting head (H) on to the drive

shaft. The thread on the drive shaft is "left-

hand". This means that you must rotate the

grass cutting head to the left (anti-clockwise) to

screw it on as shown by the yellow arrow.

Firmly tighten the grass cutting head by hand.

To prevent the drive shaft from rotating as you

tighten the grass cutting head, insert a suitable

object (G) (Allen key, screwdriver etc) through

the hole in the attachment head and into the

hole in the drive washer when tightening – you

may need to rotate the drive washer until the

holes are aligned. Remove the object when the

grass cutting head is secured.

For grass cutting "fixed line" head:

a. Place the grass cutting head coupler (I) over

the drive shaft – it must locate centrally to the

to the raised section of the drive washer (A).

b. Place the washer (J) (supplied with the fixed

line grass cutting head) over the drive shaft,

then secure the assembly with the nut (F).

The thread on the drive shaft is "left-hand".

This means that you must rotate the nut to

the left (anti-clockwise) to screw it on as

shown by the yellow arrow. Firmly tighten the

nut using the supplied spanner. To prevent

the drive shaft from rotating as you tighten

the nut, insert a suitable object (G) (Allen key,

screwdriver etc) through the hole in the

attachment head and into the hole in the drive

washer when tightening – you may need to

rotate the drive washer until the holes are

aligned.

c. Screw the grass cutting head (K) in to the

coupler. The thread on the coupler is "left-

hand". This means that you must rotate the

grass cutting head to the left (anti-clockwise)

to screw it in as shown by the yellow arrow.

Firmly tighten the grass cutting head by hand.

To prevent the drive shaft from rotating as

you tighten the grass cutting head, insert a suitable object (G) (Allen key, screwdriver etc)

through the hole in the attachment head and into the hole in the drive washer when tightening –

you may need to rotate the drive washer until the holes are aligned. Remove the object when the

grass cutting head is secured.

Loading the Grass Cutting "Bump" Head

Do NOT attach or detach cutting tools when the engine is

running. • Ensure that parts are cool enough to touch

before attaching or detaching cutting tools. • Do NOT use cutting

equipment that is cracked, bent, chipped or damaged in any way. Replace

damaged parts. • Use 1.6 to 3mm (1/16 to 1/8") plastic cutting line only. Non-plastic cutting line may not

function properly and may damage the machine. • If the grass cutting head is dirty, clean it.

To load the grass cutting bump head with cutting line:

1. Remove the grass cutting head from the drive shaft. The thread on the drive shaft is "left-hand". This

means that you must rotate the grass cutting head to the right (clockwise) to unscrew it. To prevent the

H

G

A

B

C

I

G

A

B

C

J

F

K

Video Tutorial:

Loading a Grass Cutting

"Bump" Head

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

drive shaft from rotating as you loosen the grass cutting head, see here.

2. Place the grass cutting head (A) on a solid surface, then press down and rotate the "bumper" (B) to the

right (clockwise) until the cutting line holes are aligned (X) and you can see through the head.

Note: If there is remaining cutting line in the head, press down and rotate the "bumper" to the left (anti-

clockwise) one step, then pull the cutting line out from either side of the head. Repeat until you can pull the

line out completely from the grass cutting head.

3. Insert the new line (C) through the grass cutting head so that the lengths of line on each side of the head

are the same (in other words, the head is at the centre of the length of cutting line).

4. Hold the grass cutting head firmly, then rotate the "bumper" to the right (clockwise) to wind in the cutting

line. Stop winding when there is approximately 50mm (2") of cutting line outside of the head.

5. Install the grass cutting head

.

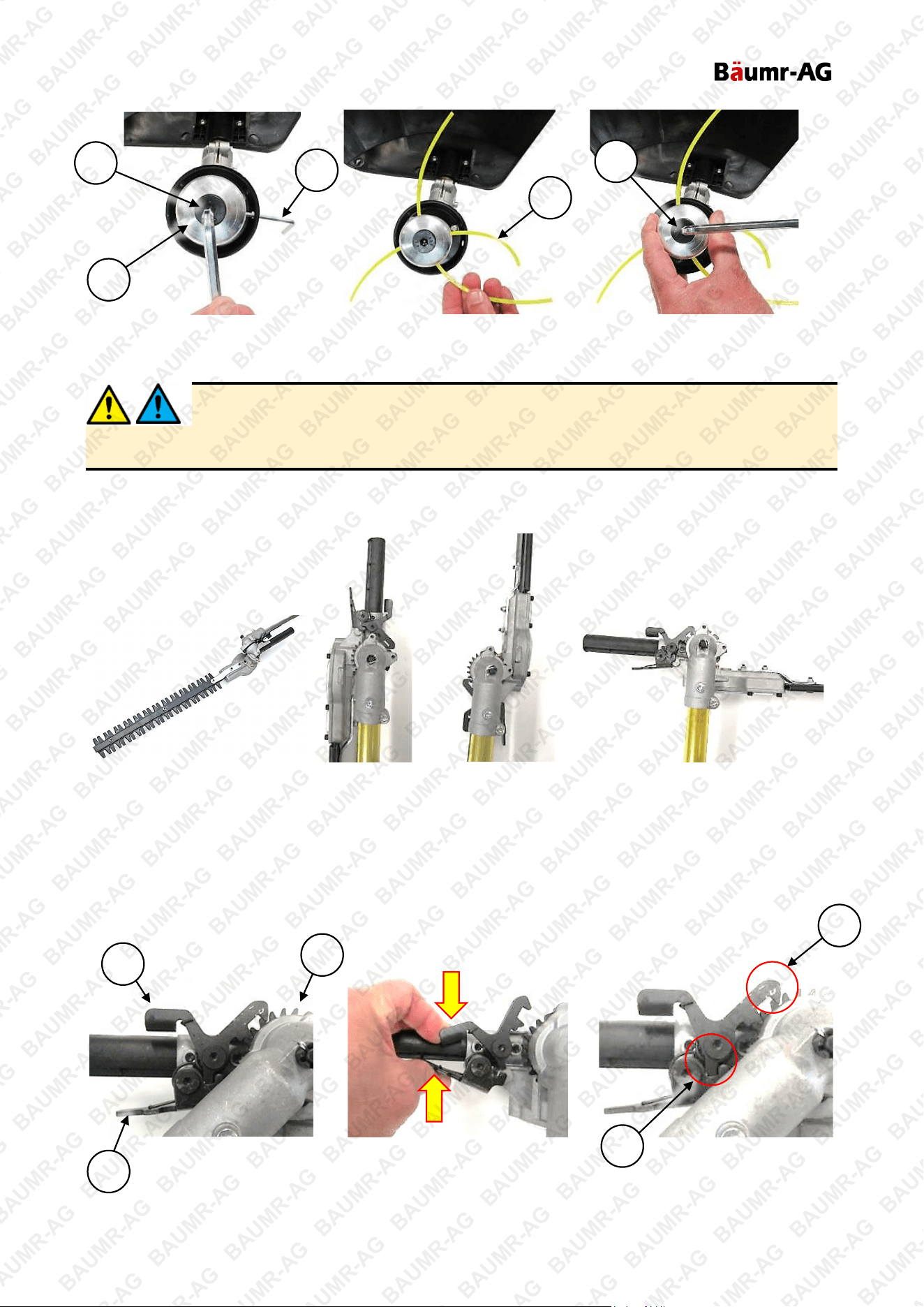

Loading the Grass Cutting "Fixed Line" Head

Do NOT attach or detach cutting tools when the engine is running. • Ensure that parts are

cool enough to touch before attaching or detaching cutting tools. • Do NOT use cutting

equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts. • Use 3mm (1/8")

plastic cutting line only, in 2 equal length strands – smaller diameter lines will not be held properly in the

grass cutting head. Non-plastic cutting line may not function properly and may damage the machine. • If the

grass cutting head is dirty, clean it.

To load the fixed line grass cutting head with cutting line:

1. To prevent the grass cutting head (A) from rotating, insert a suitable object (X) (Allen key, screwdriver

etc) through the hole in the attachment head and into the hole in the drive washer – you may need to

rotate the drive washer until the holes are aligned. Remove the object when the screw is loose.

2. Using a suitable Allen key, loosen (rotate left / anti-clockwise) the fixing screw (B) sufficiently so that the

cutting lines can be removed / inserted through the cutting head.

3. Insert 2 pieces of cutting line (C) approximately 350mm (14") long through the cutting head so the length

of line on either side of the head is equal.

4. Grip the grass cutting head firmly, then using a suitable Allen key, tighten (rotate right / clockwise) the

fixing screw (B) sufficiently so that the cutting lines are held securely.

5. Install the grass cutting head

.

A

X

C

B

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Adjusting Hedge Trimmer Angle

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are

undamaged, safe to use and are properly and securely fastened to the machine. • Do NOT use cutting

equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts.

The hedge trimmer attachment is designed so the angle of the cutters in relation to the supporting pole can

be changed to allow cutting the tops of hedges etc.

To adjust the trimmer angle:

1. Press on the locking lever (A) so it disengages from the adjustment lever (B) and hold in this position.

2. Press on the adjustment lever so it is clear of the positioning teeth (C) and hold in this position.

3. Rotate the cutting blade to the required angle.

4. Release the adjustment lever, and ensure that it engages with the positioning tooth as shown by D.

5. Release the locking lever, and ensure that it engages with the adjustment lever as shown by E.

A

C

B

X

B

A

E

B

C

D

Folded Straight

90° (Right-Angle)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

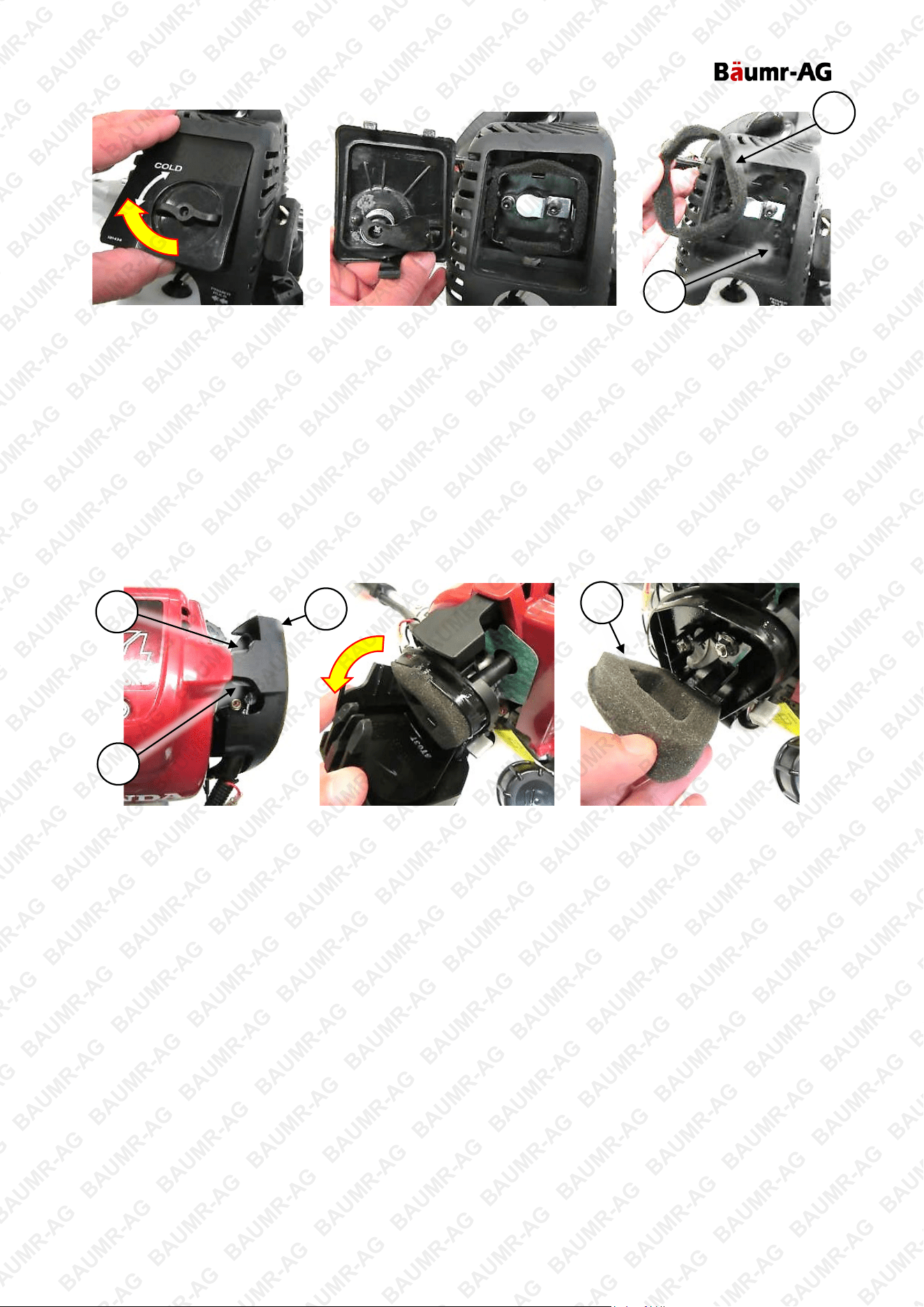

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance. We recommend adding air filter oil to the air filter,

prior to first use this will increase the lifespan of the engine.

Always check the air filter before starting the engine. See Air Filter

.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be OFF and cool before refuelling. • For 2-stroke engines,

always pre-mix the fuel before placing it in the fuel tank. • For 2-stroke engines, the fuel to 2-stroke

engine oil mixture ratio is 25:1.

Adequately fill the fuel tank with the correct fuel type.

• For 4-stroke engines, use non-ethanol unleaded petrol (higher RON values will provide best engine

performance). Do not use old or contaminated fuel/oil.

• For 2-stroke engines, use non-ethanol unleaded petrol mixed at a 25:1 ratio with 2-stroke engine oil

(higher RON values and good quality 2-stroke oil will provide best engine performance). Do not use old

or contaminated fuel/oil. Fuel/oil mix ratio examples are shown below.

Petrol (Litre) 1 2 5 10 Gas (US Gal) 0.5 1 2 3

Oil (Millilitre) 40 80 200 400 Oil (Fl. Oz) 2.56 5.12 10.24 15.36

To fill or top up fuel:

1. Place the machine in a horizontal position on a flat and level surface with the fuel filler cap facing up.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap

is removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or

otherwise overfill the tank.

5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the machine away from the spillage before starting the engine.

Priming the Fuel System

When an engine is new or has completely run out of fuel it may be

necessary to "prime" the fuel system before attempting to start the engine.

This means removing any air from the fuel line. To prime:

1. Ensure the fuel tank is filled with fuel.

2. Press the fuel primer (A) bulb repeatedly until you feel resistance or

pressure in the bulb – this indicates that it is full of fuel.

Spark Plug

The spark plug may come disconnected from the spark plug lead. If this is the case, place the electrical lead

over the spark plug terminal and push it down so that it connects firmly with the terminal. See Spark Plug.

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Engine Starting and Stopping

Before starting the engine, ensure that you have followed all procedures described in the

Before Use Checklist. Failure to follow the checklist and carry out the procedures

correctly may result in making the product warranty void. • Once the engine is running at sufficient

speed, the clutch will engage and begin rotating the cutting attachment. • Do NOT start the engine with the

machine cutting attachment touching any object. • If the engine is new or is being re-started after

completely running out of fuel, it may be necessary to pull the starter cord several times for fuel to reach the

carburettor.

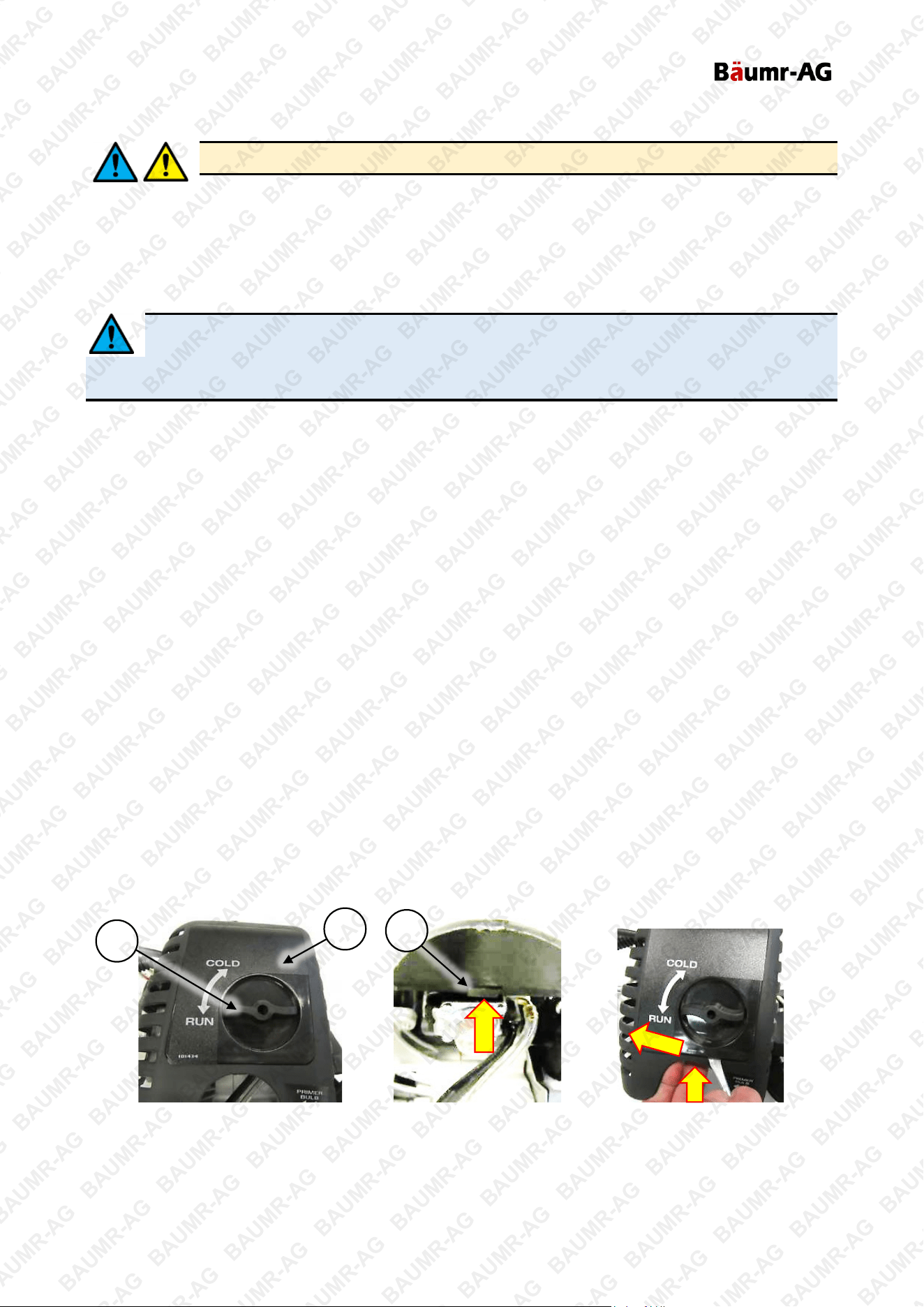

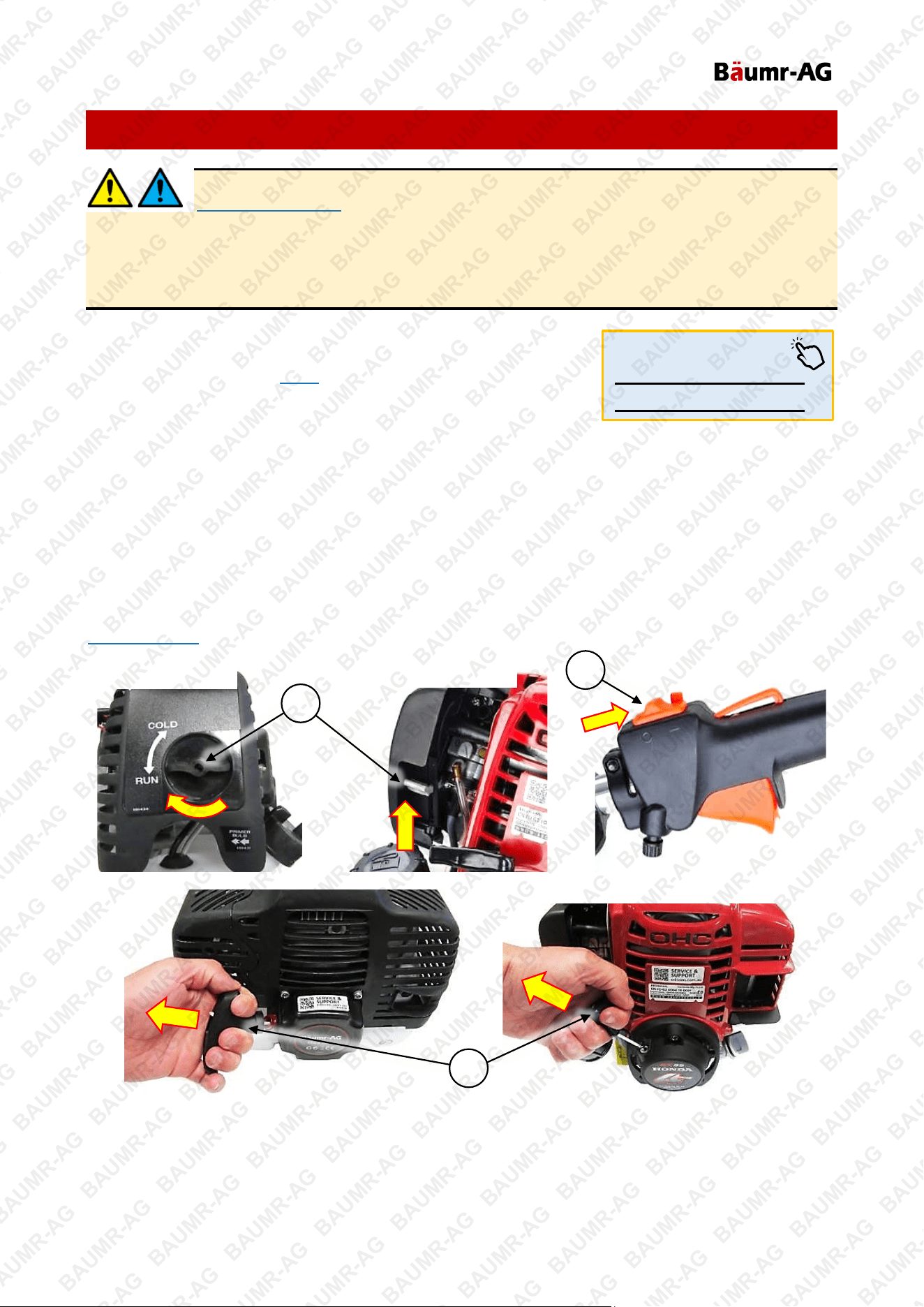

Starting the Engine

1. PRIME – If necessary, "prime" the fuel system.

2. CHOKE – If the engine is cold, place the choke (A) in the "COLD" or

"CLOSED" position. If the engine is warm or the ambient

temperature is high, place the choke in the "RUN" or "OPEN" position.

3. IGNITION – Place the engine ON/OFF switch (B) in the "ON" ("I") position.

4. START – It is recommended to have the tool on the ground and held firmly in place when starting (for

example, using your foot on the drive shaft). Slowly pull out the starter cord (C) until you feel it engage

with the engine, then pull it out rapidly (use both hands if necessary). The engine should start. Allow the

starter cord to rewind slowly – do not let it "snap" back.

5. WARM-UP – Allow the engine to warm-up and run smoothly. If choke is being applied, place the choke

(A) in the "RUN" or "OPEN" position.

If the engine does not start, repeat step 4 onward. If the engine fails to start after several attempts, refer to

Troubleshooting

.

Stopping the Engine

To stop the engine, release the throttle and place the engine ON/OFF switch in the "OFF" position.

Video Tutorial:

Starting 2-Stroke Engines

Starting 4-Stroke Engines

B

A

C

2-Stroke Engine

4-Stroke Engine

2-Stroke Engine

4-Stroke Engine

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to

the carburettor may be required. This is because there is less oxygen in the air as altitude increases, which

effectively "enriches" the ratio of fuel to air going into the engine, and the higher the altitude, the richer the

fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to

have an authorized service centre make the necessary carburettor adjustments. If the engine is used

occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight

decrease in engine performance can be expected.

Temperature (4-Stroke Engines) – If the engine is being used

in extremely cold or hot environments; for example, desert or

snow conditions, the type of engine oil may need to be changed

to suit environmental temperatures. Oil thickens as the

temperature decreases and thins as temperature increases,

which means that if the engine oil is not suited to the

temperature its ability to properly lubricate the engine may be

affected. Use the following chart to determine the correct engine

oil:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Operation

Petrol powered pole tools and attachments are high-speed, fast-cutting equipment

with exposed blades that can cause serious or fatal injury if not used correctly or

without taking proper safety precautions. It is extremely important that you read and fully understand

the information in this section and all other safety warnings / recommendations and usage

instructions before using the equipment. • Always wear suitable protective clothing and equipment when

using the machine. • Inspect the machine before each use and check for wear or damage. If the machine is

damaged, have it inspected and repaired at an authorised service centre before using it again. • If you

experience excessive vibration from the machine during operation, this may indicate wear or damage. It is

recommended to have it inspected and repaired before using it again. • Be aware that once the engine is

running, the cutting blades will be rotating and parts of the machine may be extremely hot. • For chainsaw

attachments, ensure that the saw chain is correctly tensioned and the chain drive cover nut is properly

tightened before use and during cutting. • Always release chain tension after finishing work to prevent

damage through over-tension as the saw chain cools and contracts.

When the engine is idling (slowest continuous running speed), the clutch should disengage, preventing the

cutting attachment from being rotated. As engine speed increases, the clutch engages and rotates the

cutting attachment. Note the following recommendations:

• Operate the engine at full speed when cutting, particularly when using the chainsaw attachment.

• When using the chainsaw attachment, cut using the underside of the chain bar – NEVER use the nose

or top of the chain bar. If in doubt, do NOT cut – seek professional advice.

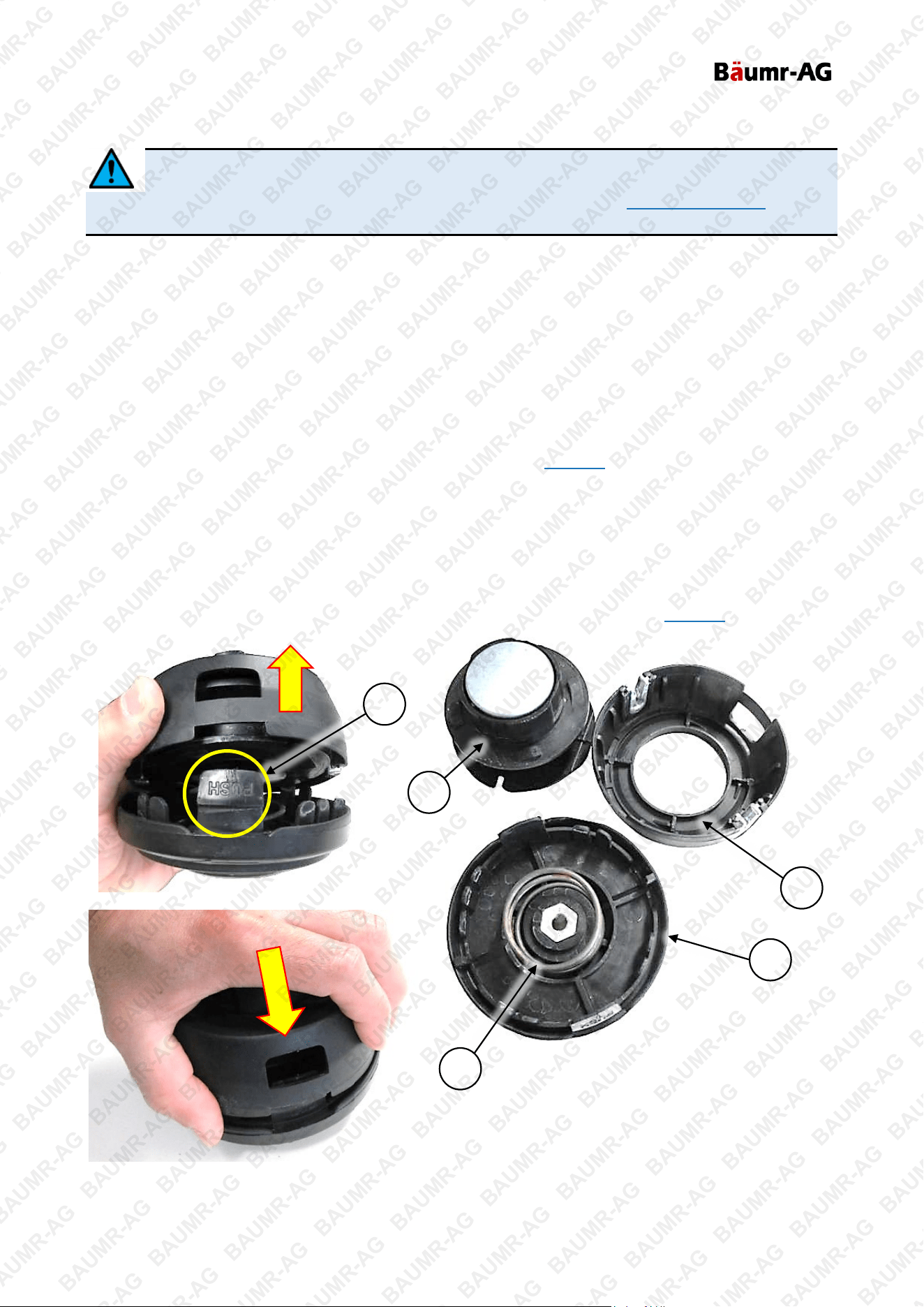

• To use line feed action of the grass cutting "bump" head, tap it quickly against the ground while it is

spinning – line will feed out through the spinning action. Excess line will be cut by the trimming blade.

• Always use the strap, over the shoulder, and adjust it so the tool is comfortable to hold and operate.

• Always use both handles to hold the tool steady.

Using the Throttle and Adjusting Engine Speed

The throttle trigger (A) is used to adjust the engine speed, which in turns controls speed of the cutting

attachment. To adjust the throttle, grip the throttle handle (B) so that the throttle safety switch (C) is pushed

in – this allows the throttle to be adjusted – squeeze to increase engine speed. The throttle may feature a

limiting screw (D) that stops it from being opened further or a throttle lock (E) that when pressed in conjuction

with the trigger then released, locks at full throttle until the

trigger is pulled again. Note the following:

• The throttle safety switch must be pushed in, in order to

adjust the throttle. When the throttle safety switch is

released it is not possible to adjust the throttle.

• It is recommended to set the limiting screw (if

equipped) when an effective cutting speed is attained.

Generally, most cutting attachments are most efficient

at full engine speed. Turn the screw right to reduce the

throttle opening limit (slower speed). Turn the screw left

to increase the throttle opening limit (faster speed).

C

D

Straight Handle

Bull-Horn Handle

A

B

A

C

B

E

Video Tutorial:

Starting your Pole Tool

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Understanding and Avoiding "Kick-Back"

and Other Reactionary Forces

Reactionary forces can cause loss of control of the

tool, particularly when using chainsaw attachments,

and can result in serious, even fatal injury – use the tool in ways to

avoid reactive forces at all times.

When the cutting attachment or chainsaw is rotating, many forces are

created, such as the ability to cut. The contact point between the cutting

tool and object to cut is critical, especially when using the chainsaw

attachment. If the cutting tool is not used correctly, cutting forces may

become "reactionary", in that instead of the cutting tool or chain rotating, a

reactionary force is created. Many factors affect the occurrence and force

of reaction, such as cutter speed, contact angle, density of material being

cut, and cutting tool condition.

Kick-Back

"Kick-back" is a reactionary force that causes the tool to rotate against the direction of cut. Kick-back can

also be thought of as the cutters "digging in" to an object and momentarily stop or significantly slow cutter

rotation. For chainsaw attachments, kick-back can occur if the cutters at the tip of the chain bar – the "kick-

back zone", "digging in" to an object and momentarily stop or significantly slow saw chain rotation, which

causes the tool to suddenly and quickly rotate backwards towards the operator. To avoid kick-back:

• Do NOT use the tip of the cutter for cutting or allow it to make contact with any object.

• Always hold the machine firmly with both hands when operating.

• Maintain cutter sharpness.

• Use extreme caution when re-inserting the cutter into an unfinished cut.

• Be alert to branches shifting or other forces that may close over or pinch the cutter.

Pull-In

"Pull-in" is a reactionary force that causes the cutter to pull forward in the direction of cut. Pull-in can also be

thought of as the cutters on the non-cutting side of the cutting attachment being caught, pinched or "digging

in" to an object and momentarily stop or significantly slow cutter rotation, which causes the tool to suddenly

and quickly pull forward in the direction of cut. To avoid pull-in:

• Be aware of objects on the non-cutting side of the cutter and avoid making contact with them.

• Use cutters with greater numbers of teeth or blades.

Push-Back

"Push-back" is a reactionary force that causes the cutter to push backward against the direction of cut. Push-

back can also be thought of as the cutters on the cutting side of the cutting attachment being caught,

pinched or "digging in" to an object and momentarily stop or significantly slow cutter rotation, which causes

the tool to suddenly and quickly push away from the direction of cut. To avoid push-back:

• Cut one piece of timber at a time.

• Avoid twisting the cutter when withdrawing it from material.

NEVER ALLOW ANY OBJECT

TO COME INTO CONTACT

WITH THE KICK-BACK ZONE

Kick-Back

Zone

Kick-Back

Pull-In

Push-Back

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. • Petrol / fuel

/ gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The engine

should be cool enough to touch before performing maintenance activities. • Some maintenance activities

may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or

do not have the necessary tools, experience or knowledge for – take the unit to an authorised service centre

or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc

may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using

incorrect or non-compatible accessories or replacements parts, or general negligence may result in

making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The

maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks

and how often they should be performed. The schedule applies to multiple engines; some engines may not

include some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to

be performed. Maintenance frequency is based on average usage. Be aware of how much the machine is

used and be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended

that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use,

which can be defined as being used under loads of 85% or more and / or in use more than

approximately 300 hours per year (for example, generators and water pumps), more frequent "Major

Service" maintenance is required. In addition to normal service requirements, and as with many smaller

machine and off-road bike engines, the following parts (as applicable for petrol, diesel or 2-stroke engines)

may require replacement during a major service:

• Piston rings.

• Big-end bearings.

• Small-end bearings.

• Gudgeon pin.

• Oil rings.

• Gaskets and seals.

• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.

• Bore for wear requiring reconditioning.

• Full machine for broken, worn or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or

replacements parts, or general negligence may result in making the product warranty void.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Maintenance Schedule – 2-Stroke Engine / Machine

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Perform

Sharpen. Replace as necessary

Chec

k. Add as necessary.

Clean. Replace as necessary

Grease

Major Service

–

Normal Use

24 Months / 200

Hours Use

12

Months /

100 Hours

Use

Add air filter oil /

Replace

Clean. Replace as necessary

6 Months / 5

0

Hours Use

Clean. Replace as necessary

3 Months /

25

Hours Use

After First 5

Hours Use

Every Use

Check

Component / Task

Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel Tank

Idle Speed

Engine Tune

Cylinder Head

Fasteners

Combustion Chamber

Major Service

Cutting Blade / Chain

*

Chain Lubricant

*

Chain Lubricant Strainer

*

Gearbox / Joints

*

* Where applicable.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Maintenance Schedule – 4-Stroke Engine / Machine

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Grease

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Add air filter oil /

Replace

Clean. Replace as necessary

6 Months /

50

Hours Use

Clean. Replace as necessary

3 Months /

25

Hours Use

After First 5

Hours Use

Every Use

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check tension.

Adjust

as necessary

Component / Task

Engine Oil

****

Engine Oil Filter

*

Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

Gearbox / Joints

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Grass Cutting "Bump" Head

A dirty grass cutting "bump" head may not feed out cutting line properly or reliably. • If the grass

cutting head is no longer serviceable, replace it. • If there is cutting line in the head, it may unravel

when the head is disassembled. It is recommended to remove the cutting line. Load the cutting line after

cleaning and reassembling the grass cutting head.

Inspection and Cleaning

Inspect the grass cutting "bump" head for dirtiness and debris etc that may affect the line feeding action.

Clean or replace the grass cutting head as necessary. To clean the grass cutting "bump" head:

• Thoroughly clean the base (A), cover (B), and "bumper" (C) using a brush or similar to remove all traces

of grass, dirt etc from the parts. If desired, wash the parts in warm water and mild detergent, then rinse

and dry.

Removal/Installation

1. Remove the grass cutting head from the drive shaft. The thread on the drive shaft is "left-hand". This

means that you must rotate the grass cutting head to the right (clockwise) to unscrew it. To prevent the

drive shaft from rotating as you loosen the grass cutting head, see here

.

2. Place the grass cutting head on a solid surface, then press in a locking tab (X) on the side of the head

until the upper and lower sections of the head can be separated.

To assemble, insert the spring (D) into the base. Place the bumper on top of the spring, then place the cover

over the assembly – ensure that the holes in the sides of the cover are aligned with the locking tabs in the

base – then press the cover down until it "clips" into place and is securely held by the locking tabs.

Check that the bumper can be moved in and out of the head and can be rotated in either direction – if not,

the parts are not clean or not assembled correctly. To install the grass cutting head, see here

.

A

X

C

B

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Saw Chain and Chain Bar (Chainsaw Attachment)

Ensure that the saw chain is correctly tensioned and the chain drive cover nuts are properly

tightened before use and during cutting. • The saw chain will "stretch" with use, so it is

important to check chain tension before and during use • The saw chain cutters are very sharp – wear

suitable protective gloves when handling the saw chain. • Use replacement parts from, or recommended by,

the manufacturer. • Always replace the saw chain and/or chain bar with replacements of the correct type

(see Specifications). • Turn the chain bar over whenever the saw chain is changed or sharpened to help

prevent uneven wear on the chain bar. • It is recommended to have saw chains sharpened professionally.

Inspection and Cleaning

It is essential for efficient operation and safety that the saw chain and chain bar are properly maintained.

Replace the saw chain if it:

• Shows signs of damage, such as broken or chipped cutters, damaged rivets, corrosion etc.

• Can no longer be properly tensioned due to "stretch".

• Can no longer be sharpened properly.

To clean the saw chain, soak it in a proprietary saw chain cleaning solution, solvent, or mixture of ammonia

and water for approximately 15 minutes to help remove dirt, grease and resin/sap. After soaking, brush the

saw chain thoroughly with a saw chain brush or stiff bristle wire brush to remove any stubborn particles, then

lubricate the chain. Replace the chain bar if it:

• Shows signs of damage, such as bending, cracks, chips or corrosion.

• The top edges of the chain bar groove become worn unevenly.

• The depth of the saw chain groove is no longer deep enough for the saw chain to

seat correctly and run along the top edges of the chain bar groove.

To clean the chain bar, use a proprietary saw chain cleaning solution, solvent, or

mixture of ammonia and water to help remove dirt, grease and resin/sap, particularly

from within the saw chain groove (A) and the lubricant inlet hole (B). Use suitable tools

or objects to help dislodge any stubborn particles from within the saw chain groove.

Removal/Installation

1. Switch the engine OFF and ensure that the chain has stopped rotating.

2. Remove the chain drive cover nut (D), and remove the cover (C). Be careful to

prevent the chain bar falling out.

3. Lift the chain bar (H) so it is clear of the tensioner spigot (E) and chain drive cover stud (F).

4. Carefully extract the saw chain (G) from the chain bar groove and chain drive gear (I), then remove the

saw chain.

5. Remove any sawdust, wood particles, dirt etc from the chain drive cover, tension adjustment mechanism

and threads (J) – it is easy to damage the threads if adjustment is attempted on a dirty mechanism.

To install the saw chain, chain bar and chain drive cover, see here. To tension the saw chain, see here.

H

B

A

D

F

E

D

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Chain Lubricant (Chainsaw Attachment)

Always check the chain lubricant level before using the machine and ensure it is at or close to the

recommended level. • Use a suitable chainsaw lubricant. • Do NOT operate the machine without

adequate chain lubricant – failure to do so will damage the saw chain, chain bar and/or other parts of

the machine, and is not covered under warranty.

To check chain lubricant level:

1. Place the tool on a flat and level surface with the chain lubricant tank cap (A) facing up.

2. View the lubricant level through the tank body.

To add chain lubricant:

1. Remove (rotate left) the chain lubricant tank cap (A).

2. Using a funnel, carefully add chain lubricant to the tank (B) until its level is close to the filler hole.

3. When finished, re-install (rotate right) the chain lubricant tank cap until firm. Wipe off any residual oil from

the tool.

To adjust chain lubricant flow:

1. Rotate the screw (C) on the underside of the chainsaw attachment – rotate right (clockwise) to reduce

lubricant flow; rotate left (anti-clockwise) to increase lubricant flow.

A

B

G

I

J

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Gear Head

To increase the lifespan of the gear head, follow the below guidelines.

1. Do not attempt to cut branches greater than 100mm in diameter.

2. When the branch drops, ensure the bar and chain are not pinched or get jammed.

3. Follow the instructions of the sticker located on the shaft “Chain not to be spinning prior to cutting. Align

chain on target and activate trigger slowly”.

Air Filter

Operating the machine without a functional air filter may cause severe engine damage and will void

any warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel

system problems. Check the condition of the air filter before adjusting engine idle speed, where applicable. •

If the air filter is damaged (torn, broken, disintegrating), replace it.

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance as per the maintenance schedule.

Inspection and Cleaning

Inspect the air filter for dirtiness and debris, damage etc. Clean or replace the filter element as necessary. To

clean air filters:

• For foam filters, wash the filter in warm water and mild detergent, then rinse and allow to dry.

• For paper filters, use compressed air to blow particles from it, if possible. The air should be blown from

the engine side of the filter. Tapping the filter element against a hard surface and brushing the pleats

using a soft brush may also help remove debris from the filter.

• For foam filters, place a few drops of clean engine oil on the filter then squeeze it a few times to spread

the oil through the filter material and remove any excess oil.

• It is recommended to clean the air filter cover and air intake assembly of any dirt, cuttings etc.

Removal/Installation – 2-Stroke Engine

To remove the air filter:

1. Place the choke control (B) in the "RUN" position – this prevents the choke mechanism from stopping

the filter cover (A) from being removed.

2. Push up the tab (C) from the underside of the cover until it unclips (it may be necessary to use a

screwdriver to help "pop" the cover out). Then, rotate the bottom of the air filter cover upward until it can

be released from the engine.

3. Carefully remove the filter element (D).

A

B

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

To install the air filter:

1. Insert the air filter element, and ensure it is correctly positioned in relation to the locating tabs (E) around

the air intake.

2. Ensure that the choke control on the air filter cover is in the "RUN" position, then insert the top of the

cover to the slots at the top of the air intake, then rotate the bottom of the cover down until it "clicks" into

position.

Removal/Installation – 4-Stroke Engine

To remove the air filter:

1. Squeeze in and hold the tabs (B) at the top of the air filter cover (A) then, rotate the top of the air filter

cover downward until it can be released from the engine.

2. Carefully remove the filter element (D).

To install the air filter:

1. Insert the air filter element, and ensure it is correctly positioned in relation to the air intake assembly as it

will seat properly in one position only.

2. Locate the bottom of the cover in the hooks at the bottom of the air intake, then rotate the top of the

cover up until it "clicks" into position.

D

B

A

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. •

Always use spark plugs of the correct "heat range" - see Specifications. • Depending on model, the

spark plug may be accessible directly, or may be located underneath the air filter cover.

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one

end and an electrical terminal on the other. The spark plug requires regular maintenance.

Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire

brush.

2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug "gap":

1. Use "feeler" or "thickness" gauges (X) to measure the existing gap. The gauge

must drag a little when being slid between the electrodes (2) – this means the

measurement is fairly accurate.

2. Adjust the gap to within specification (see Specifications

). If the gap needs to be

reduced, gently tap the electrode as required. If the gap needs to be increased,

use pliers to gently pull the electrode as required.

3. M

easure the gap again and ensure it is within the specified range before re-installing the spark plug.

Removal/Installation – 2-Stroke Engine

1. Pull the electrical lead / rubber boot (A) from the terminal on top of the spark plug (C).

2. Clean the area around the spark plug so that no dirt or other material can enter the engine when the

spark plug is removed.

3. Use the spark plug tool (C) to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until "finger tight".

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly and the

rubber boot is seated firmly against the machine body.

A

B

X

C

A

B

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Removal/Installation – 4-Stroke Engine

1. Loosen the screw (B) securing the top engine cover (A), then remove the cover to access the engine

and spark plug.

2. Pull the electrical lead / rubber boot (C) from the terminal on top of the spark plug (D).

3. Clean the area around the spark plug so that no dirt or other material can enter the engine when the

spark plug is removed.

4. Use the spark plug tool (E) to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until "finger tight".

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly and the

rubber boot is seated firmly against the engine.

4. Re-install the top engine cover, then tighten the screw to secure it.

A

B

C

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Fuel Strainer

A dirty or blocked fuel strainer will restrict fuel flow, which can reduce performance and be mistaken

as fuel system problems. Check the condition of the fuel strainer before adjusting engine idle speed,

where applicable. • If the fuel strainer is no longer serviceable, replace it.

The fuel strainer (if equipped) is used to prevent dirt and other particles from possibly entering the fuel

system and engine and causing internal damage to it. The fuel strainer requires regular maintenance as per

the maintenance schedule.

Inspection and Cleaning

Inspect the strainer for dirtiness and debris etc. Clean or replace the strainer as necessary. To clean

strainers:

• Wash the strainer in clean solvent.

• If possible, use compressed air to assist in removing any blockages. Blow air into the strainer from where

it connects to the tube.

Removal/Installation

To remove the strainer:

1. Place the machine in a horizontal position on a flat and level surface with the fuel filler cap facing up.

2. Remove the fuel tank cap (rotate left) and empty the fuel tank (A).

3. Use a hooked object to capture the fuel intake tube (B) inside the fuel tank and gently pull it from the

tank.

4. The strainer (C) is installed on the end of the tube – to remove it, twist and pull it from the end of the tube

To install the strainer:

1. Firmly push the strainer onto the fuel intake tube.

2. Place the tube back inside the fuel tank – it should rest along the bottom of the tank. Then, re-install the

tank cap.

C

A

B

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Engine Oil – 4 Stroke Engine

Engines are NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil

level when the machine is in an upright position on a flat and level surface. • Do not use used or

contaminated engine oils. • Use only engine oils of the correct type (see Specifications). • Perform the first oil

change within the first 10 hours of use. Subsequently, change the oil every 20 hours of use. • It is

recommended that the engine be warm, but not hot, when performing oil changes. When the oil is warm it

drains faster. • Using dirty or incorrect engine oil may cause engine damage and void any warranty • Always

use suitable tools. • Always dispose of used oil in an environmentally responsible manner and according to

regulations. • Some engines feature oil level detection, which will prevent the engine being started or

automatically stop a running engine if there is insufficient oil. • Always check the oil level and ensure is at

or near the "MAX" indicator before using the machine.

4-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance as per the maintenance schedule.

To check engine oil level:

1. Place the machine on a flat and level surface.

2. Clean the machine around the oil filler cap (A) so that no dirt or other material enters the engine when

the cap is removed.

3. Remove the oil filler cap (rotate left) until fully unscrewed. For machines without a dipstick, the oil level is

determined by how close the oil is to the edge of the filler hole (B). For machines equipped with an oil

level dipstick:

a. Remove the dipstick (C) and wipe clean with a piece of cloth or paper.

b. Insert the dipstick into the oil filler but do not screw it in.

c. Remove and inspect the dipstick – the oil level is determined by where oil can be seen on it.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

4. Ensure that the oil level is at or just under the "maximum". If the oil level is low, add additional oil until the

correct level is reached. If the oil level is too high, drain some oil until the correct level is reached.

5. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

A

B

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

To change the engine oil:

1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch

drained oil.

2. Clean the machine around the oil filler cap (A) and oil filler cap/dipstick so that no dirt or other material

enters the engine when the plug or cap is removed.

3. Unscrew (rotate left) and remove the oil filler cap/dipstick.

4. Tilt the machine and drain all oil from the engine. Once drained, allow the machine to sit level again.

5. Clean away any residual oil from the engine.

6. Using a funnel, carefully add oil to the engine until the "maximum" level is reached. Double-check the oil

level (described above).

7. When finished, re-install (rotate right) the oil filler cap/dipstick until firm. Wipe off any residual oil from the

machine.

Greasing Gearboxes / Joints

Cutting tool attachments or accessories that REQUIRE greasing will have grease nipples. The example

below shows a hedge trimmer attachment with 2 grease nipples. It is recommended to grease applicable

components approximately every 6 months, possibly more frequently if used often. Users will require a

grease gun and grease - normal automotive wheel bearing grease is suitable. Attach the grease gun hose to

the nipple and inject one squeeze of grease.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Cleaning Guidelines

Do not use solvents, chemicals or abrasives when cleaning the machine, as some surfaces

may be damaged. • Wear gloves or use suitable tools to assist in cleaning – do not use bare

hands. • Clean the machine after every use to ensure best performance and longest service life.

• Use a slightly damp cloth and mild detergent for cleaning.

• Use a brush for parts that are difficult to reach.

• Ensure air vents and surfaces designed for heat dissipation are clean and free of obstructions or debris.

• For chainsaw attachments, remove the drive chain cover and clean away any sawdust, wood particles,

dirt etc from the tension adjustment mechanism, chain bar and saw chain.

• It is recommended to lightly oil cutting blades, saw chain etc after cleaning to help prevent corrosion.

• Ensure all guards and safety devices are clean and functioning correctly.

• Ensure that spring-loaded parts, such as the throttle, return to the normal position when released.

• Ensure that all control cables, levers, switches etc are clean and operate normally and smoothly.

Cleaning and Lubricating Cutters

Cutters and blades must be cleaned and lubricated after every use. Failure to do so will reduce

cutting performance and may also damage the machine. Faults or failure resulting from not

maintaining the cutting blades correctly is not covered under warranty.

• Use a non-metallic brush to remove debris from all surfaces of the cutting blades. Wipe away any sap

etc from all blade surfaces and ensure the blades are dry.

• Spray the cutting blades with spray lubricant or wipe down with light machine oil.

• Keep the blades protected using the blade sheath.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

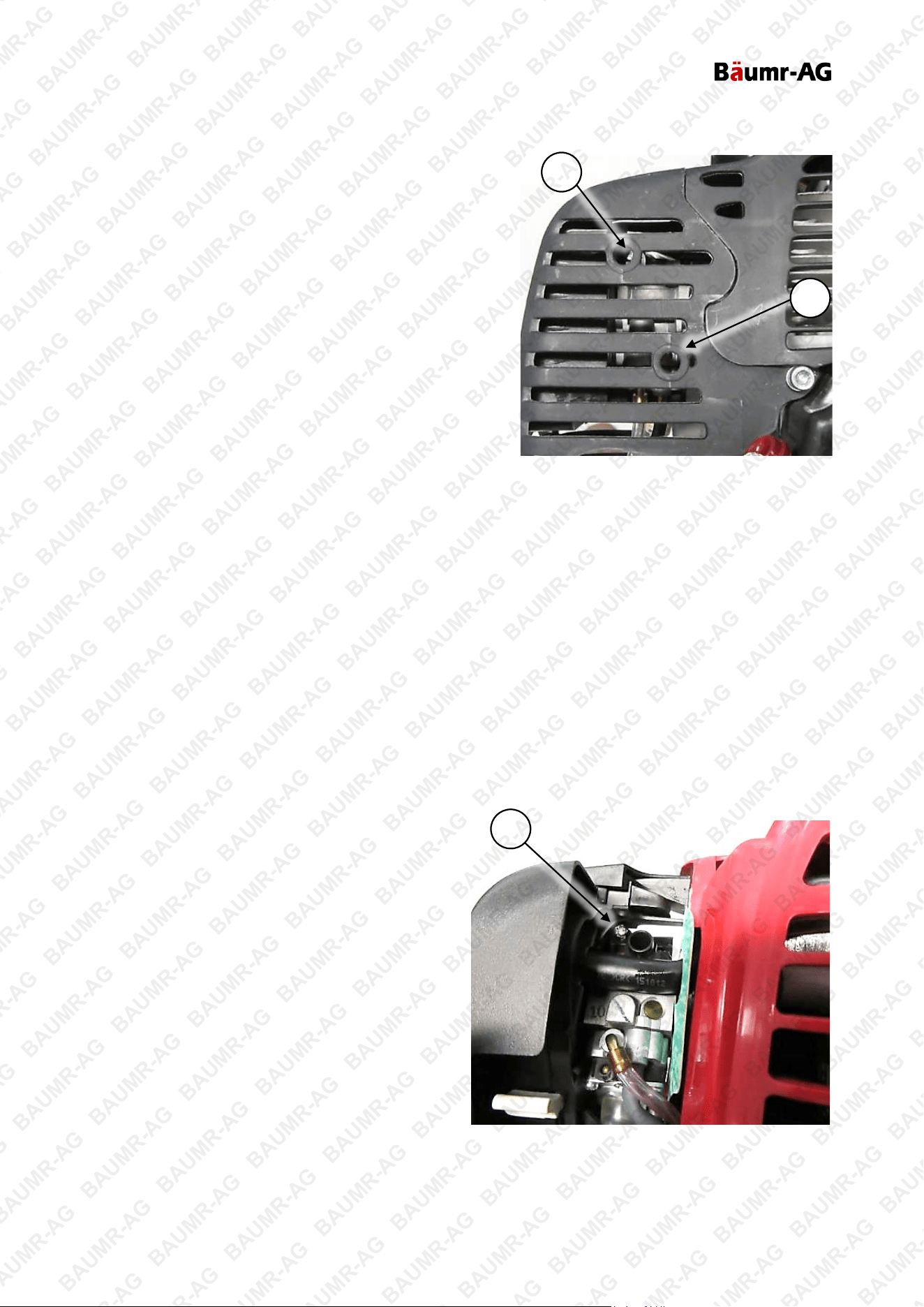

Engine Tuning Guidelines
