Extension (sold separately)
VIDEO
GND (Black)
+12V (Red)
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
PCAM-FDL
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.5 LUX
u IP67 Rated
u 170 Degree Viewing Angle
u Selectable Image (mirrored, non-mirrored)
Box Contents
u Camera
u Manual
u Mounting Hardware
Wiring Diagram & Pin Out
Specifications
Dimensions
PCAM-FDL-P I PCAM-FDL-N
Sensor 1/4” CMOS
LEDS 0
Illumination 0.5 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal Image NO
Water/Debris-Proof IP67
Audio NO
Power Supply 9-16V DC
Current <150mA
Working Temperature -30ºC - +70ºC
Dimensions (mm) D (62) x W (230) x H (93)
System PAL NTSC
TV Lines N/A 420
Resolution (HxV) N/A 648 x 488

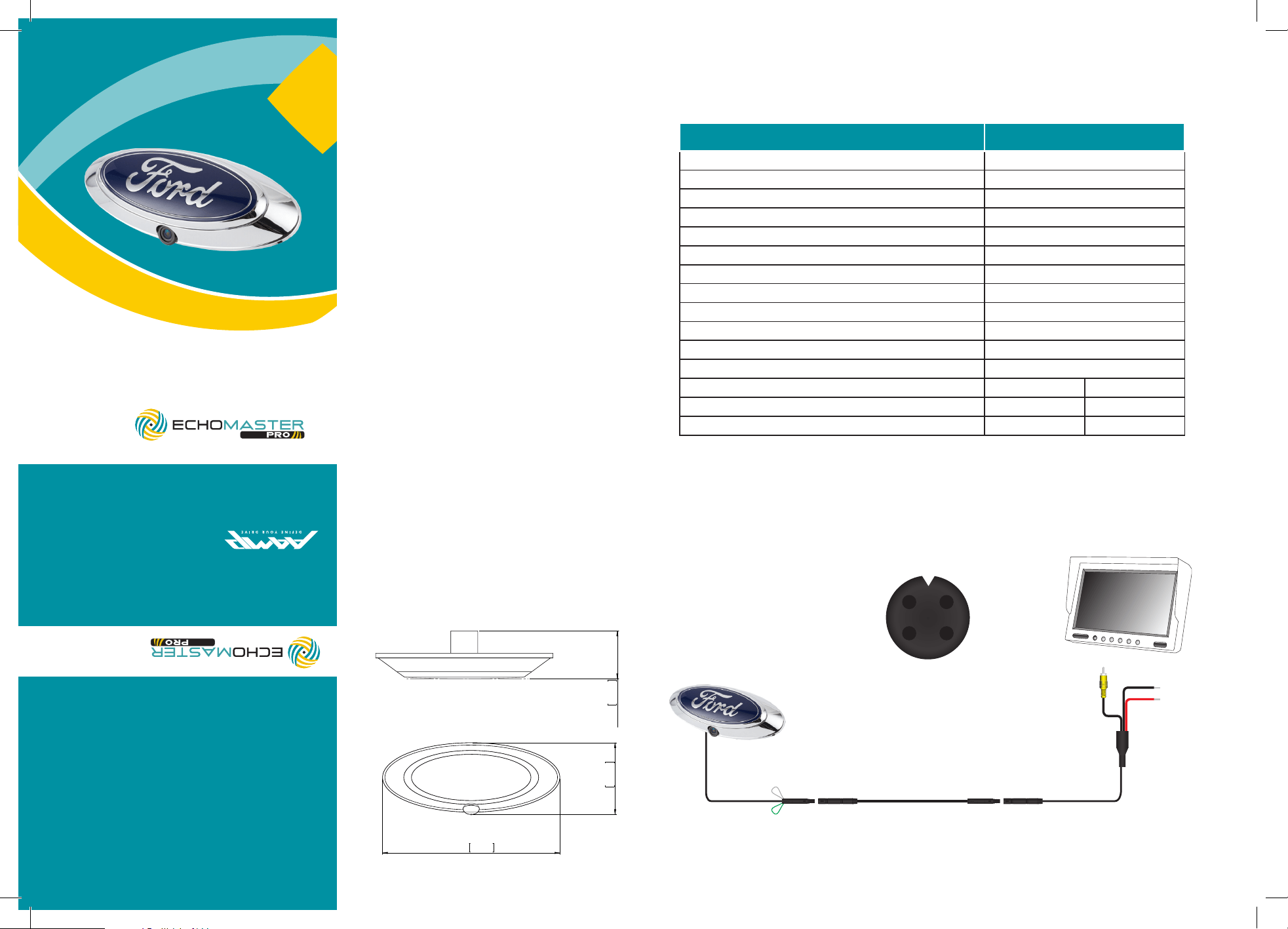

User Manual
Ford Emblem Camera for 2008-14
F150 and 2008-16 Super Duty
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers
u PCAM-FDL-P
u PCAM-FDL-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
230mm
9.06in
93mm
3.66in
62mm
2.44in
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected] (US)
email - [email protected] (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
