CAM-TY11
Reverse Camera T-Harness for Select
Toyota, Scion, Subaru Vehicles
Pacic Accessory Corporation
®
| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]
©2014 Pacic Accessory Corporation
www.pac-audio.com
Rev. 1.0
Pacific Accessory Corporation
Page 1
Introduction & Features
Installation
Applications

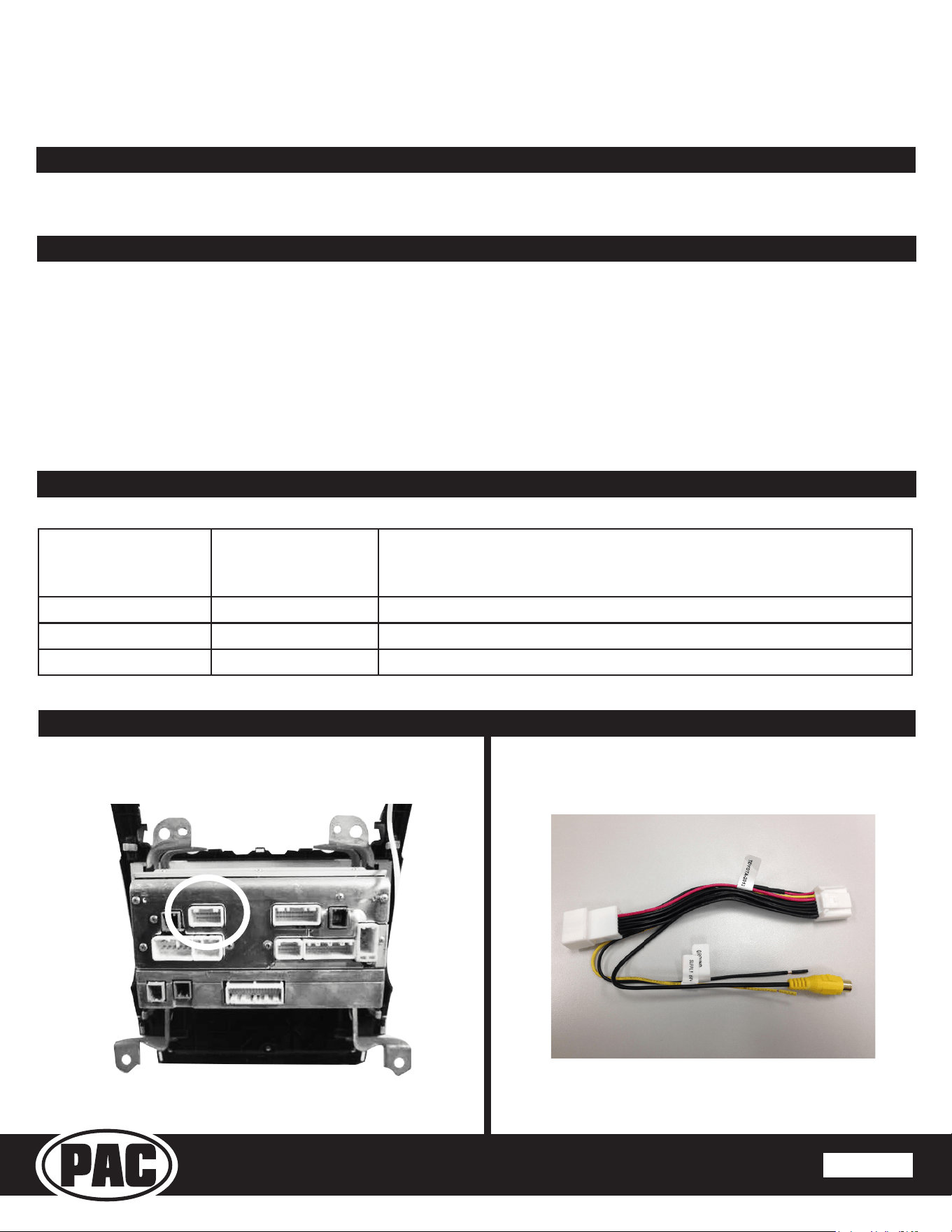

Illustration / Schematic
The CAM-TY11 is a reverse camera T-harness that gives the ability to add a reverse camera input for compatible TOYOTA,
SCION, and SUBARU 6.1” touchscreen radios. Simple plug and play installation.
1. Dis-assemble dash and remove the radio.
2. Unplug 16 pin plug shown in pictures below. Install the T-harness as shown.
3. The harness will provide 6 volt power output, if you are using a camera that is NOT capable of being powered by 6 volts, you
must nd your own source of 12 volt ACC power.
4. Camera must have power before the vehicle is placed into reverse, so using the reverse lamp power source is not an option.
5. No reverse trigger is needed, as long as the camera has power when the vehicle is placed into reverse, the radio will automatically
switch to the reverse camera image.
Radio Connector T-Harness
2012-2014 TOYOTA
4-Runner, Avalon, Camry, Highlander, Prius 3,
Prius C, Prius V, Rav-4,Venza
2013-2014 SCION FRS
2013 SCION XB
2013-2014 SUBARU BRZ
