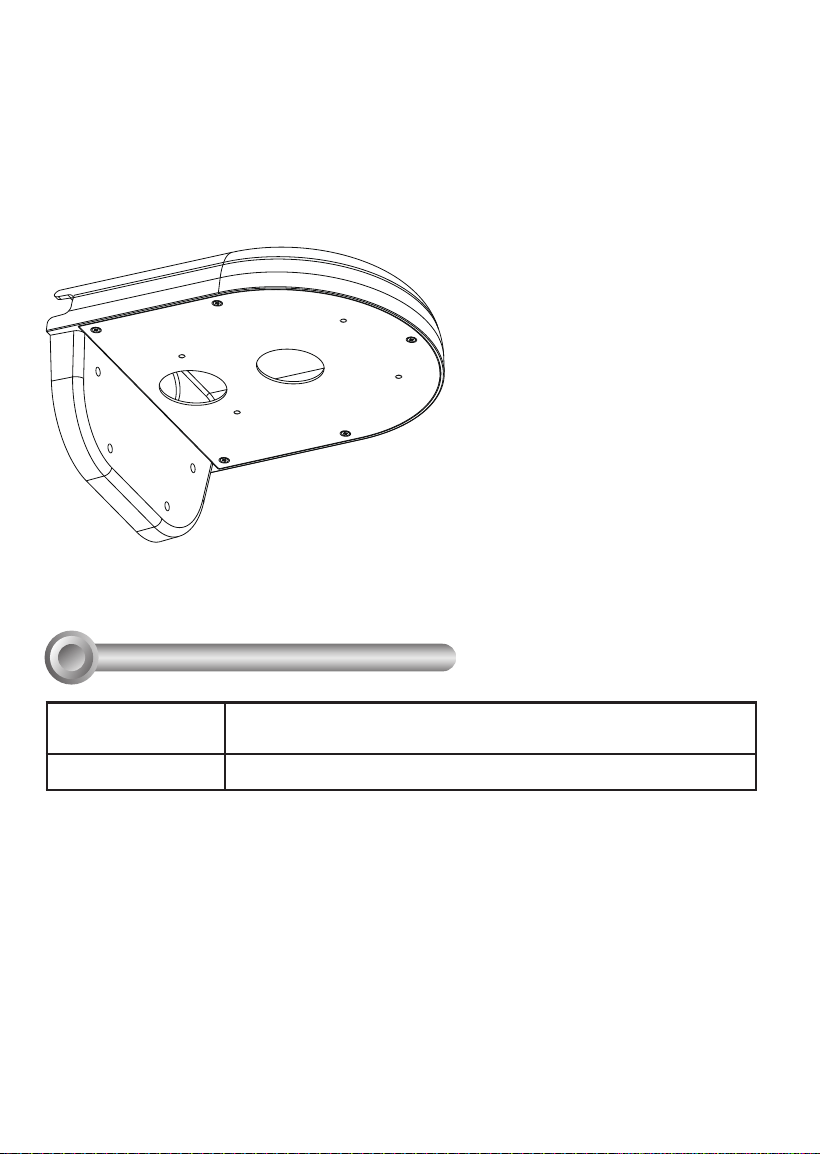

Compatible VIVOTEK Cameras
I
AM-21O Wall-mount Bracket
Fixed Dome series
FD9167-HT-v2, FD9367-EHTV-v2, FD9365-EHTV-v2, FD9391-
EHTV-v2
Fisheye series
FE9380-HV, FE9382-EHV-v2, FE9391-EHV-v2
You may also refer to VIVOTEK's website for the list of supported models. Support for other models can
be available through time.
Revision History:
* Rev. 1.0: Initial Release
3
English
Installation
II

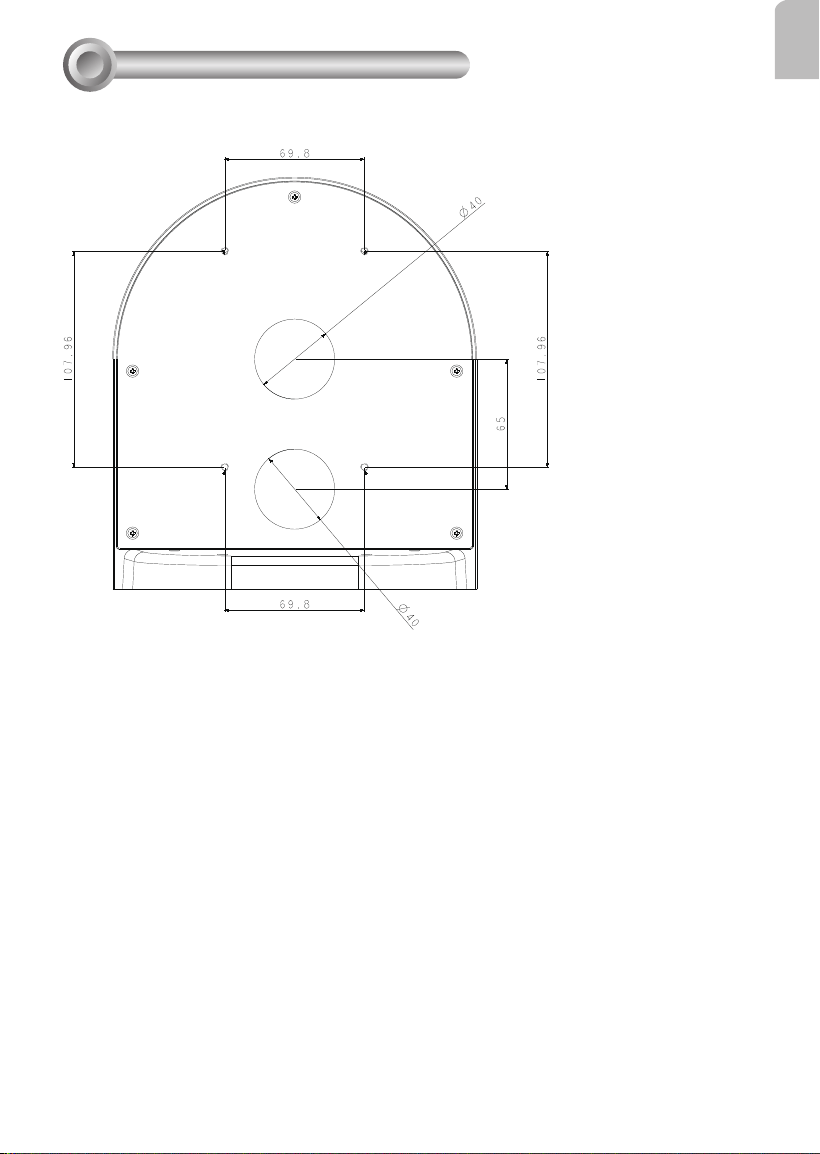

Mounting Hole Denitions
4

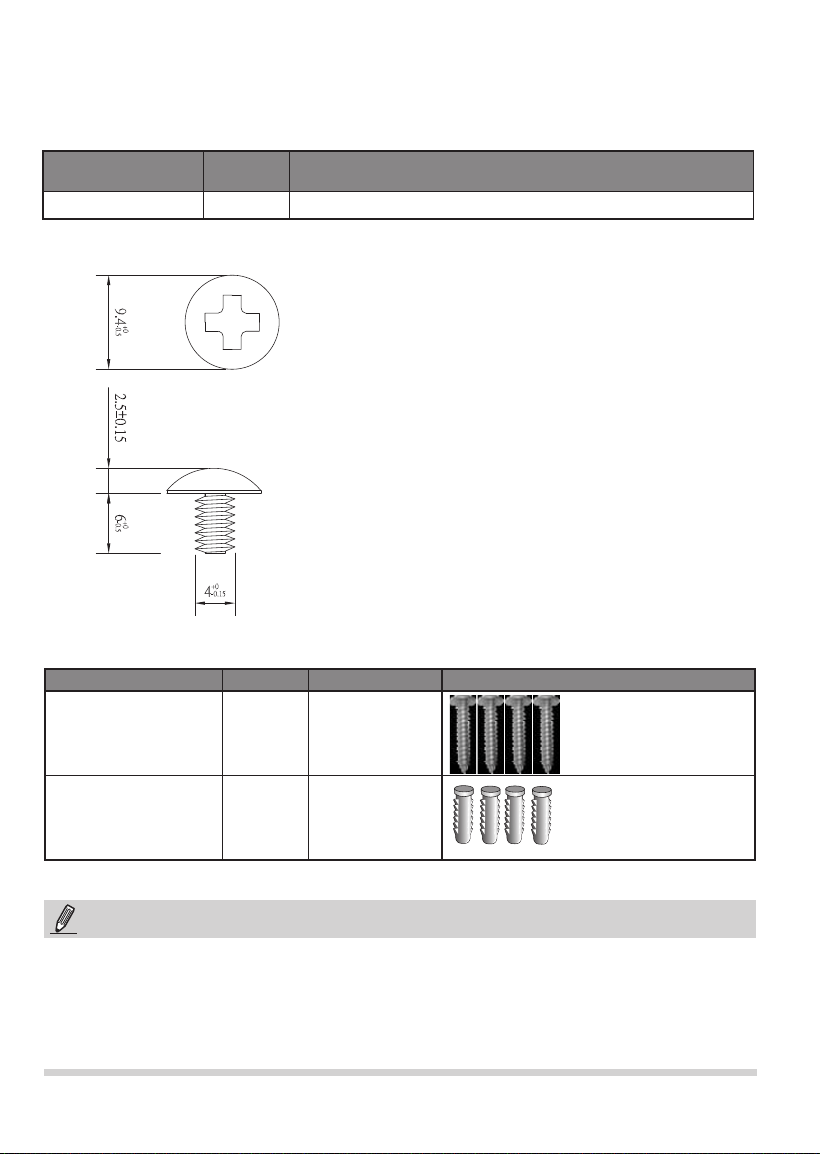

Refer to the table below for the description of the included screws:
Screw Description No. of
screws
Material char.
T4x6 4 Truss head
NOTE:
1. It is presumed that this wall-mount bracket is installed with a hole drilled on the wall for
routing power lines, DI/DO, and Ethernet cables.
2. Route cables before you secure the wall-mount bracket to a wall.
3. For details on the cable connections with each camera, please refer to their Quick
Installation Guide.
For cabling and conguration details with each network camera, please refer to their
documentation.
Below are the screws and anchors for installing the bracket to wall:
Screw Description Quantity Applies to
M4X40mm Phillips pan
head
4 Securing the
bracket to wall
Plastic anchors, 3/16" in
diameter, 1" in length
4 Securing the
bracket to wall
T4 x 6
5
English
Below is a general, sample procedure using a wall mount bracket:

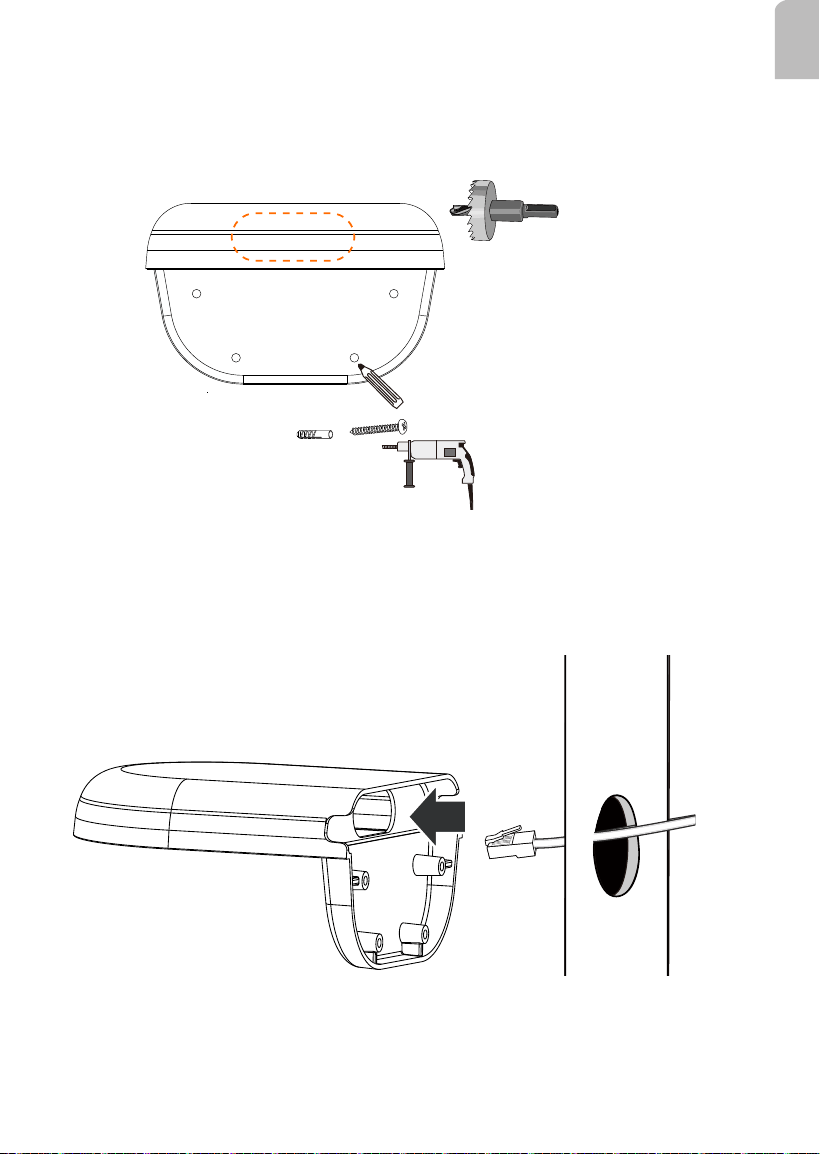

1. Locate the position where you want to install the wall mount bracket and camera. Drill
holes on the wall for securing the bracket and for routing the cables.
Wall Mount Installation
2. Pull cables through the wall, and through the top openings on the brackets.
3. Secure the bracket by hammering anchors into the wall and then fasten screws through
the four mounting holes on the bracket.
6

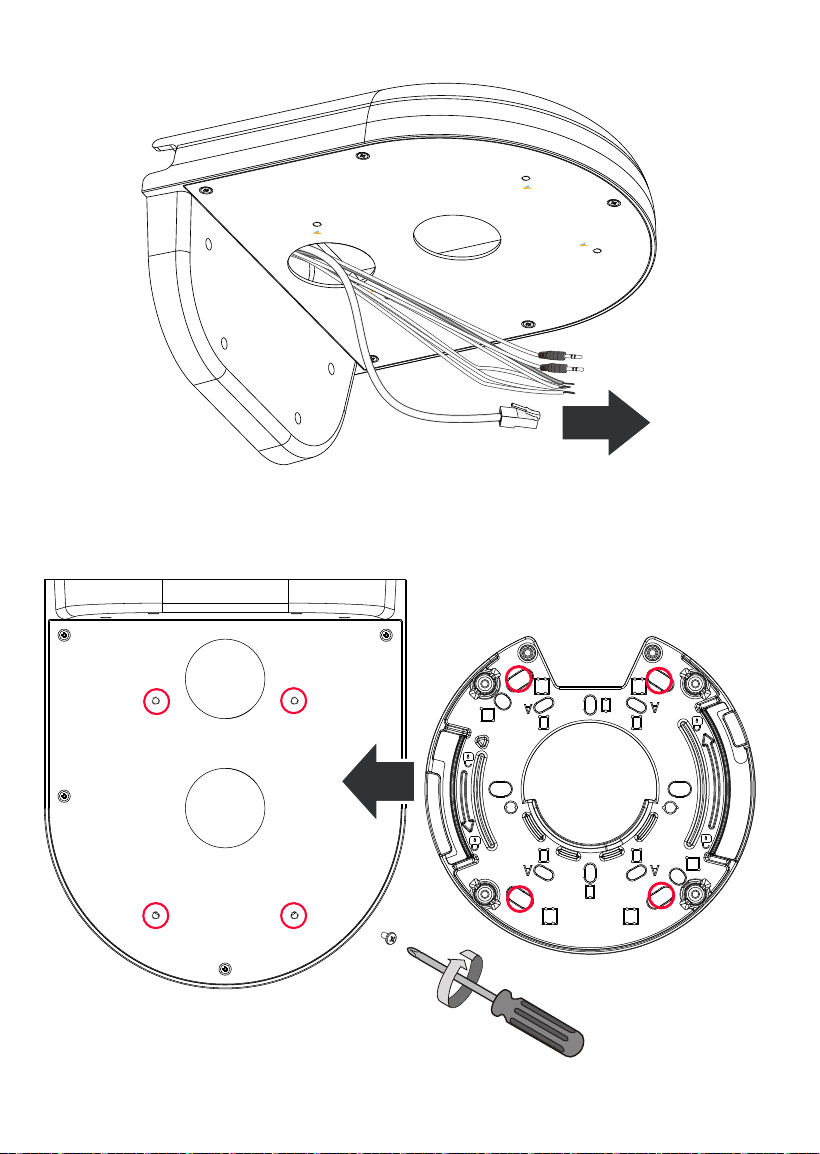

5. Align the camera's mounting holes (those on the mounting bracket) with 4 of the
A
holes.
4. Connect cables to the camera following the instructions on the Quick Installation Guide.
7
English

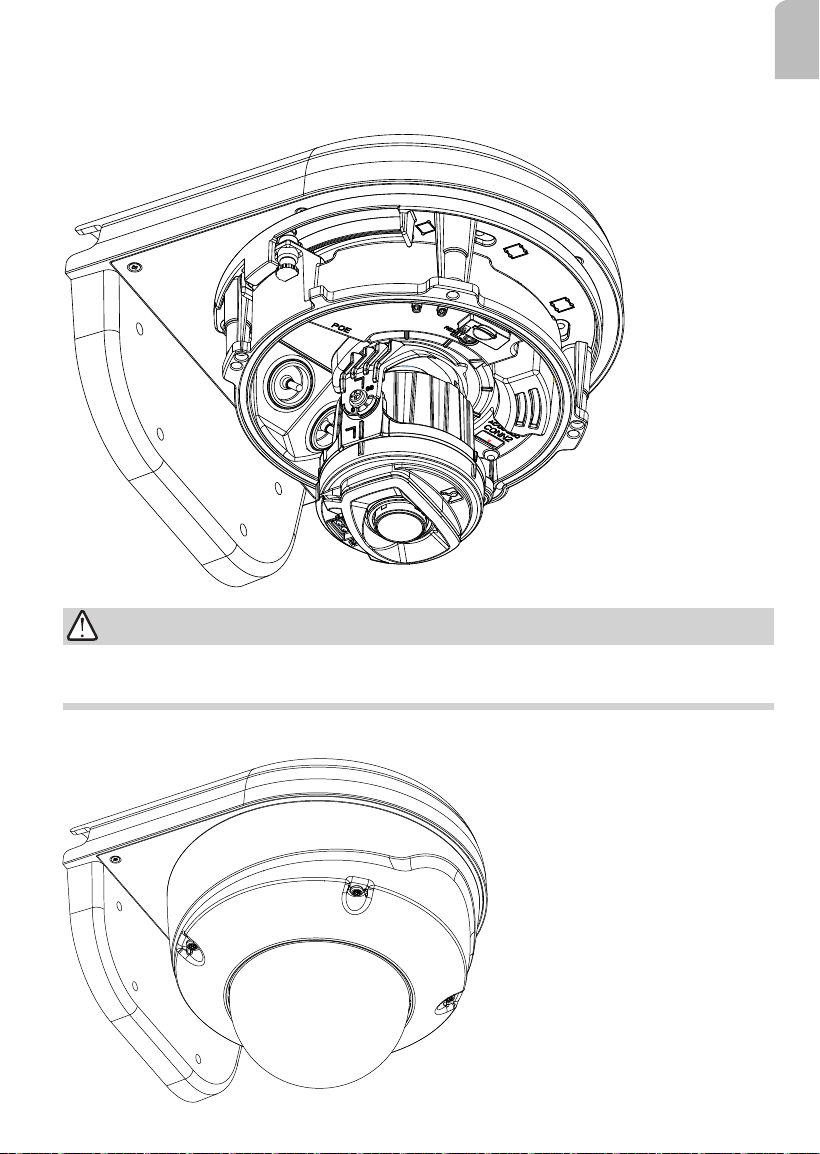

6. Orient the shooting direction and angles, and then secure the camera to the wall mount
bracket.
IMPORTANT:
The screws and mounting surface must be able to support a weight of 4 kg.
7. Install the dome cover.
8
This page is intentionally left blank.
