1/2”SQ DRIVE AIR IMPACT WRENCH KIT
WITH SOCKETS
MODEL NO: SA2/TS.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL
9 Follow all workshop safety rules, regulations, and conditions when using wrench.
WARNING! Disconnect from air supply before changing accessories or servicing.
9 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Non-authorised parts may be
dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
9 Keep air hose away from heat, oil and sharp edges.
9 Check air hose for wear before each use and ensure that all connections are secure.
9 Only use impact sockets which are specically designed for use with an impact wrench.
9 Wear approved safety eye/face shield, ear defenders, and hand protection.
WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we
recommend you wear suitable respiratory protection.
9 Maintain correct balance and footing. Ensure the oor is not slippery and wear non-slip shoes.
9 Keep children and non essential persons away from the working area.
8 DO NOT use the wrench for a task it is not designed to perform.
WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
8 DO NOT use wrench unless you have been instructed in its use by a qualied person.
8 DO NOT carry the wrench by the air hose, or yank the hose from the air supply. DO NOT operate wrench if you are tired, under the
inuence of alcohol, drugs or intoxicating medication
8 DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
8 DO NOT direct air from the air hose at yourself or others.
9 When not in use disconnect from air supply and store in a safe, dry, childproof location.
1.2. HAND ARM VIBRATION
WARNING! – RISK OF HAND ARM VIBRATION INJURY
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Please note that the application of the tool to a sole specialist task may produce a dierent average vibration emission. We recommend
that a specic evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for
each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sucient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm
Vibration Syndrome.
1.3. HEALTH SURVEILLANCE
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can
be modied accordingly.
1.4. PERSONAL PROTECTIVE EQUIPMENT
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
Uncontrolled use of this tool. We recommend a sucient supply of clothing (including gloves) to enable the operator to remain warm
and dry and maintain good blood circulation in ngers etc. Please note that the most eective protection is prevention, please refer
to the correct use and maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be
found on the HSE website www.hse.gov.uk - Hand-Arm Vibration at Work.
Refer to
instructions
Wear eye
protection
Wear
protective
gloves
Wear ear
protection
Wear safety
footwear
Wear
protective
clothing
Wear
respiratory
protection
Original Language Version
© Jack Sealey Limited
SA2/TS.V2 Issue 2 (H,3,7,F) 21/08/23
Original Language Version
© Jack Sealey Limited
2. INTRODUCTION
Comprises 1/2”Sq drive rocking-dog air impact wrench, 125mm extension bar and ten 1/2”Sq drive
WallDrive® Chrome Vanadium impact sockets. Kit also includes in-line air oiler and air tool oil pot.
Supplied in storage case.
3. SPECIFICATION
Model No: ..................................................... SA2/TS.V2
Air Consumption: .................................................... 5cfm
Breakaway Torque: ................................237lb.ft(322Nm)
Drive: .................................................................. 1/2” Sq
Free Speed: ...................................................... 7000rpm
Inlet Size: ...........................................................1/4”BSP
Maximum Torque: ...................................230lb.ft(312Nm)
Noise Power/Pressure: ...............................105/94dB(A)
Operating Pressure: ............................................... 90psi
Vibration/Uncertainty: ..................................5.17/1.5m/s
2
4. CONTENTS
Wrench Model no. SA2-1/2” Sq Drive, Sockets: 9, 10, 11, 13, 14, 17, 19, 22, 24, 27mm. 125mm
Extension Bar.
5. PREPARATION
5.1. AIR SUPPLY
5.1.1. Ensure wrench air valve (or trigger) is in the “o” position before connecting to the air supply.
5.1.2. You will require an air pressure of 90psi, and an air ow according to specication.
WARNING! Ensure the air supply is clean and does not exceed 90 psi while operating the wrench. Too high an air pressure and
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
5.1.3. Drain the air tank daily. Water in the air line will damage the wrench.

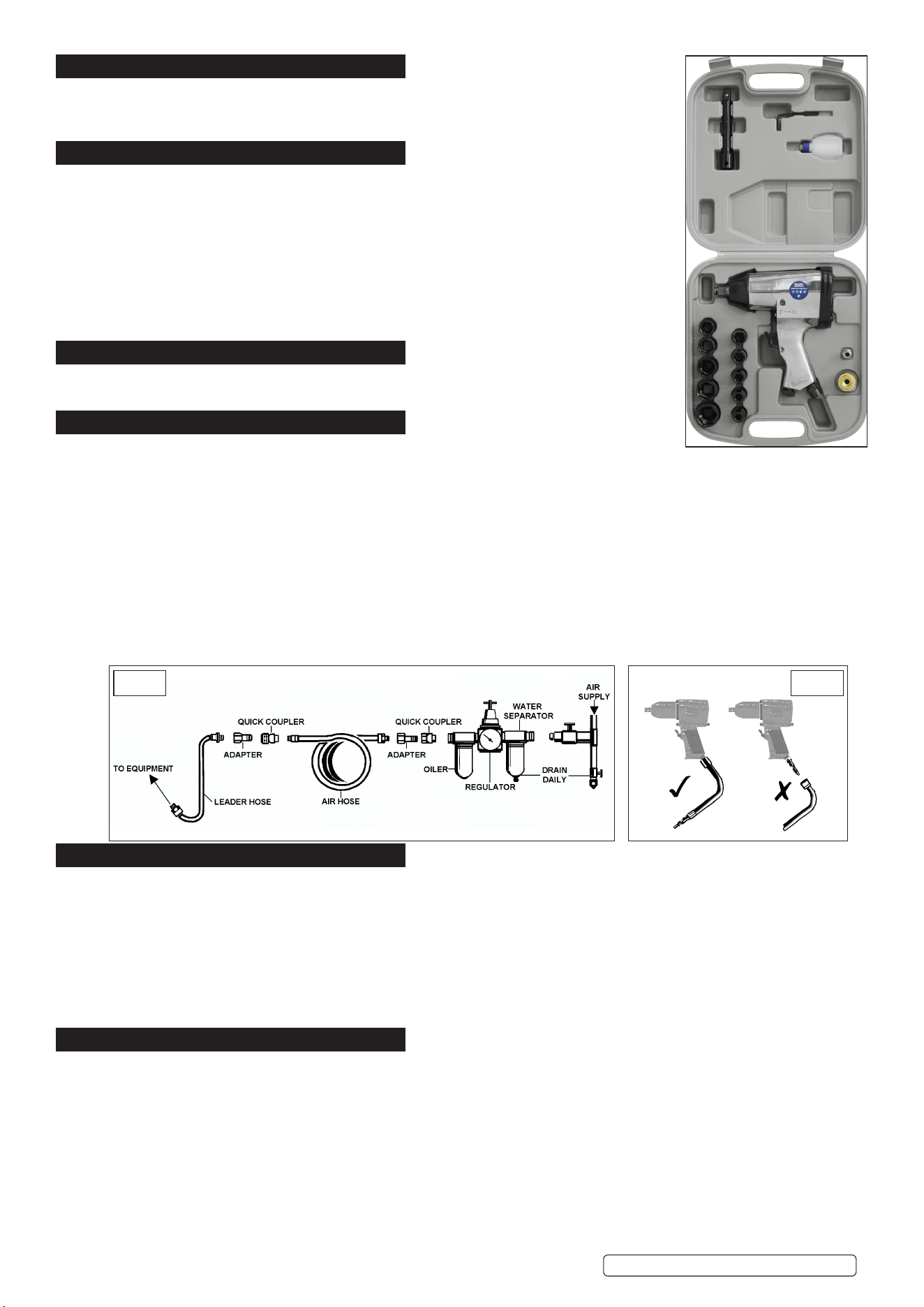

5.1.4. Clean air inlet lter weekly. Recommended hook-up procedure is shown in g1.
5.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and ttings must have the same inside dimensions.
5.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
5.2. COUPLINGS
5.2.1. Vibration may cause failure if a quick change coupling is connected directly to the wrench. To overcome this, connect a leader hose to
the wrench. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See g1 & g2.
FIG.1 FIG.2
6. OPERATION
WARNING! Before using the impact wrench, ensure that you have read and understood the safety instructions.
Only use impact sockets that are specically designed for use with an impact wrench.
6.1. Connect the wrench to the air hose.
6.2. Place the socket over the subject nut.
6.3. Depress the trigger to operate the wrench.
6.4. To change direction push the button at the top of the handle. Direction of “R” for reverse and “F” for forward.
6.5. The ow of air may be regulated by adjusting ow valve at the base of the handle.
8 DO NOT use any additional force upon the wrench in order to remove a nut.
8 DO NOT allow wrench to free run for an extended period of time as this will shorten its life.
7. MAINTENANCE
WARNING! Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair
damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
7.1. If the air supply does not have an oiler, lubricate the air wrench daily with a few drops of Sealey air tool oil dripped into the air inlet.
7.2. Clean the wrench after use. DO NOT use worn, or damaged sockets.
7.3. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose connectors. To remedy check the
air supply and follow instructions in section 3.
b) Grit or gum deposits in the wrench may also reduce performance. If your model has an air strainer (located in the area of the air
inlet), remove the strainer and clean it. Flush the wrench out with gum solvent oil or an equal mixture of SAE No 10 oil and paran.
Allow to dry before use.
7.4. For a full service contact your local Sealey service agent.
7.5. When not in use, disconnect from air supply, clean wrench and store in a safe, dry, childproof location.
SA2/TS.V2 Issue 2 (H,3,7,F) 21/08/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
