1/2”SQ DRIVE AIR IMPACT WRENCH - TWIN
HAMMER
MODEL NO: SA602.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
9 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
9 Only use impact sockets which are specically designed for use with an impact wrench.
9 Wear approved safety eye/face shield, ear defenders, and hand protection.
WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we
recommend you wear suitable respiratory protection
Maintain correct balance and footing. Ensure the oor is not slippery and wear non-slip shoes.
When not in use disconnect from air supply and store in a safe, dry, childproof location.
Keep children and non essential persons away from the working area.
8 DO NOT use the wrench for a task it is not designed to perform.
WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
8 DO NOT use wrench unless you have been instructed in its use by a qualied person.
8 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
8 DO NOT operate wrench if you are tired or under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT carry wrench with your hand on the power trigger, in order to avoid unintentional starting.
8 DO NOT direct air from the air hose at yourself or others.
8 DO NOT use worn or damaged sockets.
2. INTRODUCTION
Powerful 1/2”Sq drive impact wrench with twin hammer
mechanism for increased torque. Air motor features
quality bearings, steel end plates and carefully nished
components to ensure smooth running and maximum
power. Combination forward/reverse and speed selector.
3. SPECIFICATION
Model No: .......................................................SA602.V3
Air Consumption: .................................................. 4.2cfm
Breakaway Torque:.................................500lb.ft(680Nm)
Drive: ................................................................... 1/2”Sq
Fastening Torque: ..................................480lb.ft(653Nm)
Free Speed: ......................................................7500rpm
Inlet Size: ...........................................................1/4”BSP
Noise Power/Pressure:................................103/92dB(A)
Operating Pressure: ............................................... 90psi
Vibration/Uncertainty: ..................................5.47/1.5m/s²
4. AIR SUPPLY
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and/or unclean
air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1. AIR SUPPLY
4.1.1. Ensure the wrench trigger is not depressed when connecting to the air supply.
4.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
4.1.3. Drain your compressor air tank of water daily. Water in the air line will damage the wrench.

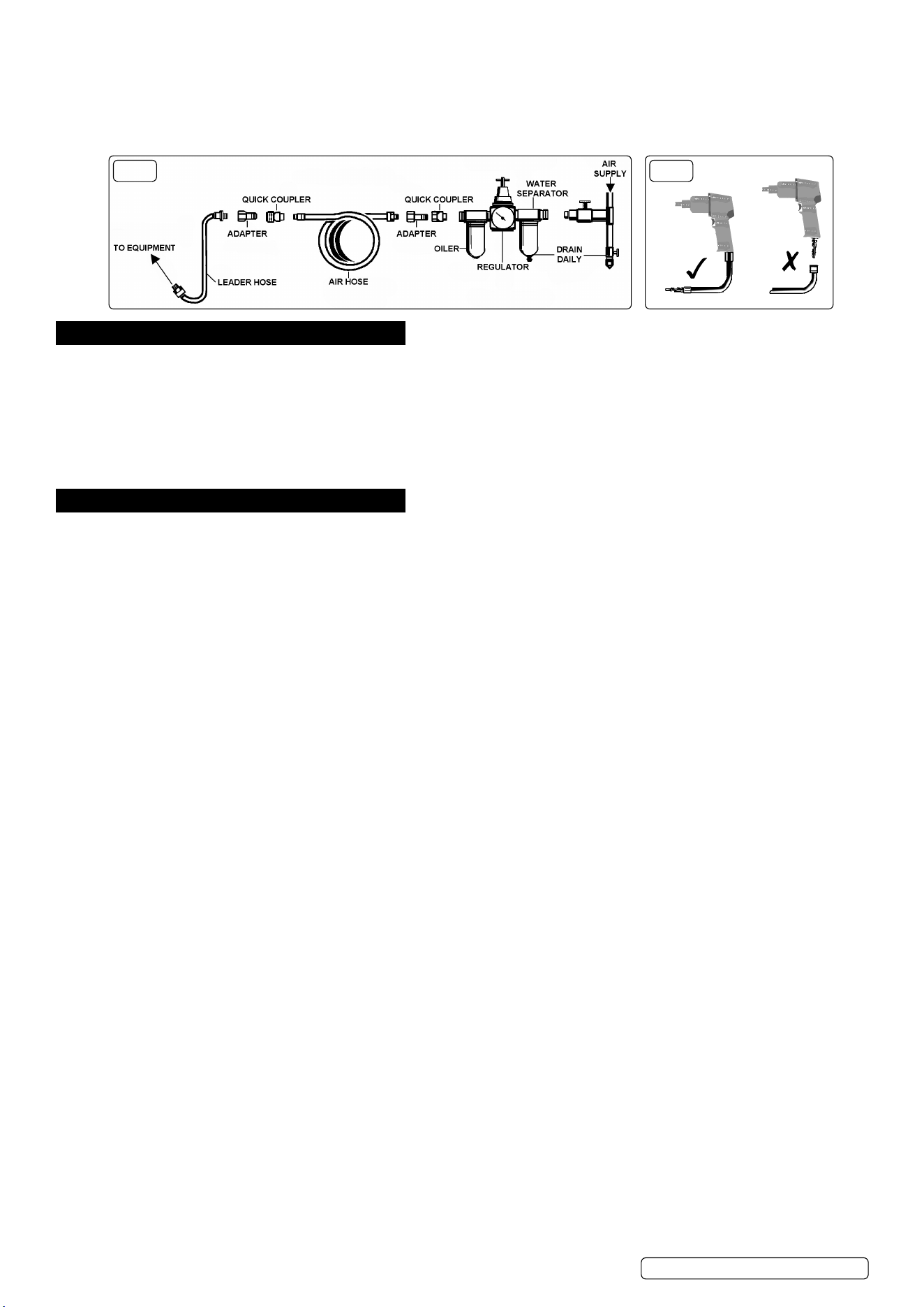

4.1.4. Clean the compressor air inlet filter weekly. Recommended hook-up procedure is shown in (fig.2); see also section 4.2.
4.1.5. Line pressure should be increased to compensate for unusually long recoil air hoses (over 8 metres). The minimum supply pipework
Refer to
instruction
manual
SA602.V3 Issue 5 (H,3,F) 11/08/23
Original Language Version
© Jack Sealey Limited
Wear eye
protection
Wear ear
protection
Wear a mask Wear protective
gloves
should be 1/2” I.D.
NOTE: The impact wrench requires a 1/4” BSP fitting.
4.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
4.2. COUPLINGS
4.2.1. Vibration may cause failure if a quick change coupling is connected directly to the wrench. To overcome this, connect a leader hose to
the wrench. A quick change coupling may then be used to connect the leader hose to the air line recoil hose (g.2 & 3).
g.2g.1
5. OPERATION
WARNING! Ensure you read, understand and apply safety instructions before use.
NOTE: Only use impact sockets which are specically designed for use with a impact wrench.
5.1. Connect the wrench to the air hose as in section 4.
5.2. Place the socket over the subject nut and depress the trigger to operate the wrench.
5.3. To change direction push the button at the rear of the head assembly.
5.4. The ow of air may be regulated by turning the same button.
8 DO NOT use any additional force upon the wrench in order to remove a nut.
8 DO NOT allow wrench to free run for an extended period as this will shorten its life.
6. MAINTENANCE
WARNING! Disconnect the wrench from the air supply before changing accessories, servicing or performing maintenance. Replace or
repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
6.1. If the air system does not have an oiler, lubricate the air wrench daily with a few drops of Sealey air tool oil dripped into the air inlet.
6.2. The gearbox can be lubricated by greasing via the nipple on the rear of the wrench head.
6.3. Clean the wrench after use.
6.4. Loss of power or erratic action may be due to the following:
6.4.1. Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose connectors. To remedy, check the air
supply and follow the instructions in section 4.
6.4.2. Grit or gum deposits in the wrench may also reduce the performance. If your model has an air strainer located in the area of the air
inlet, remove the strainer and clean it. Flush out the wrench with gum solvent oil, or an equal mixture of SAE No 10 oil and parafn.
Allow to dry before use.
6.4.3. For a full service contact your local Sealey service agent.
6.4.4. When not in use, disconnect the wrench from the air supply, clean it and store it in a safe, dry, childproof location.
SA602.V3 Issue 5 (H,3,F) 11/08/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our
technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 36 months from purchase date, proof of which is required for any claim.
SA602.V3 Issue 5 (H,3,F) 11/08/23
Original Language Version
© Jack Sealey Limited
HAND ARM VIBRATION
WARNING! – RISK OF HAND ARM VIBRATION INJURY.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): 5.47
m/s²
Uncertainty value (k):
1.5m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend
that a specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user or employer will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors, such as the operator, the task and the inserted
tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm
Vibration Syndrome.
HEALTH SURVEILLANCE
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be
modified accordingly.
PERSONAL PROTECTIVE EQUIPMENT
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and
dry and maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the
Correct Use and Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on
the HSC website www.hse.gov.uk - Hand-Arm Vibration at Work.
