Cross Body Trainer Assembly Manual
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
WARNING
TABLE OF CONTENTS
2
Before You Begin......................................................................................................................3
Before Assembly.......................................................................................................................3
Installation.................................................................................................................................3
Important Safety Information.....................................................................................................4
Exploded Drawing.....................................................................................................................5
Part List.....................................................................................................................................6
Part Identification Chart.............................................................................................................7
Cross Body Trainer Assembly...............................................................................................8-15
Limited Warranty......................................................................................................................16
Cross Body Trainer is protected by US Patents 8,079,938 & 8,337,366
and other US & China Patents Pending.
QUESTIONS?
Customer Care: [email protected] or call 512-782-2940
Monday—Friday, 9a.m. to 4p.m. Central Standard Time
XFit, Inc.
7500 Rialto Blvd
Bldg. 1, Suite 122
Austin TX, 78735 USA
SATISFACTION GUARANTEE
See Details at www.nexersys.com/cbt-satisfaction-guarantee
product.
Installation
WARNING! To reduce the risk of serious injury, read all important precautions and instructions
in this manual before assembly and use of this product.
Thank you for selecting this Cross Body Trainer. The Cross Body Trainer will provide you
many years of enjoyment. This information for the assembly, care, maintenance, and use must
be ready by all users before use.
Before You Begin
Before Assembly
Select where you are going to locate your Cross Body Trainer carefully. The best place for the machine is
on a sturdy, level surface. For best results, assemble the Cross Body Trainer in the location where you
intend to use it. Below are a few basic tips that will make your assembly of this product quick and easy.
By using these principles, you can simplify each process and save yourself extra time and effort.
• To make the assembly process go faster, remember the location of the pieces you need for each step
and thoroughly read the assembly instructions for that step prior to starting assembly for the step.
• When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure that it is
fastened securely.
• When attaching two pieces, gently lift and look through the boltholes to help guide the bolt through the holes.
• As a general rule, and for all bolts and nuts on the machine, turn bolts or nuts toward the right to tighten
(clock-wise) and left to loosen (counter clock-wise).
Tools
In order to construct your machine, you will need:
• Wrench (Included)
• Hex Keys (Included)
1. Keep bystanders and children away from this product you are assembling at all times.
2. Do not assemble this product outdoors or in a wet or moist location.
3. Set up this product on a solid, level, horizontal surface.
4. Do not try to change the design or functionality of this machine. This could compromise
the safety.
5. Before each use check all bolts, framework for wear and proper function. Tighten all fasteners
as necessary.
6. Always inspect this product before it is used and replace any worn, defective, or missing
parts. (Users may be hurt if Cross Body Trainer is used when it is in poor condition.)
3
IMPORTANT SAFETY INFORMATION
• Always wear gloves or wraps when using this product to avoid injury to your hands.
• Wear proper exercise clothing and shoes for your workout.
• Do not hit the machine with excessive force. THIS CAN CAUSE INJURY to you or to the machine and will
invalidate the warranty. You will be warned by a loud buzz if you strike too hard.
• Supervise teenagers and children using tis product.
• Do not overexert yourself or work to exhaustion. Stop your workout immediately and consult your physician
if you feel any pain, dizziness, shortness of breath, or other abnormal symptoms.
• You should always consult your physician before beginning a new exercise program or nutrition plan.
4

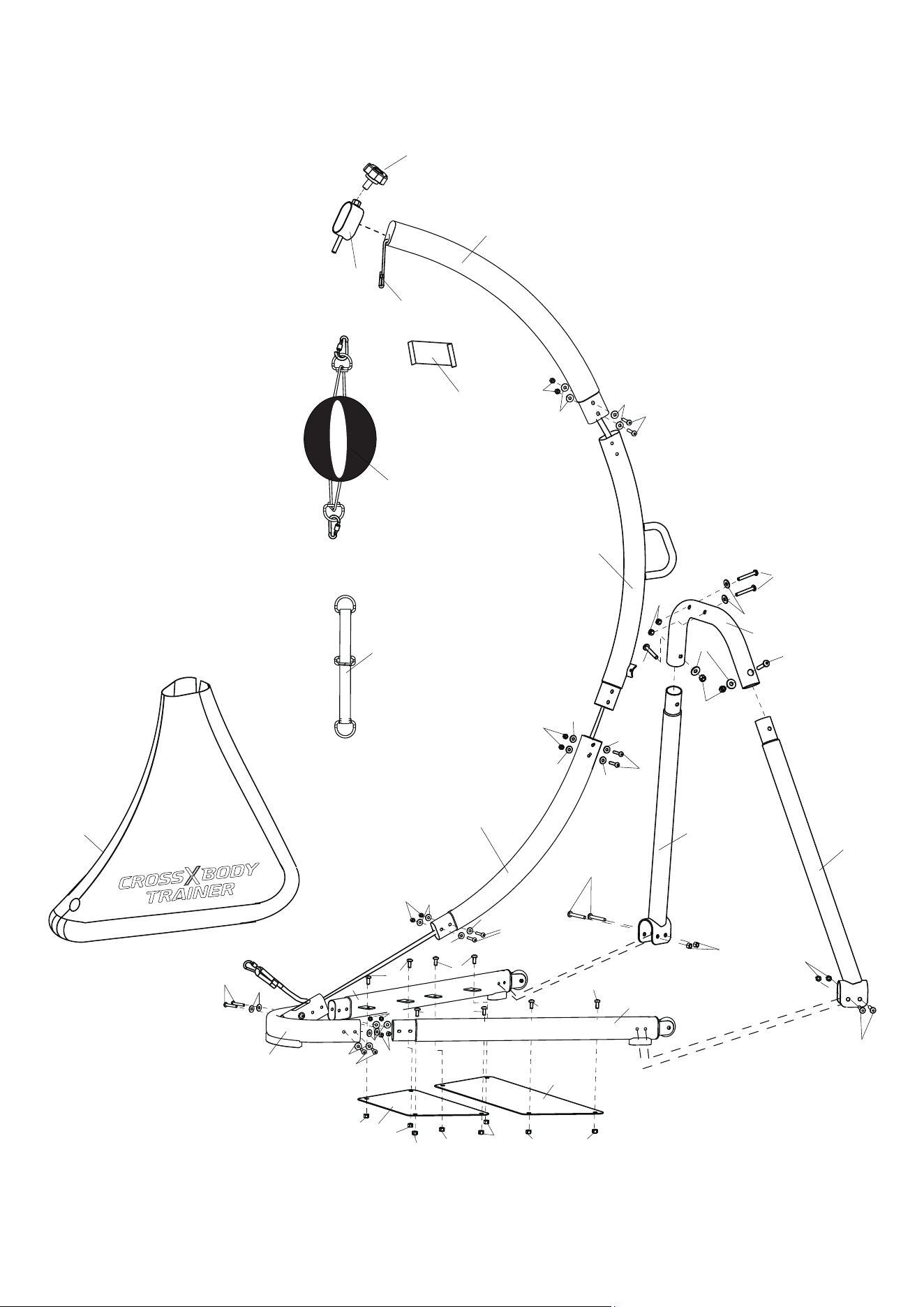

Exploded Drawing
14
5
3
B
E
F
E
E
4
F
E
E
E
E
B
5
B
E
E
F
10
6
16
11
15
7
8
9
B
B
G
F
D
G
A
A
A
A
A
A
F
F
F
F
F F
F
12
13
2
2
1
B
B
E
E E
F
F
C
F
F
C
F
17
Parts List
Key No. Qty.
1 1
Description
Three -way pipe
2 2
3 1
4 1
5 1
6 1
7 1
8 1
9 1
10 1
11 1
12 1
13 1
14 1
15 1
16 1
17 1
Under tube
Lower tube with arc
Middle Tube with arc
Top tube
Mobile Device Holder Bracket
Left Supporting-tube
Right Supporting-tube
Rear U-tube
Cable
Double End Bag
Front base plate
Rear base plate
Skirt
Adjusting strap
Torx sex bolt
Mobile Device Holder
6
Part Identification Chart

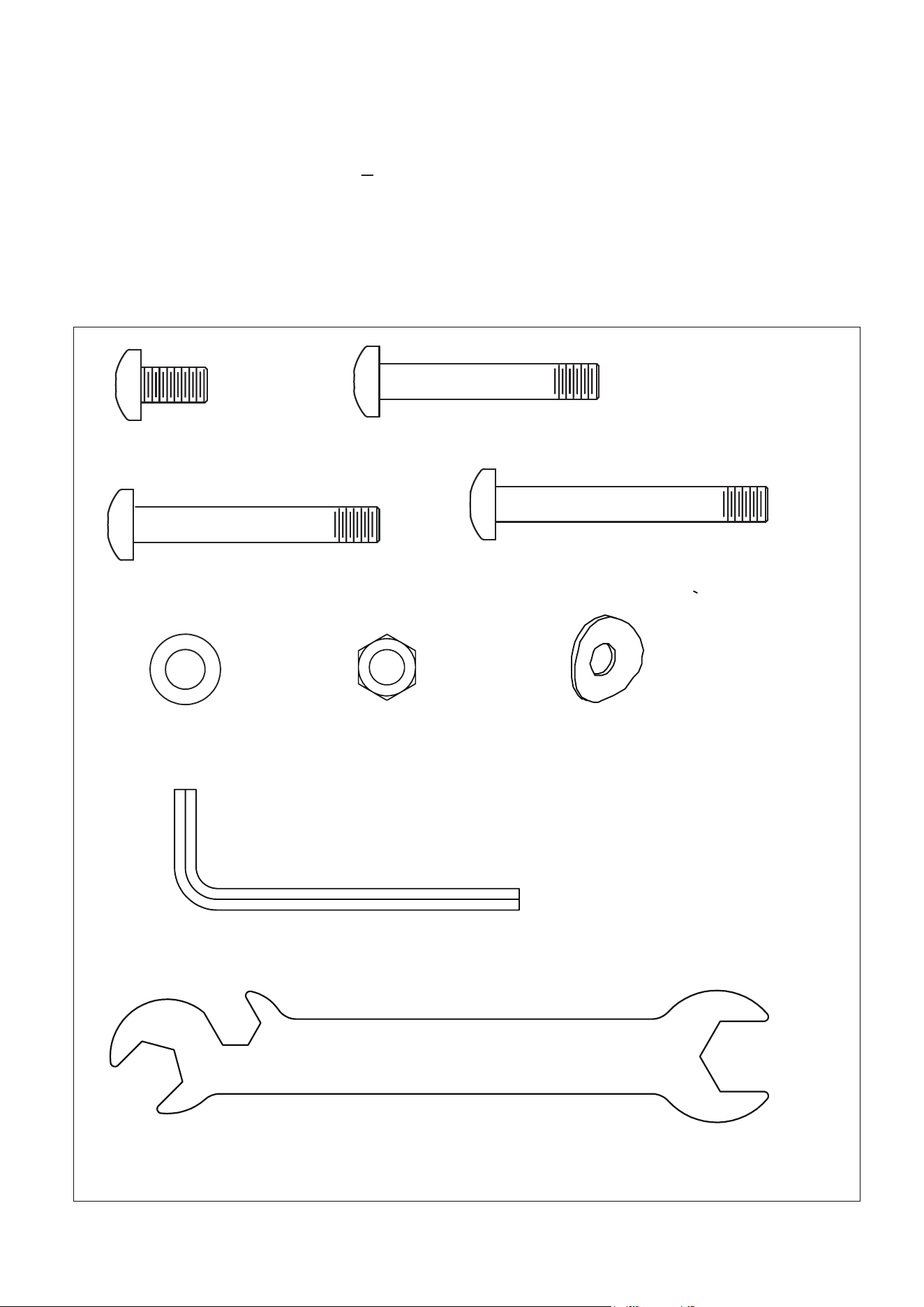

Use the drawings below to identify small parts used for assembly.
The number following the key number is the quantity used for
assebmbly. Note: If a part is not in the hardware kit, check to see
if it is pre-attached. If it is not, call 512-782-2940 or
email support@nexersys.com. Extra parts may be included.
M8x15 Bolt (A)-8
M8x50 Bolt (B)-12
M8 Washer with arc (G)-4
M8 Locknut (F)-26
M8 washer (E)-20
5mm Hex Key ( H)-1
Wrench (J) -1
7
M8x55 Bolt (C)-4
M8x60 Bolt (D)-2

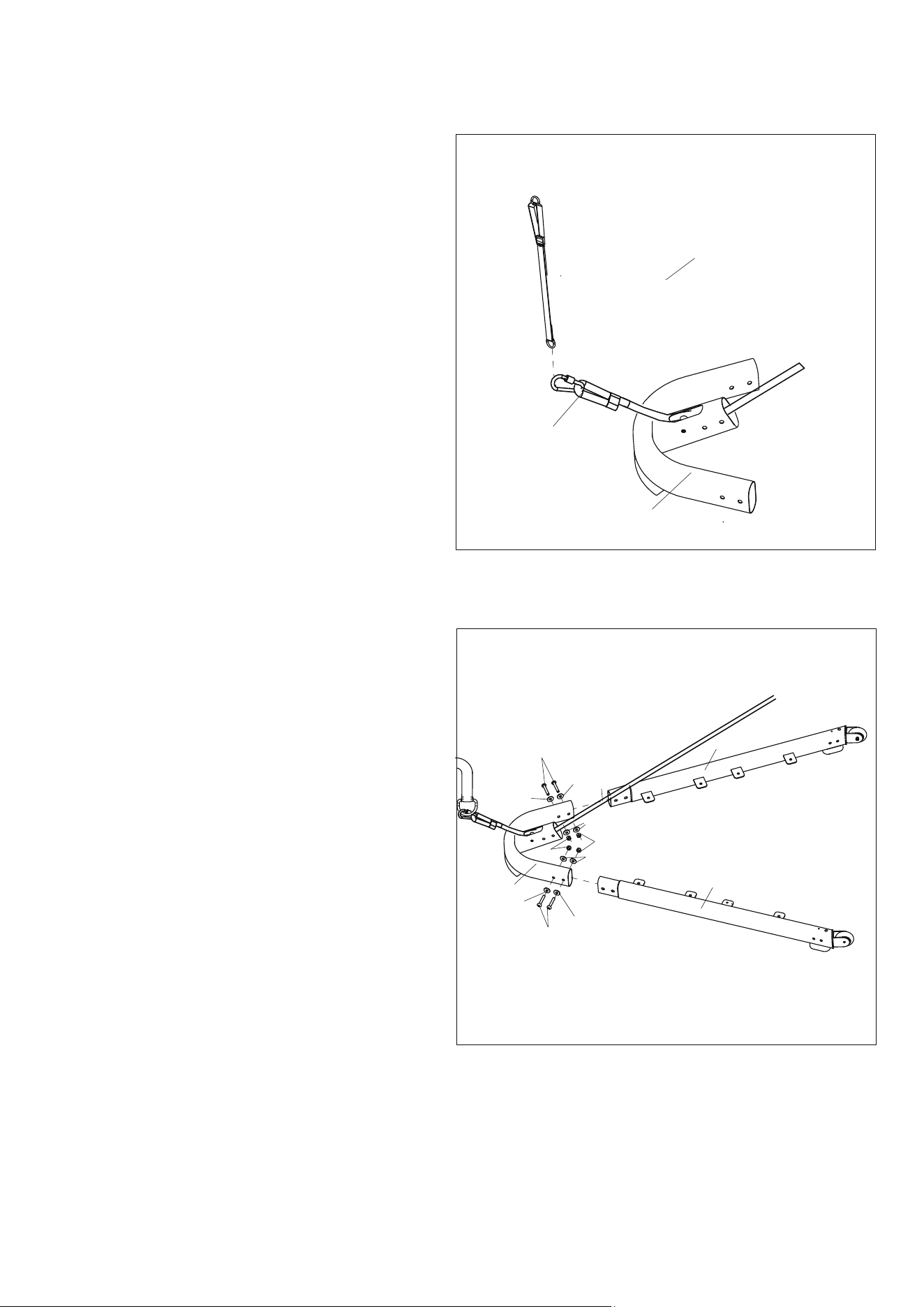

2. Attach two Under tubes (2) to
the Three-way pipe (1) with four
M8X50 Bolts (B), eight M8
Washers (E) and four M8
Locknuts (F).
Do not tighten the Bolts.
2
Cross Body Trainer Assembly
2
2
1
B
E
E
E
F
F
E
E
E
B
15
1
1

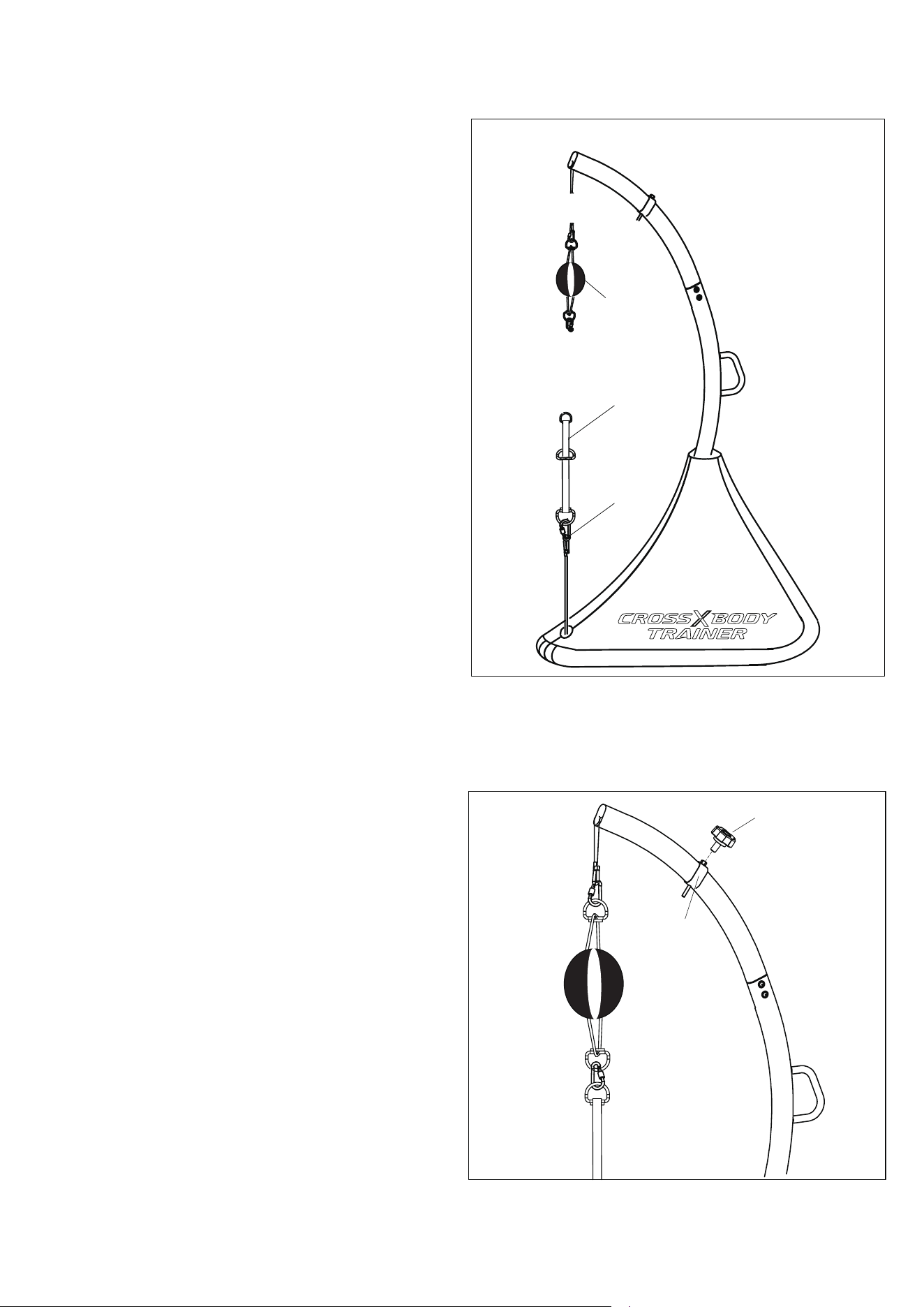

1. Attach the adjusting strap (15) to
the Cable (10) of the Three-way
pipe (1).
10
10
8

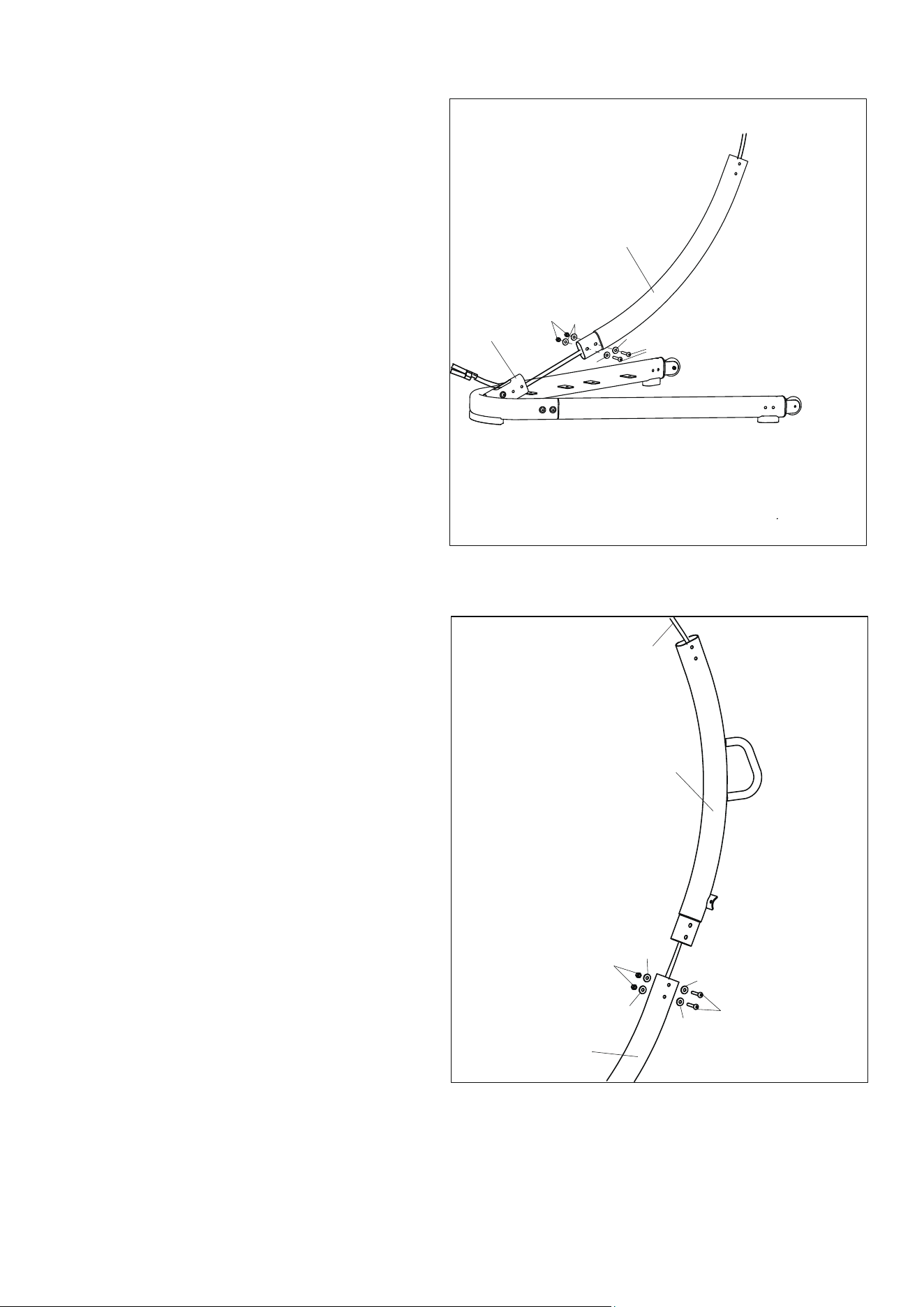

3.
First, make the Cable (10)
through the Lower
Tube with Arc
(3).
Attach the Lower tube with
arc (3) to the Three-way pipe (1)
with two M8X50 Bolts (B), four
M8 washers (E) and two M8
Locknuts (F).
Do not tighten the Bolts.
3
4. First, make the Cable (10)
through the Middle Tube with
Arc (4). Attach the Lower tube
with arc (3) to the Middle Tube
with arc (4) with two M8X50
Bolts (B), four M8 washers (E)
and two M8 Locknuts (F).
Do not tighten the Bolts.
9
3
B
E
F
E
F
1
4
3
F
E
E
E
E
B
10
4
H
10

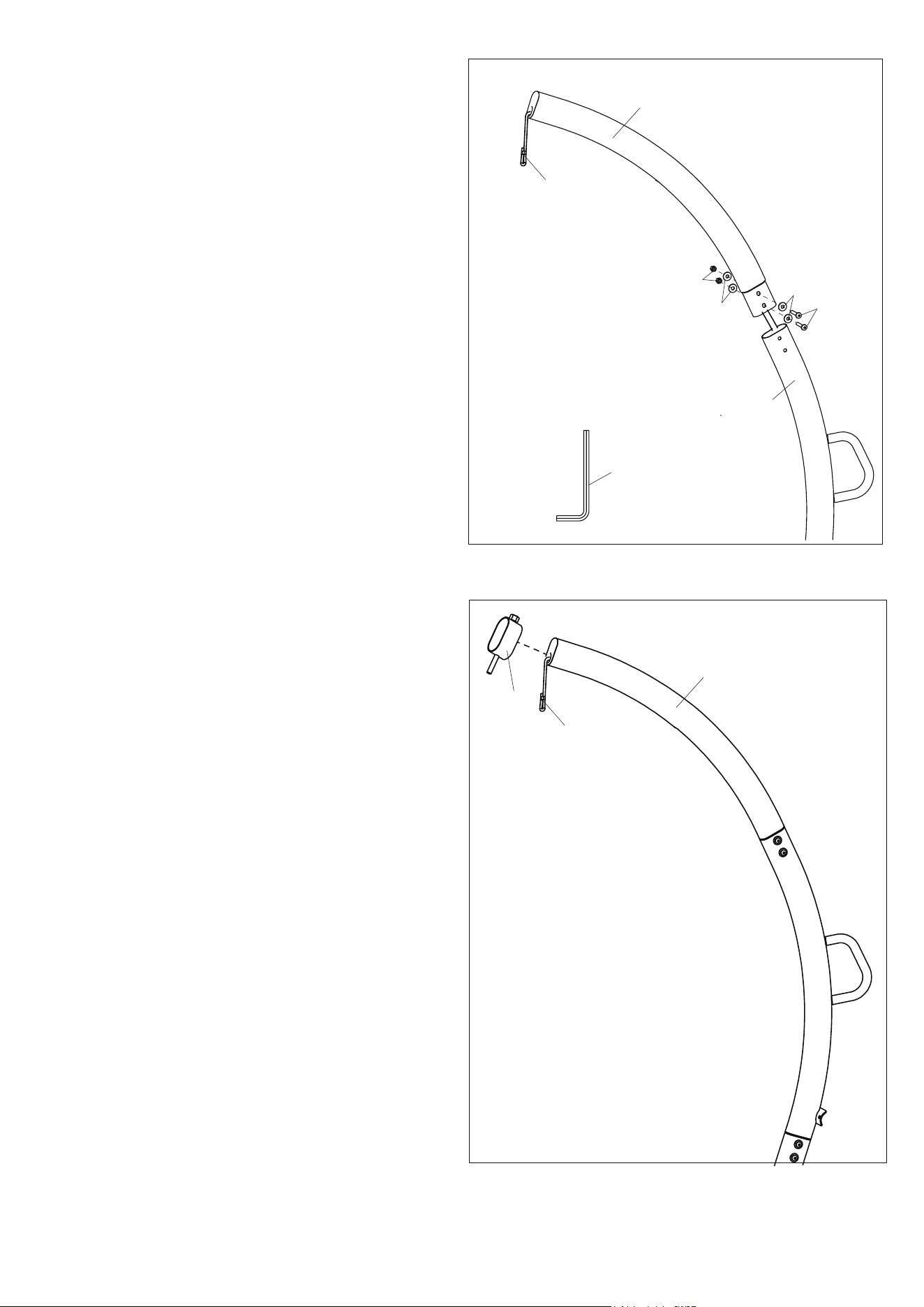

5. First, make the Cable (10) through
theTop tube (5). Attach the Top
tube (5) to the the Middle Tube
with arc (4) with two M8X50 Bolts
(B), four M8 washers (E) and
two M8 Locknuts (F).
Do not tighten the Bolts.
Note: Make the Cable (10) through the
Top tube (5) and is out of the Top tube
(5). If the Cable (10) is not out of the
Top tube (5), please use this Hex Key
(H) to get it out.
5
5
4
B
E
E
F
10
10
6
5

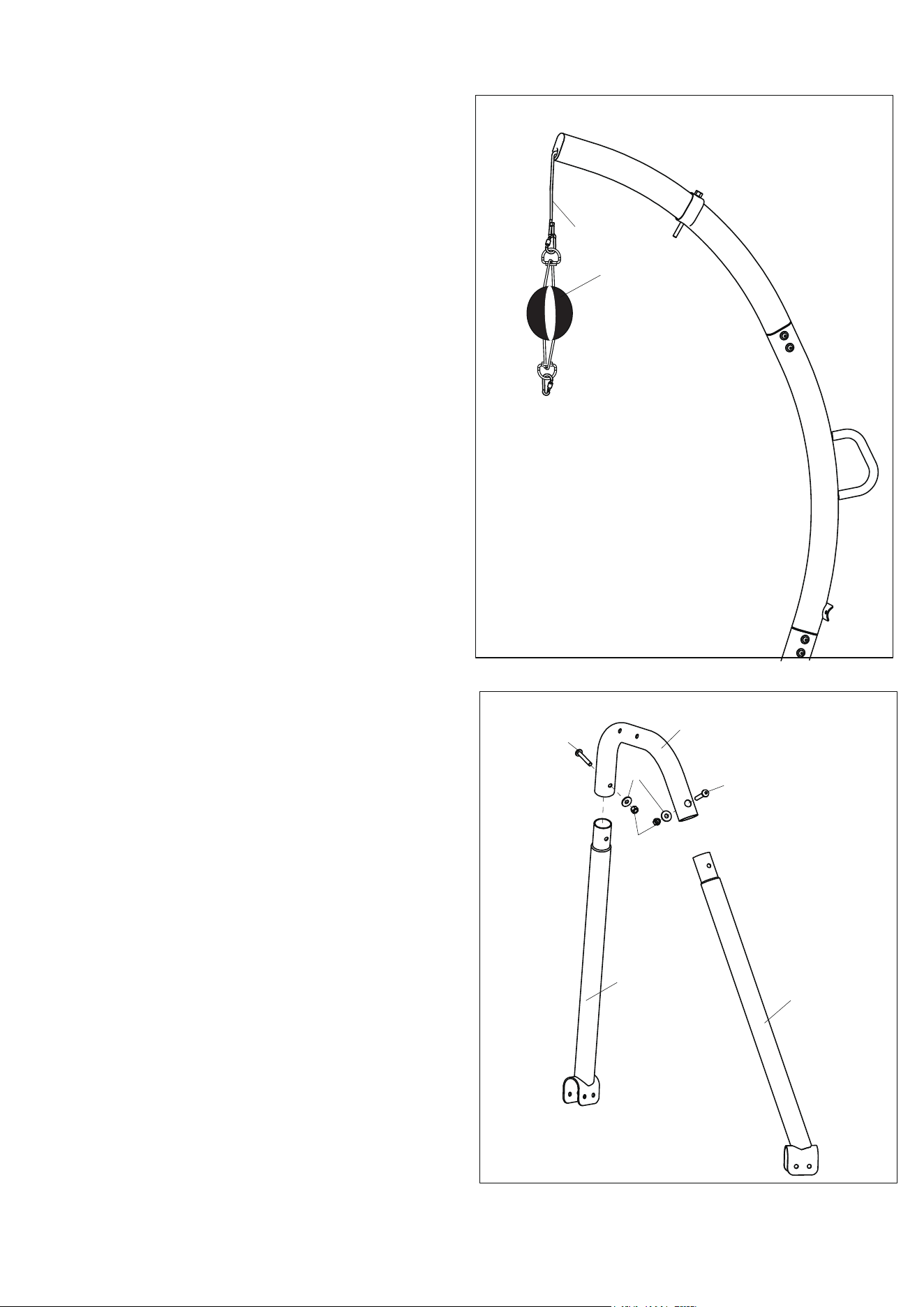

6. Attach the Mobile Device Holder
Bracket (6) to the Top tube (5)
as shown.
6
10
11

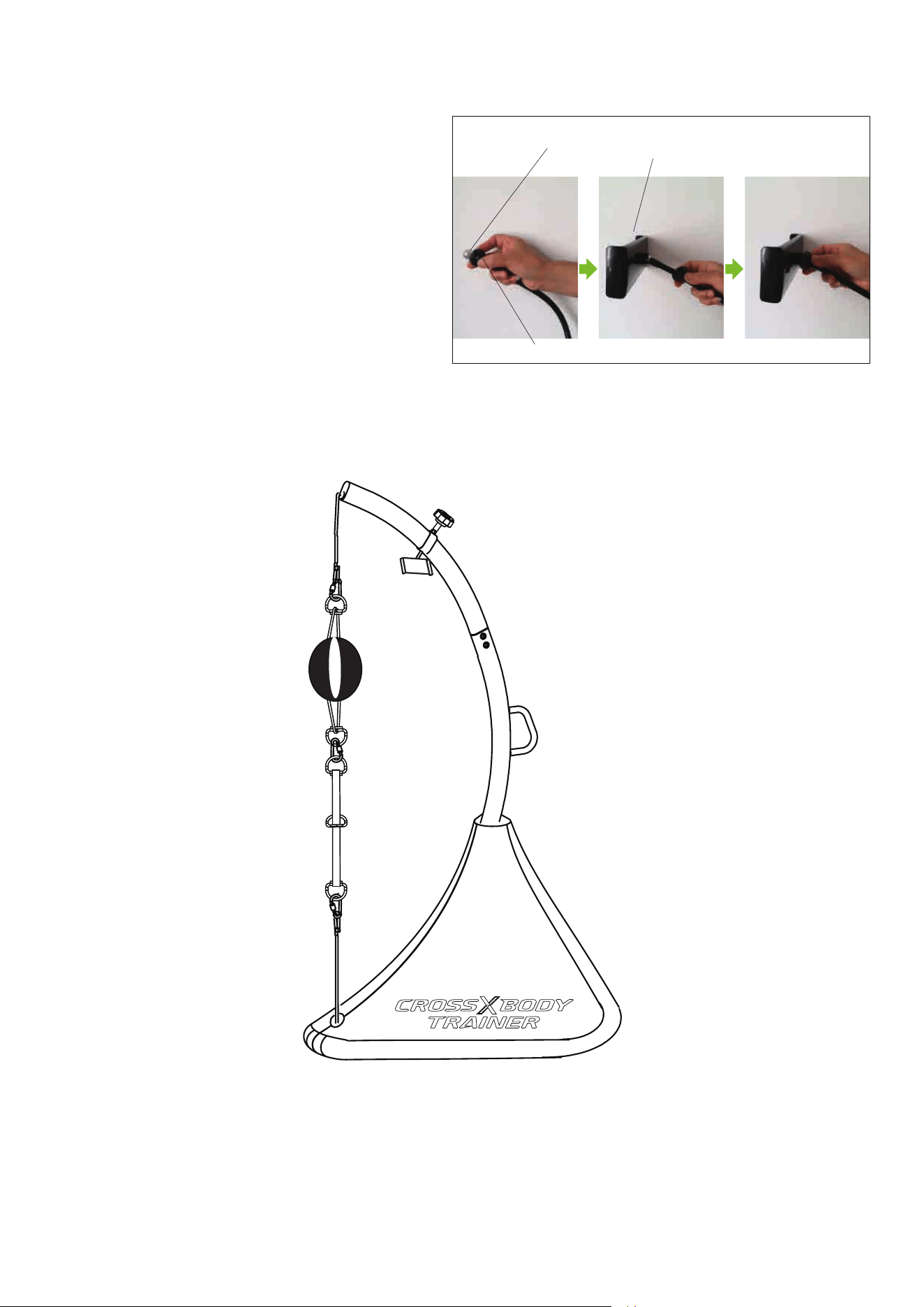

7. Attach the Double End Bag (11)
to the Cable (10) as shown.
7
8
7
8
9
B
B
G
F
8. Attach the Rear U-tube (9) to the
Left Supporting-tube (7) and Right
Supporting-tube (8) with two M8X50
Bolts (B), two M8 washers with arc
(G) and two M8 Locknuts (F).
Do not tighten the Bolts.
11
C
F
F
C
7
8
2
2

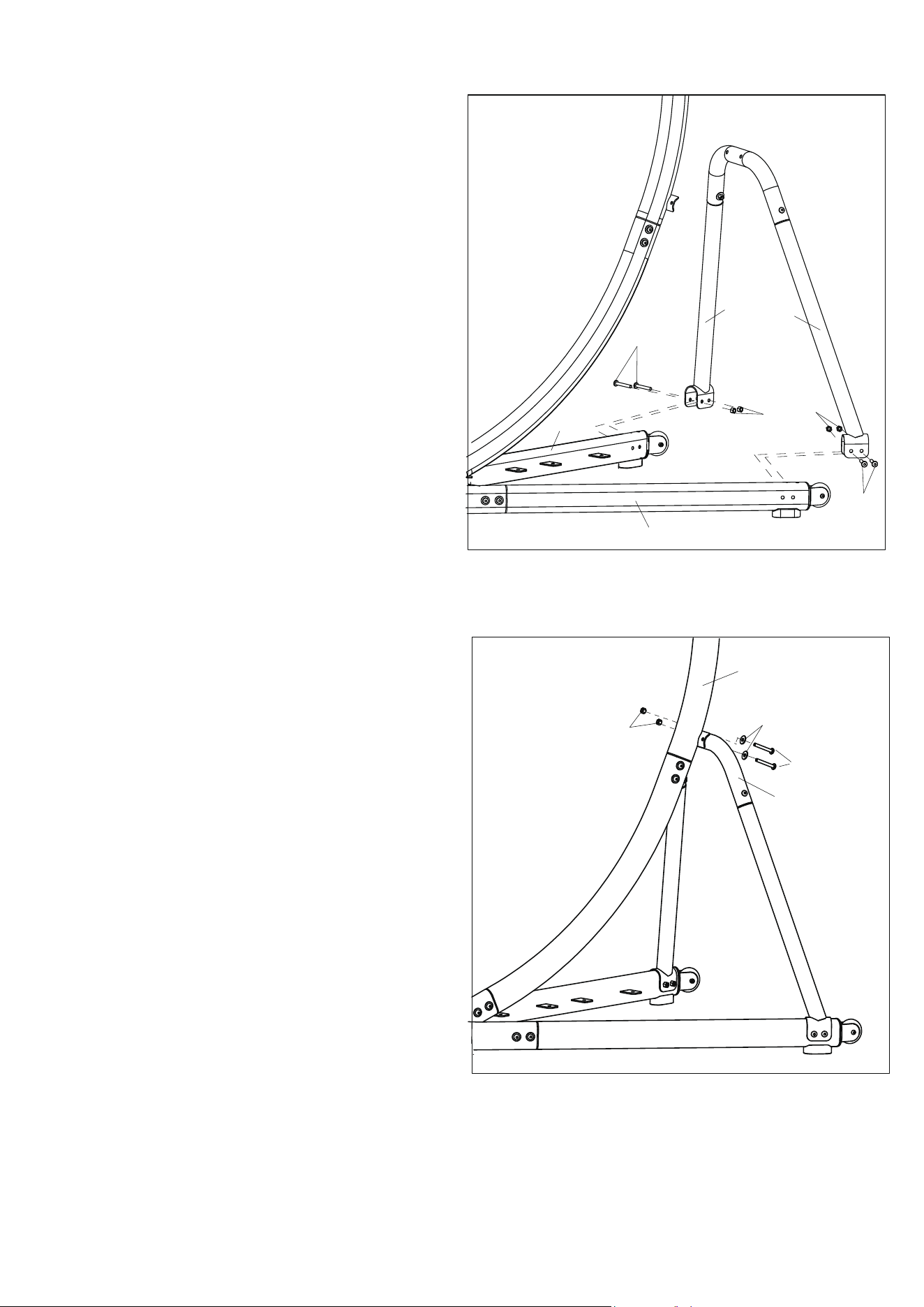

9. Attach the Left Supporting-tube (7)
and Right Supporting-tube (8) to
the Under tubes (2) with four
M8X55 Bolts (C), four M8 Locknuts
(F).
Do not tighten the Bolts.
9
10
10. Attach the Rear U-tube (9) to the
Middle Tube with arc (4) with two
M8X60 Bolts (D), two M8 washers
with arc (G) and two M8 Locknuts
(F).
Do not tighten the Bolts.
D
F
G
4
9
12
12. Place the ballast with water on
the Base Plates. Make sure the
ballast with water is fixed on the
Lower tube with arc (3) by the
Velcro.
ballast with water
A
A
A
A
A
A
A
A
F
F
F
F
F F
F
2
2
12
13

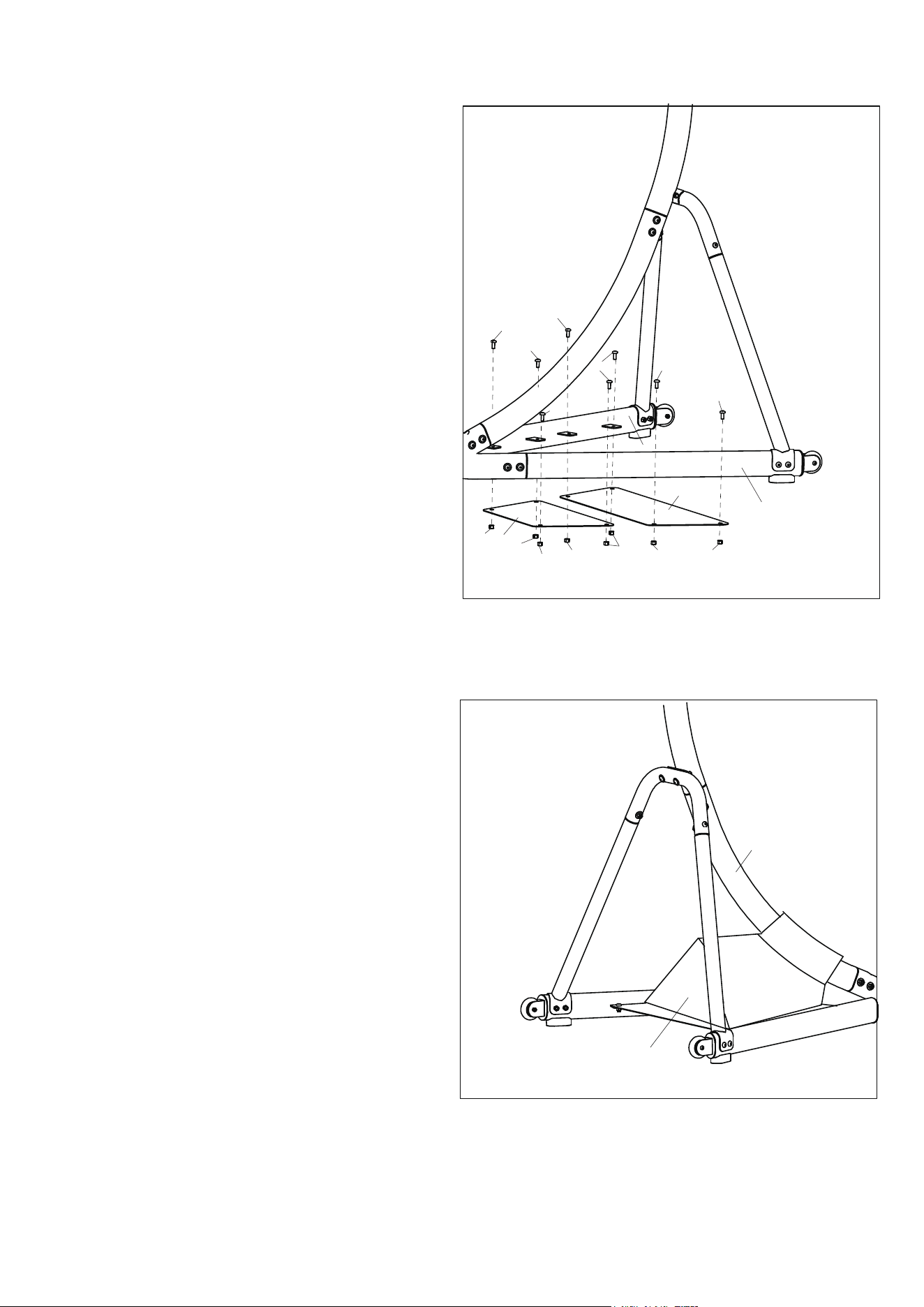

11. Attach the Front base plate (12)
to the Under tube (2) with four
M8X15 Bolts (A) , four M8
Locknuts (F). Attach the Rear
base plate (13) to the Under tube
(2) in the same way.
Tighten all the bolts.
11
12
13
3

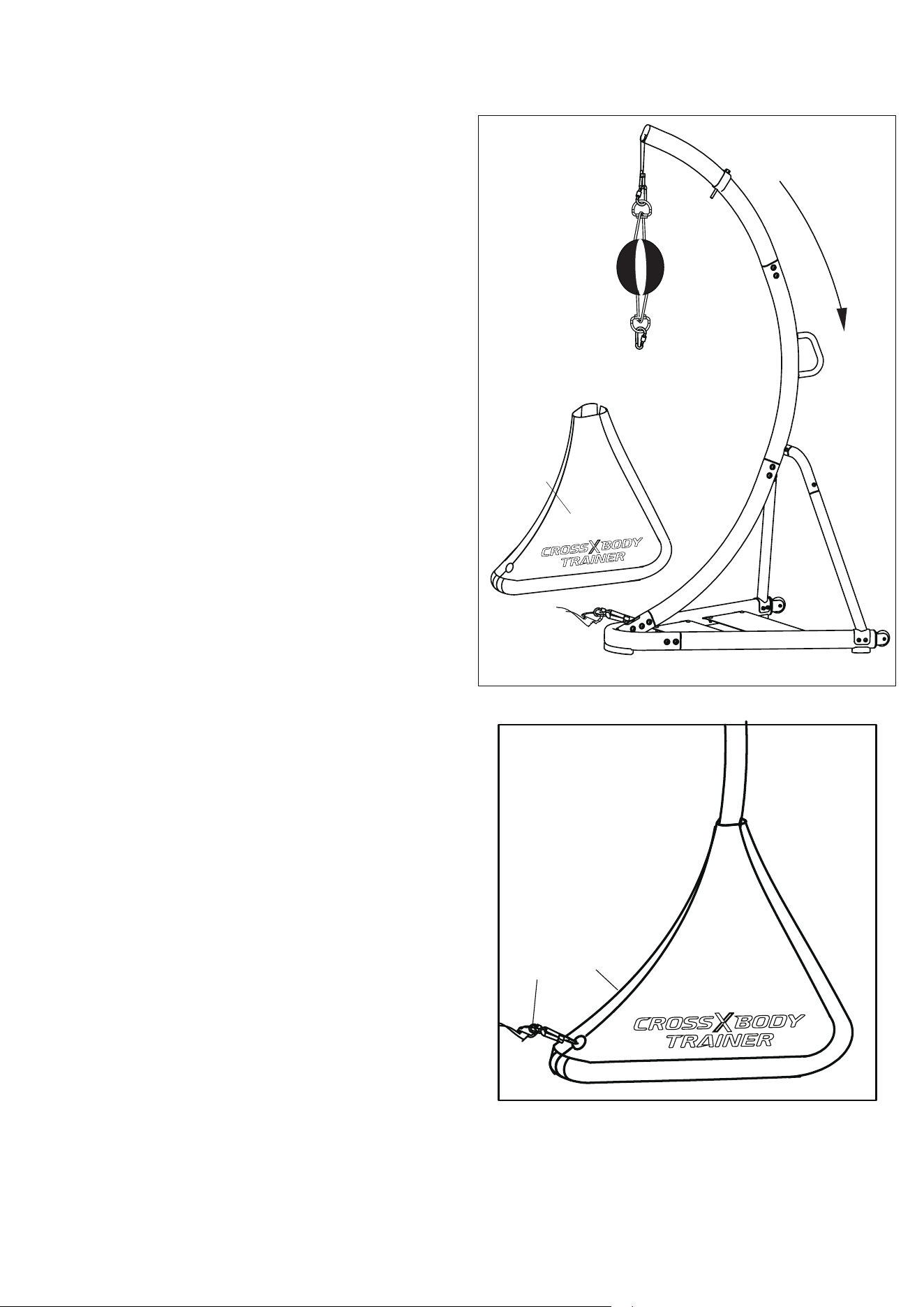

Attach the Skirt (14) starting from
the top along the direction of the
arrow. Then make the Cable (10)
pop out from the hole of the Skirt
(14), then fasten it with the zipper.
Note: Make sure the zipper is
unzipped before installation.
10
13.
10
14
14
13
14. Attach the bottom of the Cable
(10) to the Double End Bag (11)
with adjusting strap (15), make
sure the Cable (10) is pulled tight.
11
15. Attach the Torx sex bolt (16) to
the Tablet Holder Bracket
(6).
14
11
15
15
16
9
10
16. Remove the knob from the
15
6
17
knob
12
Mobile Device Holder (17).
Attach the knob to the Mobile
Device Holder Bracket (6),
press the ball into the Mobile
Device Holder (17), then
tighten the knob.
13
. Open flap on top of bag
•Battery life indicator is found on app screen
•Usual Battery life = 6 months normal use
. Insert 6ensor in holder
Close holder
a.) Open the Bluetooth
menu in the Cross
Body Trainer App.
b.) Tap the bag to
wake up the sensor.
c.) Click pair and you're
ready to start working
out!
. Sync the $pp

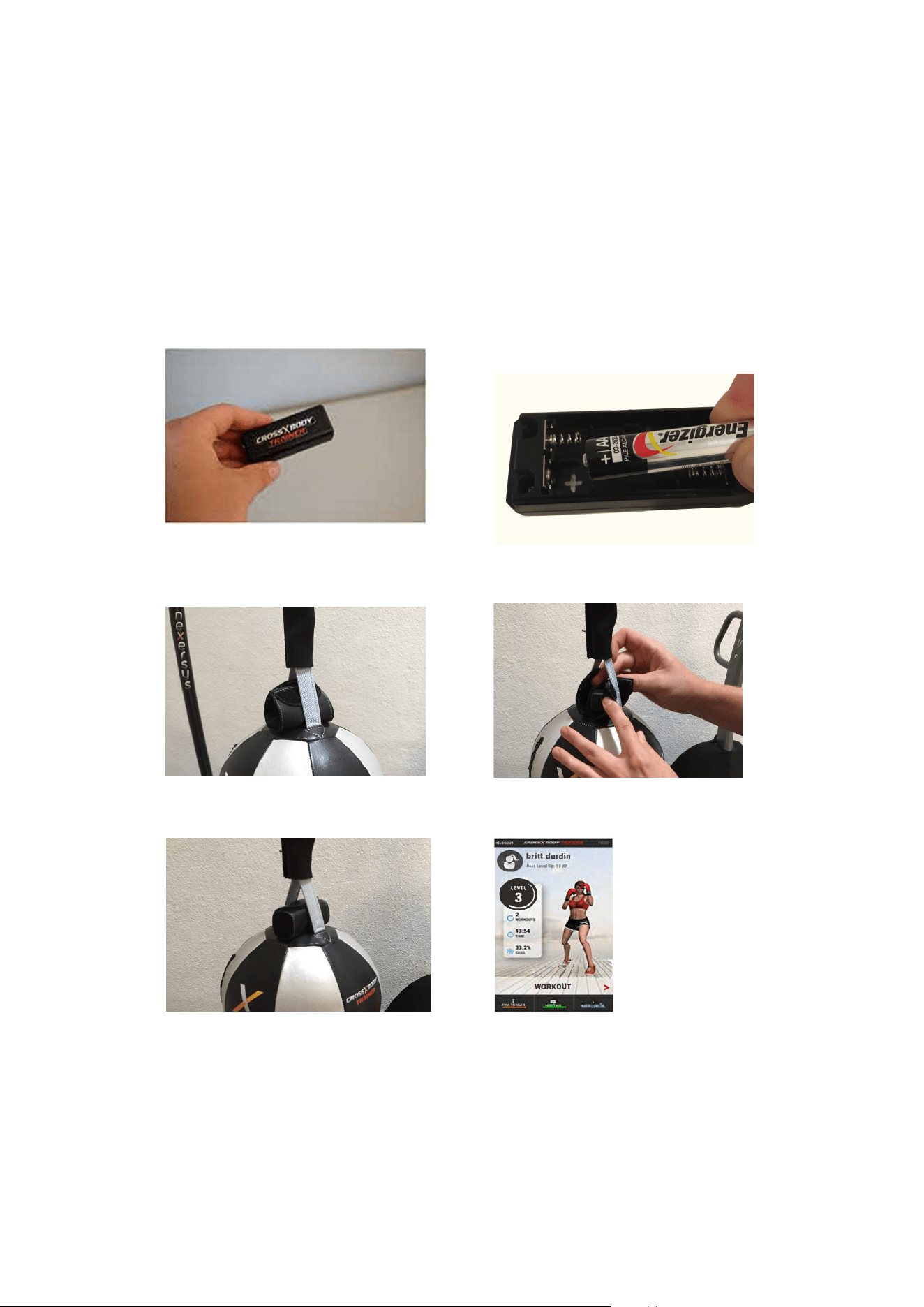

Installing or Replacing the Strike Sensor
*Ensure your Mobile Device has Bluetooth 4.0 Low Energy or later release
Download the Cross Bod\
TrainerApp on your
Mobile DevicH
Congratulations! Your Cross Body Trainer is complete. Download the App
and begin your path to a healthier body and mind.
8QZUDS6HQVRU
Activate Bluetooth on your
Mobile Device
,QVHUW$$$%DWWHULHVQRW LQFOXGHG
ZLWKFRQQHFWLQJWRIODWWHUPLQDO

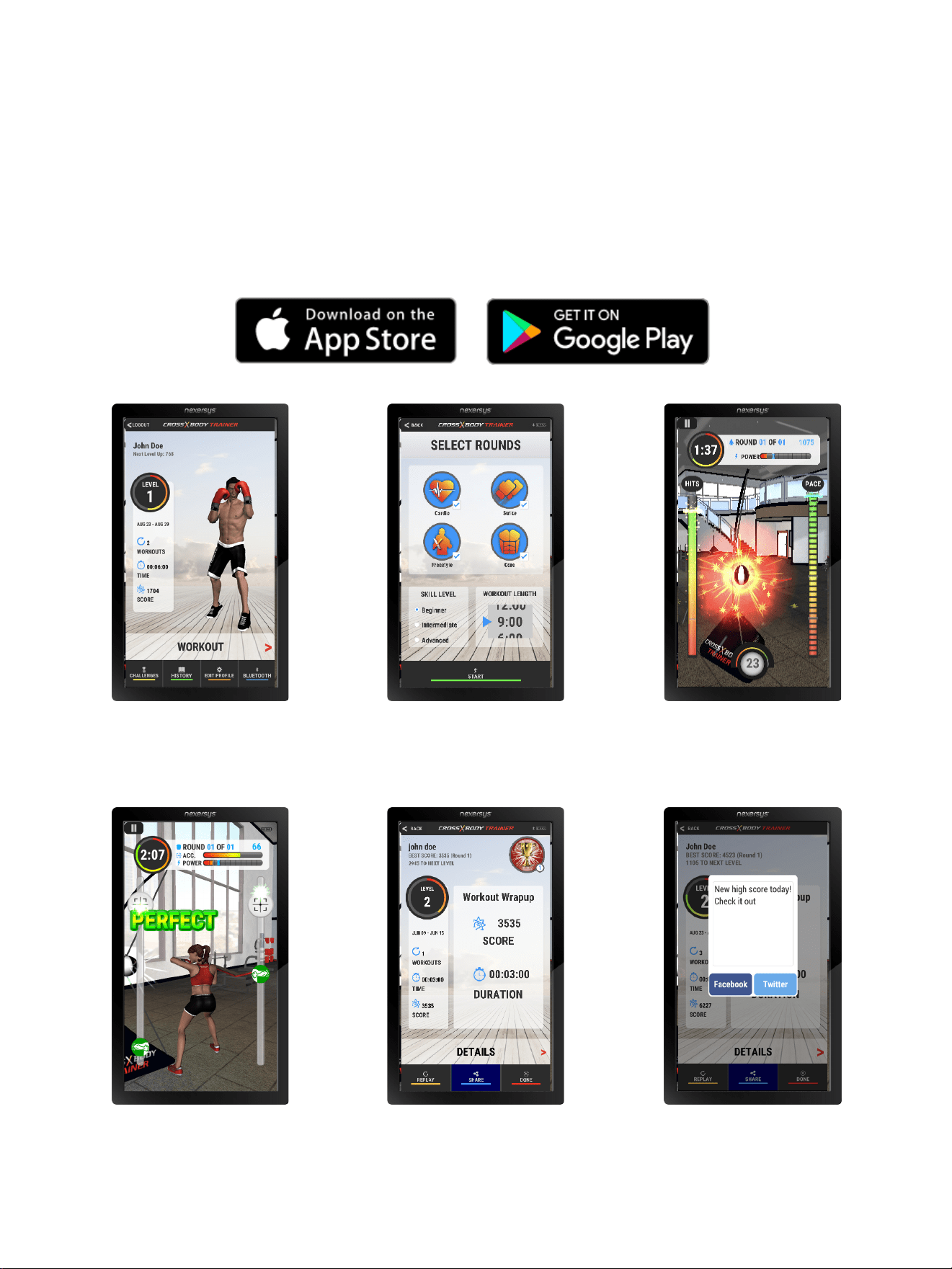

Cross Body Trainer App
Take your fitness to the next level with the Cross Body Trainer App. Download for
FREE on the Apple Store or Google Play. Then Create or Manage your Personal
Profile, Manage Platform Controls to customize your training sessions, view your
work out history, track your progress, and share your workouts with family and
friends on your favorite social platform.
Personal Prole
Interactive Avatar
Customize Your Workout
Workout Overview
Freestyle Round
Share on Social
1
4
Terms
• Electronic Parts (Wireless Printed Circuit Board) 1 year
• Wear Parts (Bag, Cable, Tablet Holder, Bladder) 1 year
• Frame 5 years
How XFit, Inc. Will Support the Wa
rr
a
n
ty
Throughout and as set forth under the terms of the Warranty, XFit, Inc. will provide a replacement for
any component or part that proves to be defective in materials or workmanship. XFit, Inc. reserves
the right to substitute material of equal or better quality if identical materials are not available under
this warranty.
In the event that replacement parts or components do not correct the issue, XFit, Inc. reserves the
right to replace the product or apply a limited credit reimbursement toward another XFit, Inc. brand
product, at our discretion. Reasonable substitution may be required depending upon Product
availability. Any replacement of the Product under the terms of the Warranty in no way extends the
original Warranty period. THESE REMEDIES ARE THE EXCLUSIVE AND SOLE REMEDIES FOR
ANY BREACH OF WARRANTY.
Owner’s R
es
pons
i
bil
ity
• Retain appropriate and acceptable Proof of Purchase
• Operate, maintain, and inspect the product as specified in the Product Documentation
(Assembly
Manual)
• Product must be used exclusively for the purpose intended. Commercial use of this Home
model
will void the Warranty.
• Notify XFit, Inc. within 30 days after detecting an issue with the product and request a
return authorization. If a return authorization is issued, you must return the defective part to
XFit, Inc. for inspection.
• Install replacement parts or components in accordance with any Nexersys instructions.
• Perform diagnostic procedures with a trained XFit, Inc. representative if requested.
Limited Warranty
Who is Covered
This Warranty is valid for the original purchaser and is not transferable or applicable to any
other person(s).
What is Covered
XFit, Inc. warrants that the Cross Body Trainer Pro (CBTP) model is free from defects in
materials and workmanship, when used for the purpose intended, under normal conditions, and
provided it receives proper care and maintenance as described in the Product’s Assembly and
Owner’s Manual. This Warranty is good only for authentic, original, legitimate machines
manufactured by XFit, Inc. and sold through an authorized agent.
15
What is Not Covered
Damage due to abuse, tampering or modification of the Product, failure to properly follow assembly
instructions, maintenance instructions, or safety warnings as stated in the Product Documentation
(Assembly and Owner’s Manuals, etc.), rust or corrosion as a result of the Product’s physical location,
misuse, mishandling, accident, n atural disasters.
Limited Warranty
Exclusions
The p
receding Warranties are the sole and exclusive express Warranties made by XFit, Inc. They supersede
any prior, contrary or additional representations, whether oral or written. No agent, representative, dealer,
person or employee has the authority to alter or increase the obligations or limitations of this Warranty. Any
implied Warranties, including the WARRANTY OF MERCHANTABILITY and any WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, are limited in direction to the term of the applicable express Warranty provided
above, whichever is longer. Some states do not allow limitations on how long an implied Warranty lasts, so
the above limitation may not apply to you.
Limitation of Remedies
EXCEPT AS OTHERWISE REQUIRED BY APPLICABLE LAW, THE PURCHASER’S EXCLUSIVE REMEDY IS LIMITED
TO REPAIR OR REPLACEMENT OF ANY COMPONENT DEEMED BY XFIT, INC. TO BE DEFECTIVE UNDER THE
TERMS AND CONDITIONS STATED HEREIN. IN NO EVENT WILL XFIT, INC. BE LIABLE FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, INDIRECT OR ECONOMIC DAMAGES, REGARDLESS OF THE THEORY OF
LIABILITY (INCLUDING, WITHOUT LIMITATION, PRODUCT LIABILITY, NEGLIGENCE OR OTHER TORT) OR FOR
ANY LOST REVENUE, PROFIT, DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED
TO THE USE OF THE FITNESS MACHINE EVEN IF XFIT, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. THIS EXCLUSION AND LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR
INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
State Laws
This Warranty gives you specific legal rights. You may also have other rights, which v ary from state to state.
Ex
pi
r
a
t
ions
If the Warranty has expired, XFit, Inc. may assist with replacements or repairs to parts and labor, but there
will be a charge for these services. Contact Nexersys for information on post-warranty parts and services.
XFit, Inc. does not guarantee availability of spare parts after expiration of warranty period.
International Purchases
If you purchased this machine outside of the United States consult your local distributor or dealer for
Warranty Support.
Contact [email protected] for Warranty Support
16
