1. SAFETY
9 Wear approved safety goggles, gloves, and footwear, when operating the folder. Your local Sealey dealer oers a complete range of
safety equipment.
9 Use the tool only for its intended purpose.
9 Regularly check all parts of the folder for damaged parts. DO NOT use if any of its components are broken, worn or damaged.
9 Use original Sealey spare parts and accessories. Use of non-recommended spare parts may be dangerous and will invalidate warranty.
9 Ensure good footing, wear non slip footwear.
8 DO NOT operate this tool while under the inuence of drugs, alcohol or other impairing medication.
8 DO NOT Allow unqualied persons to operate the metal folder. Keep children away from the tool.
2. INTRODUCTION
Bench and vice mounting sheet metal folder, tted with mounting plates. Capable of bending up to and beyond a 90° angle. The
unique patented endless design and removable folding plate allows the user to fold, channel and oset any length of sheet metal up
to 20 gauge thick, by simply moving the sheet as required after each fold. With adjustable fold plate to help achieve the cleanest fold
possible. Ideal for the small garage or restoration operation.
3. SPECIFICATION
Model No: .........................................................TS01.V2
Capacity: ............700mm x 20 Gauge Sheet, Ø1mm Rod
4. FEATURES
1 Top/Base plate clamp
2 Adjustment/Positioning Cam
3 Removable Folding Plate
4 Centre adjustment nut
5 Top Plate
6 Foot plate with xing holes
7 Folding Handles
5. OPERATION
5.1. Unpack the unit and check that all parts are included and not damaged. Should you experience a problem contact your supplier
immediately.
5.2. Position folder on bench where it is to be mounted, ensuring that the handles (g.1.7) hang vertically over the front of the bench. Use
foot plates (g.1.6) as templates to drill holes in bench. Use appropriate xings, or clamp folder in a vice.
5.3. By using centre adjustment nut (g.1.4) ensure top plate is slightly bowed in the middle. Then using the clamps to bring to parallel
under pressure. This may require adjustment from time to time.
5.4. Release clamps (g.1.1) at either end of folder so that a small test piece of sheet metal can be inserted between the top and base
plates. (g.1.3)
5.5. Position the test piece, adjust the top plate by use of clamps (g.1.1) lightly tighten, use a spanner to adjust cam (g1.2), so that base
and top plate are aligned.
5.6. Ensure that there is even pressure on both ends.
5.7. Raise the top folding plate (g.1.3) by lifting handles to create the fold. From this test, you will be able to determine how and where the
fold appears.
5.8. When satised with the test results, proceed with the actual workpiece.
5.9. By rotating the end clamps through the vertical axis, longer lengths of metal sheet can be folded, i.e. fold a section, unclamp, move
sheet, reclamp, fold second section etc.

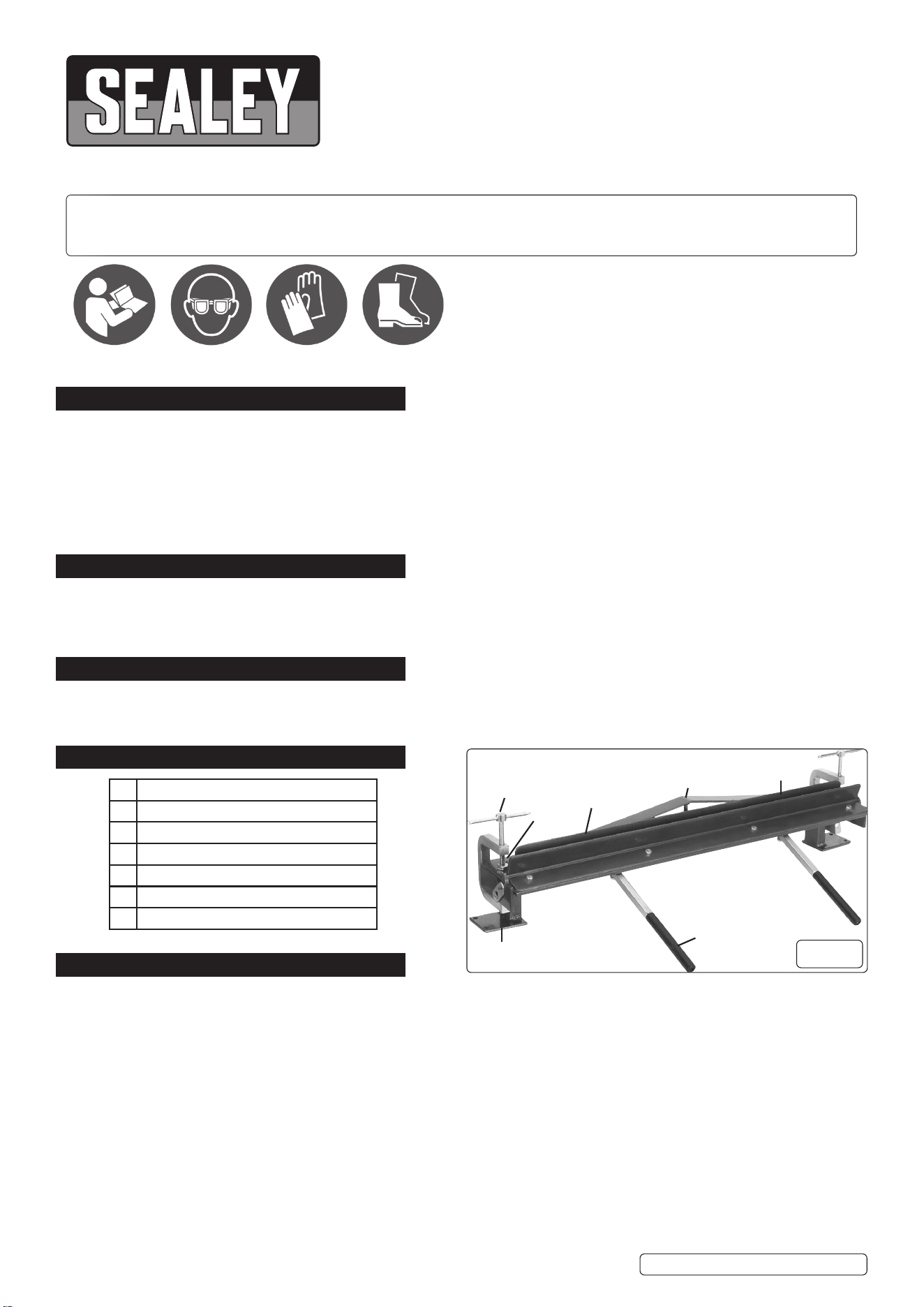

g.1
VICE/BENCH MOUNTING SHEET METAL
FOLDER 700MM
MODEL NO: TS01.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Original Language Version
© Jack Sealey Limited
TS01.V2 Issue 3 (4,5) 26/06/23
1
2
4
5
7
3
6
Original Language Version
© Jack Sealey Limited
TS01.V2 Issue 3 (4,5) 26/06/23
