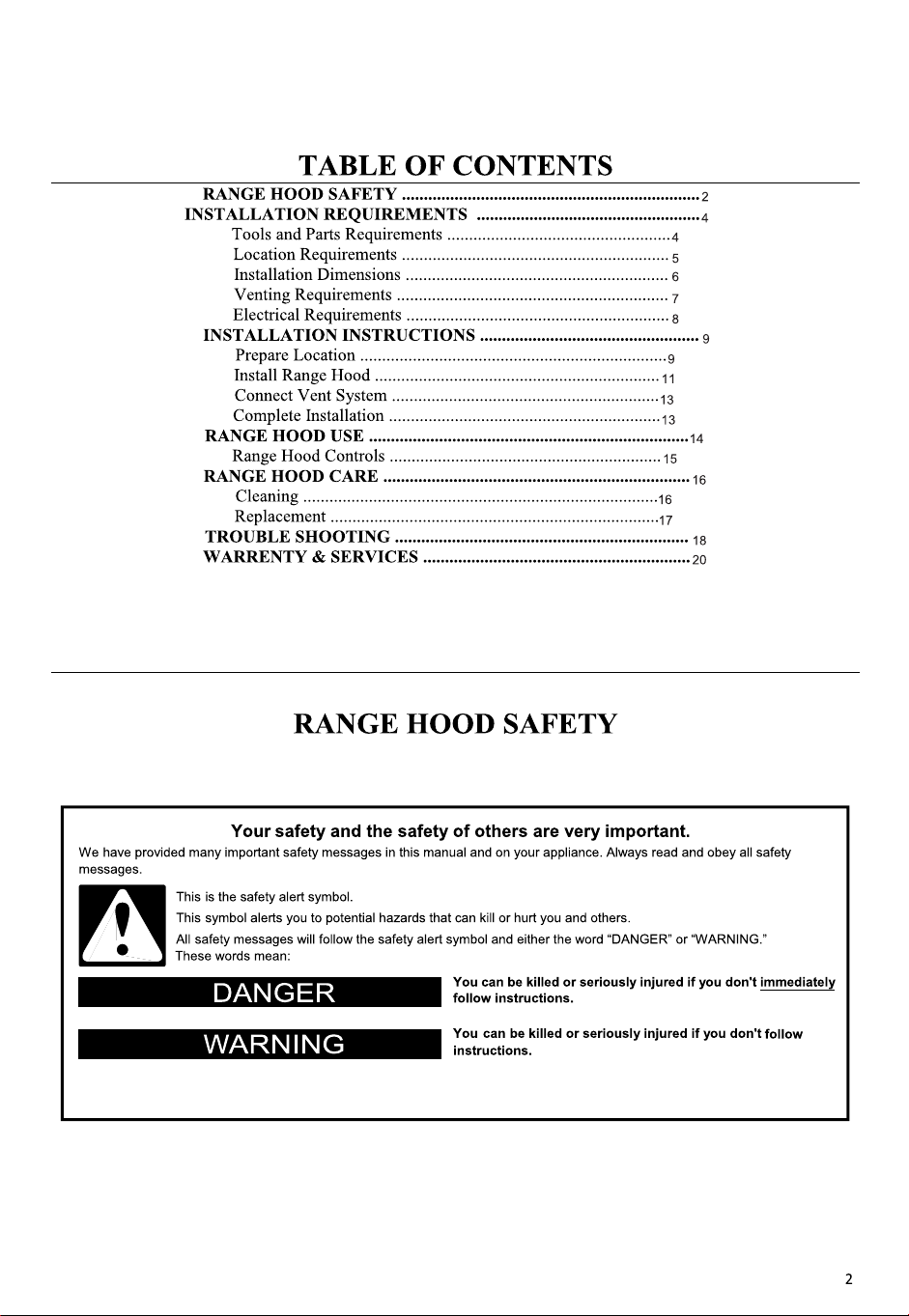

143 mm
210 mm
28",
30
4
4
14

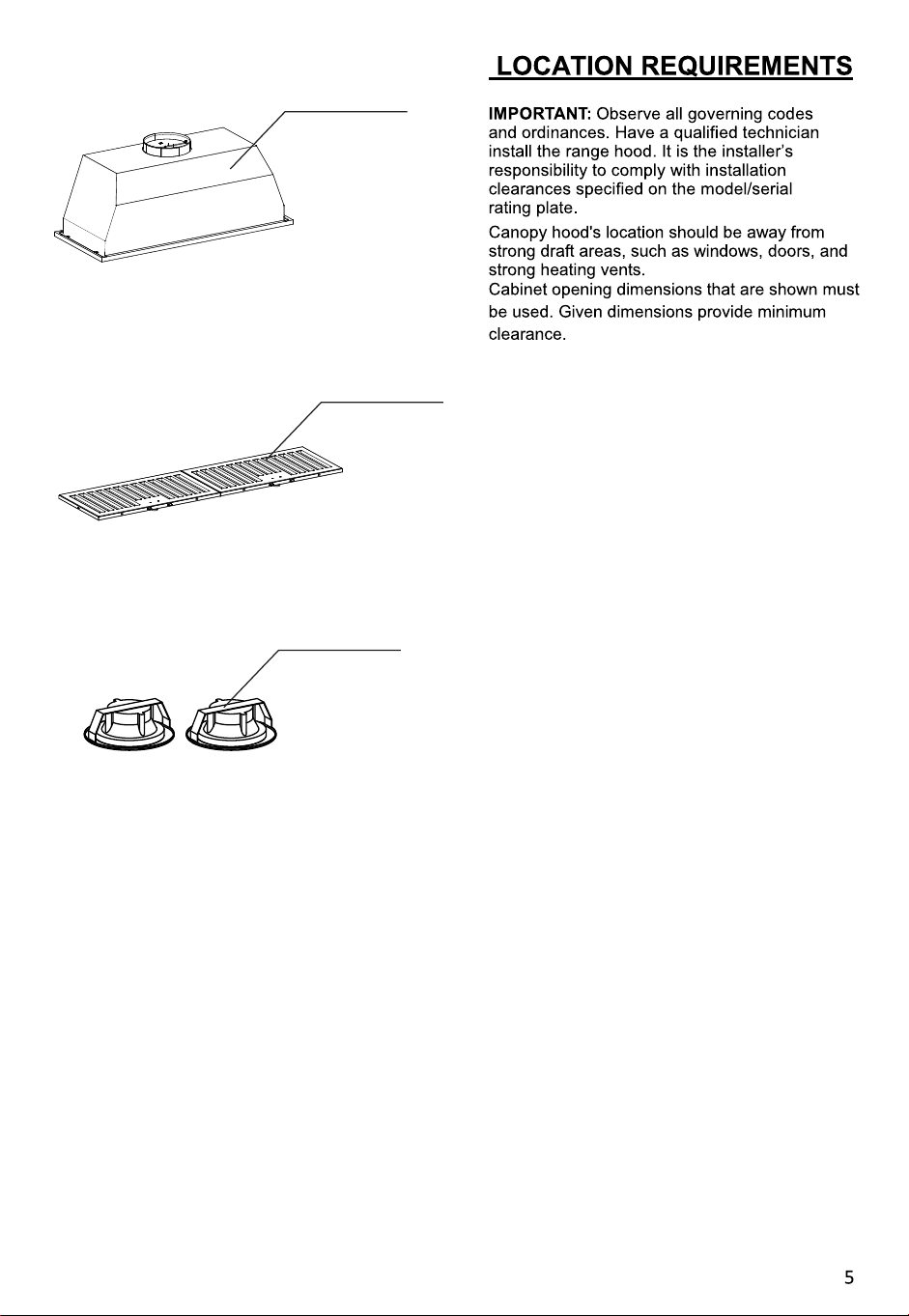

Aluminum Filter
Range hood body
LED lamp

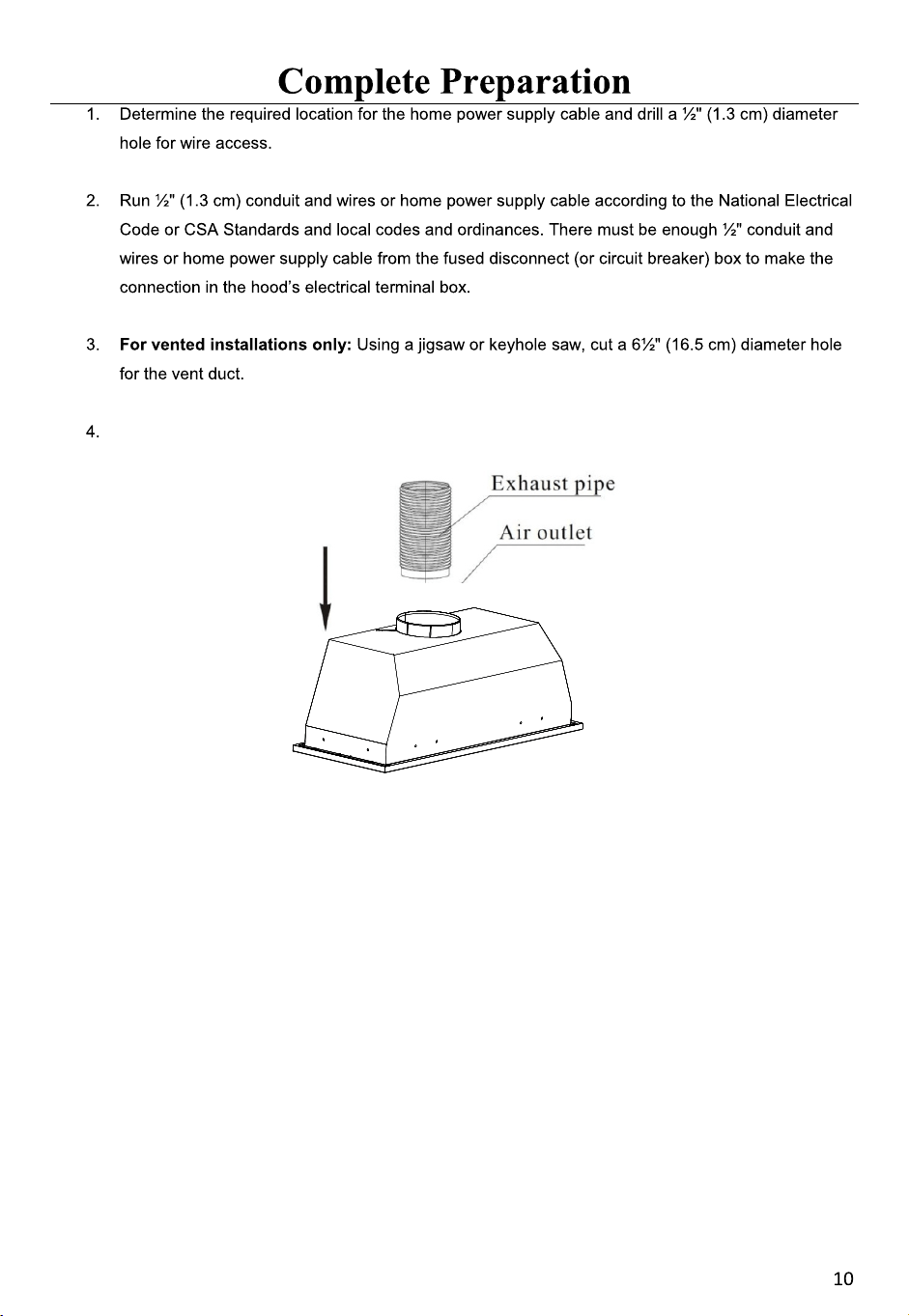

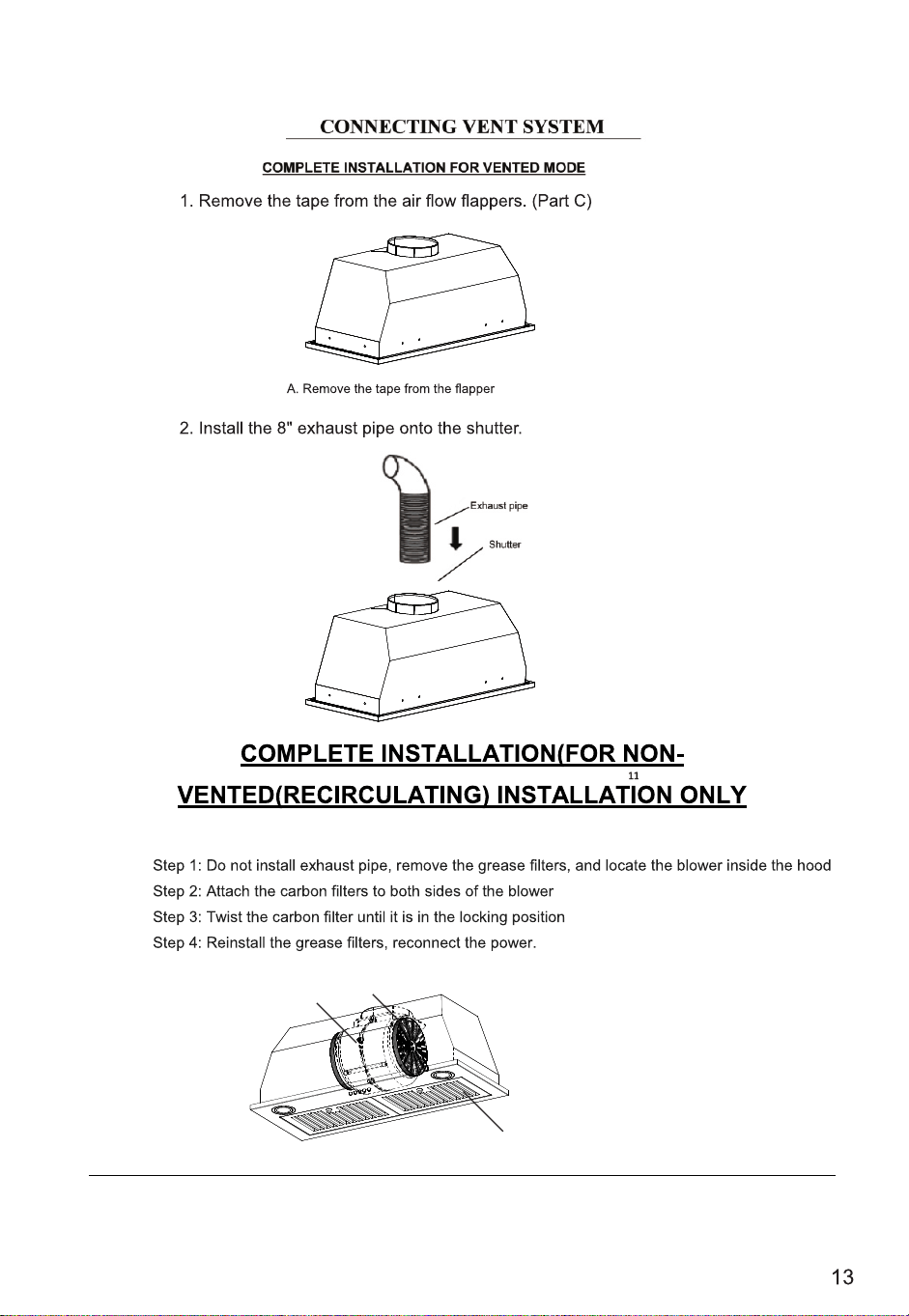

Install the exhaust pipe (Buy individually)
10.83"
26.75"/34.45"
(For 30"/36")

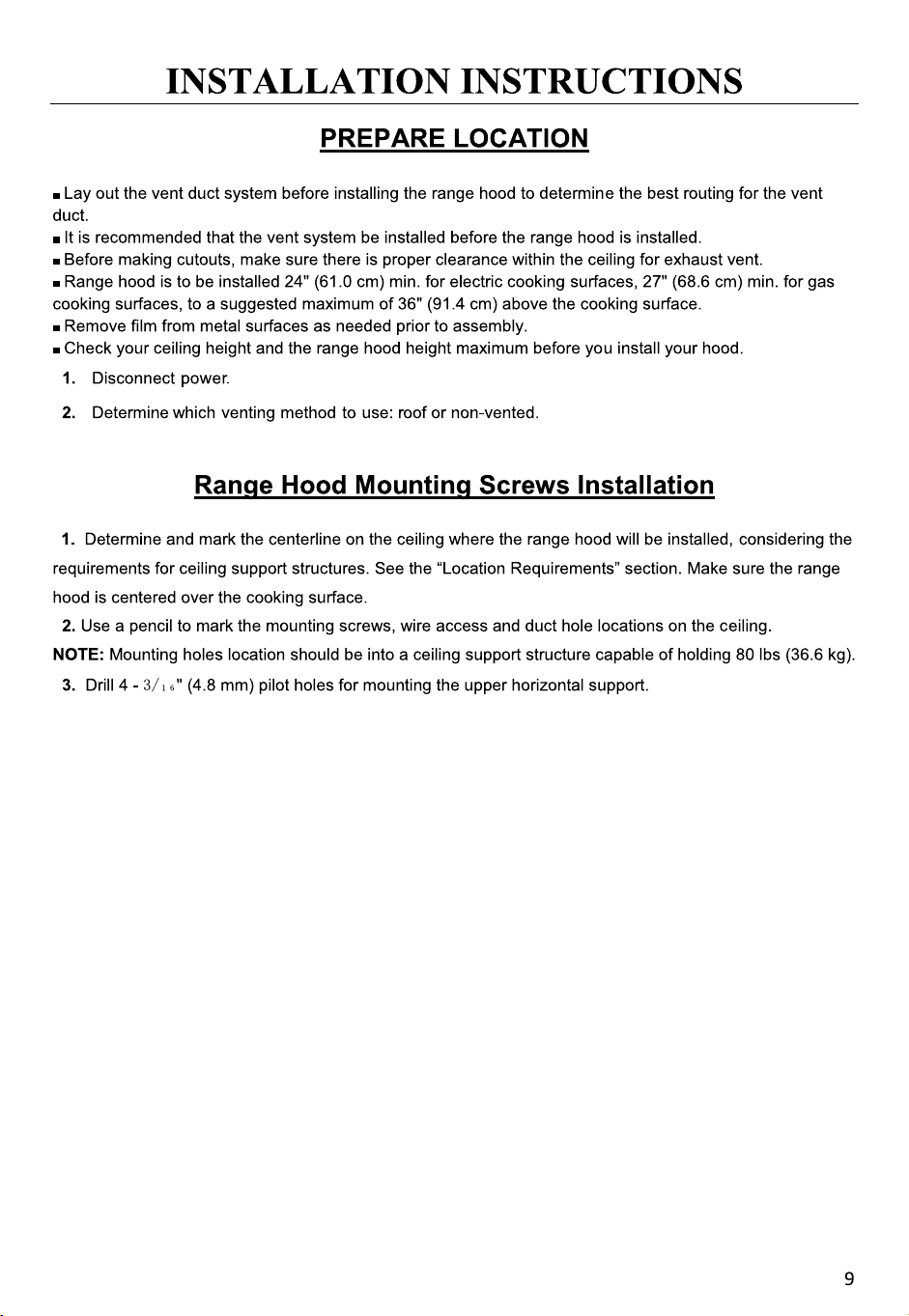

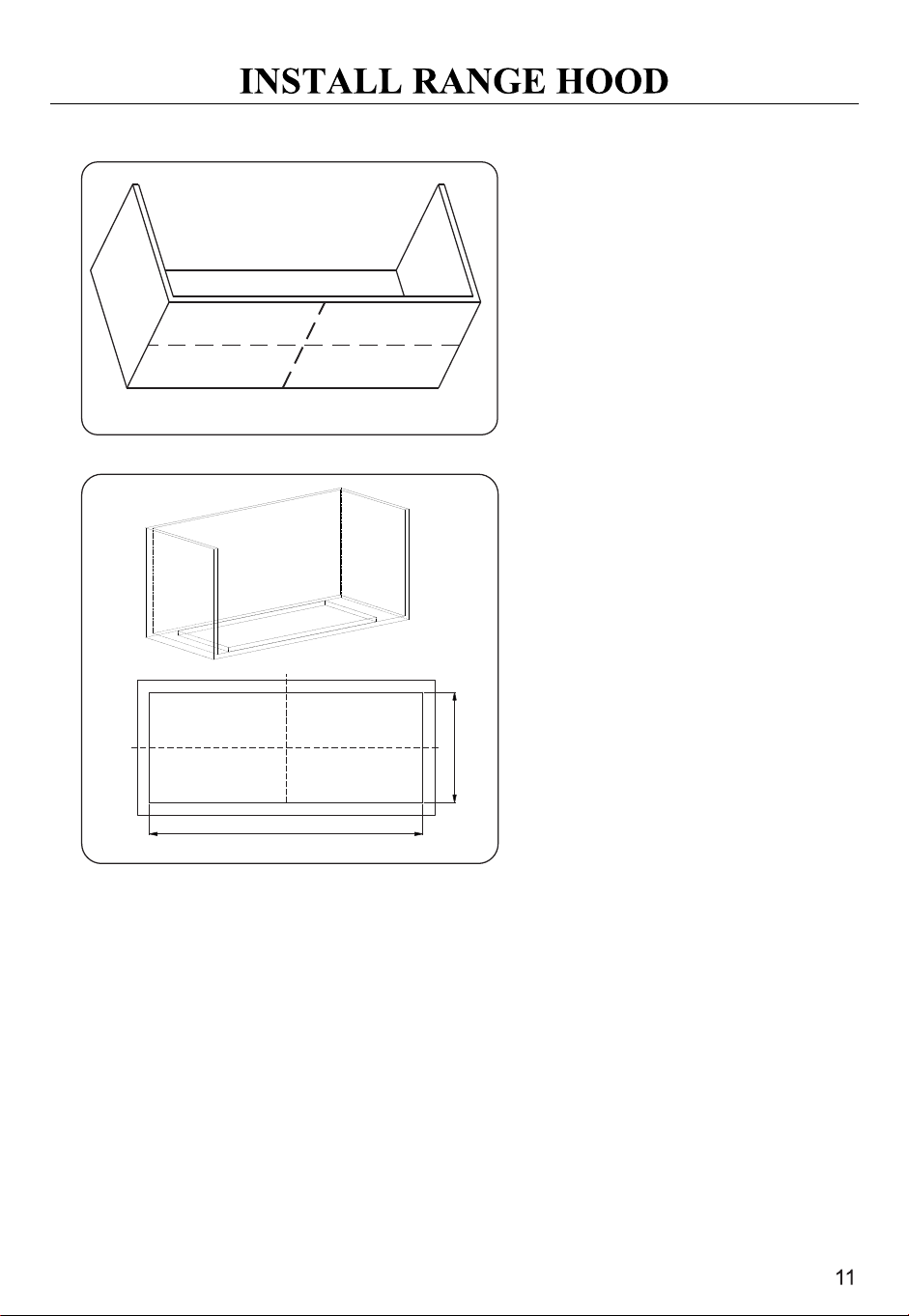

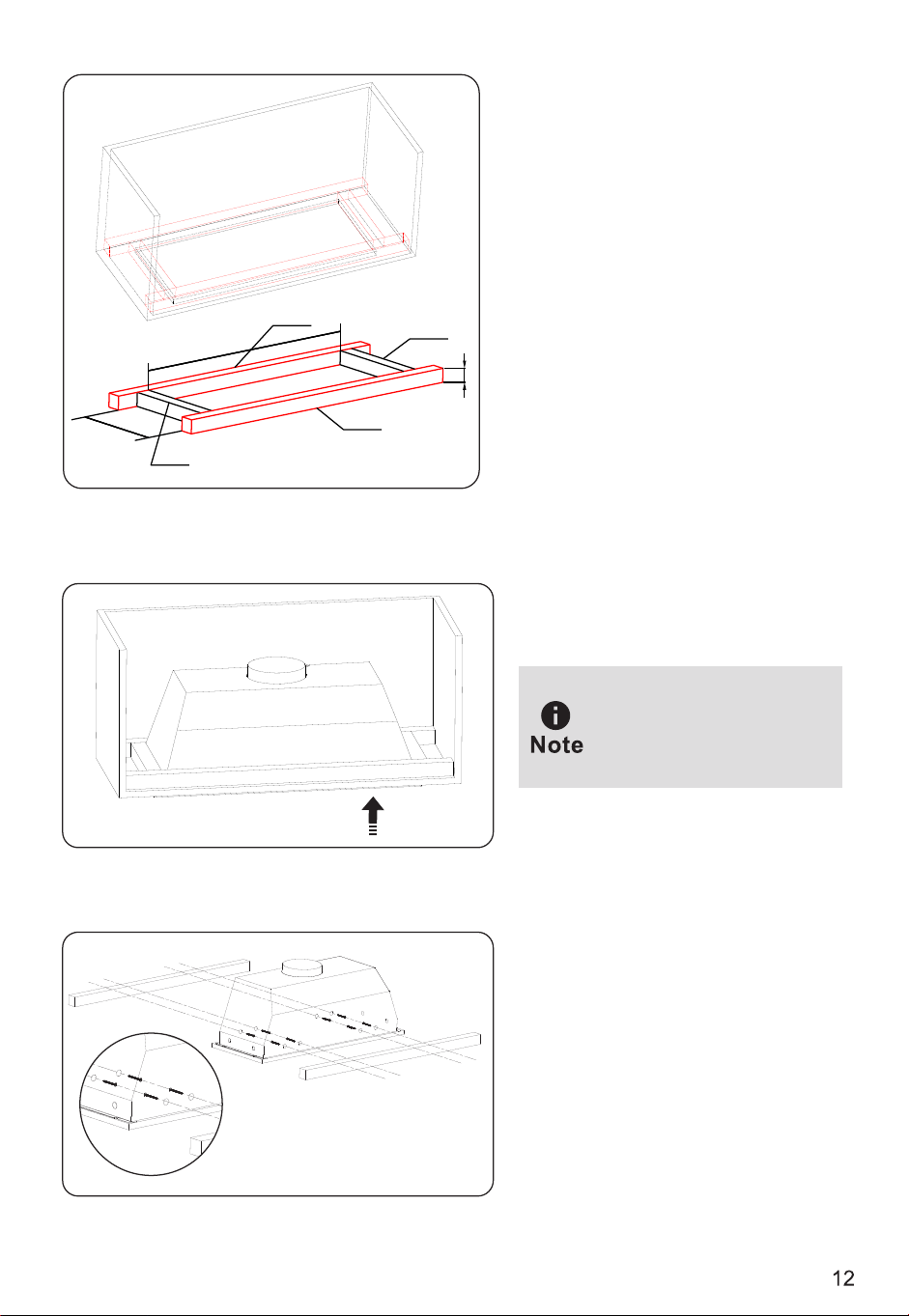

Determine and mark the horizontal
line and perpendicular line on the
base of the cabinet.
Cut out the opening where the
insert will be installed.
Determine and make all necessary
cuts in the wall or ceiling for the
ductwork.

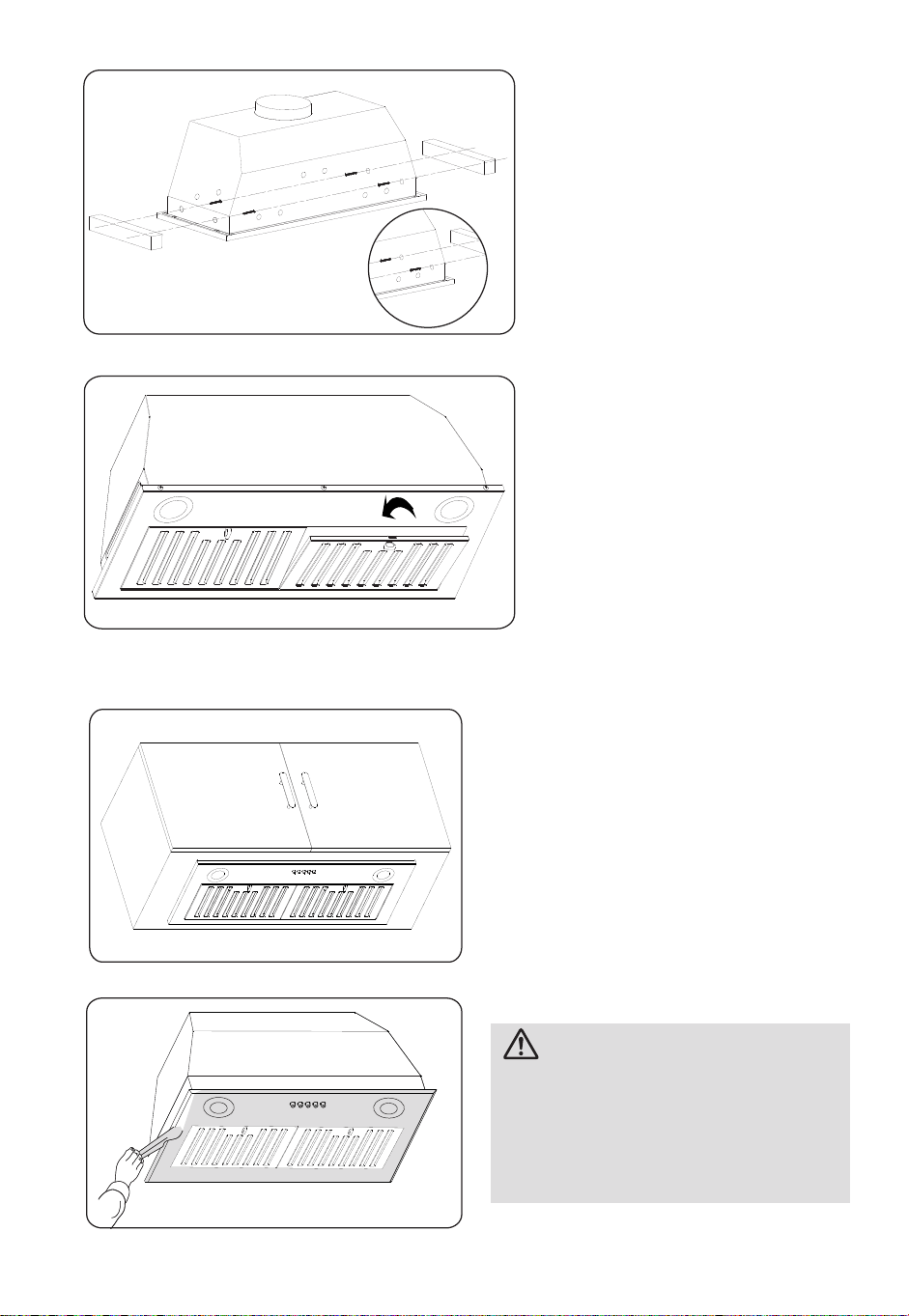

In front and rear side have 8 holes,
secure the range hood using the
4X30 screws (8 pcs) .

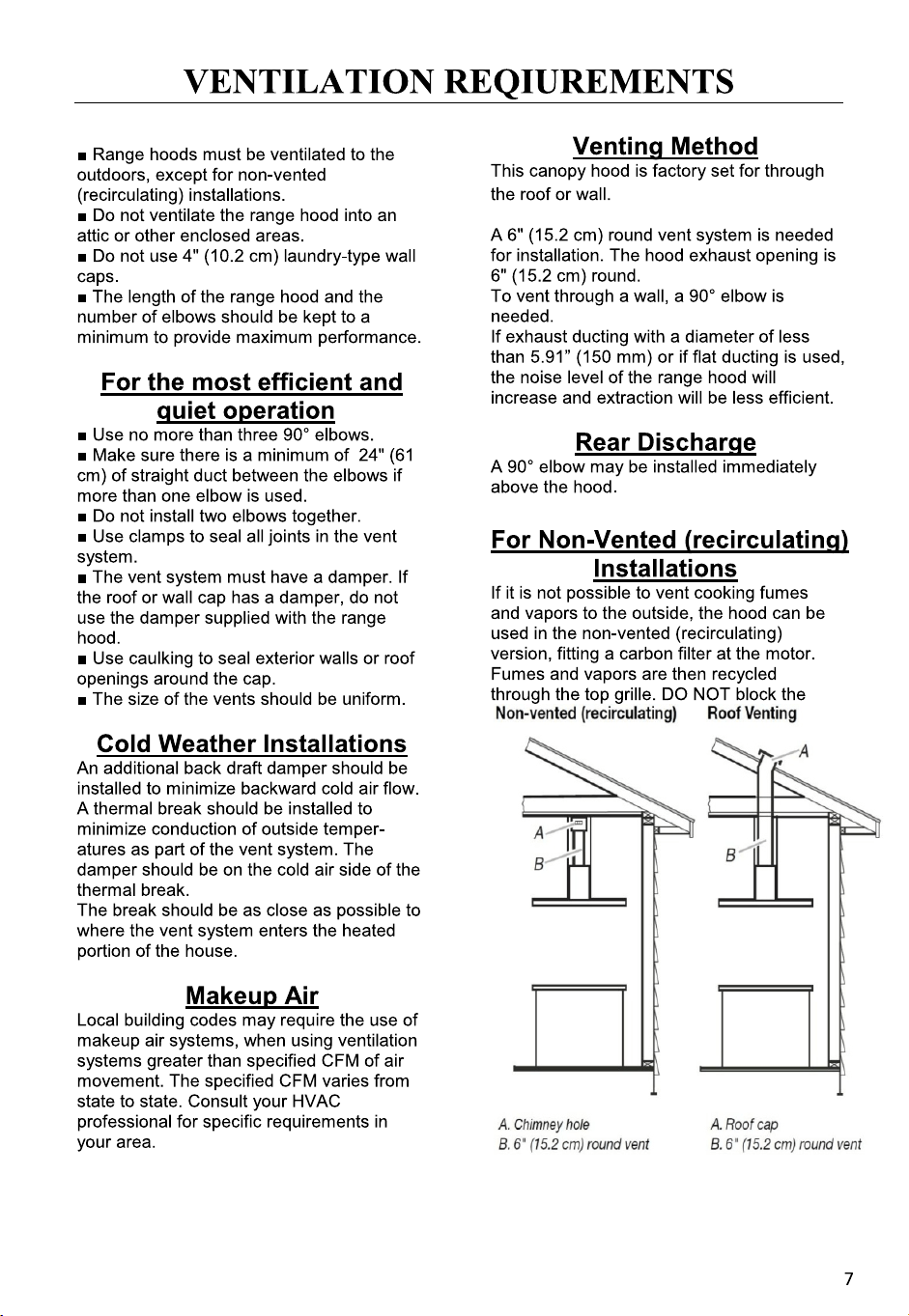

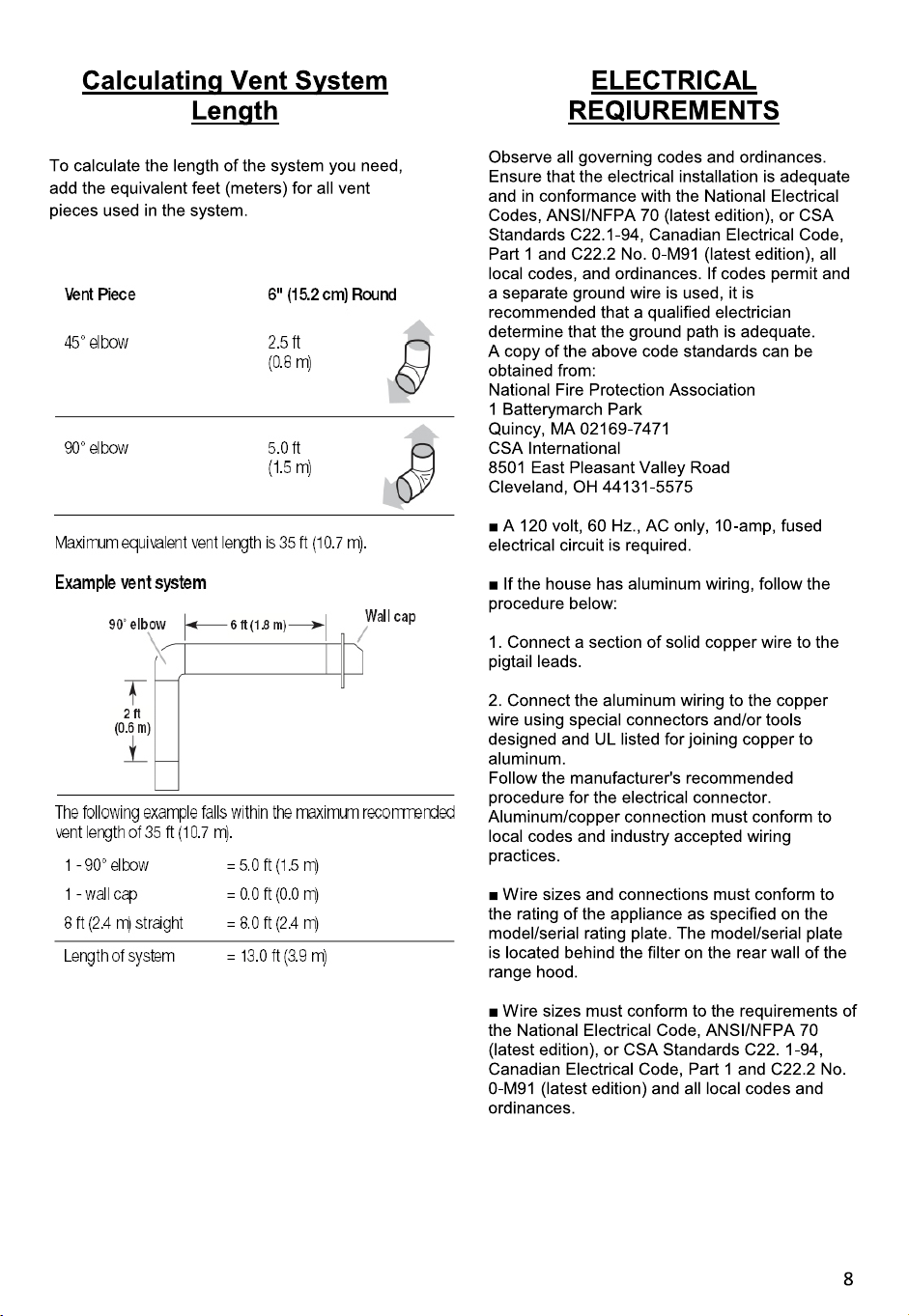

Install the duct work
before installing the
insert.
Rear support
Right support
Front support
Left support
10
.
24"
2
6
.
2
"
1.5"
The hood has to be installed inside
the cabinet. It should be installed a
front and rear stud support. It would
be better if there is space enough
for installed the left and right support.
Please remove the white/blue
protective film on the range
hood.

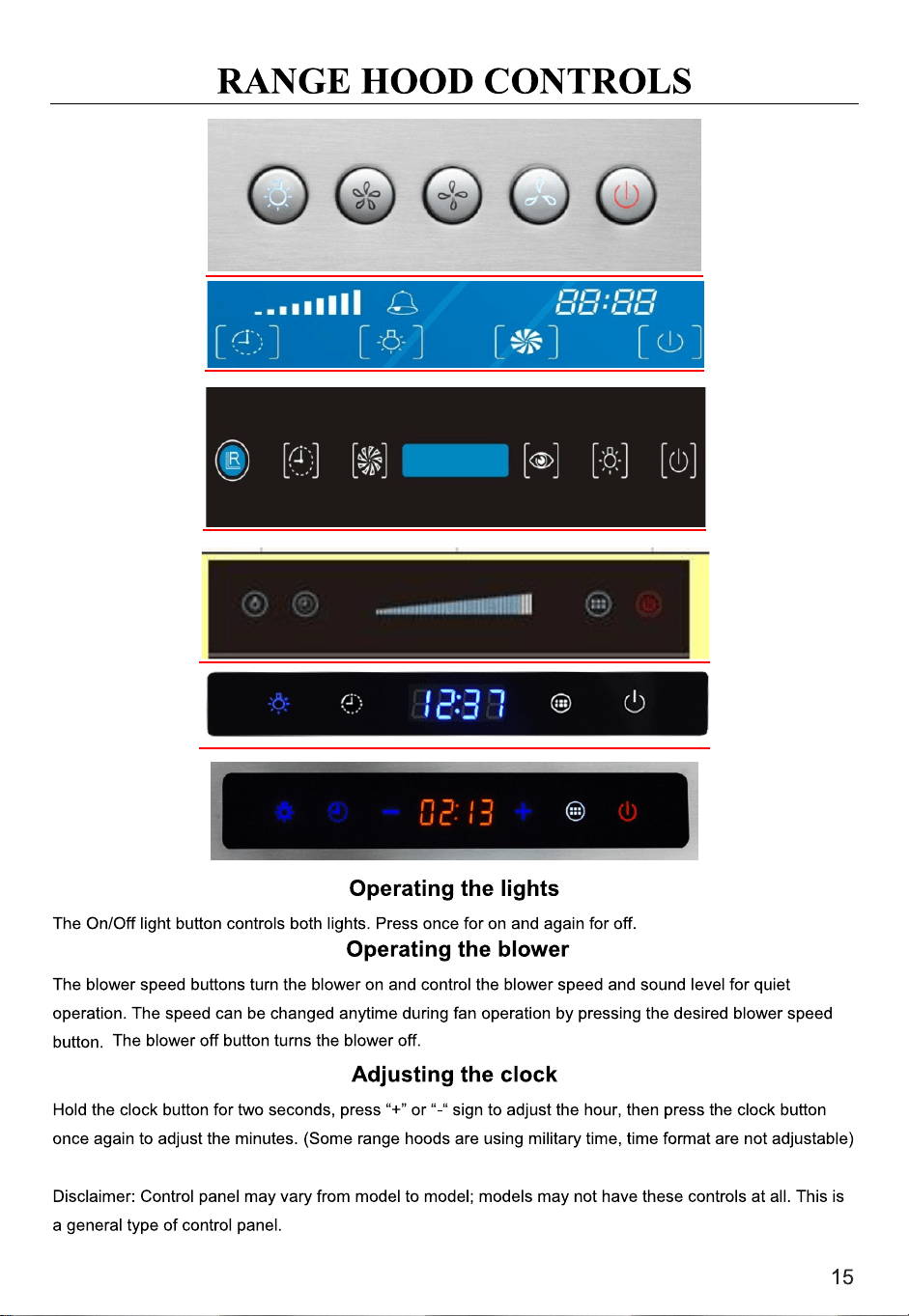

BEFORE USE
CAUTION:
In left and right side have 4 holes,
secure the range hood using the
4X30 screws (4 pcs) .
Installation finished.

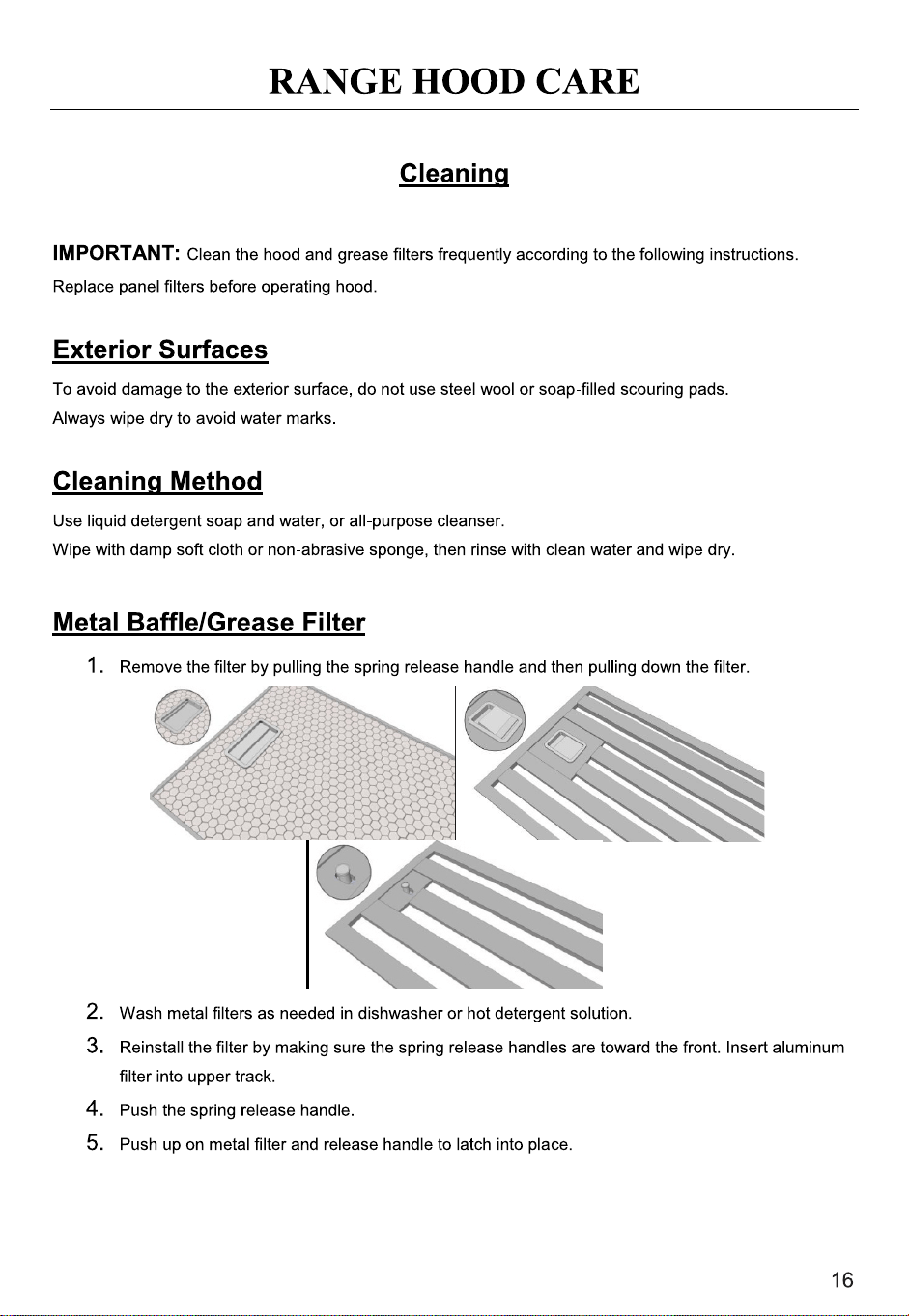

Open the filter :
Anticlockwise the lock with 90°

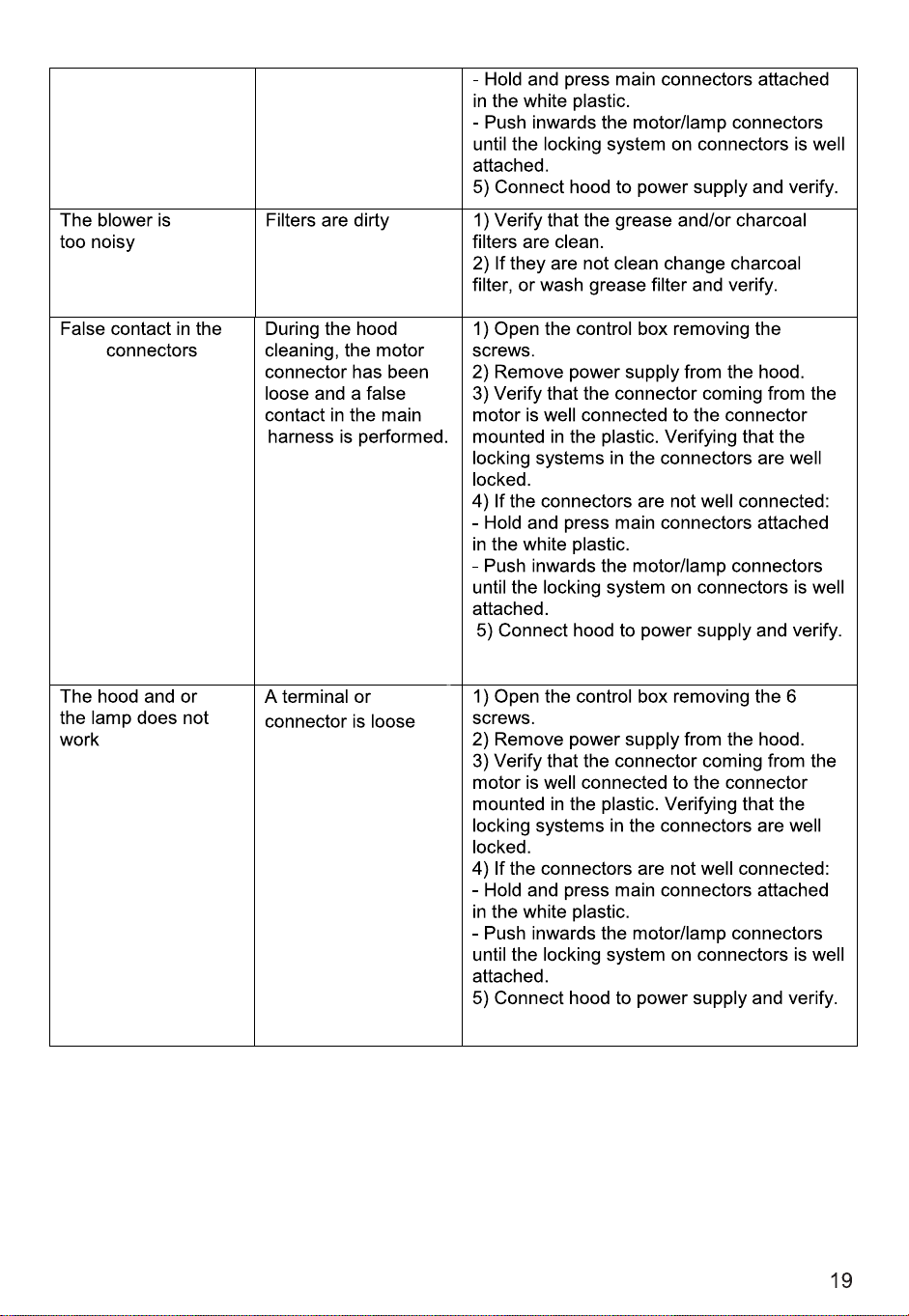

Motor
CarbonFilter
FitlerPanel

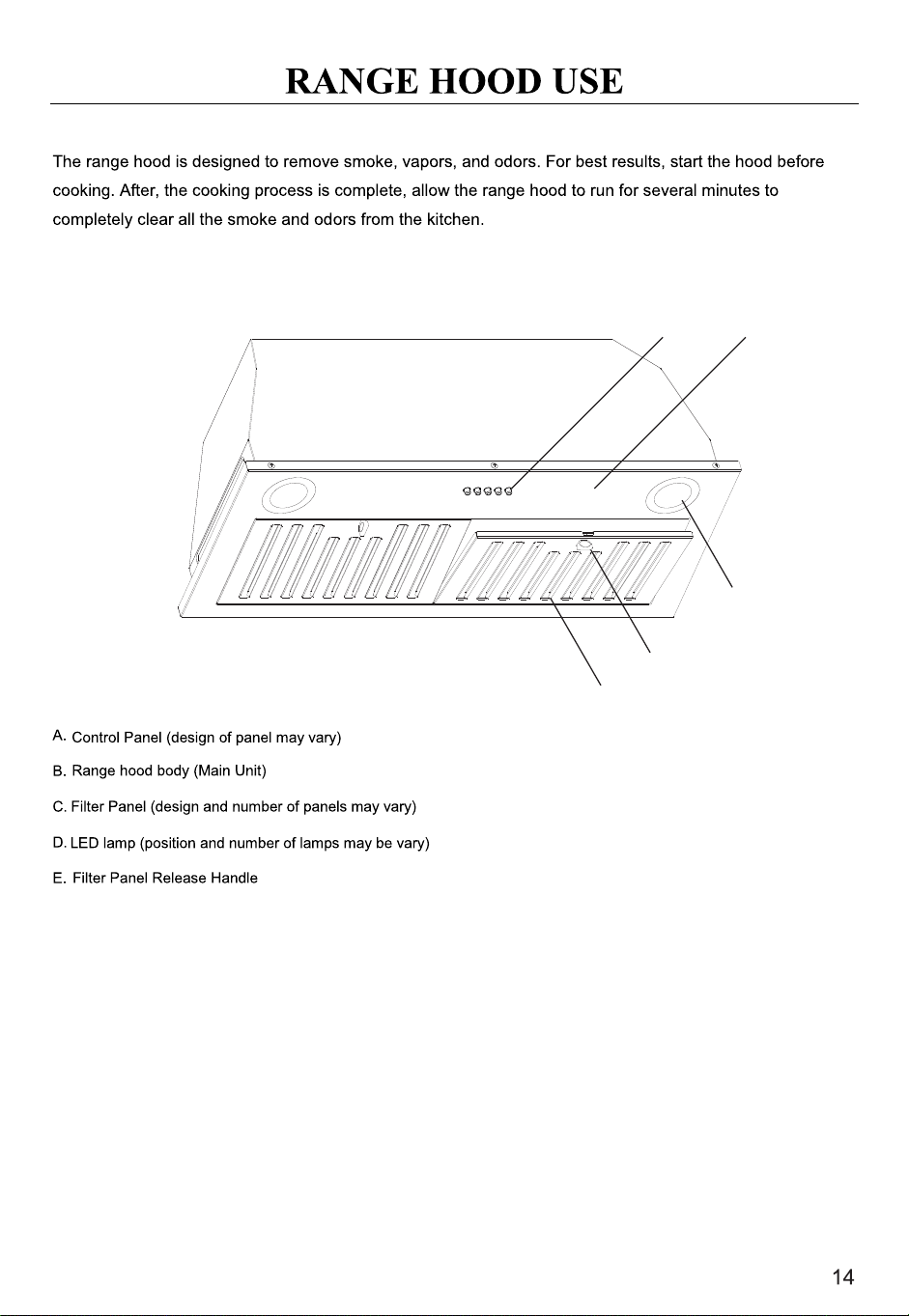

A
B
C
D
E
